# Diffusive Resettlement: Irreversible Urban Transitions in Closed Systems

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Dynamics of Intra-Urban Migration

## 3. Results

#### 3.1. Revealing the Two-Component Structure of Intra-Urban Evolution

#### 3.2. Intra-Urban Migration as Diffusion

#### 3.3. Predicting Equilibrium Population Distribution

## 4. Robustness Evaluation

#### 4.1. Heterogeneity of the Population

#### 4.2. Solution Space of the Two-Component Model

#### 4.3. Component-Specific Relocation Matrix

#### 4.4. Sydney Case Study

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Appendix A. Mathematical Derivations

#### Appendix A.1. Convergence to the Same Equilibrium in (11)

**Proposition**

**A1.**

**Proof.**

#### Appendix A.2. Derivation of Equation (8)

#### Appendix A.3. Migration Model with Memory

## Appendix B. Additional Figures

#### Appendix B.1. Independence of the Equilibrium State on the Relocation Frequency

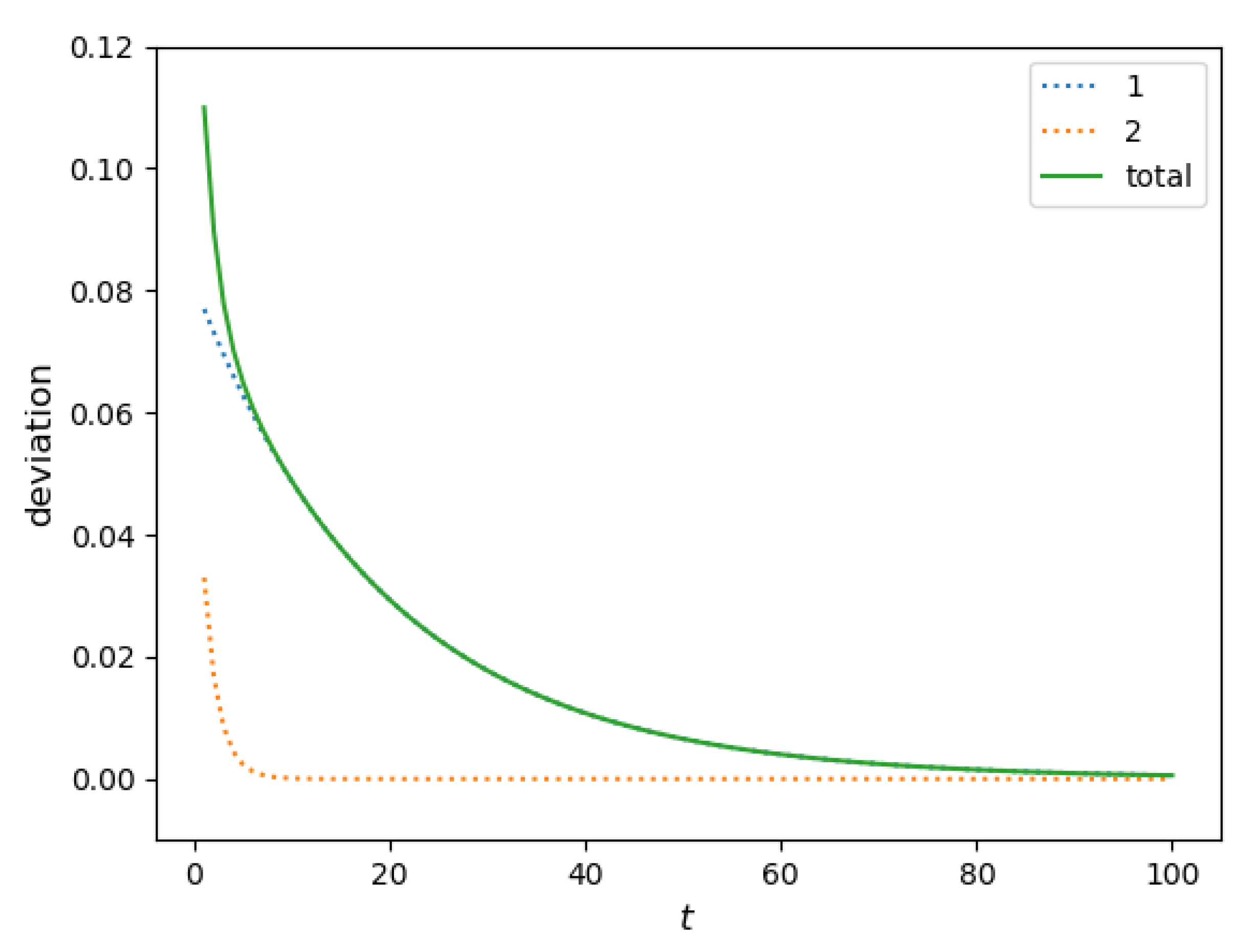

**Figure A1.**Convergence of ${X}_{k}\left(t\right)$ to the equilibrium ${\alpha}_{k}{X}_{eq}$ for ${\alpha}_{1}=0.7$, ${\alpha}_{2}=0.3$, ${\u03f5}_{1}=0.05$, and ${\u03f5}_{2}=0.5$; matrix H and initial conditions $X\left(0\right)$ are random, and the total population is 1. Equilibrium ${X}_{eq}$ is calculated as a left eigenvector of matrix H. Dotted lines 1 and 2 correspond to deviation $\parallel {X}_{k}\left(t\right)-{\alpha}_{k}{X}_{eq}\parallel $ as a function of time step t; the solid line corresponds to the deviation of the total structure $\parallel {\sum}_{k=1}^{C}{X}_{k}\left(t\right)-{X}_{eq}\parallel $.

#### Appendix B.2. Predicting the Number of Movers with the 2011 Data Set

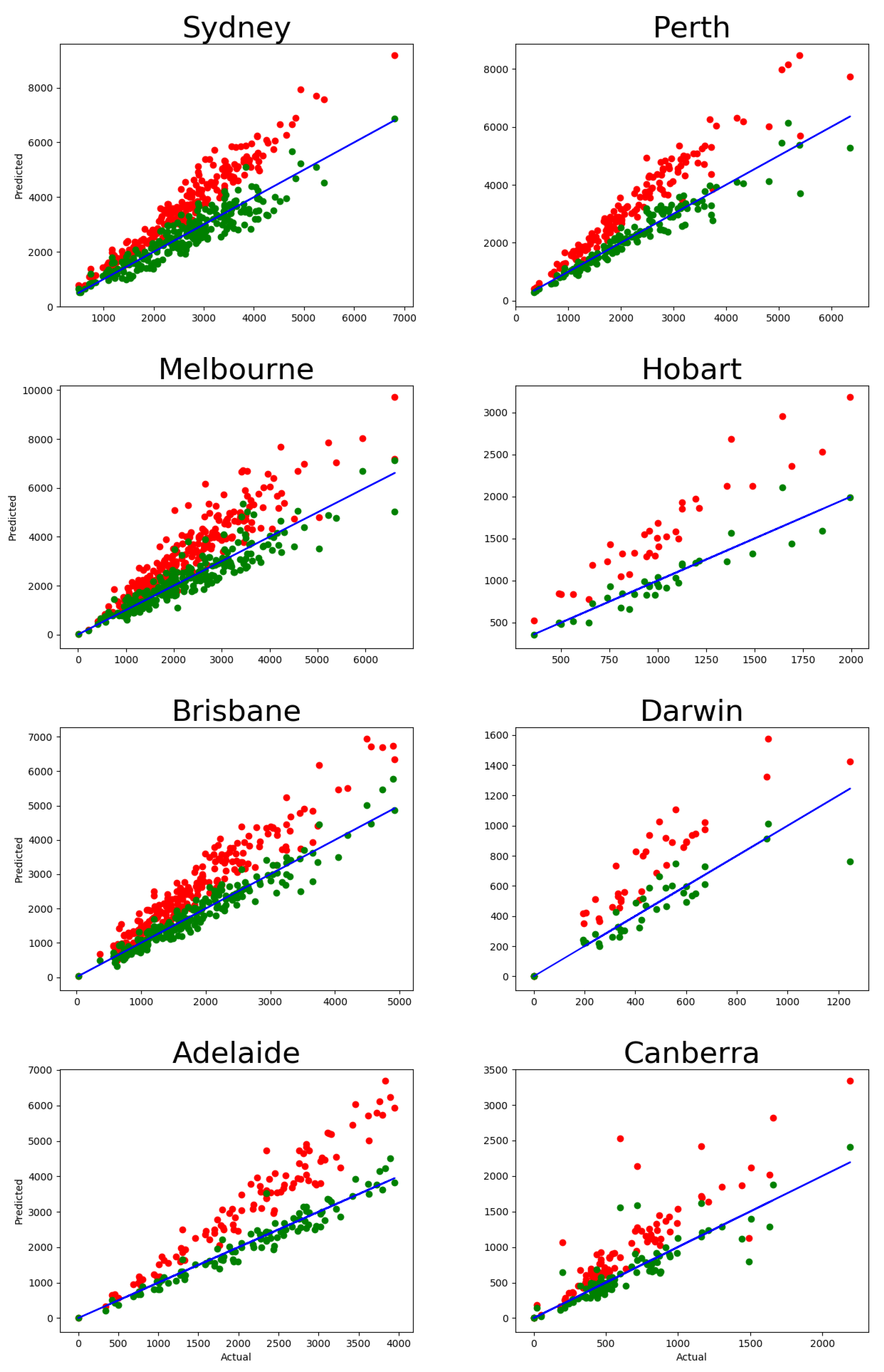

**Figure A2.**Number of movers in the five-year migration data: actual (${\sum}_{i\ne j}{T}_{ij}^{\left(5\right)}\left(2011\right)$) vs. predicted by ${P}^{5}$ (${\sum}_{i\ne j}{\hat{T}}_{ij}^{\left(5\right)}\left(2011\right)$), with each dot representing one suburb. Red dots correspond to the one-component model, and the green dots correspond to the two-component model. The blue solid line has the slope of 1, showing the ideal prediction. The corresponding calibration errors are shown in Table A1.

#### Appendix B.3. Actual Population Density Map of the Australian Capital Cities

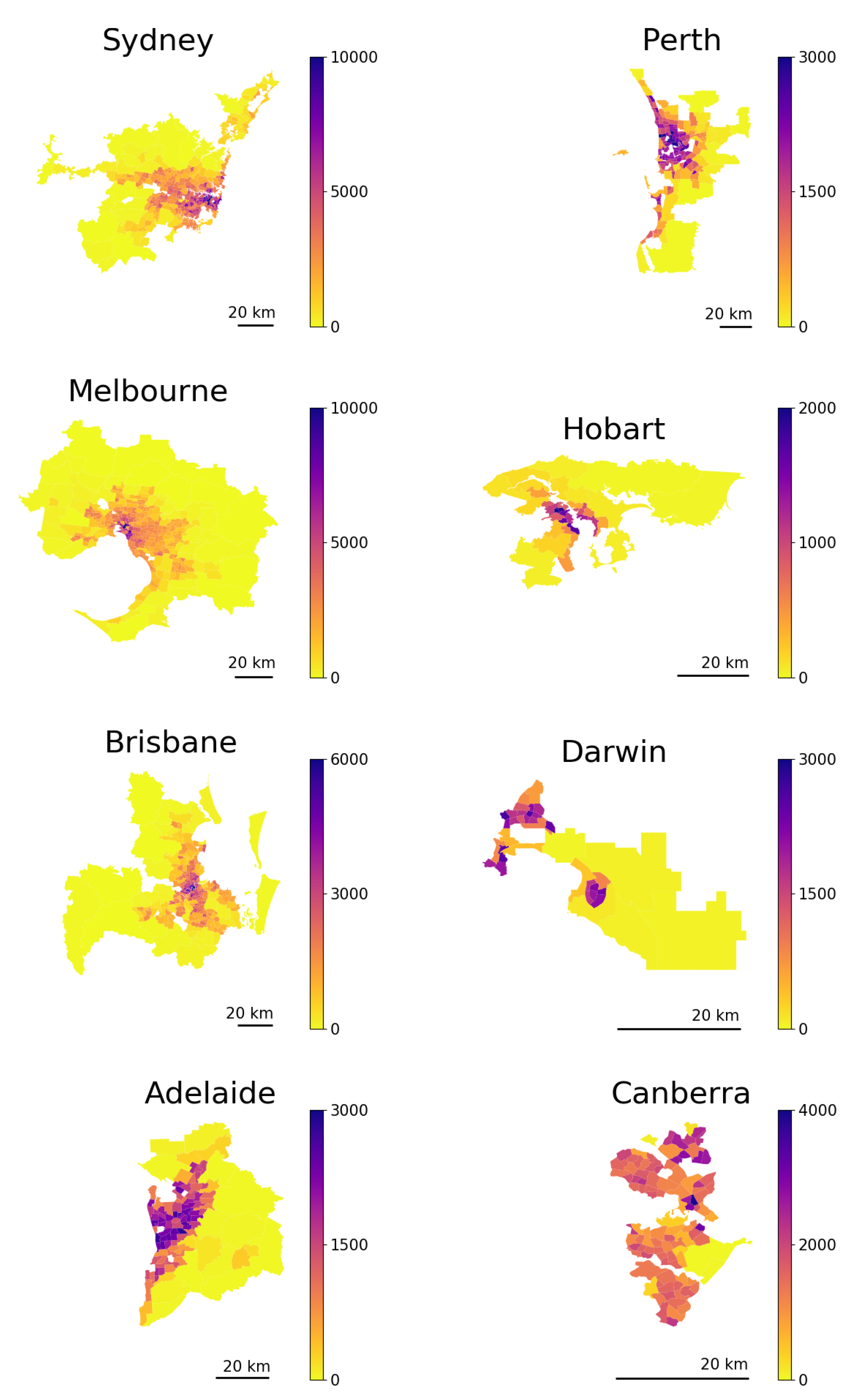

**Figure A3.**Actual population density map of the Australian capital cities (2016 Census). Scale bars in the lower-left corners indicate distances equivalent to 20 km.

#### Appendix B.4. Long-Term Prediction Comparison: 2011 vs. 2016

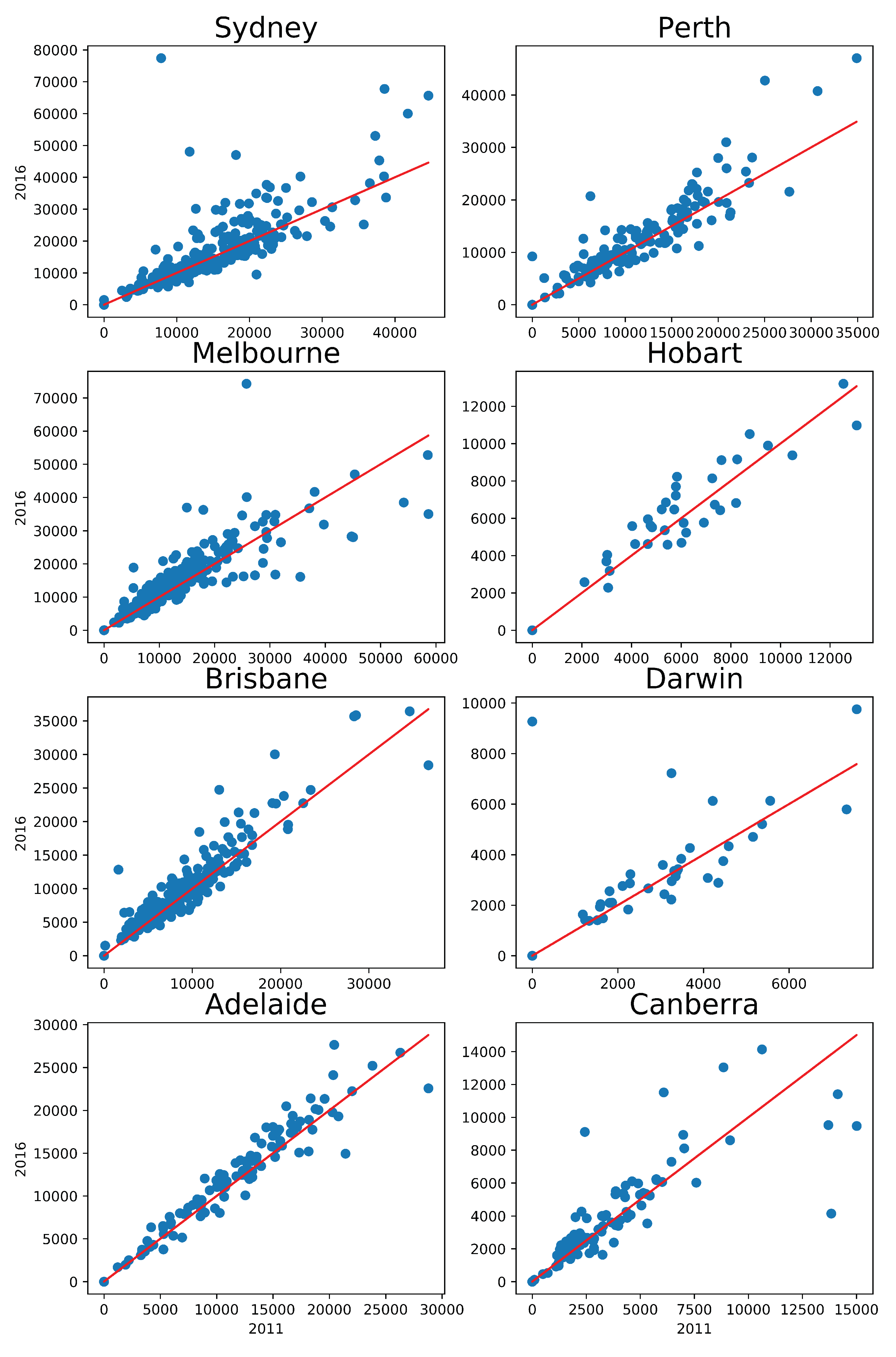

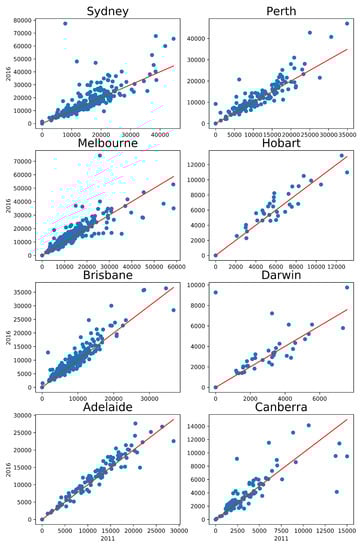

**Figure A4.**The equilibrium population of city suburbs predicted with the 2016 data set is plotted against the 2011 prediction. The red solid line has a slope of 1, showing the ideal consistency.

## Appendix C. Additional Tables

#### Appendix C.1. Relative Error of Relocation Prediction

GCA | 2011 | 2016 | ||
---|---|---|---|---|

1-Component | 2-Component | 1-Component | 2-Component | |

Sydney | 40% | 12% | 37% | 13% |

Melbourne | 45% | 14% | 42% | 11% |

Brisbane | 42% | 10% | 43% | 10% |

Adelaide | 50% | 9% | 46% | 7% |

Perth | 46% | 9% | 43% | 10% |

Hobart | 54% | 10% | 48% | 9% |

Darwin | 59% | 15% | 64% | 16% |

Canberra | 51% | 18% | 40% | 18% |

#### Appendix C.2. Five-Year Predictions of the Single-Component Model

**Table A2.**Share of people who do not change their place of residence within a five-year period (actual vs. predicted) based on the 2011–2016 migration data.

GCA | Actual | Approach 1 | Approach 2 | Approach 3 |
---|---|---|---|---|

Sydney | 0.733 | 0.630 | 0.624 | 0.630 |

Melbourne | 0.734 | 0.618 | 0.610 | 0.613 |

Brisbane | 0.702 | 0.569 | 0.560 | 0.545 |

Adelaide | 0.752 | 0.635 | 0.632 | 0.642 |

Perth | 0.709 | 0.584 | 0.579 | 0.588 |

Hobart | 0.783 | 0.678 | 0.674 | 0.669 |

Darwin | 0.713 | 0.527 | 0.518 | 0.511 |

Canberra | 0.720 | 0.615 | 0.605 | 0.585 |

## References

- Giuliano, G.; Small, K.A. Subcenters in the Los Angeles region. Reg. Sci. Urban Econ.
**1991**, 21, 163–182. [Google Scholar] [CrossRef][Green Version] - McMillen, D.P. Nonparametric employment subcenter identification. J. Urban Econ.
**2001**, 50, 448–473. [Google Scholar] [CrossRef] - Tsai, Y.H. Quantifying urban form: Compactness versus ‘sprawl’. Urban Stud.
**2005**, 42, 141–161. [Google Scholar] [CrossRef] - Green, N. Functional polycentricity: A formal definition in terms of social network analysis. Urban Stud.
**2007**, 44, 2077–2103. [Google Scholar] [CrossRef] - Meijers, E. Measuring polycentricity and its promises. Eur. Plan. Stud.
**2008**, 16, 1313–1323. [Google Scholar] [CrossRef] - Newman, P.W.; Kenworthy, J.R. Gasoline consumption and cities: A comparison of US cities with a global survey. J. Am. Plan. Assoc.
**1989**, 55, 24–37. [Google Scholar] [CrossRef] - Ewing, R.; Hamidi, S. Compactness versus sprawl: A review of recent evidence from the United States. J. Plan. Lit.
**2015**, 30, 413–432. [Google Scholar] [CrossRef] - Li, Y.; Liu, X. How did urban polycentricity and dispersion affect economic productivity? A case study of 306 Chinese cities. Landsc. Urban Plan.
**2018**, 173, 51–59. [Google Scholar] [CrossRef] - Kwon, K.; Seo, M. Does the Polycentric Urban Region Contribute to Economic Performance? The Case of Korea. Sustainability
**2018**, 10, 4157. [Google Scholar] [CrossRef][Green Version] - Li, F.; Zhou, T. Effects of urban form on air quality in China: An analysis based on the spatial autoregressive model. Cities
**2019**, 89, 130–140. [Google Scholar] [CrossRef] - Batty, M. Rank clocks. Nature
**2006**, 444, 592. [Google Scholar] [CrossRef] [PubMed] - Batty, M. The New Science of Cities; MIT Press: Cambridge, MA, USA, 2013. [Google Scholar]
- Schneider, C.M.; Belik, V.; Couronné, T.; Smoreda, Z.; González, M.C. Unravelling daily human mobility motifs. J. R. Soc. Interface
**2013**, 10, 20130246. [Google Scholar] [CrossRef] [PubMed][Green Version] - Arcaute, E.; Hatna, E.; Ferguson, P.; Youn, H.; Johansson, A.; Batty, M. Constructing cities, deconstructing scaling laws. J. R. Soc. Interface
**2015**, 12, 20140745. [Google Scholar] [CrossRef] [PubMed] - Barthelemy, M. The Structure and Dynamics of Cities; Cambridge University Press: Cambridge, UK, 2016. [Google Scholar]
- Arcaute, E.; Molinero, C.; Hatna, E.; Murcio, R.; Vargas-Ruiz, C.; Masucci, A.P.; Batty, M. Cities and regions in Britain through hierarchical percolation. R. Soc. Open Sci.
**2016**, 3, 150691. [Google Scholar] [CrossRef] [PubMed][Green Version] - Barthelemy, M. The statistical physics of cities. Nat. Rev. Phys.
**2019**, 1, 406–415. [Google Scholar] [CrossRef] - Sahasranaman, A.; Bettencourt, L.M. Urban geography and scaling of contemporary Indian cities. J. R. Soc. Interface
**2019**, 16, 20180758. [Google Scholar] [CrossRef][Green Version] - Crosato, E.; Nigmatullin, R.; Prokopenko, M. On critical dynamics and thermodynamic efficiency of urban transformations. R. Soc. Open Sci.
**2018**, 5, 180863. [Google Scholar] [CrossRef][Green Version] - Slavko, B.; Glavatskiy, K.; Prokopenko, M. Dynamic resettlement as a mechanism of phase transitions in urban configurations. Phys. Rev. E
**2019**, 99, 042143. [Google Scholar] [CrossRef] - Fujita, M.; Ogawa, H. Multiple equilibria and structural transition of non-monocentric urban configurations. Reg. Sci. Urban Econ.
**1982**, 12, 161–196. [Google Scholar] [CrossRef] - Harris, B.; Wilson, A.G. Equilibrium values and dynamics of attractiveness terms in production-constrained spatial-interaction models. Environ. Plan. A
**1978**, 10, 371–388. [Google Scholar] [CrossRef] - Louf, R.; Barthelemy, M. Modeling the polycentric transition of cities. Phys. Rev. Lett.
**2013**, 111, 198702. [Google Scholar] [CrossRef] - Ellam, L.; Girolami, M.; Pavliotis, G.A.; Wilson, A. Stochastic modelling of urban structure. Proc. R. Soc. A Math. Phys. Eng. Sci.
**2018**, 474, 20170700. [Google Scholar] [CrossRef] [PubMed][Green Version] - Wu, H.; Levinson, D.; Sarkar, S. How transit scaling shapes cities. Nat. Sustain.
**2019**, 2, 1142–1148. [Google Scholar] [CrossRef] - Slavko, B.; Glavatskiy, K.; Prokopenko, M. City structure shapes directional resettlement flows in Australia. Sci. Rep.
**2020**, 10, 8235. [Google Scholar] [CrossRef] [PubMed] - Crosato, E.; Prokopenko, M.; Harré, M.S. The Polycentric Dynamics of Melbourne and Sydney: Suburb attractiveness divides a city at the home ownership level. arXiv
**2020**, arXiv:2008.03884. [Google Scholar] - Woube, M. Effects of Resettlement Schemes on the Biophysical and Human Environments; Universal-Publishers: Irvine, CA, USA, 2005. [Google Scholar]
- Vahia, M.N.; Yadav, N.; Ladiwala, U.; Mathur, D. A diffusion based study of population dynamics: Prehistoric migrations into South Asia. PLoS ONE
**2017**, 12, e0176985. [Google Scholar] [CrossRef] [PubMed] - Barbosa, H.; Barthelemy, M.; Ghoshal, G.; James, C.R.; Lenormand, M.; Louail, T.; Menezes, R.; Ramasco, J.J.; Simini, F.; Tomasini, M. Human mobility: Models and applications. Phys. Rep.
**2018**, 734, 1–74. [Google Scholar] [CrossRef][Green Version] - Balcan, D.; Colizza, V.; Gonçalves, B.; Hu, H.; Ramasco, J.J.; Vespignani, A. Multiscale mobility networks and the spatial spreading of infectious diseases. Proc. Natl. Acad. Sci. USA
**2009**, 106, 21484–21489. [Google Scholar] [CrossRef][Green Version] - Bouchaud, J.P. Crises and collective socio-economic phenomena: Simple models and challenges. J. Stat. Phys.
**2013**, 151, 567–606. [Google Scholar] [CrossRef][Green Version] - Lenormand, M.; Gonçalves, B.; Tugores, A.; Ramasco, J.J. Human diffusion and city influence. J. R. Soc. Interface
**2015**, 12, 20150473. [Google Scholar] [CrossRef][Green Version] - Gonzalez, M.C.; Hidalgo, C.A.; Barabasi, A.L. Understanding individual human mobility patterns. Nature
**2008**, 453, 779–782. [Google Scholar] [CrossRef] [PubMed] - Gustafson, K.B.; Bayati, B.S.; Eckhoff, P.A. Fractional Diffusion Emulates a Human Mobility Network during a Simulated Disease Outbreak. Front. Ecol. Evol.
**2017**, 5, 35. [Google Scholar] [CrossRef][Green Version] - Wen, T.H.; Hsu, C.S.; Hu, M.C. Evaluating neighborhood structures for modeling intercity diffusion of large-scale dengue epidemics. Int. J. Health Geogr.
**2018**, 17. [Google Scholar] [CrossRef] [PubMed] - Weidlich, W.; Munz, M. Settlement formation. Ann. Reg. Sci.
**1990**, 24, 83–106. [Google Scholar] [CrossRef] - Barthelemy, M.; Bordin, P.; Berestycki, H.; Gribaudi, M. Self-organization versus top-down planning in the evolution of a city. Sci. Rep.
**2013**, 3, 2153. [Google Scholar] [CrossRef] [PubMed][Green Version] - Wu, F. Intraurban residential relocation in Shanghai: Modes and stratification. Environ. Plan. A
**2004**, 36, 7–25. [Google Scholar] [CrossRef] - Kim, J.H.; Pagliara, F.; Preston, J. The intention to move and residential location choice behaviour. Urban Stud.
**2005**, 42, 1621–1636. [Google Scholar] [CrossRef] - Pérez, P.E.; Martínez, F.J.; Ortúzar, J.d.D. Microeconomic formulation and estimation of a residential location choice model: Implications for the value of time. J. Reg. Sci.
**2003**, 43, 771–789. [Google Scholar] [CrossRef] - Simini, F.; González, M.C.; Maritan, A.; Barabási, A.L. A universal model for mobility and migration patterns. Nature
**2012**, 484, 96. [Google Scholar] [CrossRef] - Weidlich, W.; Haag, G. Interregional Migration: Dynamic Theory and Comparative Analysis; Springer: Berlin/Heidelberg, Germany, 1988; Volume 4. [Google Scholar]
- Grinstead, C.M.; Snell, J.L. Introduction to Probability; American Mathematical Soc.: Headquarters: Providence, RI, USA, 2012. [Google Scholar]
- Blumen, I. The Industrial Mobility of Labor as a Probability Process; Number 6; Cornell University: Ithaca, NY, USA, 1955. [Google Scholar]
- Fuchs, C.; Greenhouse, J.B. The EM algorithm for maximum likelihood estimation in the mover-stayer model. Biometrics
**1988**, 44, 605–613. [Google Scholar] [CrossRef] - Cook, R.J.; Kalbfleisch, J.D.; Yi, G.Y. A generalized mover-stayer model for panel data. Biostatistics
**2002**, 3, 407–420. [Google Scholar] [CrossRef] [PubMed][Green Version] - Fougère, D.; Kamionka, T. Bayesian inference for the mover-stayer model in continuous time with an application to labour market transition data. J. Appl. Econom.
**2003**, 18, 697–723. [Google Scholar] [CrossRef][Green Version] - Frydman, H.; Kadam, A. Estimation in the continuous time mover-stayer model with an application to bond ratings migration. Appl. Stoch. Model. Bus. Ind.
**2004**, 20, 155–170. [Google Scholar] [CrossRef][Green Version] - Australian Bureau of Statistics. TableBuilder. 2020. Available online: http://www.abs.gov.au/websitedbs/D3310114.nsf/Home/2016%20TableBuilder/ (accessed on 8 July 2019).
- Goodman, L.A. Statistical methods for the mover-stayer model. J. Am. Stat. Assoc.
**1961**, 56, 841–868. [Google Scholar] [CrossRef] - Frydman, H.; Matuszyk, A. Estimation and status prediction in a discrete mover-stayer model with covariate effects on stayer’s probability. Appl. Stoch. Model. Bus. Ind.
**2018**, 34, 196–205. [Google Scholar] [CrossRef] - Groot, S.R.D.; Mazur, P. Non-Equilibrium Thermodynamics; Dover: Kent, UK, 2011. [Google Scholar]
- Louail, T.; Lenormand, M.; Ros, O.G.C.; Picornell, M.; Herranz, R.; Frias-Martinez, E.; Ramasco, J.J.; Barthelemy, M. From mobile phone data to the spatial structure of cities. Sci. Rep.
**2014**, 4, 5276. [Google Scholar] [CrossRef][Green Version] - Volpati, V.; Barthelemy, M. The spatial organization of the population density in cities. arXiv
**2018**, arXiv:1804.00855. [Google Scholar] - Wilson, A. Boltzmann, Lotka and Volterra and spatial structural evolution: An integrated methodology for some dynamical systems. J. R. Soc. Interface
**2008**, 5, 865–871. [Google Scholar] [CrossRef] - Osawa, M.; Akamatsu, T.; Takayama, Y. Harris and Wilson (1978) Model Revisited: The Spatial Period-Doubling Cascade in an Urban Retail Model. J. Reg. Sci.
**2017**, 57, 442–466. [Google Scholar] [CrossRef] - Clarke, G.; Langley, R.; Cardwell, W. Empirical applications of dynamic spatial interaction models. Comput. Environ. Urban Syst.
**1998**, 22, 157–184. [Google Scholar] [CrossRef]

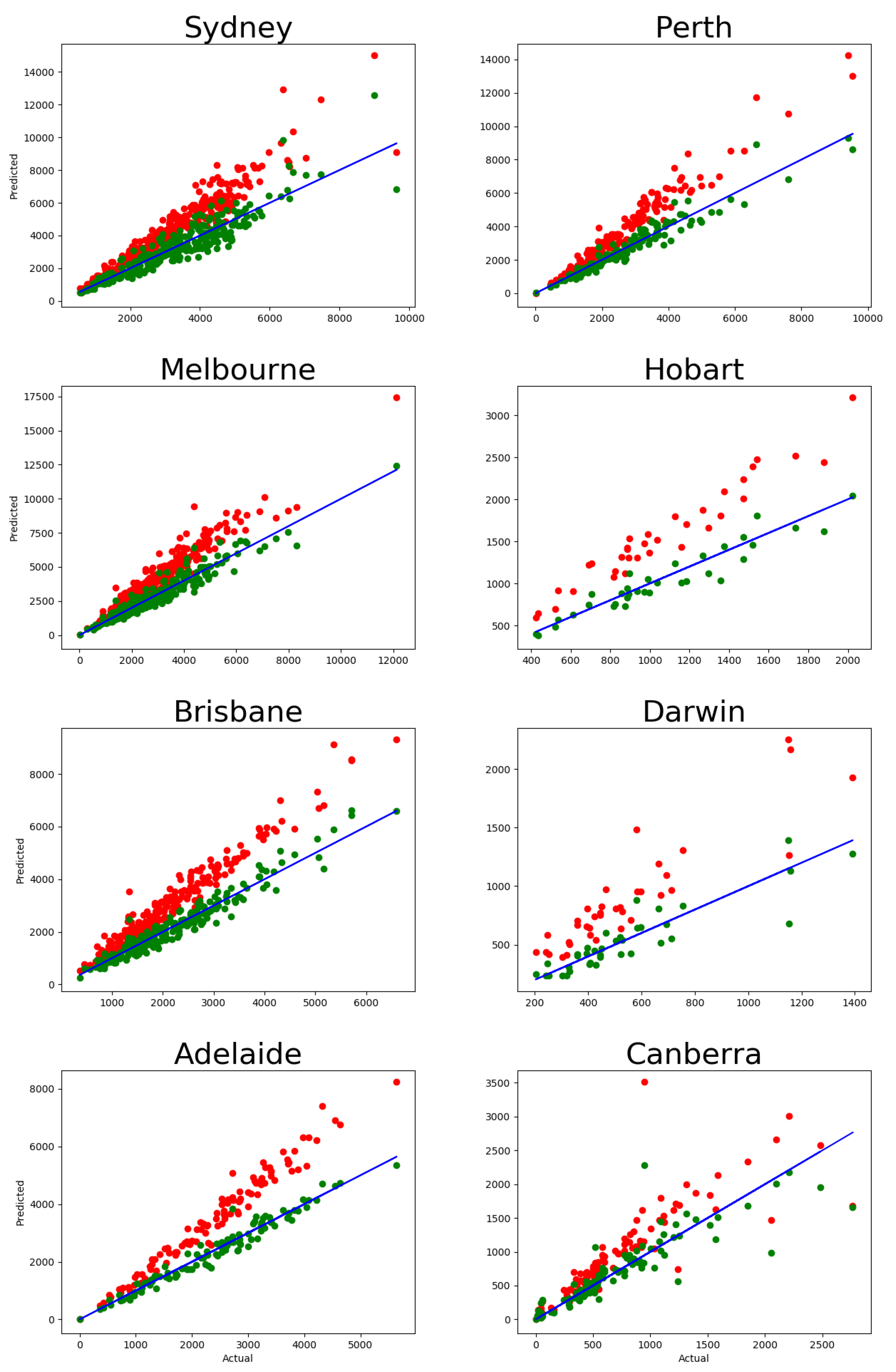

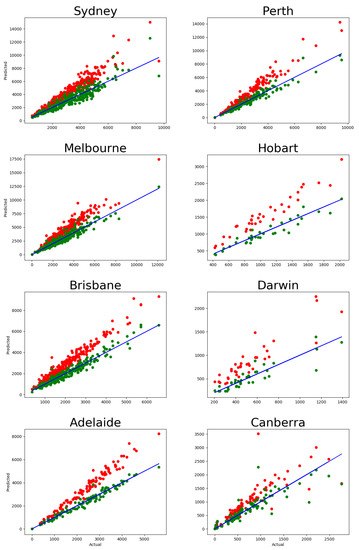

**Figure 1.**Number of movers in five-year migration data: actual (${\sum}_{i\ne j}{T}_{ij;\phantom{\rule{0.166667em}{0ex}}5Y}\left(2016\right)$) vs. predicted (${\sum}_{i\ne j}{\hat{T}}_{ij;\phantom{\rule{0.166667em}{0ex}}5Y}\left(2016\right)$), with each dot representing one suburb. Red dots correspond to the one-component model, and the green ones correspond to the two-component model. The blue solid line has a slope of 1, showing the ideal prediction. The corresponding calibration errors are shown in Table A1.

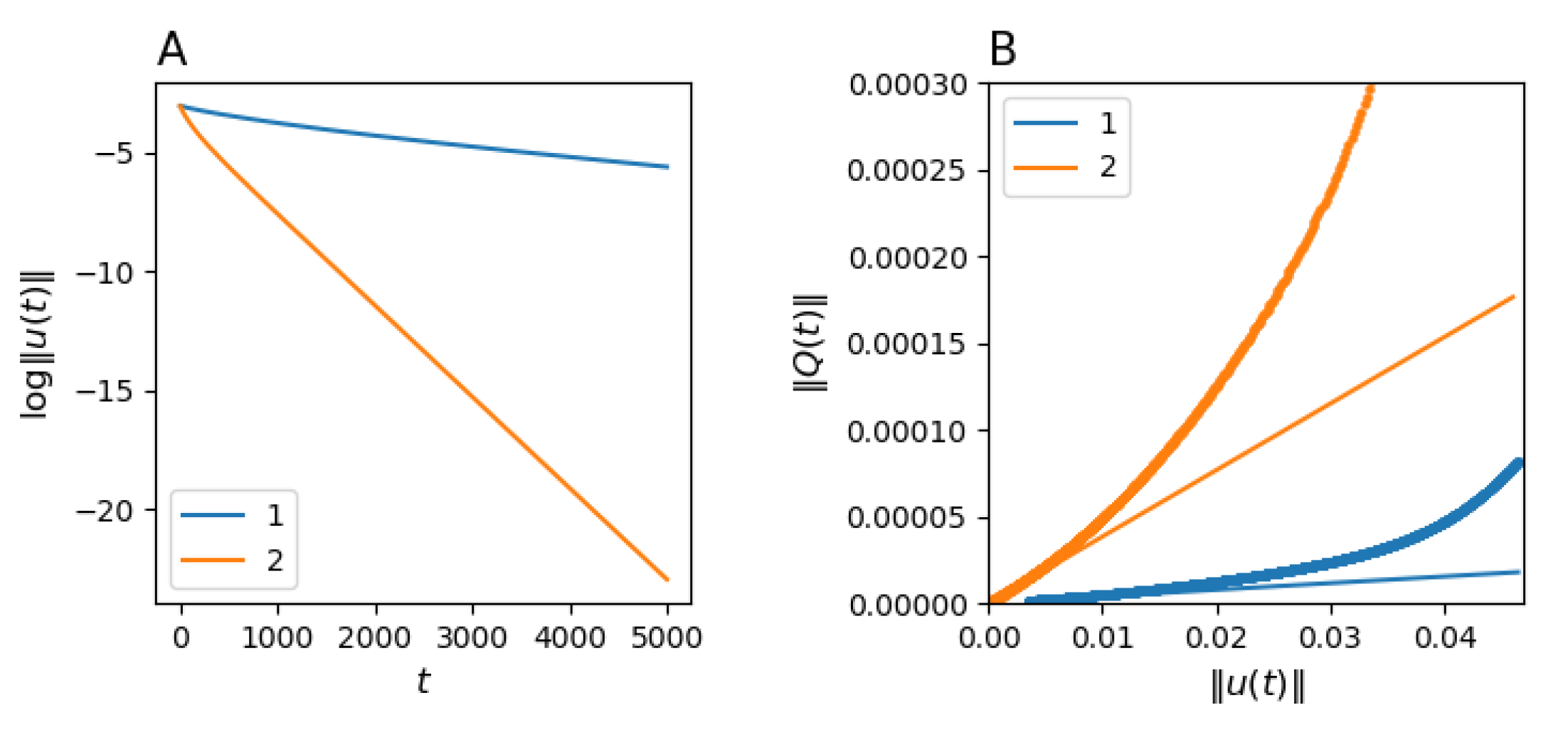

**Figure 2.**Exponential convergence of ${U}_{k}\left(t\right)$ for each of the population groups, $k=1,2$: (

**A**) $log\parallel {U}_{k}\left(t\right)\parallel $ is plotted against time step t; (

**B**) $\parallel {Q}_{k}\left(t\right)\parallel $ is plotted against $\parallel {U}_{k}\left(t\right)\parallel $ (thick dotted curves) and the tangential lines with the slope $1-{\lambda}_{k}$ (solid straight lines), where ${\lambda}_{k}$ is the second eigenvalue of the group relocation matrix. For illustration purposes, both ${U}_{k}\left(t\right)$ and ${Q}_{k}\left(t\right)$ are normalised by the total number of residents, ${\alpha}_{k}\overline{x}$, in the corresponding group.

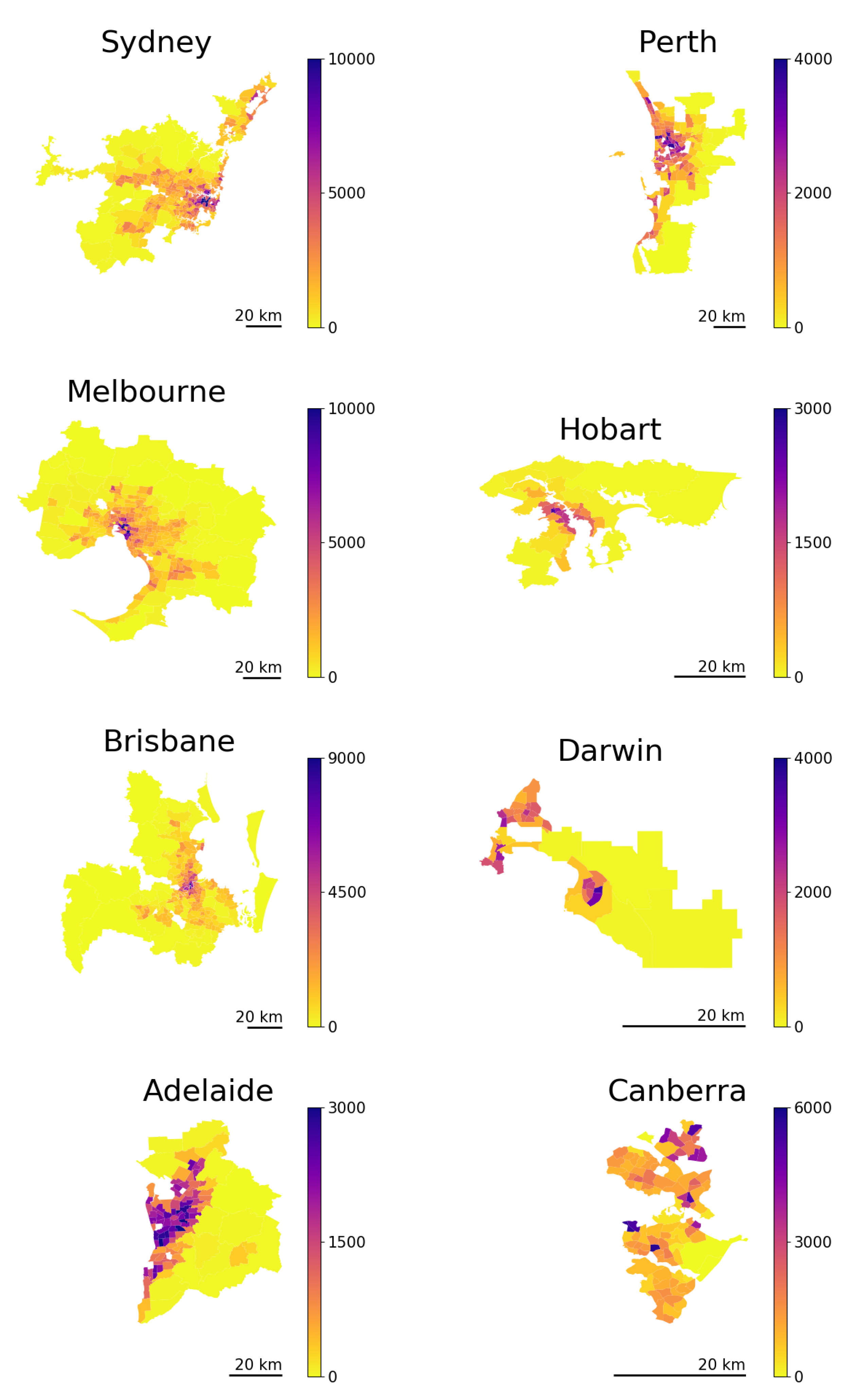

**Figure 3.**Long-run population structure prediction based on eigenvectors of the migration matrix, which were obtained from the 2016 Census data. The scale bars in lower-left corners indicate distances equivalent to 20 km.

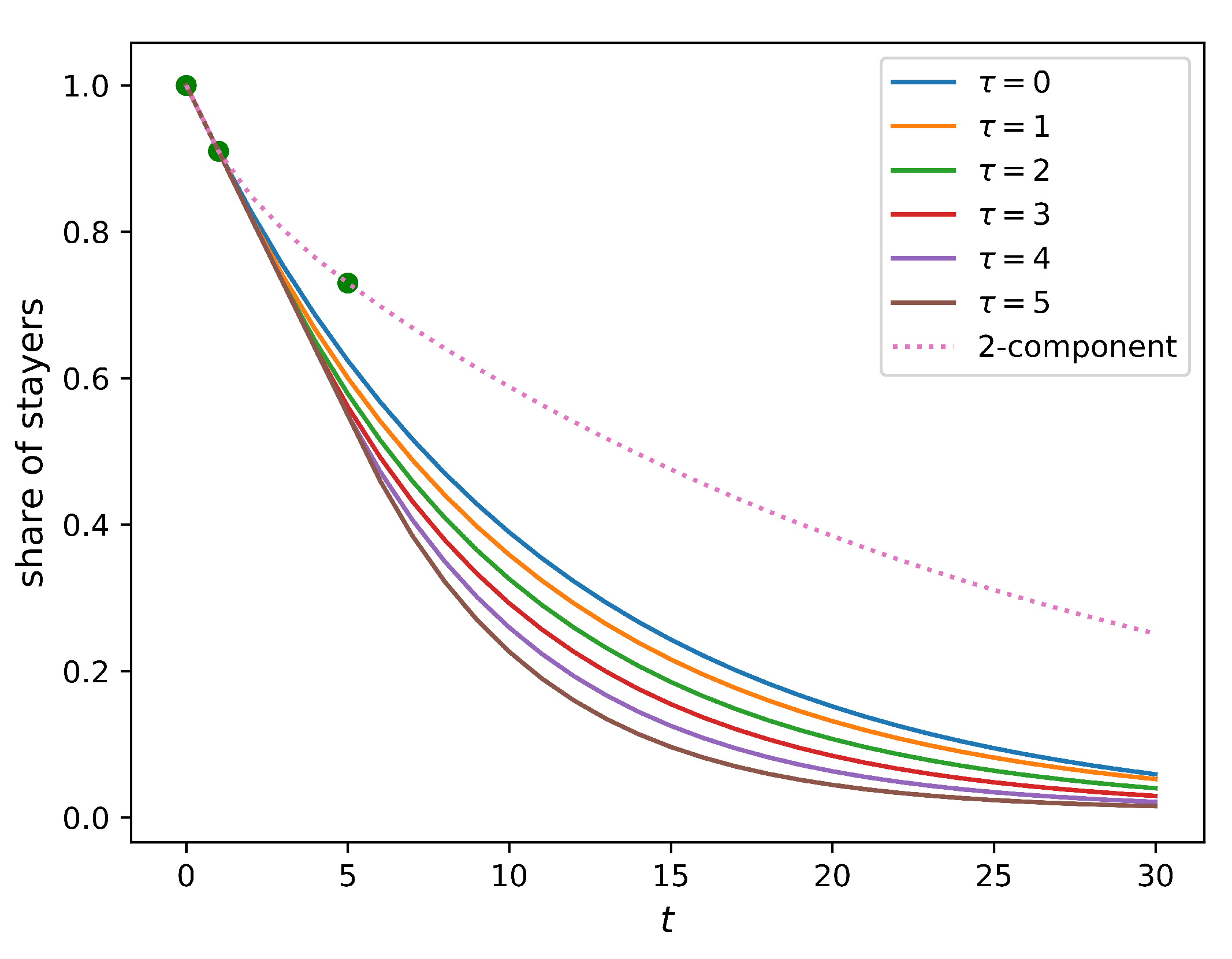

**Figure 4.**The share of people who do not change their place of residence within period t plotted against the length of this period. Green dots correspond to the actual values for Sydney (${s}_{0Y}=1$; ${s}_{1Y}=0.91$; ${s}_{5Y}=0.73$). Solid curves correspond to the model where people do not relocate within $\tau $ years after their last relocation ($\tau $ ranges from 0 to 5; see Equation (A10)). The dotted curve corresponds to the two-component model ($\alpha =0.9$; see Equation (6)). All models are calibrated to the Sydney relocation data. All solid curves pass through the actual one-year relocation rate ${s}_{1Y}=0.91$, but go well below the corresponding five-year value, ${s}_{5Y}=0.73$.

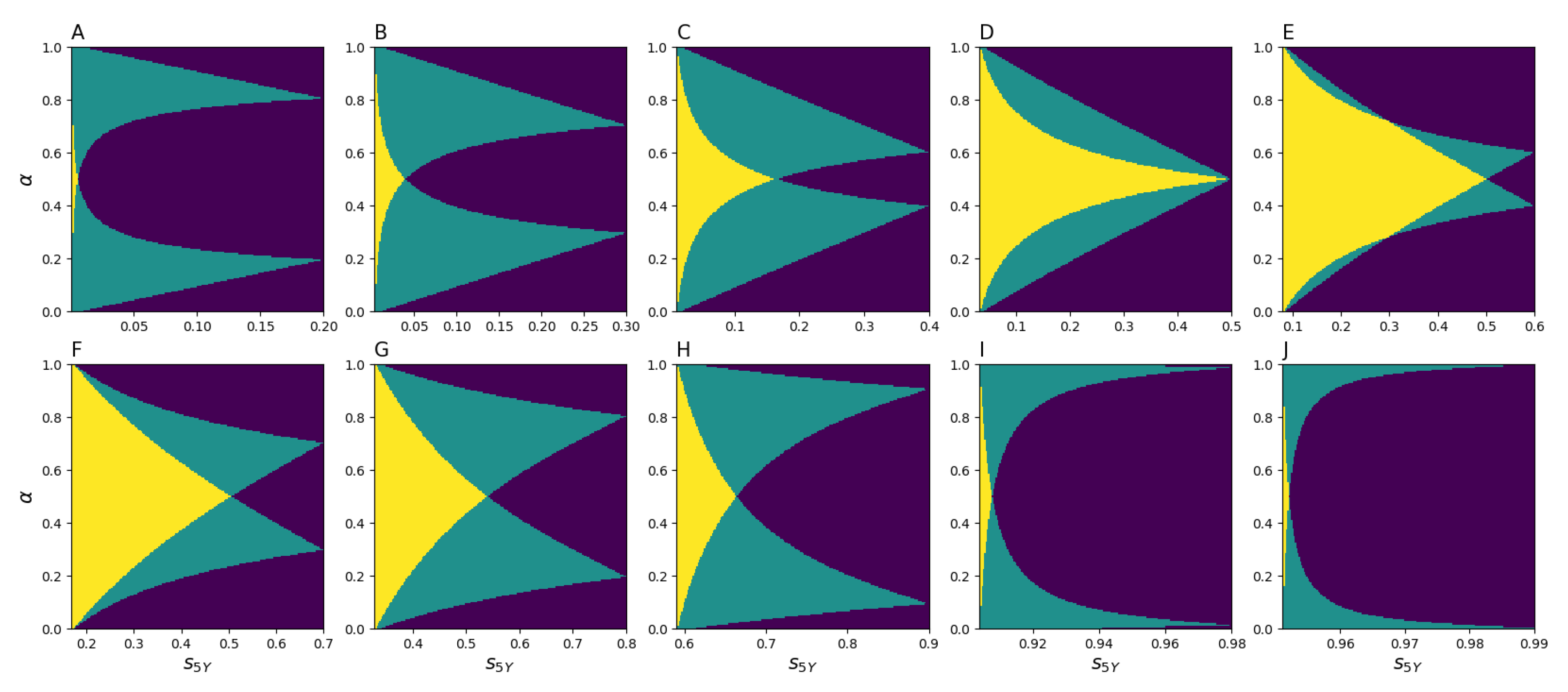

**Figure 5.**Number of solutions to (8) depending on $\alpha $ and ${s}_{5Y}$ for (

**A**) ${s}_{1Y}=0.2$, (

**B**) ${s}_{1Y}=0.3$, (

**C**) ${s}_{1Y}=0.4$, (

**D**) ${s}_{1Y}=0.5$, (

**E**) ${s}_{1Y}=0.6$, (

**F**) ${s}_{1Y}=0.7$, (

**G**) ${s}_{1Y}=0.8$, (

**H**) ${s}_{1Y}=0.9$, (

**I**) ${s}_{1Y}=0.98$, and (

**J**) ${s}_{1Y}=0.99$. Yellow areas correspond to two distinct solutions, green areas represent one solution, and dark purple stands for no solution.

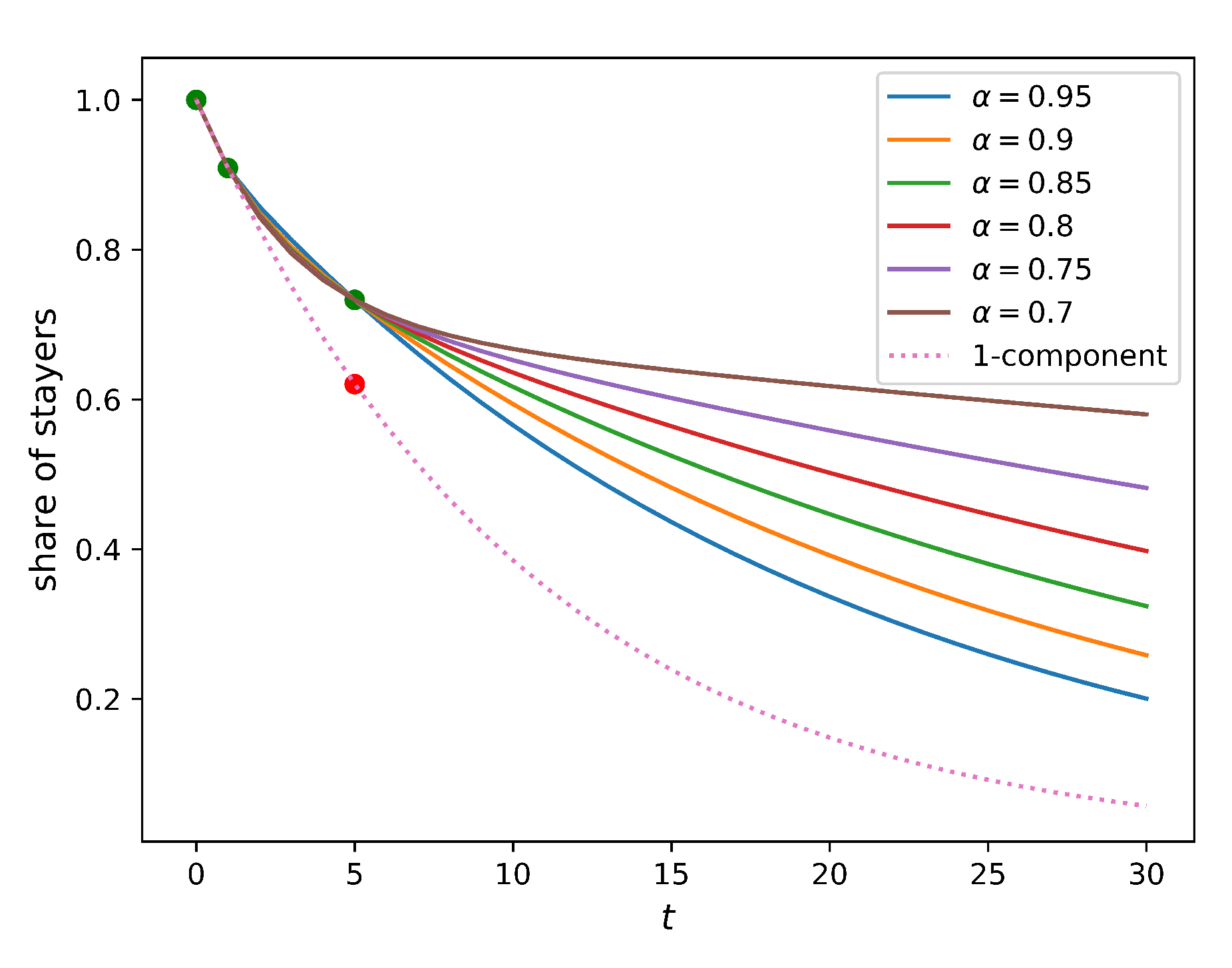

**Figure 6.**The share of people who do not change their place of residence within period t plotted against the length of this period. The dotted curve corresponds to the naive single-component model (calibrated to the one-year value, ${s}_{1Y}=0.91$). Solid lines describe a family of the two-component model predictions matching actual one-year and five-year values (Sydney values, ${s}_{1Y}=0.91$ and ${s}_{5Y}=0.73$, are taken as an example) for different levels of $\alpha $. All solid curves pass through three common points (green): ${s}_{0Y}=1$; ${s}_{1Y}=0.91$; ${s}_{5Y}=0.73$. The dotted curve passes through the first two green points, and its five-year prediction is marked in red.

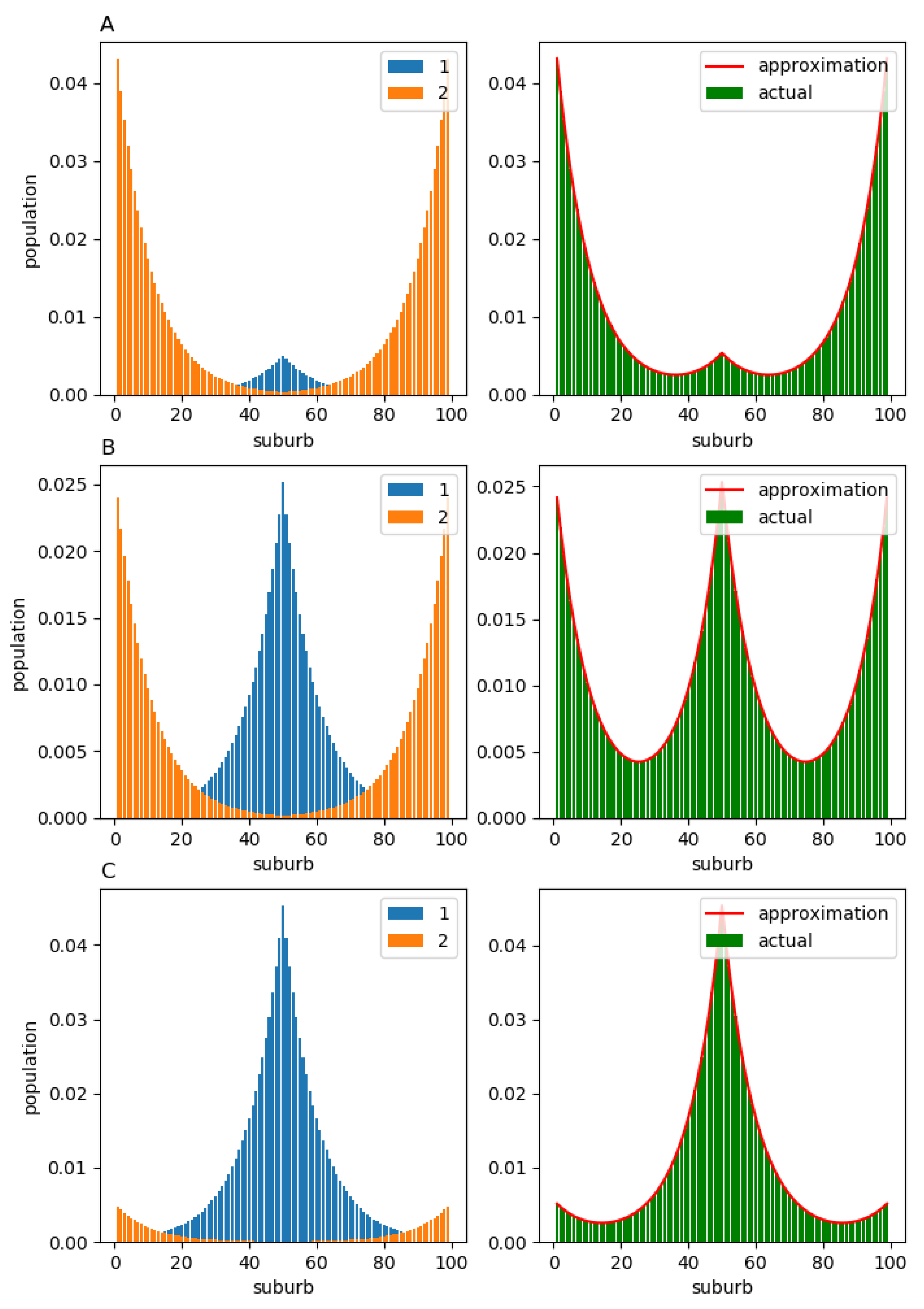

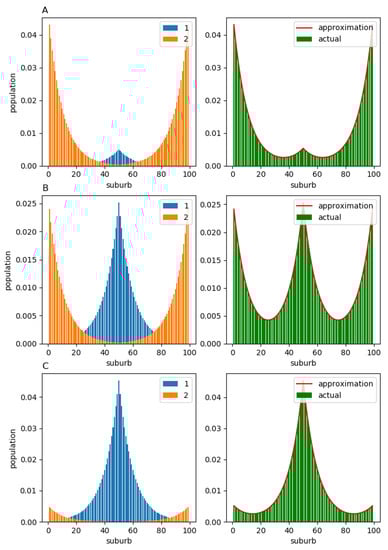

**Figure 7.**Stationary population structure for the case where components 1 and 2 have migration flows with opposite directions: (

**A**) $\alpha =0.1$; (

**B**) $\alpha =0.5$; (

**C**) $\alpha =0.9$. The component-wise population structure is shown in the left column. The total population structure is shown in the right column. For all values of $\alpha $, the approximations ${\hat{X}}_{eq}$ obtained from the observable matrix $\hat{H}$ (red solid line) are almost indistinguishable from the ground-truth equilibria ${X}_{eq}$ (green bars).

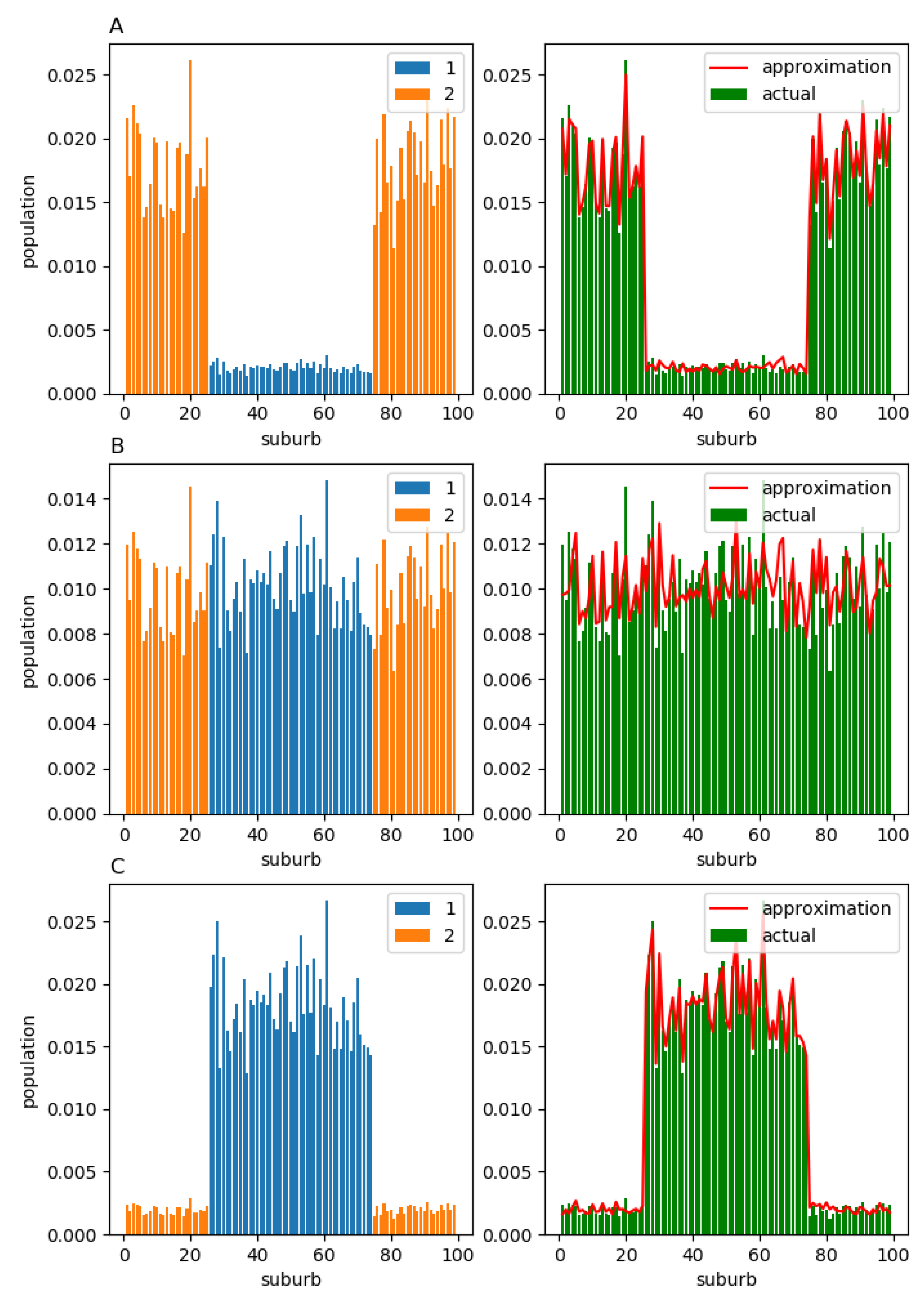

**Figure 8.**Stationary population structure for the case where the first group members always relocate to the central districts, while the second group members migrate to the peripheral ones: (

**A**) $\alpha =0.1$; (

**B**) $\alpha =0.5$; (C)$\alpha =0.9$. The component-wise population structure is shown in the left column. The total population structure is shown in the right column. For all values of $\alpha $, the approximations ${\hat{X}}_{eq}$ obtained from the observable matrix $\hat{H}$ (red solid line) are almost indistinguishable from the ground-truth equilibria ${X}_{eq}$ (green bars).

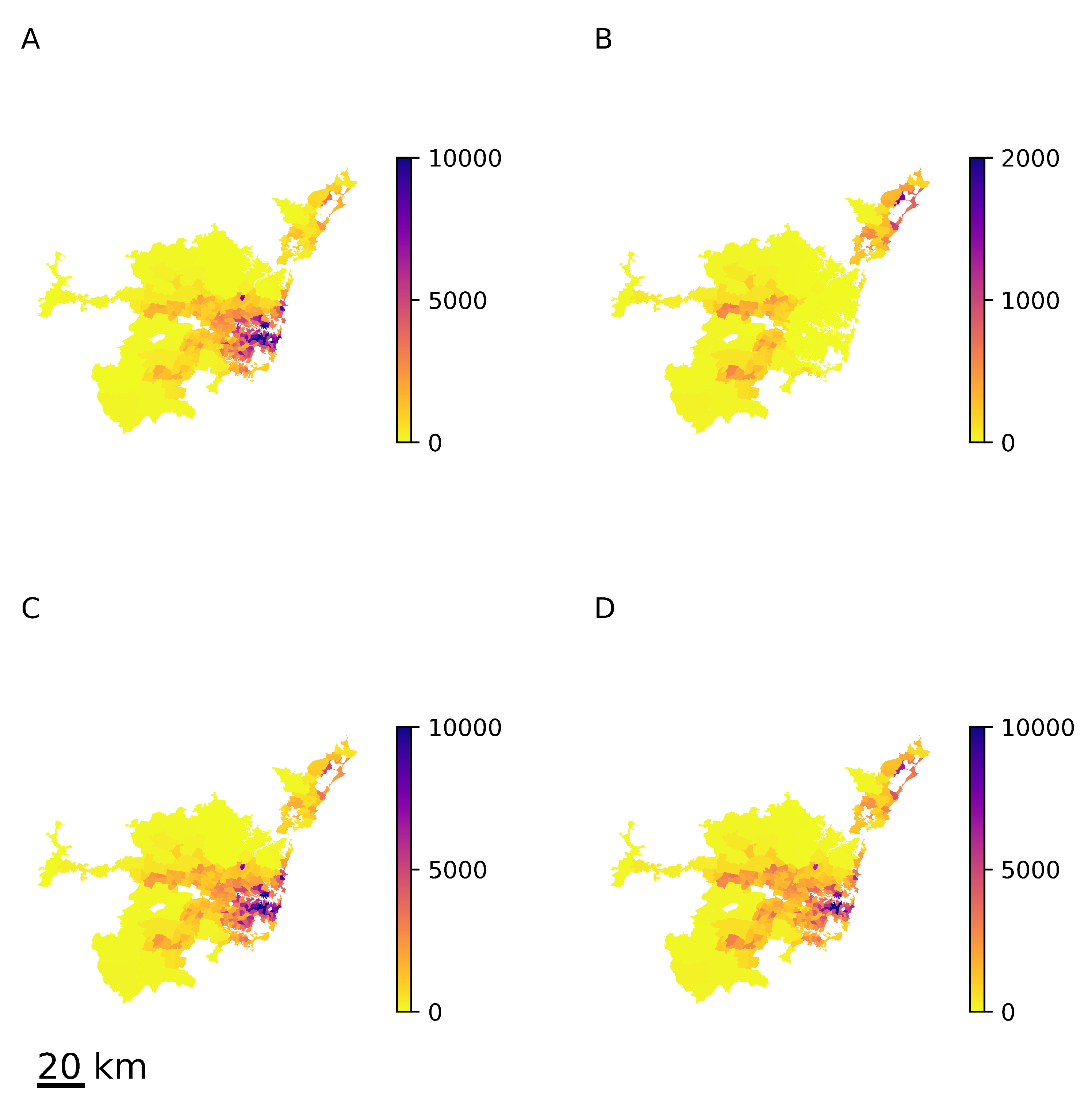

**Figure 9.**Equilibrium population density in Sydney for the case of heterogeneous relocation matrices ${H}_{k}$. (

**A**) First group’s equilibrium structure ${X}_{1,eq}$; (

**B**) second group’s equilibrium structure ${X}_{2,eq}$; (

**C**) total equilibrium structure ${X}_{eq}$; (

**D**) approximation ${\hat{X}}_{eq}$ obtained from the overall relocation matrix H. The scale bar in the lower-left corner indicates a distance equivalent to 20 km.

**Table 1.**Share of people who do not change their place of residence (actual vs. predicted). The values are based on 2016 Census data.

GCA | 1Y Actual | 5Y Actual | 5Y Predicted 1-Component | 5Y Predicted 2-Component |
---|---|---|---|---|

Sydney | 0.909 | 0.733 | 0.630 | 0.735 |

Melbourne | 0.905 | 0.734 | 0.618 | 0.736 |

Brisbane | 0.889 | 0.702 | 0.569 | 0.704 |

Adelaide | 0.911 | 0.752 | 0.635 | 0.754 |

Perth | 0.895 | 0.71 | 0.584 | 0.712 |

Hobart | 0.923 | 0.783 | 0.678 | 0.788 |

Darwin | 0.874 | 0.713 | 0.527 | 0.717 |

Canberra | 0.904 | 0.720 | 0.615 | 0.722 |

**Table 2.**Spreading index calculated for both the current and predicted long-run structure of the Australian cities.

GCA | Current | Predicted |
---|---|---|

Sydney | 0.29 | 0.74 |

Melbourne | 0.26 | 0.43 |

Brisbane | 0.32 | 0.37 |

Adelaide | 0.54 | 0.53 |

Perth | 0.44 | 0.58 |

Hobart | 0.38 | 0.25 |

Darwin | 0.75 | 0.79 |

Canberra | 1.06 | 0.92 |
