# Spectral-Based SPD Matrix Representation for Signal Detection Using a Deep Neutral Network

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Spectral Image-Based Signal Detection with a Deep Neural Network

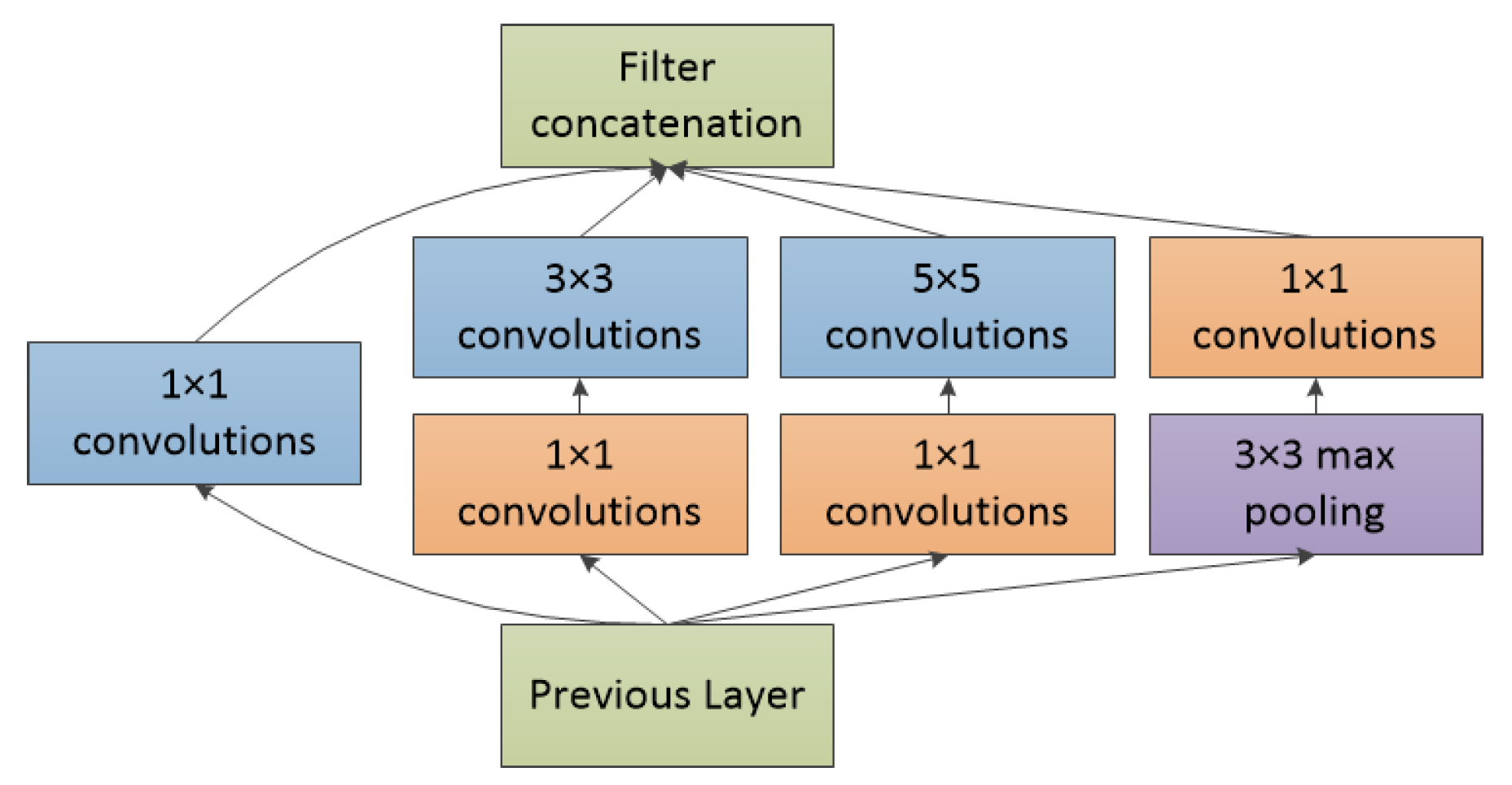

#### 2.1. GoogLeNet

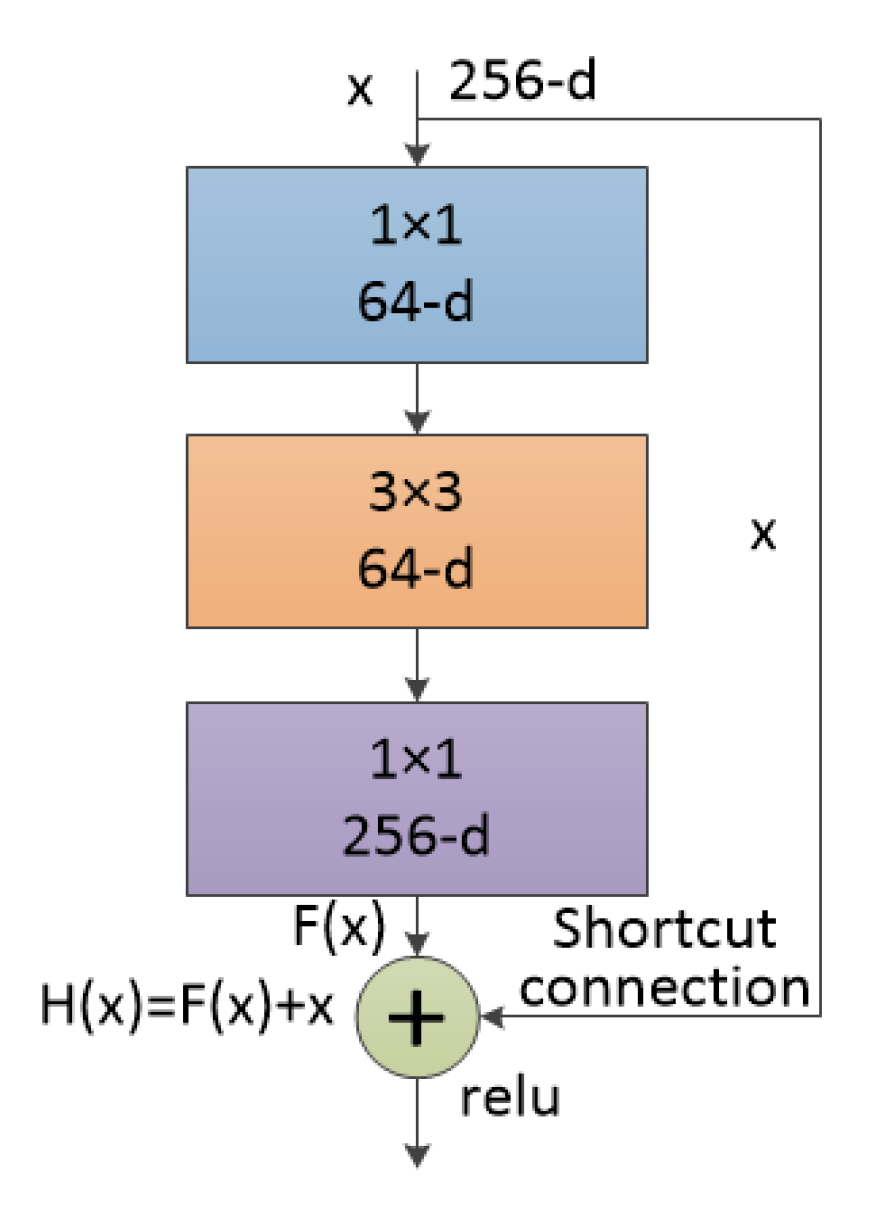

#### 2.2. ResNet

## 3. Spectral-Based SPD Matrix for Signal Detection with a Deep Neural Network

#### 3.1. Spectral-Based SPD Matrix Construction

#### 3.1.1. SPD Matrix Construction Method Based on Spectrum Transformation

#### 3.1.2. SPD Matrix Construction Method Based on Spectrum Covariance

#### 3.2. SPDnet

## 4. Results

#### 4.1. Experimental Analysis of Simulation Data

#### 4.1.1. Comparison with Convolutional Neural Networks

#### 4.1.2. Comparison with Convolutional Neural Networks

#### 4.2. Experimental Analysis of Semi-Physical Simulation Data

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Nandi, A.; Azzouz, E. Algorithms for automatic modulation recognition of communication signals. IEEE Trans. Commun.
**1998**, 46, 431–436. [Google Scholar] [CrossRef] - Hsue, S.Z.; Soliman, S.S. Automatic modulation classification using zero crossing. IEEE Proc.
**1990**, 137, 459–464. [Google Scholar] [CrossRef] - Hameed, F.; Dobre, O.A.; Popescu, D. On the likelihood-based approach to modulation classification. IEEE Trans. Wirel. Commun.
**2009**, 8, 5884–5892. [Google Scholar] [CrossRef] - Reichert, J. Automatic classification of communication signals using higher order statistics. In Proceedings of the IEEE International Conference on Acoustics, Speech, and Signal Processing, Philadelphia, PA, USA, 23–26 March 1992; pp. 221–224. [Google Scholar]
- Pennec, X.; Fillard, P.; Ayache, N. A Riemannian Framework for Tensor Computing. Int. J. Comput. Vis.
**2006**, 66, 41–66. [Google Scholar] [CrossRef] [Green Version] - Huang, Z.; Wang, R.; Li, X.; Liu, W.; Shan, S.; Van Gool, L.; Chen, X. Geometry-Aware Similarity Learning on SPD Manifolds for Visual Recognition. IEEE Trans. Circuits Syst. Video Technol.
**2018**, 28, 2513–2523. [Google Scholar] [CrossRef] [Green Version] - Harandi, M.; Salzmann, M.; Hartley, R. Dimensionality Reduction on SPD Manifolds: The Emergence of Geometry-Aware Methods. IEEE Trans. Pattern Anal. Mach. Intell.
**2018**, 40, 48–62. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ionescu, C.; Vantzos, O.; Sminchisescu, C. Matrix backpropagation for deep networks with structured layers. In Proceedings of the IEEE International Conference on Computer Vision, Santiago, Chile, 13–16 December 2015; pp. 2965–2973. [Google Scholar]
- Herath, S.; Harandi, M.; Porikli, F. Learning an invariant hilbert space for domain adaptation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Honolulu, HI, USA, 21–26 July 2017; pp. 3845–3854. [Google Scholar]
- Zhang, J.; Wang, L.; Zhou, L.; Li, W. Exploiting structure sparsity for covariance-based visual representation. arXiv
**2016**, arXiv:1610.08619. [Google Scholar] - Zhou, L.; Wang, L.; Zhang, J.; Shi, Y.; Gao, Y. Revisiting metric learning for SPD matrix based visual representation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Honolulu, HI, USA, 21–26 July 2017; pp. 3241–3249. [Google Scholar]
- Brooks, D.A.; Schwander, O.; Barbaresco, F.; Schneider, J.Y.; Cord, M. Exploring complex time-series representations for Riemannian machine learning of radar data. In Proceedings of the 2019 IEEE International Conference on Acoustics, Speech and Signal Processing, Brighton, UK, 12–17 May 2019; pp. 3672–3676. [Google Scholar]
- Hua, X.; Cheng, Y.; Wang, H.; Qin, Y. Robust Covariance Estimators Based on Information Divergences and Riemannian Manifold. Entropy
**2018**, 20, 219. [Google Scholar] [CrossRef] [Green Version] - Hua, X.; Fan, H.; Cheng, Y.; Wang, H.; Qin, Y. Information Geometry for Radar Target Detection with Total Jensen–Bregman Divergence. Entropy
**2018**, 20, 256. [Google Scholar] [CrossRef] [Green Version] - Wong, K.; Zhang, J.; Jiang, H. Multi-sensor signal processing on a PSD matrix manifold. In Proceedings of the 2016 IEEE Sensor Array and Multichannel Signal Processing Workshop, Rio de Janeiro, Brazil, 10–13 July 2016; pp. 1–5. [Google Scholar]
- Hua, X.; Shi, Y.; Zeng, Y.; Chen, C.; Lu, W.; Cheng, Y.; Wang, H. A divergence mean-based geometric detector with a pre-processing procedure. Measurement
**2019**, 131, 640–646. [Google Scholar] [CrossRef] - Hua, X.; Cheng, Y.; Wang, H.; Qin, Y.; Li, Y. Geometric means and medians with applications to target detection. IET Signal Process.
**2017**, 11, 711–720. [Google Scholar] [CrossRef] - Fathy, M.E.; Alavi, A.; Chellappa, R. Discriminative Log-Euclidean Feature Learning for Sparse Representation-Based Recognition of Faces from Videos. In Proceedings of the International Joint Conferences on Artificial Intelligence, IJCAI, New York, NY, USA, 9–15 July 2016; pp. 3359–3367. [Google Scholar]
- Zhang, S.; Kasiviswanathan, S.; Yuen, P.C.; Harandi, M. Online dictionary learning on symmetric positive definite manifolds with vision applications. In Proceedings of the Twenty-Ninth AAAI Conference on Artificial Intelligence, AAAI, Austin, TX, USA, 25–30 January 2015. [Google Scholar]
- Huang, Z.; Van Gool, L. A Riemannian Network for SPD Matrix Learning. In Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, AAAI, San Francisco, CA, USA, 4–9 February 2017. [Google Scholar]
- Dong, Z.; Jia, S.; Zhang, C.; Pei, M.; Wu, Y. Deep manifold learning of symmetric positive definite matrices with application to face recognition. In Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, AAAI, San Francisco, CA, USA, 4–9 February 2017. [Google Scholar]
- Zhang, T.; Zheng, W.; Cui, Z.; Zong, Y.; Li, C.; Zhou, X.; Yang, J. Deep Manifold-to-Manifold Transforming Network for Skeleton-based Action Recognition. IEEE Trans. Multimed.
**2020**, 1. [Google Scholar] [CrossRef] - Gao, Z.; Wu, Y.; Bu, X.; Yu, T.; Yuan, J.; Jia, Y. Learning a robust representation via a deep network on symmetric positive definite manifolds. Pattern Recognit.
**2019**, 92, 1–12. [Google Scholar] [CrossRef] [Green Version] - Bronstein, M.M.; Bruna, J.; LeCun, Y.; Szlam, A.; VanderGheynst, P. Geometric Deep Learning: Going beyond Euclidean data. IEEE Signal Process. Mag.
**2017**, 34, 18–42. [Google Scholar] [CrossRef] [Green Version] - Krizhevsky, A.; Sutskever, I.; Hinton, G.E. Pdf ImageNet classification with deep convolutional neural networks. Commun. ACM
**2017**, 60, 84–90. [Google Scholar] [CrossRef] - Szegedy, C.; Liu, W.; Jia, Y.; Sermanet, P.; Reed, S.; Anguelov, D.; Erhan, D.; Vanhoucke, V.; Rabinovich, A. Going deeper with convolutions. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, IEEE, Boston, MA, USA, 8–12 June 2015; pp. 1–9. [Google Scholar]
- He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 26 June–1 July 2016; pp. 770–778. [Google Scholar]
- Wang, R.; Guo, H.; Davis, L.S.; Dai, Q. Covariance discriminative learning: A natural and efficient approach to image set classification. In Proceedings of the 2012 IEEE Conference on Computer Vision and Pattern Recognition, Providence, RI, USA, 18–20 June 2012; pp. 2496–2503. [Google Scholar]
- The McMaster IPIX Radar Sea Clutter Database. Available online: http://soma.ece.mcmaster.ca/ipix/ (accessed on 20 April 2020).

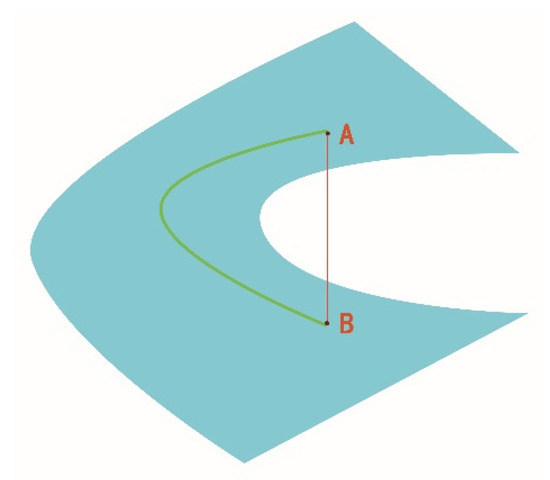

**Figure 1.**Measurement comparison of the difference between A and B on a manifold of the SPD (symmetric positive definite) matrix.

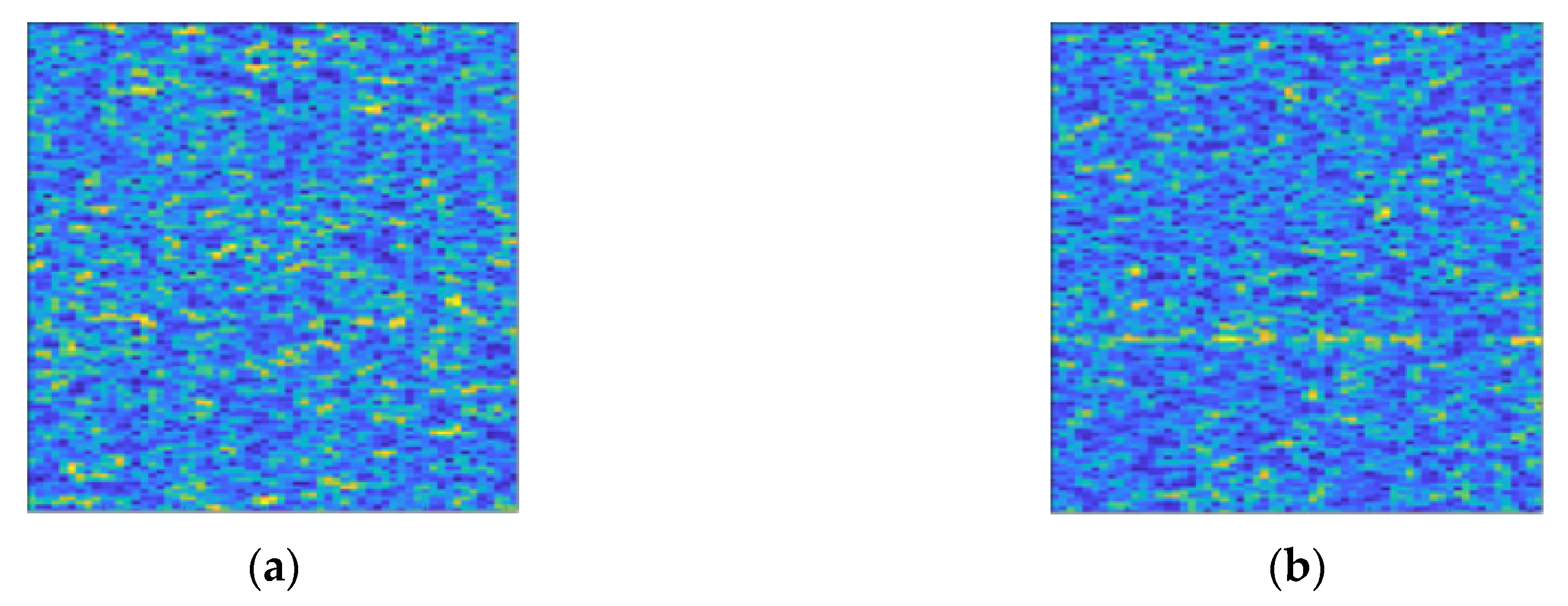

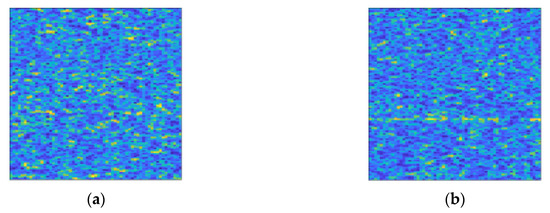

**Figure 5.**Colour maps of the time-frequency spectrum used in this study. (

**a**) The time-frequency spectrum colour map of clutter; (

**b**) The colour map of the time-frequency spectrum of target signal interfered by clutter. The SCR in it is −13 dB. And the trace of the target signal can be found in the lower part of the figure, but it is blurred by clutter.

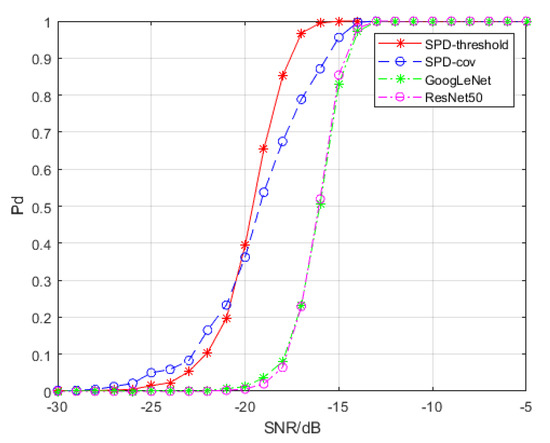

**Figure 6.**Detection probability curves of different models. The false alarm probability of all the models is controlled to be less than ${10}^{-4}$. “SPD-threshold” represents the spectral transformation SPD matrix network, and “SPD-cov” represents the spectral covariance SPD matrix network.

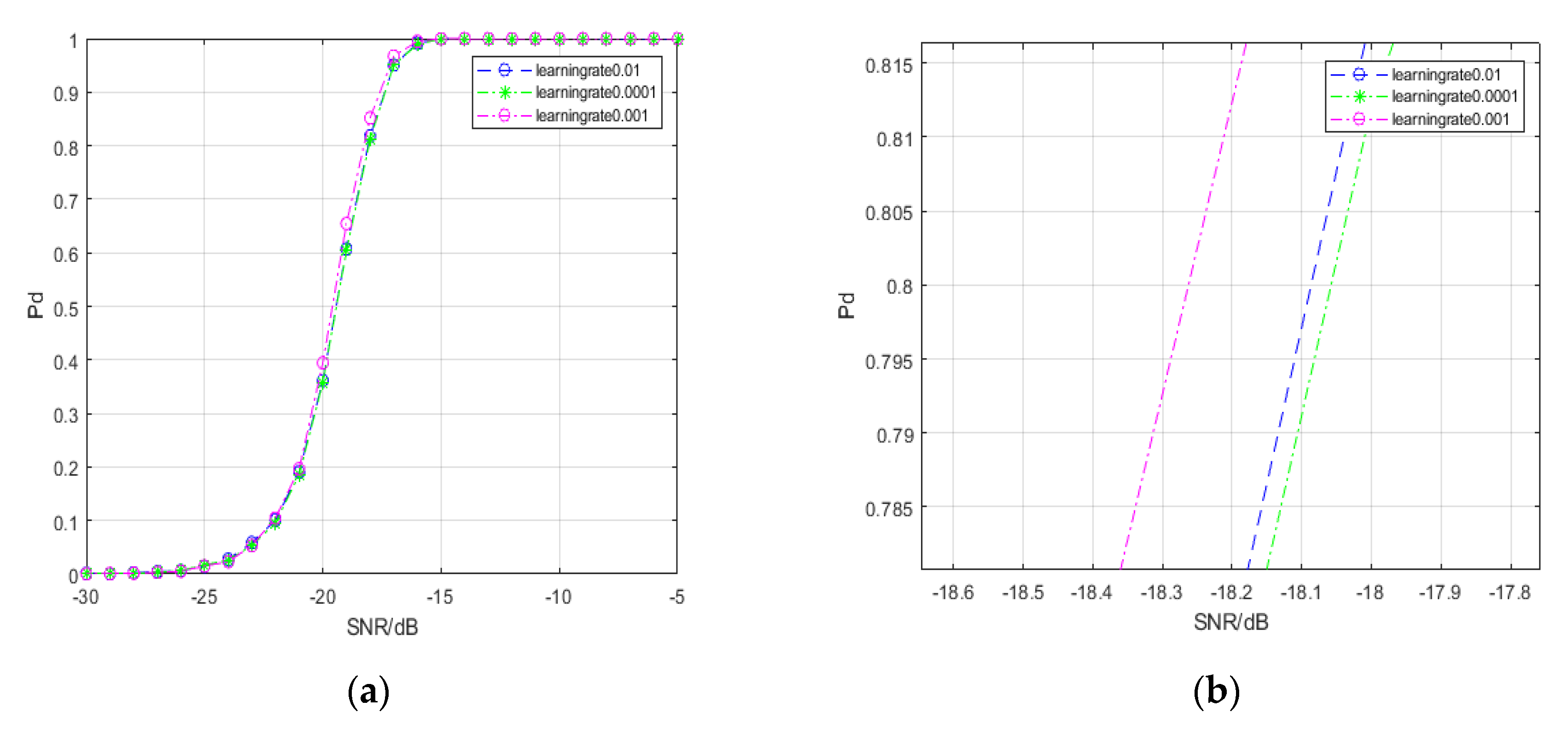

**Figure 7.**Detection probability curves under different learning rates. (

**a**) reveals the general trends of three curves; (

**b**) reveals the differences in the three curves when the detection probability is approximately 80%.

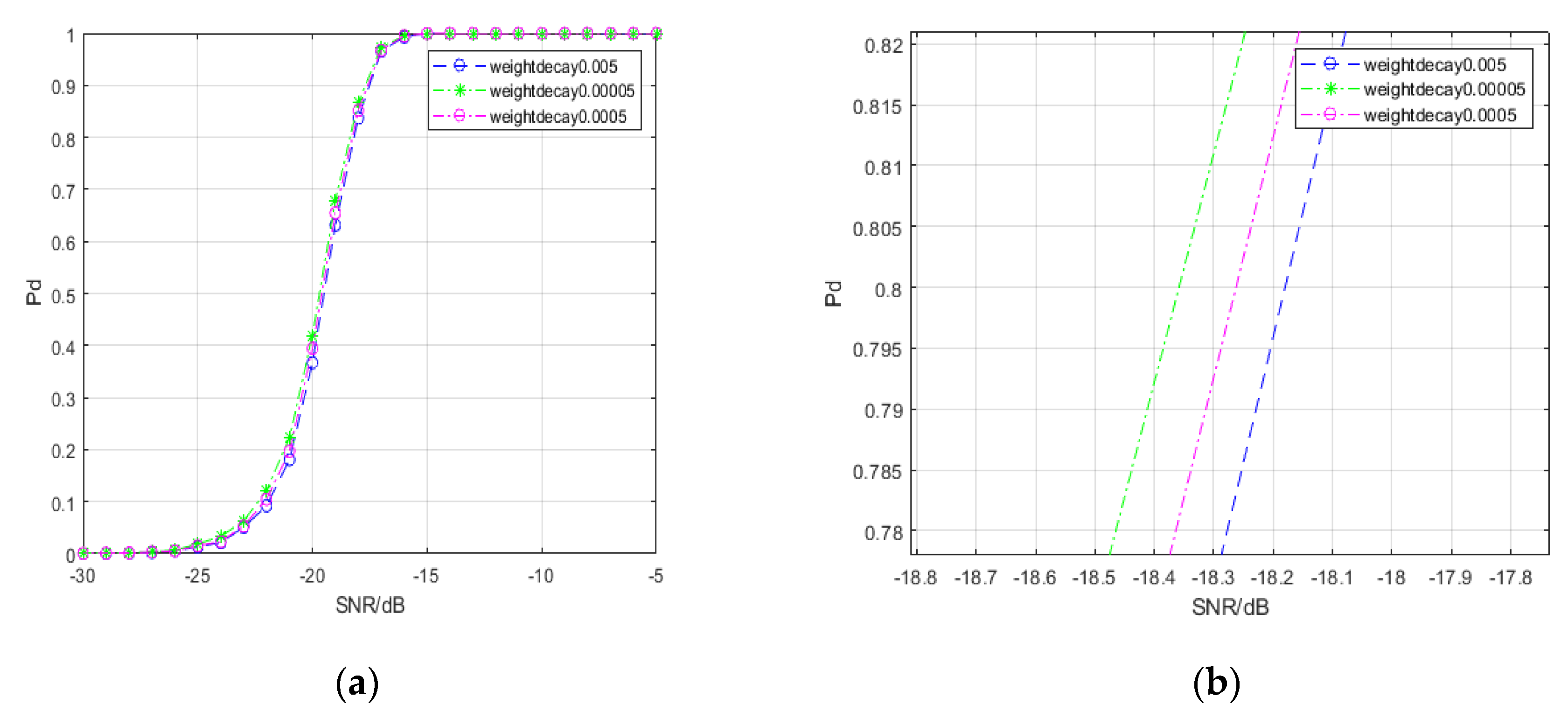

**Figure 8.**Detection probability curves under different weight decays. (

**a**) reveals the general trends of three curves; (

**b**) reveals the differences in the three curves when the detection probability is approximately 80%.

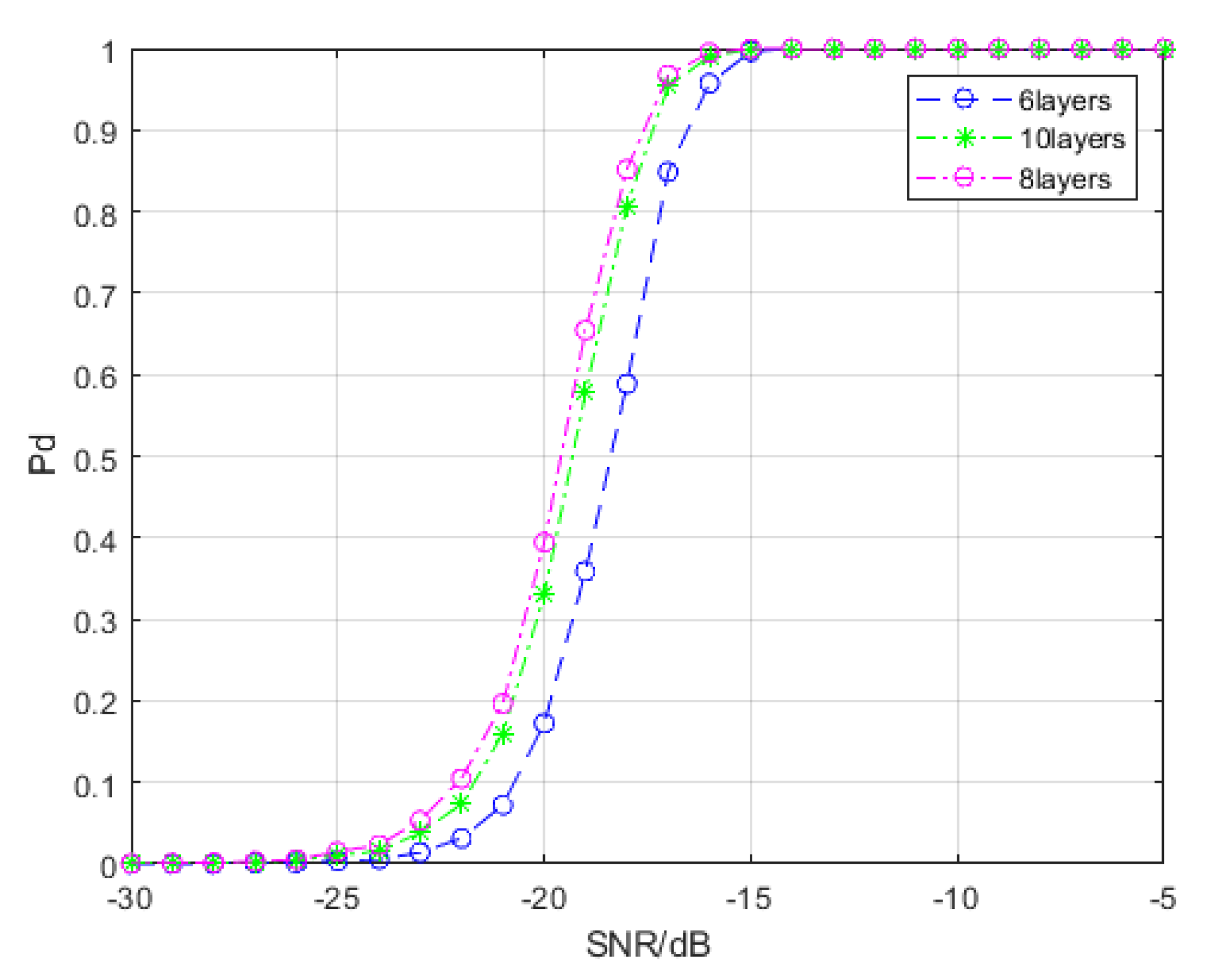

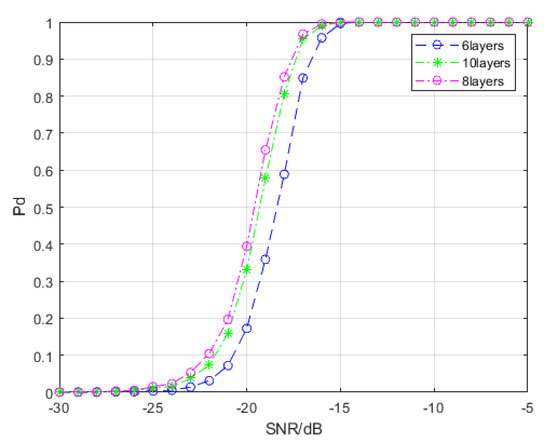

**Figure 9.**Detection probability curves of the spectral-based SPD matrix signal detection method under different network layers.

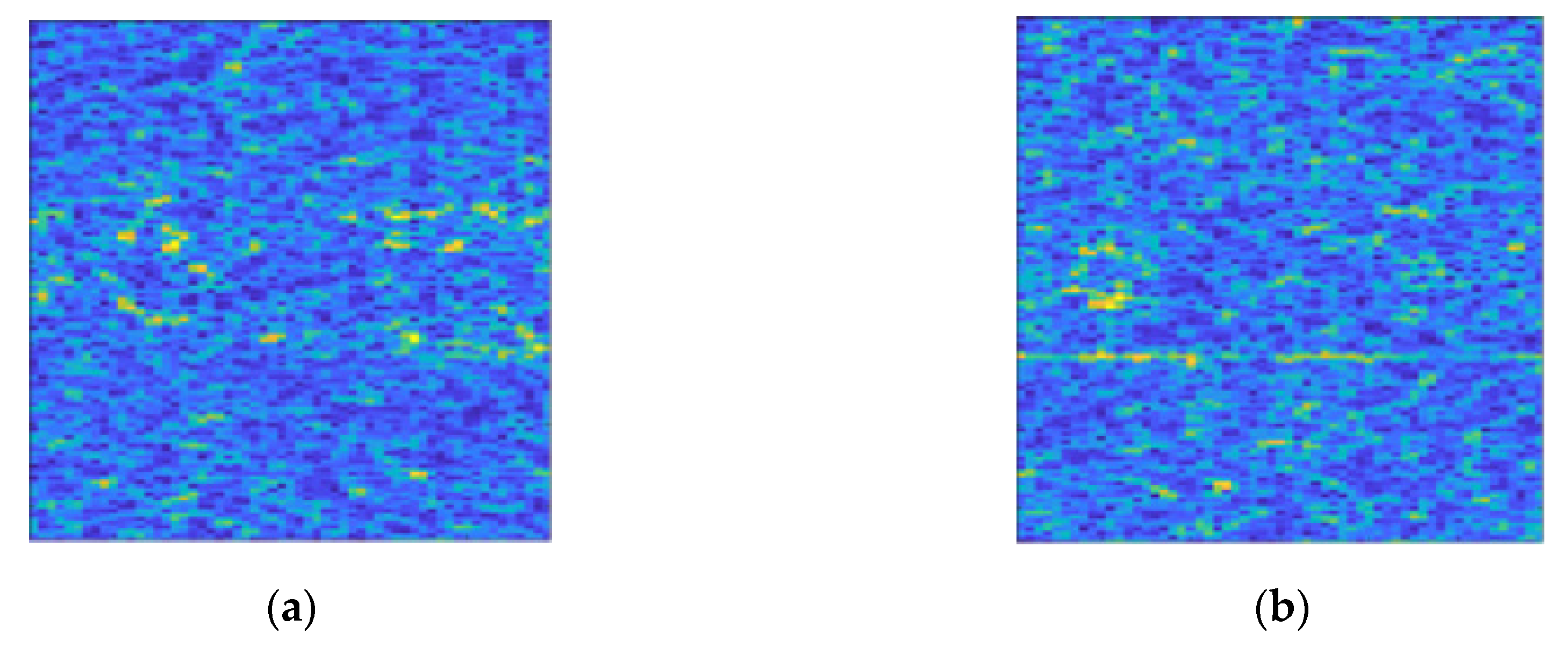

**Figure 10.**Time-frequency spectrum colour map based on IPIX sea clutter. Different from the clutter based on K-distribution simulation, the distribution of IPIX sea clutter in time and frequency is obviously uneven. (

**a**) The time-frequency spectrum colour map of clutter; (

**b**) The colour map of the time-frequency spectrum of target signal interfered by clutter. The SCR in it is −13 dB. And the trace of the target signal can be found in the lower part of the figure, but it is blurred by clutter.

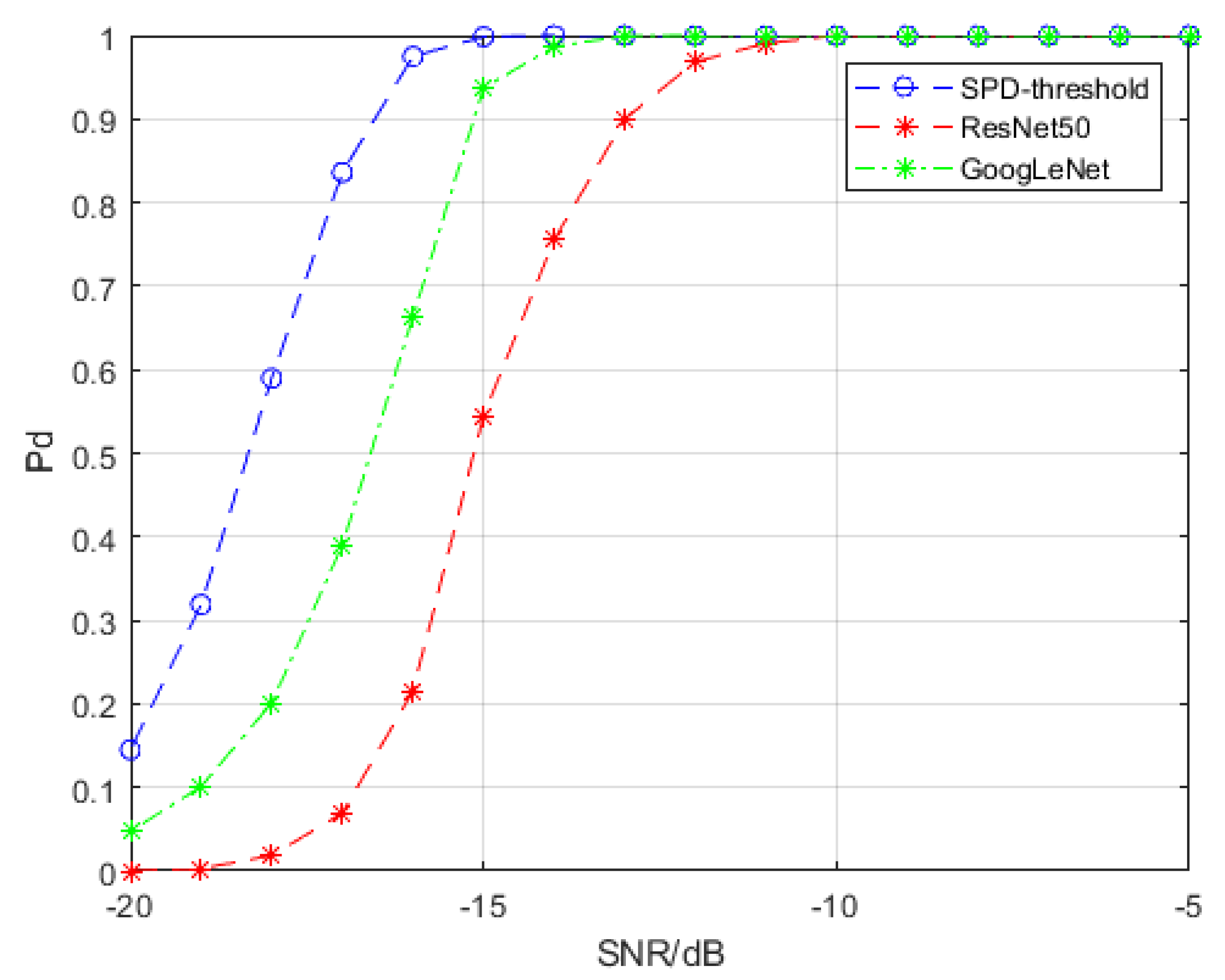

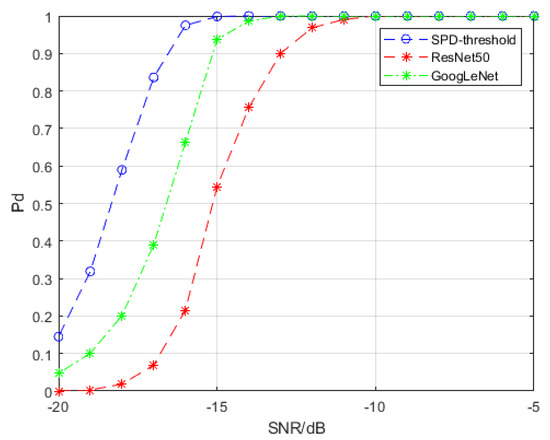

**Figure 11.**Detection probability curves of different models. The false alarm probability of all the models is controlled to be less than ${10}^{-4}$. “SPD-threshold” represents the spectral transformation SPD matrix network.
