# Ordering of Trotterization: Impact on Errors in Quantum Simulation of Electronic Structure

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Trotterization—Theoretical Background

## 3. Molecular Hydrogen

#### Geometry Dependence

## 4. Generalized Ordering Strategies

#### 4.1. Methods

#### 4.2. Results—Magnitude Ordering

#### 4.3. Statistics of Commuting Hamiltonian Subsets

#### 4.4. Subset-Based Ordering Schemes

## 5. Error Operator Strategies

#### 5.1. Small Systems

#### 5.2. Term Insertion Error Operator

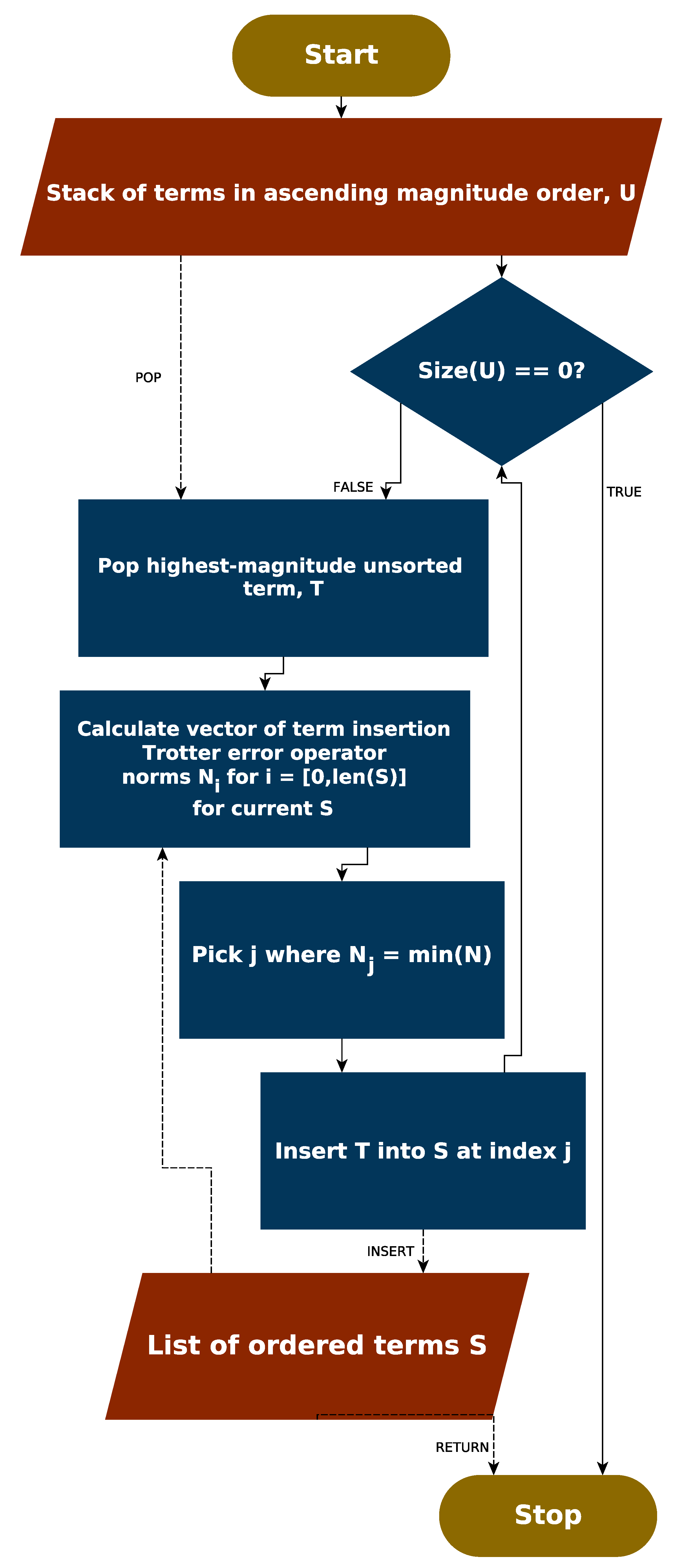

#### 5.3. Error Operator Based Ordering Schemes

## 6. Discussion and Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

CI | configuration interaction |

FCI | full configuration interaction |

VQE | variational quantum eigensolver |

JW | Jordan–Wigner |

BK | Bravyi–Kitaev |

## Appendix A. Alternative Ordering Schemes

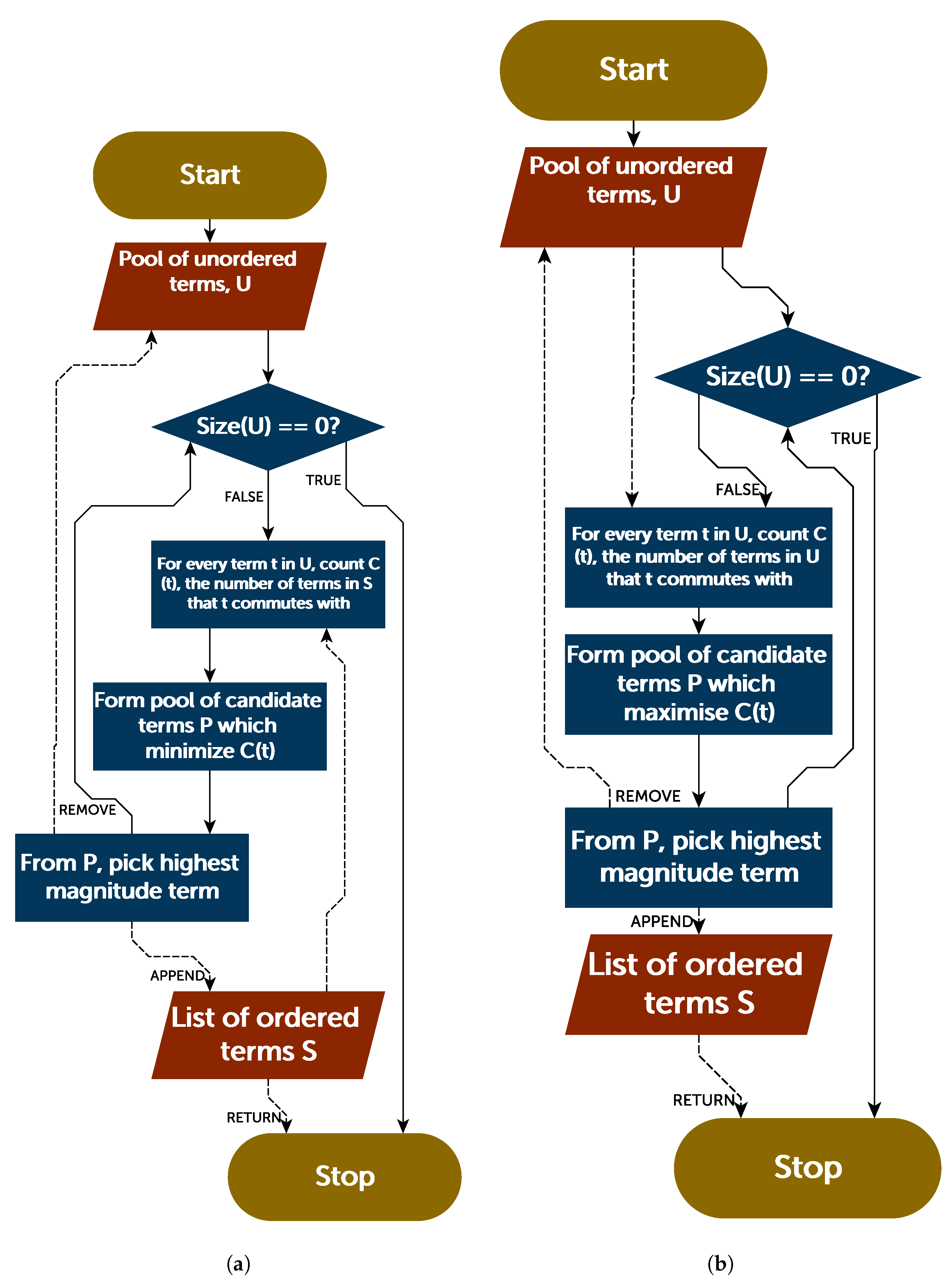

#### Appendix A.1. Commutator Ordering

#### Appendix A.2. Reverse Commutator Ordering

#### Appendix A.3. Performance of Commutator and ReverseCommutator Orderings

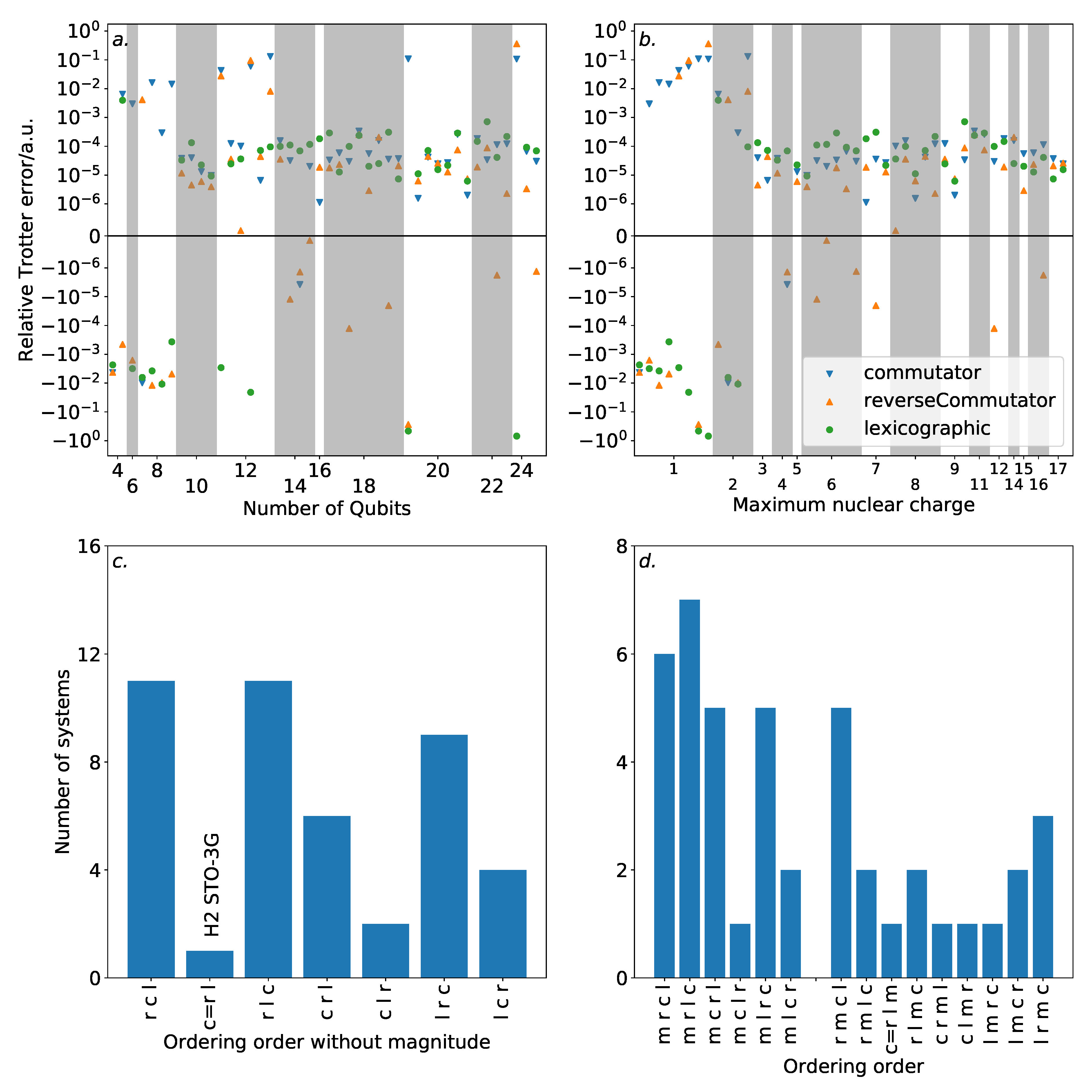

**Figure A2.**Trotter error of the commutator and reverseCommutator ordering relative to a magnitude ordering. Upper plots are linear within $\pm {10}^{-6}$. (

**a**): by number of qubits. (

**b**): by maximum nuclear charge. The reverseCommutator ordering is best for almost all systems including heavy atoms, however in almost all cases, a simple magnitude ordering outperforms all orderings considered. (

**c**): Frequency of “ordering orders”, being the sequence of ordering performance, ignoring the magnitude ordering. (

**d**): as lower left, but with the magnitude ordering.

## Appendix B. Systems in Dataset

System | Multiplicity | Charge | Basis | Qubits |
---|---|---|---|---|

B_{1} | 2 | 0 | STO-3G | 10 |

Be_{1} | 1 | 0 | STO-3G | 10 |

C_{1}O_{1} | 1 | 0 | STO-3G | 20 |

C_{1} | 3 | 0 | STO-3G | 10 |

Cl_{1} | 2 | 0 | STO-3G | 18 |

F_{2} | 1 | 0 | STO-3G | 20 |

H_{1}Cl_{1}^{1} | 1 | 0 | STO-3G | 20 |

H_{1}F_{1}^{1} | 1 | 0 | 3-21G | 22 |

H_{1}F_{1} | 1 | 0 | STO-3G | 12 |

H_{1}He_{1} | 1 | +1 | 3-21G | 8 |

H_{1}He_{1} | 1 | +1 | 6-311G | 12 |

H_{1}He_{1} | 1 | +1 | 6-31G | 8 |

H_{1}He_{1} | 1 | +1 | STO-3G | 4 |

H_{1}Li_{1}O_{1}^{1} | 1 | 0 | STO-3G | 22 |

H_{1}Li_{1} | 1 | 0 | STO-3G | 12 |

H_{1}Na_{1} | 1 | 0 | STO-3G | 20 |

H_{1}O_{1} | 1 | -1 | STO-3G | 12 |

H_{2}Be_{1} | 1 | 0 | STO-3G | 14 |

H_{2}C_{1}O_{1}^{1} | 1 | 0 | STO-3G | 24 |

H_{2}C_{1} | 3 | 0 | STO-3G | 14 |

H_{2}C_{1} | 3 | 0 | STO-3G | 14 |

H_{2}C_{2}^{1} | 1 | 0 | STO-3G | 24 |

H_{2}Mg_{1} | 1 | 0 | STO-3G | 22 |

H_{2}O_{1} | 1 | 0 | STO-3G | 14 |

H_{2}S_{1} | 1 | 0 | STO-3G | 22 |

H_{2} | 1 | 0 | 3-21G | 8 |

H_{2}^{1} | 1 | 0 | 6-311G** | 24 |

H_{2} | 1 | 0 | 6-311G | 12 |

H_{2} | 1 | 0 | 6-31G** | 20 |

H_{2} | 1 | 0 | 6-31G | 8 |

H_{2} | 1 | 0 | STO-3G | 4 |

H_{3}N_{1} | 1 | 0 | STO-3G | 16 |

H_{3} | 1 | +1 | 3-21G | 12 |

H_{3} | 1 | +1 | STO-3G | 6 |

H_{4}C_{1} | 1 | 0 | STO-3G | 18 |

H_{4}N_{1}^{1} | 1 | +1 | STO-3G | 18 |

Li_{1} | 2 | 0 | STO-3G | 10 |

Mg_{1} | 1 | 0 | STO-3G | 18 |

N_{2} | 1 | 0 | STO-3G | 20 |

Na_{1} | 2 | 0 | STO-3G | 18 |

O_{2} | 3 | 0 | STO-3G | 20 |

P_{1} | 4 | 0 | STO-3G | 18 |

S_{1} | 3 | 0 | STO-3G | 18 |

Si_{1} | 3 | 0 | STO-3G | 18 |

System | Multiplicity | Charge | Basis | Qubits |
---|---|---|---|---|

Ar_{1} | 1 | 0 | STO-3G | 18 |

C_{1}O_{2} | 1 | 0 | STO-3G | 30 |

Cl_{1} | 1 | -1 | STO-3G | 18 |

F_{1} | 2 | 0 | STO-3G | 10 |

H_{1}He_{1} | 1 | +1 | 6-31G** | 20 |

H_{1}Li_{1} | 1 | 0 | 3-21G | 22 |

H_{1} | 2 | 0 | STO-3G | 2 |

H_{2}C_{1} | 3 | 0 | 3-21G | 26 |

H_{2}O_{2} | 1 | 0 | STO-3G | 24 |

H_{4}C_{2} | 1 | 0 | STO-3G | 28 |

He_{1} | 1 | 0 | STO-3G | 2 |

K_{1} | 2 | 0 | STO-3G | 26 |

N_{1} | 4 | 0 | STO-3G | 10 |

Ne_{1} | 1 | 0 | STO-3G | 10 |

O_{1} | 3 | 0 | STO-3G | 10 |

O_{2} | 1 | 0 | STO-3G | 20 |

## References

- Deglmann, P.; Schäfer, A.; Lennartz, C. Application of Quantum Calculations in the Chemical Industry—An Overview. Int. J. Quantum Chem.
**2015**, 115, 107–136. [Google Scholar] [CrossRef] - Kortagere, S.; Lill, M.; Kerrigan, J. Role of Computational Methods in Pharmaceutical Sciences. Methods Mol. Biol.
**2012**, 929, 21–48. [Google Scholar] [CrossRef] [PubMed] - Szabo, A.; Ostlund, N.S. Modern Quantum Chemistry: Introduction to Advanced Electronic Structure Theory; Dover Publications: Mineola, NY, USA, 1996; pp. 231–270. [Google Scholar]
- Helgaker, T.; Jørgensen, P.; Olsen, J. Molecular Electronic-Structure Theory; Wiley: Chichester, NY, USA, 2000. [Google Scholar]
- Gan, Z.; Grant, D.J.; Harrison, R.J.; Dixon, D.A. The Lowest Energy States of the Group-IIIA–Group-VA Heteronuclear Diatomics: BN, BP, AlN, and AlP from Full Configuration Interaction Calculations. J. Chem. Phys.
**2006**. [Google Scholar] [CrossRef] [PubMed][Green Version] - Pople, J.A.; Krishnan, R.; Schlegel, H.B.; Binkley, J.S. Electron Correlation Theories and Their Application to the Study of Simple Reaction Potential Surfaces. Int. J. Quantum Chem.
**1978**, 14, 545–560. [Google Scholar] [CrossRef] - Møller, C.; Plesset, M.S. Note on an Approximation Treatment for Many-Electron Systems. Phys. Rev.
**1934**, 46, 618. [Google Scholar] [CrossRef][Green Version] - Aspuru-Guzik, A.; Dutoi, A.D.; Love, P.J.; Head-Gordon, M. Simulated Quantum Computation of Molecular Energies. Science
**2005**, 309, 1704–1707. [Google Scholar] [CrossRef][Green Version] - Kassal, I.; Whitfield, J.D.; Perdomo-Ortiz, A.; Yung, M.H.; Aspuru-Guzik, A. Simulating Chemistry Using Quantum Computers. Annu. Rev. Phys. Chem.
**2011**, 62, 185–207. [Google Scholar] [CrossRef][Green Version] - Cao, Y.; Romero, J.; Olson, J.P.; Degroote, M.; Johnson, P.D.; Kieferová, M.; Kivlichan, I.D.; Menke, T.; Peropadre, B.; Sawaya, N.P.D.; et al. Quantum Chemistry in the Age of Quantum Computing. arXiv
**2018**, arXiv:1812.09976. [Google Scholar] [CrossRef][Green Version] - Olson, J.; Cao, Y.; Romero, J.; Johnson, P.; Dallaire-Demers, P.L.; Sawaya, N.; Narang, P.; Kivlichan, I.; Wasielewski, M.; Aspuru-Guzik, A. Quantum Information and Computation for Chemistry. arXiv
**2017**, arXiv:1706.05413. [Google Scholar] - Lidar, D.A.; Wang, H. Calculating the Thermal Rate Constant with Exponential Speedup on a Quantum Computer. Phys. Rev. E
**1999**, 59, 2429–2438. [Google Scholar] [CrossRef][Green Version] - Kassal, I.; Aspuru-Guzik, A. Quantum Algorithm for Molecular Properties and Geometry Optimization. J. Chem. Phys.
**2009**, 131, 224102. [Google Scholar] [CrossRef] [PubMed][Green Version] - Reiher, M.; Wiebe, N.; Svore, K.M.; Wecker, D.; Troyer, M. Elucidating Reaction Mechanisms on Quantum Computers. Proc. Natl. Acad. Sci. USA
**2017**, 114, 7555–7560. [Google Scholar] [CrossRef] [PubMed][Green Version] - Kassal, I.; Jordan, S.P.; Love, P.J.; Mohseni, M.; Aspuru-Guzik, A. Polynomial-Time Quantum Algorithm for the Simulation of Chemical Dynamics. Proc. Natl. Acad. Sci. USA
**2008**, 105, 18681–18686. [Google Scholar] [CrossRef] [PubMed][Green Version] - Lanyon, B.P.; Whitfield, J.D.; Gillett, G.G.; Goggin, M.E.; Almeida, M.P.; Kassal, I.; Biamonte, J.D.; Mohseni, M.; Powell, B.J.; Barbieri, M.; et al. Towards Quantum Chemistry on a Quantum Computer. Nat. Chem.
**2010**, 2, 106–111. [Google Scholar] [CrossRef] [PubMed][Green Version] - Du, J.; Xu, N.; Peng, X.; Wang, P.; Wu, S.; Lu, D. NMR Implementation of a Molecular Hydrogen Quantum Simulation with Adiabatic State Preparation. Phys. Rev. Lett.
**2010**, 104, 030502. [Google Scholar] [CrossRef] - O’Malley, P.J.J.; Babbush, R.; Kivlichan, I.D.; Romero, J.; McClean, J.R.; Barends, R.; Kelly, J.; Roushan, P.; Tranter, A.; Ding, N.; et al. Scalable Quantum Simulation of Molecular Energies. Phys. Rev. X
**2016**, 6, 031007. [Google Scholar] [CrossRef] - Kandala, A.; Mezzacapo, A.; Temme, K.; Takita, M.; Brink, M.; Chow, J.M.; Gambetta, J.M. Hardware-Efficient Variational Quantum Eigensolver for Small Molecules and Quantum Magnets. Nature
**2017**, 549, 242–246. [Google Scholar] [CrossRef] - Hempel, C.; Maier, C.; Romero, J.; McClean, J.; Monz, T.; Shen, H.; Jurcevic, P.; Lanyon, B.P.; Love, P.; Babbush, R.; et al. Quantum Chemistry Calculations on a Trapped-Ion Quantum Simulator. Phys. Rev. X
**2018**, 8, 031022. [Google Scholar] [CrossRef][Green Version] - Nam, Y.; Chen, J.S.; Pisenti, N.C.; Wright, K.; Delaney, C.; Maslov, D.; Brown, K.R.; Allen, S.; Amini, J.M.; Apisdorf, J.; et al. Ground-State Energy Estimation of the Water Molecule on a Trapped Ion Quantum Computer. arXiv
**2019**, arXiv:1902.10171. [Google Scholar] - Peruzzo, A.; McClean, J.; Shadbolt, P.; Yung, M.H.; Zhou, X.Q.; Love, P.J.; Aspuru-Guzik, A.; O’Brien, J.L. A Variational Eigenvalue Solver on a Photonic Quantum Processor. Nat. Commun.
**2014**, 5, 4213. [Google Scholar] [CrossRef][Green Version] - McClean, J.R.; Romero, J.; Babbush, R.; Aspuru-Guzik, A. The Theory of Variational Hybrid Quantum-Classical Algorithms. New J. Phys.
**2016**, 18, 023023. [Google Scholar] [CrossRef] - Smart, S.E.; Mazziotti, D.A. Quantum-Classical Hybrid Algorithm Using an Error-Mitigating N-Representability Condition to Compute the Mott Metal-Insulator Transition. Phys. Rev. A
**2019**, 100, 022517. [Google Scholar] [CrossRef][Green Version] - Wei, S.; Li, H.; Long, G. Full Quantum Eigensolver for Quantum Chemistry Simulations. arXiv
**2019**, arXiv:1908.07927. [Google Scholar] - Farhi, E.; Goldstone, J.; Gutmann, S. A Quantum Approximate Optimization Algorithm. arXiv
**2014**, arXiv:1411.4028. [Google Scholar] - Iliyasu, A.M.; Venegas-Andraca, S.E.; Yan, F.; Sayed, A. Hybrid Quantum-Classical Protocol for Storage and Retrieval of Discrete-Valued Information. Entropy
**2014**, 16, 3537–3551. [Google Scholar] [CrossRef][Green Version] - Zhu, D.; Linke, N.M.; Benedetti, M.; Landsman, K.A.; Nguyen, N.H.; Alderete, C.H.; Perdomo-Ortiz, A.; Korda, N.; Garfoot, A.; Brecque, C.; et al. Training of Quantum Circuits on a Hybrid Quantum Computer. Sci. Adv.
**2019**, 5. [Google Scholar] [CrossRef][Green Version] - Kitaev, A.Y. Quantum Measurements and the Abelian Stabilizer Problem. arXiv
**1995**, arXiv:quant-ph/9511026. [Google Scholar] - Lloyd, S. Universal Quantum Simulators. Science
**1996**, 273, 1073–1078. [Google Scholar] [CrossRef] - Abrams, D.S.; Lloyd, S. Simulation of Many-Body Fermi Systems on a Universal Quantum Computer. Phys. Rev. Lett.
**1997**, 79, 2586–2589. [Google Scholar] [CrossRef][Green Version] - Romero, J.; Babbush, R.; McClean, J.R.; Hempel, C.; Love, P.J.; Aspuru-Guzik, A. Strategies for Quantum Computing Molecular Energies Using the Unitary Coupled Cluster Ansatz. Quantum Sci. Technol.
**2018**, 4, 014008. [Google Scholar] [CrossRef][Green Version] - Hastings, M.B.; Wecker, D.; Bauer, B.; Troyer, M. Improving Quantum Algorithms for Quantum Chemistry. Quantum Inf. Comput.
**2015**, 15, 1–21. [Google Scholar] - Tranter, A.; Love, P.J.; Mintert, F.; Coveney, P.V. A Comparison of the Bravyi–Kitaev and Jordan–Wigner Transformations for the Quantum Simulation of Quantum Chemistry. J. Chem. Theory Comput.
**2018**, 14, 5617–5630. [Google Scholar] [CrossRef] [PubMed] - Poulin, D.; Hastings, M.B.; Wecker, D.; Wiebe, N.; Doberty, A.C.; Troyer, M. The Trotter Step Size Required for Accurate Quantum Simulation of Quantum Chemistry. Quantum Inf. Comput.
**2015**, 15, 361–384. [Google Scholar] - Babbush, R.; McClean, J.; Wecker, D.; Aspuru-Guzik, A.; Wiebe, N. Chemical Basis of Trotter-Suzuki Errors in Quantum Chemistry Simulation. Phys. Rev. A
**2015**, 91, 022311. [Google Scholar] [CrossRef][Green Version] - Jordan, P.; Wigner, E. Über Das Paulische Äquivalenzverbot. Z. FÜR Phys.
**1928**, 47, 631–651. (In German) [Google Scholar] [CrossRef] - Bravyi, S.B.; Kitaev, A.Y. Fermionic Quantum Computation. Ann. Phys.
**2002**, 298, 210–226. [Google Scholar] [CrossRef][Green Version] - Seeley, J.T.; Richard, M.J.; Love, P.J. The Bravyi-Kitaev Transformation for Quantum Computation of Electronic Structure. J. Chem. Phys.
**2012**, 137, 224109. [Google Scholar] [CrossRef][Green Version] - Tranter, A.; Sofia, S.; Seeley, J.; Kaicher, M.; McClean, J.; Babbush, R.; Coveney, P.V.; Mintert, F.; Wilhelm, F.; Love, P.J. The Bravyi-Kitaev Transformation: Properties and Applications. Int. J. Quantum Chem.
**2015**, 115, 1431–1441. [Google Scholar] [CrossRef] - Setia, K.; Whitfield, J.D. Bravyi-Kitaev Superfast Simulation of Fermions on a Quantum Computer. arXiv
**2017**, arXiv:1712.00446. [Google Scholar] - Nielsen, M.A.; Chuang, I.L. Quantum Computation and Quantum Information: 10th Anniversary Edition; Cambridge University Press: Cambridge, UK, 2010; pp. 221–226. [Google Scholar]
- Lee, J.; Huggins, W.J.; Head-Gordon, M.; Whaley, K.B. Generalized Unitary Coupled Cluster Wave Functions for Quantum Computation. J. Chem. Theory Comput.
**2019**, 15, 311–324. [Google Scholar] [CrossRef][Green Version] - Hatano, N.; Suzuki, M. Finding Exponential Product Formulas of Higher Orders. In Quantum Annealing and Other Optimization Methods; Springer: Berlin/Heidelberg, Germany, 2005; pp. 37–68. [Google Scholar]
- Suzuki, M. Generalized Trotter’s Formula and Systematic Approximants of Exponential Operators and Inner Derivations with Applications to Many-Body Problems. Commun. Math. Phys.
**1976**, 51, 183–190. [Google Scholar] [CrossRef] - Kirby, W.M.; Love, P.J. Contextuality Test of the Nonclassicality of Variational Quantum Eigensolvers. arXiv
**2019**, arXiv:1904.02260. [Google Scholar] [CrossRef] [PubMed][Green Version] - Parrish, R.M.; Burns, L.A.; Smith, D.G.A.; Simmonett, A.C.; DePrince, A.E.; Hohenstein, E.G.; Bozkaya, U.; Sokolov, A.Y.; Di Remigio, R.; Richard, R.M.; et al. Psi4 1.1: An Open-Source Electronic Structure Program Emphasizing Automation, Advanced Libraries, and Interoperability. J. Chem. Theory Comput.
**2017**, 13, 3185–3197. [Google Scholar] [CrossRef] [PubMed] - McClean, J.R.; Kivlichan, I.D.; Sung, K.J.; Steiger, D.S.; Cao, Y.; Dai, C.; Fried, E.S.; Gidney, C.; Gimby, B.; Häner, T.; et al. OpenFermion: The Electronic Structure Package for Quantum Computers. arXiv
**2017**, arXiv:1710.07629. [Google Scholar] - Tranter, A. Quantum Chemistry and Quantum Computers—Testing the Bravyi-Kitaev Mapping and Trotter Order Optimisations. Ph.D. Thesis, Imperial College London, London, UK, November 2018. [Google Scholar]
- Johnson, R.D., III. NIST Computational Chemistry Comparison and Benchmark Database NIST Standard Reference Database Number 101 Release 18. Available online: https://cccbdb.nist.gov/ (accessed on 9 Februay 2016).
- Garey, M.R.; Johnson, D.S.; Stockmeyer, L. Some Simplified NP-Complete Problems. In Proceedings of the Sixth Annual ACM Symposium on Theory of Computing, New York, NY, USA, 30 April–2 May 1974; pp. 47–63. [Google Scholar] [CrossRef]
- Kosowski, A.; Manuszewski, K. Classical Coloring of Graphs. In Contemporary Mathematics; Kubale, M., Ed.; American Mathematical Society: Providence, RI, USA, 2004; Volume: 352, pp. 1–19. [Google Scholar] [CrossRef][Green Version]
- Verteletskyi, V.; Yen, T.C.; Izmaylov, A.F. Measurement Optimization in the Variational Quantum Eigensolver Using a Minimum Clique Cover. arXiv
**2019**, arXiv:1907.03358. [Google Scholar] - Izmaylov, A.F.; Yen, T.C.; Lang, R.A.; Verteletskyi, V. Unitary Partitioning Approach to the Measurement Problem in the Variational Quantum Eigensolver Method. arXiv
**2019**, arXiv:1907.09040. [Google Scholar] [CrossRef] - Crawford, O.; van Straaten, B.; Wang, D.; Parks, T.; Campbell, E.; Brierley, S. Efficient Quantum Measurement of Pauli Operators. arXiv
**2019**, arXiv:1908.06942. [Google Scholar] - Zhao, A.; Tranter, A.; Kirby, W.M.; Ung, S.F.; Miyake, A.; Love, P. Measurement Reduction in Variational Quantum Algorithms. arXiv
**2019**, arXiv:1908.08067. [Google Scholar] - Hagberg, A.; Swart, P.; Daniel, S.C. Exploring Network Structure, Dynamics, and Function Using NetworkX. In Proceedings of the 7th Python in Science Conference (SciPy 2008), Pasadena, CA, USA, 21 August 2008; pp. 11–15. [Google Scholar]
- Lu, D.; Li, K.; Li, J.; Katiyar, H.; Park, A.J.; Feng, G.; Xin, T.; Li, H.; Long, G.; Brodutch, A.; et al. Enhancing Quantum Control by Bootstrapping a Quantum Processor of 12 Qubits. Npj Quantum Inf.
**2017**, 3, 1–7. [Google Scholar] [CrossRef][Green Version]

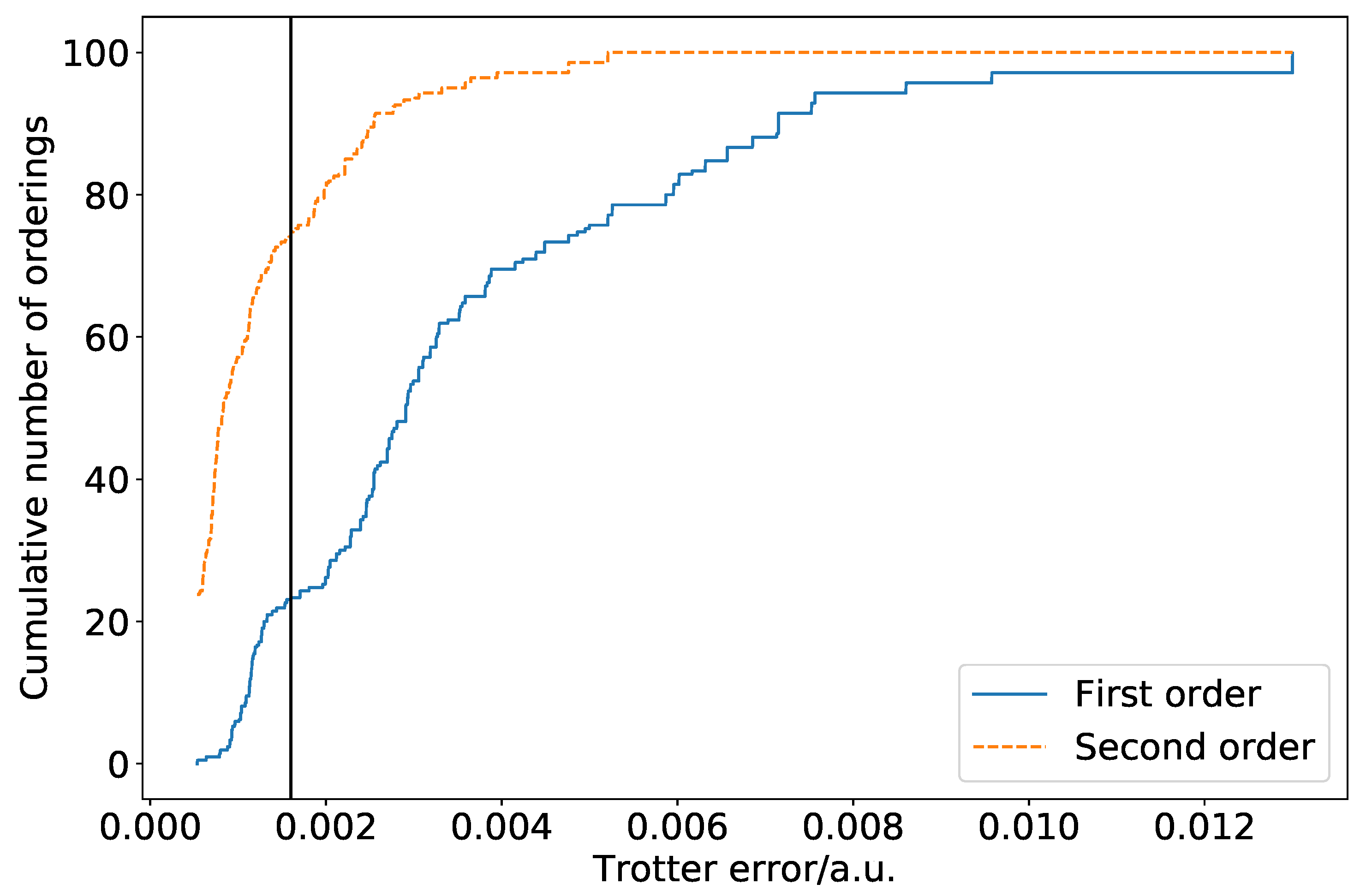

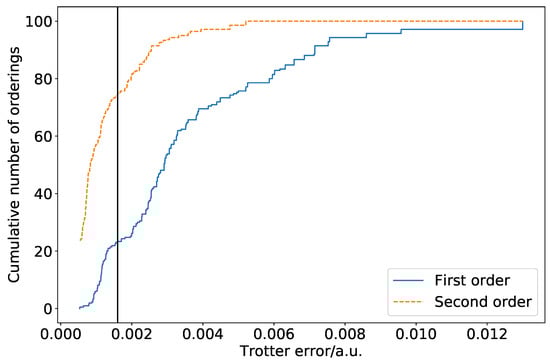

**Figure 1.**Cumulative density plot of hydrogen ordering errors for one Trotter step, using a bond length of $0.7414$ Å and an STO-3G atomic basis. The vertical line denotes an error of 1 kcal/mol. Approximately $20\%$ of the orderings achieve this error or lower for the first-order Trotter–Suzuki approximation. Around $80\%$ of orderings achieve an error of 0.005 Hartree, approximately half that of the worst possible ordering.

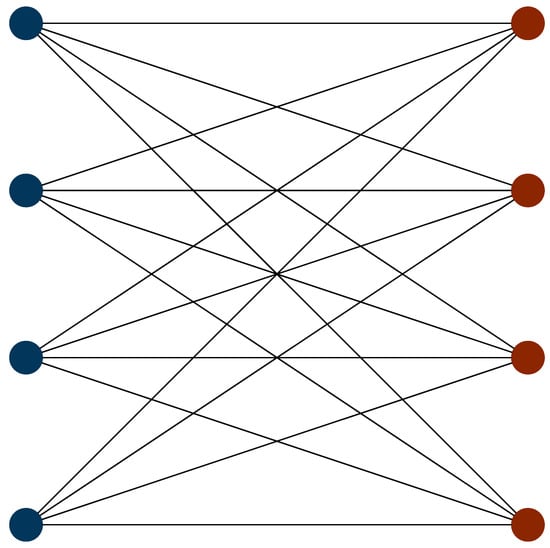

**Figure 2.**The incompatibility graph of the Jordan–Wigner and Bravyi–Kitaev Hamiltonians, with the totally commuting set removed. Nodes correspond to Hamiltonian terms, edges correspond to non-commutativity between terms. Two independent sets are clearly revealed, with the XY-set colored blue and the Z-set colored red.

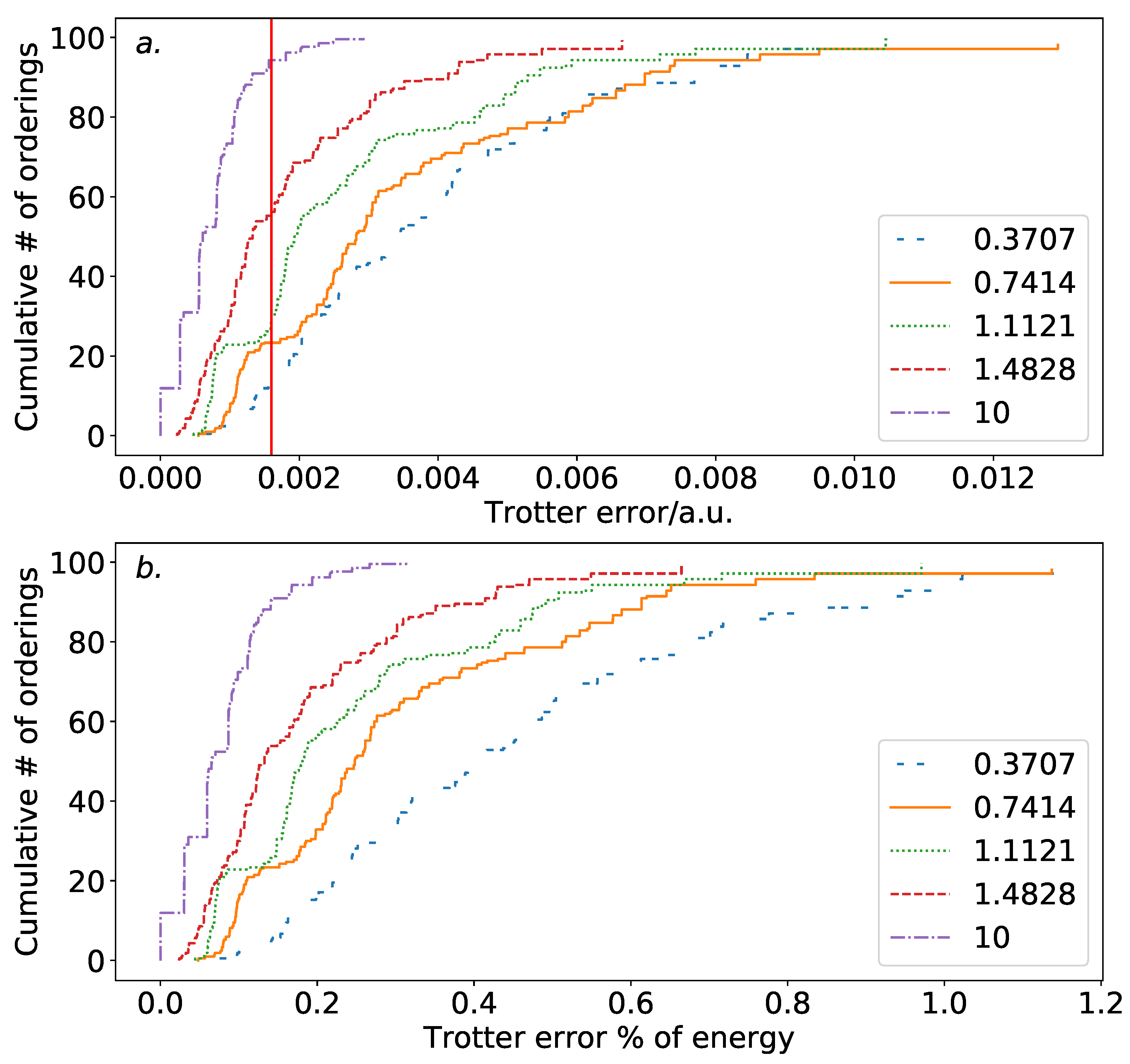

**Figure 3.**Distribution of Trotter errors by ordering for varying bond lengths for H

_{2}in a minimal basis. (

**a**): versus absolute Trotter error. As the bond length decreases, both the Trotter error and the dependence of the Trotter error on the ordering chosen increase. (

**b**): versus the Trotter error as a percentage of the ground state energy. The same trend as with the absolute Trotter error is observed, although the ordering dependence at extremely low bond length is accentuated.

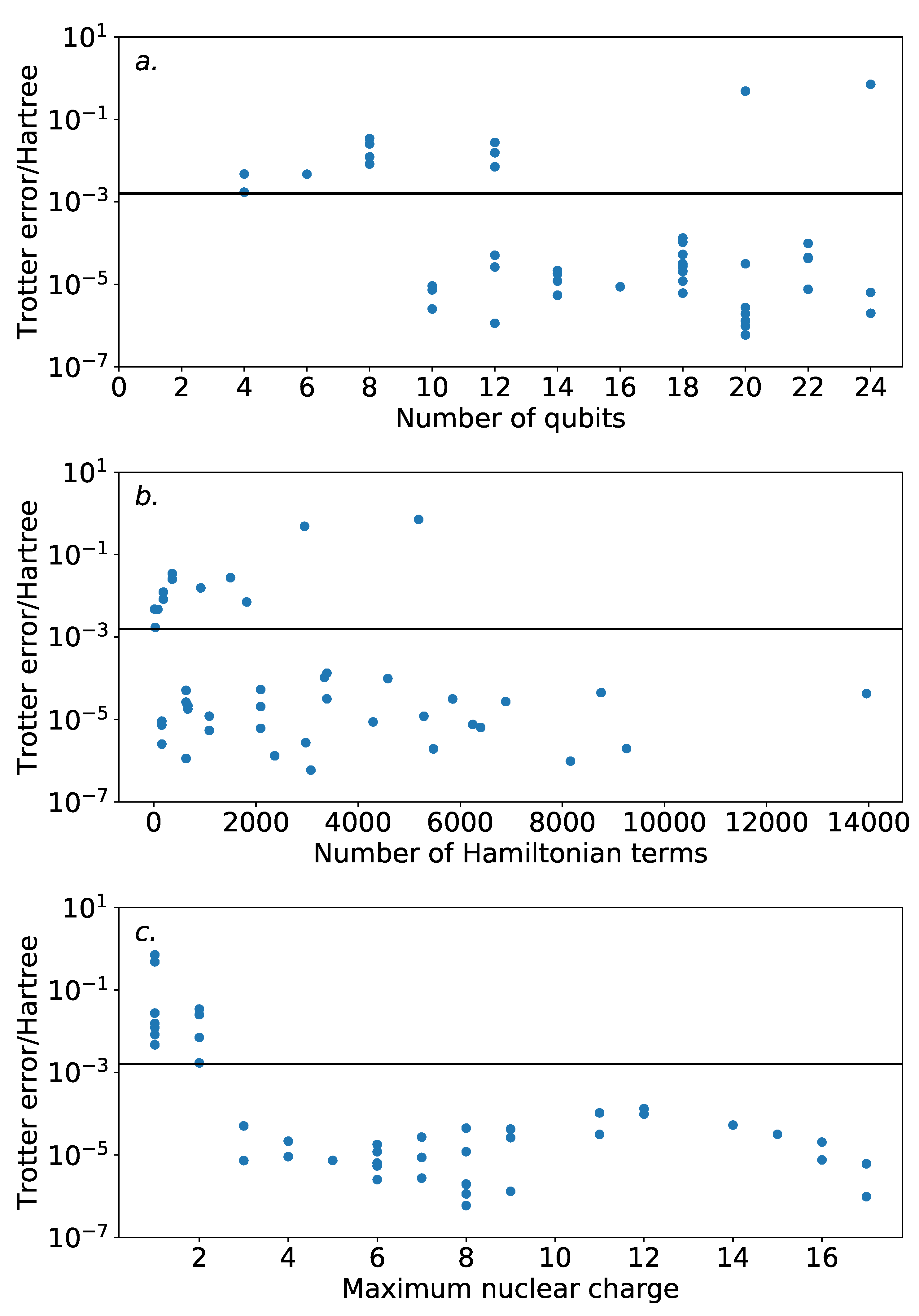

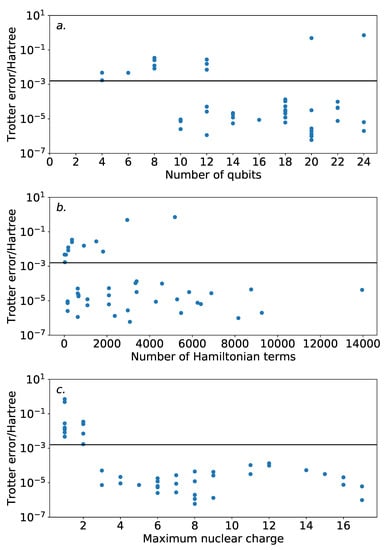

**Figure 4.**Trotter errors for the dataset of molecular Hamiltonians using a magnitude ordering. The vertical bar indicates chemical accuracy. Most of the systems achieve chemical accuracy with one Trotter step. (

**a**): versus the number of spin-orbitals. Most of the high-error results are for low numbers of spin-orbitals. (

**b**): versus the number of terms in the Hamiltonian. Again, most of the high-error results are for low numbers of terms. (

**c**): versus the maximum nuclear charge. All of the high-error systems are for systems with exclusively light atoms, and the overall trend roughly follows the predictions of prior literature.

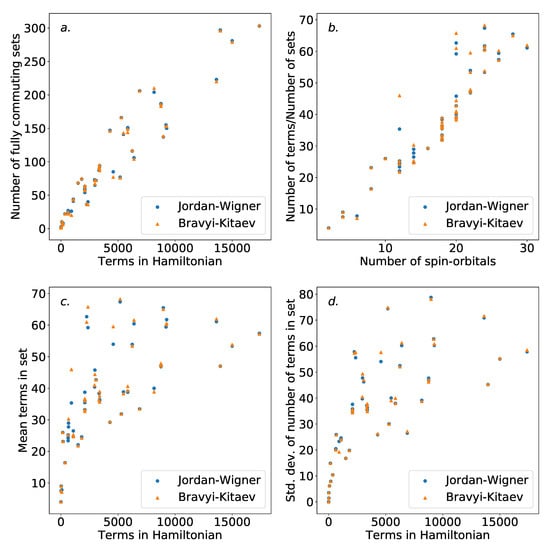

**Figure 5.**Statistics of the fully commuting sets of terms found in the coloring of the Hamiltonians in the dataset. (

**a**): number of fully commuting sets versus the number of terms in the Hamiltonian. (

**b**): number of independent sets divided by the number of terms, versus the number of spin-orbitals. A roughly linear trend is observed, indicating a $\Theta \left(\right)open="("\; close=")">{N}^{3}$ scaling. (

**c**): average number of terms in each fully commuting subset for a given Hamiltonian. (

**d**): standard deviation of number of terms in each fully commuting subset for a given Hamiltonian. The increasing variance in group sizes could be problematic for ordering purposes.

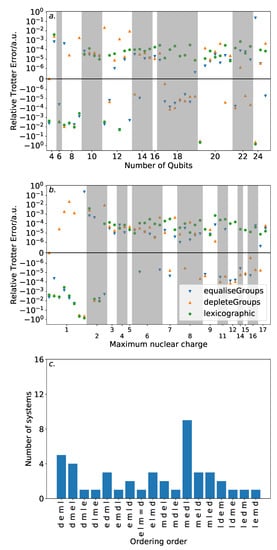

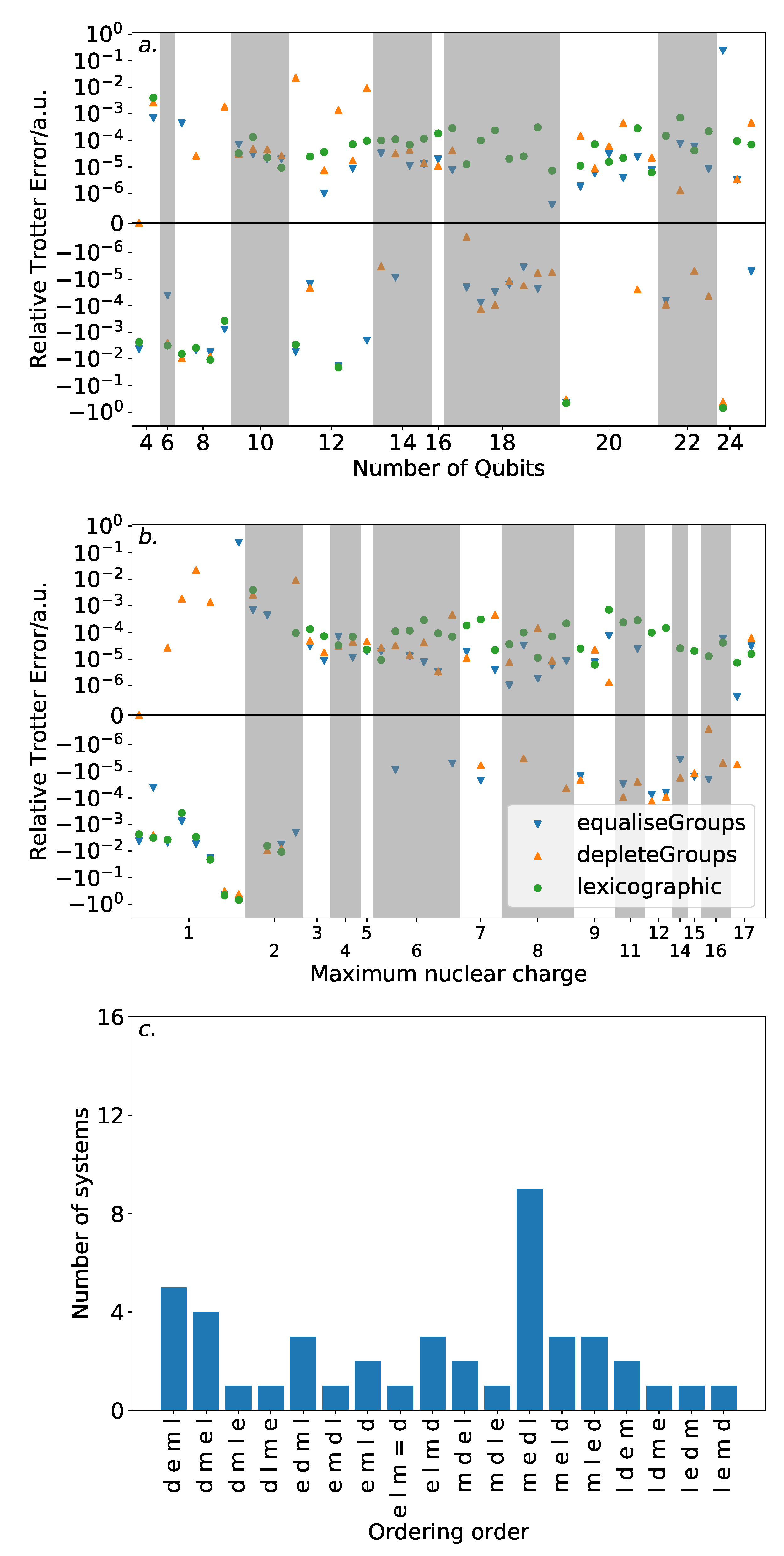

**Figure 6.**Trotter error of the depleteGroups and equaliseGroups orderings relative to a magnitude ordering. Upper plots are linear within $\pm {10}^{-6}$. (

**a**): by number of qubits. (

**b**): by maximum nuclear charge. Again, the magnitude ordering is preferable in most cases; however, for systems with period three atoms, the depleteGroups and equaliseGroups are best. (

**c**): frequency of “ordering orders”, being the sequence of ordering performance. The distribution here is relatively flat.

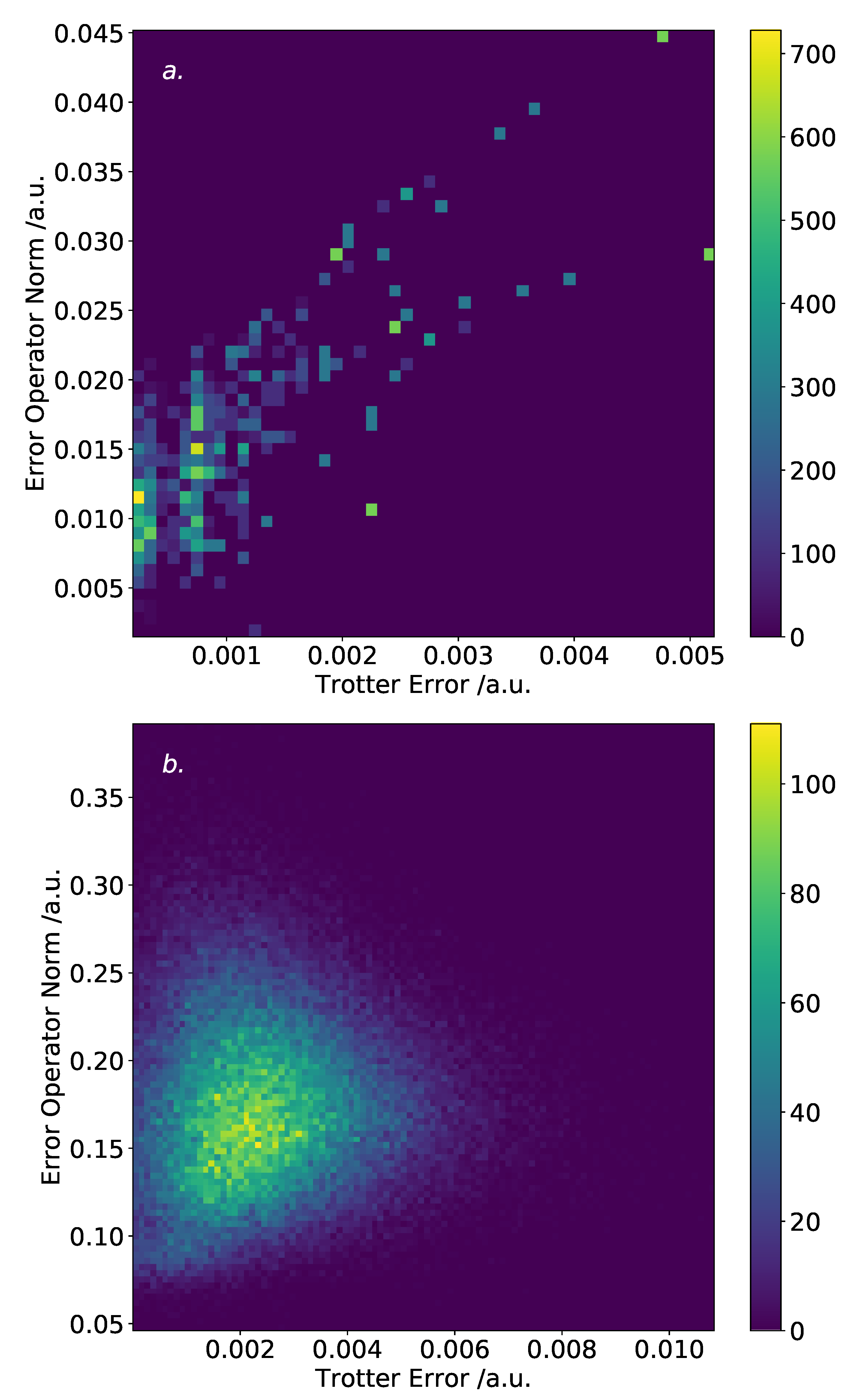

**Figure 7.**The Trotter error operator norm versus true Trotter error, for various orderings. (

**a**): hydrogen molecule in a minimal basis. Two hundred and fifty bins are used. Loose correlation is observed, although there is ambiguity for a true Trotter error of less than 0.001 a.u. (

**b**): helium hydride in a minimal basis, using 100,000 random orderings. One thousand bins are used. Little obvious correlation is observed.

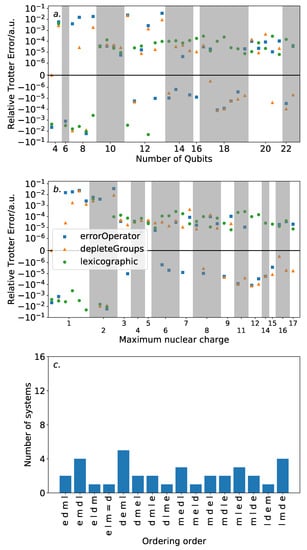

**Figure 9.**Trotter error of the errorOperator ordering relative to a magnitude ordering. Upper plots are linear between $\pm {10}^{-6}$. (

**a**): by number of qubits. (

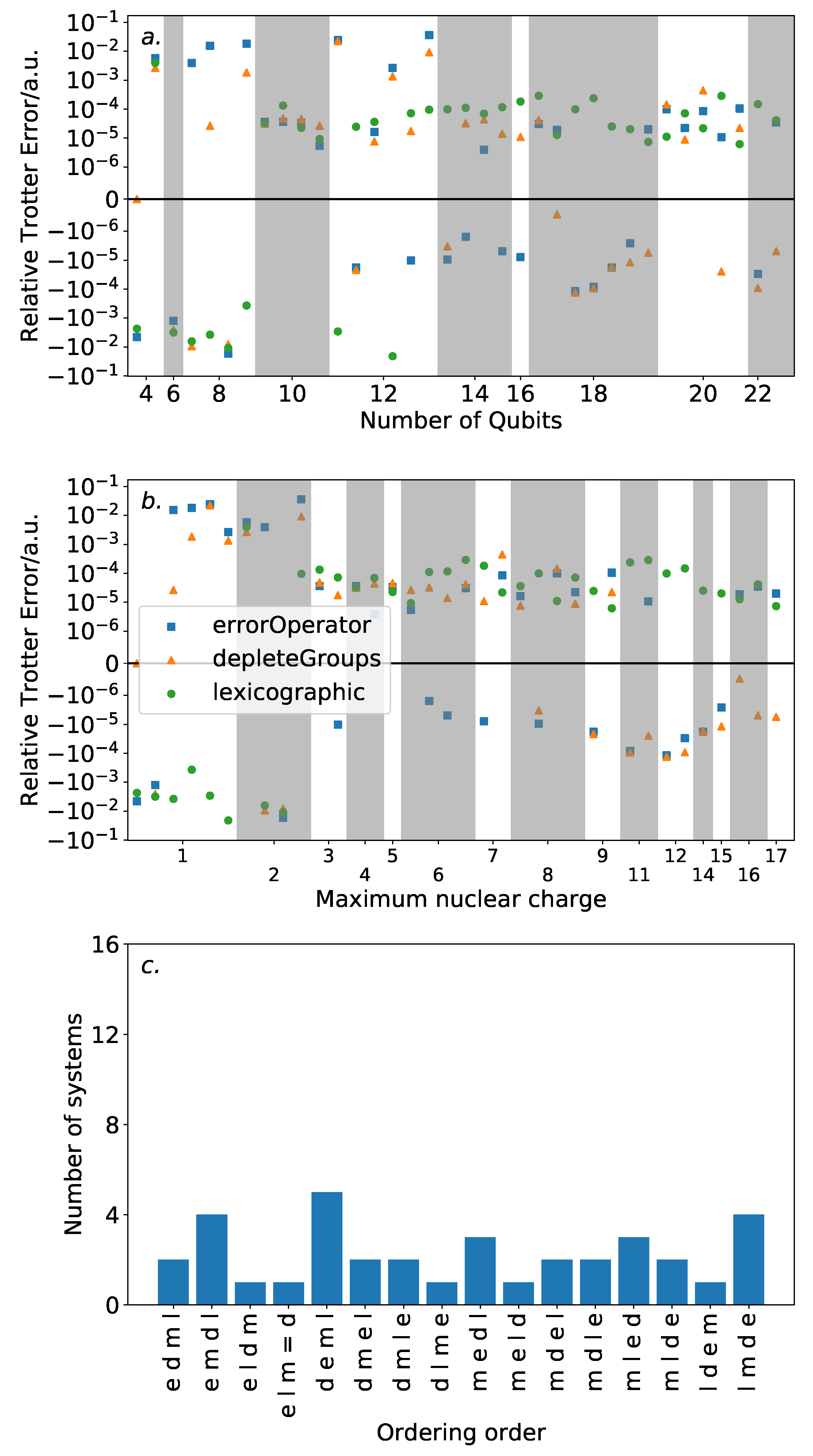

**b**): by maximum nuclear charge. As with the previous orderings, the variance between Trotter ordering schemes is low for systems involving heavy atoms. In these cases, the errorOperator ordering performs roughly commensurately with the magnitude ordering. (
