# A Novel Improved Feature Extraction Technique for Ship-Radiated Noise Based on IITD and MDE

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theory of IITD-MDE

#### 2.1. IITD Algorithm

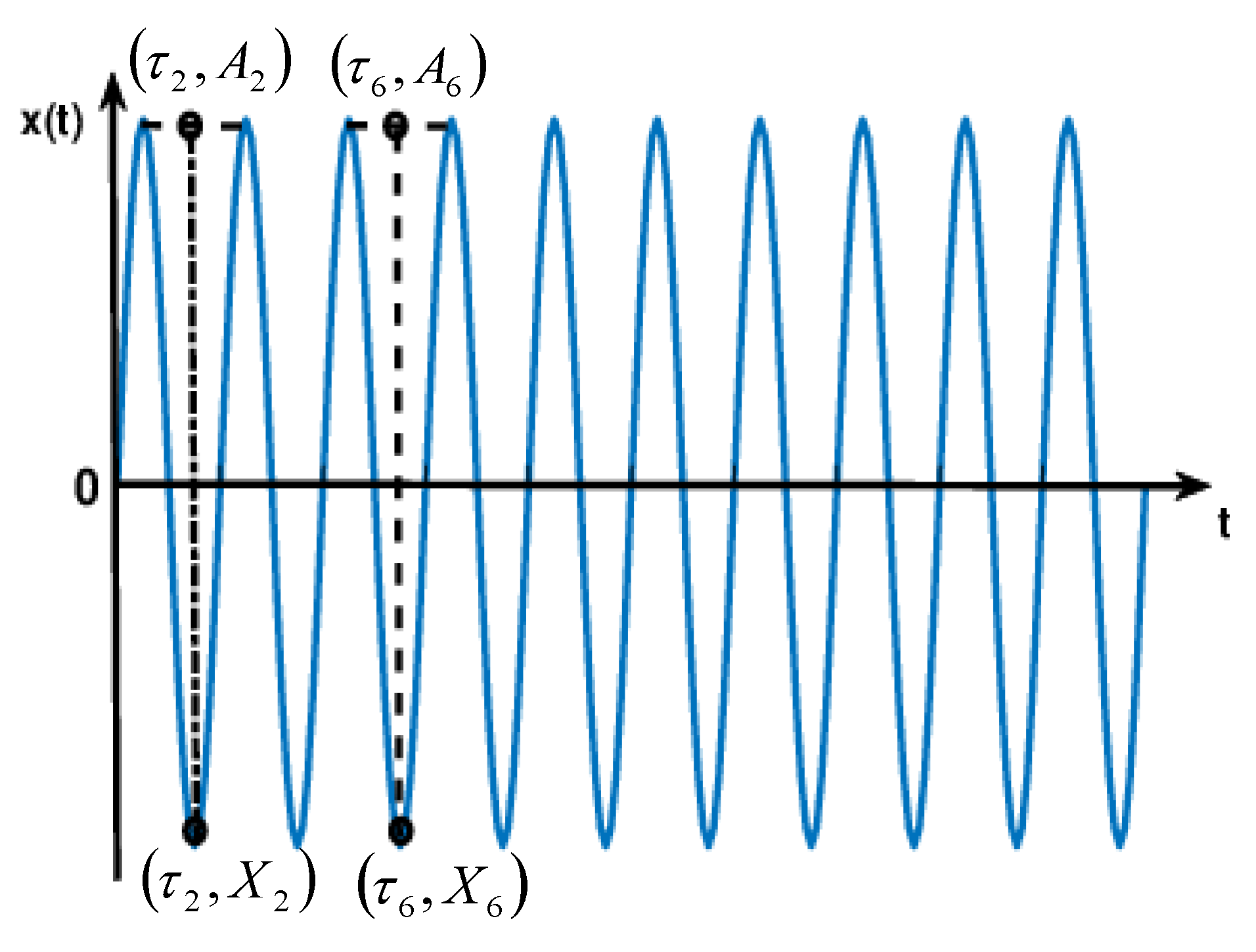

#### 2.1.1. ITD

#### 2.1.2. Comparison of Baseline-Fitting Method

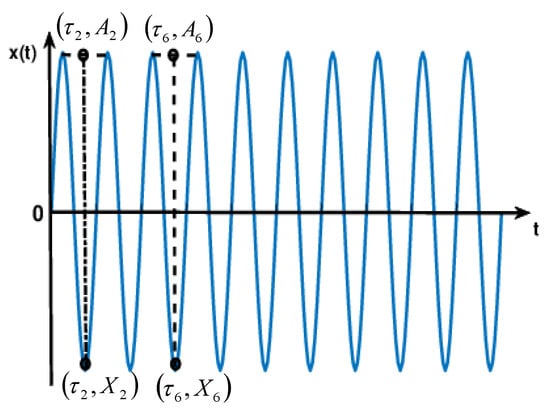

#### 2.1.3. Intrinsic Scale Component (ISC)

#### 2.1.4. IITD

#### 2.2. MDE Algorithm

#### 2.2.1. DE

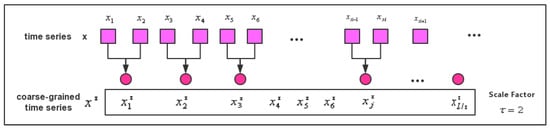

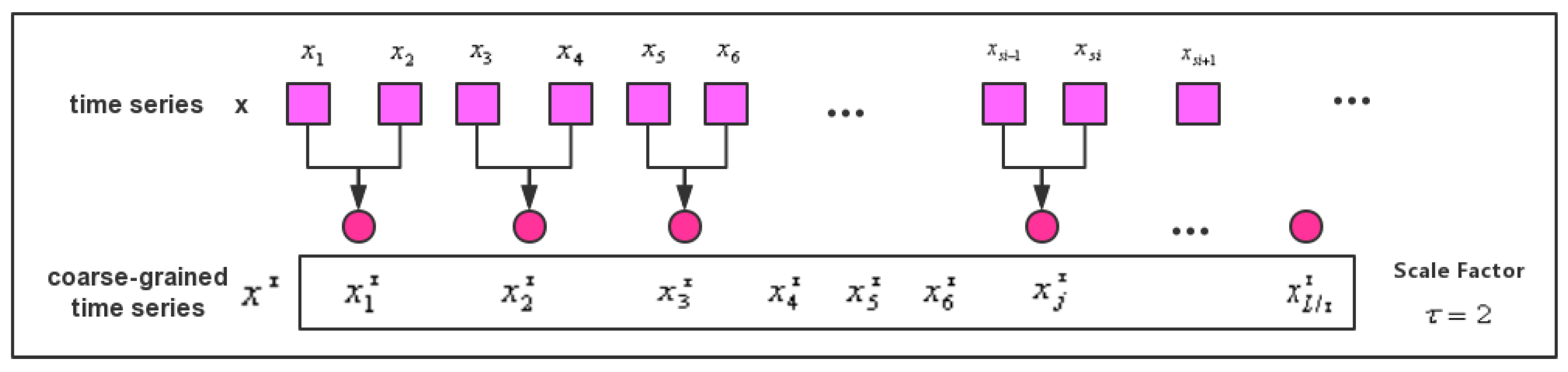

#### 2.2.2. MDE

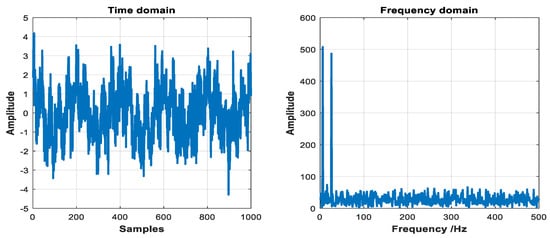

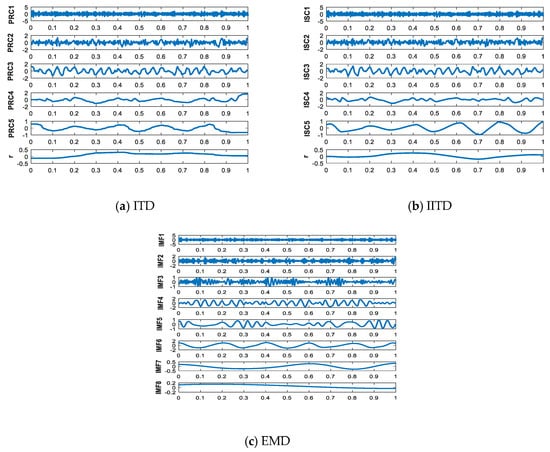

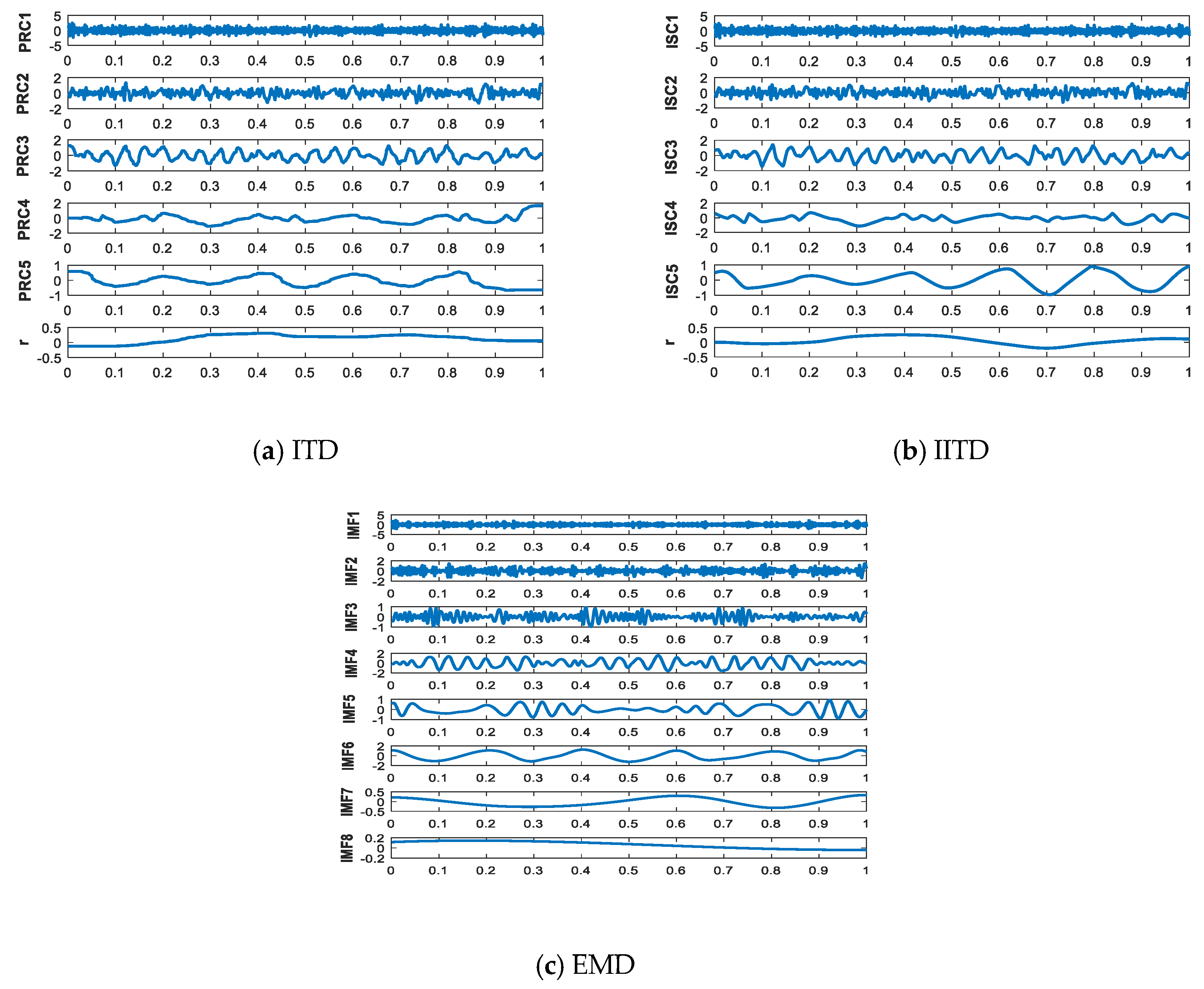

#### 2.3. Comparison between ITD, IITD, and EMD

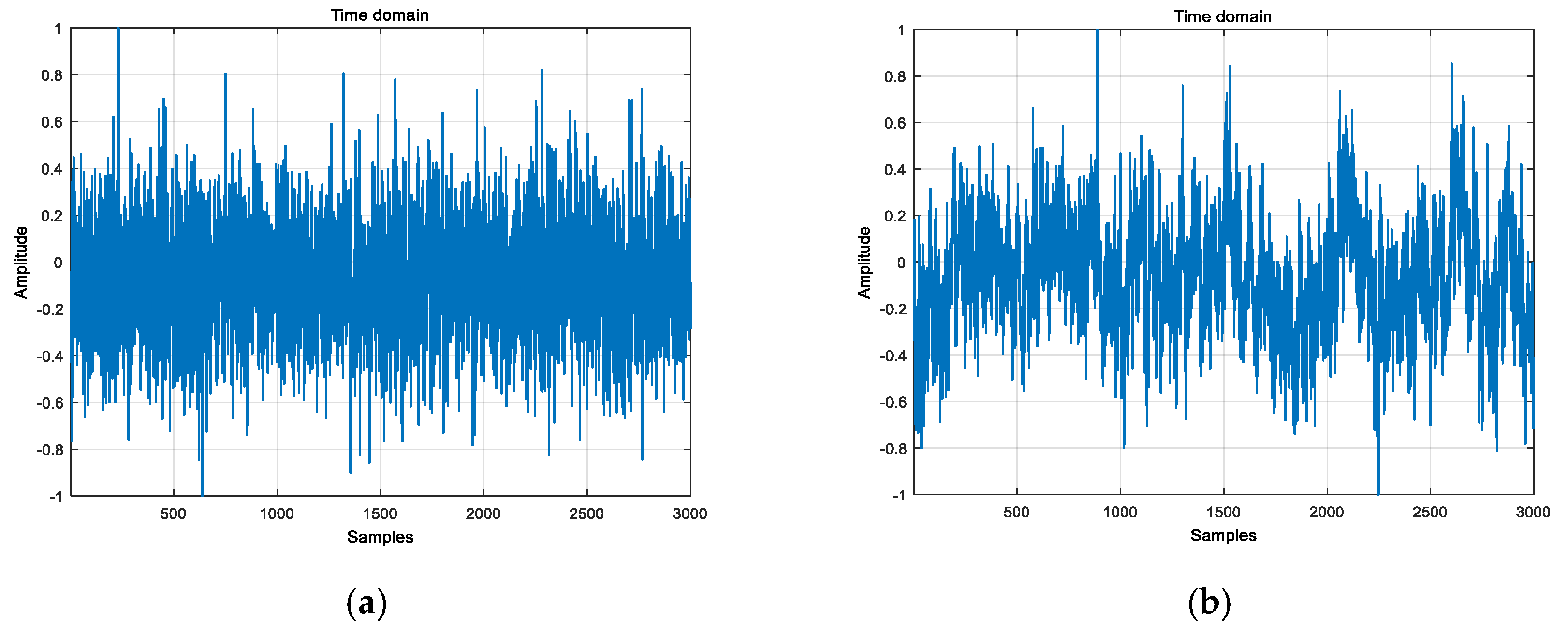

#### 2.4. Comparison between MSE, MPE, and MDE

## 3. The Proposed Feature Extraction Method

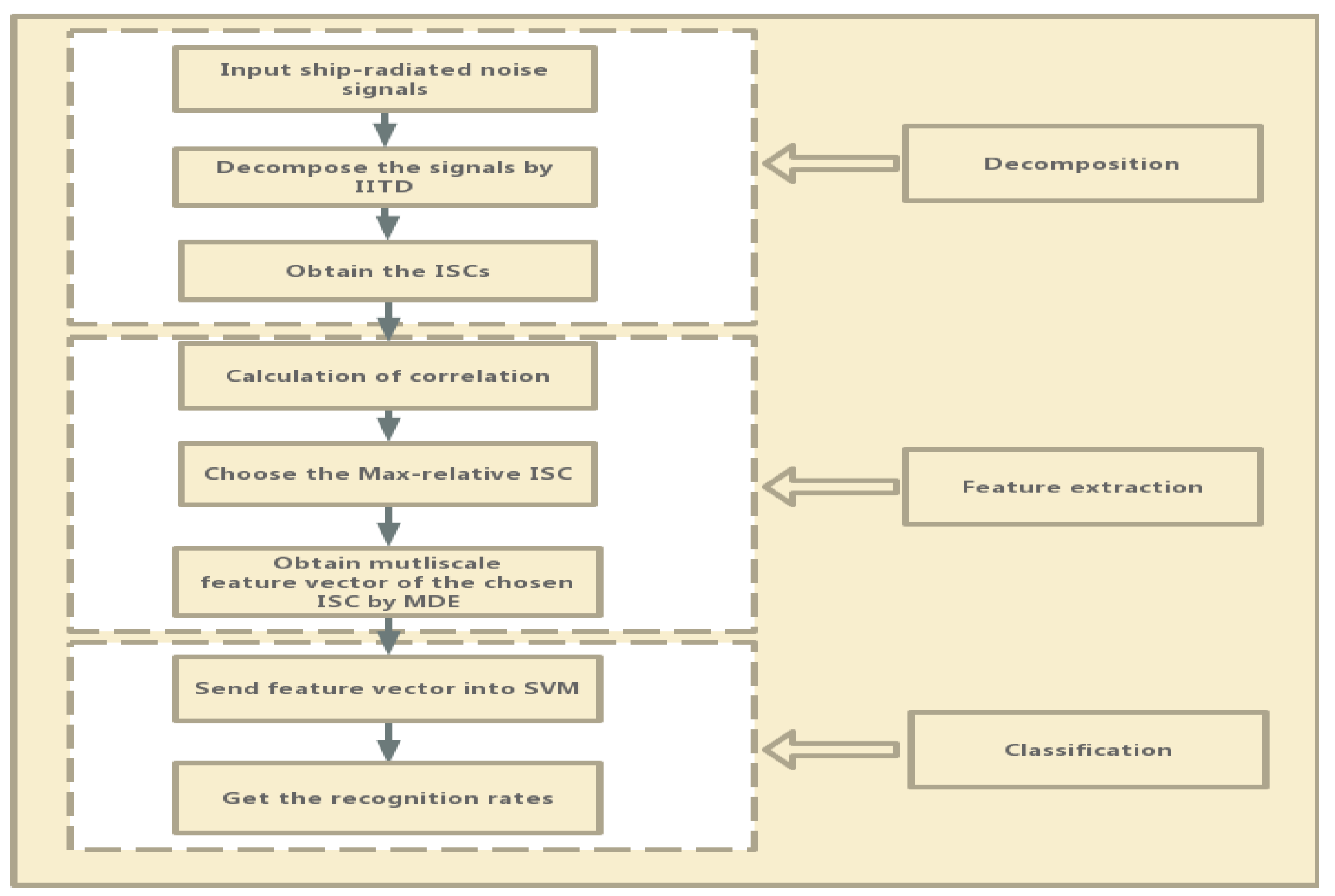

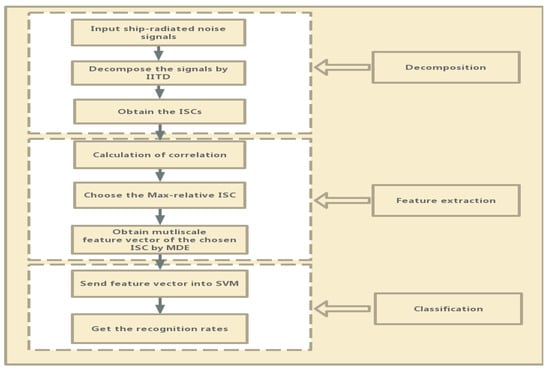

- (1)
- Perform IITD on the five types of ship-radiated noise signals of the training data and decompose signals into a series of ISCs and one monotonic trend component.
- (2)

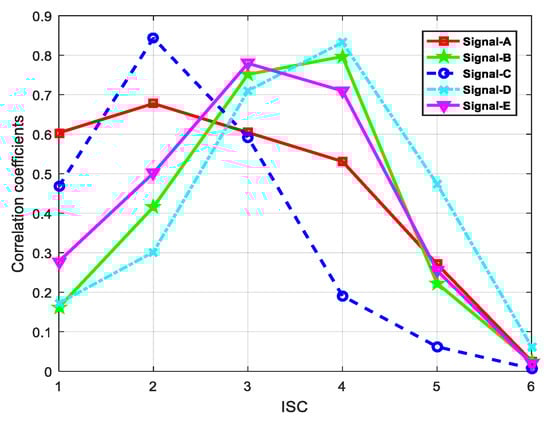

- Calculate the correlation between ISCs and the original signal, then select the ISCs with large correlation coefficients as the feature parameter.
- (3)
- Calculate their MDE value of the chosen ISCs and set scale factor to 20.
- (4)
- Input feature vectors to SVM to establish the classifier.
- (5)
- For the test dataset, extract their features using steps (1–3), then input the features into classifier for classification and get recognition rates.

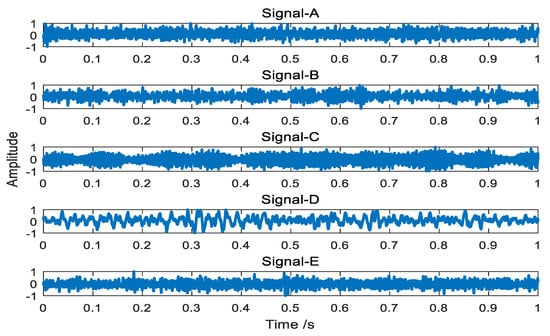

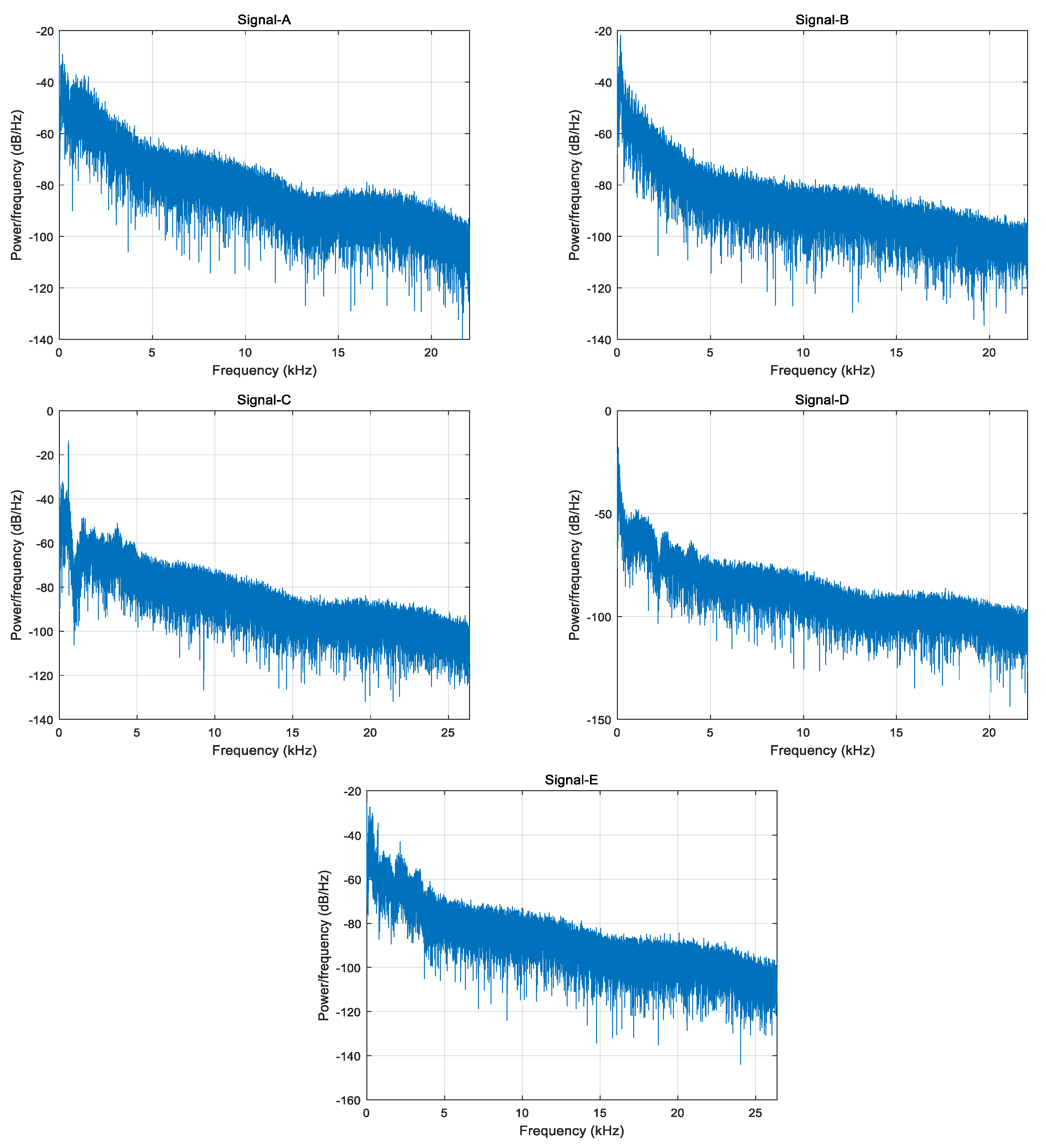

## 4. Experimental Verification and Analysis

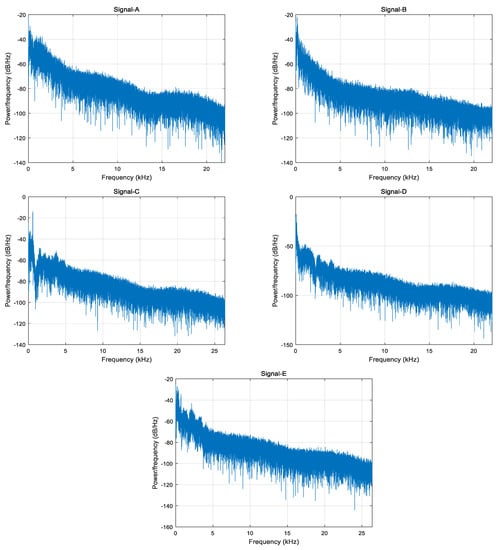

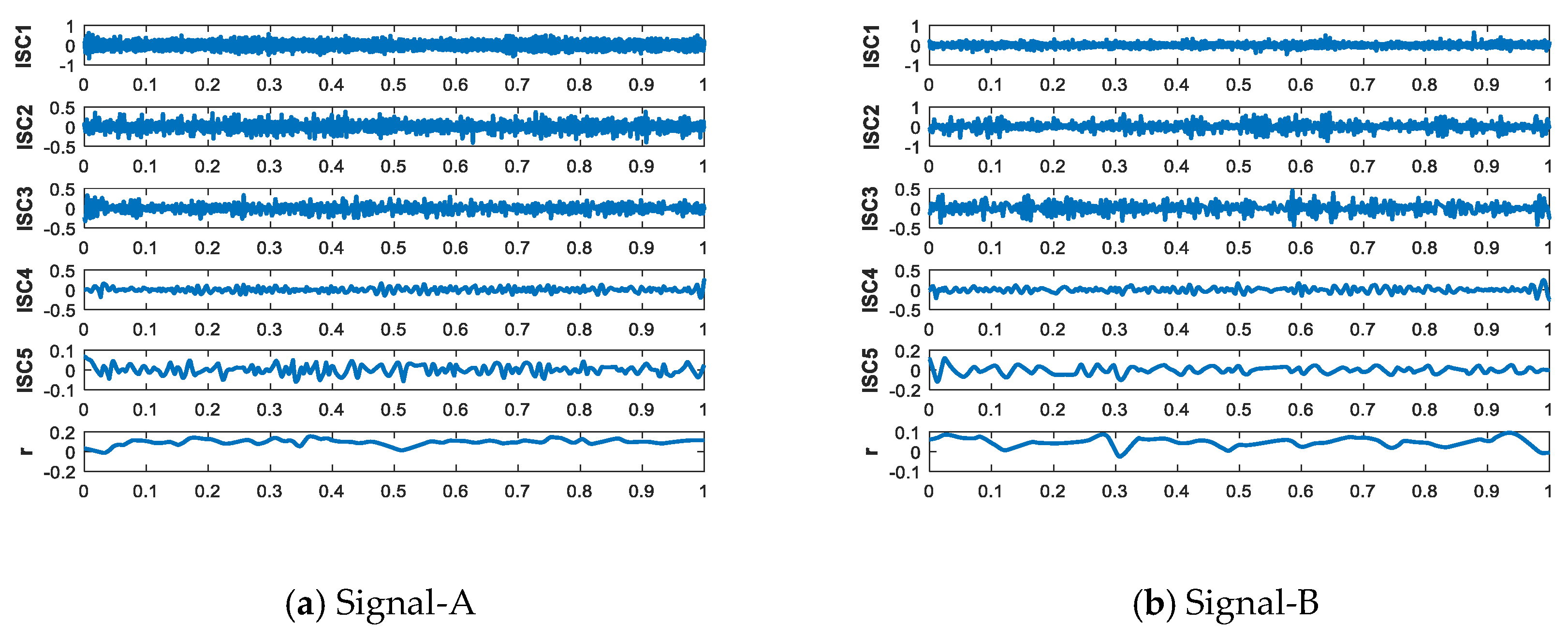

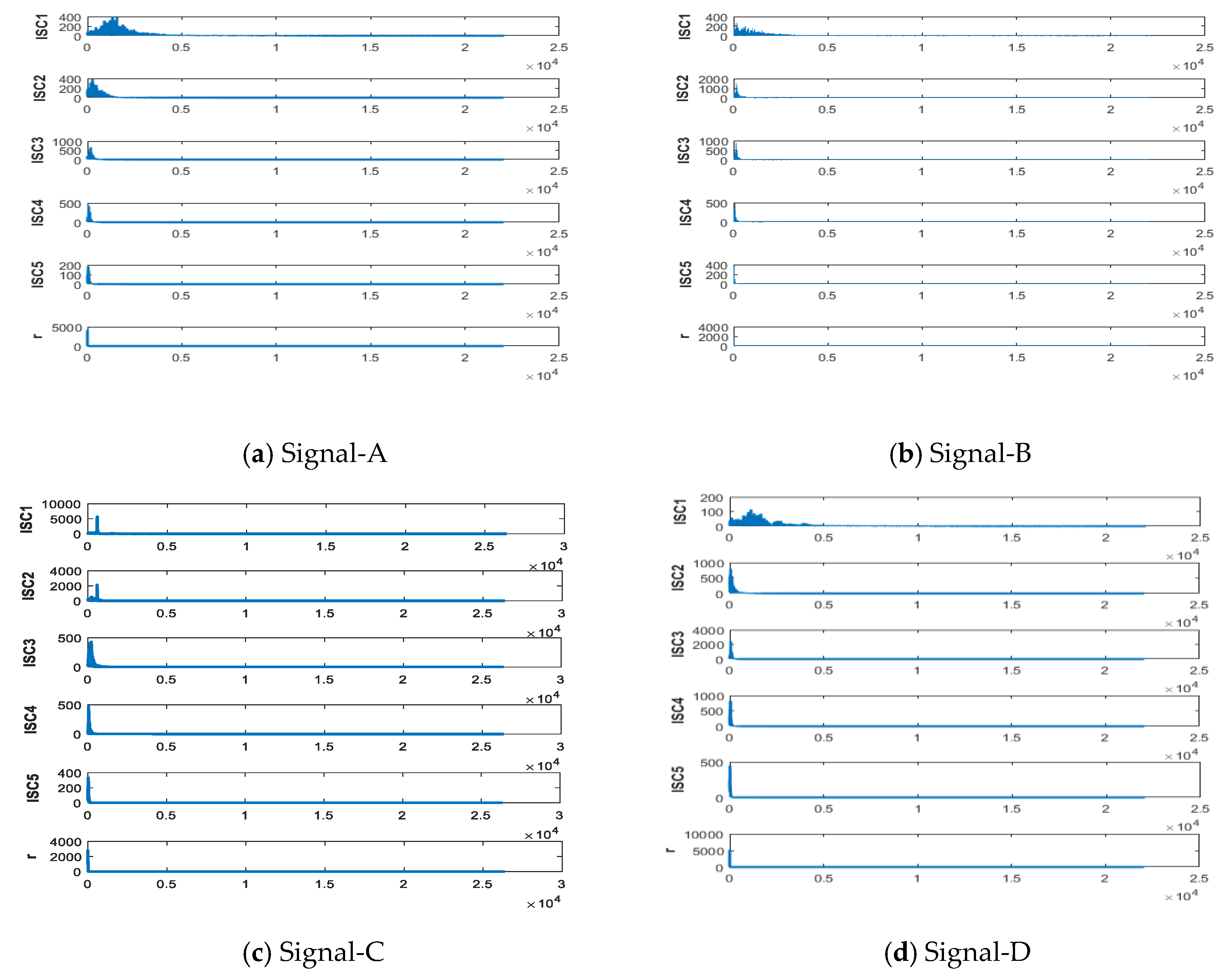

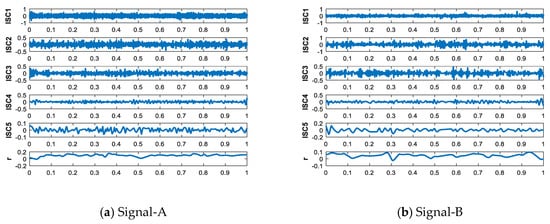

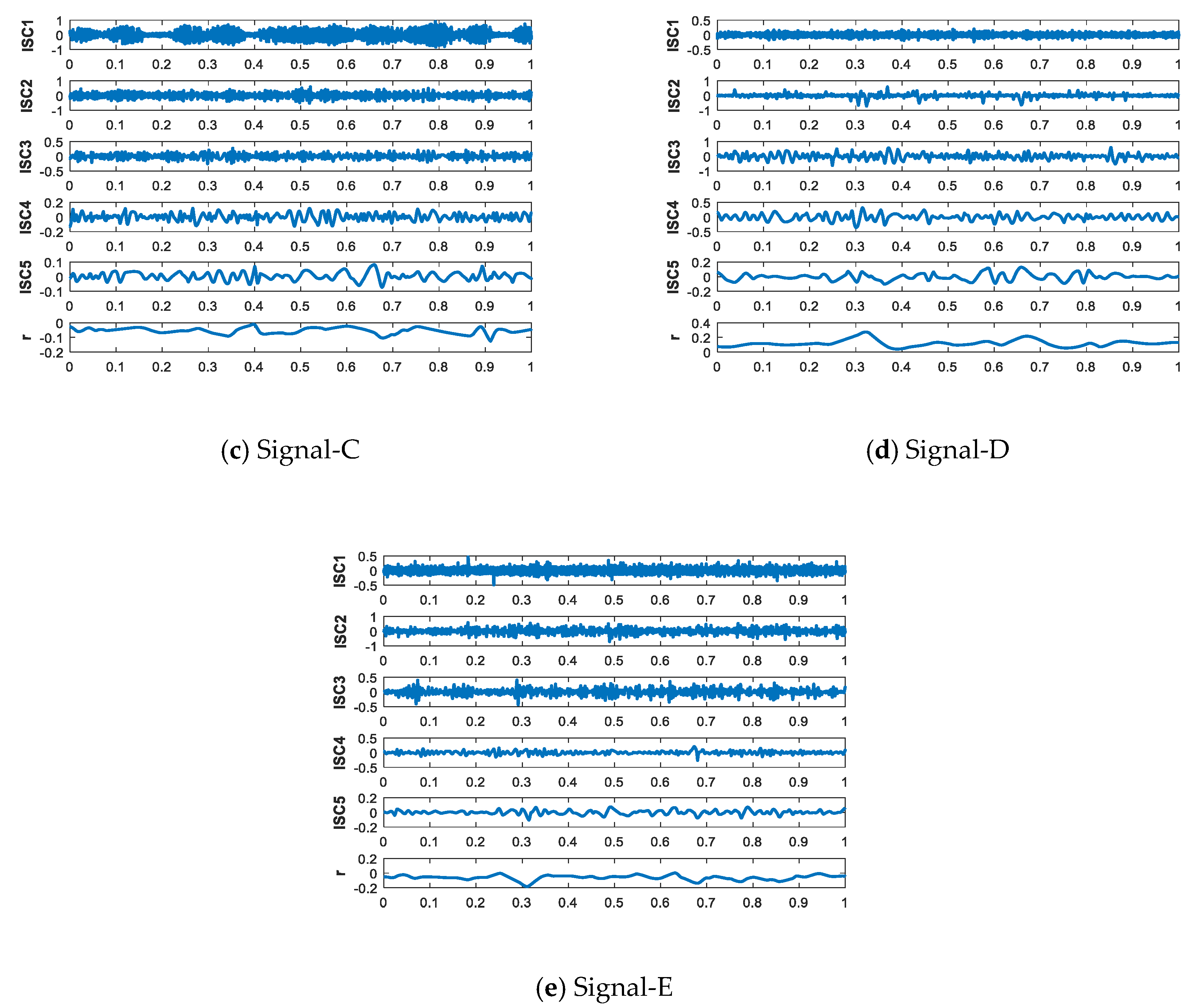

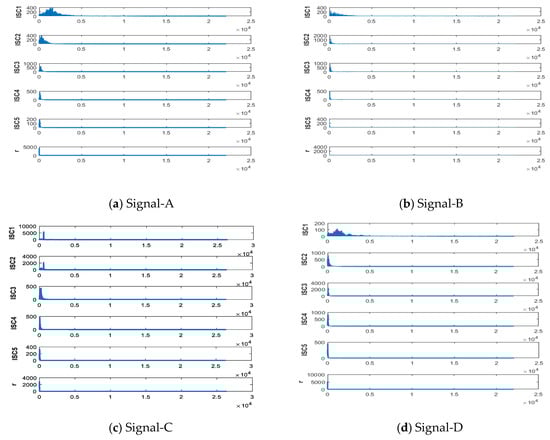

#### 4.1. IITD Decomposition

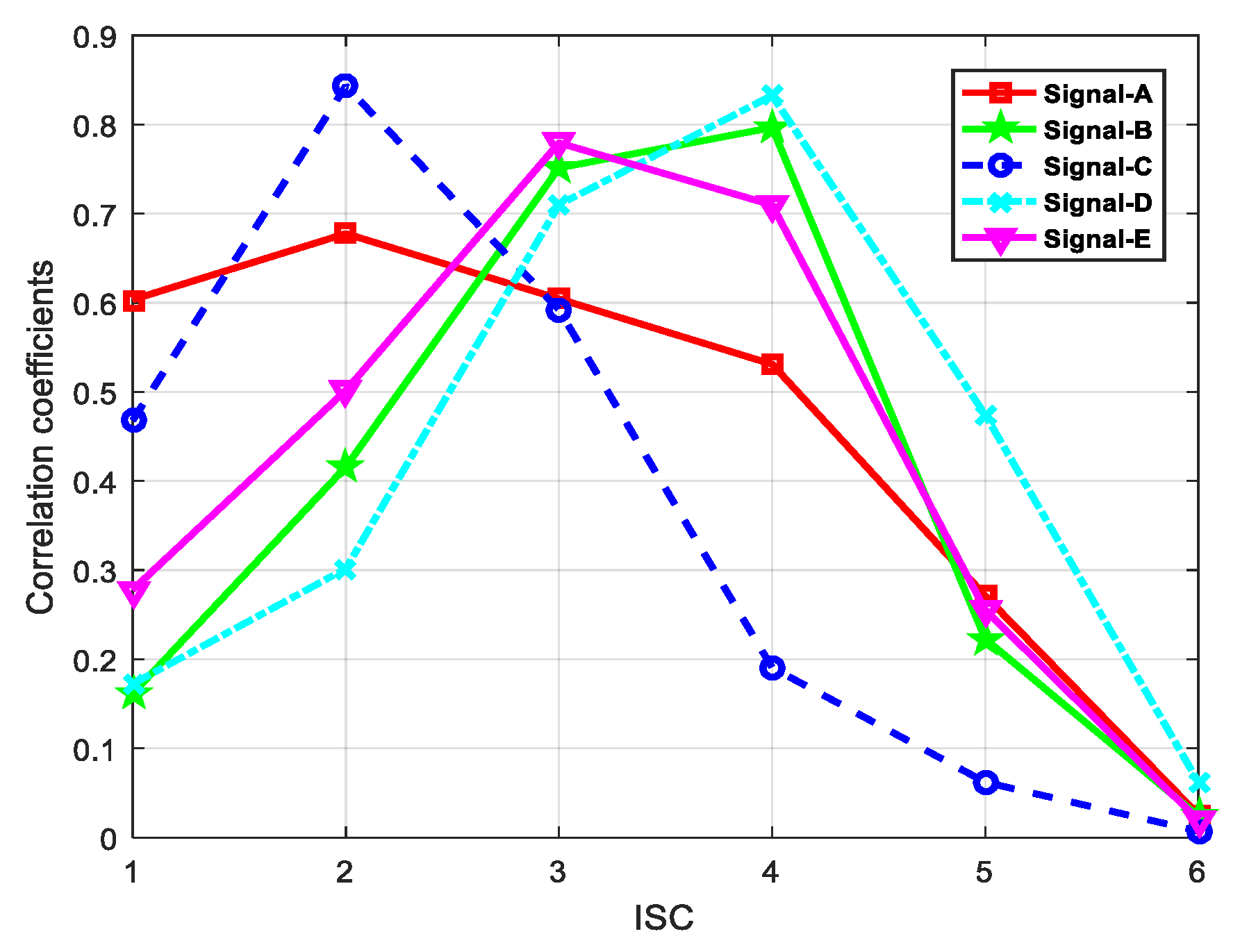

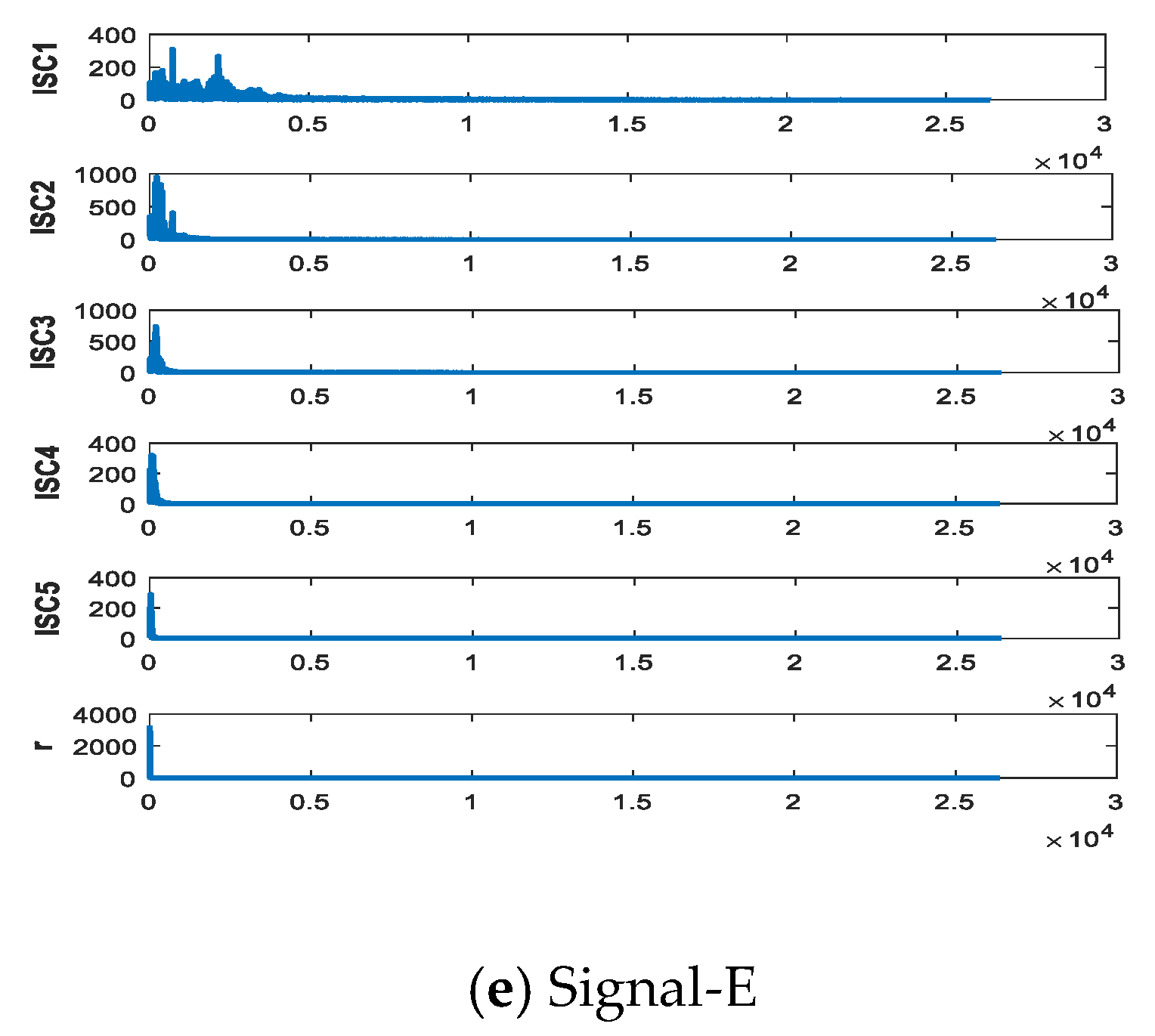

#### 4.2. ISC Choosen

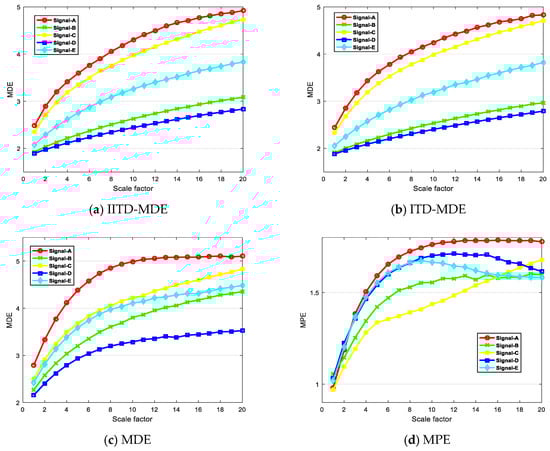

#### 4.3. Feature Extraction

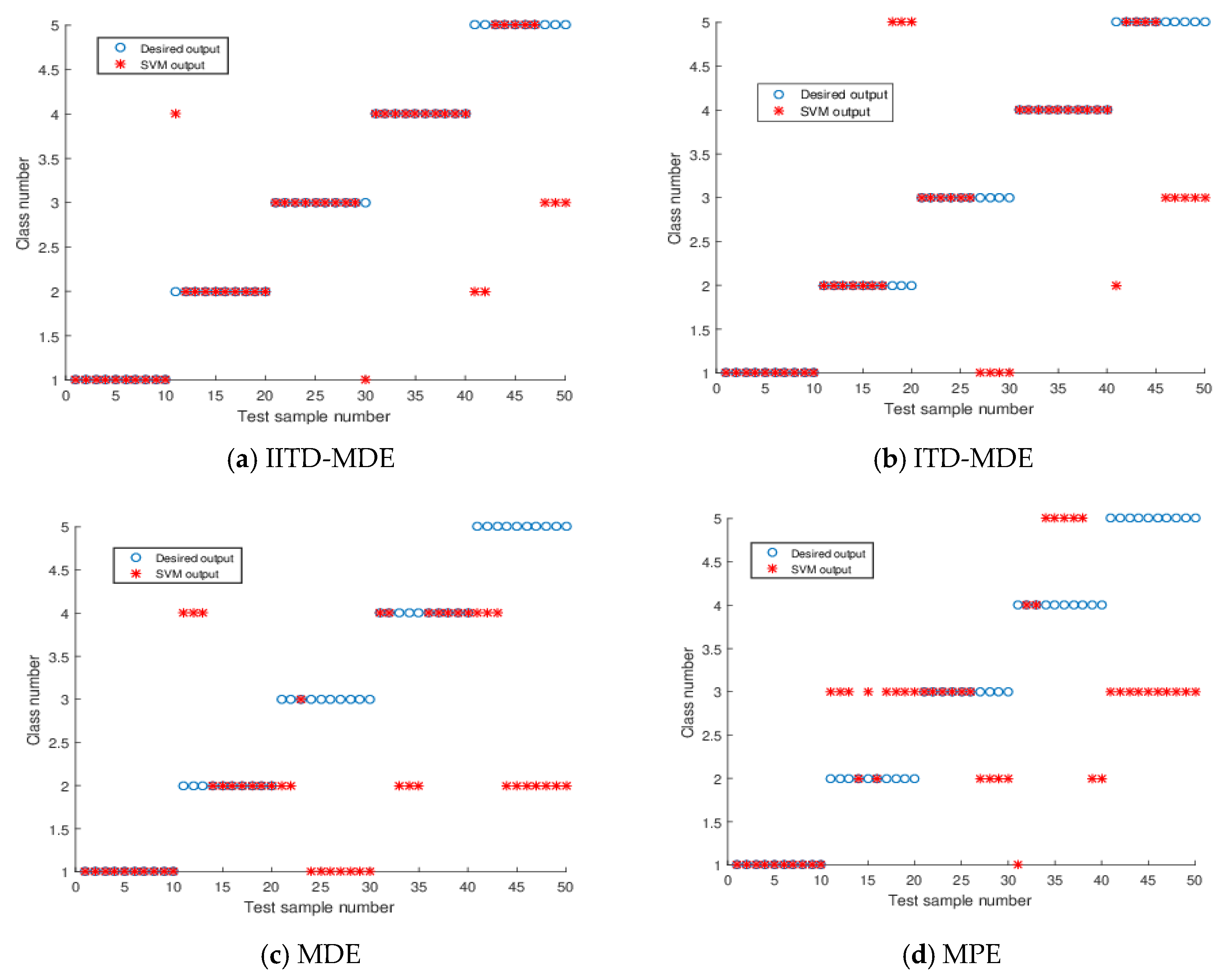

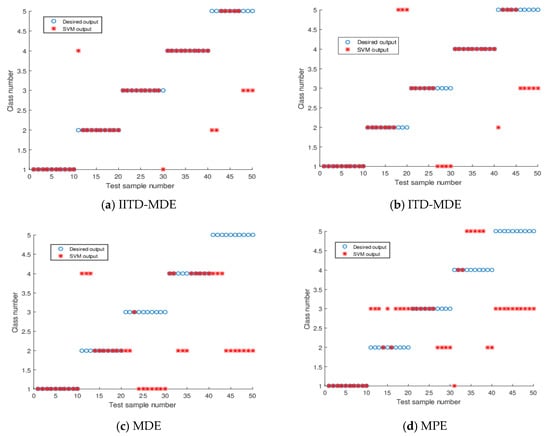

#### 4.4. Ship Classification

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Wang, S.; Zeng, X. Robust underwater noise targets classification using auditory inspired time-frequency analysis. Appl. Acoust.
**2014**, 78, 68–76. [Google Scholar] [CrossRef] - Tucker, J.D.; Azimi-Sadjadi, M.R. Coherence-based underwater target detection from multiple disparate sonar platforms. IEEE J. Ocean. Eng.
**2011**, 36, 37–51. [Google Scholar] [CrossRef] - Yan, Z.; Li, Y. Application of principal component analysis to ship-radiated noise classification and recogniion. Appl. Acoust.
**2009**, 28, 20–26. [Google Scholar] - Zhang, X.H.; Wang, J.C.; Lin, L.J. Feature extraction of ship-radiated noises based on wavelet transform. Acta Acust.
**1997**, 22, 139–144. [Google Scholar] - Huang, N.E.; Shen, Z.; Long, S.R.; Wu, M.C.; Shih, H.H.; Zheng, Q.; Yen, N.-C.; Tung, C.C.; Liu, H.H. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis. Proc. R. Soc. A Math. Phys. Eng. Sci.
**1998**, 454, 903–995. [Google Scholar] [CrossRef] - Wu, Z.; Huang, N.E. A study of the characteristics of white noise using the empirical mode decomposition method. Proc. R. Soc. A: Math. Phys. Eng. Sci.
**2004**, 460, 1597–1611. [Google Scholar] [CrossRef] - Restrepo, J.M.; Venkataramani, S.; Comeau, D.; Flaschka, H. Defining a trend for time series using the intrinsic time-scale decomposition. New J. Phys.
**2015**, 16, 085004. [Google Scholar] [CrossRef] - Li, Z.; Li, Y.; Zhang, K. A Feature Extraction Method of Ship-Radiated Noise Based on Fluctuation-Based Dispersion Entropy and Intrinsic Time-Scale Decomposition. Entropy
**2019**, 21, 693. [Google Scholar] [CrossRef] [Green Version] - Si, L.; Wang, Z.; Tan, C.; Liu, X. Vibration-Based Signal Analysis for Shearer Cutting Status Recognition Based on Local Mean Decomposition and Fuzzy C-Means Clustering. Appl. Sci.
**2017**, 7, 164. [Google Scholar] [CrossRef] [Green Version] - Gao, Y.; Villecco, F.; Li, M.; Song, W. Multi-Scale Permutation Entropy Based on Improved LMD and HMM for Rolling Bearing Diagnosis. Entropy
**2017**, 19, 176. [Google Scholar] [CrossRef] [Green Version] - Wu, Z.; Huang, N.E. Ensemble empirical mode decomposition: A noise assisted data analysis method Center for Ocean land Atmosphere Studies. Tech. Rep.
**2006**, 1, 1–41. [Google Scholar] - Yeh, J.R.; Shieh, J.S.; Huang, N.E. Complementary ensemble empirical mode decomposition: A novel noise enhanced data analysis method. Adv. Adapt. Data Anal.
**2010**, 2, 135–156. [Google Scholar] [CrossRef] - Li, Y.; Li, Y.; Chen, X.; Yu, J. Feature extraction of ship-radiated noise based on VMD and center frequency. J. Vib. Shock
**2018**, 37, 213–218. [Google Scholar] - Li, Y.; Chen, X.; Yu, J.; Yang, X. A Fusion Frequency Feature Extraction Method for Underwater Acoustic Signal Based on Variational Mode Decomposition, Duffing Chaotic Oscillator and a Kind of Permutation Entropy. Electronics
**2019**, 8, 61. [Google Scholar] [CrossRef] [Green Version] - Yang, H.; Li, Y.; Li, G. Energy analysis of ship-radiated noise based on ensemble empirical mode decomposition. J. Vib. Shock
**2015**, 34, 55–59. [Google Scholar] - Li, Y.; Chen, X.; Yu, J. A Hybrid Energy Feature Extraction Approach for Ship-Radiated Noise Based on CEEMDAN Combined with Energy Difference and Energy Entropy. Processes
**2019**, 7, 69. [Google Scholar] [CrossRef] [Green Version] - Frei, M.G.; Osorio, I. Intrinsic time-scale decomposition: Time–frequency–energy analysis and real-time filtering of non-stationary signals. Proc. R. Soc. A Math. Phys. Eng. Sci.
**2007**, 463, 321–342. [Google Scholar] [CrossRef] - Chen, J.-S.; Wang, J.; Gui, L. An improved EEMD method and its application in rolling bearing fault diagnosis. J. Vib. Shock
**2018**, 37, 51–56. [Google Scholar] - Feng, Z.; Lin, X.; Zuo, M.J. Joint amplitude and frequency demodulation analysis based on intrinsic time-scale decomposition for planetary gearbox fault diagnosis. Mech. Syst. Signal Process.
**2016**, 72, 223–240. [Google Scholar] [CrossRef] - Martis, R.J.; Acharya, U.R.; Tan, J.H.; Petznick, A.; Tong, L.; Chua, C.K.; Ng, E.Y.K. Application of intrinsic time-scale decomposition (ITD) to EEG signals for automated seizure prediction signals for automated seizure prediction. Int. J. Neural Syst.
**2013**, 23, 1350023. [Google Scholar] [CrossRef] - Bernardini, M.; Fredianelli, L.; Fidecaro, F.; Gagliardi, P.; Nastasi, M.; Licitra, G. Noise Assessment of Small Vessels for Action Planning in Canal Cities. Environments
**2019**, 6, 31. [Google Scholar] [CrossRef] [Green Version] - Wang, D.-J.; Liu, Z.-W.; Wei, J.; Wang, W.; Nie, Z.-S. Method to correct atmospheric pressure effects based on ensemble empirical mode decomposition. Chin. J. Geophys.
**2018**, 61, 504–520. [Google Scholar] - Gao, Y.-C. A Research on Application of Hilbert-Huang Transform in the Underwater Acoustic Signal Processing. Ph.D. Thesis, Harbin Engineering University, Harbin, China, 2009. [Google Scholar]
- Badino, A.; Borelli, D.; Gaggero, T.; Rizzuto, E.; Schenone, C. Airborne noise emissions from ships: Experimental characterization of the source and propagation over land. Appl. Acoust.
**2016**, 104, 158–171. [Google Scholar] [CrossRef] - Bica, A.M.; Degeratu, M.; Demian, L.; Paul, E. Optimal Alternative to the Akima’s Method of Smooth Interpolation Applied in Diabetology. Surv. Math. Its Appl.
**2006**, 1, 41–49. [Google Scholar] - De Araujo, D.B.; Tedeschi, W.; Santos, A.C.D.; Elias, J., Jr.; Neves, U.P.D.C.; Baffa, O. Shannon entropy applied to the analysis of event-related fMRI time series. NeuroImage
**2003**, 20, 311–317. [Google Scholar] [CrossRef] - Zhao, Z.H.; Yang, S.P. Sample Entropy Based Roller Bearing Fault Diagnosis Method. J. Vib. Shock
**2012**, 31, 136–140. [Google Scholar] - Li, W.; Shen, X.; Li, Y. A Comparative Study of Multiscale Sample Entropy and Hierarchical Entropy and Its Application in Feature Extraction for Ship-Radiated Noise. Entropy
**2019**, 21, 793. [Google Scholar] [CrossRef] [Green Version] - Li, Y.; Wang, L.; Li, X.; Yang, X. A Novel Linear Spectrum Frequency Feature Extraction Technique for Warship Radio Noise Based on Complete Ensemble Empirical Mode Decomposition with Adaptive Noise, Duffing Chaotic Oscillator, and Weighted-Permutation Entropy. Entropy
**2019**, 21, 507. [Google Scholar] [CrossRef] [Green Version] - Monge, J.; Gómez, C.; Poza, J.; Fernández, A.; Quintero, J. & Hornero, R. MEG analysis of neural dynamics in attention-deficit/hyperactivity disorder with fuzzy entropy. Med. Eng. Phys.
**2015**, 37, 416–423. [Google Scholar] - Rostaghi, M.; Azami, H. Dispersion Entropy: A Measure for Time Series Analysis. IEEE Signal Process. Lett.
**2016**, 23, 610–614. [Google Scholar] [CrossRef] - Costa, M.; Goldberger, A.L.; Peng, C.K. Multiscale entropy analysis of biological signals. Phys. Rev. E
**2005**, 71, 021906. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Azami, H.; Escudero, J. Coarse-Graining Approaches in Univariate Multiscale Sample and Dispersion Entropy. Entropy
**2018**, 20, 138. [Google Scholar] [CrossRef] [Green Version] - Dagher, I.; Azar, F. Improving the SVM gender classification accuracy using clustering and incremental learning. Expert Syst.
**2019**, 36. [Google Scholar] [CrossRef]

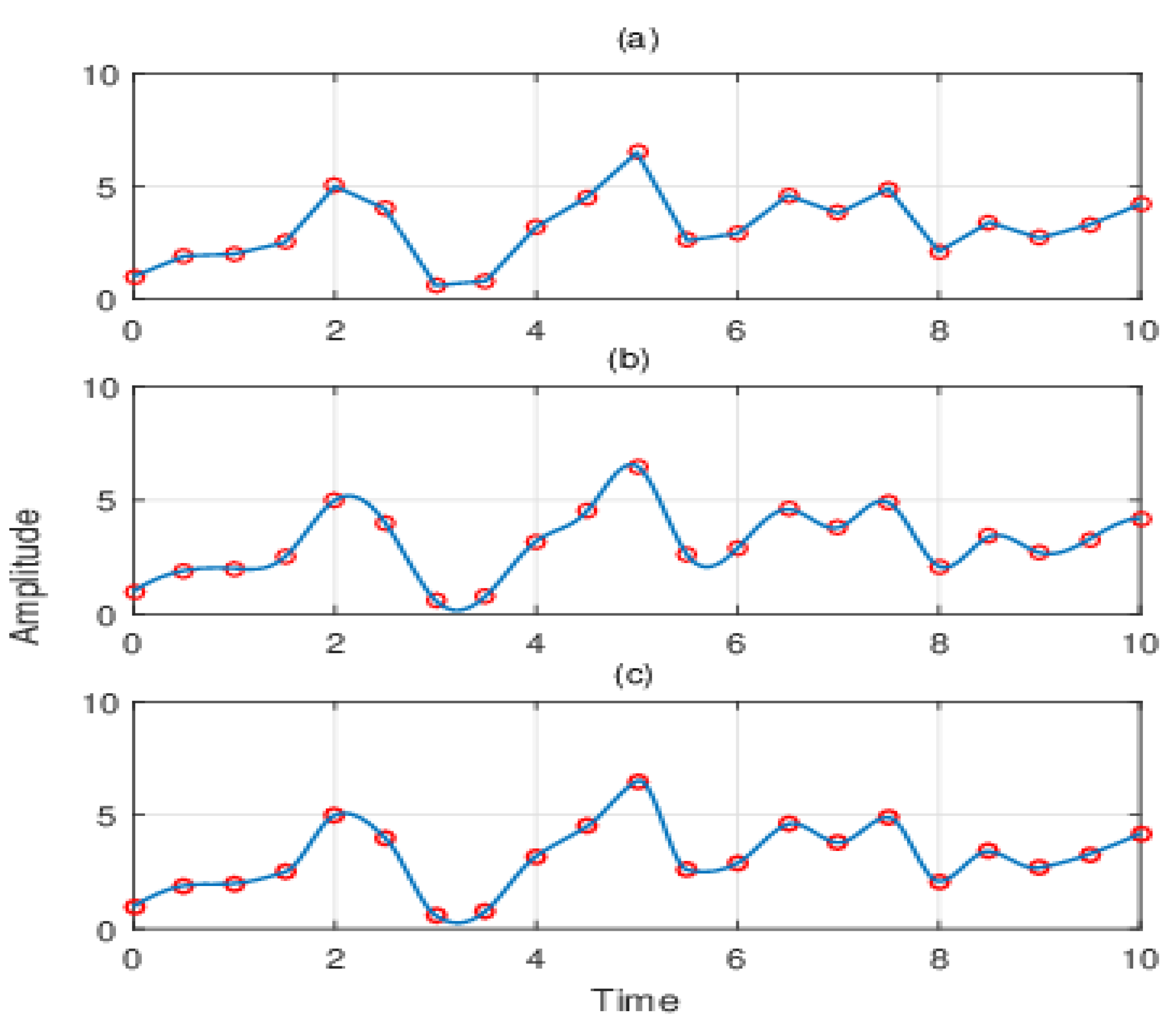

**Figure 1.**The comparison of the interpolation methods: (

**a**) linear interpolation, (

**b**) cubic spline interpolation, and (

**c**) akima interpolation.

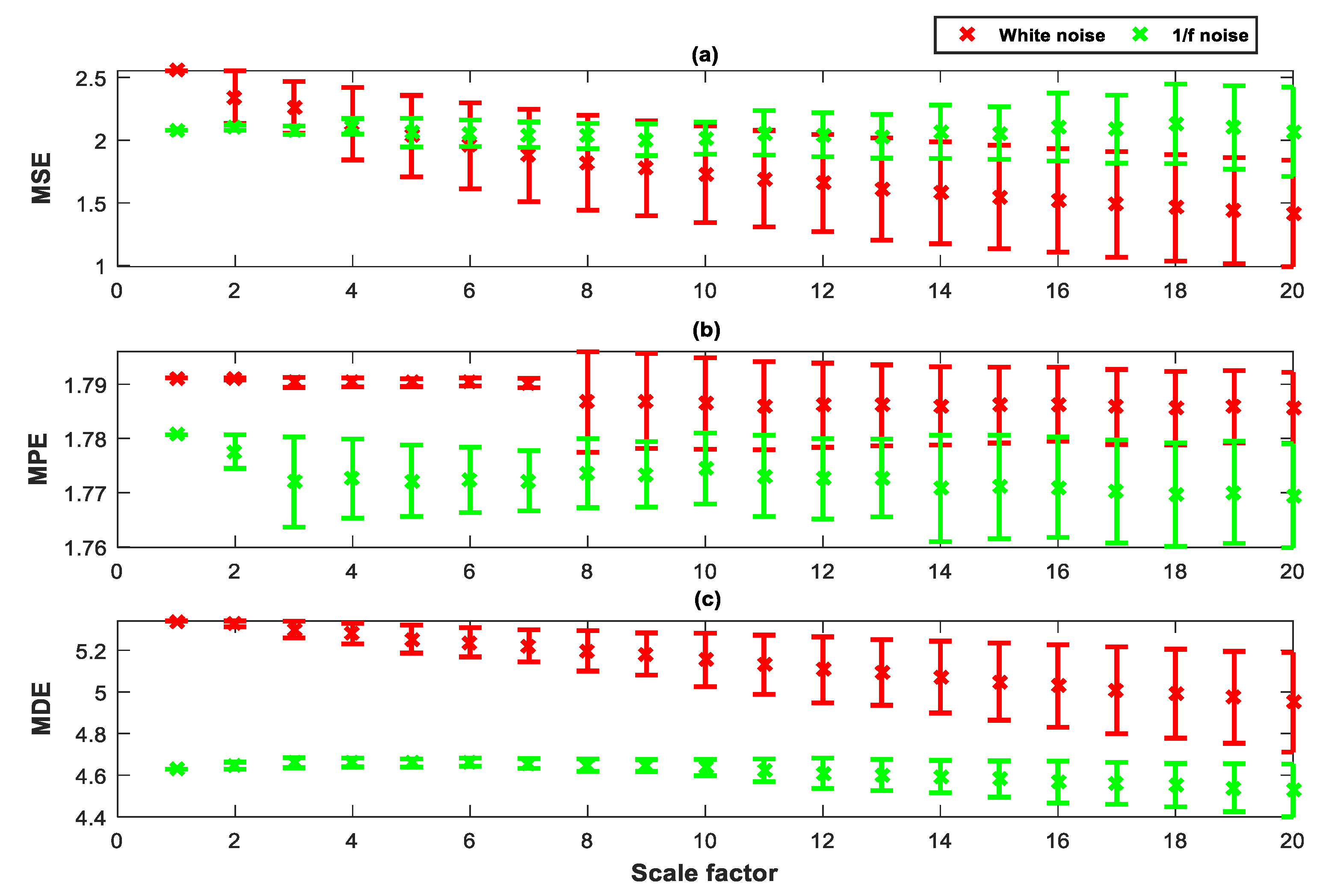

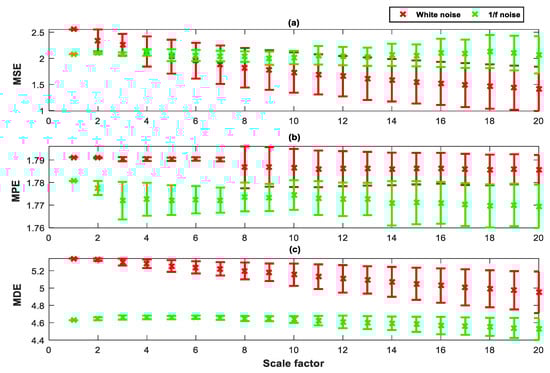

**Figure 7.**The multi-entropy value of Gaussian white noise and $1/f$ noise: (

**a**) MSE, (

**b**) MPE and (

**c**) MDE.

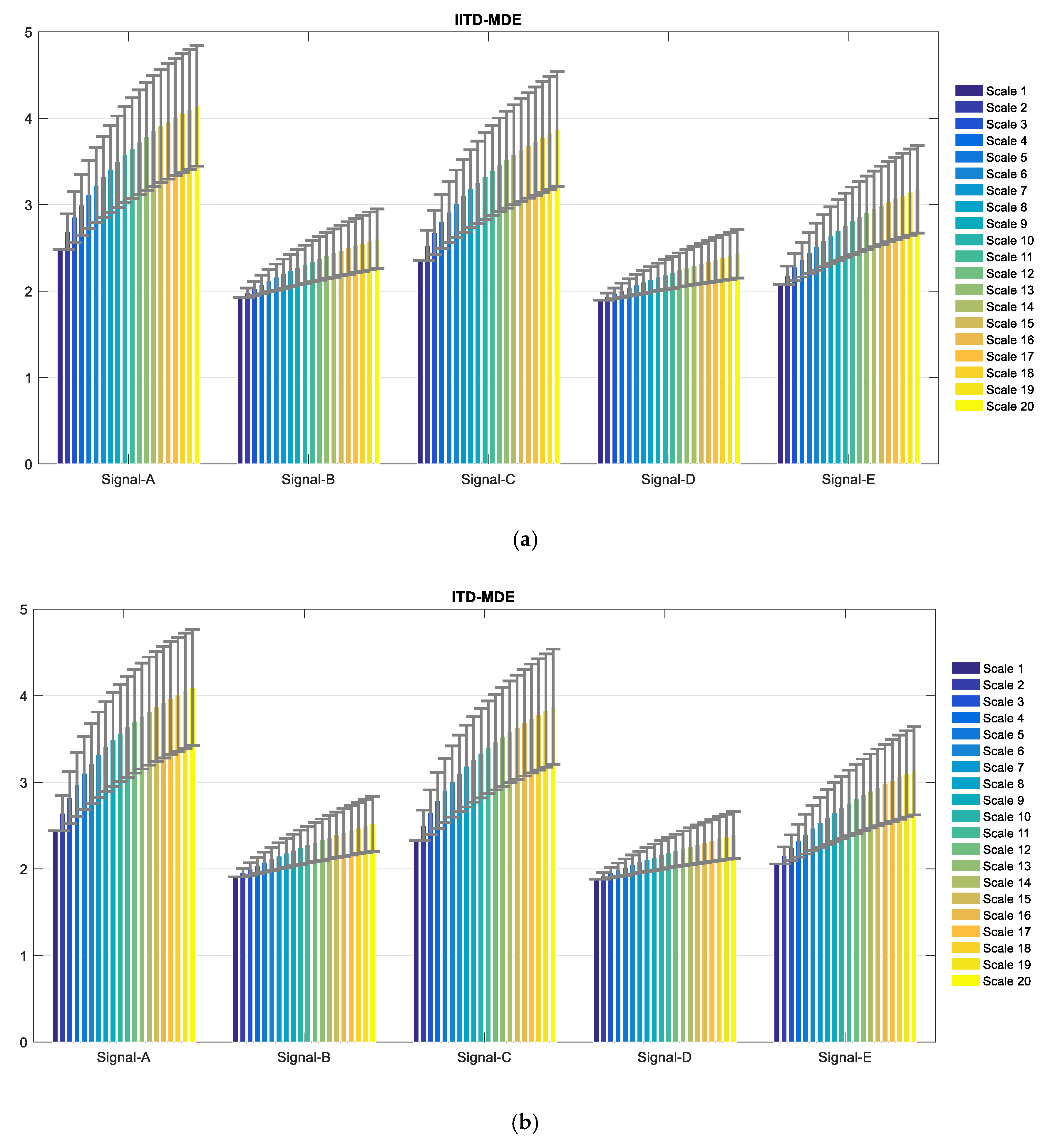

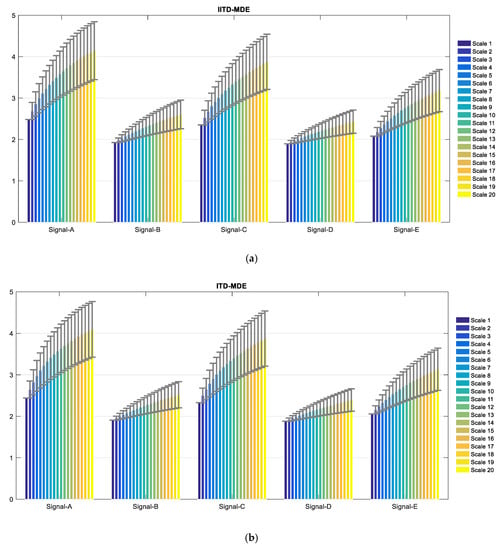

Ship Signal | Signal-A | Signal-B | Signal-C | Signal-D | Signal-E |
