# Novel Brain Complexity Measures Based on Information Theory

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Method

#### 2.1. Information Theory Basis

#### 2.2. Markov Process-Based Brain Model

#### 2.3. Global Informativeness Measures

#### 2.3.1. Entropy

#### 2.3.2. Mutual Information

#### 2.3.3. Erasure Mutual Information

#### 2.4. Local Informativeness Measures

#### 2.4.1. Entropic Surprise

#### 2.4.2. Mutual Surprise

#### 2.4.3. Mutual Predictability

#### 2.4.4. Erasure Surprise

## 3. Material

#### 3.1. Synthetic Network Models

#### 3.2. Human Datasets

#### 3.2.1. Anatomic Dataset

#### 3.2.2. Functional Dataset

#### 3.3. Standard Network Measures

## 4. Results and Discussion

#### 4.1. Global Measures

#### 4.2. Local Measures

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Sporns, O.; Tononi, G.; Kötter, R. The human connectome: A structural description of the human brain. PLoS Comput. Biol.
**2005**, 1, e42. [Google Scholar] [CrossRef] [PubMed] - Felleman, D.J.; Essen, D.C.V. Distributed hierarchical processing in the primate cerebral cortex. Cereb. Cortex
**1991**, 1, 1–47. [Google Scholar] [CrossRef] [PubMed] - Hagmann, P. From Diffusion MRI to Brain Connectomics. Ph.D. Thesis, École polytechnique fédérale de Lausanne (EPFL), Lausanne, Switzerland, 2005. [Google Scholar]
- Hagmann, P.; Kurant, M.; Gigandet, X.; Thiran, P.; Wedeen, V.J.; Meuli, R.; Thiran, J.P. Mapping human whole-brain structural networks with diffusion MRI. PLoS ONE
**2007**, 2, e597. [Google Scholar] [CrossRef] [PubMed] - Hagmann, P.; Cammoun, L.; Gigandet, X.; Gerhard, S.; Grant, P.E.; Wedeen, V.; Meuli, R.; Thiran, J.P.; Honey, C.J.; Sporns, O. MR connectomics: Principles and challenges. J. Neurosci. Methods
**2010**, 194, 34–45. [Google Scholar] [CrossRef] [PubMed][Green Version] - Sporns, O. The human connectome: Origins and challenges. NeuroImage
**2013**, 80, 53–61. [Google Scholar] [CrossRef] [PubMed] - Bullmore, E.T.; Bassett, D.S. Brain graphs: Graphical models of the human brain connectome. Ann. Rev. Clin. Psychol.
**2011**, 7, 113–140. [Google Scholar] [CrossRef] [PubMed] - Sporns, O. The human connectome: A complex network. Ann. New York Acad. Sci.
**2011**, 1224, 109–125. [Google Scholar] [CrossRef] [PubMed] - Wu, G.R.; Liao, W.; Stramaglia, S.; Ding, J.R.; Chen, H.; Marinazzo, D. A blind deconvolution approach to recover effective connectivity brain networks from resting state fMRI data. Med. Image Anal.
**2013**, 17, 365–374. [Google Scholar] [CrossRef] [PubMed][Green Version] - Passingham, R.E.; Stephan, K.E.; Kotter, R. The anatomical basis of functional localization in the cortex. Nat. Rev. Neurosci.
**2002**, 3, 606–616. [Google Scholar] [CrossRef] [PubMed] - Kaiser, M. A tutorial in connectome analysis: Topological and spatial features of brain networks. NeuroImage
**2011**, 57, 892–907. [Google Scholar] [CrossRef] [PubMed][Green Version] - Rubinov, M.; Sporns, O. Complex network measures of brain connectivity: Uses and interpretations. NeuroImage
**2010**, 52, 1059–1069. [Google Scholar] [CrossRef] [PubMed] - Stam, C.; Reijneveld, J. Graph theoretical analysis of complex networks in the brain. Nonlinear Biomed. Phys.
**2007**, 1, 3. [Google Scholar] [CrossRef] [PubMed] - Watts, D.J.; Strogatz, S.H. Collective dynamics of ’small-world’ networks. Nature
**1998**, 393, 440–442. [Google Scholar] [CrossRef] [PubMed] - Latora, V.; Marchiori, M. Efficient behavior of small-world networks. Phys. Rev. Lett.
**2001**, 87, 198701. [Google Scholar] [CrossRef] [PubMed] - Newman, M. The structure and function of complex networks. SIAM
**2003**, 45, 167–256. [Google Scholar] [CrossRef] - Newman, M. Fast algorithm for detecting community structure in networks. Phys. Rev. E
**2003**, 69, 066133. [Google Scholar] [CrossRef] [PubMed] - Bullmore, E.; Sporns, O. Complex brain networks: Graph theoretical analysis of structural and functional systems. Nat. Rev. Neurosci.
**2009**, 10, 186–198. [Google Scholar] [CrossRef] [PubMed] - Kennedy, H.; Knoblauch, K.; Toroczkai, Z. Why data coherence and quality is critical for understanding interareal cortical networks. NeuroImage
**2013**, 80, 37–45. [Google Scholar] [CrossRef] [PubMed] - Colizza, V.; Flammini, A.; Serrano, M.A.; Vespignani, A. Detecting rich-club ordering in complex networks. Nat. Phys.
**2006**, 2, 110–115. [Google Scholar] [CrossRef][Green Version] - Harriger, L.; van den Heuvel, M.P.; Sporns, O. Rich club organization of macaque cerebral cortex and its role in network communication. PLoS ONE
**2012**, 7, e46497. [Google Scholar] [CrossRef] [PubMed] - Van Den Heuvel, M.; Kahn, R.; Goñi, J.; Sporns, O. High-cost, high-capacity backbone for global brain communication. Proc. Natl. Acad. Sci. USA
**2012**, 109, 11372–11377. [Google Scholar] [CrossRef] [PubMed][Green Version] - Sporns, O.; Chialvo, D.R.; Kaiser, M.; Hilgetag, C.C. Organization, development and function of complex brain networks. Trends Cognit. Sci.
**2004**, 8, 418–425. [Google Scholar] [CrossRef] [PubMed][Green Version] - Tononi, G.; Sporns, O.; Edelman, G.M. A measure for brain complexity: Relating functional segregation and integration in the nervous system. Proc. Natl. Acad. Sci. USA
**1994**, 91, 5033–5037. [Google Scholar] [CrossRef] [PubMed] - Marrelec, G.; Bellec, P.; Krainik, A.; Duffau, H.; Pélégrini-Issac, M.; Lehéricy, S.; Benali, H.; Doyon, J. Regions, systems, and the brain: Hierarchical measures of functional integration in fMRI. Med. Image Anal.
**2008**, 12, 484–496. [Google Scholar] [CrossRef] [PubMed] - Kitazono, J.; Kanai, R.; Oizumi, M. Efficient algorithms for searching the minimum information partition in integrated information theory. Entropy
**2018**, 20, 173. [Google Scholar] [CrossRef] - Tononi, G.; Edelman, G.M.; Sporns, O. Complexity and coherency: Integrating information in the brain. Trends Cognit. Sci.
**1998**, 2, 474–484. [Google Scholar] [CrossRef] - Sporns, O.; Tononi, G.; Edelman, G.M. Connectivity and complexity: The relationship between neuroanatomy and brain dynamics. Neural Netw.
**2000**, 13, 909–922. [Google Scholar] [CrossRef] - Tononi, G.; Sporns, O.; Edelman, G.M. A complexity measure for selective matching of signals by the brain. Proc. Natl. Acad. Sci. USA
**1996**, 93, 3422–3427. [Google Scholar] [CrossRef] [PubMed] - Tononi, G.; McIntosh, A.R.; Russell, D.P.; Edelman, G.M. Functional clustering: Identifying strongly interactive brain regions in neuroimaging data. NeuroImage
**1998**, 7, 133–149. [Google Scholar] [CrossRef] [PubMed] - Edelman, G.M.; Gally, J.A. Degeneracy and complexity in biological systems. Proc. Natl. Acad. Sci. USA
**2001**, 98, 13763–13768. [Google Scholar] [CrossRef] [PubMed][Green Version] - Tononi, G.; Sporns, O.; Edelman, G.M. Measures of degeneracy and redundancy in biological networks. Proc. Natl. Acad. Sci. USA
**1999**, 96, 3257–3262. [Google Scholar] [CrossRef] [PubMed][Green Version] - Crossley, N.; Mechelli, A.; Scott, J.; Carletti, F.; Fox, P.; McGuire, P.; Bullmore, E. The hubs of the human connectome are generally implicated in the anatomy of brain disorders. Brain
**2014**, 137, 2382–2395. [Google Scholar] [CrossRef] [PubMed][Green Version] - Meskaldji, D.E.; Fischi-Gomez, E.; Griffa, A.; Hagmann, P.; Morgenthaler, S.; Thiran, J.P. Comparing connectomes across subjects and populations at different scales. NeuroImage
**2013**, 80, 416–425. [Google Scholar] [CrossRef] [PubMed] - van den Heuvel, M.P.; Pol, H.E.H. Exploring the brain network: A review on resting-state fMRI functional connectivity. Eur. Neuropsychopharmacol.
**2010**, 20, 519–534. [Google Scholar] [CrossRef] [PubMed] - Sato, J.R.; Takahashi, D.Y.; Hoexter, M.Q.; Massirer, K.B.; Fujita, A. Measuring network’s entropy in ADHD: A new approach to investigate neuropsychiatric disorders. NeuroImage
**2013**, 77, 44–51. [Google Scholar] [CrossRef] [PubMed][Green Version] - Papo, D.; Buldú, J.M.; Boccaletti, S.; Bullmore, E.T. Complex network theory and the brain. Phil. Trans. R. Soc. B
**2014**, 369, 20130520. [Google Scholar] [CrossRef] [PubMed] - Bonmati, E.; Bardera, A.; Boada, I. Brain parcellation based on information theory. Comput. Methods Programs Biomed.
**2017**, 151, 203–212. [Google Scholar] [CrossRef] [PubMed] - Cover, T.M.; Thomas, J.A. Elements of Information Theory; Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
- Yeung, R.W. A First Course in Information Theory; Springer Science & Business Media: New York, NY, USA, 2002. [Google Scholar]
- Feldman, D.P.; Crutchfield, J.P. Discovering Noncritical Organization: Statistical Mechanical, Information Theoreticand Computational Views of Patterns in One-Dimensional Spin Systems; Working Paper 98-04-026; Santa Fe Institute: Santa Fe, NM, USA, 1998. [Google Scholar]
- Crutchfield, J.P.; Packard, N. Symbolic dynamics of noisy chaos. Physica D
**1983**, 7, 201–223. [Google Scholar] [CrossRef] - Grassberger, P. Toward a quantitative theory of self-generated complexity. Int. J. Theor. Phys.
**1986**, 25, 907–938. [Google Scholar] [CrossRef] - Shaw, R. The Dripping Faucet as a Model Chaotic System; Aerial Press: Santa Cruz, CA, USA, 1984. [Google Scholar]
- Szépfalusy, P.; Györgyi, G. Entropy decay as a measure of stochasticity in chaotic systems. Phys. Rev. A
**1986**, 33, 2852. [Google Scholar] [CrossRef] - Feldman, D.P. A Brief Introduction to: Information Theory, Excess Entropy and Computational Mechanics; Lecture notes; Department of Physics, University of California: Berkeley, CA, USA, 1997. [Google Scholar]
- Verdú, S.; Weissman, T. The information lost in erasures. IEEE Trans. Inf. Theory
**2008**, 54, 5030–5058. [Google Scholar] [CrossRef] - Feldman, D.; Crutchfield, J. Structural information in two-dimensional patterns: Entropy convergence and excess entropy. Phys. Rev. E
**2003**, 67, 051104. [Google Scholar] [CrossRef] [PubMed] - DeWeese, M.R.; Meister, M. How to measure the information gained from one symbol. Network Comput. Neural Syst.
**1999**, 10, 325–340. [Google Scholar] [CrossRef] - Fornito, A.; Zalesky, A.; Breakspear, M. Graph analysis of the human connectome: Promise, progress, and pitfalls. NeuroImage
**2013**, 80, 426–444. [Google Scholar] [CrossRef] [PubMed] - Dennis, E.L.; Jahanshad, N.; Toga, A.W.; McMahon, K.; de Zubicaray, G.I.; Martin, N.G.; Wright, M.J.; Thompson, P.M. Test-retest reliability of graph theory measures of structural brain connectivity. In Proceedings of the International Conference on Medical Image Computing and Computer-Assisted Intervention, Nice, France, 1–5 October 2012; Ayache, N., Delingette, H., Golland, P., Mori, K., Eds.; Springer: Berlin, Germany, 2012; Volume 7512, pp. 305–312. [Google Scholar]
- Messé, A.; Rudrauf, D.; Giron, A.; Marrelec, G. Predicting functional connectivity from structural connectivity via computational models using MRI: An extensive comparison study. NeuroImage
**2015**, 111, 65–75. [Google Scholar] [CrossRef] [PubMed] - Santos Ribeiro, A.; Miguel Lacerda, L.; Ferreira, H.A. Multimodal imaging brain connectivity analysis toolbox (MIBCA). PeerJ PrePrints
**2014**, 2, e699v1. [Google Scholar] - Cammoun, L.; Gigandet, X.; Sporns, O.; Thiran, J.; Do, K.; Maeder, P.; Meuli, R.; Hagmann, P.; Bovet, P.; Do, K. Mapping the human connectome at multiple scales with diffusion spectrum MRI. J. Neurosci. Methods
**2012**, 203, 386–397. [Google Scholar] [CrossRef] [PubMed][Green Version] - Essen, D.V.; Ugurbil, K.; Auerbach, E.; Barch, D.; Behrens, T.; Bucholz, R.; Chang, A.; Chen, L.; Corbetta, M.; Curtiss, S.; et al. The Human Connectome Project: A data acquisition perspective. NeuroImage
**2012**, 62, 2222–2231. [Google Scholar] [CrossRef] [PubMed][Green Version] - Glasser, M.F.; Sotiropoulos, S.N.; Wilson, J.A.; Coalson, T.S.; Fischl, B.; Andersson, J.L.; Xu, J.; Jbabdi, S.; Webster, M.; Polimeni, J.R.; et al. The minimal preprocessing pipelines for the Human Connectome Project. NeuroImage
**2013**, 80, 105–124. [Google Scholar] [CrossRef] [PubMed][Green Version] - Hodge, M.R.; Horton, W.; Brown, T.; Herrick, R.; Olsen, T.; Hileman, M.E.; McKay, M.; Archie, K.A.; Cler, E.; Harms, M.P.; et al. ConnectomeDB—Sharing human brain connectivity data. NeuroImage
**2016**, 124, 1102–1107. [Google Scholar] [CrossRef] [PubMed][Green Version] - Christidi, F.; Karavasilis, E.; Samiotis, K.; Bisdas, S.; Papanikolaou, N. Fiber tracking: A qualitative and quantitative comparison between four different software tools on the reconstruction of major white matter tracts. Eur. J. Radiol. Open
**2016**, 3, 153–161. [Google Scholar] [CrossRef] [PubMed] - Dai, D.; He, H. VisualConnectome: Toolbox for brain network visualization and analysis. In Proceedings of the Organization on human Brain Mapping, 2011, Québec City, QC, Canada, 26–30 June 2011. [Google Scholar]

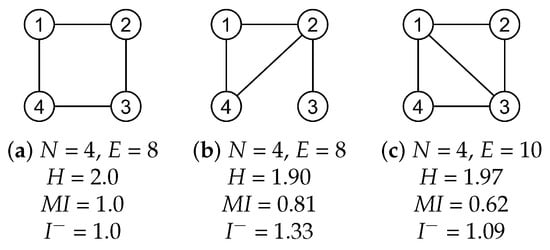

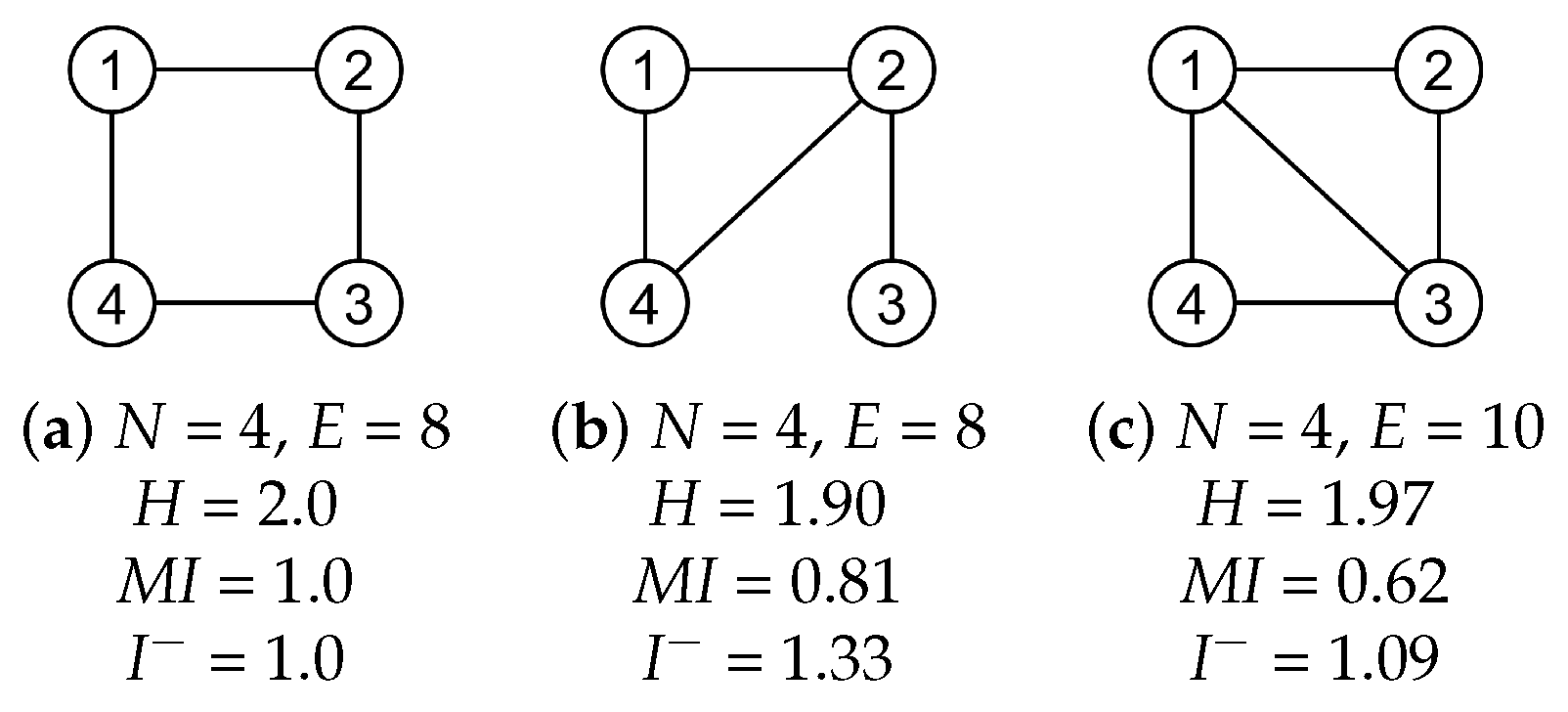

**Figure 1.**Example values of the entropy (H), mutual information ($MI$) and erasure (${I}^{-}$) measures for simple networks (

**a**–

**c**), where N corresponds to the number of nodes and E to the number of edges. Networks are weighted and undirected, therefore each edge is counted twice.

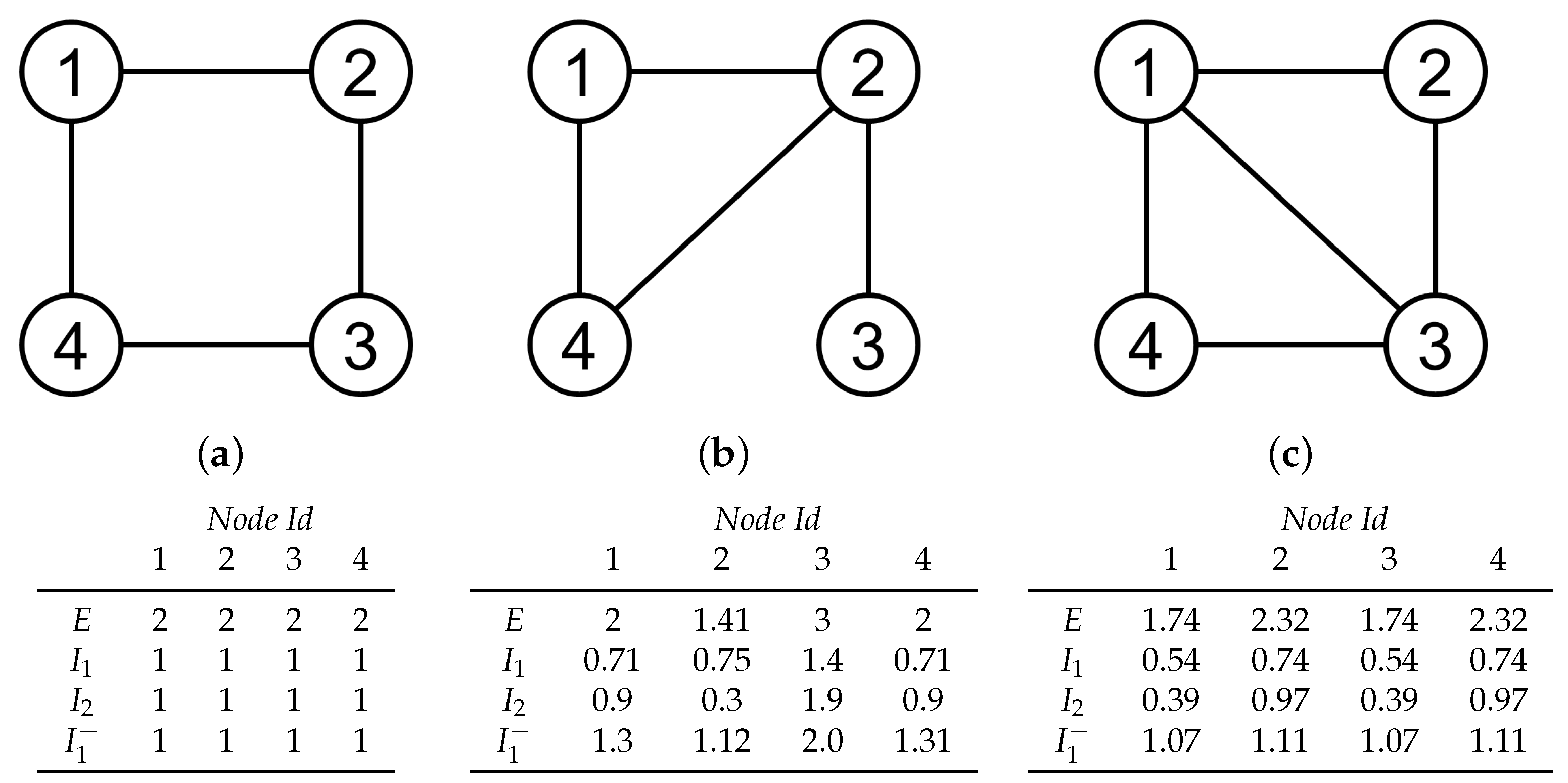

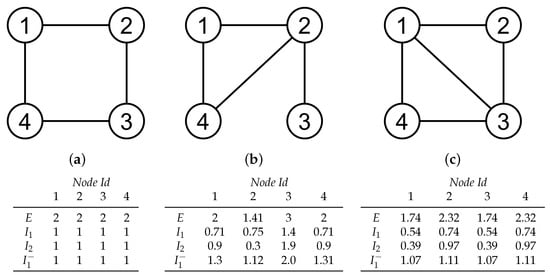

**Figure 2.**Example values of entropic surprise (E), mutual surprise (${I}_{1}$), mutual predictability (${I}_{2}$) and erasure surprise (${I}_{1}^{-}$) measures for simple networks (

**a**–

**c**). Networks are weighted and undirected, therefore each edge is counted twice.

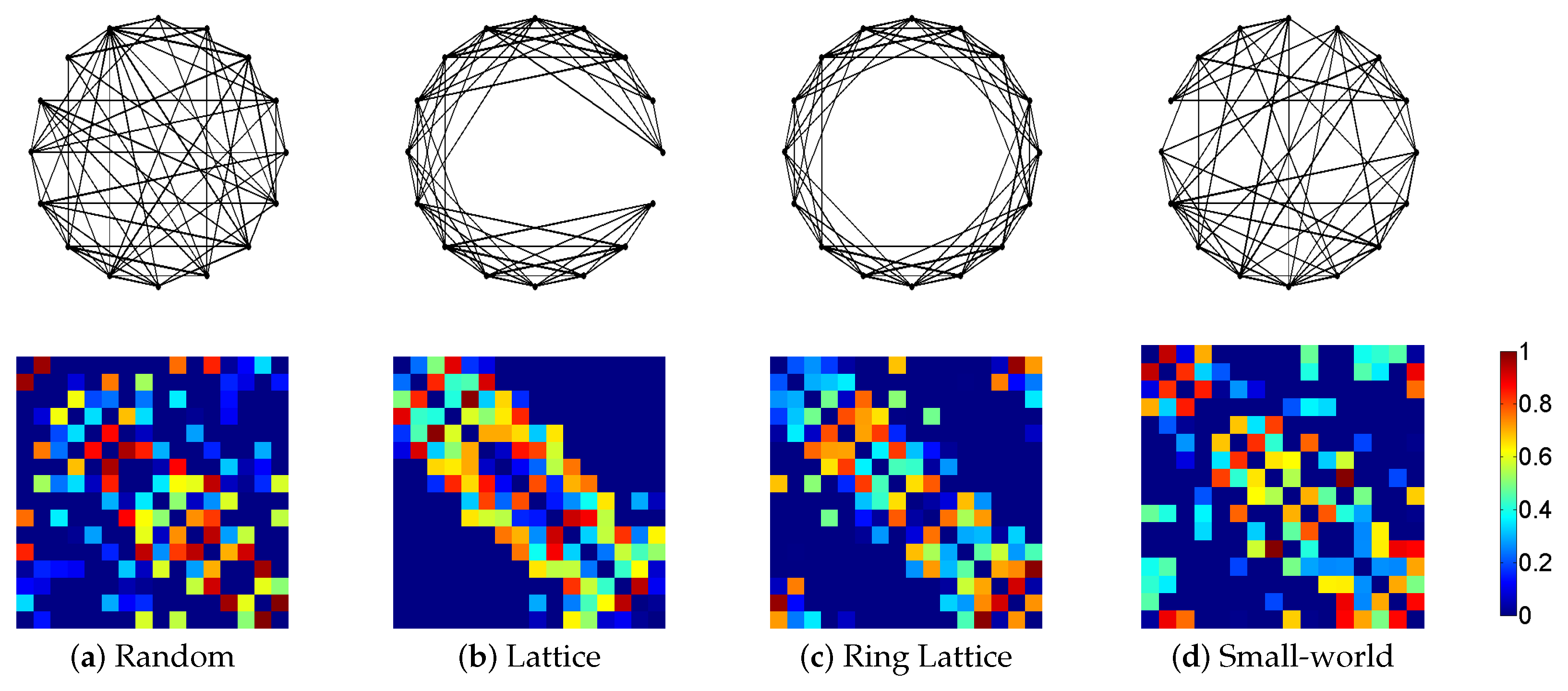

**Figure 3.**Example of network models (synthetic dataset) used in this work. Each model has the corresponding connectivity matrix illustrated at the bottom. (

**a**) Non directed random network (16 nodes, 120 edges); (

**b**) Non directed lattice network (16 nodes, 118 edges); (

**c**) Non directed ring lattice network (16 nodes, 122 edges); (

**d**) Non directed small-world network (16 nodes, 116 edges and cluster size 2).

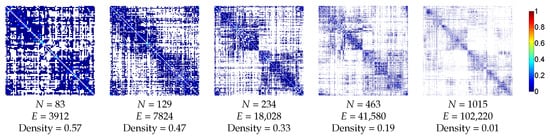

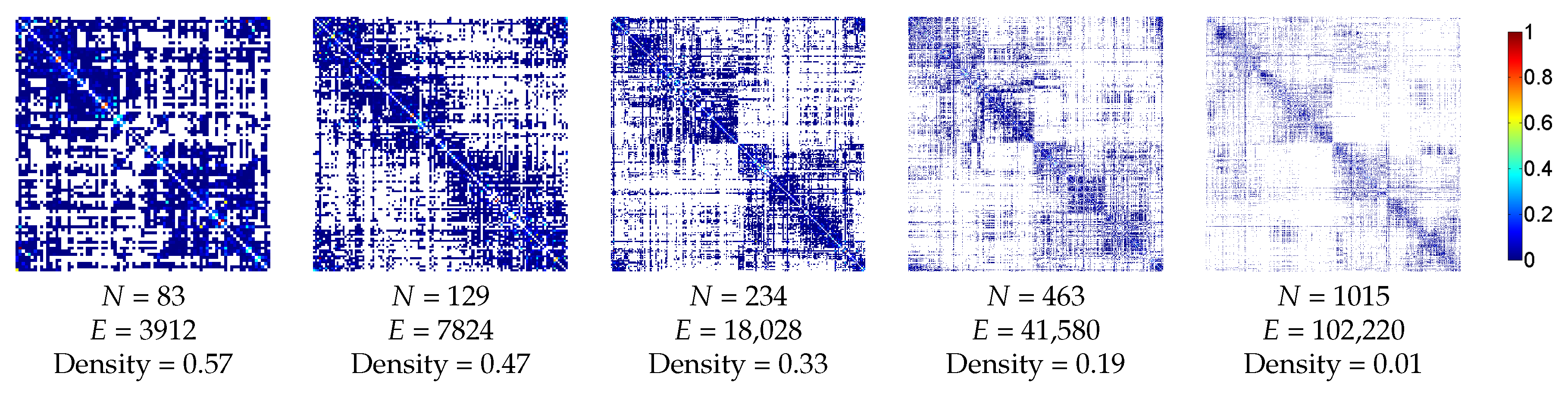

**Figure 4.**Illustration of the averaged structural connectivity matrices of the anatomic dataset with the corresponding number of nodes (N), edges (E) and density. 0 values are represented in white. Edges were resorted to place more edges closer to the diagonal for visualization purposes only.

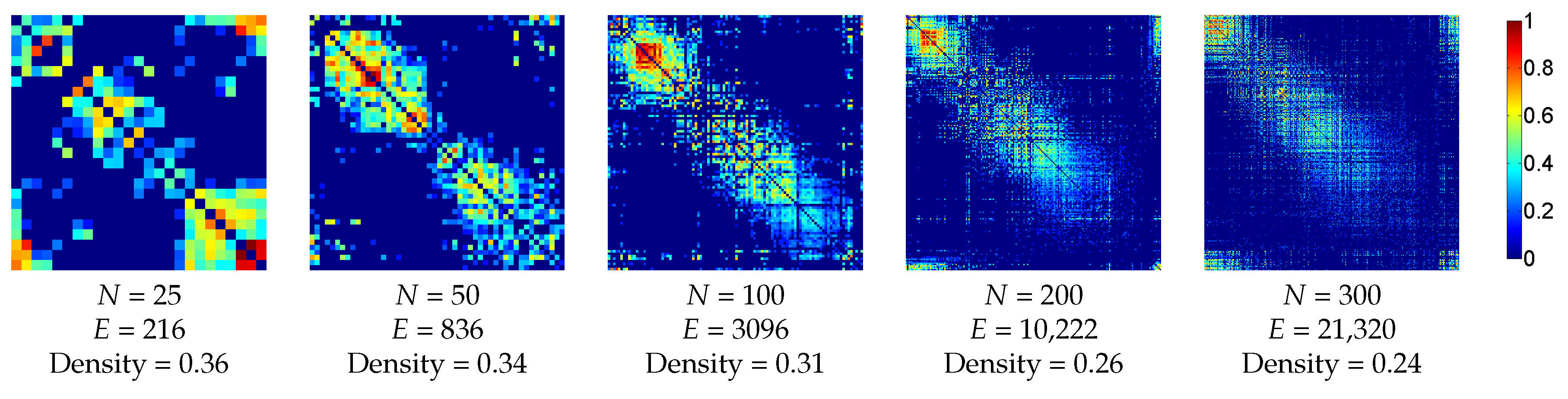

**Figure 5.**Illustration of the averaged functional connectivity matrices of the functional dataset with the corresponding number of nodes (N), edges (E) and density.

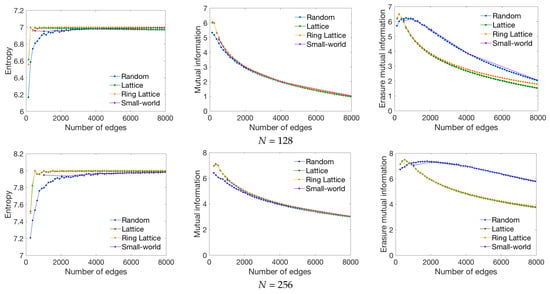

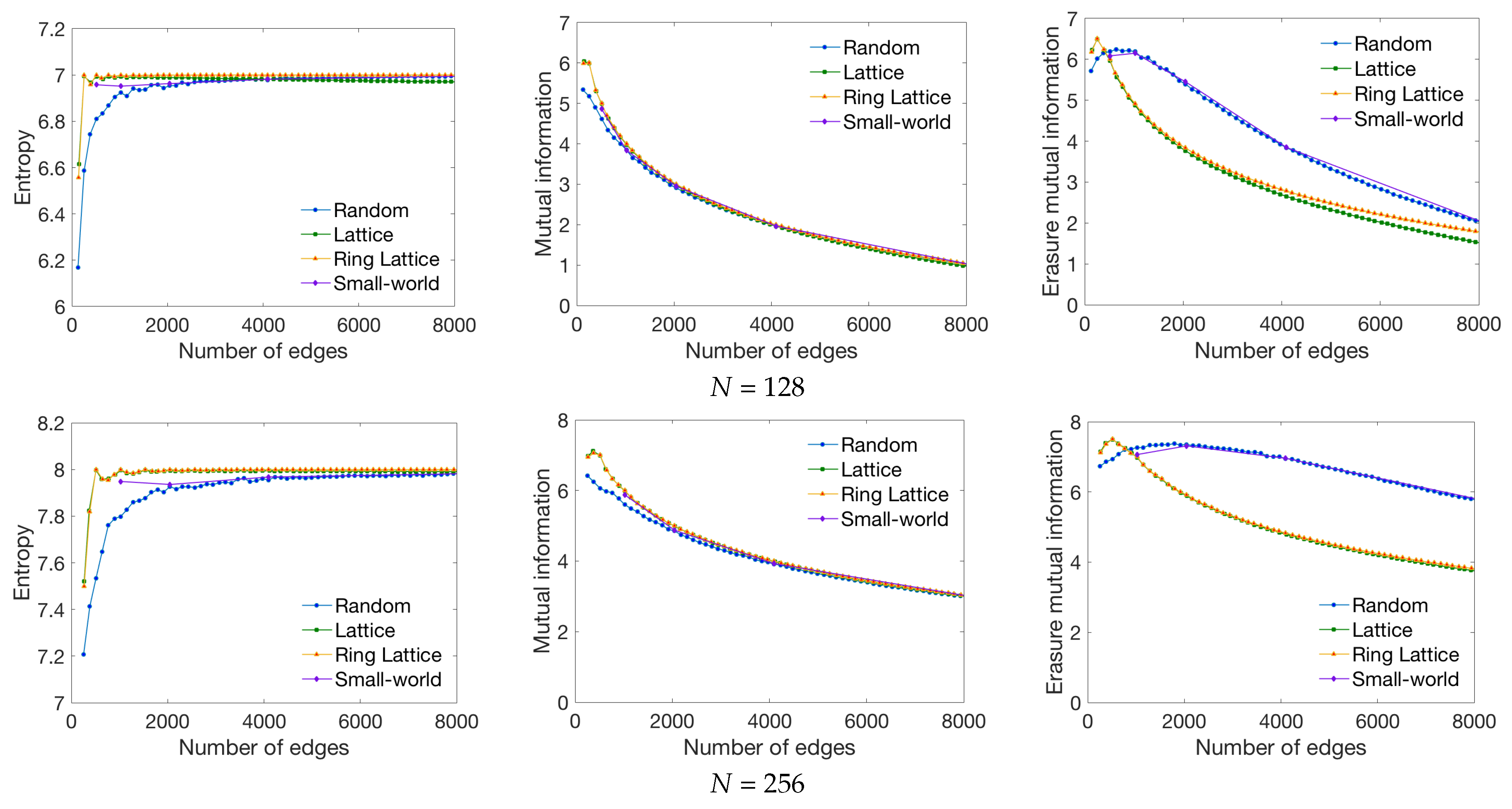

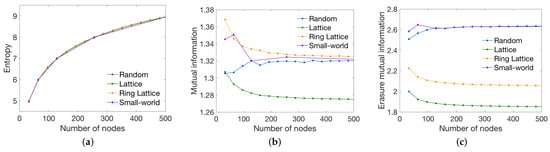

**Figure 6.**Behavior of the entropy, mutual information and erasure mutual information measures for each network model when the number of edges is increased (from 0 to 8192) and the number of nodes (N) is kept constant (128 nodes on top row and 256 nodes on bottom row).

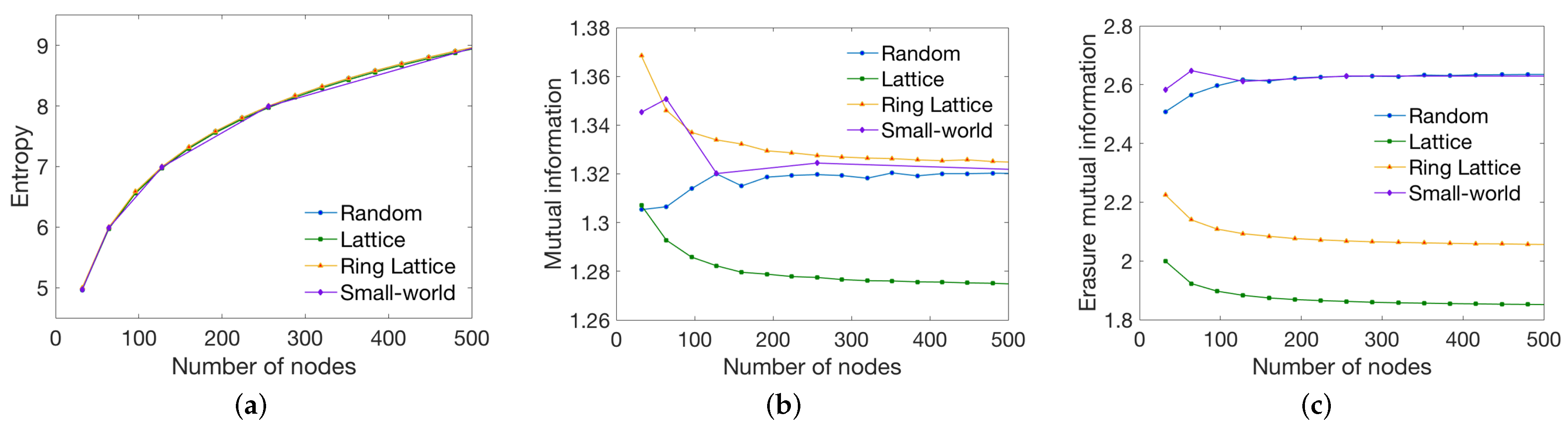

**Figure 7.**Behavior of the (

**a**) entropy; (

**b**) mutual information; (

**c**) and erasure mutual information measures when the number of nodes is increased (from 0 to 500) while the density is kept constant to $0.4$.

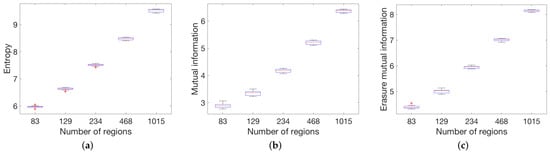

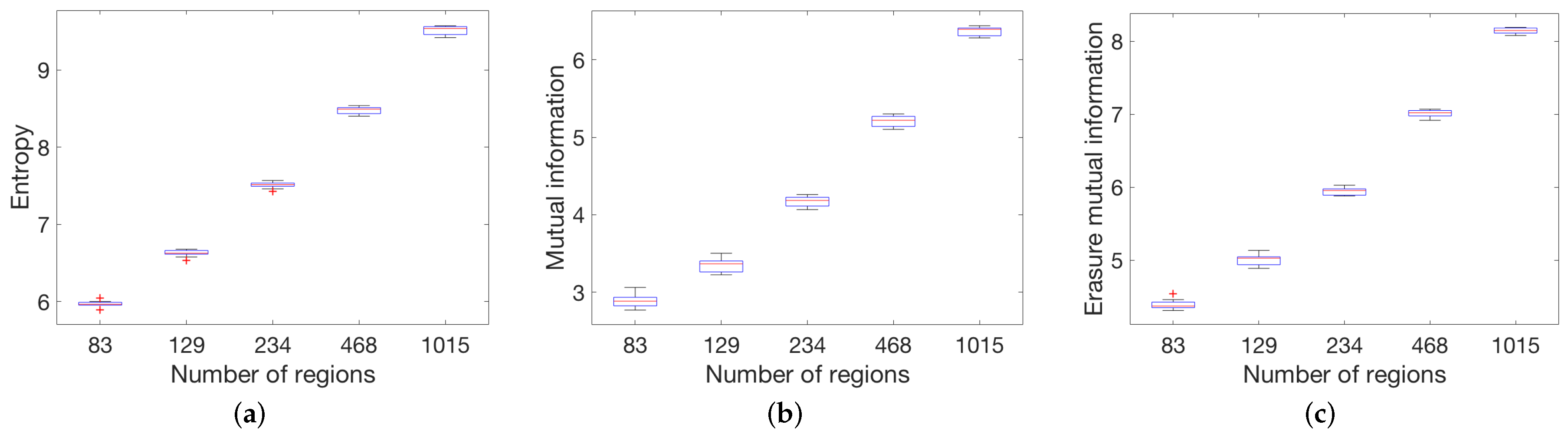

**Figure 8.**Box-plots showing median, 25th and 75th percentiles for global measures ((

**a**) entropy; (

**b**) mutual information; (

**c**) and erasure mutual information) when applied to the 10 structural connectomes with 83, 129, 254, 463 and 1015 partitions.

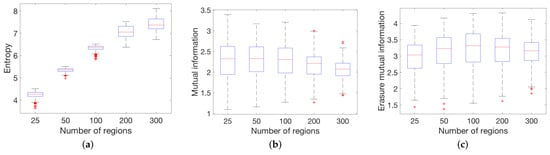

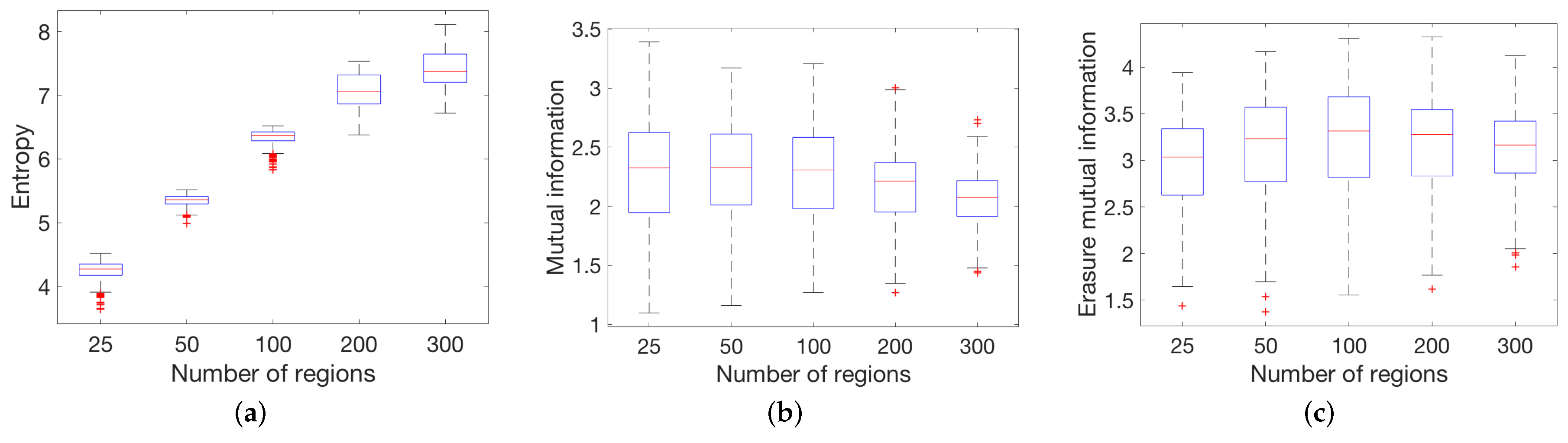

**Figure 9.**Box-plots showing median, 25th and 75th percentiles for global measures ((

**a**) entropy; (

**b**) mutual information; (

**c**) and erasure mutual information) when applied to 463 functional connectomes with 25, 50, 100, 200 and 300 partitions.

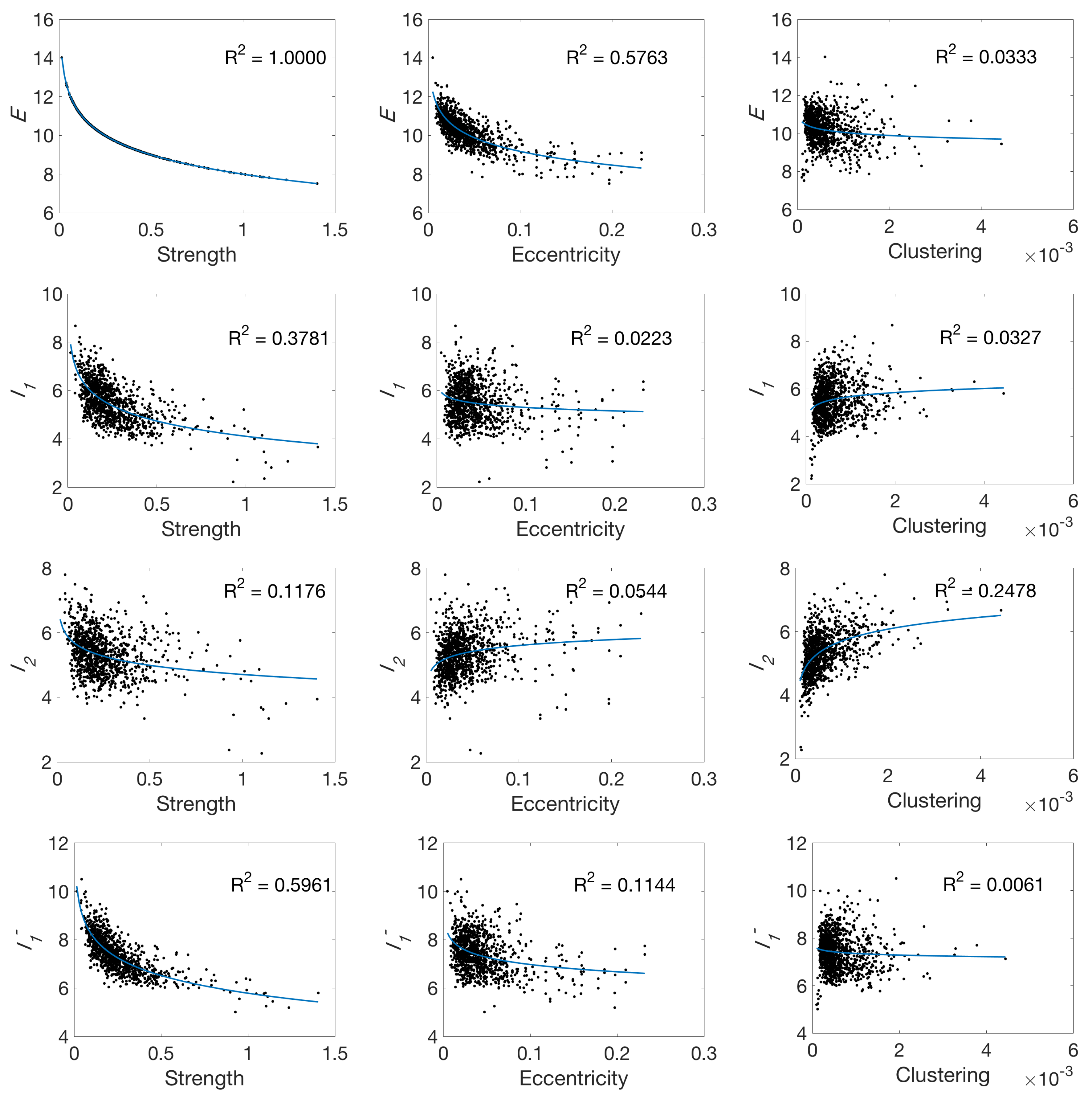

**Figure 10.**Relationship between the proposed local measures (entropic surprise (E), mutual surprise (${I}_{1}$), mutual predictability (${I}_{2}$) and erasure surprise (${I}_{1}^{-}$) and standard measures (strength, eccentricity and clustering) using the structural averaged connectivity matrix network with 1015 nodes.

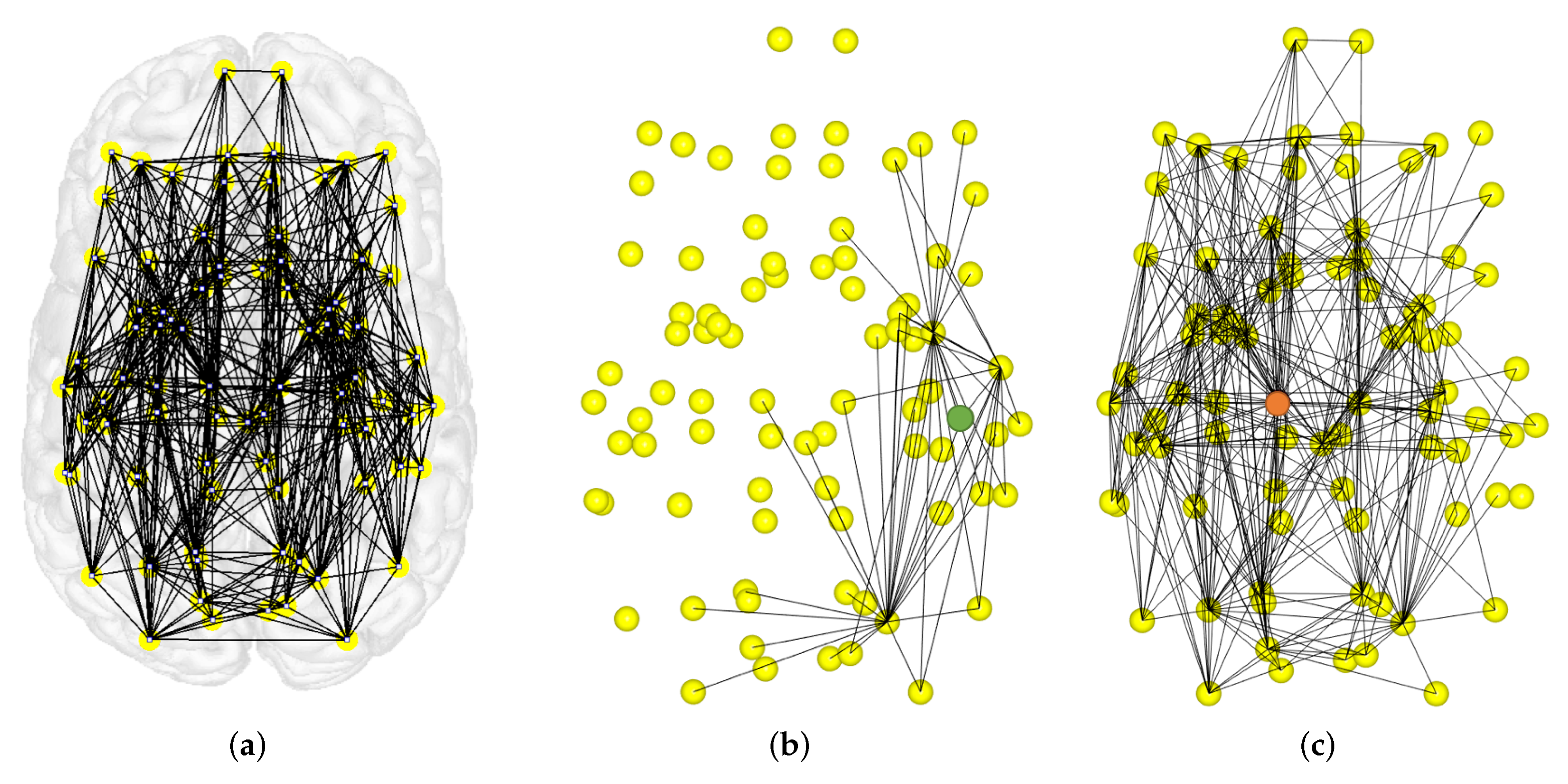

**Figure 11.**(

**a**) Illustration of all the connections in the structural dataset; (

**b**) Right hemisphere transverse temporal region (green) connections including its neighbors connections; (

**c**) Left hemisphere thalamus proper (orange) connections including its neighbors connections. This figure has been generated using the VisualConnectome software [59].

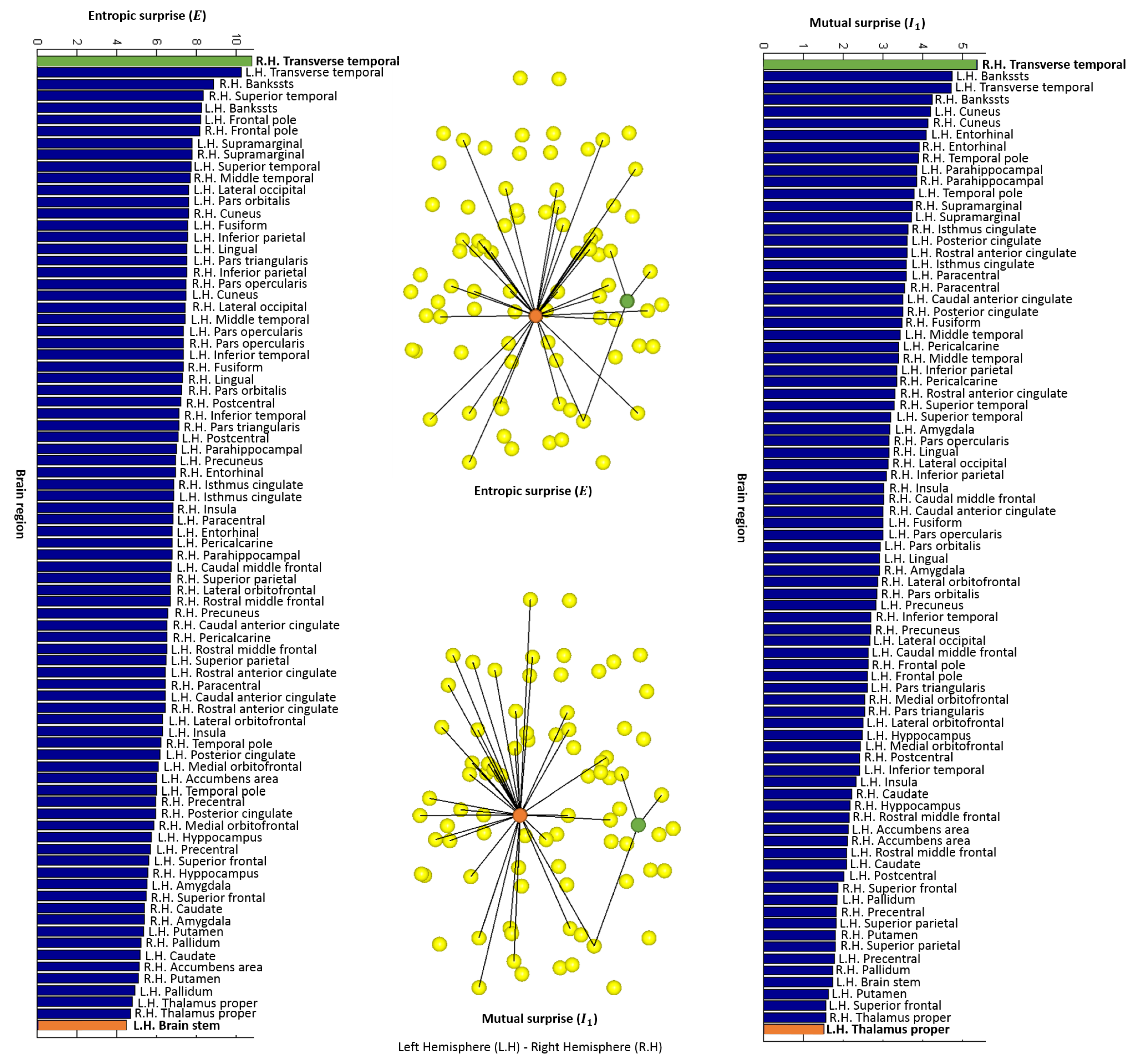

**Figure 12.**On the left, entropic surprise values obtained with the averaged structural network with 83 partitions. The maximum and minimum values have been represented on the brain network (first image of the central column). The green node corresponds to the right hemisphere transverse temporal area and the orange to the brain stem. On the right, mutual surprise values obtained with the same network. The maximum and minimum values have been represented on the brain network (second image of the central column). The green node corresponds to the right hemisphere transverse temporal area and the orange to the thalamus proper.

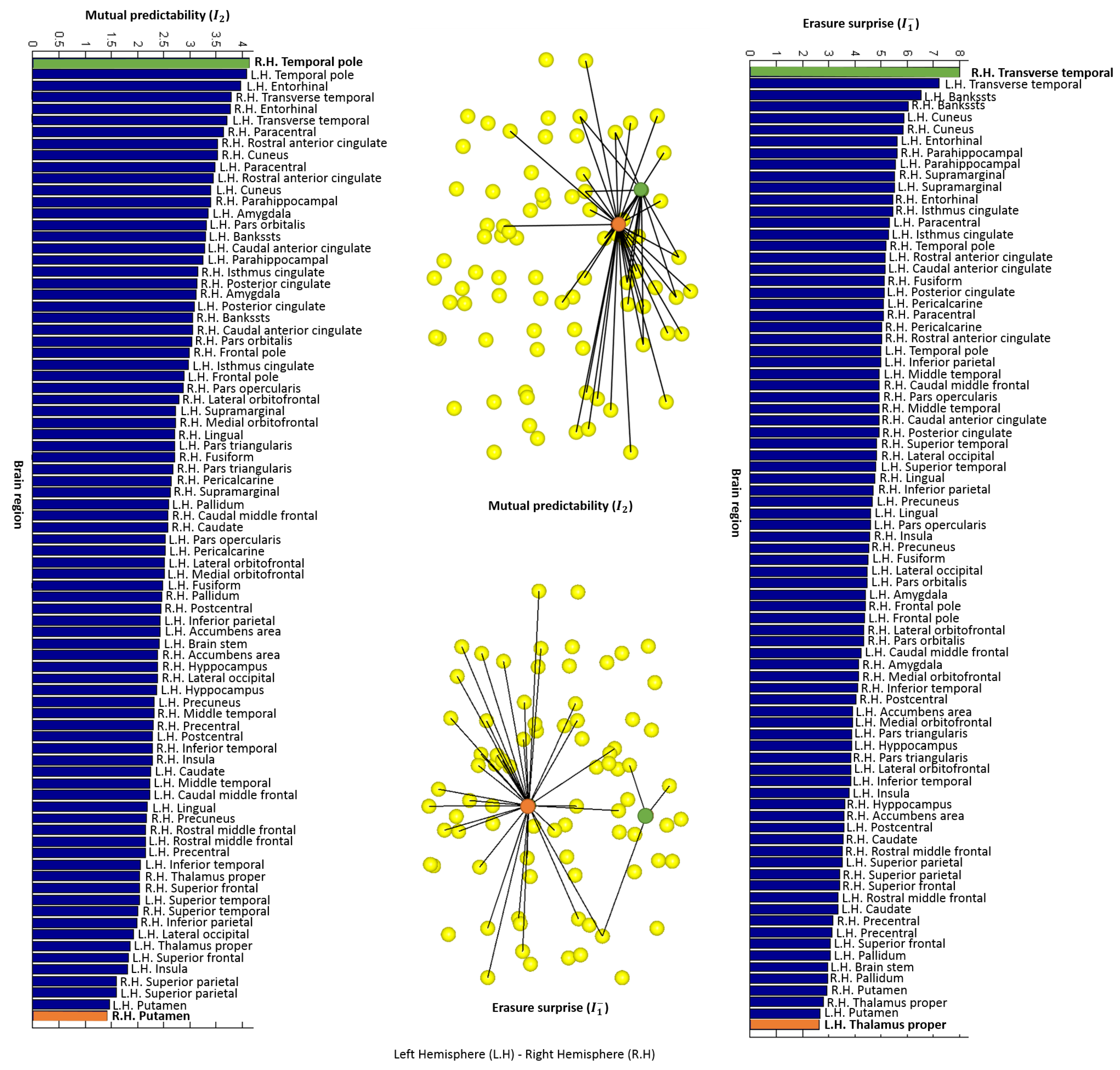

**Figure 13.**On the left, mutual predictability values obtained with the averaged structural network with 83 partitions. The maximum and minimum values have been represented on the brain network (first image of the central column). The green node corresponds to the right hemisphere temporal pole area and the orange to the putamen. On the right, erasure surprise values obtained with the same network. The maximum and minimum values have been represented on the brain network (second image of the central column). The green node corresponds to the right hemisphere transverse temporal area and the orange to the thalamus proper.

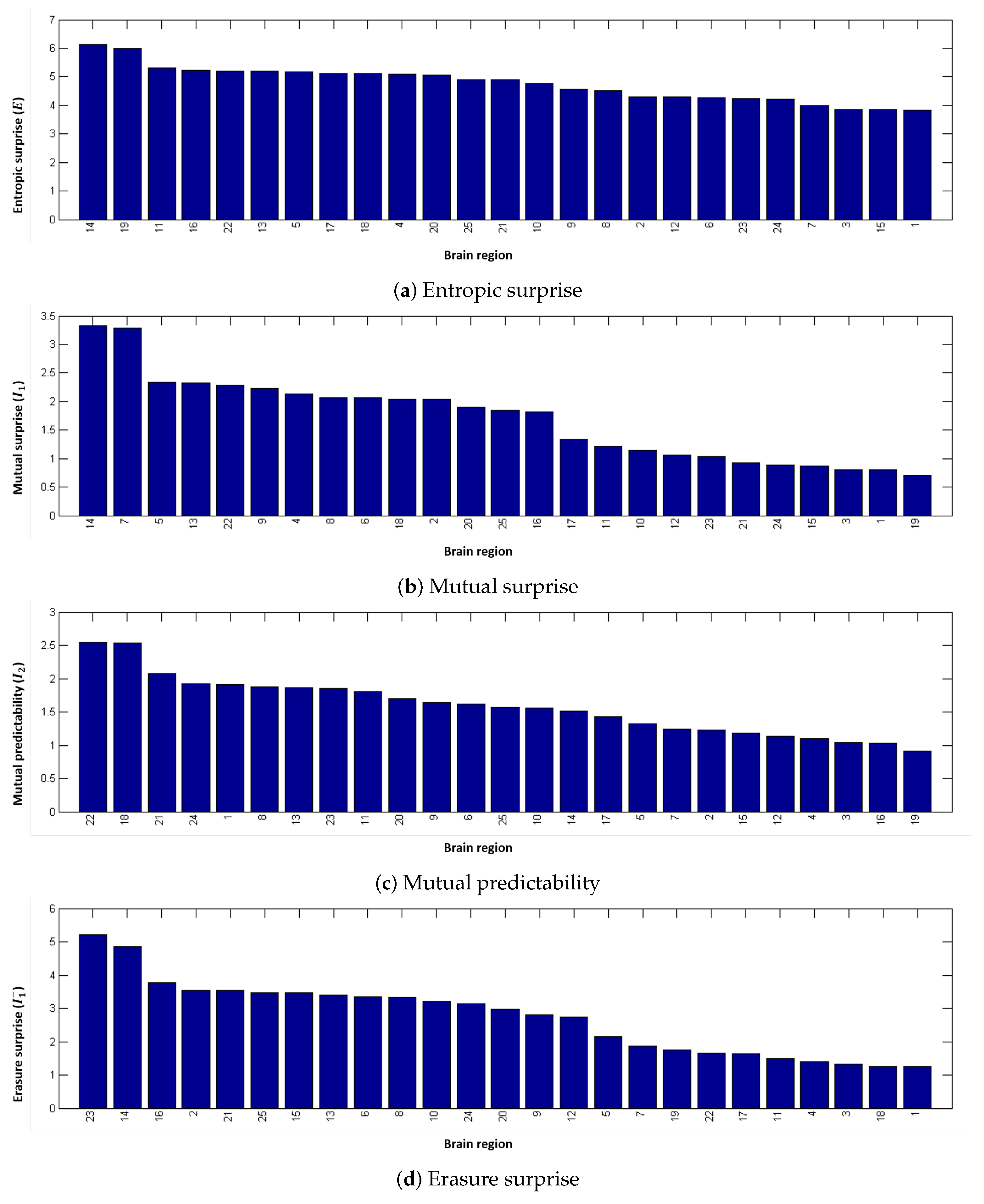

**Figure 14.**Local measures values ((

**a**) entropic surprise; (

**b**) mutual surprise (

**c**) mutual predictability and (

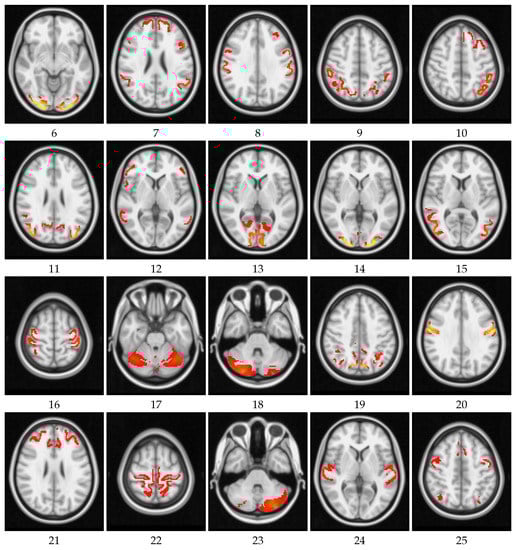

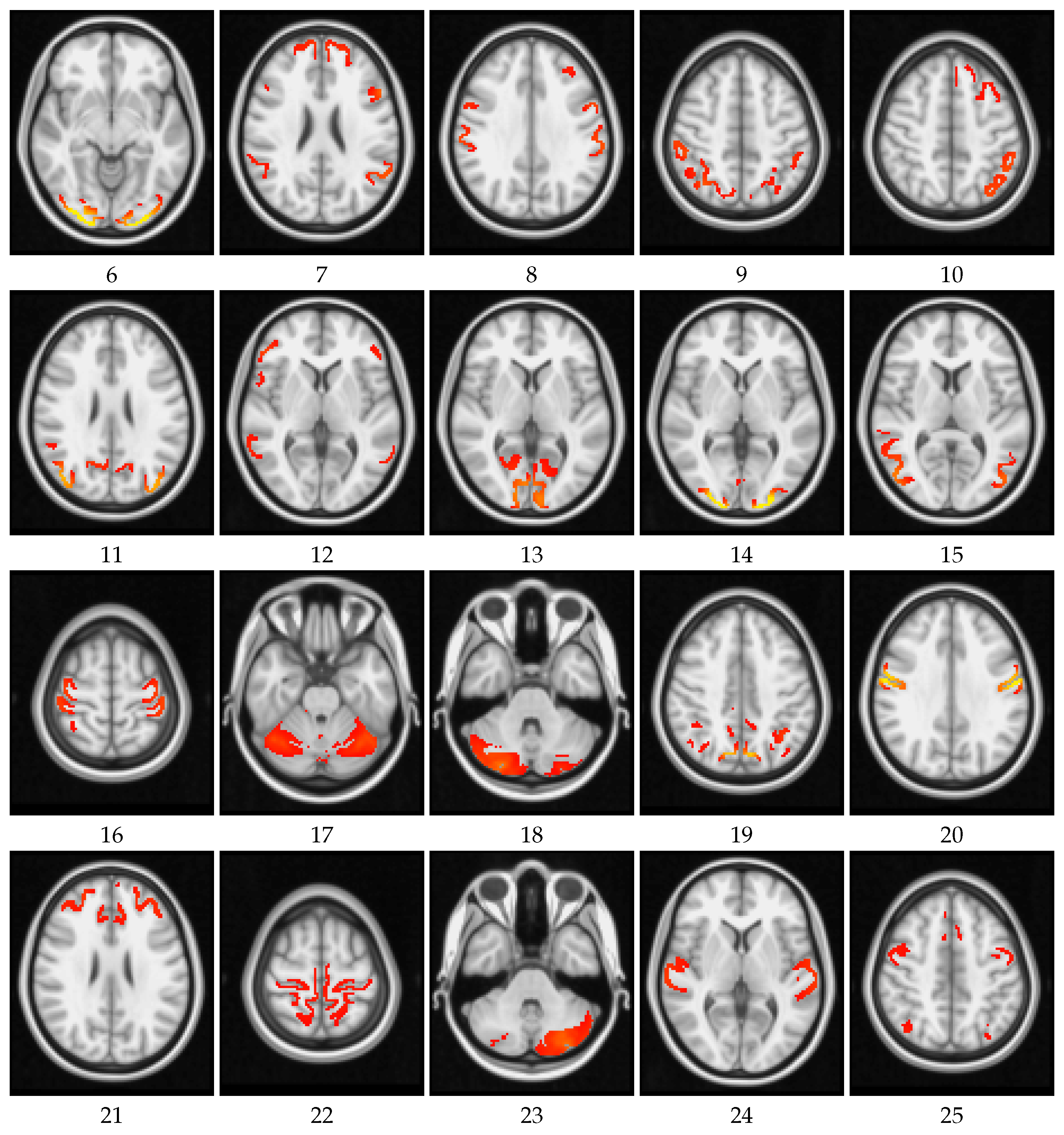

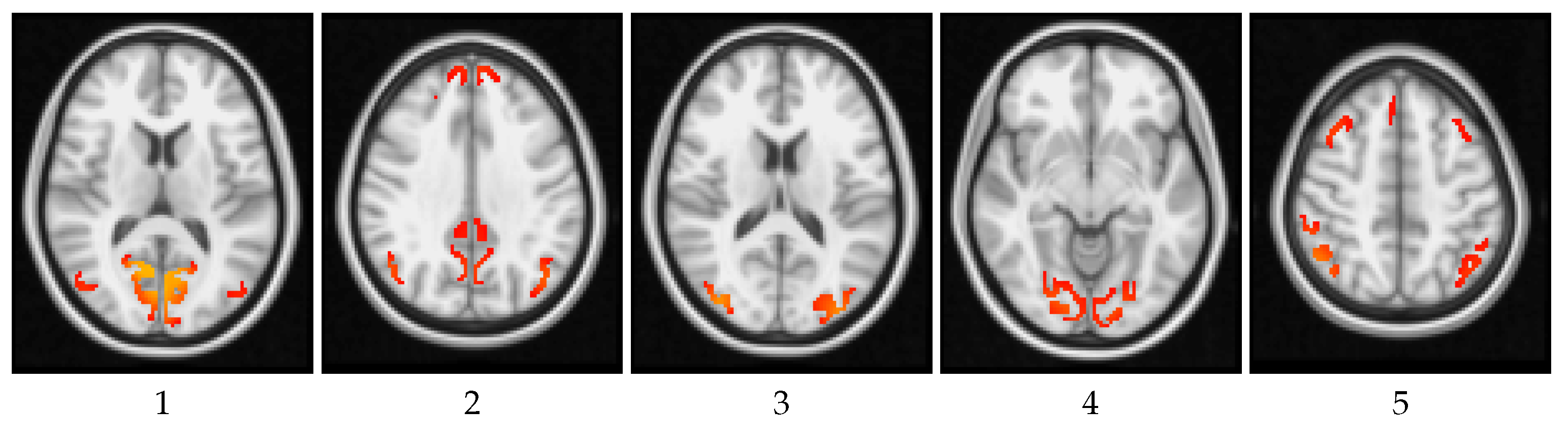

**d**) erasure surprise) obtained with the averaged functional dataset with 25 partitions. An illustrative image of each partition is shown in Figure 15.
