# An Approximated Box Height for Differential-Box-Counting Method to Estimate Fractal Dimensions of Gray-Scale Images

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Databases

#### 2.2. Fractal Dimension

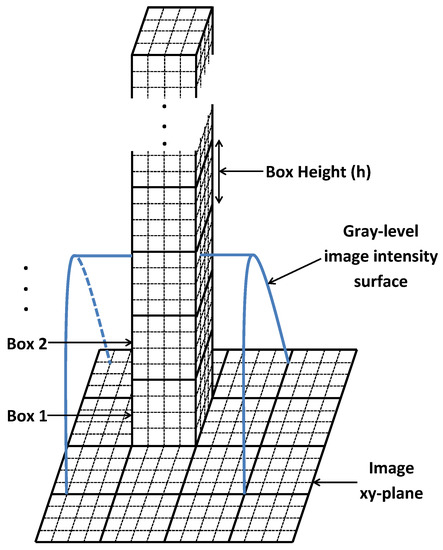

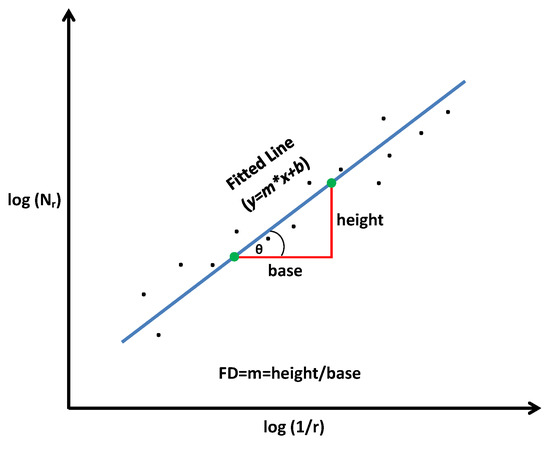

#### 2.3. The DBC Method

#### 2.4. Box Height

**B:**Chen et al. considered $h=s$ in their work [15] to compute FD. Sometimes it may happen that the box height is greater than the number of gray-levels in an image ($h\ge G$); in that case only one box is required to represent the rough surface of a particular grid. Consequently, it leads to an inaccurate FD.**C:**Li et al. proposed $h=\frac{s}{0.5\times ({I}_{max}-{I}_{min})}$ to be their box height in [16], where ${I}_{max}$, ${I}_{min}$ are the maximum and minimum gray-level intensities present in an image respectively. The box height will be very small when an image is having a large texture variation. On the other hand, when gray-level differences (${I}_{max}-{I}_{min}$) will be small then the box height will be high as a result inaccurate FD value will be produced.**D:**Same authors proposed another formula for box height, $h=\frac{s}{1+2a\sigma}$, where $\sigma $ is the standard deviation of an image and $a=3$ is a constant in [17]. But, the proposed box height is too small and it requires more memory space for storage. The value of this box height is almost same to the box height used in [16] and like**C**this box height is dependent on image gray-levels.

## 3. Experimental Results and Discussion

#### 3.1. Impact of Box Heights

**A:**$\frac{s\times G}{M}$,

**B:**$h=s$ and

**D:**$\frac{s}{1+2a\sigma}$ (

**B**>

**A**>

**D**) are selected for further experiment from

**A**,

**B**,

**C**,

**D**and

**E**described in Section 2.4 because box height

**A**is almost same to

**E**for texture images and box height

**C**is nearly equal to

**D**. These box heights have been considered separately with DBC method by keeping other parameters same. The FD values along with DE values are then computed on Brodatz Database and they have been depicted in Figure 5 and Figure 6. However, all the images are scaled down to standard $512\times 512$ pixels before computation. Because for $M=256$,

**A**=

**B**, hence these two box heights cannot be distinguished and simultaneously $M=640$ is not selected since it is not a standard image size i.e., not a power of 2. The list of parameters of DBC method are reported in Table 1. It is clear from both Figure 5 and Figure 6 that FD value increases when box height decreases. On the other hand, DE values increases while box height increases.

#### 3.2. A Novel Method to Estimate Box Height

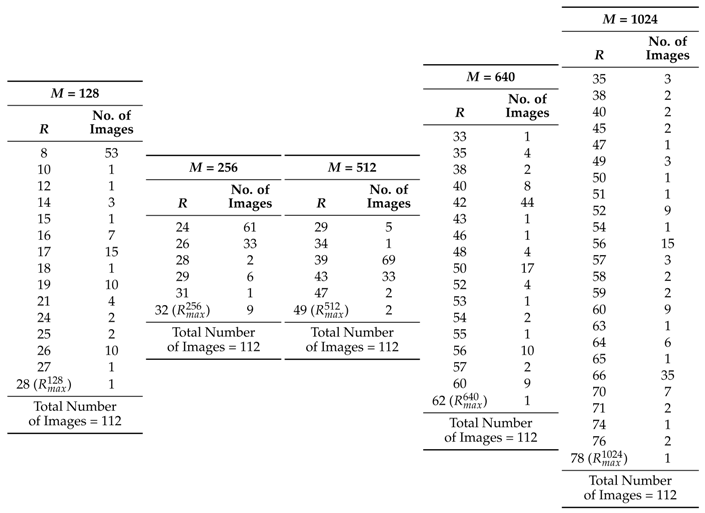

#### Approximating R

- If ${\mathrm{log}}_{2}\left(M\right)<2\Rightarrow R<0\Rightarrow h<0$.
- If ${\mathrm{log}}_{2}\left(M\right)=2\Rightarrow R=0\Rightarrow h=\infty $.
- If $2<{\mathrm{log}}_{2}\left(M\right)<3\Rightarrow R<{\mathrm{log}}_{2}\left(M\right)\Rightarrow h$ becomes relatively higher.

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Mandelbrot, B.B. The Fractal Geometry of Nature/Revised and Enlarged Edition; WH Freeman and Co.: New York, NY, USA, 1983; Volume 495, p. 1. [Google Scholar]
- Chaudhuri, B.B.; Sarkar, N. Texture segmentation using fractal dimension. IEEE Trans. Pattern Anal. Mach. Intell.
**1995**, 17, 72–77. [Google Scholar] [CrossRef] - Neil, G.; Curtis, K.M. Shape recognition using fractal geometry. Pattern Recognit.
**1997**, 30, 1957–1969. [Google Scholar] [CrossRef] - Hong, D.; Pan, Z.; Wu, X. Improved differential box counting with multi-scale and multi-direction: A new palmprint recognition method. Opt. Int. J. Light Electron Opt.
**2014**, 125, 4154–4160. [Google Scholar] [CrossRef] - Cervantes-De la Torre, F.; González-Trejo, J.; Real-Ramírez, C.; Hoyos-Reyes, L. Fractal dimension algorithms and their application to time series associated with natural phenomena. J. Phys.
**2013**, 475, 012002. [Google Scholar] - Yu, L.; Zhang, D.; Wang, K.; Yang, W. Coarse iris classification using box-counting to estimate fractal dimensions. Pattern Recognit.
**2005**, 38, 1791–1798. [Google Scholar] [CrossRef] - Lillo-Saavedra, M.; Gonzalo, C.; Lagos, O. Toward reduction of artifacts in fused images. Int. J. Appl. Earth Obs. Geoinf.
**2011**, 13, 368–375. [Google Scholar] [CrossRef] [Green Version] - Edrees, M. Application of fractal dimension. Iraqi J. Stat. Sci.
**2006**, 10, 54–73. [Google Scholar] - Peleg, S.; Naor, J.; Hartley, R.; Avnir, D. Multiple resolution texture analysis and classification. IEEE Trans. Pattern Anal. Mach. Intell.
**1984**, 6, 518–523. [Google Scholar] [CrossRef] [PubMed] - Pentland, A.P. Fractal-based description of natural scenes. IEEE Trans. Pattern Anal. Mach. Intell.
**1984**, 6, 661–674. [Google Scholar] [CrossRef] [PubMed] - Keller, J.M.; Chen, S.; Crownover, R.M. Texture description and segmentation through fractal geometry. Comput. Vis. Graph. Image Process.
**1989**, 45, 150–166. [Google Scholar] [CrossRef] - Gagnepain, J.; Roques-Carmes, C. Fractal approach to two-dimensional and three-dimensional surface roughness. Wear
**1986**, 109, 119–126. [Google Scholar] [CrossRef] - Sarkar, N.; Chaudhuri, B. An efficient differential box-counting approach to compute fractal dimension of image. IEEE Trans. Syst. Man Cybern.
**1994**, 24, 115–120. [Google Scholar] [CrossRef] - Jin, X.; Ong, S.; Jayasooriah. A practical method for estimating fractal dimension. Pattern Recognit. Lett.
**1995**, 16, 457–464. [Google Scholar] [CrossRef] - Chen, W.S.; Yuan, S.Y.; Hsieh, C.M. Two algorithms to estimate fractal dimension of gray-level images. Opt. Eng.
**2003**, 42, 2452–2464. [Google Scholar] [CrossRef] - Li, J.; Sun, C.; Du, Q. A new box-counting method for estimation of image fractal dimension. In Proceedings of the 2006 IEEE International Conference on Image, Atlanta, GA, USA, 8–11 October 2006; pp. 3029–3032. [Google Scholar]
- Li, J.; Du, Q.; Sun, C. An improved box-counting method for image fractal dimension estimation. Pattern Recognit.
**2009**, 42, 2460–2469. [Google Scholar] [CrossRef] - Liu, Y.; Chen, L.; Wang, H.; Jiang, L.; Zhang, Y.; Zhao, J.; Wang, D.; Zhao, Y.; Song, Y. An improved differential box-counting method to estimate fractal dimensions of gray-level images. J. Vis. Commun. Image Represent.
**2014**, 25, 1102–1111. [Google Scholar] [CrossRef] - Kaewaramsri, Y.; Woraratpanya, K. Improved Triangle Box-Counting Method for Fractal Dimension Estimation. In Recent Advances in Information and Communication Technology 2015; Springer: New York, NY, USA, 2015; pp. 53–61. [Google Scholar]
- Liu, S. An improved differential box-counting approach to compute fractal dimension of gray-level image. In Proceedings of the IEEE International Symposium on Information Science and Engineering (ISISE’08), Shanghai, China, 20–22 December 2008; Volume 1, pp. 303–306. [Google Scholar]
- Long, M.; Peng, F. A box-counting method with adaptable box height for measuring the fractal feature of images. Radioengineering
**2013**, 22, 208–213. [Google Scholar] - Nunsong, W.; Woraratpanya, K. Modified differential box-counting method using weighted triangle-box partition. In Proceedings of the IEEE 7th International Conference on Information Technology and Electrical Engineering (ICITEE), Chiang Mai, Thailand, 29–30 October 2015; pp. 221–226. [Google Scholar]
- Lai, K.; Li, C.; He, T.; Chen, L.; Yu, K.; Zhou, W. Study on an improved differential box-counting approach for gray-level variation of images. In Proceedings of the IEEE 10th International Conference on Sensing Technology (ICST), Nanjing, China, 11–13 November 2016; pp. 1–6. [Google Scholar]
- Original Brodatz Texture—Universite de Sherbrooke. Available online: http://multibandtexture.recherche.usherbrooke.ca/original_brodatz.html (accessed on 7 October 2017).
- Saupe, D. Algorithms for random fractals. In The Science of Fractal Images; Springer: New York, NY, USA, 1988; pp. 71–136. [Google Scholar]

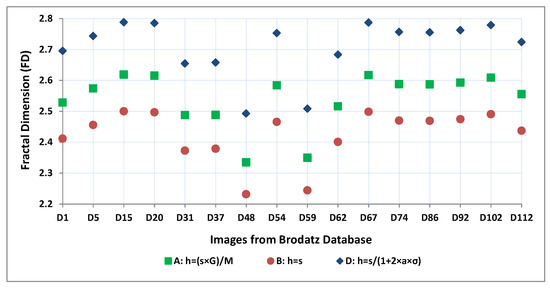

**Figure 5.**Different FD values for images from Brodatz Database using DBC method together with box heights

**A**,

**B**and

**D**while image size is $512\times 512$.

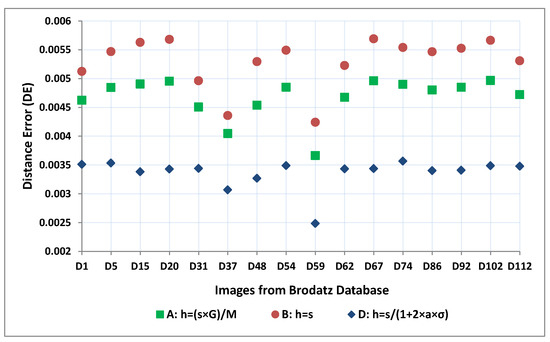

**Figure 6.**Different DE values for images from Brodatz Database using DBC method together with box heights

**A**,

**B**and

**D**while image size is $512\times 512$.

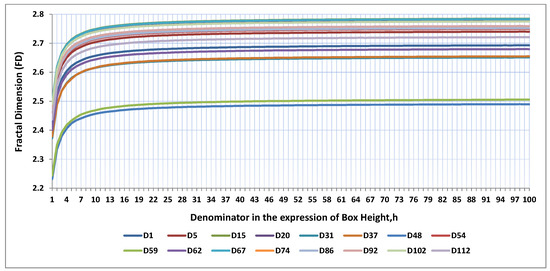

**Figure 7.**Different FD values for images from Brodatz Database using DBC method along with box height, h$(=\frac{s}{R})$, while image size is $512\times 512$.

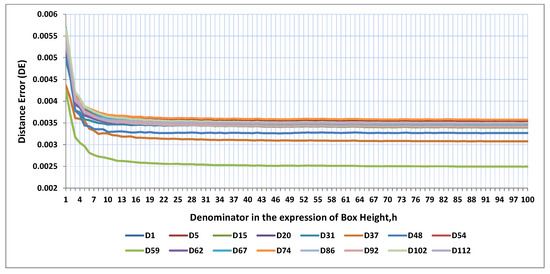

**Figure 8.**Different DE values for images from Brodatz Database using DBC method along with box height, h$(=\frac{s}{R})$, while image size is $512\times 512$.

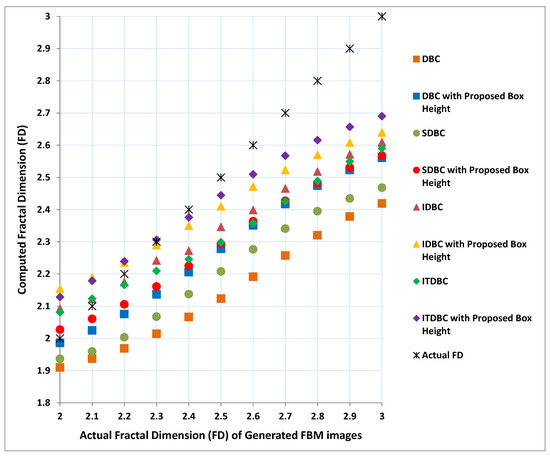

**Figure 9.**Computed and actual FD values for generated FBM images using DBC, SDBC, IDBC, ITDBC along with the original and the proposed box height.

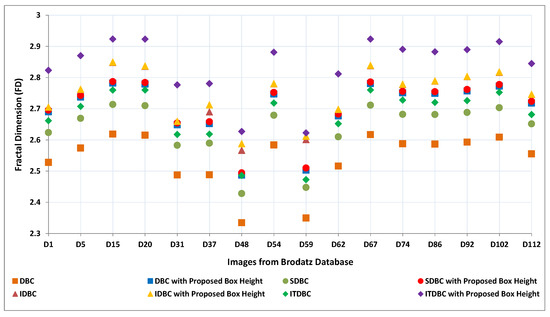

**Figure 10.**Computed FD values for images of Brodatz Database as shown in Figure 1 using DBC, SDBC, IDBC, ITDBC along with the original and the proposed box height.

DBC [13] | SDBC [15] | IDBC [18] | ITDBC [22] | |
---|---|---|---|---|

${s}_{min}$ | 2 | 2 | 2 | 2 |

${s}_{max}$ | $\frac{M}{2}$ | $\frac{M}{2}$ | $\frac{M}{2}$ | $\frac{M}{2}$ |

Allowed Grid sizes, s | ${s}_{max}\le s\le {s}_{max}$ | ${s}_{max}\le s\le {s}_{max}$ | 2^{i} i = 1, 2, .., log_{2} M − 1 | ${s}_{max}\le s\le {s}_{max}$ |

Grid shifting mechanism | No shifting | No shifting | Each grid is shifted by one pixel along South-East direction | No shifting |

Grid partitioning mechanism | No grid partitioning | No grid partitioning | No grid partitioning | Each grid is partitioned into unequal triangular grids in four different ways |

${n}_{r}$ | $\u2308{\displaystyle \frac{{g}_{max}}{h}}\u2309-\u2308{\displaystyle \frac{{g}_{min}}{h}}\u2309+1$ | $\u2308\frac{{g}_{max}-{g}_{min}+1}{h}\u2309$ | $\left\{\begin{array}{c}\u2308\frac{{g}_{max}-{g}_{min}+1}{h}\u2309,\mathrm{if}\phantom{\rule{4.pt}{0ex}}{g}_{max}\ne {g}_{min}\hfill \\ 1,\mathrm{if}\phantom{\rule{4.pt}{0ex}}{g}_{max}\ne {g}_{min}\hfill \end{array}\right.$ | $\left(\u2308\frac{t{g}_{max}}{h}\u2309-\u2308\frac{t{g}_{min}}{h}\u2309+1\right)\times \left(\frac{{A}_{t}}{s\times s}\right)$ ${A}_{t}$ is the number of image pixels in the tth triangular partition |

$xy$-plane partitioning | Partition image plane into non overlapping square grids. | Partition image plane into non overlapping square grids. | Partition image plane into non overlapping square grids. | Partition image plane into non overlapping square grids. |

Box Height, h | $\frac{s\times G}{M}$ | s | $\frac{s\times G}{M}$ | $\frac{s\times G}{M}$ |

**Table 2.**Finding out the smallest values of R that satisfy Equation (7) for different image sizes of Brodatz Database.

Image Size (M) | ${\mathit{R}}_{\mathit{max}}^{\mathit{M}}$ | R | ||
---|---|---|---|---|

$0.0589\mathit{M}+19.667$ | $\lceil {\mathbf{log}}_{2}\mathit{M}\times ({\mathbf{log}}_{2}\left(\mathit{M}\right)-3)\rceil $ | $\lceil {\mathbf{log}}_{2}\mathit{M}\times ({\mathbf{log}}_{2}\left(\mathit{M}\right)-2)\rceil $ | ||

128 | 28 | 27.21 (✕) | 28 (✓) | 35 (✓) |

256 | 32 | 34.75 (✓) | 40 (✓) | 48 (✓) |

512 | 49 | 49.82 (✓) | 54 (✓) | 63 (✓) |

640 | 62 | 57.36 (✕) | 59 (✕) | 69 (✓) |

1024 | 78 | 79.98 (✓) | 70 (✕) | 80 (✓) |

FBM Images with | Fractal Dimension (FD) | Distance Error (DE) | |||||||
---|---|---|---|---|---|---|---|---|---|

Hurst Parameter (H) | Actual FD (3-H) (P) | DBC (Q) | DBC + Proposed Box Height (R) | Absolute Difference in FD Values | Change in FD Values (R-Q) | DBC (X) | DBC + Proposed Box Height (Y) | Difference in DE Values (Y-X) | |

$\left|\mathit{P}-\mathit{Q}\right|$ | $\left|\mathit{P}-\mathit{R}\right|$ | ||||||||

1.0 | 2.0 | 1.9098 | 1.9857 | 0.0902 | 0.0143 | 0.0759 | 0.0045 | 0.0047 | 0.0002 |

0.9 | 2.1 | 1.9374 | 2.0248 | 0.1626 | 0.0752 | 0.0874 | 0.0042 | 0.0042 | 0.0000 |

0.8 | 2.2 | 1.9690 | 2.0757 | 0.2310 | 0.1243 | 0.1067 | 0.0042 | 0.0039 | -0.0003 |

0.7 | 2.3 | 2.0141 | 2.1369 | 0.2859 | 0.1631 | 0.1228 | 0.0042 | 0.0036 | -0.0006 |

0.6 | 2.4 | 2.0666 | 2.2056 | 0.3334 | 0.1944 | 0.1390 | 0.0041 | 0.0034 | -0.0007 |

0.5 | 2.5 | 2.1237 | 2.2779 | 0.3763 | 0.2221 | 0.1542 | 0.0042 | 0.0033 | -0.0009 |

0.4 | 2.6 | 2.1917 | 2.3514 | 0.4083 | 0.2486 | 0.1597 | 0.0041 | 0.0032 | -0.0009 |

0.3 | 2.7 | 2.2575 | 2.4172 | 0.4425 | 0.2828 | 0.1597 | 0.0040 | 0.0032 | -0.0008 |

0.2 | 2.8 | 2.3205 | 2.4742 | 0.4795 | 0.3258 | 0.1537 | 0.0038 | 0.0032 | -0.0006 |

0.1 | 2.9 | 2.3785 | 2.5233 | 0.5215 | 0.3767 | 0.1448 | 0.0036 | 0.0032 | -0.0004 |

0.0 | 3.0 | 2.4192 | 2.5612 | 0.5808 | 0.4388 | 0.1420 | 0.0037 | 0.0032 | -0.0005 |

**Table 5.**Computed FD and DE values using DBC and the proposed box height for images from Brodatz Database as shown in Figure 1.

Images from Brodatz Database with Image Name | Fractal Dimension (FD) | Distance Error (DE) | ||||
---|---|---|---|---|---|---|

DBC (P) | DBC + Proposed Box Height (Q) | Difference in FD Values (Q-P) | DBC (X) | DBC + Proposed Box Height (Y) | Difference in DE Values (Y-X) | |

D1 | 2.5281 | 2.6903 | 0.1622 | 0.0046 | 0.0035 | −0.0011 |

D5 | 2.5740 | 2.7375 | 0.1635 | 0.0048 | 0.0036 | −0.0012 |

D15 | 2.6188 | 2.7823 | 0.1635 | 0.0049 | 0.0034 | −0.0015 |

D20 | 2.6154 | 2.7793 | 0.1639 | 0.0050 | 0.0035 | −0.0015 |

D31 | 2.4877 | 2.6486 | 0.1609 | 0.0045 | 0.0034 | −0.0011 |

D37 | 2.4882 | 2.6521 | 0.1639 | 0.0040 | 0.0031 | −0.0009 |

D48 | 2.3346 | 2.4874 | 0.1528 | 0.0045 | 0.0033 | −0.0012 |

D54 | 2.5839 | 2.7471 | 0.1632 | 0.0049 | 0.0035 | −0.0014 |

D59 | 2.3496 | 2.5028 | 0.1532 | 0.0037 | 0.0025 | −0.0012 |

D62 | 2.5164 | 2.6773 | 0.1609 | 0.0047 | 0.0034 | −0.0013 |

D67 | 2.6172 | 2.7810 | 0.1638 | 0.0050 | 0.0035 | −0.0015 |

D74 | 2.5878 | 2.7508 | 0.1630 | 0.0049 | 0.0036 | −0.0013 |

D86 | 2.5868 | 2.7496 | 0.1628 | 0.0048 | 0.0034 | −0.0014 |

D92 | 2.5929 | 2.7569 | 0.1640 | 0.0049 | 0.0034 | −0.0015 |

D102 | 2.6090 | 2.7728 | 0.1638 | 0.0050 | 0.0035 | −0.0015 |

D112 | 2.5554 | 2.7185 | 0.1631 | 0.0047 | 0.0035 | −0.0012 |

FBM Images with | Fractal Dimension (FD) | Distance Error (DE) | |||||||
---|---|---|---|---|---|---|---|---|---|

Hurst Parameter (H) | Actual FD (3-H) (P) | SDBC (Q) | SDBC + Proposed Box Height (R) | Absolute Difference in FD Values | Change in FD Values (R-Q) | SDBC (X) | SDBC + Proposed Box Height (Y) | Difference in DE Values (Y-X) | |

$\left|\mathit{P}-\mathit{Q}\right|$ | $\left|\mathit{P}-\mathit{R}\right|$ | ||||||||

1.0 | 2.0 | 1.9364 | 2.0272 | 0.0636 | 0.0272 | 0.0908 | 0.0038 | 0.0042 | 0.0004 |

0.9 | 2.1 | 1.9595 | 2.0605 | 0.1405 | 0.0395 | 0.1010 | 0.0038 | 0.0039 | 0.0001 |

0.8 | 2.2 | 2.0037 | 2.1056 | 0.1963 | 0.0944 | 0.1019 | 0.0039 | 0.0037 | −0.0002 |

0.7 | 2.3 | 2.0675 | 2.1611 | 0.2325 | 0.1389 | 0.0936 | 0.0041 | 0.0035 | −0.0006 |

0.6 | 2.4 | 2.1376 | 2.2251 | 0.2624 | 0.1749 | 0.0875 | 0.0040 | 0.0033 | −0.0007 |

0.5 | 2.5 | 2.2078 | 2.2935 | 0.2922 | 0.2065 | 0.0857 | 0.0038 | 0.0032 | −0.0006 |

0.4 | 2.6 | 2.2767 | 2.3640 | 0.3233 | 0.2360 | 0.0873 | 0.0036 | 0.0031 | −0.0005 |

0.3 | 2.7 | 2.3408 | 2.4273 | 0.3592 | 0.2727 | 0.0865 | 0.0037 | 0.0031 | −0.0006 |

0.2 | 2.8 | 2.3951 | 2.4828 | 0.4049 | 0.3172 | 0.0877 | 0.0037 | 0.0032 | −0.0005 |

0.1 | 2.9 | 2.4347 | 2.5306 | 0.4653 | 0.3694 | 0.0959 | 0.0037 | 0.0032 | −0.0005 |

0.0 | 3.0 | 2.4679 | 2.5678 | 0.5321 | 0.4322 | 0.0999 | 0.0034 | 0.0032 | −0.0002 |

**Table 7.**Computed FD and DE values using SDBC and the proposed box height for images from Brodatz Database as shown in Figure 1.

Images from Brodatz Database with Image Name | Fractal Dimension (FD) | Distance Error (DE) | ||||
---|---|---|---|---|---|---|

SDBC (P) | SDBC + Proposed Box Height (Q) | Difference in FD Values (Q-P) | SDBC (X) | SDBC + Proposed Box Height (Y) | Difference in DE Values (Y-X) | |

D1 | 2.6238 | 2.6958 | 0.0720 | 0.0046 | 0.0035 | −0.0011 |

D5 | 2.6693 | 2.7427 | 0.0734 | 0.0048 | 0.0035 | −0.0013 |

D15 | 2.7138 | 2.7871 | 0.0733 | 0.0047 | 0.0034 | −0.0013 |

D20 | 2.7100 | 2.7841 | 0.0741 | 0.0048 | 0.0034 | −0.0014 |

D31 | 2.5828 | 2.6544 | 0.0716 | 0.0046 | 0.0034 | −0.0012 |

D37 | 2.5896 | 2.6583 | 0.0687 | 0.0037 | 0.0031 | −0.0006 |

D48 | 2.4281 | 2.4944 | 0.0663 | 0.0043 | 0.0033 | −0.0010 |

D54 | 2.6790 | 2.7522 | 0.0732 | 0.0048 | 0.0035 | −0.0013 |

D59 | 2.4478 | 2.5101 | 0.0623 | 0.0033 | 0.0025 | −0.0008 |

D62 | 2.6102 | 2.6829 | 0.0727 | 0.0047 | 0.0034 | −0.0013 |

D67 | 2.7115 | 2.7859 | 0.0744 | 0.0048 | 0.0034 | −0.0014 |

D74 | 2.6822 | 2.7558 | 0.0736 | 0.0048 | 0.0036 | −0.0012 |

D86 | 2.6817 | 2.7547 | 0.0730 | 0.0047 | 0.0034 | −0.0013 |

D92 | 2.6880 | 2.7619 | 0.0739 | 0.0048 | 0.0034 | −0.0014 |

D102 | 2.7034 | 2.7777 | 0.0743 | 0.0048 | 0.0035 | −0.0013 |

D112 | 2.6516 | 2.7238 | 0.0722 | 0.0047 | 0.0035 | −0.0012 |

FBM Images with | Fractal Dimension (FD) | Distance Error (DE) | |||||||
---|---|---|---|---|---|---|---|---|---|

Hurst Parameter (H) | Actual FD (3-H) (P) | IDBC (Q) | IDBC + Proposed Box Height (R) | Absolute Difference in FD Values | Change in FD Values (R-Q) | IDBC (X) | IDBC + Proposed Box Height (Y) | Difference in DE Values (Y-X) | |

$\left|\mathit{P}-\mathit{Q}\right|$ | $\left|\mathit{P}-\mathit{R}\right|$ | ||||||||

1.0 | 2.0 | 2.0921 | 2.1543 | 0.0921 | 0.1543 | 0.0622 | 0.0114 | 0.0062 | −0.0052 |

0.9 | 2.1 | 2.1222 | 2.1891 | 0.0222 | 0.0891 | 0.0669 | 0.0155 | 0.0073 | −0.0082 |

0.8 | 2.2 | 2.1744 | 2.2352 | 0.0256 | 0.0352 | 0.0608 | 0.0163 | 0.0095 | −0.0068 |

0.7 | 2.3 | 2.2420 | 2.2896 | 0.0580 | 0.0104 | 0.0476 | 0.0174 | 0.0117 | −0.0057 |

0.6 | 2.4 | 2.2717 | 2.3496 | 0.1283 | 0.0504 | 0.0779 | 0.0111 | 0.0137 | 0.0026 |

0.5 | 2.5 | 2.3462 | 2.4099 | 0.1538 | 0.0901 | 0.0637 | 0.0134 | 0.0152 | 0.0018 |

0.4 | 2.6 | 2.3986 | 2.4711 | 0.2014 | 0.1289 | 0.0725 | 0.0133 | 0.0167 | 0.0034 |

0.3 | 2.7 | 2.4654 | 2.5232 | 0.2346 | 0.1768 | 0.0578 | 0.0147 | 0.0174 | 0.0027 |

0.2 | 2.8 | 2.5182 | 2.5699 | 0.2818 | 0.2301 | 0.0517 | 0.0151 | 0.0180 | 0.0029 |

0.1 | 2.9 | 2.5712 | 2.6080 | 0.3288 | 0.2920 | 0.0368 | 0.0165 | 0.0182 | 0.0017 |

0.0 | 3.0 | 2.6091 | 2.6392 | 0.3909 | 0.3608 | 0.0301 | 0.0171 | 0.0181 | 0.0010 |

**Table 9.**Computed FD and DE values using IDBC and the proposed box height for images from Brodatz Database as shown in Figure 1.

Images from Brodatz Database with Image Name | Fractal Dimension (FD) | Distance Error (DE) | ||||
---|---|---|---|---|---|---|

IDBC (P) | IDBC + Proposed Box Height (Q) | Difference in FD Values (Q-P) | IDBC (X) | IDBC + Proposed Box Height (Y) | Difference in DE Values (Y-X) | |

D1 | 2.7045 | 2.7051 | 0.0006 | 0.0290 | 0.0282 | −0.0008 |

D5 | 2.7618 | 2.7625 | 0.0007 | 0.0301 | 0.0295 | −0.0006 |

D15 | 2.8487 | 2.8495 | 0.0008 | 0.0235 | 0.0231 | −0.0004 |

D20 | 2.8359 | 2.8370 | 0.0011 | 0.0271 | 0.0267 | −0.0004 |

D31 | 2.6590 | 2.6594 | 0.0004 | 0.0285 | 0.0275 | −0.0010 |

D37 | 2.6898 | 2.7124 | 0.0226 | 0.0209 | 0.0209 | 0.0000 |

D48 | 2.5668 | 2.5882 | 0.0214 | 0.0171 | 0.0148 | −0.0023 |

D54 | 2.7797 | 2.7804 | 0.0007 | 0.0291 | 0.0285 | −0.0006 |

D59 | 2.6008 | 2.6121 | 0.0113 | 0.0122 | 0.0088 | −0.0034 |

D62 | 2.6973 | 2.6979 | 0.0006 | 0.0289 | 0.0280 | −0.0009 |

D67 | 2.8378 | 2.8389 | 0.0011 | 0.0264 | 0.0261 | −0.0003 |

D74 | 2.8378 | 2.8389 | 0.0011 | 0.0264 | 0.0261 | −0.0003 |

D86 | 2.8378 | 2.8389 | 0.0011 | 0.0264 | 0.0261 | −0.0003 |

D92 | 2.8378 | 2.8389 | 0.0011 | 0.0264 | 0.0261 | −0.0003 |

D102 | 2.8378 | 2.8389 | 0.0011 | 0.0264 | 0.0261 | −0.0003 |

D112 | 2.8378 | 2.8389 | 0.0011 | 0.0264 | 0.0261 | −0.0003 |

**Table 10.**Computed FD and DE values using ITDBC and the proposed box height for generated FBM images.

FBM Images with | Fractal Dimension (FD) | Distance Error (DE) | |||||||
---|---|---|---|---|---|---|---|---|---|

Hurst Parameter (H) | Actual FD (3-H) (P) | ITDBC (Q) | ITDBC + Proposed Box Height (R) | Absolute Difference in FD Values | Change in FD Values (R-Q) | ITDBC (X) | ITDBC + Proposed Box Height (Y) | Difference in DE Values (Y-X) | |

$\left|\mathit{P}-\mathit{Q}\right|$ | $\left|\mathit{P}-\mathit{R}\right|$ | ||||||||

1.0 | 2.0 | 2.0811 | 2.1286 | 0.0811 | 0.1286 | 0.0475 | 0.0027 | 0.0022 | −0.0005 |

0.9 | 2.1 | 2.1232 | 2.1786 | 0.0232 | 0.0786 | 0.0554 | 0.0027 | 0.0021 | −0.0006 |

0.8 | 2.2 | 2.1659 | 2.2395 | 0.0341 | 0.0395 | 0.0736 | 0.0021 | 0.0019 | −0.0002 |

0.7 | 2.3 | 2.2094 | 2.3063 | 0.0906 | 0.0063 | 0.0969 | 0.0018 | 0.0018 | 0.0000 |

0.6 | 2.4 | 2.2457 | 2.3759 | 0.1543 | 0.0241 | 0.1302 | 0.0014 | 0.0017 | 0.0003 |

0.5 | 2.5 | 2.2988 | 2.4446 | 0.2012 | 0.0554 | 0.1458 | 0.0012 | 0.0017 | 0.0005 |

0.4 | 2.6 | 2.3582 | 2.5097 | 0.2418 | 0.0903 | 0.1515 | 0.0014 | 0.0017 | 0.0003 |

0.3 | 2.7 | 2.4257 | 2.5672 | 0.2743 | 0.1328 | 0.1415 | 0.0015 | 0.0017 | 0.0002 |

0.2 | 2.8 | 2.4890 | 2.6159 | 0.3110 | 0.1841 | 0.1269 | 0.0015 | 0.0017 | 0.0002 |

0.1 | 2.9 | 2.5494 | 2.6570 | 0.3506 | 0.2430 | 0.1076 | 0.0016 | 0.0017 | 0.0001 |

0.0 | 3.0 | 2.5903 | 2.6904 | 0.4097 | 0.3096 | 0.1001 | 0.0016 | 0.0017 | 0.0001 |

**Table 11.**Computed FD and DE values using ITDBC and the proposed box height for images from Brodatz Database as shown in Figure 1.

Images from Brodatz Database with Image Name | Fractal Dimension (FD) | Distance Error (DE) | ||||
---|---|---|---|---|---|---|

ITDBC (P) | ITDBC + Proposed Box Height (Q) | Difference in FD Values (Q-P) | ITDBC (X) | ITDBC + Proposed Box Height (Y) | Difference in DE Values (Y-X) | |

D1 | 2.6618 | 2.8231 | 0.1613 | 0.0024 | 0.0030 | 0.0006 |

D5 | 2.7075 | 2.8705 | 0.1630 | 0.0023 | 0.0026 | 0.0003 |

D15 | 2.7600 | 2.9236 | 0.1636 | 0.0021 | 0.0020 | −0.0001 |

D20 | 2.7602 | 2.9232 | 0.1630 | 0.0022 | 0.0022 | 0.0000 |

D31 | 2.6176 | 2.7765 | 0.1589 | 0.0024 | 0.0032 | 0.0008 |

D37 | 2.6186 | 2.7808 | 0.1622 | 0.0015 | 0.0020 | 0.0005 |

D48 | 2.4861 | 2.6272 | 0.1411 | 0.0019 | 0.0025 | 0.0006 |

D54 | 2.7183 | 2.8812 | 0.1629 | 0.0023 | 0.0025 | 0.0002 |

D59 | 2.4726 | 2.6228 | 0.1502 | 0.0008 | 0.0014 | 0.0006 |

D62 | 2.6520 | 2.8118 | 0.1598 | 0.0023 | 0.0028 | 0.0005 |

D67 | 2.7603 | 2.9234 | 0.1631 | 0.0022 | 0.0021 | −0.0001 |

D74 | 2.7603 | 2.9234 | 0.1631 | 0.0022 | 0.0021 | −0.0001 |

D86 | 2.7603 | 2.9234 | 0.1631 | 0.0022 | 0.0021 | −0.0001 |

D92 | 2.7603 | 2.9234 | 0.1631 | 0.0022 | 0.0021 | −0.0001 |

D102 | 2.7603 | 2.9234 | 0.1631 | 0.0022 | 0.0021 | −0.0001 |

D112 | 2.7603 | 2.9234 | 0.1631 | 0.0022 | 0.0021 | −0.0001 |
