Next Article in Journal
Fokker-Planck Equation and Thermodynamic System Analysis
Next Article in Special Issue
Metriplectic Algebra for Dissipative Fluids in Lagrangian Formulation
Previous Article in Journal
On Equivalence of Nonequilibrium Thermodynamic and Statistical Entropies
Previous Article in Special Issue
Reshaping the Science of Reliability with the Entropy Function
Open AccessArticle

Thermodynamic Analysis about Nucleation and Growth of Cubic Boron Nitride Crystals in the hBN-Li3N System under High Pressure and High Temperature

School of Material Science and Engineering, Shandong Jianzhu University, Ji'nan 250101, China
*
Author to whom correspondence should be addressed.
This manuscript is presented on the 1st Electronic Conference of Entropy and Its Application (www.sciforum.net/conference/ecea-1).
Entropy 2015, 17(2), 755-762; https://doi.org/10.3390/e17020755
Received: 21 November 2014 / Accepted: 3 February 2015 / Published: 9 February 2015

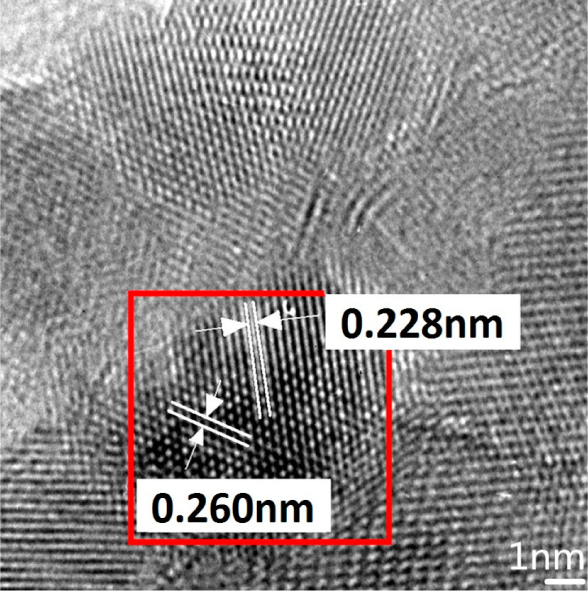

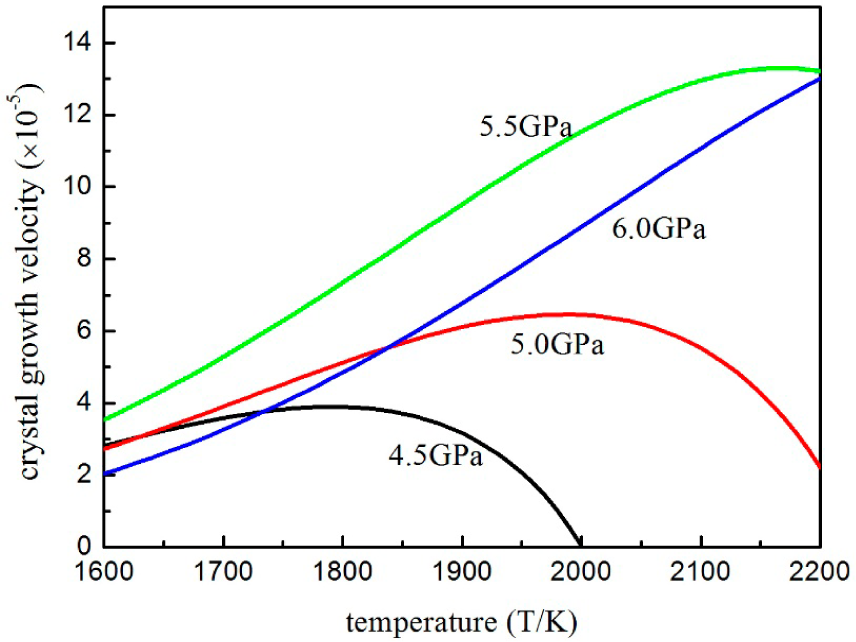

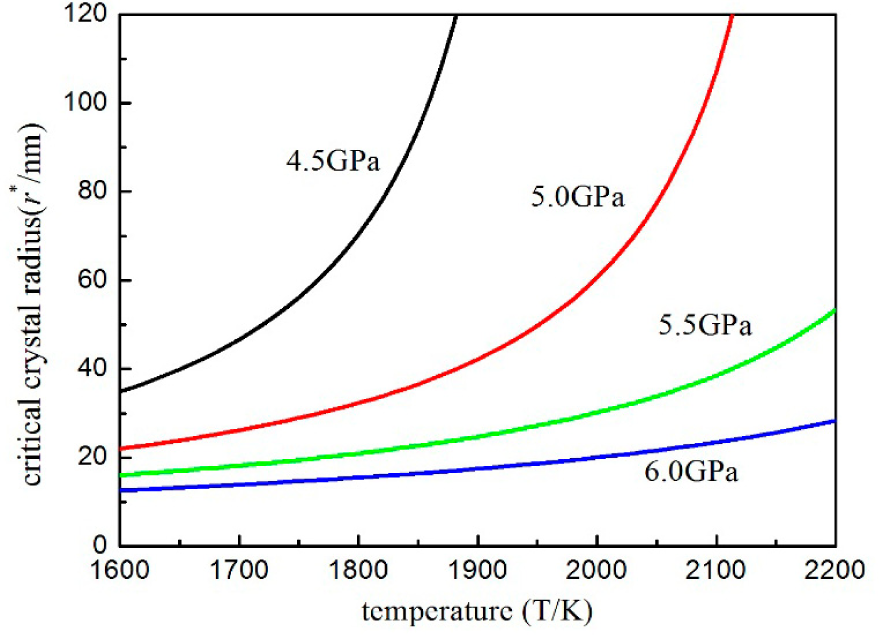

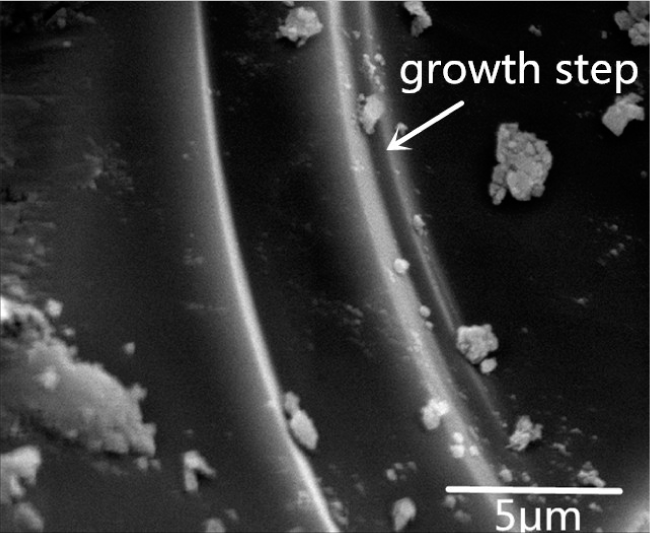

The nucleation of cubic boron nitride (cBN) single crystals synthesized with lithium nitride (Li3N) as a catalyst under high pressure and high temperature (HPHT) was analyzed. Many nanometer-sized cubic boron nitride nuclei formed in the near surface layer, as detected by high resolution transmission electron microscopy. Based on the experiment results, the transformation kinetics is described by a nucleation and growth process in the thermodynamic stability region of cBN. A theoretical description is developed based on the heterogeneous nucleation and layer growth mechanism, and the relevant parameters are estimated and discussed. The critical crystal radius, r*, increases with the temperature under constant pressure; the change with temperature more pronounced at lower pressure (such as 4.5 GPa). The crystal growth velocity increased with the temperature, and it is parabolic with temperature under certain pressure. These results are consistent with experimental data. View Full-Text
Keywords: cubic boron nitride; high pressure and high temperature; critical nucleation radius; crystal growth velocity cubic boron nitride; high pressure and high temperature; critical nucleation radius; crystal growth velocity
MDPI and ACS Style

Guo, X.-F.; Xu, B.; Zhang, W.; Lv, M.-Z.; Yang, H.-M.; Fan, X.-H. Thermodynamic Analysis about Nucleation and Growth of Cubic Boron Nitride Crystals in the hBN-Li3N System under High Pressure and High Temperature. Entropy 2015, 17, 755-762.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
