Urban Dynamics, Fractals and Generalized Entropy

ATP group - Applications of Theoretical Physics, Centro de Matemática e Aplicações Fundamentais, Instituto para a Investigação Interdisciplinar, P-1649-003 Lisboa Codex, Portugal
Geo Centro de Estudos de Geografia e Planeamento Regional, Faculdade de Ciências Sociais e Humanas, Universidade Nova de Lisboa, Avenida de Berna 26-C, 1069-061 Lisboa, Portugal
Departamento Electrónica, FCEFyN, Universidad Nacional de Córdoba, & CIEM-CONICET Ciudad Universitaria C.P. 5000, Córdoba, Argentina
Departamento de Engenharia Informática & INESC-ID, Instituto Superior Técnico, Universidade Técnica de Lisboa, IST-Tagusparque, 2744-016 Porto Salvo, Portugal
Departamento de Matemática e Aplicações & Centro de Biologia Molecular e Ambiental, Universidade do Minho, 4710-057 Braga, Portugal
Author to whom correspondence should be addressed.
Entropy 2013, 15(7), 2679-2697;
Received: 2 May 2013 / Revised: 5 July 2013 / Accepted: 8 July 2013 / Published: 11 July 2013
(This article belongs to the Special Issue Entropy and Urban Sprawl)


We explore the relation between the local fractal dimension and the development of the built-up area of the Northern Margin of the Metropolitan Area of Lisbon (NMAL), for the period between 1960 and 2004. To this end we make use of a Generalized Local Spatial Entropy (GLSE) function based on which urban areas can be classified into five different types. Our analysis of NMAL shows how some of the growth dynamics encountered can be linked to the plethora of social, economic and political changes that have taken place in NMAL (and Portugal), during the last 40 years, allowing for the establishment of urban planning measures to either inhibit or promote sprawl in urban areas.

1. Introduction

“How do cities form over time?” This key question posited by Herold et al. [1] remains unanswered in urban growth theory. The theoretical framework of urban growth as developed in [1] and based on empirical observation, states that urban growth follows a two phase process of spatial growth: diffusion followed by coalescence and eventually, in the presence of continuous growth, saturation. Urban growth can occur at different scales: as one area reaches saturation it may become the seed of another area, and the cycle may thus repeat itself at a larger scale. The direction of growth is influenced by local factors such as topography, transportation infrastructures and planning efforts [1], and thus urban form can evolve from and into a multitude of patterns that range from highly dispersed to highly compact [1,2,3,4,5,6,7].
Sprawl is a general term that has been linked to a kind of spatial growth that occurs in regions which are neither dispersed nor compact. Although this concept has been widely discussed over the last decades, there is still no generally accepted definition [2,3,4,5,6,7]. For example, the same term is associated with patterns, processes, causes and consequences [3]. On the other hand, there is a general consensus that sprawl is “characterized by unplanned and uneven pattern of growth driven by a multitude of processes and leading to inefficient resource utilization” [2].
Nevertheless, the existence of planning agencies, regulations and policies, does not necessarily imply more efficient resource utilization in urban areas, irrespective of whether they are located in more compact or dispersed territories. It will in fact depend on the space-time context of urban areas, something that varies among country regions and more so among different countries. Cultural, social, political, economic and physical constraints influence different time paths and contexts which may have a different impact on the resulting urban areas, even when planning regulations share some common features (whether these take the form of European legislation that must be transposed, in some sectors, to the national level, or some shared guidelines or strategies as it is the case of the countries in the European Union).
Therefore, in this study we explore the wide range of spatial structural patterns that arise in urban areas (from very dispersed to very compact) and, employing a previously developed model [8] [based on local fractal dimension and on a Generalized Local Spatial Entropy (GLSE) function on 1 km2 cells], establish a relation between these patterns and the set of social, economic and political changes that have taken place in NMAL - Northern Margin of the Metropolitan Area of Lisbon (and Portugal), during the last 40 years.
Fractal analysis allows us to gain insight on the morphology and spatial organization of urban areas on different scales [4]. A significant amount of work has been developed to link fractal dimension (D) to the morphology of cities or parts of cities [4,5,8,9,10,11,12,14] and also to establish comparisons between different cities or metropolitan areas [11,12,14].
In two dimensions, D ranges from 0 to 2. Generally, lower fractal dimensions typically represent dispersed built-up areas, whereas fractal dimensions close to two are associated with compact built-up areas [8,13,14]. Each built-up environment may be composed of different spatial patterns that reflect the multiple factors involved in its development and growth (topographic, cultural, aesthetic, economic, planning traditions and regulations, etc.) as well as in its context in time. Hence, one expects to find a plethora of fractal dimensions instead of a single one. By translating the multiple fractal dimensions into five, time invariant types of patterns, we are able to characterize, in principle, any given area and, to the extent that we have longitudinal information on this area, we are also able to characterize the main changes and transformations that have taken place. Here, we apply this methodology to NMAL and characterize its development over the last forty years. Although a five year data interval would be ideal for the present analysis the available data is limited to three snapshots in time (1960, 1990 and 2004).

2. Fractal Dimension of Built-up Areas and GLSE

Previous fractal analysis of built-up areas for the NMAL (North margin of the Metropolitan Area of Lisbon), for the years 1960, 1990 and 2004, have allowed us to develop a model to classify different development stages of urbanization [8]. To overcome the limitations of a global fractal dimension analysis, we calculated the local fractal dimension (D) of square cells of 1 km2 using the standard box-counting method. Here we explore the relation between the local fractal dimension (classified through the GLSE function) and the development of the built-up area of the Northern Margin of the Metropolitan Area of Lisbon (NMAL), for the period between 1960 and 2004. For clarity of reasoning we first summarize in the following sub-sections some methodological procedures already depicted in [8].

2.1. Data Acquisition

Built-up areas from 1960 and 1990 were extracted from the former Portuguese Geographical and Cadastral Institute maps (1:50,000 scale) and from the military maps of the Army Geographical Institute (1:25,000 scale), respectively. Data from 2004 was obtained from photo-interpretation of orthophotomaps (1:25,000 scale). After cartographic generalization the three datasets were made uniform. Each dataset was converted to an array of pixels of 10 × 10 m. For pixels representing built-up areas we attributed a value of 1 and to non-built a value of 0. The fractal analysis was then performed over a set of cells of 100×100 pixels (1km2) (see [8] for more details).

2.2. Choice of Cell Size for NMAL

For the fractal analysis we chose a cell size of 100 pixels (1 km × 1 km). This number was chosen after testing for several NMAL matrices of (squared) cells of size of length L the resulting number of fractal dimensions. To this end, the fractal dimension interval D ϵ [0,2] was divided into (2/∆D +1) bins of width ∆D = 0.01. Subsequently, we applied a fractal analysis for each matrix and counted how many bins of fractal dimension were represented. From the set of L sizes that would maximize the number of fractal dimensions and also the number of iterations allowed for the box-counting method, we chose L = 100 (see [8] for more details).

2.3. Fractal Dimension of Built-Up Areas

The fractal dimension of each cell was computed using a conventional box counting algorithm. In each iteration k, the minimum set of Nk squares (boxes) of side εk = 2k (pixels, 1 pixel = 10 m) that cover the built-up area inside of the cell was computed. After m = 5 iterations k ϵ [0,…,m], the fractal dimension D will emerge as the slope of a linear regression of the duplets {Nkk}, given that log N k = D log ε k + c , where c is constant (see [1] for a discussion of the quality of the fractal analysis). Given that the area occupied by the Nk boxes reads A k = N k ε k 2 it is possible to obtain the recurrence relation A k = A k + 1 2 D 2 . Taking the limit m into account, we obtain A 0 = A m ( 2 m ) D 2 . This can be used to write down the formula for the upper bound of the built-up area as a function of D : U ( D ) = n 2 ( 2 m ) D 2 —where n is the side of each square cell, i.e., n = 100 pixels (or 1 km). The lower bound (L(D)) will be proportional to the upper bound U(D), such that L(D) = αU(D). Since L(0) = 1, we have that α = ( 2 m / n ) 2 and L ( D ) = 2 m D .

2.4. Computation of a Generalized Local Spatial Entropy Function (GLSE)

From the expression of log N k above, the total number of boxes covering a built-up area A at the kth stage of the box-counting algorithm reads N k = A / ε k D (assuming that c grows linearly with logA). Let us call Ω ( A , D ) the number of possible configurations within each cell characterized by a total built-up area A and fractal dimension D. In [8] it is shown that:
Ω ( A , D ) = k = 1 m ( 4 N k N k 1 ) F 3 4 ( W k , 1 4 + W k , 1 2 + W k , 3 4 + W k ; 1 4 N k , 1 2 N k , 3 4 N k ; 1 )
Where W k = ( 2 D 2 1 ) N k and F is a generalized hypergeometric function. For numerical convenience, we take the logarithm of the total number of configurations at dimension D, given by:
S = S ( D ) = log ( A = L ( D ) U ( D ) Ω ( A , D ) )
This implies that the quantity S gives an estimate of the number of possible (at any time) configurations for a given fractal dimension (see [8] for additional details).
The logarithm of the number of possible ways of building up area compatible with a pre-defined fractal dimension D, that we designate S(D), together with its dimensional rate of change S’(D), are both bound, continuous and differentiable functions constrained by L(D) and U(D). S(D) can be understood as a generalized local spatial entropy function (GLSE), measuring the number of possible configurations compatible with a given fractal dimension [8].

2.5. Urban Growth through Fractal Dimension and a Generalized Entropy Function

From the above it is given that higher values of S(D) indicate a large number of ways a given cell can be occupied by built-up area, concomitant with a fractal dimension D (Figure 1). Based on the behavior of S(D) and its rate of change S’(D), five different types of cells were identified in the fractal dimensional interval (0–2) allowing an automatic classification of built-up areas. These five region types were determined by the topological properties of S(D) and its derivative S’(D): Type 1 (with D ≤ 1.0) is characterized by small and isolated built-up areas; Type 2 (1 < D ≤ 1.26) includes dispersed built-up areas that can already show some structural patters (e.g., along roads); to Type 3 (1.26 < D ≤ 1.54) we called areas of metastatic growth, which include more fragmented areas that emerge not necessarily near the main built centers. The maximum of S’(D) marks the transition to Type 4 (1.54 < D ≤ 1.78) which is characterized by rapid growth and metastatic consolidation. Type 5 (1.78 < D ≤ 2.0) is defined by a negative S’(D) and corresponds to consolidated compact areas (Figure 1).
S’(D) increases rapidly in Type 3 and S(D) keeps high values in Type 4, meaning that these areas are prone to rapid transformation and fragmentation of the landscape if no constraints are present (they can be physical and/or socio-economic, as well as determined by planning regulations).

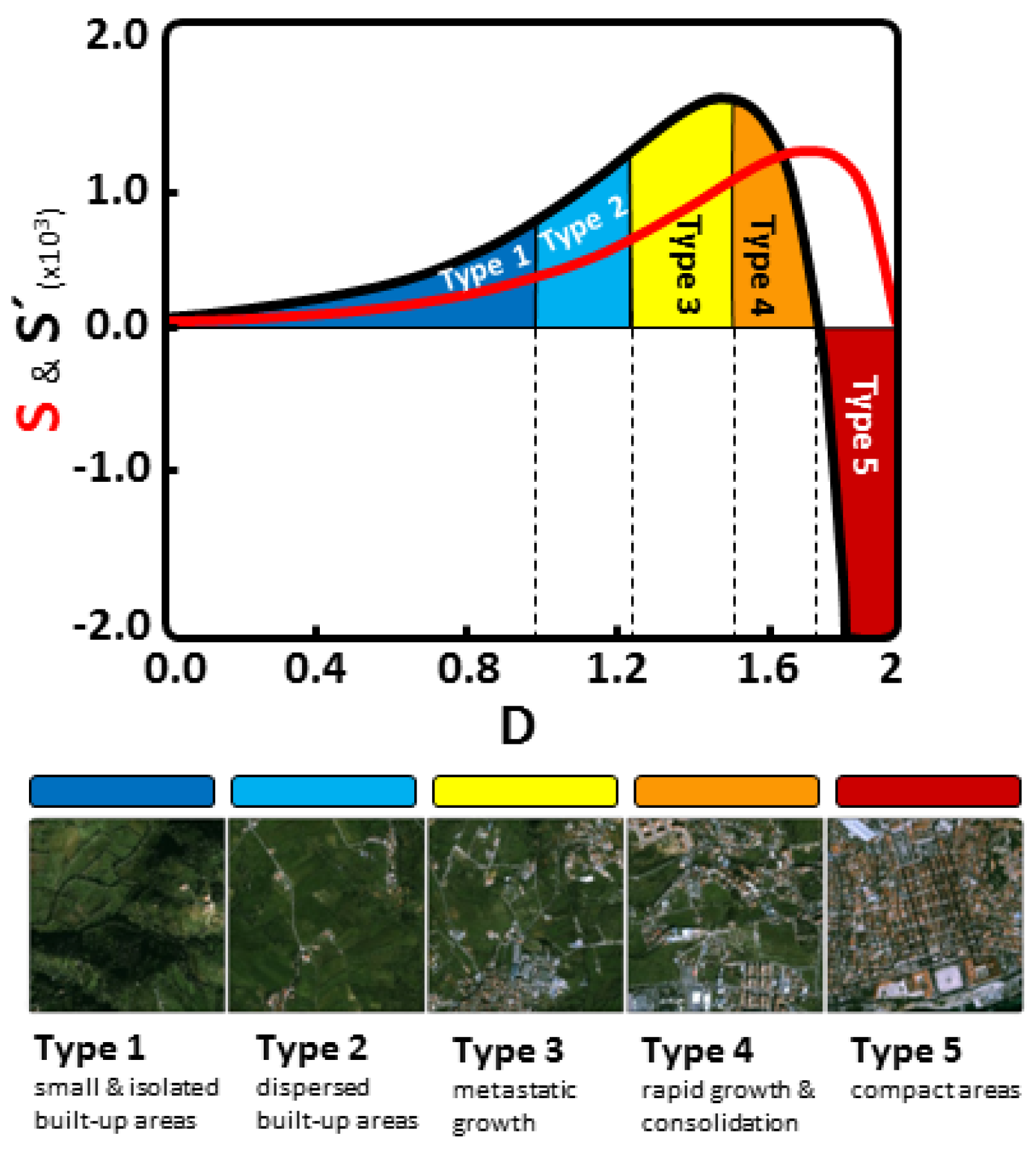

Figure 1. Types of built-up areas. (Red line: S(D); Black line: S’(D); D: Fractal dimension. Each region type is illustrated in the insets (after [8]).
Figure 1. Types of built-up areas. (Red line: S(D); Black line: S’(D); D: Fractal dimension. Each region type is illustrated in the insets (after [8]).
Entropy 15 02679 g001
The cartography of these five types of cells in NMAL reveals that more compact areas expanded from Lisbon city outwards (see [8] for a map representation of these results), in a monocentric form, shaped by the presence of main road and railway infrastructures. This expansion is reflected in the loss of representativeness of Type 1 (59% of NAML total number of cells in 1960, 21% in 1990 and 18% by 2004). Type 2 raised its share from 21% to 28%, between 1960 and 1990, but by 2004 it already accounted for only 18%. Types 3, 4 and 5 increased their share in all three time snapshots.
The generalized growth in NMAL (with average annual growth rates of 4.1% and 2.7%, respectively, for both time periods) dictated a strong decrease in region type 1 (Figure 2). Region type 2 grew between 1960 and 1990 but in the second time period already showed negative average annual growth rates, similar to type 1. Region types 3 and 4 show positive growth rates in both time periods, although they are higher between 1960 and 1990. In this period the highest growth is found in region type 4.
Region type 5 shows a distinct behavior, since it is the only region type where the average annual growth rate of the second time period is higher than in the first one. Between 1990 and 2004 it is in fact the region type with the highest growth.

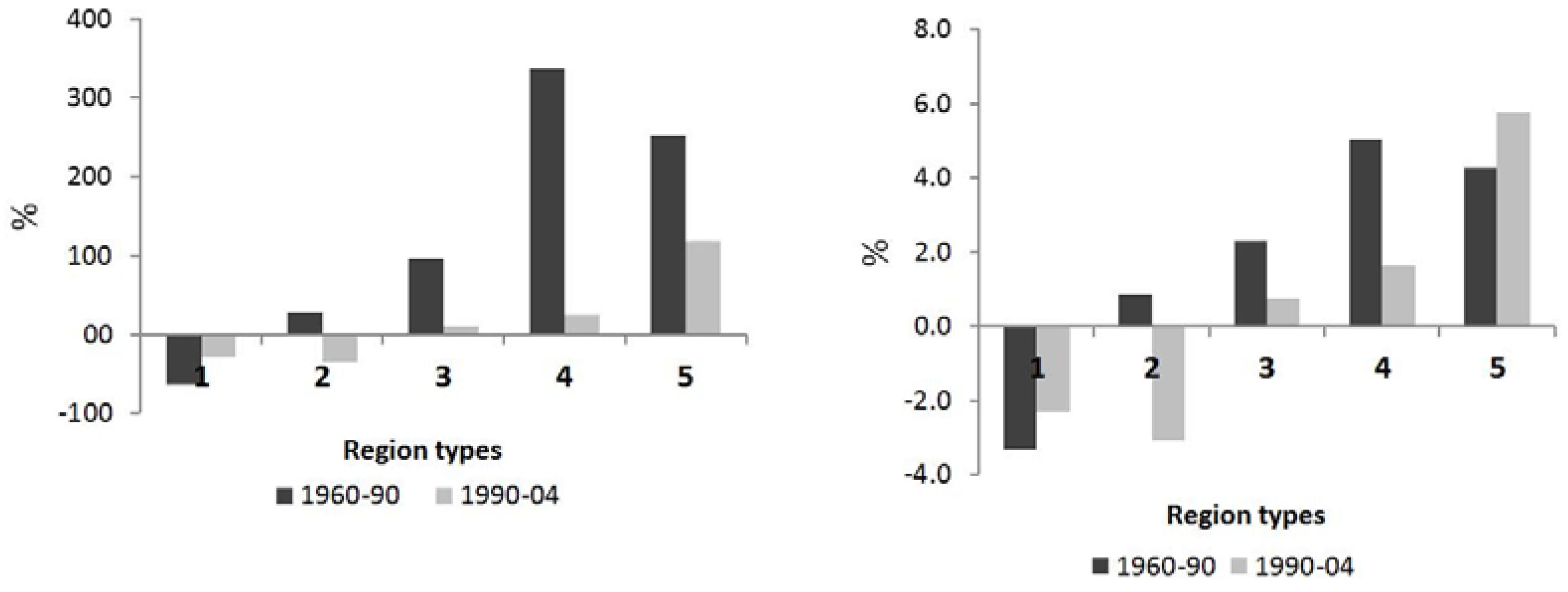

Figure 2. Region types growth rates (Left) and average annual growth rates (Right), for both time periods.
Figure 2. Region types growth rates (Left) and average annual growth rates (Right), for both time periods.
Entropy 15 02679 g002
From the above it is possible to rationalize the temporal dimension of NMAL, for the time period 1960–2004, in terms of a two stage process: the first stage (1960–1990) was characterized by generalized growth throughout the territory, where both dispersed/fragmented regions (Types 2 and 3) and compact ones (Types 4 and 5) had high positive growth rates. The negative growth rates of region type 1 reflect the metropolitan development that was taking place, as areas of more rural nature were being occupied with new built-up. In the second stage (1990–2004), NMAL continued to show growth in built-up area but at a much slower pace and it was mainly driven into more compact areas, especially type 5.
These dynamics may suggest the possible existence of two coevolving processes in NMAL urban expansion, namely: fragmentation/dispersion and consolidation/compactification.
By fragmentation we mean the process through which new built-up areas emerge not necessarily contiguous to pre-existing built areas and have the potential to attract and induce new developments. These can be isolated new areas (e.g. leapfrog growth) or grow in a fragmented way from pre-existing ones, for example as a linear branch that stretches from an existing nucleus, very often found in sprawled areas. Consolidation refers to the process of infill of a given area and can occur by contiguous growth or by growth and aggregation of near, not adjacent built-up areas, thus increasing the degree of compactness of the area under study. Both processes refer not to the shape of built-up areas per se but to the territory to which they belong, in the present case, to NMAL.
In NMAL and qualitatively, the two processes were equally significant in the first stage, whereas during the second stage consolidation/compactification dominated.

3. Types of Growth in NMAL

The above two growth stages can be identified by the way patches of built-up area change. Thus and for NMAL we can understand them in terms of three core growth-types: (1) new areas that emerge isolated in unoccupied sites; (2) existing areas that grew contiguously, and (3) existing areas that grew and aggregated with one or more neighboring areas (Figure 3).

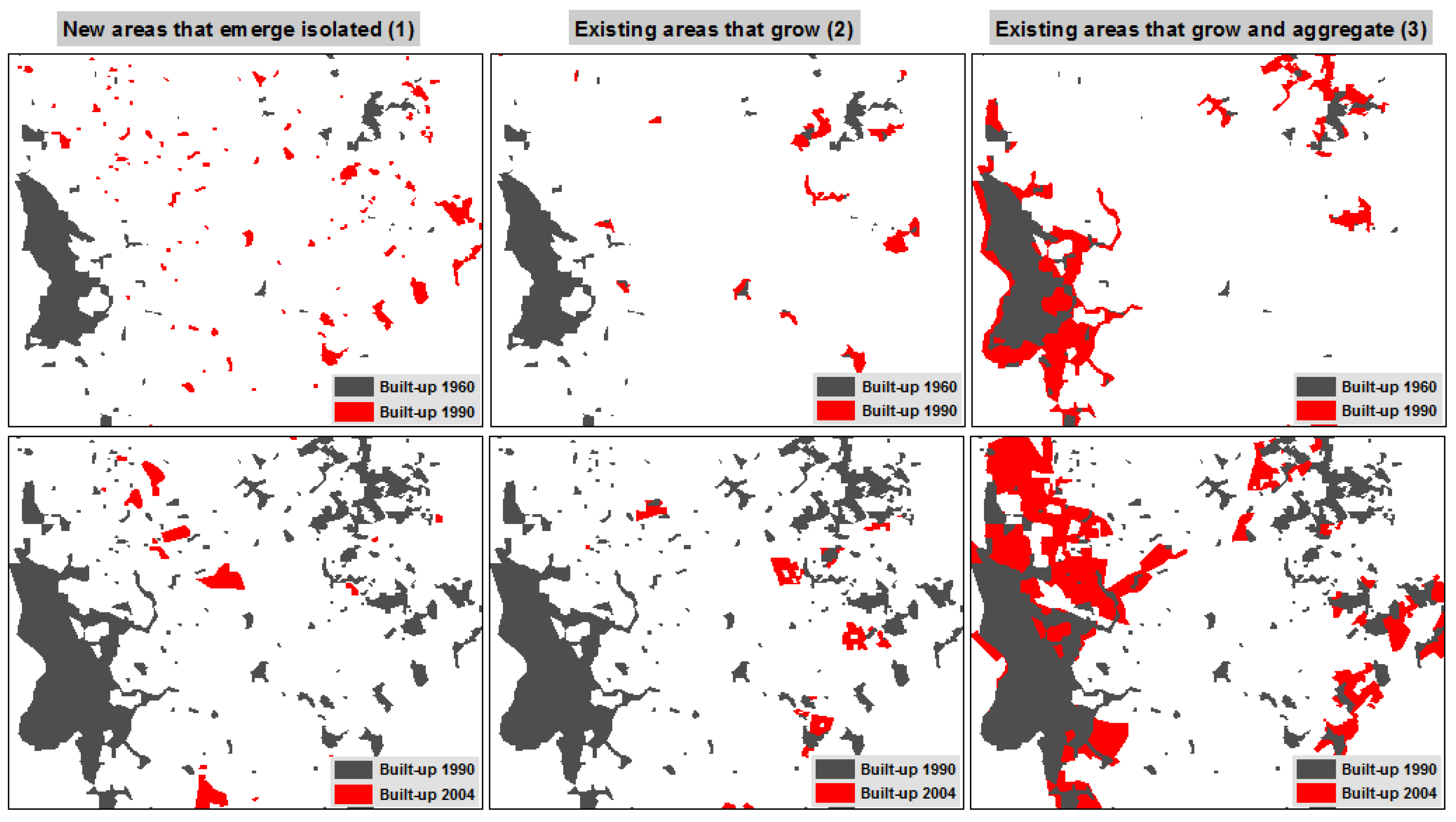

Figure 3. Examples of growth types in NMAL.
Figure 3. Examples of growth types in NMAL.
Entropy 15 02679 g003
The examples in Figure 3 suggest sprawl as a process, as defended in [15,16], i.e., some of the linear branches of the main nucleus (see box 3 of Figure 3), which between 1960 and 1990 could be considered sprawled areas, later became (1990–2004) compact and contiguous areas of that same nucleus. More examples of this type of transition can be found in NMAL, which clarifies the critic to references [15,16] made in [3] stating that “there is little in the literature to indicate when sprawl metamorphoses into nonsprawl”.
Overall, and in the first time period (1960–1990), the fragmentation process is visible in the 11,102 new patches that have emerged in NMAL, accounting for 80.6% of the total number of patches in 1990, but only for 16.3% of the total built-up area of the same year (see Table 1).
The consolidation process on the other hand is confirmed by:
286.2% growth in built-up area in existing patches (growth-type 2).
The decrease in the number of patches (−78.3%) by growth-type 3 (growth and aggregation), but with a 167.5% increase in built-up area.
The second time period (1990–2004) was mainly dominated by the consolidation process, whether by growth-type 2 (growth) or growth-type 3 (growth and aggregation) as seen by:
56.3% growth in built-up area in existing patches (growth-type 2).
The decrease in the number of patches (−78.8%) in growth-type 3 but with an increase in built-up area by 44.6%.
The number of new patches that have emerged (accounting for only 11% of total patches in 2004), that show a much weaker fragmentation process.
These dynamics reflect a metropolitan model that, in the course of time, shifted from monocentric to polycentric due to a set of socio, political and economic changes (the end of the dictatorship in 1974, the inclusion into the European Union in 1986, banking privatization, generalized higher income, access to credit, higher foreign investment, etc.) [17,18], and changes in the mobility patterns, with the decrease in the share of public transport in daily travels as opposed to the increase in individual transport [19].
However, and despite the transfer of people, industry and commercial activities to the suburbs [17] these continued to grow in terms of built-up area in a way that surpassed the real necessities. Between 1960 and 2006, the NMAL witnessed an increase by 60.3% in population, a value quite far from the 247.1% and 202.8% increase in buildings and lodgings, respectively [20].
The different growth-types identified in NMAL are also reflected in the proportion of the total number of patches and built-up area of each region type (see Table 2). As expected, the number of patches is higher in less compact regions types (1, 2 and 3) and the built-up area is higher in region types 4 and 5.
Due to the fragmentation that characterized the first time period, the highest percentage of patches in NMAL changed from type 1, in 1960, to type 3 in 1990 and 2004. However, the proportion of type 3 built-up area registered a continuous decrease in all three moments (in the same way as types 1 and 2), which indicates the transition into the second growth stage where consolidation by compactification dominates, as shown by the behavior of types 4 and 5.
Table 1. Types of growth in NMAL *.
Table 1. Types of growth in NMAL *.
1960–1990N.° of patches%% of changeBuilt-up (m2—millions)%% of change
No change4594599.
New patches (1)11,10280.626.716.3
Growth (2)1666166636.
Growth & Aggregation (3)249754254.03.9−78.345.2120.890.773.8167.5
1990–2004N. ° of patches%% of changeBuilt-up (m2—millions)%% of change
No change9432943268.573.
New patches (1)140611.06.02.5
Growth (2)136713679.910.
Growth & Aggregation (3)297062921.64.9−78.8133.7193.481.781.544.6
* The values in ( ) show the average annual growth rate.
Table 2. Number of patches and built-up area, by types (%).
Table 2. Number of patches and built-up area, by types (%).
Types% N.º patches% of Built-up area

The Planning System...Neither Just in Case, Nor Just in Time

The self-organization component identified in NMAL [8] was not unfamiliar to the central administration and several plans and laws were designed to rectify and control these dynamics, after decades with few approved plans. In fact, until 1960 the only Regional Plan that existed in NMAL was the Urbanization Plan of Costa do Sol (approved in 1948), but it only covered the coastal strip of Lisbon, Oeiras and Cascais municipalities (the southern part of the area under study).
After 1960, several planning landmarks could be enumerated:
The first regional plan for the entire Metropolitan Area of Lisbon was the Plano Director de Desenvolvimento Urbanístico da Região de Lisboa - PDRL (Regional Master Plan). Its scope was defined by a new diploma in 1959, but it was never approved.
The non-approval of the PDRL weakened the idea of a regional strategy for urban growth [21] in that the administration limited itself to the evaluation and approval of allotment projects. Without the necessary planning instruments, suburbanization grew “without any supervision and guidance, boosted by improving accessibility and increasing rates of motorization, thus sharpening their effects within” [21].
Parallel to the non-approval of the PDRL, a new law was published in 1965 which enabled the participation of the private sector in the urban allotment processes. By enabling allotment processes in not only urban areas but also in rural areas it triggered the sprawl of built-up areas throughout Lisbon peripheries. Without a regional strategic plan that could orient their co-development, these areas grew based mainly on the strategies of housing market agents that sought profit maximization in the process of land conversion.
In 1976, Law No. 794/76 (Lei dos Solos), still in effect today, aimed at avoiding urban speculation and to solve the housing shortage problem. Although ambitious in some measures, as for example the delineation of areas aimed to control future land use changes near urban centers, it was never fully enforced.
In 1982, the Municipal Master Plan (Plano Director Municipal—PDM) was enacted, which would encompass and regulate, through zoning regulations, the entire territory of a municipality (previously only urban areas would have been the object of any kind of an urbanization plan).
However, before 1990 few municipalities in Portugal had their Master Plans approved. But the scenario changed when in that same year, Law No. 69/90 made them mandatory. Simultaneously, a municipality could not apply to European funds without an approved Master Plan. Following the general national trend, several Master Plans were approved for NMAL between 1993 and 1999. By 2000, the Metropolitan Area of Lisbon was finally covered by municipal plans although with little or no interrelationship among them, not even between neighboring municipalities.
In 1992, a new Regional Plan was developed but again not approved, as a result of political decisions. It was only in 2002 that a Regional Plan for the Metropolitan Area of Lisbon (PROTAML) was approved. In its strategic vision, the plan included several scales within MAL and between MAL and the national context [22].
The above landmarks of the Portuguese planning system show that the several planning instruments actually just established existing dynamics and few or even none had the capacity to change those same dynamics into more suitable paths (as for example by mitigating the growth of a disconnected urban metropolis). Urban growth thus seems to have been more conducted by processes than by plans.
In [23] Alfasi and Portugali argued that the traditional just-in-case planning approach should be replaced by just-in-time planning. The first is structured from a hierarchical top-down perspective and aims to pre-determine the future needs of a given territory. The second tries to adapt to the self-organization nature of cities. Within this approach “a city does not have any future complete picture in the form of a long-term plan that it should accomplish” [23]. Planning rules and instruments should be flexible enough to adapt to present and short-term future needs, as well as to change according to the location context in which they have to be applied.
The planning system in Portugal and specifically that of NMAL cannot be fully characterized by any of these approaches. The opportunity to implement a just-in-time planning system was lost when, in the presence of pre-existing self-organized dynamics, the central and local administrations adopted a generalized one-fit-all paradigm. In turn, the just-in-case approach was late and weak in controlling undesirable paths and in delineating a regional strategic vision.
One example of the failure of the just-in-case approach is given, paradoxically, by the Municipal Master Plans. This plan established new regulations for the spatial layout of land uses (zoning) of a given territory and defined the rules of where and how new development areas could occur. These new development areas would define the urban perimeters, together with existing urban areas, equipment and infrastructures, etc. Hence, and in theory, one could expect a greater control on the fragmentation and dispersion processes. However, in practice “there was an over sizing of the land under urban and urbanized categories, with spaces classified for urban use in excess in terms of urbanization needs” [18]. In the end, we can say that this normative just-in-case planning system acted against it-self by triggering deviations to what it was trying to control as, for example, urban speculation.

4. Spatial Transitions among Region Types

In order to understand the kind of changes that have occurred in NMAL during the two time periods, we have discretized our region types in two categories: built-up areas (1) and non-built areas (0). For example, an area coded as “50” will correspond to non-built of region type 5.
Figure 4 depicts the same information as Figure 2, taking now this break-up into consideration. The transitions between non-built and built-up areas, among region types, are given in Table 3 and Table 4. The convention used (since our model of region types was constructed based on built-up areas) was that a given cell will change from Type a to Type b if and only if, there is any change from non-built to built-up areas and if this growth is large enough to trigger the change in cell type. Otherwise, that cell will retain its type. On the other hand, if a cell changes type, then all non-built and pre-existing built-up areas of that same cell will also change type. As a result, the only “true” changes in land cover (Table 3 and Table 4) are those in the grey area (lower left quadrant). All the other transitions are driven by those changes.

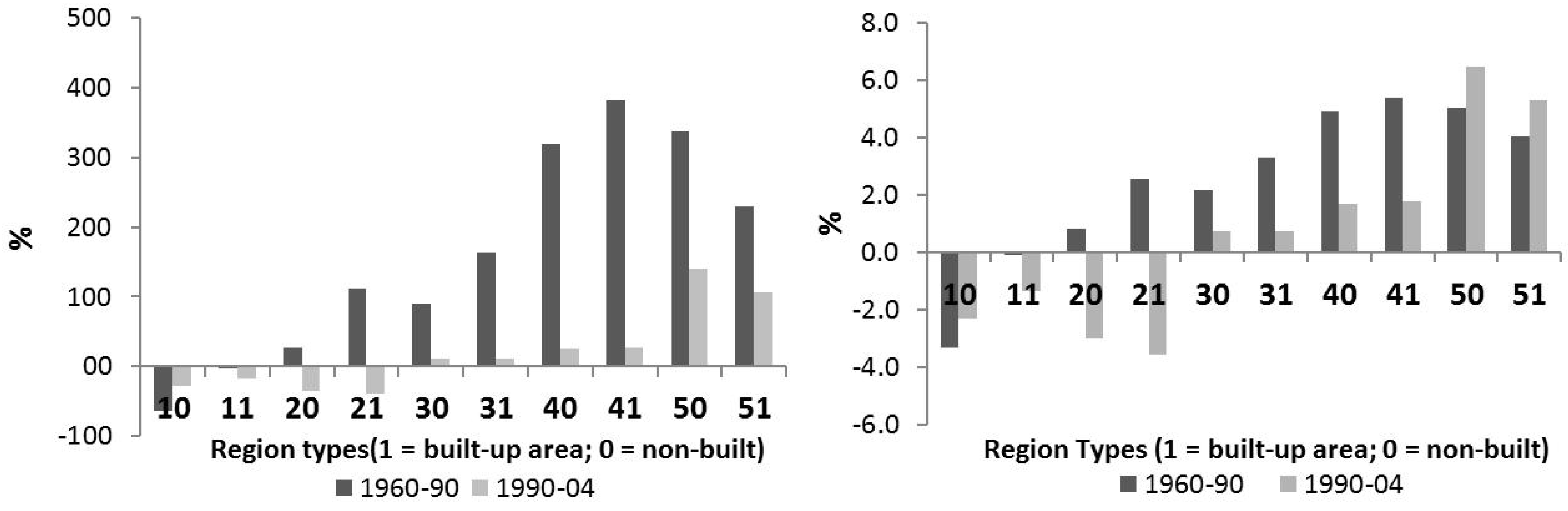

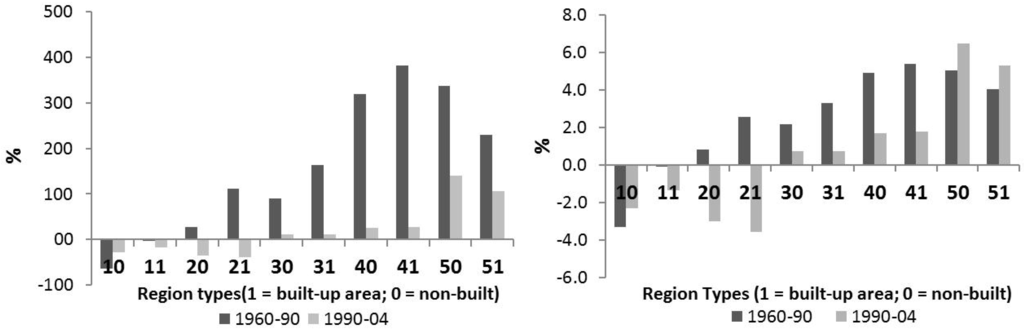

Figure 4. Growth rates (Left) and average annual growth rates (Right), for built-up and non-built areas, by region type, 1960–1990 and 1990–2004.
Figure 4. Growth rates (Left) and average annual growth rates (Right), for built-up and non-built areas, by region type, 1960–1990 and 1990–2004.
Entropy 15 02679 g004
There are two subtle differences worth pointing out:
Between 1960 and 1990, built-up areas in Types 2, 3 and 4 grew much more than non-built areas, as opposed to Types 1 and 5. These kinds of changes reflect mostly external transitions between region types rather than internal ones (see Table 3).
Between 1990 and 2004 and as NMAL entered a period of consolidation and compactification, both categories show similar growth rates, apart from Type 5 where non-built areas grew more than built-up ones, as new cells not completely developed entered this region type.
Table 3 and Table 4 show that not only built-up areas of dispersed types can change into more compact ones (e.g. 21→31); but that the reverse is also possible (e.g. 31→21, highlighted in red in Table 3 and Table 4). In this last type of transition, the increase in built-up area has contributed to a more spread, and sometimes linear, pattern (Figure 5), thus diminishing its degree of compactness. Reverse transitions were more prone to emerge between 1960 and 1990 than between 1990 and 2004, although they represented, respectively, only 0.60% and 0.09% of total area.
Table 3. Transitions between 1960 and 1990 (m2—millions).
Table 3. Transitions between 1960 and 1990 (m2—millions).
Area m21990
1960110. 2.1 5.5
31 13.0
41 12.8
51 16.4 16.4
30 0.13.619.78.1 3.849.360.56.0151.2
40 1.810.49.432.8
50 2.4 3.66.0
Table 4. Transitions between 1990 and 2004 (m2—millions).
Table 4. Transitions between 1990 and 2004 (m2—millions).
Area m22004
1990111. 2.1
21 11.6
31 16.916.70.6 34.2
41 61.8
51 54.1 54.1 179.947.817.52.0 250.5
20 152.4128.214.20.8307.2
40 0.0110.118.1 0.970.338.3137.8
50 4.6 21.626.2

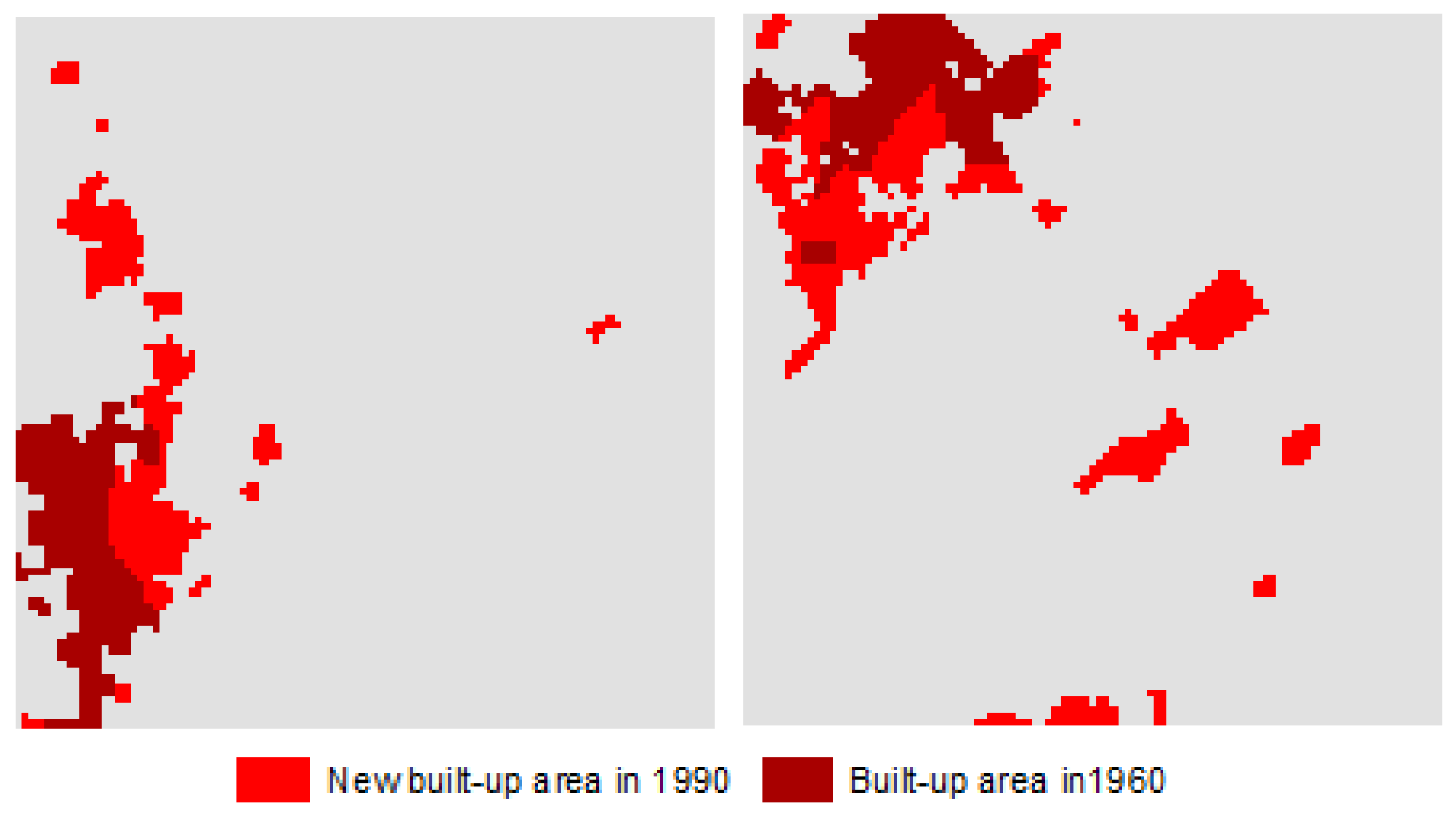

Figure 5. Two examples of cells that grew in built-up area but changed to a less compact type (4→3).
Figure 5. Two examples of cells that grew in built-up area but changed to a less compact type (4→3).
Entropy 15 02679 g005
At present, it is not possible to ascertain if reverse transitions should be more present in territories where generalized urban growth with fragmentation has occurred. Moreover, it is not clear if in NMAL it was more expressed before 1990 since we do not have data for intermediate time periods. However, this type of space fragmentation should be carefully acknowledged by planning agencies since it can trigger new fronts for urban development (planned or unplanned) and may contribute to the emergence of additional sprawled areas.
The majority of transitions occurred among types, as seen by the in and out fluxes in built-up area for each type (Figure 6). Where out-fluxes are higher than in-fluxes, the total built-up area decreases between time periods, as was the case for Types 1 and 2.

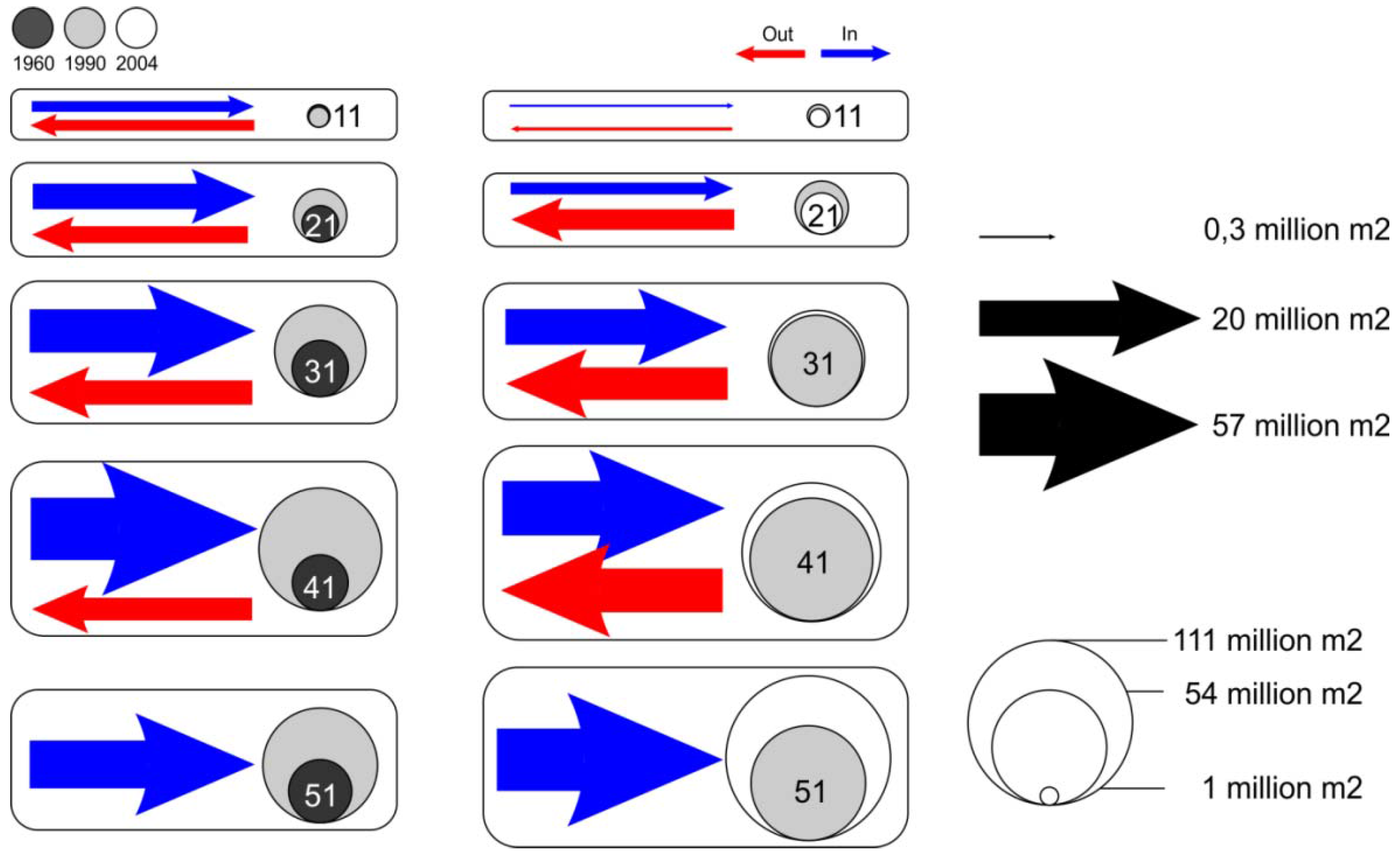

Figure 6. Fluxes of built-up area in each region type.
Figure 6. Fluxes of built-up area in each region type.
Entropy 15 02679 g006
All region Types (with the exception of Type 5) registered a decrease in the amount of in-fluxes in the second time period. However, only Types 3 and 4 show a positive difference between the amount of built-up area that goes in and the one that goes out. In the future, if the process of consolidation by compactification continues to shape urban growth in NMAL, then it seems probable that Type 3 will start to behave in the same way as Types 1 and 2 (i.e., decreasing its total built-up area as cells will change to more compact types). But, if fragmentation starts to emerge again then a rise is expected in the in-fluxes of Type 3, which will probably be caused also by reverse transitions.
In the presence of more self-organized urban growth, where built-up area grows without a predefined planning strategy at the metropolitan level (as it was the case of NMAL), one should expect that transitions between region types would follow in a sequential (forward) way as seen in Table 5 (highest percentage in each type underlined).
Table 5. Transitions between region types in both time periods.
Table 5. Transitions between region types in both time periods.
1960–1990 (%)12345Total1990–2004 (%)12345Total
136.336.719.66.70.6100171.919.47.61.1 100
20.424.451.219.14.81002 49.644.05.90.5100
3 2.434.253.79.71003 60.937.71.4100
4 4.438.756.91004 55.444.1100
5 1001005 100100
Theoretically, non-sequential (forward) transitions among types (e.g. from 2→4) should be encountered in large areas which would result from planned interventions or considerable real estate investments. However, due to a time lag of 30 and 14 years in the data, the amount of built-up area involved in this kind of transitions leads us to say (also by empirical knowledge) that the non-sequential transitions encountered here only reflect the final stage of the growth process. Nevertheless, we do acknowledge that in some specific areas real direct transitions must have occurred and that future work is needed in order to confirm this hypothesis.
In NMAL sequential transitions arise mostly when one considers all the area in a region type, i.e., its built and non-built area, the later always higher in proportion than the former (higher than 92% in Types 1, 2 and 3 and 71% in type 4), with the exception of Type 5 (27%). But the scenario changes slightly when one looks only at changes that have occurred from non-built (0) to built-up (1)—the grey area in Table 3 and Table 4 (Table 6).
Table 6. Transitions form non-built (0) to built-up (1) by region type.
Table 6. Transitions form non-built (0) to built-up (1) by region type.
60–90 (%)1121314151Total90–04 (%)1121314151Total
105.021.533.834.25.51001010.723.844.620.9 100
200.015.834.340.019.810020 8.851.833.26.3100
30 0.211.562.625.710030
40 1.025.473.610040 35.764.3100
50 10010050 100100
Between 1960 and 1990, Types 1, 2 and 3 show a higher percentage of change into Type 4, followed by Type 3. The spatial distribution (Figure 7 and Figure 8) of those changes shows that they have different roles in structuring the territory:
Between 1960 and 1990, the process of fragmentation was mainly driven by region Types 2 and 3 (Figure 7—changes from non-built to built-up 10→21, 10→31, 20→31). But in the same time period, NMAL also registered consolidation of its pre-existing overall spatial structure, and this can be seen by looking at the changes to more compact types that have occurred in areas near Lisbon city and its suburbs (changes from 20→41, 20→51, 30→41, 30→51 and 40→51).

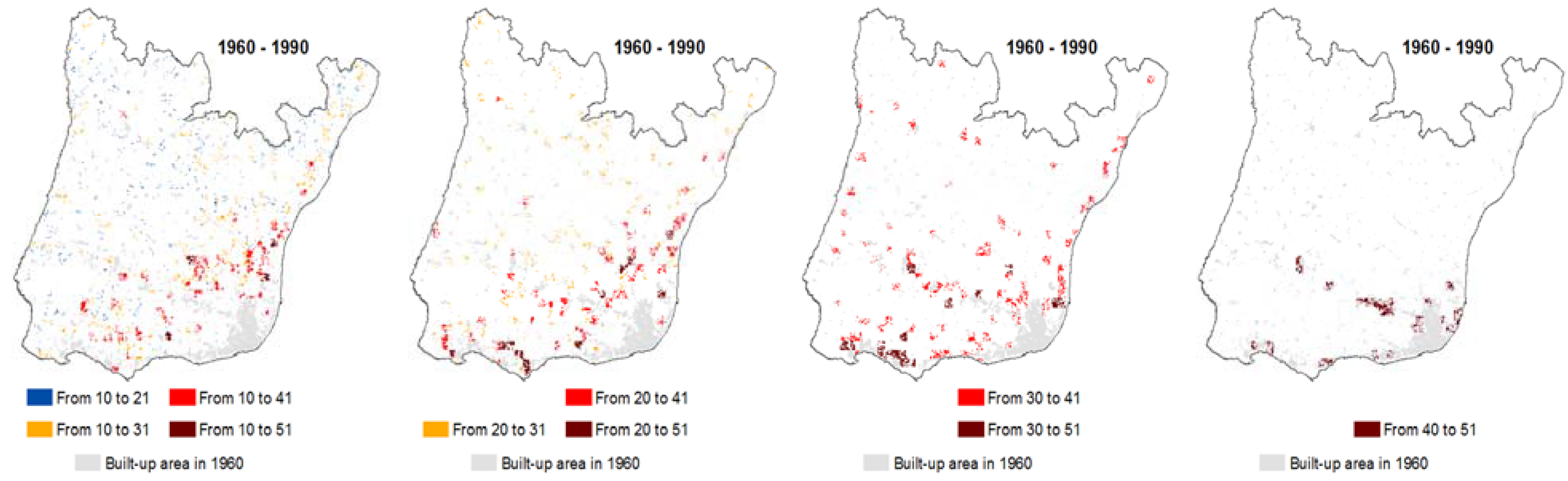

Figure 7. Transitions from non-built to built-up areas, between region types 1960–1990.
Figure 7. Transitions from non-built to built-up areas, between region types 1960–1990.
Entropy 15 02679 g007
In the second time period (1990–2004) the fragmentation process did not end but it took on a residual role as seen in Figure 8 (it was still driven by the same region types 2 and 3). Growth was characterized mainly by infill processes, i.e., by growth and aggregation processes as previously illustrated in Table 1, which are captured by transitions 30→41, 30→51 and 40→51.

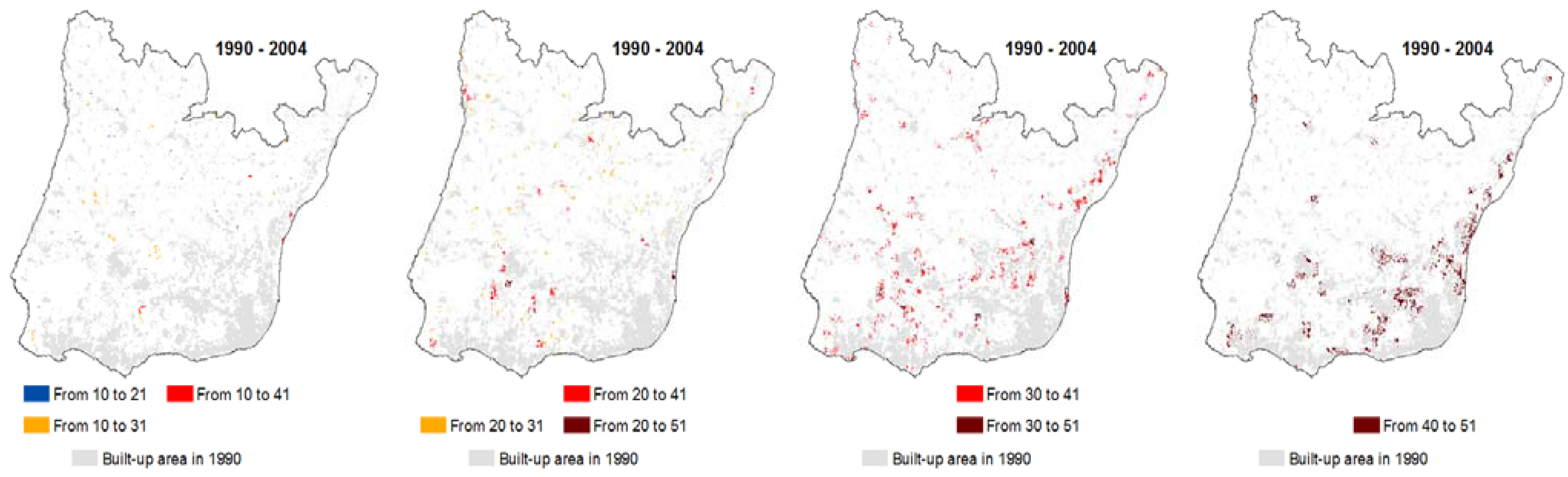

Figure 8. Transitions from non-built to built-up areas, between region types 1990–2004.
Figure 8. Transitions from non-built to built-up areas, between region types 1990–2004.
Entropy 15 02679 g008
These results show that although both processes of fragmentation and consolidation can occur in all region types, the latter is mainly found in more compact ones. This being said it should be noted that Type 3 played a fundamental role in both fragmentation and consolidation processes (51.3% of all possible transitions went through type 3, in at least one moment in time). It thus seems that this region type displays some hybrid behavior that connects both processes. In fact, the hybrid behavior can be understood by inspecting the features that characterize Type 3 regions: large values of S(D) covering a sizeable dimensional range, combined with the fastest rate of increase of S(D)—given by S’(D)—see Figure 1. In other words, in this dimensional regime, the large values of S(D) and S’(D) pave the way for rapid transformations of built-up area, thus allowing for such a dual result, as opposed to Type 4 and Type 5 regions, where compactification is so high that one observes mostly consolidation.
Of course one way to pre-determine and rapidly change the spatial growth of built-up areas is to enforce non-sequential transitions among types (e.g., 10→41), by promoting major development projects, instead of waiting for a more “natural” growth to occur which will induce sequential transitions (e.g., 10→21). Hence, promoting non-sequential transitions would occur from a top-down approach and not from a bottom-up, self-organized one. However, we can find in NMAL, and especially between 1960 and 1990, non-sequential transitions that are not explained by direct top-down approaches.
The inset in Figure 9 shows an area centered in a place called “Casal de Cambra”, an example of the multiple informal settlements that emerged in NMAL mostly after 1960. An informal settlement usually emerged when large parcels were sold to several owners, who in turn would subdivide them into smaller lots, through an illegal subdivision process [24]. These lots would not have a permit to build or any type of urbanization plan. The lack of public spaces, collective equipment and infrastructures were thus a general rule and not the exception. Their emergence was enhanced by a set of interrelated factors such as the lack of affordable homes in Lisbon city, easy opportunities to gain large profits for those that sold the land, and weak local and central administrations that would often “turn a blind eye” to these dynamics, as a way to solve a problem (housing shortage) that they could not [17,24].

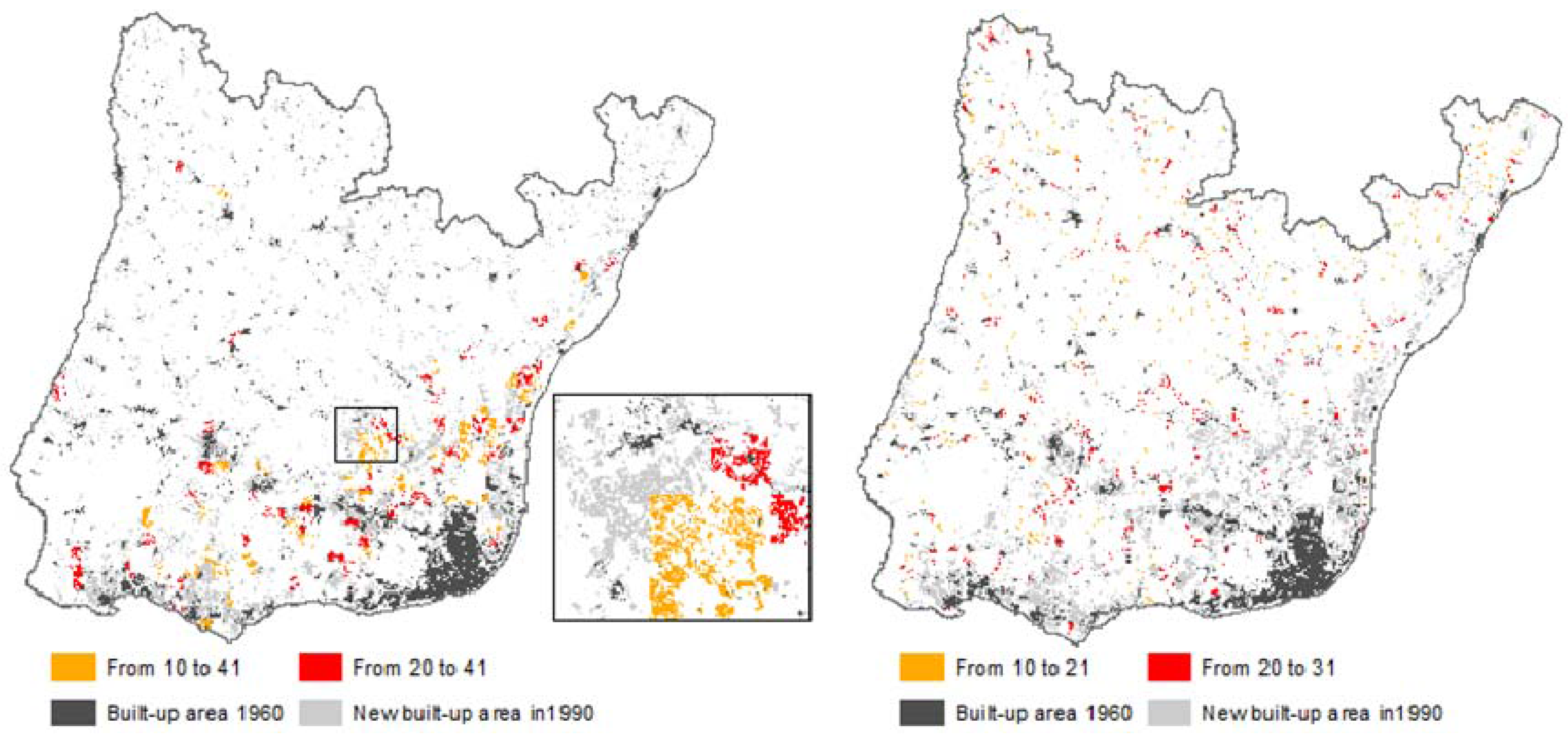

Figure 9. Types 1 and 2 non-sequential (left) and sequential (right) transitions, 1960–1990.
Figure 9. Types 1 and 2 non-sequential (left) and sequential (right) transitions, 1960–1990.
Entropy 15 02679 g009
“Casal de Cambra” is an example of the kind of self-organized processes that supported the evolution of NMAL. Although single-family houses were predominant (at least in the first stage of formation) [24] and their construction was mainly conducted by their owners, the scale of the settlement—originally a large parcel—can be understood as a large urbanization project (concerning only its total area). The spatial distribution of other informal settlements throughout NMAL (identified in a 1977 study [24]) seems to bear some relation between form and process and the aforementioned non-sequential transitions (Figure 10).

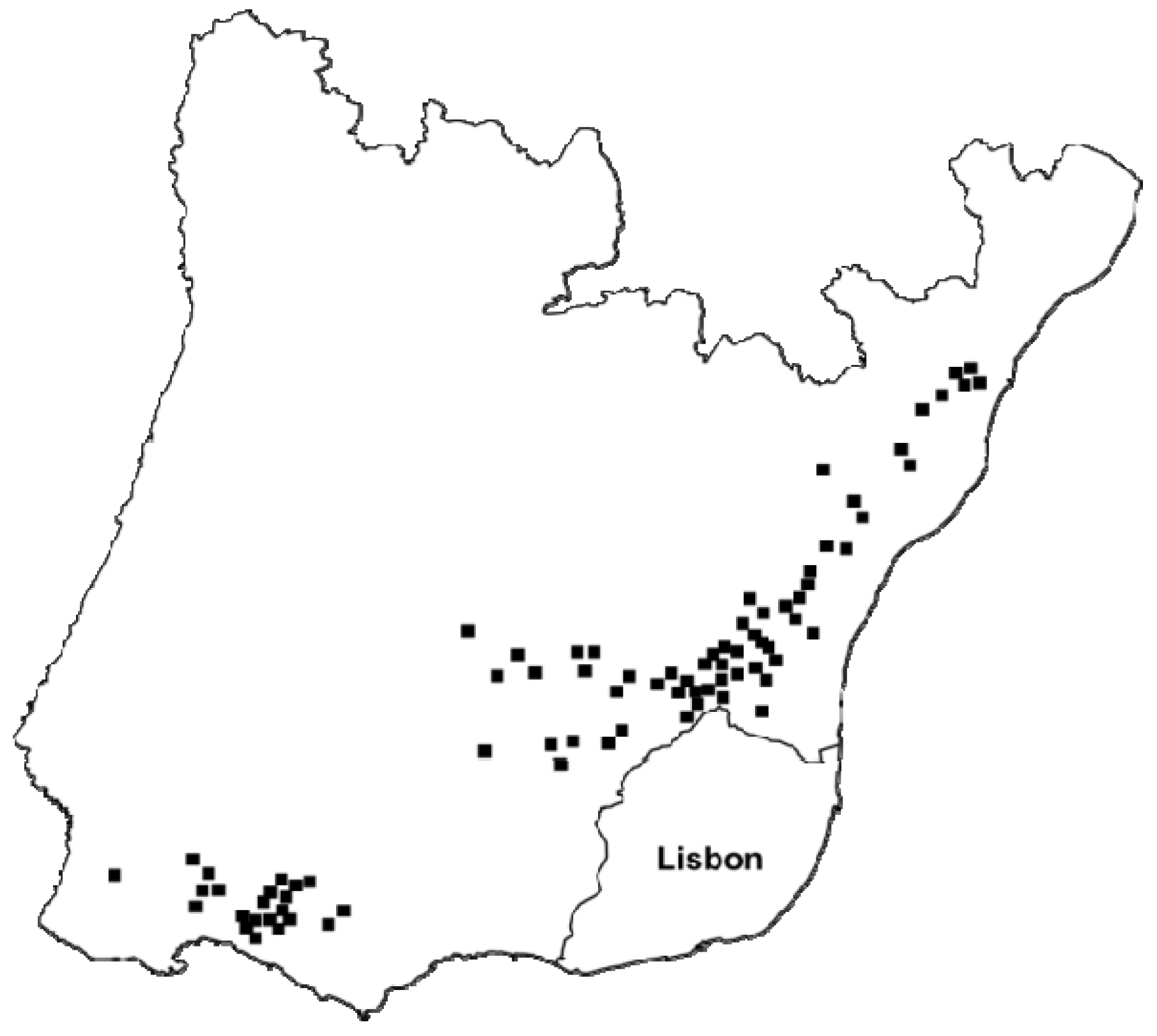

Figure 10. Informal settlements in NMAL, outside Lisbon city, by 1971 (after [24]).
Figure 10. Informal settlements in NMAL, outside Lisbon city, by 1971 (after [24]).
Entropy 15 02679 g010
The difference for pre-determined non-sequential transitions will probably lie in the time scale of both kinds of non-sequential transitions. For lack of intermediate time periods it is not possible to ascertain this hypothesis at present.

5. Discussion and Conclusions

We explored the relation between local fractal dimension and the development of the built-up areas of NMAL, for the period between 1960 and 2004. Based on the GLSE function it was possible to break-up NMAL into the five types of regions that GLSE defines.
The spatio-temporal analysis performed here shows the presence of two co-evolving growth-processes: fragmentation/dispersion and consolidation/compactification. These processes can be identified resorting to the following core growth types of built-up area changes over time: growth-type 1) new areas that emerge isolated; growth-type 2) existing areas that grow contiguously, and growth-type 3) existing areas that grew and aggregated with one or more neighboring areas. Based on these three core growth-types it was possible to identify cases where sprawl areas have changed into more compact and contiguous ones, thus recognizing sprawl as a process in the evolution of territories.
In NMAL, we found that the fragmentation and consolidation processes co-evolved during the first time period (1960–1990), whereas in the second time period (1990–2004) the consolidation process dominated, as a result of the overall compactification of NMAL. Given the lack of an efficient planning system in Portugal, the data available does not enable us to ascertain whether planning is able to control the sizeable fragmentation process observed in NMAL. Clearly, further assessment is needed, possibly in connection with other urban areas where planning is known to be well-established.
The analysis performed on the evolution of the five region types revealed different types of transitions among region types: (i) sequential (forward) transitions, (ii) reverse transitions and iii) non-sequential (forward) transitions.
Sequential transitions should be linked to more self-organized processes with smooth growth. Reverse transitions occur when the increase in built-up area contributes to a more disperse pattern and should thus be rapidly identified in areas where sprawl must be controlled. They can also contribute to the intensification of a fragmentation process if not supported by strategic planning actions.
In theory, non-sequential (forward) transitions should be identified with top-down planned interventions (as major real estate investment projects) which can be used by planning agencies as a means to rapidly enforce a consolidation process. However, we have also shown how non-sequential transitions may result from self-organized processes as in the emergence of informal settlements.
The spatial distribution of each of the aforementioned types of transitions suggests a probable link between their form and function in the context of the metropolitan area: for example, non-sequential transitions usually emerge near a pre-existing main nucleus (e.g., Lisbon city and main suburbs), whereas sequential transitions (especially those from more dispersed types) tend to spread throughout the territory.
Region type 3 played a pivotal role in both fragmentation and consolidation processes, and thus likely connects both processes. The number of possible configurations given by GLSE and its rate of change are higher for this type than for any of the other types. Hence, planning agencies should take special attention on the location and evolution of cells of and into this type. More specifically, planning agencies should consider two main options, depending on their medium/long term strategy for the development of the territories under their regulation:
If the intention is to promote sprawl, then they should promote the emergence of new Type 3 areas but control growth of existing Type 3 areas into Types 4 and 5. If the intention is to promote compact areas, then they should control the emergence of new Type 3 areas but promote growth of existing Type 3 areas into Types 4 and 5.
Compact or fragmented spatial systems should thus be achieved by the interplay between pre-existing and new Type 3 areas and their spatial context regarding more compact areas, such as Types 4 and 5.
Although GLSE can help to quickly identify areas that should be intervened it cannot distinguish or characterize (in terms of internal quality and functioning) two cells of the same type. Consequently, even if it is possible to use this model to assess for example whether more compact areas should be promoted and where—at the metropolitan or municipality scales—it will not be possible to ascertain their quality regarding urban design, functions and behavior—at the cell scale.


This research was supported by grants PTDC/FIS/101248/2008, PTDC/MAT/122897/2010 and multi-annual funding of CMAF-UL, CBMA-UM, e-GEO/FCSH/UNL and INESC-ID (under the project PEst-OE/EEI/LA0021/2011) provided by FCT Portugal through PIDDAC Program funds.

Conflict of Interest

The authors declare no conflict of interest.


  1. Herold, M.; Hemphill, J.; Dietzel, C.; Clarke, K.C. Remote sensing derived mapping to support urban growth theory. In ISPRS Archives Joint Symposia URBAN—URS, Proceedings of ISPRS; Moeller, M., Wents, E., Eds.; ISPRS: Tempe, AZ, USA, March 2005; ISPRS, XXXVI-8/W27, p. 6. (in CD). [Google Scholar]
  2. Bhatta, B. Review of Literature. In Urban Growth and Remote Sensing. A Case Study of Lolkata, India 1980–2010; Springer: London, UK, 2012; pp. 9–32. [Google Scholar]
  3. Galster, G.; Hanson, R.; Ratcliffe, M.R.; Wolman, H.; Coleman, S.; Freihage, J. Wrestling Sprawl to the ground: Defining and measuring an elusive concept. Hous. Policy Debate 2001, 12, 681–717. [Google Scholar] [CrossRef]
  4. Frankhauser, P. Comparing the morphology of urban patterns in Europe—A fractal approach. European Cities—Insights on outskirts, Report COST Action 2004, 10, 79–105. [Google Scholar]
  5. Irwin, E.G.; Bockstael, N.E. The evolution of urban sprawl: evidence of spatial heterogeneity and increasing land fragmentation. Proc. Natl. Acad. Sci. USA 2007, 104, 20672–20677. [Google Scholar] [CrossRef] [PubMed]
  6. Tsai, Y-H. Quantifying urban form: Compactness versus “Sprawl”. Urban Stud. 2005, 42, 141–161. [Google Scholar] [CrossRef]
  7. Torrens, P.M. A Toolkit for Measuring Sprawl. Appl. Spatial Anal. 2008, 1, 5–36. [Google Scholar] [CrossRef]
  8. Encarnação, S.; Gaudiano, M.; Santos, F.C.; Tenedório, J.A.; Pacheco, J.M. Fractal cartography of urban areas. Sci. Rep. 2012, 2, 1–5. [Google Scholar]
  9. Keersmaecker, M-L; Frankhauser, P.; Thomas, I. Using fractal dimensions for characterizing intra-urban diversity. The example of Brussels. Geog. Anal. 2004, 35, 310–328. [Google Scholar] [CrossRef]
  10. Batty, M.; Longley, P. Fractal Cities: A Geometry of Form and Function, 1st ed.; Academic Press: London, UK, 1994; p. 394. [Google Scholar]
  11. Shen, G. Fractal dimension and fractal growth of urbanized areas. Int. J. Geog. Info. Sci. 2002, 16, 419–437. [Google Scholar] [CrossRef]
  12. Benguigui, L.; Czamanski, D.; Marinov, M.; Portugali, Y. When and where is a city fractal? Environ. Plann. Plann. Des. 2000, 27, 507–519. [Google Scholar] [CrossRef]
  13. Stanley, H.E.; Meakin, P. Multifractal phenomena in physics and chemistry. Nature 1988, 335, 405–409. [Google Scholar] [CrossRef]
  14. Frankhauser, P. Fractal geometry for measuring and modelling urban patterns. In The Dynamics of Complex Urban Systems; Albeverio, S., Andrey, D., Giordano, P., Vancheri, A., Eds.; Physica Verlag Heidelberg: New York, NY, USA, 2008; pp. 213–243. [Google Scholar]
  15. Ewing, R. Is Los Angeles-Style Sprawl Desirable? J. Am. Plann. Assoc. 1997, 63, 107–126. [Google Scholar] [CrossRef]
  16. Harvey, R.O.; Clark, W.A.V. The nature and economics of urban sprawl. Land Econ. 1965, 41, 1–9. [Google Scholar] [CrossRef]
  17. Pereira, M.; Nunes da Silva, F. Modelos de ordenamento em confronto na área metropolitana de Lisboa: cidade alargada ou recentragem metropolitana? Cadernos Metrópole 2008, 20, 107–123. [Google Scholar]
  18. Cabral, J.; Morgado, S.; Crespo, J.; Coelho, C. Urbanisation trends and urban planning in the Lisbon Metropolitan Area. In A portrait of State-of-the-Art Research at the Technical University of Lisbon; Pereira, M.S., Ed.; Springer: Dordrecht, The Netherlands, 2007; pp. 557–572. [Google Scholar]
  19. Marques da Costa, N. Dispersão Urbana e Mobilidade na Área Metropolitana de Lisboa. In Actas do V Congresso de Geografia Portuguesa, Proceedings of the V Congresso da Geografia Portuguesa, Minho, Portugal, October 2004; Instituto de Ciências Sociais, Universidade do Minho: Minho, Portugal, 2004. [Google Scholar]
  20. Encarnação, S. Espaço Geográfico e Complexidade: Modelação do crescimento das áreas construídas na aglomeração de Lisboa. PhD Thesis, Universidade Nova de Lisboa, Lisboa, Portugal, January 2012. [Google Scholar]
  21. Raminhas da Silva, V. Planeamento e Gestão Urbanística na Cidade de Setúbal no Período 1944–2004. Master Thesis, Universidade Técnica de Lisboa, Lisboa, Portugal, June 2009. [Google Scholar]
  22. Bruno Soares, L.J. Paradoxos e Equívocos de 20 anos de Planeamento do Território. Sociedade e Território 2004, 37–38, 96–102. [Google Scholar]
  23. Alfasi, N.; Portugali, J. Planning Just-in-Time versus planning Just-in-Case. Cities 2003, 21, 29–39. [Google Scholar] [CrossRef]
  24. Barata, S.T. Bairros Clandestinos na Periferia de Lisboa. Finisterra 1977, 12, 28–55. [Google Scholar]

Share and Cite

MDPI and ACS Style

Encarnação, S.; Gaudiano, M.; Santos, F.C.; Tenedório, J.A.; Pacheco, J.M. Urban Dynamics, Fractals and Generalized Entropy. Entropy 2013, 15, 2679-2697.

AMA Style

Encarnação S, Gaudiano M, Santos FC, Tenedório JA, Pacheco JM. Urban Dynamics, Fractals and Generalized Entropy. Entropy. 2013; 15(7):2679-2697.

Chicago/Turabian Style

Encarnação, Sara, Marcos Gaudiano, Francisco C. Santos, José A. Tenedório, and Jorge M. Pacheco. 2013. "Urban Dynamics, Fractals and Generalized Entropy" Entropy 15, no. 7: 2679-2697.

Article Metrics

Back to TopTop
