Configurational Information as Potentially Negative Entropy: The Triple Helix Model

Amsterdam School of Communications Research (ASCoR), University of Amsterdam, Kloveniersburgwal 48, 1012 CX Amsterdam, The Netherlands
Entropy 2008, 10(4), 391-410;
Submission received: 15 August 2008 / Revised: 24 September 2008 / Accepted: 24 September 2008 / Published: 6 October 2008
(This article belongs to the Special Issue Configurational Entropy)


Configurational information is generated when three or more sources of variance interact. The variations not only disturb each other relationally, but by selecting upon each other, they are also positioned in a configuration. A configuration can be stabilized and/or globalized. Different stabilizations can be considered as second-order variation, and globalization as a second-order selection. The positive manifestations and the negative selections operate upon one another by adding and reducing uncertainty, respectively. Reduction of uncertainty in a configuration can be measured in bits of information. The variables can also be considered as dimensions of the probabilistic entropy in the system(s) under study. The configurational information then provides us with a measure of synergy within a complex system. For example, the knowledge base of an economy can be considered as such a synergy in the otherwise virtual (that is, fourth) dimension of a regime.

Graphical Abstract

1. Introduction

When variation is considered as a relative frequency or probability distribution (Σi pi), the Shannon-type information or the uncertainty contained in the distribution (H) is defined [1,2] as follows:
Hi = – Σi pi log2 (pi)
Equivalently, for a two-dimensional distribution (e.g., a matrix), Hij is:
Hij = – Σi Σj pij log2 (pij)
This uncertainty is the sum of the uncertainty in the two dimensions of the probabilistic entropy diminished by their mutual information. In other words, the two variations overlap in their co-variation, and condition each other asymmetrically in the remaining variations (Figure 1).

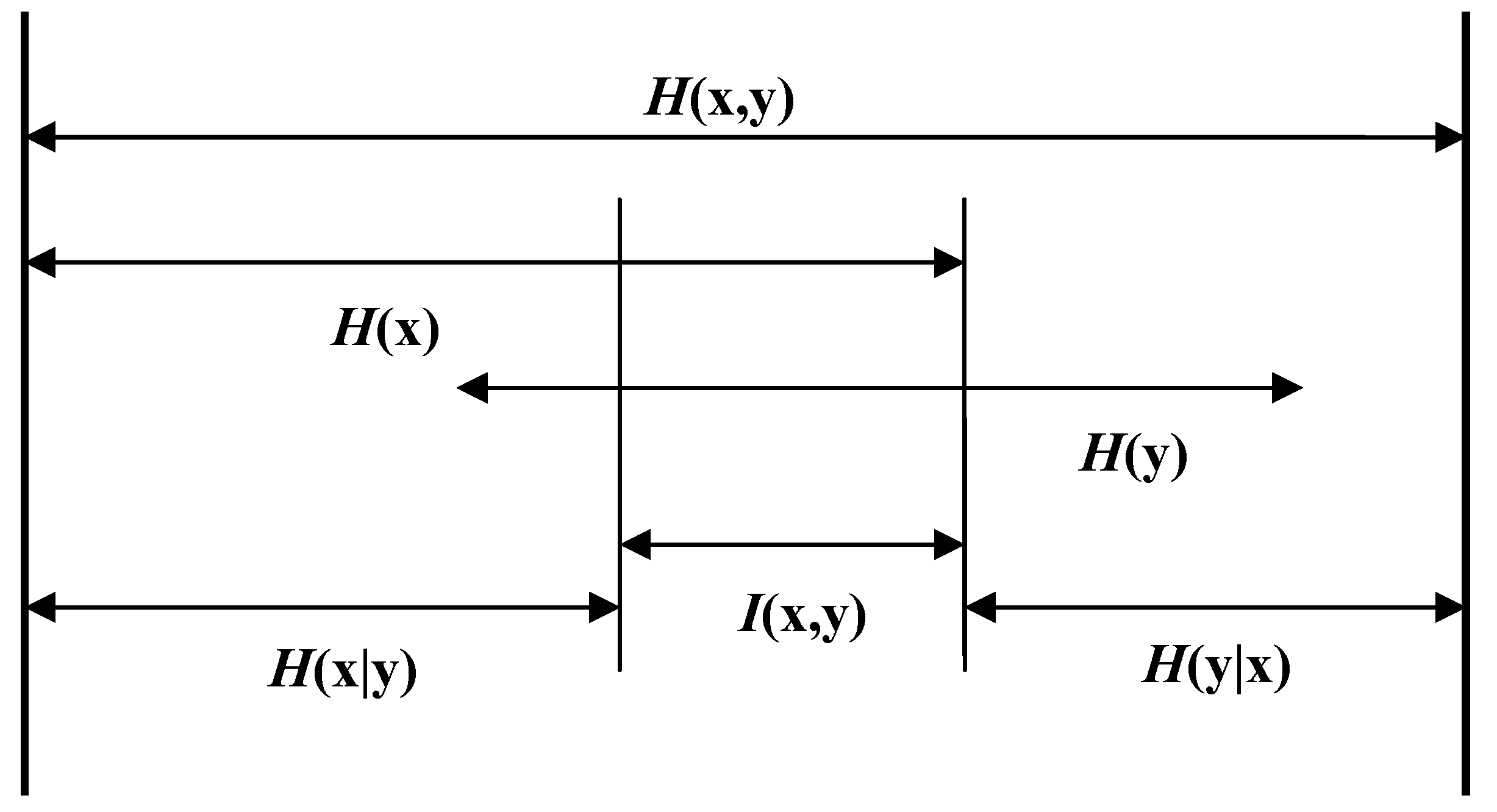

Figure 1. Relations of expected information contents, mutual information, and conditional entropies between two variables x and y [3].
Figure 1. Relations of expected information contents, mutual information, and conditional entropies between two variables x and y [3].
Entropy 10 00391 g001
Mutual information has been formalized in information theory using the concept of transmission [3,4,5] in the case of two variables, but more generally using the I-measure μ* [6: 53 ff.]:
Hij = Hi + HjIij
Iij = Hi + HjHij
Iij is zero if the two distributions are completely independent (i.e., the co-variation is zero), but otherwise necessarily positive [5]. The I-measure μ* is signed because as we shall see below the uncertainty may be reduced in the case of more than two variables.

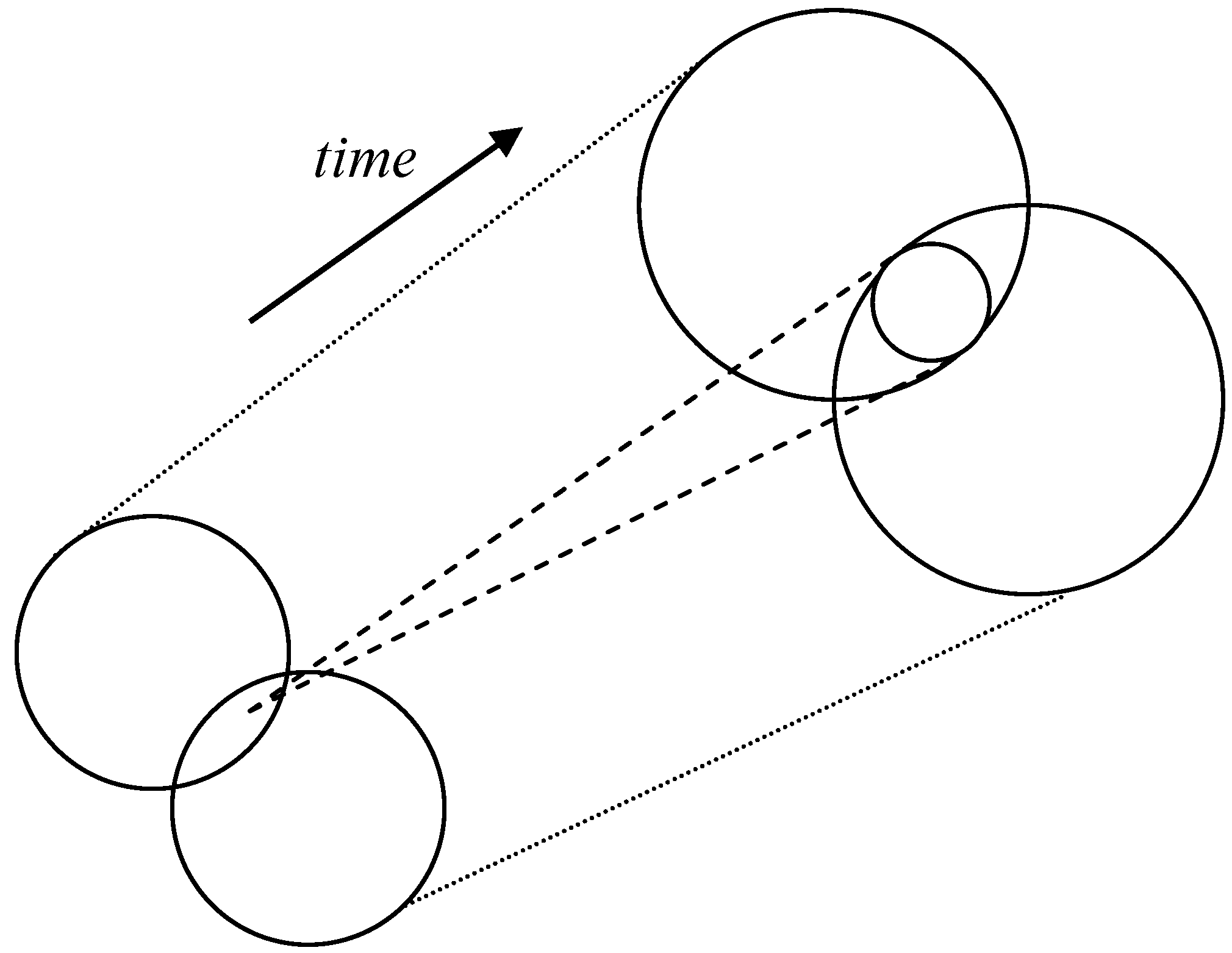

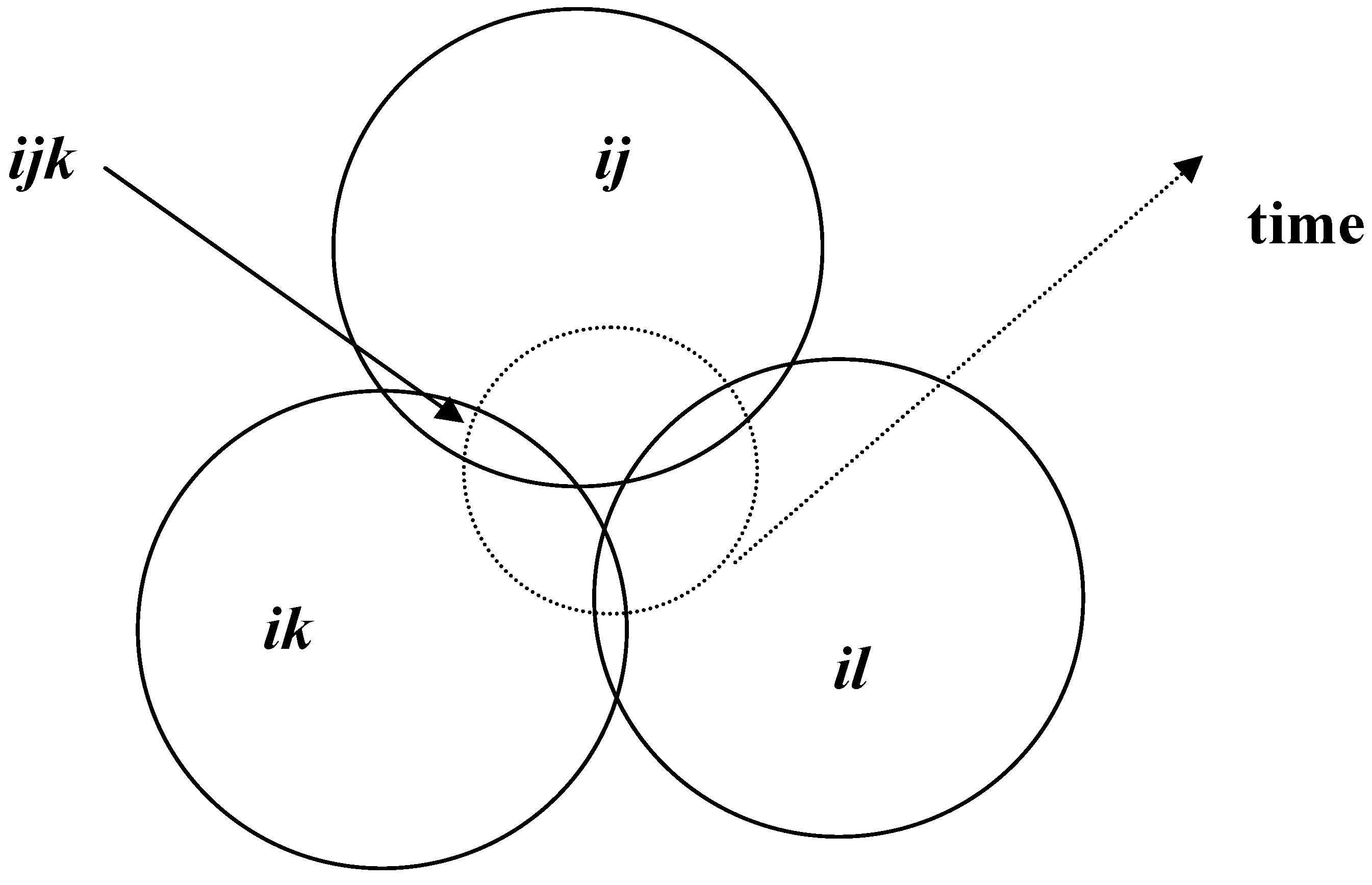

Figure 2. The mutual information between two systems may endogenously develop a third dimension of the probabilistic entropy [7].
Figure 2. The mutual information between two systems may endogenously develop a third dimension of the probabilistic entropy [7].
Entropy 10 00391 g002
Figure 2 depicts how a two-dimensional system can develop into a three-dimensional one. Over time, the mutual information may be reproduced increasingly as a potentially separate system. A system, for example, can be defined by using the Markov property: if the current state of a distribution provides a prediction for the system’s next state better than the sum total of the development of its elements (after proper normalization), an emerging axis of systemness can be expected [7,8,9].
The configurational information in three dimensions of the probabilistic entropy can be defined as follows [4: 129, 6: 55 ff.]:
μ*ijk = Hi + Hj + HkHijHikHjk + Hijk
The resulting indicator can be negative or positive (or zero) depending on the relative sizes of the contributing terms. A negative value means that the uncertainty prevailing at the network level is reduced. McGill [10,11] proposed calling this reduction of uncertainty “configurational information” [12]. Because this information is configurational, the reduction of uncertainty cannot be attributed to one single contributor. These network effects are systemic [13]. Note that the bilateral terms contribute to the reduction of uncertainty, while uncertainty in three dimensions adds to the uncertainty which prevails.
The extension of the I-measure in three dimensions to more dimensions is straightforward. In the case of four dimensions, for example, one can formalize as follows:
μ*ijkl = Hi + Hj + Hk + HlHijHikHilHjkHjlHkl
+ Hijk + Hijk + Hjjl + HiklHijkl
With each extension of another dimension another sign is added. In the first-order variation, redundancy as the complement of uncertainty is specifiable in bits of information. In a two-dimensional probability distribution or matrix, a latent eigenstructure can be hypothesized. I shall argue that in the case of three-dimensional probability distributions, arrangements can compete along trajectories for globalization. A globalizing regime can be expected to remain pending as selection pressure on relatively stabilized configurations. I suggest reserving the word “latent” for structure (at each moment of time) [14], and to use the word “virtual” for a regime developing over time [15,16,17].

2. Emerging Configurations

Let me emphasize that despite the natural-science connotation of the word entropy, entropy statistics remains a purely mathematical tool. If two is the basis of the logarithm in Equations 1-6, probabilistic entropy is measured in (dimensionless!) bits of information. The measurement results have yet to be provided with meaning in terms of the system(s) under study. Because all terms in information theory are composed of summations (using Σs), the statistical decomposition can be pursued to the level of specifying the contribution of individual cases to the uncertainty [5,18]. In other words, this methodology enables us to evaluate higher-dimensional configurations in detail, and also to specify the effect of adding another dimension to our model.
Shannon detached himself from the implications of his counter-intuitive definition of information as uncertainty by declaring that the ‘semantic aspects of communication are irrelevant to the engineering problem’ [1,2]. The mathematical theory of communication has often been discredited in the social sciences with the argument that Shannon defined information as uncertainty [19]. This definition is counter-intuitive, since one is inclined to associate ‘information’ with a message that ‘in-forms’ a receiving system [20]. Shannon-type information, however, is defined as content-free (that is, in terms of bits of information) and without meaningful dimensionality. Therefore, this mathematical apparatus can be applied to any (change in) probability distribution(s).
The dimensionless-ness and therefore meaninglessness of Shannon-type information finds technically its origin in using only the probabilistic part of the so-called Gibbs entropy formula, which is formulated as follows:
S = −kBipi log pi
= kB H
The Boltzmann constant (kB) provides dimensionality (Joule/Kelvin) to the entropy S, whereas the Shannon-entropy H is based on only the probabilistic part of the equation. In the case of a thermodynamic system, this is typically the 6N-dimensional space of N particles. In other words, the specification of a system of reference—in this case, a thermodynamic system—provides the Shannon-type information with meaning. In general, this specification of a system of reference (potentially different from a thermodynamic system) also makes it possible to specify the maximum entropy Hmax = log(n) in which n is the number of categories.
In other words, Shannon-type information itself may not yet imply meaning, but the emphasis is on the “yet.” The specification of maximum entropy requires the specification of a system, and thereby (that is, by the substantive application of the mathematical apparatus) a specific meaning is provided to the Shannon-type information by the researcher. In other words, the specific meaning of Shannon-type information is determined by the substantive theories used in the research design [7]. For example, the probabilistic entropy contained in a transaction matrix informs us about this matrix in terms of bits of information [5]. The expected information content of the matrix is the complement of the redundancy in this probability distribution since the maximum information is by definition the sum of these two terms.
From the perspective of systems theory, the maximum entropy of a system of N agents would be log(N), but the number of possible transactions among these N agents is N* (N–1). In the former case, the Shannon information is expected to be contained in a one-dimensional probability distribution or vector, and only variation along this vector can be measured. Using a two-dimensional probability distribution, i.e., a matrix, one can measure both variation and structure. A matrix, for example, can be considered as a representation of a network with a specific structure. Eigenvectors of the matrix provide us with an expectation of its structure. Structure, however, operates deterministically as selection upon variation.
When the Shannon-type information is expected to be contained in a three-dimensional probability distribution, a trajectory can be shaped in the corresponding cube of information (Figure 3a). A specific network structure may be stabilized to variable extents, which then are measurable in terms of bits of information across different probability distributions. If a fourth dimension is added, a self-organizing regime can be shaped at the systems level because the system now has one more degree of freedom available for adjusting its representations of the past with the hindsight of the present (Figure 3b).

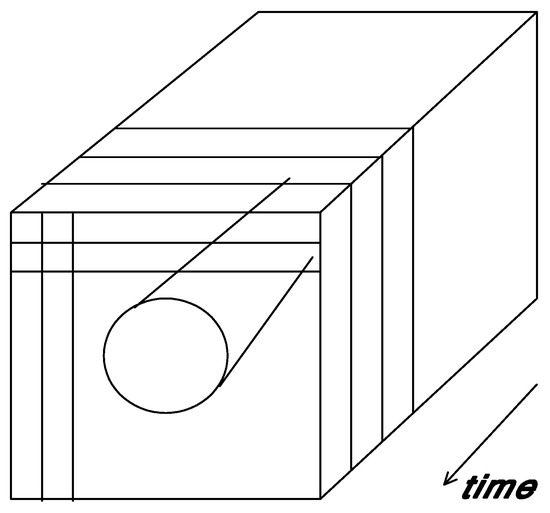

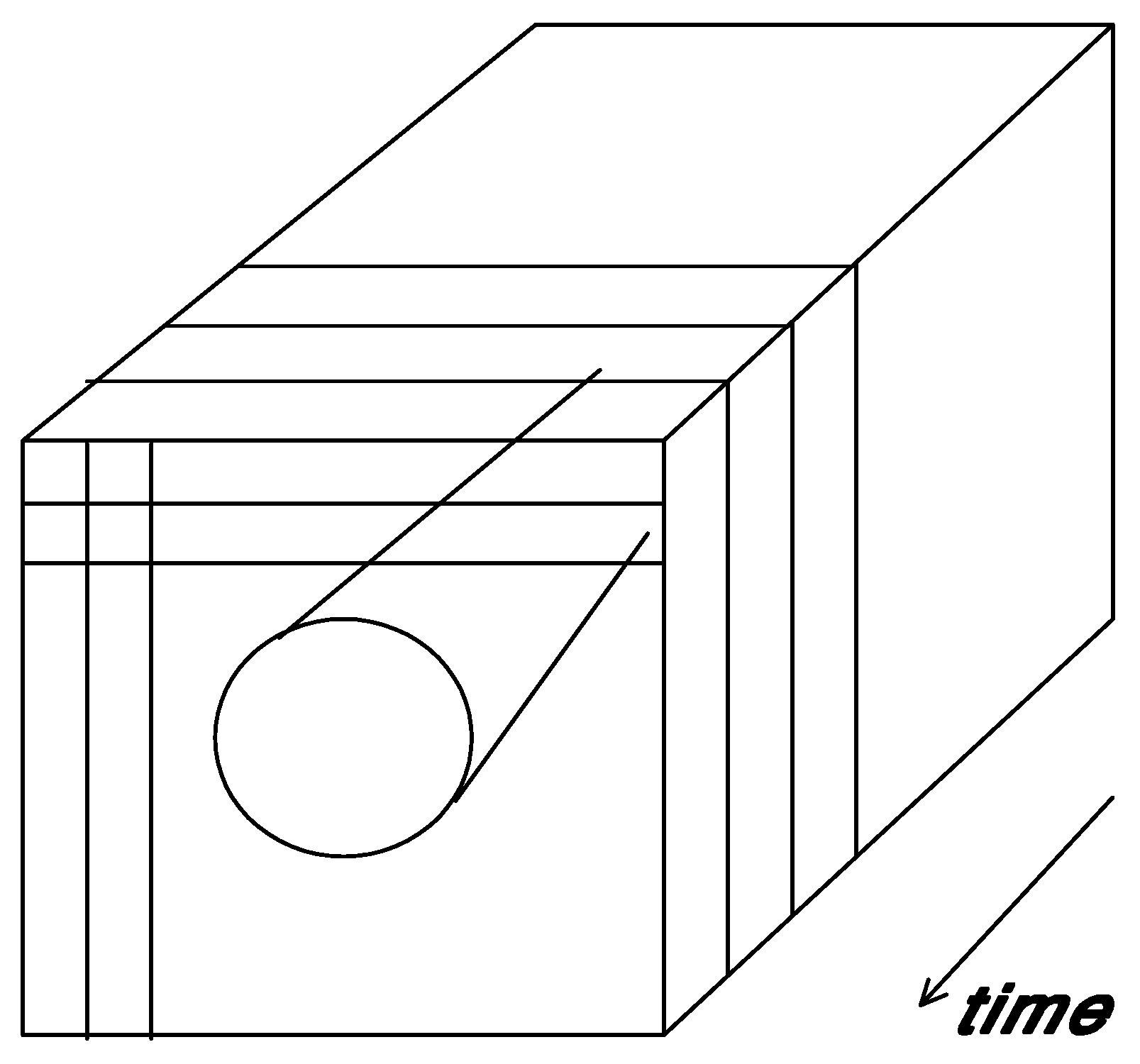

Figure 3a. An observable trajectory of a (potentially complex) system in three dimensions.
Figure 3a. An observable trajectory of a (potentially complex) system in three dimensions.
Entropy 10 00391 g003a

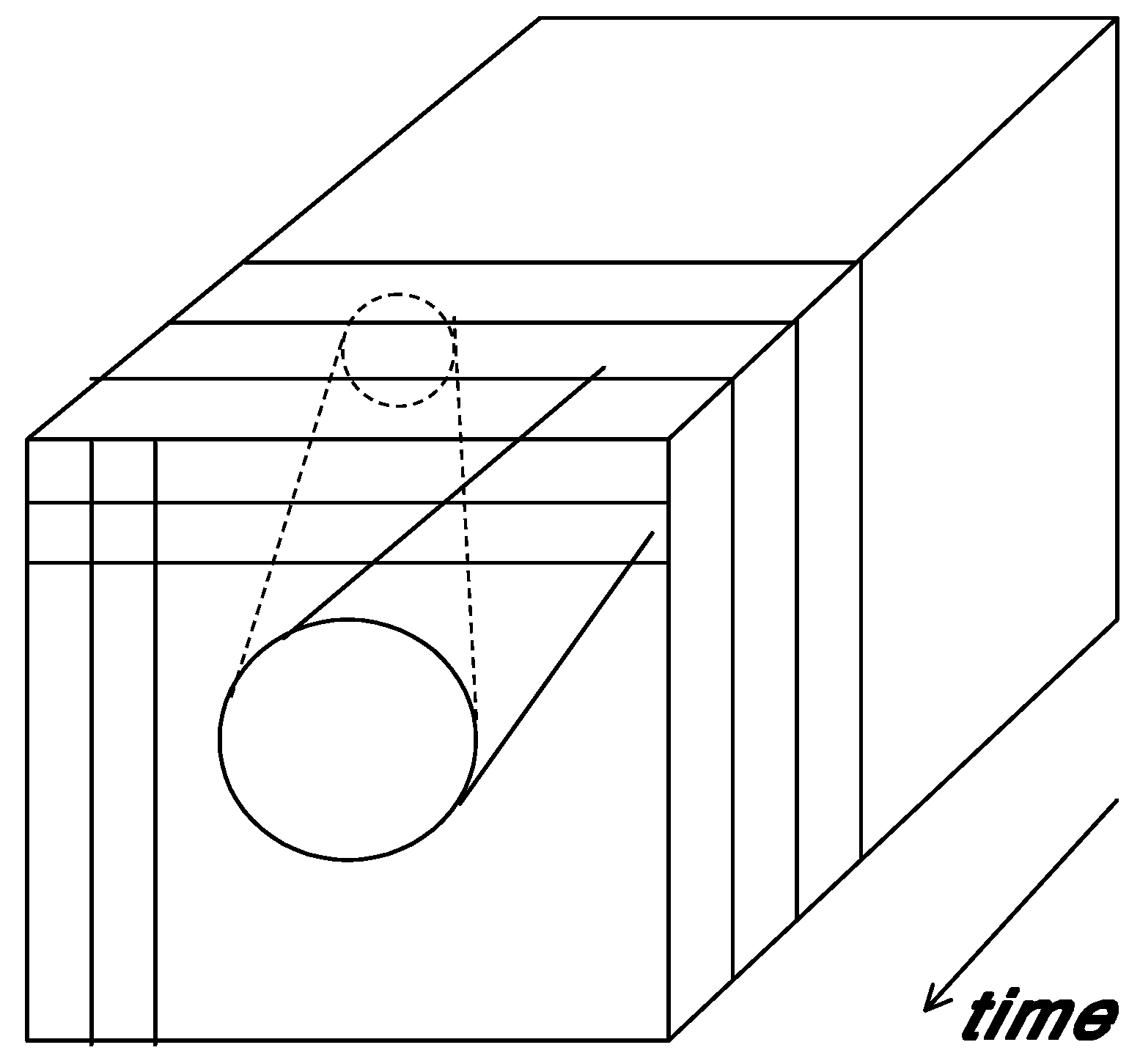

Figure 3b. Selection among representations of the past using a fourth degree of freedom.
Figure 3b. Selection among representations of the past using a fourth degree of freedom.
Entropy 10 00391 g003b
Using the perspective of evolution theory, one can also formulate that the variation is stochastic and can thus be considered as a one-dimensional vector. Selection operates in a second (orthogonal) dimension and is structural. Some selections can be selected for stabilization over time and thus a retention mechanism can be shaped. Stabilizations can be selected for globalization (by inverting the arrow of time [21,22]). Note that the sign of the selective operation is negative: globalization can also be considered as second-order selection on stabilizations as second-order variation [17,23]. The system is constructed bottom-up, but a next-order system may rest as a control mechanism on the lower-order ones by selecting upon the uncertainty that prevails.
The fourth dimension of the probability distribution can thus be considered as a feedback mechanism on a three-dimensional probability distribution. While the forward moving probability distribution can be expected to follow the second law [5], this feedback in a fourth dimension of the probability distribution may generate negative entropy. This negative entropy is measurable as “configurational information.”

3. Storper’s (1997) model of the knowledge base of regional economies

In The Regional World, Michael Storper [24] argued that technology, organization, and territory can be considered as a ‘holy trinity’ for regional development. Storper emphasized that this holy trinity should not be studied as an aggregate of the composing elements, but in terms of the relations between and among these elements. These relationships shape regional economics. However, Storper’s proposal for a ‘relational paradigm’ was not yet operationalized in terms which allowed for measurement.
Using the configurational information among distributions of firms in the three relevant dimensions (territory, technology, and organization), one can measure the potential synergy at national and regional levels. In the geographical dimension, the postal codes provide a fine-grained map of regions and countries which can be classified at different levels of aggregation. We [25,26] used the Nomenclature of Territorial Units for Statistics (NUTS) which was established by Eurostat more than 25 years ago in order to provide a single uniform breakdown of territorial units for the production of regional statistics for the European Union. NUTS (Nomenclature des Unités Territoriales Statistiques) classifications can be retrieved at The so-called NACE-classification (Nomenclature générale des Activités économiques dans les Communautés Européennes) of the Organization of Economic Cooperation and Development (OECD) provided us with the technological classes of firms, and additionally allows us to distinguish classes as knowledge-intensive services and medium or high-tech industries (Table 1). Firm size in terms of numbers of employees can be used as a proxy for the industrial organization [27,28,29].
Table 1. Classification of high-tech and knowledge-intensive sectors according to Eurostat [30].
Table 1. Classification of high-tech and knowledge-intensive sectors according to Eurostat [30].
High-tech ManufacturingKnowledge-intensive Sectors (KIS)
30 Manufacturing of office machinery and
32 Manufacturing of radio, television and
communication equipment
and apparatus
33 Manufacturing of medical precision and
optical instruments,
watches and clocks

Medium-high-tech Manufacturing

24 Manufacture of chemicals and chemical
29 Manufacture of machinery and equipment
31 Manufacture of electrical machinery and
apparatus n.e.c.
34 Manufacture of motor vehicles, trailers and
35 Manufacturing of other transport equipment
61 Water transport
62 Air transport
64 Post and telecommunications
65 Financial intermediation, except insurance and
pension funding
66 Insurance and pension funding, except
compulsory social security
67 Activities auxiliary to financial intermediation
70 Real estate activities
71 Renting of machinery and equipment without operator and of personal and household goods
72 Computer and related activities
73 Research and development
74 Other business activities
80 Education
85 Health and social work
92 Recreational, cultural and sporting activities

Of these sectors, 64, 72 and 73 are considered high-tech services.
We obtained data for Germany and the Netherlands, but at different levels of aggregation. In the Dutch case, the data consists of 1,131,668 records containing micro-information based on the registration of all enterprises by the Chambers of Commerce. Because registration with the Chamber of Commerce is obligatory for corporations, the dataset covers the entire population at the micro level (N = 1,131,668). This data is collected by Marktselect plc on a quarterly basis. Our data specifically correspond to the CD-Rom for the second quarter of 2001 [31]. We brought the data under the control of a relational database manager in order to enable us to focus on the relations more than on the attributes. Dedicated programs were developed for the further processing and computation where necessary.
The relevant statistics for Germany were generated by the Federal Employment Office (Bundesagentur für Arbeit) [32]. In the case of composite (e.g., international) corporations with multiple locations, the data are collected at the level of the local establishments, and thus the geographical dimension is reflected in these data. While the Dutch data was firm-data at the micro level, the German statistics (for 2002) were made available to us at the NUTS-3 level of the Eurostat classification of regions. In the German Federal Republic the NUTS-3 level coincides with the district or Kreis (N = 438). However, the data contains cross-tables with the NACE categories and numbers of employees at this fine-grained geographical level. Thus, we know how many establishments of a certain size are established in each locality for each NACE-category at the three-digit level. In order to keep the study strictly comparable with the one for the Netherlands, we used only two digits of the NACE classifications. Furthermore, the Dutch data included a category for firms with zero employment, but this category is not contained in the German statistics because self-employed persons are not obliged to report to the social insurance scheme.
Using Equations 5, the three distributions can be used for the specification of the configurational information. Additionally, Theil’s decomposition algorithm [4] enables us to compare the configurational information at different levels of aggregation. Thus, the Netherlands and Germany can be considered as composed systems in terms of their lower-level units like the NUTS-2 provinces (“Regierungsbezirke”) and the NUTS-3 regions (“Kreise”). (In the German case, the federal states (“Länder”) are scaled as NUTS-1.) Using the decomposition algorithm, the distributions are weighted in the various dimensions for the number of firms in the subgroups i by summing first the uncertainties within the different groups (∑i (ni/N) * Hi; N = ∑i ni). The in-between group uncertainty H0 is then defined as the difference between this sum and the uncertainty prevailing at the level of the composed system:
H = H0 + ∑i (ni/N) Hi
Or equivalently for the mutual information (in the case of two variables) or the I-measure μ* more generally. (The formula is equally valid for the transmission or I-measure because these are based on the probability distributions in the mutual information between two or more probability distributions. The probability distribution in the mutual information Iab can be written as the intersect between the distributions for a and b, or in formula format as ∑ pI = ∑ (pa AND pb).)
μ* = μ*0 + ∑i (ni/N) μ*i
Note that in this case, the regions and provinces are not compared in terms of their knowledge intensity among themselves, but in terms of their weighted contributions (∆μ*) to the knowledge base of the national economy as a whole. Analogously, one can decompose along the dimensions high-, medium-, and low-tech manufacturing versus services which are knowledge-intensive and/or high-tech.
The resulting reduction of the uncertainty or configurational information can be considered as a measure of the “synergy” among the three dimensions or, in conceptual terms, of the extent to which a regional or national economy has become knowledge-based. The in-between group uncertainty [5] indicates whether the national level adds surplus levels to the sum of the regions (or not). In the case of the Netherlands [25], indeed, uncertainty was reduced at the national level (Table 2), but in the case of Germany [26] this synergy was found at the level of the federal states (“Länder”).
Table 2. The configurational information in three dimensions for the Netherlands statistically decomposed at the NUTS 2-level (12 provinces) in millibits of information [25].
Table 2. The configurational information in three dimensions for the Netherlands statistically decomposed at the NUTS 2-level (12 provinces) in millibits of information [25].
μ*GTO (= ni * μ*i /N) in millibits of informationni of firms
Sum (∑i Pi Ii)-31.101,131.668
The Netherlands-33.55N = 1,131,668
Figure 4a and Figure 4b show the results for the Netherlands [25] and Germany [26], respectively. In the Netherlands, the NUTS-3 regions Amsterdam-Utrecht, Rotterdam-The Hague, and the environment of Eindhoven (including the northern part of Limburg) are the most knowledge-based regions. In Germany, the metropolitan regions around Munich, Hamburg, and Frankfurt are strongly indicated. Note that the former East/West divide no longer prevails at this level (NUTS-2), while it remained the main dividing line at the NUTS-1 level of German federal states (not shown here). In summary, configurational entropy can be used as a measure of the reduction of uncertainty generated by synergy among the geographical, technological, and organizational dimensions of the industries using appropriate proxies.

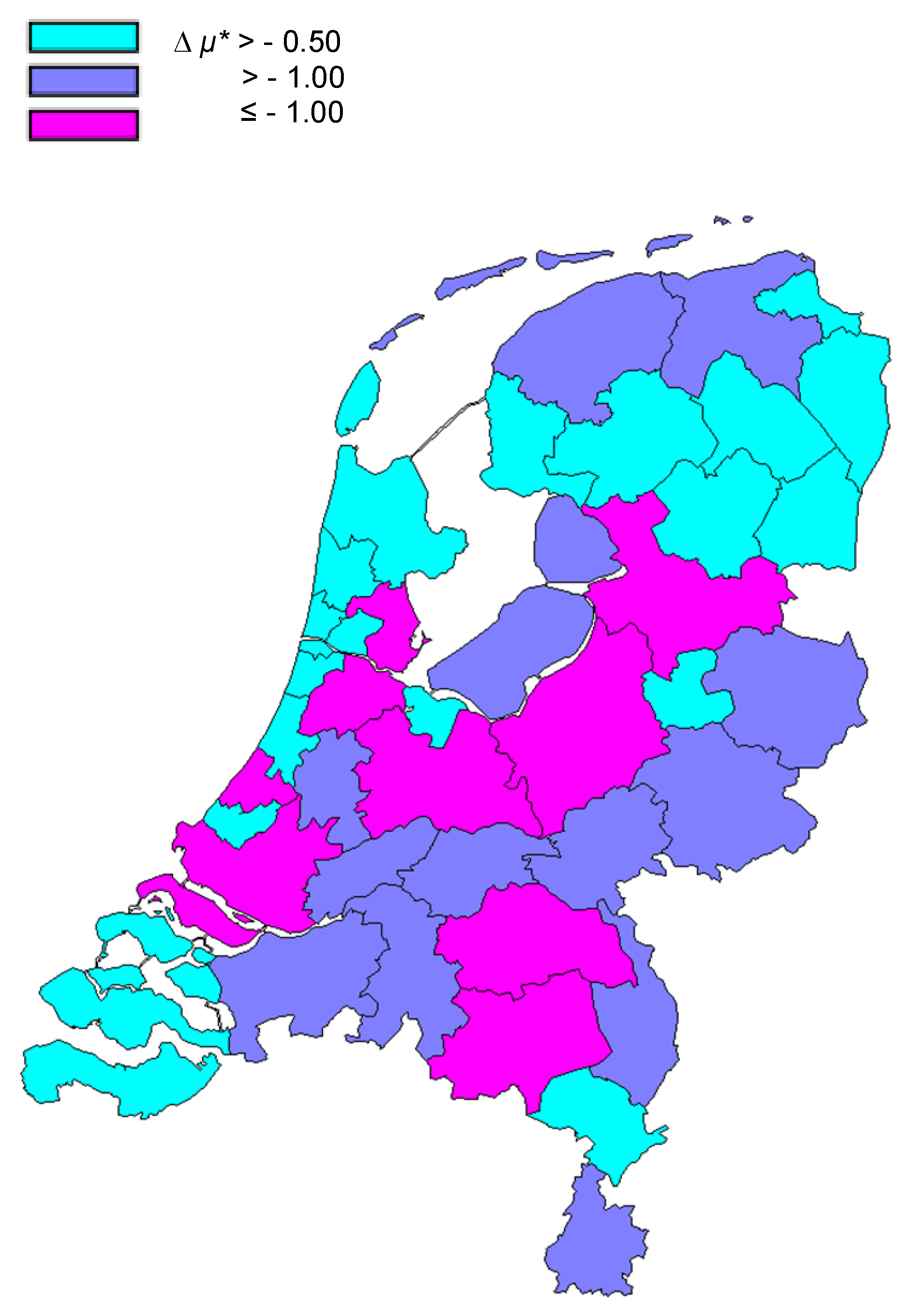

Figure 4a. Contribution to the knowledge base of the Dutch economy at the regional (NUTS-3) level. Source: [25].
Figure 4a. Contribution to the knowledge base of the Dutch economy at the regional (NUTS-3) level. Source: [25].
Entropy 10 00391 g004a

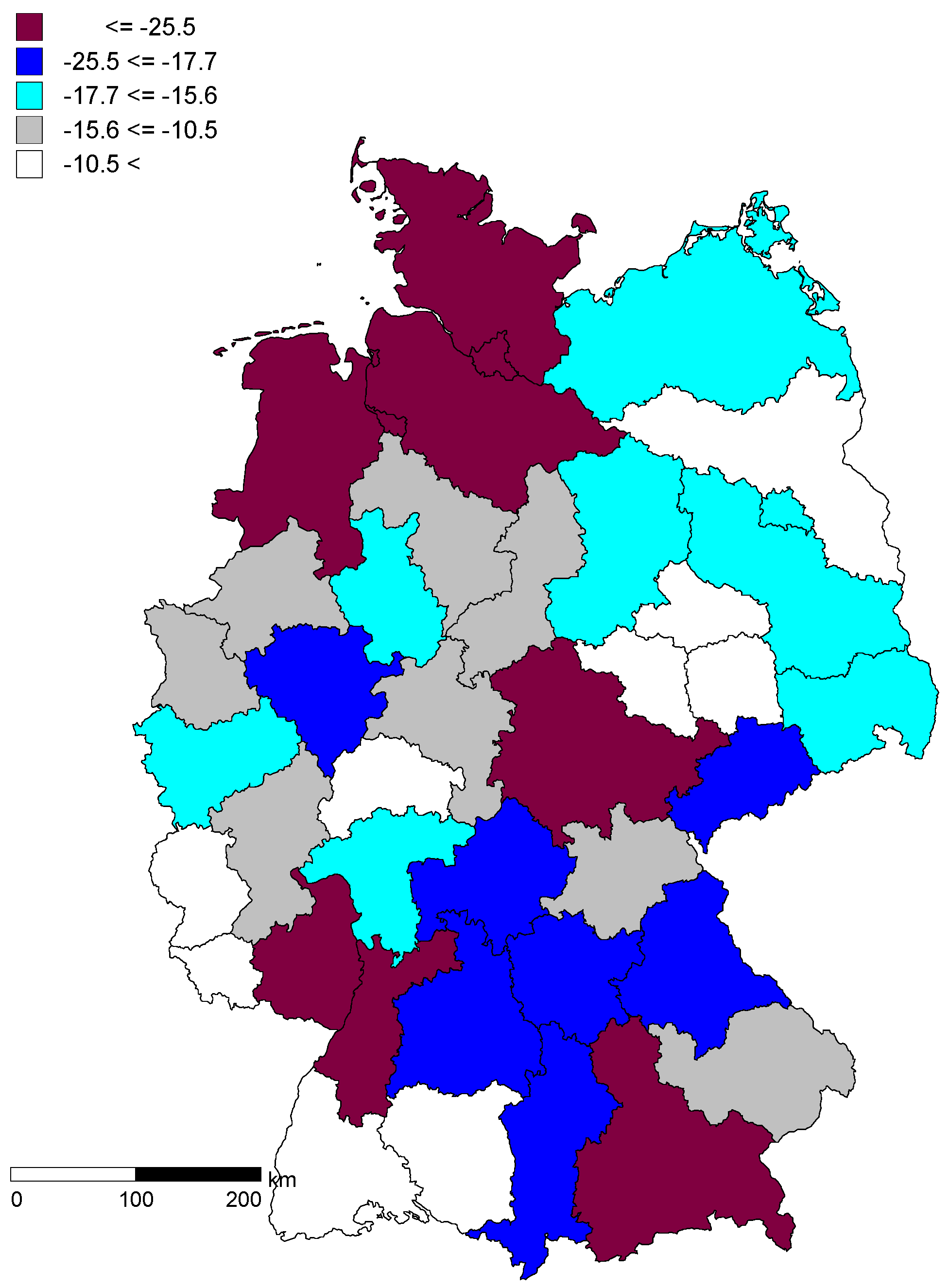

Figure 4b. Contributions to the knowledge base of the German economy at the regional (NUTS-2) level. Source: [26].
Figure 4b. Contributions to the knowledge base of the German economy at the regional (NUTS-2) level. Source: [26].
Entropy 10 00391 g004b
Further decomposition of the results along the sectorial axis—Table 3 for Germany, but similar results were obtained for the Netherlands—reveals that (i) medium-tech manufacturing provides a more important contribution to the synergy than high-tech firms, and (ii) knowledge-intensive services tend to uncouple the knowledge base from geographical locations. Knowledge-intensive services are not region-specific because one can take a train or plane when the service is needed elsewhere; high-tech services, however, sometimes imply the construction of a research laboratory. One can expect that high-tech firms are more globalized and therefore less embedded locally than medium-tech ones [33].
Table 4 expresses these conclusions for Germany in quantitative terms by using the respective variances as a measure of the synergetic effects. The variances clearly show that the levels of regional difference are considerably smaller for high-tech manufacturing than for medium-tech manufacturing, but as noted both have a structuring effect on the economy. The knowledge-intensive services do not contribute to structuring the knowledge-based economy differentially among regions (compared with “all sectors”), but this is less the case at the high-tech end of these services. This latter effect is enhanced in less-developed regions like Eastern Germany.
Table 3. μ* in mbits and change of μ*-values at the NUTS-1 level of German federal states (“Länder”) [26].
Table 3. μ* in mbits and change of μ*-values at the NUTS-1 level of German federal states (“Länder”) [26].
All sectorsManufacturingServices
High-techChange (%)aMedium-techChange (%)aHigh- and medium-techChange (%)aKnowledge intensiveChange (%)aHigh-techChange (%)a
North Rhine--49.82-46.531-6.6-63.76528.0-61.66823.8-38.333-23.1-43.291-13.1
a Percentage change is expressed with reference to “All sectors”.
Table 4. Variances in the Δ μ* across knowledge-based sectors of the German economy at the NUTS-1 and NUTS-2 levels [26].
Table 4. Variances in the Δ μ* across knowledge-based sectors of the German economy at the NUTS-1 and NUTS-2 levels [26].
NUTS-1 (Länder)NUTS-2 (Regierungsbezirke)
All sectors458.27783.763
knowledge intensive services256.17657.624
High-tech services357.36975.007
medium-tech manufacturing1133.959161.110
High-tech manufacturing744.39091.898
High & medium-tech1058.008106.112
Number of regions1338

4. The Triple Helix Model

In 1953, Linus Pauling and Robert B. Corey proposed that DNA was made up of three chains, twisted around each other in ropelike helices [34]. A few months later, James Watson and Francis Crick proposed the double helix, which was then quickly accepted as the correct structure of DNA [35]. This discovery led to a Nobel Prize [36]. Double helices can under certain circumstances stabilize in a co-evolution, but triple helices may contain all kinds of chaotic behavior [37,38]. However, Triple Helix models continue to be useful in studying transition processes, for example, in crystallography and molecular biology.
More recently, Richard Lewontin [39] used the metaphor of a Triple Helix for modeling the relations among genes, organisms, and environments. In a different context, Henry Etzkowitz and I introduced the Triple Helix model in 1994 for studying university-industry-government relations [40,41,42]. University-industry-government relations provide a networked infrastructure for knowledge-based innovation systems. The infrastructure organizes the dynamic fluxes of communication through the networks. However, the resulting knowledge base remains emergent given these conditions. Whereas the relations between institutions can be measured as variables, the interacting fluxes generate a probabilistic entropy. The configurational information among the three institutional dimensions provides us with an indicator of the uncertainty at the systems level.
When the configurational information is negative, the development of a Triple Helix can be considered as self-organizing because the operation of the links in that case reduces the uncertainty in the configuration. This negative entropy cannot be attributed to any of the nodes, since it is a consequence of the configuration. However, the self-organizing dynamic of interacting expectations can be volatile or it may be stabilized in an overlay of communications which functions as a hypercycle among the carrying agencies. The dynamics of Triple Helix relations at the global and national levels in various databases and in different regions of the world can be analyzed by applying and developing the entropy indicator using scientometric and webometric data.

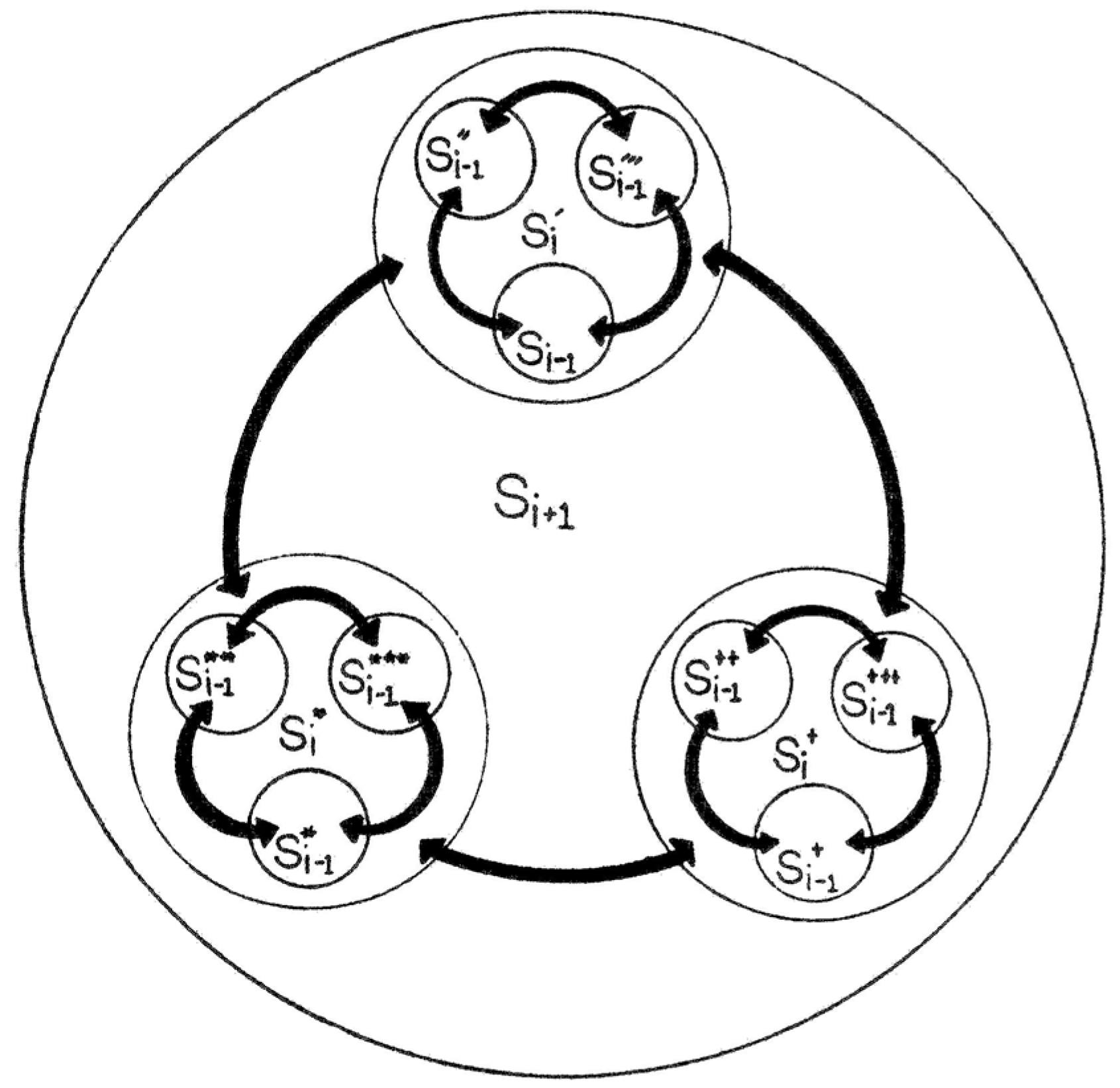

Figure 5. A schematic depiction of a complex system by Goguen and Varela [43].
Figure 5. A schematic depiction of a complex system by Goguen and Varela [43].
Entropy 10 00391 g005
The metaphor of a Triple Helix captures the complexity that is generated when three subdynamics interact [37]. Already in 1979, Goguen amd Varela [43] proposed a representation of a complex and self-organizing system using a holographic model of three interacting subdynamics (Figure 5). At each step (i-1, i, i+1), the emerging system is composed of interaction effects among the previous stages of the three participating (sub)systems. In addition to the recursion of the interaction among the helices, however, a model of university-industry-government relations should encompass the dynamics within each of the helices along their respective time axes. The differences in these subdynamics (of aggregation and interaction, respectively) may break the symmetries which are suggested by the visualization in Figure 5.
How can a Triple Helix model be both interactive and recursive at the same time? First, consider three helices as sets that overlap in the intersections, as depicted in terms of Venn diagrams in Figure 6. In this configuration, the three helices share a common ground or origin in the overlap area indicated in Figure 6a as i. Under certain conditions, however, this overlap can also become negative. This possible configuration is depicted in Figure 6b: the center not only fails, but has become a hole or one might say a negative overlap.

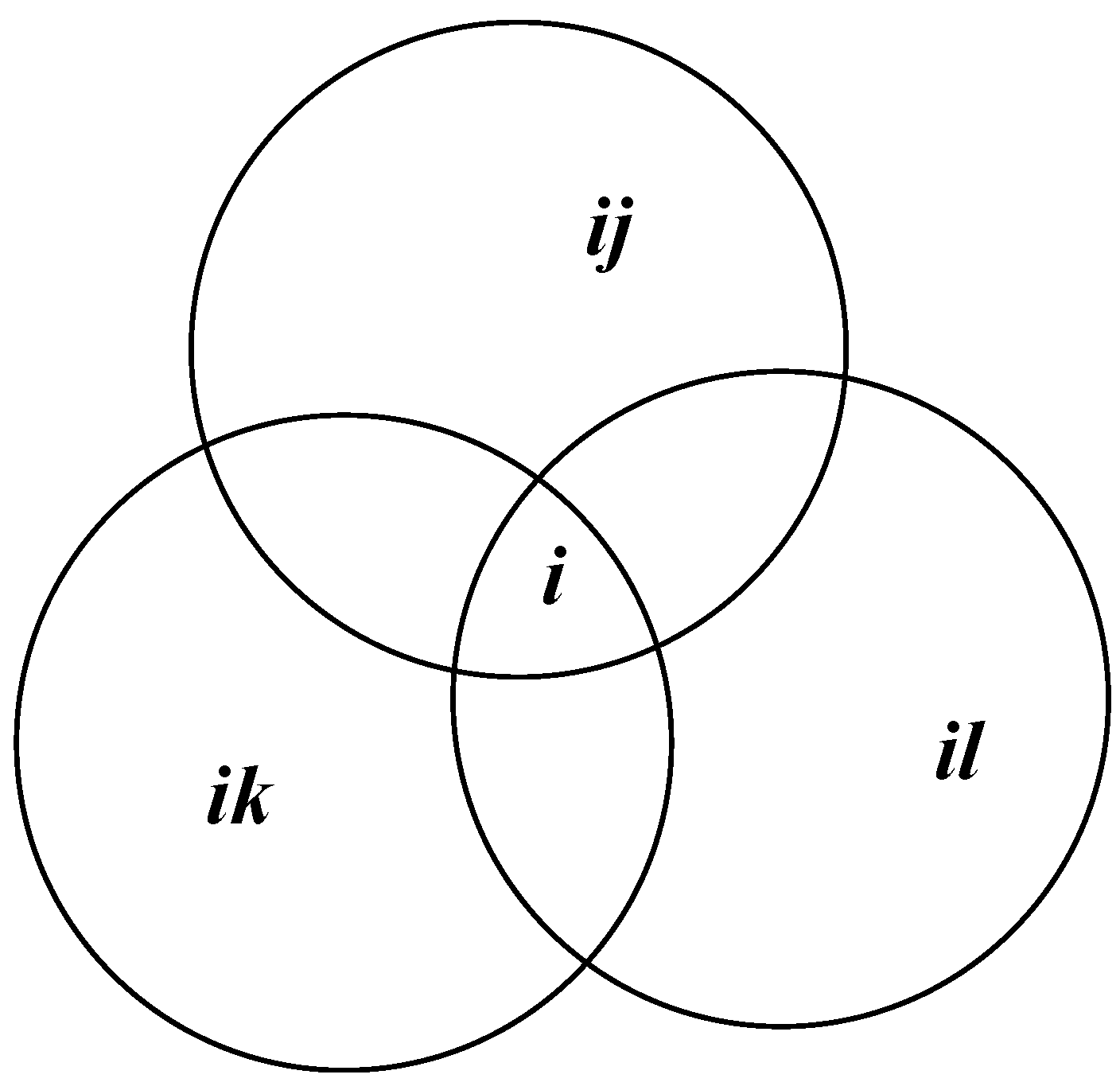

Figure 6a. Static representation of a Triple Helix configuration as a Venn diagram.
Figure 6a. Static representation of a Triple Helix configuration as a Venn diagram.
Entropy 10 00391 g006a

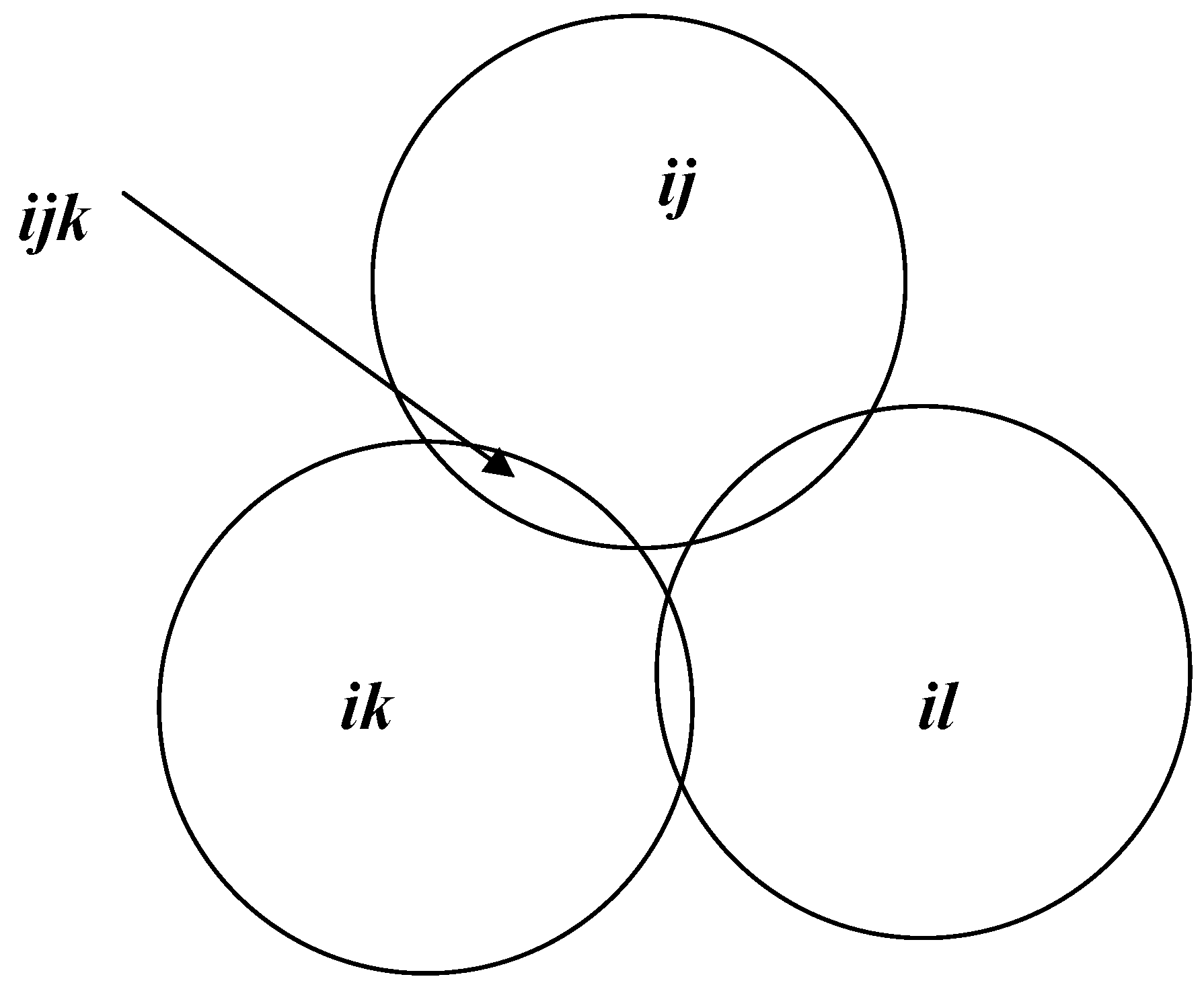

Figure 6b. A Triple Helix configuration with negative overlap among the subsystems.
Figure 6b. A Triple Helix configuration with negative overlap among the subsystems.
Entropy 10 00391 g006b
In the latter representation, the three helices have differentiated to such an extent that the commonality i has been dissolved. This system operates over time in terms of different communications at the respective interfaces (ijk in Figure 6b). If all the interfaces operate, one can consider the result as the emergence of a “hypercycle” (Figure 7). The hypercyclic configuration integrates the three systems in a distributed mode. It fails to integrate completely, or one could also say that the integration remains subsymbolic.
Figure 7. Ex post integration in an emerging hypercycle by recombining different interactions.
Figure 7. Ex post integration in an emerging hypercycle by recombining different interactions.
Entropy 10 00391 g007
This configuration can be expected to exhibit self-organizing properties because the various transmissions are no longer integrated at a single center. A common domain of instantaneous integration is lacking, and therefore integration leads in turn to a re-differentiation. Integration fails in this configuration at each moment in time, but it can take place to variable extents over the time dimension.
Unlike integration in the previous model, this hypercyclic mode of integration is no longer controlled hierarchically by a position at the center. First, the center is now void, or one might even say negative: only an expectation of a center has remained. But more importantly, the circles in the plane and the hypercycle on top close in this configuration around a failing center. One can indicate this cavity as negative entropy within the system.
The four rings in Figure 7 can be considered as four corners of a tetrahedron as depicted in Figure 8. However, a tetrahedron can be tumbled, and thus each of the corners can become the top from the perspective of the other three cycles. The hypercycle and the various cycles stand in heterarchical relation to one another.

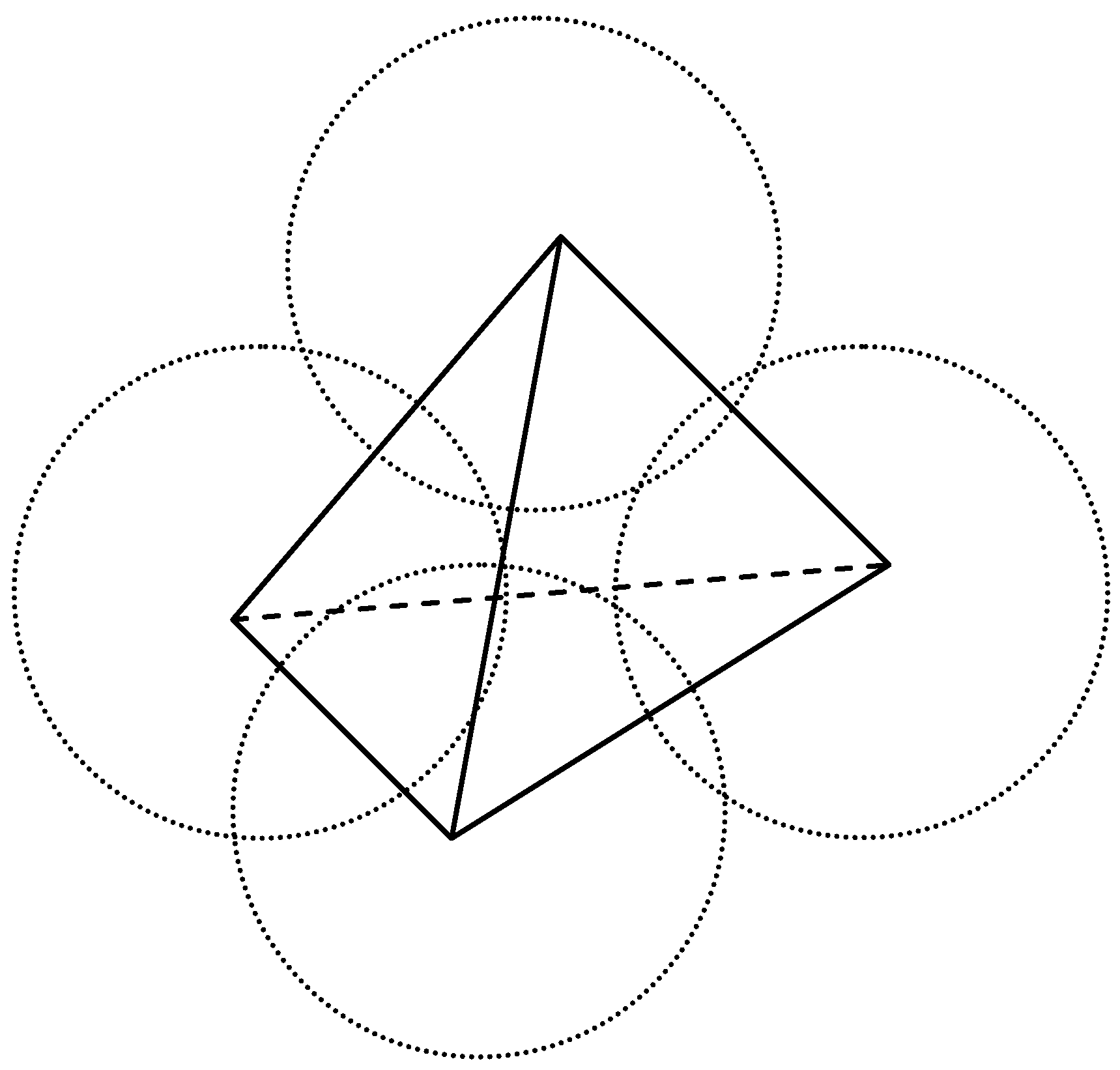

Figure 8. The hypercyclic closure of communication.
Figure 8. The hypercyclic closure of communication.
Entropy 10 00391 g008
In other words, the historical structuring in terms of relations and the functional organization in terms of positions—relative to the axes of the system—operate as different subdynamics in this complex system. A system can be considered as complex when it can be decomposed into more than two subdynamics. Two subdynamics can still be modeled by extending the Darwinian model into a co-evolution model [44]. Three subdynamics may share a common zone and be integrated in a hierarchical mode given a center of control, but they can also develop into this heterarchical configuration. The hypercyclic model assumes one degree of freedom more than the configuration on which it rests. This additional degree of freedom can be used for knowledge-based anticipation in the network of relations [45].

5. Empirical studies of Triple Helix configurations

In several research projects we have used configurational information as an indicator in measurements of university-industry-government relations. Table 5, for example, provides values for the transmission in these relations using co-authorship relations among authors in different countries for the measurement. The data was harvested from the Science Citation Index [46,47]. Note that the rank-order was stable for two different years: r = 0.98 (p < 0.001).
Table 5. Triple Helix index for various countries and regions in the Science Citation Index [47].
Table 5. Triple Helix index for various countries and regions in the Science Citation Index [47].
μ*uig in mbits
μ*uig in mbits
S Korea-40.18S Korea-33.7
PR China-14.916PR China-11.0
Table 5 suggests a very different pattern for the Triple Helix developments in various world regions. The Triple Helix overlay operates within the U.S.A. and Japan at a much higher level of self-organization than in Europe. Within the European Union, one can observe a scale with the U.K. at the leading end, but the smaller units (e.g., The Netherlands) at much lower levels. Russia and Brazil are even less integrated from this perspective, but India exhibits the Asian-Pacific pattern (μ*< –0.70). Interestingly, the Triple Helix overlay within People’s Republic of China operates at a much lower level of self-organization than in other world regions.

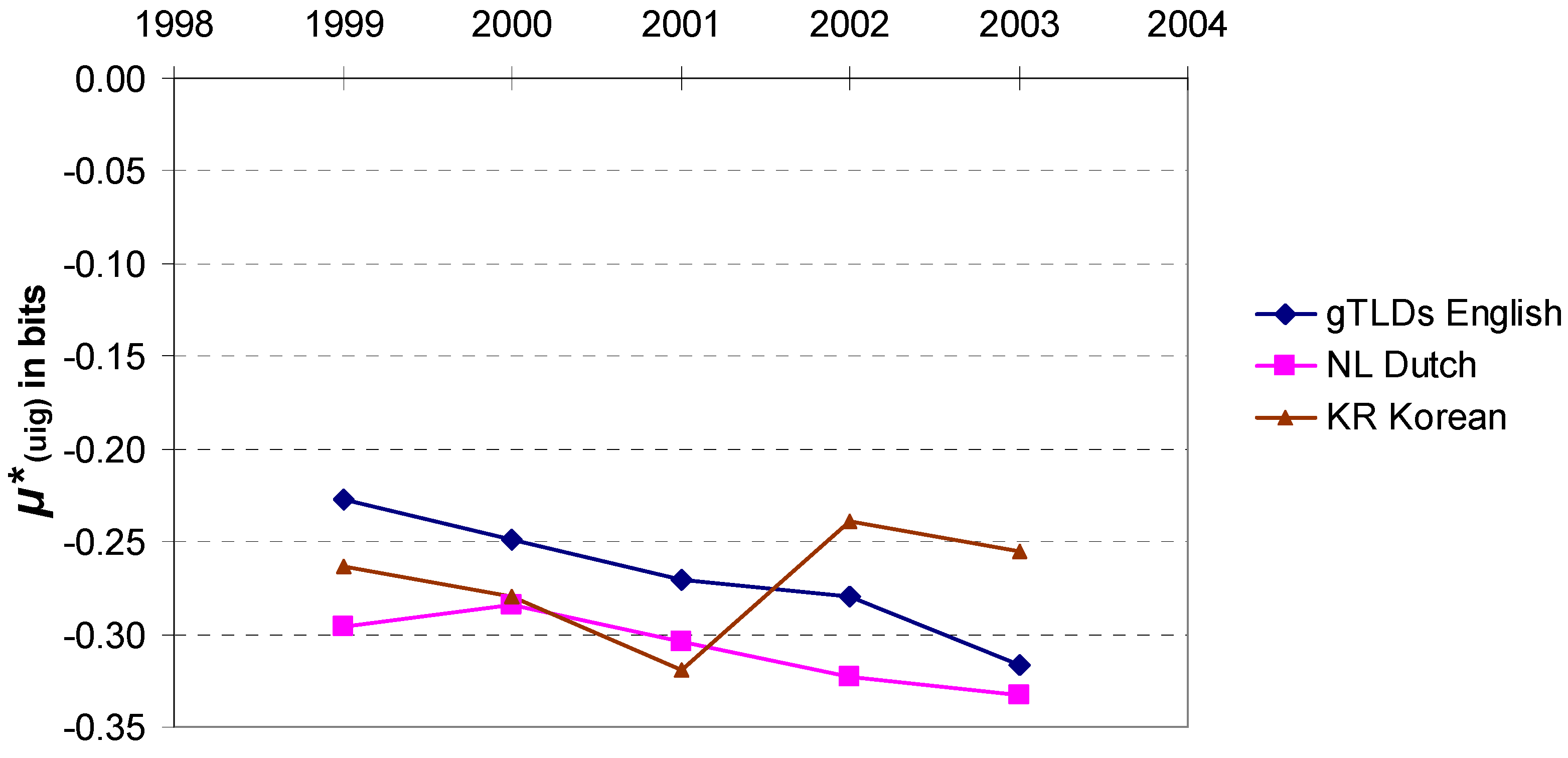

Figure 9. Configurational information for South Korea and the Netherlands, respectively [47].
Figure 9. Configurational information for South Korea and the Netherlands, respectively [47].
Entropy 10 00391 g009
Figure 9 shows how a similar exercise measuring (co-)occurrences of the three terms (“university,” “industry,” and “government”) at the Internet using the AltaVista Advanced Search Engine (on April 26, 2004) enabled us to indicate how the Korean domain was affected by the Internet crisis of 2000-2001, while the Dutch and generic Top Level Domains were not affected in terms of further strengthening these knowledge-based systems.

6. Configurational information and the dimensionality of the model

Shannon-type information is formal and does not inform us about external reality until the latter is specified as the system of reference for the application of the formal apparatus. The reduction of uncertainty in a potentially fourth dimension of the uncertainty, therefore, is not a property of reality, but a property of our models. The dimensionality of our models enables us to analyze increasing complexity.
While in Newtonian physics the data was given naturally and therefore the focus was on the measurement of this data, in Darwin’s evolutionary theory, the observable data was considered as historical variation and selection as “natural.” Retention mechanisms require stabilization of some selection environments. Stabilizations can again be at variance, and therefore be considered as second-order variation. The possibility of globalization adds a second-order selection term to this second-order variation [23].
Whereas stabilizations can be expected to further develop (or perish) along a trajectory, globalizing systems can be unfolded as a regime. The regime rests on the competing trajectories, and may thus reduce uncertainty. Whether a feed-back or a feed-forward is generated in the emerging dimension remains an empirical question, and as we have seen above will depend on the (near-)decomposibility of the mutual relations among subsystems [48].
Table 6. Organization of concepts in relation to degrees of freedom in the probability distribution [7].
Table 6. Organization of concepts in relation to degrees of freedom in the probability distribution [7].
first dimensionsecond dimensionthird dimensionfourth dimension
Operationvariationselectionstabilization, retentionglobalization and self-organization identity or regime globally organized; resilient emerging hyper-cycle virtual expectations non-linear dynamics
Natureentropy; disturbanceextension; networklocalized trajectory
Character of operationprobabilistic; uncertaindeterministic; structuralreflexive; reconstructive
Appearanceinstantaneous and volatilespatial; multi-variatehistorically contingent
Unit of analysischange in terms of relationslatent positionsstabilities during history
Type of analysisdescriptive registrationmulti-variate analysistime-series analysis
Each source of variance can be considered as a one-dimensional vector, but the subdynamics select upon each other’s variation according to the systemic structure, that is, the redundancy, in their corresponding dimensions. Some selections can further be selected for stabilization along a trajectory, and stabilizations can be selected as second-order variation for globalization as a regime. In Table 6, I provide an overview of the relevant semantics in these four dimensions of probabilistic entropy [7].

7. Conclusions

Configurational information is generated when more than two sources of variance interact. Mutual information between two sources of variance is necessarily positive, but configurational information among three or more sources can be positive or negative. For example, when two parents have a child, and are able to structure the family situation, uncertainty is reduced for this child beyond his/her control. Obtaining an answer to a question asked of one parent improves the child’s prediction about the answer the other parent can be expected to give. Thus, the situation is structured. Similarly, it makes a difference for government policies whether university-industry relations in a country are in good shape or whether they are in need of restructuring. However, the synergy in relations among three parties cannot be steered by any one of the participating parties. This synergy is the result of self-organization among the sources of variance.
The configurational outcome is more than the sum of its parts: it may contain less uncertainty. A new value emerges along an axis different from the three participating systems. The three participants relate and interact along analytically orthogonal axes, and a fourth axis emerges which may feed back (or forward) on the uncertainty which is thus generated. The resulting indicator can be used for measuring self-organization in the interactions among fluxes of communication in different dimensions. When three (or more) dimensions are relevant to the research design, configurational information can be measured, as in a Triple Helix of university-industry-government relations. The effects of interventions on changes in the values of parameters can be evaluated by using simulations.

References and Notes

  1. Shannon, C.E. A Mathematical Theory of Communication. Bell Sys. Tech. J. 1948, 27, 379–423, 623–656. [Google Scholar] [CrossRef]
  2. Shannon, C.E.; Weaver, W. The Mathematical Theory of Communication; University of Illinois Press: Urbana, IL., USA, 1949. [Google Scholar]
  3. Attneave, F. Applications of Information Theory to Psychology; Holt, Rinehart and Winston: New York, NY, USA, 1959. [Google Scholar]
  4. Abramson, N. Information Theory and Coding; McGraw-Hill: New York, NY, USA, 1963. [Google Scholar]
  5. Theil, H. Statistical Decomposition Analysis; North-Holland: Amsterdam, The Netherlands/ London, UK, 1972. [Google Scholar]
  6. Yeung, R.W. Information Theory and Network Coding; Springer: New York, NY, USA, 2008; at (accessed September 22, 2008).
  7. Leydesdorff, L. A Sociological Theory of Communication: The Self-Organization of the Knowledge-Based Society; Universal Publishers: Parkland, FL, 2001; at (accessed September 1, 2008).
  8. Leydesdorff, L. Are EU Networks Anticipatory Systems? An empirical and analytical approach. In Computing Anticipatory Systems–CASYS'99; Dubois, D.M., Ed.; American Institute of Physics: Woodbury, NY, USA, 2000; Vol. 517, pp. 171–181. [Google Scholar]
  9. Leydesdorff, L.; Oomes, N. Is the European Monetary System Converging to Integration? Soc. Sci. Inform. 1999, 38, 57–86. [Google Scholar] [CrossRef]
  10. McGill, W.J. Multivariate information transmission. Psychometrika 1954, 19, 97–116. [Google Scholar] [CrossRef]
  11. McGill, W.J.; Quastler, H. Standardized nomenclature: An attempt. In Information Theory in Psychology: Problems and Methods; Quastler, H., Ed.; The Free Press: Woodbury, NY, 1955; pp. 83–92. [Google Scholar]
  12. Jakulin, A.; Bratko, I. Quantifying and Visualizing Attribute Interactions: An Approach Based on Entropy. ArXiv.Org at Cornell University Library. 2004. at (accessed August 15, 2008).
  13. Ulanowicz, R.E. Ecology, The Ascendent Perspective; Columbia University Press: New York, NY, USA, 1997. [Google Scholar]
  14. Lazarsfeld, P.F.; Henry, N.W. Latent structure analysis; Houghton Mifflin: New York, NY, USA, 1968. [Google Scholar]
  15. Dosi, G. Technological Paradigms and Technological Trajectories: A Suggested Interpretation of the Determinants and Directions of Technical Change. Res. Policy 1982, 11, 147–162. [Google Scholar] [CrossRef]
  16. Giddens, A. Central Problems in Social Theory; Macmillan: London, UK, 1979. [Google Scholar]
  17. Nelson, R.R.; Winter, S.G. An Evolutionary Theory of Economic Change; Belknap Press of Harvard University Press: Cambridge, MA, USA, 1982. [Google Scholar]
  18. Leydesdorff, L. The Challenge of Scientometrics: The development, measurement, and self-organization of scientific communications; DSWO Press, Leiden University: Leiden, 1995; at (accessed August 14, 2008).
  19. Bailey, K.D. Sociology and the New Systems Theory; State University of New York Press: New York, NY, USA, 1964. [Google Scholar]
  20. Varela, F.J.; Thompson, E.; Rosch, E. The Embodied Mind: Cognitive Science and Human Experience; MIT Press: Cambridge, MA, USA, 1991. [Google Scholar]
  21. Dubois, D.M. Computing Anticipatory Systems with Incursion and Hyperincursion. In Computing Anticipatory Systems, CASYS-First International Conference; Dubois, D.M., Ed.; American Institute of Physics: Woodbury, NY, 1998; Vol. 437, pp. 3–29. [Google Scholar]
  22. Leydesdorff, L.; Dubois, D.M. Anticipation in Social Systems: The Incursion and Communication of Meaning. Int. J. Comput. Anticipatory Syst. 2004, 15, 203–216. [Google Scholar]
  23. Hayami, Y.; Ruttan, V.W. Agricultural Productivity Differences among Countries. Am. Econ. Rev. 1970, 60, 895–911. [Google Scholar]
  24. Storper, M. The Regional World - Territorial Development in a Global Economy; Guilford Press: New York, NY, USA, 1997. [Google Scholar]
  25. Leydesdorff, L.; Dolfsma, W.; Van der Panne, G. Measuring the Knowledge Base of an Economy in terms of Triple-Helix Relations among ‘Technology, Organization, and Territory’. Res. Policy 2006, 35, 181–199. [Google Scholar] [CrossRef]
  26. Leydesdorff, L.; Fritsch, M. Measuring the Knowledge Base of Regional Innovation Systems in Germany in terms of a Triple Helix Dynamics. Res. Policy 2006, 35, 1538–1553. [Google Scholar] [CrossRef]
  27. Blau, P.M.; Schoenherr, R. The Structure of Organizations. In Basic Books; Basic Books: New York, NY, USA, 1971. [Google Scholar]
  28. Pugh, D.S.; Hickson, D.J. The context of organization structures. ASQ 1969, 14, 91–114. [Google Scholar]
  29. Pugh, D.S.; Hickson, D.J.; Hinings, C.R. An empirical taxonomy of structures of work organizations. ASQ 1969, 14, 115–126. [Google Scholar]
  30. Laafia, I. Employment in high tech and knowledge intensive sectors in the EU continued to grow in 2001. Statistics in Focus: Science and Technology 2002. Theme 9, available at (accessed September 5, 2008). [Google Scholar]
  31. Van der Panne, G.; Dolfsma, W. The Odd Role of Proximity in Knowledge Relations: High-Tech in the Netherlands, Tijdschr. Econ. Soc. Geogr. 2003, 94, 451–460. [Google Scholar] [CrossRef]
  32. Fritsch, M.; Brixy, U. The establishment file of the German social insurance statistics, Schmollers Jahr. / J. Appl. Soc. Sci. Stud. 2004, 124, 183–190. [Google Scholar]
  33. Cohen, W.M.; Levinthal, D.A. Innovation and Learning: The Two Faces of R & D. Econ J. 1989, 99, 569–596. [Google Scholar]
  34. Pauling, L.; Corey, R.B. Structure of the Nucleic Acids. Nature 1953, 171, 346. [Google Scholar] [CrossRef] [PubMed]
  35. Watson, J. The Double Helix: A Personal Account of the Discovery of the Structure of DNA; Penguin: Harmondsworth, 1971. [Google Scholar]
  36. Watson, J.; Crick, F. A Structure for Deoxyribose Nucleic Acid. Nature 1953, 171, 737–738. [Google Scholar] [CrossRef] [PubMed]
  37. May, R.M.; Leonard, W.J. Nonlinear Aspects of Competition between Three Species. SIAM J. Appl. Math. 1975, 29, 243–253. [Google Scholar] [CrossRef]
  38. Poincaré, H. Leçons de mécanique céleste; Gauthier-Villars: Paris, 1905-1911. [Google Scholar]
  39. Lewontin, R. The Triple Helix: Gene, Organism, and Environment; Harvard University Press: Cambridge, MA, USA/London, UK, 2000. [Google Scholar]
  40. Etzkowitz, H.; Leydesdorff, L. The Triple Helix-University-Industry-Government Relations: A Laboratory for Knowledge Based Economic Development. EASST Rev. 1995, 14, 14–19. [Google Scholar]
  41. Etzkowitz, H.; Leydesdorff, L. Universities and the Global Knowledge Economy: A Triple Helix of University-Industry-Government Relations; Pinter: London, 1997. [Google Scholar]
  42. Etzkowitz, H.; Leydesdorff, L. The Dynamics of Innovation: From National Systems and ‘Mode 2’ to a Triple Helix of University-Industry-Government Relations. Res. Policy 2000, 29, 109–123. [Google Scholar] [CrossRef]
  43. Goguen, J.A.; Varela, F.J. Systems and Distinctions: Duality and Complementarity. Int. J. Gen. Syst. 1979, 5, 31–43. [Google Scholar] [CrossRef]
  44. Cook, T.; Campbell, D. Quasi-Experimentations: Design & Analysis Issues for Field-Settings; Houghton Mifflin Company: Boston, MA, USA, 1979. [Google Scholar]
  45. Leydesdorff, L. The Knowledge-Based Economy: Modeled, Measured, Simulated; Universal Publishers: Boca Raton, FL, USA, 2006; at (accessed August 14, 2008).
  46. Leydesdorff, L. The Mutual Information of University-Industry-Government Relations: An Indicator of the Triple Helix Dynamics. Scientometrics 2003, 58, 445–467. [Google Scholar] [CrossRef]
  47. Park, H.W.; Hong, H.D.; Leydesdorff, L. A Comparison of the Knowledge-based Innovation Systems in the Economies of South Korea and the Netherlands using Triple Helix Indicators. Scientometrics 2005, 65, 3–27. [Google Scholar] [CrossRef]
  48. Simon, H.A. The Organization of Complex Systems. In Hierarchy Theory: The Challenge of Complex Systems; Pattee, H.H., Ed.; George Braziller Inc.: New York, 1973; pp. 1–27. [Google Scholar]

Share and Cite

MDPI and ACS Style

Leydesdorff, L. Configurational Information as Potentially Negative Entropy: The Triple Helix Model. Entropy 2008, 10, 391-410.

AMA Style

Leydesdorff L. Configurational Information as Potentially Negative Entropy: The Triple Helix Model. Entropy. 2008; 10(4):391-410.

Chicago/Turabian Style

Leydesdorff, Loet. 2008. "Configurational Information as Potentially Negative Entropy: The Triple Helix Model" Entropy 10, no. 4: 391-410.

Article Metrics

Back to TopTop
