Configurons: Thermodynamic Parameters and Symmetry Changes at Glass Transition

The University of Sheffield, Immobilisation Science Laboratory, Department of Engineering Materials, Sir Robert Hadfield Building, Mappin Street, Sheffield, S1 3JD, UK

Received: 31 July 2008; in revised form: 9 September 2008 / Accepted: 22 September 2008 / Published: 24 September 2008

## Abstract

**:**

Thermodynamic parameters of configurons – elementary excitations resulting from broken bonds in amorphous materials – are found from viscosity-temperature relationships. Glass-liquid transition phenomena and most popular models are described along with the configuron model of glass transition. The symmetry breaking, which occurs as a change of Hausdorff dimension of bonds, is examined at glass-liquid transition. Thermal history effects in the glass-liquid transition are interpreted in terms of configuron relaxation.

Keywords:

Amorphous materials; glasses; glass transition; melts; viscosity; bonds## 1. Introduction

Both solid state physics and chemistry focus almost entirely on crystalline forms of matter [1,2,3] whereas the physics and chemistry of amorphous state in many aspects remain poorly understood. Although numerous experiments and theoretical works have been performed, many of the amorphous state features remain unexplained and others are controversial. One of such controversial problems is the nature of the glass-liquid transition. The difficulty in treating the glass transition is caused by almost undetectable changes in the structure despite of qualitative changes in characteristics and extremely large change in the time scale [4]. The translation-rotation symmetry of particles is unchanged at the liquid-glass transition, which retains the topological disorder of fluids. Like a liquid a glass has a topologically disordered distribution of atoms and molecules but elastic properties of an isotropic solid. The symmetry similarity of both liquid and glassy phases leaves unexplained qualitative differences in their behaviour.

Solids can be either amorphous or crystalline in structure. For solids elementary particles (atoms or molecules which form the substance) are in fixed positions which can be arranged in a repeating pattern in crystals or in a disordered pattern in amorphous solids. The structures of crystalline solids are formed of repeating, regular units e.g. unit cells. Each unit cell of a crystal is defined in terms of lattice points, e.g. the points in space about which the particles are free to vibrate. The structure of amorphous materials cannot be described in term of repeating unit cells as the unit cell of an amorphous material would comprise all atoms due to non-periodicity.

According to the nature of the bonds which hold particles together materials can be classified as metallic, ionic, molecular, or covalent network solids or fluids. One of useful approaches is to consider the bond system instead of considering the set of atoms or molecules that form the matter. For each state of matter we can define the set of bonds e.g. introduce the bond lattice model which is the congruent structure of its chemical bonds. The congruent bond lattice is a regular structure for crystalline materials and disordered for amorphous materials. Moreover the bond lattices of glasses and liquids have different symmetries in contrast to the symmetry similarity of atoms in liquid and glassy phases.

We examine in this paper the entropies of configurons in disordered oxide materials. A configuron is defined as an elementary configurational excitation in an amorphous material which involves breaking of a chemical bond and associated strain-releasing local adjustment of centres of atomic vibration. The higher the temperature of an amorphous material the higher the configuron concentration. Configurons weaken the bond system so that the higher the content of configurons the lower the viscosity of an amorphous material. At very high concentrations configurons form percolation clusters: this means that the material looses its rigidity as it becomes penetrated by a macroscopic (infinite-size) cluster made of broken bonds. The formation of percolation clusters made of configurons gives an explanation of glass transition in terms of percolation-type phase transitions [5]. Moreover, although no symmetry changes can be revealed in the atomic distribution, there is a symmetry change expressed by step-wise variation of Hausdorff dimension of bonds at the glass transition. Namely there is a reduction of Hausdorff dimension of bonds from the 3 in the glassy state to the fractal
${d}_{f}=2.55\pm 0.05$
in the liquid state. E.g. there is a bond lattice symmetry breaking at glass transition and changes which occur in the bond system of a disordered material characterise the glass-liquid transition as a percolation effect in the system of broken bonds [5,6].

## 2. Amorphous materials: glasses and liquids

Amorphous materials can be either solid (glassy) or liquid (melts). Glasses are most frequently produced by a melt cooling below its glass transition temperature sufficiently fast to avoid formation of crystalline phases [7]. Figure 1 illustrates the critical cooling rates required to avoid crystallisation and to produce glasses from melts of various substances. Glass-forming materials such as dioxides do not require very fast cooling whereas quickly crystallizing materials such as metals require a very fast cooling (quenching) e.g. the early metallic glasses had to be cooled extremely rapidly ~10

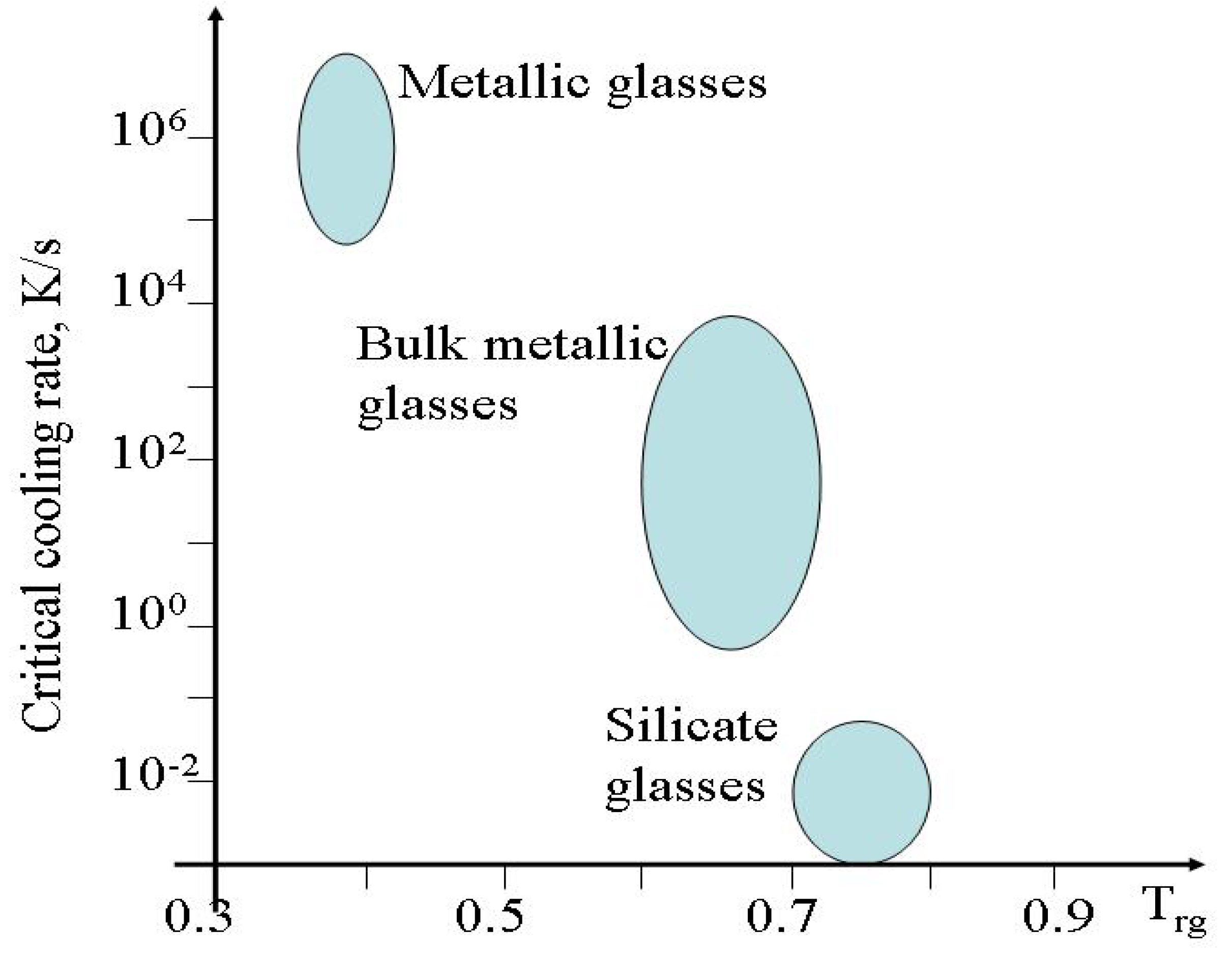

^{6}K/s to avoid crystallization [8].**Figure 1.**Critical cooling rate versus reduced glass transition temperature T

_{rg}=T

_{g}/T

_{m}, where T

_{g}is the glass transition temperature and T

_{m}is the melting temperature (after [8]).

Glasses can be formed by several methods such as melt quenching [7], physical vapour deposition [9], solid state reactions (thermochemical [10] and mechanochemical [11] methods), liquid state reactions (sol-gel method [12,13]), irradiation of crystalline solids (radiation amorphisation [14,15]) and under action of high pressures (pressure amorphisation [16,17]). Glass formation from melts is a matter of bypassing crystallization and formation of glass is easier in more complex systems. Oxide glasses containing a variety of cations are easier obtained in a glassy state as their complexity necessitates longer times for diffusion-controlled redistribution of diverse constituents before crystallisation can begin. The vast bulk of glasses used in commerce are oxide glasses. It is assessed that better than 95% of the commercial tonnage is oxide glasses, of which ~95% is silica-based glasses [7].

## 3. Melting of amorphous solids

Crystalline materials melt at well defined melting temperatures T

_{m}whereas amorphous materials transform from glassy e.g. solid form to liquid state at glass transition temperatures T_{g}which in this sense play the role of melting temperatures for non-crystalline solids. A glass is most commonly formed by cooling a viscous liquid fast enough to avoid crystallization. The liquid-glass transition is accompanied by spectacular changes in physical properties e.g. glasses are brittle whereas supercooled liquids are soft. Rearrangements that occur in an amorphous material at the glass transition temperature, T_{g}, lead to characteristic jumps of derivative thermodynamic parameters such as the coefficient of thermal expansion or the specific heat. These discontinuities allow to detect the T_{g}. Although in many aspects similar to a second order transition the glass-liquid transition is a kinetically-controlled phenomenon which exhibits a range of T_{g}depending on the cooling rate with maximal T_{g}at highest rates of cooling. In practice the liquid-glass transition has features both in common with second order thermodynamic phase transitions and of kinetic origin.Very often the liquid-glass transition is regarded as a transition for practical purposes rather than a thermodynamic phase transition [2,18]. By general agreement it is considered that a liquid on being cooled becomes practically a glass when the viscosity equals 10

^{12}Pa·s (10^{13}poise) or where the relaxation time is 10^{2}s [2,18]. For practical purpose the glass transition temperature is found from the viscosity-temperature relationship:
$$\eta ({T}_{g,relax})={10}^{12}(Pa\cdot s)$$

Despite the fact that a glass alike a liquid has a topologically disordered structure, it has elastic properties of an isotropic solid. The translation-rotation symmetry in the distribution of atoms is broken at crystallisation but remains unchanged at the liquid-glass transition, which retains the topological disorder of fluids. What kind of symmetry is changed at glass-liquid transition? Changes which occur on liquid-glass transition at the molecular level are difficult to specify. Amorphous materials have no elementary cell characterised by a certain symmetry, which can reproduce the distribution of atoms by its infinite repetition. Instead the symmetry of a topologically disordered system is characterised by the Hausdorff-Besikovitch dimensionality of interconnecting and broken bonds. Two types of topological disorder characterised by different symmetries can be revealed in an amorphous material based on the analysis of broken bond concentrations [5,6,19]: (i) 3-dimensional, 3D (Euclidean), which occurs at low temperatures when no percolation clusters of configurons are formed and the geometrical structures of bonds can be characterised as a 3-D and (ii) d

_{f}=2.55±0.05-dimensional (fractal), which occurs at high temperatures when percolation clusters made of broken bonds are formed and the geometries of the structures formed can be characterised as fractal objects with preferential pathways for configurons. Hence the bonding structure of glasses has the same Hausdorff-Besikovitch dimensionality (symmetry signature) as for crystalline materials whereas the liquid near the glass transition is fractal. In this paper we will first consider the viscosity of amorphous materials and then analyse models of glass-liquid transition emphasising the role of entropy of disordered state.## 4. Viscosity of amorphous materials

Viscous flow occurs due to stress applied. The viscosity coefficient η(T) relates the acting stress f to the strain rate
$\dot{\epsilon}$
via equation:

$$f=\eta (T)\cdot \dot{\epsilon}$$

The higher the temperature of an amorphous material the more broken bonds are created by temperature fluctuations e.g. the higher the concentration of configurons. Configurons weaken the bond system so that the higher the content of configurons the lower the viscosity of an amorphous material. This qualitatively explains the decrease of viscosities of amorphous materials with temperature. Table 1 gives viscosity coefficients of several amorphous materials at 25

^{o}C.Material | Viscosity, Pa•s |
---|---|

Water | 8.94 10^{-4} |

Mercury | 1.526 10^{-3} |

Olive oil | 8.1 10^{-2} |

Glycerol | 9.34 10^{-1} |

Pitch | 2.3 10^{8} |

It is commonly assumed that shear viscosity is a thermally activated process. The viscosity coefficient can be expressed in terms of an activation energy Q by
where T is temperature in K, R is the molar gas constant and A is approximately a constant [20]. For amorphous materials two different regimes of flow have been identified with melts at high temperature having a lower activation energy for flow than materials at lower temperatures. Within the low temperature or high temperature regime an Arrhenius dependence of viscosity is observed and an appropriate activation energy, Q

$$\eta \left(T\right)=A\text{exp}\left(Q/RT\right)$$

_{H}or Q_{L}respectively, can be defined. Asymptotically both at low and high temperatures the activation energy of viscosity is independent of temperature. This pattern has been observed with a range of melts including silicates, fused salts, oxides and organic liquids [21,22]. Between the high temperature and the low temperature regimes the activation energy for flow changes and the viscosity cannot be described using an Arrhenius approach e.g. the activation energy of viscosity varies with temperature. Temperature changes in activation energy of viscosity can be explained in terms of configuron formation and motion. Indeed the activation energy of viscosity consists of two parts: the first one is due to formation of configurons e.g. bond breaking. At low temperatures it will take its full value as the concentration of broken bonds is low. However at high temperatures when the concentration of broken bonds is very high it becomes zero. The second contribution to activation energy is due to the energy needed to transfer a molecule or, which is equivalent, a configuron from its original position to the adjacent vacant site. This part of activation energy remains almost unchanged with temperature.The more-or-less randomness, the openness, and the varying degree of connectivity allow the glass structure to accommodate large variations in composition e.g. glass acts like a solution. Moreover it was found that melts and glasses produced from them can be often considered as solutions consisting of salt-like products of interactions between the oxide components [23]. These associates are similar to the crystalline compounds which exist in the phase diagram of the initial oxide system. Calculations in this model are based on solving the set of equations for the law of mass action for the reactions possible in the system of oxides, and the equations of mass balance of the components. This approach describes well such properties as viscosity, thermal expansion, isothermal compressibility, optical parameters [23]. For oxide glasses a small change in glass composition typically causes a smooth change in glass properties. The unit addition or substitution of a component can be deemed as a contribution characteristic of that component to the overall property. This notion gives rise to the additive relationships with many properties such as densities, refractive indexes obeying additive relationships [7]. An additive property P obeys a linear relation of the type:
where p

$$P={\displaystyle \mathrm{\sum}_{i=1}^{n}}{p}_{i}{C}_{i},{\displaystyle \mathrm{\sum}_{i=1}^{n}}{C}_{i}=100\%$$

_{i}are additivity factors for a given component i=1, 2, 3, … n, and C_{i}are the mass% or the mol% of that component in the glass. In oxide glasses the density follows additivity primarily because the volume of an oxide glass is mostly determined by the volume occupied by the oxygen anions, the volume of cations being much smaller [7]. Additivity relations work over a narrow range of compositions and additivity coefficients of a given oxide may change from system to system. Nonlinearities appear when various constituents interact with each other. Glass properties can be calculated through statistical analysis of glass databases such as SciGlass [7,24]. Linear regression can be applied using common polynomial functions up to the 2^{nd}or 3^{rd}degrees. For viscosities of amorphous oxide materials (melts and glasses) the statistical analysis of viscosity is based on finding temperatures (isokoms) of constant viscosity log[η(T_{i})]=const_{i}, typically when viscosity is 1.5, 6.6 and 12 (point of practical purpose glass transition) [24,25,26]. A detailed overview on statistical analysis of viscosities and individual oxide coefficients C_{i}in isokom temperatures of oxide materials is given in [26].The definition of practical purpose T
as a fragility criterion [21,22]. The higher the value of R

_{g}(1) was used by Angell to plot the logarithms of viscosity as a function of (T_{g}/T) [27,28]. In such a plot strong materials, i.e. materials that exhibit only small changes in the activation energy for flow with temperature, such as silica, have a nearly linear dependence on the inverse of the reduced temperature whereas fragile materials deviate strongly from a linear dependence as the activation energies of fragile materials significantly change with temperature. However this change is characteristic only for intermediate temperatures and the viscosity has an Arrhenius-type behaviour asymptotically both at high and low temperatures. Within the low temperature the activation energy of viscosity is high Q_{H}whereas at high temperatures the activation energy is low Q_{L}. Doremus suggested to use the ratio
$${R}_{D}={Q}_{H}/{Q}_{L}$$

_{D}the more fragile the material. Doremus’ fragility ratio ranges from 1.45 for silica to 4.52 for anorthite (Table 2).The fragility of amorphous materials numerically characterized by the Doremus’ fragility ratio classifies amorphous materials as strong if they have R

_{D}<2, and fragile materials if they have R_{D}≥2. The implication of strong-fragile classification was that strong materials are strongly and fragile are weakly bonded [28]. As pointed out by Doremus [21,22] these widely and convenient terms are misleading e.g. binary silicate glasses are strong although have many non-bridging oxygens. Some network melts such as anorthite and diopside have very high activation energies being quite strongly bounded but are very fragile. Nevertheless the fragility concept enables classification of materials based on their viscosity behaviour: those materials which significantly change the activation energy of viscosity are fragile and those which have small changes of activation energy of viscosity are strong.Amorphous material | Q_{L}, kJ/mol | Q_{H}, kJ/mol | R_{D} |
---|---|---|---|

Silica (SiO_{2}) | 522 | 759 | 1.45 |

Germania (GeO_{2}) | 272 | 401 | 1.47 |

66.7SiO_{2} 33.3PbO | 274 | 471 | 1.72 |

80SiO_{2} 20Na_{2}O | 207 | 362 | 1.75 |

65SiO_{2} 35PbO | 257 | 488 | 1.9 |

59.9SiO_{2} 40.1PbO | 258 | 494 | 1.91 |

75SiO_{2} 25Na_{2}O | 203 | 436 | 2.15 |

75.9SiO_{2} 24.1PbO | 234 | 506 | 2.16 |

SLS: 70SiO_{2} 21CaO 9Na_{2}O | 293 | 634 | 2.16 |

Salol (HOC_{6}H_{4}COOC_{6}H_{5}) | 118 | 263 | 2.23 |

70SiO_{2} 30Na_{2}O | 205 | 463 | 2.26 |

65SiO_{2} 35Na_{2}O | 186 | 486 | 2.61 |

α-Phenyl-o-cresol (2-Hydroxydiphenylmethane) | 103 | 275 | 2.67 |

52SiO_{2} 30Li_{2}O 18B_{2}O_{3} | 194 | 614 | 3.16 |

B_{2}O_{3} | 113 | 371 | 3.28 |

Diopside (CaMgSi_{2}O_{6}) | 240 | 1084 | 4.51 |

Anorthite (CaAl_{2}Si_{2}O_{8}) | 251 | 1135 | 4.52 |

## 5. Viscosity models

Many different equations to model the viscosity of liquids have been proposed. The first one is the Andrade-Frenkel model which assumes that viscosity is a thermally-activated process described by a simple exponential equation (2) with a constant activation energy of viscosity [7,20,29,30]. As this simple model fails to describe the behaviour of viscosity at intermediate temperatures, many other models were developed some of which become popular and are being extensively used. Although well known [30] that the best description of viscosity is given by the two-exponential equation derived by Douglas [31] the most popular viscosity equation is that of Vogel, Tamman and Fulcher (VTF). It gives an excellent description of viscosity behaviour namely at intermediate temperatures very important for industry and is also most useful in describing the behaviour of amorphous materials in the transition range where solidification of amorphous materials occurs. Adam-Gibbs (AG) and Avramov-Milchev (AM) models are also often used to describe the viscosity in the intermediate range of temperatures [32,33]. Out of the intermediate range none of these models correctly describe the behaviour of viscosity. At low and high temperatures the best description of viscosity provides the Andrade-Frenkel model with high and low activation energies. Figure 2 summarizes the temperature behaviour of viscosity within different temperature intervals and gives the best equations to be used including the equation of viscosity valid at all temperatures derived from Doremus’ ideas of the mediation role of defects (see below the equation (6)).

## 6. Doremus’ (defect) model of viscous flow

Doremus analysed data on diffusion and viscosity of silicates and suggested that diffusion of silicon and oxygen in these materials takes place by transport of SiO molecules formed on dissociation of SiO

_{2}, moreover these molecules are stable at high temperatures and typically results from the vaporization of SiO_{2}[21,22]. He concluded that the extra oxygen atom resulting from dissociation of SiO_{2}leads to five-coordination of oxygen atoms around silicon. The three-dimensional (3D) disordered network of silicates is formed by [SiO_{4}] tetrahedra interconnected via bridging oxygens ≡Si•O•Si≡, where • designates a bond between Si and O, and – designates a bridging oxygen atom with two bonds •O•. The breaking out a SiO molecule from the SiO_{2}network leaves behind three oxygen ions and one silicon ion with unpaired electrons. One of these oxygen ions can bond to the silicon ion. The two other dangling bonds result in two silicon ions that are five-coordinated to oxygen ions. Moreover one of the five oxygen ions around the central silicon ion has an unpaired electron, and it is not bonded strongly to the silicon ion [21,22]. Doremus suggested that this electron hole (unpaired electron) should move between the other oxygen ions similar to the resonance behavior in aliphatic organic molecules. There is experimental evidence for five-coordination of silicon and oxygen at higher pressures in alkali oxide SiO_{2}melts from NMR, Raman and infrared spectroscopy, and evidence for five-coordinated silicon in a K_{2}Si_{4}O_{9}glass at atmosphere pressure [34]. Doremus concluded that in silicates, the defects involved in flow are SiO molecules resulting from broken silicon–oxygen bonds and therefore the SiO molecules and five-coordinated silicon atoms involved in viscous flow derive from broken bonds. The most important in the Doremus’ ideas on the mediating role of broken bonds was the assumption that the defects can agglomerate to form line defects with the fraction of defects molecules in the agglomerates changing with temperature and the relaxation of this fraction to an equilibrium value depending on the time which is consistent with experimental measurements [22]. Although he failed to reproduce the two-exponential equation of viscosity [22] it was later shown [35,36] that the two exponential equation can be derived using Doremus’ ideas.Assuming that viscous flow in amorphous materials is mediated by broken bonds, which can be considered as quasi-particles termed configurons [37], one can find the equilibrium concentrations of configurons:
${C}_{d}={C}_{0}f\left(T\right)$
where
$f(T)=\text{exp}\left(-{G}_{d}/RT\right)/\left[\text{1}+\text{exp}\left(-{G}_{d}/RT\right)\right]$,
${G}_{d}={H}_{d}-T{S}_{d}$
is the formation Gibbs free energy, H
with
where
${D}_{0}=fg{\lambda}^{2}z{p}_{0}{\nu}_{0}$, f is the correlation factor, g is a geometrical factor (~1/6), λ is the average jump length, z is the number of nearest neighbours and p

_{d}is the enthalpy, S_{d}is the entropy and C_{0}is the total concentration of elementary bond network blocks or the concentration of unbroken bonds at absolute zero. The viscosity of an amorphous material can be related to the diffusion coefficient, D, of the configurons which mediate the viscous flow, via the Stokes-Einstein equation $\eta (T)=kT/6\pi rD$, where k is the Boltzmann constant and r is the radius of configuron. The probability of a configuron having the energy required for a jump is given by the Gibbs distribution $w=\text{exp}\left(-{G}_{m}/RT\right)/\left[1+\text{exp}\left(-{G}_{m}/RT\right)\right]$, where ${G}_{m}={H}_{m}-T{S}_{m}$ is the Gibbs free energy of motion of a jumping configuron, H_{m}and S_{m}are the enthalpy and entropy of configuron motion. Thus the viscosity of amorphous materials is directly related to the thermodynamic parameters of configurons by:
$$\eta \left(T\right)={A}_{1}T\left[1+{A}_{2}\text{exp}\left(B/RT\right)\right]\left[1+C\text{exp}\left(D/RT\right)\right]$$

$${A}_{1}=k/6\pi r{D}_{0},{A}_{2}=\text{exp}\left(-{S}_{m}/R\right),B={H}_{m},C=\text{exp}\left(-{S}_{d}/R\right),D={H}_{d}$$

_{0}is a configuration factor.Equation (6) can be fitted to practically all available experimental data on viscosities of amorphous materials. Moreover equation (6) can be readily approximated within a narrow temperature interval by known empirical and theoretical models such as VTF, AG, or a Kohlrausch-type stretched-exponential law. In contrast to such approximations equation (6) can be used in wider temperature ranges and gives correct Arrhenius-type asymptotes of viscosity at high and low temperatures. Equation (6) also shows that at extremely high temperatures when T → ∞ the viscosity of melts changes to a non-activated, e.g. non-Arrhenius behaviour, which is characteristic of systems of almost free particles. The five coefficients A

_{1}, A_{2}, B, C and D in equation (6) can be treated as fitting parameters derived from the experimentally known viscosity data. Having obtained these fitting parameters one can evaluate the thermodynamic data of configurons (e.g. network breaking defects) [38]. Note that although this model involves 5 parameters in the fitting procedure the number of combinations available is very restricted by asymptotical behaviour of viscosity at low and high temperature. Hence from known viscosity-temperature relationships of amorphous materials one can characterise the thermodynamic parameters of configurons. As the number of parameters to be found via fitting procedure is high dedicated Genetic Algorithm were used to achieve the best fit between equation (6) and experimental viscosity data [38]. An example of such evaluation is demonstrated in Figure 3, which shows the best fits for viscosity-temperature data of amorphous SiO_{2}-Na_{2}O systems.**Figure 3.**Viscosity of SiO

_{2}-Na

_{2}O systems where calculated curves were obtained using the equation (6). Note that the VTF equation is also providing a good description of viscosity at such “intermediate” temperatures (see Figure 2).

Using relationships (7) from the numerical data of evaluated parameters A

_{1}, A_{2}, B, C and D which provide the best fit of theoretical viscosity-temperature relationship (7) to experimental data we can find enthalpies of formation and motion and entropies of formation and motion of configurons (bond system) of amorphous materials [38]. Evaluated thermodynamic parameters (enthalpies and entropies of formation and motion) of configurons in a number of amorphous materials are given in Table 3.Equation (6) shows that at low temperatures (T<T

_{g}) the activation energy of viscosity is constant and high Q_{H}=H_{d}+H_{m}whereas at high temperatures (T>T_{g}) the activation energy of viscosity is constant and low Q_{L}= H_{m}. Temperature changes in activation energy of viscosity are thus explained in terms of configuron formation and motion. At low temperatures the activation energy of viscosity takes the full value Q_{H}=H_{d}+H_{m}because the concentration of broken bonds is low. In contrast at high temperatures the activation energy is completely due to the energy needed to transfer a molecule or a configuron from its original position to the adjacent vacant site e.g. Q_{L}= H_{m}. Note that although restricted to Newtonian flow the Doremus’ model of viscosity can in principle describe the behaviour of non-Newtonian materials which change their structure depending on strain characteristics e.g. assuming that both H_{d}and H_{m}are strain rate dependent.## 7. Glass-liquid transition

Amorphous materials can be either solid e.g. glassy (vitreous solids) at low temperatures or liquid at high temperatures. The transition from the glassy to the liquid state occurs at glass transition temperature. Liquid-glass transition phenomena are observed universally in various types of liquids, including molecular liquids, ionic liquids, metallic liquids, oxides, and chalcogenides [7]. There is no long range order in amorphous materials, however at the liquid-glass transition a kind of freezing or transition occurs which is similar to that of second-order phase transformations and which it may be possible to characterise using an order parameter. Amorphous materials can be most efficiently studied by reconstructing structural computer models and analyzing coordination polyhedrons formed by constituent atoms [39].

Amorphous material | H_{d}, kJ mol^{–1} | H_{m}, kJ mol^{–1} | S_{d}/R | S_{m}/R | S_{d}/S_{m} |
---|---|---|---|---|---|

Silica (SiO_{2}) | 237 | 522 | 17.54 | 11.37 | 1.54 |

SLS (mass %): 70SiO_{2} 21CaO 9Na_{2}O | 331 | 293 | 44.03 | 24.40 | 1.8 |

80SiO_{2} 20Na_{2}O | 155 | 207 | 17.98 | 7.79 | 2.31 |

66.7SiO_{2} 33.3PbO | 197 | 274 | 25.40 | 7.3 | 3.48 |

65SiO_{2} 35PbO | 231 | 257 | 30.32 | 8.53 | 3.55 |

59.9SiO_{2} 40.1PbO | 236 | 258 | 31.12 | 6.55 | 4.6 |

B_{2}O_{3} | 258 | 113 | 44.2 | 9.21 | 4.8 |

65SiO_{2} 35Na_{2}O | 300 | 186 | 40.71 | 7.59 | 5.36 |

70SiO_{2} 30Na_{2}O | 258 | 205 | 34.84 | 5.22 | 5.87 |

75.9SiO_{2} 24.1PbO | 262 | 234 | 36.25 | 5.44 | 6.66 |

Germania (GeO_{2}) | 129 | 272 | 17.77 | 2.49 | 7.14 |

75SiO_{2} 25Na_{2}O | 233 | 203 | 30.62 | 4.22 | 7.26 |

Anorthite (CaAl_{2}Si_{2}O_{8}) | 884 | 251 | 79.55 | 0.374 | 213 |

52SiO_{2} 30Li_{2}O 18B_{2}O_{3} | 420 | 194 | 52.06 | 0.227 | 229 |

Salol (HOC_{6}H_{4}COOC_{6}H_{5}) | 145 | 118 | 68.13 | 0.114 | 598 |

α-Phenyl-o-cresol | 172 | 103 | 83.84 | 0.134 | 626 |

Diopside (CaMgSi_{2}O_{6}) | 834 | 240 | 88.71 | 0.044 | 2016 |

The general theoretical description of the topologically disordered glassy state focuses on tessellations [40] and is based on partitioning space into a set of Voronoi polyhedrons filling the space of a disordered material. A Voronoi polyhedron is a unit cell around each structural unit (atom, defect, group of atoms) which contains all the points closer to this unit than to any other and is an analogue of the Wigner-Seitz cell in crystals [1,2,3,40]. For an amorphous material the topological and metric characteristics of the Voronoi polyhedron of a given unit are defined by its nearest neighbours so that its structure may be characterised by a distribution of Voronoi polyhedrons. Considerable progress has been achieved in investigating the structure and distribution of Voronoi polyhedrons of amorphous materials using molecular dynamics (MD) models [39,41,42,43]. MD simulations reveal that the difference between a liquid and glassy state of an amorphous material is caused by the formation of percolation clusters in the Voronoi network: namely in the liquid state low density atomic configurations form a percolation cluster whereas such a percolation cluster does not occur in the glassy state [41]. The percolation cluster made of low density atomic configurations was called a liquid-like cluster as it occurs only in a liquid and does not occur in the glassy state. Nonetheless, a percolation cluster can be envisaged in the glassy state but formed by high density configurations [39,41]. Solid-like percolation clusters made of high density configurations seems to exist in all glass phase models of spherical atoms and dense spheres [39,41]. Thus MD simulations demonstrate that near T

_{g}the interconnectivity of atoms (e.g. the geometry of bonds) changes due to the formation of percolation clusters composed of coordination Voronoi polyhedrons. While these percolation clusters made of Voronoi polyhedrons are more mathematical descriptors than physical objects their formation results in changes in the derivative properties of materials near the T_{g}[39]. The liquid-glass transition is thus characterised by a fundamental change in the bond geometries so that this change can be used to distinguish liquids from glasses although both have amorphous structures [5,6,19,39]. Many models were proposed to examine the transition of a liquid to glass at cooling [see overviews 7, 44-49]. Table 4 outlines several most popular glass transition models.Model | Ordering process | Key concept |
---|---|---|

Free-volume | No | Change in free (excess) volume |

Adam-Gibbs | No | Cooperativity of motion |

Mode-coupling theory | No | Self-trapping (caging) |

Kinetically constrained | No | Mobility defects |

Frustration | Icosahedral ordering in glassy phase | Frustration |

Tanaka’s TOP | Crystallization | Competing ordering (frustration) |

Configuron percolation | Percolation cluster of broken bonds in liquid phase | Broken bond (configuron) clustering |

#### 7.1. Free-volume model

The free-volume model assumes that when a molecule moves by diffusion it has a certain free volume in its surroundings. The additional (free) volume becomes available above T
where V

_{g}in an amount given by:
$${V}_{f}={V}_{f}({T}_{g})+{V}_{g}\mathrm{\Delta}\alpha (T-{T}_{g})$$

_{g}is the molar volume at T_{g}, $\mathrm{\Delta}\alpha $ is the change in the volume expansion coefficient which occur at T_{g}[50, 51]. The decrease in free volume while approaching the glass transition temperature gives an explanation for the increase of viscosity while approaching it. However pressure dependence of the viscosity and negative dT_{g}/dP observed for some liquids are rather difficult to explain by this model and the validity of this assumption is questioned [22, 45, 52]. Known zero and negative values of $\mathrm{\Delta}\alpha $ are untenable for free-volume model as the free volume contraction could not explain production of relative mobile liquids above T_{g}. One should also notion that this model cannot properly describe the mechanical response of amorphous materials, especially the results obtained during a compression test.#### 7.2. Adam and Gibbs model

The Adam and Gibbs model assumes that the lower the temperature the larger number of particles involved in cooperative rearrangements during molecular motion e.g. the dynamic coherence length ξ of molecular motion increases with the decrease of temperature [32]. The structural relaxation time depends on the configurational entropy S
where τ

_{conf}as:
$${\tau}_{\alpha}={\tau}_{0}\text{exp}(\beta C/{S}_{conf})$$

_{0}and C are constants. It is then assumed that ${S}_{conf}\left(T\right)=\mathrm{\Delta}{C}_{p}\left(T-{T}_{V}\right)/T$, where ΔC_{p}is the relaxational part of the specific heat, T_{V}is the Vogel temperature, which results in VTF type equations. Although limited by its application the concept of cooperativity is well describing many aspects of glass transition [45].#### 7.3. Mode-coupling model

The lower the temperature the higher the packing density of an amorphous material. This leads to the stronger memory effect via mode couplings, which induces the self-trapping mechanism in the mode-coupling theory (MCT). The MCT describes this self-trapping based on a non-linear dynamical equation of the density correlator [48,53,54]. The glass transition in MCT is a purely dynamic transition from an ergodic state which occurs at high tempratures to a non-ergodic state at low temperatures. This transition corresponds to a bifurcation point of non-linear equations of motion for density fluctuations when an infinite cluster of completely caged particles is formed. The transition from an ergodic to a nonergodic state occurs at the so-called mode-coupling temperature T

_{c}, which for typical glass formers is T_{c}~ 1.2T_{g}. For T < T_{c}the density correlation function develops a non-zero value in the long-time limit (a finite value of the Edwards–Anderson order parameter). The MCT describes fast β relaxation as resulting from rapid local motion of molecules trapped inside cages, while the slow process of the breakup of a cage itself leads to the α relaxation. However analysis shows that there are no critical singularities above the glass-transition temperature in contrast to the MCT prediction [45] e.g. there is no singular behavior of viscosity at T_{c}. Moreover there are no heterogeneities in MCT whereas these are observed experimentally [45]. Trap models which similarly to MCT regard the glass transition as a dynamic transition consider the distribution of the waiting time of a particle in a random potential so that particles are either trapped in cages formed by their neighbors or jump by thermal activated rearrangements [45].#### 7.4. Tanaka’s two-order-parameter (TOP) model

The two-order-parameter (TOP) model is based on an idea that there are generally two types of local structures in liquid: normal-liquid structures (NLS) and locally favored structures (LFS). The liquid is an inhomogeneous disordered state which has LFS created and annihilated randomly (in some cases, cooperatively) in a sea of random NLS. A supercooled liquid which is a frustrated metastable-liquid (the Griffiths-phase-like) state is in a dynamically heterogeneous state composed of metastable solid-like islands, which exchange with each other dynamically at the rate of the structural (α) relaxation time [45,55,56] (Figure 4).

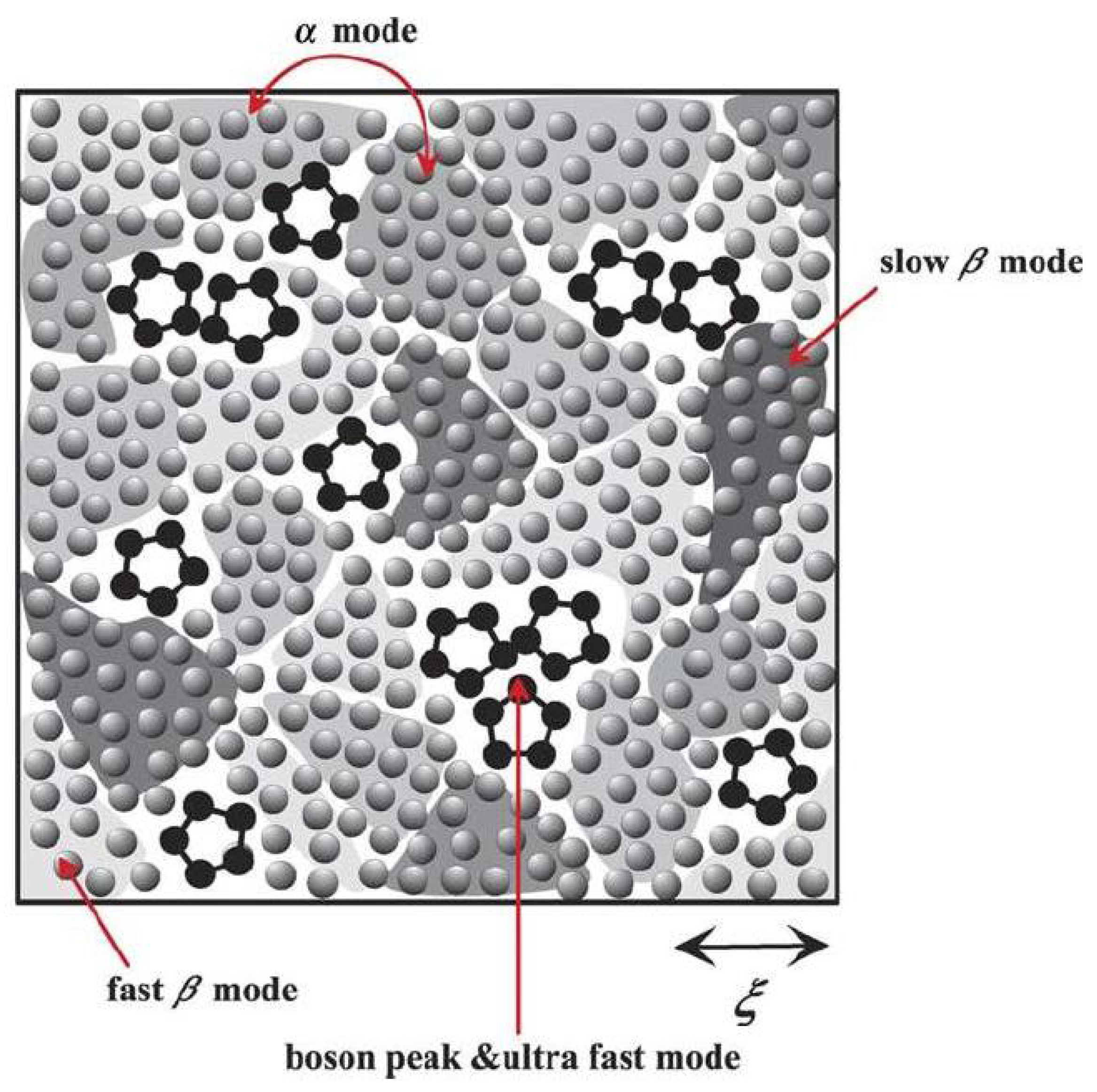

**Figure 4.**Schematic figure of a supercooled liquid state below melting temperature. LFS - black pentagons, NLS - gray spheres. Shaded region represent metastable islands with various degrees of crystal-like order, whose characteristic coherence length is ξ. The darker the colour the higher the crystal-like order and the higher the local density [55]. Courtesy Hajime Tanaka.

Actual liquids universally have a tendency of spontaneous formation of LFS. The liquid–glass transition in TOP model is controlled by the competition between long-range density ordering toward crystallization and short-range bond ordering toward the formation of LFS due to the incompatibility in their symmetry. Because of this TOP model regards vitrification as phenomena that are intrinsically related to crystallization in contrast to previous models, which regarded vitrification as a result of a homogeneous increase in the density and the resulting cooperativity in molecular motion or the frustration intrinsic to a liquid state itself. TOP model defines the calorimetric glass-transition temperature T
where β=1/k

_{g}as the temperature where the average lifetime of metastable islands exceeds the characteristic observation time. The mechanical and volumetric glass-transition temperature is the temperature where metastable islands, which have a long enough lifetime comparable to the characteristic observation time, do percolate [55]. The degree of cooperativity in TOP model is equal to the fraction of metastable solid-like islands e.g. TOP model operates with two-states: NLS and metastable solid-like islands [55]. The metastable solid-like islands in TOP model have characteristic nm size ~ξ and are considered as resulting from random first-order transition. The lifetime of metastable islands has a wide distribution with the average lifetime equal to the structural relaxation time. The boson peak corresponds to the localized vibrational modes characteristic of the LFS and their clusters. The fast β mode results from the motion of molecules inside a cage, while the slow β mode from the rotational vibrational motion inside a cage within metastable islands. LFS impede crystallization because their symmetry is not consistent with that of the equilibrium crystal. Due to random disorder effects of LFS a liquid enters into the Griffiths-phase-like metastable frustrated state below the melting point, T_{m}, where its free energy has a complex multi-valley structure, which leads to the non-Arrhenius behavior of the structural relaxation. The crossover from a non-cooperative to a cooperative regime TOP model describes by the fraction of the metastable solid-like islands given by the crossover function $f(T)=1/\text{exp}[\kappa (T-{T}_{m}^{c})]$, where κ controls the sharpness of transition. The NLS are favoured by density order parameter, ρ, which increases the local density and leads to crystallization, while the LFS are favoured by bond order parameter, $\overline{S}$, which results from the symmetry-selective parts of the interactions and increases the quality of bonds. The average fraction of LFS ($\overline{S}$) is given by
$$\overline{S}\cong \left({g}_{S}/{g}_{\rho}\right)\text{exp}[\beta (\mathrm{\Delta}E-P\mathrm{\Delta}\upsilon )$$

_{B}T, k_{B}is the Boltzmann’s constant, P is the pressure, ΔE and $\mathrm{\Delta}\upsilon $ are the energy gain and the volume change upon the formation of a LFS, g_{S}and g_{ρ}are the degrees of degeneracy of the states of LFS and NLS, respectively. It is assumed that g_{S}>> g_{ρ}and ΔE > 0. $\mathrm{\Delta}\upsilon $ can be either positive or negative depending upon material e.g. $\mathrm{\Delta}\upsilon >0$ for liquids with tetrahedral units. NLS have many possible configurations as well as various bonding states compared with the unique LFS and there is a large loss of entropy upon the formation of a LFS, which is given by
$$\mathrm{\Delta}\sigma ={k}_{B}\text{ln}({g}_{S}/{g}_{\rho})$$

NLS is a short-lived random structure whereas LFS a long-lived rigid structural element. The lifetime of a LFS can be estimated as
where
${\tau}_{\alpha}^{0}$
is the structural relaxation time of NLS and
$\mathrm{\Delta}{G}_{S}$
is the energy barrier to overcome upon the transformation from a LFS to a NLS. TOP model defines fragility by fraction of LFS: the larger
$\overline{S}$
the stronger (less fragile) the liquid. An example of conclusion drawn from TOP model is the increases the fragility of SiO

$${\tau}_{LFS}={\tau}_{\alpha}^{0}\text{exp}(\beta \mathrm{\Delta}{G}_{S})$$

_{2}upon the addition of Na_{2}O, e.g. the higher the Na_{2}O content the higher the fragility which conform the experimental data (see Figure 3). Na_{2}O acts as a network modifier breaking the Si-Si links via bridging oxygens. Tanaka proposed that Na_{2}O destabilizes the LFS, e.g. that Na_{2}O is the breaker of LFS, probably, the 6-member ring structures of SiO_{2}. Since Na_{2}O reduces the number density of LFS ($\overline{S}$), it increases the fragility of SiO_{2}and weaken the boson peak [56]. LFS impede crystallization because their symmetry is not consistent with that of the equilibrium crystal. A similar idea was exploited by Evteev et. al. to explain vitrification of amorphous metals [39,57]. In addition strong liquids should be more difficult to crystallize than fragile below T_{g}[58].#### 7.5. Frustration models

Local energetically preferred structures over simple crystalline packing impede crystallization because their symmetry is not consistent with that of the equilibrium crystal, e.g. frustrated over large distance. Frustration models assume that the glass transition is a consequence of the geometric frustration [59,60,61,62]. Typically icosahedron is the most compact and stable from the energy point of view among all coordination polyhedrons encountered in both ordered and disordered densely packed structures such as amorphous metals. E.g. Kivelson et al. [61,62] considered frustration of an icosahedral structure which is the low-symmetry reference state, into which a liquid tends to be ordered, and ascribed the glass transition to an avoided critical point of a transition between a liquid and an ideal icosahedral structure. The Hamiltonian used e.g. in [61,62] was similar to that of Steinhardt et al. [60]
where J

$$H=-{J}_{S}{\displaystyle \mathrm{\sum}_{i,j}}{\overrightarrow{S}}_{i}\cdot {\overrightarrow{S}}_{j}+{K}_{S}{\displaystyle \mathrm{\sum}_{i\ne j}}{\overrightarrow{S}}_{i}\cdot {\overrightarrow{S}}_{j}/\left|{\overrightarrow{R}}_{i}-{\overrightarrow{R}}_{j}\right|$$

_{S}and K_{S}are both positive. The first term which is a short-range ferromagnetic interaction favours long-range order of the locally preferred structure, while the second term which is a long-range antiferromagnetic interaction is responsible for the frustration effects. The ordering is thus prevented by internal frustration of the order parameter itself as in other frustration models.Using MD simulations Evteev et. al. [39] showed that in the process of fast cooling of melt iron the fraction of atoms for which the coordination polyhedron is an icosahedron (the Voronoy polyhedron is a dodecahedron) increases most intensely. Moreover formation of a percolation cluster from mutually penetrating and contacting icosahedrons with atoms at vertices and centres provides stabilization of the amorphous phase and impedes crystallization during fast cooling of Fe from melt [39,57]. Evteev et. al. showed that glassy phase forms at the glass transition temperature based on a percolation cluster of mutually penetrating icosahedrons contacting one another, which contain atoms at the vertices and at the centres (Figure 5). A fractal cluster of icosahedrons incompatible with translational symmetry plays the role of binding carcass hampering crystallization and serves as the fundamental basis of structural organization of the glassy (solid amorphous state) of iron, which basically distinguishes it from the melt. Note that the results obtained in [39,57] have generic implications and are not restricted to Fe.

#### 7.6. Kinetically constrained models

Kinetically constrained models consider slow dynamics as of a purely kinetic origin [45,63] where dynamical constraints appear below a crossover temperature T
relates the glass transition temperature T
where
${\nu}_{ph}$
is a typical vibrational frequency roughly 10
where q and q’ are ionic charges, r
where P is pressure, Hunt obtained an excellent description of pressure dependence of the glass transition temperature T
where a is a constant, l is a typical hopping length and L is the pore size. In addition Hunts explained application of Ehrenfest theorems to the glass transition [67].

_{o}, or above a corresponding packing fraction so that above T_{o}the dynamics is liquid-like whereas below T_{o}the dynamics becomes heterogeneous. Hunt for example defined the glass as a supercooled liquid, whose time scale required for equilibration is a percolation relaxation time and derived the glass transition temperature from equalizing the relaxation time τ_{c}to the experimental time taken arbitrary as t_{exp}=100 s [64]. Hunt’s equation
$${T}_{g}\cong {E}_{m}/18{k}_{B}$$

_{g}with the peak energy in the distribution of hoping barrier heights E_{ij}of individual relaxation processes
$${\tau}_{ij}={\nu}_{ph}^{-1}\text{exp}({E}_{ij}/{k}_{B}T)$$

^{12}Hz. Using the Coulomb attraction between opposite charges and Lennard-Jones repulsive interaction Hunt obtained an estimation for E_{m}:
$${E}_{m}\approx q{q}^{\prime}/4\pi \epsilon {}_{0}\epsilon r_{0}$$

_{0}is the equilibrium interionic distance minimizing the interaction potential, and ε is the macroscopic dielectric constant. Accounting that on pressure application the internal pressure changes to
$$U=-q{q}^{\prime}/4\pi \epsilon {}_{0}\epsilon r+(q{q}^{\prime}/48\pi \epsilon {}_{0}\epsilon r_{0}){({r}_{0}/r)}^{12}+P({r}^{3}-{r}_{0}^{3})$$

_{g}(P) in ionic liquids [52,65]. Moreover this approach gave an explanation of reduced glass transition temperature by confinement in small pores [66]:
$${T}_{g}(\infty )-{T}_{g}(L)=a(l/L)$$

**Figure 5.**The structure of amorphous iron resulting from molecular dynamics simulations [39]. A) The size of the largest cluster formed by clustered icosahedrons with the temperature Ti. B) Projections of the largest cluster formed by clustered icosahedrons onto one of the faces of the computational cell at temperatures 1200 K (2) and 1180 K (5). Courtesy Alexander Evteev.

## 8. Configuron percolation model

The transition of a liquid to a glass has many features of second-order phase transition. Second order phase transformations are characterised by symmetry change. The translation-rotation symmetry in the distribution of atoms and molecules remains unchanged at the liquid-glass transition, which retains the topological disorder of fluids. What kind of symmetry is changed at glass-liquid transition? To answer to this question is expedient to consider the distribution of bonds instead of atoms and to focus the attention on topology of broken bonds at glass-liquid transition [5,6,19,38].

Consider an ideal disordered network representing an oxide system such as amorphous SiO

_{2}or GeO_{2}. Using Angell’s bond lattice model [37] we can represent condensed phases by their bond network structures. Thus we can focus the attention on temperature changes that occur in the system of interconnecting bonds of a disordered material rather than of atoms. In this approach the initial set of N strongly interacting cations such as Si^{+4}or Ge^{+4}is replaced by a congruent set of weakly interacting bonds of the system. The number of bonds will be N_{b}=NZ where Z is the coordination number of cations e.g. Z=4 for SiO_{2}and GeO_{2}. For amorphous materials which have no bridging atoms such as amorphous Fe, Si or Ge, N_{b}= NZ/2. Figure 6a and 6b illustrate schematically the replacement of a disordered atomic structure by the congruent bond structure.At absolute zero temperature T=0 there are no broken bonds (Figure 6b), however at any finite temperature T there are thermally-activated broken bonds e.g. configurons (Figure 6c). Compared with a crystal lattice of the same material the disordered network typically contains significantly more point defects such as broken bonds or vacancies. For example, the relative concentration of vacancies in crystalline metals just below the melting point is only 10

^{-3}– 10^{-4}[2, 68]. The energetics of the disordered net are weaker and point defects can be formed more easily than in crystals of the same chemical composition. The difference appears from the thermodynamic parameters of disordered networks. The formation of configurons is governed by the formation Gibbs free energy G_{d}. Temperature-induced formation of configurons in a disordered network can be represented by a reaction involving the breaking of a joining bond, e.g. in amorphous silica $\equiv Si\u2022O\u2022Si\equiv \stackrel{T}{\to}\equiv Si\circ O\u2022Si\equiv $ The higher the temperature the higher the concentration of thermally-created configurons. Because the system of bonds has two states, namely the ground state corresponding to unbroken bonds and the excited state corresponding to broken bonds, it can be described by the statistics of two-level systems and the two states of the equivalent system are separated by the energy interval G_{d}[36]. The statistics of two level systems leads to the well-known relationship for equilibrium concentrations of configurons C_{d}and unbroken bonds C_{u}[36,69].
$${C}_{d}={C}_{0}f(T),{C}_{u}={C}_{0}[1-f(T)],f(T)=\text{exp}(-{G}_{d}/RT)/[\text{1}+\text{exp}(-{G}_{d}/RT\text{)]}$$

At absolute zero temperature C

_{u}(0)=C_{0}. At temperatures close to absolute zero the concentration of configurons is very small $f(T)\to 0$. These are homogeneously distributed in the form of single configurons in the disordered bond network. Configurons motion in the bond network occurs in the form of thermally-activated jumps from site to site and in this case all jump sites are equivalent in the network. The network thus can be characterised as an ideal 3-D disordered structure which is described by a Euclidean 3-D geometry. As the temperature increases the concentration of configurons increases. The higher the temperature the higher the concentration of configurons and hence some of them inevitably will be in the vicinity of others. Two and more nearby configurons form clusters of configurons and the higher the concentration of configurons the higher the probability of their clustering (Figure 6d). The higher the temperature the larger are clusters made of configurons in the disordered bond network. As known from the percolation theory when the concentration of configurons exceeds the threshold level they form a macroscopic so-called percolation cluster, which penetrates the whole volume of the disordered network [70,71]. The percolation cluster made of broken bonds forms at glass transition temperature (Figure 7) and grows in size with the increase of temperature.**Figure 6.**Schematic of disordered bond lattice model of an amorphous material: (a) distribution of atoms in amorphous phase at T=0; (b) distribution of bonds in amorphous phase at T=0; (c) distribution of bonds in amorphous phase at T

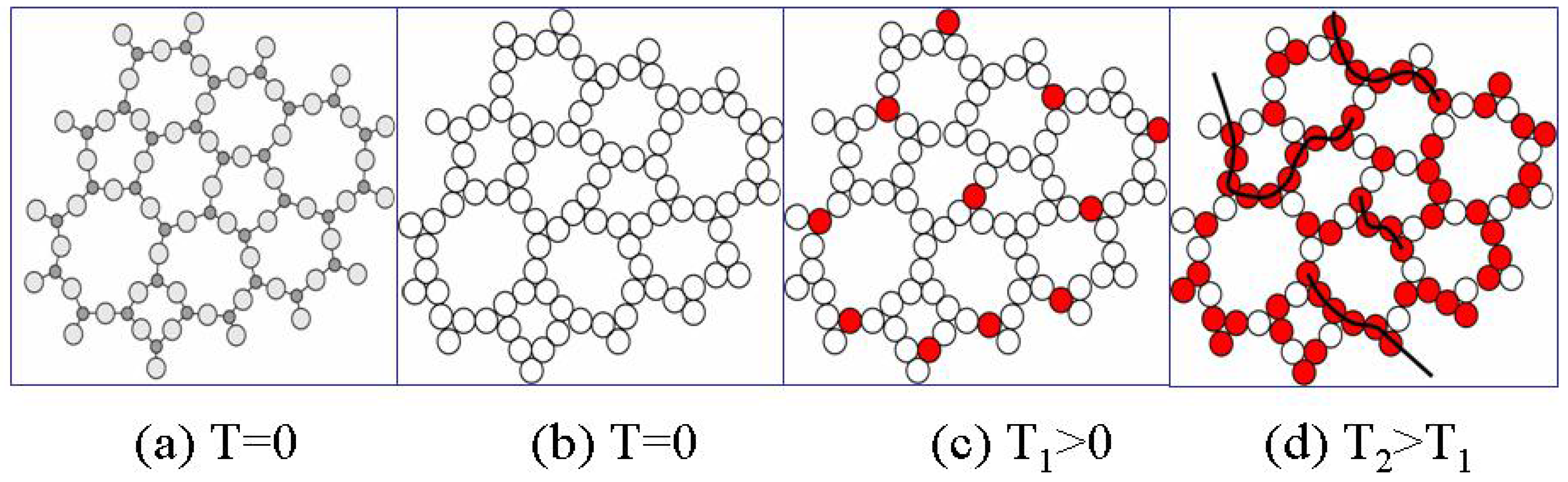

_{1}>0; (d) distribution of bonds in amorphous phase at higher temperatures T

_{2}>T

_{1}when configuron clustering occurs.

As configurons are moving in the disordered network the percolation cluster made of broken bonds is a dynamic structure which changes its configuration remaining however an infinite percolation cluster. The percolation cluster is made entirely of broken bonds and hence is readily available for a more percolative than a site-to-site diffusive motion of configurons. Hence above the percolation level the motion of configurons in the bond network occurs via preferred pathways through the percolation cluster. As the percolation cluster is fractal in dimension the bond system of an amorphous material changes its Hausdorff - Besikovitch dimensionality from Euclidian 3 below T

_{g}(where the amorphous material is solid), to fractal 2.55±0.05 above T_{g}, where the amorphous material is liquid [5, 6, 19]. As the bond network of an amorphous material is disordered the concentration of configurons at which the percolation threshold is achieved can be found using the universal critical percolation density ${f}_{c}$, which remains the same for both ordered and disordered lattices [70, 71]. The relative concentration of broken bonds is given by $f(T)={C}_{d}/{C}_{0}$ which shows that the higher the temperature the higher is $f(T)$. Assuming that at ${C}_{d}/{C}_{0}=1$ the space is completely filled by configurons one can designate $f(T)$ as the volume fraction of space occupied by configurons. Thus the critical (glass-transition) temperature T_{g}at which the percolation level is achieved can be found assuming that the configurons achieve the universal critical density given by the percolation theory
$$f({T}_{g})={f}_{c}$$

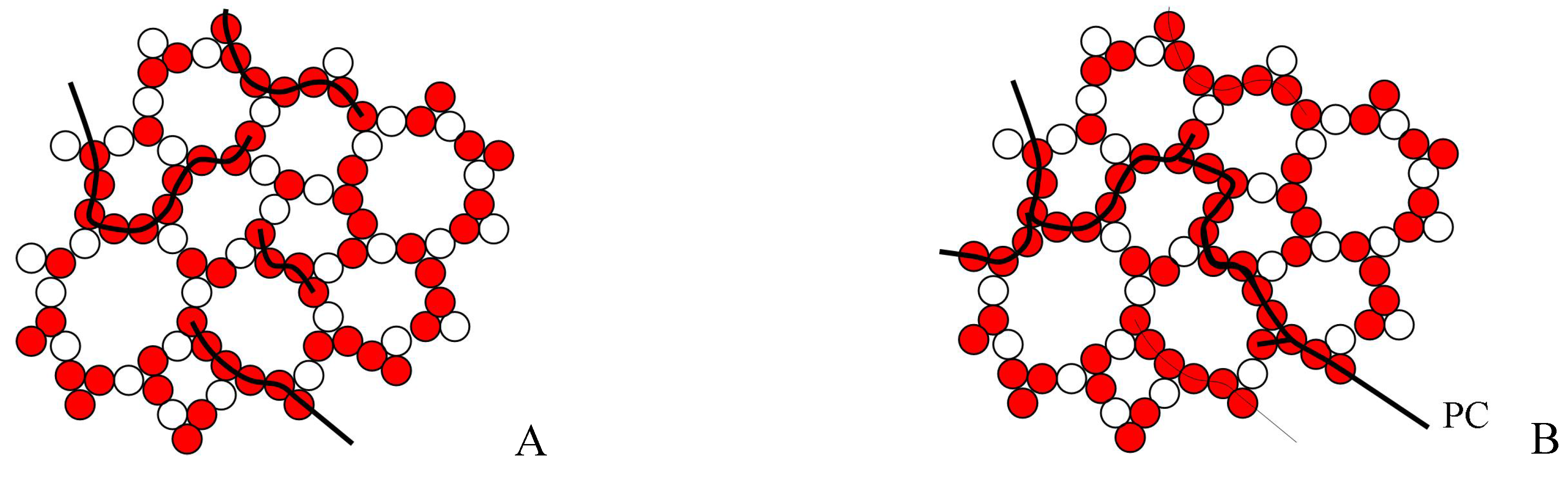

**Figure 7.**Schematic of disordered bond lattice model of an amorphous material below (A) and above (B) the glass transition temperature. PC – percolation cluster made of broken bonds.

For SiO

_{2}and GeO_{2}it was supposed that ${f}_{c}={\vartheta}_{c}$ where ${\vartheta}_{c}$ is the Scher-Zallen critical density in the 3-D space ${\vartheta}_{c}=0.15\pm 0.01$ [70,71,72]. For many percolating systems the value of ${f}_{c}$ can be significantly lower [71]. At temperatures above T_{g}the space is filled by configurons at concentrations which exceed the critical density ${f}_{c}$ therefore they form the percolation cluster with fractal geometry changing the state of material from solid-like (glass) to liquid-like. This leads to the following equation of glass transition temperature [5,6,19]:
$${T}_{g}={H}_{d}/\left[{S}_{d}+R\text{ln}[(1-{f}_{c})/{f}_{c}]\right]$$

Note that because S

_{d}>>R this equation can be simplified to T_{g}≈ T_{gD}=H_{d}/S_{d}, which is an analogue of Diennes ratio used to assess the melting temperatures of crystalline solids. Below T_{g}the configurons are uniformly distributed in space and formation of clusters is improbable. The geometry of network defects in this area can be characterised as Euclidean. With increase of temperature at T=T_{g}, the concentration of defects achieves the critical concentration for formation of a percolation cluster. Above T_{g}a percolation cluster made of configurons is formed and the geometry of the network becomes fractal. Equation (21) gives excellent data for glass transition temperatures [5, 6, 19, 38]. Note that the glass transition temperature (21) adiabatically depends on thermal history for several reasons: (i) during cooling a part of material is inevitable crystallised, (ii) configurons need a certain time to relax to their equilibrium sizes and (iii) the enthalpy of configuron formation depends on overall structural state of amorphous material including its quenched density which can be assessed from equation [36]: ${H}_{d}\approx {q}_{1}{q}_{2}{e}^{2}/\epsilon {d}_{a}N$, where q_{z}is the valence of the cation-anion pair, e is the standard unit of charge, d_{a}is the average bond distance, N is the coordination number, and ε is the dielectric constant of the glass which depends on the thermal history. This estimation is similar to Hunt’s assessment (14) [65].The characteristic linear scale which describes the branch sizes of clusters formed by configurons is the correlation length ξ(T). Below the T

_{g}the correlation length gives characteristic sizes of clusters made of confugurons whereas above the T_{g}it shows characteristic sizes of clusters made of unbroken bonds e.g. atoms. ξ(T) gives the linear dimension above which the material is homogeneous e.g. a material which has on average uniformly distributed configurons or atoms. At sizes smaller compared ξ(T) the amorphous material is inhomogeneous e.g. has a fractal geometry [70,71]. Because of formation of percolation cluster the material has a fractal geometry at lengths smaller than ξ(T).The fractal dimension of percolation clusters is d
where the critical exponent ν=0.88 [70,71]. Finite size effects in the glass transition are described as a drift to lower values of T

_{f}=2.55±0.05. At temperatures far from T_{g}the correlation length is small whereas at temperatures approaching T_{g}it diverges:
$$\xi (T)={\xi}_{0}/{\left|f(T)-{f}_{c}\right|}^{\nu}$$

_{g}when sample sizes L decrease [6]:
$${T}_{g}(\infty )-{T}_{g}(L)=0.1275{T}_{g}(R{T}_{g}/{H}_{d}){({\xi}_{0}/L)}^{1.136}$$

One can see that this expression conforms well with eq. (18) e.g. Hunt’s results [66]. The heat capacity per mole of configurons involved in the percolation cluster near T
where
${T}_{1}=R{T}_{g}^{2}/{\theta}_{c}(1-{\theta}_{c}){H}_{d}$, P
where ΔV

_{g}: was found as [6,19]
$${C}_{p,conf}=R{\left({H}_{d}/RT\right)}^{2}f(T)[1-f(T)]\left(1+\beta {P}_{0}(\mathrm{\Delta}H/{H}_{d}){T}_{1}^{1-\beta}/{\left|T-{T}_{g}\right|}^{(1-\beta )}\right)$$

_{0}is a numerical coefficient close to unity e.g. for strong liquids P_{0}=1.0695, and ΔH<<H_{d}is the enthalpy of bonding of configurons in the percolation cluster. The configuron model of glass transition shows that the linear expansion coefficient near the T_{g}behaves as [6]:
$${\alpha}_{conf}={N}_{b}(\mathrm{\Delta}V{}_{0}H_{d}/VR{T}^{2})f(T)[1-f(T)]\left(1+\beta {P}_{0}(\mathrm{\Delta}H/{H}_{d}){T}_{1}^{1-\beta}/{\left|T-{T}_{g}\right|}^{(1-\beta )}\right)$$

_{o}/V is the relative change of volume per one broken bond. One can observe hence that both thermal expansion coefficient and heat capacity show divergences near T_{g}proportional to $\propto 1/{\left|T-{T}_{g}\right|}^{0.59}$ [6,19].Complex oxide systems are typically fragile. These are described by a modified random network model comprising network modifying cations distributed in channels and the value of
${f}_{c}$
in these systems is significantly lower compared strong materials as can be seen from Table 5 [38].

Amorphous material | R_{D} | T_{g}/K | f_{c} |
---|---|---|---|

Silica (SiO_{2}) | 1.45 | 1475 | 0.15 |

Germania (GeO_{2}) | 1.47 | 786 | 0.15 |

SLS (mass%): 70SiO_{2} 21CaO 9Na_{2}O | 2.16 | 870 | 1.58 × 10^{–3} |

B_{2}O_{3} | 3.28 | 580 | 9.14 × 10^{–5} |

Diopside (CaMgSi_{2}O_{6}) | 4.51 | 978 | 6.35 × 10^{–7} |

Anorthite (CaAl_{2}Si_{2}O_{8}) | 4.52 | 1126 | 3.38 × 10^{–7} |

Data from Table 5 show that the higher fragility ratio, the lower the threshold for the formation of percolation clusters of configurons in the material. There is a direct anti-correlation between the fragility ratio and configuron percolation threshold which determines the glass transition temperature. Networks that exhibit only small changes in the activation energy for flow with temperature form percolation clusters of configurons at the classical Scher-Zallen critical density. In contrast fragile liquids, which are characterised by a higher density of configurational states, have a very low percolation threshold which decreases with increasing fragility.

Angell interpreted strong and fragile behaviour of liquids in term of differences in topology of the configuration space potential energy hypersurfaces [27]: e.g. fragile materials have a higher density of configurational states and hence a higher degeneracy leading to rapid thermal excitations. In the bond lattice model of amorphous materials the system of strongly interacting ions is replaced by a congruent set of weakly interacting bonds. The glass transition is related in this model with formation of percolation clusters made of configurons and change of bond Hausdorff-Besikovitch dimension [5, 6]. The diminishing values of configuron percolation thresholds can be interpreted in term of configuron size or delocalisation. It is deemed that in fragile materials the configurons are larger e.g. delocalised, moreover the higher the fragility ratio the larger the effective configuron radius and its delocalisation. Due to configuron delocalisation the liquid-glass transition, which is associated with the increase of bond Hausdorff-Besikovitch dimension from
${d}_{f}=2.55\pm 0.05$
to 3, occurs in fragile materials at lower percolation threshold compared strong liquids. The effective configuron radius,
${r}_{c}$, can be assessed from equation:
where
${r}_{d}$
is the bond radius (half of bond length). E.g. the effective volume of a configuron is
${V}_{c}={V}_{d}{\vartheta}_{c}/{f}_{c}$, where V

$${r}_{c}={r}_{d}{({\vartheta}_{c}/{f}_{c})}^{1/3}$$

_{d}is the volume of an instantaneous or non-relaxed configuron, ${\vartheta}_{c}$ is the universal critical density in the 3-D space (Scher-Zallen invariant) and ${f}_{c}$ is found by comparing the actual glass transition temperature with that given by Eq. (21). For strong materials ${f}_{c}={\vartheta}_{c}$ and thus the configuron radii are equal to bond radii. Strong materials such as silica have small radii configurons localised on broken bonds and because of that they should show a smaller dependence on thermal history which conforms to experimental findings [73]. In fragile materials the effective configuron radii considerable exceed bond radii, ${r}_{c}>>{r}_{d}$. For example B_{2}O_{3}with fragility ratio R_{D}=3.28 has ${r}_{c}=11.79{r}_{d}$ which is due to its specific structure. Both crystalline and vitreous boron oxide consists of planar oxygen triangles centred by boron most of which accordingly to X-ray diffraction data are arranged in boroxol rings (see [7]). The two dimensional nature of the B_{2}O_{3}network means that the third direction is added by crumbling of the planar structures in a three-dimensional amorphous boric oxide which result in effective large size configuron compared bond length. Another example is for polymers where the mobile entities are much mole complex compared oxides. This results in percolation thresholds ${f}_{c}$ dependent on the geometry of involved entities and relative large radii configurons, which are considered spherically symmetric. Note that in this paper consideration is restricted to simple and fairly isotropic entities.## 9. Order parameter and symmetry changes at glass transition

The percolation cluster is also called an infinite cluster as it penetrates the whole volume of material which as a result drastically changes its physical properties from solid-like below to fluid-like above the percolation threshold. The geometry of a percolation cluster at least near the percolation threshold is fractal with the Hausdorff-Besikovitch dimension
${d}_{f}=d-\beta /\nu $, where β and ν are critical exponents (indexes) and d=3 is the dimension of the space occupied by the initial disordered network, so that
${d}_{f}=2.55\pm 0.05$. The formation of percolation cluster changes the topology of bonds network from the 3-D Euclidean below to the fractal
${d}_{f}$-dimensional above the percolation threshold. An amorphous material is represented by a disordered bond network at all temperatures, however it has a uniform 3-D distribution of network breaking defects at low concentrations in a glassy state and a fractal
${d}_{f}$-dimensional distribution at high enough temperatures when their concentration exceeds the percolation threshold in the liquid state.

Changes that occur in the geometries of amorphous material at T

_{g}affect their mechanical properties. Above T_{g}as the geometry is fractal as in liquids [43] the mechanical properties are similar to those of liquids. The structure of material remains disordered at all temperatures although the space distribution of configurons as seen above is different below and above the percolation threshold changing the geometry from the Euclidean to fractal. Although to a certain extent being disordered at all temperatures the bond structure above the percolation threshold becomes more ordered as a significant fraction of broken bonds e.g. configurons belong to the percolation cluster. Such a behaviour conform the notion of joint consideration of the whole system to characterise properly the ordering [74]. The density of the percolation cluster of configurons, φ, can serve as the order parameter [6,75] and for the liquid phase it has non-zero values whereas for the glassy phase φ=0 (Figure 8).Second-order phase transitions in ordered substances are typically associated with a change in the crystal lattice symmetry, and the symmetry is lower in the ordered phase than in the less ordered phase [76]. In the spirit of Landau’s ideas, the transition from a liquid to a glass spontaneously breaks the symmetry of bonds. The description of a second-order phase transition as a consequence of a change in symmetry is given by the Landau–Ginzburg theory [76]. The order parameter φ, which equals zero in the disordered phase and has a finite value in the ordered phase, plays an important role in the theory of second-order phase transitions. For a glass–liquid transition, which is similar to second order phase transformations, the density of the percolation cluster of configurons is an order parameter [6].

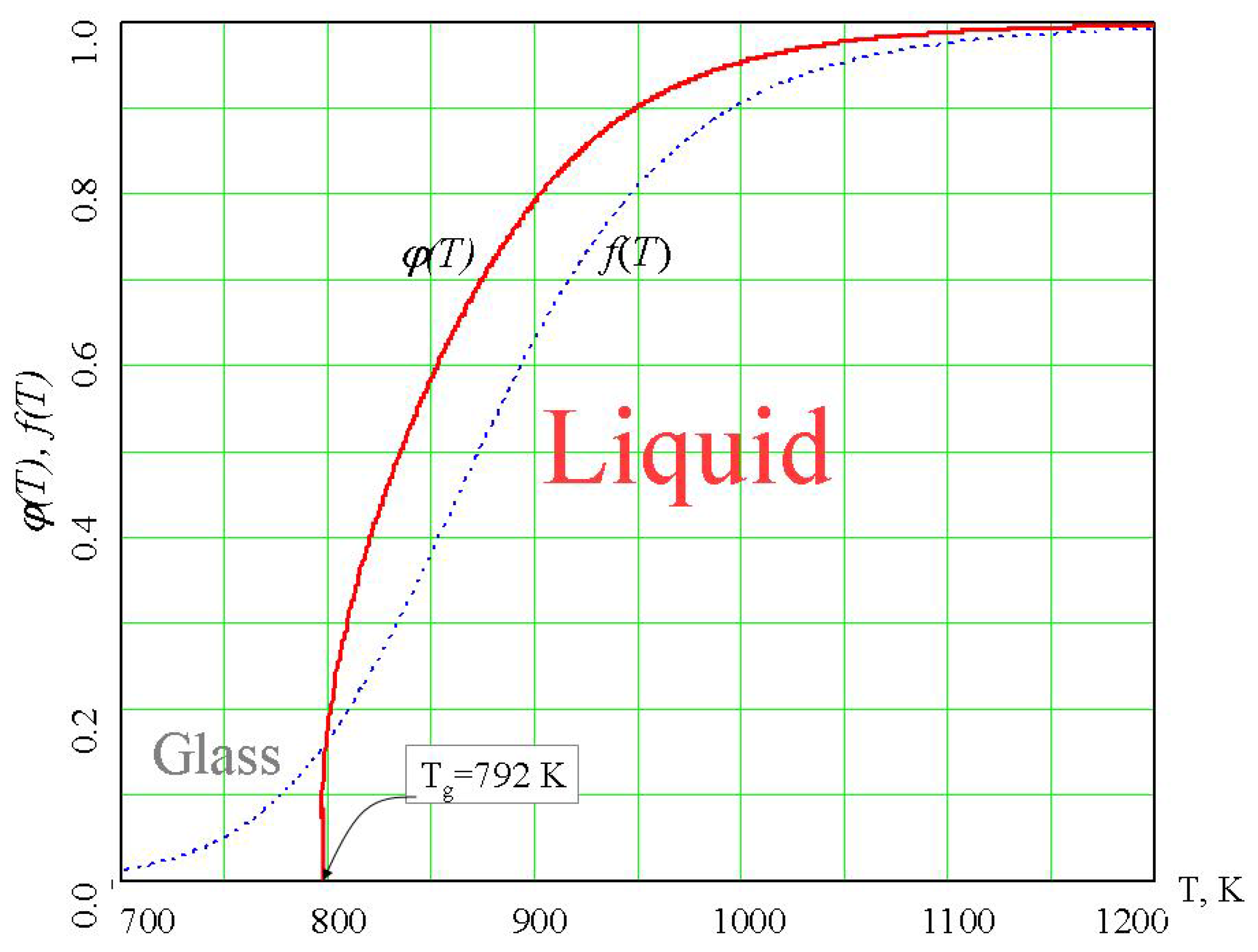

**Figure 8.**Temperature dependence of the order parameter of configurons φ(T) in amorphous GeO

_{2}[6].

Crystalline materials are characterised by 3-D Euclidean geometries below their melting point T

_{m}. Thus both glasses below T_{g}and crystals below T_{m}are characterised by the same 3-D geometry. Glasses behave like isotropic solids and are brittle. Because of the 3-D bond geometry glasses break abruptly and the fracture surfaces of glasses typically appear flat in the ‘‘mirror’’ zone. Glasses change their bond geometry at T_{g}. When melting occurs the geometry of crystalline materials also changes, as revealed by MD experiments to fractal structure with d_{f}≈2.6 [43]. It is also known that emulsion particles have homogeneous fractal distribution in liquids and the fractal dimension of emulsions is d_{f}=2.5±0.1 [77]. With the increase of temperature the clusters of configurons grow in size whereas clusters of atoms decrease their sizes. Finally when no unbroken bonds remain in the system the material is transformed to a gaseous state. Therefore for the system of bonds the phase changes can be represented by the consequence of changes of Hausdorff dimension D=3 (solid) → d_{f}=2.55±0.05 (liquid) → d = 0 (gas). Figure 9 illustrates symmetry changes at phase transitions of water.## 10. Relaxation effects and thermal history dependence of glass-liquid transition

Formation of a configuron involves breaking of a bond followed by strain relaxation effects in the lattice near the broken bond. The instantaneous breakage of a bond introduces a non-equilibrated configuron of initial volume V

_{d}which will evolve with time typically becoming more extended in space than the initial bond in the random bond lattice. The nature of this relaxation is governed by structural changes and its characteristic timescale is governed by Maxwell relaxation time ${\tau}_{M}=\eta /{G}_{\infty}$, where η is the viscosity and G_{∞}is the shear modulus. At the glass-liquid transition Maxwell relaxation time has the order of 10^{2}– 10^{3}s [18,44]. Depending on cooling conditions the configuron can achieve its equilibrium radius r_{c}or retain the radius r_{c}(t) which corresponds to the actual structure frozen. E.g. in systems cooled rapidly compared to τ_{M}we can be at conditions where a fictive temperature should be used in order to characterise correctly the processes occurring [44,78].Consider how structure relaxation near broken bonds can affect the configuron effective volumes (radii) and then the glass transition temperature. Bond breaking or formation processes induce in the bond lattice instantaneous stresses and strains which relax with time. Relaxation of the structure near a broken bond involves adjusting the motions of atoms in its vicinity. These effects can be described using either a multi-body approach or in a continuous medium approximation. In the latter case they are similar to processes such as formation and collapse of a bubble or a pore [79,80,81]. The dynamic (formation and collapse) of a bubble in a liquid is described by the Rayleigh-Plesset equation for the bubble radius [79,80]. The Rayleigh-Plesset equation however has no analytical solutions in viscous media but is analytically integrable in the case of void bubbles when the ambient hydrostatic pressure is absent [82]. In low viscosity liquids bubble volume (radius) follows the Rayleigh solution V ~ t
with m <1 near the glass transition. Here ΔV = (V

^{6/5}(r ~ t^{2/5}) [79] whereas for very viscous liquids viscous damping follows a smooth (viscous damping) decrease of bubble radius [82], which can be expressed as V ~ t^{m}, where as the viscosity increases the exponent m becomes smaller m<1. Numerical study of bubble growth in liquids has also shown that the bubble growth proceeds much slower if the viscosity is higher [81]. Based on solutions of Navier-Stokes equations we can assume that for times t ≤ τ_{M}, e.g. at cooling rates q > q_{0}= ΔT/τ_{M}, where ΔT is the temperature drop, the configuron volume changes with time from its instantaneous volume V_{d}to the relaxed one V_{c}, approximately as:
$${V}_{c}(t)={V}_{d}+\mathrm{\Delta}V{\left(t/{\tau}_{M}\right)}^{m}$$

_{c}− V_{d}).Configuron formation and particularly their relaxation resemble in some aspects the Adam-Gibbs picture of cooperative rearrangements during molecular motion [32]. However both non-relaxed and relaxed configurons are quasiparticles associated with bond breakages and occur both below and above the glass transition temperature whereas Adam-Gibbs cooperative regions are statistically distributed entities whose volumes strongly depend on temperature. Moreover the liquid-glass transition in the configuron percolation model is associated with the threshold concentration of configurons rather than relaxation effects connected with equilibration of strains induced by bond breakages.

The temperature of glass-liquid transition in the configuron percolation model of glass transition (Eq (21)) is affected by melt thermal history for several reasons: (i) configuron volumes depend on cooling rate when there is not enough time for configurons to relax to equilibrium; (ii) configuron formation parameters depend on structural relaxation; (iii) crystallisation processes at low cooling rates intervene to induce size-dependent effects [19].

Consider the effect of configuron relaxation on thermal history dependence of glass-liquid transition which is caused by dependence of actual percolation threshold on configuron volume. The higher the viscosity of an amorphous material the slower the stresses relax and consequently longer times are required for equilibrium configurons to be formed. At high viscosities, which are characteristic for temperatures near and below T

_{g}, configurons could require very long times to equilibrate. Hence for a melt cooled with an infinitely high cooling rate q →∞ there is not enough time for equilibrium configurons to be formed, and the system of non-relaxed configurons with smaller than equlibrium radii is frozen much before relaxation can occur to form equilibrium configurons. Because non-equilibrium configuron radii are smaller than equilibrium ones, higher configuron concentrations are required to form a macroscopic percolation cluster at higher cooling rates. Therefore at higher cooling rates the glass transition temperature observed will be higher. At slower cooling rates more time is available for equilibration of configurons and configuron radii are larger. Smaller concentrations of configurons are consequently required to form a configuron percolation cluster and hence the glass transition temperature will be lower at lower cooling rates. Moreover hysteresis effects on heating inevitably derive from the fact that upon reheating the configuron radii increase further toward their equilibrium value r_{c}. Finally at very slow cooling rates equilibrium configurons are formed as a result of stress relaxation processes near the broken bonds. Hence the glass transition temperature asymptotically achieves its lowest possible magnitude on decreasing of melt cooling rate (Figure 10).Note that we neglect here crystallisation processes which could affect the effective glass transition temperature [19].

The second logarithmic term in the equation of glass transition temperature (21) depends on the actual percolation threshold
${f}_{c}$
which is a function of configuron radius or volume (see Eq. (26)). As
${f}_{c}<<1$
the glass transition temperature depends on configuron volume approximately as:
where T

$$1/{T}_{g}\cong 1/{T}_{gD}+(R/{H}_{d})\left[\text{ln}\left(1/{\vartheta}_{c}\right)+\text{ln}\left({V}_{c}(t)/{V}_{d}\right)\right]$$

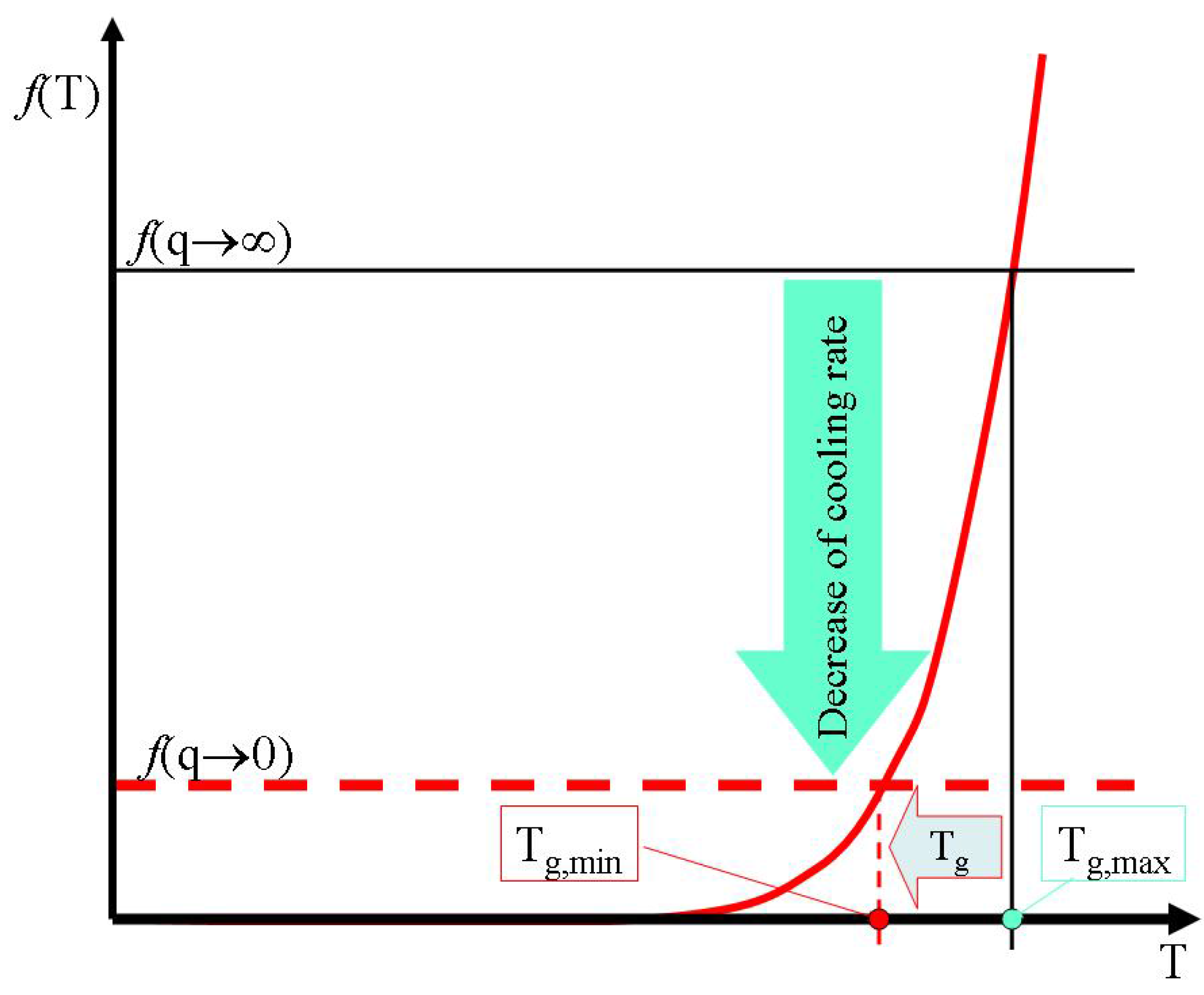

**Figure 10.**The effective decrease of configuron percolation threshold with decrease of cooling rate causes a decrease of glass transition temperature.

_{gD}=H_{d}/S_{d}and t is the cooling time t=ΔT/q. The resulting expression (28) can be used to numerically assess the glass transition temperature at arbitrary cooling rates. At q →∞ there is insufficient time for equilibrium configurons to be formed and V_{c}→ V_{d}, so the maximum T_{g}is achieved $1/{T}_{g\text{max}}\cong 1/{T}_{gD}+(R/{H}_{d})\text{ln}\left(1/{\vartheta}_{c}\right)$. In the opposite case at q → 0 equilibrium configurons are formed and V_{c}(t) → V_{c}, thus the glass transition temperature asymptotically achieves its minimum $1/{T}_{g\text{min}}\cong 1/{T}_{g\text{max}}+(R/{H}_{d})\text{ln}\left({V}_{c}/{V}_{d}\right)$. At finite cooling rates such that ${q}_{0}<q<{q}_{0}{({V}_{c}/{V}_{d}-1)}^{1/m}$, where q_{0}= ΔT/τ_{M}with typical q_{0}of the order of 0.1 -1 K/s for oxide glasses, we have a generic expression for the cooling rate dependence:
$$1/{T}_{g}-1/{T}_{g0}=-(mR/{H}_{d})\text{ln}\left(q/{q}_{0}\right)$$

Here
$1/{T}_{g0}=1/{T}_{gD}+(R/{H}_{d})\left[\text{ln}\left(1/{\vartheta}_{c}\right)+\text{ln}\left(\mathrm{\Delta}V/{V}_{d}\right)\right]$, and we assumed that V
where the activation energy is found from (29)

_{c}>> V_{d}. Expression (29) is in excellent agreement with experimental data on glass transition dependence on cooling rate demonstrating the logarithmic dependence of glass transition temperature with cooling rate [49,78,83]. Though approximate our results do agree with Moynihan et. al.’s expression of the reciprocal of the fictive temperature linearity in respect to the logarithm of the cooling rate [78]
$$\partial \left(\text{ln}q\right)=-E\partial \left(1/{T}_{g}\right)$$

$$E={H}_{d}/mR$$

Accounting that m < 1 we can see for example that amorphous B

_{2}O_{3}has an excellent description of glass transition cooling rate dependence at m=2/3 [78].Although the glass transition temperature (21) is a thermodynamic parameter it depends on the cooling rate of a supercooled liquid as the formation of glass is a kinetically-controlled process. The glass transition temperatures of amorphous materials achieve their maximum values at infinitely high cooling rates.

## 11. Conclusions

We focused our attention in this paper to disordered oxide materials. Amorphous materials occur either as liquids or glasses. The transition from the liquid to the glassy state evidences characteristic discontinuities of derivative thermodynamic parameters such as the coefficient of thermal expansion or the specific heat. The analysis of bonding system of glassy and crystalline materials shows that they both hold the same symmetry signature in form of 3D Hausdorff dimension of bonds. The similarity in bonding (the same symmetry signature) of both glassy and crystalline states means the similarity of their behaviour. Amorphous materials become liquid above the glass transition temperature. The configuron model of glass transition shows that the transition of amorphous materials from glassy to liquid state is a percolation-type phase transition. The bonding system of an amorphous material changes its geometry from 3D in the glassy state to fractal one (d

_{f}=2.55±0.05) in the liquid state due to formation of infinite size percolation clusters made of broken bonds - configurons. Thus the transition from a glassy to a liquid state can be treated as a change in the symmetry of topological disorder. The configuron model of glass transition gives an explicit equation of glass transition temperature (21) and demonstrates characteristic jumps in specific heat and thermal expansion. The higher the concentration of broken bonds the lower the viscosity, which is a continuous function of temperature both for glassy and liquid amorphous materials and has no discontinuities at glass transition. The configuron model of viscosity results in an universal viscosity equation (6) valid at all temperatures.## References and Notes

- Ashcroft, N.W.; Mermin, N.D. Solid state physics; Holt-Sauders International Editions: Tokyo, 1976. [Google Scholar]
- Kittel, C. Introduction to solid state physics; J. Wiley and Sons Inc.: New York, 1996. [Google Scholar]
- West, A.R. Basic solid state chemistry; J. Wiley and Sons, Ltd.: Chichester, 1999. [Google Scholar]
- Angell, C.A. Glass-formers and viscous liquid slowdown since David Turnbull: enduring puzzles and new twists. MRS Bull.
**2008**, 33, 544–555. [Google Scholar] [CrossRef] - Ojovan, M.I. Glass formation in amorphous SiO
_{2}as a percolation phase transition in a system of network defects. J. Exp. Theor. Phys. Lett.**2004**, 79, 632–634. [Google Scholar] [CrossRef] - Ozhovan, M.I. Topological characteristics of bonds in SiO
_{2}and GeO_{2}oxide systems at glass-liquid transition. J. Exp. Theor. Phys.**2006**, 103, 819–829. [Google Scholar] [CrossRef] - Varshneya, A.K. Fundamentals of inorganic glasses; Society of Glass Technology: Sheffield, 2006; p. 682. [Google Scholar]
- Telford, M. Bulk metallic glass. Mater. Today
**2004**, 3, 36–43. [Google Scholar] [CrossRef] - Pulsed laser deposition of thin films; Chrisey, D.B.; Hubler, G.K. (Eds.) John Wiley & Sons: New York, 1994.
- Ojovan, M.I.; Lee, W.E. Self sustaining vitrification for immobilisation of radioactive and toxic waste. Glass Technol.
**2003**, 44, 218–224. [Google Scholar] - Koch, C.C. Amorphization of single composition powders by mechanical milling. Scr. Mater.
**1996**, 34, 21–27. [Google Scholar] [CrossRef] - Jones, R.W. Fundamental principles of sol-gel technology; The Institute of Metals: London, 1989; p. 128. [Google Scholar]
- Andrianov, N.T. Sol-gel method in material technology. Glass Ceram.
**2003**, 60(9–10), 320–325. [Google Scholar] [CrossRef] - Weber, W.J. Models and mechanisms of irradiation-induced amorphization in ceramics. Nuc. Inst. Meth. Phys. Res. B
**2000**, 166, 98–106. [Google Scholar] [CrossRef] - Trachenko, K. Understanding resistance to amorphization by radiation damage. J. Phys.: Condensed Matter
**2004**, 16, R1491–R1515. [Google Scholar] [CrossRef] - Mishima, O.; Calvert, L.D.; Whalley, E. Melting ice-I at 77 and 10-kbar - a new method of making amorphous solids. Nature
**1984**, 310, 393–395. [Google Scholar] [CrossRef] - Greaves, G.N.; Meneau, F.; Sapelkin, A.; Colyer, L.M.; ap Gwynn, I.; Wade, S.; Sankar, G. The rheology of collapsing zeolites amorphized by temperature and pressure. Nat. Mater.
**2003**, 2, 622–629. [Google Scholar] - Richert, R. Heterogeneous dynamics in liquids: fluctuations in space and time. J. Phys.: Condens. Matter
**2002**, 14, R703–R738. [Google Scholar] [CrossRef] - Ojovan, M.I.; Lee, W.E. Topologically disordered systems at the glass transition. J. Phys.: Condensed Matter
**2006**, 18, 11507–11520. [Google Scholar] [CrossRef] - Frenkel, Y.I. Kinetic theory of liquids; Oxford University Press: Oxford, 1946. [Google Scholar]
- Doremus, R.H. Melt viscosities of silicate glasses. Amer. Ceram. Soc. Bull.
**2003**, 82, 59–63. [Google Scholar] - Doremus, R.H. Viscosity of silica. J. Appl. Phys.
**2002**, 92, 7619–7629. [Google Scholar] [CrossRef] - Shakhmatkin, B.A.; Vedishcheva, N.M.; Wright, A.C. Can thermodynamics relate the properties of melts and glasses to their structure? J. Non-Cryst. Solids
**2001**, 293–295, 220–226. [Google Scholar] [CrossRef] - SciGlass 6.5 Database and Information System, 2005. www.sciglass.info (accessed on 07.11.2007).
- Martlew, D. Viscosity of Molten Glasses. In Properties of Glass-Forming Melts; Pye, L.D., Joseph, I., Montenero, A., Eds.; Taylor & Francis: Boca Raton, 2005; p. 485. [Google Scholar]
- Fluegel, A. Glass viscosity calculation based on a global statistical modelling approach. Glass Technol.
**2007**, 48, 13–30. [Google Scholar] - Angel, C.A. Perspective on the glass transition. J. Phys. Chem. Solids
**1988**, 49, 863–871. [Google Scholar] [CrossRef] - Martinez, L.M.; Angel, C.A. A thermodynamic connection to the fragility of glass-forming liquids. Nature
**2001**, 410, 663–667. [Google Scholar] [CrossRef] [PubMed] - Stanworth, J.E. Physical properties of glass; Oxford University Press: Oxford, 1950; p. 224. [Google Scholar]
- Volf, M.B. Mathematical approach to glass; Elsevier: Amsterdam, 1988. [Google Scholar]
- Douglas, R.W. The flow of glass. J. Soc. Glass Technol.
**1949**, 33, 138–162. [Google Scholar] - Adam, G.; Gibbs, J.H. On the temperature dependence of coperative relaxation properties in glass-forming liquids. J. Chem. Phys.
**1965**, 43, 139–146. [Google Scholar] [CrossRef] - Avramov, I. Pressure dependence of viscosity of glass forming melts. J. Non-Cryst. Solids
**2000**, 262, 258–263. [Google Scholar] [CrossRef] - Stebbins, J.F. NMR Evidence for Five-Coordinated Silicon in a Silicate Glass at Atmospheric Pressure. Nature (London)
**1991**, 351, 638–639. [Google Scholar] [CrossRef] - Ojovan, M.I. Viscosity of oxide melts in the Doremus model. JETP Lett.
**2004**, 79, 85–87. [Google Scholar] [CrossRef] - Ojovan, M.I.; Lee, W.E. Viscosity of network liquids within Doremus approach. J. Appl. Phys.
**2004**, 95, 3803–3810. [Google Scholar] [CrossRef] - Angell, C.A.; Rao, K.J. Configurational excitations in condensed matter, and “bond lattice” model for the liquid-glass transition. J. Chem. Phys.
**1972**, 57, 470–481. [Google Scholar] [CrossRef] - Ojovan, M.I.; Travis, K.P.; Hand, R.J. Thermodynamic parameters of bonds in glassy materials from viscosity-temperature relationships. J. Phys.: Condensed Matter
**2007**, 19, 415107:1–415107:12. [Google Scholar] [CrossRef] - Evteev, A.V.; Kosilov, A.T.; Levchenko, E.V. Atomic mechanisms of pure iron vitrification. J. Exp. Theor. Phys.
**2004**, 99, 522–529. [Google Scholar] [CrossRef] - Hobbs, L.W. Network topology in aperiodic networks. J. Non-Cryst. Solids
**1995**, 192/193, 79–91. [Google Scholar] [CrossRef] - Medvedev, N.N.; Geider, A.; Brostow, W. Distinguishing liquids from amorphous solids: Percolation analysis on the Voronoi network. J. Chem. Phys.
**1990**, 93, 8337–8342. [Google Scholar] [CrossRef] - Binder, K. Computer simulations of undercooled fluids and the glass transition J. Non-Cryst. Solids
**2000**, 274, 332–341. [Google Scholar] [CrossRef] - Kolokol, A.S.; Shimkevich, A.L. Topological structure of liquid metals. At. Energ.
**2005**, 98, 187–190. [Google Scholar] [CrossRef] - Dyre, J.C. Colloquium: The glass transition and elastic models of glass-forming liquids. Rev. Mod. Phys.
**2006**, 78, 953–972. [Google Scholar] [CrossRef] - Tanaka, H. Two-order-parameter model of the liquid-glass transition. I. Relation between glass transition and crystallization. J. Non-Cryst. Solids
**2005**, 351, 3371–3384. [Google Scholar] [CrossRef] - Roland, C.M.; Casalini, R. Density scaling of the dynamics of vitrifying liquids and its relationship to the dynamic crossover. J. Non-Cryst. Solids
**2005**, 351, 2581–2587. [Google Scholar] [CrossRef] - Angel, C.A.; Ngai, K.L.; McKenna, G.B.; McMillan, P.F.; Martin, S.W. Relaxation in glass forming liquids and amorphous solids. J. Appl. Phys.
**2000**, 88, 3113–3157. [Google Scholar] [CrossRef] - Gotze, W.; Sjogren, L. Relaxation processes in supercooled liquids. Rep. Prog. Phys.
**1992**, 55, 241–376. [Google Scholar] [CrossRef] - Zarzycki, J. Glasses and the vitreous state; Cambridge University Press: New York, 1982. [Google Scholar]
- Cohen, M.H.; Turnbull, D. Molecular Transport in Liquids and Glasses. J. Chem. Phys.
**1959**, 31, 1164–1169. [Google Scholar] [CrossRef] - Grest, G.S.; Cohen, M.H. Liquids, Glasses, and the Glass Transition: A Free-Volume Approach. Adv. Chem. Phys.
**1981**, 48, 455–525. [Google Scholar] - Williams, E.; Angell, C.A. Pressure dependence of the glass transition temperature in ionic liquids and solutions. Evidence against free volume theories. J. Phys. Chem.
**1977**, 81, 232–237. [Google Scholar] [CrossRef] - Leutheusser, E. Dynamical model of the liquid-glass transition. Phys. Rev. A
**1984**, 29, 2765–2773. [Google Scholar] [CrossRef] - Bengtzelius, U.; Gotze, W.; Sjolander, L. Dynamics of supercooled liquids and the glass transition. J. Phys. C: Sol. State Phys.
**1984**, 17, 5915–5934. [Google Scholar] [CrossRef] - Tanaka, H. Two-order-parameter model of the liquid-glass transition. II. Structural relaxation and dynamic heterogeneity. J. Non-Cryst. Solids
**2005**, 351, 3385–3395. [Google Scholar] [CrossRef] - Tanaka, H. Two-order-parameter model of the liquid-glass transition. III. Universal patterns of relaxation in glass-forming liquids. J. Non-Cryst. Solids
**2005**, 351, 3396–3413. [Google Scholar] [CrossRef] - Evteev, A.V.; Kosilov, A.T.; Levchenko, E.V.; Levachev, O.B. Kinetics of isothermal nucleation in supercooled iron melt. Solid State Phys.
**2006**, 48, 769–774. [Google Scholar] [CrossRef] - Tanaka, H. Possible resolution of Kauzmann paradox in supercooled liquids. Phys. Rev. E
**2003**, 68, 011505. [Google Scholar] [CrossRef] - Frank, F.C. Melting as a Disorder Phenomenon. Proc. Roy. Soc. A
**1952**, 215, 43–46. [Google Scholar] [CrossRef] - Steinhardt, P.J.; Nelson, D.R.; Ronchetti, M. Bond-orientational order in liquids and glasses. Phys. Rev. B
**1983**, 28, 784–805. [Google Scholar] [CrossRef] - Kivelson, S.A.; Zhao, X.; Kivelson, D.; Fisher, T.M.; Knobler, C. Frustration limited clusters in liquids. J. Chem. Phys.
**1994**, 101, 2391–2397. [Google Scholar] [CrossRef] - Kivelson, D.; Kivelson, S.A.; Zhao, X.; Nussinov, Z.; Tarjus, G. A thermodynamic theory of supercooled liquids. Physica A
**1995**, 219, 27–38. [Google Scholar] [CrossRef] - Donth, E. The Glass Transition; Springer: Berlin, 2001. [Google Scholar]
- Hunt, A. Some comments on the dynamic of super-cooled liquids near the glass transition. J. Non-Cryst. Solids
**1995**, 195, 293–303. [Google Scholar] [CrossRef] - Hunt, A. The pressure dependence of the glass transition temperature in some ionic liquids. J. Non-Cryst. Solids
**1994**, 176, 288–293. [Google Scholar] [CrossRef] - Hunt, A. Finite size effects on the glass transition temperature. Solid State Commun.
**1994**, 90, 527–532. [Google Scholar] [CrossRef] - Hunt, A. A purely kinetic justification for application of Ehrenfest theorems to the glass transition. Solid State Commun.
**1992**, 84, 263–266. [Google Scholar] [CrossRef] - Kraftmakher, Y. Equilibrium vacancies and thermophysical properties of metals. Phys. Rep.
**1998**, 299, 79–188. [Google Scholar] [CrossRef] - Angell, C.A.; Wong, J. Structure and glass transition thermodynamics of liquid zinc chloride from far-infrared, Raman, and probe ion electronic and vibrational spectra. J. Chem. Phys.
**1970**, 53, 2053–2066. [Google Scholar] [CrossRef] - Isichenko, M.B. Percolation, statistical topography, and transport in random media. Rev. Mod. Phys.
**1992**, 64, 961–1043. [Google Scholar] [CrossRef] - Sahimi, M. Applications of percolation theory; Taylor and Francis: London, 1994. [Google Scholar]
- Scher, H.; Zallen, R. Critical densities in percolation processes. J. Chem. Phys.
**1970**, 53, 3759–3761. [Google Scholar] [CrossRef] - Koike, A.; Tomozawa, M. Towards the origin of the memory effect in oxide glasses. J. Non-Cryst. Solids
**2008**, 354, 3246–3253. [Google Scholar] [CrossRef] - Lin, S.-K. The Nature of the Chemical Process. 1. Symmetry Evolution - Revised Information Theory, Similarity Principle and Ugly Symmetry. Int. J. Mol. Sci.
**2001**, 2, 10–39. [Google Scholar] - Shklovskioe, B.I.; Efros, A.L. Electronic Properties of Doped Semiconductors; Springer: New York, 1984. [Google Scholar]
- Patashinskioe, A.Z.; Pokrovskioe, V.L. Fluctuation Theory of Phase Transitions; Pergamon: Oxford, 1979. [Google Scholar]
- Ozhovan, M.I. Dynamic uniform fractals in emulsions. J. Exp. Theor. Phys.
**1993**, 77, 939–943. [Google Scholar] - Moynihan, C.T.; Fasteal, A.J.; DeBolt, M.A.; Tucker, J. Dependence of the Fictive Temperature of Glass on Cooling Rate. J. Amer. Ceram. Soc.
**1976**, 59, 12–16. [Google Scholar] [CrossRef] - Lord Rayleigh. On the pressure developed in a liquid during the collapse of a spherical void. Philos. Mag.
**1917**, 34, 94–98. [Google Scholar] [CrossRef] - Plesset, M.S. The dynamics of cavitation bubbles. J. Appl. Mech.
**1949**, 16, 277–282. [Google Scholar] [CrossRef] - Stepanov, S.V.; Mikhin, K.V.; Zvezhinskii, D.S.; Byakov, V.M. Energy dissipation and Ps bubble growth in liquids. Rad. Phys. Chem.
**2007**, 76, 275–279. [Google Scholar] [CrossRef] - Bogoyavlenskiy, V.A. Differential criterion of a bubble collapse in viscous liquids. Phys. Rev. E
**1999**, 60, 504–508. [Google Scholar] [CrossRef] - Giordano, M.; Russo, M.; Capoluongo, P.; Cusano, A.; Nicolais, L. The effect of cooling rate on the glass transition of an amorphous polymer. J. Non-Cryst. Solids
**2005**, 351, 515–522. [Google Scholar] [CrossRef]

© 2008 by the authors; licensee Molecular Diversity Preservation International, Basel, Switzerland. This article is an open-access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
