Search Results (3)

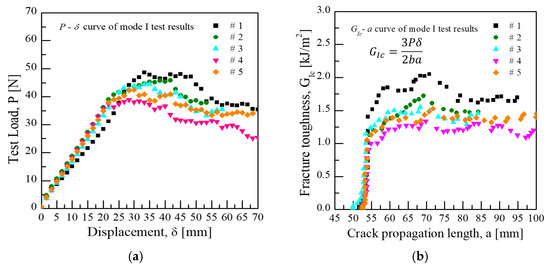

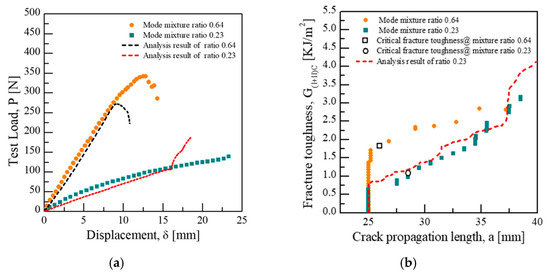

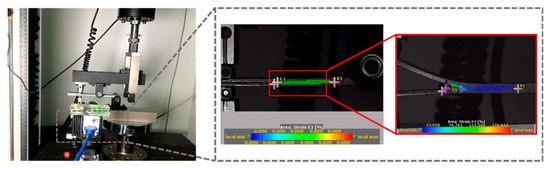

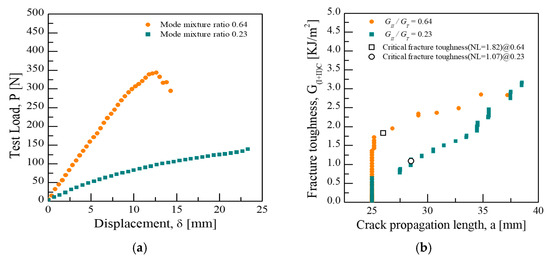

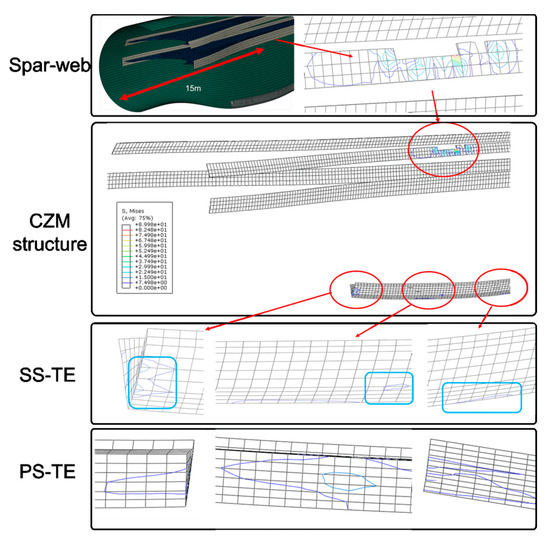

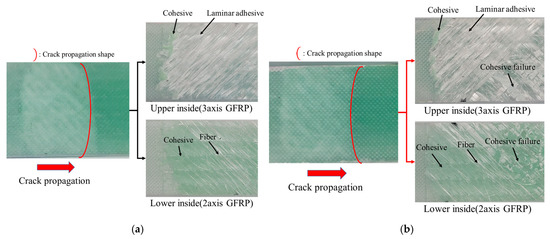

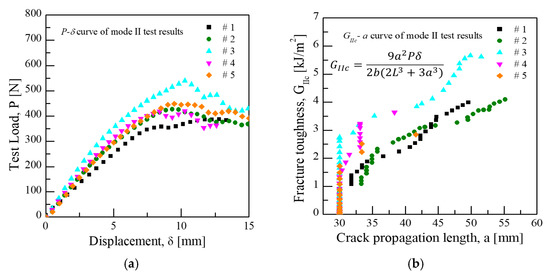

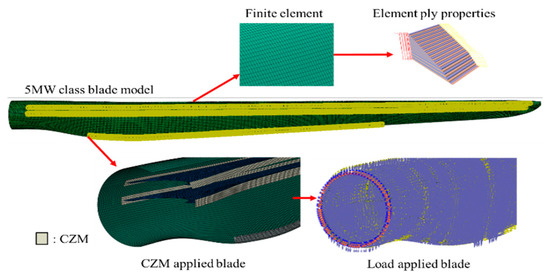

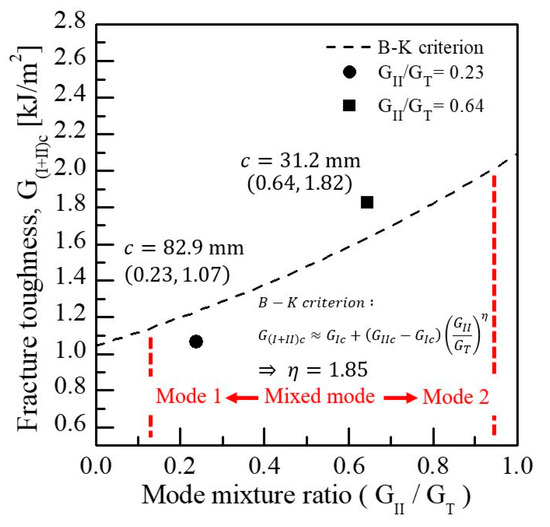

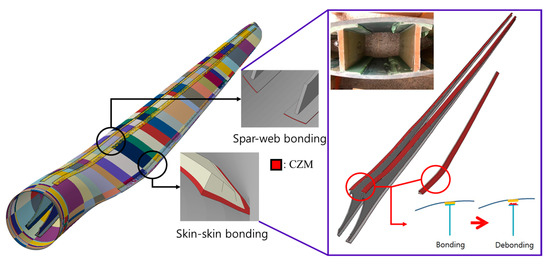

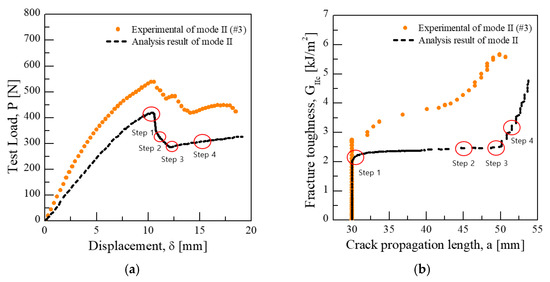

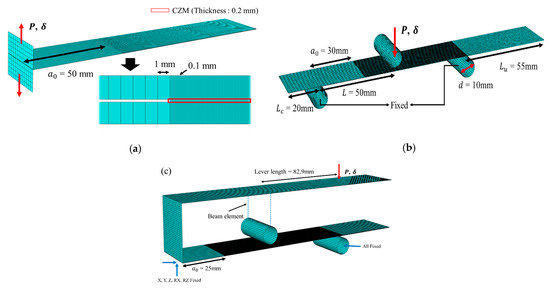

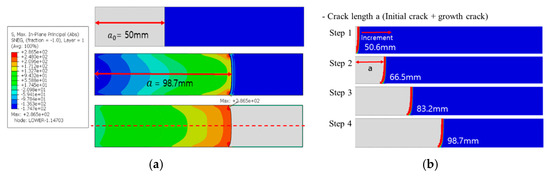

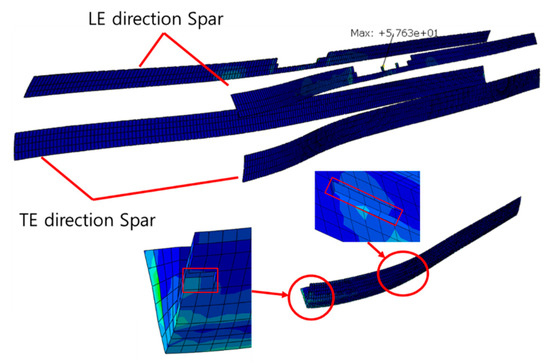

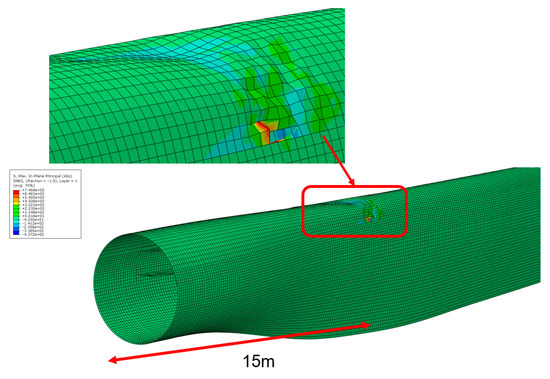

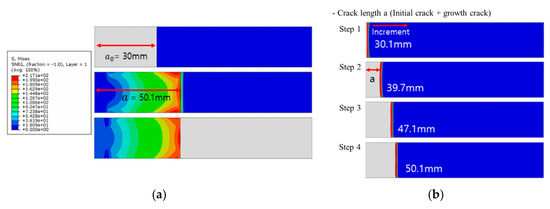

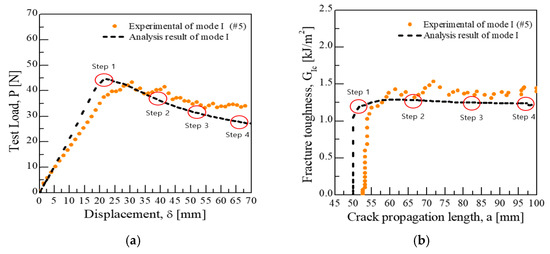

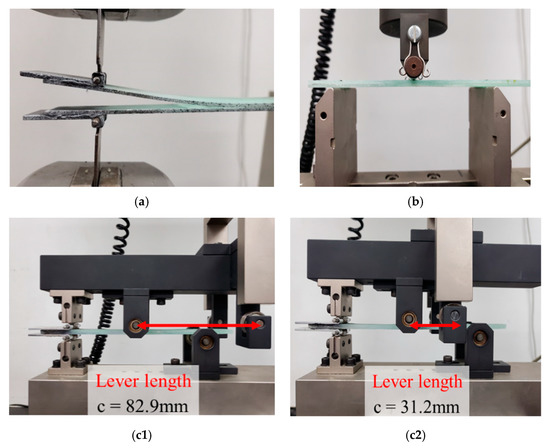

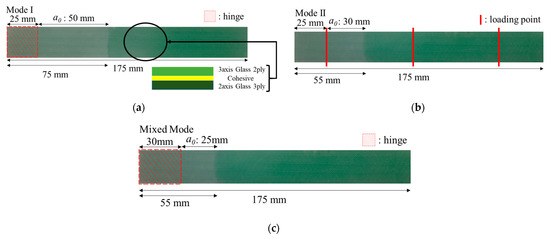

Composite wind turbine blades may experience interlaminar damage, including adhesive failure, cracking, and interlaminar fracture failure, from manufacturing or external fatigue load. Among these, the adhesive failure of adhesive joints is critical. Therefore, it is important to identify the failure mechanism in the adhesive joints between the spar cap–shear web and trailing edge of composite blades. We calculated fracture toughness through Mode I, Mode II, and Mixed-mode tests for quantitative analysis of adhesive joints. Then, to select a modeling method for realizing the damage generated in the blade, the method was verified from the specimen level. A damage model was constructed, considering contact conditions of the spar cap–shear web and trailing edge for an NREL 5MW wind turbine blade. Finally, a damage model based on cohesive zone modeling was used to analyze the progressive failure behavior of debonding at adhesive joints according to the external force applied to the blade. Full article

As the size and weight of blades increase with the recent trend toward larger wind turbines, it is important to ensure the structural integrity of the blades. For this reason, the blade consists of an upper and lower skin that receives the load directly, a shear web that supports the two skins, and a spar cap that connects the skin and the shear web. Loads generated during the operation of the wind turbine can cause debonding damage on the spar cap-shear web joints. This may change the structural stiffness of the blade and lead to a lack of integrity; therefore, it would be beneficial to be able to identify possible damage in advance. In this paper we present a model to identify debonding damage based on natural frequency. This was carried out by modeling 1105 different debonding damages, which were classified by configuration type, location, and length. After that, the natural frequencies, due to the debonding damage of the blades, were obtained through modal analysis using FE analysis. Finally, an artificial neural network was used to study the relationship between debonding damage and the natural frequencies. Full article

In this paper, the sensitivity of the structural integrity of wind turbine blades to debonding of the shear web from the spar cap was investigated. In this regard, modal analysis, static and fatigue testing were performed on a 45.7 m blade for three states of the blade: (i) as received blade (ii) when a crack of 200 mm was introduced between the web and the spar cap and (iii) when the crack was extended to 1000 mm. Calibration pull-tests for all three states of the blade were performed to obtain the strain-bending moment relationship of the blade according to the estimated target bending moment (BM) which the blade is expected to experience in its service life. The resultant data was used to apply appropriate load in the fatigue tests. The blade natural frequencies in flapwise and edgewise directions over a range of frequency domain were found by modal testing for all three states of the blade. The blade first natural frequency for each state was used for the flapwise fatigue tests. These were performed in accordance with technical specification IEC TS 61400-23. The fatigue results showed that, for a 200 mm crack between the web and spar cap at 9 m from the blade root, the crack did not propagate at 50% of the target BM up to 62,110 cycles. However, when the load was increased to 70% of target BM, some damages were detected on the pressure side of the blade. When the 200 mm crack was extended to 1000 mm, the crack began to propagate when the applied load exceeded 100% of target BM and the blade experienced delaminations, adhesive joint failure, compression failure and sandwich core failure. Full article
