Search Results (7)

Recently, aquatic life and human health are seriously threatened by the release of pharmaceutical drugs. For a sustainable ecosystem, emerging contaminants like antibiotics must be removed from drinking water and wastewater. To address this issue pure and cerium-doped titanium dioxide (CeT) nanoparticles were produced with stable tetragonal (anatase) lattices by room temperature sol–gel method and employing the inorganic titanium oxysulfate (TiOSO₄) as titanium precursor. The structural analysis by X-ray diffraction (XRD) revealed that at calcination temperature of 600 °C all (un and doped) powders were composed of crystalline anatase TiO₂ with the crystallite sizes in the range of 13.5–11.3 nm. UV–vis DRS spectroscopy revealed that the most narrowed bandgap value of 2.75 eV was calculated for the 0.5CeT sample containing the optimum dopant content of 0.5 weight ratio. X-ray spectroscopy (XPS) confirmed the presence of the impurity level Ce³⁺/Ce⁴⁺, which became responsible for the decrease in bandgap as well as for the photoinduced carriers recombination rate. Photocatalytic tests showed that the maximum decomposition of the model spiramycin (SPR) antibiotic pollutant was 88.0% and 77.0%, under UV and visible light, respectively. According to the reaction kinetics, SPR decomposition adhered to the Langmuir–Hinshelwood (L–H) model and via ROS experiments mainly hydroxyl radicals (OH^•) followed by photogenerated holes (h⁺s) become responsible for the pollutant degradation. In summary, this study elaborates on the role of xCeT nanoparticles as an efficient photocatalyst for the elimination of organic contaminants in wastewater. Full article

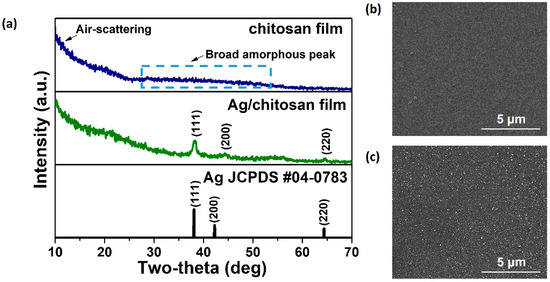

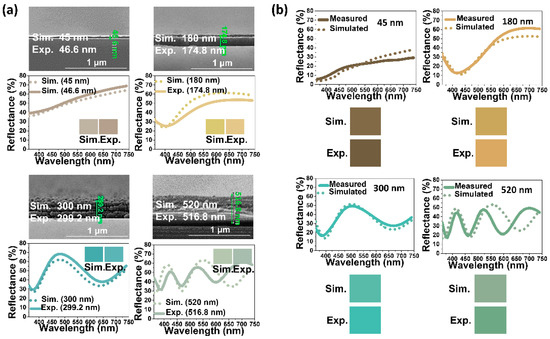

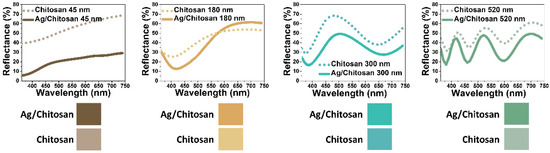

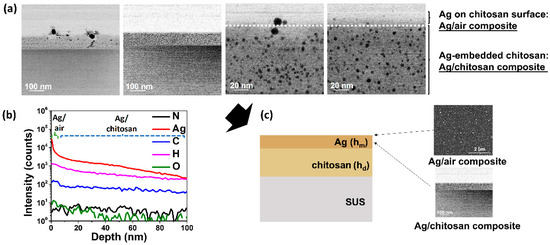

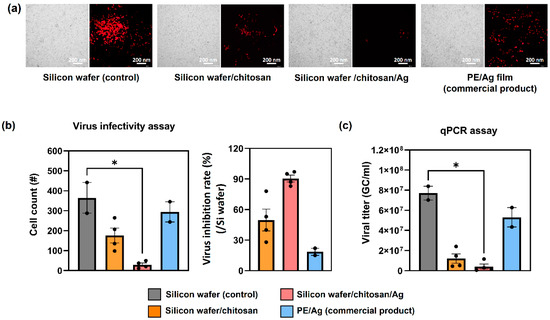

This scientific investigation emphasizes the essential integration of nature’s influence in crafting multifunctional surfaces with bio-inspired designs for enhanced functionality and environmental advantages. The study introduces an innovative approach, merging color decoration, humidity sensing, and antiviral properties into a unified surface using chitosan, an organo-biological polymer, to create cost-effective multilayered films through sol-gel deposition and UV photoinduced deposition of metal nanoparticles. The resulting chitosan films showcase diverse structural colors and demonstrate significant antiviral efficiency, with a 50% and 85% virus inhibition rate within a rapid 20 min reaction, validated through fluorescence cell expression and real-time qPCR (polymerase chain reaction) assays. Silver-deposited chitosan films further enhance antiviral activity, achieving remarkable 91% and 95% inhibition in independent assays. These films exhibit humidity-responsive color modifications across a 25–90% relative humidity range, enabling real-time monitoring validated through simulation studies. The proposed three-in-one functional surface can have versatile applications in surface decoration, medicine, air conditioning, and the food industry. It can serve as a real-time humidity sensor for indoor and outdoor surfaces, find use in biomedical devices for continuous humidity monitoring, and offer antiviral protection for frequently handled devices and tools. The customizable colors enhance visual appeal, making it a comprehensive solution for diverse applications. Full article

In this investigation, a multifunctional visible-light TX-based photosensitizer containing a siloxane moiety (TXS) was designed with a good overall yield of 54%. The addition of a siloxane moiety enabled the incorporation of a TX photosensitizer into a siloxane network by photoinduced sol–gel chemistry, thus avoiding its release. Both liquid ¹H and solid-state ²⁹Si NMR measurements undeniably confirmed the formation of photoacids resulting from the photolysis of the TXS/electron acceptor molecule (Iodonium salt), which promoted the photoinduced hydrolysis/condensation of the trimethoxysilane groups of TXS, with a high degree of condensation of its inorganic network. Notably, the laser flash photolysis, fluorescence, and electron paramagnetic resonance spin-trapping (EPR ST) experiments demonstrated that TXS could react with Iod through an electron transfer reaction through its excited states, leading to the formation of radical initiating species. Interestingly, the TXS/Iod was demonstrated to be an efficient photoinitiating system for free-radical (FRP) and cationic (CP) polymerization under LEDs@385, 405, and 455 nm. In particular, whatever the epoxy monomer mixtures used, remarkable final epoxy conversions were achieved up to 100% under air. In this latter case, we demonstrated that both the photoinduced sol–gel process (hydrolysis of trimethoxysilane groups) and the cationic photopolymerization occurred simultaneously. Full article

ZnTiO₃/TiO₂ composite photocatalysts were synthesized via the sol–gel technique, and the impact of varying heat treatment temperatures (470, 570, 670 °C) on their crystalline arrangement, surface morphology, elemental composition, chemical state, specific surface area, optical characteristics, and photocatalytic efficacy was systematically investigated. The outcomes revealed that, as the temperature ascends, pure TiO₂ undergoes a transition from anatase to rutile, ultimately forming a hybrid crystal structure at 670 °C. The incorporation of ZnTiO₃ engenders a reduction in the TiO₂ grain dimensions and retards the anatase-to-rutile phase transition. Consequently, the specimens manifest a composite constitution of anatase and ZnTiO₃. In contrast, for pure TiO₂, the specimen subjected to 670 °C annealing demonstrates superior photocatalytic performance due to its amalgamated crystal arrangement. The degradation efficacy of methylene blue (MB) aqueous solution attains 91% within a 60-min interval, with a calculated first-order reaction rate constant of 0.039 min⁻¹. Interestingly, the ZnTiO₃/TiO₂ composite photocatalysts exhibit diminished photocatalytic activity in comparison to pristine TiO₂ across all three temperature variations. Elucidation of the photocatalytic mechanism underscores that ZnTiO₃ coupling augments the generation of photogenerated charge carriers. Nonetheless, concurrently, it undermines the crystalline integrity of the composite, yielding an excess of amorphous constituents that impede the mobility of photoinduced carriers. This dual effect also fosters escalated recombination of photogenerated charges, culminating in diminished quantum efficiency and reduced photocatalytic performance. Full article

Advanced coatings are essential to modern technologies as they optimise surface characteristics for different application scenarios. Transparent and self-cleaning coatings are increasingly used as protective coatings for various applications, such as foldable touchscreens, windows, and solar panels. Moreover, incorporating other functionalities such as high hardness, wear resistance, and flexibility into transparent and self-cleaning coatings is important for broadening the use cases. Although many kinds of multifunctional coatings have been developed, it is still difficult to embody several properties in one coating adequately as some properties, such as hardness and flexibility, are inherently contrastive. This review first describes basic principles, including wettability, photocatalytic reactions, photo-induced hydrophilic phenomena, and the implication of self-cleaning. The desired properties of multifunctional coatings are then listed and the methods for evaluating different properties are used. Recent progress in various preparation methods for multifunctional coatings, including the sol–gel, dip/spin, and chemical vapour deposition (CVD) methods, are also presented. Magnetron sputtering (MS) technology is widely used in coating preparation. Compared with chemosynthesis and CVD, MS is time-saving, suitable for industrial production, and environmentally friendly. Coatings prepared by MS usually possess excellent mechanical properties. Thus, we highlight the current research status of MS technology in multifunctional coating preparation. Moreover, according to the multilayer design structure of coatings, their optical and mechanical properties and self-cleaning ability can be controlled by combining the characteristics of different materials. Finally, combining photocatalytic materials such as TiO₂ with other materials through a multilayer structure to obtain a multifunctional coating with excellent overall properties is discussed. Full article

The inherent degradation property of most dental resins in the mouth leads to the long-term release of degradation by-products at the adhesive/tooth interface. The by-products increase the virulence of cariogenic bacteria, provoking a degradative positive-feedback loop that leads to physicochemical and mechanical failure. Photoinduced free-radical polymerization and sol‒gel reactions have been coupled to produce a novel autonomous-strengthening adhesive with enhanced hydrolytic stability. This paper investigates the effect of network structure on time-dependent mechanical properties in adhesives with and without autonomous strengthening. Stress relaxation was conducted under 0.2% strain for 8 h followed by 40 h recovery in water. The stress‒time relationship is analyzed by nonlinear least-squares data-fitting. The fitted Prony series predicts the sample’s history under monotonic loading. Results showed that the control failed after the first loading‒unloading‒recovery cycle with permanent deformation. While for the experimental sample, the displacement was almost completely recovered and the Young’s modulus increased significantly after the first test cycle. The experimental polymer exhibited higher degree of conversion, lower leachate, and time-dependent stiffening characteristics. The autonomous-strengthening reaction persists in the aqueous environment leading to a network with enhanced resistance to deformation. The results illustrate a rational approach for tuning the viscoelasticity of durable dental adhesives. Full article

This paper reviews the current state of the art related to the synthesis and characterization of hybrid organic-inorganic (O/I) coatings obtained through the exploitation of dual-cure processes, which involve a photo-induced polymerization followed by a thermal treatment: this latter allows the occurrence of sol-gel reactions of suitable alkoxy precursors already embedded in the UV-curable system. After a brief introduction on hybrid organic-inorganic coatings, the first part of the review is focused on the design and feasibility issues provided by the dual-cure method, emphasizing the possibility of tuning the structure of the final hybrid network on the basis of the composition of the starting liquid mixture. Then, some recent examples of hybrid organic-inorganic networks are thoroughly described, showing their potential advances and the application fields to which they can be addressed. Full article
