Search Results (6)

The use of photocatalytic technology to degrade polyacrylamide in crude oil extraction wastewater is a promising approach, but there have been few reports so far. In this study, ZnFe₂O₄/Ba_0.7Sr_0.3TiO₃ heterogeneous composite materials of a spinel/perovskite type with different proportions were synthesized. The composite materials with 31% ZnFe₂O₄ content exhibited a maximum polyacrylamide degradation efficiency of 46.54%, which demonstrated the unique role of the spinel/perovskite heterogeneous structure. When Ag nanoparticles were grown in situ on the surface of ZnFe₂O₄/Ba_0.7Sr_0.3TiO₃, the photocatalytic degradation efficiency reached 81.28%. The main reason was that the introduction of Ag nanoparticles not only increased the active sites and enhanced light absorption capacity but also accelerated the separation of photo-generated charges. This work provides new ideas for the construction of spinel/perovskite heterogeneous composite materials and has reference significance for the application of photocatalytic degradation in the treatment of wastewater-containing polymers. Full article

The application of photocatalysis technology in environmental pollution treatment has garnered increasing attention, and enhancing the photocatalytic efficiency and recyclability of photocatalysts represents a pivotal research focus for future endeavors. In this paper, polypyrrole titanium dioxide nanocomposite (PPy-TiO₂) was prepared using in situ polymerization method and dispersed in sodium alginate/polyacrylamide (SA/PAM) hydrogel matrix to prepare SA/PAM/PPy-TiO₂ nanocomposite hydrogels. The nanocomposite hydrogels were characterized by XPS, FT-IR, XRD, TGA, SEM, and TEM. The results showed that the composite materials were successfully prepared and PPy-TiO₂ was uniformly dispersed in the hydrogel matrix. The incorporation of PPy in the SA/PAM/TiO₂ composite hydrogel resulted in enhanced visible light absorption, reduced recombination efficiency of photoelectron-hole pairs in TiO₂, and facilitated the photocatalytic degradation of methylene blue (MB) and methyl orange (MO) under sunlight irradiation. The photocatalytic efficiency of the composite hydrogel for MB was nearly 100%, whereas for MO, it reached 91.85% after exposure to sunlight for 120 min. In comparison with nano-TiO₂ and PPy-TiO₂, the SA/PAM/PPy-TiO₂ nanocomposite hydrogel exhibited a higher degradation rate of MB and demonstrated ease in separation and recovery from the reaction solution. Furthermore, even after undergoing five cycles of recycling, there was no significant decrease observed in photodegradation efficiency. Full article

When the typical solar-driven hydrogel water evaporator treats the organic sewage, the organic pollutants will be accumulated in the evaporator and affect the evaporation performance. This issue is resolved by using silver–disulfide bonding to fix the silver oxide/silver (Ag₂O/Ag) nanoparticles inside the polyacrylamide-acrylic acid hydrogel, resulting in the photocatalytic degradation of methyl orange and solar-driven water evaporation. Ag₂O/Ag nanoparticles are a solar–thermal conversion material used to replace the traditional carbon material. On the one hand, the heterojunction structure of Ag₂O/Ag enhances the separation ability of the photogenerated carriers, thereby increasing the photocatalytic efficiency. On the other hand, the surface of the nanoparticles is grafted with N, N′-bis(acryloyl) cystamine and becomes the crosslinking agent which is fixed in the hydrogel. Meanwhile, the inverted pyramid structure can be built at the surface of the hydrogel by soft imprinting technology. This kind of structure has excellent light trapping performance, which can increase the efficiency of Ag₂O/Ag photocatalysis. Furthermore, the dynamic reversible coordination effect between Fe³⁺ and carboxyl realizes the self-healing capability of the hydrogel. Here are the properties of hydrogel: the fracture stress is 0.35 MPa, the fracture elongation is 1320%, the evaporation rate is 1.2 kg·m⁻²·h⁻¹, and the rate of the photocatalytic degradation of methyl orange is 96% in 3 h. This self-healing hydrogel membrane provides a strategy to steadily get clean water from organic sewage. Full article

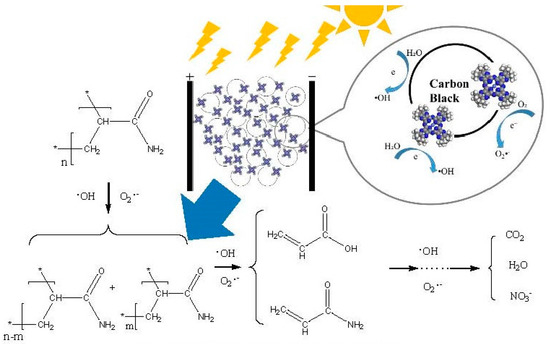

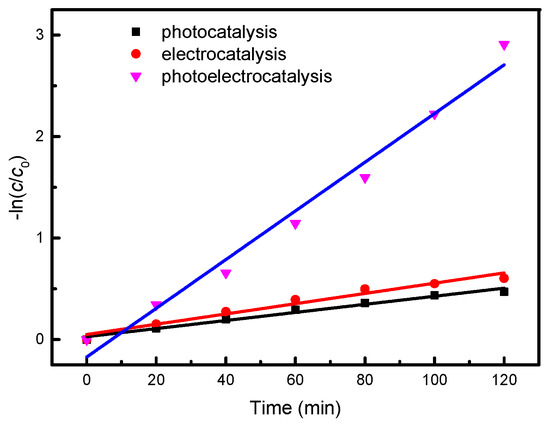

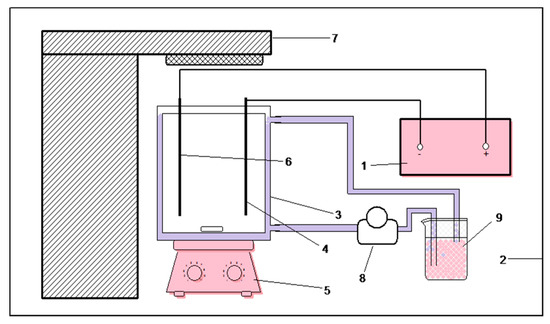

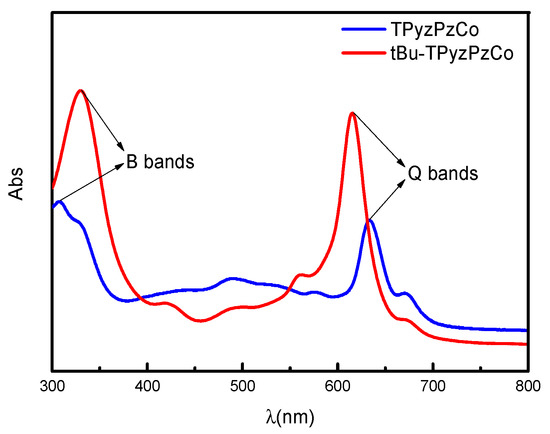

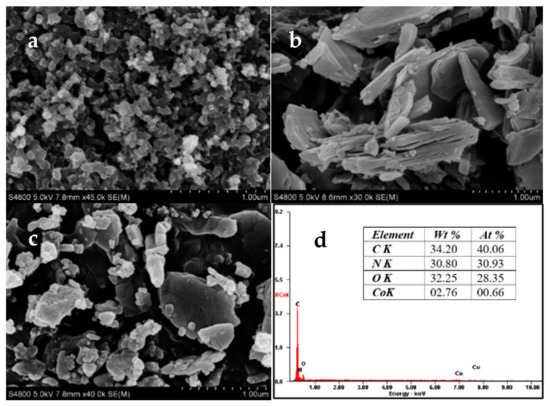

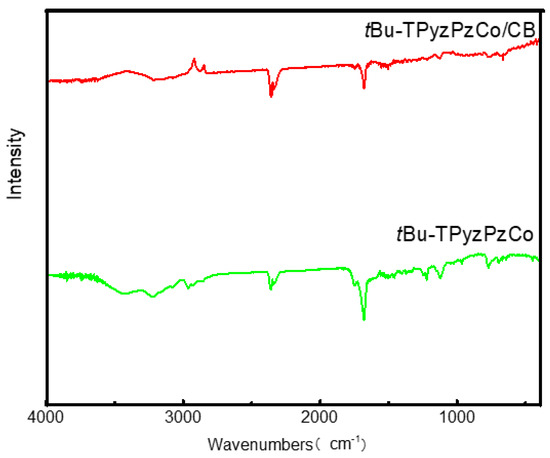

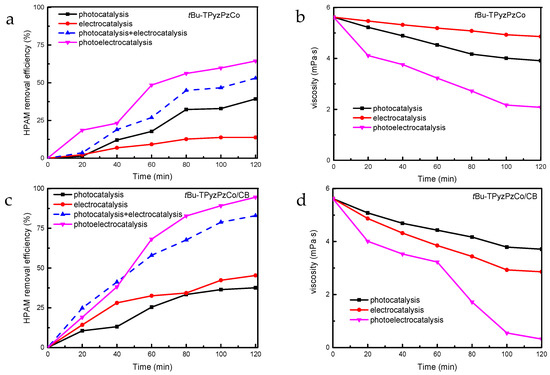

The present study describes a two-step synthesis process for the cobalt complex of tetra-2,3-(5,6-di-tert-butyl-pyrazino) porphyrazine (tBu-TPyzPzCo). The product was ultrasonically impregnated onto carbon black (CB) to prepare a supported catalyst (tBu-TPyzPzCo/CB). We built a split photoelectric catalytic device to test the performance of photocatalytic, electrocatalytic and photoelectrocatalytic degradation of partially hydrolyzed polyacrylamide (HPAM). The results confirm that HPAM exhibited more efficient degradation in the presence of a supporting catalyst using the photoelectrocatalytic process than by photocatalytic or electrocatalytic oxidation—or even the sum of the two in saline water. The photoelectrocatalytic reaction confirmed that the process conforms to quasi-first order reaction kinetics, while the reaction rate constants were 6.03 times that of photocatalysis and 3.97 times that of electrocatalysis. We also compared the energy consumption of the three processes and found that the photoelectrocatalytic process has the highest energy efficiency. Full article

A series of novel self-cleaning hybrid photocatalytic ultrafiltration (UF) membranes were fabricated to separate polyacrylamide, which is widely used as a commercial flocculant. To maximize the self-cleaning and anti-fouling properties of hybrid membranes, high surface area TiO₂ nanotubes (TNTs) with excellent photocatalytic activity were homogeneously introduced into a poly(aryl ether sulfone) matrix by chemical bonds. The chemical structure, micromorphology, hydrophilicity, separation efficiency, fouling behavior, and self-cleaning property of the prepared hybrid membranes were well characterized and evaluated. For the optimal sample, the flux recovery ratio increased from ~40% to ~80% after simulated sunlight irradiation for 20 min, which was attributable to the homogeneous dispersion and efficient photocatalytic degradation ability of TNTs. Furthermore, the intelligent fabrication strategy enhanced the anti-aging ability of the hybrid membranes via the use of a fluorine-containing poly matrix. This work provided new insight into the fabrication of high-performance self-cleaning inorganic/organic hybrid membranes. Full article

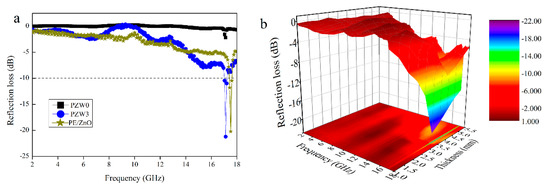

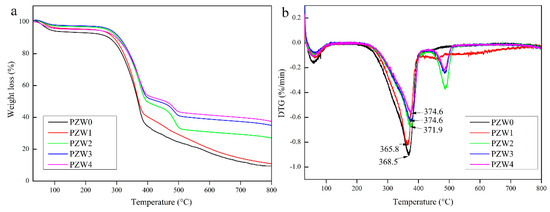

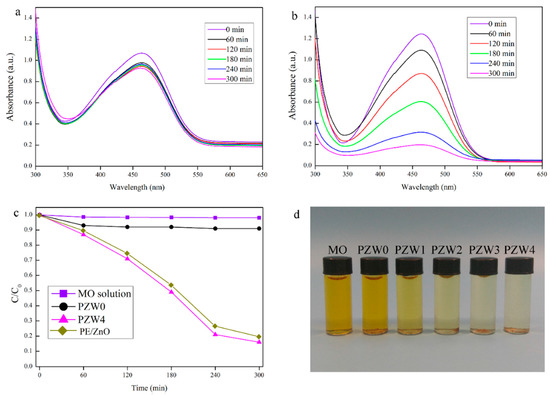

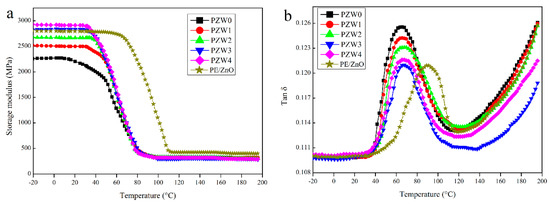

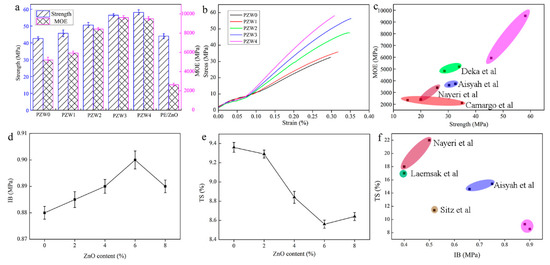

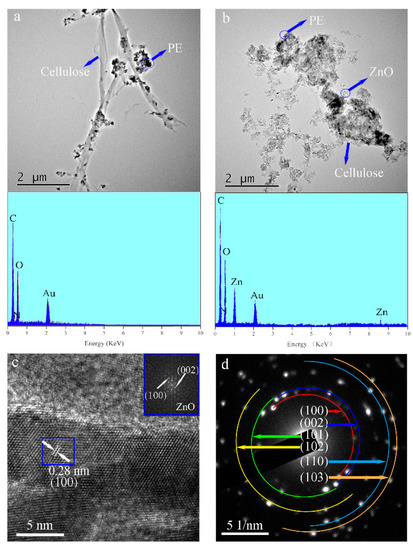

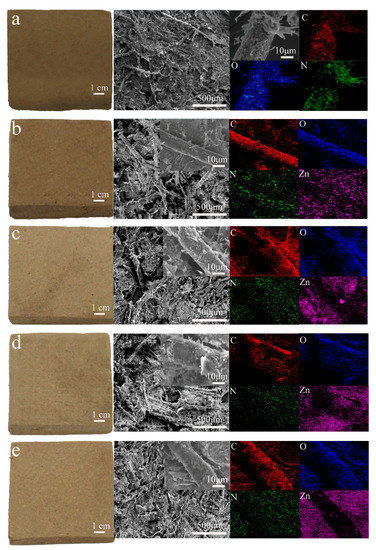

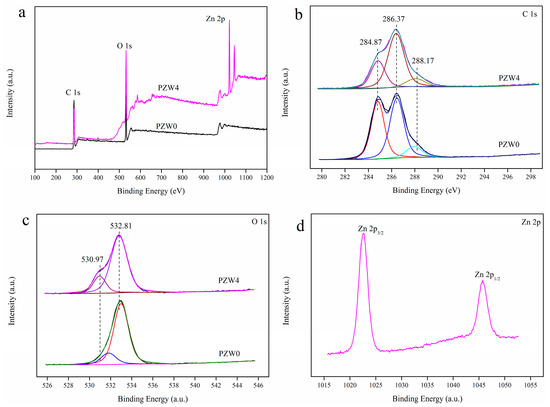

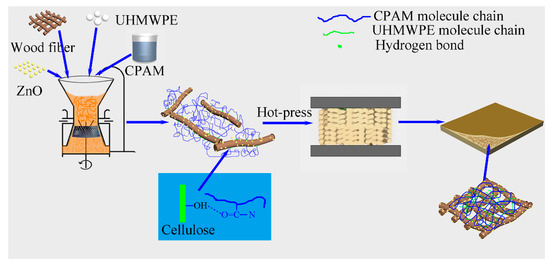

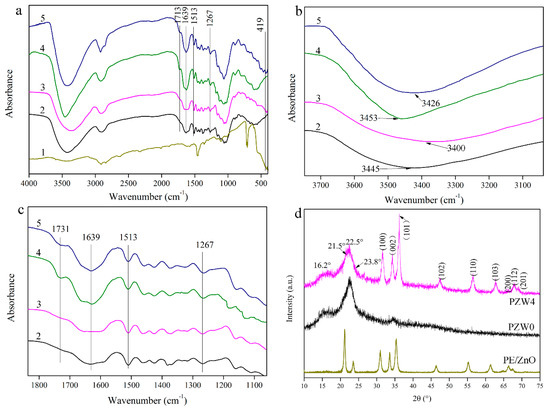

A polyethylene/wood-fiber composite loaded with nano-ZnO was prepared by a facile hot-press method and was used for the photocatalytic degradation of organic compounds as well as for microwave absorption. ZnO nanoparticles with an average size of 29 nm and polyethylene (PE) powders were dispersed on the wood fibers’ surface through a viscous cationic polyacrylamide (CPAM) solution. The reflection loss (RL) value of the resulting composite was −21 dB, with a thickness of 3.5 mm in the frequency of 17.17 GHz. The PE/ZnO/wood-fiber (PZW) composite exhibited superior photocatalytic activity (84% methyl orange degradation within 300 min) under UV light irradiation. ZnO nanoparticels (NPs) increased the storage modulus of the PZW composite, and the damping factor was transferred to the higher temperature region. The PZW composite exhibited the maximum flexural strength of 58 MPa and a modulus of elasticity (MOE) of 9625 MPa. Meanwhile, it also displayed dimensional stability (thickness swelling value of 9%). Full article
