Search Results (7)

Soil vanadium contamination poses a significant threat to ecosystems. Hyperspectral remote sensing plays a critical role in extracting spectral features of heavy metal contamination, mapping its spatial distribution, and monitoring its trends over time. This study targets a vanadium-contaminated area in Panzhihua City, Sichuan Province. Soil sampling and spectral measurements occurred in the laboratory. Hyperspectral (Gaofen-5, GF-5) and multispectral (Gaofen-2, GF-2; Sentinel-2) images were acquired and preprocessed, and feature bands were extracted by combining laboratory spectral data. A dual-branch convolutional neural network (DB-CNN) fused hyperspectral and multispectral images and confirmed the fusion’s effectiveness. Six prevalent machine learning models were adopted, and a unified learning framework leveraged a Random Forest (RF) as a second-layer model to enhance the predictive performance of these base models. Both the base models and the ensemble learning model were evaluated based on predictive accuracy. The fusion process enhanced the predictive performance of the base models, improving R² values for vanadium (V) and pentavalent vanadium (V5+) from 0.54 and 0.3 to 0.58 and 0.39, respectively, at a 4 m resolution. Further optimization using RF as a second-layer model to refine Extreme Trees (ETs) significantly increased R² values to 0.83 and 0.75 for V and V5+, respectively, at this scale. The 934 nm and 464 nm wavelengths were identified as the most critical spectral bands for predicting soil vanadium contamination. This integrated approach robustly delineates the spatial distribution characteristics of V and V5+ in soils, facilitating precise monitoring and ecological risk assessments of vanadium contamination through a comparative analysis of predictive accuracy across diverse models. Full article

The poor operational stability of electrolytes is a persistent impediment in building redox flow battery technology; choosing suitable stability additives is usually the research direction to solve this problem. The effects of five phosphate containing additives (including 1-hydroxyethylidene-1,1-diphosphonic acid (HEDP), hexamethylene diamine tetramethylene phosphonic acid (HDTMPA), amino trimethylene phosphonic acid (ATMPA), sodium ethylenediamine tetramethylene phosphonate (EDTMPS), and diethyl triamine pentamethylene phosphonic acid (DTPMP)) on the thermal stability and electrochemical performance of the positive electrolyte of vanadium redox flow battery were investigated. With 0.5 wt% addition, most of the selected additives were able to improve the thermal stability of the electrolyte. HEDP and HDTMPA extended the stability time of the pentavalent vanadium electrolyte at 50 °C from 5 days (blank sample) to 30 days and 15 days, respectively. The electrochemical performance of the electrolyte was further investigated by cyclic voltammetry, steady state polarization, and electrochemical impedance spectroscopy tests. It was found that most of the additives enhanced the electrochemical activity of the positive electrolyte, and the diffusion coefficients, exchange current densities, and reaction rate constants of V(IV) species became larger with the addition of these additives. It is verified that the thermal stability and electrochemical stability of the electrolyte are significantly improved by the combination of ATMPA + HEDP or ATMPA + HDTMPA. This study provides a new approach to improve the stability of the positive electrolyte for vanadium redox flow battery. Full article

During the acid leaching process of black shale, with the destruction of the aluminosilicate mineral structure, a large amount of aluminum (Al) is leached, accompanied by the release of vanadium (V). To separate aluminum from the vanadium-containing solution, the precipitation behavior of aluminum ions (Al³⁺) was investigated under hydrothermal conditions with the formation of alunite and natroalunite. In the solution environment, alunite and natroalunite are able to form stably by the Al³⁺ hydrolysis precipitation process at a temperature of 200 °C, a pH value of 0.4 and a reaction time of 5 h. When Al³⁺ was precipitated at a K/Al molar ratio of 1, the aluminum precipitation efficiency and the vanadium precipitation efficiency were 64.77% and 1.72%, respectively. However, when Al³⁺ was precipitated at a Na/Al molar ratio of 1, the precipitation efficiency of the aluminum decreased to 48.71% and the vanadium precipitation efficiency increased to 4.36%. The thermodynamics and kinetics results showed that alunite forms more easily than natroalunite, and the reaction rate increases with increasing temperature, and the precipitation is controlled by the chemical reaction. Vanadium loss increases as the pH value increases. It can be deduced that the ion state of tetravalent vanadium (VO²⁺) was transformed into the ion state of pentavalent vanadium (VO₂⁺) in the hydrothermal environment. The VO₂⁺ can be adsorbed on the alunite or natroalunite as a result of their negative surface charges, ultimately leading to vanadium loss. Full article

The objective of this work was to test vanadium isopolyoxoanions as potential corrosion inhibitors of the intermetallic phase Al₂Cu in sulfuric acid solutions at pH = 1.3 and 2.5. The intermetallic was melted in an electric arc furnace. Its phase composition was confirmed using X-ray diffraction, light microscopy, and differential scanning calorimetry. Then Al₂Cu corrosion kinetics was studied. Chemical composition of the solution after corrosion was determined using inductively coupled plasma-optical emission spectroscopy. The surface of corroded specimens was analyzed using scanning electron microscopy and X-ray photoelectron spectroscopy. Subsequent electrochemical studies involved determination of open-circuit potential, electrochemical impedance spectra, and polarization curves. It was found that the Al₂Cu phase corrodes selectively and vanadium isopolyoxoanions increase this process both at pH = 1.3 and 2.5 with two exceptions. Corrosion inhibition was observed for 100 and 200 mM of Na₃VO₄ at pH 1.3, with inhibition efficiency 78% and 62% respectively, due to precipitation of V₂O₅. Full article

Every year, a large quantity of vanadium-containing wastewater is discharged from industrial factories, resulting in severe environmental problems. In particular, V(V) is recognized as a potentially hazardous contaminant due to its high mobility and toxicity, and it has received considerable attention. In this study, a silica-supported primary amine resin (SiPAR) was prepared by in-situ polymerization, and the V(V) adsorption from the solution was examined. The as-prepared resin exhibited fast adsorption kinetics, and it could attain an equilibrium within 90 min for the V(V) solution concentration of 100 mg/L at an optimum pH of 4, whereas the commercial D302 resin required a treatment time of more than 3 h under the same conditions. Furthermore, the maximum adsorption capacity of the resin under optimum conditions for V(V) was calculated to be 70.57 mg/g. In addition, the kinetics and isotherm data were satisfactorily elucidated with the pseudo-second-order kinetics and Redlich–Peterson models, respectively. The silica-based resin exhibited an excellent selectivity for V(V), and the removal efficiency exceeded 97% in the presence of competitive anions at 100 mmol/L concentrations. The film mass-transfer coefficient (k_f) and V(V) pore diffusivity (D_p) onto the resins were estimated by mathematical modeling. In summary, this study provided a potential adsorbent for the efficient removal of V(V) from wastewater. Full article

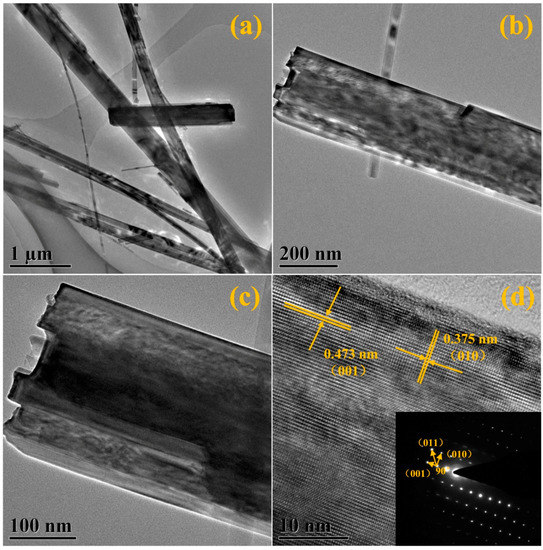

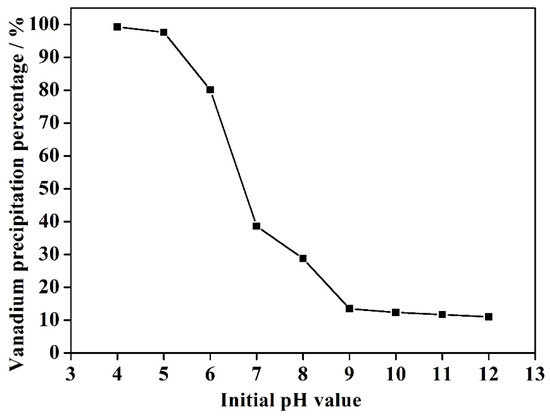

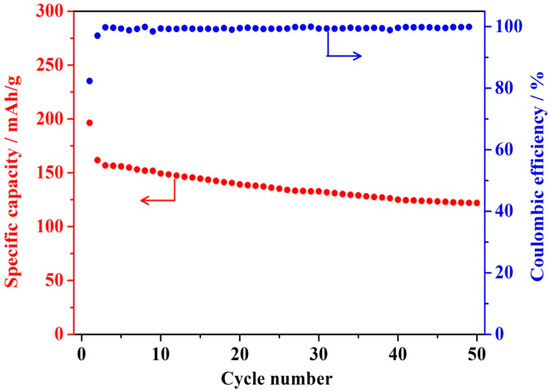

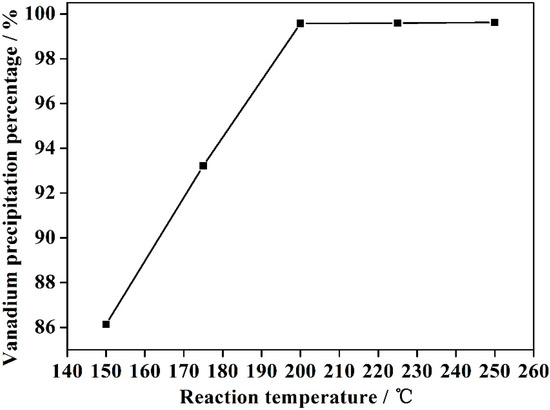

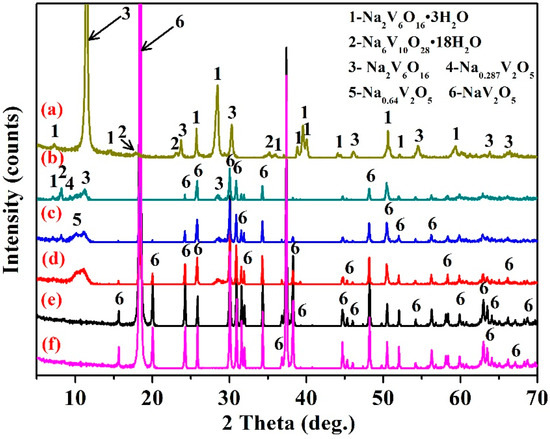

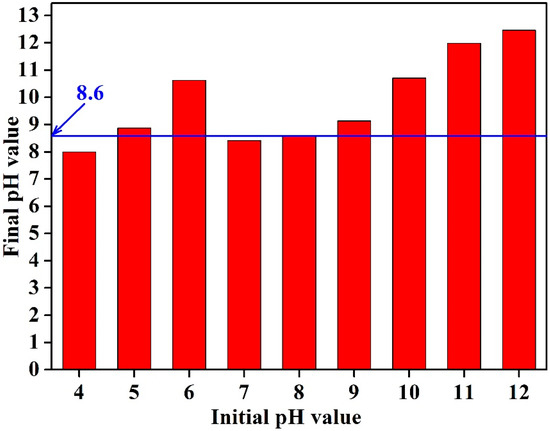

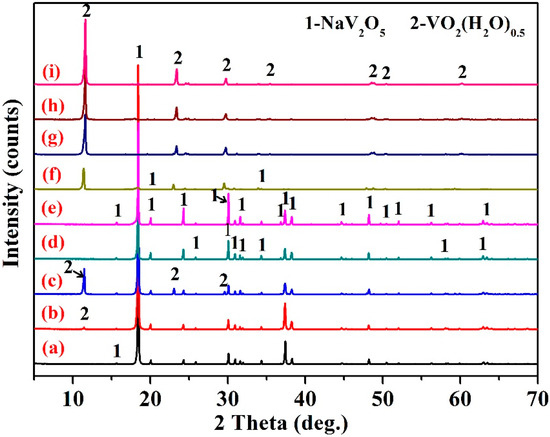

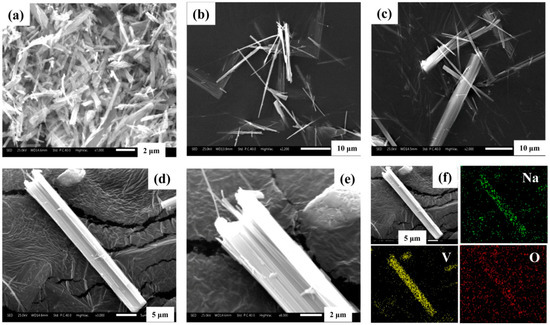

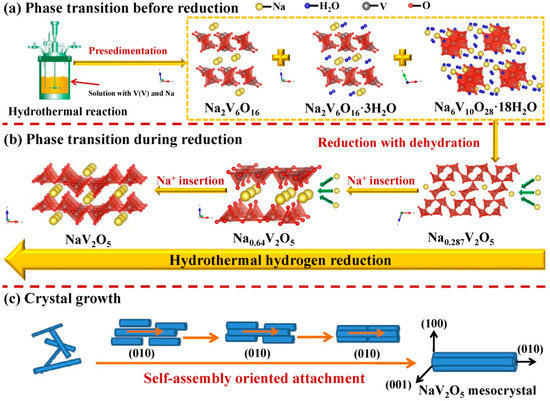

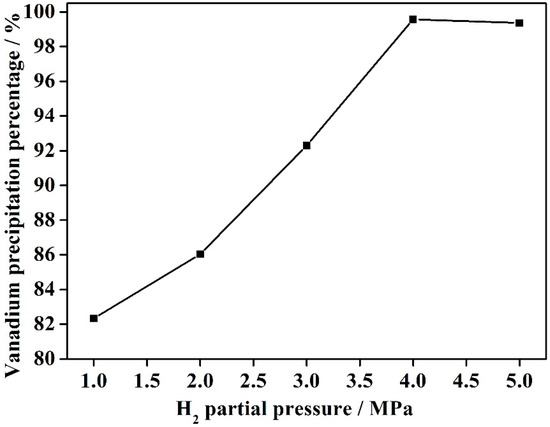

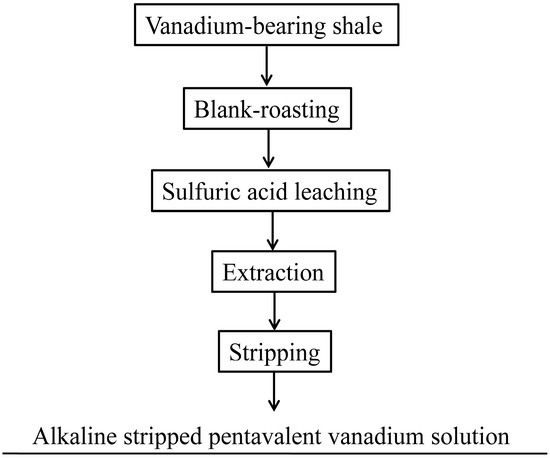

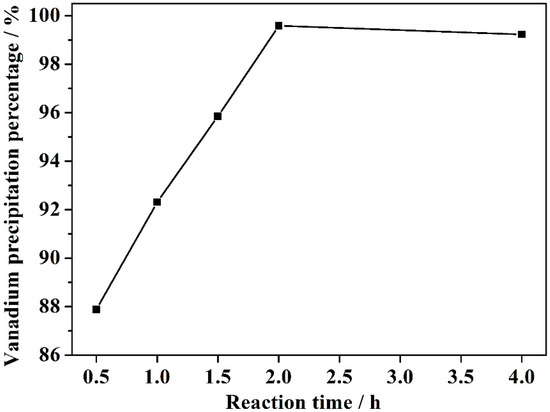

NaV₂O₅ mesocrystals were successfully synthesized from an alkaline-stripped pentavalent vanadium solution through a novel hydrothermal hydrogen reduction process. The optimal conditions for the hydrogen partial pressure, reaction temperature, initial solution pH value, and reaction time for the pure-phase NaV₂O₅ synthesis were ascertained to be 4 MPa, 200 °C, 4.0, and 2 h, respectively. The synthesis time (only 2 h) was greatly shortened, by nine times, compared with the most time-saving (18 h) hydrothermal process at present. X-ray diffraction (XRD) analysis revealed that the as-prepared powders demonstrated a typical layered orthorhombic structure of NaV₂O₅. The purity of the as-prepared NaV₂O₅ reached up to 99.98%. An electrochemical test showed that the as-prepared NaV₂O₅ has a potential application in sodium ion batteries. According to scanning electron microscopy (SEM) and transmission electron microscopy (TEM) analyses, the as-prepared NaV₂O₅ powders were identified to have rod-like mesocrystals consisting of small rods which preferentially grow along the (010) direction. Furthermore, the phase transformation mechanism and crystal growth mechanism in NaV₂O₅ preparation were discussed systematically, based on which the synthesis mechanism of NaV₂O₅ was proposed as pentavalent vanadates pre-sedimentation, hydrogen reduction with dehydration, sodium ions insertion, and finally self-assembly oriented attachment. The synthesis process is characterized as time-saving and low-cost, and thus it may have great application prospects. Full article

In view of the serious pollution problems caused by the traditional vanadium precipitation process, the eco-friendly technology of hydrothermal hydrogen reduction was first applied to precipitate phase pure vanadium sesquioxide (V₂O₃) products from stripped pentavalent vanadium (V (V)) solution extracted from vanadium-bearing shale. Thermodynamic analysis demonstrate the method of hydrothermal hydrogen reduction is feasible for precipitating V₂O₃ from V (V) solution at a suitable pH range, and the reduction should better be carried out at a lower pH under the pH range in which V₂O₃ can exist stably. The V₂O₃ products of 99.92% in purity and a high vanadium precipitation percentage of 99.25% were achieved under a facile reaction condition of initial solution pH of 6, reaction temperature of 523 K, H₂ partial pressure of 4 MPa and reaction time of 2 h. Based on the analysis of XRD and FE-SEM with EDS for the precipitation products obtained at serial reaction times, the phase transformation mechanism was summarized to serial reductions with the phase transformation of H_xV_yO_z^{(2z−x−5y)−} → NaV₂O₅ → VO₂(H₂O)_0.5 → VOOH → V₂O₃. Compared with the two-step traditional method of precipitating vanadium with ammonium salt and roast-reduction (react at above 773 K for more than 3 h) for preparing V₂O₃, this method only experiences one-step reduction under a green atmosphere of H₂ gas with a lower reaction temperature of 523 K and a shorter reaction time of 2h. Therefore, this method for vanadium precipitation is characterized by being eco-friendly, having a short process and being low-energy consumption, which has great significance for the sustainable development of vanadium industry. Full article
