Search Results (3)

Background and objective: The aim of this randomized split-mouth study-controlled clinical trial was to compare the 2-year clinical performance of resin composite restorations placed at non-caries cervical lesions (NCCL) with one-step self-etch, total-etch, and selective enamel etch and self-etch adhesive techniques. Materials and methods: Thirty-two patients received three resin composite restorations each at NCCLs (Tetric EvoCeram/Ivoclar/Vivadent), bonded with a total-etch adhesive agent (ExciTE F/Ivoclar/Vivadent) and a self-etch (AdheSE One F/Ivoclar/Vivadent) without and with selective enamel etching. All restorations were evaluated by two examiners at baseline, 6-, 12-, 18-, and 24-months with FDI clinical criteria (post-operation regarding retention, caries occurrence, marginal adaptation, and marginal staining). A logistic regression analysis, a Cohen’s kappa statistic, a multifactorial analysis, and X² were performed with generalized estimating equations. Results: After 2 years, the retention rate was 86.8% for total etch, 92.26% for self-etch, and 93.63% for selective enamel etching and self-etch. No caries was detected on the restorations. Concerning marginal adaptation, the clinically perfect restorations were 26.9% for the total-etch technique, 16% for self-etch, and 25.9% for selective enamel etch and self-etch. The logistic regression model revealed that only time reduced the probability of perfect marginal adaptation. Conclusions: All three adhesive strategies provided restorations with no significant differences in the retention rate or marginal adaptation, whereas the total etch yielded better performance for marginal staining. All restorations were assessed as clinically acceptable after 2 years. Full article

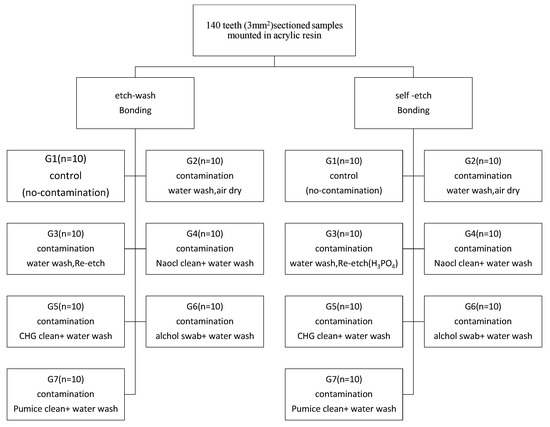

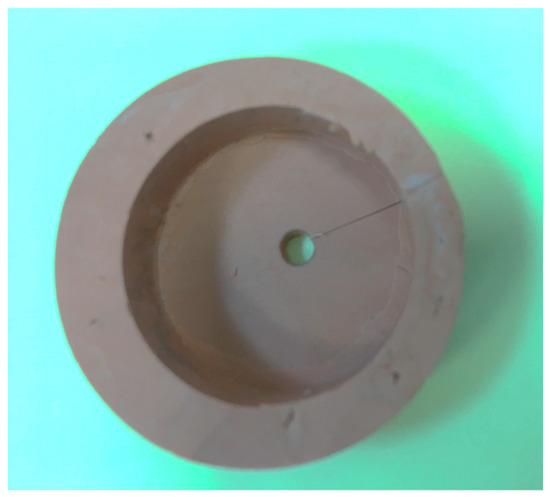

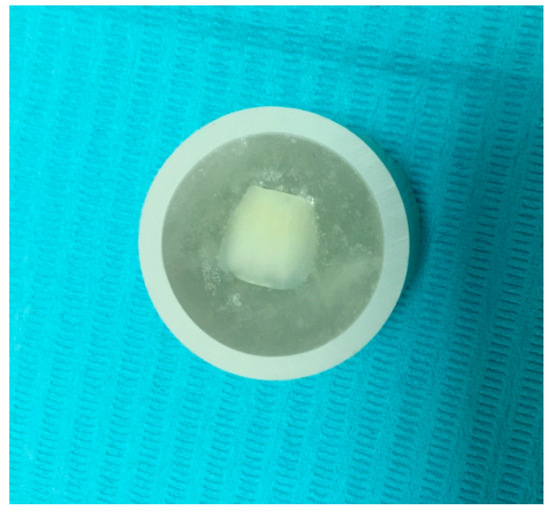

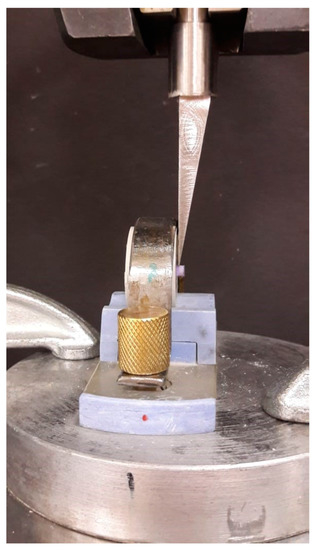

Blood–saliva contamination negatively affects the bonding potential of adhesive agents. The study aimed to assess the effect of various cleaning protocols on micro-shear bond strength (μSBS) between blood–saliva-contaminated post-etched dentin and composite resin in total-etch and self-etch adhesives. The cleaning methods tested were water rinsing, 37.5% phosphoric acid (H3PO4) re-etching, 6% sodium hypochlorite (NaoCl), 2% chlorhexidine gluconate (CXG), isopropyl alcohol (IPA), and pumice. Nono-hybrid composite cylinders with a 3-mm diameter and 2-mm height were directly cured over the dentin substrate, stored for 24 h, and subjected to 12,000 thermocycles. The shear force was exerted with a 200-μm knife-edged chisel-shaped head from a universal testing machine. The type of failure was assessed with stereomicroscope magnified images. The obtained data were evaluated by Kruskal–Wallis and Mann–Whitney U post-hoc tests. Water-rinsed contaminated dentin surfaces showed substantially reduced μSBS in the total etch from 25.93 to 20.29 Mpa and the corresponding values for the one-step self-etch adhesive were 10.10 to 8.8. Re-etching with 37.5% H3Po4 resulted in a recovery of bonding potential in both total-etch (24.58 Mpa) and self-etch adhesive (9.23 Mpa). Alternately, NaoCl and pumice cleaning showed promising results for the total-etch (23.51 Mpa) and self-etch (7.79 Mpa). Full article

This study was performed to standardize a dentin barrier test with the substitute and evaluate the cytotoxicity of one-step self-etching bonding agents. Each of the natural bovine dentin and polyurethane discs were 500-μm thick and were tested using a perfusion device. Following the treatment with 0.05% phenol on the natural bovine disc or three kinds of polyurethane discs—30, 40, and 50 pcf (pounds per cubic foot)—cell viability of L-929 was measured by the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay and expressed as percentages of non-treated group, respectively. A substitute showing permeability similar to that of bovine dentin was determined based on this result. Cytotoxicity test of bonding agents was performed by the selected substitute, the results of which were expressed as percentages of the control. In addition, SEM images were taken after the tests. The cell viability by 40-pcf polyurethane disc was not statistically different from that by bovine dentin disc (P > 0.05). Futurabond DC resulted in the highest cell viability and Bond force the lowest by the 40-pcf polyurethane disc (P < 0.05). The adhesives on the 40-pcf polyurethane disc changed cellular morphology with different degrees on the SEM images. This standardized test might be useful for assessing the cytotoxicity of dental materials applied to dentin before clinical applications. Full article
