Search Results (4)

Waterborne polyurethane (WPU) was cured with a flame retardant composed of polydimethylsiloxanes and boron phenolic resin. In comparison to unmodified WPU, the heat resistance of the cured WPU film was significantly improved by approximately 40.0 °C, and the limited oxygen index (LOI) increased from 21.9% to 32.6%. The outcomes reveal that the char residue yield of the cured WPU reached a substantial 8.93 wt.% at 600 °C, which is 60 times that of the unmodified WPU. The flame retardant facilitates the creation of char residue with a high degree of graphitization. Furthermore, the total smoke production (TSP), average effective heat of combustion (AEHC), total heat release (THR), and peak heat release rate (pHRR) of the cured WPU were diminished by 66.29%, 48.89%, 28.01%, and 27.96%, respectively, compared to the unmodified WPU. The CO/CO₂ emission ratio was elevated by 46.32%, and the total flue gas emission was cut by 66.29%, demonstrating a remarkable smoke suppression effect. The cured WPU attained the UL-94 V0 rating without melt-dripping. These results indicate that the combined flame retardants (2.0 wt.%) can endow WPU with outstanding flame retardant properties. Full article

Flame retardancy properties of neat PLA can be improved with different phosphorus-based flame retardants (FRs), however, developing flame retardant PLA-based engineering composites with maintained mechanical performance is still a challenge. This study proposes symbiosis approaches to enhance the flame retardancy behavior of polylactide (PLA) composites with 20 wt% short glass fibers (GF). This was first implemented by exploring the effects of various phosphorus-based FRs up to 5 wt% in neat PLA samples. Among the used phosphorus-based FRs, the use of only 3 wt% of diphosphoric acid-based FR (P/N), melamine coated ammonium polyphosphate (APPcoated), and APP with melamine synergist (APP/Mel) resulted in achieving the V0 value in a vertical burning test in the neat PLA samples. In addition to their superior efficiency in improving the flame retardancy of neat PLA, P/N had the least negative effect on the final mechanical performance of PLA samples. When incorporated in PLA composites with 20 wt% GF, however, even with the use of 30 wt% P/N, the V0 value could not be obtained due to the candlewick effect. To resolve this issue, the synergistic effect of P/N and aromatic polycarbodiimide (PCDI) cross-linker or Joncryl epoxy-based chain-extender (CE) on the flame retardancy characteristics of composites was examined. Due to the further chain modification, which also enhances the melt strength of PLA, the dripping of composites in the vertical burning test terminated and the V0 value could be reached when using only 1 wt% PCDI or CE. According to the scanning electron microscopic analysis, the use of noted chain modifiers further homogenized the distribution and refined the particle size of P/N within the PLA matrix. Hence this could synergistically contribute to the enhancements of the fire resistance performance of the PLA composites. Such incorporation of P/N and chain modifiers further leads to the enhancement of the mechanical performance of PLA composites and hence the resultant product can be proposed as a promising durable bioplastic engineering product where fire risk exists. Full article

This paper presents the results of research on geopolymer composites based on fly ash with the addition of melamine fibers in amounts of 0.5%, 1% and 2% by weight and, for comparison, without the addition of fibers. The melamine fibers used in the tests retain their melamine resin properties by 100% and are characterized by excellent acoustic and thermal insulation as well as excellent filtration. In addition, these fibers are nonflammable, resistant to chemicals, resistant to UV radiation, characterized by high temperature resistance and, most importantly, do not show thermal-related shrinking, melting and dripping. This paper presents the results of density measurements, compressive and flexural strength as well as the results of the measurement of thermal radiation changes in samples subjected to a temperature of 600 °C. The results indicate that melamine fibers can be used as geopolymer reinforcement. The best result was achieved for 0.5% by weight amount of reinforcement, approximately 53 MPa, compared to 41 MPa for a pure matrix. In the case of flexural strength, the best results were obtained for the samples made of unreinforced geopolymer and samples with the addition of 0.5% by weight of melamine fibers, which were characterized by bending strength values above 9 MPa, amounting to 10.7 MPa and 9.3 MPa, respectively. The thermal radiation measurements and fire-jet test did not confirm the increasing thermal and fire resistance of the composites reinforced by melamine fiber. Full article

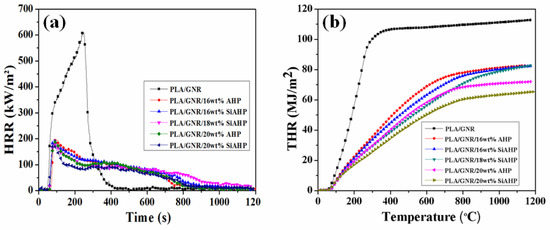

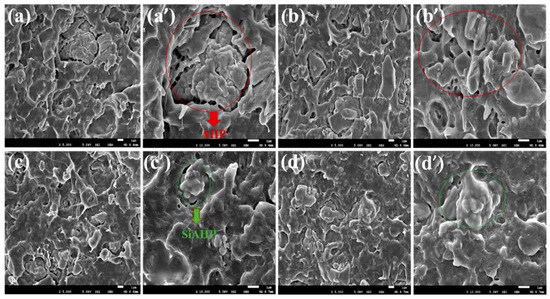

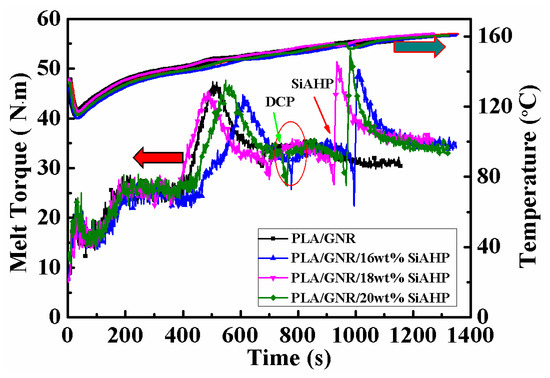

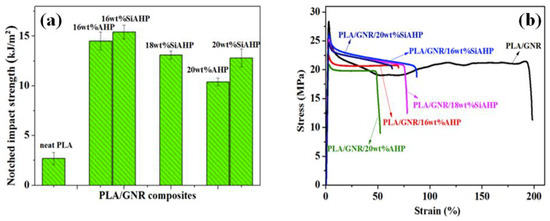

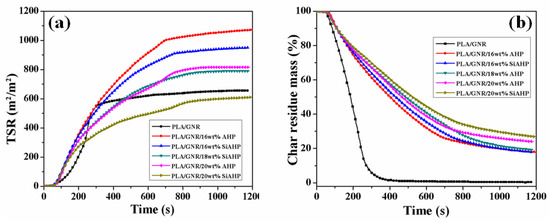

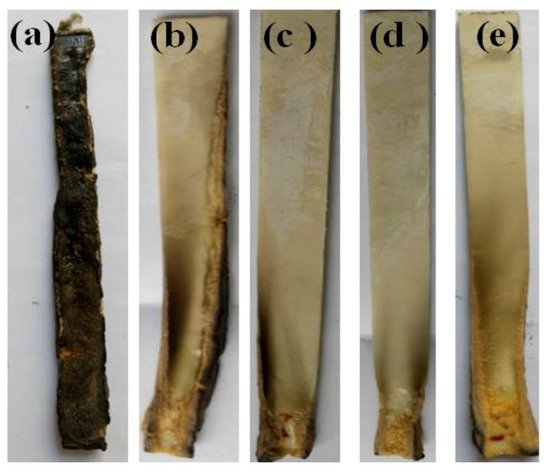

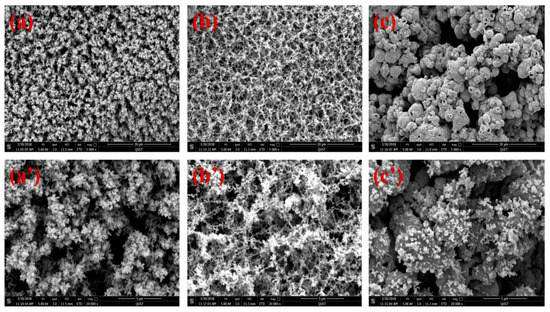

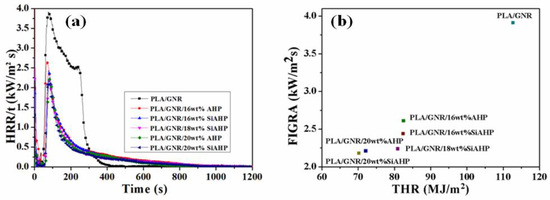

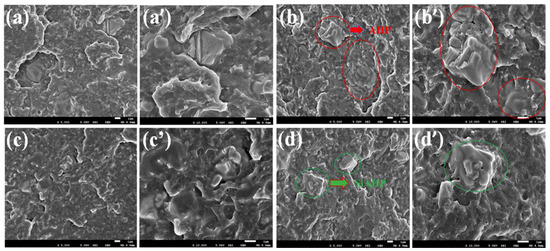

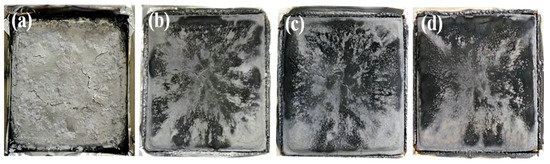

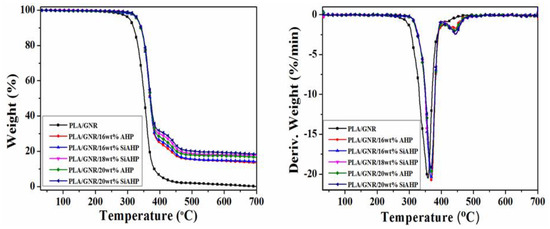

A novel flame-retardant and toughened bio-based poly(lactic acid) (PLA)/glycidyl methacrylate-grafted natural rubber (GNR) composite was fabricated by sequentially dynamical vulcanizing and reactive melt-blending. The surface modification of aluminum hypophosphite (AHP) enhanced the interfacial compatibility between the modified aluminum hypophosphite by silane (SiAHP) and PLA/GNR matrix and the charring ability of the PLA/GNR/SiAHP composites to a certain extent, and the toughness and flame retardancy of the PLA/GNR/SiAHP composites were slightly higher than those of PLA/GNR/AHP composites, respectively. The notched impact strength and elongation of the PLA composite with 20 wt. %GNR and 18 wt.% SiAHP were 13.1 kJ/m² and 72%, approximately 385% and 17 fold higher than those of PLA, respectively, and its limiting oxygen index increased to 26.5% and a UL-94 V-0 rating was achieved. Notedly, the very serious melt-dripping characteristics of PLA during combustion was completely suppressed. The peak heat release rate and total heat release values of the PLA/GNR/SiAHP composites dramatically reduced, and the char yield obviously increased with an increasing SiAHP content in the cone calorimeter test. The good flame retardancy of the PLA/GNR/SiAHP composites was suggested to be the result of a synergistic effect involving gaseous and condensed phase flame-retardant mechanisms. The high-performance flame-retardant PLA/GNR/SiAHP composites have great potential application as replacements for petroleum-based polymers in the automotive interior and building fields. Full article
