Search Results (10)

In this study, the BPTCD/g-C₃N₄ heterojunction photocatalyst was successfully prepared by the hydrothermal method. BPTCD (3,3′,4,4′-benzophenone tetracarboxylic dianhydride) is immobilised on the surface of g-C₃N₄ by non-covalent π-π stacking. The BPTCD/g-C₃N₄ heterojunction photocatalyst is an all-organic photocatalyst with significantly improved photocatalytic performance compared with g-C₃N₄. BPTCD/g-C₃N₄-60% was able to effectively degrade MO solution (10 mg/L) to 99.9% and 82.8% in 60 min under full spectrum and visible light. The TOC measurement results indicate that MO can ultimately be decomposed into H₂O and CO₂ through photocatalytic action. The photodegradation of methyl orange by BPTCD/g-C₃N₄ composite materials under sunlight is mainly attributed to the successful construction of the heterojunction structure and its excellent π-π stacking effect. Superoxide radicals (^•O₂⁻) were found to be the main active species, while ^•OH and h⁺ played a secondary role. The synthesised BPTCD/g-C₃N₄ also showed excellent stability in the activity of photodegradation of MO in wastewater, with the performance remaining above 90% after three cycles. The mechanism of the photocatalytic removal of MO dyes was also investigated by the trap agent experiments. Additionally, BPTCD/g-C₃N₄-60% demonstrated exceptional photodegradation performance in the degradation of methylene blue (MB). BPTCD/g-C₃N₄ heterojunctions have great potential to degrade organic pollutants in wastewater under solar irradiation conditions. Full article

This study investigates the environmental impacts caused by the scaling up of the photocatalytic purification of drinking water using ultraviolet light-emitting diode technology. The life cycle assessment methodology was utilised to estimate the environmental impacts of two different reactor setups commonly used in lab-scale studies: an immobilised and a suspended TiO₂ catalytic system. The functional unit adopted was the treatment of 1 L of water with an initial 7.8 mg/L concentration of natural organic matter, achieving a final 1 mg/L concentration. The use of a suspended photocatalyst was found to have an environmental footprint that was 87% lower than that of the immobilised one. From the sensitivity analysis, the environmental hotspots of the treatment process were the electricity usage and immobilised catalyst production. Therefore, alternative scenarios investigating the use of a renewable electricity mix and recyclable materials were explored to enhance the environmental performance of the photocatalytic treatment process. Using a renewable electricity mix, a decrease of 55% and 15% for the suspended and immobilised catalyst, respectively, was observed. Additionally, the process of recycling the glass used to support the immobilised catalyst achieved a maximum reduction of 22% in the environmental impact from the original scenario, with 100 glass reuses appearing to provide diminishing returns on the environmental impact savings. Full article

The aim of this study was to investigate the photocatalytic degradation of the neonicotinoid insecticide acetamiprid in aqueous solution. Experiments were carried out in a 250 mL batch reactor with recirculation of the reaction mixture and using a UVA-LED radiation source with a heterogeneous UVC-modified perlite-based TiO₂ photocatalyst. The photocatalytic degradation of acetamiprid was optimized using a Box–Behnken design (BBD) of the response surface methodology (RSM). The variables in the process optimization were catalyst type, volume of the reaction mixture, and light radiation intensity. From the experimental data obtained, the conversions of the photocatalytic reactions, the reaction rate constants, and the mean square deviations were calculated. The experimental results have shown that the conversion of the reaction is significantly affected by the type of catalyst, i.e., the method used to immobilise the photocatalytic layer on the perlite granules. The highest conversions of 48.49% were reached with catalysts obtained by impregnation methods, while the conversions were quite low (8.68%) for catalysts obtained by sol-gel methods. It was also found that the highest conversions were achieved with the highest radiation intensity and the smallest volume of reaction mixture. Full article

This work presents the photocatalytic degradation of organic pollutants in water with TiO₂ and TiO₂/Ag membranes prepared by immobilising photocatalysts on ceramic porous tubular supports. The permeation capacity of TiO₂ and TiO₂/Ag membranes was checked before the photocatalytic application, showing high water fluxes (≈758 and 690 L m⁻² h⁻¹ bar⁻¹, respectively) and <2% rejection against the model pollutants sodium dodecylbenzene sulfonate (DBS) and dichloroacetic acid (DCA). When the membranes were submerged in the aqueous solutions and irradiated with UV-A LEDs, the photocatalytic performance factors for the degradation of DCA were similar to those obtained with suspended TiO₂ particles (1.1-fold and 1.2-fold increase, respectively). However, when the aqueous solution permeated through the pores of the photocatalytic membrane, the performance factors and kinetics were two-fold higher than for the submerged membranes, mostly due to the enhanced contact between the pollutants and the membranes photocatalytic sites where reactive species were generated. These results confirm the advantages of working in a flow-through mode with submerged photocatalytic membranes for the treatment of water polluted with persistent organic molecules, thanks to the reduction in the mass transfer limitations. Full article

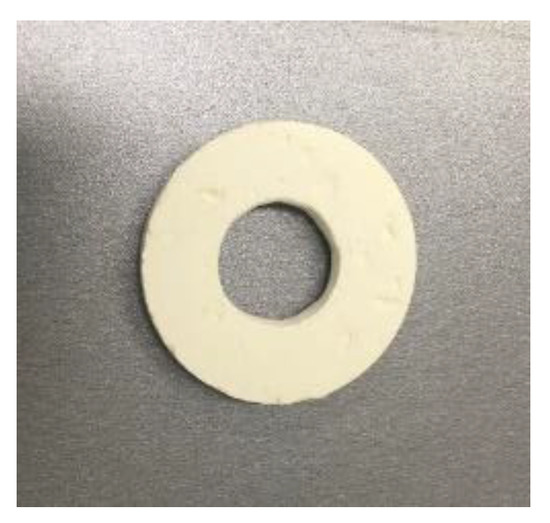

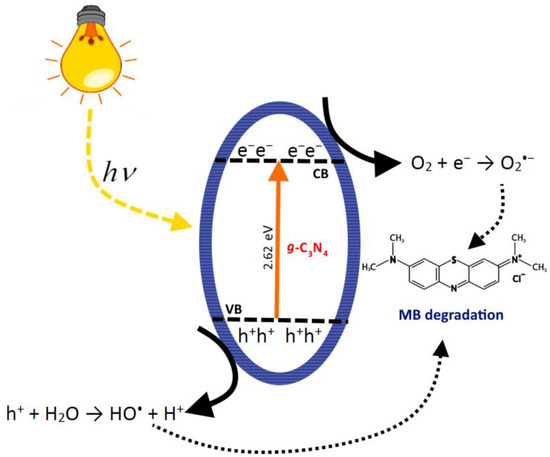

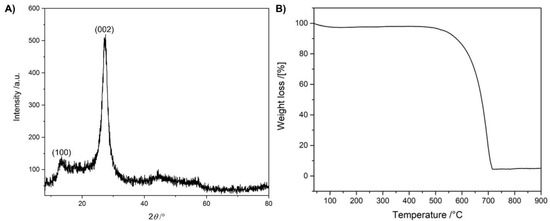

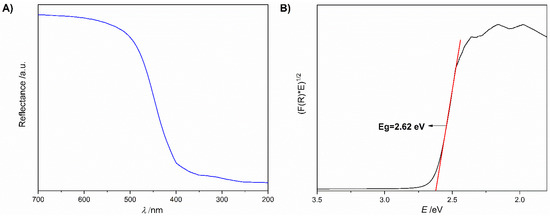

Textile industries significantly impact the contamination of wastewater. Conventional wastewater treatment methods consider the most common pollutants; however, they are very expensive and commonly produce toxic by-products. In the scientific community, advanced oxidation processes appear to be the most appealing, and a majority of the published work considers heterogeneous photocatalysis for the degradation of various toxic chemicals. For convenience, the reaction is performed directly in the water environment. In this work, a metal-free graphitic carbon nitride (g-C₃N₄) was prepared through a simple thermal method using urea as a precursor. Prepared g-C₃N₄ was deposited on the surface of the alumina ceramic ring by the dip-coating method using ethylene glycol as binder. The alumina ceramic ring, as substrate, was prepared by the slip casting method. Photocatalytic properties of immobilised graphitic carbon nitride were used for degradation of methylene blue as a model pollutant under simulated solar light irradiation. The photocatalyst was characterised by XRD, FTIR, UV-Vis DRS, TGA, BET and SEM/EDX analyses. The photocatalytic degradation of MB from an aqueous solution was found to increase with increasing irradiation time. It was found that the graphitic carbon nitride immobilised on alumina ceramic is convenient for largescale environmental applications because the whole setup is cheap, nontoxic, easy to operate and offers reusability with a high removal rate of MB after three consecutive cycles. Full article

Semiconductor materials used as photocatalysts are considered among the most effective ways to treat biologically polluted water. Certainly, efficiency depends on the selection of photocatalyst and its substrate, as well as the possibility of its application in a broader spectrum of light. In this study, a reactive magnetron sputtering technique was applied for the immobilisation of ZnO photocatalyst on the surface of HDPE beads, which were selected as the buoyant substrates for enhanced photocatalytic performance and easier recovery from the treated water. Moreover, the study compared the effect on the inactivation of the microorganism between ZnO-coated HDPE beads without Ni and with Ni underlayer. Crystal structure, surface morphology, and chemical bonds of as-deposited ZnO films were investigated by X-ray diffraction, scanning electron microscopy, and X-ray photoelectron spectroscopy, respectively. Visible-light-induced photocatalytic treatment was performed on the Gram-negative and Gram-positive bacteria and bacteriophages PRD1, T4, and their mixture. Higher bacteria inactivation efficiency was obtained using the ZnO photocatalyst with Ni underlayer for the treatment of S. Typhimurium and M. Luteus mixtures. As for infectivity of bacteriophages, T4 alone and in the mixture with PRD1 were more affected by the produced photocatalyst, compared with PRD1. Full article

This work presents the immobilisation of titanium dioxide (TiO₂) nanoparticles (NPs) and reduced graphene oxide (rGO)-TiO₂ nanocomposite on glass sheets for photocatalytic degradation of methylene blue (MB) under different radiation sources such as ultraviolet and simulated solar radiation. The TiO₂ NPs and rGO-TiO₂ nanocomposite were synthesised through a simple hydrothermal method of titanium isopropoxide precursor followed by calcination treatment. Deposition of prepared photocatalysts was performed by spin-coating method. Additionally, ethylene glycol was mixed with the prepared TiO₂ NPs and rGO-TiO₂ nanocomposite to enhance film adhesion on the glass surface. The photocatalytic activity under ultraviolet and simulated solar irradiation was examined. Further, the influence of different water matrices (milli-Q, river, lake, and seawater) and reactive species (h⁺, ^•OH, and e⁻) on the photocatalytic efficiency of the immobilised rGO/TiO₂ nanocomposite was careful assessed. MB dye photocatalytic degradation was found to increase with increasing irradiation time for both irradiation sources. The immobilisation of prepared photocatalysts is very convenient for environment applications, due to easy separation and reusability, and the investigated rGO/TiO₂-coated glass sheets demonstrated high efficiency in removing MB dye from an aqueous medium during five consecutive cycles. Full article

The photoexcitation of suitable semiconducting materials in aqueous environments can lead to the production of reactive oxygen species (ROS). ROS can inactivate microorganisms and degrade a range of chemical compounds. In the case of heterogeneous photocatalysis, semiconducting materials may suffer from fast recombination of electron–hole pairs and require post-treatment to separate the photocatalyst when a suspension system is used. To reduce recombination and improve the rate of degradation, an externally applied electrical bias can be used where the semiconducting material is immobilised onto an electrically conducive support and connected to a counter electrode. These electrochemically assisted photocatalytic systems have been termed “photoelectrocatalytic” (PEC). This review will explain the fundamental mechanism of PECs, photoelectrodes, the different types of PEC reactors reported in the literature, the (photo)electrodes used, the contaminants degraded, the key findings and prospects in the research area. Full article

In this work, mesoporous TiO₂-modified ZnO quantum dots (QDs) were immobilised on a linear low-density polyethylene (LLDPE) polymer using a solution casting method for the photodegradation of tetracycline (TC) antibiotics under fluorescent light irradiation. Various spectroscopic and microscopic techniques were used to investigate the physicochemical properties of the floating hybrid polymer film catalyst (8%-ZT@LLDPE). The highest removal (89.5%) of TC (40 mg/L) was achieved within 90 min at pH 9 due to enhanced water uptake by the LDDPE film and the surface roughness of the hybrid film. The formation of heterojunctions increased the separation of photogenerated electron-hole pairs. The QDs size-dependent quantum confinement effect leads to the displacement of the conduction band potential of ZnO QDs to more negative energy values than TiO₂. The displacement generates more reactive species with higher oxidation ability. The highly stable film photocatalyst can be separated easily and can be repeatedly used up to 8 cycles without significant loss in the photocatalytic ability. The scavenging test indicates that the main species responsible for the photodegradation was O₂^●−. The proposed photodegradation mechanism of TC was demonstrated in further detail based on the intermediates detected by LC-time-of-flight/mass spectrometry (LC/TOF-MS). Full article

The threat of antibiotic resistance to the wellbeing of societies is well established. Urban wastewater treatment plants (UWTPs) are recognised sources for antibiotic resistance dissemination in the environment. Herein a novel cerium-doped zinc oxide (Ce-ZnO) photocatalyst is compared to ZnO and the benchmark TiO₂-P25 in the immobilised form on a metallic support, to evaluate a photocatalytic process as a possible tertiary treatment in UWTPs. The catalysts were compared for the removal of two antibiotics, trimethoprim (TMP) and sulfamethoxazole (SMX), and for the inactivation of Escherichia coli (E. coli) strain DH5-Alpha in isotonic sodium chloride solution and of autochthonous bacteria in real secondary wastewater. In real wastewater, E. coli and other coliforms were monitored, as well as the respective fractions resistant to ofloxacin and azithromycin. In parallel, Pseudomonas aeruginosa and the respective sub-population resistant to ofloxacin or ciprofloxacin were also monitored. Photocatalysis with both ZnO and Ce-ZnO was faster than using TiO₂-P25 at degrading the antibiotics, with Ce-ZnO the fastest against SMX but slower than undoped ZnO in the removal of TMP. Ce-ZnO catalyst reuse in the immobilised form produced somewhat slower kinetics maintained >50% of the initial activity, even after five cycles of use. Approximately 3 log10 inactivation of E. coli in isotonic sodium chloride water was recorded with reproducible results. In the removal of autochthonous bacteria in real wastewater, Ce-ZnO performed better (more than 2 log values higher) than TiO₂-P25. In all cases, E. coli and other coliforms, including their resistant subpopulations, were inactivated at a higher rate than P. aeruginosa. With short reaction times no evidence for enrichment of resistance was observed, yet with extended reaction times low levels of bacterial loads were not further inactivated. Overall, Ce-ZnO is an easy and cheap photocatalyst to produce and immobilise and the one that showed higher activity than the industry standard TiO₂-P25 against the tested antibiotics and bacteria, including antibiotic-resistant bacteria. Full article
