Article

Preparation of Non-Covalent BPTCD/g-C3N4 Heterojunction Photocatalysts and Photodegradation of Organic Dyes Under Solar Irradiation

by
Xing Wei
1,
Gaopeng Jia
2,*,
Ru Chen
2 and
Yalong Zhang
2
1
Faculty of Environmental Science and Engineering, Yancheng Institute of Technology, Yancheng 224051, China
2
Institute of Textile and Apparel, Yancheng Institute of Technology, Yancheng 224051, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2025, 15(14), 1131; https://doi.org/10.3390/nano15141131
Submission received: 9 May 2025 / Revised: 27 June 2025 / Accepted: 7 July 2025 / Published: 21 July 2025
(This article belongs to the Section Environmental Nanoscience and Nanotechnology)
Browse Figures
Versions Notes

Abstract

In this study, the BPTCD/g-C3N4 heterojunction photocatalyst was successfully prepared by the hydrothermal method. BPTCD (3,3′,4,4′-benzophenone tetracarboxylic dianhydride) is immobilised on the surface of g-C3N4 by non-covalent π-π stacking. The BPTCD/g-C3N4 heterojunction photocatalyst is an all-organic photocatalyst with significantly improved photocatalytic performance compared with g-C3N4. BPTCD/g-C3N4-60% was able to effectively degrade MO solution (10 mg/L) to 99.9% and 82.8% in 60 min under full spectrum and visible light. The TOC measurement results indicate that MO can ultimately be decomposed into H2O and CO2 through photocatalytic action. The photodegradation of methyl orange by BPTCD/g-C3N4 composite materials under sunlight is mainly attributed to the successful construction of the heterojunction structure and its excellent π-π stacking effect. Superoxide radicals (•O2−) were found to be the main active species, while •OH and h+ played a secondary role. The synthesised BPTCD/g-C3N4 also showed excellent stability in the activity of photodegradation of MO in wastewater, with the performance remaining above 90% after three cycles. The mechanism of the photocatalytic removal of MO dyes was also investigated by the trap agent experiments. Additionally, BPTCD/g-C3N4-60% demonstrated exceptional photodegradation performance in the degradation of methylene blue (MB). BPTCD/g-C3N4 heterojunctions have great potential to degrade organic pollutants in wastewater under solar irradiation conditions.

1. Introduction

With the rapid economic development and industrialisation, environmental pollution has become an important challenge for all countries [1]. Organic dyes are one of the major pollutants in wastewater treatment [2]. These organic dyes are widely used in various industries such as textiles, plastics, leather, paints, and paper [3]. A large amount of dyes are discharged into water bodies as polluted wastewater every year. Due to their water-soluble nature, organic dyes are highly migratory in water bodies [4]. In addition, they are highly toxic, posing a serious threat to human health and the ecological environment, and may even cause serious consequences such as teratogenicity and carcinogenicity [5,6].
In recent years, organic semiconductor photocatalysts, which possess outstanding optoelectronic properties, have attracted significant attention from researchers and have been successfully applied in the field of photocatalysis [7]. The advantages of organic semiconductors over inorganic semiconductors are the designability of their molecular structure, broad spectral absorption, low preparation cost, environmental friendliness, and functional diversity [8,9,10]. g-C3N4 (graphite carbon nitride) is a two-dimensional structure composed of sp2 hybrid carbon (C) and nitrogen (N) atoms and has attracted extensive attention from researchers due to its physical and chemical properties, such as a narrow band gap, certain conductivity, excellent light absorption performance, and good chemical stability [11]. Since the first report of the use of g-C3N4 for photocatalytic water decomposition in 2009, this organic polymer semiconductor has been used in a wide range of applications such as photolysis of water, fuel cells, organic synthesis, and pollutant degradation [12,13,14,15]. However, its low utilisation of visible light, fast photogenerated carrier recombination, and low charge separation efficiency limit the wide application of this catalyst [16,17,18]. To address the intrinsic limitations of g-C3N4 and boost its photocatalytic activity, researchers have employed a range of strategies for its modification, including doping, morphological tuning, and surface engineering [19,20,21].
BPTCD (3,3′,4,4′-benzophenone tetracarboxylic dianhydride) consists of two benzene rings connected by a ketone group (C=O), each with two anhydride groups to form a tetraacidic dianhydride structure. It is a derivative of benzophenone and exhibits excellent thermal, chemical, and reactive properties [22]. BPTCD is sensitive to UV light and has no photocatalytic activity in visible light. In addition, the molecular structure of BPTCD contains conjugated units, such as benzene rings and carbonyl groups, and thus has a π-electron conjugation system. BPTCD is extensively utilised in the polyimides, polymer films, and synthesis of photosensitive materials [23,24,25]. Wang et al. discovered that BPTCD could be condensed and polymerised with 4,4′,4″-triaminotriphenylamine (TPA) to form polyimide (PPI) under mild conditions, which exhibited good photocatalytic activity for MB under visible light [26]. Yi et al. utilised BPTCD to construct nanophotoactive film materials that demonstrated good photocatalytic properties for reactive red 195 under ultraviolet irradiation [27]. In addition, the anhydride functional group can react with the amino group of g-C3N4, and g-C3N4-based photocatalysts can be prepared by using the imide bonding method [28]. However, this covalent functionalisation method destroys the π conjugation system of g-C3N4. Compared with covalent functionalisation, non-covalent functionalisation does not significantly alter the π-conjugation system of g-C3N4, thereby preserving the high conductivity of its electrons [29,30].
Although BPTCD is widely used in polyimide synthesis and other fields, the investigation into its morphological features and photoelectric properties is like a blank slate, and preparative studies on its use as a composite photocatalyst for the degradation of organic pollutants are even less frequently reported. In this paper, the morphology of BPTCD and its photoelectric properties were characterised in detail, and the BPTCD/g-C3N4 heterojunction photocatalysts consisting of BPTCD and g-C3N4 were successfully prepared by a one-step hydrothermal method. The physicochemical and optical properties of the obtained materials were thoroughly analysed and characterised. The photocatalytic performance of BPTCD/g-C3N4 heterojunction photocatalysts was systematically investigated and successfully applied to the photodegradation experiments of methyl orange (MO) and methylene blue (MB) under simulated sunlight. The cycling stability of the BPTCD/g-C3N4 heterojunction photocatalysts was discussed, and the radical species and potential degradation mechanisms of the BPTCD/g-C3N4 heterojunction photocatalysts were elaborated. The photocatalytic activity of different environmental factors was studied in detail to analyse its mechanism of action. It offers a novel and environmentally friendly method for effectively degrading dye wastewater, which holds significant environmental importance for improving dye wastewater pollution.

2. Materials and Methods

2.1. Materials

The chemical reagents used in the experiments included melamine (Melamine), isopropyl alcohol (IPA), anhydrous sodium sulphate (Na2SO4, 99%), benzoquinone (BQ, C6H4O2, 99%), and 3,3′,4,4′-benzophenone tetracarboxylic dianhydride (BPTCD, C17H6O7, CAS: 2421-28-5, ≥99%), which were purchased from Shanghai McLean Biochemistry Science and Technology Co., Ltd. (Shanghai, China). Methyl Orange (MO, AR grade) and Methylene Blue (MB, AR grade) were provided by Shanghai Shanpu Chemical Co. (Shanghai, China). Disodium ethylenediaminetetraacetic acid (EDTA-2Na) was obtained from Aladdin Chemical Reagent Co., Ltd. (Shanghai, China). All the above reagents were of analytical pure grade and used directly without purification. Deionised water (DI water) was used as the solvent for the preparation of all the solutions.

2.2. Photocatalysts Preparation

2.2.1. Preparation of g-C3N4 Nanosheets

Preparation of g-C3N4 nanosheets by direct calcination pyrolysis of melamine. First, 15 g of melamine was placed in a crucible for pyrolysis. The melamine was then heated to 550 °C at a ramping rate of 5 °C/min and kept at this temperature for 3 h. The melamine was then heated to 550 °C at a ramping rate of 5 °C/min. After the muffle furnace was naturally cooled to room temperature, the resulting yellowish-coloured lumps of g-C3N4 were removed and collected by grinding them into powder form using a mortar and pestle. The collected powder was washed three times each with deionised water and anhydrous ethanol successively and finally dried in an oven at 60 °C.

2.2.2. BPTCD/g-C3N4 Heterojunction Photocatalyst

Synthesis of BPTCD-functionalised g-C3N4 heterojunction photocatalysts using a typical hydrothermal-based approach. The total mass of g-C3N4 and BPTCD was kept as 800 mg. Different masses of g-C3N4 were placed in 100 mL of deionised water and ultrasonically stirred for 30 min, followed by the addition of different masses of BPTCD to the g-C3N4 suspension and continued stirring for 30 min for uniform dispersion. The dispersed mixture was transferred to a 150 mL hydrothermal synthesis reactor and kept at 160 °C for 12 h. After cooling to room temperature, the mixture was washed three times each with deionised water and anhydrous ethanol, respectively. Finally, the substance was washed and then placed in the oven at 60 °C for 8 h. A series of BPTCD/g-C3N4 samples were also prepared by controlling the ratio of raw materials, which were labelled BPTCD/g-C3N4-X (where X represents the amount of BPTCD fixed; X = 30%, 40%, 50%, 60%, 70%). The BPTCD/g-C3N4-60% photocatalyst, for example, is a composite of 0.32 g of g-C3N4 and 0.48 g of BPTCD.

2.3. Characterisation

The physicochemical properties of the materials were systematically resolved by multiscale characterisation techniques; field emission scanning electron microscopy (SEM, Nova Nano SEM 450, Milpitas, CA, USA) and transmission electron microscopy (TEM, JEM-1400 Plus, Tokyo, Japan) were used to analyse the surface morphology of the specimens and the microregion structure on the nanoscale, respectively. The crystal structure information (FTIR) was collected by X-ray polycrystalline diffractometer (X PERT3 POWDER, Almelo, The Netherlands); molecular vibration spectra were recorded by Fourier-transform infrared spectrometer (NEXUF-670, NICOLET, Mountain, WI, USA) in the 4000–400 cm−1 wave number interval to record molecular vibration characteristic spectra. X-ray photoelectron spectrometer (XPS, ESCALAB 250Xi, Shenzhen, China) was used to analyse the chemical state distribution of surface elements. For the evaluation of optical properties, a UV-visible diffuse reflectance spectroscopy system (UV-2450, Shimadzu, Kyoto, Japan) was used to determine the photoresponsive properties of the materials in the 200–800 nm band using barium sulphate as the reference substrate. Analysed specific surface area, pore size, and pore volume using the specific surface area test method (BTE, Kanta nova2000, Hickman, TN, USA). Use a total organic carbon analyser to test the degree of mineralisation in the solution (TOC, multi N/C UV HS, Hamburg, Germany). The characterisation of the photoelectrochemical behaviour was accomplished by a three-electrode system: ITO conductive glass as the working electrode, an Ag/AgCl electrode as the reference electrode, and a platinum sheet as the counter electrode in 0.5 mol/L sodium sulphate electrolyte (Na2SO4), using a CHI-660E electrochemical workstation (CHI-660E, CH Instruments, Austin, TX, USA).

2.4. Photocatalytic Degradation Experiments

A series of photocatalytic degradation experiments of MO (10 mg/L) and MB (10 mg/L) were carried out in aqueous solution under full-spectrum and visible light sources, respectively, to evaluate the photocatalytic activity of the BPTCD/g-C3N4 heterostructures under these experimental conditions. The absorbance of the degradation products was measured and analysed by UV-Vis spectrophotometer (TU-1900, Beijing, China) to investigate the photocatalytic activity of the heterojunction. The full-spectrum light source for the degradation experiments was a 300 W xenon lamp (equipped with a 390 nm cut-off filter as a visible light source). Specifically, 100 mg of photocatalyst and 100 mL of contaminant solution were placed in a light-avoiding environment and magnetically stirred at 500 rpm for 30 min to ensure that the system reached adsorption-desorption dynamic equilibrium. The mixed solution was transferred to 20 cm directly below the xenon light source, and the full-spectrum or visible light irradiation was turned on; during the photocatalytic process, 1.5 mL of the reaction solution was withdrawn every 10 min to track the decay pattern of pollutant concentration with time. Parallel control experiments were set up for the photodegradation of MO and MB without BPTCD/g-C3N4 under the same experimental conditions as described above and the photocatalytic degradation of BPTCD and g-C3N4, respectively, to exclude the interference of non-catalytic factors. In addition, total organic carbon removal rates were confirmed by TOC analysis to guarantee complete mineralisation.
The evaluation of photocatalytic activity can be broadly divided into three categories depending on the application scenario. The first category is dominated by photocatalytic degradation reactions, which generally use organic pollutants as target molecules for degradation. Generally, the reaction kinetics of photocatalytic degradation of organic pollutants conforms to the Langmuir–Hinshelwood quasi-primary kinetic model, and therefore the catalytic activity can be evaluated by the following equation (Equation (1)):
D e g r a d a t i o n   e f f i c i e n c y   ( % ) = ( C 0 − C t C 0 ) × 100 %
Here, C0 represents the initial concentration of the organic pollutant solution, while C0 denotes the concentration of the organic pollutant solution at time t. The fitting was performed using the proposed first-order kinetic model, as shown in Equation (2):
l n ( C 0 C t ) = k t
In this context, C0 signifies the initial concentration of the organic pollutant solution. Ct represents the concentration at time t, and k stands for the apparent rate reaction constant, expressed in min−1. Notably, k can be derived from the slope of the linear fitting equation.
Quenching experiments were conducted to identify the primary radical species produced during the photocatalytic reaction. In these tests, all scavengers were employed at a uniform concentration of 5 mmol/L; isopropanol (IPA) was used to scavenge hydroxyl radicals (•OH), benzoquinone (BQ) for superoxide radicals (•O2−), and EDTA-2Na to trap holes (h+VB) [31]. Stability assessments comprising five successive cycles were executed on the synthesised samples. Each experiment was executed a minimum of two times, with outcomes presented as average values.

3. Results and Discussion

3.1. Characterisations

As shown in Figure 1, this is a schematic diagram of the hydrothermal preparation process for the BPTCD/g-C3N4 heterojunction. Preparation of g-C3N4 suspension by the stirring method. In the BPTCD molecule, the carbonyl group is attached to the aromatic ring, and the hydrophobicity of the aromatic ring counteracts the hydrophilicity of the carbonyl group to some extent, rendering BPTCD insoluble in water at room temperature. Since both g-C3N4 and BPTCD possess aromatic ring structures, their π-π interactions can be significantly enhanced through hydrothermal treatment [32]. Due to the large specific surface area of g-C3N4 and the π-π bond interaction, BPTCD molecules are adsorbed onto g-C3N4 via π-π stacking interactions after heating in water.
The microscopic morphology and structural features of g-C3N4, BPTCD, and BPTCD/g-C3N4 composites were systematically characterised by scanning electron microscopy (SEM) and transmission electron microscopy (TEM). As shown in Figure 2a, the g-C3N4 sample displays a typical two-dimensional lamellar structure. In Figure 2b, BPTCD has an irregular lumpy particle structure. Figure 2c shows that the obvious morphological features of BPTCD irregular particles and porous layered g-C3N4 are clearly present on the surface of the BPTCD/g-C3N4 composites, indicating that BPTCD formed a tight bond with g-C3N4. Transmission electron microscopy images (Figure 2d,e) further confirmed the two-dimensional lamellar structure of g-C3N4 and the granular structure of BPTCD. In addition, Figure 2f shows that BPTCD is uniformly distributed on the surface of layered g-C3N4 through π-π interactions, so the BPTCD/g-C3N4 heterojunction system is formed. The above results indicate that the basic morphological features of BPTCD and g-C3N4 were not damaged during the synthesis process, and this unique conformation creates favourable conditions for its enhanced photocatalytic performance [33].
The SEM images of BPTCD/g-C3N4 and their corresponding elemental distribution maps are demonstrated as shown in Figure 3a–d). The elemental distribution results show that three elements (carbon, nitrogen, and oxygen) are present in the sample, and the results also indicate that these elements are uniformly distributed in BPTCD/g-C3N4. In addition, Figure S1 provides quantitative information on carbon (C), nitrogen (N), and oxygen (O). The theoretical mass ratio of C to N is 2.2:1, while the actual mass ratio is 2.9:1. The deficiency of N may be due to impurities present in g-C3N4 during preparation. The higher oxygen peak weight in the spectrum may be attributed to the hydrolysis of BPTCD at high temperatures into tetracarboxylic acid, which significantly increases the oxygen content, and environmental oxygen factors in the scanned sample.
X-ray diffraction (XRD) was used to characterise the phase composition and crystal structure of the synthesised g-C3N4, BPTCD, and BPTCD/g-C3N4 samples. The results are presented in Figure 4a. Focusing on the pore structure of g-C3N4, two characteristic diffraction peaks (JCPDS number 87-1526) are observed near 13.1° (100 crystal plane) and 27.5° (002 crystal plane) in the X-ray diffraction spectrum, corresponding to the different characteristics of the in-layer long-range ordered aromatic system and the interlayer periodic structural stacking of g-C3N4 [34,35]. BPTCD exhibits very distinct diffraction peaks at 12.7°, 15.1°, 17.5°, 19.1°, 20.5°, 24.4°, 25.8°, and 30.7°. The diffraction peak of g-C3N4 at 13.0° disappears after coupling with BPTCD, indicating the presence of strong interactions between the two [31]. As shown in Figure S2, in the BPTCD/g-C3N4 composites, the diffraction peak of BPTCD at 24.4° is difficult to observe, which is due to the poor crystallinity of BPTCD after hydrothermal heating. The peak at 27.5° is weakened by the BPTCD/g-C3N4 composites, which may be due to the fact that g-C3N4 is covered with highly dispersed BPTCD, and this phenomenon can be observed using transmission electron microscopy (TEM) [36,37].
Fourier-transform infrared (FT-IR) analysis was performed on g-C3N4, BPTCD, and BPTCD/g-C3N4 samples within 4000–400 cm−1 to probe their surface chemistry. As shown in Figure 4b, pristine g-C3N4 nanosheets exhibit several characteristic peaks between 1200 and 1700 cm−1. The peaks at 1242, 1315, 1418, 1571, and 1656 cm−1 are attributed to the stretching vibrations of C=N and C-N bonds in CN heterocycles. The strong peak at 808 cm−1 corresponds to the vibrational mode of triazine units. Additionally, the peaks in the range of 3400–3000 cm−1 are associated with the -NH2 groups in the g-C3N4 nanosheets [38,39]. In the case of BPTCD, the absorption peaks observed at 1780 and 1856 cm−1 are attributed to the stretching vibrations of the anhydride (C=O) groups present in the BPTCD structure [23]. No amide (C=O) stretching vibrations were detected at 1660–1667 cm−1 in BPTCD/g-C3N4, indicating that the acid anhydride of BPTCD did not react with the amino group of g-C3N4, which indirectly proves that non-covalent forces exist between BPTCD and g-C3N4 [26]. Characteristic signals of g-C3N4 and BPTCD were detected in the BPTCD/g-C3N4 photocatalyst, confirming the successful preparation of the composite material. As shown in Figure S3, the FTIR spectra of BPTCD/g-C3N4 composites with different ratios are similar to those of g-C3N4, indicating that the addition of BPTCD has not altered its basic structure.
X-ray photoelectron spectroscopy (XPS) was employed to gain a deeper insight into the chemical characteristics of the samples, with the corresponding findings presented in Figure 5. As illustrated in Figure 5a, the XPS survey spectrum of the BPTCD/g-C3N4 nanostructure presents distinct C1s, O1s, and N1s peaks, which are in agreement with the EDS analysis results. As depicted in Figure 5b, the deconvoluted C1s XPS spectrum of g-C3N4 exhibits three distinct peaks positioned at 284 eV, 287.2 eV, and 288.3 eV. These peaks are attributable to the C-C, C-N, and N-C=N functional groups, respectively. As shown in Figure 5c,d, the position of the C=C bond out peak of the BPTCD/g-C3N4 heterojunction photocatalyst is shifted by 0.6 eV relative to BPTCD towards the lower binding energy, a result that suggests electron transfer and π-π conjugation between g-C3N4 and BPTCD [40]. As seen in Figure 5e,f, three peaks appear at 398.1 eV, 399.6 eV, 400.9 eV, and 403.1 eV in the spectrum of N1s in BPTCD/g-C3N4, which belong to the C-N=C, N-C bond, NH2 groups, and π-excitation hybridisation of sp2 in the triazine ring of g-C3N4, respectively. It is also noteworthy that an NH2 peak appeared on BPTCD/g-C3N4, suggesting that the NH2 groups on g-C3N4 did not react with BPTCD during the composite process [41,42]. Additionally, as observed in Figure 5g,h, compared to the standalone BPTCD, the O1s spectrum of the BPTCD/g-C3N4 heterojunction photocatalyst shows a noticeable shift of the C=O bond towards lower energy, indicating that the overall electron transfer is from g-C3N4 to BPTCD. This is mainly due to the conjugated π-system of g-C3N4, where electrons migrate from g-C3N4 to the C=O group of BPTCD. To sum up, the peaks observed in both g-C3N4 and BPTCD materials are also present in BPTCD/g-C3N4 heterojunction photocatalysts, confirming the successful integration of g-C3N4 and BPTCD into BPTCD/g-C3N4 heterojunction photocatalysts via interfacial interactions.
The BET method was used to study their specific surface area and pore size distribution. Figure 6 shows the N2 adsorption-desorption isotherms of g-C3N4, BPTCD, and BPTCD/g-C3N4-60%. These isotherms belong to Type IV, indicating that they have mesoporous structures [43]. The specific surface area, pore volume, and average pore size of g-C3N4, BPTCD, and BPTCD/g-C3N4-60% calculated using the BET method are summarised in Table 1. It can be seen that the specific surface area of BPTCD/g-C3N4-60% (13.518 cm2/g) is larger than that of pure g-C3N4 (11.014 cm2/g), thus providing more active sites, facilitating the adsorption of pollutants [44]. The pore volume of BPTCD/g-C3N4-60% decreased slightly, which may be due to BPTCD being loaded onto g-C3N4, dividing the large pores on g-C3N4 into micropores, thereby reducing the pore volume. Furthermore, the pore size of BPTCD/g-C3N4-60% (1.171 nm) is smaller than that of g-C3N4 (3.065 nm), potentially because the g-C3N4 surface is covered by BPTCD and the high temperature and pressure during the hydrothermal process lead to pore wall contraction, resulting in a reduction in pore size.

3.2. Photocatalytic Performance of BPTCD/g-C3N4 in Dye Solutions Under Simulated Sunlight Irradiation

3.2.1. Photocatalytic Degradation of MO

The degradation performance of photocatalytic materials for methyl orange (MO) was investigated in aqueous systems under full spectrum and visible light. Figure 7a demonstrates the variation in MO concentration under full spectrum, while Figure 7b presents the corresponding distribution of the proposed quasi-primary kinetic constants. This study first examined the photolytic behaviour of the catalyst-free system and found that the degradation rate of MO was only 1% after 60 min irradiation, confirming that it is difficult to effectively decompose this model pollutant by light radiation alone. The system demonstrated a 14.3% MO removal efficiency after the introduction of g-C3N4 material. The BPTCD/g-C3N4-30% sample with relatively low BPTCD content (30% mass ratio relative to g-C3N4) showed 85% photocatalytic degradation of MO after 60 min of full-spectrum light irradiation. It is noteworthy that increasing the mass ratio of BPTCD/g-C3N4 from 30% to 60% significantly increased the degradation efficiency of MO from 85% to 99.9%. The photocatalytic activity of the BPTCD/g-C3N4 heterojunction photocatalysts increased gradually with the increase in the mass ratio of BPTCD. This trend indicates that the addition of photoactive BPTCD contributes to the improvement in photocatalytic efficiency. At the same time, BPTCD and g-C3N4 formed a heterojunction structure through π-π interaction, which effectively enhanced the degradation efficiency of pollutants [45]. It is worth noting that as the mass ratio increases from 60% to 70%, the photocatalytic degradation rate shows an inverse relationship with the BPTCD doping content. This may be due to a reduction in active sites and an elongation of the electron transfer path [46]. The results of photocatalytic kinetic parameters for MO and MB are summarised in Table S1. The quasi-first-order reaction rate constant was measured to be 0.08784 min−1 after addition of 60% BPTCD. This value was 2.7 and 30 times higher than that of BPTCD (0.03196 min−1) and g-C3N4 (0.00281 min−1), respectively, for a reaction time of 60 min, which indicates that the MO solution has an efficient photocatalytic activity. The BPTCD/g-C3N4-60% sample exhibited the highest photocatalytic activity. Therefore, the next photoactivity tests were carried out using BPTCD/g-C3N4-60%. In a comparative study of photocatalytic degradation of MO under visible light, we examined BPTCD/g-C3N4, BPTCD, and g-C3N4 with different mass ratios. As depicted in Figure 7c,d, the BPTCD/g-C3N4-60% photocatalyst accomplished 82.8% MO degradation within 60 min. In comparison, the degradation rate of g-C3N4 alone under visible light was only 8%, and BPTCD had little photocatalytic effect on the MO solution. These results highlight the excellent photocatalytic performance of the BPTCD/g-C3N4-60% composite. The corresponding pseudo-primary rate constant of 0.02932 min−1 for BPTCD/g-C3N4 in visible light was 15 times higher than that of g-C3N4 (0.00126 min−1). In summary, the BPTCD/g-C3N4 heterojunction exhibits excellent photocatalytic activity in both full spectrum and visible light.
The degree of mineralisation of organic pollutants was determined through TOC testing, further confirming the activity of the BPTCD/g-C3N4-60% photocatalyst. Although 99% of MO can be degraded within 60 min during the photocatalytic process, it cannot be converted into CO2 and H2O at the same time [47]. As shown in Figure 8, the mineralisation degree of MO by BPTCD/g-C3N4-60% under full spectrum and visible light for 6 h was approximately 84.6% and 56.7%, respectively. This is because, during degradation and mineralisation, free radicals preferentially attack the chromophore (-N=N-) to form colourless aromatic amine intermediates. The benzene ring structure of these intermediates is stable, and the sulphate group (-SO3H) is difficult to oxidise and remove. This is why the total organic carbon (TOC) remains at a high level [48,49]. However, as time progresses, as shown by the TOC experiment, these intermediate products can be further degraded into CO2 and H2O.

3.2.2. Effect of pH

The pH value of the solution is a critical factor influencing the kinetics of photocatalytic reactions. The BPTCD/g-C3N4 photocatalytic system operates effectively within a pH range of 3 to 9. As can be seen from Figure 9, alkaline conditions are not conducive to the degradation of MO. As the pH value decreased from 9 to 3, the degradation rate of MO was significantly enhanced. At pH = 3, the degradation rate of MO reached 99% within 50 min. This phenomenon can be attributed to the amino protonation and BPTCD interface modification of g-C3N4. This is consistent with the results obtained in XPS, as the amino group (NH2) of g-C3N4 does not react with BPTCD under acidic conditions. The concentration of h+ in the MO solution becomes high, and these groups combine with H+ in the solution to form protonated NH3+ or NH2+, making the surface positively charged. Meanwhile, the electron-withdrawal effect of BPTCD may enhance the protonation ability of g-C3N4 amino groups or form more surface defective sites under acidic conditions, promoting H+ adsorption. In contrast, the surface of BPTCD/g-C3N4 photocatalysts under an alkaline environment will be negatively charged, while the MO solution under alkaline conditions is also negatively charged. The repulsion between the negative charges is detrimental to the adsorption on the MO solution and the efficiency of photocatalytic degradation [50].

3.2.3. Photocatalytic Active Species and Cyclic Stability

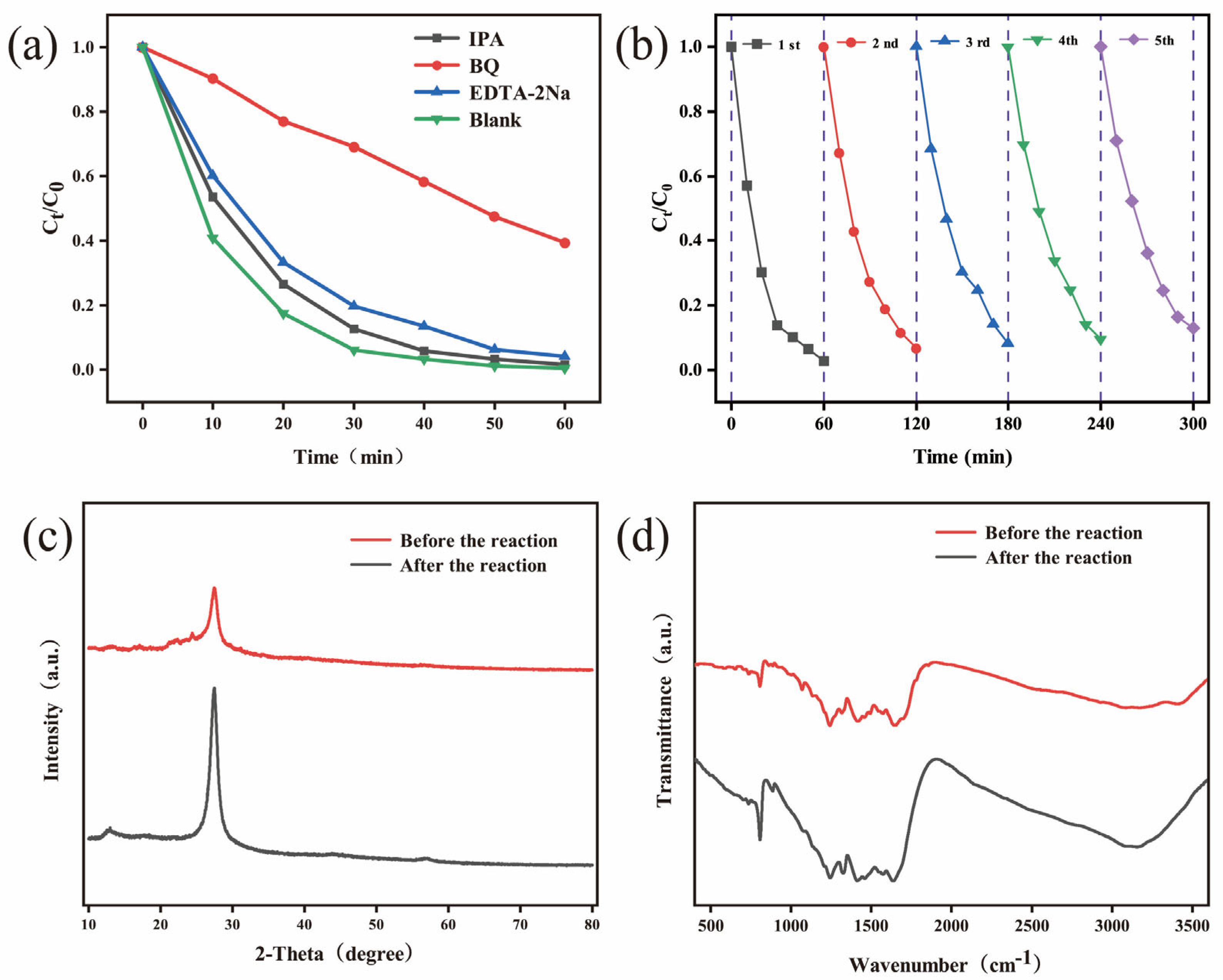

The contribution of active species in the photocatalytic degradation of MO induced by BPTCD/g-C3N4 was analysed through radical scavenging experiments. IPA, BQ, and EDTA-2Na were selected as scavengers for •OH, •O2−, and h+, respectively. Figure 10a shows that the addition of IPA and EDTA-2Na had little effect on the degradation rate, indicating that •OH and h+ play a limited role in the reaction. However, the addition of BQ caused the degradation rate to drop sharply to 60.69%, with the rate constant decreasing to 0.0156 min−1, indicating that •O2− is the key active species in MO degradation. The stability testing of the BPTCD/g-C3N4-60% sample was conducted via cyclic experiments. As shown in Figure 10b, after five cycles, the photocatalytic activity of the catalyst towards MO remained above 87%, indicating its excellent recyclability [51]. Furthermore, as depicted in Figure 10c,d, there is essentially no discernible difference between the XRD and FTIR spectra of BPTCD/g-C3N4-60% before and after the reaction, indicating that its structure remains unchanged. This confirms that the heterojunction possesses good stability and reusability.

3.3. Degradation of MB by BPTCD/g-C3N4

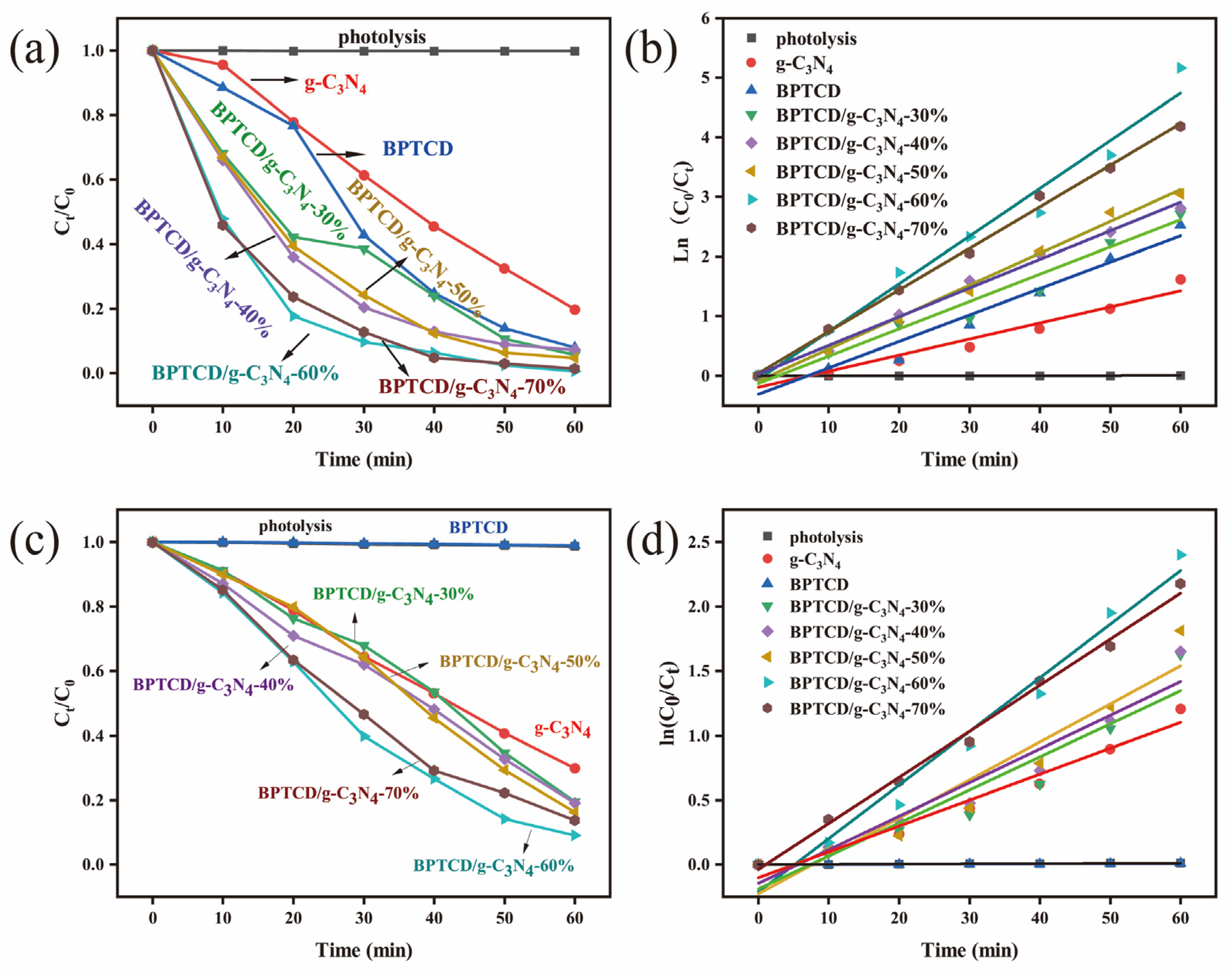

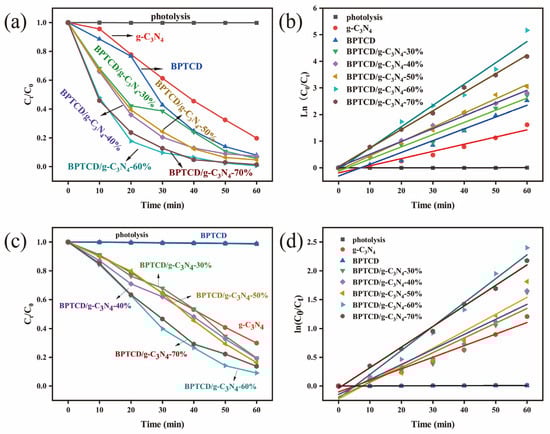

In order to expand the application scope of BPTCD/g-C3N4 photocatalysts, this study also explored their photocatalytic degradation of MB. As shown in Figure 11a, the BPTCD/g-C3N4-60% photocatalyst achieved 99% MB degradation in 60 min at full spectrum. As shown in Figure 11b, the quasi-primary reaction rate constant of BPTCD/g-C3N4-60% photocatalyst in MB solution was 0.08808 min−1, which was 2.96 times higher than that of g-C3N4 (0.02698 min−1) in 60 min. As shown in Figure 11c,d, the BPTCD/g-C3N4-60% photocatalyst achieved a 90% degradation rate of MB under visible light within 60 min, while the degradation rate was 70% when using g-C3N4 alone, and BPTCD itself exhibits almost no photocatalytic activity. Under visible light irradiation, the photocatalytic rate constant of BPTCD/g-C3N4 reached (0.04152 min−1), which is approximately 2.1 times that of g-C3N4 (0.02009 min−1). These results highlight the excellent photocatalytic performance of the BPTCD/g-C3N4-60% composite material in degrading MB under both full-spectrum and visible light irradiation.
In recent years, g-C3N4 composite photocatalytic materials have been widely investigated for the degradation of organic pollutants. Table S2 demonstrates the relevant photocatalysts reported by researchers in recent years. Compared with other reported photocatalysts, the photocatalysts prepared in this study showed obvious advantages.

3.4. Mechanisms of Enhanced Photocatalytic Activity

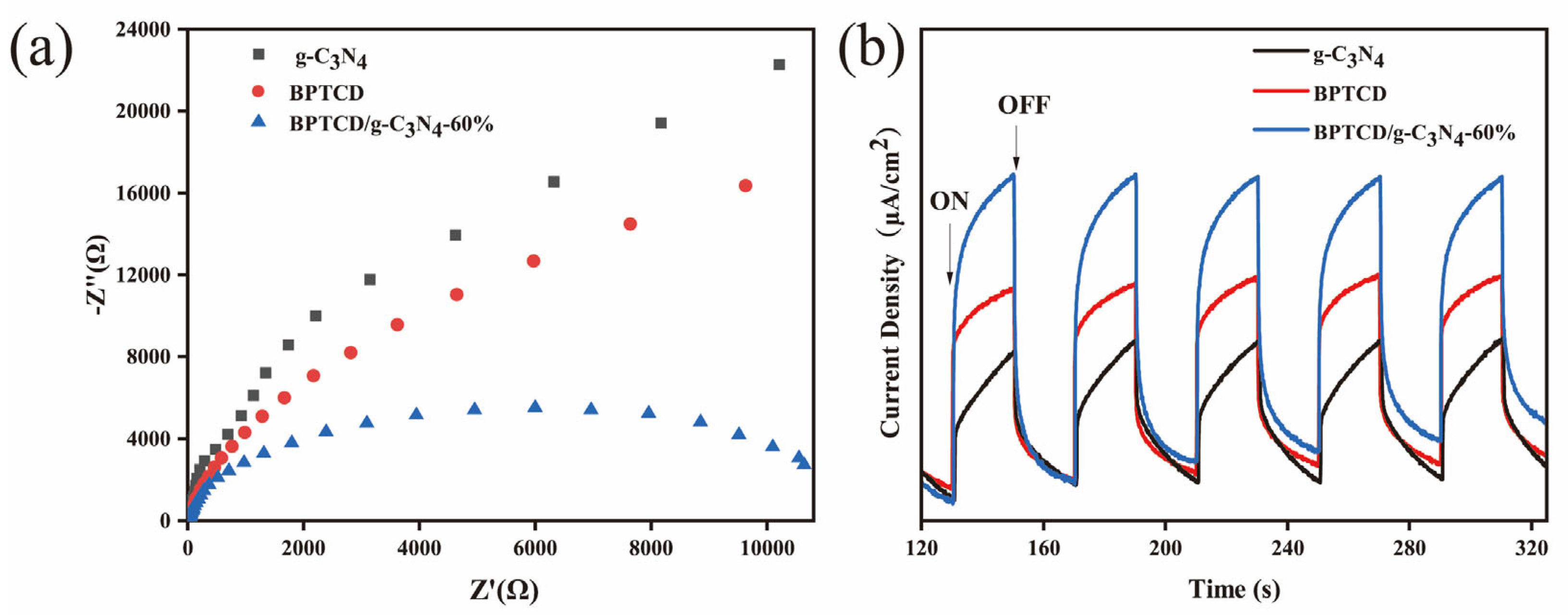

Photoelectrochemical tests were conducted on the materials to gain a deeper understanding of the mechanism behind the enhanced photocatalytic activity of the BPTCD/g-C3N4 photocatalyst. Electrochemical impedance spectroscopy (EIS) was used to investigate the enhanced interfacial charge transfer. The charge transfer resistance lowers as the arc radius becomes smaller. Figure 12a presents an EIS Nyquist diagram of electrodes composed of g-C3N4 and BPTCD/g-C3N4-60%. As observed, the BPTCD/g-C3N4 photocatalytic exhibits a shorter arc radius compared to that of pure g-C3N4, indicating a faster interfacial charge transfer. Photoelectrochemical tests were used to probe deeply into the intrinsic mechanisms underlying the significant enhancement of photocatalytic activity in BPTCD/g-C3N4 photocatalysts. As depicted in Figure 12b, g-C3N4, BPTCD, and the BPTCD/g-C3N4-60% composite material all display relatively stable photocurrent densities under sunlight exposure. Notably, the photocurrent density of BPTCD/g-C3N4-60% is significantly higher than that of samples containing solely g-C3N4, suggesting that the incorporation of BPTCD, which possesses excellent conductivity, enhances the transport efficiency of photogenerated carriers [52].

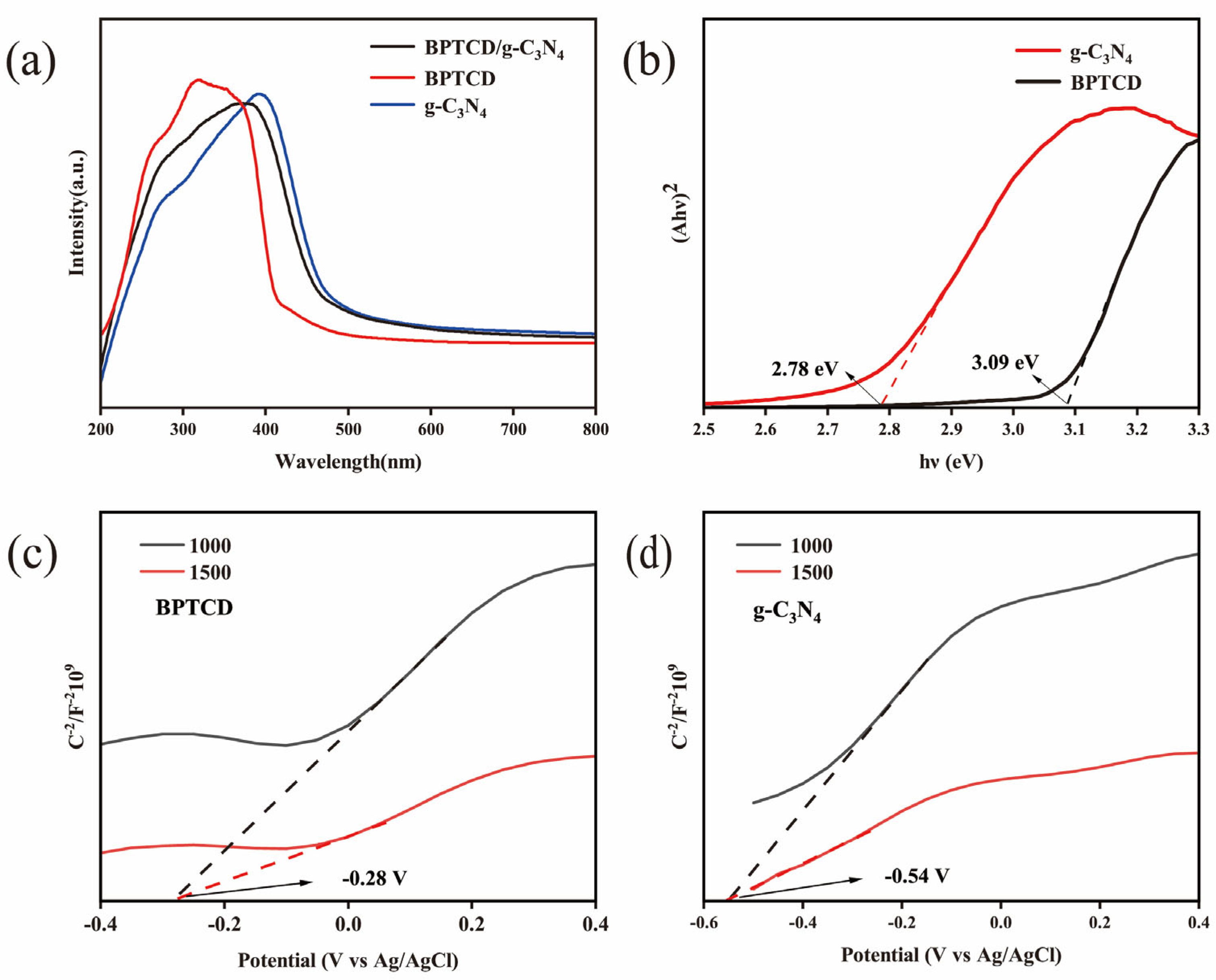

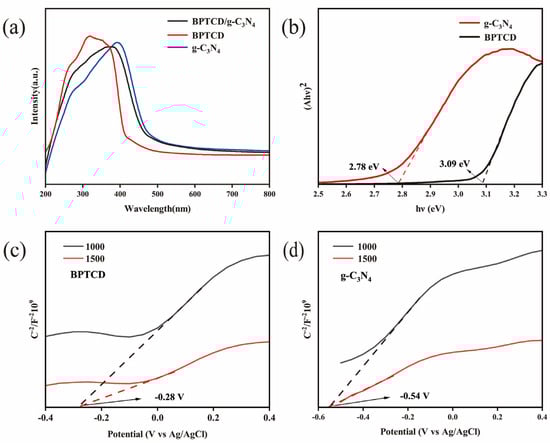

In the assessment of photocatalytic performance, Figure 13a shows the ultraviolet-visible diffuse reflectance spectra (UV-vis DRS) of g-C3N4, BPTCD, and BPTCD/g-C3N4 samples. The absorption edges (threshold wavelength, λ) of g-C3N4 and BPTCD were determined as 460 and 380 nm, respectively. According to the literature, BPTCD has better absorption of ultraviolet light, and its absorption intensity is higher than that of g-C3N4, which is also the reason why BPTCD exhibits better photocatalytic activity under sunlight [27]. Notably, the absorption edge of the BPTCD/g-C3N4 photocatalyst extends into the ultraviolet spectrum further than that of g-C3N4 alone, suggesting that the addition of BPTCD enhances the light absorption properties of g-C3N4.
These observations indicate that the BPTCD/g-C3N4 heterojunction system significantly optimises the photocatalytic performance through the synergistic effect of the staggered energy band structure with π-π stacking. Under solar light excitation, the BPTCD/g-C3N4 heterojunction extends the light absorption range, and its staggered energy band arrangement not only reduces the compound probability of the photogenerated electron-hole pairs, but also the π-π stacking interactions construct an efficient charge transport channel, which synergistically facilitates the directional separation of the carriers and rapid migration [53]. It was further confirmed that the light-trapping ability and charge-transfer property of BPTCD were the dominant factors driving the enhanced activity of the heterojunction photocatalysts. Despite its limited photocatalytic activity, the two-dimensional layered structure of g-C3N4 can serve as an efficient pollutant enrichment platform to promote the directional migration and spatial segregation of the photogenerated electron-hole pairs of BPTCD through the interfacial adsorption effect, which synergistically enhances the photocatalytic degradation efficiency of the composite system. In order to further elucidate the intrinsic mechanism of photoexcitation and redox reactions, the diffuse reflectance spectroscopy (DRS) data can be converted by the Kubelka–Munk (K-M) function to calculate the optical band gap energy of the semiconductors at the (Eg). Figure 13b shows a line graph plotting (αhν)2 against hν. The band gap widths of pure BPTCD and g-C3N4 were measured to be 3.09 eV and 2.78 eV, respectively, by Equation (3). In the formula, hν is the incident photon energy (h is Planck’s constant, and ν is the optical frequency), α is the absorption coefficient, A is the proportionality constant related to the material, and n is the index characterising the type of electron jump (the direct band gap is taken as n = 1/2 for direct band gap and n = 2 for indirect band gap). Based on the Mott–Schottky curve analyses (Figure 13c,d), both exhibit typical n-type semiconductor properties (positive slope characteristics). The flat band potentials with respect to the Ag/AgCl reference electrode were further obtained by slope fitting and were −0.45 V and −0.54 V for BPTCD and g-C3N4, respectively. After conversion to the Normal Hydrogen Electrode (NHE) system according to Equation (4), the flat-band potentials were corrected to be −1.06 V and −1.15 V, respectively [33]. According to Equation (4), the flat-band potentials of the Normal Hydrogen Electrode were found to be −1.06 V and −1.15 V, respectively. By using Equation (5), the position of the edge of the valence band (EVB) can be calculated as follows:
α h ν = A   ( h ν − E g )   n / 2
E N H E = E A g / A g C l + 0.0591   ∗   p H + 0.1976
E V B = E C B + E g

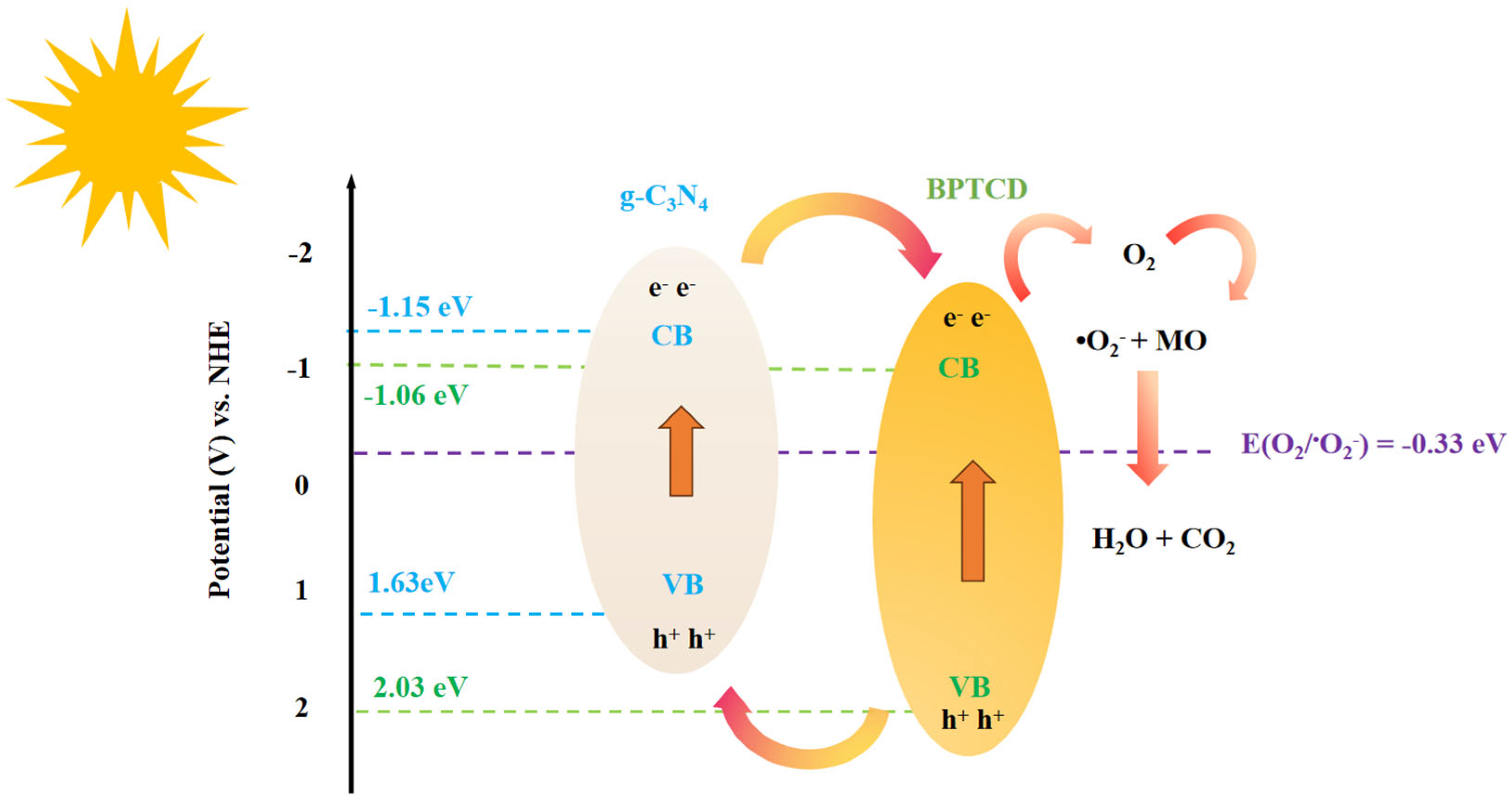

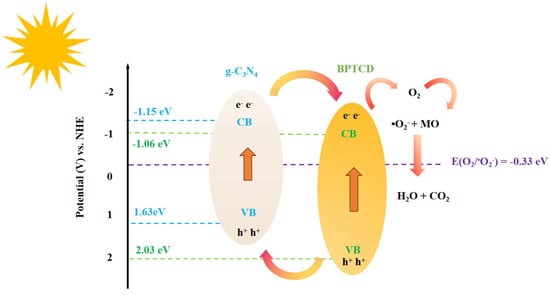

Based on the above energy band structure analysis, the valence band edge (EVB) of BPTCD is localised at 2.03 V (vs. NHE), while the EVB of g-C3N4 is 1.63 V (vs. NHE). Under photoexcitation, electrons migrate from the conduction band of BPTCD to that of g-C3N4, which is attributed to the lower conduction band of g-C3N4 compared to that of BPTCD. Thermodynamic analyses further revealed that the BPTCD conduction potential was significantly more negative than the reduction potential of O2/•O2− (−0.33 V vs. NHE), indicating that the conduction electrons could effectively reduce adsorbed oxygen to generate superoxide radicals (•O2−) under light conditions, and this inference is in high agreement with the results of free radical trapping experiments [54]. Furthermore, since the conduction band of g-C3N4 is lower than that of BPTCD, the transfer of photogenerated electrons from g-C3N4 to BPTCD is demonstrated. The significant differences in valence band and conduction band energy levels between the two phases of the BPTCD/g-C3N4 heterojunction facilitate the separation and migration of photogenerated carriers, thereby enhancing photocatalytic activity.
Based on the above characterisation results and discussion, it can be inferred that the BPTCD/g-C3N4 heterojunction photocatalysts follow a typical type II charge transfer mechanism (shown in Figure 14). When BPTCD/g-C3N4 was irradiated by sunlight (UV-visible light), photogenerated electrons and holes appeared in the conduction band (CB) and valence band (VB) of the photocatalyst, respectively. In the type II heterojunction formed by the composite of BPTCD and g-C3N4, there is a close π-π stacking interaction between the two. This π-π stacking interaction enables electrons to form a fast and orderly transport channel between the two. When light irradiates the composite material, photogenerated electrons are preferentially transferred along the channel from the conduction band of g-C3N4 to the conduction band of BPTCD, whereas the photogenerated holes are efficiently separated at the heterojunction interface and enriched in the valence band region of g-C3N4. In the heterojunction structure, since the potential of the BPTCD conduction band is more negative than that of O2/•O2−, the electrons in the BPTCD conduction band participate in the reduction reaction to capture and reduce O2 to •O2−, which can degrade the MO dye molecules into CO2 and H2O. The holes in the valence band of g-C3N4 are involved in the oxidation reaction and can degrade the dyes directly. This effective separation and utilisation of electrons and holes makes the composites significantly enhanced in photocatalytic activity. In visible light photocatalytic systems, although BPTCD itself cannot absorb visible light, it plays an important role as an “electron transfer agent” and “storage reservoir” in heterojunction structures. By receiving electrons from g-C3N4, BPTCD actively participates in photocatalytic reactions. This mechanism enhances the ability of the entire composite material to utilise visible light energy, thereby significantly improving its responsiveness to visible light.

4. Conclusions

In conclusion, we successfully introduced BPTCD into the g-C3N4 photocatalytic system to optimise the interface, and BPTCD as a charge mediator helps to improve the transfer of photoexcited charges in the interface. The π-π stacking between BPTCD and g-C3N4 and the staggered energy bands contribute to the separation and migration of photogenerated carriers. The BPTCD/g-C3N4 heterojunction photocatalysts overcame, to some extent, both the lack of photocatalytic activity of BPTCD under visible light and the inefficiency of g-C3N4 under visible light. The BPTCD/g-C3N4-60% degraded MO with efficiencies of 99.9% and 82.8% in full spectrum and visible light within 60 min. Based on the kinetic analysis of photocatalytic reactions, the degradation rates of the BPTCD/g-C3N4 photocatalyst under full-spectrum and visible light irradiation were 30 times and 15 times higher than those of the original g-C3N4, respectively. The excellent photodegradation effect of the BPTCD/g-C3N4 heterojunction on MO is mainly attributed to its composite heterojunction structure and good π-π stacking effect; •O2− is the main active component of the heterojunction photocatalytic degradation of MO. Additionally, BPTCD/g-C3N4 demonstrated good photocatalytic degradation capabilities for methylene blue (MB). The results of this study not only continue the low cost and environmental advantages of g-C3N4-based materials but also provide solid technical support for the practical application of dye wastewater photodegradation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano15141131/s1, Figure S1. EDX spectrum of BPTCD/g-C3N4-60%. Figure S2. XRD patterns of all samples of BPTCD/g-C3N4. Figure S3. FTIR spectra of all samples of BPTCD/g-C3N4. Table S1. Apparent rate reaction constants k (min−1) for various types of catalysts in the photodegradation of MO and MB dyes. Table S2. Comparative study of photocatalytic degradation rates of MO by different types of g-C3N4 matrix composites (see Refs. [55,56,57,58,59,60,61,62,63]).

Author Contributions

X.W.: methodology, investigation, formal analysis, writing—original draft, data curation. R.C.: supervision, validation. Y.Z.: supervision, validation. G.J.: conceptualisation, supervision, funding acquisition, investigation, visualisation, writing—review and editing, formal analysis. All authors have read and agreed to the published version of the manuscript.

Funding

This study is supported by the National College Students’ innovation training program (No. 202410305036Z).

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.

Acknowledgments

The authors thank the MDPI editorial team for their important editorial work. Support from the National Student Innovation Training Programme (No. 202410305036Z) is gratefully acknowledged.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the study reported in this paper.

References

  1. Singh, P.; Rani, N.; Kumar, S.; Kumar, P.; Mohan, B.; Pallavi; Bhankar, V.; Kataria, N.; Kumar, R.; Kumar, K. Assessing the biomass-based carbon dots and their composites for photocatalytic treatment of wastewater. J. Clean. Prod. 2023, 413, 137474. [Google Scholar] [CrossRef]
  2. Haleem, A.; Ullah, M.; Rehman, S.U.; Shah, A.; Farooq, M.; Saeed, T.; Ullah, I.; Li, H. In-Depth Photocatalytic Degradation Mechanism of the Extensively Used Dyes Malachite Green, Methylene Blue, Congo Red, and Rhodamine B via Covalent Organic Framework-Based Photocatalysts. Water 2024, 16, 1588. [Google Scholar] [CrossRef]
  3. Solis, M.; Solis, A.; Perez, H.I.; Manjarrez, N.; Flores, M. Microbial decolouration of azo dyes: A review. Process. Biochem. 2012, 47, 1723–1748. [Google Scholar] [CrossRef]
  4. Kim, Y.D.; Lee, J.J. An Investigation on Thermal Decomposition Behavior of Water-Soluble Azo Dyes. Fibers Polym. 2023, 24, 2799–2806. [Google Scholar] [CrossRef]
  5. Khan, S.; Noor, T.; Iqbal, N.; Yaqoob, L. Photocatalytic Dye Degradation from Textile Wastewater: A Review. ACS Omega 2024, 9, 21751–21767. [Google Scholar] [CrossRef]
  6. Ajaz, M.; Shakeel, S.; Rehman, A. Microbial use for azo dye degradation-a strategy for dye bioremediation. Int. Microbiol. 2020, 23, 149–159. [Google Scholar] [CrossRef]
  7. Chen, Z.S.; Zhang, S.; Liu, Y.; Alharbi, N.S.; Rabah, S.O.; Wang, S.H.; Wang, X.X. Synthesis and fabrication of g-C3N4-based materials and their application in elimination of pollutants. Sci. Total Environ. 2020, 731, 139054. [Google Scholar] [CrossRef]
  8. Chen, Y.Z.; Yan, C.X.; Dong, J.Q.; Zhou, W.J.; Rosei, F.; Feng, Y.; Wang, L.N. Structure/Property Control in Photocatalytic Organic Semiconductor Nanocrystals. Adv. Funct. Mater. 2021, 31, 2104099. [Google Scholar] [CrossRef]
  9. Li, W.T.; Zhang, H.J.; Huang, S.J.; Xu, J.Y.; Liu, L.P.; Li, J.S.; Jing, J.F.; Zhu, Y.F. Electron-enriched supramolecular PDI-SiO2 promoting PDS activation for enhanced photocatalytic advanced oxidation. Appl. Catal. B—Environ. Energy 2024, 340, 123262. [Google Scholar] [CrossRef]
  10. Guo, R.T.; Wang, J.; Bi, Z.X.; Chen, X.; Hu, X.; Pan, W.G. Recent advances and perspectives of g-C3N4-based materials for photocatalytic dyes degradation. Chemosphere 2022, 295, 133834. [Google Scholar] [CrossRef]
  11. Jindal, H.; Kumar, D.; Sillanpaa, M.; Nemiwal, M. Current progress in polymeric graphitic carbon nitride-based photocatalysts for dye degradation. Inorg. Chem. Commun. 2021, 131, 108786. [Google Scholar] [CrossRef]
  12. Wang, X.C.; Maeda, K.; Thomas, A.; Takanabe, K.; Xin, G.; Carlsson, J.M.; Domen, K.; Antonietti, M. A metal-free polymeric photocatalyst for hydrogen production from water under visible light. Nat. Mater. 2009, 8, 76–80. [Google Scholar] [CrossRef]
  13. Sun, H.P.; Gao, W.X.; Yuan, L.Y.; Ge, Y.X.; Zheng, X.; Luo, C.X.; Liu, J.K.; Feng, Z.T. Facile fabrication of NiCl2/g-C3N4 composite as high-performance cathode material for thermal battery. Electrochim. Acta 2025, 512, 145420. [Google Scholar] [CrossRef]
  14. Wu, C.L.; Wu, S.J.; Huang, Q.F.; Sun, K.; Huang, X.Q.; Wang, J.J.; Yu, B. Potassium-modified carbon nitride photocatalyzed-aminoacylation of N-sulfonyl ketimines. Chin. Chem. Lett. 2025, 36, 110250. [Google Scholar] [CrossRef]
  15. Wei, Y.; Liu, Y.B.; Liu, C.; Li, X.; Zhao, G.H.; Liu, R.H.; Wang, H.Y.; Jiang, Y.Y.; Zhang, Y.L.; Gao, Y.H.; et al. Construction of oxygen-doped g-C3N4/BiOCl (S-scheme) heterojunction: Efficient degradation of tetracycline in wastewater. J. Environ. Chem. Eng. 2024, 12, 113354. [Google Scholar] [CrossRef]
  16. Cao, L.G.; Zheng, Z.S.; Liu, Y.; Li, Z.Q.; Li, Y.L. Special sea urchin-like CdS/g-C3N4 photocatalyst with high specific surface area and efficient charge separation. J. Mater. Sci. 2022, 57, 17609–17621. [Google Scholar] [CrossRef]
  17. Aljuaid, A.; Almehmadi, M.; Alsaiari, A.A.; Allahyani, M.; Abdulaziz, O.; Alsharif, A.; Alsaiari, J.A.; Saih, M.; Alotaibi, R.T.; Khan, I. g-C3N4 Based Photocatalyst for the Efficient Photodegradation of Toxic Methyl Orange Dye: Recent Modifications and Future Perspectives. Molecules 2023, 28, 3199. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, Q.; Li, Y.F.; Huang, F.L.; Song, S.F.; Ai, G.G.; Xin, X.; Zhao, B.; Zheng, Y.J.; Zhang, Z.P. Recent Advances in g-C3N4-Based Materials and Their Application in Energy and Environmental Sustainability. Molecules 2023, 28, 432. [Google Scholar] [CrossRef]
  19. Wang, Y.; Tan, G.Q.; Dang, M.Y.; Dong, S.H.; Liu, Y.; Liu, T.; Ren, H.J.; Xia, A.; Lv, L. Study on surface modification of g-C3N4 photocatalyst. J. Alloys Compd. 2022, 908, 164507. [Google Scholar] [CrossRef]
  20. Khan, M.A.; Mutahir, S.; Shaheen, I.; Yuan, Q.; Bououdina, M.; Humayun, M. Recent advances over the doped g-C3N4 in photocatalysis: A review. Coord. Chem. Rev. 2025, 522, 216227. [Google Scholar] [CrossRef]
  21. Wang, J.; Wang, S. A critical review on graphitic carbon nitride (g-C3N4)-based materials: Preparation, modification and environmental application. Coord. Chem. Rev. 2022, 453, 214338. [Google Scholar] [CrossRef]
  22. Hong, K.H.; Sun, G. Photoactive antibacterial cotton fabrics treated by 3,3′,4,4′-benzophenonetetracarboxylic dianhydride. Carbohydr. Polym. 2011, 84, 1027–1032. [Google Scholar] [CrossRef]
  23. Hou, A.; Sun, G. Multifunctional finishing of cotton fabrics with 3,3′,4,4′-benzophenone tetracarboxylic dianhydride: Reaction mechanism. Carbohydr. Polym. 2013, 95, 768–772. [Google Scholar] [CrossRef]
  24. Yang, C.; Xu, W.; Nan, Y.; Wang, Y.; Gao, C.; Hu, Y.; Chen, X. Preparation and characterization of acid and solvent resistant polyimide ultrafiltration membrane. Appl. Surf. Sci. 2019, 483, 278–284. [Google Scholar] [CrossRef]
  25. Li, M.; Xu, Y.; Gong, X.; Geng, P.; Gao, Z.; Qin, J.; Wang, Y.; Cheng, P. Ternary copolymerization photosensitive polyimide containing flexible group for liquid crystal alignment film. J. Polym. Res. 2022, 29, 287. [Google Scholar] [CrossRef]
  26. Wang, Q.; Zhang, J.; Yu, Y.; Dan, Y.; Jiang, L. 4,4,4″-Triaminotriphenylamine-based porous polyimide as a visible-light-driven photocatalyst. New J. Chem. 2018, 42, 12205–12211. [Google Scholar] [CrossRef]
  27. Yi, S.; Zou, Y.; Sun, S.; Dai, F.; Si, Y.; Sun, G. Rechargeable Photoactive Silk-Derived Nanofibrous Membranes for Degradation of Reactive Red 195. Acs Sustain. Chem. Eng. 2019, 7, 986–993. [Google Scholar] [CrossRef]
  28. Xie, Y.; Liu, J.J.; Wang, G.X.; Hu, Q.S.; Chen, X.H. Ultrafast charge transfer in metal-free H2O2 photoproduction by anhydride modified g-C3N4. Chem. Commun. 2023, 59, 13046–13049. [Google Scholar] [CrossRef]
  29. Wang, X.Y.; Meng, J.Q.; Yang, X.; Hu, A.; Yang, Y.X.; Guo, Y.H. Fabrication of a Perylene Tetracarboxylic Diimide-Graphitic Carbon Nitride Heterojunction Photocatalyst for Efficient Degradation of Aqueous Organic Pollutants. ACS Appl. Mater. Interfaces 2019, 11, 588–602. [Google Scholar] [CrossRef]
  30. Liu, Y.A.; Ma, L.B.; Shen, C.C.; Wang, X.; Zhou, X.; Zhao, Z.W.; Xu, A.W. Highly enhanced visible-light photocatalytic hydrogen evolution on g-C3N4 decorated with vopc through π-π interaction. Chin. J. Catal. 2019, 40, 168–176. [Google Scholar] [CrossRef]
  31. Huang, G.; Zeng, D.L.; Ke, P.; Chen, Y. Preparation and characterization of Ag3PO4@g-C3N4 photocatalysts for dye wastewater treatment under visible-light irradiation. Inorg. Chem. Commun. 2024, 160, 111889. [Google Scholar] [CrossRef]
  32. Ma, X.G.; Wei, Y.; Wei, Z.; He, H.; Huang, C.Y.; Zhu, Y.F. Probing π-π stacking modulation of g-C3N4/graphene heterojunctions and corresponding role of graphene on photocatalytic activity. J. Colloid Interface Sci. 2017, 508, 274–281. [Google Scholar] [CrossRef] [PubMed]
  33. Wu, G.Y.; Tai, G.Y.; Li, G.; Lu, J.H.L.; Pan, Y.W.; Han, J.G.; Xing, W.N. Self-assembled perylene diimide decorated g-C3N4 heterojunction catalyst with strong interfacial charge transfer through π-π interaction for efficient boosted photocatalytic degradation of tetracycline. Surf. Interfaces 2024, 53, 105008. [Google Scholar] [CrossRef]
  34. Che, H.B.; Ngaw, C.K.; Hu, P.; Wang, J.S.; Li, Y.L.; Wang, X.K.; Teng, W.L. Fabrication of molybdenum doped carbon nitride nanosheets for efficiently photocatalytic water splitting. J. Alloys Compd. 2020, 849, 156440. [Google Scholar] [CrossRef]
  35. Li, L.L.; Bodedla, G.B.; Liu, Z.T.; Zhu, X.J. Naphthalimide-porphyrin hybridized graphitic carbon nitride for enhanced photocatalytic hydrogen production. Appl. Surf. Sci. 2020, 499, 143755. [Google Scholar] [CrossRef]
  36. Xing, C.W.; Yu, G.Y.; Chen, T.; Liu, S.S.; Sun, Q.Q.; Liu, Q.; Hu, Y.J.; Liu, H.Y.; Li, X.Y. Perylenetetracarboxylic diimide covalently bonded with mesoporous g-CN to construct direct Z-scheme heterojunctions for efficient photocatalytic oxidative coupling of amines. Appl. Catal. B—Environ. 2021, 298, 120534. [Google Scholar] [CrossRef]
  37. Ranjith, R.; Karmegam, N.; Alsawalha, M.; Hu, X.F.; Jothimani, K. Construction of g-C3N4/CdS/BiVO4 ternary nanocomposite with enhanced visible-light-driven photocatalytic activity toward methylene blue dye degradation in the aqueous phase. J. Environ. Manag. 2023, 330, 117132. [Google Scholar] [CrossRef]
  38. Miao, H.; Wang, Y.Y.; Yang, X.M. Carbon dots derived from tobacco for visually distinguishing and detecting three kinds of tetracyclines. Nanoscale 2018, 10, 8139–8145. [Google Scholar] [CrossRef]
  39. Li, Q.P.; Wen, N.; Zhang, W.; Yu, L.S.; Shen, J.H.; Li, S.X.; Lv, Y.G. Preparation of g-C3N4/TCNQ Composite and Photocatalytic Degradation of Pefloxacin. Micromachines 2023, 14, 941. [Google Scholar] [CrossRef]
  40. Li, X.F.; Shen, X.L.; Qiu, Y.L.; Zhu, Z.L.; Zhang, H.; Yin, D.Q. Fe3O4 quantum dots mediated P-g-C3N4/BiOI as an efficient and recyclable Z-scheme photo-Fenton catalyst for tetracycline degradation and bacterial inactivation. J. Hazard. Mater. 2023, 456, 131677. [Google Scholar] [CrossRef]
  41. Han, Q.; Wang, B.; Gao, J.; Cheng, Z.H.; Zhao, Y.; Zhang, Z.P.; Qu, L.T. Atomically Thin Mesoporous Nanomesh of Graphitic C3N4 for High-Efficiency Photocatalytic Hydrogen Evolution. Acs Nano 2016, 10, 2745–2751. [Google Scholar] [CrossRef] [PubMed]
  42. Xia, P.; Cheng, B.; Jiang, J.; Tang, H. Localized π-conjugated structure and EPR investigation of g-C3N4 photocatalyst. Appl. Surf. Sci. 2019, 487, 335–342. [Google Scholar] [CrossRef]
  43. Zhang, M.X.; Xing, M.Y.; Dong, B.; Zhang, H.X.; Sun, X.J.; Li, Q.H.; Lu, X.S.; Mo, J.J.; Zhu, H.X. Thermal Polymerisation Synthesis of g-C3N4 for Photocatalytic Degradation of Rhodamine B Dye under Natural Sunlight. Water 2023, 15, 2903. [Google Scholar] [CrossRef]
  44. Guo, Y.D.; Li, C.X.; Guo, Y.Q.; Wang, X.G.; Li, X.M. Ultrasonic-assisted synthesis of mesoporous g-C3N4/Na-bentonite composites and its application for efficient photocatalytic simultaneous removal of Cr(VI) and RhB. Colloids Surf. A—Physicochem. Eng. Asp. 2019, 578, 123624. [Google Scholar] [CrossRef]
  45. Xu, J.; Gao, Q.; Wang, Z.; Zhu, Y. An all-organic 0D/2D supramolecular porphyrin/g-C3N4 heterojunction assembled via π-π interaction for efficient visible photocatalytic oxidation. Appl. Catal. B Environ. 2021, 291, 120059. [Google Scholar] [CrossRef]
  46. Gan, J.S.; Li, X.B.; Arif, U.; Ali, F.; Ali, A.; Raziq, F.; Ali, N.; Yang, Y.; Wang, Z.G. Development and characterization of silver modified novel graphitic-carbon nitride (Ag-ZnO/C3N4) coupled with metal oxide photocatalysts for accelerated degradation of dye-based emerging pollutants. Surf. Interfaces 2023, 39, 102938. [Google Scholar] [CrossRef]
  47. Yan, Q.C.Z.C.; Guo, L.Y.; Zhang, H.; Zhang, L.C.; Wang, W.M. Role of maze like structure and Y2O3 on Al-based amorphous ribbon surface in MO solution degradation. J. Mol. Liq. 2020, 318, 114318. [Google Scholar] [CrossRef]
  48. Chen, P.; Liang, Y.M.; Xu, Y.F.; Zhao, Y.L.; Song, S.X. Synchronous photosensitized degradation of methyl orange and methylene blue in water by visible-light irradiation. J. Mol. Liq. 2021, 334, 116159. [Google Scholar] [CrossRef]
  49. Sun, M.F.; Xie, Y.C.; Huang, J.Y.; Liu, C.Y.; Dong, Y.J.; Li, S.J.; Zeng, C. Oxygen-deficient AgIO3 for efficiently photodegrading organic contaminants under natural sunlight. J. Environ. Manag. 2024, 363, 121393. [Google Scholar] [CrossRef]
  50. Feng, Z.; Zeng, L.; Zhang, Q.L.; Ge, S.F.; Zhao, X.Y.; Lin, H.J.; He, Y.M. In situ preparation of g-C3N4/Bi4O5I2 complex and its elevated photoactivity in Methyl Orange degradation under visible light. J. Environ. Sci. 2020, 87, 149–162. [Google Scholar] [CrossRef]
  51. Zhou, J.H.; Zhao, Z.W.; Wang, Y.; Ding, Z.X.; Xu, X.; Peng, W.; Fan, J.Y.; Zhou, X.; Liu, J. BiOCl0.875Br0.125/polydopamine functionalized PVDF membrane for highly efficient visible-light-driven photocatalytic degradation of roxarsone and simultaneous arsenic immobilization. Chem. Eng. J. 2020, 402, 126048. [Google Scholar] [CrossRef]
  52. Sun, Y.N.; Wang, D.D.; Zhu, Y.F. Deep degradation of pollutants by perylene diimide supramolecular photocatalyst with unique Bi-planar π-π conjugation. Chem. Eng. J. 2022, 438, 135667. [Google Scholar] [CrossRef]
  53. Jiang, R.R.; Lu, G.H.; Liu, J.C.; Wu, D.H.; Yan, Z.H.; Wang, Y.H. Incorporation of π-conjugated molecules as electron donors in g-C3N4 enhances photocatalytic H-production. Renew. Energy 2021, 164, 531–540. [Google Scholar] [CrossRef]
  54. Chen, C.-X.; Yang, S.-S.; Ding, J.; Wang, G.-Y.; Zhong, L.; Zhao, S.-Y.; Zang, Y.-N.; Jiang, J.-Q.; Ding, L.; Zhao, Y.; et al. Non-covalent self-assembly synthesis of AQ2S@rGO nanocomposite for the degradation of sulfadiazine under solar irradiation: The indispensable effect of chloride. Appl. Catal. B—Environ. 2021, 298, 120495. [Google Scholar] [CrossRef]
  55. Huang, S.; Xiong, F.; Yu, M.; Zhou, Y.; Xu, J.; Liu, J. Synthesis of Ag-loaded NaNbO3/g-C3N4 heterojunction for enhanced photocatalytic degradation of methyl orange. Mater. Sci. Semicond. Process. 2025, 192, 109401. [Google Scholar] [CrossRef]
  56. Orooji, Y.; Ghanbari, M.; Amiri, O.; Salavati-Niasari, M. Facile fabrication of silver iodide/graphitic carbon nitride nanocomposites by notable photo-catalytic performance through sunlight and antimicrobial activity. J. Hazard. Mater. 2020, 389, 122079. [Google Scholar] [CrossRef]
  57. Xu, R.; Wei, G.; Xie, Z.; Diao, S.; Wen, J.; Tang, T.; Jiang, L.; Li, M.; Hu, G. V2C MXene-modified g-C3N4 for enhanced visible-light photocatalytic activity. J. Alloy. Compd. 2023, 970. [Google Scholar] [CrossRef]
  58. Liu, Q.; Meng, Y.; Liu, Q.; Xu, M.; Hu, Y.; Chen, S. Synthesis of Ag3PO4/Ag/g-C3N4 Composite for Enhanced Photocatalytic Degradation of Methyl Orange. Molecules 2023, 28, 6082. [Google Scholar] [CrossRef]
  59. Huang, J.; Zhang, X.; Song, H.; Chen, C.; Han, F.; Wen, C. Protonated graphitic carbon nitride coated metal-organic frameworks with enhanced visible-light photocatalytic activity for contaminants degradation. Appl. Surf. Sci. 2018, 441, 85–98. [Google Scholar] [CrossRef]
  60. Yan, H.; Zhu, Z.; Long, Y.; Li, W. Single-source-precursor-assisted synthesis of porous WO3/g-C3N4 with enhanced photocatalytic property. Colloids Surf. A Physicochem. Eng. Asp. 2019, 582, 123857. [Google Scholar] [CrossRef]
  61. Liu, F.; Nguyen, T.-P.; Wang, Q.; Massuyeau, F.; Dan, Y.; Jiang, L. Construction of -scheme-g-C3N4/Ag/P3HT heterojunction for enhanced visible-light photocatalytic degradation of tetracycline (TC) and methyl orange (MO). Appl. Surf. Sci. 2019, 496, 143653. [Google Scholar] [CrossRef]
  62. Gao, X.; Zhang, R.; Shang, Y.; Fei, J.; Fu, F. Synergism of 3D g-C3N4 decorated Bi2WO6 microspheres with efficient visible light catalytic activity. J. Phys. Chem. Solids 2018, 119, 19–28. [Google Scholar] [CrossRef]
  63. Zhang, Z.; Sun, Y.; Wang, Y.; Yang, Y.; Wang, P.; Shi, L.; Feng, L.; Fang, S.; Liu, Q.; Ma, L.; et al. Synthesis and photocatalytic activity of g-C3N4/ZnO composite microspheres under visible light exposure. Ceram. Int. 2022, 48, 3293–3302. [Google Scholar] [CrossRef]
Nanomaterials 15 01131 g001

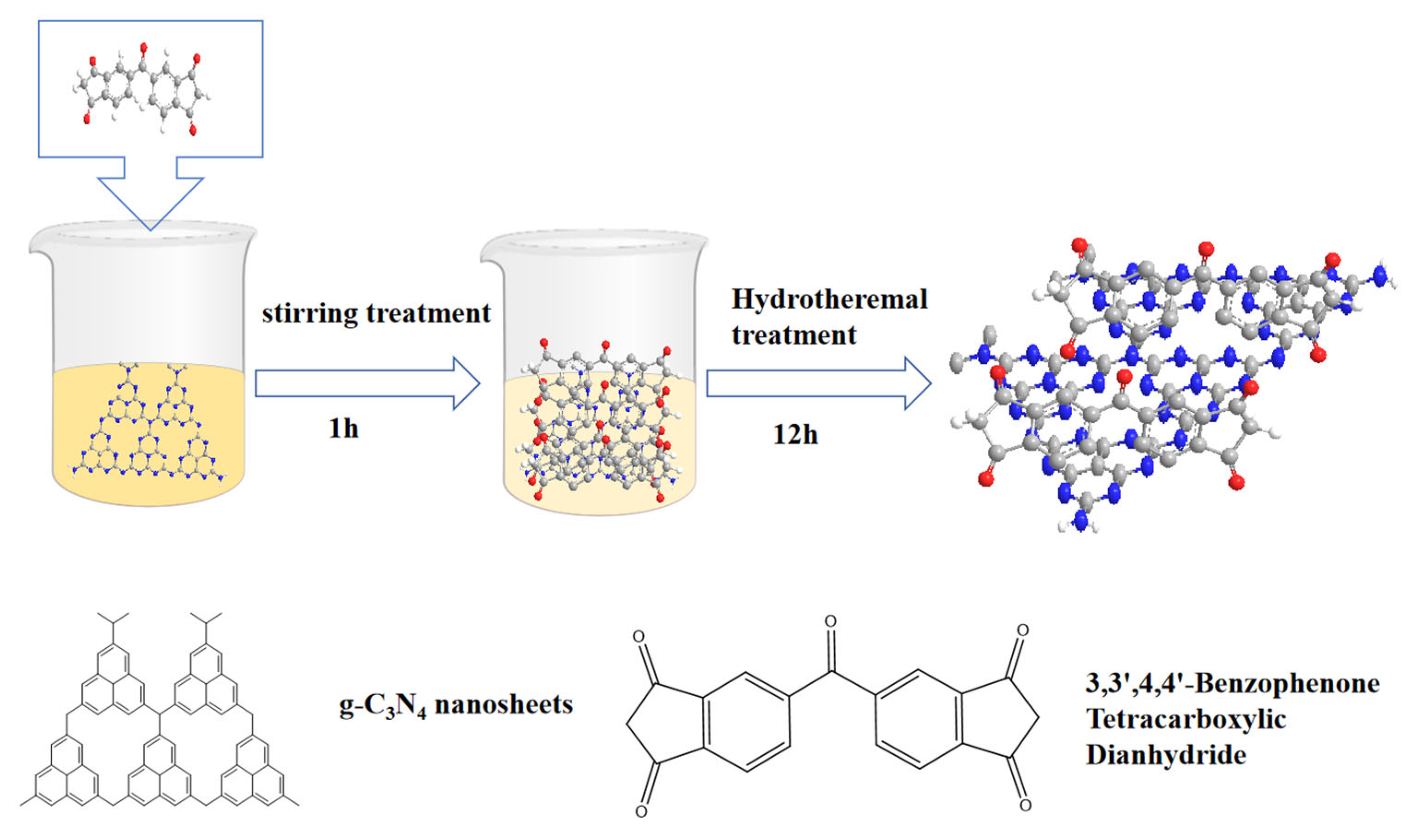

Figure 1. BPTCD/g-C3N4 heterojunction preparation process.
Figure 1. BPTCD/g-C3N4 heterojunction preparation process.
Nanomaterials 15 01131 g001
Nanomaterials 15 01131 g002
Figure 2. SEM and TEM images of g-C3N4 (a,d), SEM and BTDA (b,e), and SEM and TEM images of BTDA/g-C3N4 heterojunction photocatalyst (c,f).
Figure 2. SEM and TEM images of g-C3N4 (a,d), SEM and BTDA (b,e), and SEM and TEM images of BTDA/g-C3N4 heterojunction photocatalyst (c,f).
Nanomaterials 15 01131 g002
Nanomaterials 15 01131 g003

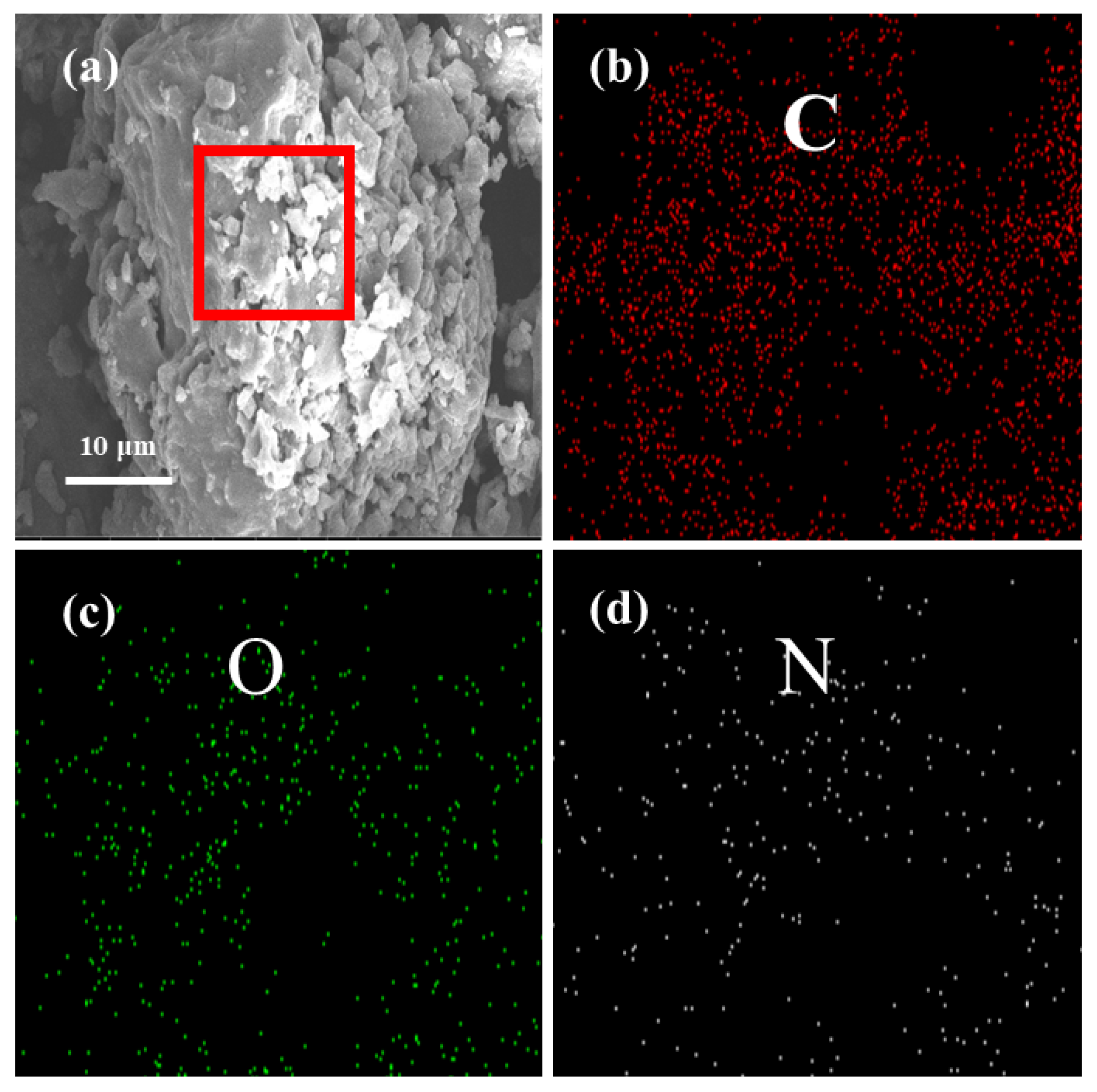

Figure 3. SEM images of BPTCD/g-C3N4 (a) and EDS of corresponding labelled regions (b–d).
Figure 3. SEM images of BPTCD/g-C3N4 (a) and EDS of corresponding labelled regions (b–d).
Nanomaterials 15 01131 g003
Nanomaterials 15 01131 g004

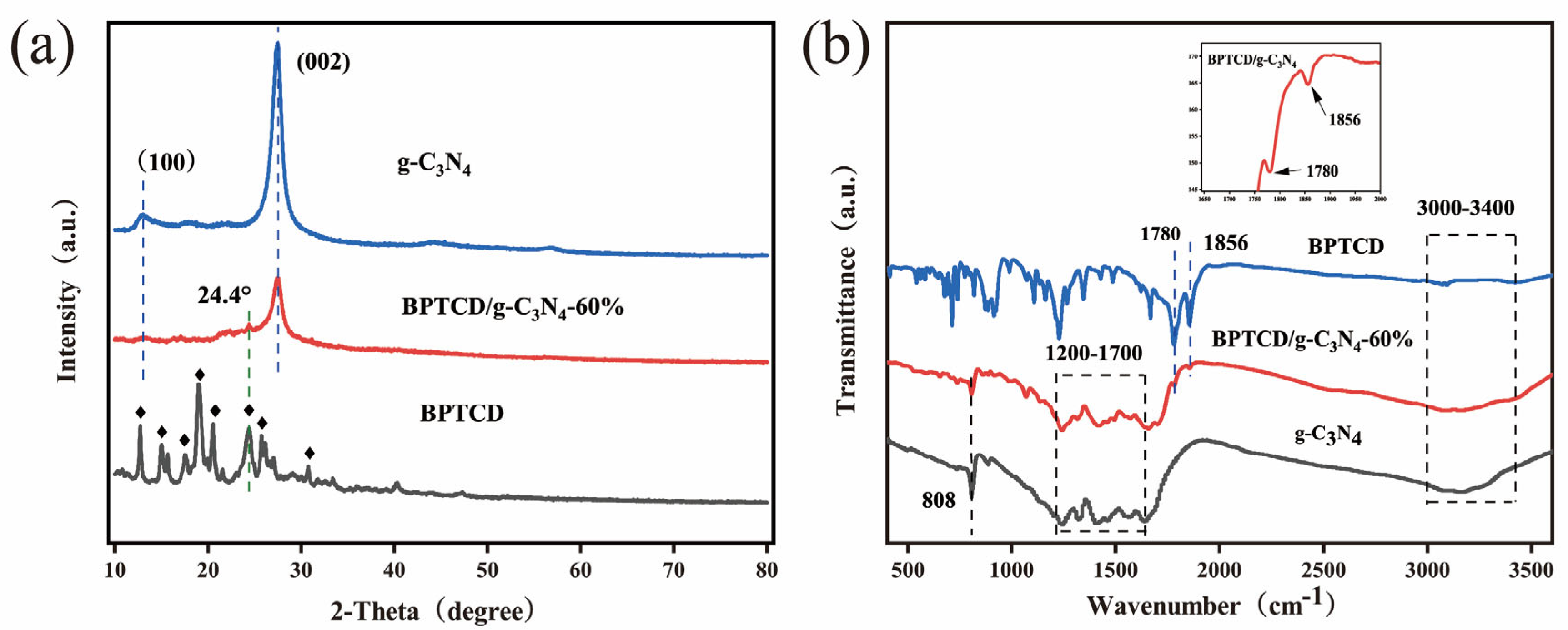

Figure 4. XRD pattern (a) and FT-IR spectra of the photocatalysts (b).
Figure 4. XRD pattern (a) and FT-IR spectra of the photocatalysts (b).
Nanomaterials 15 01131 g004
Nanomaterials 15 01131 g005

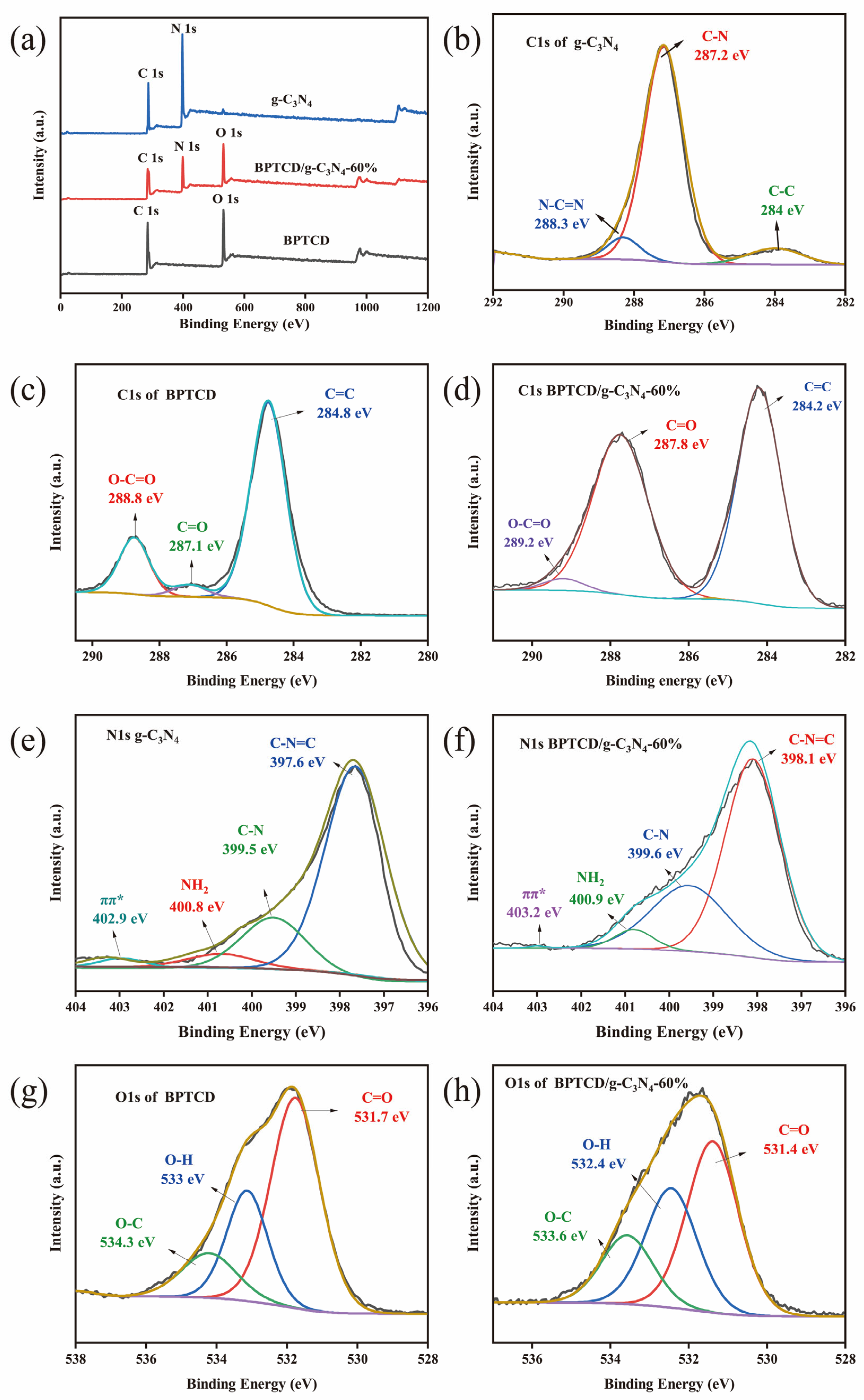

Figure 5. XPS survey spectrum of BPTCD/g-C3N4-60% heterojunction photocatalysts (a); C1s XPS spectrum of g-C3N4 (b), BPTCD (c), and BPTCD/g-C3N4-60% (d); N1s XPS spectrum of g-C3N4 (e) and BPTCD/g-C3N4 (f); and O1s XPS spectrum of BPTCD (g) and BPTCD/g-C3N4-60% (h).
Figure 5. XPS survey spectrum of BPTCD/g-C3N4-60% heterojunction photocatalysts (a); C1s XPS spectrum of g-C3N4 (b), BPTCD (c), and BPTCD/g-C3N4-60% (d); N1s XPS spectrum of g-C3N4 (e) and BPTCD/g-C3N4 (f); and O1s XPS spectrum of BPTCD (g) and BPTCD/g-C3N4-60% (h).
Nanomaterials 15 01131 g005
Nanomaterials 15 01131 g006

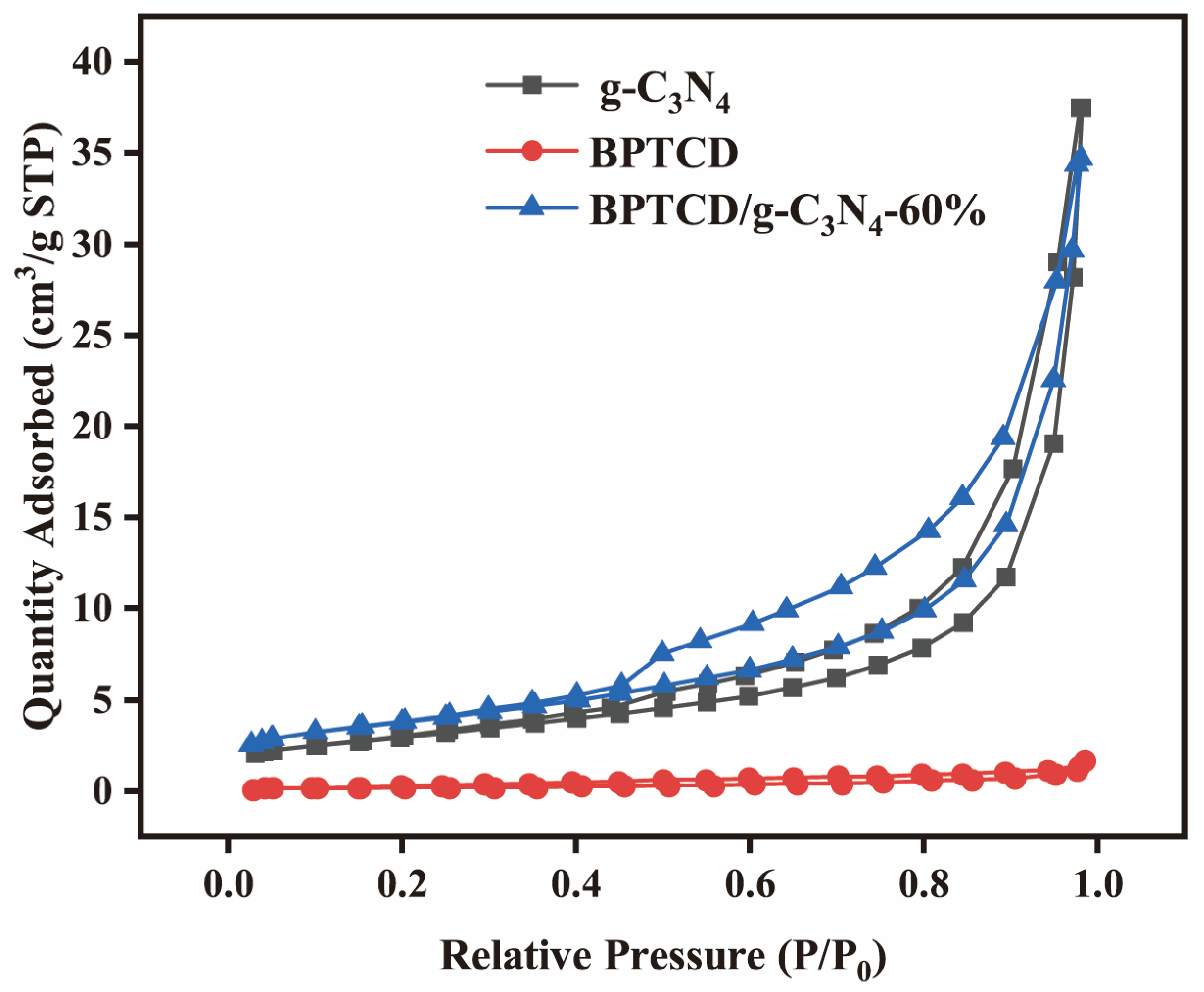

Figure 6. Adsorption-desorption isotherms of g-C3N4, BPTCD, and BPTCD/g-C3N4-60%.
Figure 6. Adsorption-desorption isotherms of g-C3N4, BPTCD, and BPTCD/g-C3N4-60%.
Nanomaterials 15 01131 g006
Nanomaterials 15 01131 g007

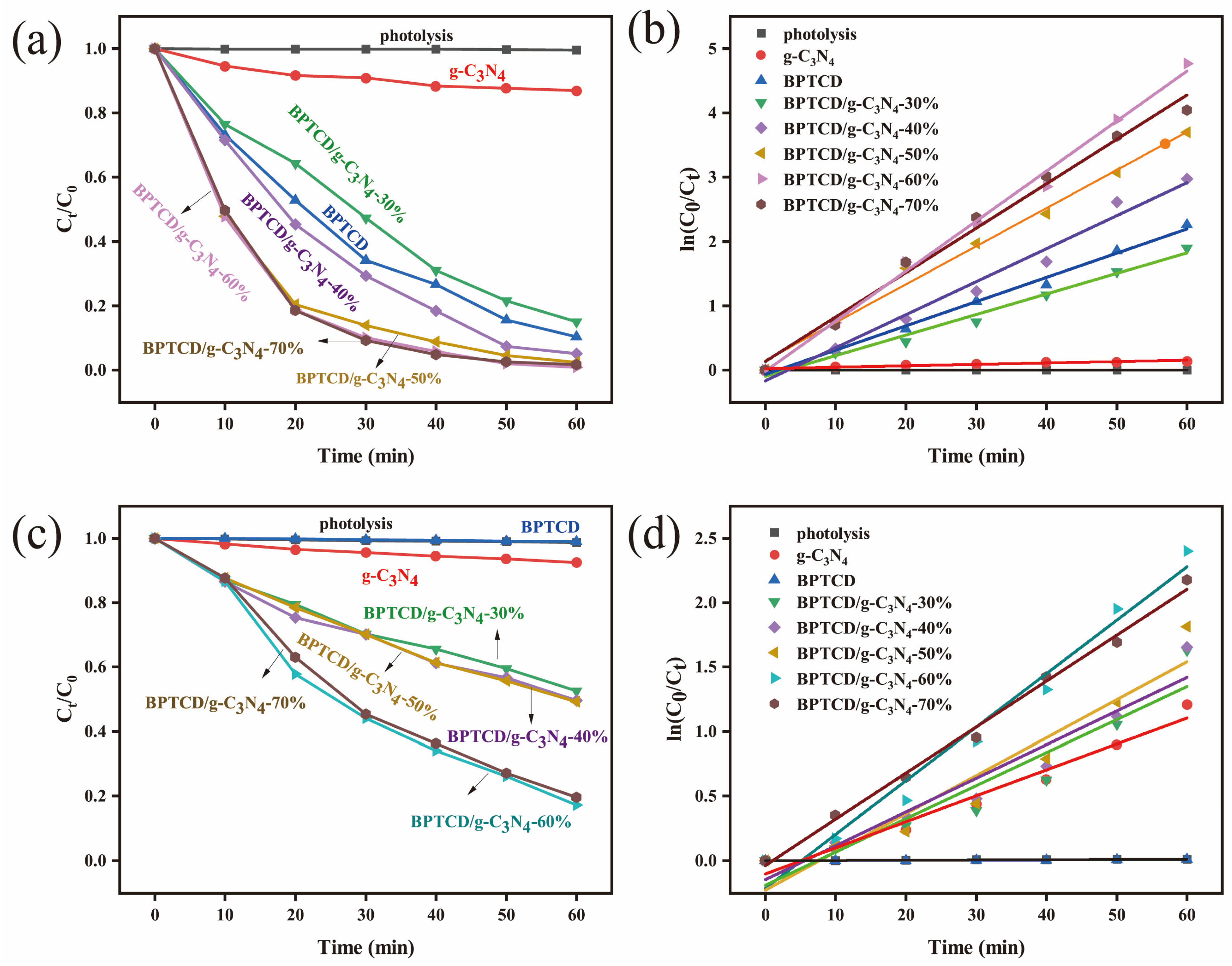

Figure 7. Photocatalytic activity of all synthesised BPTCD/g-C3N4 materials for MO degradation at full spectrum (a), kinetic curve of MO photocatalytic degradation at full spectrum (b), photocatalytic activity of all synthesised BPTCD/g-C3N4 materials for MO degradation under visible light (c), and kinetic curve of MO photocatalytic degradation under visible light (d).
Figure 7. Photocatalytic activity of all synthesised BPTCD/g-C3N4 materials for MO degradation at full spectrum (a), kinetic curve of MO photocatalytic degradation at full spectrum (b), photocatalytic activity of all synthesised BPTCD/g-C3N4 materials for MO degradation under visible light (c), and kinetic curve of MO photocatalytic degradation under visible light (d).
Nanomaterials 15 01131 g007
Nanomaterials 15 01131 g008

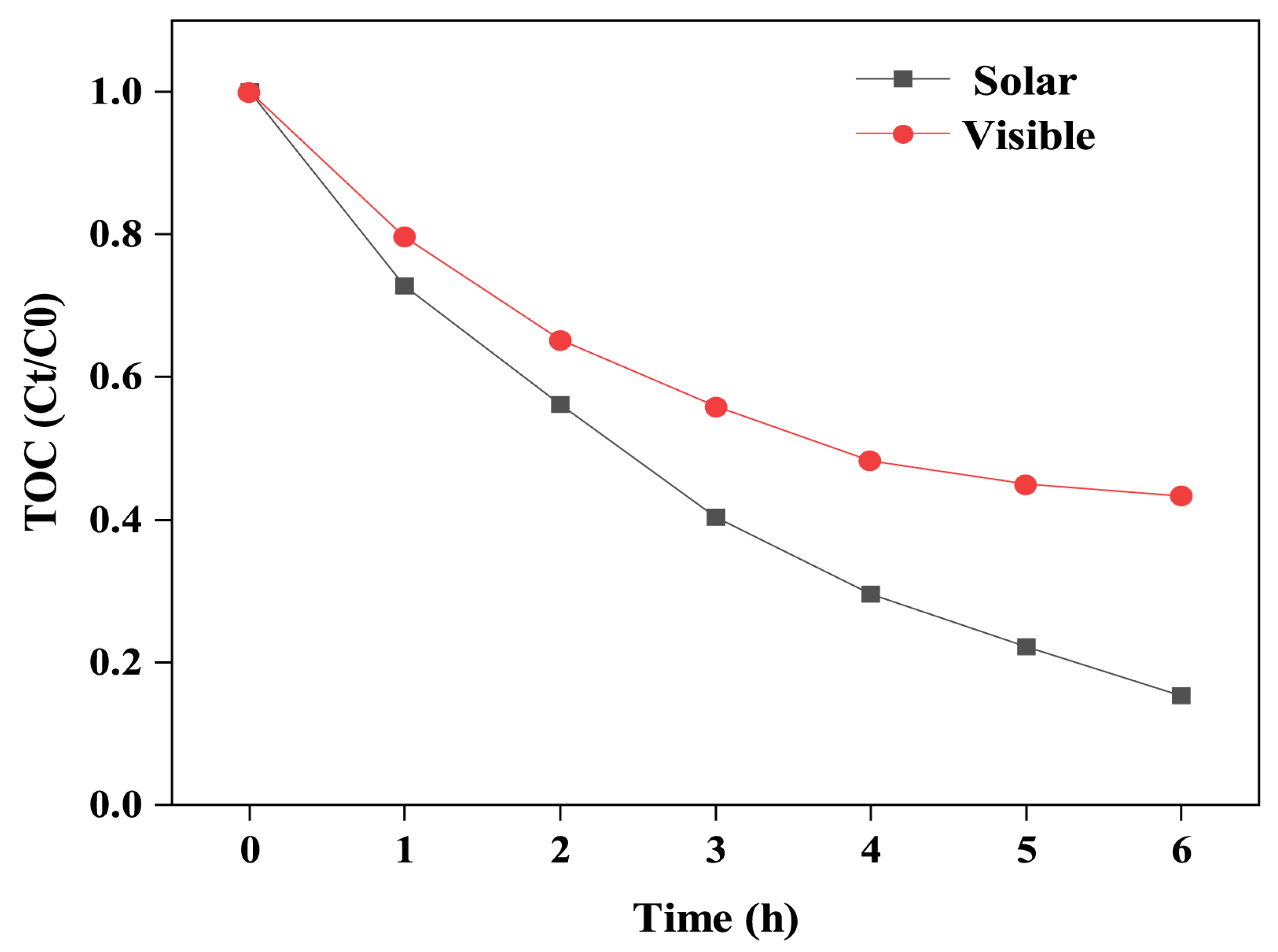

Figure 8. Total organic carbon (TOC) removal efficiency of BPTCD/g-C3N4-60% heterojunction in the degradation of MO under full spectrum and visible light.
Figure 8. Total organic carbon (TOC) removal efficiency of BPTCD/g-C3N4-60% heterojunction in the degradation of MO under full spectrum and visible light.
Nanomaterials 15 01131 g008
Nanomaterials 15 01131 g009

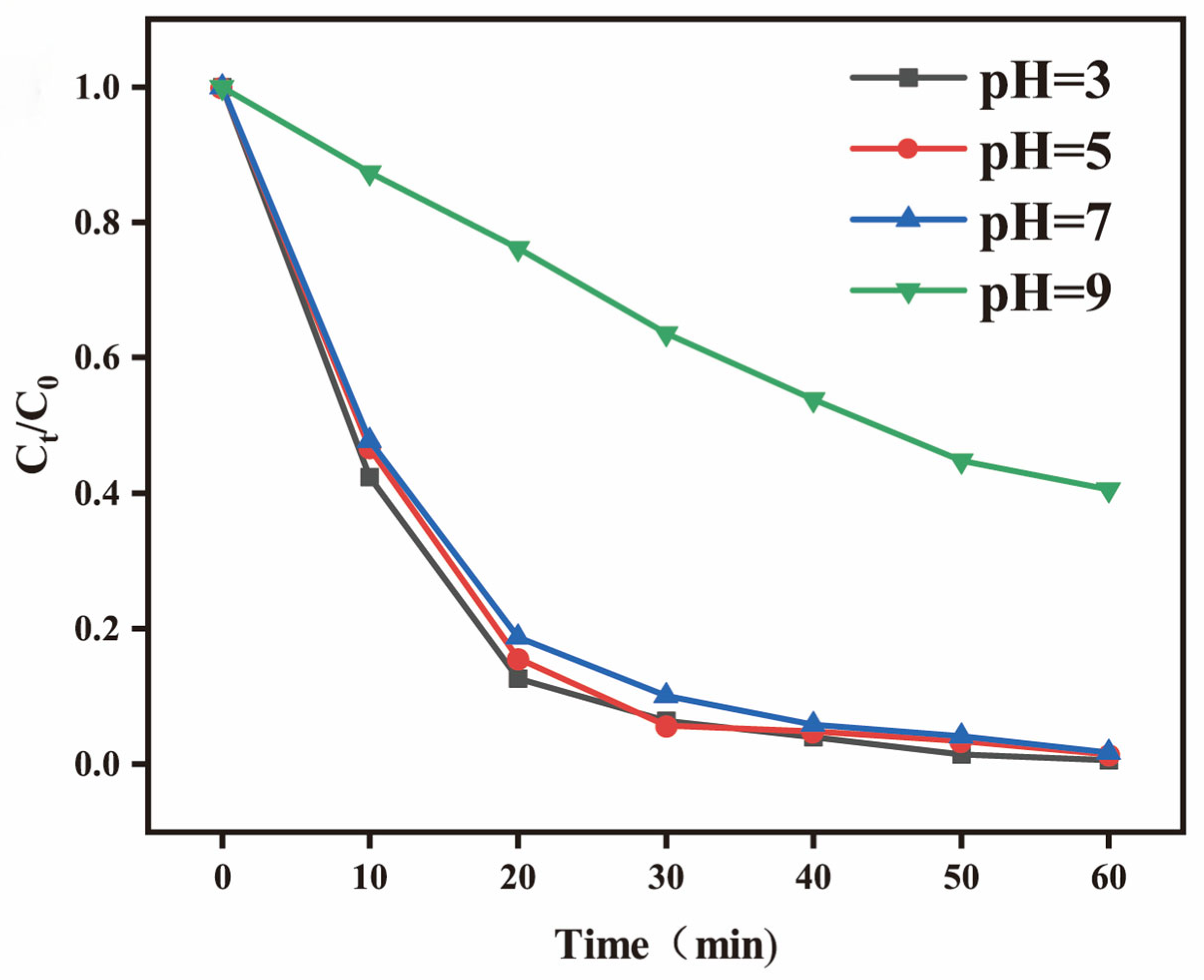

Figure 9. The effect of pH value on the photocatalytic decomposition efficiency of MO under full-spectrum irradiation.
Figure 9. The effect of pH value on the photocatalytic decomposition efficiency of MO under full-spectrum irradiation.
Nanomaterials 15 01131 g009
Nanomaterials 15 01131 g010
Figure 10. Effect of quencher on MO degradation on BPTCD/g-C3N4-60% at full spectrum (a), reusability of BPTCD/g-C3N4-60% for MO removal at full spectrum (b), and XRD (c) and FTIR (d) of BPTCD/g-C3N4-60% photocatalytic heterojunction before and after MO reaction degradation.
Figure 10. Effect of quencher on MO degradation on BPTCD/g-C3N4-60% at full spectrum (a), reusability of BPTCD/g-C3N4-60% for MO removal at full spectrum (b), and XRD (c) and FTIR (d) of BPTCD/g-C3N4-60% photocatalytic heterojunction before and after MO reaction degradation.
Nanomaterials 15 01131 g010
Nanomaterials 15 01131 g011
Figure 11. Photocatalytic activity of all synthesised BPTCD/g-C3N4 materials for MB degradation under the full spectrum (a) and MB photocatalytic degradation kinetic curves (b). Photocatalytic activity of all synthesised BPTCD/g-C3N4 materials for MB degradation under visible light (c) and MB photocatalytic degradation kinetic curves under visible light (d).
Figure 11. Photocatalytic activity of all synthesised BPTCD/g-C3N4 materials for MB degradation under the full spectrum (a) and MB photocatalytic degradation kinetic curves (b). Photocatalytic activity of all synthesised BPTCD/g-C3N4 materials for MB degradation under visible light (c) and MB photocatalytic degradation kinetic curves under visible light (d).
Nanomaterials 15 01131 g011
Nanomaterials 15 01131 g012
Figure 12. Electrochemical impedance spectroscopy (a) and transient photocurrent profiles of g-C3N4, BPTCD, and BPTCD/g-C3N4-60% (b).
Figure 12. Electrochemical impedance spectroscopy (a) and transient photocurrent profiles of g-C3N4, BPTCD, and BPTCD/g-C3N4-60% (b).
Nanomaterials 15 01131 g012
Nanomaterials 15 01131 g013
Figure 13. UV-visible diffuse reflectance spectra of BPTCD/g-C3N4 composites (a) and band gap energy profiles of g-C3N4 and BPTCD (b), along with the Mott–Schottky curves of BPTCD and g-C3N4, respectively (c,d).
Figure 13. UV-visible diffuse reflectance spectra of BPTCD/g-C3N4 composites (a) and band gap energy profiles of g-C3N4 and BPTCD (b), along with the Mott–Schottky curves of BPTCD and g-C3N4, respectively (c,d).
Nanomaterials 15 01131 g013
Nanomaterials 15 01131 g014
Figure 14. The mechanism of BPTCD/g-C3N4 heterojunction photocatalyst for MO degradation.
Figure 14. The mechanism of BPTCD/g-C3N4 heterojunction photocatalyst for MO degradation.
Nanomaterials 15 01131 g014
Table 1. BET specific surface area, pore size, and pore volume of the prepared samples.
Table 1. BET specific surface area, pore size, and pore volume of the prepared samples.
PhotocatalystsSBET (m2/g−1)Pore Size (nm)Pore Volume (cm3/g−1)
g-C3N411.1153.0650.058
BPTCD2.1582.1740.003
BPTCD/g-C3N4-60%15.0851.1710.054
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wei, X.; Jia, G.; Chen, R.; Zhang, Y. Preparation of Non-Covalent BPTCD/g-C3N4 Heterojunction Photocatalysts and Photodegradation of Organic Dyes Under Solar Irradiation. Nanomaterials 2025, 15, 1131. https://doi.org/10.3390/nano15141131

AMA Style

Wei X, Jia G, Chen R, Zhang Y. Preparation of Non-Covalent BPTCD/g-C3N4 Heterojunction Photocatalysts and Photodegradation of Organic Dyes Under Solar Irradiation. Nanomaterials. 2025; 15(14):1131. https://doi.org/10.3390/nano15141131

Chicago/Turabian Style

Wei, Xing, Gaopeng Jia, Ru Chen, and Yalong Zhang. 2025. "Preparation of Non-Covalent BPTCD/g-C3N4 Heterojunction Photocatalysts and Photodegradation of Organic Dyes Under Solar Irradiation" Nanomaterials 15, no. 14: 1131. https://doi.org/10.3390/nano15141131

APA Style

Wei, X., Jia, G., Chen, R., & Zhang, Y. (2025). Preparation of Non-Covalent BPTCD/g-C3N4 Heterojunction Photocatalysts and Photodegradation of Organic Dyes Under Solar Irradiation. Nanomaterials, 15(14), 1131. https://doi.org/10.3390/nano15141131

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
