Search Results (36)

This paper presents a study on the repeatability of washing effects on two antenna-based sensors for breathing monitoring. One sensor is an embroidered meander antenna-based sensor integrated into a T-shirt, and the other is a loop antenna integrated into a belt. Both sensors were subjected to five washing cycles, and their performance was assessed after each wash. The embroidered meander antenna was specifically compared before and after washing to monitor a male volunteer’s different breathing patterns, that is, eupnea, apnea, hypopnea, and hyperpnea. Stretching tests were also conducted to evaluate the impact of mechanical deformation on sensor behavior. The results highlight the changes in sensor performance across multiple washes and stretching conditions, offering insights into the durability and reliability of these embroidered and loop antennas for practical applications in wearable health monitoring. The findings emphasize the importance of considering both washing and mechanical stress in the design of robust antenna-based sensors. Full article

A textile electrochemical sensor manufactured with commercially available textile materials is presented to determine glucose concentration. The sensor design consists of three electrodes manufactured with two different conductive yarns, one made with a silver coating and the other with stainless steel fibres. Different combinations of them are used to prepare three different electrochemical textile sensor combinations. The first sensor is built only with silver-coated yarn and used as a reference sensor. The other two sensors are prepared with different combinations of conductive yarns. The textile sensors perform a cyclic voltammetric test, where it is demonstrated that the glucose concentration over the sensor can be related with the increase in the current measured. The results allow us to identify feeding voltages where the concentration–current relation is close to linear. The textile sensor shows a sensitivity between 0.0145 and 0.0452 $\mathsf{\mu }$A/(mg/dL) for the 45–180 mg/dL glucose concentration range and 0.0012 and 0.0035 $\mathsf{\mu }$A/(mg/dL) for the 180–1800 mg/dL range for the different sensor types presented. The regression coefficients for the sensitivities range between 0.9266 and 0.9954. This research demonstrates the feasibility to develop a fully integrated textile electrochemical sensor made completely with commercially available textile materials. Full article

Non-invasive continuous health monitoring has become feasible with the advancement of biosensors. While monitoring certain biomarkers such as heart rate or skin temperature are now at a certain maturity, monitoring molecular biomarkers is still challenging. Progress has been shown in sampling, measurement, and interpretation of data toward non-invasive molecular sensors that can be integrated into daily wearable items. Toward this goal, this paper explores the potential of embroidered interdigitated transducer (IDT)-based sensors for non-invasive, continuous monitoring of human biomarkers, particularly glucose levels, in human sweat. The study employs innovative embroidery techniques to create flexible fabric-based sensors with gold-coated IDTs. In controlled experiments, we have shown the variation of glucose concentration in water can be wirelessly detected by tracking the resonant frequency of the embroidered sensors. The current sensors operate at 1.8 GHz to 2 GHz and respond to the change in glucose concentration with a sensitivity of $0.17$ MHz/(mg/dL). The embroidered IDT-based sensors with wireless sensing will be a new measurement modality for molecular wearable sensors. The establishment of a wireless sensing mechanism for embroidered IDT-based sensors will be followed by an investigation of sweat for molecular detection. This will require adding functionalities for sampling and interpretation of acquired data. We envisage the embroidered IDT-based sensors offer a unique approach for seamless integration into clothing, paving the way for personalised, continuous health data capture. Full article

This article presents an innovative combination of textile electrical circuits with advanced capabilities of electronic RFID sensors, indicating the revolutionary nature of the development of textronics, which is used in various areas of life, from fashion to medicine. A review of the literature relating to the construction of textronic RFID identifiers and capacitive textronic sensors is performed. Various approaches to measuring capacity using RFID tags are discussed. This article focuses on presenting the concept of a capacitive sensor with an RFID interface, consisting of a microelectronic part and a textile part. The textile part is based on the WL4007 material, where antennas and capacitive sensors are embroidered using SPARKFUN DEV 11791 conductive thread. The antenna is a half-wave dipole designed to operate at a frequency of 860 MHZ. The microelectronic part is sewn to the textile part and consists of a microcontroller, an RFID-integrated circuit and a coupling loop, placed on the PCB. The embroidered antenna is coupled with a loop on the microelectronic module. This article focuses on presenting various designs of textronic electrodes, enabling various types of measurements. Article presents capacitance measurements of individual sensor electrodes, made using a measuring bridge and a built RFID tag. The sensors’ capacity measurement results are shown. Full article

Surface electromyography is a technique used to measure the electrical activity of muscles. sEMG can be used to assess muscle function in various settings, including clinical, academic/industrial research, and sports medicine. The aim of this study is to develop a wearable textile sensor for continuous sEMG monitoring. Here, we have developed an integrated biomedical monitoring system that records sEMG signals through a textile electrode embroidered within a smart sleeve bandage for telemetric assessment of muscle activities and fatigue. We have taken an “Internet of Things”-based approach to acquire the sEMG, using a Myoware sensor and transmit the signal wirelessly through a WiFi-enabled microcontroller unit (NodeMCU; ESP8266). Using a wireless router as an access point, the data transmitted from ESP8266 was received and routed to the webserver-cum-database (Xampp local server) installed on a mobile phone or PC for processing and visualization. The textile electrode integrated with IoT enabled us to measure sEMG, whose quality is similar to that of conventional methods. To verify the performance of our developed prototype, we compared the sEMG signal recorded from the biceps, triceps, and tibialis muscles, using both the smart textile electrode and the gelled electrode. The root mean square and average rectified values of the sEMG measured using our prototype for the three muscle types were within the range of 1.001 ± 0.091 mV to 1.025 ± 0.060 mV and 0.291 ± 0.00 mV to 0.65 ± 0.09 mV, respectively. Further, we also performed the principal component analysis for a total of 18 features (15 time domain and 3 frequency domain) for the same muscle position signals. On the basis on the hierarchical clustering analysis of the PCA’s score, as well as the one-way MANOVA of the 18 features, we conclude that the differences observed in the data for the different muscle types as well as the electrode types are statistically insignificant. Full article

The critical need for accurate and non-invasive temperature monitoring is prevalent in extreme environments, such as scuba diving. Current temperature measurement technologies present limitations, prompting the development of innovative solutions. We propose the integration of embroidered wearable thermocouple sensors, demonstrating their versatility and reliability in real-time temperature monitoring. T-type thermocouples, embroidered onto fabric, offer flexibility in sensor placement, eliminating the need for skin attachment. The results indicate efficient temperature detection across different body areas, from 32.5 °C at extremities to 37.5 °C at the axial position. Testing in scuba diving conditions reveals potential applications, including overheating alerts and hypothermia prevention. This technology bridges the gap between temperature measurement and the challenges of underwater exploration, enhancing diver safety and data collection capabilities. Full article

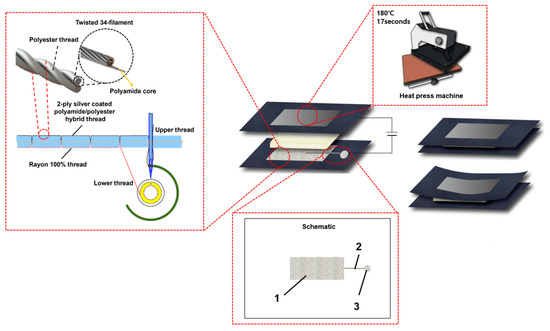

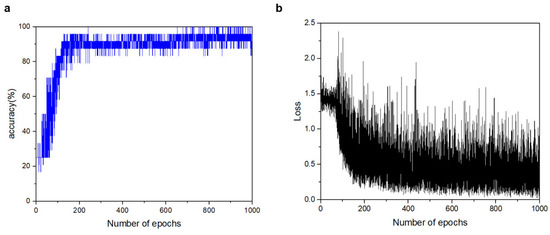

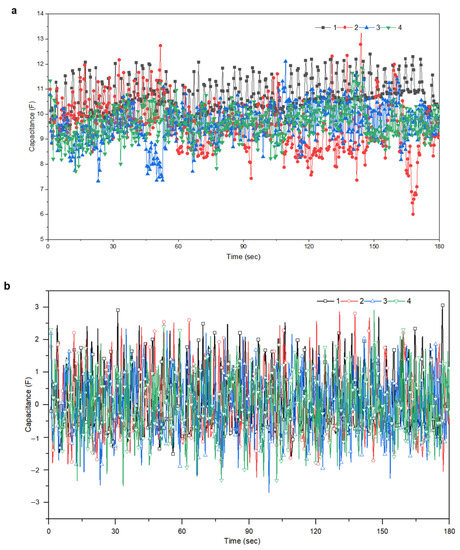

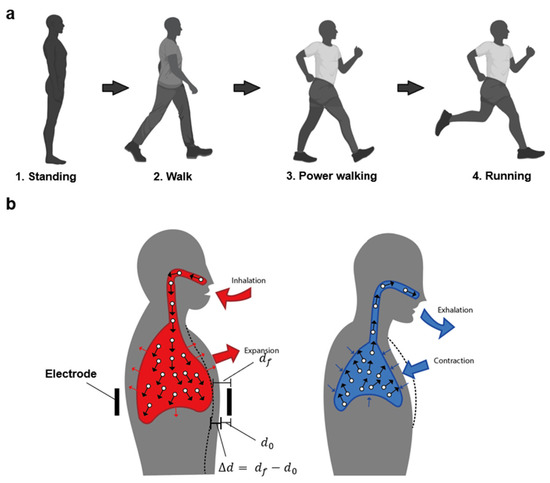

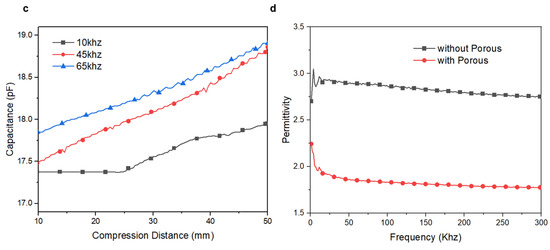

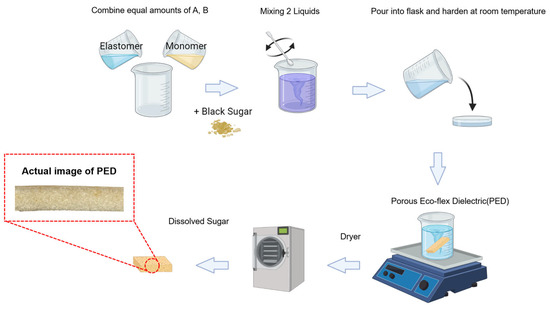

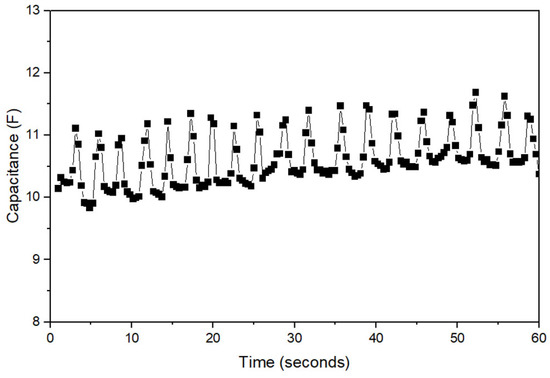

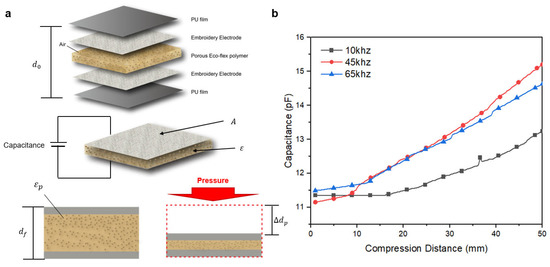

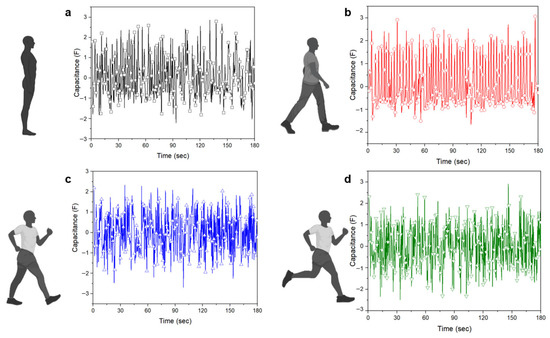

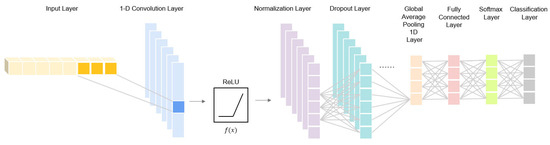

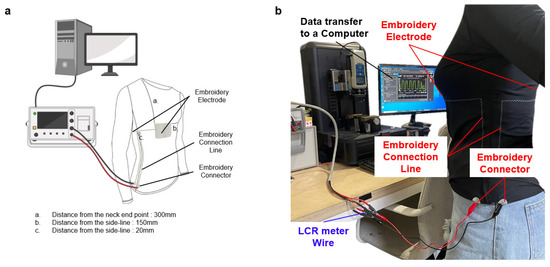

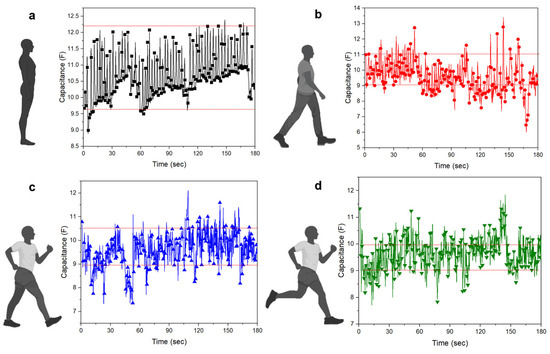

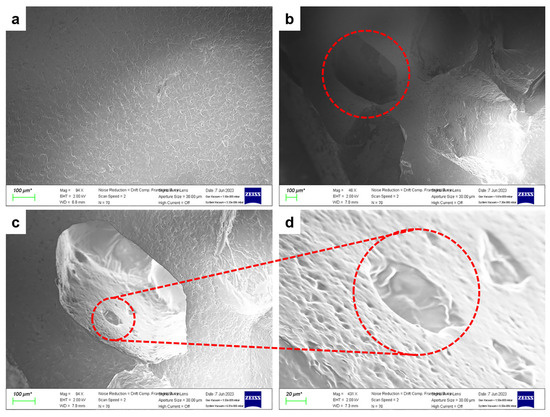

Research on healthcare and body monitoring has increased in recent years, with respiratory data being one of the most important factors. Respiratory measurements can help prevent diseases and recognize movements. Therefore, in this study, we measured respiratory data using a capacitance-based sensor garment with conductive electrodes. To determine the most stable measurement frequency, we conducted experiments using a porous Eco-flex and selected 45 kHz as the most stable frequency. Next, we trained a 1D convolutional neural network (CNN) model, which is a type of deep learning model, to classify the respiratory data according to four movements (standing, walking, fast walking, and running) using one input. The final test accuracy for classification was >95%. Therefore, the sensor garment developed in this study can measure respiratory data for four movements and classify them using deep learning, making it a versatile wearable in the form of a textile. We expect that this method will advance in various healthcare fields. Full article

Recently, there has been an increase in the number of reports on textile-based dry electrodes that can detect biopotentials without the need for electrolytic gels. However, these textile electrodes have a higher electrode skin interface impedance due to the improper contact between the skin and the electrode, diminishing the reliability and repeatability of the sensor. To facilitate improved skin–electrode contact, the effects of load and holding contact pressure were monitored for an embroidered textile electrode composed of multifilament hybrid thread for its application as a surface electromyography (sEMG) sensor. The effect of the textile’s inter-electrode distance and double layering of embroidery that increases the density of the conductive threads were studied. Electrodes embroidered onto an elastic strap were wrapped around the forearm with a hook and loop fastener and tested for their performance. Time domain features such as the Root Mean Square (RMS), Average Rectified Value (ARV), and Signal to Noise Ratio (SNR) were quantitatively monitored in relation to the contact pressure and load. Experiments were performed in triplicates, and the sEMG signal characteristics were observed for various loads (0, 2, 4, and 6 kg) and holding contact pressures (5, 10, and 20 mmHg). sEMG signals recorded with textile electrodes were comparable in amplitude to those recorded using typical Ag/AgCl electrodes (28.45 dB recorded), while the signal-to-noise ratios were, 11.77, 19.60, 19.91, and 20.93 dB for the different loads, and 21.33, 23.34, and 17.45 dB for different holding pressures. The signal quality increased as the elastic strap was tightened further, but a pressure higher than 20 mmHg is not recommended because of the discomfort experienced by the subjects during data collection. Full article

When it is necessary to detect various physiological signals of the human body, clothing embroidered with near-field effect patterns can be used as a long-term power supply medium to supply power to long-distance transmitters and receivers to form a wireless power supply system. The proposed system uses an optimized parallel circuit to achieve a power transfer efficiency of more than five times higher than that of the existing series circuit. The power transfer efficiency of simultaneously supplying energy to multiple sensors is increased higher than five times and even more when only one sensor is coupled. When powering eight sensors at the same time, the power transmission efficiency can reach 25.1%. Even when eight sensors powered by the coupled textile coils are reduced to one, the power transfer efficiency of the whole system can reach 13.21%. Additionally, the proposed system is also applicable when the number of sensors ranges from 2 to 12. Full article

Smart textile sensors have been gaining popularity as alternative methods for the continuous monitoring of human motion. Multiple methods of fabrication for these textile sensors have been proposed, but the simpler ones include stitching or embroidering the conductive thread onto an elastic fabric to create a strain sensor. Although multiple studies have demonstrated the efficacy of textile sensors using the stitching technique, there is almost little to no information regarding the fabrication of textile strain sensors using the embroidery method. In this paper, a design guide for the fabrication of an embroidered resistive textile strain sensor is presented. All of the required design steps are explained, as well as the different embroidery design parameters and their optimal values. Finally, three embroidered textile strain sensors were created using these design steps. These sensors are based on the principle of superposition and were fabricated using a stainless-steel conductive thread embroidered onto a polyester–rubber elastic knit structure. The three sensors demonstrated an average gauge factor of $1.88\pm 0.51$ over a 26% working range, low hysteresis ($8.54\pm 2.66\%$), and good repeatability after being pre-stretched over a certain number of stretching cycles. Full article

This study presents a respiration sensor that is dependent on a parallel capacitor, including connection lines and electrodes embroidered on textiles. First, characterizations of the respiration capacitor using a silver thread, including a combination of porous Eco-flex simulating air in the lungs due to respiration, were evaluated using an LCR meter. Second, the effects of air gaps on the detection of respiration motions according to the change in electrode distance under pressure were presented. The data values were measured from 1 to 300 kHz using an LCR meter and dielectric test fixture. Third, actual breathing was examined in four patterns: normal breathing, deep breathing, hyperventilation, and apnea. The test was performed after fabricating a clothing-type breathing sensor. Finally, the change in capacitance for actual respiration was determined by wearing a clothing-type respiration sensor based on the data collected. The effectiveness of the respiration sensor was demonstrated by measuring it to discern all waveforms, cycles, and ranges associated with the breathing pattern. Full article

Wearable technology has been getting more attention for monitoring vital signs in various medical fields, particularly in breathing monitoring. To monitor respiratory patterns, there is a current set of challenges related to the lack of user comfort, reliability, and rigidity of the systems, as well as challenges related to processing data. Therefore, the need to develop user-friendly and reliable wireless approaches to address these problems is required. In this paper, a novel, full, compact textile breathing sensor is investigated. Specifically, an embroidered meander dipole antenna sensor integrated into an e-textile T-shirt with a Bluetooth transmitter for real-time breathing monitoring was developed and tested. The proposed antenna-based sensor is designed to transmit data over wireless communication networks at 2.4 GHz and is made of a silver-coated nylon thread. The sensing mechanism of the proposed system is based on the detection of a received signal strength indicator (RSSI) transmitted wirelessly by the antenna-based sensor, which is found to be sensitive to stretch. The respiratory system is placed on the middle of the human chest; the area of the proposed system is 4.5 × 0.48 cm², with 2.36 × 3.17 cm² covered by the transmitter module. The respiratory signal is extracted from the variation of the RSSI signal emitted at 2.4 GHz from the detuned embroidered antenna-based sensor embedded into a commercial T-shirt and detected using a laptop. The experimental results demonstrated that breathing signals can be acquired wirelessly by the RSSI via Bluetooth. The RSSI range change was from −80 dBm to −72 dBm, −88 dBm to −79 dBm and −85 dBm to −80 dBm during inspiration and expiration for normal breathing, speaking and movement, respectively. We tested the feasibility assessment for breathing monitoring and we demonstrated experimentally that the standard wireless networks, which measure the RSSI signal via standard Bluetooth protocol, can be used to detect human respiratory status and patterns in real time. Full article

Many studies have been conducted to develop electronic skin (e-skin) and flexible wearable textiles which transform into actual “skin”, using different approaches. Moreover, many reports have investigated self-healing materials, multifunctional sensors, etc. This study presents a systematic approach to embroidery pressure sensors dependent on interdigitated capacitors (IDCs), for applications surrounding intelligent wearable devices, robots, and e-skins. The method proposed a broad range of highly sensitive pressure sensors based on porous Ecoflex, carbon nanotubes (CNTs), and interdigitated electrodes. Firstly, characterizations of ICDs embroidering on a cotton fabric using silver conductive thread are evaluated by a precision LCR meter throughout the frequency range from 1 kHz to 300 kHz. The effect of thread density on the performance of embroidered sensors is included. Secondly, the 16451B dielectric test fixture from Keysight is utilized to evaluate the composite samples’ dielectric constant accurately. The effect of frequency on sensor performance was evaluated to consider the influence of the dielectric constant as a function of the capacitance change. This study shows that the lower the frequency, the higher the sensitivity, but at the same time, it also leads to instability in the sensor’s operation. Thirdly, assessing the volume fraction of CNTs on composites’ properties is enclosed. The presence of volume portion CNTs upgrades the bond strength of composites and further develops sensor deformability. Finally, the presented sensor can accomplish excellent performance with an ultra-high sensitivity of 0.24 ${\mathrm{kPa}}^{-1}$ in low pressure (<25 kPa) as well as a wide detection range from 1 to 1000 kPa, which is appropriate for general tactile pressure rages. In order to achieve high sensor performance, factors such as density, frequency, fabric substrate, and the structure of the dielectric layer need to be carefully evaluated. Full article

Respiration monitoring is a very important indicator of health status. It can be used as a marker in the recognition of a variety of diseases, such as sleep apnea, asthma or cardiac arrest. The purpose of the present study is to overcome limitations of the current state of the art in the field of respiration monitoring systems. Our goal was the development of a lightweight handheld device with portable operation and low power consumption. The proposed approach includes a textile capacitive sensor with interdigitated electrodes embroidered into the facemask, integrated with readout electronics. Readout electronics is based on the direct interface of the capacitive sensor and a microcontroller through just one analog and one digital pin. The microcontroller board and sensor are powered by a smartphone or PC through a USB cable. The developed mobile application for the Android™ operating system offers reliable data acquisition and acts as a bridge for data transfer to the remote server. The embroidered sensor was initially tested in a humidity-controlled chamber connected to a commercial impedance analyzer. Finally, in situ testing with 10 volunteering subjects confirmed stable operation with reliable respiration monitoring. Full article

In this work, we introduced an embroidery-based stretchable (up to 60–70%) triboelectric nano-generator that could be attached to different parts of the human body such as fingers, knee, elbow, back, or shoulders, to sense the body movement. It can be used as activity recognition for health care and sport activity monitoring. The sensor was composed of different yarns embroidered on a stretchable conductive substrate, allowing it to sense diverse mechanical deformation of different body parts. Different stitching styles, patterns, stitch lengths, and shapes have been selected to cater to the unidirectional, bidirectional, and multidirectional force and obtain the maximum movement flexibility. In order to do embroidery on a stretchable substrate, a non-stretchable water-soluble second substrate has been added before embroidering, and is afterwards removed by application of steam. A sample of 1.5 × 6 cm² was used for sensing finger movement and generated a peak to peak voltage of 274.5 mV. The amount of generated voltage depended upon the application area on the body and its deformation, thread type, stitch type, stitch length, and shape of embroidery. A stitch length of more than 2 mm with a line density of 1 line per mm resulted in a stretchable sample. The state of the art of the developed sensors is their low price, flexibility, and low weight. They are all obtained with commercially available embroidery yarns and commercially available technology for their development. Full article
