Search Results (22)

The International Energy Agency (IEA) 2023 report highlights that global energy losses have persisted over the years, with 32% of the energy supply lost in 2022 alone. To mitigate this, this research adopts optimisation to enhance the efficiency of district heating networks (DHNs), a key global energy supply technology. Given the dynamic nature of DHNs and the challenges in predicting disturbances, a dynamic real-time optimisation (DRTO) approach is proposed. However, this research does not implement DRTO; instead, it develops a fast grey-box linear parameter varying (LPV) model for future integration into the DRTO algorithm. A high-fidelity physical model replicating theoretical time delays in pipes serves as a reference for model validation. For a single pipe, the grey-box model achieved a 91.5% fit with an $R^2$ value of 0.993 and operated 5 times faster than the reference model. At the DHN scale, it captured 98.64% of the reference model’s dynamics, corresponding to an $R^2$ value of 0.9997, while operating 52 times faster. Low-fidelity physical models (LFPMs) were also developed and validated, proving to be more precise and faster than the grey-box models. This research recommends performing dynamic optimisation with both models to determine which better identifies local minima. Full article

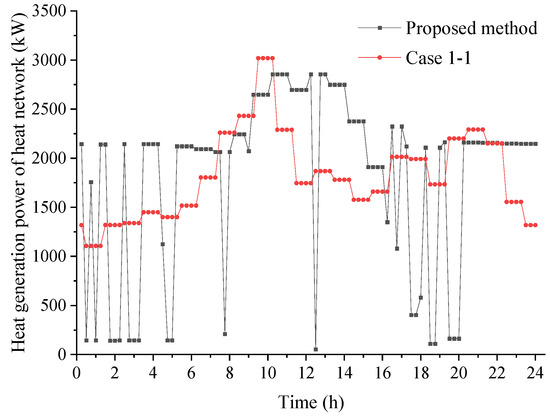

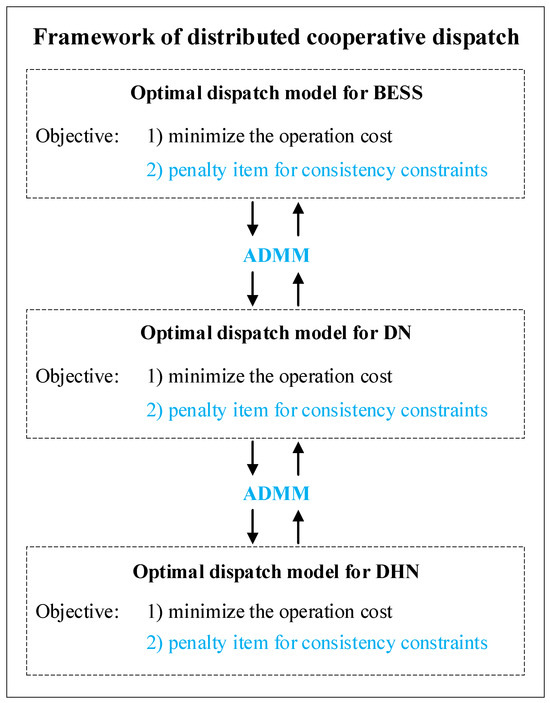

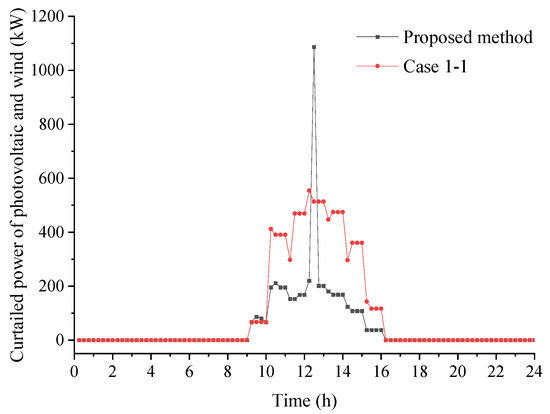

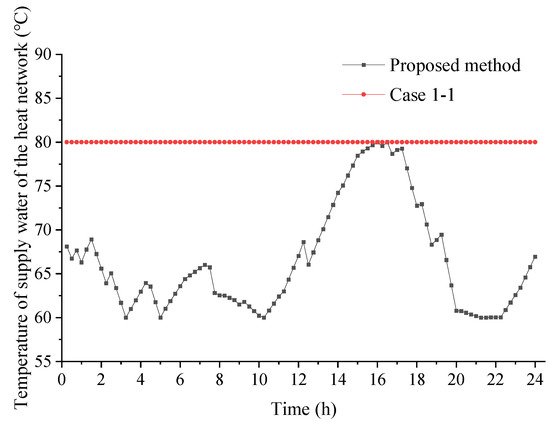

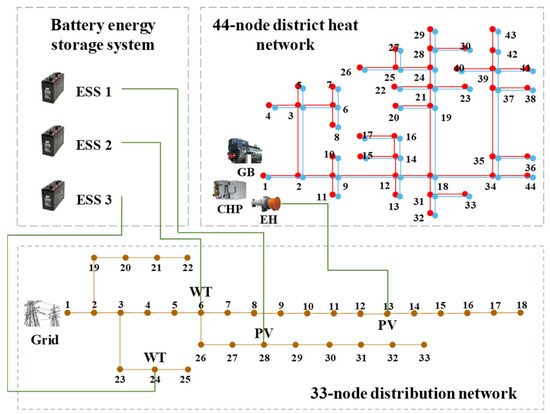

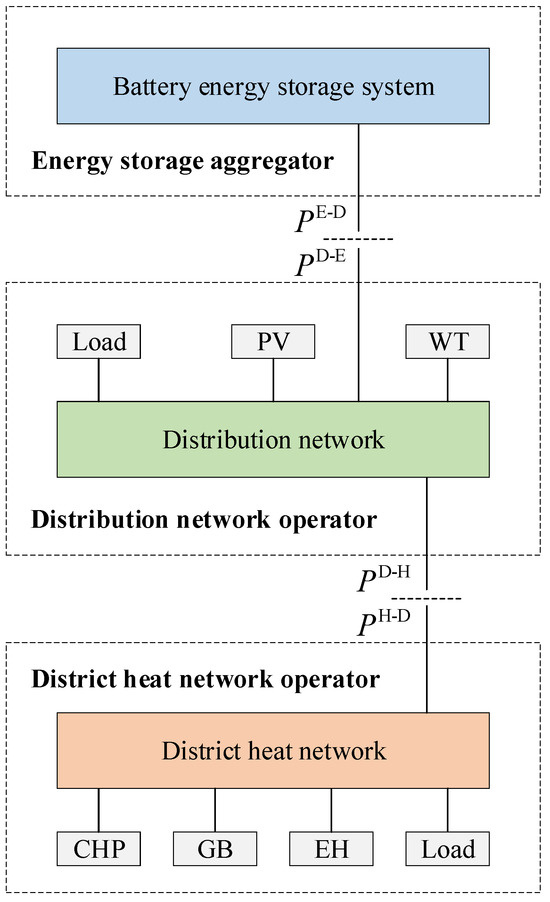

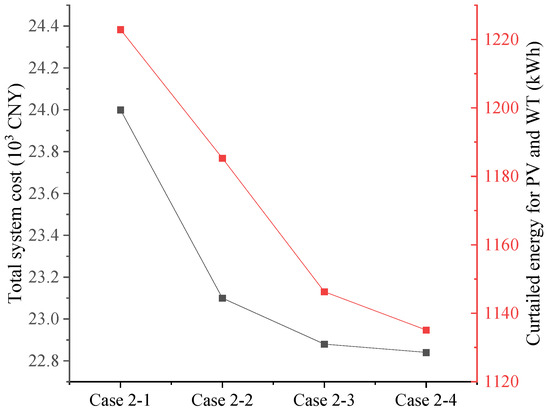

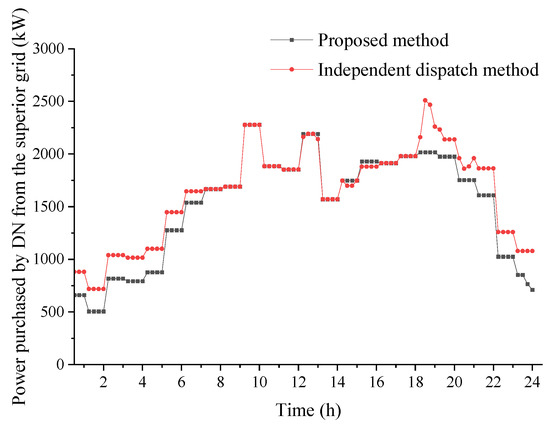

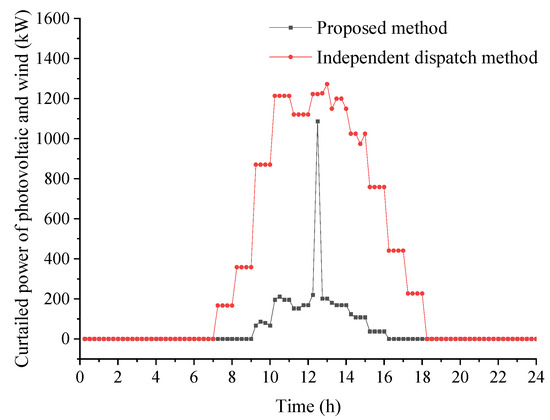

Flexible resources, including district heat networks (DHN) and battery energy storage systems (BESS), can provide flexible regulation capability for distribution networks (DN), thereby increasing the absorption capacity for renewable energy. In order to improve the operation economy of DN and ensure the information privacy of different operators, a distributed cooperative dispatch method of DN with DHN and BESS considering flexible regulation capability is proposed. First, a distributed cooperative dispatch framework of DN-DHN-BESS is constructed. Then, an optimal dispatch model of DHN under constant flow-variable temperature control strategy is established in order to utilize the heat storage capacity to provide flexible regulation capability for DN. Next, the optimal dispatch models of BESS and DN are established with the objective of minimizing the operation cost, respectively. Finally, a solution method based on the alternating direction multiplier method of distributed cooperative dispatch for DN-DHN-BESS is proposed. Case studies are performed on a system consisting of a 33-node DN and a 44-node DHN, and simulation results demonstrate that the proposed method differs from the centralized dispatch method by only 0.52% in the total system cost, and the proposed method reduces the total system cost by 34.5% compared to that of the independent dispatch method. Full article

Regional Integrated Energy Systems (RIESs) integrate wide spectrum of energy sources and storage with optimized energy management and further pollution reduction. This paper presents a real-time simulation system for RIESs powered by multiple digital signal processors (DSPs) with different means of data exchange. The RIES encompasses the DC microgrid (DMG), the district heat network (DHN), and the natural gas network (NGN). To realize multi-energy flow simulation, averaged switch models are investigated for different types of device-level units in the DMG, and the unified energy path method is used to build circuit-dual models of the DHN and NGN. A hierarchical island strategy (HIS) and a multi-energy dispatch strategy (MEDS) are proposed to enhance the energy flow control and operating efficiency. The two-layer HIS can adjust the operating status of device-level units in real time to achieve bus voltage stability in the DMG; MEDS uses energy conversion devices to decouple multi-energy flows and adopts the decomposed flow method to calculate the flow results for each network. The real-time simulation hardware platform is built, and both electricity-led and thermal-led experiments are carried out to verify the accuracy of models and the effectiveness of the proposed strategy. The proposed system with an energy management strategy aims to provide substantial theoretical and practical contributions to the control and simulation of RIESs, thus supporting the advancement of integrated energy systems. Full article

Dynamic thermo-hydraulic simulations of district heating networks (DHN) are essential to investigate novel concepts for their sustainable design and operation. To develop solutions for a particular case study, numerous long-term simulations are required. Therefore, computational effort for simulation is critical. Heat consumers (HC) are numerous and determine the dynamics of mass flows and return temperatures in the DHN. Thus, the way in which HCs are modeled has significant impact on the computational effort and the results of the simulation. This article presents a novel Modelica-based model for HCs that builds on an existing simplified modeling approach (open-loop design). The calculation of mass flow and return temperature is improved in terms of robustness, plausible behavior and low computational effort. In particular, the model reacts to limited differential pressure and supply temperatures to ensure plausible behavior across all operating conditions, including undersupply situations. The model is successfully tested using an exemplary DHN. The analysis proves that the HC model itself requires little time to simulate. Nevertheless, it significantly influences the simulation time for the entire DHN, which varies by a factor of five for the investigated system depending on the HC model. Fast dynamics, including a bypass in the model and correction of deviations between set point and actual heat load increase the simulation time, so users should sensibly choose how to use these options. HC models triggering many state events result in high computational effort. Compared to other simple HC models, the proposed model produces more plausible results while maintaining at least equal simulation performance (for models without bypass) or even improving it (for models with bypass, CPU time is reduced by at least 35%). Full article

In pursuit of Finland’s carbon neutrality objective by 2035, integrating renewable energy sources into the power grid is essential. To address the stochastic nature of these resources, additional sources of flexibility are required to maintain grid stability. Meanwhile, district heating network (DHN) operators in Finland are decommissioning fossil fuel-based combined heat and power plants (CHPs) and electrifying heating systems with heat pumps (HPs) and electric boilers. A techno-economic assessment and the optimized operation of DHN-connected HPs and electric boilers in providing ancillary balancing services were explored in this study. The primary goal was to maximize the potential revenue for DHN operators through participation in the day-ahead electricity market and frequency containment reserve (FCR) balancing markets. Three interconnected DHNs in the Helsinki metropolitan area were optimized based on 2019 data and each operator’s decarbonization strategies for 2025. HPs are expected to achieve the highest profit margins in the FCR-D up-regulation market, while electric boilers could generate substantial profits from the FCR-D down-regulation market. In contrast to other balancing markets studied, the FCR-N market exhibited limited profit potential. Sensitivity analysis indicated that spot electricity prices and CO₂ emission allowance prices significantly influence the profitability derived from balancing markets. Full article

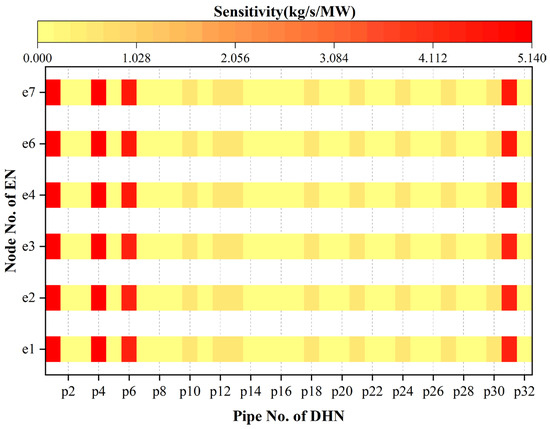

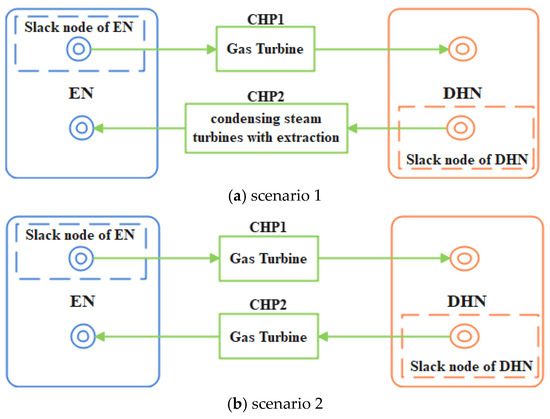

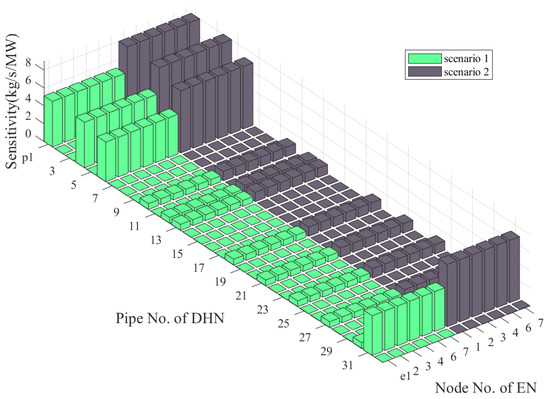

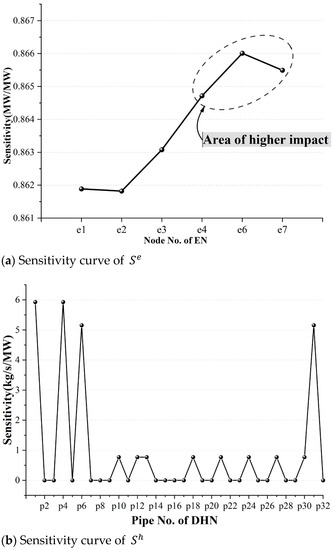

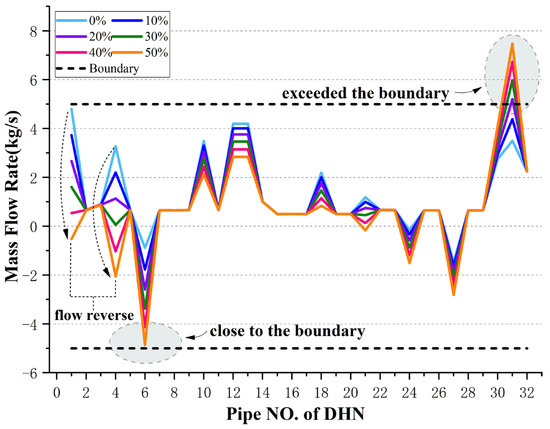

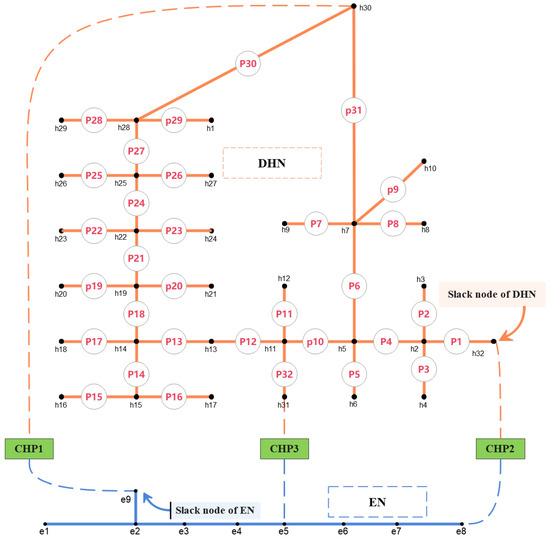

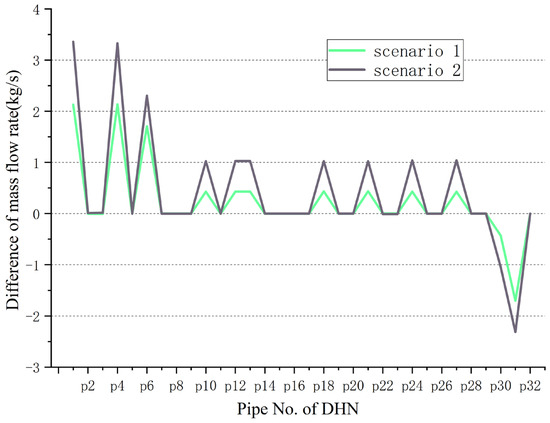

In combined electrical and heat networks (CEHNs) under the Islanded mode, the district heating network (DHN) is more vulnerable to fluctuations in the electrical load, resulting in the transgression of the CHEN power flow. Identifying vulnerable areas in islanded CEHNs is necessary. In this paper, we introduce a static sensitivity analysis method into islanded CHENs, which can identify vulnerable areas susceptible to these impacts, and explore the energy interaction mechanisms between the electrical network (EN) and DHN. We established a power flow model of the islanded CEHN, and developed the sensitivity matrix. Then, the decomposition model is solved, based on which the static sensitivity matrices can be calculated. The case study shows that the sensitivity can effectively represent the impact of EN load changes on the mass flow rate of the DHN, thus we can locate the weak areas of the CEHN. It can provide auxiliary information for the safe and stable operation of an islanded CEHN, with fewer calculations compared to the power flow calculation method. In addition, the results present the enhancement of islanded CHEN stability by using a kind of combination of CHP units. Full article

A combined heat and power virtual power plant (CHP-VPP) can effectively control the distributed resources in an electric–thermal coupling system and solve the problem of lack of flexibility caused by large-scale renewable energy grid connection. Similar to the optimal reconfiguration of distribution network topology by operating switches, the district heating system is also equipped with tie and sectionalizing valves to realize the optimal adjustment of district heating network (DHN) topology, which provides an economical and effective method for improving the power system’s flexibility. Based on this, this paper proposes a CHP-VPP economic scheduling model considering reconfigurable DHN. Firstly, the energy flow model is introduced to reduce the computational complexity. Secondly, adaptive robust optimization solved by the column-and-constraint generation algorithm is used to settle the randomness of wind power to ensure that the results are feasible in all worst scenarios. Finally, the feasibility of the proposed model is illustrated by case studies based on an actual CHP-VPP. The results show that compared with the reference case, considering the reconfigurability of DHN in the CHP-VPP optimization scheduling process can reduce the cost by about 2.78%. Full article

In this study, a novel fifth-generation district heating (DH) model was proposed that implements the energy-prosumer concept of bilateral heat trading (BHT) process between the DH network and the building. The newly proposed BHT model can be characterized by the feature of using the low temperature of DH return pipe’s water. The technical feasibility of the proposed BHT model was evaluated through operation simulation analysis based on the actual operation data of the hybrid pilot system combined with the fuel cell and heat pump and the annual hourly temperature profile of the existing DH return pipe. The main objective of this study is to examine the technical feasibility of the interconnection operation model with the existing DHN as an alternative to overcome the limitations of the current fuel cell cogeneration model, which suffers from the low production volume caused by the high initial investment cost. From the simulation results, it was confirmed that considerable operational benefit, more than 30% in terms of primary energy savings, can be achieved with the proposed model, and compared to the stand-alone model of the fuel cell cogeneration system for the building, it can provide a more flexible technical environment to improve the system utilization rate by about 40%. Full article

The optimal operation of District Heating Networks (DHNs) is a challenging task. Current or future optimal dispatch energy management systems attempt to optimize objectives, such as monetary cost minimization, emission reduction, or social welfare maximization. Typically, this requires highly nonlinear models and has a substantial computational cost, especially for large DHNs. Consequently, it is difficult to solve the resulting nonlinear programming problem in real time. In particular, as typical applications allow for no more than several minutes of computation time. However, a distributed optimization approach may provide real time performance. Thereby, the solution of the central optimization problem is obtained by solving a set of small-scale, coupled optimization problems in parallel. At runtime, information is exchanged between the small-scale problems during the iterative solution procedure. A well-known approach of this class of distributed optimization algorithms is Optimality Condition Decomposition (OCD). Important advantages of this approach are the low amount of information exchange needed between the small-scale problems and that it does not require the tuning of parameters, which can be challenging. However, the DHNs model equation structure brings along many difficulties that hamper the application of the OCD approach. Simulation results demonstrate the applicability range of the presented method. Full article

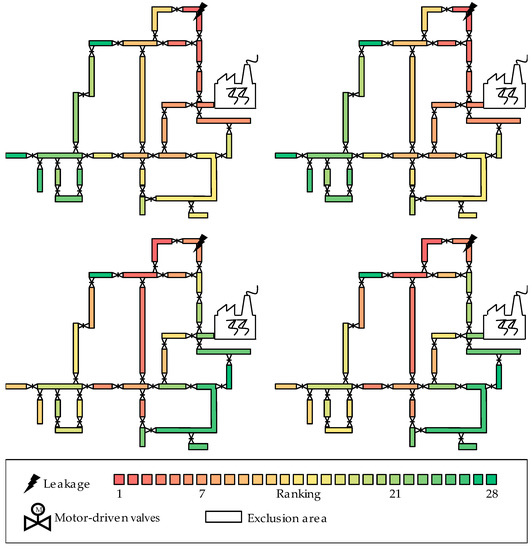

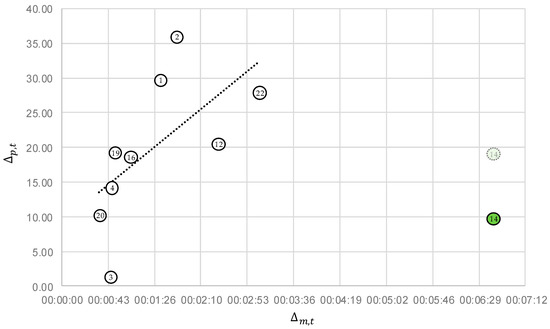

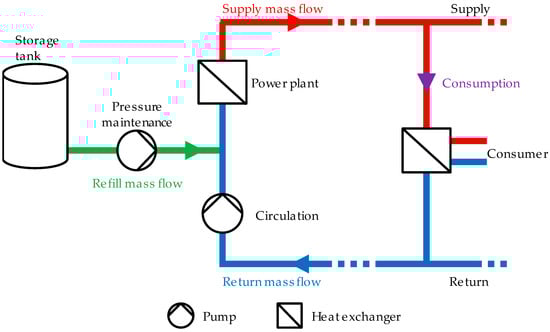

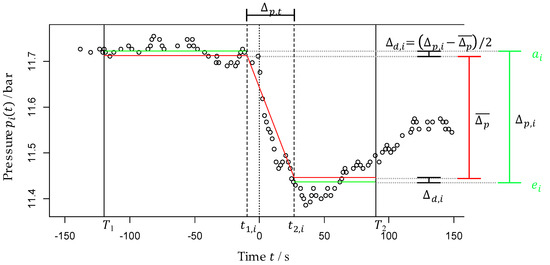

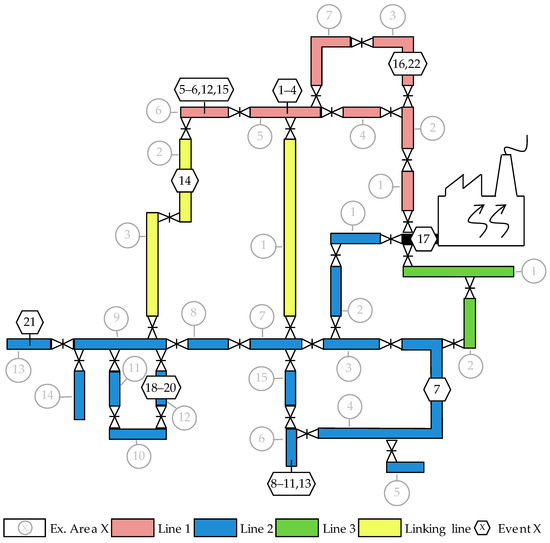

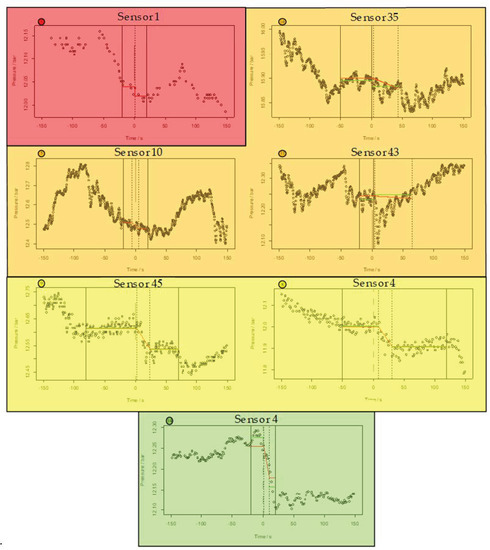

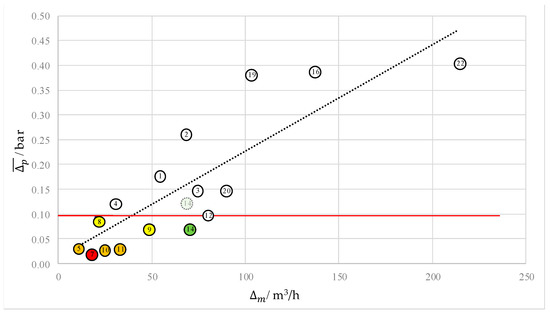

Large spontaneous leakages in district heating networks (DHNs) require a separation of the affected network part, as interruption of the heat supply is imminent. Measurement data of 22 real events was analyzed for localization, but suitable results were not always achieved. In this paper, the reasons are investigated and a model for data evaluation (MoFoDatEv) is developed for further insights. This contains prior knowledge and a simplified physical model for the reaction of the DHN in the case of a large spontaneous leakage. A model like this does not exist so far. It determines the time point and the duration of the pressure drop of the pressure wave which is caused by such leakages. Both parameters and the evaluation time frame are optimized for each event separately. The quality assessment leads to a categorization of the events based on several parameters, and correlations between the pressure and the refill mass flow are found. A minimum leakage size is deduced for successful evaluation. Furthermore, MoFoDatEv can also be used for leakage localization directly, combining two steps from previous publications. Therefore, more data contribute to the result. The application is conducted with artificial data to prove the model concept, and also with real measurement data. Full article

Using a variety of renewable energy sources can significantly improve energy system flexibility and efficiency. Energy hubs, which have the function of generating, converting, and storing energy in various forms, are vital facilities in micro-energy networks (MENs). In this paper, we present a Solar-Assisted Compressed Air Energy Storage (SA-CAES) hub which can accommodate and flexibly supply multi-energy by being connected to a power distribution network (PDN) and a district heating network (DHN). We formulate economic dispatch models of the SA-CAES hub, the PDN, and the DHN, respectively. The economic dispatch model is formulated as a mixed-integer linear programming problem (MILP) that can be solved by commercial solvers. Further, the operationally feasible region of the SA-CAES hub is explored by thermodynamic analysis. The results indicate that the operation costs have been reduced by 4.5% in comparison with conventional MENs. Full article

In analogy to electricity transmission networks, this paper analyzes the concept of supra-regional district heating networks (SR-DHN), connecting a large number of actors. Using a back-casting approach, a SR-DHN is assumed to exist and thus, implementation challenges, such as economic feasibility and energy losses, are circumvented in the first step (but are analyzed in the discourse). The paper then analyzes, in an interdisciplinary qualitative manner and supported by a case study, what technical, operational, economic and legal issues must have been resolved. Results show that the heat transmission network, being the backbone of the SR-DHN, is an expensive infrastructure, but is likely to become economic in a non-fossil energy system. By decreasing the reliance on single waste heat sources, SR-DHN allows longer payback periods and can thus be an enabler for using industrial waste heat. However, involving many actors requires comprehensive contractual foundations. The derived hypothesis is that SR-DHN, which is predominantly fed by waste heat, shall be operated with lower temperatures in winter (feeding the return while minimizing expensive winter losses) and high temperatures in summer (enabling alternative usages while accepting high but inexpensive summer losses). Full article

This paper explores how water temperature changes in a district heating system (DHS) impact the monitoring of water losses. Water volume in DHS is constantly monitored, recorded, and replenished. The leakage and failure status of the DHS is often monitored through measuring the make-up water flow rate. In this paper, we present the methodology and a simplified model of the dynamics of the heating system operation, which was used to determine the profile of changes in the average temperature and density of water in the system. The mathematical model of the district heating network (DHN) was verified by comparing the results of simulation calculations, i.e., calculated values of the temperature of water returning to the heat source, with the measured values. Fluctuations in water temperature cause changes in the density and volume of water in the DHN, which affect the amount of water supplementing the system. This is particularly noticeable in a DHN with a large water volume. The study reports an analysis of measurement results of operating parameters of a major DHS in Poland (city of Szczecin). Hourly measurements were made of supply and return water temperature, water flow rate, and pressure throughout the whole of 2019. The water volume of the analyzed DHN is almost 42,000 m³ and the changes in water volume per hour are as high as 5 m³/h, representing 20–30% of the value of the make-up water flow rate. The analysis showed that systems for monitoring the tightness of the DHS and detecting failures, on the basis of measurements of the make-up water flow rate, should take into account the dynamics of water volume changes in the DHN. Full article

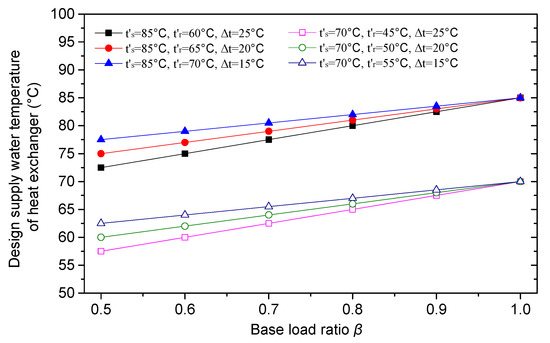

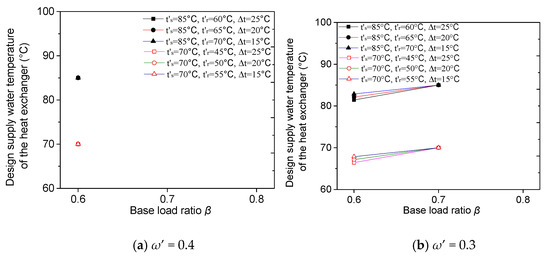

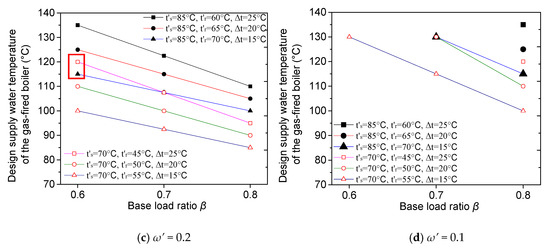

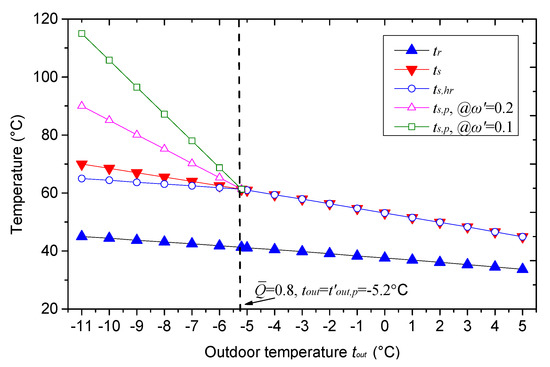

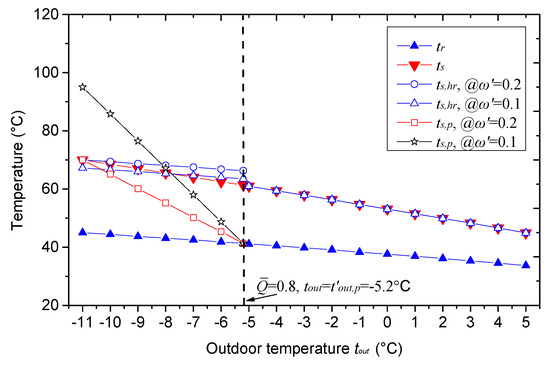

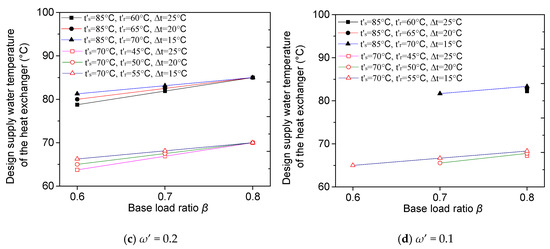

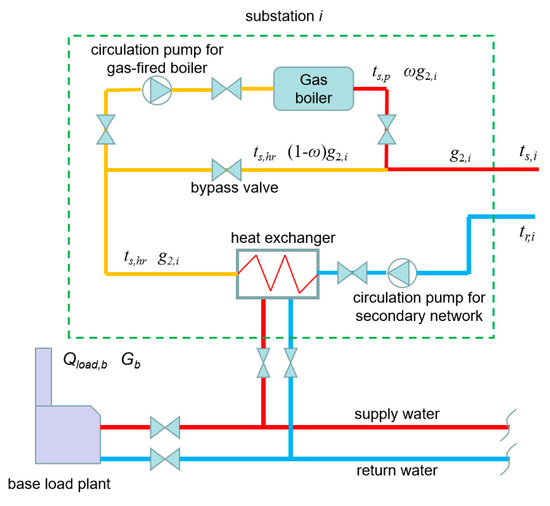

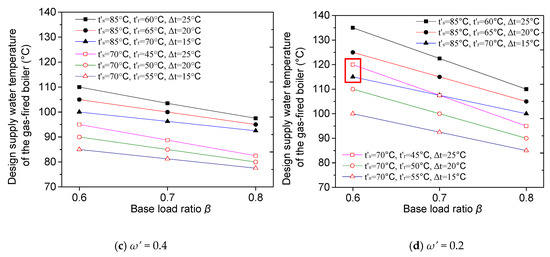

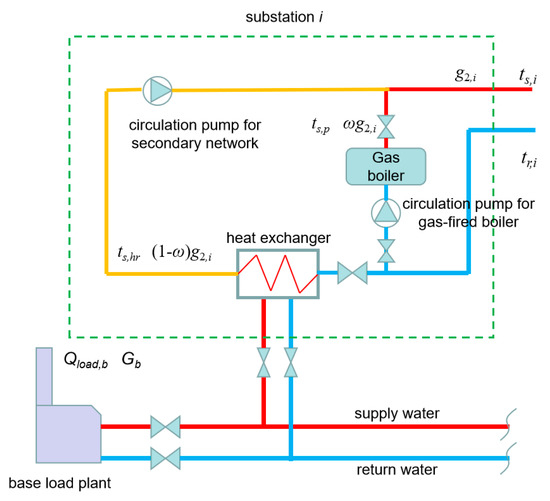

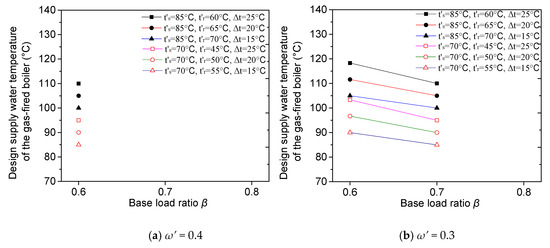

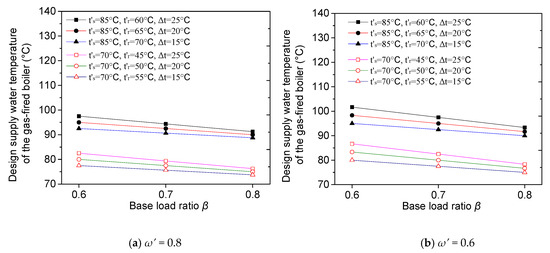

This study proposes to use gas-fired boilers as peak shaving heat sources in heating substations due to their capability to increase the reliability, flexibility and heat capacity without the need to change the district heating network (DHN). However, the design and operational requirements with different connection modes for this kind of DH system are still not clear. This paper presents a systematic study on this kind of DH system, analyzes the connection modes of series and parallel connections between the gas-fired boilers and the heat exchangers. For each connection mode, we figured out the thermal balances and obtained the design and operational parameters including the supply temperatures of the heat exchangers, gas-fired boilers and their variations under different network temperature levels and the base load ratios (β). Under the series connection mode, the design supply temperature of the heat exchangers has no relation with the design peak shaving flow ratio (ω′); it decreases linearly along with smaller β, and the decreasing slope is higher with bigger temperature difference (Δt) of the DHN. However, the design supply temperatures of gas-fired boilers increase linearly when β and/or ω′ are smaller, and the increasing speed is proportional to Δt. For the parallel connection mode, the design supply temperatures of the heat exchangers and gas-fired boilers are all affected by β, ω′ and Δt. The former decreases when β and/or ω′ are smaller, while the latter increases at the same time. Finally, the design peak shaving flow ratio ω′ are determined for the peak boilers with series and parallel connection modes. The study provides a theoretical basis for the design and operation of the DH system with peak heating boilers in substations in order to reach a lower investment and higher efficiency. Full article

Energy usage in buildings is coming increasingly under the spotlight as carbon policy focus shifts towards the utilization of thermal energy. In the UK, heating and hot water accounts for around 40% of energy consumption and 20% of greenhouse gas emissions. Heating is typically produced onsite, making widescale carbon or energetic improvements challenging. District heating networks (DHNs) can offer significant carbon reduction for many users but can only be implemented if the end user buildings have good thermal energy efficiency. This greatly limits the ability to implement advancing 4th and 5th generation DHNs, which are the most advanced systems available. We elucidate the current state of thermal efficiency in buildings in the UK and provide recommendations for necessary building requirements and modifications in order to accommodate 4th and 5th generation district heating. We conclude that key sectors must be addressed including creating a skilled workforce, producing relevant metrics and benchmarks, and providing financial support for early stage design exploration. Full article
