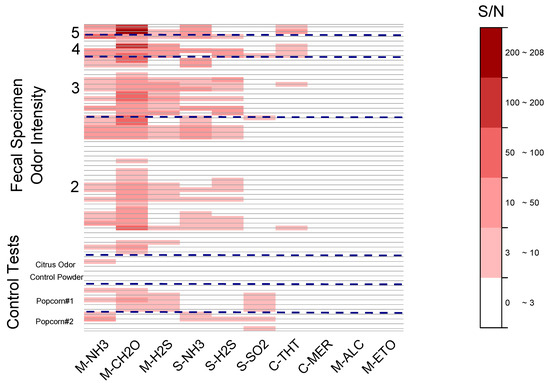

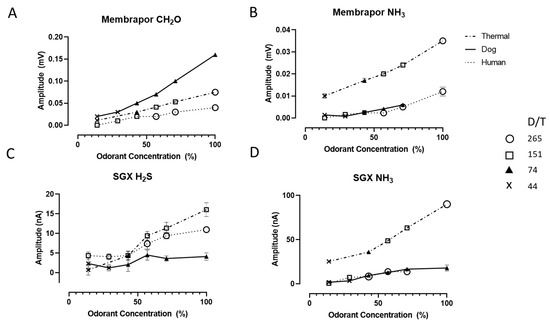

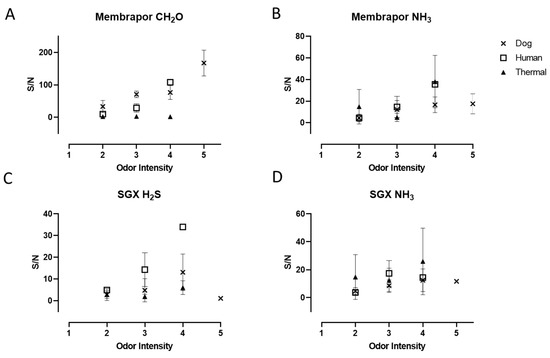

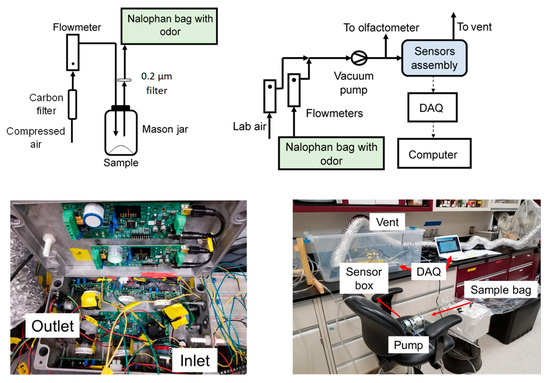

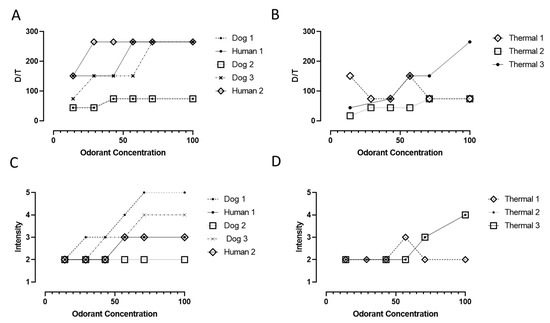

Technology innovation in sanitation is needed for the 4.2 billion people worldwide, lacking safely managed sanitation services. A major requirement for the adoption of these technologies is the management of malodor around toilet and treatment systems. There is an unmet need for a low-cost instrumented technology for detecting the onset of sanitation malodor and triggering corrective actions. This study combines sensory data with low-cost gas sensor data on malodor emanating from feces. The response of 10 commercial electrochemical gas sensors was collected alongside olfactometric measurements. Odor from fecal specimens at different relevant dilution as well as specimens with pleasant odors as a control were evaluated for a total of 64 responses. Several of the sensors responded positively to the fecal odor, with the formaldehyde, hydrogen sulfide, and ammonia sensors featuring the highest signal to noise ratio. A positive trend was observed between the sensors’ responses and the concentration of the odorant and with odor intensity, but no clear correspondence with dilution to threshold (D/T) values was found. Selected sensors were responsive both above and below the intensity values used as the cutoff for offensive odor, suggesting the possibility of using those sensors to differentiate odor offensiveness based just on the magnitude of their response. The specificity of the sensors suggested that discrimination between the selected non-fecal and fecal odors was possible. This study demonstrates that some of the evaluated sensors could be used to assemble a low-cost malodor warning system. Full article

To learn more about the effects of mixing different odorants, a series of air dilution sensory (ADS) tests were conducted using four reduced sulfur compounds [RSC: hydrogen sulfide (H₂S), methanethiol (CH₃SH), dimethylsulfide (DMS), and dimethyldisulfide (DMDS)] at varying concentration levels. The tests were initially conducted by analyzing samples containing single individual RSCs at a wide range of concentrations. The resulting data were then evaluated to define the empirical relationship for each RSC between the dilution-to-threshold (D/T) ratio and odor intensity (OI) scaling. Based on the relationships defined for each individual RSC, the D/T ratios were estimated for a synthetic mixture of four RSCs. The effect of mixing was then examined by assessing the relative contribution of each RSC to those estimates with the aid of the actually measured D/T values. This stepwise test confirmed that the odor intensity of the synthetic mixture is not governed by the common theoretical basis (e.g., rule of additivity, synergism, or a stronger component model) but is best represented by the averaged contribution of all RSC components. The overall results of this study thus suggest that the mixing phenomenon between odorants with similar chemical properties (like RSC family) can be characterized by the averaging effect of all participants. Full article

To simulate the occurrence of masking phenomena with the aid of an air dilution sensory (ADS) test, two types of odorant mixtures were prepared: (1) M₂ with two individual odorants [H₂S and acetaldehyde (AA)] and (2) M₆ with six individual odorants (H₂S and five aldehydes). The test results derived for samples containing single individual odorants at a wide range of concentrations are initially used to define the empirical relationship between the dilution-to-threshold (D/T) ratio and odor intensity (OI) scaling. Based on these relationships, the D/T ratios were estimated for each odorant with the same intensity as the synthetic mixture. The relative contribution of each odorant to such mixture is then assessed by comparing the estimated and measured D/T values. This stepwise test confirmed the dominance of certain compounds at a given OI rating. In the case of M₂, H₂S showed sensitive detection at high OI range, while AA did so at low end. The pattern of a competing relationship is also seen consistently from M₆ between AA (low) and iso-valeraldehyde (IA: high OI range). The overall results thus suggest that the masking phenomena between strong odorants should proceed under competing relationships, if released at the same time. Full article
