Search Results (5)

The purpose of this study is to synthesize geopolymer binders as an environmentally friendly alternative to conventional cement using available local raw materials. Waste materials such as chalcedonite (Ch), amphibolite (A), fly ash from lignite combustion (PB), and diatomite dust (D) calcined at 900 °C were used to produce geopolymer binders. Metakaolin (M) was used as an additional modifier for binders based on waste materials. The base materials were subjected to fluorescence X-ray fluorescence (XRF) analysis and X-ray diffractometry (XRD) to determine chemical and phase composition. A laser particle size analysis was also performed. The various mixtures of raw materials were activated with a 10 M solution of NaOH and sodium water glass and then annealed for 24 h at 60 °C. The produced geopolymer binders were conditioned for 28 days under laboratory conditions and then subjected to microstructural analysis (SEM) and flexural and compressive strength tests. The best compressive strength results were obtained by the Ch + PB samples—more than 57 MPa, while the lowest results were obtained by the Ch + D+A + M samples—more than 20 MPa. On the other hand, as a result of the flexural strength tests, the highest flexural results were obtained by D + A + M + PB binders—more than 12 MPa, and the lowest values were obtained by binders based on Ch + D+A + M—about 4.8 MPa. Full article

In order to reduce the carbon emission of planting concrete in the process of preparation, and to realize the application of large amounts of red mud in the geopolymer, in this study, high silicon source materials and blast furnace slag are added to a large content of red mud base geopolymer planting concrete, which can remove the dependence of planting concrete on ordinary Portland cement and provide a new direction for the comprehensive utilization of red mud. In the paper, the effects of different A (Alkali solid content)/P (Powder dosage) and high silica sources (silica fume and diatomite) on the microstructure and fluidity of the geopolymer, as well as the compressive strength, pore characteristics, and alkalinity of the planting concrete, are comparatively evaluated. The corresponding results showed that when A/P was 0.25, the planting performance of the planting concrete would be reduced due to its high alkalinity; when A/P was 0.15, the planting concrete would have its sedimentation and the compressive strength decreased. On the other hand, the pozzolanic reaction among the silica fume, diatomite, and Ca(OH)₂ significantly weakened the alkali pan phenomenon in the later stage of planting concrete formation. The addition of an appropriate amount of silica fume and diatomite also made the structure of the geopolymer more compact with better fluidity, which yielded superior pore characteristics and planting performance for the planting concrete. For good planting concrete pore characteristics, the test results showed that the fluidity of the mortar should be 112–128 mm. Overall, the best planting concrete performance was achieved at an A/P ratio of 0.2, with the contents of silica fume and diatomite being 10% and 5%, respectively. Furthermore, the slope finite element analysis showed that planting concrete made with red mud geopolymer had better slope protection potential than ordinary Portland cement. Full article

Diphenolic acid (DPA) is a kind of endocrine-disrupting compound, which brings serious health problems to humans and animals. An eco-friendly and cost-effective adsorbent was prepared through a simple method, in which the β-Cyclodextrin(β-CD) was crosslinked onto the surface of diatomite (DA), the as-prepared DA/β-CD composite showed higher adsorption efficiency for DPA than DA as the host–guest interaction between DPA and β-CD. DA is a kind of biosilica with a hierarchical pore structure that provides enough surface area for the DA/β-CD. The surface area and pore size of DA/β-CD were investigated by nitrogen adsorption and desorption. The DA/β-CD composite illustrated a good adsorption capability, and was used for removing DPA from wastewater. The adsorption ratio of DPA could achieve 38% with an adsorption amount of 9.6 mg g⁻¹ under room temperature at pH = 6. The adsorption isotherm curves followed the Langmuir (R² = 0.9867) and Freundlich (R² = 0.9748) models. In addition, the regeneration rate of the DA/β-CD was nearly at 80.32% after three cycles of regeneration. These results indicated that the DA/β-CD has the potential for practical removal of the EDC contaminants from wastewater. Full article

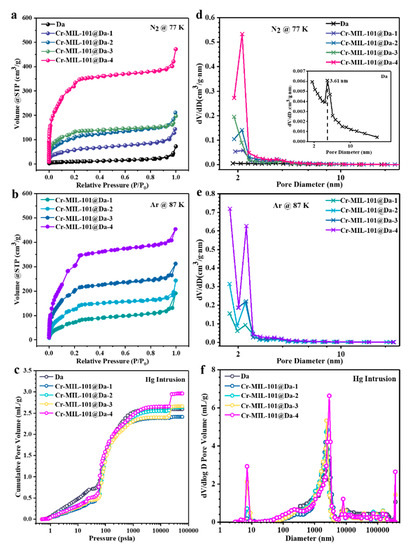

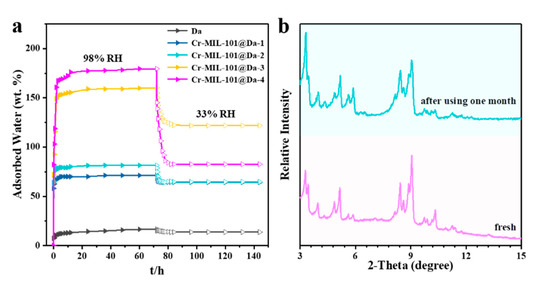

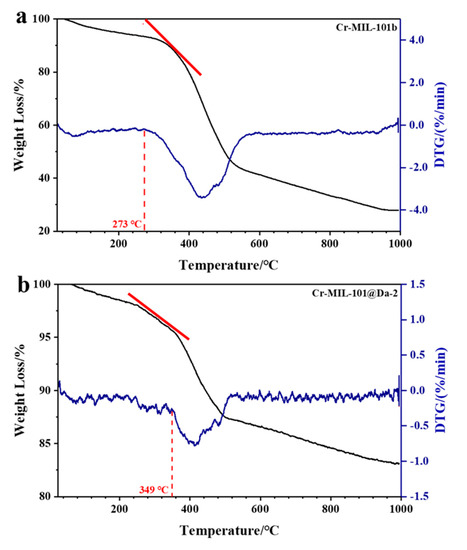

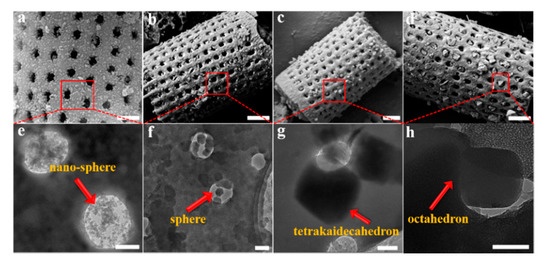

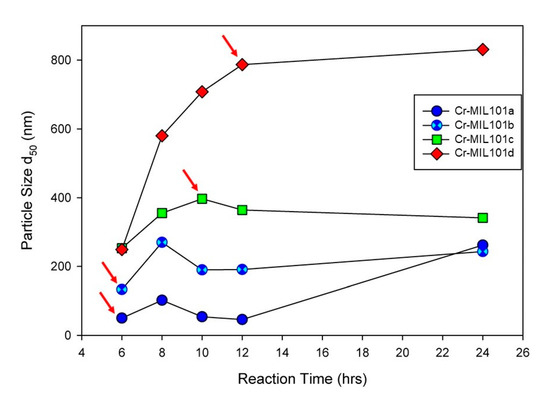

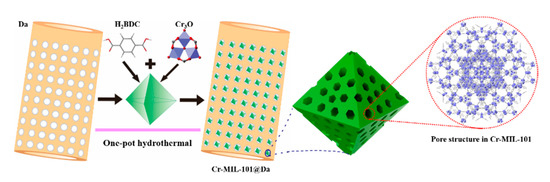

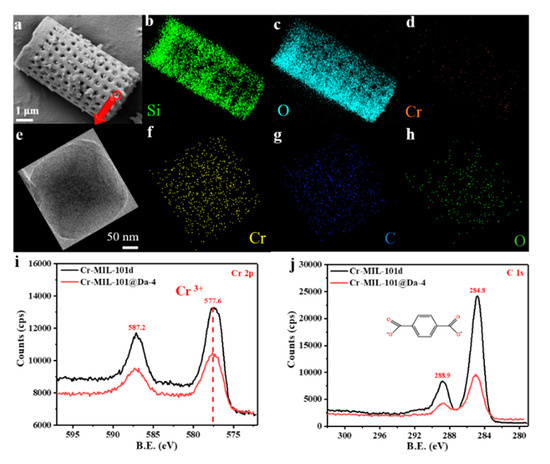

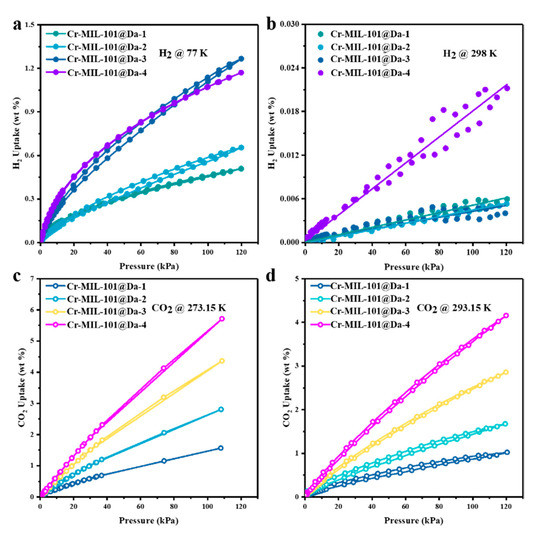

Distinctive Cr-MOF@Da composites have been constructed using chromium-based metal-organic frameworks (MOFs) and diatomite (Da). The new materials have hierarchical pore structures containing micropores, mesopores and macropores. We have synthesized various morphologies of the MOF compound Cr-MIL-101 to combine with Da in a one-pot reaction step. These distinctive hierarchical pore networks within Cr-MIL-101@Da enable exceptional adsorptive performance for a range of molecules, including hydrogen (H₂), carbon dioxide (CO₂) and water (H₂O) vapor. Selectivity for H₂ or CO₂ can be moderated by the morphology and composition of the Cr-MIL-101 included in the Cr-MOF@Da composite. The encapsulation and growth of Cr-MIL-101 within and on Da have resulted in excellent water retention as well as high thermal and hydrolytic stability. In some cases, Cr-MIL-101@Da composite materials have demonstrated increased thermal stability compared with that of Cr-MIL-101; for example, decomposition temperatures >340 ℃ can be achieved. Furthermore, these Cr-MIL-101@Da composites retain structural and morphological integrity after 60 cycles of repeated hydration/dehydration, and after storage for more than one year. These characteristics are difficult to achieve with many MOF materials, and thus suggest that MOF–mineral composites show high potential for practical gas storage and water vapor capture. Full article

Waste utilization has gained more and more interest. In this study, crumb rubber and diatomite were used to modify asphalt binder and the short-term aging effects on the properties of modified asphalts were evaluated. Three kinds of modified asphalt were prepared; they are diatomite modified asphalt (DA), crumb rubber modified asphalt (RA), and diatomite and crumb rubber compound modified asphalt (DRA). Thin film oven test (TFOT) was used to simulate short-term aging in the laboratory. Penetration, softening points, ductility, viscosity, elastic recovery, low temperature creep, and rutting susceptibility were tested and analyzed before and after TFOT. The results indicated that the softening point, viscosity, elastic recovery, creep stiffness, and G*/sinδ of DA, RA, and DRA are all linearly increased with increasing age, while the penetration and ductility are linearly decreased with increasing age. High temperature properties of asphalt are obviously improved by the addition of crumb rubber. Low temperature properties of asphalt are affected more seriously by the addition of diatomite. DRA could combine the advantages of diatomite and crumb rubber and achieve better performance in short-term aging resistance than DA and RA. Full article
