Search Results (3)

The hydrothermal synthesis of a nanosized NiCo₂O₄ oxide with several levels of hierarchical self-organization was studied. Using X-ray diffraction analysis (XRD) and Fourier-transform infrared (FTIR) spectroscopy, it was determined that under the selected synthesis conditions, a nickel-cobalt carbonate hydroxide hydrate of the composition M(CO₃)_0.5(OH)·0.11H₂O (where M–Ni²⁺ and Co²⁺) is formed as a semi-product. The conditions of semi-product transformation into the target oxide were determined by simultaneous thermal analysis. It was found by means of scanning electron microscopy (SEM) that the main powder fraction consists of hierarchically organized microspheres of 3–10 μm in diameter, and individual nanorods are observed as the second fraction of the powder. Nanorod microstructure was further studied by transmission electron microscopy (TEM). A hierarchically organized NiCo₂O₄ film was printed on the surface of a flexible carbon paper (CP) using an optimized microplotter printing technique and functional inks based on the obtained oxide powder. It was shown by XRD, TEM, and atomic force microscopy (AFM) that the crystalline structure and microstructural features of the oxide particles are preserved when deposited on the surface of the flexible substrate. It was found that the obtained electrode sample is characterized by a specific capacitance value of 420 F/g at a current density of 1 A/g, and the capacitance loss during 2000 charge–discharge cycles at 10 A/g is 10%, which indicates a high material stability. It was established that the proposed synthesis and printing technology enables the efficient automated formation of corresponding miniature electrode nanostructures as promising components for flexible planar supercapacitors. Full article

The hydrothermal synthesis of a hierarchically organized nanocomposite based on nickel–cobalt carbonate hydroxide hydrate of composition M(CO₃)_0.5(OH)·0.11H₂O (where M is Ni²⁺ and Co²⁺) and nickel–cobalt layered double hydroxides (NiCo-LDH) was studied. Using synchronous thermal analysis (TGA/DSC), it was determined that the material retained thermal stability up to 200 °C. The crystal structure of the powder and the set of functional groups in its composition were determined by X-ray diffraction analysis (XRD) and Fourier transform infrared spectroscopy (FTIR). The resulting hierarchically organized nanopowder was employed as a functional ink component for microplotter printing of an electrode film, which is an array of miniature planar structures with a diameter of about 140 μm, on the surface of a nickel-plated steel substrate. Using scanning electron microscopy (SEM), it was established that the main area of the electrode “pixels” represents a thin film of individual nanorods with periodic inclusions of larger hierarchically organized spherical formations. According to atomic force microscopy (AFM) data, the mean square roughness of the material surface was 28 nm. The electrochemical properties of the printed composite film were examined; in particular, the areal specific capacitance at different current densities was calculated, and the electrochemical kinetics of the material was studied by impedance spectroscopy. It was found that the electrode material under study exhibited relatively low R_s and R_ct resistance, which indicates active ion transfer at the electrode/electrolyte interface. Full article

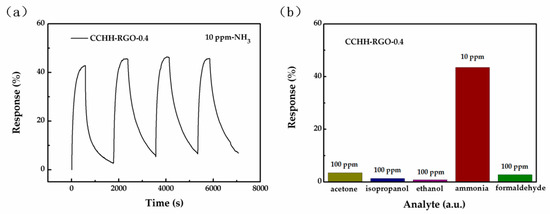

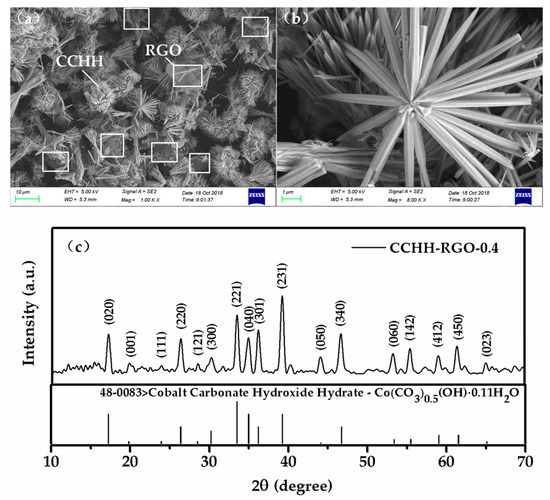

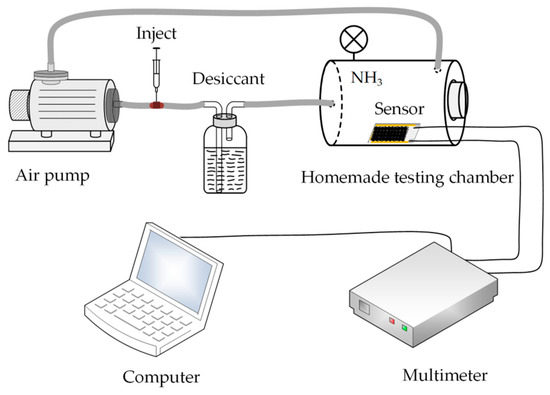

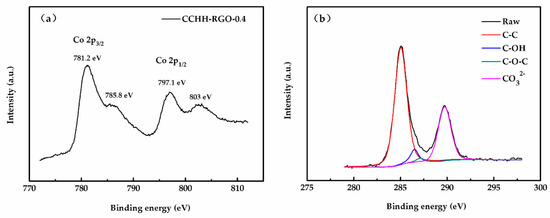

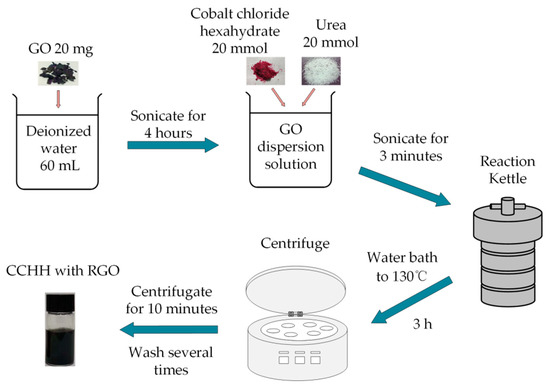

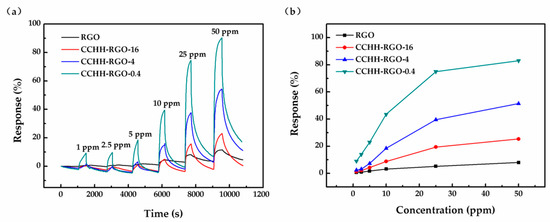

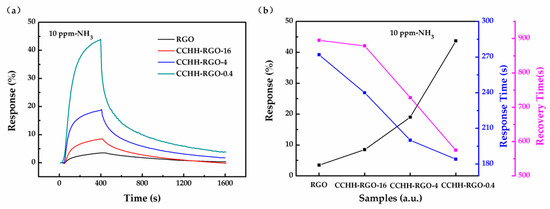

A novel hybrid structure sensor based on cobalt carbonate hydroxide hydrate (CCHH) and reduced graphene oxide (RGO) was designed for room temperature NH₃ detection. This hybrid structure consisted of CCHH and RGO (synthesized by a one-step hydrothermal method), in which RGO uniformly dispersed in CCHH, being used as the gas sensing film. The resistivity of the hybrid structure was highly sensitive to the changes on NH₃ concentration. CCHH in the hybrid structure was the sensing material and RGO was the conductive channel material. The hybrid structure could improve signal-to-noise ratio (SNR) and the sensitivity by obtaining the optimal mass proportion of RGO, since the proportion of RGO was directly related to sensitivity. The gas sensor with 0.4 wt% RGO showed the highest gas sensing response reach to 9% to 1 ppm NH₃. Compared to a conventional gas sensor, the proposed sensor not only showed high gas sensing response at room temperature but also was easy to achieve large-scale production due to the good stability and simple synthesis process. Full article
