Search Results (2)

(1) Background: The desire to avoid autograft harvesting in implant dentistry has prompted an ever-increasing quest for bioceramic bone substitutes, which stimulate osteogenesis while resorbing in a timely fashion. Consequently, a highly bioactive silicon containing calcium alkali orthophosphate (Si-CAP) material was created, which previously was shown to induce greater bone cell maturation and bone neo-formation than β-tricalcium phosphate (β-TCP) in vivo as well as in vitro. Our study tested the hypothesis that the enhanced effect on bone cell function in vitro and in sheep in vivo would lead to more copious bone neoformation in patients following sinus floor augmentation (SFA) employing Si-CAP when compared to β-TCP. (2) Methods: The effects of Si-CAP on osteogenesis and Si-CAP resorbability were evaluated in biopsies harvested from 38 patients six months after SFA in comparison to β-TCP employing undecalcified histology, histomorphometry, and immunohistochemical analysis of osteogenic marker expression. (3) Results: Si-CAP as well as β-TCP supported matrix mineralization and bone formation. Apically furthest away from the original bone tissue, Si-CAP induced significantly higher bone formation, bone-bonding (bone-bioceramic contact), and granule resorption than β-TCP. This was in conjunction with a higher expression of osteogenic markers. (4) Conclusions: Si-CAP induced higher and more advanced bone formation and resorbability than β-TCP, while β-TCP’s remarkable osteoconductivity has been widely demonstrated. Hence, Si-CAP constitutes a well-suited bioactive graft choice for SFA in the clinical arena. Full article

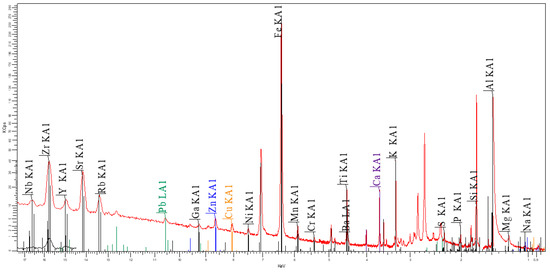

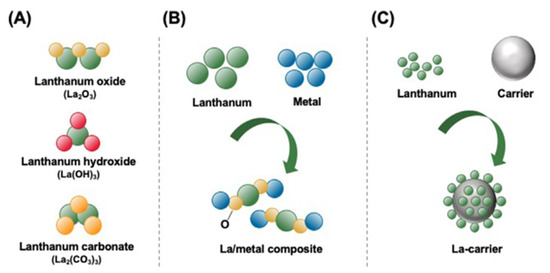

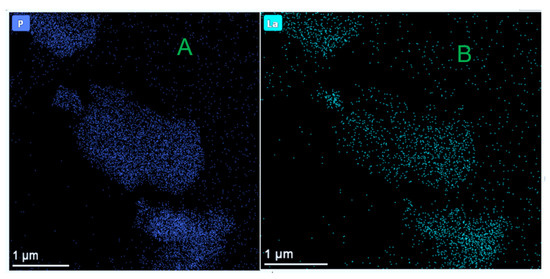

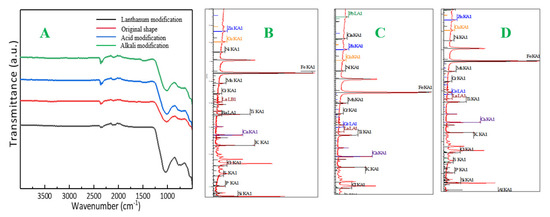

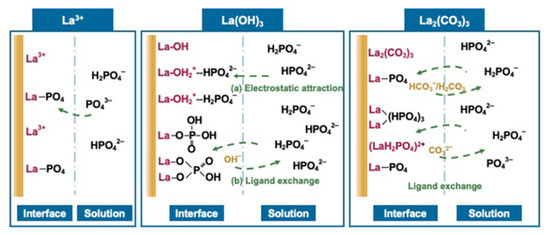

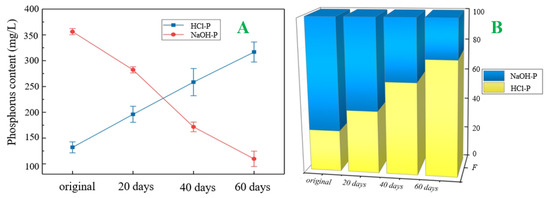

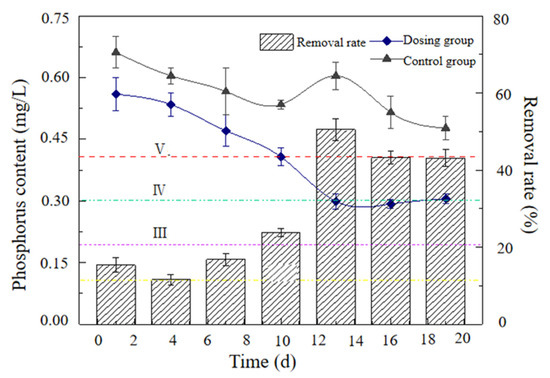

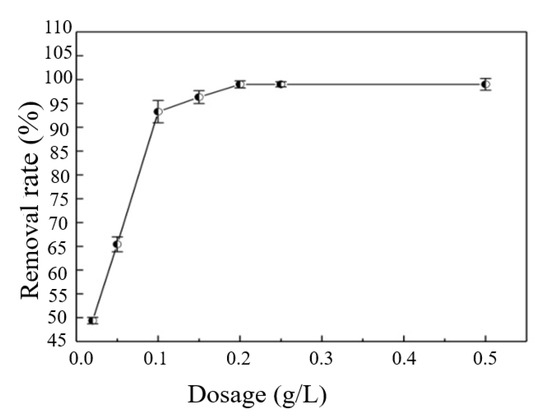

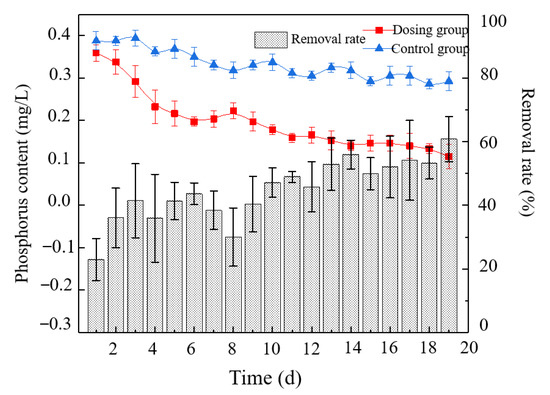

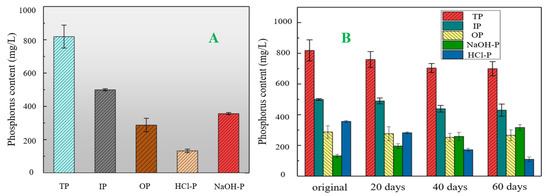

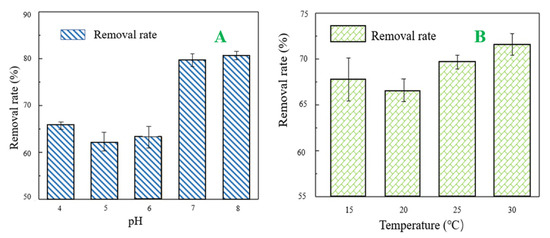

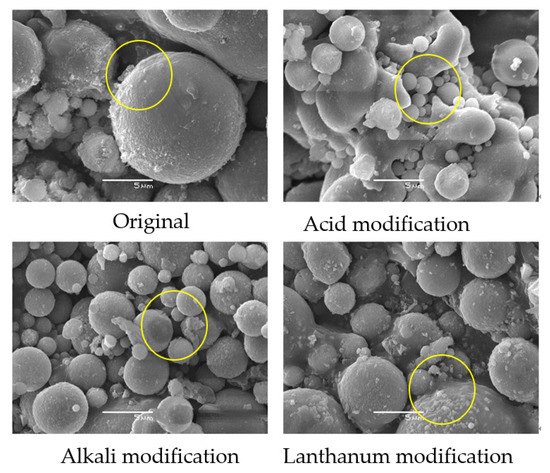

This study optimizes the modification and granulation of fly ash to make it more stable at the sediment–water interface. Through laboratory simulations, the modified fly ash pellets were optimally granulated to cover the sediment–water interface, and its control effect and mechanism were evaluated. The results showed that the phosphorus adsorption effect of lanthanum-modified fly ash was 34% and 40% higher compared with those of acid-modified and alkali-modified fly ash, respectively, with the phosphorus adsorption effect reaching 85%. The best dosing ratio was about 0.3 g/L. Adsorption was affected by pH and was more effective under weak alkalinity, close to the Langmuir adsorption model, which was consistent with the unimolecular layer adsorption characteristics and the presence of chemisorption and physical adsorption. The saturation adsorption amount of phosphate by lanthanum-modified fly ash was 8.89 mg/g. The optimized granulation conditions for lanthanum-modified fly ash pellets were a fly ash/montmorillonite ratio of 7:3, a roasting temperature of 900 °C, a roasting time of 4 h, and a particle size of 3 mm. After 20 days, the orthophosphate removal rate was more than 60% higher than that of the control group, with a total phosphorus removal rate of 43%. After covering for 60 days, active phosphorus in the surface layer of the sediment was gradually transformed into a stable phosphorus form, with calcium phosphorus accounting for 70% of the total inorganic phosphorus. The ability of the sediment to release phosphorus to the overlying water body was also significantly weakened. Meanwhile, the total phosphorus removal rate in the overlying water at the sediment–water interface reached more than 40%, and orthophosphate removal reached more than 60%, indicating an obvious phosphorus control effect. Transmission electron microscopy analysis showed that lanthanum was present at locations enriched with elemental phosphorus and was adsorbed onto the material surface. Therefore, lanthanum-modified fly ash pellets are a promising in situ phosphorus control agent with good endogenous phosphorus pollution control abilities in eutrophic water bodies. Full article
