Search Results (2)

As arsenopyrite is a typical arsenic-bearing sulfide ore, the biooxidation process of arsenopyrite is of great significance for the extraction of gold from arsenic-bearing gold ores and the generation of arsenic-bearing acid mine drainage. During the biooxidation of arsenopyrite, a large amount of arsenic is produced, which inhibits the growth and metabolism of microorganisms and thus affects the extraction of gold from arsenic-bearing gold ores. Therefore, the screening and enrichment of microorganisms with high arsenic resistance have become important aspects in the study of arsenopyrite biooxidation. As described in this paper, through arsenic acclimation, the maximum arsenic tolerance concentration of Acidithiobacillus ferriphilus QBS 3 isolated from arsenic-containing acid mine drainage was increased to 80 mM As(Ⅲ) and 100 mM As(V). Microorganisms with high arsenic resistance showed better bioleaching performance for arsenopyrite. After 18 days of bioleaching, the leaching rate of arsenopyrite reached 100% at a pulp concentration of 0.5%, and after 30 days of bioleaching, the leaching rate of arsenopyrite was 79.96% at a pulp concentration of 1%. Currently, research on arsenopyrite mainly focuses on the control and optimization of environmental conditions, but there have been few studies on the biooxidation process of arsenopyrite at the protein and gene levels. Therefore, combining the results of a one-month bioleaching experiment on arsenopyrite by A. ferriphilus QBS 3 and the analysis of arsenic resistance genes, a bioleaching model of arsenopyrite was constructed, which laid an experimental basis and theoretical foundation for improving the gold recovery rate from refractory arsenic-bearing ores and exploring the arsenic resistance mechanism of microorganisms during the arsenopyrite leaching process. Full article

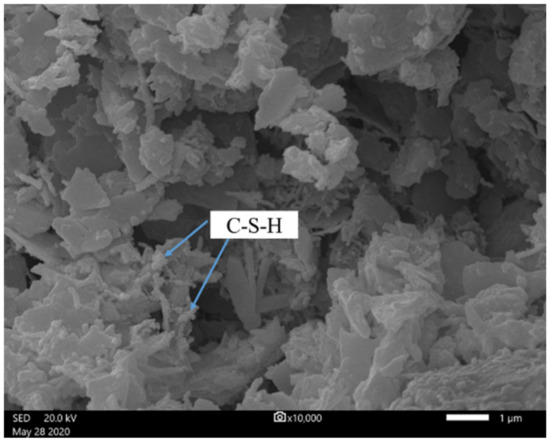

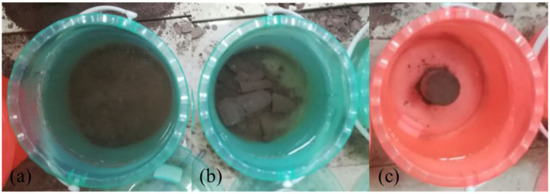

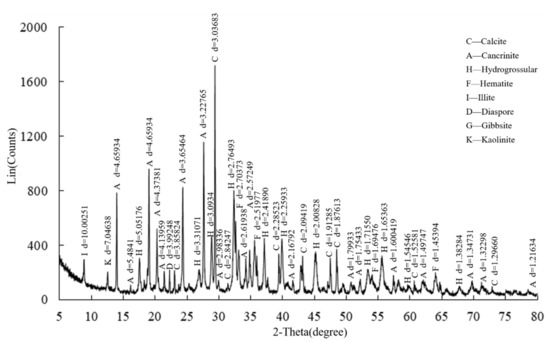

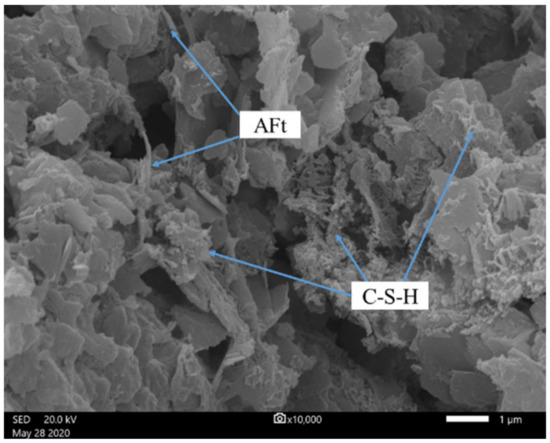

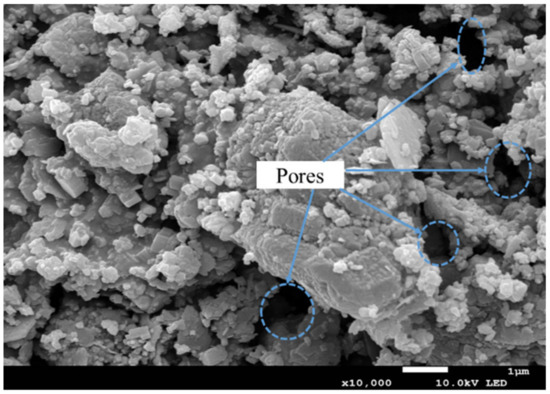

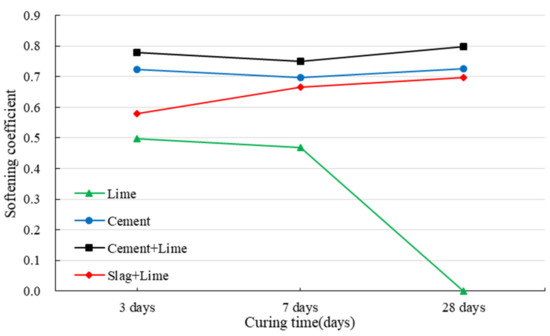

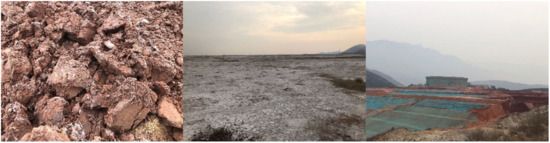

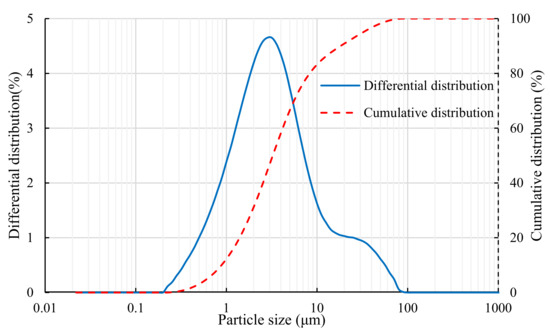

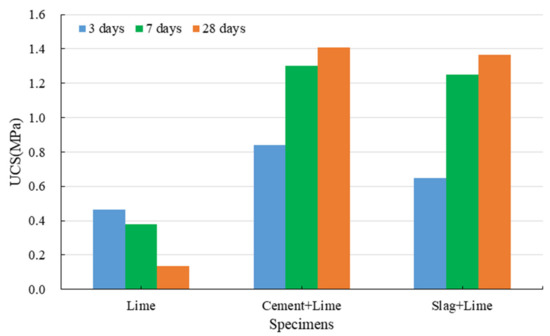

Red mud is a by-product of alumina production, and its disposal can have severe environmental consequences. This study experimentally investigates the feasibility of using red mud from the Bayer process for cemented paste backfill (CPB). Different binders and activators were used to improve the mechanical properties, water resistance, and environmental behaviors of red mud-based CPB. In addition, water immersion tests were introduced, for the first time, to evaluate the water resistance of CPB. Furthermore, the environmental behaviors of red mud-based CPB were investigated by conducting leaching experiments. The results showed that the red-mud specimens had an unconfined compressive strength (UCS) of less than 0.2 MPa and disintegrated after being immersed in water. Different binders significantly improved the mechanical properties of red mud-based CPB. In addition, the specimens with different binders showed excellent water resistance, and the softening coefficient of CPB with different binders could exceed 0.7 after being cured for 28 days. The binders exhibited a substantial inhibitory effect on the leaching of hazardous substances in red mud under the solidification and stabilization effects. The leaching concentration of hexavalent chromium, selenium, fluoride, arsenic, lead, and vanadium was reduced by more than 70%. Therefore, this study provides an effective method for the environmental-friendly and large-scale utilization of red mud from the Bayer process. Full article
