Search Results (4)

This article presents the results of research on alkali-phenolic binders used in moulding sands. The results of the presented experiments are part of a search for the optimum conditions to implement the thermal regeneration of spent alkali-phenolic binder moulding sands. The cured binders were subjected to thermogravimetric analysis in aerobic and anaerobic atmospheres. On the basis of the resin decomposition curves, the integral polymer decomposition temperature was determined, and the required thermal regeneration temperature for the alkali-phenolic binder moulding sands that were used was determined according to a specific procedure. The spent moulding sand was subjected to roasting procedures at different temperatures in order to confirm the necessary regeneration temperatures. The effects of the procedures that were carried out were evaluated by means of weight losses and ignition losses, microscopic pictures were taken, and using scanning microscopy, an analysis of the chemical composition in the micro areas on the surfaces of the matrix grains was carried out using scanning microscopy. The indicators for the comparisons between the individual binders were also calculated from the mass losses. The research and analysis that were carried out made it possible to indicate the required temperature for the thermal regeneration of the spent alkali-phenolic binder moulding sand to reduce the involved energy expenditure. The factors that can determine the successful implementation of the process and the obtaining of the best possible grain matrix for reuse were also indicated. Full article

The foundry industry generates large amounts of waste when casting metal into sand moulds. An important issue is the activities that are related to the re-recovery of the grain matrix (the main component of the moulding sand) for realising subsequent technological cycles. This process is particularly important in the case of the expensive chromite matrix that is necessary for use in manganese steel casting. The effects of the reclamation treatments of spent alkali-phenolic binder sand were evaluated by scanning electron microscopy with EDS, analysing the chemical composition in micro areas and proving the loss of binder on the surfaces of the matrix grains. Tests were also performed using the main criteria for evaluating a reclaimed organic binder: sieve analysis and ignition loss. A thermogravimetric analysis study was performed to assess the change in the chromite character of the grain matrix under the influence of temperature. The effects of the reclamation measures were verified by making moulding compounds on a matrix of reclaimed sand and a mixture of reclaimed and fresh sand. The tests and analyses that were carried out indicated the direction of an effective method for reclaiming used alkali-phenolic binder masses and the extent of the proportion of the regenerate in moulding sand in order to maintain the relevant technological parameters of the moulding sand. Full article

The article presents the results of research on the properties of molding sands in Alphaset technology (alkaline-phenolic). These sands are often used in steel foundries, producing large castings. However, knowledge about them, and especially about the changeability of their properties with the change of environmental conditions (seasons), is still insufficient. Various compositions of molding sand were analyzed based on fresh chromite sand and reclaimed sand. A binder and hardener in various mass ratios were used to prepare the mass. The research methodology included, among others, tests of tensile and bending strength, permeability, abrasion, gas emissivity, and ignition losses. These tests were carried out for summer and winter conditions. The results showed the optimal proportions of resin and hardener, showed the influence of ambient temperature on the properties of the molding sand, and the possible ratio of reclaimed sand in relation to fresh sand. However, you should always remember to verify them under the conditions of a specific foundry. Full article

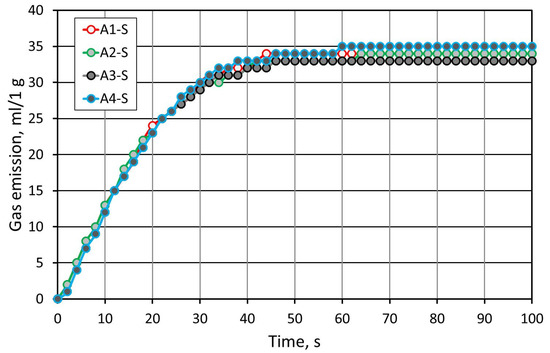

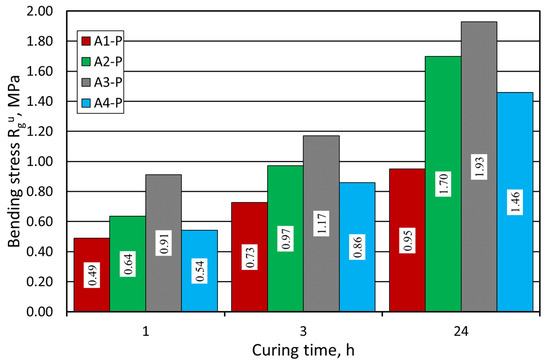

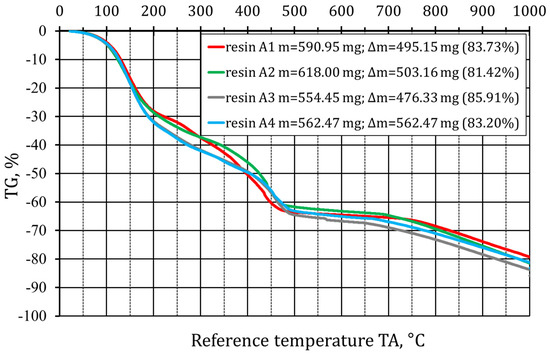

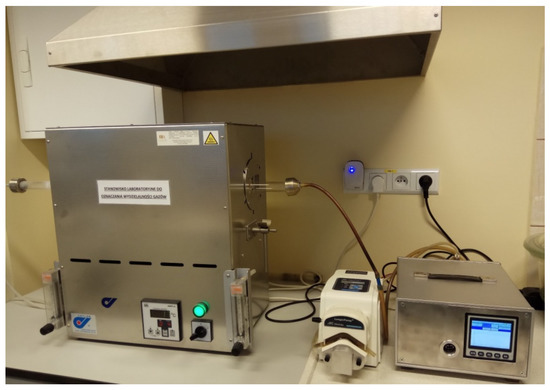

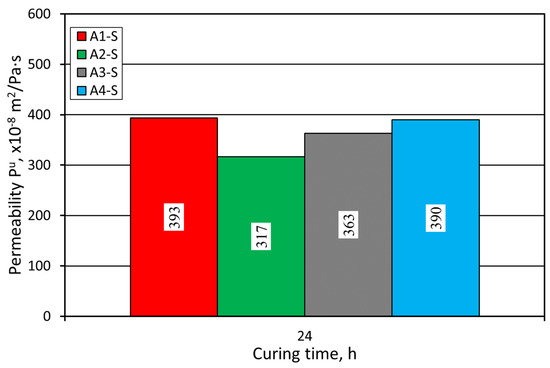

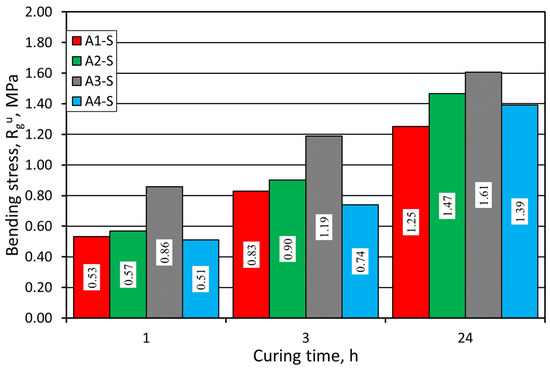

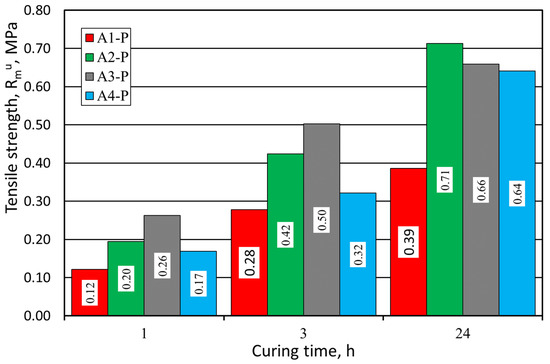

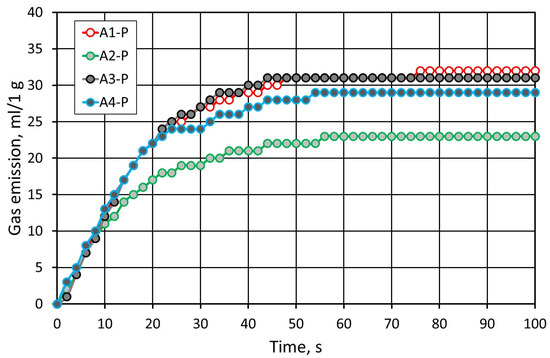

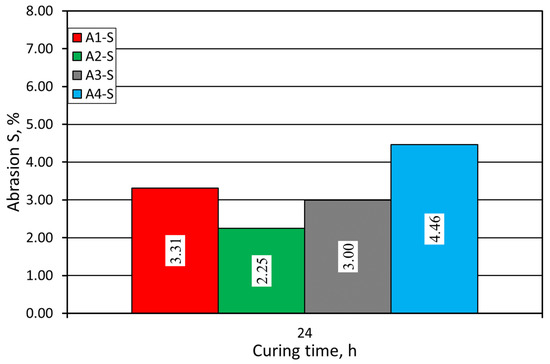

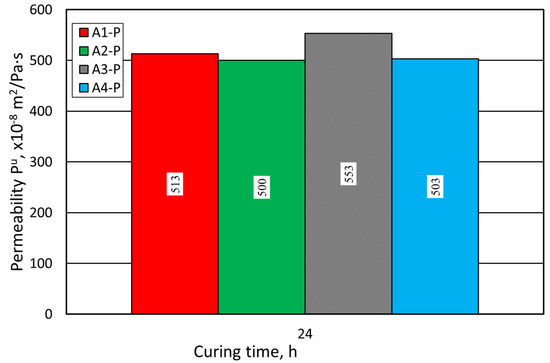

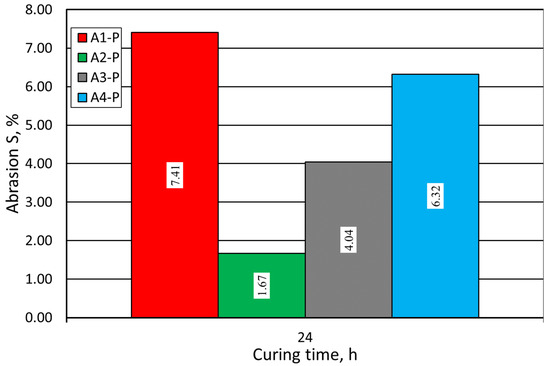

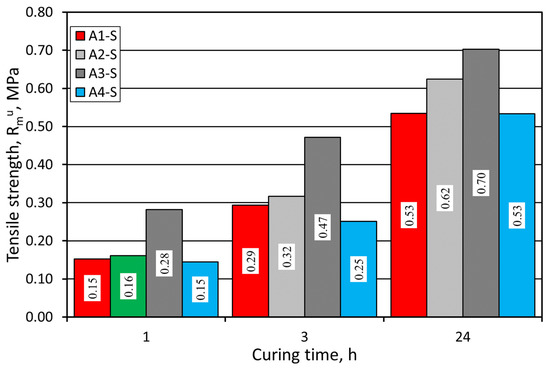

This article presents the results of experiments related to the process of replacement of the currently used furfuryl resin molding sand technology with a new alkali-phenolic technology. The new binder is characterized by a set of technological advantages and is considered more ecological compared to the furfuryl resin. However, the molding sand produced on the basis of the alkali-phenolic resin features lower strength compared to the sands containing furfuryl resin. This article presents a comparative study of sands made using various alkali-phenolic binders, aimed at the selection of a resin with strength parameters and other features that are both desirable and useful for new technology applied in a foundry. Full article
