Sign in to use this feature.

Years

Between: -

Subjects

remove_circle_outline
remove_circle_outline

Journals

Article Types

Countries / Regions

Search Results (3)

Search Parameters:
Keywords = WTi coating

Order results
Result details
Results per page
Select all
Export citation of selected articles as:
15 pages, 8559 KiB
Article
Characterization of Corrosion Products on TiSi, TiAl, and WTi Coatings
by Oscar Gordillo, Williams Steve Hincapie, Oscar Piamba, Jhon Olaya, José Edgar Alfonso, Gil Capote and Vladimir Trava-Airoldi
Metals 2024, 14(10), 1131; https://doi.org/10.3390/met14101131 - 4 Oct 2024
Viewed by 1167
Abstract
This study investigates the corrosion products present on TiSi, AlTi, and WTi coatings deposited onto Ti6Al4V titanium alloy substrates using the RF sputtering PVD technique. Following deposition, the coatings underwent exposure to a temperature of 600 °C for 100 h. The corroded surfaces [...] Read more.
This study investigates the corrosion products present on TiSi, AlTi, and WTi coatings deposited onto Ti6Al4V titanium alloy substrates using the RF sputtering PVD technique. Following deposition, the coatings underwent exposure to a temperature of 600 °C for 100 h. The corroded surfaces were meticulously characterized to identify the resultant corrosion products. Utilizing scanning electron microscopy (SEM), X-ray diffraction, optical profilometry, and XPS spectroscopy, the coatings were comprehensively examined. Furthermore, Raman mapping with multivariate analysis was employed to determine the spatial distribution of oxides in the coating post-high-temperature corrosion. Additionally, XPS spectroscopy unveiled the presence of species undetected by Raman spectroscopy, such as silicon oxide SiO2, aluminum oxide Al2O3, and tungsten oxide WO2, in oxidation studies on TiSi, AlTi, and WTi coatings, corroborated by XRD analysis. The results allowed us to propose the corrosion mechanisms of these coatings and to determine that the TiSi coating exhibits a superior high-temperature corrosion response compared to the AlTi and WTi coatings. The AlTi coating experiences aluminum depletion, whereas the WTi coating shows accumulations of tungsten oxides that resemble pitting. Full article
(This article belongs to the Special Issue Advances in Titanium and Titanium Alloys)
Show Figures

Figure 1

16 pages, 3712 KiB
Article
Study of Adhesive Wear Test on TiSi, AlTi, and WTi Coatings
by Oscar Gordillo, Williams Hincapie, Oscar Piamba, Jhon Olaya and Vladimir Trava-Airoldi
Coatings 2022, 12(10), 1370; https://doi.org/10.3390/coatings12101370 - 20 Sep 2022
Cited by 2 | Viewed by 2399
Abstract
Coatings based on Ti, Si, W, and Al synthesized by different techniques have been investigated in order to better understand their properties; however, there are few results related to their wear behavior. In this paper, TiSi, AlTi, and WTi coatings were applied by [...] Read more.

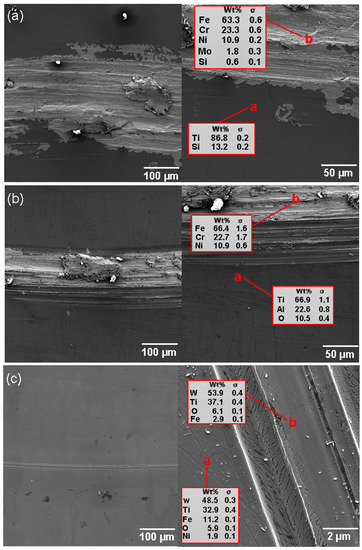

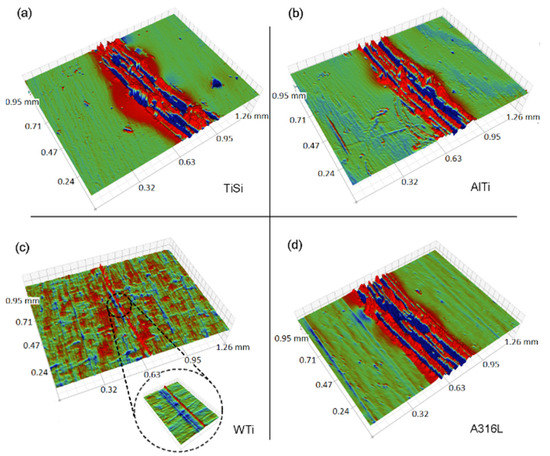

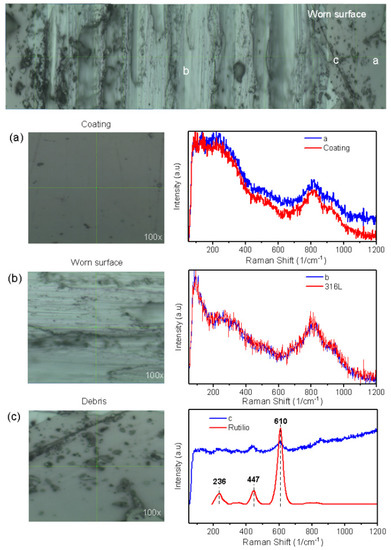

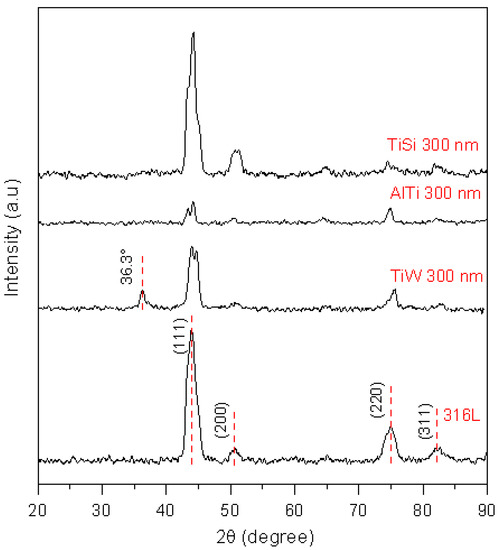

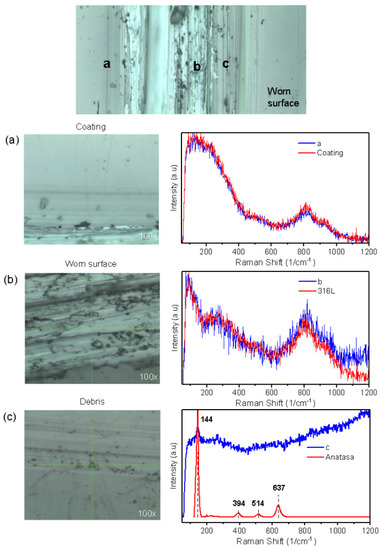

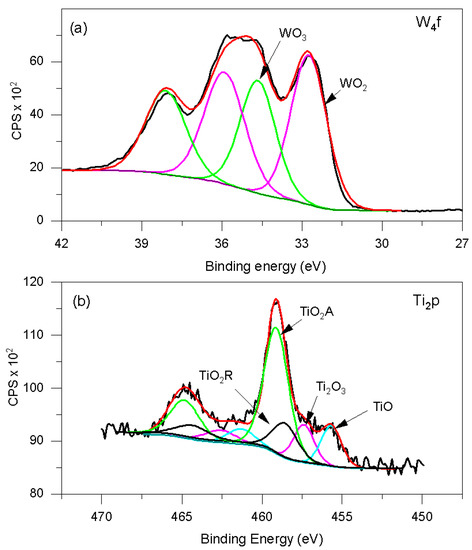

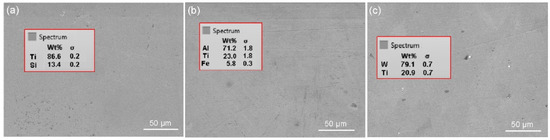

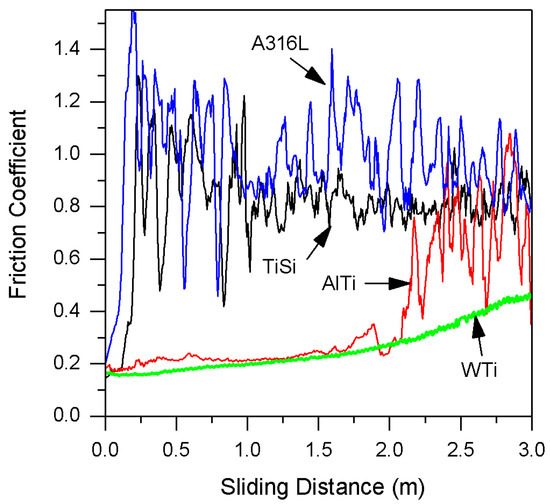

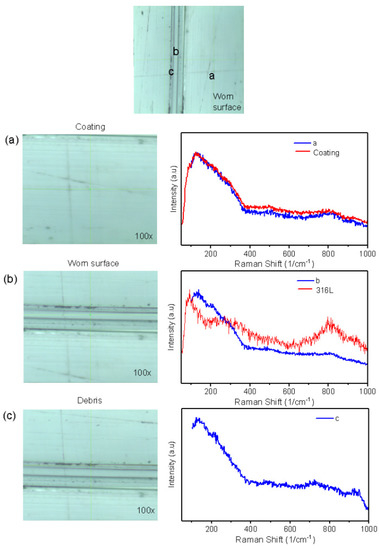

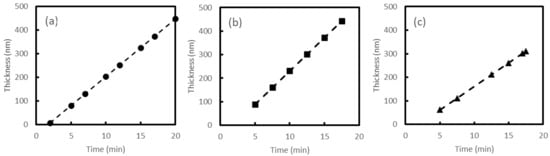

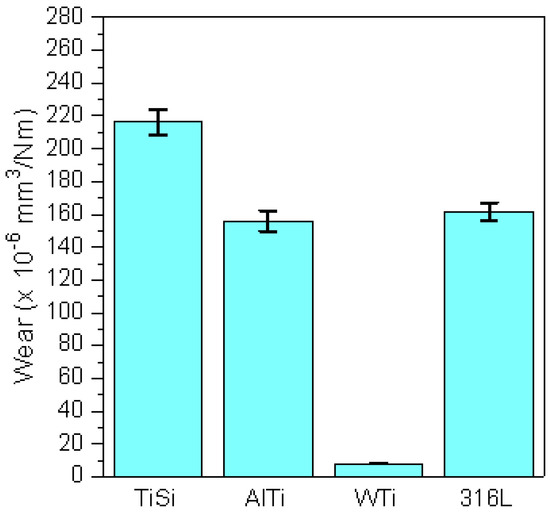

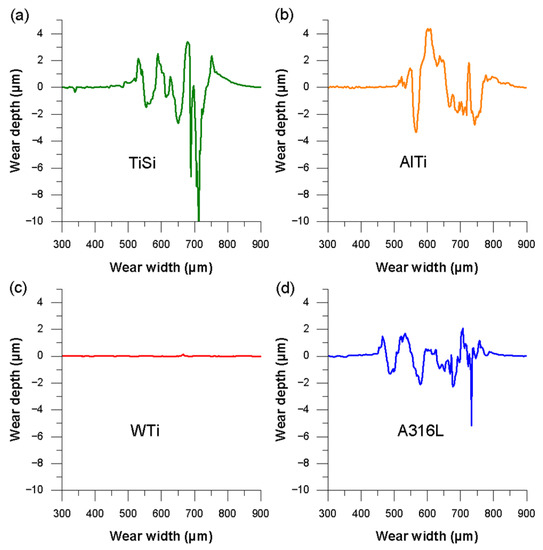

Coatings based on Ti, Si, W, and Al synthesized by different techniques have been investigated in order to better understand their properties; however, there are few results related to their wear behavior. In this paper, TiSi, AlTi, and WTi coatings were applied by means of a sputtering system on 316L stainless steel substrates in order to evaluate their behavior through a ball-on-disc wear test. Adhesive wear tests were carried out using the ball-on-disc technique, which allowed the coefficient of friction to be measured. The morphological characterization was based on an analysis of the SEM images and on the optical profilometry of the wear traces of the coatings, used to calculate the wear rate. An analysis of the wear products was carried out based on information provided by the SEM-EDS, Raman spectroscopy, and XPS techniques, which provided information about the tribo-chemical behavior of the coatings subjected to the ball-on-disc test. The morphological analysis showed that the TiSi and AlTi coatings exhibited premature failure, which was corroborated by means of the coefficient of friction curves. It was also observed that the WTi coating exhibited better behavior against the wear test, with a coefficient of friction lower than that of the stainless-steel substrate, without showing evidence of premature failure, which can be explained as a consequence of the tribo-chemical behavior of the WxOy produced in the coating. Full article
(This article belongs to the Section Plasma Coatings, Surfaces & Interfaces)
Show Figures

Figure 1

20 pages, 1429 KiB
Article
Influence of Yttrium on the Thermal Stability of Ti-Al-N Thin Films
by Martin Moser, Daniel Kiener, Christina Scheu and Paul H. Mayrhofer
Materials 2010, 3(3), 1573-1592; https://doi.org/10.3390/ma3031573 - 4 Mar 2010
Cited by 50 | Viewed by 17591
Abstract
Ti1-xAlxN coated tools are commonly used in high-speed machining, where the cutting edge of an end-mill or insert is exposed to temperatures up to 1100 °C. Here, we investigate the effect of Yttrium addition on the thermal stability of [...] Read more.
Ti1-xAlxN coated tools are commonly used in high-speed machining, where the cutting edge of an end-mill or insert is exposed to temperatures up to 1100 °C. Here, we investigate the effect of Yttrium addition on the thermal stability of Ti1-xAlxN coatings. Reactive DC magnetron sputtering of powder metallurgically prepared Ti0.50Al0.50, Ti0.49Al0.49Y0.02, and Ti0.46Al0.46Y0.08 targets result in the formation of single-phase cubic (c) Ti0.45Al0.55N, binary cubic/wurtzite c/w-Ti0.41Al0.57Y0.02N and singe-phase w-Ti0.38Al0.54Y0.08N coatings. Using pulsed DC reactive magnetron sputtering for the Ti0.49Al0.49Y0.02 target allows preparing single-phase c-Ti0.46Al0.52Y0.02N coatings. By employing thermal analyses in combination with X-ray diffraction and transmission electron microscopy investigations of as deposited and annealed (in He atmosphere) samples, we revealed that Y effectively retards the decomposition of the Ti1-x-yAlxYyN solid-solution to higher temperatures and promotes the precipitation of c-TiN, c-YN, and w-AlN. Due to their different microstructure and morphology already in the as deposited state, the hardness of the coatings decreases from ~35 to 22 GPa with increasing Y-content and increasing wurtzite phase fraction. Highest peak hardness of ~38 GPa is obtained for the Y-free c-Ti0.45Al0.55N coating after annealing at Ta = 950 °C, due to spinodal decomposition. After annealing above 1000 °C the highest hardness is obtained for the 2 mol % YN containing c-Ti0.46Al0.52Y0.02N coating with ~29 and 28 GPa for Ta = 1150 and 1200 °C, respectively. Full article
(This article belongs to the Special Issue Advances in Materials Science)
Show Figures

Figure 1

Back to TopTop
