Reversible data hiding in encrypted images (RDH-EI) is instrumental in image privacy protection and data embedding. However, conventional RDH-EI models, involving image providers, data hiders, and receivers, limit the number of data hiders to one, which restricts its applicability in scenarios requiring multiple data embedders. Therefore, the need for an RDH-EI accommodating multiple data hiders, especially for copyright protection, has become crucial. Addressing this, we introduce the application of Pixel Value Order (PVO) technology to encrypted reversible data hiding, combined with the secret image sharing (SIS) scheme. This creates a novel scheme, PVO, Chaotic System, Secret Sharing-based Reversible Data Hiding in Encrypted Image (PCSRDH-EI), which satisfies the $(k,n)$ threshold property. An image is partitioned into N shadow images, and reconstruction is feasible when at least k shadow images are available. This method enables separate data extraction and image decryption. Our scheme combines stream encryption, based on chaotic systems, with secret sharing, underpinned by the Chinese remainder theorem (CRT), ensuring secure secret sharing. Empirical tests show that PCSRDH-EI can reach a maximum embedding rate of 5.706 bpp, outperforming the state-of-the-art and demonstrating superior encryption effects. Full article

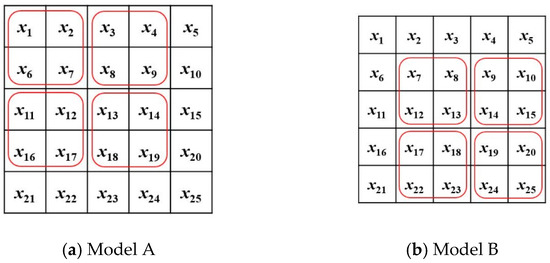

Reversible data hiding (RDH) schemes based on pixel value ordering have gained significant popularity due to their unique capability of providing high-quality marked images with a decent embedding capacity, while also enabling secret information extraction and the lossless recovery of the original images at the receiving side. However, the marked image quality may be distorted severely when the pixel value ordering (PVO) method is employed in a layer-wise manner to increase the embedding capacity. In this paper, a new high-capacity RDH scheme using a complementary strategy is introduced to overcome the limitation of the image quality in the case of layer-wise embedding. The proposed RDH scheme first divides the cover image into non-overlapping blocks of 2 × 2 pixels uniformly and then sorts the pixels of each block according to their intensity values. The secret data are then embedded into two layers. In the first layer, the minimum value of the block is decreased and the maximum value is increased by either 1 or 2 to embed the secret data bits. The second layer is used as a complement to the first layer and is in symmetry with the first layer. In the second layer, the proposed RDH scheme increases the minimum valued pixel and decreases the maximum valued pixel in order to minimize the distortion resulting from the first layer embedding and to embed an additional amount of the secret data. As a result, the proposed RDH scheme significantly increases the embedding capacity, which is clearly evident from the conducted experimental results. Full article

Pixel value ordering and prediction error expansion (PVO+PEE) is a very successful reversible data hiding (RDH) scheme. A series of studies were proposed to improve the performance of the PVO-based scheme. However, the embedding capacity of those schemes is quite limited. We propose a two-step prediction-error-triplet expansion RDH scheme based on PVO. A three-dimensional state transition map for the prediction-error triplet is also proposed to guide the embedding of the two-step scheme. By properly designing the state transitions, the proposed scheme can embed secret data or expand without embedding by modifying just a single entry of the triplet. The experimental results show that the proposed scheme significantly enlarges the embedding capacity of the PVO-based scheme and further reduces the distortion due to embedding. Full article

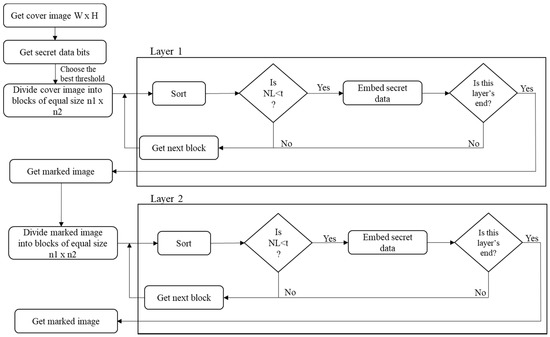

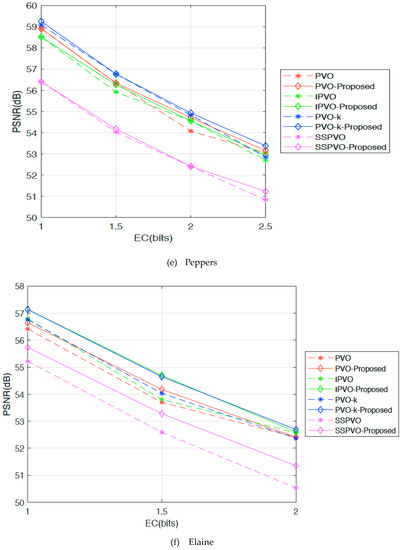

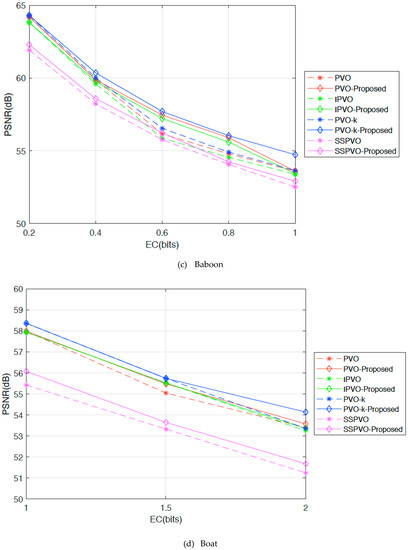

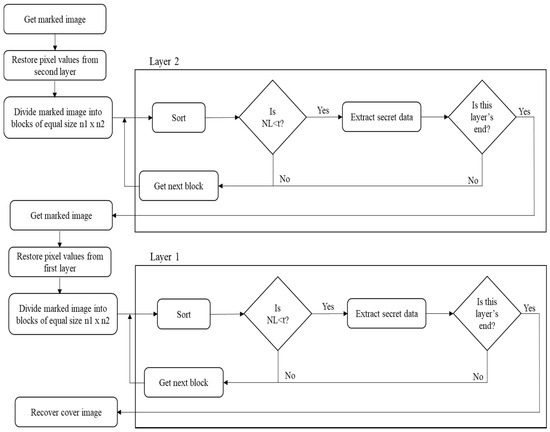

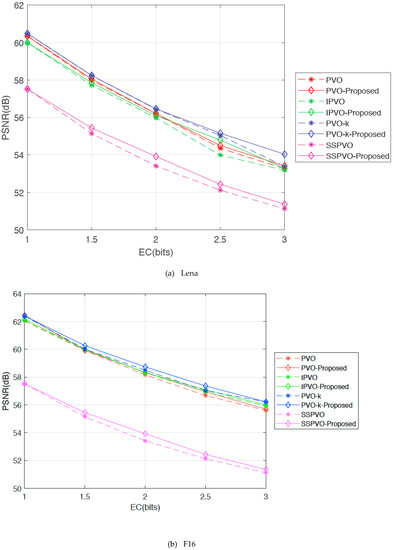

Recently, Li et al. proposed a data hiding method based on pixel value ordering (PVO) and prediction error expansion (PEE). In their method, maximum and minimum values were predicted and the pixel values were modified to embed secret data. Thereafter, many scholars have proposed improvisations to the original PVO method. In this paper, a Reversible data hiding (RDH) method is proposed where the secret data is dispersed into two layers using different modes of operations. The second layer changes the dividing mode, and the first and the second layers do not take duplicate blocks. Under a fixed embedding capacity, threshold value and block size are controlled, complex blocks are filtered and the secret data is hidden in smooth blocks. This paper also compares the effectiveness of four well-known PVO series methods, the latest PVO methods, difference expansion (DE) method and reduced difference expansion (RDE) method. Experimental results show that the proposed method reduces distortion in the image, thereby enhancing the visual symmetry/quality compared to previous state-of-the-art methods and increasing its high application value. Full article
