Search Results (7)

Xinjiang is one of China’s most significant energy bases, and the generated fly ash (FA) contains a high concentration of metallic elements that can be used as a valuable resource. In this study, we looked into a roasting-acid leaching process technique for efficiently extracting gallium metal (Ga) from FA, employing sodium fluoride (NaF) as the roasting auxiliary and citric acid inzter (C₆H₈O₇) acid leaching. After high-temperature activation by NaF, the glassy phase of FA was converted into silica aluminate with excellent acid solubility, and Ga was extracted from FA via acid leaching. The effects of optimal roasting and acid leaching process conditions on the Ga leaching rate were investigated. The results showed that it exhibited 83.71% Ga extraction under the conditions of a roasting temperature of 850 °C, FA-NaF coordination ratio of 1:0.5, roasting time of 10 min, C₆H₈O₇ solution concentration of 1.75 mol/L, ratio (S/L) of 1:15, acid leaching temperature of 100 °C, and acid leaching time of 1 h. The results also indicated that it was possible to obtain a higher extraction efficiency for the Ga extracts under the conditions of roasting temperature of 850 °C and FA-NaF coordination ratio of 1:0.5. Full article

To address the problems of low leaching efficiency and the fact that the uranium content in leaching residue is higher than the emission standard in the traditional nitric acid leaching uranium tailing and uranium extraction process, the experimental study of low-temperature chlorination roasting and nitric acid leaching was carried out. The effects of roasting temperature, NaCl addition, and roasting time on uranium leaching rate were investigated, and the morphological structure change and phase transformation of roasted minerals were analyzed. After the low-temperature roasting of sodium chloride, the mineral structure was obviously destroyed, the structure became loose, the voids and microcracks increased, and the size of tailing particles decreased. This is mainly due to the reaction of NaCl with metal compounds in minerals. However, when the sodium chloride is excessive, the formation of hydrogen chloride will promote the formation of new compounds, such as Na₂Pb₂O₇ and Zr₇O₉F₁₀, and form a secondary coating of uranium, resulting in a decrease in the leaching rate. The optimum process conditions of chlorination roasting are as follows: a roasting temperature 250 °C, a 20% addition of NaCl to the tailing mass, a roasting time of 120 min, and a uranium leaching rate of 93.38%. Compared with traditional nitric acid leaching, the leaching rate of uranium increased by 16.64%. Full article

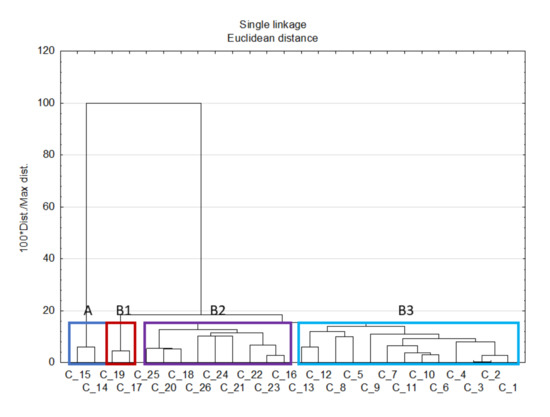

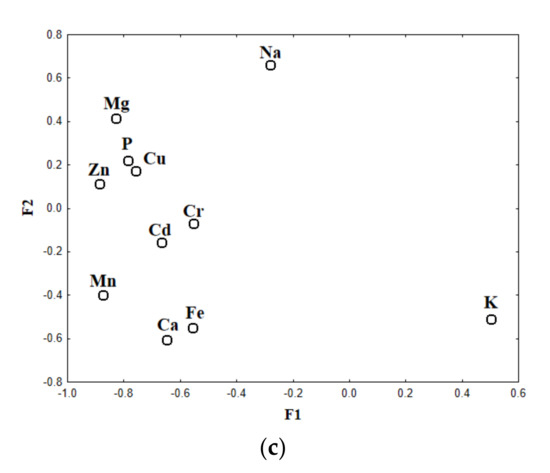

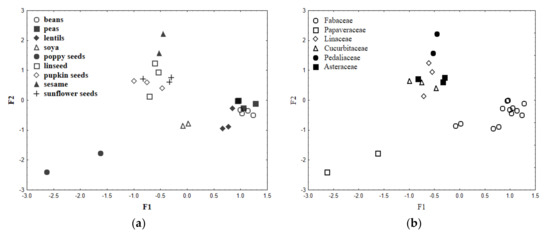

The study aimed to evaluate fourteen elements’ profiles of legumes and oilseeds, of various geographical origins, available on the Polish market. They were determined by flame atomic absorption spectrometry (F-AAS) and spectrophotometric method (phosphorus) in 90 analytical samples. In general, legumes were characterized with lower mean concentrations of Ca, Mg, Na, P, Zn, Cu, Fe, Mn, and Cr than oilseeds. However, the concentrations ranges within each group differed significantly (p < 0.05). Calcium content varied between 6.2 and 243.5 mg/100 g in legumes and 38.4 and 2003 mg/100 g in oilseeds. In the case of Fe, its concentration was between 1.99 mg/100 g and 10.5 mg/100 g in legumes, and 2.05 mg and 12.15 mg/100 g in seeds. All the samples were characterized with Pb concentration below the LOQ (30 µg/100 g). In the case of Cd, its presence (>LOQ, 9 µg/100 g) was confirmed in one sample of legumes (soybean) and five samples of seeds (poppy seeds, roasted linseeds, hulled wheat, linseed, and sunflower seeds). The detected Cd content in every sample, except for soybean and hulled wheat, exceeded the permissible European standards. According to Kruskal-Wallis test results, Mg, Na, K, P, Zn, Cu, Mn, Cr, and Cd content depended on the type of the analyzed product, while in the case of botanical provenance such relationship was recorded for most of the analyzed components, except for Fe, Cr, and Co. Factor and cluster analyses classified the analyzed samples in view of their botanical species and type based on their mineral composition. Full article

Disadvantages of biodiesel include consumption of edible oils for fuel production, generation of wastewater and inability to recycle catalysts during homogenously catalyzed transesterification. The aim of the current study was to utilize low-cost, inedible oil extracted from Sinapis arvensis seeds to produce biodiesel using a novel nano-composite superoxide heterogeneous catalyst. Sodium superoxide (NaO₂) was synthesized by reaction of sodium nitrate with hydrogen peroxide via spray pyrolysis, followed by coating onto a composite support material prepared from silicon dioxide, potassium ferricyanide and granite. The roasted (110 °C, 20 min) and unroasted S. arvensis seeds were subjected to high vacuum fractional distillation to afford fractions (F1, F2 and F3) that correlated to molecular weight. For example, F1 was enriched in palmitic acid (76–79%), F2 was enriched in oleic acid (69%) and F3 was enriched in erucic acid (61%). These fractions, as well as pure unroasted and roasted S. arvensis seed oils, were then transesterified using NaO₂/SiO₂/PFC/Granite to give biodiesel a maximum yield of 98.4% and 99.2%, respectively. In contrast, yields using immobilized lipase catalyst were considerably lower (78–85%). Fuel properties such as acid value, cetane number, density, iodine value, pour point, and saponification value were within the ranges specified in the American biodiesel standard, ASTM D6751, where applicable. These results indicated that the nano-composite catalyst was excellent for production of biodiesel from unroasted and roasted S. arvensis seed oil and its fractions. Full article

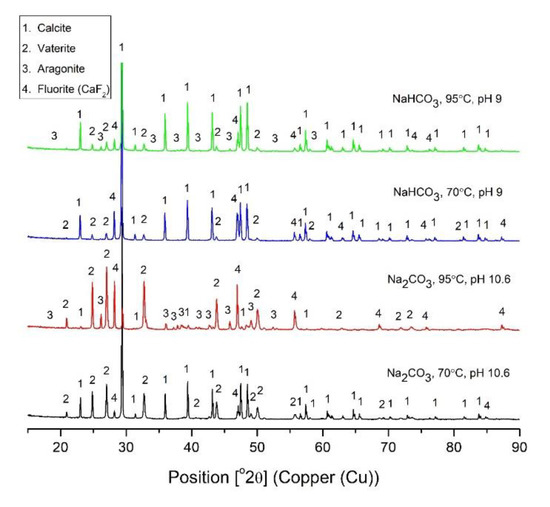

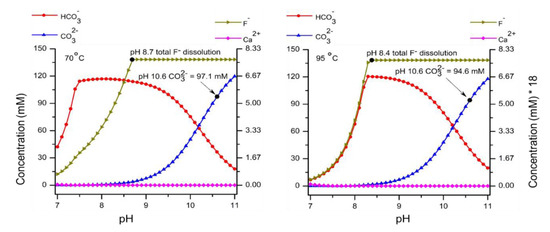

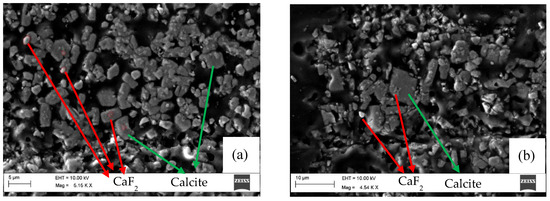

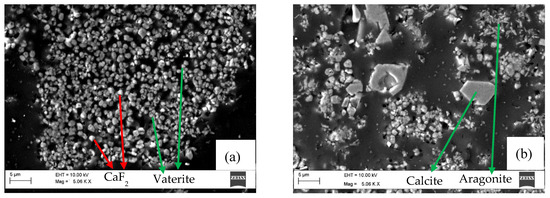

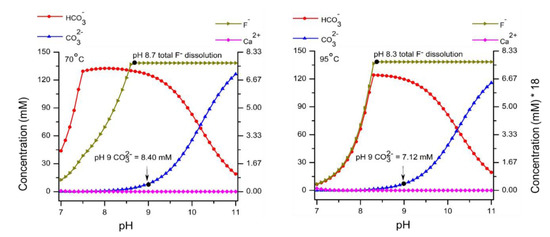

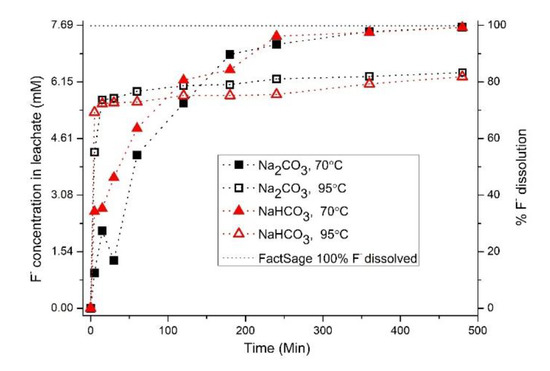

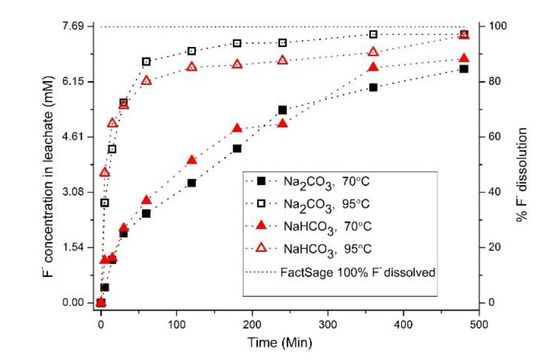

The presence of halogens has an adverse effect on the zinc extraction process through electrowinning, the last phase of the RLE (Roasting, Leaching and Electrowinning) zinc extraction route. Fluoride (F⁻) may be present as calcium fluoride (CaF₂) and this is, for example, the case in double leached Waelz oxide (DLWO). Efficient removal of F⁻ from primary and secondary raw materials for zinc extraction results in a simplified process and increases flexibility in the selection of raw materials. Understanding of the solubility behavior of pure CaF₂ can give valuable information on treatment for maximized halogen removal. Dissolution of CaF₂ was studied with the addition of sodium carbonate (Na₂CO₃) and sodium bicarbonate (NaHCO₃). Dissolution studies were combined with thermodynamic calculations to understand the solubility behavior of CaF₂ under different conditions. Results from the experiments and the thermodynamic calculations show that Na₂CO₃ and NaHCO₃ have similar behavior if the pH is controlled at the same value. The available carbonate (CO₃²⁻) ion in the system limits the concentration of calcium (Ca²⁺) ion by precipitation of CaCO₃, which enhances the dissolution of CaF₂. At higher temperatures and pH, calcite, vaterite, and aragonite were formed and co-precipitation of CaF₂ along with calcium carbonate (CaCO₃) was observed. At lower temperatures and lower pH levels, only calcite and vaterite were formed and a coating by CaCO₃ on CaF₂ was found to hinder complete dissolution reaction. The results of this study indicate that the temperature along with the reagents used for the dissolution tests have a significant impact on the CaCO₃ polymorph mixture (calcite, vaterite and aragonite) formation. Full article

Coal fly ash (CFA) provides important resources of gallium, which is regarded as an irreplaceable material in many technologies. A prospective roasting reagent assisted acid leaching process was proposed for the purpose of extracting gallium. The extraction efficiency of gallium by NaF (sodium fluoride) roasting followed by HNO₃ (nitric acid) leaching process was demonstrated. The effect of roasting temperature, roasting time, the NaF-CFA mass ratio, acid leaching temperature, acid leaching time, and acid concentration were investigated. The results revealed that under optimal conditions (roasting temperature of 800 °C, roasting time of 10 min, acid leaching in 2 mol/L HNO₃ for 1 h, and the NaF-CFA mass ratio of 0.75:1), 94% of gallium was extracted. Compared to previous studies, the process is a cost-effective method which can greatly shorten reaction time. It can reduce environmental pollution as it requires fewer acid reagents with low concentration and additives. It is expected to provide a method for the extraction of gallium from CFA. Full article

The recovery of vanadium from a typical low-grade refractory stone coal was investigated using a pyro-hydrometallurgical process specifically including blank roasting, acid leaching, solvent extraction, and chemical precipitation. The appropriate role of parameters in each process was analyzed in detail. Roasting temperature and roasting time during the roasting process showed a significant effect on leaching efficiency of vanadium. Using H₂SO₄ as a leaching agent, vanadium leaching efficiency can achieve above 90% under the optimum leaching conditions of CaF₂ dosage of 5%, sulfuric acid concentration of 4 mol/L, liquid to solid ratio of 2:1 mL/g, leaching time of 2 h, and leaching temperature of 95 °C. 99.10% of vanadium can be extracted from the leaching solution in three stages under the conditions of initial pH of 1.6, trioctylamine (TOA) extractant concentration of 20% (vol), phase ratio (A/O) of 2, and reaction time of 2 min. 1.0 mol/L NaOH was used to strip vanadium from the extracted solvent phase. After purification and precipitation, vanadium can be crystallized as ammonium metavanadate. The V₂O₅ product with a purity of 99.75% is obtained after ammonium metavanadate thermal decomposition at 550 °C for 2 h. The total vanadium recovery in the whole process is above 88%. This process has advantages of short operation time, high vanadium extraction efficiency, and high purity of the product. Full article
