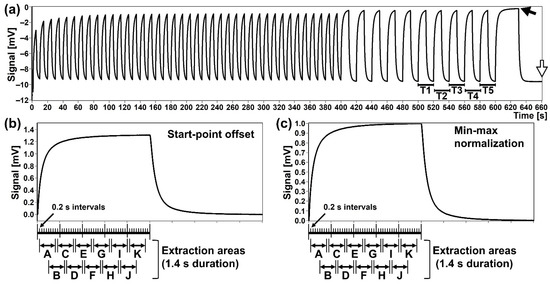

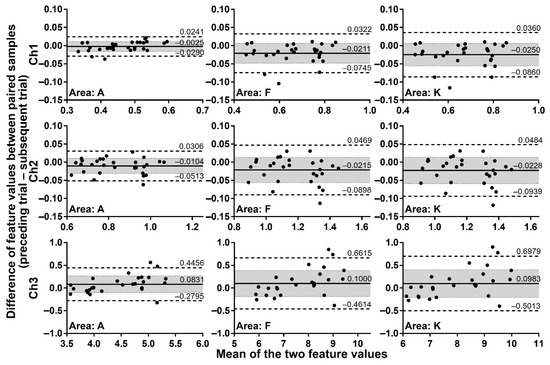

Olfactory sensors are one of the most anticipated applications of gas sensors. To distinguish odors—complex mixtures of gas species, it is necessary to extract sensor responses originating from the target odors. However, the responses of gas sensors tend to be affected by interfering gases with much higher concentrations than target odor molecules. To realize practical applications of olfactory sensors, extracting minute sensor responses of odors from major interfering gases is required. In this study, we propose a repetitive direct comparison (rDC) method, which can highlight the difference in odors by alternately injecting the two target odors into a gas sensor. We verified the feasibility of the rDC method on chocolates with two different flavors by using a sensor system based on membrane-type surface stress sensors (MSS). The odors of the chocolates were measured by the rDC method, and the signal-to-noise ratios (S/N) of the measurements were evaluated. The results showed that the rDC method achieved improved S/N compared to a typical measurement. The result also indicates that sensing signals could be enhanced for a specific combination of receptor materials of MSS and target odors. Full article

The measurement of volatile fatty acids (VFAs) is of great importance in the fields of food and agriculture. There are various methods to measure VFAs, but most methods require specific equipment, making on-site measurements difficult. In this work, we demonstrate the measurements of VFAs in a model sample, silage, through its vapor using an array of nanomechanical sensors—Membrane-type Surface stress Sensors (MSS). Focusing on relatively slow desorption behaviors of VFAs predicted with the sorption kinetics of nanomechanical sensing and the dissociation nature of VFAs, the VFAs can be efficiently measured by using features extracted from the decay curves of the sensing response, resulting in sufficient discrimination of the silage samples. Since the present sensing system does not require expensive, bulky setup and pre-treatment of samples, it has a great potential for practical applications including on-site measurements. Full article

The detection of trace amounts of water in organic solvents is of great importance in the field of chemistry and in the industry. Karl Fischer titration is known as a classic method and is widely used for detecting trace amounts of water; however, it has some limitations in terms of rapid and direct detection because of its time-consuming sample preparation and specific equipment requirements. Here, we found that a DNA-based nanomechanical sensor exhibits high sensitivity and selectivity to water vapor, leading to the detection and quantification of trace amounts of water in organic solvents as low as 12 ppm in THF, with a ppb level of LoD through their vapors. Since the present method is simple and rapid, it can be an alternative technique to the conventional Karl Fischer titration. Full article

Nanomechanical sensors have gained significant attention as powerful tools for detecting, distinguishing, and identifying target analytes, especially odors that are composed of a complex mixture of gaseous molecules. Nanomechanical sensors and their arrays are a promising platform for artificial olfaction in combination with data processing technologies, including machine learning techniques. This paper reviews the background of nanomechanical sensors, especially conventional cantilever-type sensors. Then, we focus on one of the optimized structures for static mode operation, a nanomechanical Membrane-type Surface stress Sensor (MSS), and discuss recent advances in MSS and their applications towards artificial olfaction. Full article

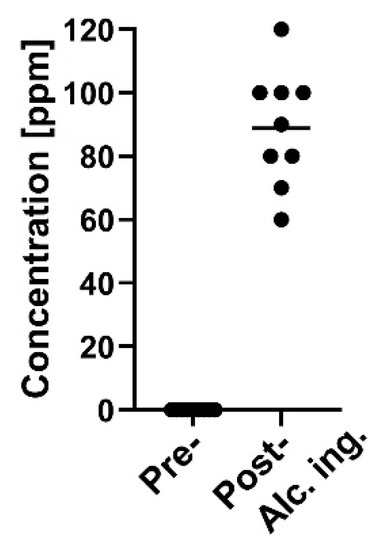

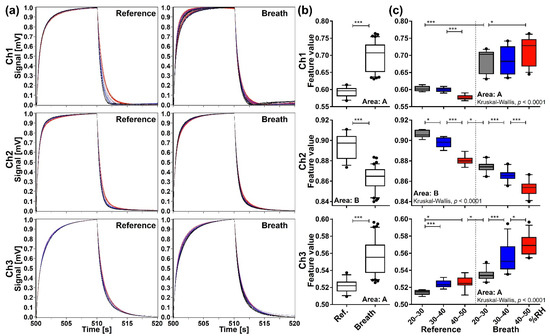

The endogenous volatile organic compounds (VOCs) in exhaled breath can be promising biomarkers for various diseases including cancers. An olfactory sensor has a possibility for extracting a specific feature from collective variations of the related VOCs with a certain health condition. For this approach, it is important to establish a feasible protocol for sampling exhaled breath in practical conditions to provide reproducible signal features. Here we report a robust protocol for the breath analysis, focusing on total expiratory breath measured by a Membrane-type Surface stress Sensor (MSS), which possesses practical characteristics for artificial olfactory systems. To assess its reproducibility, 83 exhaled breath samples were collected from one subject throughout more than a year. It has been confirmed that the reduction of humidity effects on the sensing signals either by controlling the humidity of purging room air or by normalizing the signal intensities leads to reasonable reproducibility verified by statistical analyses. We have also demonstrated the applicability of the protocol for detecting a target material by discriminating exhaled breaths collected from different subjects with pre- and post-alcohol ingestion on different occasions. This simple yet reproducible protocol based on the total expiratory breath measured by the MSS olfactory sensors will contribute to exploring the possibilities of clinical applications of breath diagnostics. Full article

Practical applications of machine olfaction have been eagerly awaited. A free-hand measurement, in which a measurement device is manually exposed to sample odors, is expected to be a key technology to realize practical machine olfaction. To implement odor identification systems based on the free-hand measurement, the comprehensive development of a measurement system including hardware, measurement protocols, and data analysis is necessary. In this study, we developed palm-size wireless odor measurement devices equipped with Membrane-type Surface stress Sensors (MSS) and investigated the effect of measurement protocols and feature selection on odor identification. By using the device, we measured vapors of liquids as odor samples through the free-hand measurement in different protocols. From the measurement data obtained with these protocols, datasets of transfer function ratios (TFRs) were created and analyzed by clustering and machine learning classification. It has been revealed that TFRs in the low-frequency range below 1 Hz notably contributed to vapor identification because the frequency components in that range reflect the dynamics of the detection mechanism of MSS. We also showed the optimal measurement protocol for accurate classification. This study has shown a guideline of the free-hand measurement and will contribute to the practical implementation of machine olfaction in society. Full article

Graphene is a key material for gas sensing applications owing to its high specific surface area and vast chemical modification potential. To fully utilize the potential of graphene, a sensing platform independent of conductive properties is required. In this study, we employed membrane-type surface stress sensors (MSS)—A kind of nanomechanical sensor operated in the static mode—As a sensing platform and utilized graphene oxide (GO) as a gas sensing material. MSS detect surface stress caused by gas sorption; therefore, chemically modified graphene with low conductivity can be utilized as a gas sensing material. We evaluated the sensing performance of a GO-coated MSS by measuring its responses to five gases. We demonstrated with the GO-coated MSS the feasibility of GO as a gas sensing material for static mode nanomechanical sensors and revealed its high selectivity to water vapor. Moreover, we investigated the sensing mechanism of the GO-coated MSS by comparing it with the sensing performance of MSS coated with reduced graphene oxide and graphite powder and deduced key factors for sensitivity and selectivity. Considering the high sensitivity of the GO-coated MSS and the compact measurement system that MSS can realize, the present study provides a new perspective on the sensing applications of graphene. Full article

Nanomechanical sensors and their arrays have been attracting significant attention for detecting, discriminating and identifying target analytes. The sensing responses can be partially explained by the physical properties of the receptor layers coated on the sensing elements. Analytical solutions of nanomechanical sensing are available for a simple cantilever model including the physical parameters of both a cantilever and a receptor layer. These analytical solutions generally rely on the simple structures, such that the sensing element and the receptor layer are fully attached at their boundary. However, an actual interface in a real system is not always fully attached because of inhomogeneous coatings with low affinity to the sensor surface or partial detachments caused by the exposure to some analytes, especially with high concentration. Here, we study the effects of such macroscopic interfacial structures, including partial attachments/detachments, for static nanomechanical sensing, focusing on a Membrane-type Surface stress Sensor (MSS), through finite element analysis (FEA). We simulate various macroscopic interfacial structures by changing the sizes, numbers and positions of the attachments as well as the elastic properties of receptor layers (e.g., Young’s modulus and Poisson’s ratio) and evaluate the effects on the sensitivity. It is found that specific interfacial structures lead to efficient sensing responses, providing a guideline for designing the coating films as well as optimizing the interfacial structures for higher sensitivity including surface modification of the substrate. Full article

Porphyrin is one of the most promising materials for realizing a practical artificial olfactory sensor system. In this study, we focus on non-substituted porphyrins—porphines—as receptor materials of nanomechanical membrane-type surface stress sensors (MSS) to investigate the effect of center metals on gas sensing. By omitting the substituents on the tetrapyrrole macrocycle of porphyrin, the peripheral interference by substituents can be avoided. Zinc, nickel, and iron were chosen for the center metals as these metalloporphines show different properties compared to free-base porphine. The present study revealed that iron insertion enhanced sensitivity to various gases, while zinc and nickel insertion led to equivalent or less sensitivity than free-base porphine. Based on the experimental results, we discuss the role of center metals for gas uptake from the view point of molecular interaction. We also report the high robustness of the iron porphine to humidity, showing the high feasibility of porphine-based nanomechanical sensor devices for practical applications in ambient conditions. Full article

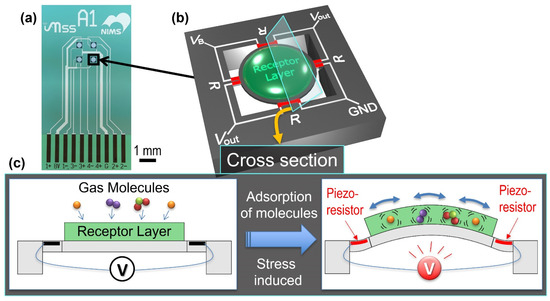

We present a new generation of piezoresistive nanomechanical Membrane-type Surface stress Sensor (MSS) chips, which consist of a two dimensional array of MSS on a single chip. The implementation of several optimization techniques in the design and microfabrication improved the piezoresistive sensitivity by 3~4 times compared to the first generation MSS chip, resulting in a sensitivity about ~100 times better than a standard cantilever-type sensor and a few times better than optical read-out methods in terms of experimental signal-to-noise ratio. Since the integrated piezoresistive read-out of the MSS can meet practical requirements, such as compactness and not requiring bulky and expensive peripheral devices, the MSS is a promising transducer for nanomechanical sensing in the rapidly growing application fields in medicine, biology, security, and the environment. Specifically, its system compactness due to the integrated piezoresistive sensing makes the MSS concept attractive for the instruments used in mobile applications. In addition, the MSS can operate in opaque liquids, such as blood, where optical read-out techniques cannot be applied. Full article
