Search Results (5)

This study investigates the feasibility of using friction stir extrusion (FSE) recycled aluminum wires as filler metals for gas tungsten arc welding (GTAW) and additive manufacturing applications. A NC-controlled GTAW feeding system was developed to enable the deposition of these recycled wires. The effect of cleaning the machining chips before the FSE process on the quality of the manufactured wires and the resulting welded beads was evaluated. Wires produced from uncleaned chips and cleaned chips were compared in terms of their external appearance, ductility, and the presence of porosity after the weld deposition. The results showed that cleaning the chips before the FSE process is crucial for obtaining more uniform wires with better ductility. Automatic GTAW deposition using cleaned wires resulted in significantly improved bead geometry, reduced external porosity, and overall better quality compared to uncleaned wires. However, both wire types exhibited internal porosity, with uncleaned wires showing the worst performance. The findings demonstrate the potential of using FSE recycled aluminum wires for welding and additive manufacturing while highlighting the importance of chip cleaning and the need for further optimization to minimize porosity in the deposited material. Full article

In the motorsport industry, the choice of material for manufacturing the heat resistant components often falls on titanium alloys. In most cases, the production flow for this kind of part involves CNC machining and subsequent assembly by welding process, to other parts obtained by cold plastic forming and possibly made using different titanium alloys. Hence, the alloying element-content in the joint area can be extremely heterogeneous and variable point-by-point. To investigate this topic further, dissimilar welding of the alpha/beta alloy Ti6Al4V and of the oxidation-resistant alpha alloy KS-Ti 1.2 ASN-EX was made by GTAW technology and using different filler metals. Chemical and mechanical properties of the welds were investigated by XRD, SEM-EDS, microhardness maps, and tensile and bending tests. Results show that, despite the different alloying elements present in the two filler wires investigated, static properties of the welds are similar. Results also show that the local V/Al content ratio affects the microhardness as it is responsible for the creation of supersaturated alpha phases during the cooling of the weld beads. Full article

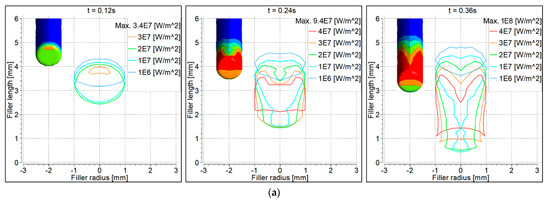

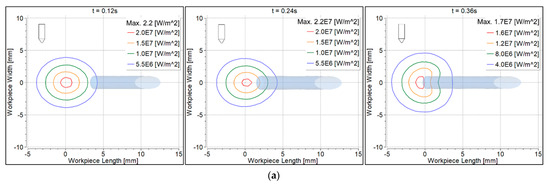

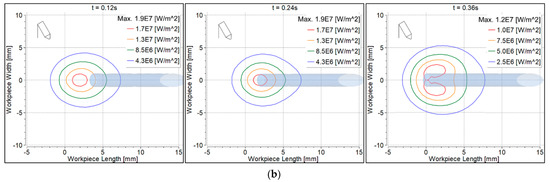

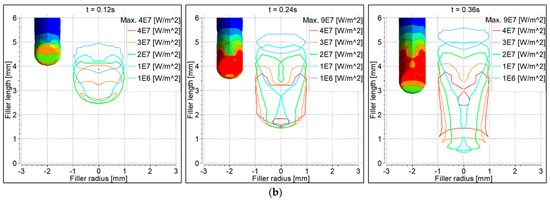

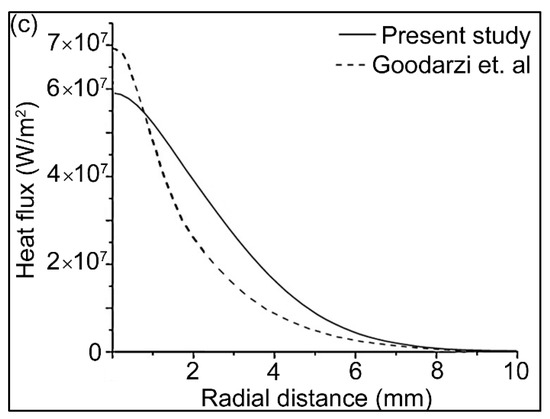

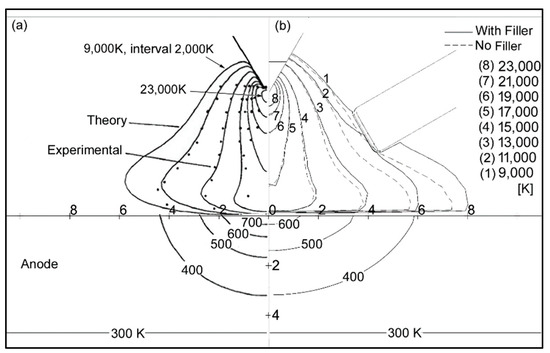

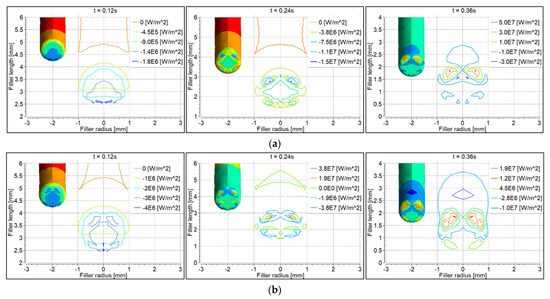

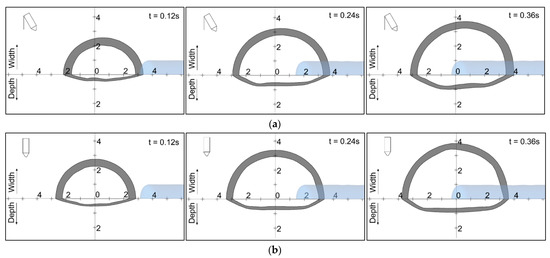

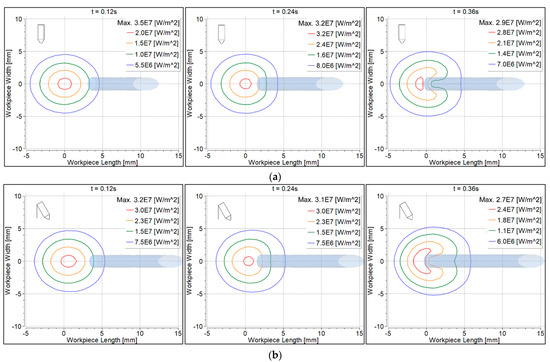

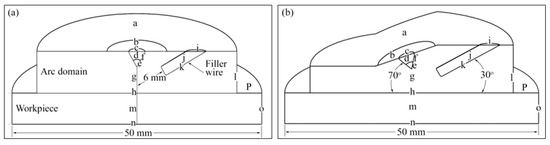

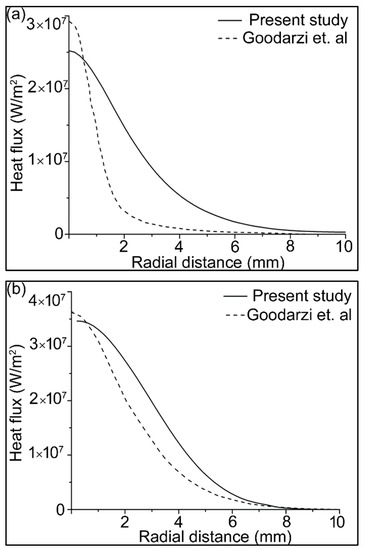

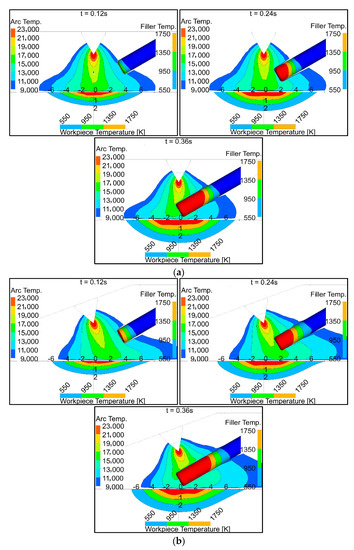

A 3D numerical simulation was conducted to study the transient development of temperature distribution in stationary gas tungsten arc welding with filler wire. Heat transfer to the filler wire and the workpiece was investigated with vertical (90°) and titled (70°) torches. Heat flux, current flux, and gas drag force were calculated from the steady-state simulation of the arc. The temperature in the filler wire was determined at three different time intervals: 0.12 s, 0.24 s, and 0.36 s. The filler wire was assumed not to deform during this short time, and was therefore simulated as solid. The temperature in the workpiece was calculated at the same intervals using heat flux, current flux, gas drag force, Marangoni convection, and buoyancy. It should be noted that heat transfer to the filler wire was faster with the titled torch compared to the vertical torch. Heat flux to the workpiece was asymmetrical with both the vertical and tilted torches when the filler wire was fully inserted into the arc. It was found that the overall trends of temperature contours for both the arc and the workpiece were in good agreement. It was also observed that more heat was transferred to the filler wire with the 70° torch compared with the 90° torch. The melted volume of the filler wire (volume above 1750 °K) was 12 mm³ with the 70° torch, compared to 9.2 mm³ with the 90° torch. Full article

High-strength aluminum alloy fabricated using spray deposition technology possesses many advantages, such as fine crystal grains, low component segregation, uniform microstructure, and small internal stress. In this study, spray-deposited 2195 Al-Cu-Li alloy in forged state was used and welded using the gas tungsten arc welding (GTAW) process to test and verify the features of the fusion joint. Quantitative analysis was carried out to evaluate the relationship between the local microstructures and performances of the fusion joint, which was composed of four zones: weld metal, fusion zone, heat-affected zone, and base metal. The characteristic quantities of each zone, including recrystallized grain fraction, grain sizes, grain misorientation angle, and Vickers hardness, and their distributions were considered as the key factors affecting the performance of the joint because of welding thermal cycle impact on the fusion joint. To recognize the metallurgical characteristics of spray-deposited alloy 2195, a statistical algorithm based on the concept of the Hall–Petch relationship was proposed to validate the actual test results, which include the correlation effects of both the filler wire and welding process. The correlation between the microstructures and performances of several characteristic quantities were evaluated by integrating the above characteristic information of the fusion joint under the strong coupling of multiple factors. Thus, the advantages of weldability of spray-deposited alloy 2195 using GTAW could be understood in detail. Full article

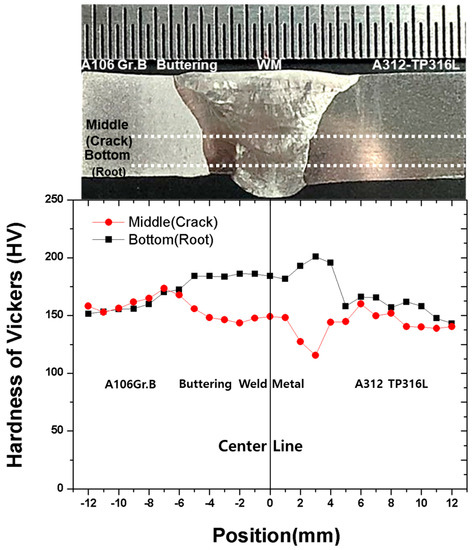

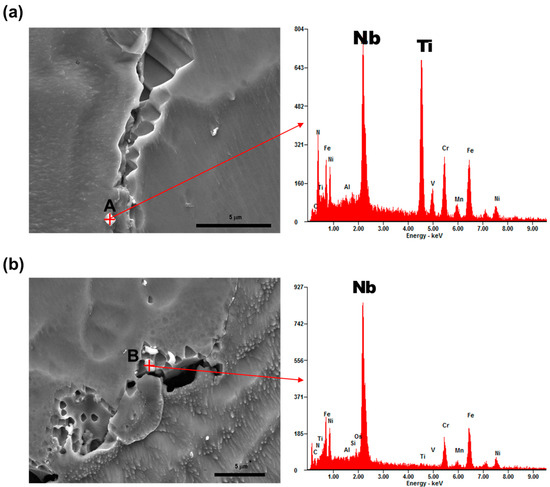

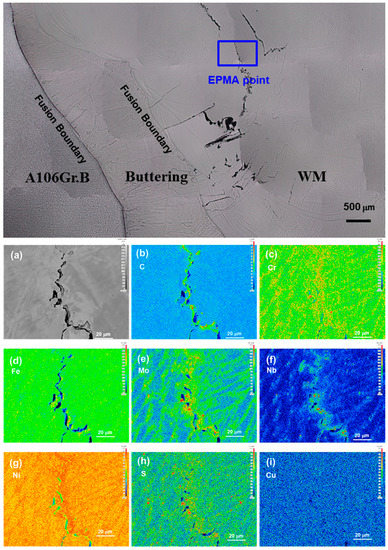

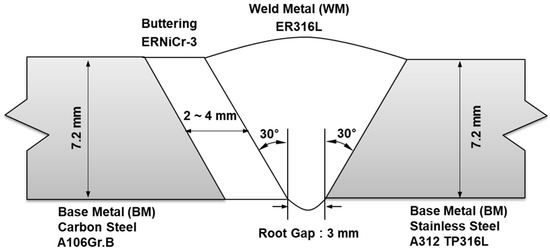

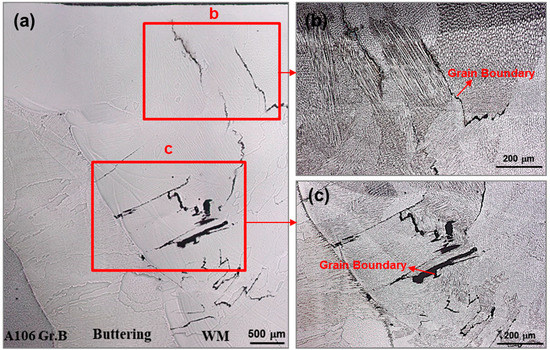

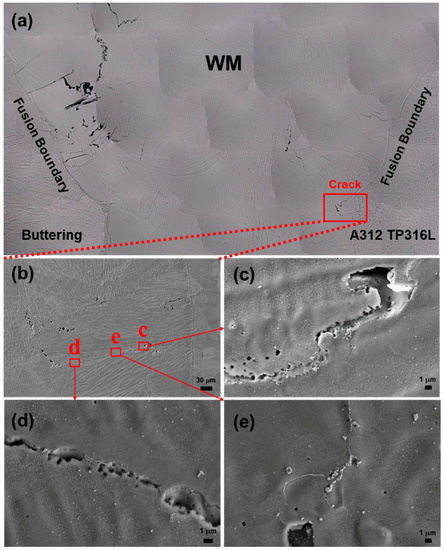

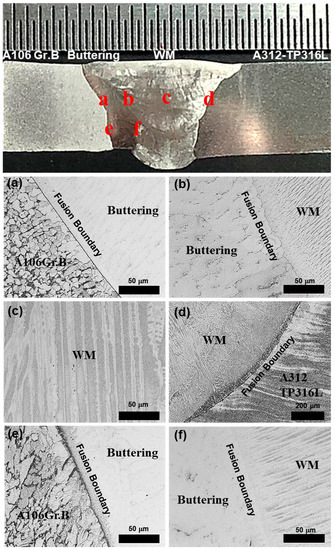

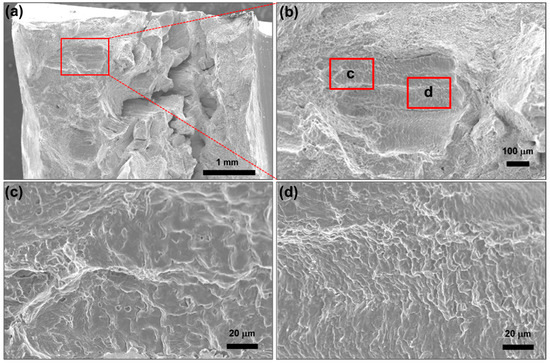

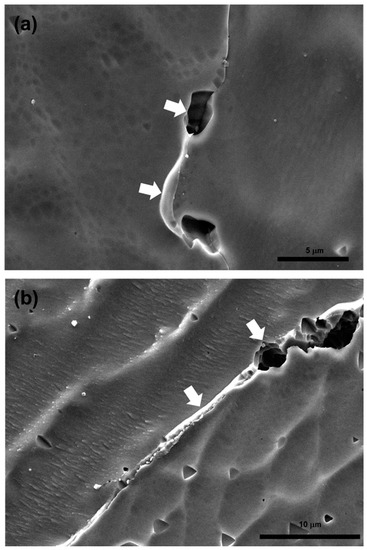

When designing piping systems for various industrial facilities, carbon steel and stainless steel are widely being used. In order to satisfy design requirements in the piping systems, the two different materials are often welded in various cases. Therefore, for quality assurance, it is necessary to understand mechanical and metallurgical properties of dissimilar metal welds thoroughly. In this study, dissimilar metal welds of stainless and carbon steels were produced through the gas tungsten arc welding (GTAW) process. In the middle of the dissimilar weld, buttering welding and butt welding were manufactured using filler wires of ERNiCr-3 and ER316L. The chemical composition of the dissimilar metal weld was analyzed. Tensile test, bending test, and hardness test were additionally performed. The microstructures of the dissimilar metal weld were investigated to analyze the cracks found during the tensile test and the bending test. The metallographic behavior was analyzed in the vicinity of the cracks. The mechanism and cause of the cracks in the dissimilar metal weld were identified. As a result, the precipitates of complex carbide types were observed in segregation bands. Full article
