Search Results (8)

Ion implantation in diamond crystals is widely used both for producing conducting microstructures in the bulk of the material and for creating isolated photon emitters in quantum optics, photonics, cryptography, and biosensorics. The photoluminescence (PL) spectra of helium ion-implanted diamonds are dominated by two sharp emission lines, HR1 and HR2 (from Helium-Related), at ~536 and 560 nm. Here, we report on PL studies of helium-related optical centers in diamonds. Experiments have been carried out on a (110) plate of natural single-crystal type IIa diamonds. The uniform distribution of radiation defects in a 700 nm-thick layer was obtained by ten cycles of multiple-energy (from 24 to 350 kV) helium ion implantation with a total dose of 5 × 10¹⁶ cm⁻². The diamonds were annealed in steps in a vacuum oven at temperatures from 200 to 1040 °C. It is demonstrated that helium ion implantation in diamonds followed by annealing gives rise to more than a dozen various centers that are observed in the PL spectra in the range of 530–630 nm. The transformations of the PL spectra due to annealing are investigated in detail. The spectral shapes of phonon sidebands are determined for the HR1, HR2, and HR3 bands with ZPLs at ~536, 560, and 577 nm, respectively, and it is shown that these bands are attributed to interstitial-related centers in diamonds. The reported results are important for understanding the structure and properties of helium-related defects in diamonds. Full article

The complexity of milling metal matrix composite alloys based on aluminum like Al/SiC is due to their low melting point and high abrasive ability, which causes increased wear of carbide tools. One of the effective ways to improve its reliability and service life is to modify the surface by plasma chemical deposition of carbon-based multilayer functional layers from vapor (CVD) with high hardness and thermal conductivity: diamond-like (DLC) or polycrystalline diamond (PCD) coatings. Experiments on an indexable mill with CoroMill 200 inserts have shown that initial tool life increases up to 100% for cases with DLC and up to 300% for multilayered MCD/NCD films at a cutting speed of 800 m/min. The primary mechanism of wear of a carbide tool in this cutting mode was soft abrasion, when wear on both the rake and flank surfaces occurred due to the extrusion of cobalt binder between tungsten carbide grains, followed by their loss. Analysis of the wear pattern of plates with DLC and MCD/NCD coatings showed that abrasive wear begins to prevail against the background of soft abrasion. Adhesive wear is also present to a lesser extent, but there is no chipping of the base material from the cutting edge. Full article

Conformal multilayer micro-nanocrystalline diamond coatings were grown on substrates of a hard alloy with 9% Co with a high aspect number in microwave plasma from gas mixtures CH4/H2 and CH4/H2/N2. The substrates were of a cylindrical axial tool model with a size ratio: d = 12 mm to l = 75 mm. An original tool holder made of molybdenum, in the form of a sector of the excessive ring with the axis of the hole parallel to the central conductive platform, protects part of the substrate from heating due to the edge effect of plasma. The uniformity of heating of the growth part, which is located inside the excessive ring, is calculated using mathematical modeling and is provided by rotation at a speed of at least 12 rpm, which ensures the uniformity of the coating. The average grain size of the nanocrystalline film measured along the cylinder forming was 41 nm. Full article

We investigated the IR absorption spectra of CVD diamond damaged by fast neutrons (>0.1 MeV) with high fluences ranging from 1 × 10¹⁸ to 2 × 10¹⁹ cm⁻² and annealed at temperatures of 200 °C to 1680 °C. After annealing above 1000 °C, the formation of “amber-centers” (ACs), associated with multivacancy clusters, is detected as deduced from the appearance of a strong absorption line at 4100 cm⁻¹. Moreover, the concentration of the ACs in the irradiated diamond can be an order of magnitude higher than that observed previously in the darkest brown natural diamonds. A number of other absorption lines, including the H1b center at 4936 cm⁻¹ (0.612 eV) and new lines at ~5700 cm⁻¹ (0.706 eV) and 9320 cm⁻¹ (1.155 eV) not reported before in the literature, are observed, and their intensity evolutions at annealing temperatures are documented. At the highest fluences, all the lines show reduced intensities and broadening and spectral shifts due to a very high defect concentration and partial amorphization. The obtained experimental data can be used for the analysis of defect generation, transformations and healing in irradiated synthetic and natural diamonds. Full article

Raman spectroscopy and magnetic properties of the natural single crystalline diamonds irradiated with high fluences of fast reactor neutrons have been investigated. Raman spectra transformations were studied in the range from moderate levels up to radiation damage leading to diamond graphitization. The selection of fast neutrons irradiated diamonds for magnetic measurements was carried out according to Raman scattering data on the basis of the intensity criterion and the spectral position of the “1640” band. It was found that in natural diamonds irradiated with neutrons with an extremely high subcritical fluence F = 5 × 10²⁰ cm⁻², the transition from a diamagnetic to a ferromagnetic state is observed at the Curie–Weiss temperature of ≈150 K. The energy of the exchange magnetic interaction of uncompensated spins is estimated to be ≈1.7 meV. The differential magnetic susceptibility estimated from the measurements of magnetic moment for temperature 2 K in the limit of B ≈ 0 is χ_diff ≈ 1.8 × 10⁻³ SI units. The nature of magnetism in radiation-disordered single-crystal hydrogen- and metal-free natural diamond grains was discussed. Full article

The use of the ultrafast pulse is the current trend in laser processing many materials, including diamonds. Recently, the orientation of the irradiated crystal face was shown to play a crucial role in the diamond to graphite transition process. Here, we develop this approach and explore the nanostructure of the sp² phase, and the structural perfection of the graphite produced. The single pulse of the third harmonic of a Ti:sapphire laser (100 fs, 266 nm) was used to study the process of producing highly oriented graphite (HOG) layers on the (111) surface of a diamond monocrystal. The laser fluence dependence on ablated crater depth was analyzed, and three different regimes of laser-induced diamond graphitization are discussed, namely: nonablative graphitization, customary ablative graphitization, and bulk graphitization. The structure of the graphitized material was investigated by confocal Raman spectroscopy. A clear correlation was found between laser ablation regimes and sp² phase structure. The main types of structural defects that disrupt the HOG formation both at low and high laser fluencies were determined by Raman spectroscopy. The patterns revealed give optimal laser fluence for the production of perfect graphite spots on the diamond surface. Full article

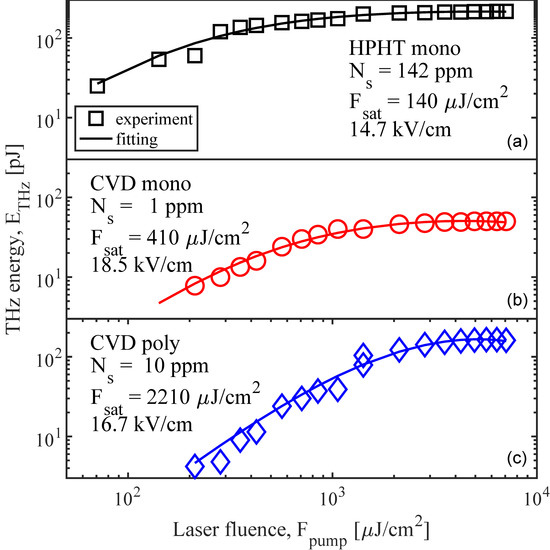

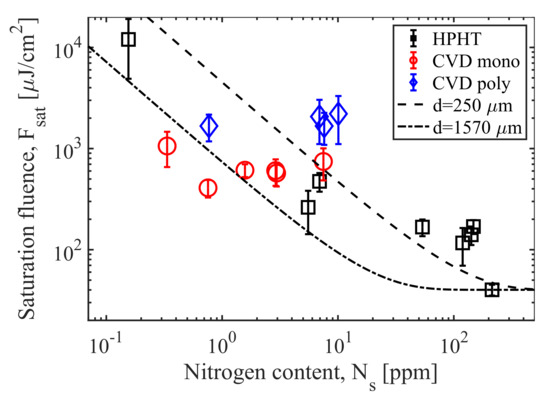

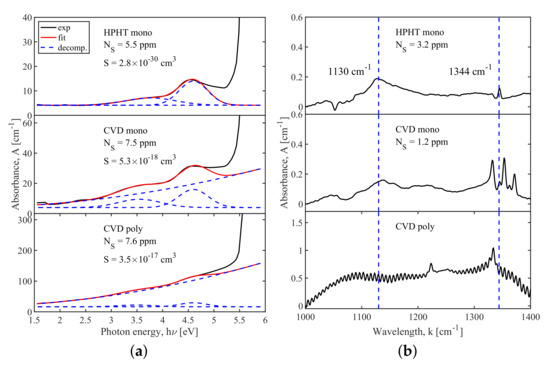

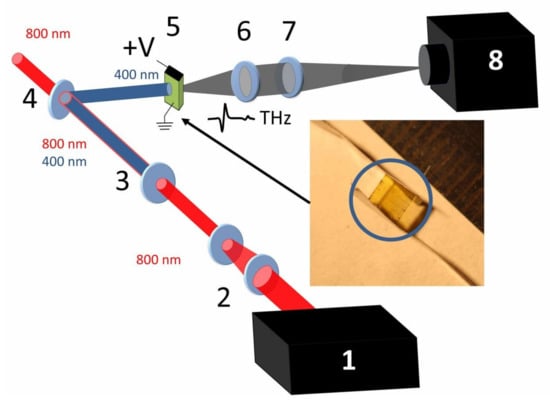

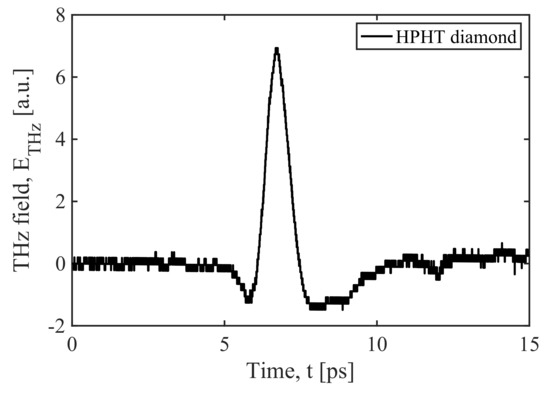

The efficiency of the generation of terahertz radiation from nitrogen-doped (∼$0.1$–100 ppm) diamonds was investigated. The synthetic polycrystalline and monocrystalline diamond substrates were pumped by a 400 nm femtosecond laser and tested for the photoconductive emitter operation. The dependency of the emitted THz power on the intensity of the optical excitation was measured. The nitrogen concentrations of the diamonds involved were measured from the optical absorbance, which was found to crucially depend on the synthesis technique. The observed correlation between the doping level and the level of the performance of diamond-based antennas demonstrates the prospects of doped diamond as a material for highly efficient large-aperture photoconductive antennas. Full article

Disordering of crystal lattice induced by irradiation with fast neutrons and other high-energy particles is used for the deep modification of electrical and optical properties of diamonds via significant nanoscale restructuring and defects engineering. Raman spectroscopy was employed to investigate the nature of radiation damage below the critical graphitization level created when chemical vapor deposition and natural diamonds are irradiated by fast neutrons with fluencies from 1 × 10¹⁸ to 3 × 10²⁰ cm⁻² and annealed at the 100–1700 °C range. The significant changes in the diamond Raman spectra versus the neutron-irradiated conditions are associated with the formation of intrinsic irradiation-induced defects that do not completely destroy the crystalline feature but decrease the phonon coherence length as the neutron dose increases. It was shown that the Raman spectrum of radiation-damaged diamonds is determined by the phonon confinement effect and that the boson peak is present in the Raman spectra up to annealing at 800–1000 °C. Three groups of defect-induced bands (first group = 260, 495, and 730 cm⁻¹; second group = 230, 500, 530, 685, and 760 cm^–1; and third group = 335, 1390, 1415, and 1740 cm⁻¹) were observed in Raman spectra of fast-neutron-irradiated diamonds. Full article
