Communication

The Development of an Online Decision Support System to Select Optimal Nature-Based Solutions to Protect Streams and the Sea

by
Paschalis Koutalakis
* and
George Zaimes
Geomorphology, Edaphology and Riparian Areas Laboratory (GERi Lab), Department of Forestry and Natural Environment Sciences, International Hellenic University, 66100 Drama, Greece
*
Author to whom correspondence should be addressed.
Platforms 2024, 2(3), 118-137; https://doi.org/10.3390/platforms2030008
Submission received: 8 April 2024 / Revised: 7 August 2024 / Accepted: 10 August 2024 / Published: 16 August 2024

Abstract

:
Nonpoint source pollutants primarily originate from agricultural areas, settlements, and contaminated lands. Soil erosion and deposition are the means of transportation of pollutants since soil particles not only absorb but also transport contaminants through the stream network. Nature-based solutions (NbSs) are quite popular around the world to mitigate soil erosion and deposition, which has accelerated due to climate change and other anthropogenic activities. To promote their adoption, we developed an online decision support system (DSS) to provide land and water managers and particularly stakeholders with the optimal NbSs and ecosystem-based approaches (EbAs) that could help protect watersheds, streams, and consequently seas from pollutants. This DSS incorporates a descriptive data management system to handle datasets (questions, answers/criteria, outputs/solutions) from various stakeholders (e.g., policymakers, urban planners, environmentalists) and other non-experts. The questions of the DSS are related to different characteristics (criteria) of the areas of interest for the NbS or EbA. The questions provide various answers (which serve as descriptive data) in order to weigh the criteria/characteristics and, ultimately, the proposed NbS. The NbSs of the DSS were recorded based on a bibliographic review and from stakeholders’ responses via forums, meetings, workshops, etc. The primary testing results by stakeholders showed that the online DSS has the potential to be used as a complementary service in the near future. Specifically, it can provide the optimal NbS based on the participants’ answers about the study area. This communication paper may act as an invitation to reach a greater audience of stakeholders for the improvement of the online DSS.

1. Introduction

Decision-making is the process of selecting one alternative activity from a set of alternative possibilities in order to ensure the achievement of the expected goals [1]. The existence of an issue or problem that requires analysis is an obligatory rule in order to implement a decision-making process. An issue or problem is defined as a situation where a deviation between the existing and the desired state is found [2]. Whether decisions are critical or less important, as well as the complexity that certain problems present, are key factors for decision-making. A decision is usually made on the basis of multiple relevant criteria [3]. Overall, decision-making is a demanding process since the different relevant criteria entail the evaluation of many attributes [4]. The elements that make up the set of information regarding the decision problem can be quantitative and/or qualitative [5]. The main difficulty in the second case lies in the quantification of some qualitative data, which increases the difficulty of objective evaluation [6]. This means that, in decision-making, in many cases, a compromise by the decision-makers is required in relation to the goals that have been determined [7,8]. So, typically, the systematic support of a decision demands the utilization of methods that can incorporate quantitative and qualitative data to provide objective criteria [9]. Such methods are used to solve problems related to the evaluation of projects, plans, programs, and policies [10].
The need to support decision-making, either for everyday problems or in solving complex and more critical problems (especially where there are multiple contradicting criteria), has led to the study and development of a specific set of methods. These methods are commonly referred to under the general term of multi-criteria decision-making or multi-criteria decision analysis (MCDM/MCDA) [11]. Another term found in international literature is multi-criteria decision aid [12]. The objective of MCDM/MCDA methods is to help decision-makers organize the information they have collected and significantly facilitate their final decision/selection [13]. Overall, MCDA is a major analytical and decision-making tool that has many applications in both the public and private sectors [14]. In MCDA problems, a reasonable number of parameters/criteria are usually involved. These parameters are weighted based on their influence on the decision-making [15]. Their examination in MDCA leads to the most rational possible decision that is the closest to the ideal, although it must be noted that this does not always imply that they are an excellent or optimal solution [16,17].
Furthermore, decision support systems (DSSs) have been developed to support MCDA methods and facilitate the decision-making process [18]. A DSS is a software-based tool designed to analyze complex data and provide the relevant information necessary to develop, assess, and execute actions to solve a given problem/situation [19]. The history of the implementation of such systems begins in the mid-1960s with the development of minicomputers [20]. Nowadays, there are many software available for multiple decision analysis. Some of them are commercial, while others are free (e.g., 1000 Minds, BENSOLVE, Expert Choise, DECISIONARIUM, PROMETHEE-GAIA, Super Decisions, Expert Choice, etc.) [21,22]. Recently, various DSSs have been developed to support individual decision-makers, workgroups, and virtual users through internet web technologies on online platforms [23,24,25]. These online platforms can be based on model-driven DSSs, data-driven DSSs, communication-driven DSSs, document-driven DSSs, and knowledge-driven DSSs [26,27,28,29]. Various technical methodologies and algorithms exist for DSSs to evaluate and design energy systems based on the optimization of either single or multiple criteria [30]. Table 1 presents a number of popular decision analysis methods found in the literature (the list is not exhaustive):
Nature-based solutions (NbSs) involve a group of solutions based on natural practices and ecosystem services to resolve diverse societal challenges, such as green infrastructure, ecological engineering, ecological restoration, forest landscape restoration, area-based conservation, ecosystem-based management, natural infrastructure, ecosystem-based adaptation, ecosystem-based disaster risk reduction, ecosystem-based mitigation, and climate adaptation services [26,27]. The term NbS has evolved through time, involving low-impact developments (LIDs), best management practices (BMPs), water-sensitive urban design (WSUD), sustainable urban drainage systems (SuDs), green infrastructure (GI), blue–green infrastructure (BGI), and ecosystem-based adaptation (EbA) [28]. The European Commission (EC) has defined NbS as “…living solutions inspired by, continuously supported by and using nature, which are designed to address various societal challenges in a resource-efficient and adaptable manner and to provide simultaneously economic, social, and environmental benefits” [29,30]. The restoration of degraded landscapes using NbSs has proven to be more sustainable and effective than common engineering solutions [31]. In some cases, the implementation of green and blue infrastructure strategies alone is not enough, so the adoption or coupling with grey infrastructure as a hybrid approach is necessary [32]. Engineering structures provide instant and quantifiable impacts to reduce immediate threats, but in most cases, they are costlier and do not have the ability to deliver environmental benefits [33]. On the other hand, NbSs take a longer time to provide the mitigating or restoration results but are less expensive, more sustainable solutions and provide additional benefits such as livelihood and ecotourism opportunities compared to engineering solutions [34,35]. These are solutions that can also modify engineering structures to make them more environment-friendly, for example, by incorporating vegetative aspects into pre-existing engineering structures [36]. NbSs are a “must” management practice due to the increasing urbanization, climate change phenomena, and long-term mitigating effects and sustainability [37,38]. Still, effective management for entire watersheds using NbSs requires joint decision-making across multiple government agencies that manage agriculture, fisheries, forest, and water resources, as well as engaging with stakeholders to address their needs [39,40].
Many research projects have developed DSSs in the fields of agriculture, environmental, and landscape management, although, unfortunately, these tools often fail to be adopted by the targeted end users [41,42]. Still, their implementation is rapidly progressing, including the involvement of stakeholders [43,44]. Although there are many MCDA applications, including NbSs for risk management and green space planning [45], these are only a few early attempts by DSSs to propose the optimal NbS [46,47], with only one that is online focusing on wastewater treatment [48]. This paper describes a web-based DSS that integrates stakeholders’ input and data to support effective decision-making in the selection and implementation of NbSs. The DSS incorporates a simple descriptive data management system to handle datasets (questions, answers/criteria, outputs/solutions) from different stakeholders (e.g., policymakers, urban planners, environmentalists) and non-experts. The goal was to provide an intuitive, user-friendly interface with interactive features that would result in higher user engagement and satisfaction. Furthermore, this DSS includes mechanisms for continuous monitoring, feedback, and editing and is more adaptable to changing conditions and new information, thereby improving the long-term success of NbS projects. To our knowledge, this is the first attempt to develop an online DSS focused on NbSs to mitigate nonpoint source pollutants. This system could be applied in different study areas to recommend the optimal NbS to mitigate nonpoint source pollutants and enhance climate resilience.

2. Materials and Methods

2.1. The Online DSS System

There are many developed DSSs for common uses (e.g., farmers use crop-planning tools to determine the best time to plant, fertilize, and reap). Such DSSs require a mix of descriptive and quantitative datasets in order to provide the best decisions. Most such systems share a common attribute: the decisions are repetitive and based on known data. A model-driven DSS, using data and parameters provided by decision-makers, was selected for the scope of this study. Specifically, the presented DSS tool uses descriptive data (input from the users) gathered through certain relevant questions that are highly correlated with the description of the area of interest for the implementation of an NbS. The questions provide various options as answers (which serve as descriptive data) in order to weigh the relevant criteria. The weights can be either on a scale (e.g., low to high erosion) or a yes/no selection. Each selection/answer is correlated to an NbS while the multiple flow paths lead to a logical correlation with the optimal NbS that should be implemented based on the general data of the area of interest. This is different from a business-model DSS system (such as a SWOT analysis, decision matrix, Pareto analysis, or cost–benefit analysis), which can provide the strengths or weaknesses of certain proposed options. This specific DDS contains an online questionnaire that allows the participants to easily follow it, and also record all their responses in a log file automatically. The DSS was developed on a free website and functions similarly to a personality test form. The DSS helps users select the best management practices and specifically recommends optimal NbS and EbA. The user of this system will determine the different parameters and input them in the system based on selected questions concerning the area of interest for the implementation of the NbSs. Each answer is an input parameter associated with specific outcomes (NbSs). This online system will propose best management practices focusing on the Black Sea region countries. As a result, this system is triggered by the user’s selection and is able to propose, based on data from both the online database and the multi-criteria decision analysis (data that were collected/resulted from the previous activities of the BSB963 project), the optimal best management practice. The system is online, free, user-friendly (also providing images to be more easily understandable to stakeholders), and easy and quick to use. It also has shared options for the results, and the link can be distributed to many different social accounts (Facebook, Twitter, WhatsApp, Pinterest, Reddit, Tumblr, and LinkedIn). There are also many options for embedding it in websites as a link or a direct application (see next sections). Finally, there is the possibility to provide feedback or discuss with other users on social media after the completion of the process. The link to the online DSS is provided on the project website (http://websites3.teiemt.gr/p4sea/index.php/deliverables/dss, accessed on 8 April 2024).

2.2. Questions for the DSS

To select the best management practices, a simple and representative questionnaire was developed that used different criteria to provide the necessary data for optimal decisions. Specifically, there were nine questions/criteria highly related to pollution from soil erosion/deposition and other disastrous phenomena. Each question had different potential answers to select that were associated with specific outcomes. The questions were accompanied by clear images to be user-friendly to participants, particularly those who do not have the necessary background. The criteria/questions are presented in a step-by-step procedure below (see Figure 1):
-
What is the general type of your study area?
Urban;
Agricultural;
Forests;
Pastures/Grasslands;
Wetlands/Lakes/Ponds;
Coastal.
-
What is the average elevation range of your study area?
0–50 m;
50–300 m;
300–1000 m;
>1000 m;
Do not know/answer.
-
What is the average slope gradient of your study area?
Flat area (0–3%);
Gentle slope (3–10%);
Moderate slope (10–15%);
Steep slope (15–30%);
Extremely steep slope (30–60%);
Excessively steep slope (>60%);
Do not know/answer.
-
What is the type of hydrographic network in your study area?
Mountain gullies;
Torrential/ephemeral flow;
Ephemeral or intermittent streams;
River (perennial flow);
Constructed channels/irrigation network;
Do not know/answer.
-
What is the streambed/streambank material of your study area?
Solid rock formation;
Boulders (diameter: 256–4096 mm);
Cobbles (diameter: 64–256 mm);
Pebbles (diameter: 2–64 mm);
Granules (diameter: 2–64 mm);
Sand (diameter: 0.0625–2 mm);
Silt (diameter: 0.002–0.0625 mm);
Clay (diameter: <0.002 mm);
Do not know/answer.
-
What are the vegetation conditions of your study area?
Dense high/low vegetation;
Sparse vegetation/bare land;
Do not know/answer.
-
What are the geologic/soil conditions of your study area?
Rock/sand;
Loam/clay;
Do not know/answer.
-
Have you noticed any erosion/deposition phenomena or degradation in your study area?
Yes;
No;
Do not know/answer.
-
Have you noticed any climate-change-induced extreme events in your study area?
Yes;
No;
Do not know/answer.

2.3. Best Management Solutions Proposed by the DSS

The proposed best management solutions are highly associated with the specific answers from the online questionnaire. The questionnaire consists of nine questions concerning the area of interest, as described in the previous subsection. The proposed best management solutions (see Figure 2) were found based on the activities of the BSB963 project. These activities included a thorough review of best management practices for the Black Sea region, a discussion forum with the project network members, feedback from stakeholders during the project’s international conference, five workshops, and ten awareness events. The DSS grouped the optimal NbSs into the following categories: (a) coastal—solutions focused on coasts; (b) agricultural—solutions focused on pastures and terraces; (c) land and water—solutions for the entire watershed; (d) mixed blue–green–grey—solutions focused on urban environments; but also (e) policies and (f) stakeholders’ participation. In the following paragraphs, we describe the pressured and potential NbSs for these categories:
One of the most significant services of natural ecosystems is the maintenance/improvement or regulation of freshwater quality. There are multiple benefits to the application of NbSs and EbA in freshwater ecosystems and the surrounding habitats (microbes, algae, plants, invertebrates, fish, reptiles, amphibians, and mammals) [49]. Using organisms to assess and monitor the freshwater quality and the assessment of environmental flows to conserve habitats and biodiversity are indicators used for ecosystem health that are related to the implementation of NbSs [50]. Human civilizations are closely connected with water buffer zones (wetlands, coasts, rivers), and these have co-evolved to meet human survival and sustenance needs. So, water buffer zones have the capacity to provide multiple services of great social, economic, and environmental value to humankind and mitigate water-mediated disaster risk [51]. NbSs can be applied in diverse environments and at various scales, from small-scale (ecosystem elements, a small pond) to large-scale (entire coastal stretches or floodplain restoration with small dams and weirs made of natural materials like gabions) [52,53,54]. Coastal areas include river estuaries, beaches and dunes, salt marshes, seagrass beds, and mangroves [55]. These environments are characterized as vulnerable spots due to climate change and the associated sea-level rise, together with drivers such as land subsidence, reduced sediment supply (due to dams), and coastal squeeze [56]. All the above represent major risk factors for coastal system sustainability. A hybrid approach combining NbSs and soft eco-engineering is optimal as a coastal defense measure to mitigate these risk factors [57,58].
Vegetation planting is the most common NbS practice applicable in every environment since it plays an important role in ecosystem services and is relatively easy to implement [59]. The increase in areas of grassland, fast-growing, high-biomass-yielding fodder trees, and deep-rooted plants (trees, shrubs, and herbs) can increase soil infiltration, reduce surface runoff, and enhance slope stability [60,61,62]. In most cases, slope stabilization and mitigation of landslide risks can be achieved more effectively by a hybrid approach: a combination of civil engineering, ecoengineering, bioengineering, and NbSs (e.g., bioengineering-based gabions and wire check dams to control gully erosion) [63,64]. Different vegetation species with high potential for slope stabilization have been identified (e.g., trees: Acer campbellii, Alnus nepalensis, Pinus wallichiana, Rhododendron arboreum, and Tsuga Dumosa; shrubs: Artemisia nilagirica, Arundinaria maling, Coriaria nepalensis, Daphne papyracea, Euphorbia sikkimensis, and Pipthanthus nepalensis; herbaceous species: Ageratum conyzoides, Oplismenus compositus, Persicaria capitata, Pilea umbrosa, Plantago erosa, Polygonum hydropiper, Polygonum molle, Primula bracteosa, Primula denticulata, Rumex nepalensis, and Urtica dioica; and climber species: Celastrus paniculatus, Dioscorea bulbifera, Hedera nepalensis, Holboellia latifolia, Periploca callophylla, Philadelphus tomentosus, Rubia cordifolia, Stephania glandulifera, and Thladiantha cordifolia [65]. While tree planting is typically an effective NbS to mitigate climate change, there are occasions, especially when planting non-native species, that can negatively impact both biodiversity and ecosystem services, displacing native species [66]. As an example, Prosopis juliflora was planted in Northwest India to reduce the desert cover, but it led to negative consequences by dominating native plant species, particularly in grasslands [67]. It must be noted that each area has unique characteristics based on geographic, structural, and environmental parameters (e.g., geology, soil, hydrology, climate, topography, land cover, cultural influences, and land-use practices) that need to be accounted for [68].
NbSs can deliver triple benefits in agricultural production and resilience by mitigating climate change and enhancing both nature and biodiversity. Organic farming practices, such as the use of green manure, biofertilizers, bioinoculants, and the replacement of chemical fertilizers and pesticides with organic agro-inputs, are considered the best NbS for farmlands [69]. Furthermore, agroforestry is considered a successful example of achieving the Sustainable Development Goals (SDGs) [70]. Agroforestry enhances farmers’ ability to adapt to climate change while delivering multiple ecological, social, and economic benefits [71]. Tree-based farming provides high income by increasing farm productivity and profitability in combination with the many ecosystem benefits [72]. Farming techniques such as terraces, natural fallow, or regeneration can also increase ecological health. Green infrastructure in country houses/warehouses (e.g., grass strips, hedgerows, or terraces using natural materials) are also good practices for slope stabilization and eco-sustainable planning [73]. Overall, green infrastructure performs equally or even better than grey infrastructure for water purification and flood protection, even though costs are similar, while also providing additional benefits (e.g., wildlife support and ecosystem recreation) [74].
NbSs have also been extensively used for planning in urban/semi-urban environments. Examples include the increase in naturally vegetated areas and/or urban water bodies, the restoration of natural landscapes, the creation of permeable pavements, stormwater management, etc. [75,76,77,78,79]. In urban environments, the demographic profile may play a vital role in selecting the optimal NbS. People who live in close proximity to a biodiversity-rich landscape are highly related to these ecosystems in terms of their lifestyle and traditions [80]. In such environments, there can be cultural and ethnic diversity in the local population’s labor and needs, which are highly connected to the ecosystem services (e.g., agricultural labor, hunting, gathering, fishery, working with wood, etc.) [81]. Such labor activities should be promoted by public authorities along with ecotourism initiatives (e.g., birding, rafting, camping, trekking, etc.) since they can provide real-life examples to promote ecosystem conservation to a greater audience [82].
Decision-makers demand clear and coherent principles and standardized, evidence-based frameworks [83]. The policy framework for the implementation of NbSs has to be effective in addressing knowledge gaps, multiple goals, and social challenges in their adoption across different sectors [84]. Worldwide, more focus is given to economic instruments (e.g., taxation, trading systems, etc.) than regulation, restriction, prohibition measures, or infrastructure also necessary to achieve the greener development objectives [85].
Furthermore, NbS implementation involves the engagement of various stakeholder groups, as their opinions play a vital role in the selection of the optimal NbS [86]. Furthermore, the stakeholders need to be better informed and educated in order to achieve sustainability. Examples can be training awareness programs, educational programs, demonstrations of NbS case studies, promotion of environmentally sustainable materials, environmental techniques, and ecotourism activities [87,88,89,90].

3. Results and Discussion

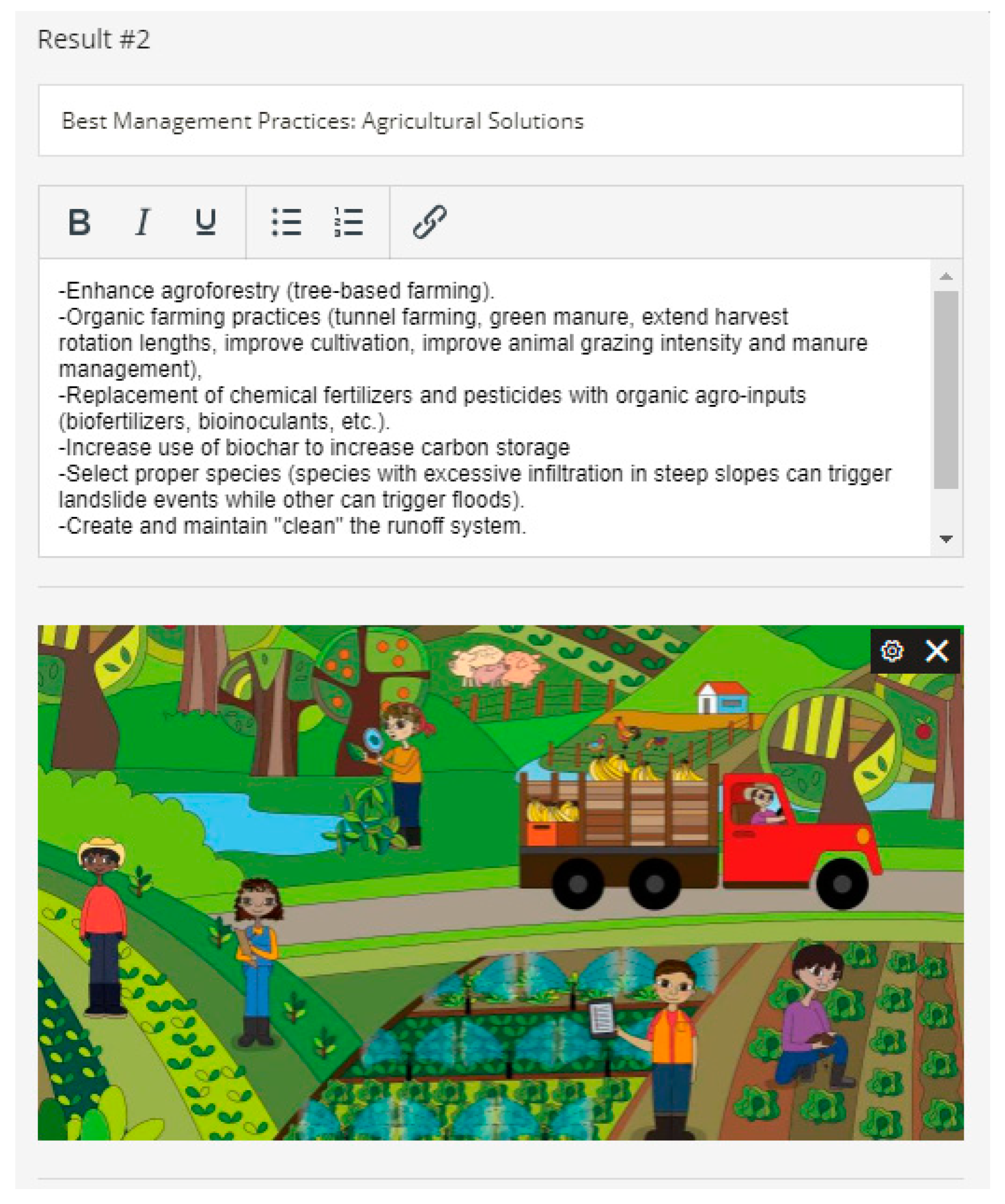

The online DSS provides suggestions after the required questions are answered. The user can distribute the results, if he/she wants, through social media. The suggestion provided by the DSS is the best management practices (NbS and/or EbA) for each case study (determined by the answers). This is a general pathway to be followed based on the given category (e.g., coastal solutions for coasts). More focused plans and specific measures need to be developed, as each site is unique with its own environmental, social, political, and ethical aspects. The results of the DSS can be exported as reports and Excel sheets to also receive the statistical analysis. This is one of the specific DSS advantages since it provides a database with all inputs/outputs. This can be performed by storing all records of the users for a selected period in an Excel file. This function enables easy access and analysis of the outputs by non-experts, especially for beginners with no prior experience in managing data or spreadsheets. The system is stored online and promoted to gather more answers in the future. This should improve the DSS functionality and provide better results. Finally, another important advantage is that the system can be updated and enhanced.
The main characteristics of the participants during this trial period (June 2023 to January 2024) are listed below:
-
424 engagements (number of times clicked);
-
298 views (number of times viewed/displayed);
-
76 started runs (26% compared to views);
-
46 completed (61% compared to started);
-
1:43 min average time of use.
The following graphs (Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11) present the answers of the individuals who completed the DSS runs. The participants are mainly local stakeholders from the following countries: Greece, Romania, Armenia, Turkey, and Moldova. There are differences in the number (e.g., 21, 40, or 46 runs/votes) because the system was upgraded during the trial period, including more questions/answers during the six-month trial period.

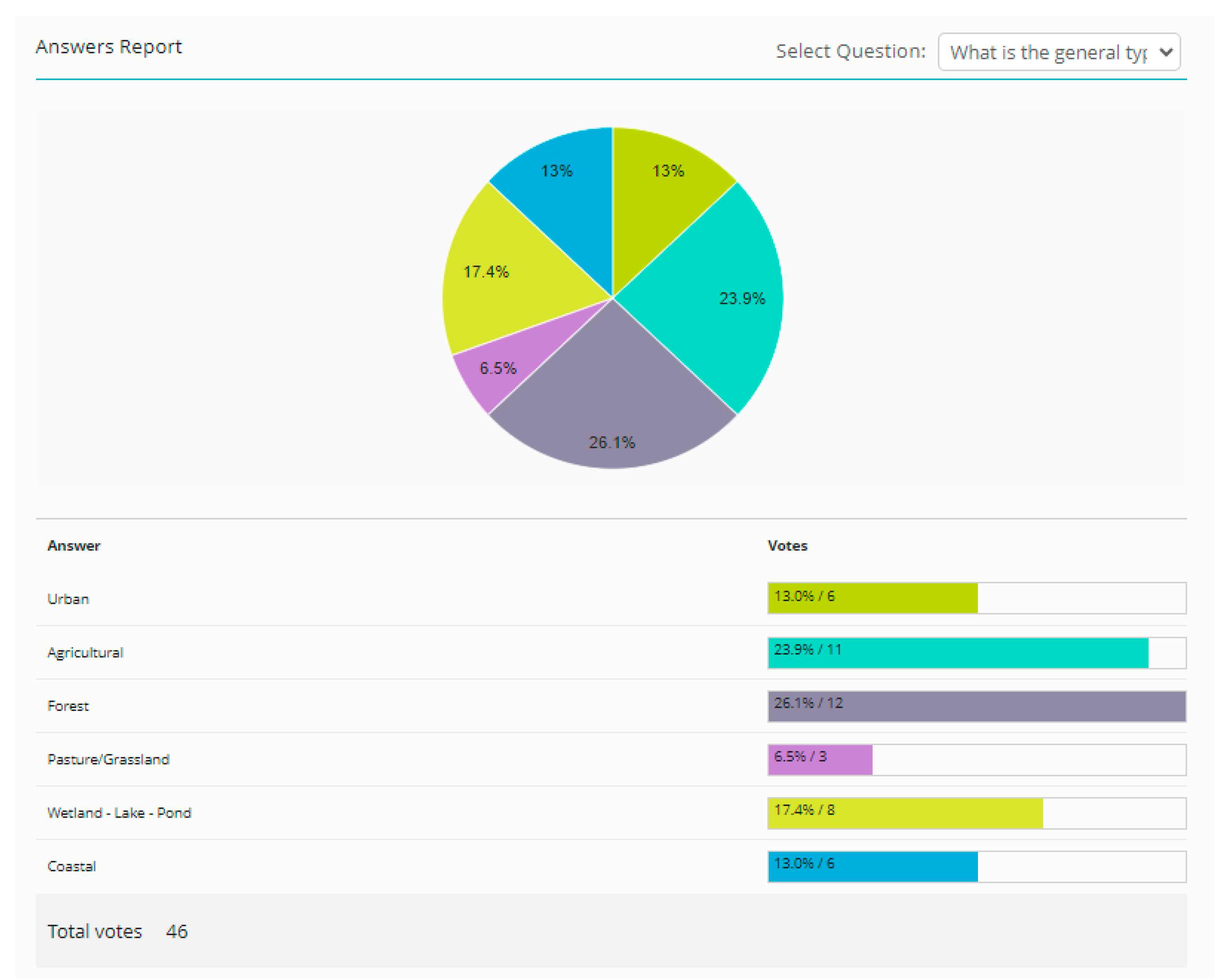

The results according to the general category of the study area (Figure 3) show that most individuals selected forested (26.1%) and agricultural areas (23.9%), followed by wetland/lake/pond (17.4%), urban (13.0%), and coastal areas (13%). Although most attention and funds have been given to urban and coastal environments due to population density and infrastructure vulnerability [75,91], there is greater involvement of forest and rural areas in the answers. This may also be influenced by the fact that many NbSs are actually implemented in forest/rural areas [92].

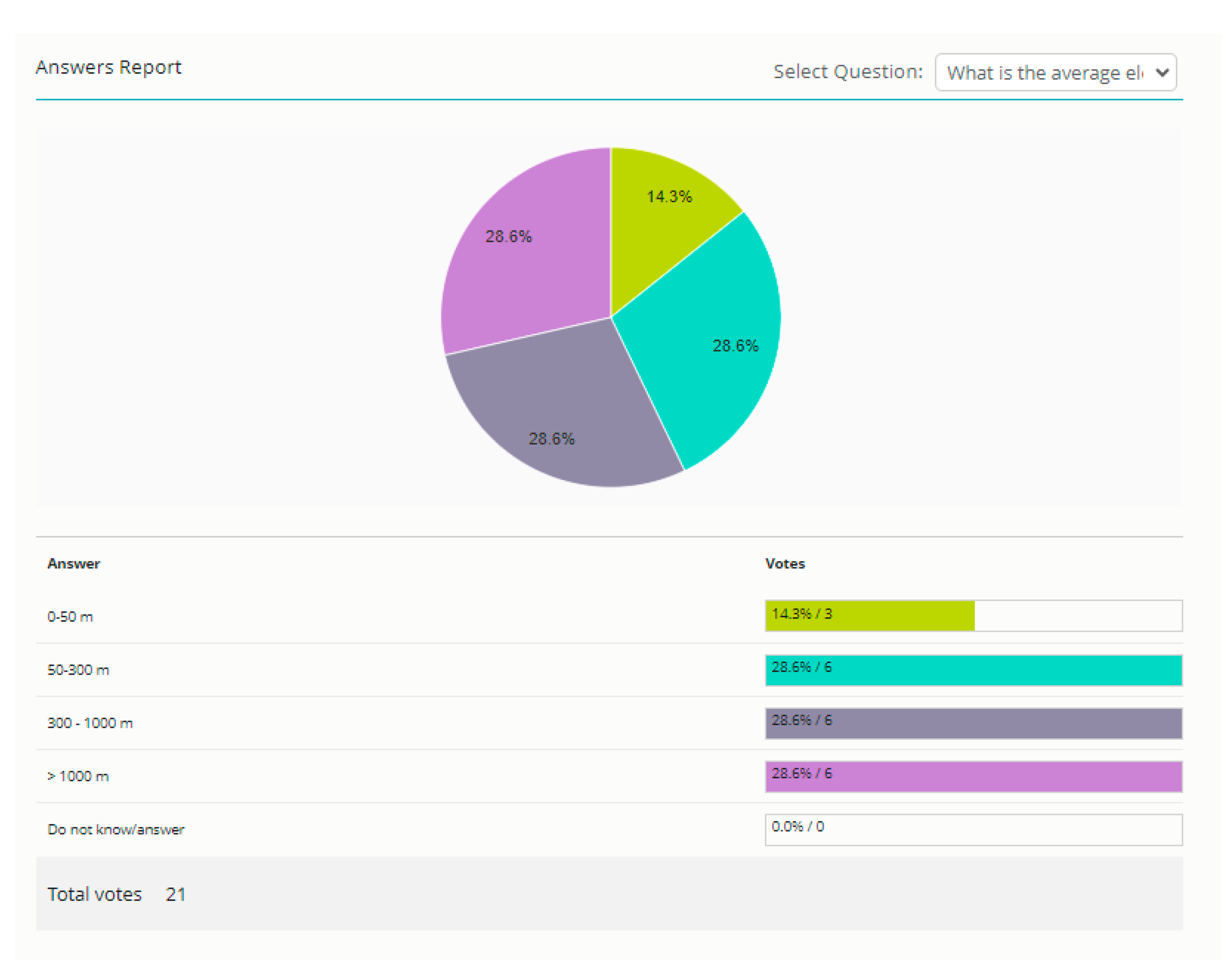

Figure 4 presents the answers concerning the average altitude of the study area. The altitudes between 0 and 50 m had the fewest answers (14.3%), while the answers among the other three categories were equally distributed (28.6% in each one). The answer “Do not know/answer” was not recorded at all. The fewer answers at lower altitudes are highly correlated with the fewer answers concerning coastal areas. This indicates that hilly and mountainous areas (including urban and rural mountainous areas) are more commonly selected by individuals.

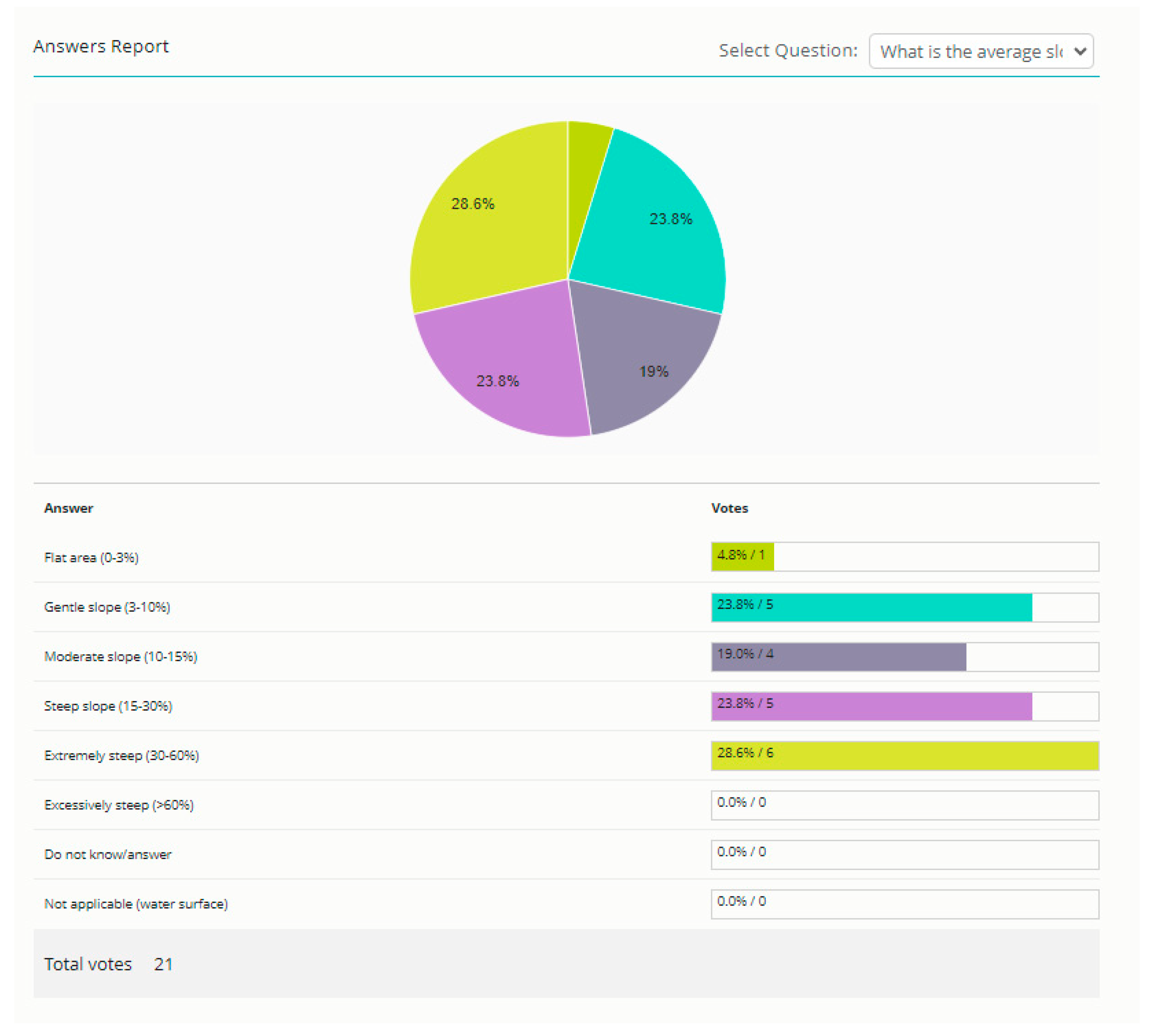

Furthermore, most answers about the slope of the study area (Figure 5) concerned extremely steep slopes (28.6%), followed by steep slopes (23.8%), gentle slopes (23.8%), moderate slopes (19.0%), and flat areas (4.8%). These answers, along with those about elevation, reinforce a higher interest in hilly and mountainous areas. The participating countries (Greece, Romania, Armenia, Moldova, and Turkey) have many such landscapes. In addition, most of the Black Sea coasts ascend rapidly (e.g., Rhodope Mountains, Pontic Mountains, Caucasus Mountains, Crimean Mountains) [93]. This can lead to extreme water flows, floods, and landslides.

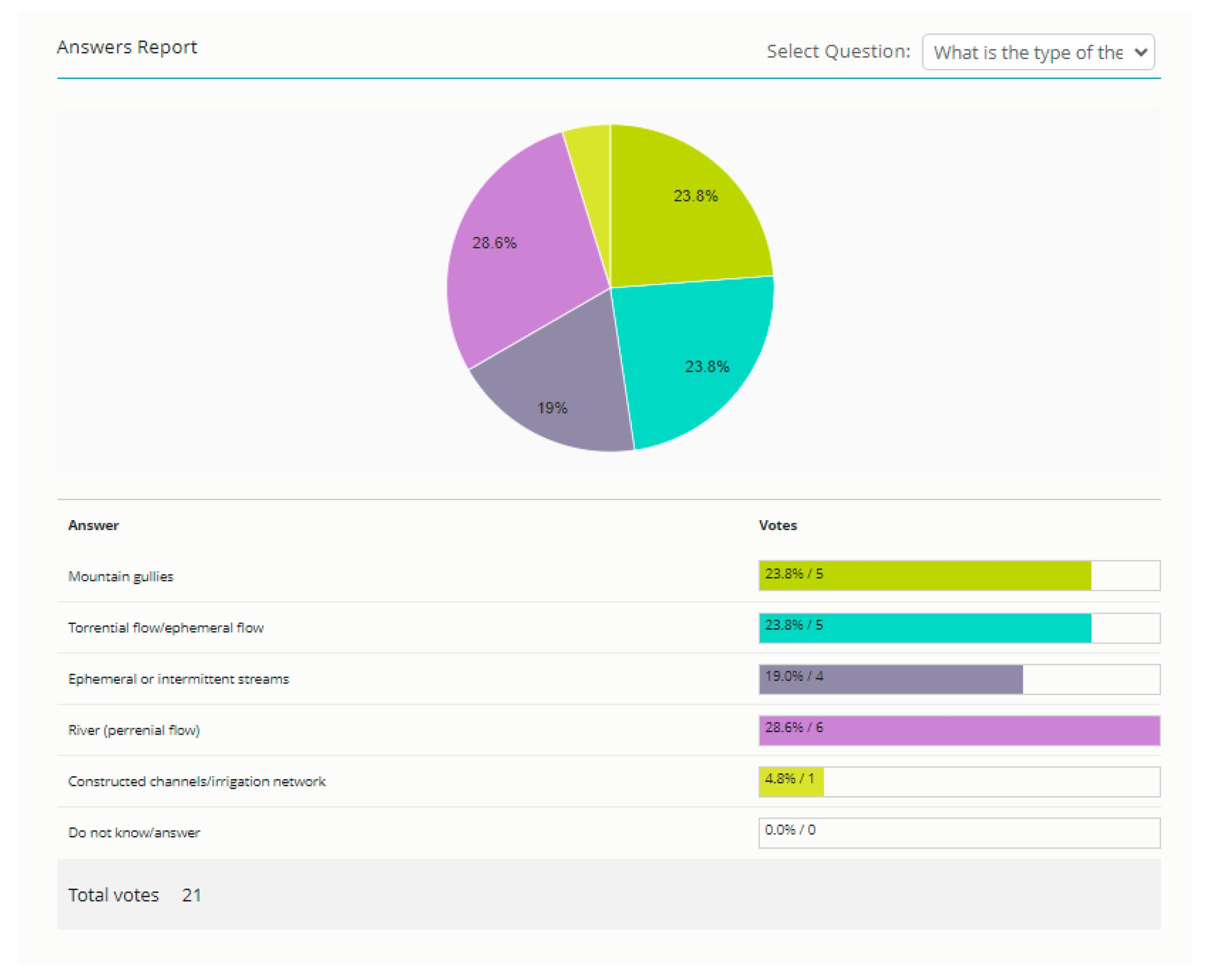

Regarding hydrographic types, rivers had the highest percentage (28.6%), followed by mountain gullies, ephemeral flow streams, and intermittent streams (Figure 6). Finally, there was only one answer that focused on constructed irrigation channels.

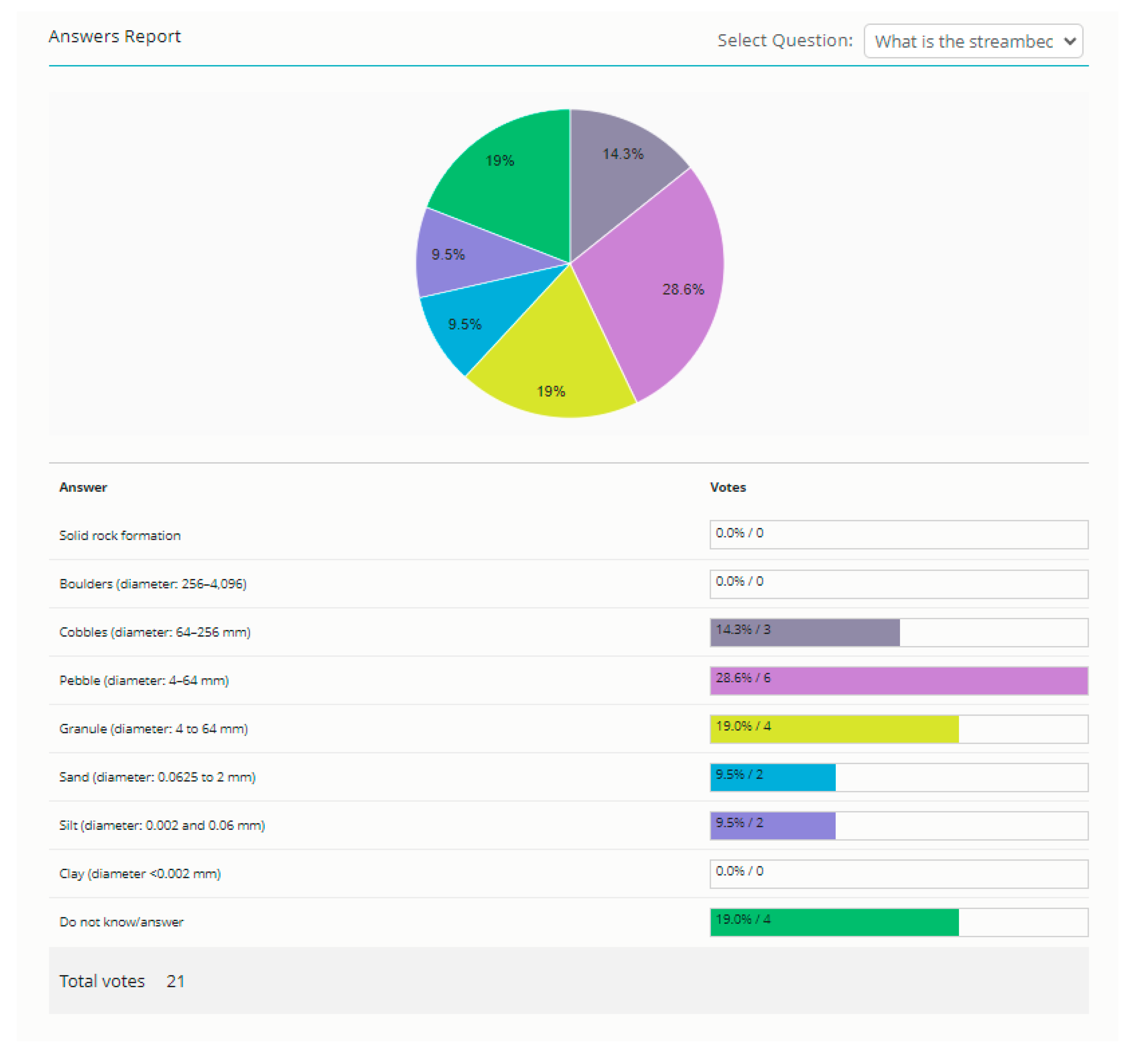

The bed material (rivers and streams) was mainly cobbles, pebbles, and granules based on the previously identified character of the hydrographic network (Figure 7). Silt and sand were also recorded as bed materials. There was also a great percentage of individuals who were not aware of the bed material (19%). This was due either to limited geologic knowledge, lack of field measurements, or lack of visibility due to water presence being either unclear or very deep.

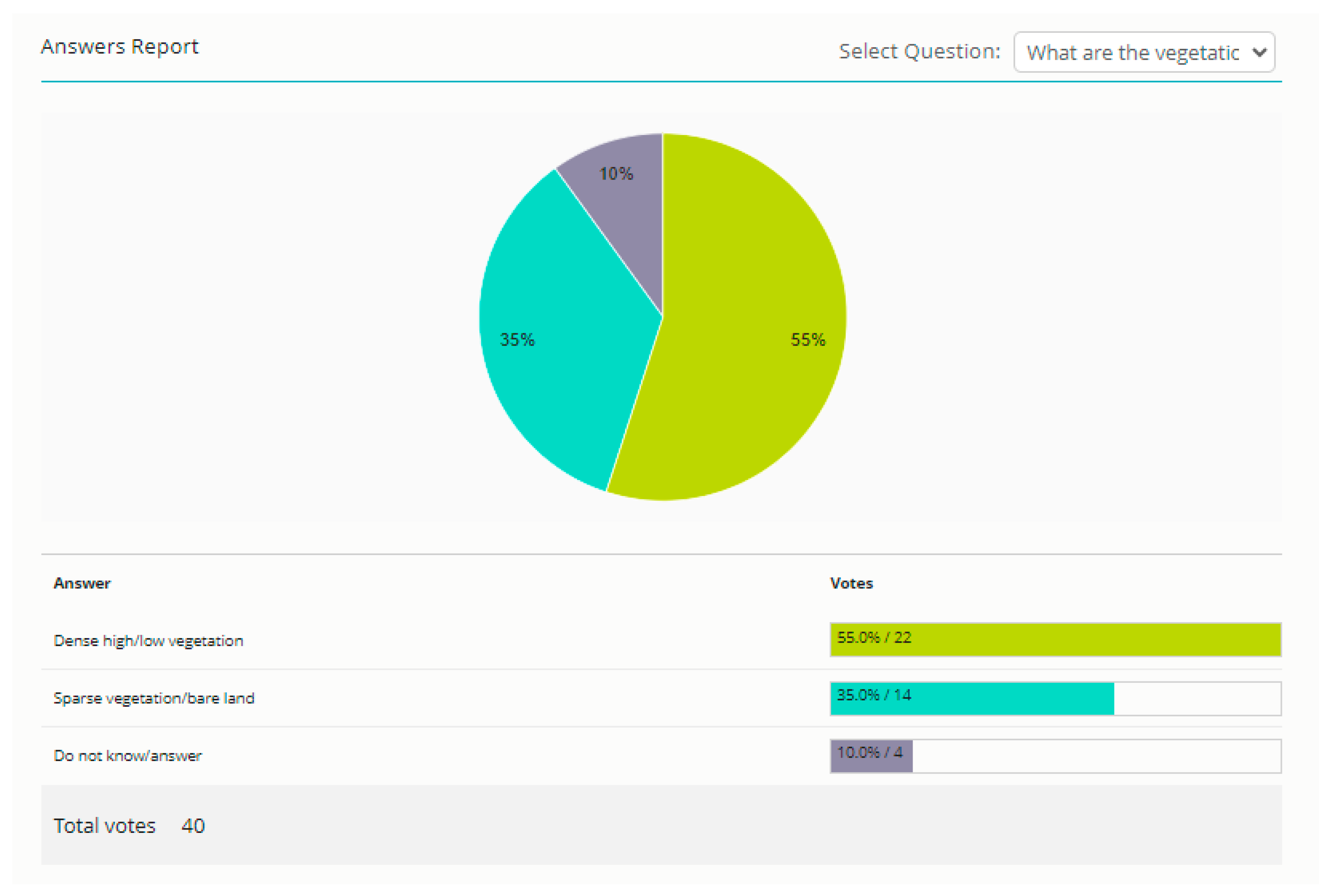

Regarding vegetative characteristics, most study areas (see Figure 8) had dense vegetation (55%), followed by sparse vegetation (35%), and no information about the vegetation (10%). This result is controversial since NbSs and EbA are commonly implemented in areas that lack vegetation. This might indicate that better management of the existing vegetation might be required in this region.

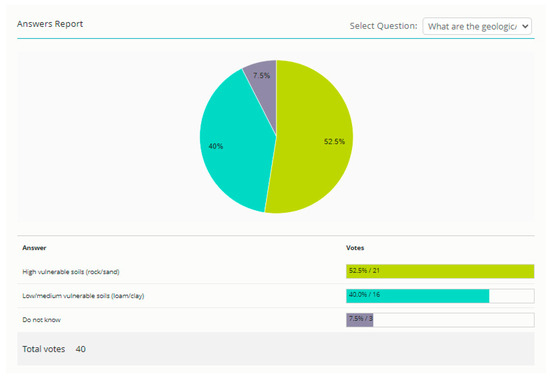

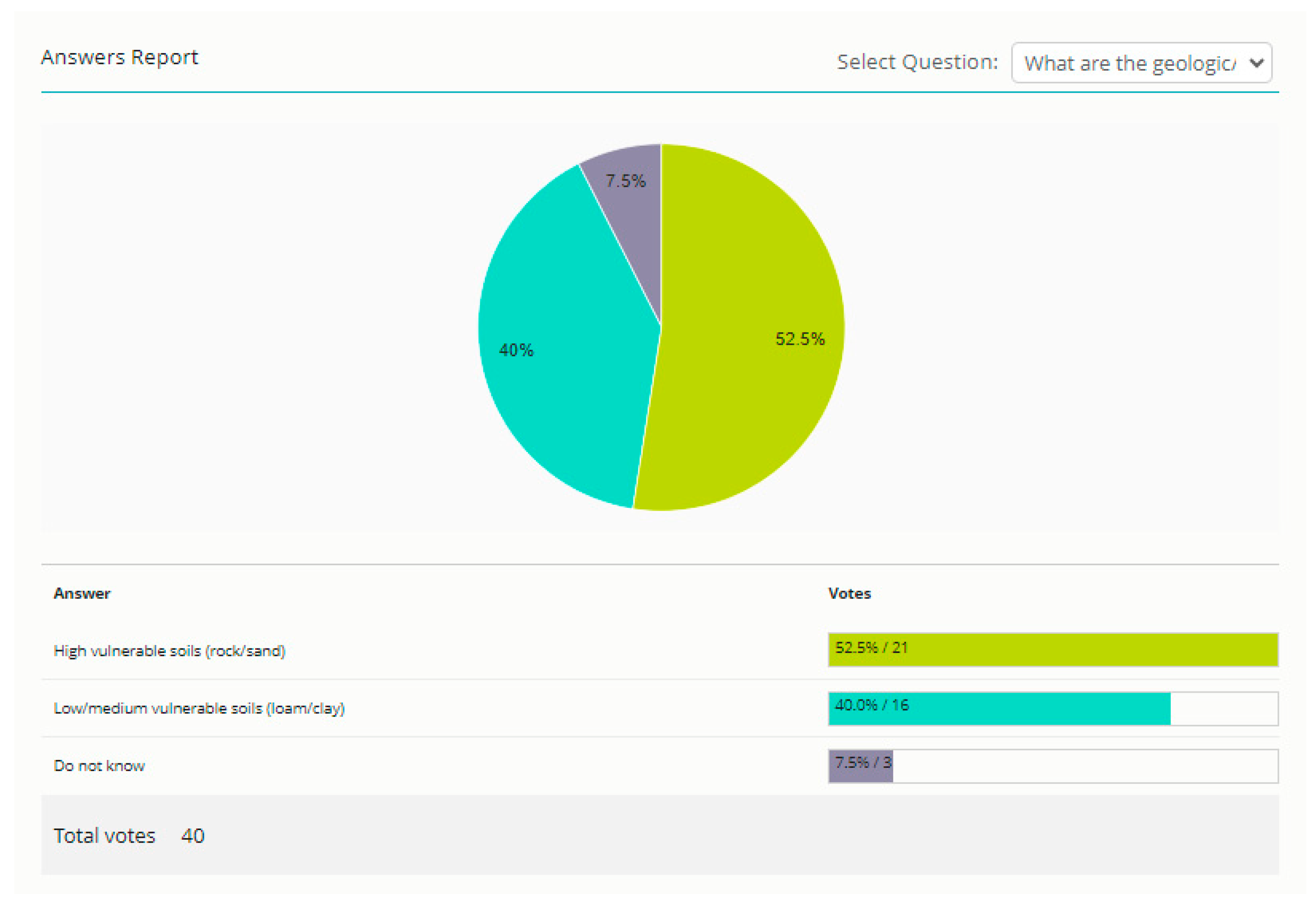

Most answers (see Figure 9) referred to highly vulnerable erodible soils (52.5%), followed by soils with low vulnerability to erosion (40%). Few answers indicated no information about the soil conditions (7.5%). Although the previous question indicated that there is a high percentage of vegetated areas, apparently (based on these answers), there is also a high percentage of highly vulnerable soils prone to erosion. This is probably the result of wildfire impacts and the torrential flows. Both occur frequently in the region and cause major negative environmental impacts [94].

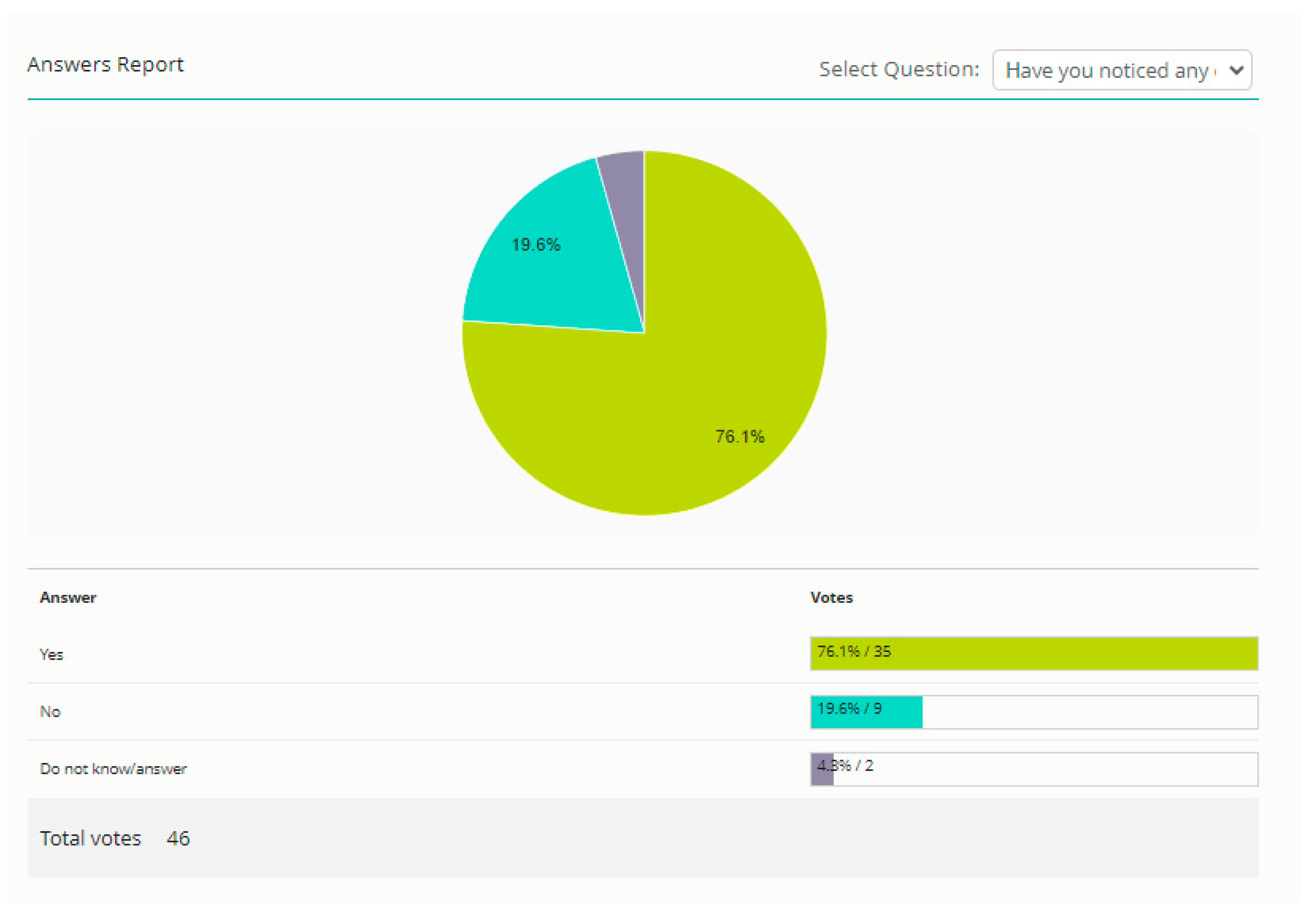

The vast majority of participants answered that they had observed erosion/deposition phenomena or land degradation (Figure 10) in their study area (76.1%), while few recorded no such phenomena (19.6%). Only two answers did not provide information on this question (4.3%). This corresponds well with the answers to the previous question, which indicated that most study areas had highly vulnerable erodible soils. In general, the Black Sea region has severe erosion problems due to its topography, soils, human activities along the coastlines, and frequent wildfires [95].

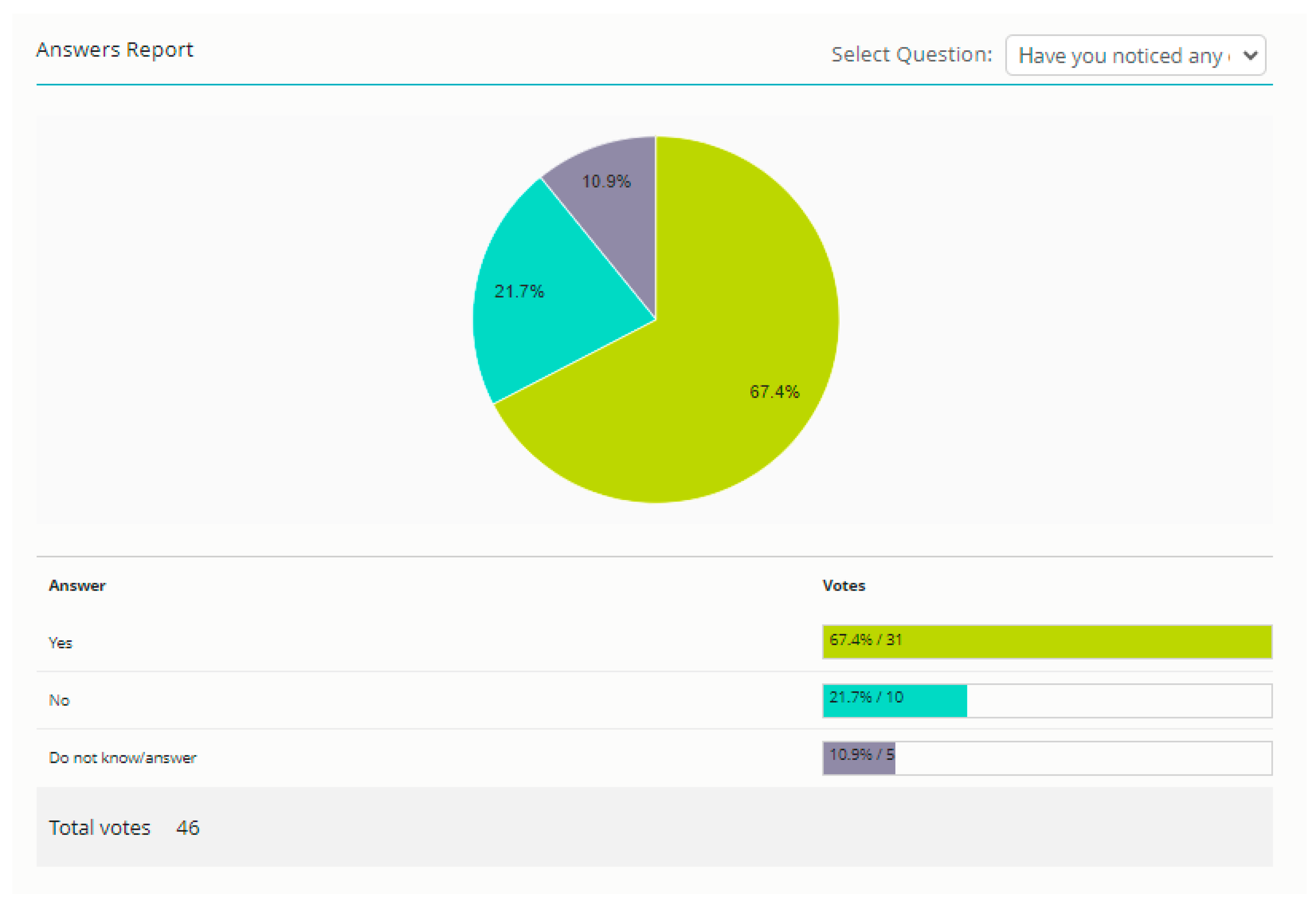

As for climate change (see Figure 11), most participants answered that they had observed extreme events (67.4%), while 10 individuals reported the absence of such phenomena (21.7%). Five participants did not provide any information on this question (10.9%). Climate change reports highlight that heavy precipitation, floods, and intense soil erosion phenomena should be expected [96,97,98]. In addition, warmer winters have been reported to lead to a drier environment, negatively impacting crop growth and health and increasing wildfire occurrence. Finally, sea-level rise has been reported to impact coastal human settlements, infrastructure, and ecosystems [99,100,101,102,103].
To summarize, these are the primary results that were recorded during the period from June 2023 to January 2024. Funding to stakeholders from Greece, Romania, Armenia, Turkey, and Moldova is limited to participants in the funded project. Most areas are forested and agricultural land. Hilly and mountainous areas (including urban and rural mountainous areas) with intense slopes were mostly recorded by the participants. These areas also include waterways, especially torrents and rivers. The bed material of these torrential waterways is primarily “cobbles, pebbles and granules”. The participant answers also indicate study areas with highly vulnerable erodible soils, with recorded erosion/deposition phenomena or land degradation. On the other hand, the vegetation was mostly dense (surprisingly) and sparse in other areas. Finally, climate change and extreme events have been recorded by the majority of participants.
Future improvements require more outputs and suggestions from stakeholders worldwide. Users’ inputs are of high importance to enhance, improve, and update the DSS. This is the reason we decided to communicate these initial results to the scientific community. This is a way to invite the scientific community and others to participate by testing our DSS platform. Based on our preliminary results, the creation of more features (e.g., discussion forums or other feedback mechanisms) would further support stakeholder collaboration. More inputs will allow us to develop a systematic approach to evaluate and compare the different NbSs in a more targeted approach. In this way, the DSS will help identify cost-effective solutions that maximize benefits while minimizing costs. The enhancement of the DSS could also include a repository of case studies, guidelines, and best practices to support continuous learning and improvement.

4. Conclusions

The online DSS is user-friendly, free, and a valuable tool providing additional, useful information for decision-making concerning NbSs and EbA. The development and deployment of the online DSS have been a success, with many participants to date. At the same time, it is being communicated to wider audiences and will continue to be updated and improved. It is a unique and innovative tool for the Black Sea region that should help further promote the EU Green Deal and will enhance the awareness and adoption of NbSs and EbA. The adoption of these approaches will also help the region increase its resilience to climate change impacts.

Author Contributions

All authors have contributed equally. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded under the Joint Operational Black Sea Programme 2014–2020, Project BSB 963 “Protect-Streams-4-Sea”, with the financial assistance of the European Union. The content of this publication is the sole responsibility of the authors and should in no case be considered to reflect the views of the European Union.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The online DSS is freely available (http://websites3.teiemt.gr/p4sea/index.php/deliverables/dss (accessed on 8 April 2024)).

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Schwenk, C.R. Cognitive simplification processes in strategic decision-making. Strateg. Manag. J. 1984, 5, 111–128. [Google Scholar] [CrossRef]
  2. Sarter, N.B.; Woods, D.D. Situation awareness: A critical but ill-defined phenomenon. Int. J. Aviat. Psychol. 1991, 1, 45–57. [Google Scholar] [CrossRef]
  3. Aruldoss, M.; Lakshmi, T.M.; Venkatesan, V.P. A survey on multi criteria decision making methods and its applications. Am. J. Inf. Syst. 2013, 1, 31–43. [Google Scholar]
  4. Hwang, C.-L.; Masud, A.S.M.; Paidy, S.R.; Yoon, K.P. Multiple Objective Decision Making, Methods and Applications: A State-of-the-Art Survey; Springer: Berlin, Germany, 1979; p. 164. [Google Scholar]
  5. Eldabi, T.; Irani, Z.; Paul, R.J.; Love, P.E. Quantitative and qualitative decision-making methods in simulation modelling. Manag. Decis. 2002, 40, 64–73. [Google Scholar] [CrossRef]
  6. Nardo, M. The quantification of qualitative survey data: A critical assessment. J. Econ. Surv. 2003, 17, 645–668. [Google Scholar] [CrossRef]
  7. Koch, J.; Eisend, M.; Petermann, A. Path dependence in decision-making processes: Exploring the impact of complexity under increasing returns. BuR—Bus. Res. 2009, 2, 67–84. [Google Scholar] [CrossRef]
  8. Yazdani, M.; Zarate, P.; Kazimieras Zavadskas, E.; Turskis, Z. A combined compromise solution (CoCoSo) method for multi-criteria decision-making problems. Manag. Decis. 2019, 57, 2501–2519. [Google Scholar] [CrossRef]
  9. Walker, W.E. Policy analysis: A systematic approach to supporting policymaking in the public sector. J. Multi-Criteria Decis. Anal. 2000, 9, 11–27. [Google Scholar] [CrossRef]
  10. Stratigea, A.; Papadopoulou, C.A.; Panagiotopoulou, M. Tools and technologies for planning the development of smart cities. J. Urban Technol. 2015, 22, 43–62. [Google Scholar] [CrossRef]
  11. Wang, J.J.; Jing, Y.Y.; Zhang, C.F.; Zhao, J.H. Review on multi-criteria decision analysis aid in sustainable energy decision-making. Renew. Sustain. Energy Rev. 2009, 13, 2263–2278. [Google Scholar] [CrossRef]
  12. Razmak, J.; Aouni, B. Decision support system and multi-criteria decision aid: A state of the art and perspectives. J. Multi-Criteria Decis. Anal. 2015, 22, 101–117. [Google Scholar] [CrossRef]
  13. Zardari, N.H.; Ahmed, K.; Shirazi, S.M.; Yusop, Z.B. Weighting Methods and their Effects on Multi-Criteria Decision Making Model Outcomes in Water Resources Management; Springer: New York, NY, USA, 2014. [Google Scholar]
  14. Toloie-Eshlaghy, A.; Homayonfar, M. MCDM methodologies and applications: A literature review from 1999 to 2009. Res. J. Int. Stud. 2011, 21, 86–137. [Google Scholar]
  15. Odu, G.O. Weighting methods for multi-criteria decision making technique. J. Appl. SCI. Environ. Manag. 2019, 23, 1449–1457. [Google Scholar] [CrossRef]
  16. Opricovic, S.; Tzeng, G.H. Compromise solution by MCDM methods: A comparative analysis of VIKOR and TOPSIS. Eur. J. Oper. Res. 2004, 156, 445–455. [Google Scholar] [CrossRef]
  17. Hites, R.; De Smet, Y.; Risse, N.; Salazar-Neumann, M.; Vincke, P. About the applicability of MCDA to some robustness problems. Eur. J. Oper. Res. 2006, 174, 322–332. [Google Scholar] [CrossRef]
  18. Ali, R.; Hussain, A.; Nazir, S.; Khan, S.; Khan, H.U. Intelligent Decision Support Systems—An Analysis of Machine Learning and Multicriteria Decision-Making Methods. Appl. Sci. 2023, 13, 12426. [Google Scholar] [CrossRef]
  19. Burstein, F.; Clyde, H. Handbook on Decision Support Systems; Springer: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
  20. Power, D.J. Decision Support Systems; Concepts and Resources for Managers; Reference and Research Book News; Book News, Inc.: Portland, OR, USA, 2002; Volume 17. [Google Scholar]
  21. Kumar, A.; Sah, B.; Singh, A.R.; Deng, Y.; He, X.; Kumar, P.; Bansal, R.C. A review of multi criteria decision making (MCDM) towards sustainable renewable energy development. Renew. Sustain. Energy Rev. 2017, 69, 596–609. [Google Scholar] [CrossRef]
  22. Batista, D.C.; Lima, M.A.; Haddad, F.; Maffia, L.A.; Mizubuti, E.S.G. Validation of decision support systems for tomato early blight and potato late blight, under Brazilian conditions. Crop Prot. 2006, 25, 664–670. [Google Scholar] [CrossRef]
  23. Ho, G.T.S.; Lee, C.K.M.; Lau, H.C.W.; Ip, A.W.H. An online decision support system for inventory management. Int. J. Prod. Dev. 2007, 4, 351–365. [Google Scholar] [CrossRef]
  24. Power, D.J.; Kaparthi, S. Building Web-based decision support systems. Stud. Inform. Control 2002, 11, 291–302. [Google Scholar]
  25. Dastres, R.; Soori, M. Advances in web-based decision support systems. Int. J. Eng. Future Technol. 2021, 19, hal-03367778. [Google Scholar]
  26. Thysen, I.; Detlefsen, N.K. Online decision support for irrigation for farmers. Agric. Water Manag. 2006, 86, 269–276. [Google Scholar] [CrossRef]
  27. Ada, Ş.; Ghaffarzadeh, M. Decision making based on management information system and decision support system. Eur. Res. 2015, 4, 260–269. [Google Scholar]
  28. Nasar, W.; Da Silva Torres, R.; Gundersen, O.E.; Karlsen, A.T. The use of decision support in search and rescue: A systematic literature review. ISPRS Int. J. Geo-Inf. 2023, 12, 182. [Google Scholar] [CrossRef]
  29. Hamoud, A.K.; Marwah, K.H.; Alhilfi, Z.; Sabr, R.H. Implementing data-driven decision support system based on independent educational data mart. Int. J. Electr. Comput. Eng. 2021, 11, 5301. [Google Scholar] [CrossRef]
  30. Cinelli, M.; Kadziński, M.; Miebs, G.; Gonzalez, M.; Słowiński, R. Recommending multiple criteria decision analysis methods with a new taxonomy-based decision support system. Eur. J. Oper. Res. 2022, 302, 633–651. [Google Scholar] [CrossRef]
  31. Eggermont, H.; Balian, E.; Azevedo, J.M.N.; Beumer, V.; Brodin, T.; Claudet, J.; Fady, B.; Grube, M.; Keune, H.; Lamarque, P.; et al. Nature-based solutions: New influence for environmental management and research in Europe. Gaia 2015, 24, 243–248. [Google Scholar] [CrossRef]
  32. Cohen-Shacham, E.; Walters, G.; Janzen, C.; Maginnis, S. Nature-Based Solutions to Address Global Societal Challenges; IUCN: Gland, Switzerland, 2016. [Google Scholar]
  33. Ruangpan, L.; Vojinovic, Z.; Di Sabatino, S.; Leo, L.S.; Capobianco, V.; Oen, A.M.; McClain, M.E.; Lopez-Gunn, E. Nature-based solutions for hydro-meteorological risk reduction: A state-of-the-art review of the research area. Nat. Hazards Earth Syst. Sci. 2020, 20, 243–270. [Google Scholar] [CrossRef]
  34. Maes, J.; Jacobs, S. Nature-based solutions for Europe’s sustainable development. Conserv. Lett. 2017, 10, 121–124. [Google Scholar] [CrossRef]
  35. Faivre, N.; Fritz, M.; Freitas, T.; De Boissezon, B.; Vandewoestijne, S. Nature-Based Solutions in the EU: Innovating with nature to address social, economic and environmental challenges. Environ. Res. 2017, 159, 509–518. [Google Scholar] [CrossRef]
  36. Meli, P.; Rey Benayas, J.M.; Balvanera, P.; Martínez Ramos, M. Restoration enhances wetland biodiversity and ecosystem service supply, but results are context-dependent: A meta-analysis. PLoS ONE 2014, 9, e93507. [Google Scholar] [CrossRef]
  37. Guimarães, L.F.; Teixeira, F.C.; Pereira, J.N.; Becker, B.R.; Oliveira, A.K.B.; Lima, A.F.; Veról, A.P.; Miguez, M.G. The challenges of urban river restoration and the proposition of a framework towards river restoration goals. J. Clean. Prod. 2021, 316, 128330. [Google Scholar] [CrossRef]
  38. Morris, R.L.; Konlechner, T.M.; Ghisalberti, M.; Swearer, S.E. From grey to green: Efficacy of eco-engineering solutions for nature-based coastal defence. Glob. Chang. Biol. 2018, 24, 1827–1842. [Google Scholar] [CrossRef]
  39. Andersson, E.; Borgström, S.; McPhearson, T. Double Insurance in Dealing with Extremes: Ecological and Social Factors for Making Nature-Based Solutions Last. In Nature-Based Solutions to Climate Change Adaptation in Urban Areas: Linkages between Science, Policy and Practice; Kabisch, N., Korn, H., Stadler, J., Bonn, A., Eds.; Springer International Publishing: Cham, Switzerland, 2017; pp. 51–64. [Google Scholar]
  40. Zaimes, G.N.; García-Rodríguez, J.L.; Iakovoglou, V.; Emmanouloudis, D. Conserving riparian and deltaic ecosystems and enhancing ecotourism opportunities. Cuad. Soc. Española Cienc. For. 2019, 45, 145–156. [Google Scholar] [CrossRef]
  41. Pontee, N.; Narayan, S.; Beck, M.W.; Hosking, A.H. Nature-based solutions: Lessons from around the world. Proc. Inst. Civ. Eng. Marit. Eng. 2016, 169, 29–36. [Google Scholar] [CrossRef]
  42. Van den Bosch, M.; Sang, Å.O. Urban natural environments as nature-based solutions for improved public health—A systematic review of reviews. Environ. Res. 2017, 158, 373–384. [Google Scholar] [CrossRef]
  43. Seddon, N.; Chausson, A.; Berry, P.; Girardin, C.A.; Smith, A.; Turner, B. Understanding the value and limits of nature-based solutions to climate change and other global challenges. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2020, 375, 20190120. [Google Scholar] [CrossRef]
  44. Iseman, T.; Miralles-Wilhelm, F. Nature-Based Solutions in Agriculture—The Case and Pathway for Adoption; FAO and The Nature Conservancy: Rome, Italy, 2021; pp. 1–52. [Google Scholar]
  45. Pagano, A.; Pluchinotta, I.; Pengal, P.; Cokan, B.; Giordano, R. Engaging stakeholders in the assessment of NBS effectiveness in flood risk reduction: A participatory System Dynamics Model for benefits and co-benefits evaluation. Sci. Total Environ. 2019, 690, 543–555. [Google Scholar] [CrossRef]
  46. Zasada, I.; Piorr, A.; Novo, P.; Villanueva, A.J.; Valánszki, I. What do we know about decision support systems for landscape and environmental management? A review and expert survey within EU research projects. Environ. Model Softw. 2017, 98, 63–74. [Google Scholar] [CrossRef]
  47. McIntosh, B.S.; Ascough, J.C., II; Twery, M.; Chew, J.; Elmahdi, A.; Haase, D.; Harou, J.J.; Hepting, D.; Cuddy, S.; Jakeman, A.J.; et al. Environmental decision support systems (EDSS) development–Challenges and best practices. Environ. Model. Softw. 2011, 26, 1389–1402. [Google Scholar] [CrossRef]
  48. Alamanos, A.; Rolston, A.; Papaioannou, G. Development of a decision support system for sustainable environmental management and stakeholder engagement. Hydrology 2021, 8, 40. [Google Scholar] [CrossRef]
  49. Matthies, M.; Giupponi, C.; Ostendorf, B. Environmental decision support systems: Current issues, methods and tools. Environ. Model. Softw. 2007, 22, 123–127. [Google Scholar] [CrossRef]
  50. Bousquet, M.; Kuller, M.; Lacroix, S.; Vanrolleghem, P.A. A critical review of multicriteria decision analysis practices in planning of urban green spaces and nature-based solutions. Blue-Green Syst. 2023, 5, 200–219. [Google Scholar] [CrossRef]
  51. Sarabi, S.; Han, Q.; de Vries, B.; Romme, A.G.L. The nature-based solutions planning support system: A playground for site and solution prioritization. Sustain. Cities Soc. 2022, 78, 103608. [Google Scholar] [CrossRef]
  52. Datola, G.; Oppio, A. NBS Design and Implementation in Urban Systems: Dimensions, Challenges and Issues to Construct a Comprehensive Evaluation Framework. In Proceedings of the International Conference on Computational Science and Its Applications (ICCSA 2023), Athens, Greece, 3–6 July 2023; Springer Nature: Cham, Switzerland, 2023. [Google Scholar]
  53. Acuña, V.; Castañares, L.; Castellar, J.; Comas, J.; Cross, K.; Istenic, D.; Masi, F.; McDonald, R.; Pucher, B.; Pueyo-Ros, J.; et al. Development of a decision-support system to select nature-based solutions for domestic wastewater treatment. Blue-Green Syst. 2023, 5, 235–251. [Google Scholar] [CrossRef]
  54. Dalwani, R.; Gopal, B. Nature-based solutions for restoration of freshwater ecosystems: Indian experiences. In Nature-Based Solutions for Resilient Ecosystems and Societies; Dhyani, S., Gupta, A.K., Madhav Karki, M., Eds.; Springer Nature Singapore Pte Ltd.: Singapore, 2020; pp. 231–245. [Google Scholar]
  55. van Rees, C.B.; Jumani, S.; Abera, L.; Rack, L.; McKay, S.K.; Wenger, S.J. The potential for nature-based solutions to combat the freshwater biodiversity crisis. PLoS Water 2023, 2, e0000126. [Google Scholar] [CrossRef]
  56. Kumar, P.; Debele, S.E.; Sahani, J.; Aragão, L.; Barisani, F.; Basu, B.; Bucchignani, E.; Charizopoulos, N.; Di Sabatino, S.; Domeneghetti, A.; et al. Towards an operationalisation of nature-based solutions for natural hazards. Sci. Total Environ. 2020, 731, 138855. [Google Scholar] [CrossRef] [PubMed]
  57. Liu, J.; Tan, J.; Zhang, S.; Zhong, C.; Lv, L.; Tara, A. Suitability Assessment of Small Dams’ Location as Nature-Based Solutions to Reduce Flood Risk in Mataniko Catchment, Honiara, Solomon Islands. Sustainability 2023, 15, 3313. [Google Scholar] [CrossRef]
  58. Biswal, B.K.; Bolan, N.; Zhu, Y.G.; Balasubramanian, R. Nature-based Systems (NbS) for mitigation of stormwater and air pollution in urban areas: A review. Resour. Conserv. Recycl. 2022, 186, 106578. [Google Scholar] [CrossRef]
  59. Anderson, V.; Gough, W.A. A Typology of Nature-Based Solutions for Sustainable Development: An Analysis of Form, Function, Nomenclature, and Associated Applications. Land 2022, 11, 1072. [Google Scholar] [CrossRef]
  60. van der Meulen, F.; IJff, S.; van Zetten, R. Nature-based solutions for coastal adaptation management, concepts and scope, an overview. Nord. J. Bot. 2023, 2023, e03290. [Google Scholar] [CrossRef]
  61. Thorslund, J.; Jarsjo, J.; Jaramillo, F.; Jawitz, J.W.; Manzoni, S.; Basu, N.B.; Chalov, S.R.; Cohen, M.J.; Creed, I.F.; Goldenberg, R.; et al. Wetlands as large-scale nature-based solutions: Status and challenges for research, engineering and management. Ecol. Eng. 2017, 108, 489–497. [Google Scholar] [CrossRef]
  62. Slinger, J.H.; Cunningham, S.C.; Kothuis, B.L. A co-design method for including stakeholder perspectives in nature-based flood risk management. Nat. Hazards 2023, 119, 1171–1191. [Google Scholar] [CrossRef]
  63. Moraes, R.P.; Reguero, B.G.; Mazarrasa, I.; Ricker, M.; Juanes, J. A Nature-based solutions in coastal and estuarine areas of Europe. Front. Environ. Sci. 2022, 10, 829526. [Google Scholar] [CrossRef]
  64. Sowińska-Świerkosz, B.; García, J. What are Nature-based solutions (NBS)? Setting core ideas for concept clarification. Nat.-Based Solut. 2022, 2, 100009. [Google Scholar] [CrossRef]
  65. Zaimes, G.N.; Iakovoglou, V. Assessing Riparian Areas of Greece—An Overview. Sustainability 2021, 13, 309. [Google Scholar] [CrossRef]
  66. Zaimes, G.N.; Tufekcioglu, M.; Schultz, R.C. Riparian Land-Use Impacts on Stream Bank and Gully Erosion in Agricultural Watersheds: What We Have Learned. Water 2019, 11, 1343. [Google Scholar] [CrossRef]
  67. Cassin, J.; Ochoa-Tocachi, B.F. Learning from indigenous and local knowledge: The deep history of nature-based solutions. In Nature-Based Solutions and Water Security. An Action Agenda for the 21st Century; Cassin, J., Matthews, J.H., Gunn, E.L., Eds.; Elsevier: San Diego, CA, USA, 2021; pp. 283–335. [Google Scholar]
  68. Dhyani, S.; Singh, S.; Kadaverugu, R.; Pujari, P.; Verma, P. Habitat Suitability Modelling and Nature-Based Solutions: An Efficient Combination to Realise the Targets of Bonn Challenge and SDGs in South Asia. In Nature-Based Solutions for Resilient Ecosystems and Societies; Dhyani, S., Gupta, A.K., Madhav Karki, M., Eds.; Springer Nature Singapore Pte Ltd.: Singapore, 2020; pp. 347–364. [Google Scholar]
  69. Yavuz, M.; Koutalakis, P.; Diaconu, D.C.; Gkiatas, G.; Zaimes, G.N.; Tufekcioglu, M.; Marinescu, M. Identification of Streamside Landslides with the Use of Unmanned Aerial Vehicles (UAVs) in Greece, Romania, and Turkey. Remote Sens. 2023, 15, 1006. [Google Scholar] [CrossRef]
  70. Adhikari, D.; Tiwary, R.; Singh, P.P.; Suchiang, B.R.; Nonghuloo, I.M.; Barik, S.K. Trees, Shrubs and Herbs for Slope Stabilization in Landslide Prone Areas of Eastern Himalaya. In Nature-Based Solutions for Resilient Ecosystems and Societies; Dhyani, S., Gupta, A.K., Madhav Karki, M., Eds.; Springer Nature Singapore Pte Ltd.: Singapore, 2020; pp. 307–326. [Google Scholar]
  71. Veldman, J.W.; Overbeck, G.E.; Negreiros, D.; Mahy, G.; Le Stradic, S.; Fernandes, G.W.; Durigan, G.; Buisson, E.; Putz, F.E.; Bond, W.J. Where tree planting and forest expansion are bad for biodiversity and ecosystem services. BioScience 2015, 65, 1011–1018. [Google Scholar] [CrossRef]
  72. Bartlett, D.; Gomez-Martin, E.; Milliken, S.; Parmer, D. Introducing landscape character assessment and the ecosystem service approach to India: A case study. Landsc. Urban Plan. 2017, 167, 257–266. [Google Scholar] [CrossRef]
  73. Bartlett, D.M. Landscape character assessment: A method to include community perspectives and ecosystem services in land-use planning. In Nature-Based Solutions for Resilient Ecosystems and Societies; Dhyani, S., Gupta, A.K., Madhav Karki, M., Eds.; Springer Nature Singapore Pte Ltd.: Singapore, 2020; pp. 99–110. [Google Scholar]
  74. Simelton, E.; Carew-Reid, J.; Coulier, M.; Damen, B.; Howell, J.; Pottinger-Glass, C.; Hung Tran, V.; Van Der Meiren, M. NBS framework for agricultural landscapes. Front. Environ. Sci. 2021, 9, 678367. [Google Scholar] [CrossRef]
  75. Telwala, Y. Unlocking the potential of agroforestry as a Nature-based Solution for localizing Sustainable Development Goals: A case study from a drought-prone region in rural India. Nat.-Based Solut. 2022, 3, 100045. [Google Scholar] [CrossRef]
  76. Kumar, M.; Singh, H. Agroforestry as a nature-based solution for reducing community dependence on forests to safeguard forests in rainfed areas of India. In Nature-Based Solutions for Resilient Ecosystems and Societies; Dhyani, S., Gupta, A.K., Madhav Karki, M., Eds.; Springer Nature Singapore Pte Ltd.: Singapore, 2020; pp. 289–306. [Google Scholar]
  77. Ureta, J.; Evangelista, K.P.; Habito, C.M.; Lasco, R. Exploring gender preferences in farming system and tree species selection: Perspectives of smallholder farmers in Southern Philippines. J. Environ. Sci. Manag. 2016, 1, 56–73. [Google Scholar] [CrossRef]
  78. La Greca, P.; La Rosa, D.; Martinico, F.; Privitera, R. Agricultural and green infrastructures: The role of non-urbanised areas for eco-sustainable planning in a metropolitan region. Environ. Pollut. 2011, 159, 2193–2202. [Google Scholar] [CrossRef]
  79. Liquete, C.; Udias, A.; Conte, G.; Grizzetti, B.; Masi, F. Integrated valuation of a nature-based solution for water pollution control. Highlighting hidden benefits. Ecosyst. Serv. 2016, 22, 392–401. [Google Scholar] [CrossRef]
  80. Kabisch, N.; van den Bosch, M.; Lafortezza, R. The health benefits of nature-based solutions to urbanization challenges for children and the elderly–A systematic review. Environ. Res. 2017, 159, 362–373. [Google Scholar] [CrossRef]
  81. Li, L.; Cheshmehzangi, A.; Chan, F.K.S.; Ives, C.D. Mapping the research landscape of nature-based solutions in urbanism. Sustainability 2021, 13, 3876. [Google Scholar] [CrossRef]
  82. Kato-Huerta, J.; Geneletti, D. Environmental justice implications of nature-based solutions in urban areas: A systematic review of approaches, indicators, and outcomes. Environ. Sci. Policy 2022, 138, 122–133. [Google Scholar] [CrossRef]
  83. Mahmoud, I.H.; Morello, E.; Vona, C.; Benciolini, M.; Sejdullahu, I.; Trentin, M.; Pascual, K.H. Setting the social monitoring framework for nature-based solutions impact: Methodological approach and pre-greening measurements in the case study from clever cities milan. Sustainability 2021, 13, 9672. [Google Scholar] [CrossRef]
  84. Koutalakis, P.; Gkiatas, G.; Iakovoglou, V.; Zaimes, G.N. New Technologies to Assess and Map an Urban Riparian Area in Drama, Greece, and Determine Opportunity Sites for Litter Traps. Sustainability 2023, 15, 15620. [Google Scholar] [CrossRef]
  85. Tewari, P.; Singh, R.D.; Nagarkoti, P.; Gumber, S. Temporal changes in livelihood and land usage patterns: Case study of a primitive tribe, Van Raji, from Uttarakhand, India. In Nature-Based Solutions for Resilient Ecosystems and Societies; Dhyani, S., Gupta, A.K., Madhav Karki, M., Eds.; Springer Nature Singapore Pte Ltd.: Singapore, 2020; pp. 213–228. [Google Scholar]
  86. Erickson, C.L. The transformation of environment into landscape: The historical ecology of monumental earthwork construction in the Bolivian Amazon. Diversity 2010, 2, 618–652. [Google Scholar] [CrossRef]
  87. Tenzin, K.; Norbu, L. Leveraging Conservation Benefits through Ecosystem-Based Services Approach and Community Engagement in Wetland and Riparian Ecosystems: The Case of Conserving Black-Necked Crane and White-Bellied Heron in Bhutan. In Nature-Based Solutions for Resilient Ecosystems and Societies; Dhyani, S., Gupta, A.K., Madhav Karki, M., Eds.; Springer Nature Singapore Pte Ltd.: Singapore, 2020; pp. 163–183. [Google Scholar]
  88. Seddon, N.; Smith, A.; Smith, P.; Key, I.; Chausson, A.; Girardin, C.; House, J.; Srivastava, S.; Turner, B. Getting the message right on nature-based solutions to climate change. Glob. Chang. Biol. 2021, 27, 1518–1546. [Google Scholar] [CrossRef]
  89. Sowińska-Świerkosz, B.; García, J. A new evaluation framework for nature-based solutions (NBS) projects based on the application of performance questions and indicators approach. Sci. Total Environ. 2021, 787, 147615. [Google Scholar] [CrossRef] [PubMed]
  90. Bhardwaj, S.; Gupta, A.K.; Dhyani, S.; Thummarukudy, M. Nature-based solution entry points through sectoral policies, strategic instruments and business continuity. In Nature-Based Solutions for Resilient Ecosystems and Societies; Dhyani, S., Gupta, A.K., Madhav Karki, M., Eds.; Springer Nature Singapore Pte Ltd.: Singapore, 2020; pp. 409–433. [Google Scholar]
  91. Ferreira, V.; Barreira, A.P.; Loures, L.; Antunes, D.; Panagopoulos, T. Stakeholders’ engagement on nature-based solutions: A systematic literature review. Sustainability 2020, 12, 640. [Google Scholar] [CrossRef]
  92. Zingraff-Hamed, A.; Hüesker, F.; Lupp, G.; Begg, C.; Huang, J.; Oen, A.; Vojinovic, Z.; Kuhlicke, C.; Pauleit, S. Stakeholder mapping to co-create nature-based solutions: Who is on board? Sustainability 2020, 12, 8625. [Google Scholar] [CrossRef]
  93. Beceiro, P.; Brito, R.S.; Galvão, A. The contribution of NBS to urban resilience in stormwater management and control: A framework with stakeholder validation. Sustainability 2020, 12, 2537. [Google Scholar] [CrossRef]
  94. Lupp, G.; Huang, J.J.; Zingraff-Hamed, A.; Oen, A.; Del Sepia, N.; Martinelli, A.; Lucchesi, M.; Knutsen, T.W.; Olsen, M.; Fjøsne, T.F.; et al. Stakeholder perceptions of nature-based solutions and their collaborative co-design and implementation processes in rural mountain areas—A case study from PHUSICOS. Front. Environ. Sci. 2021, 9, 678446. [Google Scholar] [CrossRef]
  95. Lupp, G.; Zingraff-Hamed, A.; Huang, J.J.; Oen, A.; Pauleit, S. Living labs—A concept for co-designing nature-based solutions. Sustainability 2020, 13, 188. [Google Scholar] [CrossRef]
  96. Calliari, E.; Castellari, S.; Davis, M.; Linnerooth-Bayer, J.; Martin, J.; Mysiak, J.; Pastor, T.; Ramieri, E.; Scolobig, A.; Sterk, M.; et al. Building climate resilience through nature-based solutions in Europe: A review of enabling knowledge, finance and governance frameworks. Clim. Risk Manag. 2022, 37, 100450. [Google Scholar] [CrossRef]
  97. Johnson, B.A.; Kumar, P.; Okano, N.; Dasgupta, R.; Shivakoti, B.R. Nature-based solutions for climate change adaptation: A systematic review of systematic reviews. Nat.-Based Solut. 2022, 2, 100042. [Google Scholar] [CrossRef]
  98. Görür, N. Timing of opening of the Black Sea basin. Tectonophysics 1988, 147, 247–262. [Google Scholar] [CrossRef]
  99. Zaimes, G.N.; Tufekcioglu, M.; Zibtsev, S.; Yavuz, M.; Emmanouloudis, D.; Kaziolas, D.; Corobov, R.; Uratu, R.; Ghulijanyan, A.; Borsuk, A.; et al. Developing a holistic and complete approach for wildfire suppression for the Black Sea region. In Proceedings of the International Conference of Forest Fires in Black Sea Region, Kastamonu, Turkey, 5–8 November 2014. [Google Scholar]
  100. Blinkov, I. The Balkans: The most erosive part of Europe? Glas. Šumar. Fak. 2015, 111, 9–20. [Google Scholar] [CrossRef]
  101. Bär, R.; Rouholahnejad, E.; Rahman, K.; Abbaspour, K.C.; Lehmann, A. Climate change and agricultural water resources: A vulnerability assessment of the Black Sea catchment. Environ. Sci. Policy 2015, 46, 57–69. [Google Scholar] [CrossRef]
  102. Turp, M.T.; An, N.; Bilgin, B.; Şimşir, G.; Orgen, B.; Kurnaz, M.L. Projected Summer Tourism Potential of the Black Sea Region. Sustainability 2023, 16, 377. [Google Scholar] [CrossRef]
  103. Sen, B.; Topcu, S.; Türkeș, M.; Sen, B.; Warner, J.F. Projecting climate change, drought conditions and crop productivity in Turkey. Clim. Res. 2012, 52, 175–191. [Google Scholar] [CrossRef]

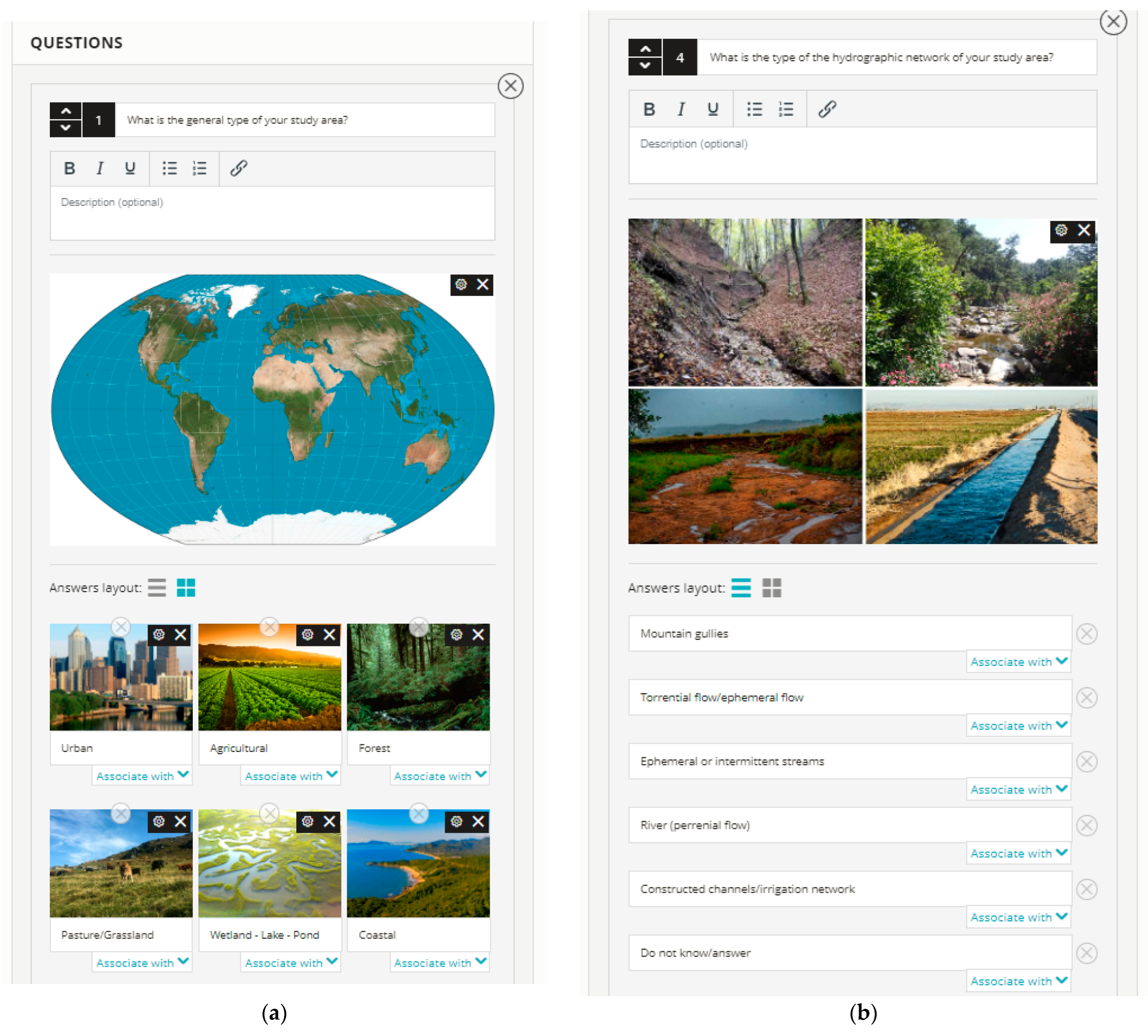

Figure 1. An example of DSS questions: (a) the general type of the study area; (b) the type of hydrographic network in the study area.
Figure 1. An example of DSS questions: (a) the general type of the study area; (b) the type of hydrographic network in the study area.
Platforms 02 00008 g001
Figure 2. An example of a potential outcome related to “agricultural solutions” containing different best management practices.
Figure 2. An example of a potential outcome related to “agricultural solutions” containing different best management practices.
Platforms 02 00008 g002
Figure 3. The statistics (answer report) concerning the general category of the study area.
Figure 3. The statistics (answer report) concerning the general category of the study area.
Platforms 02 00008 g003
Figure 4. The statistics (answer report) concerning the average altitude of the study area.
Figure 4. The statistics (answer report) concerning the average altitude of the study area.
Platforms 02 00008 g004
Figure 5. The statistics (answer report) concerning the average slope of the study area.
Figure 5. The statistics (answer report) concerning the average slope of the study area.
Platforms 02 00008 g005
Figure 6. The statistics (answer report) concerning the type of hydrographic network in the study area.
Figure 6. The statistics (answer report) concerning the type of hydrographic network in the study area.
Platforms 02 00008 g006
Figure 7. The statistics (answer report) concerning the type of streambed in the study area.
Figure 7. The statistics (answer report) concerning the type of streambed in the study area.
Platforms 02 00008 g007
Figure 8. The statistics (answer report) concerning the average vegetation type in the study area.
Figure 8. The statistics (answer report) concerning the average vegetation type in the study area.
Platforms 02 00008 g008
Figure 9. The statistics (answer report) concerning the geologic/soil conditions of the study area.
Figure 9. The statistics (answer report) concerning the geologic/soil conditions of the study area.
Platforms 02 00008 g009
Figure 10. The statistics (answer report) concerning the existence of erosion/deposition phenomena or degradation in the study area.
Figure 10. The statistics (answer report) concerning the existence of erosion/deposition phenomena or degradation in the study area.
Platforms 02 00008 g010
Figure 11. The statistics (answer report) concerning the existence of climate-change-induced extreme events in the study area.
Figure 11. The statistics (answer report) concerning the existence of climate-change-induced extreme events in the study area.
Platforms 02 00008 g011
Table 1. A list of examples of decision analysis methods found in the literature.
Table 1. A list of examples of decision analysis methods found in the literature.
NrMethodAbbreviation
1Aggregated indices randomization methodAIRM
2Analytic hierarchy processAHP
3Analytic network processANP
4Data envelopment analysisDEA
5Dominance-based rough set approachDRSA
6Élimination et choix traduisant la réaliteELECTRE
7The evidential reasoning approachER
8Goal programmingGP
9Grey relational analysisGRA
10Inner product of vectorsIPV
11Multi-attribute global inference of qualityMAGIQ
12New approach to appraisalNATA
13Nonstructural fuzzy decision support systemNSFDSS
14Potentially all pairwise rankings of all possible alternativesPAPRIKA
15Preference ranking organization methods for enrichment of evaluationPROMETHEE
16Superiority and inferiority ranking methodSIR Method
17Value analysisVA
18Value engineeringVE
19Weighted product modelWPM
20Weighted sum modelWSM
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Koutalakis, P.; Zaimes, G. The Development of an Online Decision Support System to Select Optimal Nature-Based Solutions to Protect Streams and the Sea. Platforms 2024, 2, 118-137. https://doi.org/10.3390/platforms2030008

AMA Style

Koutalakis P, Zaimes G. The Development of an Online Decision Support System to Select Optimal Nature-Based Solutions to Protect Streams and the Sea. Platforms. 2024; 2(3):118-137. https://doi.org/10.3390/platforms2030008

Chicago/Turabian Style

Koutalakis, Paschalis, and George Zaimes. 2024. "The Development of an Online Decision Support System to Select Optimal Nature-Based Solutions to Protect Streams and the Sea" Platforms 2, no. 3: 118-137. https://doi.org/10.3390/platforms2030008

APA Style

Koutalakis, P., & Zaimes, G. (2024). The Development of an Online Decision Support System to Select Optimal Nature-Based Solutions to Protect Streams and the Sea. Platforms, 2(3), 118-137. https://doi.org/10.3390/platforms2030008

Article Metrics

Back to TopTop
