Design of Marine Cyclodepsipeptide Analogues Targeting Candida albicans Efflux Pump CaCdr1p

by
Ricardo Ribeiro
1,2,†,
Sara Fortes
1,†,
Lia Costa
1,
Andreia Palmeira
1,2,
Eugénia Pinto
2,3,
Emília Sousa
1,2 and
Carla Fernandes
1,2,*
1
Laboratório de Química Orgânica e Farmacêutica, Departamento de Ciências Químicas, Faculdade de Farmácia, Universidade do Porto, Rua de Jorge Viterbo Ferreira, 228, 4050-313 Porto, Portugal
2
Interdisciplinary Centre of Marine and Environmental Research (CIIMAR), Edifício do Terminal de Cruzeiros do Porto de Leixões, Av. General Norton de Matos s/n, 4050-208 Matosinhos, Portugal
3
Laboratório de Microbiologia, Departamento de Ciências Biológicas, Faculdade de Farmácia, Universidade do Porto, Rua de Jorge Viterbo Ferreira 228, 4050-313 Porto, Portugal
*
Author to whom correspondence should be addressed.
†
These authors equally contributed to this work.
Drugs Drug Candidates 2024, 3(3), 537-549; https://doi.org/10.3390/ddc3030031
Submission received: 13 June 2024 / Revised: 24 July 2024 / Accepted: 26 July 2024 / Published: 1 August 2024
(This article belongs to the Collection Chirality in Drugs and Drug Candidates)
Browse Figures
Versions Notes

Abstract

Fungal infections are a significant threat to human health and the environment. The emergence of multidrug-resistant strains of fungi and the growing prevalence of azole resistance in invasive fungal infections exacerbate the problem, with efflux pumps being a major cause of antifungal resistance and a prime target for several counteractive strategies. In Candida albicans, the ATP-binding cassette superfamily transporter CaCdr1p is the predominant efflux pump involved in azole resistance. Marine organisms have unique phenotypic characteristics to survive in challenging environments, resulting in biologically active compounds. The cyclodepsipeptides unnarmicin A and C have shown promising results as inhibitors of rhodamine 6G efflux in cells expressing CaCdr1p. Herein, a series of unnarmicin analogues were designed and docked against a CaCdr1p efflux pump based on the cryogenic electron microscopy structure available to select the most promising compounds. Analogue 33 was predicted to be the best considering its high affinity for the efflux pump and pharmacokinetic profile. These results pave the way for further synthesis and in vitro biological studies of novel unnarmicins seeking a synergistic effect with fluconazole.

1. Introduction

Microbial agents, including bacteria, fungi, and viruses, have always been a great concern within the scientific and medical communities. Contrary to previous expectations of a multidrug-resistant bacterial pandemic, the emergence of the severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2 virus) brought to light the potential problem of fungal infections [1]. Fungi are part of the normal human gastrointestinal tract, but they can cause deadly infections if the immune system is weakened. It is estimated that fungal infections are responsible for 1.5 million deaths each year, a number that is particularly relevant among the increasing population at risk, including immunocompromised individuals, organ transplant recipients, cancer patients, elderly people, and premature newborns [2,3]. Fungal pathogens also have a significant impact on the environment, with potential disruptions to ecosystems and food security, and they can even contribute to species extinction [4].
Candida, Aspergillus, and Cryptococcus genera are the most common causes of invasive fungal infections [2,5], with candidemia being a particular concern due to its high mortality rate and economic burden associated with longer hospitalizations [2,5,6]. Candida spp. are commensal yeasts of the human gastrointestinal tract, mucous membranes, and skin. However, when the body’s normal balance is disrupted, Candida can become an opportunistic pathogen. Different types of Candida have different invasive potential, virulence, and susceptibility to antifungal drugs [3,5]. Interestingly, when Candida opportunistic pathogens are examined on a phylogenetic tree, they are found to be part of different lineages that are mixed with non-pathogenic relatives. This suggests that the ability to infect humans has independently arisen, multiple times throughout evolution. Therefore, different Candida species may use different mechanisms to evade the host’s immune system, displaying a variety of virulence phenotypes [6].
C. albicans is the most common pathogen associated with nosocomial invasive candidosis worldwide [7]. However, in recent years, an increasing number of infections by non-albicans Candida species have been reported, including C. glabrata, C. parapsilosis, C. tropicalis, C. krusei, and, more recently, C. auris [8]. This change in the epidemiology of Candida infection has been partly attributed to the selection of less-sensitive Candida strains by the widespread use of the azole fluconazole (FLC) [7].
Currently, there are two main challenges that limit the effectiveness of candidosis treatment: first, it can be difficult to quickly and accurately diagnose the specific agent causing the infection and, second, the number of available treatment options is limited [6]. There are only three major classes of antifungal drugs available to treat candidosis: azoles, which inhibit the production of ergosterol, a fungal cell membrane component; polyenes, which bind to ergosterol and cause cell death by damaging the cell membrane; and echinocandins, that block the biosynthesis of a key cell wall component, β-1,3-D-glucan [2,3,5,6,7]. The emergence of multidrug-resistant (MDR) strains of fungi and increasing azole-resistant invasive fungal infections (IFIs) to antifungal treatments poses a serious threat to patient outcomes, especially in developing countries where antifungal agents are limited [2].
Azole resistance can occur through different mechanisms. One mechanism involves the overexpression of efflux pumps, which reduces drug concentrations at the target site. In Candida species, efflux pumps are encoded by the CDR genes of the ATP-binding cassette (ABC) superfamily and the MDR genes of the major facilitator superfamily (MFS). ABC pumps use ATP hydrolysis as an energy source and can accept a wide range of compounds as substrates, while the MFS class utilizes the proton motive force of the membrane as an energy source [5,8,9]. While CDR pumps can confer resistance to most azoles, MDR pumps appear to be selective for FLC resistance.
Many ABC and MFS transporter proteins have been identified in Candida species; however, only a few are significant in clinical drug resistance. Among the 19 ABC transporter proteins, only CaCdr1p and CaCdr2p, and among the 95 MFS superfamily members, only CaMdr1p, have been directly linked to the emergence of antifungal resistance in clinical isolates of C. albicans. The MDR1 gene is involved specifically in resistance to FLC rather than to other azoles. Although CaCDR1 and CaCDR2 genes are upregulated, CaCdr1p is the predominant protein involved in azole resistance [8]. CaCdr1p is a transporter with two transmembrane domains (TMDs) and two nucleotide-binding domains (NBDs) arranged in a reverse topology, with the NBDs preceding the TMDs (NBD–TMD). The NBDs are the energy source of these proteins [10]. Each TMD of CaCdr1p is made up of six transmembrane helices (TMH1-12) which are connected to each other and with the NBDs via the intracellular loops (ICL1-4) and the extracellular loops (ECL1-6) (Figure 1) [5,8,11].
Since efflux pumps are a major cause of antifungal resistance, they are a prime target for several counteractive strategies. One approach is to use antifungal drugs that are not substrates for efflux pumps to maintain a high drug concentration at the site of action, inside the fungal cell. Another strategy is to develop efflux inhibitors or chemosensitizers that impair the activity of the efflux pump, either by blocking access to the binding site or by inhibiting the efflux pump transcription. Additional strategies include designing inhibitors that de-energize ATP or H+-dependent transporters to promote antifungal uptake. However, these strategies could have unintended effects on other cellular metabolic activities, and the use of immunosuppressive drugs could be problematic for immunosuppressed patients [12,13,14].
The ocean is a vast and yet largely unexplored source of potentially valuable bioactive compounds [15,16]. The challenging marine environments characterized by extreme variations in temperature, pressure, light, salinity, and nutrient availability drives marine organisms to develop unique metabolic and physical capabilities to adapt and survive in these everlasting, changing, demanding habitats [17,18]. Through a process of natural selection, this taxonomic diversity leads to a range of metabolites that greatly differ in structure and function from those produced by terrestrial organisms, forming the foundation of chemical diversity in the marine environment [19,20].
Among the vast number of antimicrobial marine-derived compounds [21,22,23], the cyclodepsipeptides unnarmicin A (1) and C (2) (Figure 2), isolated from a marine gammaproteobacterium, have shown high in vitro antimicrobial potency and promising in vivo results against fungal infections, especially those caused by MDR fungi [24,25]. These marine cyclodepsipeptides have proven to be potent inhibitors of rhodamine 6G efflux in CaCdr1p-expressing cells, with half-maximal inhibitory concentration (IC50) values of 2.29 and 3.75 mg/mL, respectively [24]. Additionally, both were able to inhibit a broader range of fungal multidrug efflux pumps, including C. glabrata CgCdr1p and CgPdh1p, C. albicans CaCdr1p, and S. cerevisiae ScPdr5p. It appears that the inhibitory activity of these compounds is selective for CaCdr1p in C. albicans, as they did not affect the growth of CaCdr2p and CaMdr1p overexpressing cells. Although the length of the alkyl side chain may affect the different efficacies of these two compounds in different biochemical assays, it seems that both unnarmicins have similar affinities to the target proteins and, therefore, similar inhibitory activities [24].
In this work, a library of unnarmicin analogues was designed and their affinity to the C. albicans efflux pump CaCdrp1p was evaluated through a molecular docking approach.

2. Results and Discussion

2.1. Structure-Based Virtual Screening

Drug discovery and development is a time- and resource-intensive process. The combination of computational tools with traditional chemical and biological assays is proving to be a powerful approach to streamline this process by improving the success rate of drug screening and reducing the blindness of research. In silico design can expedite and facilitate the various stages of drug discovery, including hit identification [26], with molecular docking among the most popular and successful structure-based computational methods [27,28].
Structurally, the cyclodepsipeptides unnarmicin A (1) and C (2) comprise four amino acid residues, L-Phe, D-Phe, and two L-Leu, and a 3-hydroxy fatty acid, with the main difference between them being the length of the alkyl chain (Figure 2).
The library of unnarmicin analogues designed includes 33 compounds (3–35) whose structures are illustrated in Figure 3. The unnarmicin analogues vary in terms of the tetrapeptide composition, amino acid residues sequence and/or stereochemistry, or alkyl chain.
Regarding the peptide’s composition, in addition to Phe and Leu amino acids present in both unnarmicins 1 and 2, other amino acid residues were selected. As shown in Figure 3, Ile, Pro, and Trp were included in the structure of some analogues, as these amino acids are pharmacophoric moieties in many bioactive compounds for various biological activities [29].
The planning of the unnarmicin analogues 3–35 also took into consideration the commercial availability of building blocks, predicting that their further synthesis is feasible. Hence, two alkyl side chains, with different length and stereogenic center positions, and an intramolecular alkyl chain were included considering the commercial building blocks 2-hydroxy-n-octanoic acid (36), 3-hydroxy-n-decanoic acid (37), and 3-hydroxy-n-propanoic acid (38), respectively. The last hydroxy acid was selected for comparison purposes and subsequent evaluation of the relevance of the alkyl side chain for target interaction and, therefore, for biological effect. Considering that the chiral alkyl moiety of both marine cyclodepsipeptides 1 and 2 has (R)-configuration, only this configuration was selected for the design of the alkyl moiety stereogenic center of unnarmicin analogues (3–35).
The binding affinity between the Cdr1p and the small molecules was evaluated by the binding free energy approximation (ΔG, kcal/mol), using AutoDock Vina (Table 1). The more negative the score, the greater the affinity of the compound for the target protein [30].
To perform the structure-based virtual screening, several reported inhibitors of CaCdr1p (39–46, Figure S1, Supplementary Materials) [24,31] and known subtracts (47–48, Figure S2, Supplementary Materials) [24,31,32,33] were used as positive controls. The docking analysis of the positive controls supported those reported in the in vitro studies, that is, the compounds with the best performance in vitro were also the ones with the greatest results in silico (Table 2).
Rhodamine 6G (48) is a fluorescent compound widely used in the in vitro evaluation tests for these inhibitors [24,31]. As for FLC (47), it is a drug widely used in therapy but it has been associated with an increasing number of cases of resistance, namely, due to the overexpression of efflux pumps, specifically, CaCdr1p [24,31]. This justifies the interest in this specific drug for the docking analysis. Furthermore, the unnarmicin analogues (3–35) were designed aiming to obtain competitive inhibitors with similar binding sites in the protein to FLC (47) and, therefore, to promote a steric hindrance to avoid its efflux. Non-competitive inhibition, for example, at the ATP-binding site of this pump, was not pursued to avoid potential interactions with other ATP-dependent efflux pumps. Such interactions could result in a loss of selectivity of the molecule and adverse effects on the host.
As shown in Table 1, several analogues, namely, compounds 7, 13–25, 27, 30, 31, 33, and 35, revealed promising results having ΔG values in the range of −10.0 to −11.3 kcal/mol. It was found that, for the designed new unnarmicin analogues (3–35), the proposed aliphatic moiety (3-hydroxypropionic, 2-hydroxy-n-octanoic, and 3-hydroxydecanoic moieties, in compounds 3, 29, and 4, respectively) improved the affinity for Cdr1p and there was a slight preference towards the smallest alkyl chains (ΔG 29 > 3 > 4). The carbon making the connection between the alkyl chain and the tetrapeptide played an important role in the affinity, as seen by the increased affinity for the 2-hydroxy-n-octanoic aliphatic (29). The stereochemistry was also important, as shown by the increased affinity resulting from substituting the L-Leu with the D-Leu (1–4 and 29 versus 5–8 and 30, respectively).
The Ile analogues (9–12 and 31) provided insight into the effects of a simple change in the position of a methyl group, which differentiates Leu from Ile, on the interaction with the protein. This change was sufficient to disrupt the interaction (increase the ΔG) but the extent of the disruption was also dependent on the specific carbon atom that was involved in the connection to the tetrapeptide, as evidenced by the significant difference observed between compound 31 and the others (9–12).
The position of the hydroxyl group and the volume of the residues are also correlated: the 2-hydroxyoctanoic aliphatic interacted better with a more linear residue like an Ile (31 had a ΔG of −10.3 kcal/mol, the best of the Ile analogues (9–12 and 31)), while the L-Pro, a larger amino acid, worked better with the 3-hydroxy position (compounds 13–16 had a lower ΔG than analogue 32), with the smaller the alkyl chain the better, even though 15 had a slight decrease in the affinity (13 > 15 > 14 > 16).
The substitution of L-Leu by L-Trp (17–20 and 33) was indeed the one that ensures the best compound conformation for the interaction with CaCdr1p, since all analogues comprising L-Trp (without exception) had ∆G values in the range of −10.2 to −11.3 kcal/mol.
In comparison to other molecules, a visual inspection revealed that analogue 33 exhibited a unique conformation that remarkably fills the active site, resembling a cannon-like structure (Figure 4A). Interaction details are shown in Figure S3 (Supplementary Materials). This exceptional fitting is primarily attributed to the indole ring of Trp, allowing it to occupy the space with nearly perfect occupancy (it is the only Trp analogue that had its ring facing downward, as shown in Figure 4B). While other molecules also occupy the active site, they leave unfilled gaps, which is in accordance with the reduced affinity (Figure 4C,D). This distinctive conformation suggests that a possible synergistic effect with FLC (to prevent its efflux) may be more effective with this analogue (33) than with the others, possibly leading to a significantly enhanced in vitro effect. These findings further highlight the potential of 33 as a promising candidate for future research and development efforts.
Analogue 33 interacts in the same place as FLC (47) (Figure 5A,B) but with greater affinity (Table 1), which means that it is indeed the optimal choice for an inhibitor of CaCdr1p, with a potential synergistic effect being hypothesized when combined with FLC (47). Therefore, it is also the choice for further development and synthesis. The other analogues also bind to the same binding site but the blockage is not so successful (Figure 5C,D).

2.2. In Silico Pharmacokinetics Prediction

The physicochemical descriptors, as well as ADME parameters, pharmacokinetic properties, druglike nature, and medicinal chemistry friendliness, were predicted for the unnarmicins (1–2, Figure 2) and their analogues (3–35, Figure 3) to support drug discovery using the SwissADME web tool, available at http://www.swissadme.ch/index.php (accessed on 22 May 2024) [34]. Some of the most relevant data are summarized in Table S1 (Supplementary Materials).
The topological polar surface area (TPSA) and logarithm of n-octanol/water partition coefficient (Log Po/w) values for all the cyclodepsipeptides (1–35) ranged from 133.91 to 158.49 and from 2.69 to 6.20, respectively. The predicted bioavailability score for the cyclodepsipeptides was 0.55, except for five analogues (21–25), whose bioavailability score was lower (0.17). None of the compounds were predicted to be blood–brain barrier (BBB) permeants. Regarding the gastrointestinal (GI) absorption, the scenario is diverse, with the majority with one violation to Lipinski’s rule of five, considering the molecular weight (MW) > 500.
Comparing the pharmacokinetics prediction data of the most promising analogue (33) with the natural unnarmicins (1–2), it is important to highlight some improvements in the physicochemical descriptors, ADME parameters, and pharmacokinetic properties.
Analogue 33 has a MW in the range of 500, while unnarmicin A (1) and C (2) have a MW higher than 634. The Log Po/w value of 33 is the lowest of all compounds and it complies with the parameters of Veber’s rule. Unlike 1–2, high GI absorption is expected for 33. Analogue 33 was identified to have relatively optimal drug-likeness and medicinal chemistry characteristics. Hence, the synthesis and in vitro biological evaluation of analogue 33 will be further carried out. A proposal for the retrosynthesis of analogue 33 is presented in Scheme 1.

3. Materials and Methods

3.1. Computational

3.1.1. Preparation of Unnarmicins A (1) and C (2), Unnarmicin Analogues (3–35), and Known Controls (39–48)

The unnarmicin A (1, Figure 2), unnarmicin C (2, Figure 2), 33 unnarmicin analogues (3–35, Figure 2), reported inhibitors (39–46, Figure S1), and known subtracts (47–48, Figure S2) were drawn using ChemDraw Professional 16.0 and minimized using the Chem3D 16.0 Molecular Mechanics 2 minimization tool.

3.1.2. Preparation of CaCdr1p Efflux Pump

The protein X-ray crystallographic structure is the experimental basis of docking simulations [35,36]. However, until this moment, the experimental X-ray crystallographic structure for CaCdr1p has not been available. This way, the predicted model of CaCdr1p (Swiss-Model Repository, Q5ANA3) based on the cryogenic electron microscopy structure from the Pdr5 efflux pump of Saccharomyces cerevisiae (ScCdr1p) was used [37]. The protein was prepared by removing both the water molecules and the ligands.

3.1.3. Docking Studies

Docking simulations between all compounds and CaCdr1p were undertaken in AutoDock Vina 1.5.7. [38,39], a virtual screening tool software. Vina was run using an exhaustiveness of 100 and a grid box with the dimensions of X: 44, Y: 44, Z: 42 engulfing the translocation pathway. PyMol Molecular Graphics System, Version 2.0 Schrödinger, LLC, and BIOVIA Discovery Studio Visualizer, Version 21.1.0.20298, Dassault Systèmes, were used for a visual inspection of the results and graphical representations.

3.1.4. Pharmacokinetics Prediction

The physicochemical descriptors, ADME parameters, pharmacokinetic properties, druglike nature, and medicinal chemistry friendliness were predicted using the SwissADME web tool, available at http://www.swissadme.ch/index.php (accessed on 22 May 2024) [34].

4. Conclusions

Drug discovery is a time- and resource-consuming process but in silico design can expedite and facilitate the various stages of this process, improving the success rate of drug screening. Marine organisms have shown to be a resourceful font of interesting bioactive compounds. This work is an example of that, as it started with the docking of a series of unnarmicin analogues followed by pharmacokinetics prediction, allowing the selection of the most promising analogue, compound 33, in addition to other interesting compounds, such as 13, 15, and 19, considering both their ∆G values and pharmacokinetic profiles. These first steps are expected to proceed with the successful synthesis and in vitro biological evaluation of analogue 33 and other promising analogues to further validate this in silico approach.
In conclusion, marine natural products analogues were predicted to overcome azole-resistant C. albicans strains.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ddc3030031/s1: Figure S1: Structures of known inhibitors of CaCdr1p. FK506 (39), FK520 (40), Enniatin B (41), Dissulfiram (42), Ibuprofen (43), Milbemycin α11 (44), Milbemycin α20 (45), and Milbemycin β11 (46). Figure S2: Structures of known substrates of CaCdr1p. Fluconazole (FLC) (47) and Rhodamine 6G (48). Figure S3: Specific interactions between analogue 33 and CaCdr1p efflux pump. Distances expressed in angstroms (Å). Table S1: Some physicochemical descriptors and predicted ADME parameters, pharmacokinetic properties, and druglike nature for unnarmicins (1–2) and analogues (3–35). Available in http://www.swissadme.ch/index.php (accessed: 22/05/2024).

Author Contributions

Conceptualization: C.F. and E.S.; Methodology: C.F. and E.S.; Software: S.F., R.R. and A.P.; Formal analysis: E.S., A.P., E.P. and C.F.; Investigation: R.R., L.C. and S.F.; Data curation: E.S., A.P. and C.F.; Writing—original draft preparation: S.F., L.C. and R.R.; Writing—review and editing: E.S., E.P., A.P. and C.F.; Supervision: E.S., A.P. and C.F.; Funding acquisition: E.S., E.P. and C.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by national funds through the FCT (Foundation for Science and Technology) within the scope of UIDB/04423/2020, UIDP/04423/2020 (Group of Marine Products and Medicinal Chemistry—CIIMAR).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

R.R. thanks the BYTPhD program by CIIMAR and the grant provided by the FCT UI/BD/150912/2021.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Rusic, D.; Vilovic, M.; Bukic, J.; Leskur, D.; Seselja Perisin, A.; Kumric, M.; Martinovic, D.; Petric, A.; Modun, D.; Bozic, J. Implications of COVID-19 Pandemic on the Emergence of Antimicrobial Resistance: Adjusting the Response to Future Outbreaks. Life 2021, 11, 220. [Google Scholar] [CrossRef] [PubMed]
  2. Arastehfar, A.; Lass-Flörl, C.; Garcia-Rubio, R.; Daneshnia, F.; Ilkit, M.; Boekhout, T.; Gabaldon, T.; Perlin, D.S. The Quiet and Underappreciated Rise of Drug-Resistant Invasive Fungal Pathogens. J. Fungi 2020, 6, 138. [Google Scholar] [CrossRef] [PubMed]
  3. Branco, J.; Miranda, I.M.; Rodrigues, A.G. Candida parapsilosis Virulence and Antifungal Resistance Mechanisms: A Comprehensive Review of Key Determinants. J. Fungi 2023, 9, 80. [Google Scholar] [CrossRef] [PubMed]
  4. Brown, G.D.; Denning, D.W.; Gow, N.A.R.; Levitz, S.M.; Netea, M.G.; White, T.C. Hidden Killers: Human Fungal Infections. Sci. Transl. Med. 2012, 4, 165rv13. [Google Scholar] [CrossRef] [PubMed]
  5. Costa-de-Oliveira, S.; Rodrigues, A.G. Candida albicans Antifungal Resistance and Tolerance in Bloodstream Infections: The Triad Yeast-Host-Antifungal. Microorganisms 2020, 8, 154. [Google Scholar] [CrossRef] [PubMed]
  6. Ksiezopolska, E.; Gabaldón, T. Evolutionary Emergence of Drug Resistance in Candida Opportunistic Pathogens. Genes 2018, 9, 461. [Google Scholar] [CrossRef] [PubMed]
  7. Sanguinetti, M.; Posteraro, B.; Lass-Flörl, C. Antifungal drug resistance amongCandidaspecies: Mechanisms and clinical impact. Mycoses 2015, 58, 2–13. [Google Scholar] [CrossRef] [PubMed]
  8. Prasad, R.; Nair, R.; Banerjee, A. Multidrug transporters of Candida species in clinical azole resistance. Fungal Genet. Biol. 2019, 132, 103252. [Google Scholar] [CrossRef] [PubMed]
  9. Barbosa, F.; Pinto, E.; Kijjoa, A.; Pinto, M.; Sousa, E. Targeting antimicrobial drug resistance with marine natural products. Int. J. Antimicrob. Agents 2020, 56, 106005. [Google Scholar] [CrossRef]
  10. Prasad, R.; Banerjee, A.; Khandelwal, N.K.; Dhamgaye, S. The ABCs of Candida albicans Multidrug Transporter Cdr1. Eukaryot. Cell 2015, 14, 1154–1164. [Google Scholar] [CrossRef]
  11. Banerjee, A.; Pata, J.; Sharma, S.; Monk, B.C.; Falson, P.; Prasad, R. Directed Mutational Strategies Reveal Drug Binding and Transport by the MDR Transporters of Candida albicans. J. Fungi 2021, 7, 68. [Google Scholar] [CrossRef] [PubMed]
  12. Berman, J.; Krysan, D.J. Drug resistance and tolerance in fungi. Nat. Rev. Microbiol. 2020, 18, 319–331. [Google Scholar] [CrossRef] [PubMed]
  13. Sanglard, D.; Odds, F.C. Resistance of Candida species to antifungal agents: Molecular mechanisms and clinical consequences. Lancet Infect. Dis. 2002, 2, 73–85. [Google Scholar] [CrossRef] [PubMed]
  14. Hokken, M.W.J.; Zwaan, B.J.; Melchers, W.J.G.; Verweij, P.E. Facilitators of adaptation and antifungal resistance mechanisms in clinically relevant fungi. Fungal Genet. Biol. 2019, 132, 103254. [Google Scholar] [CrossRef] [PubMed]
  15. Santos, J.D.; Vitorino, I.; Reyes, F.; Vicente, F.; Lage, O.M. From Ocean to Medicine: Pharmaceutical Applications of Metabolites from Marine Bacteria. Antibiotics 2020, 9, 455. [Google Scholar] [CrossRef] [PubMed]
  16. Nigam, M.; Suleria, H.A.R.; Farzaei, M.H.; Mishra, A.P. Marine anticancer drugs and their relevant targets: A treasure from the ocean. DARU J. Pharm. Sci. 2019, 27, 491–515. [Google Scholar] [CrossRef] [PubMed]
  17. Karthikeyan, A.; Joseph, A.; Nair, B.G. Promising bioactive compounds from the marine environment and their potential effects on various diseases. J. Genet. Eng. Biotechnol. 2022, 20, 14. [Google Scholar] [CrossRef] [PubMed]
  18. Abdelmohsen, U.R.; Balasubramanian, S.; Oelschlaeger, T.A.; Grkovic, T.; Pham, N.B.; Quinn, R.J.; Hentschel, U. Potential of marine natural products against drug-resistant fungal, viral, and parasitic infections. Lancet Infect. Dis. 2017, 17, e30–e41. [Google Scholar] [CrossRef]
  19. Fernandes, C.; Ribeiro, R.; Pinto, M.; Kijjoa, A. Absolute Stereochemistry Determination of Bioactive Marine-Derived Cyclopeptides by Liquid Chromatography Methods: An Update Review (2018–2022). Molecules 2023, 28, 615. [Google Scholar] [CrossRef]
  20. Mayer, A.; Rodríguez, A.; Taglialatela-Scafati, O.; Fusetani, N. Marine Pharmacology in 2009–2011: Marine Compounds with Antibacterial, Antidiabetic, Antifungal, Anti-Inflammatory, Antiprotozoal, Antituberculosis, and Antiviral Activities; Affecting the Immune and Nervous Systems, and other Miscellaneous Mechanisms of Action. Mar. Drugs 2013, 11, 2510–2573. [Google Scholar] [CrossRef]
  21. Wibowo, J.T.; Bayu, A.; Aryati, W.D.; Fernandes, C.; Yanuar, A.; Kijjoa, A.; Putra, M.Y. Secondary Metabolites from Marine-Derived Bacteria with Antibiotic and Antibiofilm Activities against Drug-Resistant Pathogens. Mar. Drugs 2023, 21, 50. [Google Scholar] [CrossRef] [PubMed]
  22. Ribeiro, R.; Pinto, E.; Fernandes, C.; Sousa, E. Marine Cyclic Peptides: Antimicrobial Activity and Synthetic Strategies. Mar. Drugs 2022, 20, 397. [Google Scholar] [CrossRef] [PubMed]
  23. Srinivasan, R.; Kannappan, A.; Shi, C.; Lin, X. Marine Bacterial Secondary Metabolites: A Treasure House for Structurally Unique and Effective Antimicrobial Compounds. Mar. Drugs 2021, 19, 530. [Google Scholar] [CrossRef] [PubMed]
  24. Tanabe, K.; Lamping, E.; Adachi, K.; Takano, Y.; Kawabata, K.; Shizuri, Y.; Niimi, M.; Uehara, Y. Inhibition of fungal ABC transporters by unnarmicin A and unnarmicin C, novel cyclic peptides from marine bacterium. Biochem. Biophys. Res. Commun. 2007, 364, 990–995. [Google Scholar] [CrossRef] [PubMed]
  25. El-Hossary, E.M.; Cheng, C.; Hamed, M.M.; El-Sayed Hamed, A.N.; Ohlsen, K.; Hentschel, U.; Abdelmohsen, U.R. Antifungal potential of marine natural products. Eur. J. Med. Chem. 2017, 126, 631–651. [Google Scholar] [CrossRef] [PubMed]
  26. Kapetanovic, I.M. Computer-aided drug discovery and development (CADDD): In silico-chemico-biological approach. Chem. Biol. Interact. 2008, 171, 165–176. [Google Scholar] [CrossRef] [PubMed]
  27. Pinzi, L.; Rastelli, G. Molecular Docking: Shifting Paradigms in Drug Discovery. Int. J. Mol. Sci. 2019, 20, 4331. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, G.; Seukep, A.J.; Guo, M. Recent Advances in Molecular Docking for the Research and Discovery of Potential Marine Drugs. Mar. Drugs 2020, 18, 545. [Google Scholar] [CrossRef]
  29. Costa, L.; Sousa, E.; Fernandes, C. Cyclic Peptides in Pipeline: What Future for These Great Molecules? Pharmaceuticals 2023, 16, 996. [Google Scholar] [CrossRef]
  30. Pantsar, T.; Poso, A. Binding Affinity via Docking: Fact and Fiction. Molecules 2018, 23, 1899. [Google Scholar] [CrossRef]
  31. Prasad, R.; Sharma, M.; Rawal, M.K. Functionally Relevant Residues of Cdr1p: A Multidrug ABC Transporter of Human Pathogenic Candida albicans. J. Amino Acids 2011, 2011, 531412. [Google Scholar] [CrossRef] [PubMed]
  32. Cannon, R.D.; Lamping, E.; Holmes, A.R.; Niimi, K.; Baret, P.V.; Keniya, M.V.; Tanabe, K.; Niimi, M.; Goffeau, A.; Monk, B.C. Efflux-Mediated Antifungal Drug Resistance. Clin. Microbiol. Rev. 2009, 22, 291–321. [Google Scholar] [CrossRef] [PubMed]
  33. Sharma, M.; Manoharlal, R.; Shukla, S.; Puri, N.; Prasad, T.; Ambudkar, S.V.; Prasad, R. Curcumin Modulates Efflux Mediated by Yeast ABC Multidrug Transporters and Is Synergistic with Antifungals. Antimicrob. Agents Chemother. 2009, 53, 3256–3265. [Google Scholar] [CrossRef] [PubMed]
  34. Daina, A.; Michielin, O.; Zoete, V. SwissADME: A free web tool to evaluate pharmacokinetics, drug-likeness and medicinal chemistry friendliness of small molecules. Sci. Rep. 2017, 7, 42717. [Google Scholar] [CrossRef] [PubMed]
  35. Vakser, I.A. Protein-Protein Docking: From Interaction to Interactome. Biophys. J. 2014, 107, 1785–1793. [Google Scholar] [CrossRef] [PubMed]
  36. Maveyraud, L.; Mourey, L. Protein X-ray Crystallography and Drug Discovery. Molecules 2020, 25, 1030. [Google Scholar] [CrossRef] [PubMed]
  37. Harris, A.; Wagner, M.; Du, D.; Raschka, S.; Nentwig, L.-M.; Gohlke, H.; Smits, S.H.J.; Luisi, B.F.; Schmitt, L. Structure and efflux mechanism of the yeast pleiotropic drug resistance transporter Pdr5. Nat. Commun. 2021, 12, 5254. [Google Scholar] [CrossRef] [PubMed]
  38. Sanner, M.F. Python: A programming language for software integration and development. J. Mol. Graph. Model. 1999, 17, 57–61. [Google Scholar]
  39. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2009, 31, 455–461. [Google Scholar] [CrossRef]
Ddc 03 00031 g001

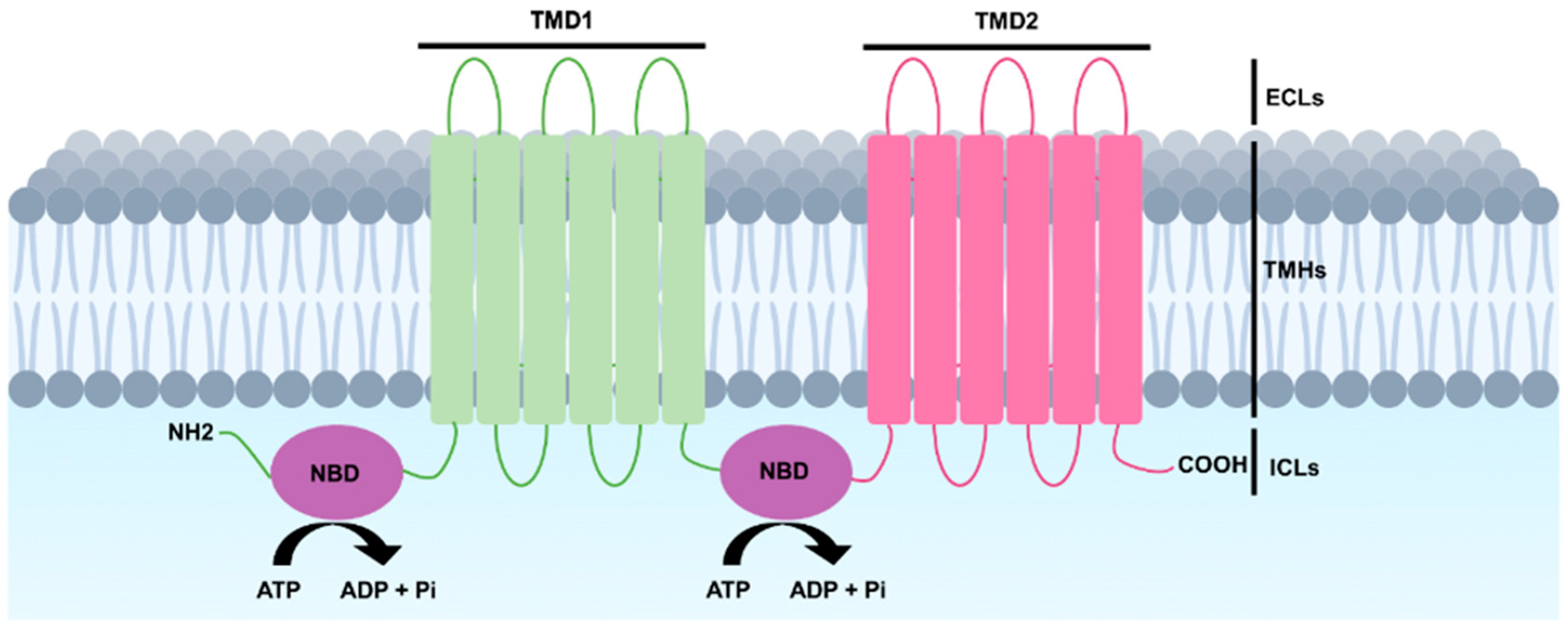

Figure 1. Schematic view of CaCdr1p showing its two transmembrane domains (TMDs), two nucleotide-binding domains (NBDs), six extracellular loops (ECLs), four intracellular loops (ICLs), and twelve transmembrane helices (TMHs).
Figure 1. Schematic view of CaCdr1p showing its two transmembrane domains (TMDs), two nucleotide-binding domains (NBDs), six extracellular loops (ECLs), four intracellular loops (ICLs), and twelve transmembrane helices (TMHs).
Ddc 03 00031 g001
Ddc 03 00031 g002

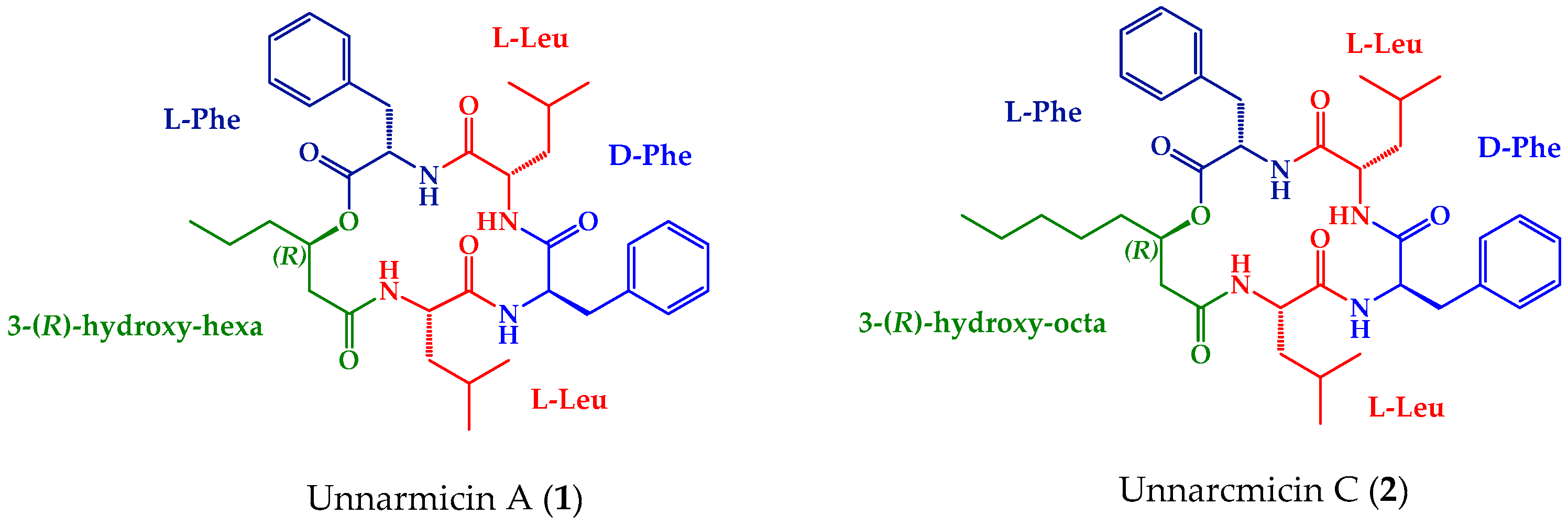

Figure 2. Structures of unnarmicin A (1) and unnarmicin C (2).
Figure 2. Structures of unnarmicin A (1) and unnarmicin C (2).
Ddc 03 00031 g002
Ddc 03 00031 g003

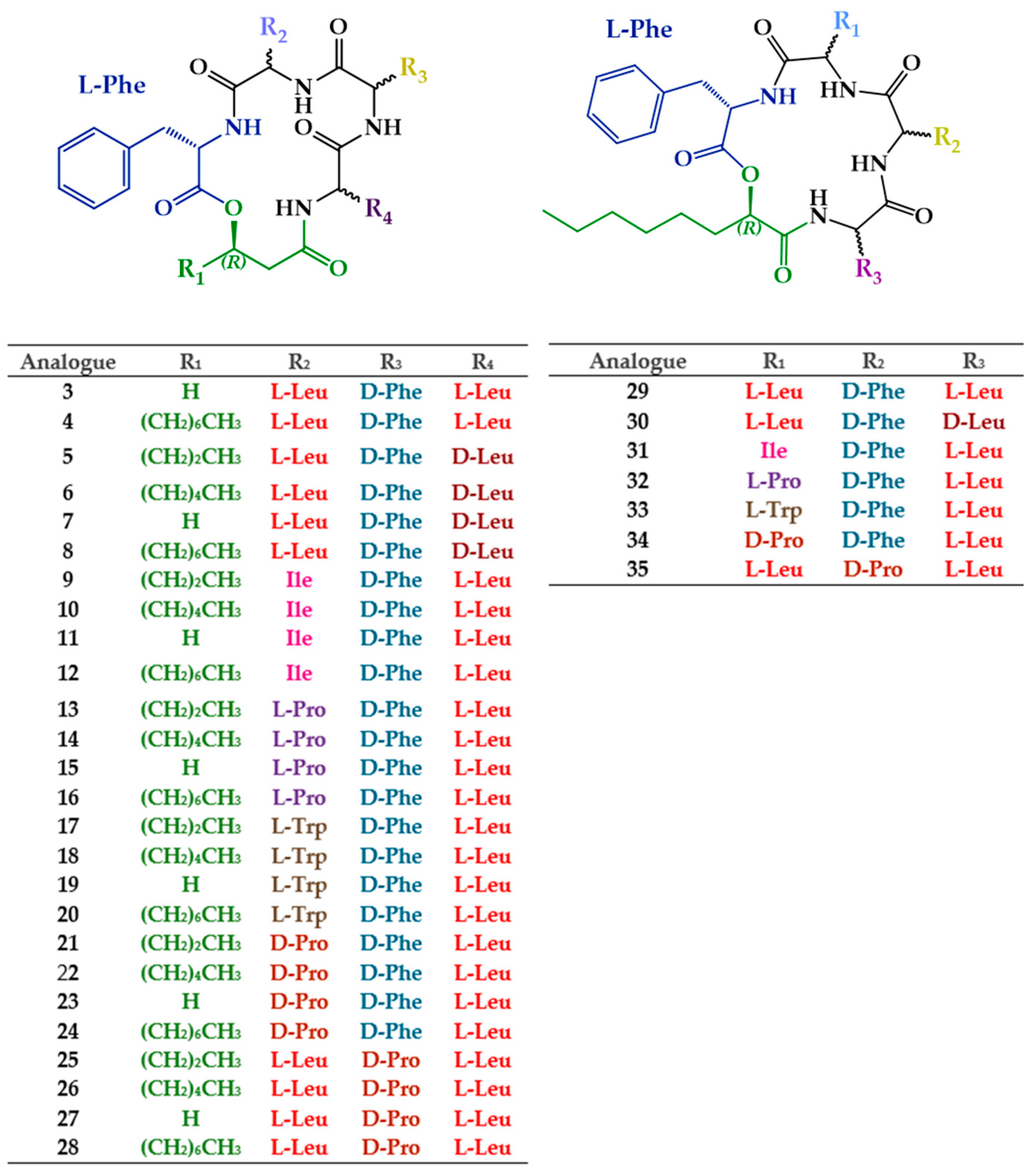

Figure 3. Structures of unnarmicin analogues 3–35. The diverse structural moieties are highlighted at different color.
Figure 3. Structures of unnarmicin analogues 3–35. The diverse structural moieties are highlighted at different color.
Ddc 03 00031 g003
Ddc 03 00031 g004

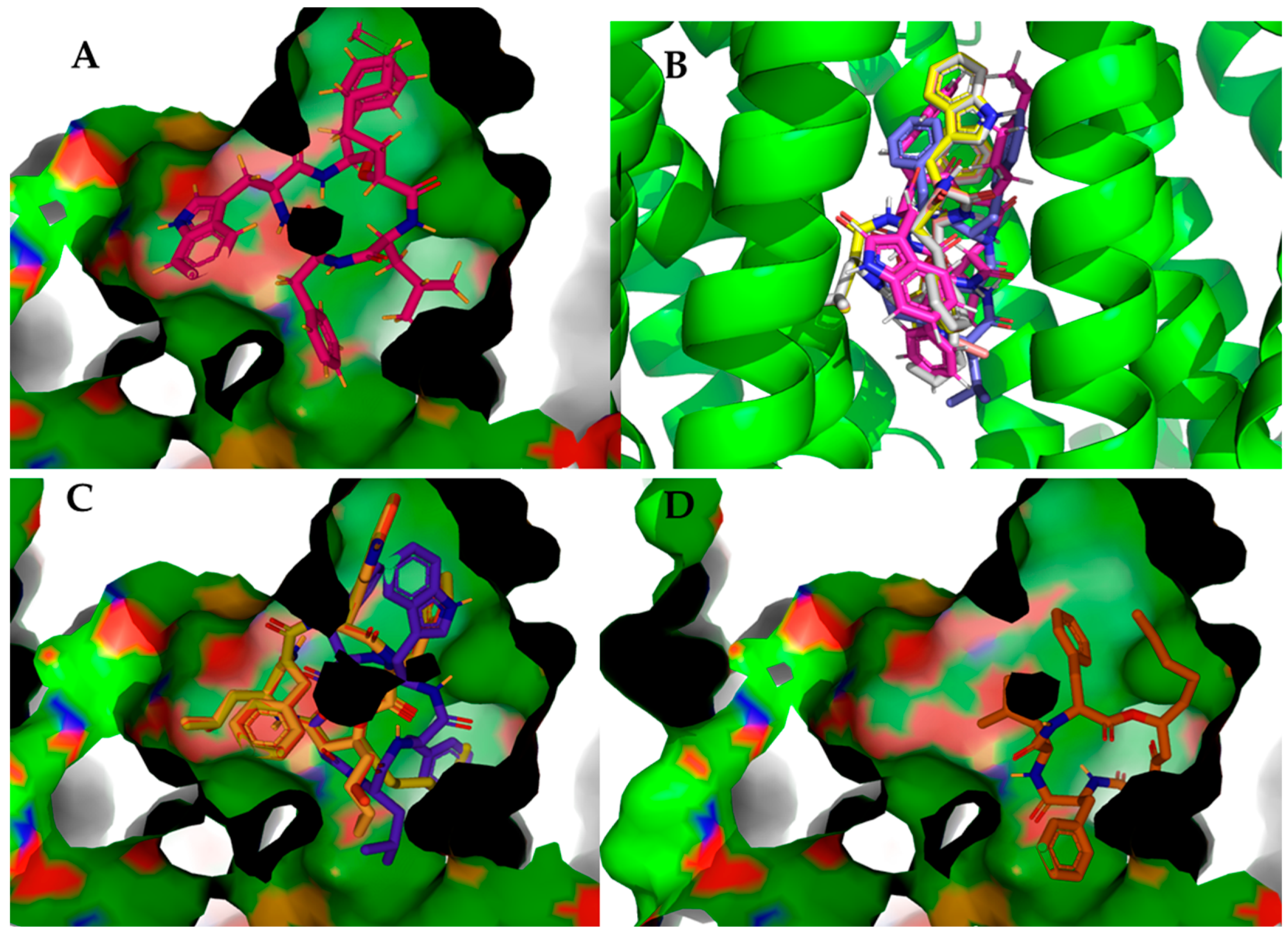

Figure 4. (A) Unique conformation of compound 33 filling the active site, resembling a cannon-like structure. (B) The CaCdr1p active site showing all the Trp analogues (17–20 and 33). Notice the indole ring downward conformation of 33 highlighted in pink. (C) Conformations of the other Trp analogues (17–20) in the active site. (D) Conformation of unnarmicin C (2) in the active site.
Figure 4. (A) Unique conformation of compound 33 filling the active site, resembling a cannon-like structure. (B) The CaCdr1p active site showing all the Trp analogues (17–20 and 33). Notice the indole ring downward conformation of 33 highlighted in pink. (C) Conformations of the other Trp analogues (17–20) in the active site. (D) Conformation of unnarmicin C (2) in the active site.
Ddc 03 00031 g004
Ddc 03 00031 g005
Figure 5. (A) Interaction of FLC (blue) (47) and analogue 33 (pink) in the same binding site of CaCdr1p efflux pump. Notice the perfect blockage of the FLC (47) by 33. (B) View of the interaction of FLC (blue) (47) and 33 (pink) in the cannon-like structure of the active site. (C) View of the interaction of FLC (blue) (47) and other Trp analogues (17–20) in the cannon-like structure of the active site. (D) View of the interaction of FLC (blue) (47) and the unnarmicin C (orange) (2) in the cannon-like structure of the active site.
Figure 5. (A) Interaction of FLC (blue) (47) and analogue 33 (pink) in the same binding site of CaCdr1p efflux pump. Notice the perfect blockage of the FLC (47) by 33. (B) View of the interaction of FLC (blue) (47) and 33 (pink) in the cannon-like structure of the active site. (C) View of the interaction of FLC (blue) (47) and other Trp analogues (17–20) in the cannon-like structure of the active site. (D) View of the interaction of FLC (blue) (47) and the unnarmicin C (orange) (2) in the cannon-like structure of the active site.
Ddc 03 00031 g005
Ddc 03 00031 sch001

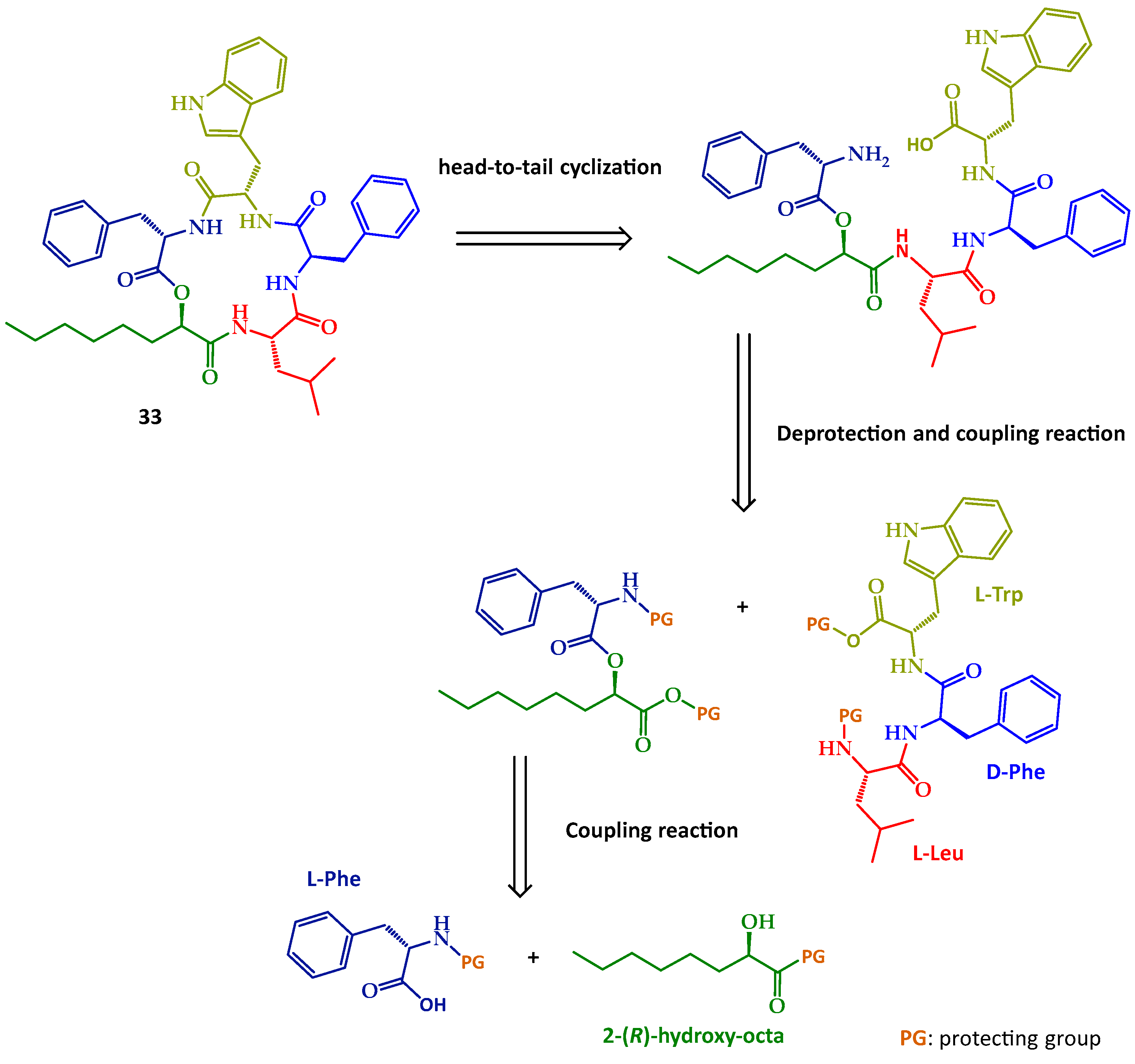

Scheme 1. Retrosynthesis proposal for analogue 33.
Scheme 1. Retrosynthesis proposal for analogue 33.
Ddc 03 00031 sch001
Table 1. Docking results of unnarmicin A (1), unnarmicin C (2), and unnarmicin analogues 3–35.
Table 1. Docking results of unnarmicin A (1), unnarmicin C (2), and unnarmicin analogues 3–35.
Compound ΔG
(kcal/mol)		Hydrogen Bonds between the Compound and Cdr1pHydrophobic Interactions
Functional Group of CompoundAmino AcidDistance (Å)
1−7.7CO (L-Leu)Thr13512.4Leu562, Leu563, Met657, Ala660
CH (Alkyl chain)Phe5593.7
2−8.7CO (L-Phe)Gln12443.2Ile565, Ala656, Met657, Ala660, Leu664, Ile1237
3−9.4CO (Alkyl chain)Thr6613.3Phe559, Leu562
CH (D-Phe)Thr13513.4
4−8.8NH (L-Leu)Phe5592.9Phe556, Phe643,
Ala660
CO (L-Leu)Leu5623.1
CO (L-Leu)Thr13553.1
CO (D-Phe)Thr13552.9
5−9.7CO (L-Leu)Thr13512.6Phe556, Leu562, Leu563, Ala660
6−9.9CO (D-Phe)Thr13512.6Leu562, Leu563,
Ala660
7−10.1CO (L-Leu)Thr13512.6Phe556, Leu562,
Ala660
8−9.5CO (D-Phe)Thr13512.6Phe556, Leu562, Leu563, Ala660
9−8.7CO (Alkyl chain)Leu5623.1Phe556, Leu563,
Leu1352
CO (L-Ile)Asn12403.0
CO (L-Ile)Thr13553.2
NH (L-Ile)Thr13551.7
10−8.8CO (L-Leu)Leu5623.1Phe556, Leu563, Ile565, Leu1352
CO (L-Ile)Asn12403.1
CO(L-Ile)Thr13553.1
NH (L-Ile)Thr13551.8
11−8.6CH (L-Phe)Asn12404.1Leu1352
CO (L-Ile)Asn12403.2
CO (D-Phe)Thr13553.0
NH (L-Ile)Thr13552.8
12−9.0CO (alkyl chain)Leu5623.8Leu563, Phe556, Phe643, Ala660, Leu1352
CO (L-Ile)Asn12403.0
NH (L-Leu)Thr13553.0
CO (L-Ile)Thr13553.2
13−11.2---------Leu555, Leu563, Leu664, Leu1352
14−10.7CH (L-Pro)Thr13553.1Met525, Phe556, Ala660, Leu664
15−11.1CO (Alkyl chain)Gln12443.2Leu555, Leu562, Leu563, Leu564, Val668
CH (Alkyl chain)Asn13483.5
16−10.3CH (L-Pro)Thr13553.1Met525, Phe556, Leu562, Phe643, Ala660, Leu664
17−10.3CO (L-Trp)Thr13553.0Leu563, Leu664,
Leu1352
NH (L-Trp)Thr13552.3
CH (L-Trp)Thr13553.3
18−10.2NH (L-Trp)Thr13552.3Leu563, Leu664,
Leu1352
CO (L-Trp)Thr13553.0
CH (L-Trp)Thr13553.3
19−11.1CH (L-Trp)Asn12404.1Phe556, Leu562,
Ala660
CO (L-Trp)Thr13512.7
20−10.4CO (L-Trp)Thr13553.1Leu563, Phe643, Ala660, Leu664, Val668, Leu1352
NH (L-Trp)Thr13552.3
CO (D-Phe)Thr13553.0
CH (L-Trp)Thr13553.3
21−10.4---------Leu555, Phe556, Leu563, Met566, Val668
22−10.1---------Leu555, Leu563,
Val668
23−10.5CH (Alkyl chain)Thr13553.6Phe517, Ala660,
Phe1354
24−10.3---------Leu555, Leu563, Met566, Leu664, Val668
25−10.3CO (L-Phe)Asn12403.3Met525, Leu555, Phe559, Leu562, Ala660, Leu664
CO (L-Leu)Thr13552.9
26−9.8O (Ester)Asn12403.3Leu664
NH (L-Phe)Thr13552.5
27−10.6CO (L-Phe)Gln12443.3Leu555, Leu562, Ala660, Val668
CO (L-Leu)Thr13553.2
CH (L-Pro)Thr13553.6
28−9.8O (Ester)Asn12403.3Leu564, Ile1237
NH (L-Phe)Thr13552.6
29−9.8CO (Alkyl chain)Phe5563.5Phe559, Leu664, Val668, Ile1237, Leu1358
CH (L-Phe)Thr13553.5
30−10.2CO (L-Phe)Asn12403.3Phe517, Leu555, Leu562, Ala660, Val668, Leu1352, Phe1354
31−10.3NH (L-Ile)Phe5592.3Met525, Leu555, Val668, Leu1358, Phe1354
32−9.3---------Met525, Phe556, Ile1237, Leu1352
33−11.3CO (L-Leu)Asn12403.3Leu555, Leu563, Phe1233, Ile1237, Leu1352, Leu1358
CH (L-Trp)Gln5223.5
34−7.8---------Ile646, Val649, Ala666, Ile690
35−10.0CO (L-Leu)Thr13553.1Met525, Leu562, Leu563, Leu664, Val668, Leu1352
Table 2. Docking results of known inhibitors (39–46) and substrates (47–48) of CaCdr1p.
Table 2. Docking results of known inhibitors (39–46) and substrates (47–48) of CaCdr1p.
CompoundΔGb (kcal/mol)
FK506 (39)−7.1
FK520 (40)−6.5
Enniatin_B (41)−6.9
Dissulfiram (42)−4.8
Ibuprofen (43)−6.8
Milbemycin α11 (44)−11.5
Milbemycin α20 (45)−11.6
Milbemycin β11 (46)−11.7
FLC (47)−7.2
Rhodamine 6G (48)−8.9
FLC: Fluconazole.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ribeiro, R.; Fortes, S.; Costa, L.; Palmeira, A.; Pinto, E.; Sousa, E.; Fernandes, C. Design of Marine Cyclodepsipeptide Analogues Targeting Candida albicans Efflux Pump CaCdr1p. Drugs Drug Candidates 2024, 3, 537-549. https://doi.org/10.3390/ddc3030031

AMA Style

Ribeiro R, Fortes S, Costa L, Palmeira A, Pinto E, Sousa E, Fernandes C. Design of Marine Cyclodepsipeptide Analogues Targeting Candida albicans Efflux Pump CaCdr1p. Drugs and Drug Candidates. 2024; 3(3):537-549. https://doi.org/10.3390/ddc3030031

Chicago/Turabian Style

Ribeiro, Ricardo, Sara Fortes, Lia Costa, Andreia Palmeira, Eugénia Pinto, Emília Sousa, and Carla Fernandes. 2024. "Design of Marine Cyclodepsipeptide Analogues Targeting Candida albicans Efflux Pump CaCdr1p" Drugs and Drug Candidates 3, no. 3: 537-549. https://doi.org/10.3390/ddc3030031

APA Style

Ribeiro, R., Fortes, S., Costa, L., Palmeira, A., Pinto, E., Sousa, E., & Fernandes, C. (2024). Design of Marine Cyclodepsipeptide Analogues Targeting Candida albicans Efflux Pump CaCdr1p. Drugs and Drug Candidates, 3(3), 537-549. https://doi.org/10.3390/ddc3030031

Article Metrics

Back to TopTop
