#
Multi-Objective Optimization of the Nanocavities Diffusion in Irradiated Metals^{ †}

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{8}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Problem Formulation

**annealing**temperatures, ${T}_{j}$, the real temperatures at which the samples are put during the experiment. The others are the

**diffusion**temperatures, ${\theta}_{i}$, inputs of the model and hypothetical temperatures at which nanocavities of various sizes start their diffusion. The link between these two series of temperatures is that if one

**diffusion**temperature is close to one

**annealing**temperature, it is likely that the related nanocavity family diffuses and modifies the sample microstructure. However, there is no established method to define the

**diffusion**temperature.

- The dependence of the objectives from one temperature to the next one: ${O}_{d,s}^{j}$ depends on ${O}_{d,s}^{j-1}$. If the simulation is far from the observation at ${T}_{j}$, there is little chance to get it correct at ${T}_{j}+\delta T$.
- An unexpected interdependence of $density$ and $size$ objectives. At each temperature stage, we observed that the optimization of $density$, ${O}_{d}^{j}$ tends to disfavor $size$, ${O}_{s}^{j}$.

## 3. Experimental Data and Numerical Model

#### 3.1. Collision Cascade

#### 3.2. Experimental Data

#### 3.3. Numerical Model

## 4. Results

#### 4.1. Pareto Front in the Objective Space

#### 4.2. Projection or Mapping of the Objective Function

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Nichols, F. Kinetics of diffusional motion of pores in solids: A review. J. Nucl. Mater.
**1969**, 30, 143–165. [Google Scholar] [CrossRef] - Goodhew, P.J.; Tyler, S.K. Helium bubble behaviour in b. c. c. metals below 0.65Tm. Proc. R. Soc. Lond. A
**1981**, 377, 151–184. [Google Scholar] - Zell, V.; Trinkaus, H.; Schroeder, H. A simulation study of the migration and coalescence of gas bubbles in metals. J. Nucl. Mater.
**1994**, 212–215, 320–324. [Google Scholar] [CrossRef] - Mason, D.R.; Nguyen-Manh, D.; Becquart, C.S. An empirical potential for simulating vacancy clusters in tungsten. J. Phys. Condens. Matter
**2017**, 29, 505501. [Google Scholar] [CrossRef] [PubMed] - Castin, N.; Bakaev, A.; Bonny, G.; Sand, A.; Malerba, L.; Terentyev, D. On the onset of void swelling in pure tungsten under neutron irradiation: An object kinetic Monte Carlo approach. J. Nucl. Mater.
**2017**, 493, 280–293. [Google Scholar] [CrossRef][Green Version] - Perez, D.; Sandoval, L.; Blondel, S.; Wirth, B.D.; Uberuaga, B.P.; Voter, A.F. The mobility of small vacancy/helium complexes in tungsten and its impact on retention in fusion-relevant conditions. Sci. Rep.
**2017**, 7, 2522. [Google Scholar] [CrossRef] [PubMed][Green Version] - Jansson, V.; Chiapetto, M.; Malerba, L. The nanostructure evolution in Fe–C systems under irradiation at 560K. J. Nucl. Mater.
**2013**, 442, 341–349. [Google Scholar] [CrossRef][Green Version] - Pannier, B. Towards the Prediction of Microstructure Evolution under Irradiation of Model Ferritic Alloys with an Hybrid AKMC-OKMC Approach. Ph.D. Thesis, University of Lille, Lille, France, 2017. [Google Scholar]
- Autissier, E.; Farah, F.; Mazellier, C.G.; Decamps, B.; Schäublin, R.; Barthe, M.F. Cavity Evolution as a Function of Temperature in Self Irradiated Tungsten. 2022; to be submitted. [Google Scholar]
- De Backer, A.; Souidi, A.; Hodille, E.A.; Autissier, E.; Genevois, C.; Haddad, F.; Della Noce, A.; Domain, C.; Becquart, C.S.; Barthe, M.F. Nanocavity diffusion in tungsten. 2022; to be submitted. [Google Scholar]
- Hasanzadeh, S.; Schäublin, R.; Décamps, B.; Rousson, V.; Autissier, E.; Barthe, M.F.; Hébert, C. Three-dimensional scanning transmission electron microscopy of dislocation loops in tungsten. Micron
**2018**, 113, 24–33. [Google Scholar] [CrossRef] [PubMed] - Hu, Z.; Desgardin, P.; Genevois, C.; Joseph, J.; Décamps, B.; Schäublin, R.; Barthe, M.F. Effect of purity on the vacancy defects induced in self–irradiated tungsten: A combination of PAS and TEM. J. Nucl. Mater.
**2021**, 556, 153175. [Google Scholar] [CrossRef] - Domain, C.; De Backer, A.; Becquart, C. Statistical Analysis of Database of Molecular Dynamics Collision Cascades. 2022; to be submitted. [Google Scholar]
- Becquart, C.; Domain, C.; Sarkar, U.; Backer, A.D.; Hou, M. Microstructural evolution of irradiated tungsten: Ab initio parameterisation of an OKMC model. J. Nucl. Mater.
**2010**, 403, 75–88. [Google Scholar] [CrossRef] - Stukowski, A. Visualization and analysis of atomistic simulation data with OVITO—The Open Visualization Tool. Model. Simul. Mater. Sci. Eng.
**2009**, 18, 015012. [Google Scholar] [CrossRef]

**Figure 1.**(

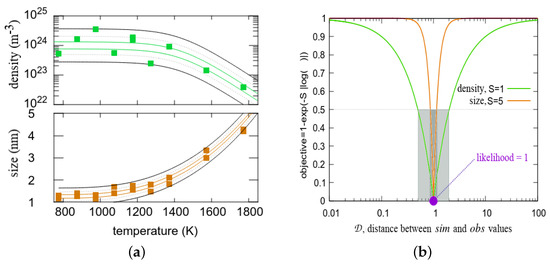

**a**) Experimental data: measured nanocavity total densities and mean sizes as a function of temperature, i.e., at the end of the irradiation stages and each of the 8 annealing stages. The lines indicate the 0.9, 0.5 and 0.1 contours of our designed likelihood function. (

**b**) Data attach function which describes how strongly the optimization should converge close to the likelihood maximum.

**Figure 2.**(

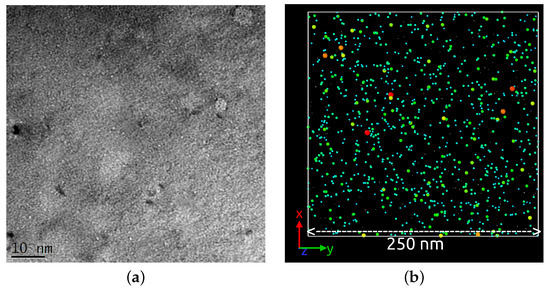

**a**) High density of small nanocavities visible in the TEM micrographs in under-focused beam conditions of tungsten samples after irradiation. (

**b**) Visualization of the defects (SIAs clusters and nanocavities) in the simulation box at the end of the irradiation.

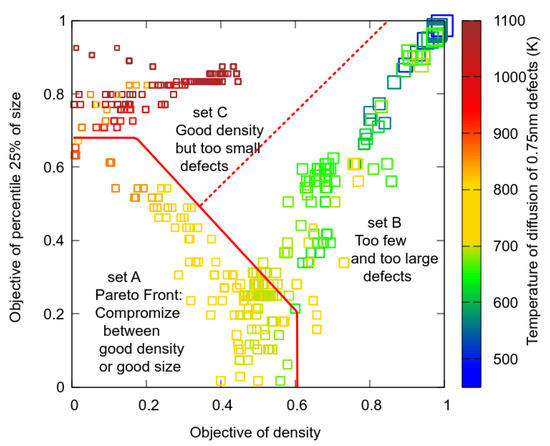

**Figure 3.**Pareto front of the first objectives (i.e., the ones corresponding to the irradiation stage) of size and density at ${T}_{1}$, the irradiation temperature. The point colors correspond to the temperature of diffusion of the smallest nanocavities, ${\theta}_{1}$, and the point sizes correspond to the nanocavity mean sizes at the end of the irradiation, ${s}_{1}$.

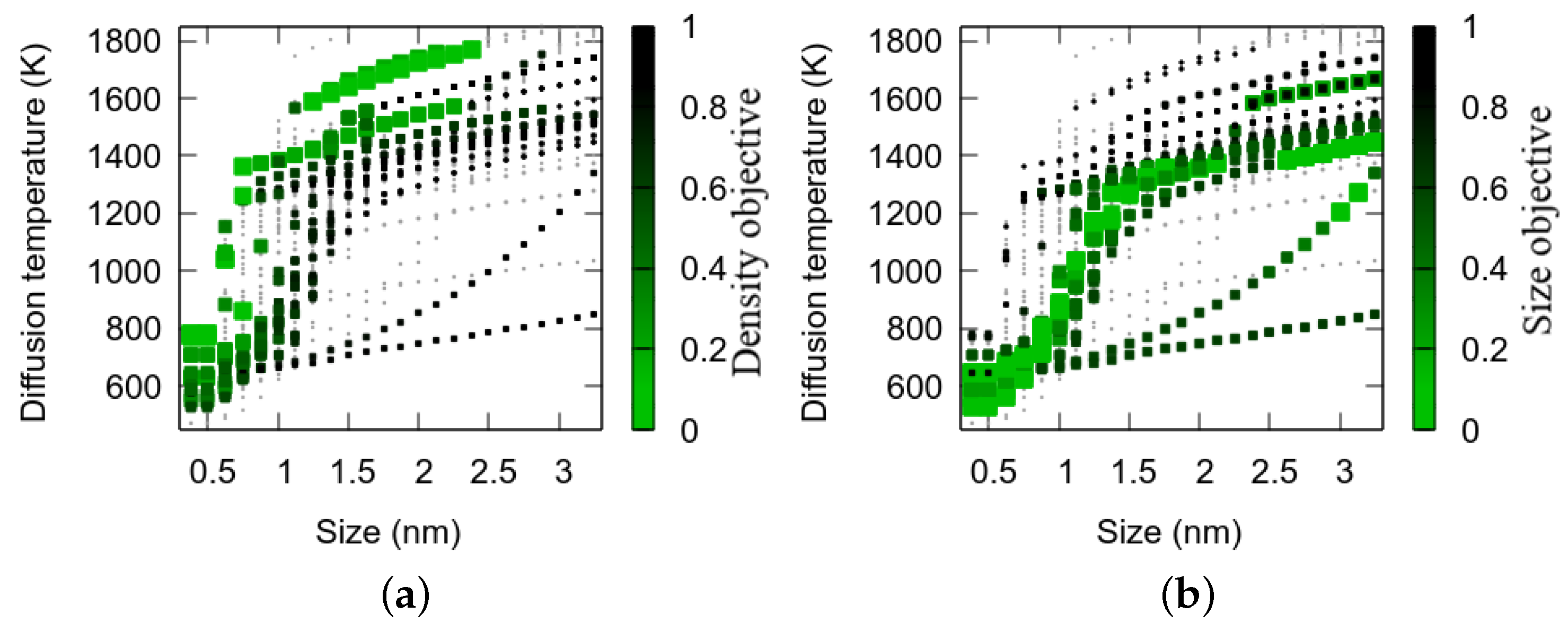

**Figure 4.**Projection of the Pareto optimal solutions in the space of parameters $\theta \left(s\right)$ (

**a**) $density$ objective, (

**b**) $size$ objective.

**Figure 5.**(

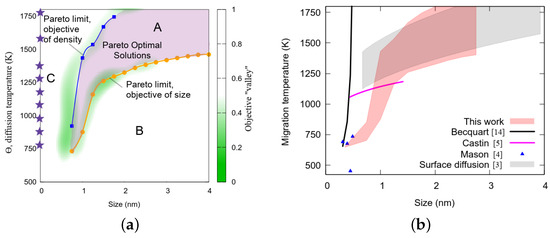

**a**) Pareto front and Pareto optimal solution projected in the parameter space, diffusion temperature, ${\theta}_{i}$, as a function of the nanocavity size. Stars on the y axis indicate the annealing temperatures, ${T}_{j}$. (

**b**) Comparison of our results with literature.

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

De Backer, A.; Souidi, A.; Hodille, E.A.; Autissier, E.; Genevois, C.; Haddad, F.; Della Noce, A.; Domain, C.; Becquart, C.S.; Barthe, M.F. Multi-Objective Optimization of the Nanocavities Diffusion in Irradiated Metals. *Phys. Sci. Forum* **2022**, *5*, 41.
https://doi.org/10.3390/psf2022005041

**AMA Style**

De Backer A, Souidi A, Hodille EA, Autissier E, Genevois C, Haddad F, Della Noce A, Domain C, Becquart CS, Barthe MF. Multi-Objective Optimization of the Nanocavities Diffusion in Irradiated Metals. *Physical Sciences Forum*. 2022; 5(1):41.
https://doi.org/10.3390/psf2022005041

**Chicago/Turabian Style**

De Backer, Andrée, Abdelkader Souidi, Etienne A. Hodille, Emmanuel Autissier, Cécile Genevois, Farah Haddad, Antonin Della Noce, Christophe Domain, Charlotte S. Becquart, and Marie France Barthe. 2022. "Multi-Objective Optimization of the Nanocavities Diffusion in Irradiated Metals" *Physical Sciences Forum* 5, no. 1: 41.
https://doi.org/10.3390/psf2022005041
