Ternary Planar Heterojunction Organic Solar Cells Based on the Ternary Active Layers: α-6T/AlPcCl/C60

by
Hajar Ftouhi
1,2,
Hind Lamkaouane
2,
Mustapha Diani
1,
Guy Louarn
2,*,
Ludovic Arzel
2,
Jean-Christian Bernède
3,
Mohammed Addou
1 and
Linda Cattin
2
1
Équipe de Recherche Couches Minces et Nanomatériaux, Faculté des Sciences et Techniques, Université Abdelmalek Essaâdi, BP 416, Tanger 90040, Morocco
2
Institut des Matériaux de Nantes Jean Rouxel (IMN), CNRS, Nantes Université, 44000 Nantes, France
3
MOLTECH-Anjou, CNRS, UMR 6200, Nantes Université, 44000 Nantes, France
*
Author to whom correspondence should be addressed.
Solar 2022, 2(3), 375-384; https://doi.org/10.3390/solar2030022
Submission received: 22 July 2022 / Revised: 30 August 2022 / Accepted: 5 September 2022 / Published: 8 September 2022
Browse Figures
Versions Notes

Abstract

:
Ternary planar heterojunction organic solar cells (PHJ-OPVs) were fabricated using three organic small molecules, alpha-sexithiophene (α-6T), aluminum phthalocyanine chloride (AlPcCl) and fullerene (C60). These molecules can be easily sublimated under a vacuum; they have complementary optical absorption spectra and their energy band structure alignment is favorable for electronic charge transfers. Moreover, α-6T and AlPcCl have almost the same HOMO, which is desirable to avoid any decrease in open circuit voltage. The AlPcCl intercalated layer bridges the energy levels of the electron donor, α-6T, and the electron acceptor, C60, which facilitates charge transport through the energy cascade effect. Moreover, the charge carrier mobility measurements of AlPcCl, using the space charge limited current method, demonstrated that it iss ambipolar. All these properties combine to improve the power conversion efficiency (PCE) of PHJ-OPVs by moving from binary structures (α-6T/C60, α-6T/AlPcCl and AlPcCl/C60) to ternary ones (α-6T/AlPcCl/C60). We show, in this study, that both interfaces of the ternary PHJ-OPVs are efficient for carrier separation. After optimization of the different layer thickness, we show that, by comparing the optimum efficiencies of the binary PHJ-OPVs, the realization of ternary PHJ-OPVs, based on the active layers α-6T/AlPcCl/C60, using the following optimized method, allows us to achieve a PCE of 4.33%.

1. Introduction

Different photovoltaic technologies have been developed over the last few decades based on inorganic solar cell technologies, such as crystalline silicon, CdTe, CuInGaSe2. However, other new technologies are considered to be promising alternatives to participate in solving the energy insecurity problems, for example, photovoltaic cells using perovskite [1], organic photovoltaics cells (OPVs) [2] and hybrid dye-sensitized solar cells (DSSCs) [3]. Among these new technologies, great attention is now being given to organic photovoltaic cells (OPVs), which are supposed to be a very promising alternative or complement due to their distinct properties of low cost, light weight nature, mechanical flexibility, large area coating production and quite simple fabrication techniques [4]. The simplest OPV configuration for the light absorbing layer consists of the use of two superimposed organic layers, the first one being electron donor (D) and the second being the electron acceptor (A). Nevertheless, in order to improve the OPVs’ efficiency, other configurations, such as ternary cells, were tested.
Starting from optimized binary OPVs, the use of the ternary strategy has shown great potential in improving OPVs’ performances using a well-matched third component [5,6,7]. In fact, organic semiconductors exhibit quite a narrow absorption band, which results in limited photon harvesting in classical binary active layers. Using the ternary active layer allows for the widening of the absorption domain using appropriate organic material with complementary absorption spectrum. On the other hand, the energy levels of the three organic semiconductors must be chosen in order to avoid formation of carrier traps at the interfaces of these materials. The third material must bridge the energy levels between the electron donor and the electron acceptor in order to facilitate charge transport through the energy cascade effect. The relative values of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) of the organic molecules used must comply with certain conditions. To obtain efficient separation of the exciton charges, the offset ΔHOMO and/or ΔLUMO must be higher than the exciton binding energy ΔExc [8,9], which corresponds to the minimum offset for charge separation [10,11,12]. Therefore, in the case of ternary OPVs, HOMO and LUMO energy levels must be progressively offset in the form of cascade heterojunctions, in such a way that the central layer carries out exciton dissociation on the donor and acceptor side, which means that it must be ambipolar (DA). Two typical geometries of the active layer are possible. It may consist of a blend of D and A; this configuration is called bulk heterojunction (BHJ). The second possibility consists of a stacking of layers, where the active layer is made of at least two films, D/A; it is called planar heterojunction (PHJ) [13,14]. In recent times, dramatic advances in the performances of OPVs have been achieved using new promising molecules and polymers [15,16,17]. Each OPV category has its own advantages and disadvantages. BHJs are known by their high exciton dissociation capability, due to the presence of a large interface area D/A, which reduces the recombination of the excitons. Nevertheless, morphology of the BHJ is difficult to control, which limits the reproducibility of the results [18]. Moreover, over time, there is progressive phase separation and performance degradation [19]. On the other hand, the synthesis of the new no-fullerene materials is not trivial, which means that the commercialization of BHJs panels is not feasible in the near future. Therefore, it is interesting to study the performances of cells using small molecules that are less efficient, but are easier to obtain with perfectly controlled synthesis and reproducible properties [20,21,22]. The possibility of the deposition of the small molecules under a vacuum allows easy fabrication of multi-layer devices with precise control of the layers’ thicknesses [23,24,25]. Moreover, several small organic molecules have good thermal stability, so they can easily be vacuum deposited as thin films with high purity [26,27].
Therefore, in the present study, we chose to work on ternary PHJ-OPVs (Figure 1). For an active ternary layer such as D/DA/A to be effective, the mobility of carriers of both types, electrons and holes, of DA must be high enough to obtain an acceptable current, i.e., DA must be ambipolar. On the other hand, it is well known that the maximum value of the open circuit voltage, Voc, follows the energy difference between the LUMO of A and the HOMO of D. Therefore, in order to avoid any decrease in Voc, it is desirable to use a DA with similar HOMO (or LUMO) to D (or A).
Considering all these conditions, we have chosen the following three molecules for this study: alpha-sexithiophene (α-6T), aluminum phthalocyanine chloride (AlPcCl) and fullerene (C60) (Figure 1b). In fact, we already optimized binary PHJ-OPVs based on the couples α-6T/C60, α-6T/AlPcCl and AlPcCl/C60. If it is known that AlPcCl is an efficient electron donor, we have shown that it can also be successfully used as an electron acceptor; nevertheless, up to the present day, it has not been used as a central ambipolar layer [28]. Moreover, α-6T and AlPcCl have nearly the same HOMO value, while they have complementary absorption domains. Therefore, in the present work, we carried out the study of the ternary PHJ-OPV based on the active layer α-6T/AlPcCl/C60, using the AlPcCl layer thickness as a parameter. The optimum structure, i.e., α-6T/AlPcCl/C60, the thicknesses of which are 22 nm/15 nm/45 nm, respectively, allows a power conversion efficiency of more than 4.3%.

2. Materials and Methods

In this work, CODEX France provided the chemical products.

2.1. Realization of the Solar Cells

The multilayer structure of the PHJ-OPVs cell elaborated in this work can be described as follows: ITO/MoO3/CuI/α-6T/AlPcCl/C60/Alq3/Al. Here, the substrate was an ITO-coated glass. The hole transporting layer was MoO3/CuI, where the thickness of MoO3 and CuI were 3 and 1.5 nm, respectively [29]. The electron transporting layer was Alq3, with a thickness of 9 nm [30]. All these thin layers of our PHJ-OPVs were made in the same run, without breaking the vacuum. All the films were deposited under a vacuum (see below) and the thickness of the films was monitored using a quartz monitor. The deposition process can be summarized as follows: after a classical cleaning process, the ITO-coated glass substrates were rinsed in deionized water, dried under argon flow and loaded into the vacuum chamber of the reactor. All the thin films were then deposited by thermal evaporation under a vacuum (10−4 Pa). The deposition rates and the thicknesses were measured in situ with a quartz monitor. Based on previous studies, the deposition rates were set at 0.02 nm/s for MoO3 and 0.05 nm/s for α-6T, AlPcCl, C60 and Alq3. Finally, the aluminum top electrodes were thermally evaporated, without breaking the vacuum, through a mask with 2 mm × 8 mm active areas.

2.2. Characterizations Techniques

The electrical characteristics of the PHJ-OPVs were measured with an automated I-V tester, in the dark and under sun global AM 1.5 solar illumination. The light intensity of the solar simulator (Oriel 300W) was calibrated at 100 mW/cm2, with a PV reference cell (0.5 cm2 CIGS solar cell, calibrated at NREL, Golden, CO, USA). The performances of the photovoltaic cells were evaluated in ambient conditions and the devices were illuminated through TCO electrodes. The measurements of incident photon-to-current conversion efficiency were carried out with monochromatic continuous light without modulation. The measurement duration for a given wavelength was long enough to reach a steady-state value and to minimize noise. The external quantum efficiency (EQE) was measured with home-made apparatus. The electron and hole motilities were measured using the space charge limited current (SCLC) technique. Hole-only devices were based on the following structure: ITO/MoO3 (3 nm)/CuI (1.5 nm)/D (or DA) (120 nm)/MoO3 (7 nm)/Al. In the ternary structures, the intercalated layer must be ambipolar to permit the electrons to diffuse. Therefore, we also studied electron-only devices, which were built as follows: ITO/ETL/A (or DA)/ETL/Al. The ETLs (electron transporting layer) were either LiF or Ca. Such layers facilitate electron collection, while they oppose the passage of holes. The probed organic films had a thickness of 100 nm because it must be thick enough to prevent the interface phenomena that dominate those of bulk. The hole mobility, μh, and electron mobility, μe, values were calculated using the Mott–Gurney equation [31], which is as follows (Equation (1)):
J = 9/8 εr ε0 µV2/d3
Here, εr, the dielectric constant is about 2 for organic semiconducting materials, ε0 is the vacuum permittivity, μ represents the carrier mobility, V represents the applied voltage, and d the active layer thickness. The calculated mobility values were in good agreement with those already published.
Optical absorption spectra were recorded at room temperature, using a UV/visible spectrometer (PERKIN ELMER Lambda 1050 spectrophotometer). The photoluminescence measurements (PL) spectra were recorded using a Fluorolog Jobin-Yvon spectrophotometer. The specimens were illuminated with a 400 nm line of a filtered Xenon lamp (150 W).

3. Results and Discussion

The first part of the study was dedicated to the optimization of the thickness of the three organic layers of the ternary OPV. In fact, the thickness of the α-6T and C60 layers have been already optimized in a binary configuration [32]. Nevertheless, in the preliminary experiments, we studied the effect of the thickness of the D and the A layers, but no improvement in the performances was achieved. Therefore, we focused on the study of the central layer thickness. In Table 1, we can observe that the PHJ-OPV power conversion efficiency increases with the AlPcCl thickness, up to 15 nm. Beyond this optimum, the efficiency starts to decrease. The optimum power conversion efficiency is η = 4.33%, which corresponds to an open circuit voltage, Voc, of 0.62 V, a short circuit current, Jsc, of 13.90 mA/cm2 and a fill factor, FF, of 48%. It can be observed that Voc increases with the increase in AlPcCl thickness. However, if Jsc starts increasing with this thickness of AlPcCl, beyond 15 nm it decreases, which results in a decrease in the power conversion efficiency.
The goal of our study on ternary PHJ-OPVs was to surpass the efficiencies obtained with the corresponding binary PHJ-OPVs. Then, after optimizing the performances obtained with the ternary PHJ-OPV 6T/AlPcCl/C60, we compared these results with those due to the couples α-6T/C60, AlPcCl/C60 and α-6T/AlPcCl. The results, obtained after optimization, are presented in Figure 2 and are summarized in Table 2.
By comparison with binary PHJ-OPVs with α-6T as D, the improvement of the ternary OPV is very significant. Even with the highly performing binary OPVs based on the AlPcCl/C60 couple, there is an increase in the power conversion efficiency. To deepen our understanding of the results, we carried out some complementary experiments. First, we carried out the measurements of the EQE spectra of the different absorbing layers. In Figure 3, the EQE spectra are presented, and it is possible to compare them to the absorbance spectra of the corresponding layers to verify if all the constituents of these different layers were effective in the creation of charge carriers. By comparing the Figure 3 and Figure 4, it is clear that all the EQE spectra follow the absorbance spectra of the corresponding structure. For instance, in the case of the AlPcCl/C60 active bilayer, the shape of the EQE spectrum follows that of the absorption spectrum of AlPcCl, with a clear contribution of C60 for wavelengths below 500 nm. In the case of α-6T/C60, the EQE spectrum exhibits a prominent peak with a maximum around λ = 460 nm (Figure 3), while the absorption maximum of α-6T is situated at λ = 410 nm (Figure 4). The slight red-shift of the EQE spectrum is due to some contribution of the C60 layer and the absorption curve exhibits a shoulder at around 460 nm. In the case of the α-6T/AlPcCl couple, the contributions of α-6T and AlPcCl are clearly visible in both spectra (Figure 3 and Figure 4). The first EQE maximum appears at λ = 740 nm, which can be attributed to the excitons issued from AlPcCl, while the second broad peak, situated between λ = 350 nm and 550 nm, must be mainly attributed to α-6T, as shown by their absorption spectra.
Therefore, the EQE curve of the α-6T/AlPcCl structures demonstrates that both layers are clearly active. Finally, both interfaces of the α-6T/AlPcCl/C60 ternary structure are active, as shown in Figure 3; the shape of the EQE spectrum of the ternary PHJ-OPV follows that of the optical absorbance (Figure 4). The band gaps of the donors AlPcCl and α-6T can be calculated from the absorbance spectra presented in Figure 4. The estimated value for AlPcCl is 1.51 eV, which is in good agreement with the value reported in the literature [33]. Concerning the band gap of α-6T, the value estimated from the absorbance spectrum is 2.2 eV, while that calculated from the PL graph [34] is 2.35 eV. These values are in good agreement, given the experimental uncertainties (+/−0.5 eV) concerning these measurements.
In Table 2, we can observe that the Jsc value of the ternary PHJ-OPV is significantly higher than those of the binary PHJ-OPVs. Such an improvement can be attributed to different contributions. First, the absorbance range of the active layer is far broader than those of the binary OPVs with C60 as the acceptor, which permits a broader spectral response. Second, Jsc depends not only on the number of created excitons but also on the charge generation efficiency. We have observed that both interfaces in the ternary α-6T/AlPcCl/C60 PHJ-OPVs are efficient, which contributes significantly to the increase in Jsc. In addition to the classical charge generation at the interface ED/EA through the classical four steps process (a/absorption of light and exciton generation, b/exciton diffusion to an interface D/A, c/exciton dissociation and charge carrier generation at the interface, d/charge carrier collection at the electrodes), there is an alternative possible migration, through energy transfer. It corresponds to a two-step process, which first includes the diffusion of the exciton from D to the central ambipolar layer, DA, over long-distance scales, followed by dissociation. This diffusion over long distances occurs due to a type of energy transfer named “Föster resonance energy transfer-FRET”. Therefore, this FRET process is likely to initiate the two-step exciton dissociation process, which first includes large-scale FRET exciton diffusion from D to DA, and then dissociation at the DA/A interface. However, the FRET process, to be efficient, needs overlapping between the D emission spectrum and the DA absorption spectrum [35,36,37]. In the present case, the absorption spectrum of AlPcCl exhibits two main features, one band between 550 nm and 800 nm and the other one in the UV range from 400 nm and less (Figure 4). On the other hand, α-6T presents a strong emission peak between 500 nm and 750 nm, as shown in Figure 5. It means that Föster resonance energy transfer-FRET is highly probable in the ternary PHJ-OPVs based on α-6T/AlPcCl/C60. Indeed, when the α-6T layer is covered with a thin AlPcCl (15 nm) layer, the photoluminescence signal decreases significantly (Figure 5). The high efficiency of the AlPcCl quenching layer indicates that the FRET from α-6T to AlPcCl is very efficient [25].
At room temperature, the emission spectra of α-6T consists of three bands located at 2.25 eV, 2.10 eV, and 1.92 eV, which is in excellent agreement with the literature [38]. The most energetic emission peak, located at 2.25 eV, is identified as the 0-0 excitonic transition, which is located at 2.27 eV; the others are generally attributed to vibronic coupling.
We also carried out the carrier mobility measurements of the different organic layers. Thus, electron and hole mobilities of AlPcCl have been estimated using the SCLC method (see “Materials and Methods” section). The values obtained are µe = 6.9 × 10−4 cm2/Vs and µh = 4 × 10−5 cm2/Vs. The electron mobility of C60 is µe = 1.5 × 10−2 cm2/Vs, which is an acceptable value for an amorphous layer [39].
On the other hand, it is well accepted that, if nearly ohmic contacts between organic layers and electrodes are realized, Voc is directly related to the difference between LUMOA and HOMOD according to the following Equation (2):
qVoc = LUMOA − HOMOD − Δ
The Δ value depends on recombination losses, which depend on the D/A interface quality [40]. The different LUMOA-HOMOD values for α-6T/C60, AlPcCl/C60 and α-6T/AlPcCl are 0.9 eV, 0.95 eV and 1.85 eV, respectively. Therefore, if the tendency given by Equation (1) is corroborated by the results presented in Table 2, it must be noted that for the couple α-6T/AlPcCl, the Voc value is far from the maximum theoretical value. It means that, if the interface α-6T/AlPcCl is efficient, it is not as efficient as the α-6T/C60 and AlPcCl/C60 interfaces. Such a limitation of the efficiency of AlPcCl as an acceptor can be attributed to the fact that the electron mobility of AlPcCl, µe(AlPcCl) = 6.9 × 10–4 cm2/Vs, is significantly smaller than that encountered in C60 µe(C60) = 1.5 × 10−2 cm2/Vs.) This hypothesis is supported by the smaller FF values obtained when AlPcCl was used as an acceptor. In the case of the ternary structure, Voc is only slightly higher than that of the junction α-6T/C60, which means that, as expected, the Voc value is limited by the difference between the LUMO of C60 and the HOMO of α-6T. Nevertheless, as shown in Table 2, by comparison with the best results obtained with binary OPVs, the ternary α-6T/AlPcCl/C60 PHJ-OPV permits an improvement in the power conversion efficiency.
Finally, it is well known that bulk and interfacial morphology play an important role in charge generation, recombination, and extraction in OPVs [41]. Therefore, we carried out SEM and AFM studies at each stage of cell development. Firstly, as shown previously [32], α-6T deposited on the hybrid HTL layer MoO3/CuI has a monoclinic polycrystalline structure. This crystallization induces a strong increase in thin film absorption, which contributes to an important increase in the Jsc of the cells using the hybrid HTL layer MoO3/CuI. XRD patterns of the AlPcCl and C60 layers show that these films are amorphous. The AFM study shows that α-6T layers consist of small grains that are distributed homogeneously over the entire sample area, with an RMS (root mean square roughness) of about 2.7 nm. This low roughness limits the leakage currents present when the surface roughness is too high. When deposited onto ITO/MoO3/CuI/α-6T, the AlPcCl surface has a continuous texture formed by «stems», which are distributed randomly, leading to a surface roughness of 12.3 nm [28]. After deposition of the C60 layer (45 nm thick), it is observed that it has a homogeneous and continuous texture formed by features with diameters around 100 nm, which are distributed randomly. This leads to an RMS roughness smaller than 10 nm. As a result, the leakage current is lower (unpublished results), which contributes to the higher performance of the ternary cells.

4. Conclusions

In order to overcome the disadvantage of binary OPVs due to their narrow absorption spectrum, it is possible to use ternary OPVs with constituent layers of complementary absorption domains. During this work, we have chosen α-6T as the electron donor, C60 as the electron acceptor and AlPcCl as the ambipolar layer. Indeed, we had already shown that AlPcCl can be used as an acceptor layer in binary OPVs [28]. Depending on the organic materials chosen to build the active layer, different models can be used to describe the operating mechanism of ternary OPVs, which are as follows: (i) the classical charge transfer via the four-step process, (ii) the parallel mechanism of which the ternary structure behaves as if it was two diodes in parallel [42], (iii) the formation of an interpenetrating bulk heterojunction structure, which is possible when there is a high degree of compatibility between the donor and the acceptor materials [43], and, finally, (iv) the energy transfer mechanism by Föster resonance energy transfer (FRET) [35,36,37].
In the present work, the studied devices were PHJ-OPVs, in which the different organic thin films were stacked and continuous. We also showed that charge transfer and energy transfer mechanisms operate simultaneously in the ternary α-6T/AlPcCl/C60 devices, which justifies the significant improvement of the power conversion efficiency of the ternary PHJ-OPVs, compared to the corresponding binary PHJ-OPVs. Nevertheless, the optimum efficiency remains quite low, which may be attributed to the low value of the Voc. The theoretical maximum value of Voc as LUMOA-HOMOD was 0.9 eV, which prompts the study of this OPV system using an electron donor with a HOMO absolute value higher than 5.6 eV, which would correspond to a Voc value of 1.2 eV.

Author Contributions

Conceptualization, H.F. and J.-C.B.; methodology, L.C. and L.A.; software, G.L.; validation, L.C., G.L. and J.-C.B.; formal analysis, H.F and M.D.; investigation, H.F and H.L.; data curation, G.L.; writing—original draft preparation, H.F. and J.-C.B.; writing—review and editing, H.F., G.L. and J.-C.B.; supervision, M.A. and L.C. All authors have read and agreed to the published version of the manuscript.

Funding

The Hubert Curien program (PHC), under the french-moroccan grant agreements (TOUBKAL) No. 41406ZC.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not available.

Acknowledgments

We gratefully acknowledge «le Centre National de la Recherche Scientifique et Technique (CNRST)» (PPR/2015/9—Ministère Marocain), le Partenariat Hubert Curien (PHC) franco-marocain TOUBKAL, project under contract No. 41406ZC.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bouich, A.; Marí-Guaita, J.; Sahraoui, B.; Palacios, P.; Marí1, B. Tetrabutylammonium (TBA)-Doped Methylammonium Lead Iodide: High Quality and Stable Perovskite Thin Films. Front. Energy Res. 2022, 10, 840817. [Google Scholar] [CrossRef]
  2. Sampaio, P.G.V.; González, M.O.A. A review on organic photovoltaic cell. Int. J. Energy Res. 2022. [Google Scholar] [CrossRef]
  3. Chang, D.W.; Choi, H.J.; Filer, A.; Baek, J.B. Graphene in photovoltaic applications: Organic photovoltaic cells (OPVs) and dye-sensitized solar cells (DSSCs). J. Mater. Chem. A 2014, 2, 12136–12149. [Google Scholar] [CrossRef]
  4. Hains, A.W.; Liang, Z.; Woodhouse, M.A.; Gregg, B.A. Molecular semiconductors in organic photovoltaic cells. Chem. Rev. 2010, 110, 6689–6735. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, X.; Sun, Q.; Gao, J.; Ma, X.; Son, J.H.; Jeong, S.Y.; Hu, Z.; Niu, L.; Woo, H.Y.; Zhang, J.; et al. Ternary Organic Photovoltaic Cells Exhibiting 17.59%, Efficiency with Two Compatible Y6 Derivations as Acceptor. Solar Rrl 2021, 5, 2100007. [Google Scholar] [CrossRef]
  6. Ma, X.; Zeng, A.; Gao, J.; Hu, Z.; Xu, C.; Son, J.H.; Jeong, S.Y.; Zhang, C.; Li, M.; Wang, K.; et al. Approaching 18% efficiency of ternary organic photovoltaics with wide bandgap polymer donor and well compatible Y6: Y6-1O as acceptor. Natl. Sci. Rev. 2021, 8, nwaa305. [Google Scholar] [CrossRef]
  7. Ram, K.S.; Singh, J. Over 20% Efficient and Stable Non-Fullerene-Based Ternary Bulk-Heterojunction Organic Solar Cell with WS2 Hole-Transport Layer and Graded Refractive Index Antireflection Coating. Adv. Theory Simul. 2020, 3, 2000047. [Google Scholar] [CrossRef]
  8. Gong, X.; Tong, M.; Brunetti, F.G.; Seo, J.; Sun, Y.; Moses, D.; Wudl, F.; Heeger, A.J. Bulk Heterojunction Solar Cells with Large Open-Circuit Voltage: Electron Transfer with Small Donor-Acceptor Energy Offset. Adv. Mater. 2011, 23, 2272–2277. [Google Scholar] [CrossRef] [PubMed]
  9. Baran, D.; Kirchartz, T.; Wheeler, S.; Dimitrov, S.; Abdelsamie, M.; Gorman, J.; Ashraf, R.S.; Holliday, S.; Wadsworth, A.; Gasparini, N.; et al. Reduced voltage losses yield 10% efficient fullerene free organic solar cells with >1 V open circuit voltages. Energy Environ. Sci. 2016, 9, 3783. [Google Scholar] [CrossRef]
  10. Bin, H.; Zhang, Z.-G.; Gao, L.; Chen, S.; Zhong, L.; Xue, L.; Yang, C.; Li, Y. Non-Fullerene Polymer Solar Cells Based on Alkylthio and Fluorine Substituted 2D-Conjugated Polymers Reach 9.5% Efficiency. J. Am. Chem. Soc. 2016, 138, 4657–4664. [Google Scholar] [CrossRef] [PubMed]
  11. Narayan, M.; Singh, J. Study of the mechanism and rate of exciton dissociation at the donor-acceptor interface in bulk-heterojunction organic solar cells. J. Appl. Phys. 2013, 114, 073510. [Google Scholar] [CrossRef]
  12. Singh, J.; Narayan, M.; Ompong, D.; Zhu, F. Dissociation of charge transfer excitons at the donor–acceptor interface in bulk heterojunction organic solar cells. J. Mater. Sci. Mater. Electron. 2017, 28, 7095–7099. [Google Scholar] [CrossRef]
  13. Lorch, C.; Barnajee, R.; Dieterle, J.; Hinderhofer, A.; Gerlach, A.; Drnec, J.; Schreiber, F. Templating effects of a-sexithiophene in donor-acceptor organic thin films. J. Phys. Chem. C 2015, 119, 23211–23220. [Google Scholar] [CrossRef]
  14. Bernède, J.C. Organic photovoltaic cells: History, principle and techniques. J. Chil. Chem. Soc. 2008, 53, 1549–1564. [Google Scholar] [CrossRef]
  15. Gao, F. A New Acceptor for Highly Efficient Organic Solar Cells. Joule 2019, 3, 908–919. [Google Scholar] [CrossRef]
  16. Zhang, G.; Zhao, J.; Chow, P.C.Y.; Jiang, K.; Zhang, J.; Zhu, Z.; Zhang, J.; Huang, F.; Yan, H. Nonfullerene Acceptor Molecules for Bulk Heterojunction Organic Solar Cells. Chem. Rev. 2018, 118, 3447–3507. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, Q.; Jiang, Y.; Jin, K.; Qin, J.; Xu, J.; Li, W.; Xiona, J.; Liu, J.; Xiao, Z.; Sun, K.; et al. 18% efficiency organic solar cells. Sci. Commun. 2020, 65, 272–275. [Google Scholar] [CrossRef]
  18. Yang, W.; Luo, Y.; Guo, P.; Sun, H.; Yao, Y. Leakage Current Induced by Energetic Disorder in Organic Bulk Heterojunction Solar Cells: Comprehending the Ultrahigh Loss of Open-Circuit Voltage at Low Temperatures. Phys. Rev. Appl. 2017, 7, 044017. [Google Scholar] [CrossRef]
  19. Schaffer, C.J.; Palumbiny, C.M.; Niedermeier, M.A.; Jendrzejewski, C.; Santoro, G.; Roth, S.V.; Müller-Buschbaum, P. A Direct Evidence of Morphological Degradation on a Nanometer Scale in Polymer Solar Cells. Adv. Mater. 2013, 25, 6760–6764. [Google Scholar] [CrossRef]
  20. Wang, K.; Song, X.; Guo, X.; Wang, Y.; Lai, X.; Meng, F.; Du, M.; Fan, D.; Zhang, R.; Li, G.; et al. Efficient as-cast thick film small-molecule organic solar cell with less fluorination on the donor. Mater. Chem. Front. 2020, 4, 206. [Google Scholar] [CrossRef]
  21. He, X.; Yin, L.; Li, Y. Design of organic small molecules for photovoltaic application with high open-circuit voltage (Voc). J. Mater. Chem. C 2019, 7, 2487–2521. [Google Scholar] [CrossRef]
  22. Po, R.; Roncali, J. Beyond efficiency: Scalability of molecular donor materials for organic photovoltaics. Mater. Chem. C 2016, 4, 3677–3685. [Google Scholar] [CrossRef]
  23. Zhang, Q.; Kan, B.; Liu, F.; Long, G.; Wan, X.; Chen, X.; Zuo, Y.; Ni, W.; Zhang, H.; Li, M.; et al. Small-molecule solar cells with efficiency over 9%. Nat. Photonics 2015, 9, 35–41. [Google Scholar] [CrossRef]
  24. Galindo, S.; Ahmadpour, M.; Gerling, L.G.; Marsal, A.; Voz, C.; Alcubilla, R.; Puigdollers, J. Influence of the density of states on the open-circuit voltage in small-molecule solar cells. Org. Electron. 2014, 15, 2553–2560. [Google Scholar] [CrossRef]
  25. Cnops, K.; Rand, B.P.; Cheyns, D.; Verreet, B.; Empl, M.A.; Heremans, P. 8.4% efficient fullerene-free organic solar cells exploiting long-range exciton energy transfer. Nat. Commun. 2014, 5, 3406. [Google Scholar] [CrossRef]
  26. Leliège, A.; Grolleau, J.; Allain, M.; Blanchard, P.; Demeter, D.; Rousseau, T.; Roncali, J. Small D-p-A systems with s-phenylenebridged accepting units as active materials for organic photovoltaics. Chem.—Eur. J. 2013, 19, 9948–9960. [Google Scholar] [CrossRef] [PubMed]
  27. Ilmin, R.; Haque, A.; Khan, M.S. High efficiency small molecule based donor materials for organic solar cells. Org. Electron. 2018, 58, 53–62. [Google Scholar] [CrossRef]
  28. Ftouhi, H.; Lamkaouane, H.; Louarn, G.; Diani, M.; Bernède, J.-C.; Addou, M.; Ftouhi, H.; Lamkaouane, H.; Louarn, G.; Diani, M.; et al. Investigation of aluminum phthalocyanine chloride as acceptor material in planar organic solar cells: Comparative study with fullerene. J. Mater. Sci. Mater. Electron. 2021, 32, 27710–27720. [Google Scholar] [CrossRef]
  29. El Jouad, Z.; Morsli, M.; Louarn, G.; Cattin, L.; Addou, M.; Bernède, J.-C. Improving the efficiency of subphthalocyanine based planar organic solar cells through the use of MoO3/CuI double anode buffer layer. Sol. Energy Mater. Sol. Cells 2015, 141, 429–435. [Google Scholar] [CrossRef]
  30. Lakhdar Toumi, A.; Khelil, A.; Tobel, K.; Makha, M.; Hernández, L.A.; Mouchaal, Y.; Cattin, L.; del Valle, M.A.; Diaz, F.R.; Bernède, J.-C. On the exciton blocking layer at the interface organic/cathode in planar multiheterojunction organic solar cells. Solid State Electron. 2015, 104, 1–5. [Google Scholar] [CrossRef]
  31. Qin, P.; Fang, G.; Zeng, W.; Fan, X.; Zheng, Q.; Cheng, F.; Wan, J.; Zhao, X. Influence of thermal radiation during aluminium thermal evaporation on organic solar cells. Sol. Energy Mater. Sol. Cells 2011, 95, 3311. [Google Scholar] [CrossRef]
  32. Ftouhi, H.; El-Menyawy, E.M.; Lamkaouane, H.; Diani, M.; Louarn, G.; Bernède, J.-C.; Addou, M.; Cattin, L. Efficient planar heterojunction based on α-sexithiophene/fullerene through the use of MoO3/CuI anode buffer layer. Thin Solid Films 2022, 41, 139025. [Google Scholar] [CrossRef]
  33. Ballarotto, M.; Herman, W.N.; Romero, D.B. Low-bandgap small molecules for near-infrared photovoltaic applications. J. Photonics Energy 2011, 1, 011102. [Google Scholar] [CrossRef]
  34. Marí-Guaita, J.; Bouich, A.; Marí, B. Shedding Light on Phase Stability and Surface Engineering of Formamidinium Lead Iodide (FaPbI3) Thin Films for Solar Cells. Eng. Proc. 2021, 12, 1. [Google Scholar] [CrossRef]
  35. Liu, D.; Fan, P.; Zhang, D.; Zhang, X.; Yu, J. Förster resonance energy transfer and improved charge mobility for high performance and low-cost ternary polymer solar cells. Sol. Energy 2019, 189, 186–193. [Google Scholar] [CrossRef]
  36. Coffey, D.C.; Ferguson, A.J.; Kopidakis, N.; Rumbles, G. Photovoltaic charge generation in organic semiconductors based on long-range energy transfer. ACS Nano 2010, 4, 5437–5445. [Google Scholar] [CrossRef] [PubMed]
  37. Singh, J.; Narayan, M.R.; Ompong, D. Comparative contributions of singlet and triplet excitons in the performance of organic devices. Phys. Status Solidi 2016, 13, 77–80. [Google Scholar] [CrossRef]
  38. Mani, A.; Schoonman, J.; Goossens, A. Photoluminescence study of sexithiophene thin films. J. Phys. Chem. B 2005, 109, 4829–4836. [Google Scholar] [CrossRef]
  39. Mendil, N.; Daoudi, M.; Berkai, Z.; Belghachi, A. Disorder effect on carrier mobility in Fullerene organic semiconductor. J. Phys. Conf. Ser. 2015, 647, 012057. [Google Scholar] [CrossRef]
  40. Benduhn, J.; Tvingstedt, K.; Piersimoni, F.; Ullbrich, S.; Fan, Y.; Tropiano, M.; McGarry, K.A.; Zeika, O.; Riede, M.K.; Douglas, C.J.; et al. Intrinsic non-radiative voltage losses in fullerene-based organic solar cells. Nat. Energy 2017, 2, 17053. [Google Scholar] [CrossRef]
  41. Karki, A.; Vollbrecht, J.; Gillett, A.J.; Xiao, S.S.; Yang, Y.; Peng, Z.; Schopp, N.; Dixon, A.L.; Yoon, S.; Schrock, M.; et al. The role of bulk and interfacial morphology in charge generation, recombination, and extraction in non-fullerene acceptor organic solar cells. Energy Environ. Sci. 2020, 13, 3679–3692. [Google Scholar] [CrossRef]
  42. Cattin, L.; El Jouad, Z.; Siad, M.B.; Mohammed Krarroubi, A.; Neculqueo, G.; Arzel, L.; Stephant, N.; Mastropasqua Talamo, M.; Martinez, F.; Addou, M.; et al. Highlighting the possibility of parallel mechanism in planar ternary photovoltaic cells. AIP Adv. 2018, 8, 115329. [Google Scholar] [CrossRef]
  43. Zhan, L.; Li, S.; Lau, T.K.; Cui, Y.; Lu, X.; Shi, M.; Li, C.Z.; Li, H.; Hou, J.; Chen, H. Over 17% efficiency ternary organic solar cells enabled by two non-fullerene acceptors working in an alloy-like model. Energy Environ. Sci. 2020, 13, 635–645. [Google Scholar] [CrossRef]
Solar 02 00022 g001 550

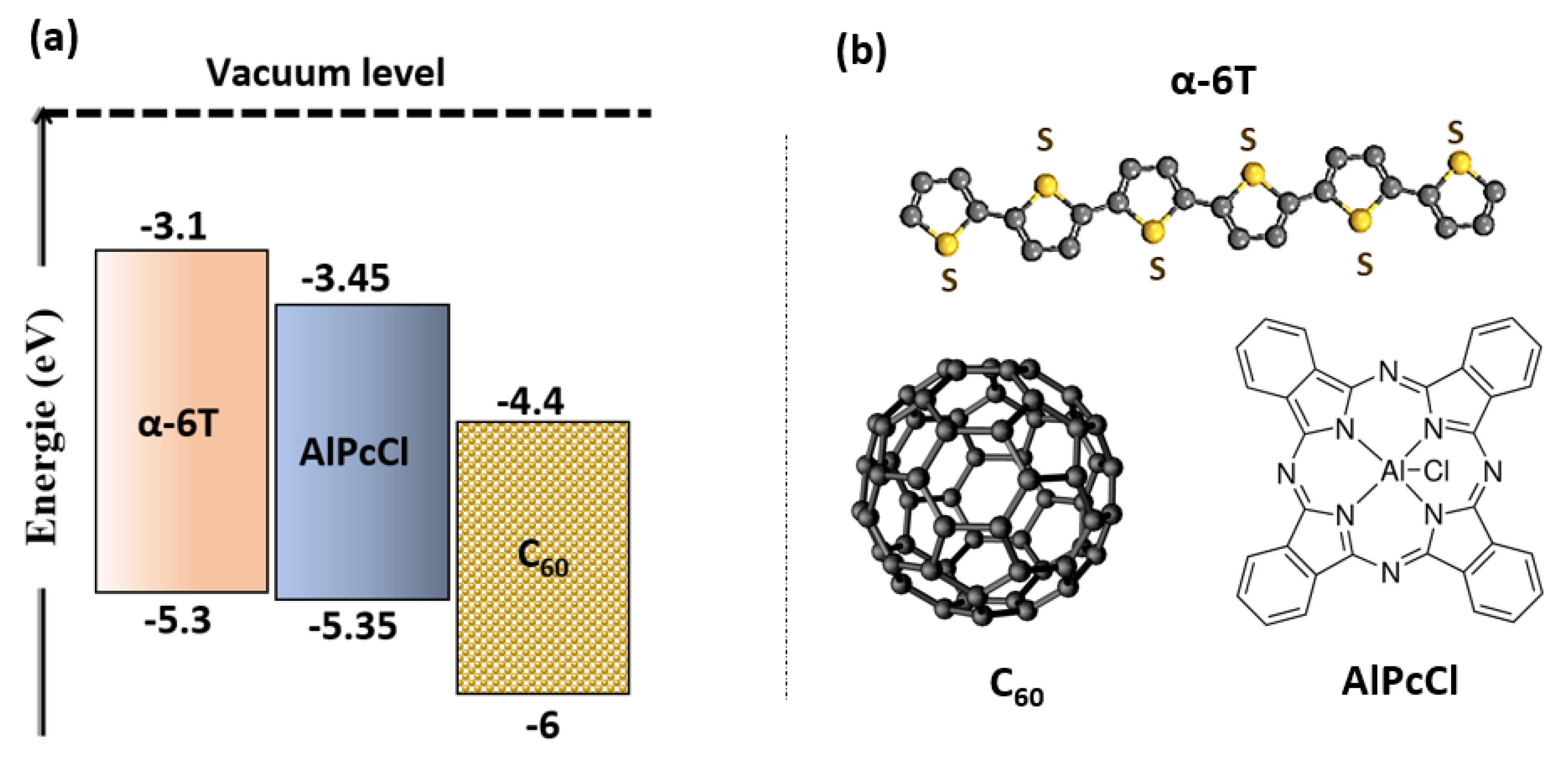

Figure 1. Energy level alignments for the different OPVs (a); small molecules used (b).
Figure 1. Energy level alignments for the different OPVs (a); small molecules used (b).
Solar 02 00022 g001
Solar 02 00022 g002 550

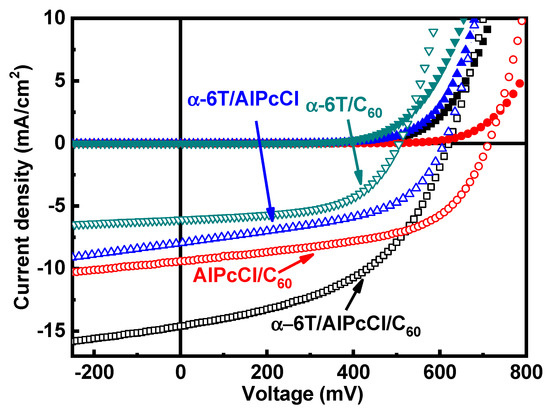

Figure 2. J-V characteristics of binary and ternary PHJ-OPVs: ITO/MoO3/active layers/Alq3/Al, the active layer being AlPcCl/C60 (●), α-6T/C60 (▼), α-6T/AlPcCl (▲) and α-6T/AlPcCl/C60 (■), (the filled symbols correspond to dark conditions, while the empty symbols correspond to light AM 1.5 conditions).
Figure 2. J-V characteristics of binary and ternary PHJ-OPVs: ITO/MoO3/active layers/Alq3/Al, the active layer being AlPcCl/C60 (●), α-6T/C60 (▼), α-6T/AlPcCl (▲) and α-6T/AlPcCl/C60 (■), (the filled symbols correspond to dark conditions, while the empty symbols correspond to light AM 1.5 conditions).
Solar 02 00022 g002
Solar 02 00022 g003 550

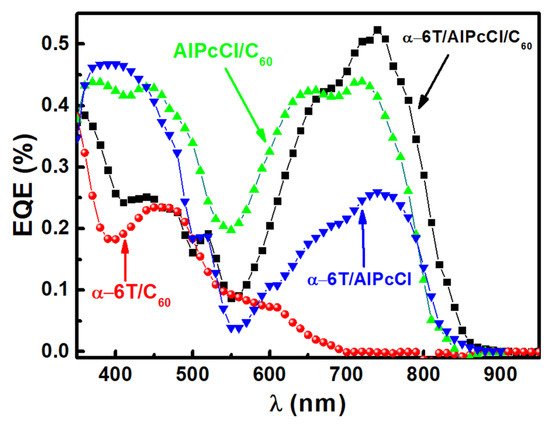

Figure 3. EQE spectra of PHJ-OPVs with different active layers: (■) α-6T/AlPcCl/C60, (▲) AlPcCl/C60, (▼) α-6T/AlPcCl and (●) α-6T/C60.
Figure 3. EQE spectra of PHJ-OPVs with different active layers: (■) α-6T/AlPcCl/C60, (▲) AlPcCl/C60, (▼) α-6T/AlPcCl and (●) α-6T/C60.
Solar 02 00022 g003
Solar 02 00022 g004 550

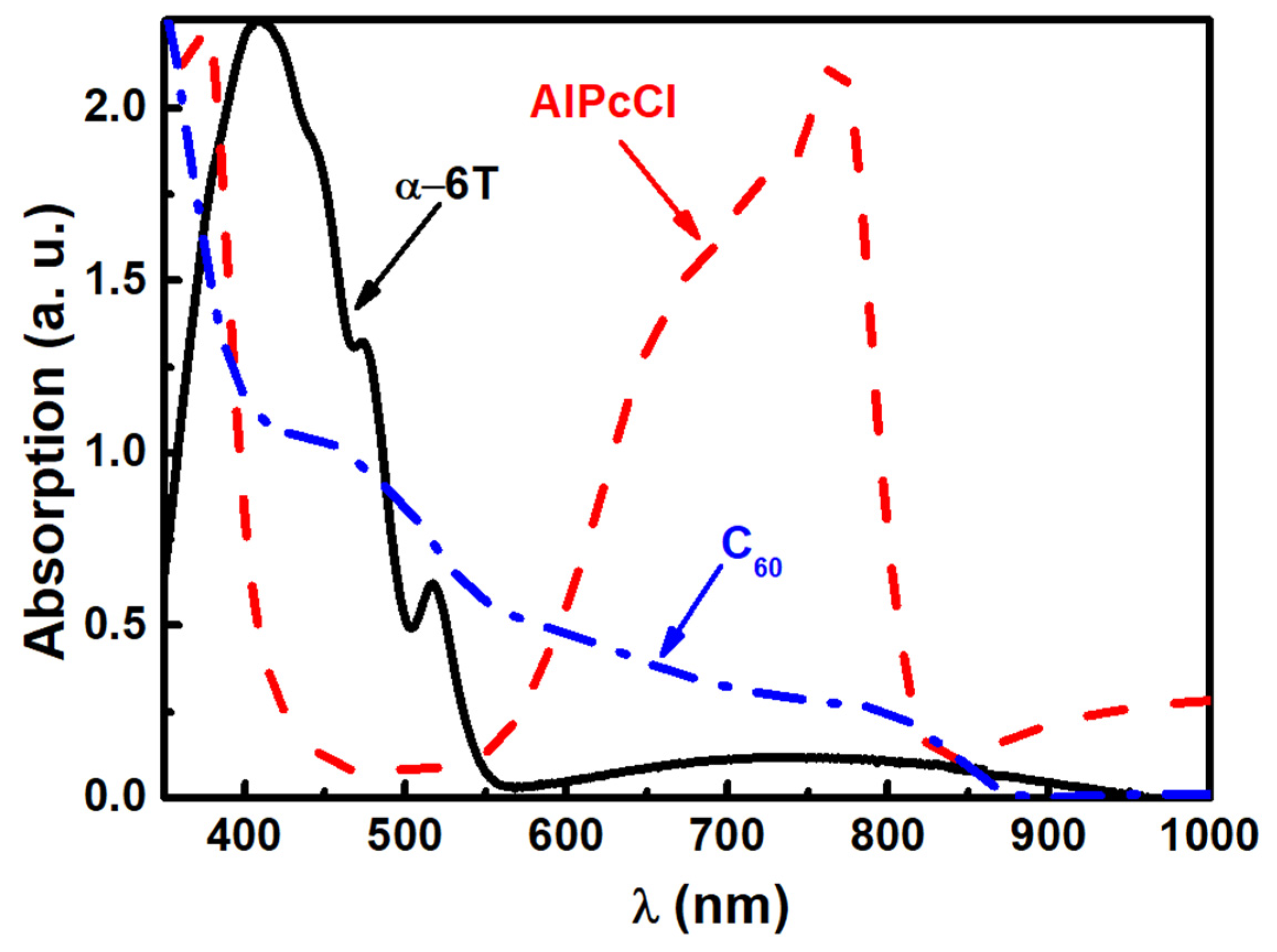

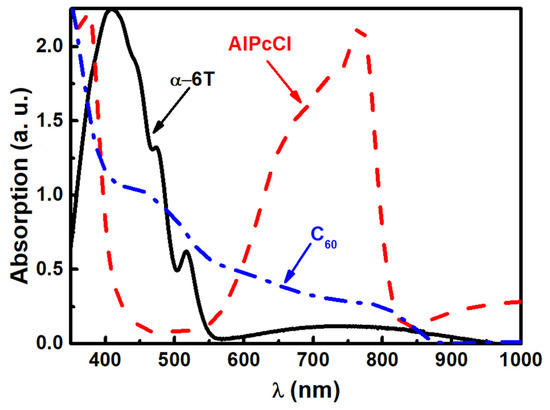

Figure 4. Absorbance spectra of α-6T (—), AlPcCl (— —) and C60 (— • —).
Figure 4. Absorbance spectra of α-6T (—), AlPcCl (— —) and C60 (— • —).
Solar 02 00022 g004
Solar 02 00022 g005 550

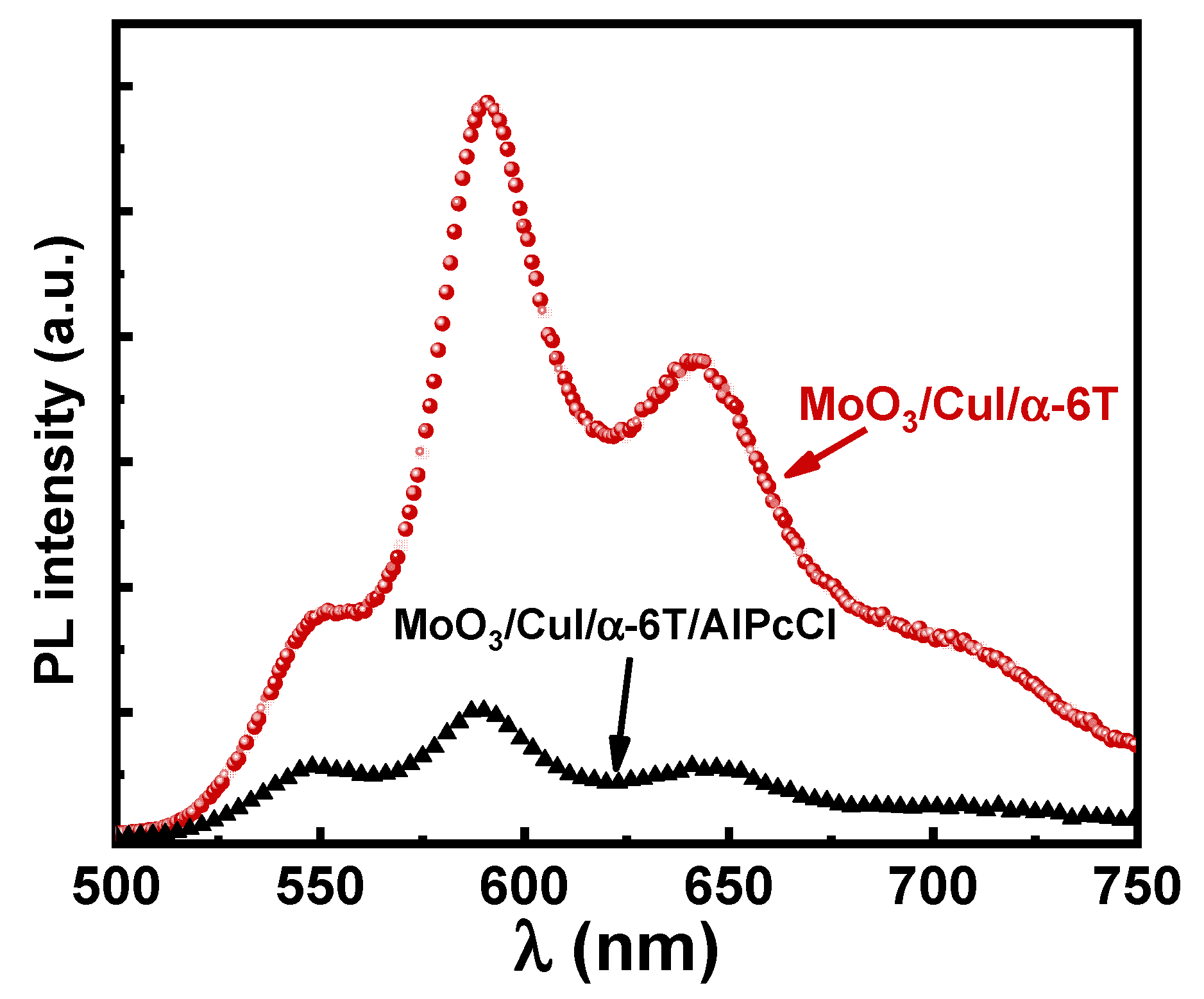

Figure 5. Photoluminescence spectrum of a α-6T layer alone (●) and covered by AlPcCl (▲).
Figure 5. Photoluminescence spectrum of a α-6T layer alone (●) and covered by AlPcCl (▲).
Solar 02 00022 g005
Table
Table 1. Parameters of the ternary PHJ-OPVs based on the active layer: 6T/AlPcCl/C60.
Table 1. Parameters of the ternary PHJ-OPVs based on the active layer: 6T/AlPcCl/C60.
Layer Thickness (nm)Voc
(V)		Jsc
(mA/cm2)		FF
(%)		η
(%)
α-6TAlPcClC60
2210450.4911.70432.50
2212450.5911.70533.70
2213450.6111.77433.10
2215450.6214.60484.33
2217.5450.6312.50473.70
Table
Table 2. Parameters of the PHJ-OPV family using α-6T, AlPcCl and C60.
Table 2. Parameters of the PHJ-OPV family using α-6T, AlPcCl and C60.
SampleThickness (nm)Voc
(V)		Jsc
(mA/cm2)		FF
(%)		η
(%)
α-6TAlPcClC60
α-6T/C6022***450.516.10581.77
α-6T/AlPcCl2225***0.617.98512.48
AlPcCl/C60***26450.709.6159.53.97
α-6T/AlPcCl/C602215450.6214.60484.33
