Extended Convergence of Two Multi-Step Iterative Methods

Abstract

Iterative methods which have high convergence order are crucial in computational mathematics since the iterates produce sequences converging to the root of a non-linear equation. A plethora of applications in chemistry and physics require the solution of non-linear equations in abstract spaces iteratively. The derivation of the order of the iterative methods requires expansions using Taylor series formula and higher-order derivatives not present in the method. Thus, these results cannot prove the convergence of the iterative method in these cases when such higher-order derivatives are non-existent. However, these methods may still converge. Our motivation originates from the need to handle these problems. No error estimates are given that are controlled by constants. The process introduced in this paper discusses both the local and the semi-local convergence analysis of two step fifth and multi-step $5+3r$ order iterative methods obtained using only information from the operators on these methods. Finally, the novelty of our process relates to the fact that the convergence conditions depend only on the functions and operators which are present in the methods. Thus, the applicability is extended to these methods. Numerical applications complement the theory.

1. Introduction

The most commonly recurring problems in engineering, the physical and chemical sciences, computing and applied mathematics can be usually summed up as solving a non-linear equation of the form

$$G\left(x\right)=0,$$

(1)

with $G:D\subseteq E_1\to E_2$ being differentiable as, per Fréchet, $E_1,E_2$ denotes complete normed linear spaces and D is a non-empty, open and convex set.

Researchers have attempted for decades to trounce this nonlinearity. From the analytical view, these equations are very challenging to solve. The utilisation of iterative methods (IM) to find the solution of such non-linear equations is predominantly chosen among researchers for this very reason. The most predominantly used IM for solving such nonlinear equations is Newton’s method. In recent years, with advancements in science and mathematics, many new higher-order iterative methods for dealing with nonlinear equations have been found and are presently being employed [1,2,3,4,5,6,7,8]. Nevertheless, these results on the convergence of iterative methods that are currently being utilised in the above-mentioned articles are derived by applying high-order derivatives. In addition, no results address the error bounds, convergence radii or the domain in which the solution is unique.

The study of local convergence analysis (LCA) and semi-local analysis (SLA) of an IM permits calculating the radii of the convergence domains, error bounds and a region in which the solution is unique. The work in [9,10,11,12] discusses the results of local and semi-local convergence of different iterative methods. In the above-mentioned articles, important results discussing radii of convergence domains and measurements on error estimates are discussed, thereby expanding the utility of these iterative methods. Outcomes of these type of studies are crucial as they exhibit the difficulty in selecting starting points.

In this article, we establish theorems of convergence for two multi-step IMs with fifth (2) and $5+3p$ (3) order convergence proposed in [8]. The methods are:

$$\begin{array}{cc}\hfill y_i& =x_i-G^{\prime }{\left(x_i\right)}^{-1}G\left(x_i\right)\hfill \\ \hfill {\tau }_1\left(x_i\right)& =P_i+\frac{1}{4}{(P_i-I)}^2,P_i=G^{\prime }{\left(y_i\right)}^{-1}{G}^{\prime }\left(x_i\right)\hfill \\ \hfill x_{i+1}& =y_i-{\tau }_1\left(x_i\right)G^{\prime }{\left(x_i\right)}^{-1}G\left(y_i\right)\hfill \end{array}$$

(2)

and

$$\begin{array}{cc}\hfill z_0\left(x_i\right)& =x_i-G^{\prime }{\left(x_i\right)}^{-1}G\left(x_i\right),\hfill \\ \hfill z_1\left(x_i\right)& =z_0\left(x_i\right)-{\tau }_1\left(x_i\right)G^{\prime }{\left(x_i\right)}^{-1}G\left(z_0\left(x_i\right)\right)\hfill \\ \hfill z_2\left(x_i\right)& =z_1\left(x_i\right)-{\tau }_1\left(x_i\right)G^{\prime }{\left(x_i\right)}^{-1}G\left(z_1\left(x_i\right)\right)\hfill \\ \hfill & \dots \hfill \\ \hfill x_{i+1}& =z_p\left(x_i\right)=z_{p-1}\left(x_i\right)-{\tau }_1\left(x_i\right)G^{\prime }{\left(x_i\right)}^{-1}G\left(z_{p-1}\left(x_i\right)\right),\hfill \end{array}$$

(3)

where p is a positive integer.

It is worth emphasizing that (2) and (3) are iterative and not analytical methods. That is, a solution denoted by $x^{*}$ is obtained as an approximation using these methods. The iterative methods are more popular than the analytical methods, since in general it is rarely possible to find the closed form of the solution in the latter form.

Motivation: The LCA of the methods (2) and (3) is given in [8]. The order is specified using Taylor’s formula and requires the employment of higher-order derivatives not present in the method. Additionally, these works cannot give estimates on the error bounds $\parallel x_i-x^{*}\parallel$, the radii of convergence domains or the uniqueness domain. To observe the limitations of the Taylor series approach, consider G on $D=[-0.5,1.5]$ by

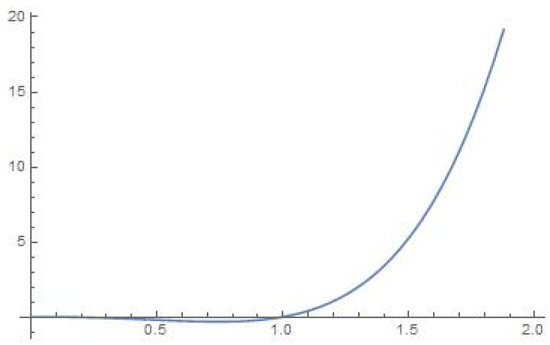

$$G\left(t\right)=\left\{\begin{array}{cc}{t}^{3}ln\left(t^2\right)+t^5-t^4,\hfill & \mathrm{if}t\ne 0\hfill \\ 0,\hfill & \mathrm{if}t=0\hfill \end{array}\right..$$

(4)

Then, we can effortlessly observe that since $G^{‴}$ is unbounded, the conclusions on convergence of (2) and (3) discussed in [8] are not appropriate for this example.

Novelty: The aforementioned disadvantages provide encourage us to introduce convergence theorems providing the domains and hence comparing the domains of convergence of (2) and (3) by considering hypotheses based only on $G^{\prime }$. This research work also presents important results for the estimation of the error bounds $\parallel x_i-x^{*}\parallel$ and radii of the domain of convergence. Discussions about the exact location and the uniqueness of the root $x^{*}$ are also provided in this work.

The rest of the details of this article can be outlined as follows: Section 2 deals with LCA of the methods (2) and (3). The SLA considered more important than LC and not provided in [8] is also dealt with in this article in Section 3. The convergence outcomes are tested using numerical examples and are given in Section 4. Example 4 deals with a real world application problem. In Example 5, we revisit the motivational example to show that ${lim}_{n\to +\infty }{x}_n=x^{*}=1$. Conclusions of this study are given in Section 5.

2. Local Convergence Analysis

Some scalar functions are developed to prove the convergence. Let $T=\left[0,+\infty \right)$.

Suppose:

(i)

There exists a function ${\phi }_0$:$T\to \mathbb{R}$ which is non-decreasing and continuous (NC) and the equation ${\phi }_0\left(t\right)-1=0$ admits a minimal solution (MS) ${\rho }_0\in T-\left\{0\right\}$. Set $T_0=\left[0,{\rho }_0\right)$.

(ii)

There exists a function $\phi$:$T_0\to \mathbb{R}$ which is NC so that the equation $g_0\left(t\right)-1=0$ admits a MS $r_0\in T_0-\left\{0\right\}$, with the function $g_0$:$T_0\to \mathbb{R}$ being

$$g_0\left(t\right)=\frac{{\int }_0^1\phi \left((1-\theta )t\right)d\theta }{1-{\phi }_0\left(t\right)}.$$

(iii)

The equation ${\phi }_0\left(g_0\left(t\right)t\right)-1=0$ admits a MS $\rho \in T_0-\left\{0\right\}$. Set $T_1=\left[0,{\rho }_1\right)$, where ${\rho }_1=min\{{\rho }_0,\rho \}$.

(iv)

The equation $g_1\left(t\right)-1=0$ admits a MS $r_1\in T_1-\left\{0\right\}$, provided the function $g_1$:$T_1\to \mathbb{R}$ is defined by

$$g_1\left(t\right)=\left[\frac{{\int }_0^1\phi \left((1-\theta )g_0\left(t\right)t\right)d\theta }{1-{\phi }_0\left(g_0\left(t\right)t\right)}+\frac{1}{4}{\left(\frac{\overline{\phi }\left(t\right)}{1-{\phi }_0\left(g_0\left(t\right)t\right)}\right)}^2\frac{(1+{\int }_0^1{\phi }_0\left(\theta g_0\left(t\right)t\right)d\theta )}{1-{\phi }_0\left(t\right)}\right]g_0\left(t\right),$$

(5)

where

$$\overline{\phi }\left(t\right)=\left\{\begin{array}{c}\phi \left((1+g_0\left(t\right))t\right),\hfill \\ \mathrm{or}\hfill \\ {\phi }_0\left(t\right)+{\phi }_0\left(g_0\left(t\right)t\right)\hfill \end{array}\right..$$

In applications, the smallest version of the function $\overline{\phi }$ shall be chosen.

Set

$$r=min\{r_0,r_1\}.$$

(6)

The parameter r is the radius of the convergence ball (RC) for the method (2) (see Theorem 1).

Set $T_2=\left[0,r\right)$.

Then, if $t\in T_2$, it is implied that

$$\begin{array}{cc}\hfill 0& \le {\phi }_0\left(t\right)<1,\hfill \end{array}$$

(7)

$$\begin{array}{cc}\hfill 0& \le {\phi }_0\left(g_0\left(t\right)t\right)<1,\hfill \end{array}$$

(8)

$$\begin{array}{cc}\hfill 0& \le g_0\left(t\right)<1\hfill \end{array}$$

(9)

$$\begin{array}{cc}\hfill \mathrm{and}0& \le g_1\left(t\right)<1.\hfill \end{array}$$

(10)

The following conditions justify the introduction of the functions ${\phi }_0$ and $\phi$ and helps in proving the LC of the method (2).

($A_1$)

There exists $x^{*}\in D$ with $G\left(x^{*}\right)=0$ and $G^{\prime }{\left(x^{*}\right)}^{-1}\in \mathcal{L}(E_2,E_1)$.

($A_2$)

$\parallel G^{\prime }{\left(x^{*}\right)}^{-1}(G^{\prime }\left(u\right)-G^{\prime }\left(x^{*}\right))\parallel \le {\phi }_0(\parallel u-x^{*}\parallel )$ for each $u\in D$. Set $D_0=D\cap S(x^{*},{\rho }_0)$.

($A_3$)

$\parallel G^{\prime }{\left(x^{*}\right)}^{-1}(G^{\prime }\left(u_2\right)-G^{\prime }\left(u_1\right))\parallel \le \phi (\parallel u_2-u_1\parallel )$ for each $u_1,u_2\in D_0$.

and

($A_4$)

$S[x^{*},r]\subset D$, with r given in (6).

Conditions ($A_1$)–($A_4$) are employed to show the LC of the method (2). Let $d_i=\parallel x_i-x^{*}\parallel$.

Theorem 1.

Under the conditions ($A_1$)–($A_4$), further assume that the starting point $x_0\in S(x^{*},r)-\left\{x^{*}\right\}$. Then, the sequence $\left\{x_i\right\}$ given by the method (2) is convergent to $x^{*}$ and

$$\parallel y_i-x^{*}\parallel \le g_0\left(d_i\right)d_i\le d_i<r$$

(11)

and

$$d_{i+1}\le g_1\left(d_i\right)d_i\le d_i,$$

(12)

where (6) gives the formula for the radius r and the functions ${\mathit{g}}_0$ and ${\mathit{g}}_1$ are previously provided.

Proof.

Let us pick $v\in S(x^{*},r)-\left\{x^{*}\right\}$. By applying the conditions ($A_1$), ($A_2$), (6) and (7), we observe in turn that

$$\parallel G^{\prime }{\left(x^{*}\right)}^{-1}(G^{\prime }\left(v\right)-G^{\prime }\left(x^{*}\right))\parallel \le {\phi }_0(\parallel v-x^{*}\parallel )\le {\phi }_0\left(r\right)<1.$$

(13)

Estimate (13) and the standard Banach lemma on linear invertible operators [9,10,13] guarantee that $G^{\prime }{\left(v\right)}^{-1}\in \mathcal{L}(E_2,E_1)$ together with

$$\parallel G^{\prime }{\left(v\right)}^{-1}{G}^{\prime }\left(x^{*}\right)\parallel \le \frac{1}{1-{\phi }_0(\parallel v-x^{*}\parallel )}.$$

(14)

Hypothesis $x_0\in S(x^{*},r)-\left\{x^{*}\right\}$ and (14) imply that the iterate $y_0$ exists. Thus, by the first sub-step of method (2), we get in turn that

$$\begin{array}{cc}\hfill y_0-x^{*}& =x_0-x^{*}-G^{\prime }{\left(x_0\right)}^{-1}G\left(x_0\right)\hfill \\ \hfill & =G^{\prime }{\left(x_0\right)}^{-1}[G^{\prime }\left(x_0\right)(x_0-x^{*})-(G\left(x_0\right)-G\left(x^{*}\right))]\hfill \\ \hfill & =-G^{\prime }{\left(x_0\right)}^{-1}{G}^{\prime }\left(x^{*}\right)\left[{\int }_0^1{G}^{\prime }{\left(x^{*}\right)}^{-1}(G^{\prime }(x^{*}+\mathsf{\Phi }(x_0-x^{*}))d\mathsf{\Phi }-G^{\prime }\left(x_0\right))\right](x_0-x^{*}).\hfill \end{array}$$

(15)

In view of ($A_3$), (6), (9), (14) (for $v=x_0$) and (15), we obtain in turn that

$$\begin{array}{cc}\hfill \parallel y_0-x^{*}\parallel & \le \frac{{\int }_0^1\phi \left((1-\mathsf{\Phi })d_0\right)d\mathsf{\Phi }{d}_0}{1-{\phi }_0\left(d_0\right)}\hfill \\ \hfill & \le g_0\left(d_0\right)d_0\hfill \\ \hfill & \le d_0<r.\hfill \end{array}$$

(16)

Hence, the iterate $y_0\in S(x^{*},r)-\left\{x^{*}\right\}$ and the assertion (11) hold if $i=0$. Notice also that (14) holds for $v=y_0$, since $y_0\in S(x^{*},r)-\left\{x^{*}\right\}$. Hence, the iterate $x_1$ exists by the second sub-step of the method (2). Moreover, the third sub-step gives

$$\begin{array}{cc}\hfill x_1-x^{*}& =y_0-x^{*}-G^{\prime }{\left(y_0\right)}^{-1}G\left(y_0\right)+(G^{\prime }{\left(y_0\right)}^{-1}-{\tau }_1{G}^{\prime }{\left(x_0\right)}^{-1})G\left(y_0\right)\hfill \\ \hfill & =y_0-x^{*}-G^{\prime }{\left(y_0\right)}^{-1}G\left(y_0\right)+G^{\prime }{\left(y_0\right)}^{-1}(I-G^{\prime }\left(y_0\right){\tau }_1{G}^{\prime }{\left(x_0\right)}^{-1})G\left(y_0\right)\hfill \\ \hfill & =y_0-x^{*}-G^{\prime }{\left(y_0\right)}^{-1}G\left(y_0\right)+\left[G^{\prime }{\left(y_0\right)}^{-1}(G^{\prime }\left(x_0\right)-G^{\prime }\left(y_0\right){\tau }_1)\right]G^{\prime }{\left(x_0\right)}^{-1}G\left(y_0\right)\hfill \\ \hfill & =y_0-x^{*}-G^{\prime }{\left(y_0\right)}^{-1}G\left(y_0\right)-\frac{1}{4}{(G^{\prime }{\left(y_0\right)}^{-1}{G}^{\prime }\left(x_0\right)-I)}^2{G}^{\prime }{\left(x_0\right)}^{-1}G\left(y_0\right),\hfill \end{array}$$

(17)

since the bracket gives

$$G^{\prime }\left(x_0\right)-G^{\prime }\left(y_0\right)G^{\prime }{\left(y_0\right)}^{-1}{G}^{\prime }\left(x_0\right)-G^{\prime }\left(y_0\right)\frac{1}{2}(P_0-I)=-\frac{1}{4}{(P_0-I)}^2.$$

Furthermore, by (6), (10), ($A_3$), (14) (for $v=x_0,y_0$), (16) and (17), we can attain in turn that

$$\begin{array}{cc}\hfill d_1& \le \left[\frac{{\int }_0^1\phi ((1-\mathsf{\Phi })\parallel y_0-x^{*}\parallel )d\mathsf{\Phi }}{1-{\phi }_0(\parallel y_0-x^{*}\parallel )}+\frac{1}{4}{\left(\frac{{\overline{\phi }}_0}{1-{\phi }_0(\parallel y_0-x^{*}\parallel )}\right)}^2\frac{(1+{\int }_0^1{\phi }_0(\mathsf{\Phi }\parallel y_0-x^{*}\parallel \left)d\mathsf{\Phi }\right)}{1-{\phi }_0\left(d_0\right)}\right]\parallel y_0-x^{*}\parallel \hfill \\ \hfill & \le g_1\left(d_0\right)d_0\le d_0.\hfill \end{array}$$

Therefore, the iterate $x_1\in S(x^{*},r)-\left\{x^{*}\right\}$ and the assertion (12) remain true for $i=0$. The induction for the assertions (11) and (12) is aborted by switching $x_0$, $y_0$, $x_1$ by $x_k,y_k,x_{k+1}$ in the above calculations. Finally, from the estimate

$$d_{k+1}\le \lambda d_k<r,$$

where $\lambda =g_1\left(d_0\right)\in \left[0,1\right)$ we deduce that the iterate $x_{k+1}\in S(x^{*},r)-\left\{x^{*}\right\}$ and ${lim}_{k\to +\infty }$$x_k=x^{*}$. □

Next, a region is determined containing only one solution.

Proposition 1.

Suppose:

(i)

(1) has a solution $v^{*}\in S(x^{*},{\rho }_2)$ for some ${\rho }_2>0$.

(ii)

The condition ($A_2$) holds in the ball $S(x^{*},{\rho }_2)$.

(iii)

There exist ${\rho }_3\ge {\rho }_2$ such that

$${\int }_0^1{\phi }_0\left(\mathsf{\Phi }{\rho }_3\right)d\mathsf{\Phi }<1.$$

Then, in the region $D_1$, where $D_1=D\cap S[x^{*},{\rho }_3]$, the Equation (1) has only one solution $x^{*}$.

Proof.

Let us define the linear operator $\mathcal{E}={\int }_0^1{G}^{\prime }(x^{*}+\mathsf{\Phi }(v^{*}-x^{*}))d\mathsf{\Phi }$. By utilizing the conditions ($ii$) and ($iii$), we attain in turn that

$$\begin{array}{cc}\hfill \parallel G^{\prime }{\left(x^{*}\right)}^{-1}(\mathcal{E}-G^{\prime }\left(x^{*}\right))\parallel & \le {\int }_0^1{\phi }_0(\mathsf{\Phi }\parallel v^{*}-x^{*}\parallel )d\mathsf{\Phi }\hfill \\ \hfill & \le {\int }_0^1{\phi }_0\left(\mathsf{\Phi }{\rho }_3\right)d\mathsf{\Phi }<1.\hfill \end{array}$$

Therefore, we deduce that $v^{*}=x^{*}$, since the linear operator ${\mathcal{E}}^{-1}\in \mathcal{L}(E_2,E_1)$ and

$$v^{*}-x^{*}={\mathcal{E}}^{-1}(G\left(v^{*}\right)-G\left(x^{*}\right))={\mathcal{E}}^{-1}\left(0\right)=0.$$

□

Remark 1.

(1) The parameter ${\rho }_2$ can be chosen to be r.

(2) The result of Theorem 1 can immediately be extended to hold for method (3) as follows:

Define the following real functions on the interval $T_2$

$$\begin{array}{cc}\hfill \overline{\overline{\phi }}\left(t\right)& =\left\{\begin{array}{c}\phi \left(2t\right)\hfill \\ \mathrm{or}\hfill \\ 2{\phi }_0\left(t\right),\hfill \end{array}\right.\hfill \\ \hfill \kappa \left(t\right)& =\frac{{\int }_0^1\phi (1-\mathsf{\Phi })td\mathsf{\Phi }}{1-{\phi }_0\left(t\right)}+\frac{\overline{\overline{\phi }}\left(t\right)(1+{\int }_0^1{\phi }_0\left(\mathsf{\Phi }t\right)d\mathsf{\Phi })}{{(1-{\phi }_0\left(t\right))}^2}\hfill \\ \hfill & +\frac{\overline{\phi }\left(t\right)}{{(1-{\phi }_0\left(t\right))}^2}(1+\frac{1}{4}\frac{\overline{\phi }\left(t\right)}{1-{\phi }_0\left(t\right)})(1+{\int }_0^1{\phi }_0\left(\mathsf{\Phi }t\right)d\mathsf{\Phi }),\hfill \\ \hfill & \mathrm{and}\hfill \\ \hfill g_k\left(t\right)& ={\kappa }^{k-1}\left(t\right)g_1\left(t\right)g_0\left(t\right)\mathrm{for}\mathrm{each}k=2,3,\dots ,p.\hfill \end{array}$$

Assume that the equations $g_k\left(t\right)-1=0$ admits smallest solutions $r_k\in T_2-\left\{0\right\}$. Define the parameter $\overline{r}$ by

$$\overline{r}=min\{r_0,r,r_k\}.$$

(18)

Then, the parameter $\overline{r}$ is a RC for the method (3).

Theorem 2.

Under the conditions ($A_1$)–($A_4$) for $\overline{r}=r$, the sequence $\left\{z_n\right\}$ generated by (3) is convergent to $x^{*}$.

Proof.

By applying Theorem 1, we get in turn that

$$\begin{array}{cc}\hfill \parallel z_0\left(x_m\right)-x^{*}\parallel & \le g_0\left(d_m\right)d_m\le d_m<\overline{r},\hfill \\ \hfill \parallel z_1\left(x_m\right)-x^{*}\parallel & \le g_1\left(d_m\right)d_m\le d_m.\hfill \end{array}$$

Then, the calculations for the rest of the sub-steps are in turn:

$$\begin{array}{cc}\hfill z_2\left(x_m\right)-x^{*}& =z_1\left(x_m\right)-x^{*}-G^{\prime }{\left(z_1\left(x_m\right)\right)}^{-1}G\left(z_1\left(x_m\right)\right)+(G^{\prime }{\left(z_1\left(x_m\right)\right)}^{-1}-G^{\prime }{\left(x_m\right)}^{-1})G\left(z_1\left(x_m\right)\right)\hfill \\ \hfill & +(I-{\tau }_1\left(x_m\right))G^{\prime }{\left(x_m\right)}^{-1}G\left(z_1\left(x_m\right)\right),\hfill \\ \hfill \mathrm{thus},\parallel z_2\left(x_m\right)-x^{*}\parallel & \le [\frac{{\int }_0^1\phi ((1-\mathsf{\Phi })\parallel z_1\left(x_m\right)-x^{*}\parallel )d\mathsf{\Phi }}{1-{\phi }_0(\parallel z_1\left(x_m\right)-x^{*}\parallel )}+\frac{{\delta }_1(1+{\int }_0^1{\phi }_0(\mathsf{\Phi }\parallel z_1\left(x_m\right)-x^{*}\parallel \left)d\mathsf{\Phi }\right)}{(1-{\phi }_0(\parallel z_1\left(x_m\right)-x^{*}\parallel \left)\right)(1-{\phi }_0\left(d_m\right))}\hfill \\ \hfill & +\frac{{\delta }_0}{1-{\phi }_0(\parallel z_0\left(x_m\right)-x^{*}\parallel )}(1+\frac{1}{4}\left(\frac{{\delta }_0}{1-{\phi }_0(\parallel z_0\left(x_m\right)-x^{*}\parallel )}\right))\times \hfill \\ \hfill & \frac{(1+{\int }_0^1{\phi }_0(\mathsf{\Phi }\parallel z_m\left(x_m\right)-x^{*}\parallel \left)d\mathsf{\Phi }\right)}{1-{\phi }_0\left(d_m\right)}]\parallel z_1\left(x_m\right)-x^{*}\parallel \hfill \\ \hfill & \le \kappa \left(d_m\right)\parallel z_1\left(x_m\right)-x^{*}\parallel \hfill \\ \hfill & \le \kappa \left(d_m\right)g_1\left(d_m\right)\parallel z_0\left(x^{*}\right)-x^{*}\parallel \hfill \\ \hfill & \le \kappa \left(d_m\right)g_1\left(d_m\right)g_0\left(d_m\right)d_m\hfill \\ \hfill & \le d_m<\overline{r},\hfill \end{array}$$

where we also used the estimates

$$\begin{array}{cc}\hfill \parallel z_0\left(x_m\right)-x^{*}\parallel & \le d_m,\parallel z_1\left(x_m\right)-x^{*}\parallel \le d_m,\hfill \\ \hfill \parallel G^{\prime }{\left(z_1\left(x_m\right)\right)}^{-1}-G^{\prime }{\left(x_m\right)}^{-1}\parallel & = \parallel G^{\prime }{\left(z_1\left(x_m\right)\right)}^{-1}(G^{\prime }\left(x_m\right)-G^{\prime }\left(z_1\left(x_m\right)\right)G^{\prime }{\left(x_m\right)}^{-1}\parallel \hfill \\ \hfill & \le \frac{{\delta }_1}{(1-{\phi }_0(\parallel z_1\left(x_m\right)-x^{*}\parallel )(1-{\phi }_0\left(d_m\right))}\hfill \\ \hfill & \le \frac{\overline{\overline{\phi }}\left(d_m\right)}{{(1-{\phi }_0\left(d_m\right))}^2},\hfill \\ \hfill \mathrm{for}{\delta }_1\left(m\right)={\delta }_1& =\left\{\begin{array}{c}\phi (d_m+\parallel z_1\left(x_m\right)-x^{*}\parallel )\hfill \\ \mathrm{or}\hfill \\ {\phi }_0\left(d_m\right)+{\phi }_0(\parallel z_1\left(x_m\right)-x^{*}\parallel )\hfill \end{array}\right.\hfill \\ \hfill & \le \left\{\begin{array}{c}\phi \left(2d_m\right)\hfill \\ \mathrm{or}\hfill \\ 2{\phi }_0\left(d_m\right)\hfill \end{array}\right.\hfill \end{array}$$

and

$$\begin{array}{cc}\hfill I-{\tau }_1& =(I-G^{\prime }{\left(z_0\left(x_m\right)\right)}^{-1}{G}^{\prime }\left(x_m\right)(I-\frac{1}{4}(I-G^{\prime }{\left(z_0\left(x_m\right)\right)}^{-1}{G}^{\prime }\left(x_m\right))),\hfill \\ \hfill \mathrm{so},\parallel I-{\tau }_1\parallel & \le \frac{{\delta }_0}{1-{\phi }_0(\parallel z_0\left(x_m\right)-x^{*}\parallel )}(1+\frac{1}{4}\frac{{\delta }_0}{1-{\phi }_0(\parallel z_0\left(x_m\right)-x^{*}\parallel )})\hfill \\ \hfill & \le \frac{\overline{\phi }\left(d_m\right)}{1-{\phi }_0\left(d_m\right)}(1+\frac{1}{4}\frac{\overline{\phi }\left(d_m\right)}{1-{\phi }_0\left(d_m\right)}),\hfill \\ \hfill \mathrm{where}{\delta }_0\left(m\right)={\delta }_0& =\left\{\begin{array}{c}\phi (d_m+\parallel z_0\left(x_m\right)-x^{*}\parallel )\hfill \\ \mathrm{or}\hfill \\ {\phi }_0\left(d_m\right)+{\phi }_0(\parallel z_0\left(x_m\right)-x^{*}\parallel )\hfill \end{array}\right.\hfill \\ \hfill & \le \left\{\begin{array}{c}\phi \left(2d_m\right)\hfill \\ \mathrm{or}\hfill \\ 2{\phi }_0\left(d_m\right).\hfill \end{array}\right.\hfill \end{array}$$

By switching $z_1,z_2$ by $z_{k-1},z_k$ in the above calculations we get

$$\begin{array}{cc}\hfill \parallel z_k\left(x_m\right)-x^{*}\parallel & \le \kappa \left(d_m\right)\parallel z_{k-1}\left(x_m\right)-x^{*}\parallel \hfill \\ \hfill & \le {\kappa }^2\left(d_m\right)\parallel z_{k-2}\left(x_m\right)-x^{*}\parallel \hfill \\ \hfill & \le \dots \le {\kappa }^{k-2}\left(d_m\right)\parallel z_2\left(x_m\right)-x^{*}\parallel \hfill \\ \hfill & \le {\kappa }^{k-2}\left(d_m\right)g_1\left(d_m\right)g_0\left(d_m\right)d_m\hfill \\ \hfill & \le d_m.\hfill \end{array}$$

Moreover, in particular

$$\begin{array}{cc}\hfill d_{m+1}& = \parallel z_p\left(x_m\right)-x^{*}\parallel \hfill \\ \hfill & \le g_p\left(d_m\right)d_m\hfill \\ \hfill & \le {\lambda }_1{d}_m\le \overline{r},\hfill \\ \hfill \mathrm{where}{\lambda }_1& =g_p\left(d_0\right)\in \left[0,1\right).\hfill \end{array}$$

Therefore, we deduce that ${lim}_{n\to +\infty }{x}_n=x^{*}$ and all the iterates $\left\{z_k\left(x_m\right)\right\}\subset S(x^{*},\overline{r})$. □

Remark 2.

The conclusions of the solution given in Proposition 1 are also clearly valid for method (3).

3. Semi-Local Analysis

The convergence in this case uses the concept of a majorizing sequence.

Define the scalar sequence for ${\alpha }_0=0$ and ${\beta }_0\ge 0$ and for each $i=0,1,2,\dots$ as follows

$$\begin{array}{cc}\hfill {\overline{\psi }}_i& =\left\{\begin{array}{c}\psi ({\beta }_i-{\alpha }_i),\hfill \\ {\psi }_0\left({\alpha }_i\right)+{\psi }_0\left({\beta }_i\right)\hfill \end{array}\right.,\hfill \\ \hfill h_i& =\frac{1+{\psi }_0\left({\alpha }_i\right)}{1-{\psi }_0\left({\beta }_i\right)}+\frac{1}{4}{\left(\frac{{\overline{\psi }}_i}{1-{\psi }_0\left({\beta }_i\right)}\right)}^2,\hfill \\ \hfill {\alpha }_{i+1}& ={\beta }_i+\frac{h_i{\int }_0^1\psi \left(\mathsf{\Phi }({\beta }_i-{\alpha }_i)\right)d\mathsf{\Phi }({\beta }_i-{\alpha }_i)}{1-{\psi }_0\left({\alpha }_i\right)},\hfill \\ \hfill {\gamma }_{i+1}& ={\int }_0^1\psi \left((1-\mathsf{\Phi })({\alpha }_{i+1}-{\alpha }_i)\right)d\mathsf{\Phi }({\alpha }_{i+1}-{\alpha }_i)+(1+{\psi }_0\left({\alpha }_i\right))({\alpha }_{i+1}-{\beta }_i),\hfill \\ \hfill {\beta }_{i+1}& ={\alpha }_{i+1}+\frac{{\gamma }_{i+1}}{1-{\psi }_0\left({\alpha }_{i+1}\right)}.\hfill \end{array}$$

(19)

The sequence $\left\{{\alpha }_i\right\}$ is shown to be majorizing for method (3). We now produce a general convergence result for it.

Lemma 1.

Suppose that there exists $\delta >0$ so that for each $i=0,1,2,\dots$

$${\psi }_0\left({\beta }_i\right)<1\mathit{and}{\beta }_i\le \delta .$$

(20)

Then, the sequence $\left\{{\alpha }_i\right\}$ generated by (19) is non-decreasing (ND) and convergent to some ${\delta }^{*}\in [0,\delta ]$.

Proof.

It follows by formula (19) and condition (20) that $\left\{{\alpha }_i\right\}$ is bounded above by $\delta$ and ND. Thus, we can state that there exists ${\delta }^{*}\in [0,\delta ]$ such that ${lim}_{i\to \infty }{\alpha }_i={\delta }^{*}$. □

Remark 3.

(1)The limit point ${\delta }^{*}$ is the unique least upper bound (LUB) for the sequence $\left\{{\alpha }_i\right\}$.

(2) 

A possible choice for $\delta ={\rho }_0$, where the parameter ${\rho }_0$ is given in condition (i) of Section 2.

(3) 

We can take $\delta ={\psi }_0^{-1}\left(1\right)$, if the function ${\psi }_0$ is strictly increasing.

Next, again we relate the functions ${\psi }_0,\psi$ and the sequence $\left\{{\alpha }_i\right\}$ to the method (2). Suppose:

($H_1$)

There exists a point $x_0\in D$ and a parameter ${\beta }_0\ge 0$ with $G^{\prime }{\left(x_0\right)}^{-1}\in \mathcal{L}(E_2,E_1)$ and $\parallel G^{\prime }{\left(x_0\right)}^{-1}G\left(x_0\right)\parallel \le {\beta }_0$.

($H_2$)

$\parallel G^{\prime }{\left(x_0\right)}^{-1}(G^{\prime }\left(u\right)-G^{\prime }\left(x_0\right))\parallel \le {\psi }_0(\parallel u-x_0\parallel )$ for each $u\in D$. Set $D_2=D\cap S(x_0,{\rho }_0)$.

($H_3$)

$\parallel G^{\prime }{\left(x_0\right)}^{-1}(G^{\prime }\left(u_2\right)-G^{\prime }\left(u_1\right))\parallel \le \psi (\parallel u_2-u_1\parallel )$ for each $u_1,u_2\in D_2$.

($H_4$)

Condition (20) holds.

($H_5$)

$S[x_0,{\delta }^{*}]\subset D$.

Next, the preceding notation and the conditions ($H_1$)–($H_5$) are employed to show the SLA of the method (2).

Theorem 3.

Assume the conditions ($H_1$)–($H_5$) hold. Then, the sequence $\left\{x_i\right\}$ produced by the method (2) is well-defined in the ball $S(x_0,{\delta }^{*})$, remains in the ball $S[x_0,{\delta }^{*}]$ for each $i=0,1,2,\dots$ and is convergent to some $x^{*}\in S[x_0,{\delta }^{*}]$ such that

$$\begin{array}{cc}\hfill \parallel y_i-x_i\parallel & \le {\beta }_i-{\alpha }_i\hfill \end{array}$$

(21)

$$\begin{array}{cc}\hfill \parallel x_{i+1}-y_i\parallel & \le {\alpha }_{i+1}-{\beta }_i\hfill \end{array}$$

(22)

$$\begin{array}{cc}\hfill \mathrm{and}\parallel x^{*}-x_i\parallel & \le {\alpha }^{*}-{\alpha }_i.\hfill \end{array}$$

(23)

Proof.

Mathematical induction is used to verify the assertions (21) and (22). Method (2), sequence (19) and condition ($H_1$) imply

$$\parallel y_0-x_0\parallel =\parallel G^{\prime }{\left(x_0\right)}^{-1}G\left(x_0\right)\parallel \le {\beta }_0={\beta }_0-{\alpha }_0<{\delta }^{*}.$$

Thus, the iterate $y_0\in S(x_0,{\delta }^{*})$ and the assertion (21) hold for $i=0$.

Let $u\in S(x_0,{\delta }^{*})$ be an arbitrary point. Then, it follows by ($H_2$) and the definition of ${\delta }^{*}$ that for each $u\in S(x_0,{\delta }^{*})$

$$\parallel G^{\prime }{\left(x_0\right)}^{-1}(G^{\prime }\left(u\right)-G^{\prime }\left(x_0\right))\parallel \le {\psi }_0(\parallel u-x_0\parallel )\le {\psi }_0\left({\delta }^{*}\right)<1.$$

Hence, we have $G^{\prime }{\left(u\right)}^{-1}\in \mathcal{L}(E_2,E_1)$ and

$$\parallel G^{\prime }{\left(u\right)}^{-1}{G}^{\prime }\left(x_0\right)\parallel \le \frac{1}{1-{\psi }_0(\parallel u-x_0\parallel )}.$$

(24)

In particular, for $u=y_0$, $G^{\prime }{\left(y_0\right)}^{-1}\in \mathcal{L}(E_2,E_1)$ and the iterate $x_1$ exists. Suppose that (21) holds for each $m=0,1,2,\dots ,i$. We need the estimates

$$\begin{array}{cc}\hfill G\left(y_m\right)& =G\left(y_m\right)-G\left(x_m\right)-G^{\prime }\left(x_m\right)(y_m-x_m),\hfill \\ \hfill \parallel G^{\prime }{\left(x_0\right)}^{-1}G\left(y_m\right)\parallel & = \parallel {\int }_0^1{G}^{\prime }{\left(x_0\right)}^{-1}(G^{\prime }(x_m+\mathsf{\Phi }(y_m-x_m))-G^{\prime }\left(x_m\right))d\mathsf{\Phi }(y_m-x_m)\parallel \hfill \\ \hfill & \le {\int }_0^1\psi (\mathsf{\Phi }\parallel y_m-x_m\parallel )d\mathsf{\Phi }\parallel y_m-x_m\parallel \hfill \\ \hfill & \le {\int }_0^1\psi \left(\mathsf{\Phi }({\beta }_m-{\alpha }_m)\right)d\mathsf{\Phi }({\beta }_m-{\alpha }_m),\hfill \end{array}$$

(25)

$$\begin{array}{cc}\hfill \parallel {\tau }_1\left(x_m\right)\parallel & \le \parallel G^{\prime }{\left(y_m\right)}^{-1}{G}^{\prime }\left(x_0\right)\parallel \parallel G^{\prime }{\left(x_0\right)}^{-1}{G}^{\prime }\left(x_m\right)\parallel +\frac{1}{4}{\parallel G^{\prime }{\left(y_i\right)}^{-1}(G^{\prime }\left(y_i\right)-G^{\prime }\left(x_i\right))\parallel }^2\hfill \\ \hfill & \le \frac{1+{\psi }_0(\parallel x_m-x_0\parallel )}{1-{\psi }_0(\parallel y_m-x_0\parallel )}+\frac{1}{4}{\left(\frac{{\overline{\psi }}_m}{1-{\psi }_0(\parallel y_m-x_0\parallel )}\right)}^2\hfill \\ \hfill & \le \frac{1+{\psi }_0\left({\alpha }_m\right)}{1-{\psi }_0\left({\beta }_m\right)}+\frac{1}{4}{\left(\frac{{\overline{\psi }}_m}{1-{\psi }_0\left({\beta }_m\right)}\right)}^2=h_m,\hfill \end{array}$$

(26)

where we also used that

$$\begin{array}{cc}\hfill \parallel G^{\prime }{\left(x_0\right)}^{-1}{G}^{\prime }\left(x_i\right)\parallel & = \parallel G^{\prime }{\left(x_0\right)}^{-1}(G^{\prime }\left(x_m\right)-G^{\prime }\left(x_0\right)+G^{\prime }\left(x_0\right))\parallel \hfill \\ \hfill & \le 1+\parallel G^{\prime }{\left(x_0\right)}^{-1}(G^{\prime }\left(x_m\right)-G^{\prime }\left(x_0\right))\parallel \hfill \\ \hfill & \le 1+{\psi }_0(\parallel x_m-x_0\parallel )\le 1+{\psi }_0\left({\alpha }_m\right).\hfill \end{array}$$

Then, by method (2), (25) and (26), it follows that

$$\begin{array}{cc}\hfill \parallel x_{m+1}-y_m\parallel & = \parallel {\tau }_1\left(x_m\right)G^{\prime }{\left(x_m\right)}^{-1}G\left(y_m\right)\parallel \hfill \\ \hfill & \le \parallel {\tau }_1\left(x_m\right)\parallel \parallel G^{\prime }{\left(x_m\right)}^{-1}{G}^{\prime }\left(x_0\right)\parallel \parallel G^{\prime }{\left(x_0\right)}^{-1}G\left(y_m\right)\parallel \hfill \\ \hfill & \le \frac{h_m{\int }_0^1\psi \left(\mathsf{\Phi }({\beta }_m-{\alpha }_m)\right)d\mathsf{\Phi }({\beta }_m-{\alpha }_m)}{1-{\psi }_0\left({\alpha }_m\right)}\hfill \\ \hfill & = {\alpha }_{m+1}-{\beta }_m\hfill \end{array}$$

and

$$\begin{array}{cc}\hfill \parallel x_{m+1}-x_0\parallel & \le \parallel x_{m+1}-y_m\parallel +\parallel y_m-x_0\parallel \le {\alpha }_{m+1}-{\beta }_m+{\beta }_m-{\alpha }_0\hfill \\ \hfill & = t_{m+1}<{\delta }^{*}.\hfill \end{array}$$

Thus, the iterate $x_{m+1}\in S(x_0,{\delta }^{*})$ and the estimate (22) hold. Moreover, by the first sub-step of method (2), we can formulate that

$$\begin{array}{cc}\hfill G\left(x_{m+1}\right)& =G\left(x_{m+1}\right)-G\left(x_m\right)-G^{\prime }\left(x_m\right)(y_m-x_m)\hfill \\ \hfill & =G\left(x_{m+1}\right)-G\left(x_m\right)-G^{\prime }\left(x_m\right)(x_{m+1}-x_m)+G^{\prime }\left(x_m\right)(x_{m+1}-x_m)-G^{\prime }\left(x_m\right)(y_m-x_m)\hfill \\ \hfill & ={\int }_0^1[G^{\prime }(x_m+\mathsf{\Phi }(x_{m+1}-x_m))-G^{\prime }\left(x_m\right)]d\mathsf{\Phi }(x_{m+1}-x_m)\hfill \\ \hfill & +(G^{\prime }\left(x_m\right)-G^{\prime }\left(x_0\right)+G^{\prime }\left(x_0\right))(x_{m+1}-y_m).\hfill \end{array}$$

(27)

By the induction hypotheses, ($H_3$) and (27), we have in turn

$$\begin{array}{cc}\hfill \parallel G^{\prime }{\left(x_0\right)}^{-1}G\left(x_{m+1}\right)\parallel & \le {\int }_0^1\psi ((1-\mathsf{\Phi })\parallel x_{m+1}-x_m\parallel )d\mathsf{\Phi }\parallel x_{m+1}-x_m\parallel \hfill \\ \hfill & +(1+{\psi }_0(\parallel x_m-x_0\parallel \left)\right)\parallel x_{m+1}-y_m\parallel \hfill \\ \hfill & \le {\int }_0^1\psi ((1-\mathsf{\Phi })({\alpha }_{m+1}-{\alpha }_m)d\mathsf{\Phi }({\alpha }_{m+1}-{\alpha }_m)+(1+{\psi }_0\left({\alpha }_m\right))({\alpha }_{m+1}-{\beta }_m)\hfill \\ \hfill & ={\gamma }_{m+1}.\hfill \end{array}$$

(28)

Furthermore, by applying first sub-step of (2), (19), (24) (for $u=x_{m+1}$) and (28) we get in turn

$$\begin{array}{cc}\hfill \parallel y_{m+1}-x_{m+1}\parallel & \le \parallel G^{\prime }{\left(x_{m+1}\right)}^{-1}{G}^{\prime }\left(x_0\right)\parallel \parallel G^{\prime }{\left(x_0\right)}^{-1}G\left(x_{m+1}\right)\parallel \hfill \\ \hfill & \le \frac{{\gamma }_{m+1}}{1-{\psi }_0\left({\alpha }_{m+1}\right)}\hfill \\ \hfill & = {\beta }_{m+1}-{\alpha }_{m+1}\hfill \end{array}$$

and

$$\begin{array}{cc}\hfill \parallel y_{m+1}-x_0\parallel & \le \parallel y_{m+1}-x_{m+1}\parallel +\parallel x_{m+1}-x_0\parallel \hfill \\ \hfill & \le {\beta }_{m+1}-{\alpha }_{m+1}+{\alpha }_{m+1}-{\alpha }_0\hfill \\ \hfill & = {\beta }_{m+1}<{\delta }^{*}.\hfill \end{array}$$

Therefore, the iterate $y_{m+1}\in S(x_0,{\delta }^{*})$ and the induction for the assertions (21) and (22) is completed. Observe that the sequence $\left\{{\alpha }_m\right\}$ is Cauchy and hence convergent. Thus, the sequence $\left\{x_m\right\}$ is also Cauchy by (21) and (22) in a Banach space $E_1$. Consequently, there exists $x^{*}\in S[x_0,{\delta }^{*}]$ so that ${lim}_{m\to +\infty }{x}_m=x^{*}$. Therefore, by the continuity of the operator G, and the estimate (27) for $m\to +\infty$, we deduce that $G\left(x^{*}\right)=0$. Let $j\ge 0$ be an integer. Then, if we let $j\to +\infty$ in the estimate

$$\parallel x_{m+j}-x_m\parallel \le {\alpha }_{m+j}-{\alpha }_m,$$

we show estimate (22). □

Next, a region is determined in which the solution is unique.

Proposition 2.

Suppose:

(i)

A solution $z^{*}\in S(x_0,q)$ of (1) exists for some $q>0$.

(ii)

Condition ($H_2$) holds in the ball $S(x_0,q)$.

(iii)

There exists $q_1>q$ such that

$${\int }_0^1{\psi }_0((1-\mathsf{\Phi })q+\mathsf{\Phi }{q}_1)d\mathsf{\Phi }<1.$$

(29)

Then, in the region $D_2$, where $D_2=D\cap S[x_0,q_1]$, the only solution of (1) is $z^{*}$.

Proof.

Let $z_1^{*}\in D_2$ with $G\left(z_1^{*}\right)=0$. Then, it follows by ($ii$) and (29) that for $B={\int }_0^1{G}^{\prime }(z^{*}+\mathsf{\Phi }(z_1^{*}-z^{*}))d\mathsf{\Phi }$,

$$\begin{array}{cc}\hfill \parallel G^{\prime }{\left(x_0\right)}^{-1}(B-G^{\prime }\left(x_0\right))\parallel & \le {\int }_0^1{\psi }_0((1-\mathsf{\Phi })\parallel z^{*}-x_0\parallel +\mathsf{\Phi }\parallel z_1^{*}-x_0\parallel )d\mathsf{\Phi }\hfill \\ \hfill & \le {\int }_0^1{\psi }_0((1-\mathsf{\Phi })q_1+\mathsf{\Phi }q)d\mathsf{\Phi }\hfill \\ \hfill & <1,\hfill \end{array}$$

thus, we conclude that $z_1^{*}=z^{*}$. □

Remark 4.

(1) If the condition ($H_5$) is switched by $U[x_0,{\rho }_0]\subset D$ or $U[x_0,\delta ]\subset D$, then the conclusions of the Theorem (3) are still valid.

(2)

Under all the conditions ($H_1$)–($H_5$), we can set in Proposition 2 $z^{*}=x^{*}$ and $q={\delta }^{*}$.

4. Numerical Examples

We first discuss examples which illustrate the local convergence criteria.

Example 1.

Consider the system of differential equations with

$$G_1^{\prime }\left(u_1\right)=e^{u_1},G_2^{\prime }\left(u_2\right)=(e-1)u_2+1,G_3^{\prime }\left(u_3\right)=1$$

subject to $G_1\left(0\right)=G_2\left(0\right)=G_3\left(0\right)=0$. Let $G=(G_1,G_2,G_3)$. Let $E_1=E_2={\mathbb{R}}^3$ and $D=S[0,1]$. Then $x^{*}={(0,0,0)}^T$. Let function G on D for $u={(u_1,u_2,u_3)}^T$ be

$$G\left(u\right)={(e^{u_1}-1,\frac{e-1}{2}{u}_2^2+u_2,u_3)}^T.$$

This definition gives

$$G^{\prime }\left(u\right)=\left[\begin{array}{ccc}{e}^{u_1}& 0& 0\\ 0& (e-1)u_2+1& 0\\ 0& 0& 1\end{array}\right]$$

Thus, by the definition of G it follows that $G^{\prime }\left(x^{*}\right)=1$. Then, conditions $\left(A_1\right)$–$\left(A_4\right)$ are satisfied if ${\phi }_0\left(t\right)=(e-1)t$, $\phi \left(t\right)=e^{\frac{1}{e-1}}t$, ${\rho }_0=0.581977$ and $D_0=D\cap S(x^{*},{\rho }_0)$. Then, the radii are as presented in Table 1. For method (3), the radii is found using (18) for $p=3,4,5,6$.

Table 1. Estimates for Example 1.

Method (2)	Method (3)
$r=$	k	0	1	2	3	4	5	6
$min\{r_0,r_1\}$	$r_k$	$0.382692$	0.395131	$0.306563$	$0.250887$	$0.216718$	$0.194214$	$0.1784$
$r=0.382692$		$\overline{r}=$	$min\{r_0,r,$	$r_k\}$   =	$0.250887$	$0.216718$	$0.194214$	$0.1784$

Example 2.

Let $E_1=E_2=D=\mathbb{R}$. Consider the function G on D as $G\left(x\right)=sinx$. It follows that $G^{\prime }\left(x\right)=cosx$. We get $x^{*}=0$. Hence, conditions $\left(A_1\right)-\left(A_4\right)$ hold if ${\phi }_0\left(t\right)=\phi \left(t\right)=t$, ${\rho }_0=1$ and $D_0=D\cap S(x^{*},{\rho }_0)$. Values of the convergence radii r and $\overline{r}$ are as given in Table 2. $\overline{r}$ is found using (18) for $p=3,4,5,6$.

Table 2. Estimates for Example 2.

Method (2)	Method (3)
$r=$	k	0	1	2	3	4	5	6
$min\{r_0,r_1\}$	$r_k$	$0.666667$	0.628126	$0.541078$	$0.476459$	$0.43181$	$0.399697$	$0.375661$
$r=0.628126$		$\overline{r}=$	$min\{r_0,r,$	$r_k\}$   =	$0.476459$	$0.43181$	$0.399697$	$0.375661$

Example 3.

Let $E_1=E_2=\mathbb{R}$ and $D=S(x_0,1-a)$ for some $a\in [0,1)$. Consider G in D as

$$G\left(x\right)=x^3-a$$

$x^{*}=a^{1/3}$ is a solution. Choose $x_0=1$. Thus, $\left(H_1\right)$–$\left(H_5\right)$ are satisfied if ${\beta }_0=\frac{1-a}{3}$, ${\psi }_0\left(t\right)=(3-a)t$, ${\rho }_0=0.487805$ $D_2=D\cap S(x_0,{\rho }_0)$, and $\psi =2(1+\frac{1}{3-a})t$. Values of ${\psi }_0\left({\beta }_i\right)$ and ${\beta }_i$ can be found in Table 3.

Table 3. Estimates for Example 3.

i	0	1	2	3	4	5
${\psi }_0\left({\beta }_i\right)$	0.0341667	0.0368766	0.0368847	0.0368847	0.0368847	0.0368847
${\beta }_i$	0.0166667	0.0179886	0.0179926	0.0179926	0.0179926	0.0179926
${\alpha }_i$	0	0.0170946	0.0179899	0.0179926	0.0179926	0.0179926

Here, ${\delta }^{*}=0.0179926$.

Hence, we can conclude that the sequence $\left\{x_i\right\}$ is convergent to some $x^{*}\in S[x_0,{\delta }^{*}]$.

Example 4.

We now discuss a real-world application problem which has wide applications in physical and chemical sciences. At 500 °C and $250atm$, the quartic equation for fractional conversion which depicts the fraction of the nitrogen-hydrogen feed that gets converted to ammonia can be framed as follows

$$G\left(t\right)=t^4-7.79075t^3+14.7445t^2+2.511t-1.674.$$

$x^{*}=0.27776$ is a solution. Let $D=(0.3,0.4)$ and choose $x_0=0.3$. Then, conditions ($H_1$) is satisfied for

$$\parallel G^{\prime }{\left(x_0\right)}^{-1}G\left(x_0\right)\parallel =0.0217956={\beta }_0.$$

We get ${\psi }_0\left(t\right)=\psi \left(t\right)=1.56036t$, ${\rho }_0=0.640877$ and $D_2=D\cap S[x_0,{\rho }_0]$. Condition (20) is verified in Table 4.

Table 4. Estimates for Example 4.

i	0	1	2	3	4	5
${\psi }_0\left({\beta }_i\right)$	0.034009	0.0358481	0.0358507	0.0358507	0.0358507	0.0358507
${\beta }_i$	0.0217956	0.0229742	0.0229759	0.0229759	0.0229759	0.0229759
${\alpha }_i$	0	0.0221793	0.0229748	0.0229759	0.0229759	0.0229759

Here, ${\delta }^{*}=0.0229759$.

Therefore, we can conclude that ${lim}_{i\to \infty }{x}_i=x^{*}\in S[x_0,{\delta }^{*}]$.

Example 5.

We reconsider the numerical example given in the introduction part to emphasize the aspect that our method does not require the existence of higher-order derivatives. Using (2), we obtain the solution $x^{*}=1$ after three iterations starting from $x_0=1.2$. Also, we can analyze this solution from the graph of $G\left(t\right)$ given in Figure 1. On examining, we find that ($A_1$)–($A_4$) hold if ${\phi }_0\left(t\right)=\phi \left(t\right)=96.8t$, ${\rho }_0=0.0103306$ and $D_0=D\cap S(x^{*},{\rho }_0)$. Values of r and $\overline{r}$ (for $p=3,4,5,6$) are given in Table 5. Error estimates are plotted in Figure 2.

Figure 1. Graph of $G\left(t\right)=t^{3}ln\left(t^2\right)+t^5-t^4$.

Table 5. Estimates for Example 5.

Method (2)	Method (3)
$r=$	k	0	1	2	3	4	5	6
$min\{r_0,r_1\}$	$r_k$	$0.006887$	0.009228	$0.006320$	$0.005150$	$0.004454$	$0.003997$	$0.003675$
$r=0.006887$		$\overline{r}=$	$min\{r_0,r,$	$r_k\}$   =	$0.005150$	$0.004454$	$0.003997$	$0.003675$

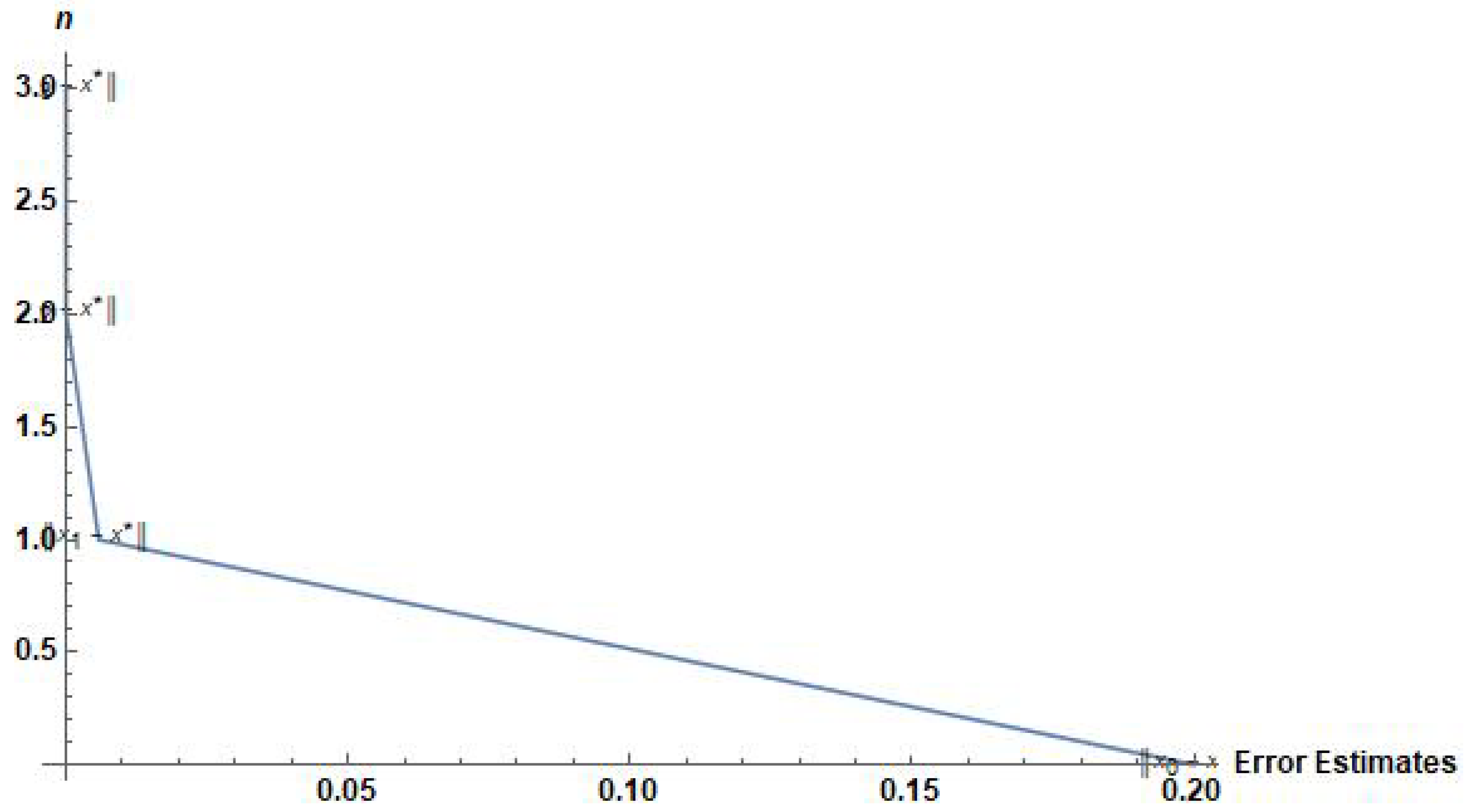

Figure 2. Error estimates for Example 5.

5. Conclusions

Many applications in chemistry and physics require solving abstract equations by employing an iterative method. That is why a new local analysis based on generalized conditions is established using the first derivative, which is the only one present in current methods. The new approach determines upper bounds on the error distances and the domain containing only one solution. Earlier local convergence theories [8] rely on derivatives which do not appear in the methods. Moreover, they do not give information on the error distances that can be computed, especially a priori. The same is true for the convergence region. The methods are extended further by considering the semi-local case, which is considered more interesting than the local and was not considered in [8]. Thus, the applicability of these methods is increased in different directions. The technique relies on the inverse of the operator on the method. Other than that, it is method-free. That is why it can be employed with the same benefits on other such methods [14,15,16,17]. This will be the direction of our research in the near future.
