Article

Zootechnical and Municipal Solid Waste Digestates: Effects on Soil Nitrogen Mineralization and Kinetics

1
Consiglio per la Ricerca in Agricoltura e l’Analisi dell’Economia Agraria, Centro di Ricerca Agricoltura e Ambiente (CREA-AA), (Council for Agricultural Research and Economics, Research Centre for Agriculture and Environment), 00184 Rome, Italy
2
Consiglio per la Ricerca in Agricoltura e l’Analisi dell’Economia Agraria, Centro di Ricerca Ingegneria e Trasformazioni Agroalimentari (CREA-IT) (Council for Agricultural Research and Economics, Research Centre for Engineering and Agro-Food Processing), 00015 Rome, Italy
*
Author to whom correspondence should be addressed.
Submission received: 7 November 2024 / Revised: 9 January 2025 / Accepted: 14 January 2025 / Published: 16 January 2025

Abstract

Soil fertilization with fertilizers derived from renewable sources is a topic of great interest in terms of the sustainable management of organic waste. To optimize the management of nitrogen supplied to the soil with digestates, it is necessary to deepen knowledge on the process of mineralization of organic nitrogen over time. In this research, a laboratory incubation system was utilized to study the impact of various digestate sources on nitrogen mineralization processes in soils and nitrogen mineralization kinetics. Six types of digestates of different origins and composition were administered to soil and the soil samples were placed under controlled conditions. The release of N was determined by measuring ammonium-N and nitrate-N concentrations in leachates during a 12-week period of incubation. The nonlinear regression technique was used to fit the cumulative leaching of total N to the Stanford and Smith first-order kinetic model during the incubation period. The results showed that the differences between digestates, nitrogen and organic carbon concentration, and C/N ratio influenced both ammonification and nitrification processes in the soil and the nitrogen mineralization kinetics. The processing of the statistical data highlighted that the potentially mineralizable nitrogen (MPN) followed first-order kinetics.

1. Introduction

Among the main objectives of the eco-sustainable management of the agricultural environment is reducing the use of chemical fertilizers by replacing them with bio-based fertilizers. This strategy aligns with the European Commission’s guidelines for sustainable digestate management in the Circular Economy Package [1]. Utilizing fertilizers produced from anaerobic digestion by-products presents a significant opportunity to promote sustainability within the circular economy framework [2,3]. Biowaste can undergo composting or anaerobic digestion to stabilize organic matter and produce bio-based fertilizers [4,5,6]. Optimizing the processes of conversion of waste into resources is essential to generate high-quality by-products suitable for soil fertilization [7,8].
Anaerobic digestion is a biotechnology for converting agricultural biomass into valuable products such as biogas and digestate, a renewable fertilizer [9,10]. This process helps extract nutrients like nitrogen and phosphorus from organic matter. Anaerobic digestate’s use as organic fertilizer or soil amendment appears to be the optimal choice for nutrient recycling. The digestate is usually composed of a solid and a liquid fraction which differ in chemical composition and therefore in fertilizer value. The solid fraction is comparable to a slow-release organic fertilizer; the liquid fraction is rich in readily assimilable nitrogen, as well as phosphorus, potassium, and other nutrients, and is therefore intended as a replacement for mineral fertilizers [11].
The main benefits deriving from the agricultural use of digestates can be summarized as the provision of organic matter and nutrients to the soil and in a reduction in the use of energy-intensive mineral fertilizers [12,13,14,15]. In Europe, the placing on the market of fertilizers derived from digestates of different origins and compositions is regulated by Regulation (EC) 2019/1009 [16]. The quality and potential applications of digestate primarily depend on the source material. Our study concerns the agricultural use of digestate derived from the organic fraction of mixed municipal solid waste (OFMSW) and could be considered preparatory to the evaluation of the use of digestate from future mixed plants with different percentages of OFMSW. Nitrogen pools from organic waste undergo biological decomposition in soil, which affects the temporal rates of nitrogen available to plants. Other factors can influence the N mineralization process in soil such as temperature, water content, soil properties, and the nature and chemical characteristics of organic material. Among the latter, the ratio between carbon and nitrogen (C:N) represents an important indicator of N mineralization dynamics, allowing the prediction of the N mineralization trend. Low and high soil C:N ratio values normally favor N mineralization and immobilization processes, respectively. Based on some studies, the threshold of the C:N ratio between immobilization and mineralization seems to lie between 14:1 and 19:1 for a wide range of organic amendments [17]. Knowledge of the availability of nitrogen resulting from mineralization processes over time is essential to improve its nutritional effectiveness.
Stanford and Smith (1972) [18] long-term aerobic incubation is a laboratory method used for the estimation of MPN. The method estimates the amount of N that is likely to be released in mineral form from soil organic substrates in a 32-week period. Many studies have used aerobic incubation for the calibration of chemical methods used to estimate N supply from SOM mineralization. However, the long-term aerobic incubation method has been modified by Benedetti [19] to reduce the test duration and to evaluate the initial N-ready flux after the preparation and handling of soil samples [20].
Empirical kinetics models capable of describing nitrogen release curves over time are very useful for summarizing and understanding the dynamics for implementing the most favorable soil management practices [21]. Various mathematical equations described in the literature (exponential, hyperbolic, parabolic, logistic, etc.) have been used as empirical models to describe nitrogen mineralization curves, providing a good fit of data and simplifying the process to just a few parameters.
Among these, the single exponential Stanford and Smith model [18] has largely been used to describe nitrogen and carbon mineralization resulting from the decomposition of various organic substrates in soil [22,23,24,25] as well as the dynamics of nitrogen from slow-release fertilizers [26]. Some implementations of the Stanford and Smith model [18] were proposed by Molina et al. in 1980 [27] and Inubushi et al. in 1985 [28] as double exponential models to identify and quantify different N pools in organic substrates. However, the over-parameterization of these models is often not justified when using a data set limited to a few points. In this case, the use of models with more than three parameters is not very suitable [29]. The only two parameters of the single exponential model representing the potentially mineralizable nitrogen and the mineralization kinetic constant summarize the information contained in the data and are very useful in scientific studies and practical interpretations [19]. Furthermore, simple first-order models generally fit well the kinetics of N mineralization from organic amendments that do not cause N immobilization [30].
The present study was designed to investigate the following: (i) the effect of digestate amendment on soil ammonification, nitrification, and nitrogen mineralization and (ii) the nitrogen mineralization kinetics in different treatments over time.

2. Materials and Methods

2.1. Soil Characterization

The soil was sampled in an experimental area annexed to CREA-AA—Rome and dedicated to the research. The soil was collected from the surface layer (0–0.30 m) and subsequently oven-dried at 105 °C prior to analysis. The soil was analyzed before adding different substrates. The main chemical properties of the soil were established using the Official Methods of the Ministry of Agriculture (Italy) [31]. Moisture is determined by weighing a known quantity of a sample of material as such, placing it in an oven at 105 °C until the weight is constant (24 h), and weighing the sample again. Soil pH was determined by means of a glass electrode using a water-to-soil ratio (v/w) of 2.5:1; particle size was assessed through a sedimentation procedure; total soil organic carbon and nitrogen were measured using RC-612 carbon analyzer and FP-528 nitrogen analyzer (Leco Corporation, St. Joseph, MI, USA) respectively; cation exchange capacity (CEC) was determined through the ammonium acetate procedure; and exchanged Ca, K, Mg, and Na were determined by ICP (Inductively Coupled Plasma-OES) (Thermo Jarrell-Ash Corporation, Watertown, MA, USA). Total CaCO3 was determined using the Dietrich–Frühling calcimeter. Available phosphorus was measured using the Olsen method through a spectrophotometer. The analyzed values were subsequently referred to dry soil at 105 °C using the appropriate conversion factors. The soil was A1-Fluventic Xerochrepts (USDA) with a clay loam texture, sub-alkaline (pH 7.5), not saline (EC1:2.5 ms cm−1 0.213), and had a favorable supply of total organic carbon (TOC: 2.11%) and macro-elements (total N: 0.18%; P2O5: 86.56 mg kg−1; K2O: 805.37 mg kg−1), a C/N ratio of 11.7, and C.E.C. of 25.48 meq 100 g−1; exchangeable cations—Ca: 22.20 meq 100 g−1, Mg: 1.32 meq 100 g−1, K: 1.71 meq 100 g−1, Na: 0.11 meq 100 g−1, total CaCO3: 3%.

2.2. Digestate Characterization

The Italian Composting Consortium (CIC) provided three types of zootechnical digestates and three types of organic fraction municipal solid waste (OFMSW) digestates. Approximately 5 L of each organic residue was collected, thoroughly mixed, and stored in 0.25–0.50 L plastic bottles at −20 °C until use.
The six types of digestates were as follows: digested pig slurry as such (PS), digested pig slurry–solid fraction (PF), digested bovine manure (BM), digested OFMSW (DO), dried digested OFMSW (DD), and digested and composted OFMSW (DC). The digestates were analyzed for their chemical–physical characteristics through an accredited private laboratory in accordance with Regulation (EC) 2019/1009 [16] and the Legislative Decree 29 April 2010 n. 75 and subsequent amendments (Italian Law) [32,33]. The parameters analyzed included total solids, volatile solids, total organic carbon, total nitrogen, organic nitrogen, total phosphorus, total potassium, total heavy metals, and pH (Table 1). The different digestates showed a different organic carbon and nitrogen content both in organic and total form. Consequently, the C/N ratios also differed in the various substrates, varying from 3 (PS) to 22 (DO).
Organic C was mainly recovered in the pig slurry–solid fraction and in the composted form of OFMSW digestate. In the pig digestate, the solid–liquid separation process also influenced the concentration of total N and the C/N ratio.

2.3. Soil Incubation Procedure

The soil incubation procedure was performed according to the Benedetti method [19]. Soil microcosms under standardized conditions and in the absence of plants were set up to evaluate the effect of different digestate amendments on soil ammonification, nitrification, and nitrogen mineralization compared to fertilization with synthetic nitrogen fertilizer (ammonium sulfate—AS). The microcosm incubation test took place under controlled temperature and humidity conditions using Büchner funnels, on the bottom of which a Whatman® filter paper No. 4 (Merck Life Science Limited, Maharashtra, India) was placed. In detail, air-dried soil (50 g) was mixed with quartz sand at a 1:1 ratio (weight/weight) and added with fertilizers (ammonium sulfate or digestates) with a dose equivalent to 250 mg N kg−1 of soil. The mixtures (soil, quartz sand, and fertilizers) were then transferred to the Büchner funnels. The moisture content of the soil was adjusted to 60% of its water-holding capacity by adding deionized water (WHC) (pF = 2.5), and the soil was then incubated at 30 °C. The Büchner funnels were covered with flexible perforated Parafilm ®M sealing film and weighed every 3 d to monitor soil moisture. During the incubation time, distilled water was added to keep the soil at 60% WHC.
Each treatment was replicated three times.

2.4. Nitrogen Extraction from Soil and Analysis

The mineral nitrogen initially present (Time 0) was washed out with 100 mL of 0.01 M CaCl2. After 1, 2, 4, 8, and 12 incubation weeks, the released N (Nrel) was leached as NO3-N and NH4+-N with 500 mL of 0.01 mol L−1 CaSO4 solution. To avoid nutrient-limiting effects, after each leaching, a nutrient solution without N containing 0.002 mol L−1 CaSO4, 0.002 mol L−1 MgSO4, 0.005 mol L−1 Ca(H2PO4)2, and 0.002 5 mol L−1 K2SO4 was added to the mixtures. The leachates were filtered by Whatman No. 42 filter paper and analyzed. The mineral forms of nitrogen in the leached solution were determined according to Wall [34] for ammonium and according to Kamshake [35] for nitrates plus nitrites by an automatic continuous flow analyzer (Technicon II autoanalyzer—Bran & Luebbe, Sydney, Australia). The nitrogen concentrations were referred to soil dried at 105 °C.

2.5. Statistical Analysis

The concentrations of the mineral forms of N detected at each incubation week as NO3-N and NH4+-N and the cumulative Nrel recovered at the end of the experiment (12 weeks) were analyzed by one-way analysis of variance (ANOVA). The homogeneity of variances was tested using Levene’s test. Significant differences between treatments were assessed by means of Tukey’s Honest Significant Difference (HSD) test at a p value ≤ 0.05 when the F test of ANOVA was significant (α level = 0.05). The ANOVA and Tukey tests were performed using JASP statistical software [36].
Cumulative Nrel was fit to the Stanford and Smith [18] first-order model as follows:
Nrel = N0 (1 − e−kt)
where Nrel (mg N kg−1 soil) is the cumulative N released from the soil treated with the different N sources at time t (week), N0 (mg N kg−1 soil) is the size of potentially mineralizable N, and k (week−1) is the first-order rate constant. All data as triplets were used in the regression analysis, although the results are reported as mean values. Estimates of the N0 and k values of the different N sources were deemed significantly different (α = 0.05) if the 95% confidence intervals did not overlap. The half-life t1/2 (week), the time required to mineralize half of the potentially mineralizable N0 obtained from Model (1), was calculated using the following equation [37]:
t1/2 = ln (2)/k
The reparameterization of Model (1) by replacing K = t1/2/ln(2) does not change either the estimated values of the parameters or the chosen good fit indices.
The quality of fit of the model was assessed using the Root Mean Square Error (RMSE) and the Adjusted R squared (R2Adj.) statistical indices. Nonlinear curve fitting was performed through a specific library of the R software Version 4.1.3 (“nls.multstart” Version 1.3.0) [38].

3. Results and Discussion

3.1. Nitrogen Mineralization Processes

The concentrations of NH4+-N appeared to be influenced by the substrate and incubation time (Table 2).
In the presence of some substrates, the ammonium concentrations were high after the first week of incubation and then decreased in the second one. Soil fertilization with the inorganic fertilizer AS or with PS digestate, characterized by a high percentage of mineral nitrogen compared to total N (73%) and a low C/N (C/N = 3, Table 1), probably activated the microbial processes responsible for the rapid mineralization of organic nitrogen and triggered a strong priming effect [39]. This phenomenon was less evident in BM, DC, and PF. In the case of the soil amended with digested OFMSW as such (DO), the ammonification processes increased after four and twelve weeks of incubation. A similar trend occurred in the presence of PF digestate; however, the times when the phenomenon manifested changed (i.e., in the first and fourth weeks). It is highlighted that the highest ammonium concentrations have similar values to each other in both DO and PF; there does not seem to be an obvious priming effect. It should be highlighted that PF has a C/N ratio equal to 19, which does not favor the rapid mineralization of soil organic matter. In the case of DO (C/N = 8), this digestate has a much higher % concentration of organic nitrogen (3.0%) compared to PF (1.2%) and a lower percentage of inorganic N compared to total N (30%). This condition could justify the trend in NH4+ concentration like PF (with two peaks) but with a different time. At the eighth week, all the ammonium values were low and then increased at the following percolation (twelfth week) with significantly different values in the case of AS, DC, and DO. Finally, there is the case of soil mixed with dried digested OFMSW (DD), which maintained low ammonium values until the eighth week of incubation and grew in the twelfth one. In a soil incubation test with different organic materials, Marzi [40] highlighted the discontinuous trend of the ammonification process with incremental and decremental trends, attributing the alternation of ammonification and immobilization phenomena not only to the C/N ratio of the substrate added to the soil but also to the form of nitrogen predominantly present (mineral or organic) compared to the total form.
The type of digestates administered to the soil also influenced the NO3-N concentrations (Table 3).
In the case of soil fertilized with OFMSW digestates and the pig digestate solid fraction (PF), the highest concentrations of NO3-N were analyzed after the first week of incubation with DO ≥ DC > DD > PF.
In the presence of ammonium sulfate (AS) or pig digestate as such (PS), only a single incremental period of NO3-N production was observed, which reached a maximum after 15 days of incubation. Subsequent values decreased until the 12th week. Even soil treated with bovine digestate (BM) shows a peak in the nitrification process after the first week. However, like the other digestates used in this experiment, it also presents another one after 8 weeks of incubation. The phenomena of nitrogen immobilization by telluric microorganisms appear to prevail between the second and fourth weeks of incubation depending on the different types of digestates, as the nitrate concentrations are lower than those measured in the previous period. At the eighth week of incubation, the analyzed concentrations of NO3-N reveal a second incremental period following this order: DO ≥ DD ≥ BM > DC ≈ PF ≈ PS. During the timeframe of the nitrate decrement, there was probably a reduction in NO3-N likely caused by the absorption of nitrogen by the developing microbial population. The next increment in NO3-N suggests that nitrification was suppressed during this timeframe, as Marzi [34] observed. At the end of the incubation period, all values decreased. The main cause of this alternation could be attributable not only to the different digestates’ organic C and N (organic or mineral) concentrations but also to the different degrees of stability of the organic matter brought to the soil.
The cumulative mineralized nitrogen concentrations over twelve weeks of incubation under controlled temperature and humidity conditions are shown in Figure 1. The administration of N to the soil in totally inorganic form (AS) strongly stimulated the soil organic matter mineralization. In fact, in this case, the highest cumulative concentration of N mineralized was analyzed, with a significant difference from all the other treatments. The pig digestate as such (PS) had a low C/N (3) ratio. This condition directs the microorganisms’ ammonifiers and nitrifiers towards rapid mineralization of the organic matter of the soil. The pig digestate solid fraction (PF) had a higher C/N ratio (19), suggesting slower mineralization. Bovine digestate (BM) is characterized by a C/N ratio of 7 (Table 1). Its mixing with the soil positively stimulates the mineralization processes of organic nitrogen in the soil. This phenomenon is more evident in DO (C/N = 8). In fact, the quantity of nitrogen mineralized in DO is significantly higher than PF (C/N = 19). The nitrogen mineralization in soil treated with different digestates was probably influenced by the digestates’ C/N ratios but also by the percentage of organic/inorganic nitrogen and by the level of degradability of organic matter added to the soil [39,41,42].

3.2. Kinetics of Nitrogen Mineralization

The first-order kinetics model (Model (1)) showed, in general, quite a good fit for the cumulative data to the total inorganic nitrogen (Figure 2, Table 4). The nonlinear regression technique overall led to reliable estimates of the parameters N0, k, and calculated t1/2 (2). The rather small standard errors and the narrow confidence intervals demonstrate the accuracy and the ability of the statistical approach to summarize the kinetics of nitrogen mineralization through a few parameters to which biological significance could be attributed. The N0 parameter represents the maximum amount of soil mineralized nitrogen at the end of the incubation time and provides useful information on soil nitrogen available to plants. The correlation coefficient between the N0 estimates and the cumulative experimental data of N released at the end of the experiment (Figure 1) was 0.994, confirming the good predictive capacity of the model of this parameter. The N0 values ranged from 354.17 mg kg−1 of AS to 143.82 mg kg−1 of PF as a substrate, which recovered only about 57% of the total N supplied. As expected, significant differences were found between the highest value of N0 of the mineral fertilizer AS compared to all other digestates. Among the digestates, the highest values of the N0 parameter were estimated in DO, PS, and BM (253.32, 233.00 and 226.49 mg kg−1, respectively), statistically different from the lowest value of PF and corresponding to about the 90–100% of the total N supplied. Estimates of intermediate values of the N0 parameter, not statistically different from each other, were obtained in DD and DC (178.01 and 188.06 mg kg−1, respectively), indicating a potential N release of approximately 73% of the total N supplied.
The estimates of the parameter k and the related half-life t1/2 are useful synthetic indicators of the speed of N released over time, indicating the soil’s nitrogen-supplying intensity. In particular, t1/2 is a direct indicator of the time at which half of the estimated potential N0 is released. Low values of t1/2 are likely linked to the presence of labile and fast mineralizable N pools, well balanced with the organic carbon content. However, in our experiment, the estimated confidence intervals of these parameters always overlapped, thus showing no statistical differences between all treatments.
In other work, significative variances in k values were observed under different soil moisture and temperature conditions or related to different soil physicochemical characteristics such as soil texture, bulk density, pH, etc. [43]. In this paper, the soil moisture and temperature conditions were constant, so we hypothesized that, on the k parameter, the soil’s characteristics exerted more important influences than the added organic substrates. Nevertheless, we can observe that all substrates released on average half of the correlated N0 over one to two weeks, followed by a subsequent phase of slow release with exponential behavior until the end of the incubation time. Overall, the nonlinear regression curves show good fit in all treatments (Figure 2), confirmed by the values of RMSE ranging from 15.45 in DO to 40.83 in AS and by the adjusted coefficients of determination (R2 adj), with the highest value in DO (0.970) and the lowest in DC (0.777) (Table 4).

4. Conclusions

The results obtained both in the mineralization test and in the estimation of potentially mineralizable nitrogen highlight that prolonged mineral fertilization over time could lead to a depletion in the organic nitrogen content of soil due to the acceleration of the potential nitrogen mineralization process compared to soil treated with bio-based fertilizers. The different treatment processes of the digestates (dehydration, solid/liquid separation, or composting) influenced the chemical composition and, probably, the degree of organic matter stability. This had a different influence on the nitrogen mineralization kinetics and the quantity of mineralized nitrogen in the soil treated with zootechnical and OFMSW digestates, mitigating the risk of soil organic matter depletion and simultaneously supporting the nitrogen nutrition of crops.
The first-order kinetics model accurately simulated the N mineralization process of various organic substrates studied by providing useful information from scientific knowledge and potential implementations in more complex management models. The two parameters of the model showed different variability in the response to organic fertilizers, with N0 being very sensitive to treatments while k was scarcely variable and probably more influenced by the soil characteristics, suggesting the need to carry out further studies on this topic. The valorization of agricultural utilization of digestates through further research and the adoption of models for potentially mineralizable N in fertilization plans could be valid aids for optimizing the use of digestates of different origins and compositions within a vision of a circular economy and sustainability applied to agriculture and some waste management.

Author Contributions

Conceptualization, U.N. and G.R.; methodology G.R., C.B., U.N. and S.S.; validation, G.R., C.B., U.N. and S.S.; formal analysis, G.R. and U.N.; investigation, G.R. and C.B.; resources, G.R. and C.B.; data curation, G.R. and U.N.; writing—original draft preparation, G.R., U.N., S.S. and C.B.; writing—review and editing, G.R., C.B, U.N. and S.S.; visualization, all authors; supervision, G.R., C.B., S.S. and U.N.; project administration, G.R.; funding acquisition, G.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Italian Ministry of Agriculture (MiPAAF) under the AGROENER project (D.D. n. 26329, 1 April 2016) and Convention “Biodigestati” with Assofertilizzanti-Federchimica (IT) for the characterization of digestates. http://agroener.crea.gov.it/ (accessed on 31 October 2024).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data are original and come from the research described in the paper. The data are available upon request from the authors.

Acknowledgments

The authors thank the Italian Composting Association (C.I.C.) for providing the digestates.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Abbreviations

OFMSWOrganic fraction municipal solid waste
PSDigested pig slurry as such
PFDigested pig slurry–solid fraction
BMDigested bovine manure
DODigested OFMSW
DDDried digested OFMSW
DCDigested and composted OFMSW
ASAmmonium sulfate
MPNPotentially mineralizable nitrogen

References

  1. Circular Economy Package-European Commission. Proposal for a Regulation of the European Parliament and of the Council Laying Down Rules on the Making Available on the Market of CE Marked Fertilising Products and Amending Regulations (EC) n. 1069/2009 and (EC) n. 1107/2009. 2016. Available online: https://eur-lex.europa.eu/legal-content/EN/ALL/?uri=CELEX:52016PC0157 (accessed on 27 March 2024).
  2. Chojnacka, K.; Moustakas, K.; Witek-Krowiak, A. Bio-based fertilizers: A practical approach towards circular economy. Bioresour. Technol. 2020, 295, 122223. [Google Scholar] [CrossRef]
  3. Tur-Cardona, J.; Bonnichsen, O.; Speelman, S.; Verspecht, A.; Carpentier, L.; Debruyne, L.; Marchand, F.; Jacobsen, B.H.; Buysse, J. Farmers’ reasons to accept bio-based fertilizers: A choice experiment in seven different European countries. J. Clean. Prod. 2018, 197, 406–416. [Google Scholar] [CrossRef]
  4. Rossi, G.; Beni, C. Effects of medium-term amendment with diversely processed sewage sludge on soil humification—Mineralization processes and on Cu, Pb, Ni, and Zn bioavailability. Plants 2018, 7, 16. [Google Scholar] [CrossRef] [PubMed]
  5. Chew, K.W.; Chia, S.R.; Yen, H.W.; Nomanbhoy, S.; Ho, Y.C.; Show, P.L. Transformation of Biomass Waste into Sustainable Organic Fertilizers. Sustainability 2019, 11, 2266. [Google Scholar] [CrossRef]
  6. Urra, J.; Alkorta, I.; Garbisu, C. Potential benefits and risks for soil health derived from the use of organic amendments in agriculture. Agronomy 2019, 9, 542. [Google Scholar] [CrossRef]
  7. Lin, L.; Xu, F.; Ge, X.; Li, Y. Biological treatment of organic materials for energy and nutrients production—Anaerobic digestion and composting. Adv. Bioenergy 2019, 4, 121–181. [Google Scholar] [CrossRef]
  8. Lamb, J.J. Anaerobic Digestion–From Biomass to Biogas; ebook; SCIO Publishing: Banbury, UK, 2020; 462p, ISBN 978-82-692033-2-5. [Google Scholar]
  9. Koszel, M.; Lorencowicz, E. Agricultural use of biogas digestate as a replacement fertilizers. Agric. Sci. Procedia 2015, 7, 119–124. [Google Scholar] [CrossRef]
  10. Battista, F.; Frison, N.; Bolzonella, D. Energy and nutrients’ recovery in anaerobic digestion of agricultural biomass: An Italian perspective for future applications. Energies 2019, 12, 3287. [Google Scholar] [CrossRef]
  11. Kovačić, Ð.; Lončarić, Z.; Jović, J.; Samac, D.; Popović, B.; Tišma, M. Digestate Management and Processing Practices: A Review. Appl. Sci. 2022, 12, 9216. [Google Scholar] [CrossRef]
  12. Beni, C.; Servadio, P.; Marconi, S.; Neri, U.; Aromolo, R.; Diana, G. Anaerobic digestate administration: Effect on soil physical and mechanical behavior. Commun. Soil Sci. Plant Anal. 2012, 43, 821–834. [Google Scholar] [CrossRef]
  13. Zhang, L.; Xu, C.; Champagne, P.; Mabee, W. Overview of current biological and thermo-chemical treatment technologies for sustainable sludge management. Waste Manag. Res. 2014, 32, 586–600. [Google Scholar] [CrossRef] [PubMed]
  14. Barłóg, P.; Hlisnikovský, L.; Kunzová, E. Effect of digestate on soil organic carbon and plant-available nutrient content compared to cattle slurry and mineral fertilization. Agronomy 2020, 10, 379. [Google Scholar] [CrossRef]
  15. Nascimento, A.L.; De Souza, A.J.; Oliveira, F.C.; Coscione, A.R.; Gomes Viana, D.; Borges Regitano, J. Chemical attributes of sewage sludges: Relationships to sources and treatments, and implications for sludge usage in agriculture. J. Clean Prod. 2020, 258, 120746. [Google Scholar] [CrossRef]
  16. European Union. Regulation (EU) 2019/1009 of the European Parliament and of the Council of 5 June 2019 Laying Down Rules on the Making Available on the Market of EU Fertilising Products and Amending Regulations (EC) n. 1069/2009 and (EC) n. 1107/2009 and replealing Regulation (EC) n. 2003/2003. Available online: https://eur-lex.europa.eu/eli/reg/2019/1009/oj/eng (accessed on 27 March 2024).
  17. Lazicki, P.; Geisseler, D.; Lloyd, M. Nitrogen mineralization from organic amendments is variable but predictable. J. Environ. Qual. 2020, 49, 483–495. [Google Scholar] [CrossRef]
  18. Stanford, G.; Smith, S.J. Nitrogen Mineralization Potentials of Soils. Soil Sci. Soc. Am. J. 1972, 36, 465–472. [Google Scholar] [CrossRef]
  19. Benedetti, A.; Alianiello, F.; Dell’Abate, M.T. A modified Stanford and Smith method for the study of the mineralization of nitrogen from organic materials. In Nitrogen Mineralization in Agricultural Soils; Neetson, J.J., Hassink, J., Eds.; AB-DLO Thema’s; Haren: Hertogenbosch, The Netherlands, 1994; pp. 127–132. [Google Scholar]
  20. Mariano, E.; Trivelin, P.C.O.; Leite, J.M.; Megda, M.X.V.; Otto, R.; Franco, H.C.J. Incubation methods for assessing mineralizable nitrogen in soils under sugarcane. Rev. Bras. Ciênc. Solo 2013, 37, 450–461. [Google Scholar] [CrossRef]
  21. Grigatti, M.; Di Girolamo, G.; Chincarini, R.; Ciavatta, C. Potential nitrogen mineralization, plant utilization efficiency and soil CO2 emissions following the addition of anaerobic digested slurries. Biomass Bioenerg. 2011, 35, 4619–4629. [Google Scholar] [CrossRef]
  22. Gil, M.V.; Carballo, M.T.; Calvo, L.F. Modelling N Mineralization from Bovine Manure and Sewage Sludge Composts. Bioresour. Technol. 2011, 102, 863–871. [Google Scholar] [CrossRef]
  23. Bensid, Z.; Sbih, M.; Chergui, D.; Ghaouti, K. Comparison of Empirical Models for Estimating the Mineralization Potential of Soil Nitrogen. J. Adv. Agric. 2016, 7, 1189–1202. [Google Scholar] [CrossRef]
  24. Wijanarko, A.; Purwanto, B.H. Comparison of two kinetics models for estimating N mineralization affected by different quality of organic matter in Typic Hapludults. J. Degrad. Min. Lands Manag. 2016, 3, 577–583. [Google Scholar] [CrossRef]
  25. da Silva, M.L.; Silva, E.M.; Frühauf, A.C.; Muniz, J.A.; Fernandes, T.J. Nonlinear modeling of carbon dynamics in soil treated with tannery sludge. Rev. Agrogeoambiental 2023, 15, e20231759. [Google Scholar] [CrossRef]
  26. Nardi, P.; Neri, U.; Di Matteo, G.; Trinchera, A.; Napoli, R.; Farina, R.; Subbarao, G.V.; Benedetti, A. Nitrogen Release from Slow-Release Fertilizers in Soils with Different Microbial Activities. Pedosphere 2018, 8, 332–340. [Google Scholar] [CrossRef]
  27. Molina, J.A.E.; Clapp, C.E.; Larson, W.E. Potentially Mineralizable Nitrogen in Soil: The Simple Exponential Model Does Not Apply for the First 12 Weeks of Incubation. Soil Sci. Soc. Am. J. 1980, 44, 442–443. [Google Scholar] [CrossRef]
  28. Inubushi, K.; Wada, H.; Takai, Y. Easily Decomposable Organic Matter in Paddy Soil: VI. Kinetics of Nitrogen Mineralization in Submerged Soils. Soil Sci. Plant Nutr. 1985, 31, 563–572. [Google Scholar] [CrossRef]
  29. Camargo, F.A.d.O.; Gianello, C.; Tedesco, M.J.; Riboldi, J.; Meurer, E.J.; Bissani, C.A. Empirical models to predict soil nitrogen mineralization. Ciênc. Rural 2002, 32, 393–399. [Google Scholar] [CrossRef]
  30. Geisseler, D.; Smith, R.; Cahn, M.; Muramoto, J. Nitrogen mineralization from organic fertilizers and composts: Literature survey and model fitting. J. Environ. Qual. 2021, 50, 1325–1338. [Google Scholar] [CrossRef]
  31. MIPAF—Ministero Politiche Agricole e Forestali (Italy). Metodi Ufficiali di Analisi Chimica del Suolo. Decreto Ministeriale del 13/09/1999; Gazzetta Ufficiale della Repubblica Italiana, n. 248, 21/10/1999, Supplemento Ordinario n. 185. Available online: https://www.gazzettaufficiale.it/eli/gu/1999/10/21/248/so/185/sg/pdf (accessed on 31 October 2024). (In Italian).
  32. Decreto Legislativo 29 Aprile 2010 n. 75. Riordino e Revisione Della Disciplina in Materia di Fertilizzanti. Gazzetta Ufficiale della Repubblica Italiana Serie Generale n. 121, 26/05/2010. Available online: https://www.gazzettaufficiale.it/eli/gu/2010/05/26/121/so/106/sg/pdf (accessed on 31 October 2024). (In Italian).
  33. Decreto 10 Luglio Decree 10 July 2013. Aggiornamento Degli Allegati Del Decreto Legislativo 29 Aprile 2010, n. 75, Concernente il Riordino e la Revisione Della Disciplina in Materia di Fertilizzanti. (13A07510) (GU Serie Generale n.218 del 17-09-2013). Gazzetta Ufficiale Della Repubblica Italiana General Series n. 218 of 17/09/2013. Available online: https://www.gazzettaufficiale.it/eli/id/2013/09/17/13A07510/sg (accessed on 31 October 2024). (In Italian).
  34. Wall, L.; Gehrke, C.W.; Neuner, J.E.; Lathey, R.D.; Rexnord, P.R. Cereal protein nitrogen: Evolution and comparison of four different methods. J. Assoc. Off. Anal. Chem. 1975, 58, 811–817. [Google Scholar]
  35. Kamshake, L.J.; Hannah, S.A.; Comen, J.M. Automated analysis for nitrate by hydrazine reduction. Water Resour. 1967, 1, 205–216. [Google Scholar]
  36. JASP Team. JASP, Version 0.19.1; Computer software; JASP: Amsterdam, The Netherlands, 2024.
  37. Silva, E.M.; Jane, S.A.; Fernandes, F.A.; da Silva Édipo, M.; Muniz, J.A.; Fernandes, T.J. Stanford & Smith nonlinear model in the description of CO2 evolved from soil treated with swine manure: Maximum entropy prior. Acta Sci. Techonol. 2022, 45, 56360. [Google Scholar] [CrossRef]
  38. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2023; Available online: https://www.R-project.org/ (accessed on 19 January 2024).
  39. Liu, X.J.A.; van Groenigen, K.J.; Dijkstra, P.; Hungate, B.A. Increased plant uptake of native soil nitrogen following fertilizer addition—Not a priming effect? Appl. Soil Ecol. 2017, 114, 105–110. [Google Scholar] [CrossRef]
  40. Marzi, M.; Shahbazi, K.; Kharazi, N.; Rezaei, M. The Influence of Organic Amendment Source on Carbon and Nitrogen Mineralization in Different Soils. J. Soil Sci. Plant Nutr. 2020, 20, 177–191. [Google Scholar] [CrossRef]
  41. Rossi, G.; Neri, U.; Felici, B.; Benedetti, A. Effect of different zootechnical digestates on fertilization and nitrogen leaching. Agrochimica 2020, 64, 239–251. [Google Scholar] [CrossRef]
  42. Rossi, G.; Beni, C.; Benedetti, A.; Felici, B.; Neri, U. Effect of Mineral or OFMSW Digestate Fertilization on Ryegrass and Nitrogen Leaching. Agronomy 2023, 13, 1316. [Google Scholar] [CrossRef]
  43. Ji, J.; Zhang, Y.; Zhang, Y.; Yu, N.; Zou, H.; Li, Y.; Liu, S.; Tong, Y. Soil nitrogen mineralisation dynamics under long-term different irrigation methods in greenhouses. Acta Agric. Scand. 2014, 63, 117–126. [Google Scholar] [CrossRef]

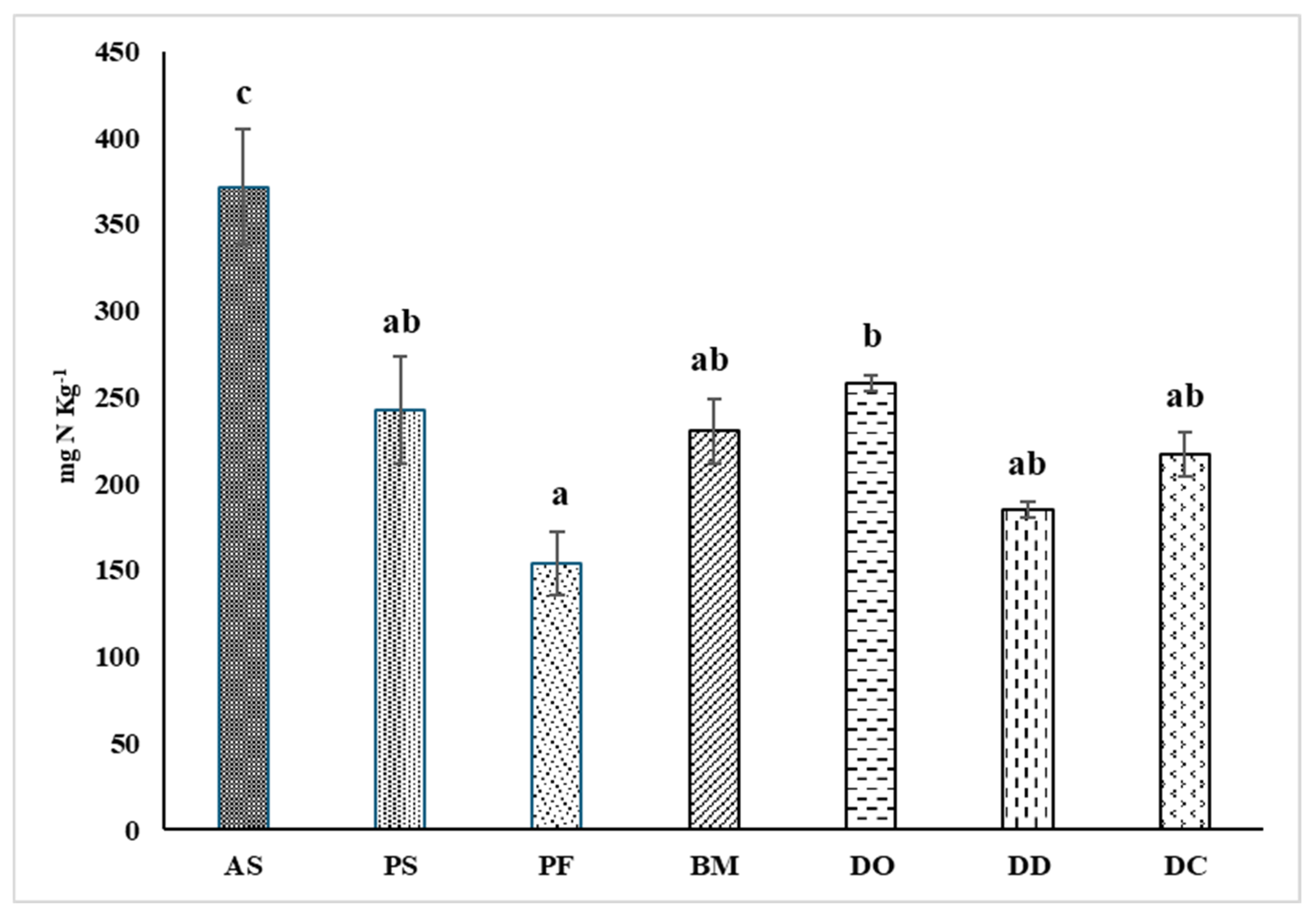

Figure 1. Cumulative concentrations (mg N kg−1 of dry soil) of mineralized N (NH4+-N + NO3-N). Bars with different letters are significant at p < 0.05 according to Tukey’s test. Error bars describe the standard error of the mean (n = 3).
Figure 1. Cumulative concentrations (mg N kg−1 of dry soil) of mineralized N (NH4+-N + NO3-N). Bars with different letters are significant at p < 0.05 according to Tukey’s test. Error bars describe the standard error of the mean (n = 3).
Biomass 05 00005 g001

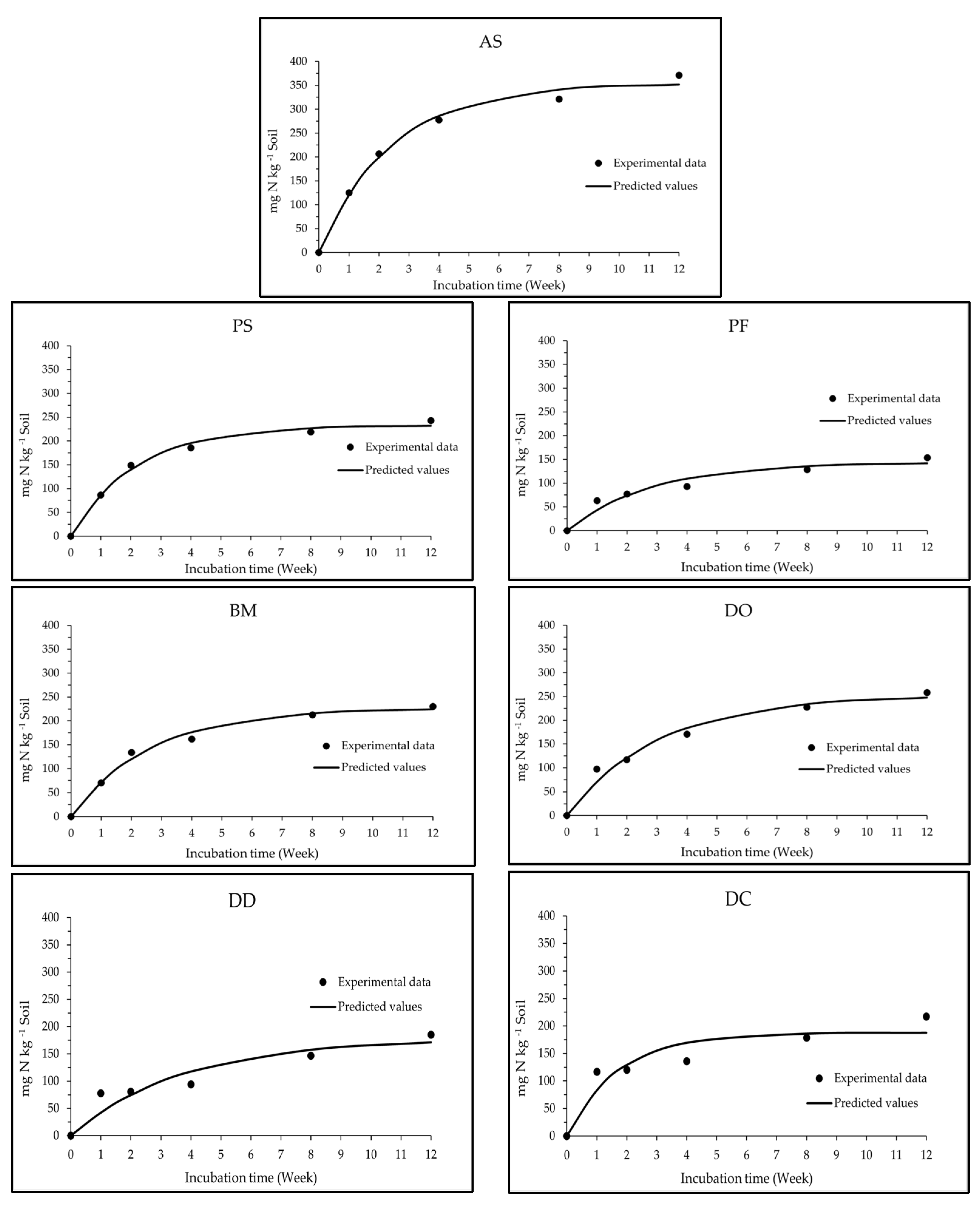

Figure 2. Curve fit plots showing experimental data (as an average of three replicates) and predicted values according to the first-order kinetics model against incubation time (Week) of the net cumulative inorganic nitrogen (mg kg−1 dry soil). Ammonium sulfate (AS), digested pig slurry as such (PS), digested pig slurry–solid fraction (PF), digested bovine manure (BM), digested OFMSW (DO), dried digested OFMSW (DD), and digested and composted OFMSW (DC).
Figure 2. Curve fit plots showing experimental data (as an average of three replicates) and predicted values according to the first-order kinetics model against incubation time (Week) of the net cumulative inorganic nitrogen (mg kg−1 dry soil). Ammonium sulfate (AS), digested pig slurry as such (PS), digested pig slurry–solid fraction (PF), digested bovine manure (BM), digested OFMSW (DO), dried digested OFMSW (DD), and digested and composted OFMSW (DC).
Biomass 05 00005 g002
Table 1. Chemical characteristics of digestates.
Table 1. Chemical characteristics of digestates.
ParameterPSPFBMDODDDC
Moisture %95.571.992.972.716.336.8
pH8.38.67.88.58.48.0
Total solids %97.476.494.982.447.967.3
Volatile solids % 2.623.65.117.652.132.7
N tot. %8.22.25.64.33.92.2
Organic N %2.21.22.43.03.12.1
Inorganic N % 6.01.03.21.30.80.1
Organic C %24.741.837.533.823.348.6
C/N ratio31978622
P (P2O5) %3.11.91.13.63.40.7
K2O %7.01.06.20.70.81.3
Cu mg kg−110129679310256
Zn mg kg−1812206326310344182
Pb mg kg−1<LOQ<LOQ<LOQ20.53
Cr mg kg−1<LOQ<LOQ<LOQ1295
Cd mg kg−1<LOQ<LOQ<LOQ0.40.10.1
Ni mg kg−1<LOQ<LOQ<LOQ857
Hg mg kg−1<LOQ<LOQ<LOQ<LOQ<LOQ <LOQ
Except for pH, all data are expressed in dry matter. LOQ = limit of quantification (0.05 mg kg−1).
Table 2. Concentrations of NH4+-N (mg·kg−1 dry soil).
Table 2. Concentrations of NH4+-N (mg·kg−1 dry soil).
NH4+-N
Week124812
AS81.93 c6.602.20a3.6040.00d
PS50.33 bc6.408.00a0.535.27ab
PF16.27 ab4.0015.67a2.933.27a
BM32.33 ab7.139.53a1.807.00ab
DO2.67 a9.7334.93b3.9310.27ab
DD2.20 a2.870.00 a2.0713.73bc
DC25.33 ab3.870.00a3.4022.13c
ANOVA F test***ns***ns***
Means with different letters within a column are statistically different according to Tukey’s test. ns = not significant; (***) p ≤ 0.001.
Table 3. Concentrations of NO3-N (mg·kg−1 dry soil).
Table 3. Concentrations of NO3-N (mg·kg−1 dry soil).
NO3-N
Week124812
AS42.93 a75.33 c68.67 b39.6710.53
PS35.73 a56.20 b28.87 ab33.0718.20
PF46.87 ab9.87 a0.00 a32.9321.87
BM37.73 a56.40 b18.73 a49.0710.47
DO94.53 c9.87 a19.00 a52.8720.33
DD75.60 bc0.00 a13.40 a50.7324.53
DC91.27 bc0.00 a15.47 a39.2016.33
ANOVA F test********nsns
Means with different letters within a column are statistically different according to Tukey’s test. ns = not significant. (**) p ≤ 0.01; (***) p ≤ 0.001.
Table 4. Potentially mineralizable nitrogen N0 (mg kg−1 of dry soil) in the fertilizers and mineralization rate constant K (week−1) estimated by nonlinear regression; calculated half-life t1/2 (week) of N0 and fitting results assuming the first-order kinetics model.
Table 4. Potentially mineralizable nitrogen N0 (mg kg−1 of dry soil) in the fertilizers and mineralization rate constant K (week−1) estimated by nonlinear regression; calculated half-life t1/2 (week) of N0 and fitting results assuming the first-order kinetics model.
SubstratesParametersEstimateSE95% CIRMSE R2(Adj.)
Lower LimitUpper Limit
ASN0354.17a19.55 312.74395.6140.830.907
k0.41a0.070.270.56
t1/21.69a0.281.08 2.28
PSN0233.00bc16.82 197.34268.6637.270.837
k0.46a0.100.240.68
t1/21.51a0.35 0.78 2.25
PFN0143.82d10.00 122.62165.0319.010.868
k0.36a0.070.210.51
t1/21.93a0.39 1.11 2.77
BMN0226.49bc13.02 198.90254.0125.600.910
k0.38a0.060.240.51
t1/21.82a0.31 1.18 2.51
DON0253.32 b8.83234.61272.0315.450.970
k0.32a0.030.260.39
t1/22.17a0.21 1.70 2.59
DDN0178.01cd14.98 146.27209.7621.990.868
k0.27a0.060.150.39
t1/22.55a0.56 1.39 3.76
DCN0188.06 bcd14.04 158.31217.8234.500.777
k0.58 a0.150.260.90
t1/21.20a0.31 0.54 1.85
Note: Estimated values of N0, k, and t1/2 with the same lowercase letter (bold for N0, normal for k, and italics for t1/2, respectively) indicate that their 95% confidence intervals overlap. Abbreviations: SE = standard error of the estimated parameters; CI = confidence intervals of the estimated parameters; RMSE = Root Mean Square Error; R2(Adj.) = adjusted R2.
