Radiographic Evaluation of Distal Radius Fracture Healing by Time: Orthopedist versus Qualitative Assessment of Image Processing

1
Department of Orthopedic Surgery, Kaplan Medical Center, 1 Pasternak St., Rehovot 7661041, Israel
2
Department of Orthopedic Surgery, Barzilai Medical Center, 2 Hahistadrut St., Ashkelon 7830604, Israel
*
Author to whom correspondence should be addressed.
Trauma Care 2022, 2(3), 481-486; https://doi.org/10.3390/traumacare2030040
Submission received: 22 May 2022 / Revised: 28 August 2022 / Accepted: 2 September 2022 / Published: 5 September 2022

Abstract

:
Distal radius fractures are among the most prevalent long-bone fractures in the body. Fracture healing assessment is based on clinical evaluation and radiological examinations. A lack of consensus exists regarding the radiographic criteria for fracture union. Our work examined the commonly used criteria for the assessment of fracture healing. Thirty-two patients, conservatively treated for distal radius fracture, participated in a prospective study. Enrolled patients followed protocol for 26 weeks. Four orthopedic surgeons with similar ranks were asked to evaluate three parameters of radiographic measurements for each set of radiographs, including callus formation, the presence of a fracture line, and bridging of fracture sites or sites of fracture edges in 70 radiographs. Ten patients were eligible for the study. The degree of agreement among surgeons was “good” (Cronbach’s alpha): callus formation—0.8, bridging of fracture sites—0.775, blurring of fracture line gap—0.795. A timeline based on the specific week and grading system was made. Radiographic detection of callus formation was seen after the second film, between 6 and 9 weeks, and an agreement among surgeons was achieved for more than half of the patients for the blurring of the fracture gap. The radiographic healing progression of the distal radius can be detected after 6 and 9 weeks in all three parameters with good agreement between different surgeons. A timeline graph such as the one that was made in this model can be used for the follow-up of patients’ fracture healing or early detection of non-union.

1. Introduction

Distal radius fractures are among the most prevalent long-bone fractures in our body [1]; distal radius fractures account for one-sixth of the total fractures seen in the emergency department, yet there is no published data for the radiographic fracture healing criteria formation nor about the agreement on those criteria between different surgeons. The two leading age groups with the highest fracture rates are children between 6 and 10 years old and adults 60 to 69 [2]. Fracture healing assessment is based on clinical evaluation and radiological examinations. Clinical criteria mostly assess the pain, tenderness, and ability to bear weight and perform different activities in our daily life without pain [3]. Radiologic assessment is based mainly on X-rays, orthogonal planes, and CT scans [4]. A lack of consensus exists regarding the radiographic criteria for fracture union. Delayed assessment of non-united fracture can lead to patients’ morbidity and deformities; early intervention can lead to unnecessary operations. Only 39.7 to 45.4% of surgeons use specific criteria for assessing fracture healing [3,5]. Common radiological measurements currently in use are the formation of bridging callus, the presence of fracture lines, and bridging of fracture sites or sites of fracture edges from which theoretically we can determine the stage of union [6,7,8]. With these radiological factors, we can assess the mechanical stability essential for load transmission across the fracture line [9]. We hypothesized that quantitative assessment of the commonly accepted radiographic parameters for the evaluation of fracture repair allows reliable identification of fracture healing acknowledgment among all orthopedic surgeons.
In our work, we gave similar weight to all radiologic parameters, although according to Bhandari et al.’s work, three out of five orthopedic surgeons give more importance to callus over persistent fracture lines to determine union [10].
Determination of a timeline for fracture healing is critical for the diagnosis of the union. Surprisingly, there is hardly any data in the orthopedic literature that frames the formation of callus, bone bridge, or fracture gap disappearance over time. This work aimed to create a preliminary model for radiographic evaluation of fracture healing over time by building a scoring system that includes the most frequent radiological measurements for qualitative assessment of distal fracture healing.

2. Materials and Methods

Data were prospectively collected from patients and extracted from the medical records of the participating patients. Thirty-two elderly patients with distal radius fractures signed written informed consent for the study. Patients admitted to the medical center’s emergency department (ED) with new distal radius fractures were evaluated and treated according to the current practice of fracture management and then screened for the study. Patients were selected for inclusion based on a presentation to the ED with a distal radius fracture identified using the International Classification of Diseases, 9th edition (ICD-9), diagnosis (813.42), and had conservative treatment for distal radius fracture. The included fractures were stable non-articular fractures. After the first clinical and radiographic evaluation, patients had a cast put on, and a new X-ray was taken. Eligible patients completed a set of six follow-up radiographs. Blood hematology, renal function, and calcium and phosphor levels were also gathered. One week after screening, those who signed the informed consent were re-evaluated. In the case of fracture collapse, if surgery was needed, or if blood examination was not in the normal range, the patient was disqualified from the study. Exclusion criteria included low-quality radiographs, previous surgery, patients with pins or plates in the wrist, joint diseases that affected the wrist and hand function in the injured arm, and disease that affects bone metabolism.
Enrolled patients followed the same protocol with the exact timeline (0, 1, 3, 6, 9, 12, 26 weeks) in 70 radiographs. They were then followed through the healing process of their fracture. The X-ray beam was centered 1 m above the radius fracture. Anteroposterior (AP) and lateral films (LAT) were taken, with the use of picture archiving and communication systems (PACS), edited in presentation, and then randomly arranged by a computer program.
Four orthopedic surgeons with similar ranks were chosen and blindly asked to evaluate three parameters of radiographic measurements for each set of radiographs. They were asked to grade each of the three standard parameters (callus formation, the presence of a fracture line, and bridging of fracture sites or sites of fracture edges) by a point system as presented in Table 1.
Statistical descriptive analysis of each of the parameters was conducted separately on every occasion. Statistical significance was considered at p < 0.05. The ANOVA test and Cronbach’s alpha coefficient were evaluated for the reliability of the given data. Data analysis was performed using IBM SPSS Statistics for Windows (Version 25.0, Armonk, NY, USA). Diagrams of curves were drawn with the use of Microsoft Excel 365 (Version 2101, Microsoft Corp., Redmond, WA, USA).

3. Results

During the study period, 10 patients had a fulfilled radiographic follow-up. The average age of the sample group was 65.4 ± 10 years; 73% were females.
The degree of agreement of four orthopedic surgeons in all three parameters was good (Cronbach’s alpha between 0.9 > alpha > 0.8): callus formation—0.8, bridging of fracture sites—0.775, blurring of fracture line gap—0.795. Statistical analysis showed no significant difference among different surgeons (Appendix A, Table A1), with the following p values: callus formation—0.677, bridging of fracture sites—0.331, blurring of fracture line gap—0.238. An exception was observer B. He observed two bridging calluses in most of the examined radiographs, thus suggesting an early callus formation (60%, p-value—0.258). It can be seen that the distribution percentages were similar in each parameter at each recovery stage (0–2) (Table 2).
In half of the radiographic films, the fracture line started to disappear between the sixth and ninth weeks. In 70% of radiographs, cortexes bridged by callus were formed, and in 69% of cases, callus was calcified at a similar period as in other disciplines. In one variable analysis, the follow-up of each parameter showed improvement over the weeks. The mean of week 1 and at week 26 represents the improvement in the results: fracture line—1.000 to 1.746, bridging of fracture sites—1.351 to 1.867, and callus formation—1.200 to 1.933 (Figure 1; Appendix A, Table A2).

4. Discussion

This study examined radiographic healing processes through timelines in specific time intervals for distal radius fractures that had been treated conservatively. A restricted protocol of repeated radiographs through 26 weeks enabled us to gather precise information regarding callus formation and disappearance of the fracture line without disturbance from the metallic plate in radiographs. We did not find any previous clinical study that framed the radiographic healing process of fracture over time.
An agreement was statistically achieved between the surgeons as we did not find a difference among them. A slight difference among the surgeons was in the early stages of the healing, apart from surgeon B, although it was not a significant factor. We could see a stable improvement in the results until the endpoint of all examined parameters as they approached week 26 in that they became closer to the score of 2 points which we assigned for the maximal score, suggesting the complete healing of the fracture. We observed the disappearance of the fracture line measurement on the sixth occasion. Slowing progress was seen compared to the fifth radiograph occasion. At 26 weeks, almost all parameters suggested radiologically healed fracture as they approached the maximal scoring of 2. The radiologic picture was consistent with the healing process in all three parameters. This finding corresponds to practical knowledge of the distal radius fracture healing period that assumes healing of the fracture in six to eight weeks. No universally accepted gold standard for distal radius healing is currently in use [11].
The first radiograph was taken at the time of the arrival at the hospital after achieving a reduction in a cast. Thus, the reading from the following radiographs showed better results after reduction than the actual clinical presentation. We concluded that all three of the criteria that the orthopedic surgeon examined are helpful for the continued examination of the healing process. Our study was performed on a small sample group of patients that were treated conservatively. In our view, this technic can be used for patients with external fixation as well. As the healing process is similar, some changes in the healing timeline may be seen. Radiographic films can be non-specific as different X-ray operators and machines have different approaches. The quality of the films was not always the same, and this could have influenced the orthopedic surgeon’s view.
There are no published studies that built a quantitative graph of the healing process of the distal radius fracture. Our graph creates a preliminary model for the radiographic healing process. These graphs are needed on large scales to serve as a reference in evaluating the healing process of patients.
Other studies similar to ours should be conducted on other common fractures to identify specific healing timelines for each fractured bone in the body.

Author Contributions

M.O.—writing, original draft preparation, review and editing, D.A.—review and writing, O.L.—methodology, review and editing, project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki. This research was reviewed by the local ethics committee of the Barzilai Medical Center and approved according to international Good Clinical Practice (GCP).

Informed Consent Statement

The human study protocol was approved by the Institutional Review Board of Barzilai Medical Center, protocol code 066-12.

Data Availability Statement

Data are available upon reasonable request to the submitting author and added as an appendix to the article.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Systematic point grading of all surgeons.
Table A1. Systematic point grading of all surgeons.
NMeanStd. DeviationStd. Error95% Confidence Interval for MeanMinimumMaximumSig.
Lower BoundUpper Bound
Fracture lineA881.51140.502740.053591.40481.61791.002.000.677
B841.41670.605360.066051.28531.54800.002.00
C801.43750.523950.058581.32091.55410.002.00
D571.47370.503750.066721.34001.60731.002.00
Total3091.45950.536780.030541.39951.51960.002.00
Bridging of fracture sitesA881.6140.51260.05461.5051.7220.02.00.331
B841.7260.49940.05451.6181.8350.02.0
C801.6250.60330.06741.4911.7590.02.0
D571.7370.48280.06391.6091.8650.02.0
Total3091.6700.52940.03011.6111.7290.02.0
Callus formationA881.6590.47670.05081.5581.7601.02.00.238
B841.6190.48850.05331.5131.7251.02.0
C801.7500.43570.04871.6531.8471.02.0
D571.7370.44430.05881.6191.8551.02.0
Total3091.6860.46480.02641.6341.7381.02.0
Table A2. Follow-up through the 7 weeks in each of the parameters.
Table A2. Follow-up through the 7 weeks in each of the parameters.
MeanStd. DeviationStd. Error95% Confidence Interval for Meanp Value
Lower BoundUpper Bound
Fracture lineweek 11.23810.440.095241.03941.43680.001
week 21.00000.324440.072550.84821.1518
week 31.08330.408250.083330.91091.2557
week 41.32610.473960.069881.18531.4668
week 51.56670.592800.076531.41351.7198
week 61.47620.534520.067341.34161.6108
week 71.74670.437850.050561.64591.8474
Total1.45950.536780.030541.39951.5196
Bridging of fracture sitesweek 11.5710.59760.13041.2991.8430.001
week 21.3500.67080.15001.0361.664
week 31.3750.57580.11751.1321.618
week 41.4780.58650.08651.3041.652
week 51.7000.56150.07251.5551.845
week 61.7940.40790.05141.6911.896
week 71.8670.34220.03951.7881.945
Total1.6700.52940.03011.6111.729
Callus formationweek 11.4760.51180.11171.2431.7090.001
week 21.2000.41040.09181.0081.392
week 31.3330.48150.09831.1301.537
week 41.6090.49340.07281.4621.755
week 51.7000.46210.05971.5811.819
week 61.7940.40790.05141.6911.896
week 71.9330.25110.02901.8761.991
Total1.6860.46480.02641.6341.738

References

  1. Nellans, K.W.; Kowalski, E.; Chung, K.C. The epidemiology of distal radius fractures. Hand Clin. 2012, 28, 113–125. [Google Scholar] [CrossRef] [PubMed]
  2. Bonafede, M.; Espindle, D.; Bower, A.G. The direct and indirect costs of long bone fractures in a working age US population. J. Med. Econ. 2013, 16, 169–178. [Google Scholar] [CrossRef] [PubMed]
  3. Bhandari, M.; Guyatt, G.H.; Swiontkowski, M.F.; Tornetta, P., III; Sprague, S.; Schemitsch, E.H. A lack of consensus in the assessment of fracture healing among orthopaedic surgeons. J. Orthop. Trauma 2002, 16, 562–566. [Google Scholar] [CrossRef] [PubMed]
  4. Porrino, J.A.; Maloney, E.; Scherer, K.; Mulcahy, H.; Ha, A.S.; Allan, C. Fracture of the distal radius: Epidemiology and premanagement radiographic characterization. Am. J. Roentgenol. 2014, 203, 551–559. [Google Scholar] [CrossRef] [PubMed]
  5. Bishop, J.A.; Palanca, A.A.; Bellino, M.J.; Lowenberg, D.W. Assessment of compromised fracture healing. J. Am. Acad. Orthop. Surg. 2012, 20, 273–282. [Google Scholar] [CrossRef] [PubMed]
  6. Perlepe, V.; Omoumi, P.; Larbi, A.; Putineanu, D.; Dubuc, J.-E.; Schubert, T.; Berg, B.V. Can we assess healing of surgically treated long bone fractures on radiograph? Diagn. Interv. Imaging 2018, 99, 381–386. [Google Scholar] [CrossRef] [PubMed]
  7. Blokhuis, T.J.; de Bruine, J.H.; Bramer, J.A.; den Boer, F.C.; Bakker, F.C.; Patka, P.; Haarman, H.J.; Manoliu, R.A. The reliability of plain radiography in experimental fracture healing. Skelet. Radiol. 2001, 30, 151–156. [Google Scholar] [CrossRef] [PubMed]
  8. Whelan, D.B.; Bhandari, M.; McKee, M.D.; Guyatt, G.H.; Kreder, H.J.; Stephen, D.; Schemitsch, E.H. Interobserver and intraobserver variation in the assessment of the healing of tibial fractures after intramedullary fixation. J. Bone Jt. Surg. Br. Vol. 2002, 84, 15–18. [Google Scholar] [CrossRef]
  9. Giannoudis, P.V.; Einhorn, T.A.; Marsh, D. Fracture healing: The diamond concept. Injury 2007, 38, S3–S6. [Google Scholar] [CrossRef]
  10. Bhandari, M.; Fong, K.; Sprague, S.; Williams, D.; Petrisor, B. Variability in the definition and perceived causes of delayed unions and nonunions: A cross-sectional, multinational survey of orthopaedic surgeons. J. Bone Jt. Surg. 2012, 94, e1091-6. [Google Scholar] [CrossRef] [PubMed]
  11. Cook, G.E.; Bates, B.D.; Tornetta, P.; McKee, M.D.; Morshed, S.; Slobogean, G.P.; Schemitsch, E.H. Assessment of fracture repair. J. Orthop. Trauma 2015, 29 (Suppl. 1), S57–S61. [Google Scholar] [CrossRef]

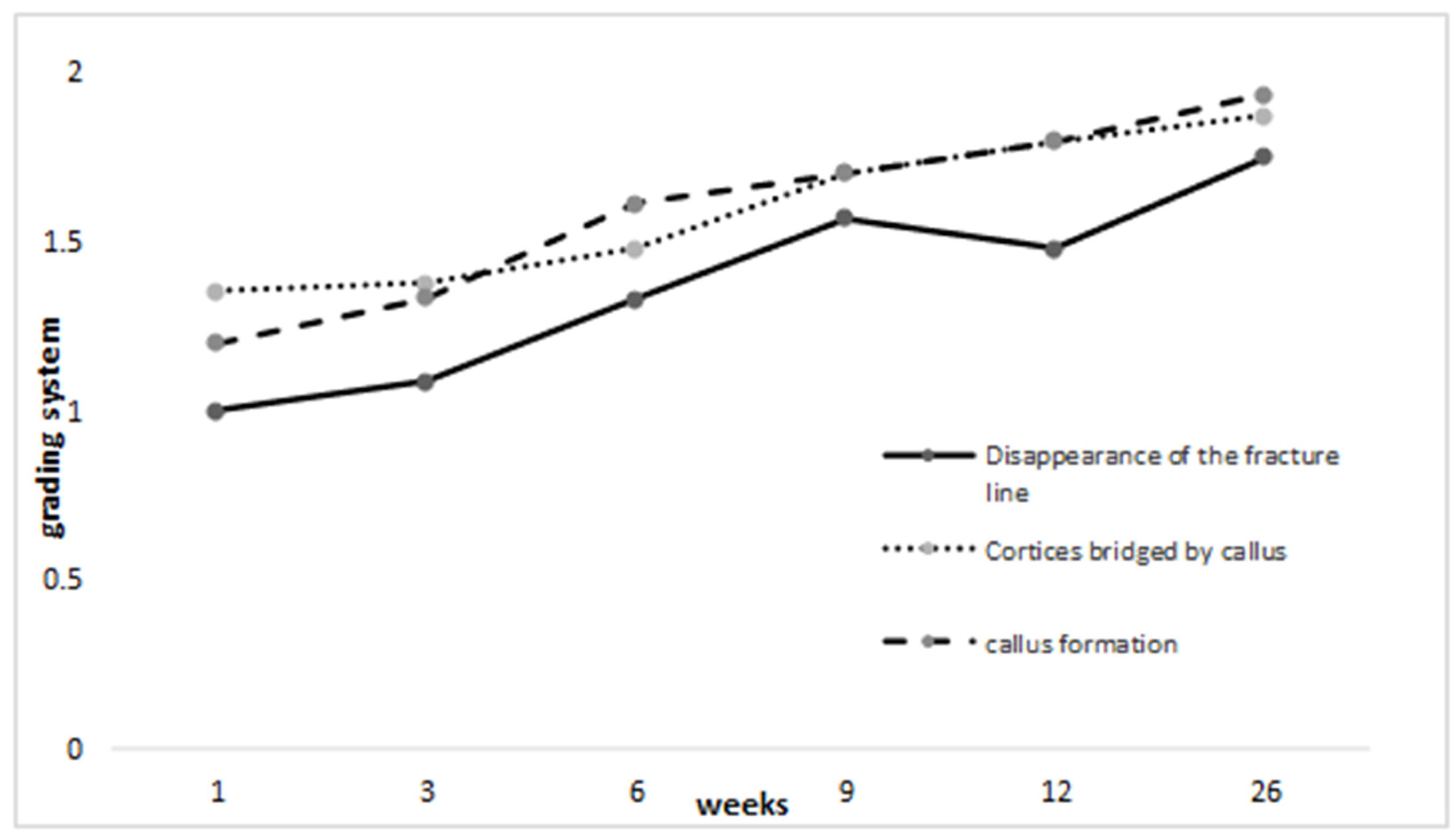

Figure 1. Timeline based on the grading system. Seven radiographs were obtained; only six are presented, as the first film was made at the time of casting.
Figure 1. Timeline based on the grading system. Seven radiographs were obtained; only six are presented, as the first film was made at the time of casting.
Traumacare 02 00040 g001
Table 1. Grading system for the parameters under investigation.
Table 1. Grading system for the parameters under investigation.
PointsCallus FormationFracture LineBridging of Fracture Sites
2Bridging callus in 2 cortexesDisappearance of fracture gapBridging in 2 cortexes
1Bridging callus in 1 cortexBlurring of fracture line gapBridging in one cortex
0Non-bridging callusNo disappearance of fracture line/No blur detectedNo bridging was seen
Table 2. Percentage of division between different parameters in all surgeons individually.
Table 2. Percentage of division between different parameters in all surgeons individually.
Bridging of Fracture Sites
No cortex1 cortex2 cortexesp value
Surgeon A17.1%38.4%44.3%0.001
Surgeon B7.1%32.9%60%0.258
Surgeon C27.1%30.0%42.9%0.001
Surgeon D44.3%21.4%34.0%0.001
Fracture line
No blurring detectedBlurring of fracture line gapDisappearance of fracture gapp value
Surgeon A8.6%55.7%35.7%0.001
Surgeon B17.1%48.6%34.3%0.023
Surgeon C10.0%64.3%25.7%0.004
Surgeon D27.1%52.9%20.0%0.012
Callus formation
No callusSome callus formationCalcified callusp value
Surgeon A15.70%42.90%41.40%0.001
Surgeon B17.10%45.70%37.10%0.144
Surgeon C28.60%28.60%42.90%0.001
Surgeon D48.60%21.40%30.00%0.001
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
