Robust Porcine GFR Measurement with Radiotracers and Only Late Blood Samples

Abstract

(1) Pigs are physiologically very relevant as animal models of human physiology. Radiotracer methods for porcine GFR (glomerular filtration rate) determination exist but require full-curve blood sampling or the application of correction formulas, which vary among studies. (2) We used porcine GFR data (40 datapoints from 20 juvenile pigs) for which the GFR was measured as the plasma clearance of [^99mTc]Tc-DTPA. The reference clearance (Cl, GFR; range 41–85 mL/min) was measured from the full curve under the data. For simpler determination, an approximate clearance, Cl₁, was based on the last five blood samples (acquired 120–240 min post injection). (3) The following formula for the GFR was developed: Cl = 1.27 · (Cl₁)^0.92. The spread (SD) was within 4% of the reference GFR. A comparison with the literature data showed that our correction formula was robust in pigs of various breeds, sizes up to approximately 200 kg, and GFRs up to approximately 400 mL/min, with a spread of up to 8%. The formula was also applicable for iohexol as the tracer. (4) A formula was developed that allows porcine GFR to be measured using only 4–5 late blood samples. This new formula can be applied across a wide range of swine breeds, animal sizes, and GFR ranges, allowing for robust determination of the GFR in pigs without full-curve blood sampling and without urine collection.

1. Introduction

Determination of the glomerular filtration rate (GFR) is needed in many preclinical studies when testing new surgical procedures or new drugs prior to implementing the treatment in humans. Given their anatomical and physiological similarities to humans, pigs are a very good model for validating new human treatments [1,2,3]. For urological surgical procedures or for the assessment of drugs that may positively or negatively affect renal function, it is important to have a reliable measurement of renal function in pigs.

The method of choice for quantitative GFR measurement is an injection of a small quantity of radiotracer that is filtered by the kidneys, combined with blood sampling. The faster the radiotracer disappears from the blood, the higher the GFR is. More specifically, for a radiotracer for which the plasma clearance (Cl) can be considered equal to the GFR, the rate of disappearance is determined from blood samples. This avoids the need for urine measurements. Instead, blood samples are taken to provide data on the plasma concentration curve, i.e., the concentration of the radiotracer in the blood plasma as a function of time.

It is, however, cumbersome to collect enough blood samples to fully describe the plasma concentration curve. In humans, well-established methods exist that involve measuring only a few, late blood samples and then correcting for this simplification [4,5]. A limited number of studies described similar approaches in pigs [2,6,7,8]. However, these studies were based on differing pig sizes and GFR ranges, and each research group developed their own correction formula. The latter would not be a problem if the various correction formulas agreed, but, as further discussed in Section 4, this is only the case when the animal groups are alike. As different studies use pigs of different breeds, sizes, ages (juvenile or full-grown), and GFR ranges, the results can considerably differ among the correction formulas, especially when formulas are used outside the ranges for which they were originally developed.

The present study used in-house GFR measurements of pigs to develop a new correction formula and evaluated the new formula based on the data and correction formulas from the above-cited literature. The aim was to develop and validate a simple and robust correction formula that can be broadly applied across pig populations and GFR ranges.

2. Material and Methods

2.1. Animals

The present study re-used data from Brignone et al. [9], in which GFR was measured as the plasma clearance of technetium-99m-labelled diethylenetriaminepentaacetic acid ([^99mTc]Tc-DTPA) in 20 female juvenile Danish Landrace pigs. For each animal, the measurement was performed twice, one week before and two weeks after a laparoscopic partial nephrectomy. During the partial nephrectomy, the upper right kidney pole was excised, corresponding to removing approximately one-third of the entire kidney. While this would naturally reduce renal function, the growth of the juvenile pigs during three weeks could, in itself, increase renal function. Overall, the two GFR measurements took place at different times and in different settings, with potentially changed GFR from the first to the second measurement. The pigs weighed 26.0–38.0 kg at the time of the first measurement and 31.4–43.8 kg at the time of the second measurement.

All procedures were performed under general anaesthesia. The study was approved by the Animal Experiments Inspectorate of the Dept. of Veterinary and Food Administration (approval number 2018-15-0201-01576).

2.2. Reference GFR: Plasma Clearance Based on Full-Curve Data (Cl_ref)

As an overall principle for using tracers for GFR determination, a high GFR value is seen as a quick clearance of the tracer from the blood plasma. Radiotracers have the advantage that radioactivity is easy to measure, so only minute quantities of radiotracer are needed. A short description of the principles of plasma clearance determination is given in Appendix A.

Consistent with guidelines from the British Nuclear Medicine Society (BNMS), the plasma clearance (Cl) of [^99mTc]Tc-DTPA was considered equal to GFR without any conversion [10,11].

To measure GFR, the pig was administered 10 MBq of [^99mTc]Tc-DTPA by intravenous injection. Blood samples were taken 5, 10, 15, 30, 45, 60, 90, 120, 150, 180, 210, and 240 min after the injection. The samples were centrifuged for 15 min at 2200× g, after which 2 mL plasma samples were drawn and measured to 10,000 counts in a Wizard² 2480 gamma counter (PerkinElmer, Waltham, MA, USA). The area under the curve (AUC) was determined by bi-exponential fitting. A sample fit is shown in Figure 1.

Reference clearance, Cl_ref, was calculated as the injected activity divided by AUC (Formula (A1) in the Appendix A); overall, if clearance (Cl, GFR) is high then the curve decays quickly (small AUC), while a slowly decaying curve (large AUC) reflects a low clearance.

2.3. One-Pool Approximation Cl₁ Based on Late-Sample Data

A first approximation, Cl₁, was calculated based on the final, mono-exponential curve (dashed curve in Figure 1) using Formula (A4). This curve can be calculated based on only the late blood samples. As detailed in Appendix A, the approximation Cl₁, sometimes called one-pool clearance, corresponds to replacing the full-curve AUC with AUC_slow, the area under the dashed curve in Figure 1. As AUC_slow is a smaller area than the full-curve AUC, one-pool clearance Cl₁ overestimates the actual clearance Cl. Thus, Cl₁ must be corrected to give Cl.

Values of Cl₁ were determined from the last 5 blood samples, corresponding to the time interval 120–240 min post-injection (p.i.). To determine if a smaller time window could be used, Cl₁ values were also calculated based on the last 4 (150–240 min p.i.) and the last 3 (180–240 min p.i.) blood samples.

2.4. Porcine GFR Correction Formula

With x = Cl₁ and y = Cl, Palnæs Hansen et al. [8] used a correction of the form

$$y=a·x$$

This correction is simple, but it does not take into account the nonlinearity observed in other pig studies [2,6,7] and in correction formulas for humans [4,5].

Other studies used a quadratic correction of the mathematical form

$$y=c+b·x+a·x^2$$

with a negative value of a, possibly without the constant term, c (corresponding to c = 0). Such quadratic forms mimic the classical Brøchner-Mortensen correction [4] for human GFR measurement. However, a quadratic form mathematically represents a parabola with a maximal value, for which reason the correction necessarily begins to fail at some sufficiently high GFR; accordingly, Brøchner-Mortensen later presented an updated formula [5] to replace their classical formula [4] for human GFR measurement.

The porcine GFR correction formula presented here has the mathematical form of a power function:

$$y=b·x^a$$

i.e.,

$$C{l}_{corr}=b·{\left(C{l}_1\right)}^a$$

This form correctly gives Cl_corr = 0 for Cl₁ = 0, and, unlike a quadratic correction, it does not impose a maximal value on Cl_corr.

The values a and b were determined by standard linear fit on log–log data.

3. Results

With each of the 20 pigs measured at two separate time points (before and after the operation), 40 GFR measurements were available. Over the 40 data points, the weights of the pigs were 26–44 kg, and the measured Cl_ref range was 41–85 mL/min. The individual data points are given in Supplementary Table S1.

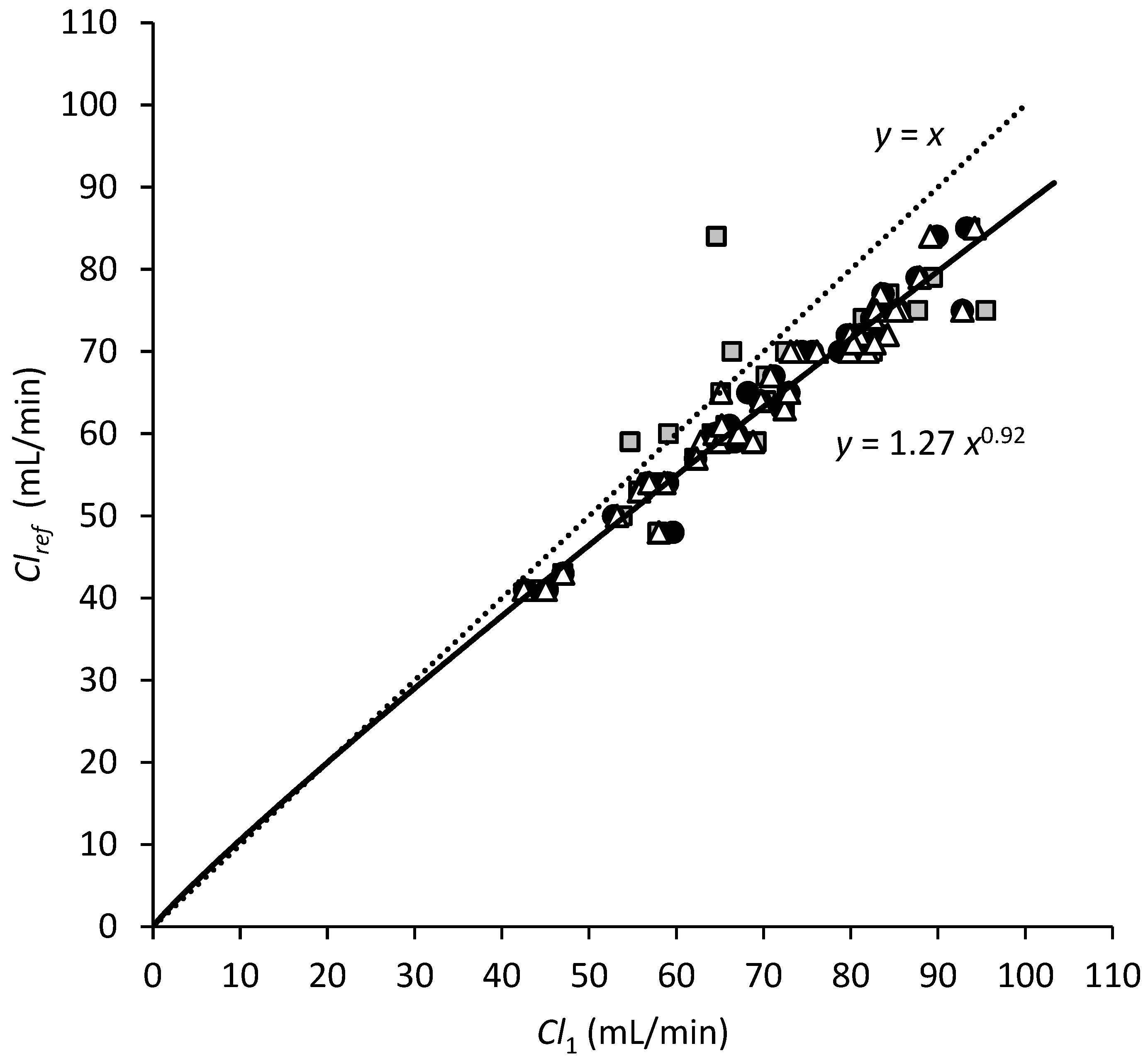

The data are plotted in Figure 2 and as a log–log plot in Supplementary Figure S1. From the fit, the coefficients ± standard error were

a = 0.920 ± 0.029

b = 1.27 ± 0.17

Thus, our correction formula became

$$C{l}_{corr}=1.27·{\left(C{l}_1\right)}^{0.92}$$

(1)

with both Cl_corr and Cl₁ in mL/min.

The deviations between Cl_ref and Cl_corr are summarised in

Table 1. Deviations in Cl_corr (Formula (1)) from the reference value, Cl_ref.

No. of Samples (Time Interval)	Mean Deviation ± SD
	Absolute	Relative
five (120–240 min)	0.0 ± 2.3 mL/min	0.1% ± 3.6%
four (150–240 min)	−0.2 ± 2.6 mL/min	−0.2% ± 3.9%
three (180–240 min)	−1.1 ± 5.2 mL/min	−1.5% ± 7.0%
Luis-Lima data *	−2.2 ± 17.7 mL/min	−0.2% ± 7.2%

* Our correction applied to the original data from Luis-Lima et al. [2]; see Discussion.

.

4. Discussion

This study demonstrated that in the investigated pigs, plasma clearance (and, thereby, the GFR) determination with a radiotracer could be performed using only the last (slowest) part of the curve. The radiotracer used was [^99mTc]Tc-DTPA.

In summary, a mono-exponential function was fitted to the late-curve data: Formula (A2).

From this fit to the late-curve data and the quantity, Q₀, of the injected activity, a first (one-pool) approximation, Cl₁, for the clearance was calculated: Formula (A4).

This approximate value would overestimate the true clearance, Cl, and was, therefore, corrected to the final value: Formula (1).

4.1. Choice of Tracer

For both human and animal studies, the typical choice of radiotracer was [⁵¹Cr]Cr-EDTA, but this has, in recent years, been taken over by [^99mTc]Tc-DTPA; these two tracers were shown to give GFR measurements that, for clinical purposes, can be considered equal [12,13,14]. Likewise, two pig studies by Frennby et al. [6,15] found that [⁵¹Cr]Cr-EDTA and iohexol were interchangeable.

While [⁵¹Cr]Cr-EDTA is no longer available on the market, the choice between iohexol or [^99mTc]Tc-DTPA in practice, therefore, depends upon whether nuclear medicine procedures are available or not. Radiotracers can be measured in extremely small concentrations (10 MBq of [^99mTc]Tc-DTPA corresponds to approximately 5 × 10⁻¹³ mol = 0.5 pmol of the radiotracer molecule), and the radiation dose from 10 MBq [^99mTc]Tc-DTPA is minute (<0.1 mSv in an adult patient, slightly higher in small children). For these reasons, [^99mTc]Tc-DTPA is widely used for GFR measurements in humans. Iohexol does not involve the handling of radioactivity but requires macroscopic amounts (grams) to be injected for the concentrations to be precisely measurable.

4.2. Previous Studies

In

Table 2. Overview of studies.

Study	Pigs		No. of GFR Measurements	GFR *	Correction Equation
	Weights	Sexes
Present study	26–44 kg	♀	40 in 20 pigs	41–85 mL/min	(1)
Frennby et al. (normal) [15]	21–27 kg	(not stated)	19	16.5–26.3 mL/min/10 kg	(2)
Frennby et al. (reduced) [6]	21–26 kg	♀♂	21	5.3–11.3 mL/min/10 kg
Palnæs Hansen et al. [8]	30–40 kg	♀	12	~45–85 mL/min	(3)
Luis-Lima et al. [2]	101–212 kg	♀	16	112–392 mL/min	(4)
van Gelder et al. [7]	34–80 kg	(not stated)	23 in 5 pigs	~17–44 mL/min	(5)

* In accordance with the original studies, GFR ranges are presented as unscaled (mL/min) or weight-scaled (mL/min/10 kg) results. Approximate ranges (see main text) are identified with ~.

, the data material from the present study is compared with other identified studies that measured the GFR in pigs and presented a formula for correcting the clearance based on late samples (in our notation, the correction of Cl₁ to Cl). A summary of each study is given below.

4.2.1. Frennby Studies

Frennby et al. [15] measured the GFR in n = 19 Swedish Landrace pigs weighing 21–27 kg with normal renal function. In a follow-up study [6], the same group measured the GFR in n = 21 pigs weighing 21–26 kg after reduction in the renal function by right-side nephrectomy. The first study did not provide information on the animals’ sexes, while the second study stated that they were of both sexes. The GFR was measured as the clearance of both iohexol and the radiotracer [⁵¹Cr]Cr-EDTA, with an excellent correlation between the two tracers. For the simplified determinations, four blood samples 180–360 min p.i. were used, and the authors reported the weight-scaled results in mL/min/10 kg. With our notation, their correction formula was

$$C{l}_{corr,Frennby}=-0.084+1.077·C{l}_1-0.009·C{l}_1^2 (\mathrm{mL}/\min /10\mathrm{kg})$$

(2)

Measured as [⁵¹Cr]Cr-EDTA plasma clearance based on the full curve, the GFR was in the range of 16.5–26.3 mL/min/10 kg in the pigs with normal renal function. For the nephrectomised pigs, the range was 5.3–11.3 mL/min/10 kg.

4.2.2. Palnæs Hansen Study

Palnæs Hansen et al. [8] measured the GFR in Danish Landrace–Yorkshire female pigs weighing 30–40 kg. The authors first used constant infusion techniques with urine collection to compare inulin with the radiotracer [⁵¹Cr]Cr-EDTA. They found that the plasma clearance of [⁵¹Cr]Cr-EDTA was indistinguishable from the renal clearance of the GFR, i.e., Cl_plasma,EDTA was indistinguishable from the classical gold standard of GFR measurement. The authors then measured the clearance of [⁵¹Cr]Cr-EDTA with the single-injection technique (as in the present study) in n = 12 pigs and compared it with the clearance from late samples (“slope clearance”, Cl₁). Blood sampling was up to 240 min p.i. It was found that the approximation Cl₁ could be corrected by a factor:

Cl_corr,Palnæs = 0.75 · Cl₁

(3)

The range of the GFR was not specified (only mean and SD were stated), but, based on the authors’ Figure 4 (in Ref. [8]), the range was approximately 45–85 mL/min.

4.2.3. Luis-Lima Study

Luis-Lima et al. [2] measured the GFR in n = 16 female adult Iberian pigs weighing 101–212 kg, using iohexol as the tracer. The GFR range was 112–392 mL/min. For the simplified GFR determinations, six blood samples covering the time interval 120–420 min p.i. were used. Their correction formula was

$$C{l}_{corr,Luis-Lima}=-47.909+1.176·C{l}_1-0.00063968·C{l}_1^2 (\mathrm{mL}/\min )$$

(4)

This formula was based on eight of the pigs and was verified in the other eight pigs.

4.2.4. Van Gelder Study

Van Gelder et al. [7] measured the GFR in n = 5 Topigs Norsvin pigs (as well as in three goats), using iohexol as the tracer. The pigs had weights of 34–80 kg, and the GFR measurements were performed both before and after kidney failure was induced in the animals. The animals’ sexes were not reported. In total, 23 porcine GFR measurements were performed (10 measurements in four healthy pigs and 13 measurements in five pigs after kidney failure induction). A common correction formula for goats and pigs was developed:

$$C{l}_{corr,Gelder}=1.006348·C{l}_1-0.003437·C{l}_1^2 (\mathrm{mL}/\min )$$

(5)

(The study also scaled the GFR to the body surface area, BSA, calculated from the body weight, but the scaling was applied after the correction.)

The measured GFR values were not tabulated, but, reading from the authors’ Figure 3 (in Ref. [7]), the porcine GFR range was approximately 17–44 mL/min.

4.3. Comparison of Corrections

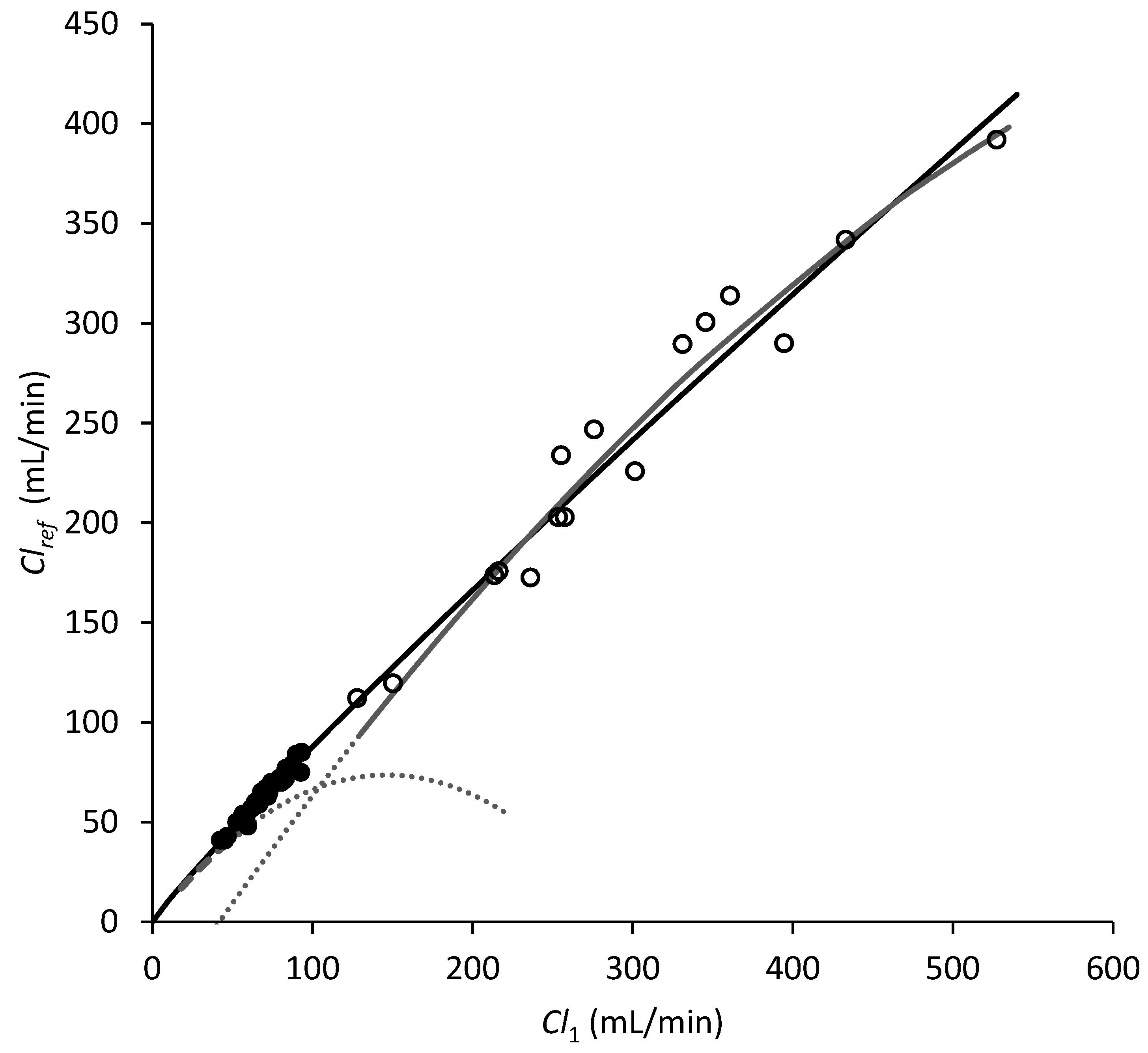

Luis-Lima et al. [2] tabulated the individual data points (pig weight, Cl, and Cl₁), allowing for a direct comparison with their data. As shown in Figure 3, our correction (2) can be extrapolated to cover their data from much larger, adult pigs without a new fit. (Note for the curious reader: a fit to the combined data material (ours + Luis-Lima) gave the coefficients a = 0.925 ± 0.010 and b = 1.241 ± 0.058, i.e., essentially the same coefficients as those from our data alone, only with narrower spreads.) As seen in the figure, the Luis-Lima correction (4) fails if it is extrapolated downwards to cover the range of mL/min relevant for our data.

Figure 3 also presents the van Gelder correction (5). The van Gelder study [7] covered only the GFR up to ~44 mL/min (see Table 2). For a higher GFR, including most of the range of our data, the van Gelder correction fails due to the parabolic nature of the correction. For the GFR below 40 mL/min (i.e., below the range covered by our own data), the good agreement between the van Gelder correction and our correction (1) provides an indirect validation of our correction in the low GFR range.

The Palnæs Hansen correction (3) was omitted from Figure 3 to avoid cluttering an already full plot. It did not fit very well with our data, as seen in Figure S1.

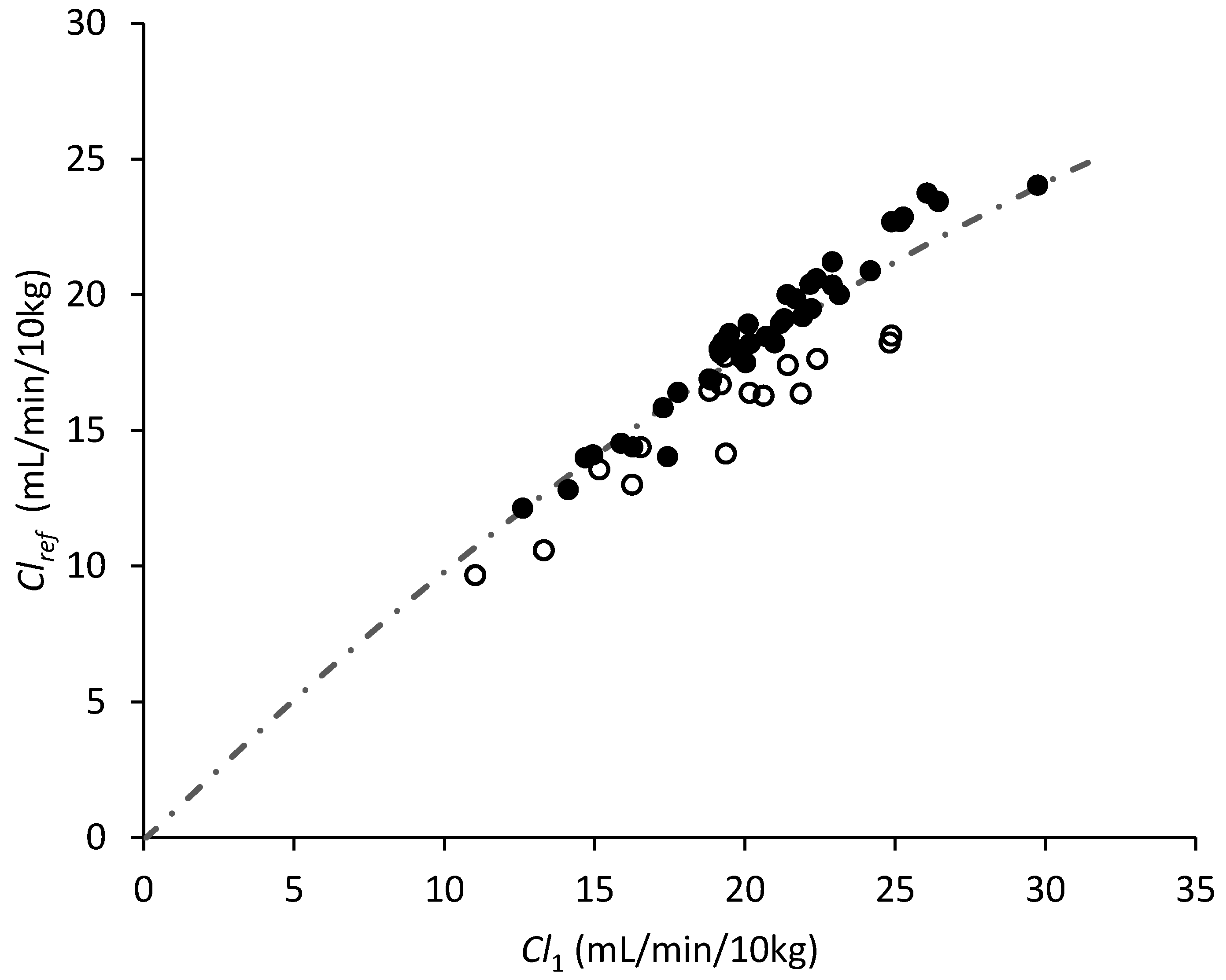

The Frennby correction (2) was developed on weight-scaled GFR data (mL/min/10 kg) and, therefore, cannot be shown in the same plot as corrections that must be applied to unscaled GFR data (mL/min)—at least not without assumptions, such as a fixed weight or a presumed connection between the weight and the GFR. Instead, Figure 4 presents the Frennby correction along with the weight-scaled plots of the Luis-Lima dataset and our own dataset. Figure 4 shows that these two datasets fall in somewhat different groups after weight scaling; thus, no single curve can fit both groups well in this scaling. The Frennby correction falls somewhere between the two groups, although nearer to our data.

In summary, the Luis-Lima correction and the van Gelder correction failed for GFRs outside the original ranges (Figure 3). Weight scaling, as applied by Frennby et al. [6,15], does not appear to allow for a common correction for all data (Figure 4). In contrast, our own correction (1) appears to be generally applicable.

Although our correction formula was developed only on data from juvenile pigs weighing 26–44 kg with a GFR in the range 45–85 mL/min, it could be applied to the data from Luis-Lima et al. [2] on adult pigs weighing up to approximately 200 kg and with a GFR of up to approximately 400 mL/min. For a low-range GFR, our correction agreed with the correction by van Gelder et al. [7], which was developed on pigs with a GFR < 45 mL/min.

It can, furthermore, be noted that (as expected) it did not pose problems to mix data from the GFR determined with iohexol, [^99mTc]Tc-DTPA, or [⁵¹Cr]Cr-EDTA; the developed correction was common for these tracers.

4.4. Time Range for Late Samples

Whether the single exponential was determined from 120–240 min (five blood samples) or 120–240 min (four blood samples), the difference from the reference GFR (Cl_ref) was very low and had a spread (SD) of less than 4% (Table 1). If fewer data were used (180–240 min, three blood samples), the spread was larger, and a considerable number of outliers was observed (Figure 2).

Applied to the Luis-Lima data, the spread was higher, approximately 7% (Table 1). However, this spread is comparable to the spread found in the original study (Table 1 in [2]).

4.5. Strengths and Limitations

A strength of the present study was that it used an animal model that represents human anatomy and physiology better than rodents and presented a method that allows for GFR measurement in pigs in a way similar to the methods used in human patients.

Our study was limited to 40 measurements in 20 juvenile pigs covering the GFR in the range of 41–85 mL/min. However, the developed correction formula was validated on a much higher GFR by the inclusion of data from Luis-Lima et al. [2], which strengthens the study by showing that the correction was also applicable to their data on adult pigs of a different breed, with the GFR in the range of 101–392 mL/min.

Another limitation was that we did not include pigs with a severely low GFR. However, in the very low range, the plasma tracer concentration curve slowly falls; thus, the area under the plasma curve (AUC) is dominated by the final part of the curve. Therefore, for a low GFR, only a small correction is needed [5], and our formula indeed gives a very small correction in mL/min for a low GFR (Figure 2). Furthermore, our correction had low-range agreement with the correction by van Gelder et al. [7], covering the GFR in a range below ours (Table 2 and Figure 3). As in human patients, the determination of a very low GFR is challenged by the fact that if the GFR is low then the plasma concentration only slowly falls; however, that challenge is related to the basal determination of the curve slope, not to the correction applied afterwards.

It can be considered a limitation that all individual data points are from female animals, and only one study specifically stated that both sexes were represented (Table 2). However, while the normal GFR level may depend on sex, there is little reason to suspect a sex difference in the correction from the one-pool clearance, Cl₁, to the actual clearance, Cl. For comparison, widely used human corrections [4,5] are independent of sex.

4.6. Perspectives

GFR determination is used in many drug studies as well as renal studies. Physiologically, pigs are very relevant research animals for such studies. A tracer method that requires a single injection of the tracer, a limited number of blood samples, and no urine collection can greatly simplify GFR determination in pigs, thereby paving the way for more focused studies, replacing studies applying less relevant animals. This may eventually result in a reduction in the number of research animals needed.

The developed correction Formula (1) allows for such a simple GFR determination and was found to be robust over a wide range of pig sizes, breeds, and GFR ranges. The correction formula was validated on data based on the radiotracer [^99mTc]Tc-DTPA (and, indirectly, [⁵¹Cr]Cr-EDTA) as well as the nonradioactive tracer iohexol.

5. Conclusions

Using the plasma clearance of [^99mTc]Tc-DTPA as measure of the glomerular filtration rate (GFR), we developed a correction Formula (1) that allows for the determination of the GFR in pigs based on only four or five late blood samples taken 150–240 min or 120–240 min after the injection of a radiotracer. Within our own data material of juvenile pigs with a GFR of 41–85 mL/min, the results had a spread (SD) of approximately 4% around the reference value. In comparison to the data from the literature, we extended the validated range to adult pigs with a GFR of up to 400 mL/min, with a spread of approximately 8% around the reference value. Furthermore, we stated reasons why the correction is applicable for a GFR lower than 40 mL/min.

Thus, we consider the developed correction formula to be robust for GFR determination at all values up to 400 mL/min and across pigs of various sizes and various breeds. The formula is applicable for both [^99mTc]Tc-DTPA and iohexol (and for [⁵¹Cr]Cr-EDTA, if available) as the chosen tracer.
