Multi-Layer Modeling and Visualization of Functional Network Connectivity Shows High Performance for the Classification of Schizophrenia and Cognitive Performance via Resting fMRI

Tri-Institutional Center for Translational Research in Neuroimaging and Data Science (TReNDS), Georgia State, Georgia Tech, Emory University, Atlanta, GA 30303, USA
*
Author to whom correspondence should be addressed.
BioMed 2025, 5(2), 10; https://doi.org/10.3390/biomed5020010
Submission received: 15 January 2025 / Revised: 17 March 2025 / Accepted: 26 March 2025 / Published: 27 March 2025

Abstract

:
Background: In functional magnetic resonance imaging (fMRI), functional network connectivity (FNC) captures temporal coupling among intrinsic connectivity networks (ICNs). Traditional FNC analyses often rely on linear models, which may overlook complex nonlinear interactions. We propose a multi-layered neural network that generates nonlinear heatmaps from FNC matrices, which we visualize at multiple layers, enabling us to better characterize multi-level interactions and improve interpretability. Methods: Our approach consists of two training stages. In the first, a deep convolutional neural network (DCNN) is trained to produce heatmaps from multiple convolution layers. In the second, a t-test-based feature selection identifies relevant heatmaps that help distinguish different groups. In addition, we introduce ‘source-based features’ which summarize the multi-layer model output using an independent component analysis-based procedure that provides valuable, interpretable insights into the specific layer outputs. We tested this approach on a large dataset of schizophrenia patients and healthy controls, split into training and validation sets. Furthermore, this method clarifies how underlying neural mechanisms differ between schizophrenia patients and healthy controls, revealing crucial patterns in the default mode and visual networks. Results: The results indicate increased default mode network connectivity with itself and cognitive control regions in patients, while controls showed stronger visual and sensorimotor connectivity. Our DCNN approach achieved 92.8% cross-validated classification accuracy, outperforming competing methods. We also separated individuals into three cognitive performance groups based on cognitive scores and showed that the model can accurately predict the cognitive level using the FNC data. Conclusion: Our novel approach demonstrates the advantage of employing more sophisticated models in characterizing complex brain connectivity patterns while enhancing the interpretability of results. These findings underscore the significance of modeling nonlinear dynamics in fMRI analysis, shedding new light on the intricate interplays underlying cognitive and psychiatric phenomena.

1. Introduction

Schizophrenia is a complex and severe mental illness that affects approximately 1% of the global population. It is a chronic and disabling condition that can significantly impact an individual’s quality of life. Patients with schizophrenia often experience a range of symptoms, such as delusions, hallucinations, disorganized thinking and speech, and a lack of motivation and emotional expression. One of the most challenging aspects of schizophrenia is that it can be difficult to diagnose, particularly in its early stages. Some of the early warning signs of schizophrenia can include social withdrawal, reduced speech or difficulty communicating, and a decline in academic or occupational performance. However, these symptoms can also be attributed to other mental health conditions or stressors, making diagnosis a complex and time-consuming process. Early intervention and treatment are crucial for individuals with schizophrenia, as they can help manage symptoms and improve overall functioning. Treatment options may include antipsychotic medications, psychotherapy, and family support. With appropriate care and support, many individuals with schizophrenia are able to lead fulfilling and productive lives.
Functional magnetic resonance imaging (fMRI) has revolutionized our understanding of psychotic disorders such as schizophrenia, providing us with a powerful tool to gain insights into the brain function abnormalities that cause them. Through fMRI, we can now detect and analyze these abnormalities with unprecedented accuracy. Brain-based results may also help provide insights into possible treatment targets [1]. fMRI studies commonly employ techniques like independent component analysis (ICA) to estimate intrinsic connectivity networks (ICNs) of the brain by analyzing temporal relationships between hemodynamic signals [2,3]. Researchers have found that understanding the brain’s complex patterns of connectivity and function can provide valuable insights into the underlying mechanisms of cognitive processes. Identifying ICNs is an important part of this research, as ICNs are believed to represent functional sources that play significant roles in various psychological phenomena [4].
Multivariate decomposition techniques, such as ICA, offer a valuable approach to identifying and extracting imaging features. These features include independent components (ICs), time courses (TCs) of independent components, and FNC, which have proven to be highly useful in the study of mental disorders [5,6]. The TCs offer a valuable representation of the temporal fluctuations in every IC, which is essential for identifying spatially distinct brain regions. Additionally, FNC serves as a crucial tool for characterizing temporal coherence across selected ICs, by correlating their TCs and representing intrinsic connectivity networks. FNC can be used to distinguish individuals with schizophrenia (SZ) from healthy controls (HC) in various predictive clinical contexts, as shown by multiple large-scale meta-analyses. There is a significant body of literature supporting the SZ dysconnection hypothesis. This hypothesis posits that alterations in functional connectivity represent a central endophenotype of the disorder, resulting from various factors including neuromodulatory and synaptic pathogenesis. Most studies of functional connectivity (FC) are designed to estimate networks that reflect linear statistical relationships between different areas of the brain [7,8,9].
However, most neuroimaging analysis approaches fail to consider the complex nonlinear interactions that are inherent to neural systems. As a result, FC research has largely overlooked the importance of nonlinear interactions in understanding brain function. It is crucial to recognize the significance of nonlinear interactions in FC research to gain a comprehensive understanding of the workings of the brain [10]. He et al. [11] demonstrated that the analysis of nonlinear statistical relationships is crucial in providing a precise and comprehensive understanding of the organization and dynamics of neural ensembles at multiple scales. By delving into the functional significance of nonlinearity, Friston et al. [5] aimed to unravel the intricacies of information processing in the brain and identify the root causes of mental health disorders. It was found that the interplay of neurons in the brain is a crucial factor in shaping our thought processes and actions. Moreover, nonlinear interactions, in particular, can foster a dynamic and versatile environment that facilitates a range of neural computations.
The recognition of nonlinear discriminative patterns and the automatic acquisition of optimal representations from neuroimaging data have made deep learning (DL) methods increasingly attractive for the diagnosis of mental disorders based on fMRI [12,13,14]. Due to the ability of DL methods to learn meaningful and complex features from raw data, they have become a promising avenue for enhancing the accuracy and specificity of fMRI-based diagnostic approaches. As such, the application of DL in fMRI-based diagnosis of mental disorders is an area of active research and has the potential to significantly impact the field of psychiatry and neuroscience.
Functional connectivity or its network analog, FNC, are widely used input features in deep learning (DL) for analyzing brain function. FC is calculated via the cross correlation among timecourses from a pre-defined brain atlas, whereas FNC is coupling among overlapping whole brain networks, such as those extracted via ICA. FNC enables the identification of functional relationships between different regions of the brain and can be used to investigate various neurological conditions [15]. Kim et al. [16] conducted a study where they trained a deep neural network (DNN) using functional network connectivity (FNC) data. The DNN was trained with L1-norm to monitor weight sparsity, which refers to the use of a penalty term in the loss function to encourage the model to use fewer features. This approach led to substantial performance improvement in the model’s ability to accurately predict outcomes. Zeng et al. [17] presented a sparse autoencoder to learn imaging-site-shared FCs, which was then used to guide SVM training on multi-site datasets for schizophrenia (SZ) diagnosis. To extract and exploit the temporal dynamic information in fMRI time series, researchers have proposed various methods. One such approach is based on recurrent neural networks (RNNs), which are a type of neural network that can process sequences of inputs and maintain an internal state that reflects the context of the previous inputs. By using RNN-based methods, it is possible to model the complex temporal dependencies in fMRI time series and capture the patterns of brain activity over time. These methods have shown promising results in tasks such as brain decoding, brain state classification, and prediction of future brain states. Yan and colleagues [18] proposed a multi-scale recurrent neural network (RNN) approach to investigate temporal correlations (TCs) in data. On the other hand, Dakka et al. have adopted a recurrent convolutional neural network (R-CNN) on four-dimensional fMRI recordings at the whole-brain voxel level [19]. Their aim was to distinguish patients with SZ and HCs. The proposed approaches have proven to be useful in identifying differences between SZ and HC groups in neuroimaging data. Furthermore, the use of dynamic FNC (dFNC) has become increasingly popular in recent years as a valuable tool in discriminating brain disorders [20,21,22]. In some cases, it is used alone, without combining with static FNC, to improve prediction accuracy. This approach involves analyzing the changes in functional connectivity between different regions of the brain over time and can provide valuable insights into how the brain functions and how it is impacted by various disorders. By identifying patterns of connectivity that are unique to specific disorders, researchers hope to develop more effective diagnostic tools and treatment strategies.
The intricate nonlinear interactions exhibited by neural systems are a plausible component of cognitive operations, and it is well-documented that such interactions are altered in schizophrenia. It is imperative to develop highly effective methods for capturing integrated complex networks from measures that exhibit sensitivity towards nonlinear relationships. Equally as important is the need for rich visualization of brain changes linked to the resulting model. Most prior work has focused mostly on the prediction or reconstruction accuracy, but is limited to poorly localized salience or attention maps.
Our work presents a detailed and innovative approach that utilizes a highly sophisticated deep convolutional neural network (DCNN) [23] to extract nonlinear discriminative heatmaps with remarkable efficiency from the whole training datasets of FNC matrices. The objective of our study was to develop a deep learning model for classifying SZ using ResNets [11] a type of deep residual network, while also enhancing rich visualization of the relevant FNC patterns within the brain. Our approach was designed to overcome the limitations of traditional methods, which often fail to accurately capture the complex nonlinear relationships between different brain regions, while also providing a rich visual output of the relevant functional changes. By leveraging the power of DCNN, we were able to extract highly informative heatmaps that provide a deeper understanding of the functional connectivity patterns within the brain. Our technique has the potential to advance the field of neuroimaging by providing researchers with a powerful new tool to analyze and interpret complex brain data. This method addresses the challenging task of analyzing brain functional networks using resting fMRI scans, which can vary due to age, sex, lab protocols, and short data acquisition times.
Our method involves a two-stage training process. In the first stage, we employ a state-of-the-art deep convolutional neural network to classify FNC training samples into multi-label classes. This process is based on two different kinds of labels, thus allowing for a more comprehensive and practical classification approach. The first label plays a crucial role in accurately classifying and distinguishing between healthy controls and individuals with schizophrenia. The second label is essential in accurately categorizing and differentiating cognitive levels. By maximizing the distances between training FNCs from different classes, we can extract highly nonlinear discriminate features from the heatmaps of DCNN. In the next stage, to enhance visualization, we implement two highly effective feature extraction methods based on the heatmaps we have generated. These methods have been carefully chosen for their capability to accurately identify and extract key features from the data. The first method involves statistical analysis using t-tests, which are utilized to compare the means of two sets of data. The second method entails the application of ICA to the output of the neural network, with the goal of extracting maximally independent features present in the generated heatmaps. ICA is a computational technique that aims to identify and separate independent sources from a mixture of signals.

Related Work

Although most studies aim to measure the linear correlation, some researchers have explored nonlinear brain activity modeling. These studies include research conducted by Lahaye et al. [24] in 2003, Stam [25] in 2005, Su et al. in 2013 [26] and Wismüller et al. [27,28] in 2014. De Zwart et al. [29] showed that, when interpreting fMRI data, it is important to consider the possibility of nonlinearity and its potential impact on the results. It is not common to observe nonlinearity in brain activity, although there are a few known reasons why this might occur. For instance, nonlinear effects of hemodynamic responses in fMRI data can lead to nonlinearity in brain activity. It is worth noting that these effects can vary depending on the time and location of the measurement, as well as between different subjects. Motlaghian et al. [30,31,32] indicated that the link between neural activity and large-scale brain networks, as well as the link between networks themselves, is a highly complex and intricate subject of study. The brain is composed of a vast number of individual neurons, which communicate with one another through complex networks of connections. These networks are not static but rather are dynamic and constantly changing in response to various stimuli. Nonlinearity refers to the fact that the relationship between different brain regions is not linear or predictable, but rather is highly complex and dependent on a multitude of factors. Therefore, further research is needed to fully understand the complex interplay between neural activity and large-scale brain networks, as well as the degree of nonlinearity that exists between these networks. Motlaghian et al. [31] demonstrated that the study of nonlinearity poses several challenges due to the dominance of linear relationships in FNC, which can make it difficult to isolate the effects of nonlinear dependencies. Approaches that focus on the overall relationships may not provide us with a clear picture of the properties of the nonlinear effects. For instance, we may not be able to determine whether these effects are modular, i.e., consisting of independent modules that interact with each other, or manipulable, i.e., capable of being controlled or influenced in a predictable manner. By understanding the modular or manipulable nature of nonlinear effects, we can gain insight into the underlying mechanisms that govern complex systems and develop better models and tools to address real-world problems. Motlaghian et al. [31] tackled this issue head-on by removing the linear relationship and precisely measuring the remaining dependencies, which were the explicit nonlinear dependencies. To accomplish this, they utilized normalized mutual information (NMI). In our case, we focus on the use of nonlinear models to perform predictions and visualizations from precomputed FNCs.
In recent years, there has been a growing interest in studying the dynamics in functional network connectivity (dFNC) over time Allen et al. [33], Hindriks et al. [28], Lindquist et al. [34], Faghiri et al. [35,36]. This line of research aims to gain a deeper understanding of the underlying properties of brain activity and to uncover how different areas of the brain interact with each other in a time-resolved analysis. To explore this phenomenon, researchers have employed an approach where the time courses are divided into smaller windows. In this way, they can measure the temporal coherence between signals within each successive window. This allows for a more detailed analysis of how the brain functions over time, as opposed to just looking at static snapshots of brain activity. By employing this approach, researchers hope to capture additional insights into the complex nature of the human brain and its functional organization. Ultimately, this research has the potential to shed light on how alterations in brain connectivity are linked to mental illnesses such as schizophrenia.

2. Methods

2.1. ResNet Networks

ResNets have revolutionized the field of deep learning by allowing us to create much deeper neural networks, which in turn have led to significant improvements in tasks such as image classification, object detection, and natural language processing. This is achieved by using residual blocks that allow the network to learn the difference between the input and output, thus enabling the network to learn more complex features. Our study utilized ResNets for training the deep learning model for SZ classification, and we observed improved performance in comparison to other models previously used for this task. The use of ResNets in our study thus highlights their potential for enhancing the accuracy and efficiency of deep learning models in various fields. ResNets are a type of deep neural network that addresses the vanishing gradient problem. This problem arises when training a deep neural network because the gradient signal that is transmitted back through the network during the backpropagation process can become too small to be useful. When this happens, the weights in the network are not updated properly, leading to slower convergence and lower accuracy. ResNets introduce an innovative approach to solving this problem by implementing a “skip” or “residual” connection that allows data to bypass network layers. This connection acts as a shortcut that allows the gradient signal to flow more easily through the network, which helps to prevent the vanishing gradient problem from occurring. Specifically, the residual connection allows the network to learn the difference between the input and the output of a set of layers, which can be added back to the output to improve the network’s overall accuracy.
ResNet includes a number of residual blocks (ResBlocks), convolutional layers (Conv), and fully connected layers (FC), as presented in Figure 1. ResBlocks learn residual functions with reference to the layer inputs. This “skip” connection approach means that gradients flow more easily through the network, preventing the vanishing gradient problem that can plague deep neural networks.
In this study, we utilized ResNet as a tool for capturing multi-level features of SZs. ResNet was employed for its ability to extract intricate details that indicate the similarity of SZs to healthy controls (HCs). Through ResNet, we were able to extract high-level features from heatmaps, which contained the most critical connectivities related to SZ. The utilization of ResNet allowed for a comprehensive analysis of the complex features present in SZs. Our hope is this brain-based approach will ultimately lead to a more thorough understanding of the disorder and its potential similarities to HCs.

2.2. Feature Selection

T-test-based feature selection is a statistical technique that is used to extract meaningful insights from a dataset. It involves analyzing each feature’s relationship with the target variable and selecting the ones with the strongest group effect. In our analysis, we used a two-sided t-test for selecting features. This test compares the means of two groups and determines whether there is a significant difference between them. In the context of feature selection, it helps to identify which features have a significant impact on the target variable, and which ones can be safely ignored.
In our study, we aimed to determine whether the population mean of SZs was significantly lower than that of HCs in the FNC features extracted from the deep learning model. The t-value provides an estimate of the statistical significance of the difference between the two groups. Our findings showed a highly significant difference between the population mean of SZs and HCs in multiple FNCs of the brain, indicating that individuals with schizophrenia have altered functional connectivity in their brains. This information is crucial as it helps provide insights into the links between brain function and SZ.

2.3. Proposed Pipeline

In this section, we provide a comprehensive explanation of our approach to detecting schizophrenia using the proposed algorithm. The approach is outlined in the flowchart in Figure 2. This flow chart provides a visual representation of the step-by-step approach that we take to ensure optimal results. Our approach is built on four main steps, each of which plays a critical role in the success of our algorithm.
First, we preprocess the fMRI data and analyze it via a fully automated independent component analysis pipeline called NeuroMark [37], resulting in ICNs and their associated timecourses. Each ICN consists of 150 time points. From the timecourses, we compute functional network connectivity (FNC), which represents a matrix of the covariance among timecourses.
In the second step of our approach, we focus on presenting various augmentation methods to effectively increase the number of training FNCs based on our initial limited training dataset. These augmentation methods are designed to improve the accuracy and generalization of the FNC models by generating new samples that are similar to the original data but with slight variations. Utilizing an augmented training dataset can be an effective approach towards training a highly efficient residual network. By generating additional synthetic data points, we can increase the size of our training dataset, which in turn can help our model learn more robust and accurate features. These augmentation methods include the mix-up technique. We will discuss this technique in detail and provide examples of how it can be used to enhance the training dataset.
In the third step, the augmented dataset is then used to train a residual network, a type of deep learning architecture that learns to approximate the underlying mapping between the input data and the output labels. Residual networks are known for their ability to train very deep neural networks, which can capture more complex features and patterns in the data. After the training process, we can extract the most powerful and distinguishing deep heatmaps of the model. These heatmaps can be used for various tasks such as classification, detection, or segmentation of SZs. Overall, the use of an augmented training dataset and a residual network can greatly improve the performance and effectiveness of machine learning models in various applications.
In the final step of our approach, we use two highly effective feature extraction methods that are based on the heatmaps we have generated. These methods have been chosen based on their ability to accurately identify and extract key features from the data. The first method of statistical analysis is based on t-tests to identify features showing group differences. We also conduct a statistical analysis of the intrinsic networks depicted in various types of heatmaps. The second method involves the use of a second ICA on the output of the neural network to extract maximally independent features present in the model generated heatmaps. This is an approach we have recently introduced called source-based salience [38] ICA is a computational technique that aims to identify and separate independent sources from a mixture of signals. In the context of heatmaps, ICA is particularly useful as it can help identify the independent sources that contribute to the observed patterns in the data. By decomposing the heatmap into its constituent sources, ICA can help uncover hidden patterns and relationships that may not be apparent from a simple visual inspection of the data.
By following these steps, we will create two effective deep learning models tailored to specific objectives. Our first objective is to use a deep convolutional neural network to classify individuals who have been diagnosed with schizophrenia from those who are healthy controls. By carrying this out, we hope to extract nonlinear discriminative features that can identify and differentiate between the two groups. This DCNN is trained on a large dataset of fMRIs from both SZs and HCs and learns to identify patterns and features that are unique to each group. Our second objective is to develop a deep convolutional neural network that can accurately classify each FNC as either a schizophrenia (SZ) patient or a healthy control (HC). This is a significant challenge because FNCs are complex and highly variable. By developing a highly accurate classification model, we can extract discriminative heatmaps that show specific functional connectivity that is predictive of SZ. This may lay the groundwork for future studies focused on tracking changes over the course of the illness. In addition, differentiating between different cognitive levels of SZ and HC can help us understand the relationship between cognition and mental illness along a dimensional scale, using a well-defined construct. Overall, our objective is to leverage the power of machine learning to gain new insights into the functional brain patterns linked to SZ.

2.4. Preprocessing of Distinct Functional Sources

The human brain is an incredibly complex organ that can be divided into different functional networks or sources, often called ICNs. These ICNs interact dynamically with one another to facilitate brain function. ICNs are thought to be responsible for a range of cognitive processes, including memory, attention, decision making, and language processing. Each ICN is made up of multiple regions of the brain that are functionally and anatomically connected. The functional activity of an ICN over time is measured by its time course, which shows how its activity changes over time. The contribution of spatial locations, on the other hand, is indicated by its spatial pattern. To accurately determine the FNC between ICN time courses, we employed Pearson’s correlation coefficient to compute the connectivity between each ICN pair for each individual in our study. This resulted in a 2D symmetric ICN × ICN FNC matrix that represented the functional connectivity between two ICNs. The FNC matrix consisted of cells that represented the strength of the functional connectivity between two ICNs. The greater the value of a cell, the stronger the connectivity between the two ICNs. We then use the FNC matrix as input into a deep learning model.

2.5. Data Augmentation

The current application of deep models to study SZ remains a significant challenge due to the lack of sufficient training datasets. This is primarily due to the limitations posed by data accessibility concerns, particularly in light of strict privacy regulations that restrict the sharing of sensitive patient data. As a consequence, insufficient training data significantly affects the SZ classification performance. In cases where there is an inadequate amount of training data, the accuracy and reliability of the classification model will be significantly reduced, leading to incorrect diagnosis and treatment. Therefore, it is crucial to ensure that an adequate amount of high-quality training data is available to optimize the performance of SZ classification. When the original dataset is limited, it can be challenging to train a machine learning model. One effective technique to overcome this limitation is data augmentation. Data augmentation refers to the process of generating new training samples by applying various transformations to the original dataset. By generating new samples, data augmentation increases the size and diversity of the training dataset, which leads to better generalization and improved performance of the model. Enhancing the training dataset through data augmentation has been demonstrated to be a highly effective method to reduce over-fitting issues in model training. In this study, we applied mixup augmentation to each ICN. Mixup is a popular and simple data augmentation technique that is widely used in deep learning applications. It involves randomly combining two data points from the same label in the training dataset by linearly interpolating between them. This process results in synthetic data points that lie along the straight line connecting the original data points. By generating synthetic data points in the training set, the mixup method helps to increase the diversity of the data and reduce overfitting. One of the key benefits of mixup is that it is easy to implement and does not require any additional labeled data. It has been shown to be effective in a wide range of applications, including image classification, object detection, and natural language processing. The data augmentation steps of our proposed algorithms are presented in Figure 3.

2.6. Training the ResNet Models

The ResNet34 network, which was introduced by He et al. in 2016 [11], is used in this study. The network is trained on a dataset that has been augmented to increase the amount of available data. The objective of this study is to classify instances as related or unrelated to schizophrenia. The classification layer is modified to produce a 512-dimensional feature vector, while the feature extraction layer of the ResNet network is kept unchanged. This approach allows for the effective extraction of relevant features from the input data, which can then be used to classify instances accurately. In order to train each network, we make use of the PyTorch (version 2.6) distributed machine learning system. To optimize the performance of our model, we utilize a stochastic gradient on a GeForce GTX 1060 Ti. To achieve the highest possible accuracy with minimal error, we set our optimal learning rate to 0.001 and adjust it by decaying every two epochs using an exponential rate of 0.90. This technique allows us to gradually reduce the learning rate, which in turn helps us to converge to the optimal solution. The training process for the ResNet network is conducted over 50 epochs. During this process, the model is trained on the available training data, and its performance is evaluated using a validation set. We make use of various techniques such as data augmentation during the training process to prevent overfitting. By training the model in this manner, we are able to achieve high accuracy and minimize the risk of overfitting. As part of our analysis, we visualized three convolutional layers, layers 10, 26, and 32 of the model, and converted them into heatmaps. These specific layers are only examples, chosen to visualize the output at different levels of feature reduction, including an early, intermediate, and later layer. These heatmaps allow us to visualize the most critical connections and features that are related to SZ. By providing a detailed two-dimensional score grid, these heatmaps enable us to identify specific regions that play a crucial role in differentiating between SZ and HC classes. This is particularly useful because it allows us to understand how different regions of the brain contribute to the resulting classification. Moreover, by highlighting the regions that are most important for different classes, we can gain a better understanding of the brain regions that differentiate SZ from HC.

2.7. Feature Extraction and Visualization

In order to compare the means of intrinsic networks in heatmaps, we use two-sample t-tests to determine whether the mean of SZ samples in each intrinsic network is significantly greater or significantly less than the mean of HC samples in every intrinsic network. In the process of analyzing the neural network’s performance, we selected specific convolutional layers for further investigation. In order to gain a deeper understanding of the underlying mechanisms at play, we test the heatmaps corresponding to these layers, as seen in Figure 1 We also incorporate a novel postprocessing step to further enhance visualization of the model results but performing what we call “source-based salience”. To carry this out, we apply independent component analysis (ICA) to the output layers to reduce to a smaller set of maximally independent FNC patterns.
We next take the heatmaps from selected convolutional layers and combine them to generate a comprehensive heatmap that contains all the most prominent deep features. Figure 4 shows the visualization of combined heatmaps. In this figure, the areas that appear brighter in the heatmaps are indicative of a stronger association with the corresponding class. In this figure, columns 1, 2, and 3 demonstrate the mean heatmaps of SZs, while columns 4, 5, and 6 present the mean heatmaps of HCs. The first row provides a detailed illustration of examples of heatmaps, while the second row depicts the corresponding inputs of the network.
Next, we apply ICA to this combined heatmap. This is particularly useful in the context of heatmaps because it helps us identify the independent sources that contribute to the observed patterns in the data. This is because ICA can reveal underlying factors that are not directly observable but still contribute to the observed patterns in the data. The combination of heatmaps and ICA allows us to gain a more comprehensive understanding of the deep features in the data and the underlying patterns that they reveal. The architecture of the ICA-based feature extraction is illustrated in detail in Figure 5.

2.8. Dataset

In order to evaluate the efficacy of our method, we utilized resting-state fMRI data from a large sample of healthy controls and patients diagnosed with schizophrenia across three datasets FBIRN (Function Biomedical Informatics Research Network), MPRC (Maryland Psychiatric Research Center), and COBRE (Centers for Biomedical Research Excellence). The dataset included 708 healthy controls and 537 individuals with schizophrenia. All subjects signed informed consent to participate in the respective studies. Resting-state fMRI data were obtained from the participants while they were in a relaxed state with their eyes closed. Recruitment and scanning details for the COBRE, FBIRN, and MPRC studies can be located in references Aine et al. [33], Damaraju et al. [39], and Adhikari et al. [40], respectively. Groups were matched on sex, age and motion parameters. Medication effects were evaluated using a regression of olanzapine equivalency to FNC and no significant differences were found. The data were then preprocessed and analyzed using advanced statistical and machine learning techniques to identify relevant patterns of brain activity that were predictive of schizophrenia.
Individuals in the COBRE dataset that had been diagnosed with schizophrenia (SZ) underwent a systematic diagnostic process. Two research psychiatrists worked together to determine a diagnosis of SZ using the Structured Clinical Interview for DSM-IV Axis I Disorders (SCID), which took into account the patient’s specific circumstances and symptoms. The patient version of the SCID-DSM-IV-TR was used to ensure a standardized approach to the diagnosis. Additionally, the SZ individuals were evaluated for comorbidities that may have been present and were assessed for both retrospective and prospective clinical stability, to ensure that the diagnosis was accurate and that the patients were receiving appropriate treatment. The participants who were part of the FBIRN study and had SZ (schizophrenia) were diagnosed using the SCID-DSM-IV-TR (Structured Clinical Interview for DSM-IV-TR). Before undergoing scanning, they were required to be clinically stable for at least two months. For MPRC SZ subjects, a diagnosis of schizophrenia was confirmed via the SCID-DSM-IV (Table 1).

2.9. Cognitive Scores

Schizophrenia is a complex mental disorder that can impact an individual’s cognitive abilities. An additional aim of the study was to explore the cognitive abilities of individuals diagnosed with schizophrenia in comparison to healthy individuals with similar demographic characteristics. Cognitive scores were computed based on neurocognitive domain z-scores derived from computerized neuropsychological tests. We used scores collected via the Computerized Multiphasic Interactive Neurocognitive System (CMINDS) [41] as well as the Measurement and Treatment Research to Improve Cognition in Schizophrenia Consensus Cognitive Battery (MCCB) [42]. The study involved 175 patients diagnosed with schizophrenia as well as 169 healthy volunteers. The neurocognitive tests were administered to both groups, and the scores based on the results were analyzed. The findings indicated that the order of the schizophrenia domain profile, based on effect size, was as follows: speed of processing, attention/vigilance, working memory, verbal learning, visual learning, and reasoning/problem solving. Moreover, the study revealed that women showed higher scores in attention/vigilance, verbal learning, and visual learning. Men showed higher scores in reasoning/problem solving. No significant group differences were found in terms of sex interactions.
This portion of the study is focused on enhancing our understanding of the cognitive abilities of individuals with schizophrenia and the possibility of sex differences in cognitive profiles. We specifically focus on the use of functional neuroimaging data to predict cognitive scores. The findings can potentially contribute to the development of targeted interventions and therapies aimed at improving the cognitive abilities of individuals diagnosed with schizophrenia.

2.10. Experiments and Analysis

All studies collected 5 min resting fMRI data using standard echo planar imaging sequence. A standard preprocessing pipeline including slice timing correction, motion correction, spatial normalization, and spatial smoothing (6 mm) was implemented using the SPM software (version 25.01). Subjects with motion > 3 mm were removed from the analysis. We employed fMRI data to extract FNC features for each participant using the NeuroMark spatially constrained independent component analysis pipeline with the NeuroMark_fMRI_1.0 template [37]. This pipeline is a fully automated and standardized approach which extracts 53 components and their associated timecourses, from which we compute the FNC features via cross-correlation after bandpass filtering at [0.01–0.15 Hz]. Nuisance effects including age, gender, head motion, and site effects were regressed from the data. By using the NeuroMark pipeline and removing nuisance effects from the FNC features, we aimed to ensure that the results we obtained were robust and minimized any potential biases.
To ensure the reliability of our model, we conducted training and validation using an iterative methodology. The model was trained on the MPRC and COBRE training datasets and subsequently tested on the FBIRN dataset. This also controls for potential site/study differences in the results. We expanded the training dataset by adding more augmented training samples and then conducted the test. Following the training phase, we evaluated the model’s performance on the test data.
In order to evaluate how well our two-class classification model performed, we compared it with other classifiers including the support vector machine (SVM), random forests (RF), kernel SVM (KernelSVM), and decision trees (DT), which are commonly used in the field. To obtain an accurate assessment of the model’s performance, we used widely accepted evaluation metrics including precision, recall, accuracy, and F1 score.

3. Results

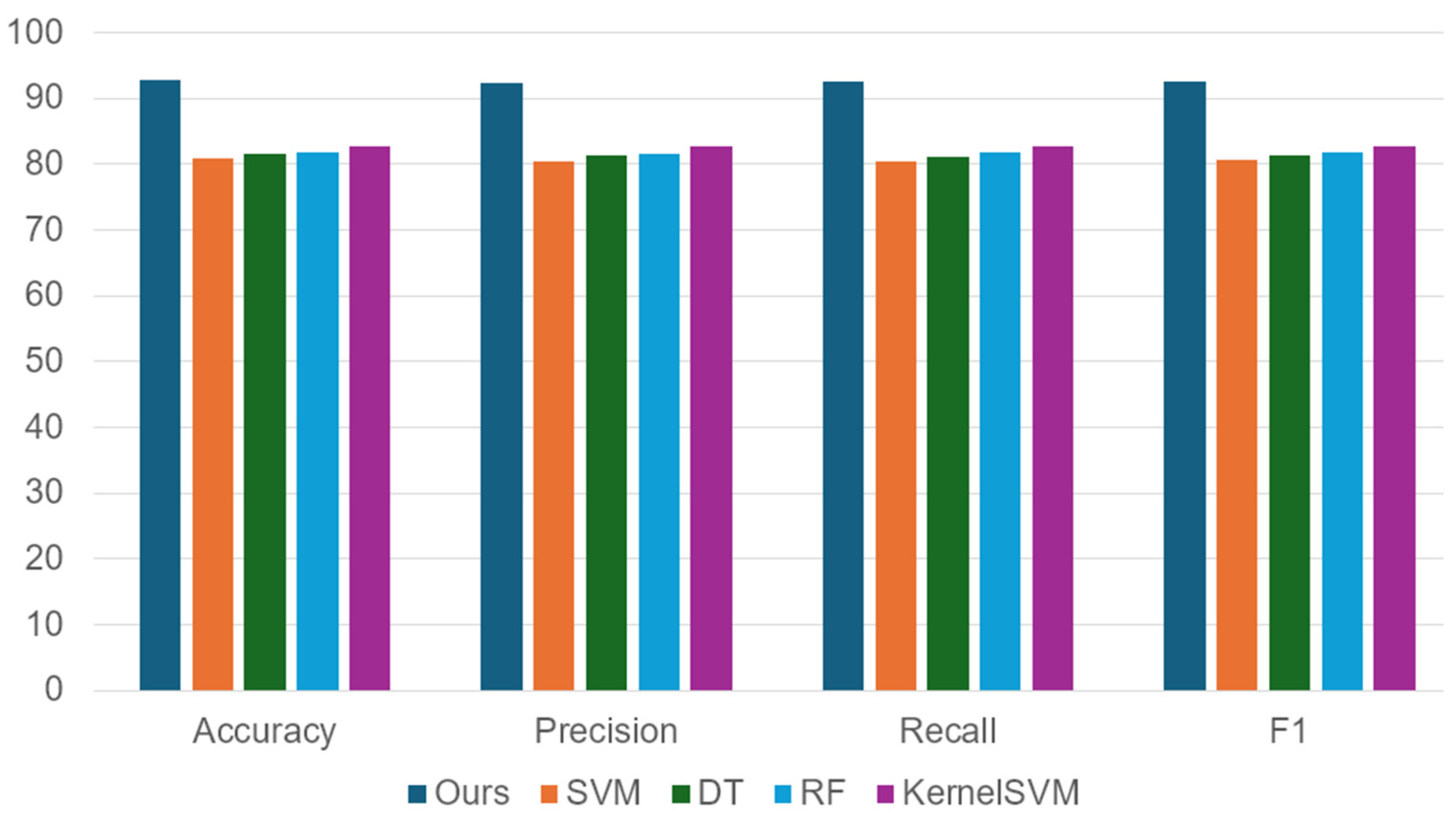

Figure 6 presents our findings, which show that our method’s classification accuracy surpasses that of the baseline methods by a significant margin. Our method utilizes ResNet, which facilitates the transformation of the nonlinear features of FNCs into a learning space that is discriminative for classification purposes. We show that this approach enables us to achieve an accuracy rate of 92.8% when classifying patients and controls. The reason for the high performance is likely related to the highly nonlinear feature space that represents the entire FNC training dataset. As a result, simple linear classifiers like SVM may not be effective in classifying these nonlinear features of FNCs. To achieve more precise and reliable results, it is crucial to employ more advanced classification methods that are better suited to the complexity of these nonlinear features.
We also utilized a deep convolutional neural network to categorize the FNC training samples into multiple classes effectively. This method involved considering two distinct types of labels, which enabled a more thorough and practical approach to classification. The first label differentiated between healthy individuals and those with schizophrenia. The second label characterized three levels of cognitive performance. Our approach showed an accuracy rate of 86.5% in the context of a multi-class classification.

3.1. Examples of Extracted Features

The visualization of the mean heatmaps at different convolution layers is presented in Figure 7. The figure is divided into three columns. The first column shows the mean heatmaps of HCs, which are individuals with healthy cognition. The second column presents the mean heatmaps of SZs, which are individuals with schizophrenia. The third column illustrates the difference between the mean heatmaps of HCs and SZs. This difference helps in identifying the regions of the brain where the activity is significantly different between the two groups. The figure has three rows, each depicting mean heatmaps at different layers of convolution. The first row shows examples of mean heatmaps in layer 10, which is a shallow layer. The second row depicts the mean heatmaps in layer 23, which is a mid-level layer. The third row depicts the mean heatmaps in layer 32, which is a deeper layer. The figure provides insight into how the activity patterns in the brain change across different convolution layers.

3.2. Group Differences in Enhanced Heatmaps

The mean heatmaps of healthy controls and individuals with schizophrenia are displayed in Figure 8, with separate columns for each group (the first and second columns, respectively). In addition, the third column shows the difference between the two groups. Results showed that the SZ group mainly showed significantly weaker connections between three different domains when compared to the HC group, specifically VS, SM, and CC. This suggests that there may be disrupted neural communication between these regions in individuals with SZ, which could have implications for their cognitive and behavioral functioning. In contrast, the SZ group demonstrated a significant increase in connectivity between the SC network and other networks, such as the AUD, SM, and VS networks, when compared to the control group. Similarly, Figure 8 indicates that there was a marked increase in the level of connectivity between the DM network and the CC network in the SZ group when compared to the control group. This suggests that individuals with schizophrenia may have altered functional connectivity patterns in these particular regions of the brain, which could potentially contribute to the clinical symptoms of the disorder.

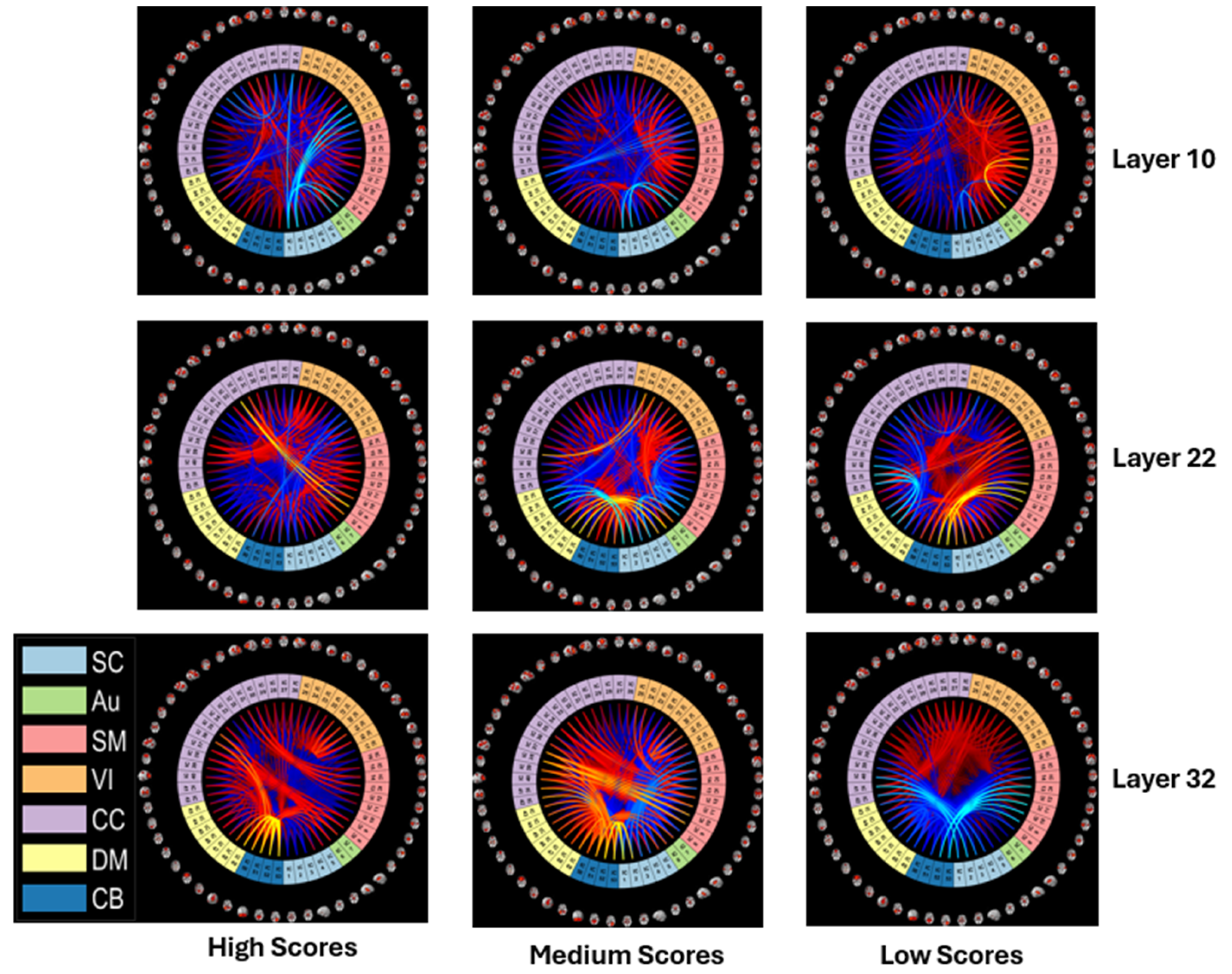

The connectograms provide another perspective, showcasing the most prominent connections present within two distinct networks, VS and SM. The third connectogram, located in the third column, shows a significant difference in the strength of the connections between the SZ and HC groups. Specifically, the connections in the SZ group are weaker than those observed in the HC group, indicating a disruption in the network connectivity in individuals with schizophrenia.

3.3. Group Differences in Different Layers

Our research also aimed to investigate whether there are any significant differences between the means of two distinct population groups: the SZ and HC groups, at different levels of the nonlinear network. Specifically, we conducted two-sample t-tests on layers 10, 22, and 32 to compare the differences between the two groups. This analysis helps us to better understand any substantial changes in values and directions between the two groups and provides additional information regarding the underlying differences between SZ and HC populations.

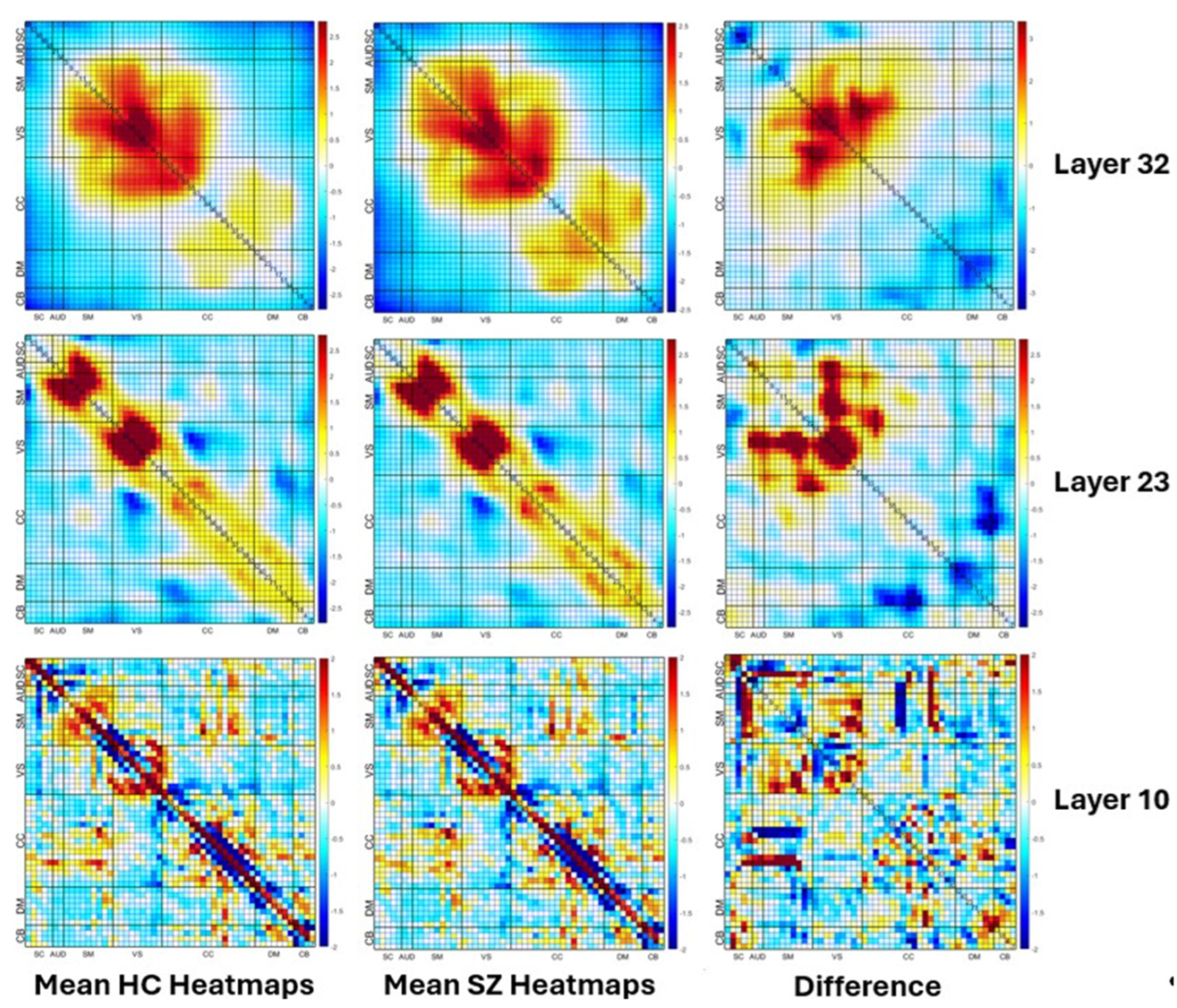

The analysis presented in Figure 9 comprises the results conducted for each connectivity within heatmaps at three distinct layers, specifically layers 10, 22, and 32. The first row of the figure displays the heatmaps of two-sample t-tests, represented by two different colors. The blue color denotes that the connectivities in the SZ group are weaker than those in the HC group, whereas the red color indicates that the connectivities in the SZ group are stronger than those in the HC group. Additionally, the figure includes the corresponding connectograms that depict the connectivity between regions in a graphical format.
The data displayed in this figure indicates that the mean values of the group diagnosed with SZ are significantly lower compared to the group of HCs in both between-network connections and within-network connections in the regions of SM, VS, and CC, and different network layers. The SZ group, compared to the HC group, exhibits stronger connections within the SC network. Additionally, the SZ group also shows evidence of having more robust connections between the SC network and several other networks, such as AUD, SM, VS, and CC networks. In comparison to the HC group, the SZ group also displays significantly stronger connections between the DM network and other networks, including the CC, VS, SM, and AUD networks. These findings suggest that there are distinct differences in brain connectivity patterns between individuals with schizophrenia and healthy individuals. The connectograms highlight the most prominent changes in the connections within three distinct networks: the VS, CC, and SM networks. These changes are indicative of the fact that the mean values of the connections in the SZ group are significantly lower compared to the HC group.
Figure 9 also shows a comparison between various layers of ResNet architecture. As per the analysis, it is observed that deep layers, such as layers 22 and 32, demonstrate more discriminative and nonlinear features. In contrast, the input and shallow layer (layer 10) include more linear features along with noise. This behavior is due to the ability of ResNet to eliminate redundant features and noise from the input and retain the most relevant features associated with the classification of SZs and HCs. The deep layers exhibit a high level of abstraction, which helps in capturing complex relationships between different features.

3.4. ICA-Based Summary of Network Layers

To further visualize the heatmaps at different nonlinear layers, we applied ICA to the heatmaps from the deep network. Our primary objective was to summarize the results while also capturing complex nonlinear information via maximally independent FNC maps. This was achieved by identifying a linear transformation of the observed FNCs that maximizes the statistical independence of the resulting components. The process enabled us to apply one-tailed two-sample t-tests on the independent FNCs, which yielded two significant benefits. This allows us to identify which maximally independent FNC regions were most relevant for distinguishing between SZs and HCs. This provides additional insights into the possible underlying neural mechanisms that differentiate SZs from HCs. Second, we could eliminate the connectivities and noise that were irrelevant. This process also helps reduce noise that is less relevant to the SZ classification. This helped us to refine our analysis and improve its accuracy.
In particular, we utilized an ICA model to decompose the three selected ResNet layers into eight maximally independence basis functional network connectivity components. We then tested for significant group differences in the loading parameters for each of the eight basis FNCs. Results are shown in Figure 10. The test for the basis FNC component 2 rejected the null hypothesis and showed that the mean of the SZ group was significantly lower than that of the HC group for this particular component.
In Figure 10b, we show a heatmap whose loading parameters highlight the FNC values that have the most significant impact on the ability to classify healthy controls and individuals with schizophrenia. This two-tailed two-sample test will determine whether the mean of the SZ group is significantly greater than the mean of the HC group or if the mean of the SZ group is significantly less than the mean of the HC group The FNC cells that exhibit the strongest positive differences (HC-SZ) are the SM and VS networks, as well as the DM and CC networks, as seen in Figure 10d. These networks have been found to be highly interconnected and play a critical role in regulating various cognitive and affective processes, such as attention, self-awareness, decision making, and emotional regulation. Additionally, this figure also shows the existence of strong negative connectivity between the SC and VS networks, which may reflect the inhibitory influence of the SC network on visual processing.

3.5. Differences Between Mean Heatmaps of HCs and SZs at Each Cognitive Level

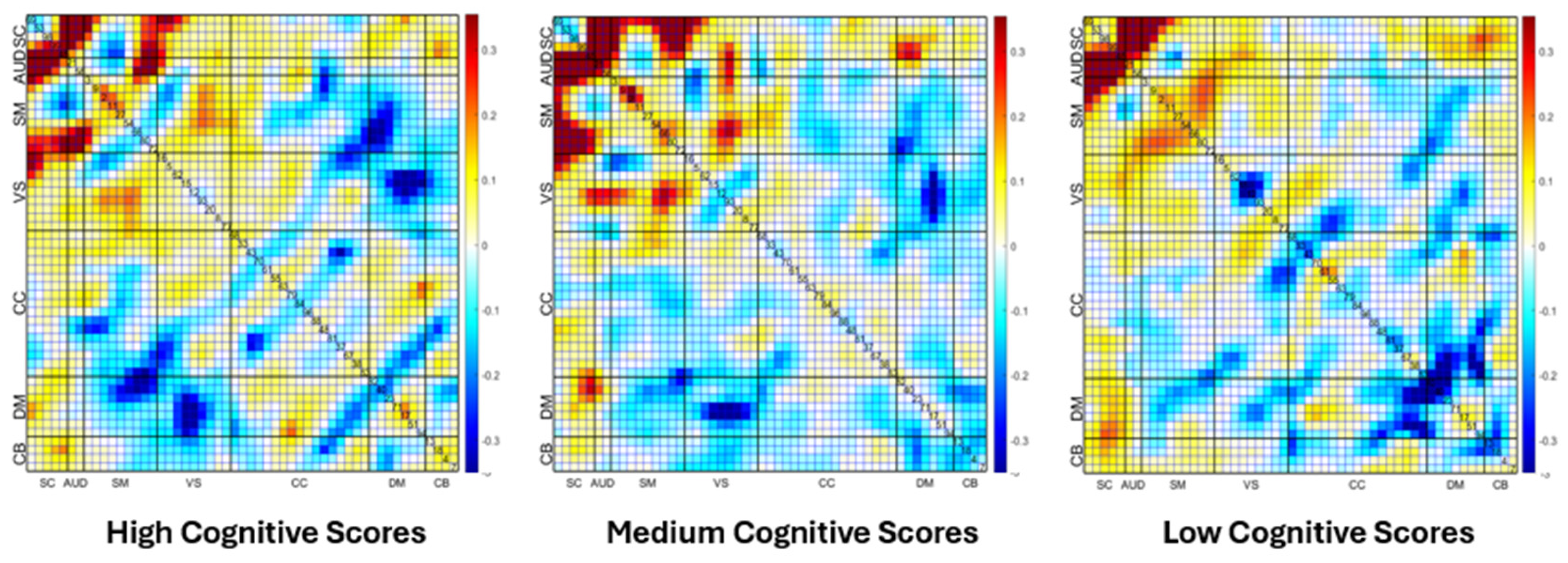

In Figure 11, we show the heatmaps of healthy individuals versus those with schizophrenia at different cognitive levels. The heatmaps are divided into three groups: high cognitive level (scores ranging from 2 to 5), medium cognitive level (scores ranging from −2 to +2), and low cognitive level (scores ranging from −5 to −2).
Results showed that the SZ group had significantly weaker connections between four different networks the VS, AUD, SM, and SC networks when compared to the HC group. Further analysis revealed a marked increase in the level of connectivity between the DM network and the CC and VS networks in the SZ group when compared to the control group.

3.6. Patient vs. Control Group Differences at Each Cognitive Level for Three Different Network Layers

Next, we show results for patient versus control two-sample t-maps at three different layers, namely 10, 22, and 32, for the high, medium, and low cognitive score levels. This approach allowed us to evaluate the differences between the two groups as a function of both the mean and the standard deviation. The heatmaps in Figure 12 are represented by two different colors. The blue color denotes that the connectivity of the SZ group is weaker than that of the HC group, while the red color indicates that the connectivity in the SZ group are stronger than those in the HC group. The corresponding connectograms that depict the connectivity between regions are shown in Figure 13.
The mean values of the SZ group are significantly stronger when compared to the HC group in terms of the connections between the SC network and other networks, such as AUD, SM, VS, CC, and DM. These strong connections are evident at different cognitive levels, indicating a consistent pattern across different levels of cognitive processing.
Further analysis revealed that at high and medium cognitive levels, the HC group also showed evidence of more robust connections between the DM, CC, and CB networks. However, at the low cognitive level, the data show that the mean values of the SZ group are significantly stronger compared to the HC group in these connections. This finding suggests that individuals with SZ may have a more heightened sensitivity to certain cognitive tasks, particularly those involving the DM, CC, and CB networks, which may contribute to the differences observed between the two groups. In Figure 13, the connectograms highlight the most significant connections that exist in two separate networks, SC and CB.
Our study aimed to examine whether there exist any significant differences in means between two groups of individuals diagnosed with schizophrenia at different cognitive levels. To achieve this objective, we conducted two-sample t-tests on three different layers, 10, 22, and 32, in high vs. low cognitive score groups within patients with schizophrenia, as illustrated in Figure 14. The results displayed in this figure show that the mean values of the group diagnosed with SZ at the high cognitive level are significantly lower in the connections between SC, AUD, VM, and VS compared to the group of SZ at the low cognitive level. On the other hand, our analysis revealed that the SZ group at the low cognitive level has a higher mean than the SZ group at the high cognitive level in the VS and DM within networks.

4. Discussion

In recent years, there has been growing interest in utilizing feature selection techniques to better understand the altered brain functional connectivity that is linked to schizophrenia, using data obtained through fMRI. Despite the significant progress made in this field, the underlying neurobiological mechanisms that contribute to the development of this disorder remain poorly understood. In this work, we developed a deep-learning-based feature selection method that has demonstrated its ability to identify nonlinear and discriminative features in heatmaps with a high degree of accuracy. By combining approaches which leverage the power of machine learning while also focusing on visualization we hope to provide an approach that can help shed new light on the complex neurobiological processes that underlie schizophrenia.
The paper we present outlines a new and innovative approach for extracting nonlinear heatmaps from functional network connectivity images. To do this, we utilize a deep convolutional neural network that effectively extracts these heatmaps from the input FNC data. By analyzing these heatmaps, we can derive nonlinear intrinsic connectivity networks that provide a robust framework for understanding the complex interactions between different regions of the brain. One of the key benefits of this approach is that it helps remove abundant information and noise from the heatmaps, leaving only the most important features related to identifying SZs. This means that these networks represent a significant improvement over previous approaches and offer a more accurate way of identifying SZs.
The heatmap generation process is crucial in identifying the most informative nonlinear functional connectivities that help distinguish between different groups. To achieve this, we have employed statistical comparisons of the model output at several layers in addition to the use of ICA to summarize the output at the level of maximally independent FNC patterns. In doing so, we are able to extract the most relevant and significant nonlinear functional connectivity that contributes towards the classification of different groups. The overall heatmaps show in Figure 8 are largely consistent with prior linear results [39,43,44,45], highlighting reductions in sensory regions and increased negative links in subcortical, default model, and cognitive control regions. Overall, this new approach has the potential to greatly enhance our understanding of the brain and provide better insights into how different regions of the brain interact with each other. However, this is only part of the story. Our results show a complex cascade of differences, largely continuing to involve subcortical and cerebellar regions, but with more complex patterns that are found with linear methods. Here, we mainly highlight several large-scale observations, since our goal in this paper was to highlight the application of our new approach. However, we plan to focus on these in much greater detail in future work that also include additional data for replication.
Our study also involved a rigorous evaluation of the classification performance of our proposed method as compared to existing state-of-the-art classification methods. Our deep learning model was able to improve the classification results significantly, which demonstrated the effectiveness of our approach in identifying a small but crucial number of discriminative features to accurately classify different groups. Thus, our method was able to identify more discriminative features, which effectively helped in separating different classes. In comparison with the competing methods, we were able to showcase the superiority of our method through our results. In particular, our method has shown remarkable results in accurately identifying SZs and HCs. To be specific, we achieved an average accuracy of 92.8% on the testing fMRI dataset, which is significantly higher than the other competing methods that had accuracies around 80%. While there is considerable variability in the classification of SZ vs. HC, due to many factors, our results compared with linear and even nonlinear SVM classifiers are significantly higher that what is typically found in the field [17,46].
Moreover, our method’s ability to identify SZs and HCs at certain cognitive levels is a unique feature that has proven much more challenging, with many studies not funding significant relationships with cognition or finding relationship are not robust (cf [47]). This suggests the nonlinear relationship may be even more important in the relationship to cognitive scores and diagnosis, further highlighting the potential of our approach. Future studies should continue to advance our combined capture and visualize approach, which we hope can eventually have significant implications in the field of clinical psychology and neuroscience.
Through the process of identifying the most distinctive features from the heatmaps, we can delve into the dissimilarities in functional network connectivity between the patients and controls. Our results highlighted several notable differences in brain function. First, as mentioned above, individuals diagnosed with schizophrenia demonstrate stronger connectivity between the sub-cortical network and other networks such as auditory, visual, sensorimotor, and cognitive control networks than the group of healthy individuals. This suggests that there may be an increased interaction between the sub-cortical network and other brain regions in individuals with SZ, potentially indicating a distinct pattern of brain functioning in this population. Existing models of schizophrenia tend to implicate the cerebellum, subcortical, and cortical regions, consistent with our findings [48,49].
Second, individuals diagnosed with schizophrenia exhibit a higher degree of connectivity between the default-mode network and other networks, such as visual and cognitive control networks, compared to the group of healthy individuals. This increased connectivity indicates that the brain networks in individuals with schizophrenia are more tightly integrated, which could contribute to the symptoms associated with the disorder, such as hallucinations and delusions. This is consistent with but extends prior work focused on linear anticorrelations [50,51]. The default-mode network is a set of brain regions that are active when the mind is at rest and not involved in any specific task, while the visual and cognitive control networks are responsible for visual processing and cognitive control, respectively. Third, the average values of the group diagnosed with SZ reveal a significant decrease in comparison to the HC group in two types of brain connections, namely between-network connections and within-network connections, in the regions of sensorimotor, visual, and cognitive control. This means that individuals with SZ showcased lower connectivity levels in comparison to healthy individuals in the aforementioned regions of the brain, as previously show by linear approaches as well as a more recent gradient-based approach [52,53].
Finally, upon conducting further analysis, it was discovered that at high and medium levels of cognitive function, the HC (healthy control) group displayed more pronounced connections between the default-mode, cognitive control, and cerebellum networks. These connections were found to be stronger in the HC group compared to the SZ group. However, at a lower level of cognitive function, the data showed that the mean values of the SZ group were significantly stronger in these connections when compared to the HC group. This finding suggests that individuals with SZ may have a heightened sensitivity to certain cognitive tasks, particularly those involving the default-mode, cognitive control, and cerebellum networks; moreover, they extend linear approaches, which show very mixed relationships between SZ, cognitive performance, and functional connectivity [54,55]. These differences in neural connectivity may contribute to the observed variations between the two groups in terms of cognitive abilities and warrant further studies to confirm and study these in more detail.

Limitations and Future Work

The visualization of deep learning models is complex, while we have advocated for expanding this visualization in several ways, including an approach to compress these into a more compact representation using ICA, there is still much work to do in this space. Future work can explore the trade-off between enhanced visualization and condensed summary measures. Future models can also be trained to maximize visual output as well. We have applied our approach to a schizophrenia dataset; however, the clinical aspects can be studied much more deeply. Future work should also study relationships between continuous measures that are measured only in patients, such as symptom scores or duration of illness. We also plan to apply our approach to study individuals at an earlier disease stage, or in individuals that are at clinical high risk for schizophrenia and also to groups sharing clinical phenomenology such as individuals with bipolar disorder or autism spectrum disorder. Finally, while we have used a relatively large dataset, and results were cross-validated, these results should also be replicated in future independent studies to confirm their reproducibility.

5. Conclusions

In this work, we have proposed a novel approach that harnesses the power of deep convolutional neural networks to extract nonlinear heatmaps from functional network connectivity images. Our approach is specifically designed to capture complex nonlinear interactions such as those that we speculated underlie cognitive operations and the changes observed in psychiatric conditions like schizophrenia. Through this, we believe that this research can lead to a better understanding of the workings of the brain and offer crucial insights into the mechanisms that drive various psychological and psychiatric conditions. We show three main benefits: (1) improved classification performance for diagnosis, (2) enhanced visualization of complex relationships, and (3) high accuracy in predicting cognitive performance and its relationship to diagnosis.
To enhance visualization, our method involves analyzing the heatmaps generated by the DCNN to derive nonlinear intrinsic connectivity networks from the input FNC data. These networks represent a significant improvement over previous approaches and provide a robust framework for understanding the complex interactions between different regions of the brain. To ensure optimal efficiency and effectiveness, our method incorporates two stages in the training process. In the initial stage, we train a deep convolutional neural network to create heatmaps from various convolution layers of the network. In the second stage, we use the ICA and t-test-based feature selection methods to effectively analyze each heatmap from different convolution layers. This allows us to extract the most important nonlinear FNCs from the heatmaps that play a crucial role in distinguishing different groups. Overall, we believe that our approach has the potential to provide powerful insights into the workings of the brain and help researchers gain a deeper understanding of complex psychological and psychiatric conditions.
Our approach was focused on the use of the proposed method to analyze FNC matrices. We found substantial benefits even in this case, including an improvement in accuracy and also a rich set of visualizations that highlight different aspects of the patient versus control differences. There are likely additional performance improvements to be gained by modeling nonlinear interactions prior to the computation of the FNC, especially those related to more complex relationships such as those between cognitive performance, diagnosis (including expanding to other neuropsychiatric disorders including those at risk), and FNC, which we hope to explore in future works. In addition, we are planning to enhance the effectiveness of our deep learning network by incorporating self-attention transformers [19,56,57,58]. This specialized transformer architecture is capable of capturing nonlinear connectivity from dynamic functional network connectivity with greater accuracy and precision. By enabling the model to recognize and analyze relationships between distant elements in a sequence, self-attention transformers can effectively comprehend complex patterns and dependencies that would be otherwise difficult to detect. This allows for the extraction of the most significant features from windowed time courses of different brain networks (components), which are estimated via spatial ICA. We believe that this development will significantly improve the performance of our deep learning network and enable us to achieve more accurate results in our research.

Author Contributions

Conceptualization and methodology, D.M.V. and V.D.C.; formal analysis, data curation, Z.F. and A.A.; writing—original draft preparation, D.M.V.; writing—review and editing, D.M.V., A.A., Z.F. and V.D.C.; project administration, V.D.C.; funding acquisition, V.D.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Institutes of Health grant numbers NIH R01MH118695, R01MH119251 and the National Science Foundation grant number 2112455.

Institutional Review Board Statement

Not applicable. The study was designated as not human subject research by the GSU institutional review board. The original studies were all approved by their respective institutional review boards.

Informed Consent Statement

Not applicable. We did not collect data for this study and we are using data from a closed study which has been delinked from identifiers. We can confirm that all subjects in the original study signed informed consent.

Data Availability Statement

The COBRE MRI data that support the findings of this work is available via the COINS platform (http://coins.trendscenter.org, accessed on 14 January 2025). The fBIRN data are not available due to IRB restrictions on the original study. The MPRC data are available via the NIMH data archive (https://nda.nih.gov/, accessed on 14 January 2025).

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Andreou, C.; Borgwardt, S. Structural and functional imaging markers for susceptibility to psychosis. Mol. Psychiatry 2020, 25, 2773–2785. [Google Scholar] [CrossRef] [PubMed]
  2. Calhoun, V.D.; Adali, T.; Pearlson, G.D.; Pekar, J.J. A method for making group inferences from functional MRI data using independent component analysis. Hum. Brain Mapp. 2001, 14, 140–151. [Google Scholar] [CrossRef] [PubMed Central]
  3. Du, Y.; Fryer, S.L.; Lin, D.; Sui, J.; Yu, Q.; Chen, J.; Stuart, B.; Loewy, R.L.; Calhoun, V.D.; Mathalon, D.H. Identifying functional network changing patterns in individuals at clinical high-risk for psychosis and patients with early illness schizophrenia: A group ICA study. Neuroimage Clin. 2018, 17, 335–346. [Google Scholar] [CrossRef] [PubMed Central]
  4. Calhoun, V.D.; Miller, R.; Pearlson, G.; Adali, T. The chronnectome: Time-varying connectivity networks as the next frontier in fMRI data discovery. Neuron 2014, 84, 262–274. [Google Scholar] [CrossRef] [PubMed Central]
  5. Friston, K.J. Functional and effective connectivity: A review. Brain Connect. 2011, 1, 13–36. [Google Scholar] [CrossRef]
  6. Mohanty, R.; Sethares, W.A.; Nair, V.A.; Prabhakaran, V. Rethinking measures of functional connectivity via feature extraction. Sci. Rep. 2020, 10, 1298. [Google Scholar] [CrossRef]
  7. Calhoun, V.D.; Liu, J.; Adalı, T. A review of group ICA for fMRI data and ICA for joint inference of imaging, genetic, and ERP data. NeuroImage 2009, 45, 163–172. [Google Scholar] [PubMed Central]
  8. Iraji, A.; Calhoun, V.D.; Wiseman, N.M.; Davoodi-Bojd, E.; Avanaki, M.R.N.; Haacke, E.M.; Kou, Z.F. The connectivity domain: Analyzing resting state fMRI data using feature-based data-driven and model-based methods. NeuroImage 2016, 134, 494–507. [Google Scholar] [CrossRef]
  9. Yan, W.; Pearlson, G.D.; Fu, Z.; Li, X.; Iraji, A.; Chen, J.; Sui, J.; Volkow, N.D.; Calhoun, V.D. A brainwide risk score for psychiatric disorder evaluated in a large adolescent population reveals increased divergence among higher-risk groups relative to control participants. Biol. Psychiatry 2024, 95, 699–708. [Google Scholar] [CrossRef] [PubMed Central]
  10. Morioka, H.; Calhoun, V.; Hyvarinen, A. Nonlinear ICA of fMRI reveals primitive temporal structures linked to rest, task, and behavioral traits. NeuroImage 2020, 218, 116989. [Google Scholar] [CrossRef] [PubMed Central]
  11. He, F.; Yang, Y. Nonlinear system identification of neural systems from neurophysiological signals. Neuroscience 2021, 458, 213–228. [Google Scholar] [CrossRef]
  12. Abrol, A.; Fu, Z.; Salman, M.; Silva, R.; Du, Y.; Plis, S.; Calhoun, V. Deep learning encodes robust discriminative neuroimaging representations to outperform standard machine learning. Nat. Commun. 2021, 12, 353. [Google Scholar] [CrossRef] [PubMed]
  13. Riaz, A.; Asad, M.; Alonso, E.; Slabaugh, G. DeepFMRI: End-to-end deep learning for functional connectivity and classification of ADHD using fMRI. J. Neurosci. Methods 2020, 335, 108506. [Google Scholar] [CrossRef]
  14. Wen, D.; Wei, Z.; Zhou, Y.; Li, G.; Zhang, X.; Han, W. Deep learning methods to process fmri data and their application in the diagnosis of cognitive impairment: A brief overview and our opinion. Front. Neuroinformatics 2018, 12, 23. [Google Scholar] [CrossRef] [PubMed]
  15. Zhao, M.; Yan, W.; Luo, N.; Zhi, D.; Jiang, T.; Calhoun, V.D.; Sui, J. An attention-based hybrid deep learning framework integrating brain connectivity and activity of resting-state functional mri data. Med. Image Anal. 2022, 78, 102413. [Google Scholar]
  16. Kim, J.; Calhoun, V.D.; Shim, E.; Lee, J.H. Deep neural network with weight sparsity control and pre-training extracts hierarchical features and enhances classification performance: Evidence from whole-brain resting-state functional connectivity patterns of schizophrenia. NeuroImage 2016, 124, 127–146. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  17. Zeng, L.-L.; Wang, H.; Hu, P.; Yang, B.; Pu, W.; Shen, H.; Chen, X.; Liu, Z.; Yin, H.; Tan, Q.; et al. Multi-Site diagnostic classification of schizophrenia using discriminant deep learning with functional connectivity MRI. eBioMedicine 2018, 30, 74–85. [Google Scholar] [CrossRef]
  18. Yan, W.; Calhoun, V.; Song, M.; Cui, Y.; Yan, H.; Liu, S.; Fan, L.; Zuo, N.; Yang, Z.; Xu, K.; et al. Discriminating schizophrenia using recurrent neural network applied on time courses of multi-site FMRI data. eBioMedicine 2019, 47, 543–552. [Google Scholar] [CrossRef] [PubMed Central]
  19. Dakka, J.; Bashivan, P.; Gheiratmand, M.; Rish, I.; Jha, S.; Greiner, R. Learning neural markers of schizophrenia disorder using recurrent neural networks. arXiv 2017, arXiv:1712.00512. [Google Scholar]
  20. Cetin, M.S.; Houck, J.M.; Rashid, B.; Agcaoglu, O.; Stephen, J.M.; Sui, J.; Canive, J.; Mayer, A.; Aine, C.; Bustillo, J.R.; et al. Multimodal classification of schizophrenia patients with MEG and fMRI data using static and dynamic connectivity measures. Front. Neurosci. 2016, 10, 466. [Google Scholar] [CrossRef] [PubMed Central]
  21. Rashid, B.; Arbabshirani, M.R.; Damaraju, E.; Cetin, M.S.; Miller, R.; Pearlson, G.D.; Calhoun, V.D. Classification of schizophrenia and bipolar patients using static and dynamic resting-state fMRI brain connectivity. NeuroImage 2016, 134, 645–657. [Google Scholar] [CrossRef] [PubMed]
  22. Zhi, D.; Calhoun, V.D.; Lv, L.; Ma, X.; Ke, Q.; Fu, Z.; Du, Y.; Yang, Y.; Yang, X.; Pan, M.; et al. Aberrant dynamic functional network connectivity and graph properties in major depressive disorder. Front. Psychiatry 2018, 9, 339. [Google Scholar] [CrossRef] [PubMed Central]
  23. He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 770–778. [Google Scholar]
  24. Lahaye, P.-J.; Poline, J.-B.; Flandin, G.; Dodel, S.; Garnero, L. Functional connectivity: Studying nonlinear, delayed interactions between BOLD signals. NeuroImage 2003, 20, 962–974. [Google Scholar] [CrossRef] [PubMed]
  25. Stam, C.J. Nonlinear dynamical analysis of EEG and MEG: Review of an emerging field. Clin. Neurophysiol. 2005, 116, 2266–2301. [Google Scholar] [CrossRef] [PubMed]
  26. Su, L.; Wang, L.; Shen, H.; Feng, G.; Hu, D. Discriminative analysis of non-linear brain connectivity in schizophrenia: An fMRI Study. Front. Hum. Neurosci. 2013, 7, 702. [Google Scholar] [CrossRef]
  27. Wismüller, A.; Wang, X.; DSouza, A.M.; Nagarajan, M.B. A framework for exploring non-linear functional connectivity and causality in the human brain: Mutual connectivity analysis (MCA) of resting-state functional MRI with convergent cross-mapping and non-metric clustering. arXiv 2014, arXiv:1407.3809. [Google Scholar]
  28. Hindriks, R.; Adhikari, M.H.; Murayama, Y.; Ganzetti, M.; Mantini, D.; Logothetis, N.K.; Deco, G. Can sliding-window correlations reveal dynamic functional connectivity in resting-state fMRI? NeuroImage 2016, 127, 242–256. [Google Scholar] [CrossRef] [PubMed Central]
  29. de Zwart, J.A.; van Gelderen, P.; Jansma, J.M.; Fukunaga, M.; Bianciardi, M.; Duyn, J.H. Hemodynamic nonlinearities affect BOLD fMRI response timing and amplitude. NeuroImage 2009, 47, 1649–1658. [Google Scholar] [CrossRef] [PubMed Central]
  30. Motlaghian, S.M.; Vahidi, V.; Belger, A.; Bustillo, J.R.; Faghiri, A.; Ford, J.M.; Iraji, A.; Lim, K.; Mathalon, D.H.; Miller, R.; et al. A method for estimating and characterizing explicitly nonlinear dynamic functional network connectivity in resting-state fMRI data. J. Neurosci. Methods 2023, 389, 109794. [Google Scholar] [CrossRef]
  31. Motlaghian, S.M.; Belger, A.; Bustillo, J.R.; Ford, J.M.; Iraji, A.; Lim, K.; Mathalon, D.H.; Mueller, B.A.; O’Leary, D.; Pearlson, G.; et al. Nonlinear functional network connectivity in resting functional magnetic resonance imaging data. Hum. Brain Mapp. 2022, 43, 4556–4566. [Google Scholar] [CrossRef] [PubMed Central]
  32. Motlaghian, S.M.; Baker, B.; Ford, J.M.; Iraji, A.; Miller, R.; Preda, A.; Van Erp, T.G.; Calhoun, V.D. Explicitly nonlinear connectivity-matrix independent component analysis in resting fMRI data. bioRxiv 2024. [Google Scholar] [CrossRef]
  33. Aine, C.J.; Bockholt, H.J.; Bustillo, J.R.; Canive, J.M.; Caprihan, A.; Gasparovic, C.; Hanlon, F.M.; Houck, J.M.; Jung, R.E.; Lauriello, J.; et al. Multimodal neuroimaging in schizophrenia: Description and dissemination. Neuroinformatics 2017, 15, 343–364. [Google Scholar] [CrossRef] [PubMed Central]
  34. Lindquist, M.A.; Xu, Y.; Nebel, M.B.; Caffo, B.S. Evaluating dynamic bivariate correlations in resting-state fMRI: A comparison study and a new approach. NeuroImage 2014, 101, 531–546. [Google Scholar] [CrossRef]
  35. Faghiri, A.; Iraji, A.; Damaraju, E.; Turner, J.; Calhoun, V.D. A unified approach for characterizing static/dynamic connectivity frequency profiles using filter banks. Netw. Neurosci. 2021, 5, 56–82. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  36. Faghiri, A.; Yang, K.; Faria, A.; Ishizuka, K.; Sawa, A.; Adali, T.; Calhoun, V. Frequency modulation increases the specificity of time-resolved connectivity: A resting-state fMRI study. Netw. Neurosci. 2024, 8, 734–761. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  37. Du, Y.; Fu, Z.; Sui, J.; Gao, S.; Xing, Y.; Lin, D.; Salman, M.; Abrol, A.; Rahaman, M.A.; Chen, J.; et al. NeuroMark: An automated and adaptive ICA based pipeline to identify reproducible fMRI markers of brain disorders. Neuroimage Clin. 2020, 28, 102375. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  38. Batta, I.; Calhoun, V.D. Constrained Source-based Salience: Network-based Visualization of Deep Learning Neuroimaging Models. In Proceedings of the 2024 IEEE EMBS International Conference on Biomedical and Health Informatics (BHI), Houston, TX, USA, 10–13 November 2024. [Google Scholar]
  39. Damaraju, E.; Allen, E.A.; Belger, A.; Ford, J.M.; McEwen, S.; Mathalon, D.H.; Mueller, B.A.; Pearlson, G.D.; Potkin, S.G.; Preda, A.; et al. Dynamic functional connectivity analysis reveals transient states of dysconnectivity in schizophrenia. Neuroimage Clin. 2014, 5, 298–308. [Google Scholar] [CrossRef]
  40. Adhikari, B.M.; Hong, L.E.; Sampath, H.; Chiappeli, J.; Jahanshad, N.; Thompson, P.; Rowland, L.M.; Du, X.; Chen, S.; Kochunov, P. Functional Network Connectivity Impairments and Core Cognitive Deficits in Schizophrenia. Hum. Brain Mapp. 2019, 40, 4593–4605. [Google Scholar]
  41. van Erp, T.G.; Preda, A.; Turner, J.A.; Callahan, S.; Calhoun, V.D.; Bustillo, J.R.; Lim, K.O.; Mueller, B.; Brown, G.G.; Vaidya, J.G.; et al. Neuropsychological profile in adult schizophrenia measured with the CMINDS. Psychiatry Res. 2015, 230, 826–834. [Google Scholar] [CrossRef] [PubMed Central]
  42. Marder, S.R.; Fenton, W. Measurement and treatment research to improve cognition in schizophrenia: Nimh matrics initiative to support the development of agents for improving cognition in schizophrenia. Schizophr. Res. 2004, 72, 5–9. [Google Scholar] [CrossRef]
  43. Abi-Dargham, A.; Moeller, S.J.; Ali, F.; DeLorenzo, C.; Domschke, K.; Horga, G.; Jutla, A.; Kotov, R.; Paulus, M.P.; Rubio, J.M.; et al. Candidate biomarkers in psychiatric disorders: State of the field. World Psychiatry 2023, 22, 236–262. [Google Scholar] [CrossRef] [PubMed]
  44. Harikumar, A.; Turner, J.; Solovyeva, K.; Plis, S.; Calhoun, V.D. Revisiting dysconnectivity: A review of five key model frameworks in schizophrenia. In Proceedings of the OHBM, Montreal, QC, Canada, 22 July 2023–26 June 2024. [Google Scholar]
  45. Cattarinussi, G.; Di Giorgio, A.; Moretti, F.; Bondi, E.; Sambataro, F. Dynamic functional connectivity in schizophrenia and bipolar disorder: A review of the evidence and associations with psychopathological features. Prog. Neuropsychopharmacol. Biol. Psychiatry 2023, 127, 110827. [Google Scholar] [CrossRef]
  46. Jin, L.; Jiang, Y.; Hu, H.; Wang, Y.; Fu, S.; Xu, B.; Sun, X.; Gao, S.; Wang, H.; Zhao, C.; et al. Schizophrenia and magnetic resonance imaging research: A scientometric analysis during 2014 to 2023. Medicine 2024, 103, e39710. [Google Scholar] [CrossRef]
  47. van den Heuvel, M.P.; Sporns, O.; Collin, G.; Scheewe, T.; Mandl, R.C.; Cahn, W.; Goñi, J.; Hulshoff Pol, H.E.; Kahn, R.S. Abnormal rich club organization and functional brain dynamics in schizophrenia. JAMA Psychiatry 2013, 70, 783–792. [Google Scholar] [CrossRef] [PubMed]
  48. Andreasen, N.C.; Nopoulos, P.; O’Leary, D.S.; Miller, D.D.; Wassink, T.; Flaum, M. Defining the phenotype of schizophrenia: Cognitive dysmetria and its neural mechanisms. Biol. Psychiatry 1999, 46, 908–920. [Google Scholar] [CrossRef]
  49. Friston, K.J.; Frith, C.D. Schizophrenia: A disconnection syndrome? Clin. Neurosci. 1995, 3, 89–97. [Google Scholar]
  50. Williamson, P. Are anticorrelated networks in the brain relevant to schizophrenia? Schizophr. Bull. 2007, 33, 994. [Google Scholar] [CrossRef]
  51. Hare, S.M.; Ford, J.M.; Mathalon, D.H.; Damaraju, E.; Bustillo, J.; Belger, A.; Lee, H.J.; Mueller, B.A.; Lim, K.O.; Brown, G.G.; et al. Salience-default mode functional network connectivity linked to positive and negative symptoms of schizophrenia. Schizophr. Bull. 2019, 45, 892–901. [Google Scholar] [CrossRef] [PubMed Central]
  52. Xiang, J.; Ma, C.; Chen, X.; Cheng, C. Investigating connectivity gradients in schizophrenia: Integrating functional, structural, and genetic perspectives. Brain Sci. 2025, 15, 179. [Google Scholar] [CrossRef] [PubMed Central]
  53. Williams, J.C.; Tubiolo, P.N.; Gil, R.B.; Zheng, Z.J.; Silver-Frankel, E.B.; Haubold, N.K.; Abeykoon, S.K.; Pham, D.T.; Ojeil, N.; Bobchin, K.; et al. Auditory and visual thalamocortical connectivity alterations in unmedicated people with schizophrenia: An individualized sensory thalamic localization and resting-state functional connectivity study. medRxiv 2024. [Google Scholar] [CrossRef] [PubMed Central]
  54. Elliott, M.L.; Knodt, A.R.; Cooke, M.; Kim, M.J.; Melzer, T.R.; Keenan, R.; Ireland, D.; Ramrakha, S.; Poulton, R.; Caspi, A.; et al. General functional connectivity: Shared features of resting-state and task fMRI drive reliable and heritable individual differences in functional brain networks. NeuroImage 2019, 189, 516–532. [Google Scholar] [CrossRef] [PubMed]
  55. Zhang, H.; Hao, S.; Lee, A.; Eickhoff, S.B.; Pecheva, D.; Cai, S.; Meaney, M.; Chong, Y.-S.; Broekman, B.F.P.; Fortier, M.V.; et al. Do intrinsic brain functional networks predict working memory from childhood to adulthood? Hum. Brain Mapp. 2020, 41, 4574–4586. [Google Scholar] [CrossRef] [PubMed]
  56. Qu, G.; Orlichenko, A.; Wang, J.; Zang, G.; Xiao, L.; Zhang, K.; Wilson, T.W.; Stephen, J.; Calhoun, V.D.; Wang, Y.-P. A comprehensive gated graph transformer framework for analyzing functional brain networks. IEEE Trans. Med. Imaging 2024, 43, 1568–1578. [Google Scholar]
  57. Bi, Y.; Calhoun, V.D. MultiCrossViT: Multimodal vision transformer for schizophrenia prediction using structural MRI and functional network connectivity data. arXiv 2022, arXiv:2211.06726. [Google Scholar]
  58. Mahmood, U.; Fu, Z.; Calhoun, V.D.; Plis, S. Glacier: Glass-box transformer for interpretable dynamic neuroimaging. In Proceedings of the ICASSP 2023–2023 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Rhodes Island, Greece, 4–10 June 2023. [Google Scholar]

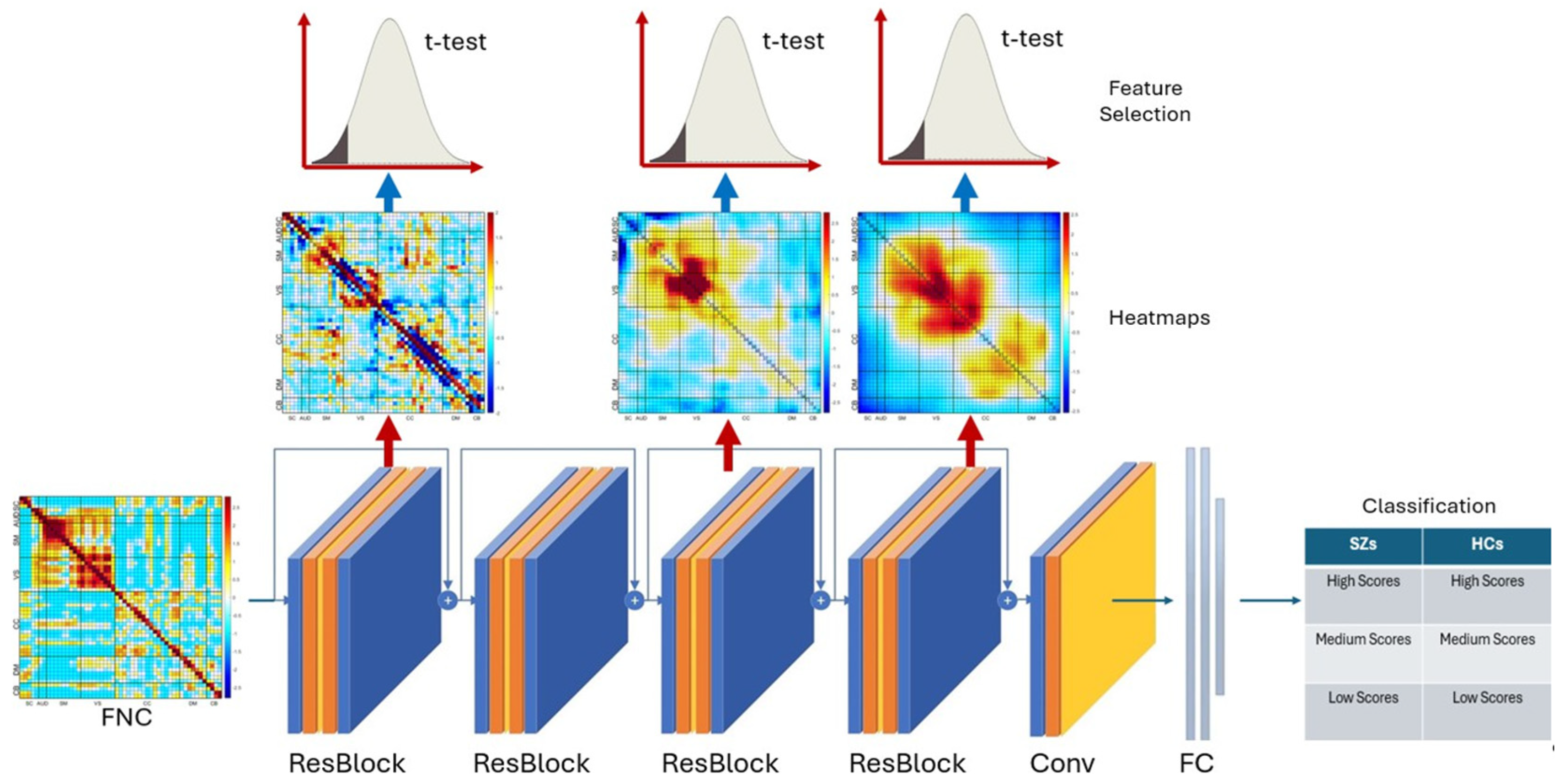

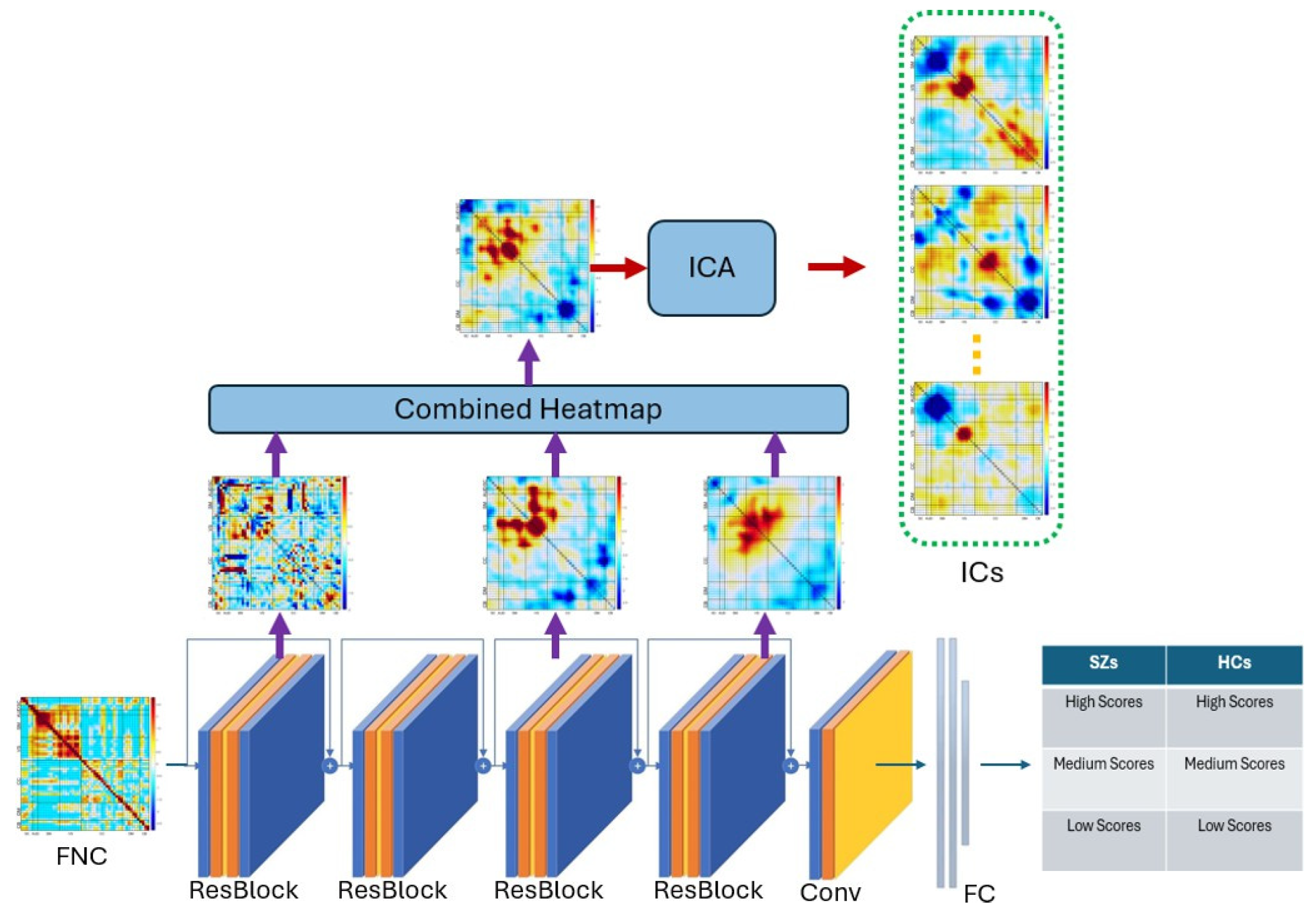

Figure 1. The architecture of our proposed method which includes both deep CNN feature generation and feature analysis. The red arrows show layer specific group differences, blue arrows refer to the t-test used to differentiate the groups.
Figure 1. The architecture of our proposed method which includes both deep CNN feature generation and feature analysis. The red arrows show layer specific group differences, blue arrows refer to the t-test used to differentiate the groups.
Biomed 05 00010 g001

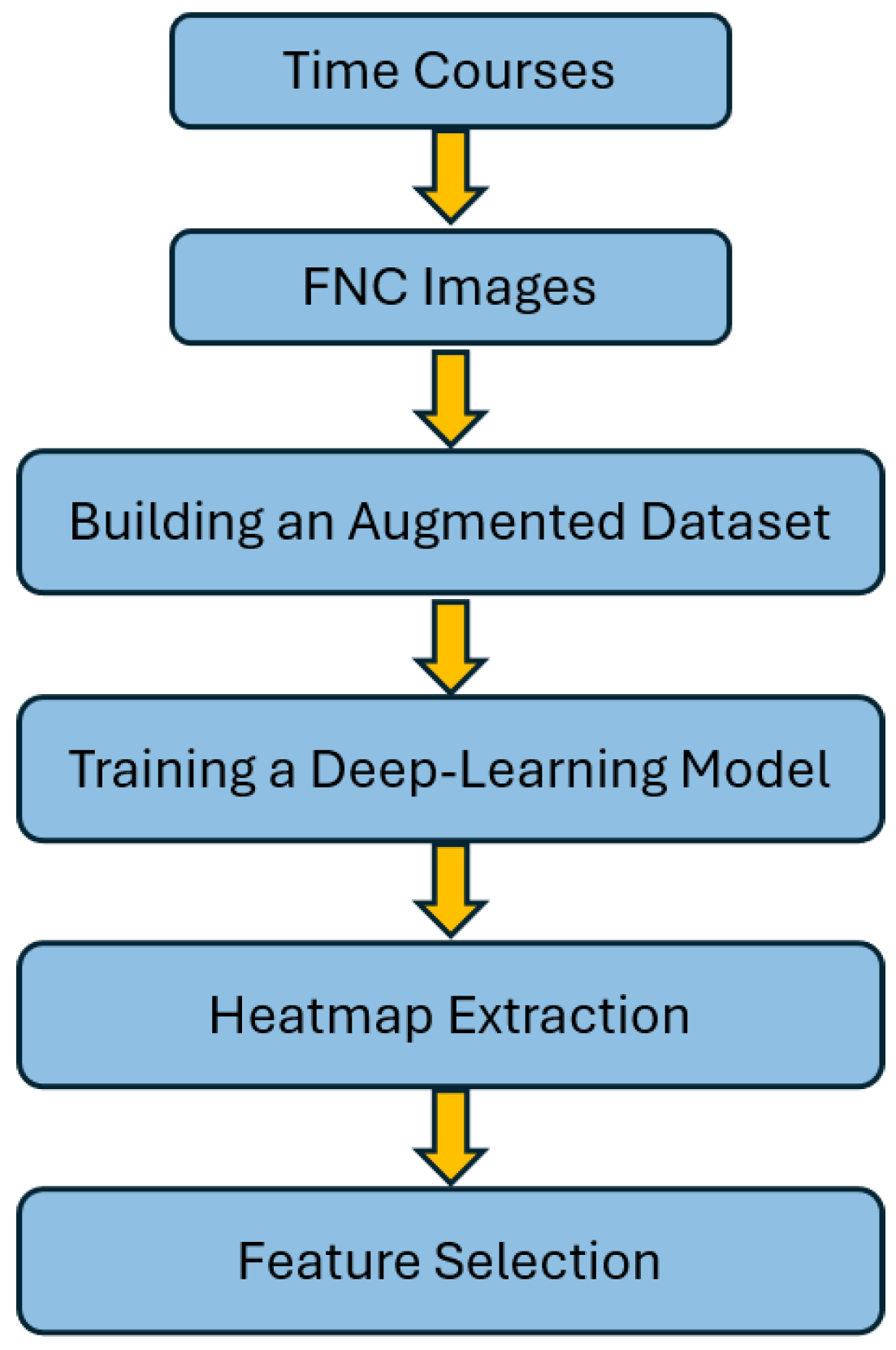

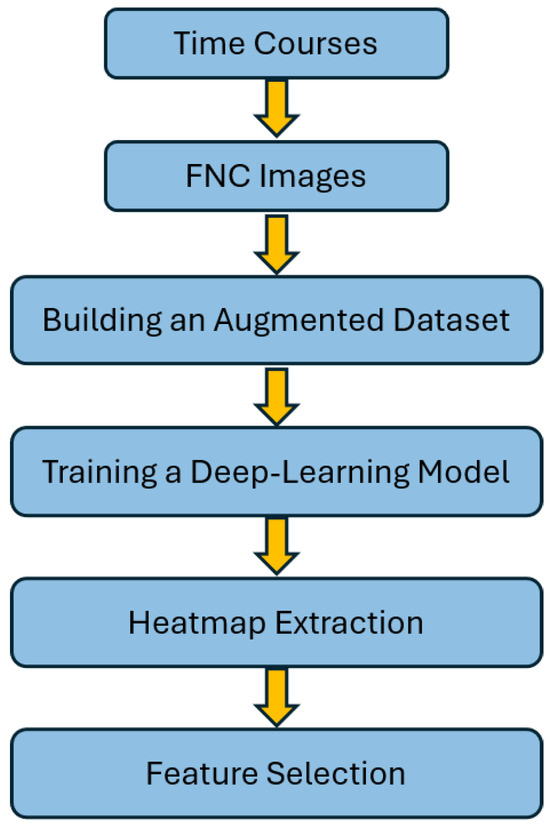

Figure 2. The training process of our proposed algorithm. First the timecourses from NeuroMark ICA [37] are used to construct FNC matrices. Next our model is used to extract deep CNN features which are then further analyzed.
Figure 2. The training process of our proposed algorithm. First the timecourses from NeuroMark ICA [37] are used to construct FNC matrices. Next our model is used to extract deep CNN features which are then further analyzed.
Biomed 05 00010 g002

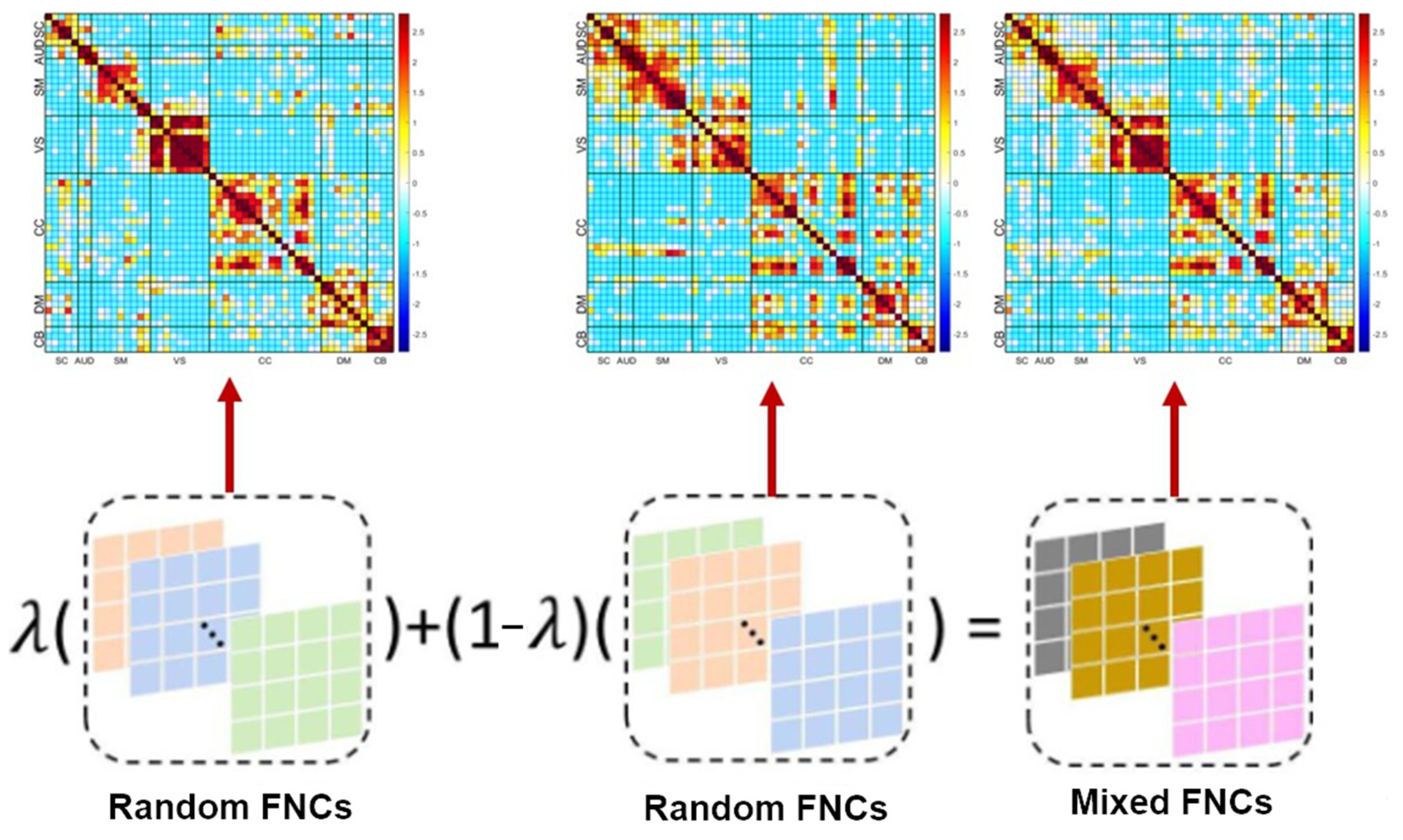

Figure 3. Preprocessing of distinct functional sources. Data are modeled as a mixture of random FNCs with different high-level structure to create a final mixed FNC. The colors indicate random variations and/or the resulting linear combinations into mixed FNCs.
Figure 3. Preprocessing of distinct functional sources. Data are modeled as a mixture of random FNCs with different high-level structure to create a final mixed FNC. The colors indicate random variations and/or the resulting linear combinations into mixed FNCs.
Biomed 05 00010 g003

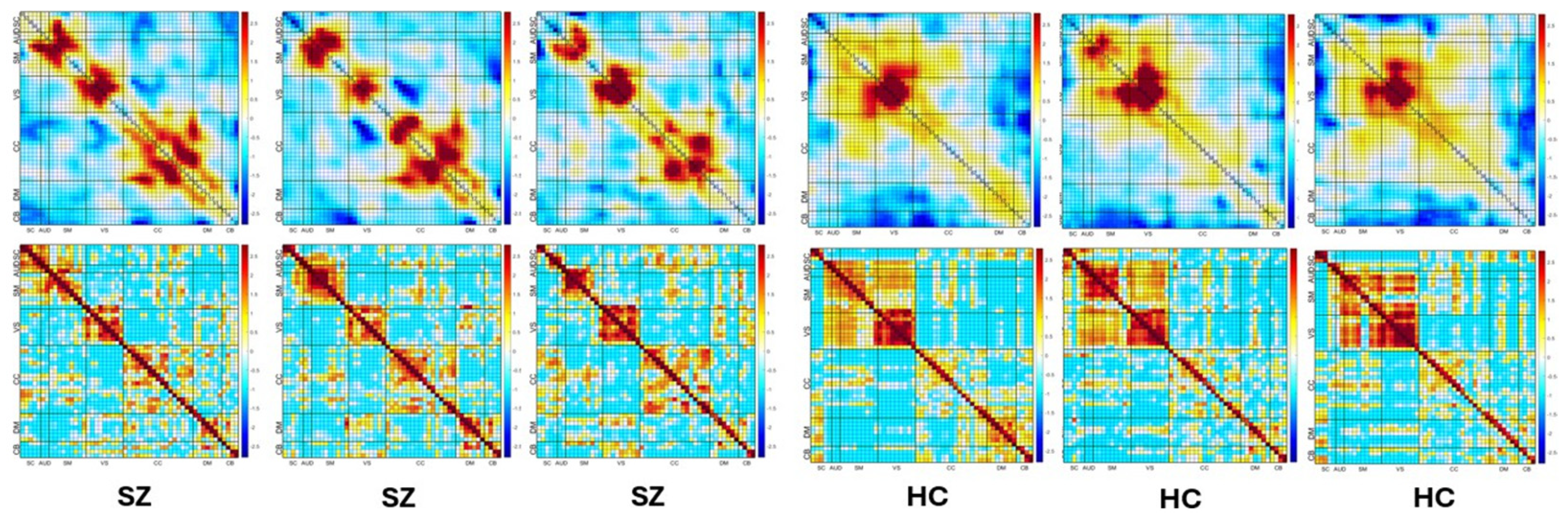

Figure 4. Visualization of combined heatmaps. Columns 1, 2, and 3 demonstrate the mean heatmaps of three SZs, while columns 4, 5, and 6 present the mean heatmaps of three HCs. The first row shows example heatmaps. The second row depicts the corresponding inputs of the network (the original FNC data).
Figure 4. Visualization of combined heatmaps. Columns 1, 2, and 3 demonstrate the mean heatmaps of three SZs, while columns 4, 5, and 6 present the mean heatmaps of three HCs. The first row shows example heatmaps. The second row depicts the corresponding inputs of the network (the original FNC data).
Biomed 05 00010 g004
Figure 5. Architecture of our feature extraction method using ICA. The colors indicate the different layers of the network. Arrows point to layer specific visualizations and resulting ICA solution. By identifying independent bases for the output at multiple layers, we enhance interpretability and also facilitate additional group comparisons.
Figure 5. Architecture of our feature extraction method using ICA. The colors indicate the different layers of the network. Arrows point to layer specific visualizations and resulting ICA solution. By identifying independent bases for the output at multiple layers, we enhance interpretability and also facilitate additional group comparisons.
Biomed 05 00010 g005
Figure 6. Comparisons of competing methods including outs, support vector machines (SVM), decision trees (DT), random forest (RF), and KernelSVM. Our approach performed well along all criteria tested including accuracy, precision, recall, and F1 (balanced accuracy).
Figure 6. Comparisons of competing methods including outs, support vector machines (SVM), decision trees (DT), random forest (RF), and KernelSVM. Our approach performed well along all criteria tested including accuracy, precision, recall, and F1 (balanced accuracy).
Biomed 05 00010 g006

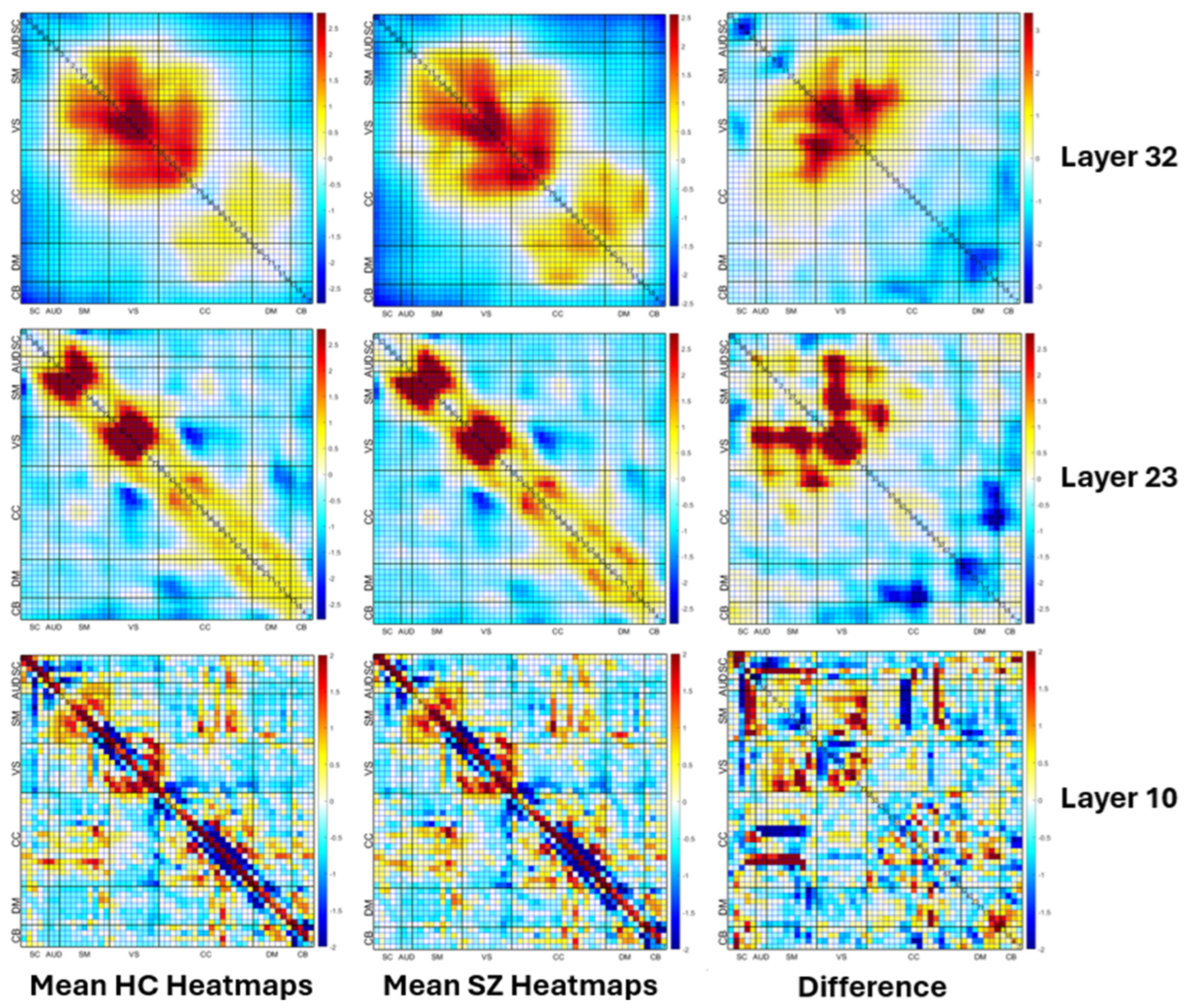

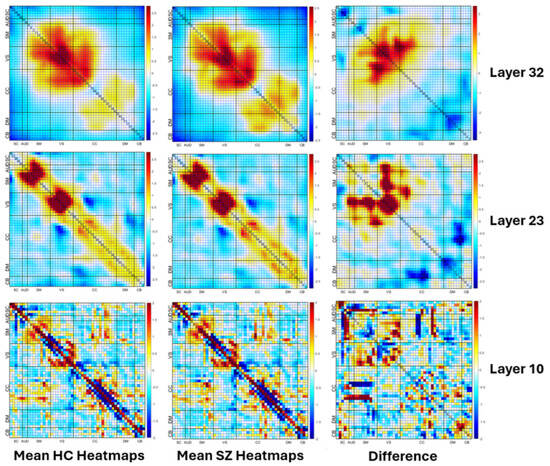

Figure 7. Visualization of the mean heatmaps at different convolution layers (layers 10, 23 and 32). The first column shows the mean heatmaps of individuals with healthy cognition. The second column presents the mean heatmaps of individuals with schizophrenia. The third column illustrates the difference between the mean heatmaps of HCs and SZs. The bottom row shows examples of mean heatmaps in layer 10, which is a shallow layer. The second row depicts the mean heatmaps in layer 26, which is a mid-level layer. The top row depicts the mean heatmaps in layer 33, which is a deeper layer. Note how all layers show structured differences, with shallow layers capturing more fine-grained details and deep layers capturing larger scales differences (due to the additional convolution which results in smoothing).
Figure 7. Visualization of the mean heatmaps at different convolution layers (layers 10, 23 and 32). The first column shows the mean heatmaps of individuals with healthy cognition. The second column presents the mean heatmaps of individuals with schizophrenia. The third column illustrates the difference between the mean heatmaps of HCs and SZs. The bottom row shows examples of mean heatmaps in layer 10, which is a shallow layer. The second row depicts the mean heatmaps in layer 26, which is a mid-level layer. The top row depicts the mean heatmaps in layer 33, which is a deeper layer. Note how all layers show structured differences, with shallow layers capturing more fine-grained details and deep layers capturing larger scales differences (due to the additional convolution which results in smoothing).
Biomed 05 00010 g007

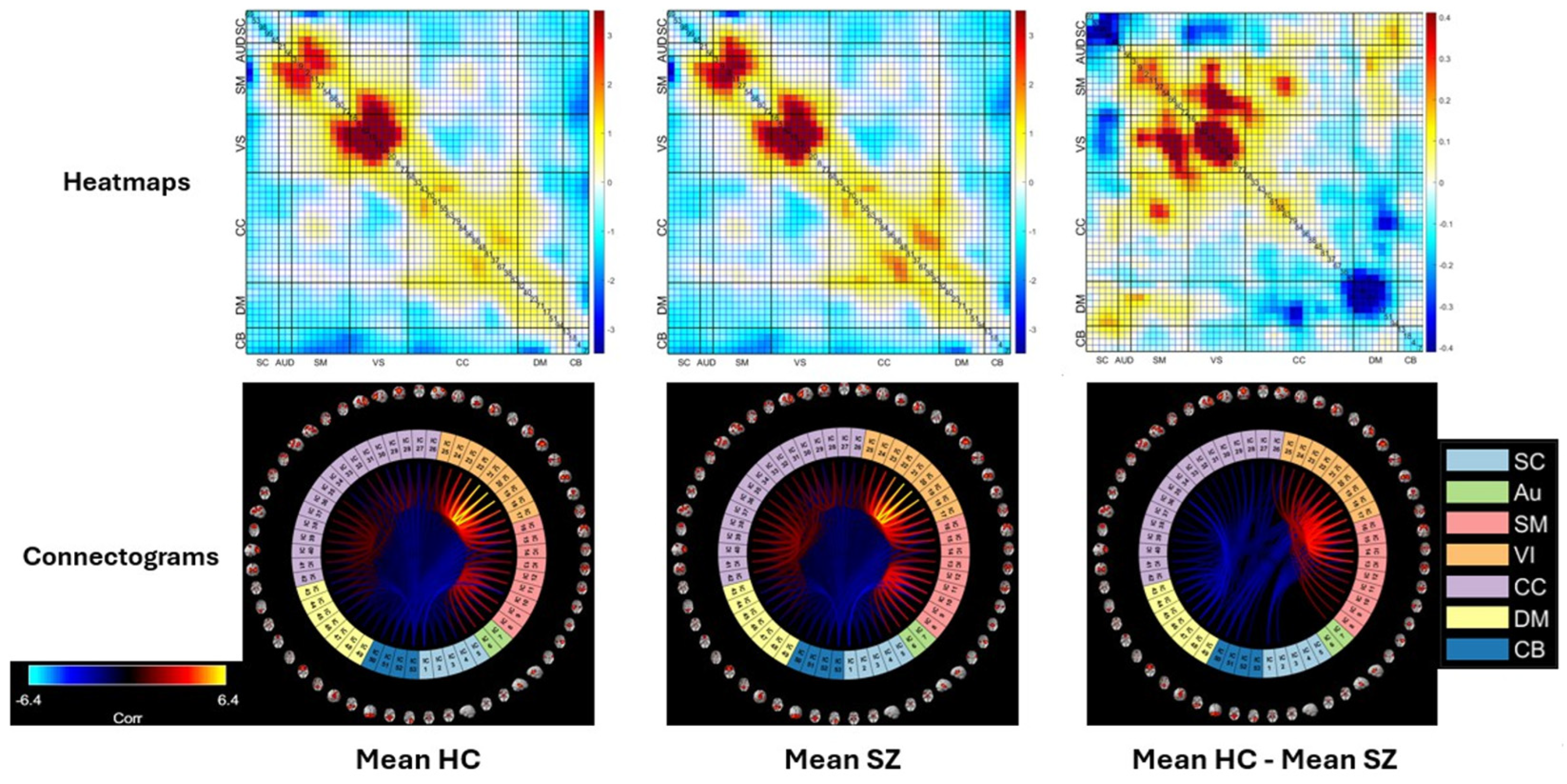

Figure 8. Mean heatmaps of functional network connectivity. The first column shows healthy controls, the second column shows patients with schizophrenia, and the third column shows the difference between the two groups. The top row shows the mean heatmaps, and the bottom row shows the corresponding connectograms group by domains: subcortical (SC), auditory (Au), sensorimotor (SM), visual (VI), cognitive control (CC), default mode (DM), and cerebellum CB).
Figure 8. Mean heatmaps of functional network connectivity. The first column shows healthy controls, the second column shows patients with schizophrenia, and the third column shows the difference between the two groups. The top row shows the mean heatmaps, and the bottom row shows the corresponding connectograms group by domains: subcortical (SC), auditory (Au), sensorimotor (SM), visual (VI), cognitive control (CC), default mode (DM), and cerebellum CB).
Biomed 05 00010 g008

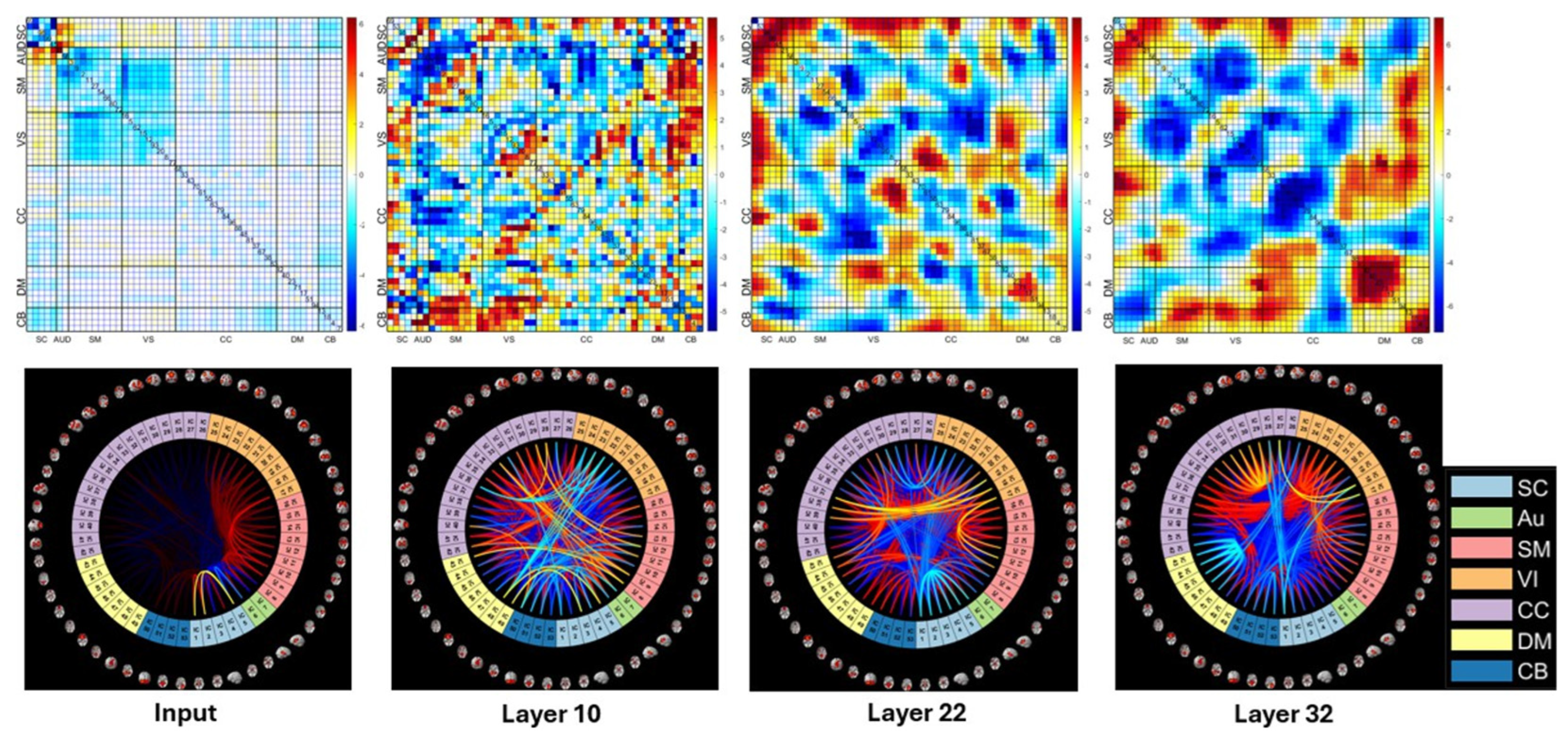

Figure 9. Two-sample t-maps for inputs, layer 10, layer 22, layer 32. The top row shows the heatmaps for the two-sample t-tests, which are represented by two different colors. The blue color denotes that the connectivities in the SZ group are weaker than those in the HC group, whereas the red color indicates that the connectivities in the SZ group are stronger than those in the HC group. The bottom row represents the corresponding connectograms.
Figure 9. Two-sample t-maps for inputs, layer 10, layer 22, layer 32. The top row shows the heatmaps for the two-sample t-tests, which are represented by two different colors. The blue color denotes that the connectivities in the SZ group are weaker than those in the HC group, whereas the red color indicates that the connectivities in the SZ group are stronger than those in the HC group. The bottom row represents the corresponding connectograms.
Biomed 05 00010 g009

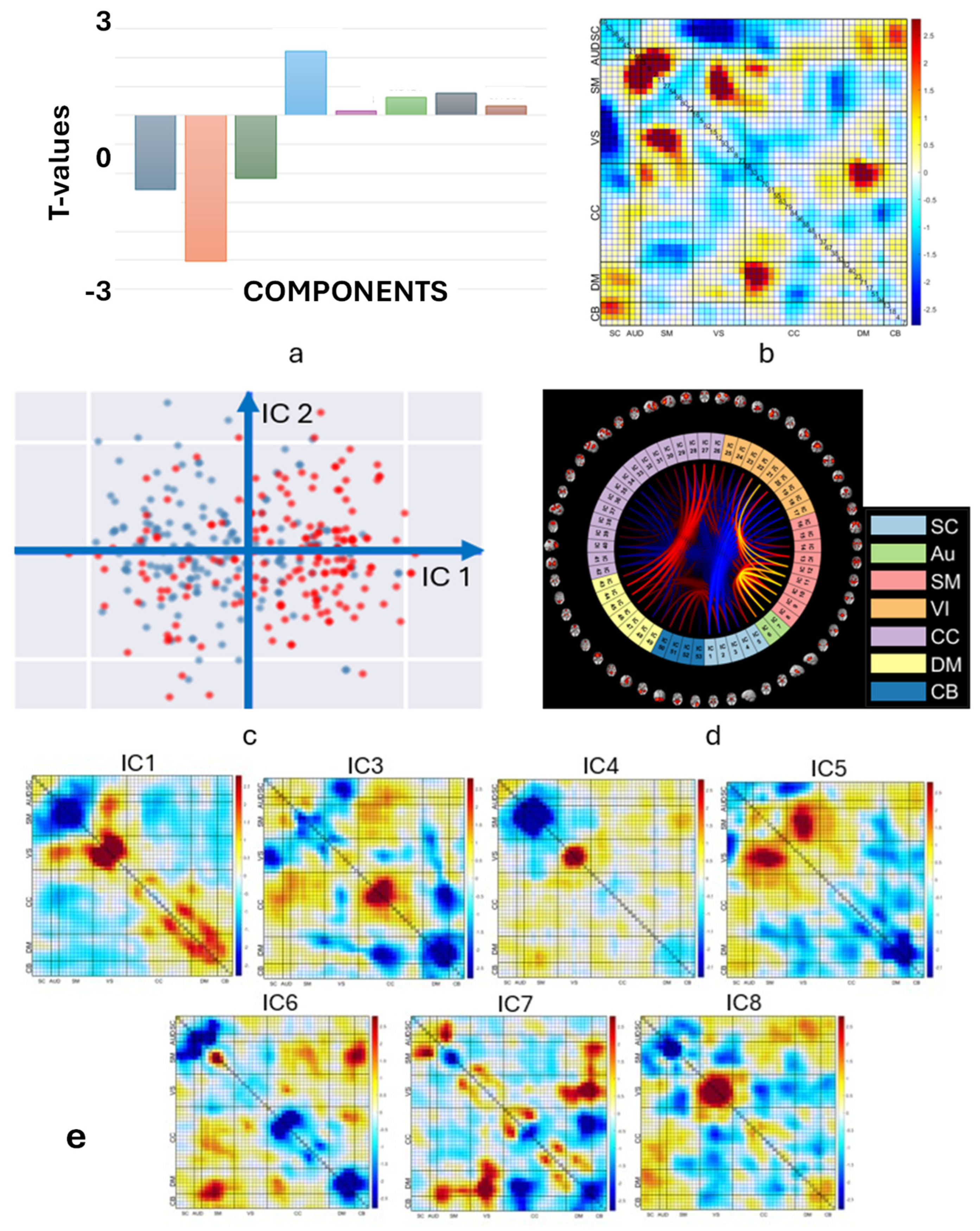

Figure 10. (a): Statistical comparison of basis functional network connectivity which represents an unmixing of the heatmaps from the three network layers. (b): Second FNC component (IC2) showing the largest group differences. (c): Projection of the SZ (blue) and HC (red) samples on two axes IC1 and IC2. (d): Connectogram of the second FNC component (blue lines indicate negative links, red/yellow lines indicate positive links; (e): This figure displays all the basis FNC components except for IC2, which is show in panel b.
Figure 10. (a): Statistical comparison of basis functional network connectivity which represents an unmixing of the heatmaps from the three network layers. (b): Second FNC component (IC2) showing the largest group differences. (c): Projection of the SZ (blue) and HC (red) samples on two axes IC1 and IC2. (d): Connectogram of the second FNC component (blue lines indicate negative links, red/yellow lines indicate positive links; (e): This figure displays all the basis FNC components except for IC2, which is show in panel b.
Biomed 05 00010 g010

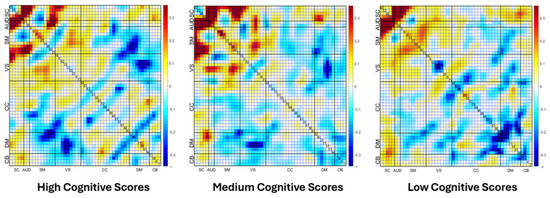

Figure 11. Differences between the mean heatmaps of HCs and SZs (HC-SZ) for low, medium, and high cognitive scores show strong positive subcortical engagement and decreased cognitive control and default mode engagement in the patients.
Figure 11. Differences between the mean heatmaps of HCs and SZs (HC-SZ) for low, medium, and high cognitive scores show strong positive subcortical engagement and decreased cognitive control and default mode engagement in the patients.
Biomed 05 00010 g011
Figure 12. Two-sample t-maps for patients versus controls (HC-SZ) for Layer 10, Layer 22, and Layer 32 at different cognitive levels. Consistent with Figure 11, we see enhanced subcortical links to multiple domains and reduced connectivity in cerebellar links to higher cognitive domains (especially for high and medium scores), though these manifest slightly differently in each layer. This points to the richness of the underlying relationships captured by the model, motivating us to further explore ways to provide enhanced visual summaries of nonlinear models.
Figure 12. Two-sample t-maps for patients versus controls (HC-SZ) for Layer 10, Layer 22, and Layer 32 at different cognitive levels. Consistent with Figure 11, we see enhanced subcortical links to multiple domains and reduced connectivity in cerebellar links to higher cognitive domains (especially for high and medium scores), though these manifest slightly differently in each layer. This points to the richness of the underlying relationships captured by the model, motivating us to further explore ways to provide enhanced visual summaries of nonlinear models.
Biomed 05 00010 g012

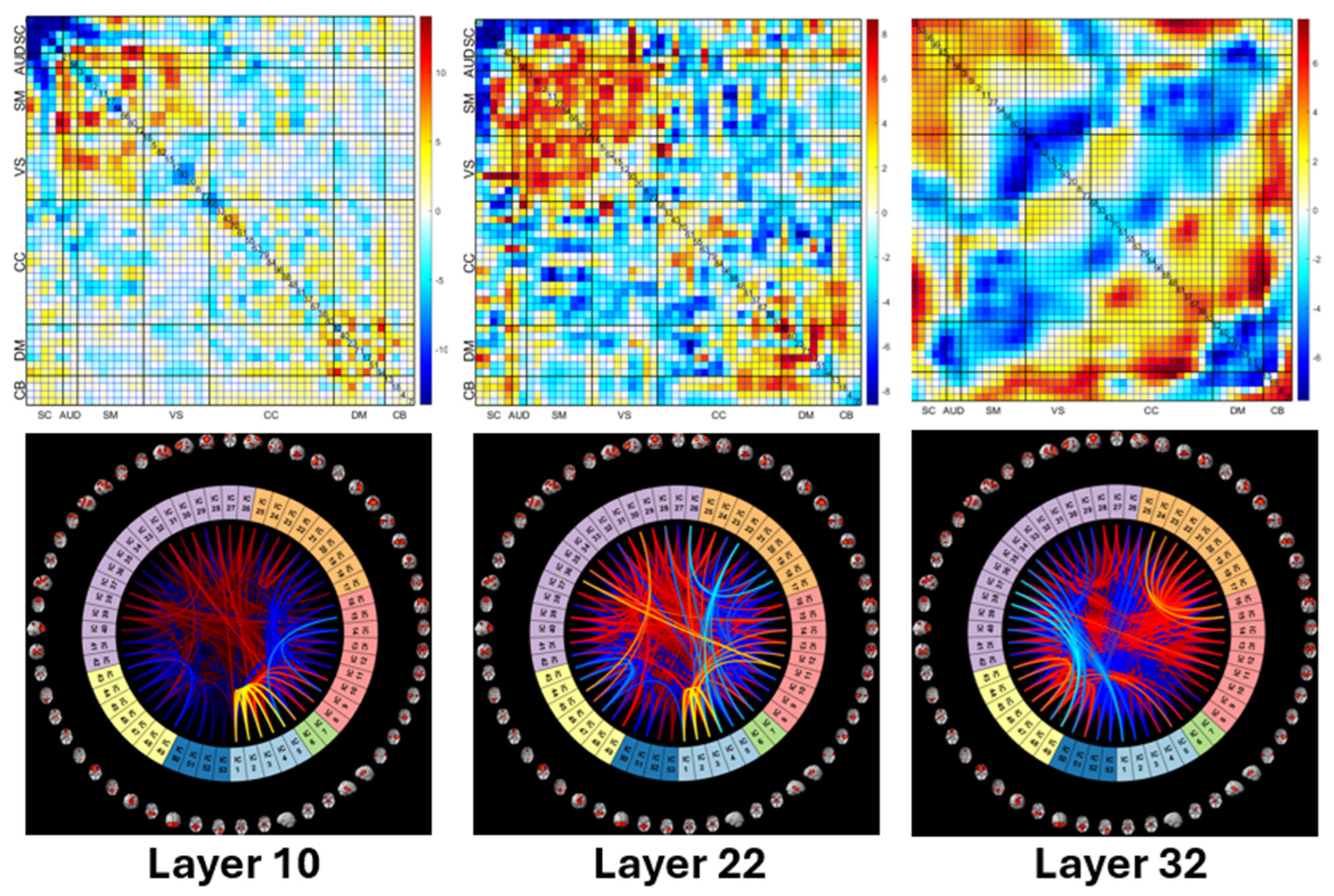

Figure 13. Connectograms of two-sample t-maps for Layer 10, Layer 22, and Layer 32 at different cognitive levels. This is a different visualization of the same information contained in Figure 12.
Figure 13. Connectograms of two-sample t-maps for Layer 10, Layer 22, and Layer 32 at different cognitive levels. This is a different visualization of the same information contained in Figure 12.
Biomed 05 00010 g013
Figure 14. Differences in means between two groups of individuals diagnosed with schizophrenia at different cognitive levels (SZ high cognitive vs. SZ low cognitive). Here, we are seeing enhancements in both sensory and cognitive areas linked to the interaction between diagnosis and the effects of cognitive performance.
Figure 14. Differences in means between two groups of individuals diagnosed with schizophrenia at different cognitive levels (SZ high cognitive vs. SZ low cognitive). Here, we are seeing enhancements in both sensory and cognitive areas linked to the interaction between diagnosis and the effects of cognitive performance.
Biomed 05 00010 g014
Table 1. Demographic information of the participants. Age, transitions, and motion between SZ and HC populations in the four datasets are matched (p-value > 0.05).
Table 1. Demographic information of the participants. Age, transitions, and motion between SZ and HC populations in the four datasets are matched (p-value > 0.05).
SiteGroupSubjects (M/F)Age Mean (SD)Transitions Mean (SD)Rotations Mean (SD)
BSNIPHC137/10038.13 (12.59)0.13 (0.10)0.13 (0.12)
BSNIPSZ56/12635.11 (12.03)0.15 (0.15)0.12 (0.12)
FBIRNHC104/4037.15 (11.00)0.19 (0.15)0.21 (0.16)
FBIRNSZ103/3439.02 (11.35)0.18 (0.13)0.20 (0.16)
MPRCHC94/14440.24 (15.17)0.09 (0.06)0.07 (0.06)
MPRCSZ98/5238.70 (14.05)0.10 (0.10)0.08 (0.10)
COBREHC64/2538.09 (11.66)0.22 (0.15)0.19 (0.12)
COBRESZ57/1137.74 (14.47)0.20 (0.12)0.18 (0.12)
p-value0.07850.86520.36240.5258
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Vo, D.M.; Abrol, A.; Fu, Z.; Calhoun, V.D. Multi-Layer Modeling and Visualization of Functional Network Connectivity Shows High Performance for the Classification of Schizophrenia and Cognitive Performance via Resting fMRI. BioMed 2025, 5, 10. https://doi.org/10.3390/biomed5020010

AMA Style

Vo DM, Abrol A, Fu Z, Calhoun VD. Multi-Layer Modeling and Visualization of Functional Network Connectivity Shows High Performance for the Classification of Schizophrenia and Cognitive Performance via Resting fMRI. BioMed. 2025; 5(2):10. https://doi.org/10.3390/biomed5020010

Chicago/Turabian Style

Vo, Duc My, Anees Abrol, Zening Fu, and Vince D. Calhoun. 2025. "Multi-Layer Modeling and Visualization of Functional Network Connectivity Shows High Performance for the Classification of Schizophrenia and Cognitive Performance via Resting fMRI" BioMed 5, no. 2: 10. https://doi.org/10.3390/biomed5020010

APA Style

Vo, D. M., Abrol, A., Fu, Z., & Calhoun, V. D. (2025). Multi-Layer Modeling and Visualization of Functional Network Connectivity Shows High Performance for the Classification of Schizophrenia and Cognitive Performance via Resting fMRI. BioMed, 5(2), 10. https://doi.org/10.3390/biomed5020010

Article Metrics

Back to TopTop
