Differences at Species Level and in Repertoires of Secondary Metabolite Biosynthetic Gene Clusters among Streptomyces coelicolor A3(2) and Type Strains of S. coelicolor and Its Taxonomic Neighbors
Biological Resource Center, National Institute of Technology and Evaluation (NBRC), Chiba 292-0818, Japan
*
Author to whom correspondence should be addressed.
Appl. Microbiol. 2021, 1(3), 573-585; https://doi.org/10.3390/applmicrobiol1030037
Submission received: 26 October 2021
/
Revised: 12 November 2021
/
Accepted: 16 November 2021
/
Published: 18 November 2021
Abstract
:Streptomyces coelicolor A3(2) is used worldwide for genetic studies, and its complete genome sequence was published in 2002. However, as the whole genome of the type strain of S. coelicolor has not been analyzed, the relationship between S. coelicolor A3(2) and the type strain is not yet well known. To clarify differences in their biosynthetic potential, as well as their taxonomic positions, we sequenced whole genomes of S. coelicolor NBRC 12854T and type strains of its closely related species—such as Streptomyces daghestanicus, Streptomyces hydrogenans, and Streptomyces violascens—via PacBio. Biosynthetic gene clusters for polyketides and non-ribosomal peptides were surveyed by antiSMASH, followed by bioinformatic analyses. Type strains of Streptomyces albidoflavus, S. coelicolor, S. daghestanicus, S. hydrogenans, and S. violascens shared the same 16S rDNA sequence, but S. coelicolor A3(2) did not. S. coelicolor A3(2) and S. coelicolor NBRC 12854T can be classified as Streptomyces anthocyanicus and S. albidoflavus, respectively. In contrast, S. daghestanicus, S. hydrogenans, and S. violascens are independent species, despite their identical 16S rDNA sequences. S. coelicolor A3(2), S. coelicolor NBRC 12854T, S. daghestanicus NBRC 12762T, S. hydrogenans NBRC 13475T, and S. violascens NBRC 12920T each harbor specific polyketide synthase (PKS) and non-ribosomal peptide synthetase (NRPS) gene clusters in their genomes, whereas PKS and NRPS gene clusters are well conserved between S. coelicolor A3(2) and S. anthocyanicus JCM 5058T, and between S. coelicolor NBRC 12854T and S. albidoflavus DSM 40455T, belonging to the same species. These results support our hypothesis that the repertoires of PKS and NRPS gene clusters are different between different species.
1. Introduction
Actinomycetes are Gram-positive filamentous bacteria that are attracting attention as a source of bioactive secondary metabolites. Many pharmaceuticals, such as antibiotics, have been developed from these metabolites. The genus Streptomyces is a representative actinomycete, and includes approximately 673 species with validly published names at present. These members are a promising source of diverse bioactive compounds. In 1908, “Streptothrix coelicolor” (the former genus name for Streptomyces), which was characterized by its production of a blue pigment, was isolated by Müller [1,2]. The species name Streptomyces coelicolor was effectively published by Waksman and Henrici in 1948 [3], and validly approved in 1980 [4]. The type strain is Müller’s strain, and has been added to the NBRC culture collection as NBRC 12854T. On the other hand, Streptomyces coelicolor A3(2) is derived from Waksman’s strain 3443. Stanier obtained several cultures from Waksman, which were classified as “Actinomyces coelicolor” based on cultural characteristics. Erikson obtained Waksman’s strain 3443 from Stanier through van Niel, isolated a single spore, and designated it Streptomyces coelicolor A3(2) according to the current systematics for actinomycetes. Hopwood obtained this strain from Erikson as a starting strain for use in genetic work [1]. Today, S. coelicolor A3(2) is used worldwide for genetic studies, and as a host for gene cloning experiments of streptomycetes [5,6,7]. According to a PubMed search, more than 3000 papers in which S. coelicolor A3(2) is used have been published to date. In 2002, the whole genome of the strain was sequenced, which revealed that it harbors a few dozen secondary metabolite biosynthetic gene clusters (smBGCs) in its genome. This number is more than that discovered by previous experiments based on activity-based screening for novel secondary metabolites. [8] Recent genome analyses have introduced a new approach called “genome mining” in the field of research for untapped secondary metabolites [9]. As the complete genome sequencing of S. coelicolor A3(2) had been published earlier, subsequent genome analyses of the genus Streptomyces have been targeted at strains belonging to species other than S. coelicolor [10]. Consequently, even the type strain of S. coelicolor has not been genome sequenced, although extensive whole-genome sequencing projects are ongoing [11]. The present study aims to provide the whole-genome sequence of the type strain, clarify the taxonomic relationship between S. coelicolor A3(2) and type strains of S. coelicolor and its closely related species, and reveal their potential to synthesize secondary metabolites such as polyketides and non-ribosomal peptides; it also aims to broaden knowledge about the potential of each strain as a source of diverse secondary metabolites, since these compounds are representative secondary metabolites in actinomycetes [10], diverse in bioactivities and structures, and often studied for evaluation as sources of new secondary metabolites [12,13,14,15,16,17]. This study posits that correct classification is significant in the pursuit of knowledge about the relationships between each species and their biosynthetic potential for secondary metabolites.
2. Materials and Methods
EzBioCloud [18] was used to search for taxonomic neighbors based on 16S rDNA sequences. Multilocus sequence analysis (MLSA) was conducted using DNA sequences of five housekeeping genes—atpD, gyrB, recA, rpoB, and trpB—as established in the genus Streptomyces [19]. The accession numbers of used gene sequences for MLSA are listed in Table 1. The phylogenetic trees were reconstructed using ClustalX 2.1 [20]. S. coelicolor NBRC 12854T, Streptomyces daghestanicus NBRC 12762T, Streptomyces hydrogenans NBRC 13475T, and Streptomyces violascens NBRC 12920T were distributed from the NBRC Culture Collection; their genomic DNA was prepared from cultured cells via the method of Saito and Kimura [21]. Subsequently, library preparation and whole-genome de novo sequencing were performed by the Kazusa DNA Research Institute using a single-molecule real-time (SMRT) strategy. Sequencing was performed using the BluePippin system (Sage Science) with a SMRTbell Template Prep Kit 1.0 and a SMRTbell Damage Repair Kit (Pacific Bioscience), via the Sequel system with Sequel SMRT cell 1M versions 2 and 3, Sequel Sequencing Kits 2.1 and 3.0, a Sequel Binding Kit 2.0, and a Sequel Binding and Internal Ctrl Kit 3.0 (Pacific Biosciences). The resulting reads for each strain were assembled using SMRT Link version 6.0 (Pacific Bioscience) and Prokka 1.13.3. The assembled genome sequences were deposited to DDBJ under the following accession numbers: S. coelicolor NBRC 12854T, BNDZ00000000.1; S. daghestanicus NBRC 12762T, BNDX00000000.1; S. hydrogenans NBRC 13475T, BNDW00000000.1; and S. violascens NBRC 12920T, BNDY00000000.1. DNA–DNA relatedness was digitally calculated using Formula 2 of the Genome-to-Genome Distance Calculator (GGDC) [22]. Polyketide synthase (PKS) and non-ribosomal peptide synthetase (NRPS) gene clusters in the genomes were surveyed using antiSMASH [23], and then manually analyzed as reported previously [15].
3. Results
3.1. Taxnomic Positions of S. coelicolor and Related Strains
S. coelicolor NBRC 12854T shares the same 16S rDNA sequences as those of the type strains of Streptomyces albidoflavus, S. daghestanicus, S. hydrogenans, and S. violascens, but the similarity between S. coelicolor strains NBRC 12854T and A3(2) is only 97.8%. However, S. coelicolor A3(2) showed sequence similarities of 100% to the type strains of Streptomyces anthocyanicus, Streptomyces violaceoruber, and Streptomyces tricolor. These two S. coelicolor strains are phylogenetically distant, as shown in Figure 1.
We also reconstructed a phylogenetic tree based on MLSA because it is often used to elucidate more precise phylogenetic relationships in the genus Streptomyces [19]. As shown in Figure 2, S. coelicolor NBRC 12854T formed a clade with S. albidoflavus, but the clade did not include S. daghestanicus, S. hydrogenans, or S. violascens. In contrast, S. coelicolor A3(2) formed a clade with S. anthocyanicus, S. violaceoruber, and S. tricolor. These results also support the hypothesis that the two S. coelicolor strains are phylogenetically distant.
To identify species, we conducted digital DNA–DNA hybridization (DDH). DNA–DNA relatedness of 70% is recognized to be the cutoff of species delineation [22,24]. The relatedness of strain A3(2) to the type strains of S. coelicolor and S. anthocyanicus was 23.1% and 94.2%, respectively, suggesting that strain A3(2) is not S. coelicolor but S. anthocyanicus. In contrast, as DNA–DNA relatedness between the type strains of S. coelicolor and S. albidoflavus was 91.8%; thus, these two species are synonymous, as reported in [25]. The type strains of S. coelicolor/S. albidoflavus S. daghestanicus, S. hydrogenans, and S. violascens did not show DNA–DNA relatedness of > 70% with one another, suggesting each to be an independent species (Table 2).
3.2. PKS and NRPS Gene Clusters in Genomes
As shown in Figure 3, S. coelicolor A3(2) possessed eight PKS and four NRPS gene clusters, [8] whereas S. anthocyanicus JCM 5058T harbored six PKS and four NRPS gene clusters. Ten gene clusters (closed circle)—excluding the PKS gene clusters for coelimycin and arsono-polyketide (open circle)—were conserved between S. coelicolor A3(2) and S. anthocyanicus JCM 5058T, which were classified as the same species, as stated in the previous section. S. coelicolor NBRC 12854T had three PKS, six NRPS, and four hybrid PKS/NRPS gene clusters, whereas S. albidoflavus DSM 40455T had two PKS, six NRPS, and four hybrid PKS/NRPS gene clusters. Twelve (closed circle) gene clusters—excluding fdm (fredericamycin) (open circle) [26]—were conserved between S. coelicolor NBRC 12854T and S. albidoflavus DSM 40455T, since S. coelicolor and S. albidoflavus are synonymous species. In contrast, among the twelve gene clusters of S. coelicolor A3(2), seven PKS and four NRPS gene clusters—excluding rpp [27,28]—were not present in the genome of S. coelicolor NBRC 12854T. S. daghestanicus NBRC 12762T encoded four PKS, one NRPS, and four hybrid PKS/NRPS gene clusters in its genome. Six gene clusters—excluding pfa (polyunsaturated fatty acid), ant (antimycin) [29], and rpp—were specific to this strain among the strains studied here. S. hydrogenans NBRC 13475T possessed seven PKS, two NRPS, and three hybrid PKS/NRPS gene clusters. Ten gene clusters—excluding pfa and whi (spore pigment) [8,30]—were specific to this strain. S. violascens NBRC 12920T harbored six PKS, six NRPS, and one hybrid PKS/NRPS gene clusters. Twelve gene clusters—excluding the NRPS gene cluster for coelichelin—were specific to this strain. Although S. coelicolor NBRC 12854T, S. daghestanicus NBRC 12762T, S. hydrogenans NBRC 13475T, and S. violascens NBRC 12920T are phylogenetically close (Figure 1), most of their PKS and NRPS gene clusters were not conserved between the different species. In the seven strains, t1pks-1 to -5, one t2pks named tjh, one t3pks named plh, nrps-1 to -10, and pks/nrps-1 to -7 were orphan, and their products have not been experimentally clarified and, thus, could not be identified by our bioinformatic analysis.
3.3. Prediction of Products Synthesized by Orphan PKS and NRPS Gene Clusters
According to the co-linearity of the assembly lines [31], the backbones of polyketides and non-ribosomal peptides can be bioinformatically predicted from the sequences of the PKS and NRPS gene clusters. Based on the module numbers, substrates of adenylation (A) domains, and domain organizations [15], we predicted the products of orphan PKS and NRPS gene clusters in S. coelicolor A3(2), S. coelicolor NBRC 12854T, S. daghestanicus NBRC 12762T, S. hydrogenans NBRC 13475T, and S. violascens NBRC 12920T. Each strain possesses 1–9 orphan PKS and/or NRPS gene clusters. These products are diverse, as shown in Table 3, although some products could not be predicted because they are not multimodular. In addition to the known secondary metabolites shown in Figure 3, these strains show the potential to produce novel polyketides and non-ribosomal peptides.
4. Discussion
S. coelicolor A3(2) is the best studied strain as a model microorganism of actinomycetes. It has been extensively used for elucidating mechanisms in morphological differentiation [32], physiological features [33,34], metabolisms [35,36], and genetic regulation [37,38,39] in the genus Streptomyces. The genetics of actinomycetes were especially advanced with the strain [7]. Its wild strain and derived strains have contributed to various biotechnological fields. It is notable that these strains are used as the hosts for heterogeneous secondary metabolite production [40,41,42,43,44]. In contrast to these applications, the classification of S. coelicolor A3(2) has been paid less attention. Hatano et al. [1] reclassified strain A3(2) from S. coelicolor to S. violaceoruber; however, this reclassification is not widely known. In addition to many recent reports [45,46,47,48], even GenBank still classifies strain A3(2) as S. coelicolor [49,50]. In this study, we showed that strain A3(2) can be reclassified to S. anthocyanicus based on DNA–DNA relatedness, because the whole-genome sequence of the type strain of S. violaceoruber has not yet been published. Very recently, Komaki proposed that S. anthocyanicus and Streptomyces tricolor are later heterotypic synonyms of S. violaceoruber, in a paper submitted to the International Journal of Systematic and Evolutionary Microbiology that is now under review. Therefore, there is no contradiction between the report by Hatano et al. and our present results.
Rong et al. reclassified S. coelicolor to S. albidoflavus based on multilocus sequence analysis, DDH experiments, and phenotypic comparisons [25]; our digital DDH supported this. Even if it is recognized that strain A3(2) and the type strain of S. coelicolor belong to different species, many researchers may think that S. coelicolor A3(2) and the type strain of S. coelicolor harbor a similar set of smBGCs, because they believe that there is no correlation between taxonomic species and secondary metabolites. Our present study provides the evidence to deny this possibility, and rather supports our hypothesis that strains belonging to different species harbor different repertoires of PKS and NRPS gene clusters—even if they are phylogenetically close [15,51,52,53,54]. S. coelicolor A3(2) and the type strains of S. anthocyanicus, S. violaceoruber, and S. tricolor share the same 16S rDNA sequence, and these four strains can be reclassified to the same species. In contrast, the type strains of S. albidoflavus/S. coelicolor, S. daghestanicus, S. hydrogenans, and S. violascens also share the same 16S rDNA sequence, but these four are independent species. It is often reported that the resolution of 16S rDNA sequences is so low that we are unable to classify Streptomyces members at the species level by only analyzing 16S rDNA sequences [15,55,56]. The present study suggests that each species harbors specific smBGCs. These gene clusters might have moved via repeated and/or complicated horizontal gene transfers (HGTs) between various Streptomyces strains. On the other hand, HGTs between strains belonging to the same species may not be as frequent, because strains within the same species—such as strains A3(2) and JCM 5058T of S. anthocyanicus, or strains NBRC 12854 and DSM 40455T of S. albidoflavus—harbor a similar set of PKS and NRPS gene clusters. In contrast, it has been reported that a part of the secondary metabolism is related more to strain ecology than to the phylogeny of a strain [57]. It is still unclear whether the presence of PKS and NRPS gene clusters in genomes indeed changes based on the ecology of strains. Our genome analysis of the type strains of the four species revealed the presence of many orphan PKS and NRPS pathways whose metabolites have not yet been identified; their presence suggests the potential for producing novel polyketides and non-ribosomal peptides through further research. Appropriate classification at the species level is significant in the search for bioactive secondary metabolites in the post-genomic era, and to deepen our understanding of the relationship between taxonomical species and smBGCs.
5. Conclusions
We examined the taxonomic relationships between S. coelicolor A3(2) and the type strains of S. coelicolor and its phylogenetically close species. We suggest that S. coelicolor A3(2) should be reclassified to S. anthocyanicus, which is a synonym of S. violaceoruber, whereas S. coelicolor is a synonym of S. albidoflavus, as reported by Rong et al. [25]. Analysis of PKS and NRPS gene clusters in the genomes revealed that the repertoires of these gene clusters are quite different between S. coelicolor A3(2) and S. coelicolor NBRC 12854T, although these strains were once classified as S. coelicolor. Although the type strains of S. albidoflavus/S. coelicolor, S. daghestanicus, S. hydrogenans, and S. violascens share the same 16S rDNA sequence, they are independent species, and most of their PKS and NRPS gene clusters differ between the species. This is the first report on a genomic study for the type strains of S. coelicolor and its closely related species.
Author Contributions
Conceptualization, H.K. and T.T.; methodology, H.K. and T.T.; formal analysis, H.K.; investigation, H.K.; resources, T.T.; data curation, H.K.; writing—original draft preparation, H.K.; writing—review and editing, T.T.; funding acquisition, T.T. All authors have read and agreed to the published version of the manuscript.
Funding
This research was supported in part by a commissioned project from the Japan Patent Office.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The whole genome shotgun project of S. coelicolor NBRC 12854T, S. daghestanicus NBRC 12762T, S. hydrogenans NBRC 13475T and S. violascens NBRC 12920T have been deposited at GenBank under the accession numbers BNDZ00000000, BNDX00000000, BNDW00000000 and BNDY00000000, respectively. BioProject accession numbers are PRJDB9785, PRJDB9783, PRJDB9782 and PRJDB9784. BioSample accession numbers are SAMD00228000, SAMD00227998, SAMD00227997 and SAMD00227999.
Acknowledgments
We thank Shinpei Ino and Takahiro Matsuyama for genome DNA preparation, and Aya Uohara for registering the genome sequences in the DDBJ.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Hatano, K.; Tamura, T.; Nishii, T. Taxonomic status of Streptomyces coelicolor A3(2) and Streptomyces lividans 66. Actinomycetologica 1994, 8, 47–50. [Google Scholar] [CrossRef]
- Müller, R. Eine Diphtheridee und eine Streptothrix mit gleichen blauen Farbstoff sowie Untersuchungen über Streptothrixarten in allgemeinen. Zent. Für Bakteriol. Parasitenkd. Infekt. Und Hyg. Abt. I 1908, 46, 195–212. [Google Scholar]
- Waksman, S.A.; Henrici, A.T. Family III. Streptomycetaceae Waksman and Henrici. In Bergey’s Manual of Determinative Bacteriology, 6th ed.; Breed, R.S., Murray, E.G.D., Hitchens, A.P., Eds.; The Williams & Wilkins Co: Baltimore, MD, USA, 1948; pp. 929–980. [Google Scholar]
- Skerman, V.B.D.; McGowan, V.; Sneath, P.H.A. Approved lists of bacterial names. Int. J. Syst. Bacteriol. 1980, 30, 225–420. [Google Scholar] [CrossRef] [Green Version]
- Erikson, D. Loss of aerial mycelium and other changes in streptomycete development due to physical variations of cultural conditions. J. Gen. Microbiol. 1955, 13, 136–148. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Hopwood, D.A. Linkage and the mechanism of recombination in Streptomyces coelicolor. Ann. N. Y. Acad. Sci. 1959, 81, 887–898. [Google Scholar] [CrossRef]
- Hopwood, D.A.; Chater, K.F.; Dowding, J.E.; Vivian, A. Advances in Streptomyces coelicolor genetics. Bacteriol. Rev. 1973, 37, 371–405. [Google Scholar] [CrossRef] [PubMed]
- Bentley, S.D.; Chater, K.F.; Cerdeno-Tarraga, A.M.; Challis, G.L.; Thomson, N.R.; James, K.D.; Harris, D.E.; Quail, M.A.; Kieser, H.; Harper, D.; et al. Complete genome sequence of the model actinomycete Streptomyces coelicolor A3(2). Nature 2002, 417, 141–147. [Google Scholar] [CrossRef]
- Lee, N.; Hwang, S.; Kim, J.; Cho, S.; Palsson, B.; Cho, B.K. Mini review: Genome mining approaches for the identification of secondary metabolite biosynthetic gene clusters in Streptomyces. Comput. Struct. Biotechnol. J. 2020, 18, 1548–1556. [Google Scholar] [CrossRef]
- Nett, M.; Ikeda, H.; Moore, B.S. Genomic basis for natural product biosynthetic diversity in the actinomycetes. Nat. Prod. Rep. 2009, 26, 1362–1384. [Google Scholar] [CrossRef] [PubMed]
- Wu, L.; Ma, J. The Global Catalogue of Microorganisms (GCM) 10K type strain sequencing project: Providing services to taxonomists for standard genome sequencing and annotation. Int. J. Syst. Evol. Microbiol. 2019, 69, 895–898. [Google Scholar] [CrossRef] [PubMed]
- Komaki, H.; Ichikawa, N.; Oguchi, A.; Hamada, M.; Tamura, T.; Fujita, N. Genome-based analysis of non-ribosomal peptide synthetase and type-I polyketide synthase gene clusters in all type strains of the genus Herbidospora. BMC Res. Notes 2015, 8, 548. [Google Scholar] [CrossRef] [Green Version]
- Komaki, H.; Ichikawa, N.; Tamura, T.; Oguchi, A.; Hamada, M.; Fujita, N. Genome-based survey of nonribosomal peptide synthetase and polyketide synthase gene clusters in type strains of the genus Microtetraspora. J. Antibiot. 2016, 69, 712–718. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Komaki, H.; Oguchi, A.; Tamura, T.; Hamada, M.; Ichikawa, N. Diversity of nonribosomal peptide synthetase and polyketide synthase gene clusters in the genus Acrocarpospora. J. Gen. Appl. Microbiol. 2021, 66, 315–322. [Google Scholar] [CrossRef]
- Komaki, H.; Sakurai, K.; Hosoyama, A.; Kimura, A.; Igarashi, Y.; Tamura, T. Diversity of nonribosomal peptide synthetase and polyketide synthase gene clusters among taxonomically close Streptomyces strains. Sci. Rep. 2018, 8, 6888. [Google Scholar] [CrossRef] [Green Version]
- Komaki, H.; Tamura, T. Polyketide synthase and nonribosomal peptide synthetase gene clusters in type strains of the genus Phytohabitans. Life 2020, 10, 257. [Google Scholar] [CrossRef]
- Komaki, H.; Tamura, T.; Ichikawa, N.; Oguchi, A.; Hamada, M.; Suzuki, K.; Fujita, N. Genome-based analysis of type-I polyketide synthase and nonribosomal peptide synthetase gene clusters in a novel strain taxonomically close to the genus Salinispora. J. Antibiot. 2015, 68, 767–770. [Google Scholar] [CrossRef] [PubMed]
- Yoon, S.H.; Ha, S.M.; Kwon, S.; Lim, J.; Kim, Y.; Seo, H.; Chun, J. Introducing EzBioCloud: A taxonomically united database of 16S rRNA gene sequences and whole-genome assemblies. Int. J. Syst. Evol. Microbiol. 2017, 67, 1613–1617. [Google Scholar] [CrossRef] [PubMed]
- Rong, X.; Huang, Y. Taxonomic evaluation of the Streptomyces hygroscopicus clade using multilocus sequence analysis and DNA-DNA hybridization, validating the MLSA scheme for systematics of the whole genus. Syst. Appl. Microbiol. 2012, 35, 7–18. [Google Scholar] [CrossRef]
- Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Saito, H.; Miura, K.I. Preparation of transforming deoxyribonucleic acid by phenol treatment. Biochim. Biophys. Acta 1963, 72, 619–629. [Google Scholar] [CrossRef]
- Meier-Kolthoff, J.P.; Auch, A.F.; Klenk, H.P.; Göker, M. Genome sequence-based species delimitation with confidence intervals and improved distance functions. BMC Bioinform. 2013, 14, 60. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Blin, K.; Shaw, S.; Steinke, K.; Villebro, R.; Ziemert, N.; Lee, S.Y.; Medema, M.H.; Weber, T. antiSMASH 5.0: Updates to the secondary metabolite genome mining pipeline. Nucleic Acids Res. 2019, 47, W81–W87. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wayne, L.; Brenner, D.; Colwell, R.R.; Grimont, P.A.D.; Kandler, O.; Krichevsky, M.I.; Moore, M.H.; Moore, W.E.C.; Murray, R.G.E.; Stackebrandt, E.; et al. Report of the ad hoc committee on reconciliation of approaches to bacterial systematics. Int. J. Syst. Bacteriol. 1987, 37, 463–464. [Google Scholar] [CrossRef] [Green Version]
- Rong, X.; Guo, Y.; Huang, Y. Proposal to reclassify the Streptomyces albidoflavus clade on the basis of multilocus sequence analysis and DNA-DNA hybridization, and taxonomic elucidation of Streptomyces griseus subsp. Solvifaciens Syst. Appl. Microbiol. 2009, 32, 314–322. [Google Scholar] [CrossRef]
- Wendt-Pienkowski, E.; Huang, Y.; Zhang, J.; Li, B.; Jiang, H.; Kwon, H.; Hutchinson, C.R.; Shen, B. Cloning, sequencing, analysis, and heterologous expression of the fredericamycin biosynthetic gene cluster from Streptomyces griseus. J. Am. Chem. Soc. 2005, 127, 16442–16452. [Google Scholar] [CrossRef] [PubMed]
- Ikeda, H.; Ishikawa, J.; Hanamoto, A.; Shinose, M.; Kikuchi, H.; Shiba, T.; Sakaki, Y.; Hattori, M.; Omura, S. Complete genome sequence and comparative analysis of the industrial microorganism Streptomyces avermitilis. Nat. Biotechnol. 2003, 21, 526–531. [Google Scholar] [CrossRef] [PubMed]
- Meng, L.; Xiong, Z.; Chu, J.; Wang, Y. Enhanced production of avermectin by deletion of type III polyketide synthases biosynthetic cluster rpp in Streptomyces avermitilis. Lett. Appl. Microbiol. 2016, 63, 384–390. [Google Scholar] [CrossRef]
- Becerril, A.; Alvarez, S.; Brana, A.F.; Rico, S.; Diaz, M.; Santamaria, R.I.; Salas, J.A.; Mendez, C. Uncovering production of specialized metabolites by Streptomyces argillaceus: Activation of cryptic biosynthesis gene clusters using nutritional and genetic approaches. PLoS ONE 2018, 13, e0198145. [Google Scholar] [CrossRef]
- Lee, M.Y.; Ames, B.D.; Tsai, S.C. Insight into the molecular basis of aromatic polyketide cyclization: Crystal structure and in vitro characterization of WhiE-ORFVI. Biochemistry 2012, 51, 3079–3091. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Schwarzer, D.; Marahiel, M.A. Multimodular biocatalysts for natural product assembly. Naturwissenschaften 2001, 88, 93–101. [Google Scholar] [CrossRef] [PubMed]
- Wildermuth, H. Development and organization of the aerial mycelium in Streptomyces coelicolor. J. Gen. Microbiol. 1970, 60, 43–50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Faddetta, T.; Renzone, G.; Vassallo, A.; Rimini, E.; Nasillo, G.; Buscarino, G.; Agnello, S.; Licciardi, M.; Botta, L.; Scaloni, A.; et al. Streptomyces coelicolor vesicles: Many molecules to be delivered. Appl. Environ. Microbiol. 2021. [Google Scholar] [CrossRef] [PubMed]
- Li, M.; Kim, T.J.; Kwon, H.J.; Suh, J.W. Effects of extracellular ATP on the physiology of Streptomyces coelicolor A3(2). FEMS Microbiol. Lett. 2008, 286, 24–31. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Jankevics, A.; Merlo, M.E.; de Vries, M.; Vonk, R.J.; Takano, E.; Breitling, R. Metabolomic analysis of a synthetic metabolic switch in Streptomyces coelicolor A3(2). Proteomics 2011, 11, 4622–4631. [Google Scholar] [CrossRef]
- Sulheim, S.; Kumelj, T.; van Dissel, D.; Salehzadeh-Yazdi, A.; Du, C.; van Wezel, G.P.; Nieselt, K.; Almaas, E.; Wentzel, A.; Kerkhoven, E.J. Enzyme-constrained models and omics analysis of Streptomyces coelicolor reveal metabolic changes that enhance heterologous production. iScience 2020, 23, 101525. [Google Scholar] [CrossRef] [PubMed]
- Elliot, M.; Damji, F.; Passantino, R.; Chater, K.; Leskiw, B. The bldD gene of Streptomyces coelicolor A3(2): A regulatory gene involved in morphogenesis and antibiotic production. J. Bacteriol. 1998, 180, 1549–1555. [Google Scholar] [CrossRef] [Green Version]
- Martin, J.F.; Liras, P. Molecular mechanisms of phosphate sensing, transport and signalling in Streptomyces and related actinobacteria. Int. J. Mol. Sci. 2021, 22, 1129. [Google Scholar] [CrossRef]
- Shiffman, D.; Cohen, S.N. Role of the imp operon of the Streptomyces coelicolor genetic element SLP1: Two imp-encoded proteins interact to autoregulate imp expression and control plasmid maintenance. J. Bacteriol. 1993, 175, 6767–6774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Baltz, R.H. Streptomyces and Saccharopolyspora hosts for heterologous expression of secondary metabolite gene clusters. J. Ind. Microbiol. Biotechnol. 2010, 37, 759–772. [Google Scholar] [CrossRef] [PubMed]
- Eustaquio, A.S.; Gust, B.; Li, S.M.; Pelzer, S.; Wohlleben, W.; Chater, K.F.; Heide, L. Production of 8’-halogenated and 8’-unsubstituted novobiocin derivatives in genetically engineered Streptomyces coelicolor strains. Chem. Biol. 2004, 11, 1561–1572. [Google Scholar] [CrossRef] [Green Version]
- Kumar, K.; Bruheim, P. A comparative study at bioprocess and metabolite levels of superhost strain Streptomyces coelicolor M1152 and its derivative M1581 heterologously expressing chloramphenicol biosynthetic gene cluster. Biotechnol. Bioeng. 2021. [Google Scholar] [CrossRef] [PubMed]
- Mitousis, L.; Thoma, Y.; Musiol-Kroll, E.M. An update on molecular tools for genetic engineering of actinomycetes-the source of important antibiotics and other valuable compounds. Antibiotics 2020, 9, 494. [Google Scholar] [CrossRef]
- Pfeifer, B.A.; Khosla, C. Biosynthesis of polyketides in heterologous hosts. Microbiol. Mol. Biol. Rev. 2001, 65, 106–118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Bednarz, B.; Millan-Oropeza, A.; Kotowska, M.; Swiat, M.; Quispe Haro, J.J.; Henry, C.; Pawlik, K. Coelimycin synthesis activatory proteins are key regulators of specialized metabolism and precursor flux in Streptomyces coelicolor A3(2). Front. Microbiol. 2021, 12, 616050. [Google Scholar] [CrossRef]
- Falke, D.; Fischer, M.; Ihling, C.; Hammerschmidt, C.; Sinz, A.; Sawers, G. Co-purification of nitrate reductase 1 with components of the cytochrome bcc-aa3 oxidase supercomplex from spores of Streptomyces coelicolor A3(2). FEBS Open Bio. 2021, 11, 652–669. [Google Scholar] [CrossRef] [PubMed]
- Honma, S.; Ito, S.; Yajima, S.; Sasaki, Y. Nitric oxide signaling for actinorhodin production in Streptomyces coelicolor A3(2) via the DevS/R two-component system. Appl. Environ. Microbiol. 2021, 87, e0048021. [Google Scholar] [CrossRef]
- Tsevelkhoroloo, M.; Shim, S.H.; Lee, C.R.; Hong, S.K.; Hong, Y.S. LacI-family transcriptional regulator DagR acts as a repressor of the agarolytic pathway genes in Streptomyces coelicolor A3(2). Front. Microbiol. 2021, 12, 658657. [Google Scholar] [CrossRef] [PubMed]
- Streptomyces coelicolor A3(2), Taxonomy, NCBI. Available online: https://www.ncbi.nlm.nih.gov/taxonomy/100226 (accessed on 18 July 2021).
- Streptomyces Coelicolor A3(2) Complete Genome, Nucleotide, NCBI. Available online: https://www.ncbi.nlm.nih.gov/nuccore/AL645882.2 (accessed on 18 July 2021).
- Komaki, H.; Hosoyama, A.; Igarashi, Y.; Tamura, T. Streptomyces lydicamycinicus sp. nov. and its secondary metabolite biosynthetic gene clusters for polyketide and nonribosomal peptide compounds. Microorganisms 2020, 8, 370. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Komaki, H.; Sakurai, K.; Hosoyama, A.; Kimura, A.; Trujilo, M.E.; Igarashi, Y.; Tamura, T. Diversity of PKS and NRPS gene clusters between Streptomyces abyssomicinicus sp. nov. and its taxonomic neighbor. J. Antibiot. 2020, 73, 141–151. [Google Scholar] [CrossRef]
- Komaki, H.; Tamura, T. Reclassification of Streptomyces diastaticus subsp. ardesiacus, Streptomyces gougerotii and Streptomyces rutgersensis. Int. J. Syst. Evol. Microbiol. 2020, 70, 4291–4297. [Google Scholar] [CrossRef]
- Komaki, H.; Tamura, T. Reclassification of Streptomyces fulvissimus as a later heterotypic synonym of Streptomyces microflavus. Int. J. Syst. Evol. Microbiol. 2020, 70, 5156–5162. [Google Scholar] [CrossRef] [PubMed]
- Chun, J.; Oren, A.; Ventosa, A.; Christensen, H.; Arahal, D.R.; da Costa, M.S.; Rooney, A.P.; Yi, H.; Xu, X.W.; De Meyer, S.; et al. Proposed minimal standards for the use of genome data for the taxonomy of prokaryotes. Int. J. Syst. Evol. Microbiol. 2018, 68, 461–466. [Google Scholar] [CrossRef]
- Komaki, H. Reclassification of 15 Streptomyces species as synonyms of Streptomyces albogriseolus, Streptomyces althioticus, Streptomyces anthocyanicus, Streptomyces calvus, Streptomyces griseoincarnatus, Streptomyces mutabilis, Streptomyces pilosus or Streptomyces rochei. Int. J. Syst. Evol. Microbiol. 2019, 71, 004718. [Google Scholar] [CrossRef]
- Smanski, M.J.; Schlatter, D.C.; Kinkel, L.L. Leveraging ecological theory to guide natural product discovery. J. Ind. Microbiol. Biotechnol. 2016, 43, 115–128. [Google Scholar] [CrossRef] [PubMed]

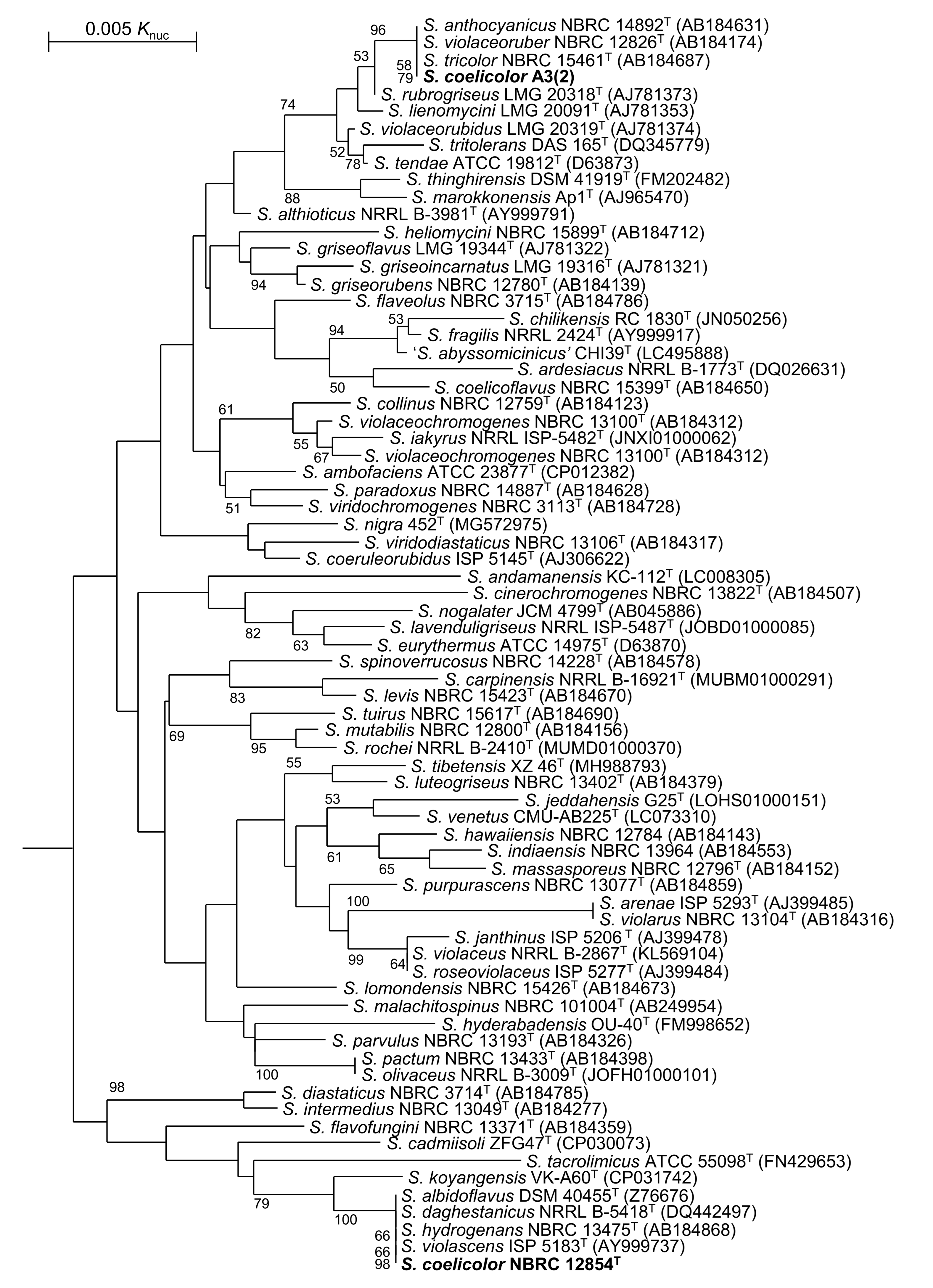

Figure 1.
Phylogenetic tree based on the 16S rDNA sequences. Numbers on the branches represent the confidence limits estimated by a bootstrap analysis with 1000 replicates; values above 50% are at the branching points. Streptomyces albus NBRC 13014T (AB184257) was used as an outgroup.
Figure 1.
Phylogenetic tree based on the 16S rDNA sequences. Numbers on the branches represent the confidence limits estimated by a bootstrap analysis with 1000 replicates; values above 50% are at the branching points. Streptomyces albus NBRC 13014T (AB184257) was used as an outgroup.

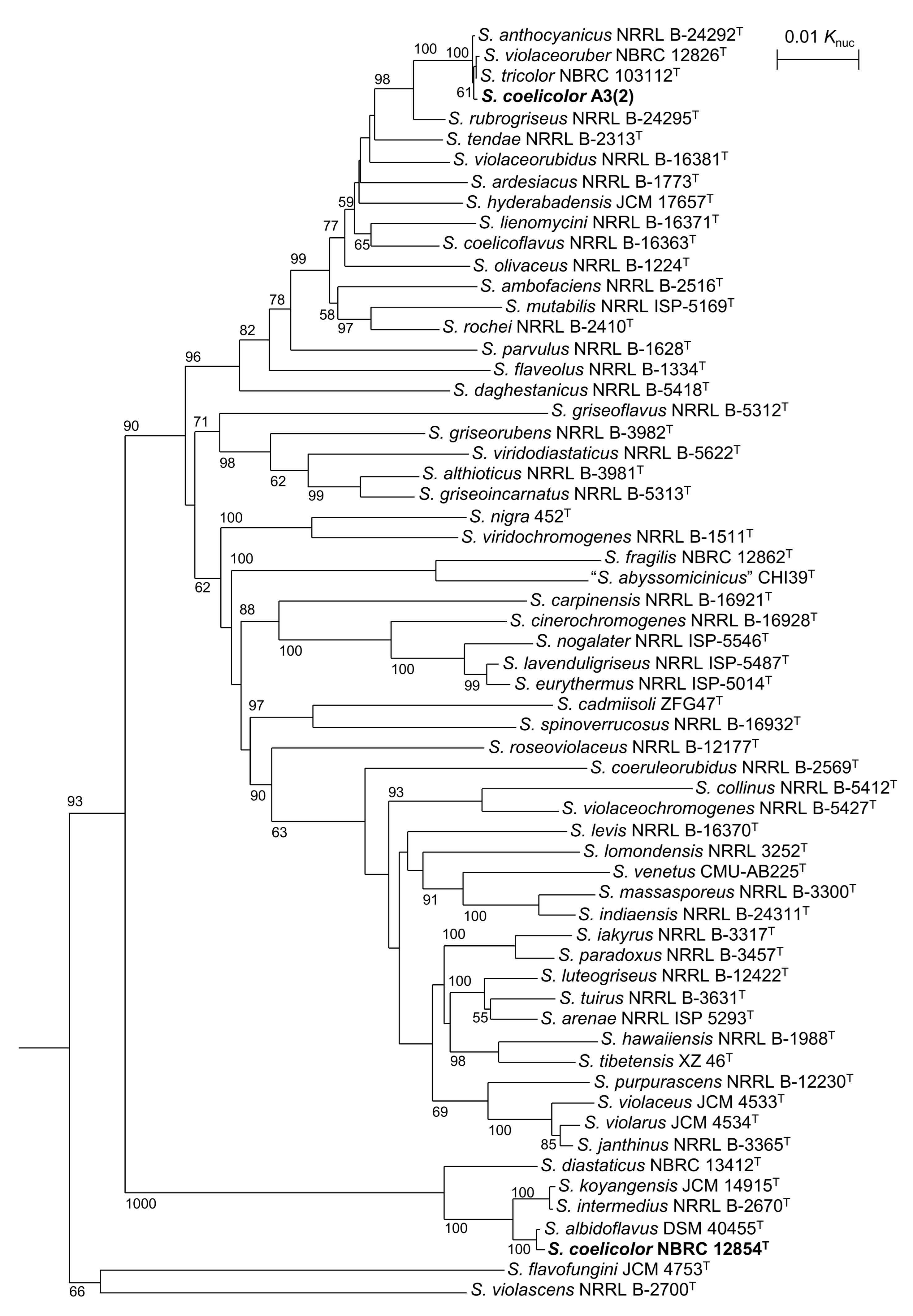

Figure 2.
Phylogenetic tree based on MLSA. Numbers on the branches represent the confidence limits estimated by a bootstrap analysis with 1000 replicates; values above 50% are at the branching points. S. albus NBRC 13014T was used as an outgroup.
Figure 2.
Phylogenetic tree based on MLSA. Numbers on the branches represent the confidence limits estimated by a bootstrap analysis with 1000 replicates; values above 50% are at the branching points. S. albus NBRC 13014T was used as an outgroup.

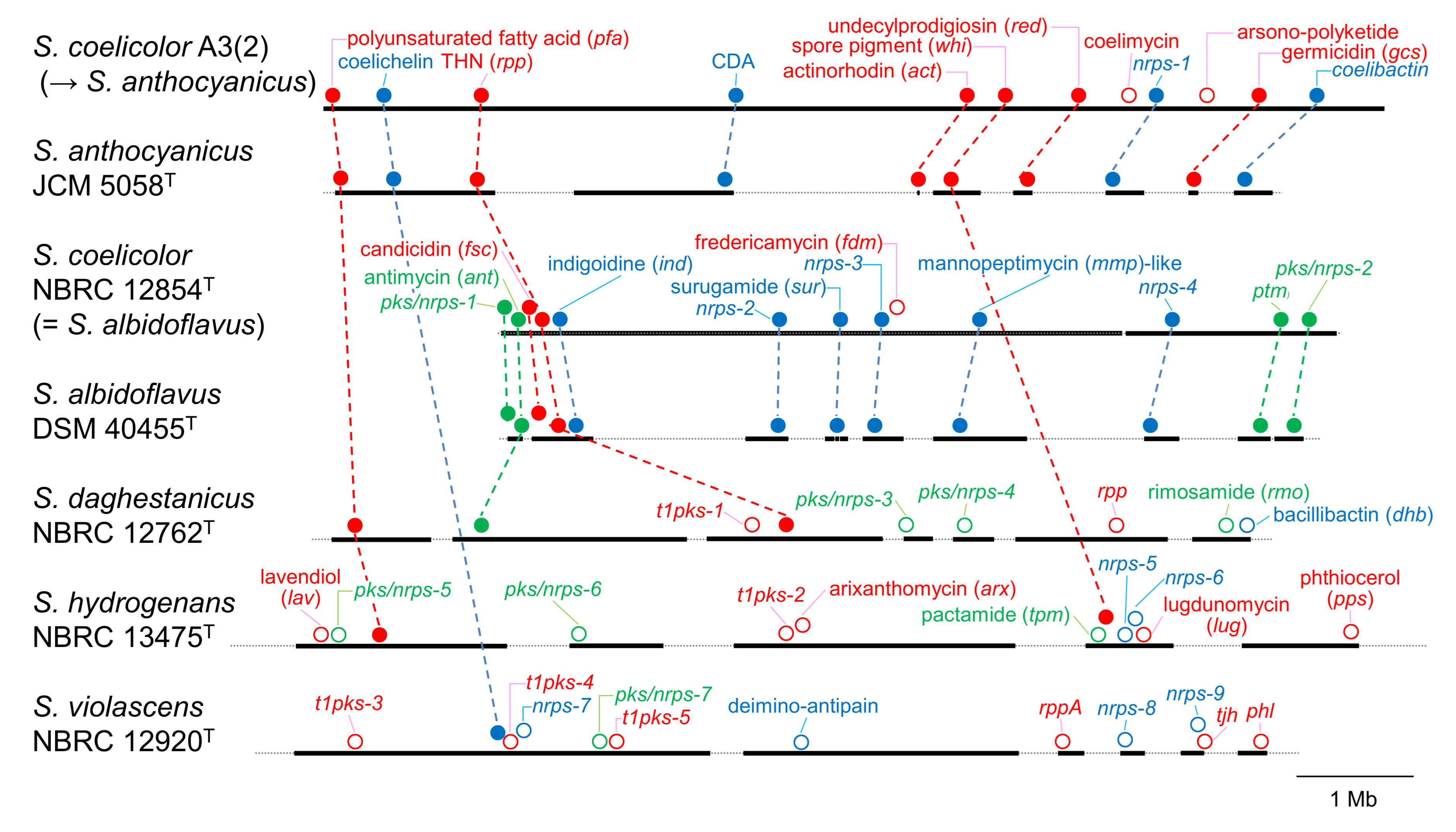

Figure 3.
PKS and NRPS gene clusters in genomes. Only chromosome or scaffold sequences encoding these gene clusters are indicated by black and bold horizontal lines. Alignments and directions of the scaffold sequences in six strains—excluding S. coelicolor A3(2)—are unclear, because their whole-genome sequences are incomplete drafts. The parts that look like gaps, where no PKS and NRPS gene clusters are present, are equally spaced in the figures of S. daghestanicus NBRC 12762T, S. hydrogenans NBRC 13475T, and S. violascens NBRC 12920T, because the lengths are unpredictable; however, the parts of S. anthocyanicus JCM 5058T and S. albidoflavus DSM 40455T are not, because they are aligned according to locations of PKS and NRPS gene clusters in the S. coelicolor A3(2) chromosome and S. coelicolor NBRC 12854T draft genome sequences, respectively. Light-gray horizontal dashed lines under the black and bold lines indicate putative whole genomes, such as chromosomes. Red: PKS gene cluster; blue: NRPS gene cluster; green: hybrid PKS/NRPS gene cluster; CDA: calcium-dependent antibiotics; THN: 1,3,6,8-tetrahydroxynaphthalene; ptm: polycyclic tetramate macrolactam biosynthetic gene cluster; t1pks: type-I PKS gene cluster; t2pks: type-II PKS gene cluster; t3pks: type-III PKS gene cluster. Gene clusters are shown as the products and/or gene names. As t1pks-1 to -5, tjh, phl, nrps-1 to -9, and pks/nrps-1 to -7 are orphan, their products are unclear. Gene clusters shown as closed circles are present in other strain(s) studied in this study, as connected by dashed lines. Gene clusters specific to each strain are shown by open circles. rppA, gcs, and phl are t3pks; act, whi, fdm, arx, lug, and tjh are t2pks; the other named PKS gene clusters are t1pks. All of the gene clusters shown here are completely sequenced in these draft genome sequences. →, S. coelicolor A3(2) is reclassified to S. anthocyanicus; =, S. coelicolor is a synonym of S. albidoflavus.
Figure 3.
PKS and NRPS gene clusters in genomes. Only chromosome or scaffold sequences encoding these gene clusters are indicated by black and bold horizontal lines. Alignments and directions of the scaffold sequences in six strains—excluding S. coelicolor A3(2)—are unclear, because their whole-genome sequences are incomplete drafts. The parts that look like gaps, where no PKS and NRPS gene clusters are present, are equally spaced in the figures of S. daghestanicus NBRC 12762T, S. hydrogenans NBRC 13475T, and S. violascens NBRC 12920T, because the lengths are unpredictable; however, the parts of S. anthocyanicus JCM 5058T and S. albidoflavus DSM 40455T are not, because they are aligned according to locations of PKS and NRPS gene clusters in the S. coelicolor A3(2) chromosome and S. coelicolor NBRC 12854T draft genome sequences, respectively. Light-gray horizontal dashed lines under the black and bold lines indicate putative whole genomes, such as chromosomes. Red: PKS gene cluster; blue: NRPS gene cluster; green: hybrid PKS/NRPS gene cluster; CDA: calcium-dependent antibiotics; THN: 1,3,6,8-tetrahydroxynaphthalene; ptm: polycyclic tetramate macrolactam biosynthetic gene cluster; t1pks: type-I PKS gene cluster; t2pks: type-II PKS gene cluster; t3pks: type-III PKS gene cluster. Gene clusters are shown as the products and/or gene names. As t1pks-1 to -5, tjh, phl, nrps-1 to -9, and pks/nrps-1 to -7 are orphan, their products are unclear. Gene clusters shown as closed circles are present in other strain(s) studied in this study, as connected by dashed lines. Gene clusters specific to each strain are shown by open circles. rppA, gcs, and phl are t3pks; act, whi, fdm, arx, lug, and tjh are t2pks; the other named PKS gene clusters are t1pks. All of the gene clusters shown here are completely sequenced in these draft genome sequences. →, S. coelicolor A3(2) is reclassified to S. anthocyanicus; =, S. coelicolor is a synonym of S. albidoflavus.
Table 1.
Accession numbers of housekeeping gene sequences used in MLSA.
| Strain | atpD | gyrB | recA | rpoB | trpB |
|---|---|---|---|---|---|
| S. albus NBRC 13014T | BBQG01000033 | BBQG01000007 | BBQG01000035 | BBQG01000012 | BBQG01000017 |
| “S. abyssomicinicus” CHI39T | BBZI01000006 | BBZI01000009 | BBZI01000014 | BBZI01000006 | BBZI01000008 |
| S. albidoflavus DSM 40455T | FJ406416 | FJ406427 | FJ406438 | FJ406449 | FJ406460 |
| S. althioticus NRRL B-3981T | KT384460 | KT384809 | KT385157 | KT388779 | KT389129 |
| S. ambofaciens NRRL B-2516T | KT384462 | KT384811 | KT385159 | KT388781 | KT389131 |
| S. anthocyanicus NRRL B-24292T | KT384465 | KT384814 | KT385162 | KT388784 | KT389134 |
| S. ardesiacus NRRL B-1773T | KT384534 | KT384883 | KT385231 | KT388853 | KT389203 |
| S. arenae NRRL ISP 5293T | KT384470 | KT384819 | KT385167 | KT388789 | KT389139 |
| S. cadmiisoli ZFG47T | CP030073 | CP030073 | CP030073 | CP030073 | CP030073 |
| S. carpinensis NRRL B-16921T | KT384503 | KT384852 | KT385200 | KT388822 | KT389172 |
| S. cinerochromogenes NRRL B-16928T | KT384514 | KT384863 | KT385211 | KT388833 | KT389183 |
| S. coelicoflavus NRRL B-16363T | KT384524 | KT384873 | KT385221 | KT388843 | KT389193 |
| S. coelicolor NBRC 12854T | BNDZ01000005 | BNDZ01000005 | BNDZ01000003 | BNDZ01000005 | BNDZ01000005 |
| S. coelicolor A3(2) | AL939123 | AL939118 | AL939125 | AL939121 | AL939121 |
| S. coeruleorubidus NRRL B-2569T | KT384528 | KT384877 | KT385225 | KT388847 | KT389197 |
| S. collinus NRRL B-5412T | KT384529 | KT384878 | KT385226 | KT388848 | KT389198 |
| S. daghestanicus NRRL B-5418T | KJ137021 | KJ137038 | KJ137055 | KJ996779 | KJ137089 |
| S. diastaticus NBRC 13412T | BLLN01000005 | BLLN01000002_ | BLLN01000005 | BLLN01000002 | BLLN01000003 |
| S. eurythermus NRRL ISP-5014T | KT384544 | KT384893 | KT385242 | KT388863 | KT389213 |
| S. flaveolus NRRL B-1334T | KT384550 | KT384899 | KT385248 | KT388869 | KT389219 |
| S. flavofungini JCM 4753T | JAEKOZ01000002 | JAEKOZ01000001 | JAEKOZ010000015 | JAEKOZ010000008 | JAEKOZ010000005 |
| S. fragilis NBRC 12862T | BEVZ01000004 | BEVZ01000008 | BEVZ01000002 | BEVZ01000004 | BEVZ01000003 |
| S. griseoflavus NRRL B-5312T | KT384578 | KT384927 | KT385276 | KT388897 | KT389247 |
| S. griseoincarnatus NRRL B-5313T | KT384580 | KT384929 | KT385278 | KT388899 | KT389249 |
| S. griseorubens NRRL B-3982T | KT384583 | KT384932 | KT385281 | KT388903 | KT389252 |
| S. hawaiiensis NRRL B-1988T | KT384592 | KT384941 | KT385290 | KT388912 | KT389261 |
| S. hyderabadensis JCM 17657T | JAIOJZ010000004 | JAIOJZ010000004 | JAIOJZ010000060 | JAIOJZ010000079 | JAIOJZ010000001 |
| S. hydrogenans NBRC 13475T | BNDW01000004 | BNDW01000040 | BNDW01000004 | BNDW01000004 | BNDW01000019 |
| S. iakyrus NRRL B-3317T | KT384600 | KT384949 | KT385298 | KT388920 | KT389269 |
| S. indiaensis NRRL B-24311T | KT384601 | KT384950 | KT385300 | KT388921 | KT389270 |
| S. intermedius NRRL B-2670T | KT384602 | KT384951 | KT385301 | KT388922 | KT389271 |
| S. janthinus NRRL B-3365T | KT384604 | KT384953 | KT385303 | KT388924 | KT389273 |
| S. koyangensis JCM 14915T | LC381971 | LC381972 | LC381973 | LC381974 | LC413709 |
| S. lavenduligriseus NRRL ISP-5487T | JOBD01000030 | JOBD01000019 | JOBD01000017 | JOBD01000005 | JOBD01000013 |
| S. levis NRRL B-16370T | KT384621 | KT384970 | KT385320 | KT388941 | KT389290 |
| S. lienomycini NRRL B-16371T | KT384622 | KT384971 | KT385321 | KT388942 | KT389291 |
| S. lomondensis NRRL 3252T | KT384626 | KT384975 | KT385326 | KT388946 | KT389295 |
| S. luteogriseus NRRL B-12422T | KT384632 | KT384981 | KT385332 | KT388952 | KT389301 |
| S. massasporeus NRRL B-3300T | KT384636 | KT384985 | KT385336 | KT388956 | KT389305 |
| S. mutabilis NRRL ISP-5169T | KT384652 | KT385002 | KT385353 | KT388972 | KT389321 |
| S. nigra 452T | CP029043 | CP029043 | CP029043 | CP029043 | CP029043 |
| S. nogalater NRRL ISP-5546T | KT384664 | KT385014 | KT385365 | KT388984 | KT389333 |
| S. olivaceus NRRL B-1224T | KT384667 | KT385017 | KT385368 | KT388987 | KT389336 |
| S. pactum ATCC 27456T | JACYXC010000001 | JACYXC010000001 | JACYXC010000001 | JACYXC010000001 | JACYXC010000001 |
| S. paradoxus NRRL B-3457T | KT384674 | KT385024 | KT385375 | KT388994 | KT389343 |
| S. parvulus NRRL B-1628T | KJ196367 | KJ196369 | KJ196371 | KJ196373 | KJ196375 |
| S. purpurascens NRRL B-12230T | KT384696 | KT385046 | KT385397 | KT389017 | KT389365 |
| S. rochei NRRL B-2410T | KT384704 | KT385054 | KT385405 | KT389025 | KT389373 |
| S. roseoviolaceus NRRL B-12177T | KT384710 | KT385060 | KT385411 | KT389031 | KT389379 |
| S. rubrogriseus NRRL B-24295T | KT384715 | KT385065 | KT385416 | KT389036 | KT389384 |
| S. spinoverrucosus NRRL B-16932T | KT384725 | KT385074 | KT385426 | KT844525 * | KT389394 |
| S. tendae NRRL B-2313T | KT384733 | KT385082 | KT385434 | KT389053 | KT389402 |
| S. tibetensis XZ 46T | SZVR01000021 | SZVR01000021 | SZVR01000011 | SZVR01000023 | SZVR01000005 |
| S. tricolor NBRC 103112T | LC634004 | LC634005 | LC634006 | LC634007 | LC634008 |
| S. tuirus NRRL B-3631T | KT384742 | KT385090 | KT385444 | KT389062 | KT389411 |
| S. venetus CMU-AB225T | LC381976 | LC381977 | LC381978 | LC381979 | LC381980 |
| S. violaceochromogenes NRRL B-5427T | KT384748 | KT385096 | KT385450 | KT389068 | KT389417 |
| S. violaceoruber NBRC 12826T | LC634009 | LC634010 | LC634011 | LC634012 | LC634013 |
| S. violaceorubidus NRRL B-16381T | JODM01000021 | JODM01000004 | JODM01000011 | JODM01000001 | JODM01000015 |
| S. violaceus JCM 4533T | LC381981 | LC381982 | LC381983 | LC381984 | LC381985 |
| S. violarus JCM 4534T | BMUP01000003 | BMUP01000013 | BMUP01000001 | BMUP01000012 | BMUP01000009 |
| S. violascens NRRL B-2700T | KT384752 | KT385100 | KT385454 | KT389072 | KT389421 |
| S. viridochromogenes NRRL B-1511T | KT384756 | KT385104 | KT385458 | KT389076 | KT389425 |
| S. viridodiastaticus NRRL B-5622T | KT384757 | KT385105 | KT385459 | KT389077 | KT389426 |
* As the sequence of S. spinoverrucosus NRRL B-16932T is not published in GenBank, that of S. spinoverrucosus DSM 41648T is alternatively used.
Table 2.
DNA–DNA relatedness.
| Strain | DDH Estimate (%) | ||||||
|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
| - | 91.8 | 23.2 | 23.2 | 22.7 | 22.7 | 23.1 |
| - | 23.0 | 23.1 | 22.7 | 22.7 | 22.7 | |
| - | 23.0 | 22.7 | 28.0 | 28.1 | ||
| - | 23.4 | 22.8 | 22.9 | |||
| - | 22.6 | 22.8 | ||||
| - | 94.2 | |||||
| - | ||||||
The accession numbers of the used genome sequences are as follows: (1) PKLO00000000.1; (2) BMWI00000000.1; (3) AL645882. The other accession numbers are shown in the Materials and Methods.
Table 3.
PKSs and NRPSs in the orphan gene clusters and the predicted products.
| Strain | Gene Cluster | ORF (Locus Tag) | Domain Organization | Predicted Product |
|---|---|---|---|---|
| S. coelicolor A3(2) | nrps-1 | SCO6431 SCO6432 | A/T-C/T C/Acys/T-Te | Tripeptide (x-y-cys) |
| S. coelicolor NBRC 12854T | nrps-2 | ScoT_42860 | A/T/E-TD | Unknown |
| nrps-3 | ScoT_34810 | C/A/T-C/A/T-C/A/T-Te | Tripeptide | |
| nrps-4 | ScoT_12950 ScoT_12970 | Aphe/T-C/A/T/E-C/Aval/T C/A/T/E-C/Athr/T-C/Athr/T/E | Hexapeptide (phe-x-val-x-thr-thr) | |
| pks/nrps-1 | ScoT_62740 ScoT_62750 ScoT_62760 ScoT_62780 | Agly/T-KS/DH/ACP-KS/ATm DH/KR/ACP-KS/ACP-KS/KR/ACP KS/DH/ACP-KS/ATm DH/KR/ACP-AmT | Hexaketide including gly | |
| pks/nrps-2 | ScoT_02700 ScoT_02710 ScoT_02720 | A/T KS/ACP-C/Aala/T/C-Te C/Athr/T-C/T/E-C/Aval/T-C | Pentapeptide with polyketide moiety (thr-y-val-x-pk-ala) | |
| S. daghestanicus NBRC 12762T | t1pks-1 | Sdagh_09690 Sdagh_09680 Sdagh_09670 | CoL/KR/ACP-KS/ATmm/KR/ACP-KS/ATmm/DH/KR/ACP KS/ATm/DH/KR/ACP KS/ATm/ACP | Tetraketide with a starter |
| pks/nrps-3 | Sdagh_50890 Sdagh_50900 Sdagh_50940 Sdagh_50980 | C A/KR/ACP A T | Unknown | |
| pks/nrps-4 | Sdagh_52260 Sdagh_52060 Sdagh_51920 Sdagh_51910 Sdagh_51900 | T-C/Acys/MT/T KS (type-III PKS) A/T/E-C/A/T/E-C/A/T/E-C/A/T/E-C/Athr/T/E C/A/T/E C/A/T-C/A/T-C/A/T-X/A-Te | Undecapeptide including cys, thr, and a polyketide moiety | |
| S. hydrogenans NBRC 13475T | t1pks-2 | Shyd_35460 | KS/ATmm/ACP- KS/ATmm/DH/ER/KR/ACP | Unknown |
| nrps-5 | Shyd_62130 Shyd_62150 Shyd_62160 | Aphe/MT/T C/Aval/T-C/Agly/T/E C/A/T-Te | Tetrapeptide (methyl phe-val-gly-x) | |
| nrps-6 | Shyd_62460 Shyd_62450 | A/MT/T-C/A/T-C/Aval/T C/A/T-C/Athr/T-Te | Pentapeptide (methyl x-x-val-x-thr) | |
| pks/nrps-5 | Shyd_13440 Shyd_13450 Shyd_13460 Shyd_13470 Shyd_13490 Shyd_13520 Shyd_13530 | Aval/T C/T-C T KS/ACP-TD T FkbH A | Dipeptide with a polyketide moiety | |
| pks/nrps-6 | Shyd_48540 Shyd_48670 Shyd_48680 | Aval/T-C Atyr/T KS/ATm/ACP | Dipeptide with a polyketide moiety (val-tyr-pk) | |
| S. violascens NBRC 12920T | t1pks-3 | Sviol_48010 Sviol_48000 Sviol_47990 | KS/ATm/ACP-KR KS/ATm ACP | Unknown |
| t1pls-4 | Sviol_60680 | KS/AT/DH/MT/ER/KR/ACP | Unknown | |
| t1pks-5 | Sviol_68600 | KS/AT/DH/KR/ACP | Unknown | |
| tjh (t2pks) | Sviol_35480 Sviol_35470 Sviol_35460 Sviol_35440 | KSα KSβ (CLF) ACP KR | Unidentified aromatic polyketide | |
| phlD | Sviol_40150 | KS (type-III PKS) | Unidentified polyketide | |
| nrps-7 | Sviol_61030 | C/Athr/T-Te | Unknown including thr | |
| nrps-8 | Sviol_25110 | C/Aphe/T/E-C/Aphe/T-C/A/T/T-Te | Tripeptide (phe-phe-x) | |
| nrps-9 | Sviol_35280 Sviol_35230 Sviol_35220 | A/T-C T A | Dipeptide | |
| nrps-10 | Sviol_76120 Sviol_76140 Sviol_76160 | A/KR/ACP Acys/T-C/A/T C/Aala/T/E-C/A/T-C/A/T/E-C/A/T-Te | Heptapeptide including cys and ala | |
| pks/nrps-7 | Sviol_68100 Sviol_68090 Sviol_68080 Sviol_68070 Sviol_68030 Sviol_68020 Sviol_67990 Sviol_67980 | A/T C/A/T-C/T KS/DH/ACP-TD A ATm TE ACP KS | Tripeptide with a polyketide moiety |
A: adenylation; ACP: acyl carrier protein; AmT: aminotransferase; AT: acyltransferase; ATm: AT for malonyl-CoA: ATmm: AT for methyl malonyl-CoA; C: condensation; CLF: chain length factor; CoL: CoA ligase; DH: dehydratase; E: epimerization; ER: enoyl reductase; KR: ketoreductase; KS: ketosynthase; MT: methyltransferase; pk: polyketide; T: thiolation; TD: termination; Te: thioesterase: x: unidentified amino acid residue; X: unknown domain: y: unknown unit by lack of A domain in the module. Amino acids incorporated by A domains are indicated as three-letter abbreviations in subscripts just after A.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Komaki, H.; Tamura, T. Differences at Species Level and in Repertoires of Secondary Metabolite Biosynthetic Gene Clusters among Streptomyces coelicolor A3(2) and Type Strains of S. coelicolor and Its Taxonomic Neighbors. Appl. Microbiol. 2021, 1, 573-585. https://doi.org/10.3390/applmicrobiol1030037
AMA Style
Komaki H, Tamura T. Differences at Species Level and in Repertoires of Secondary Metabolite Biosynthetic Gene Clusters among Streptomyces coelicolor A3(2) and Type Strains of S. coelicolor and Its Taxonomic Neighbors. Applied Microbiology. 2021; 1(3):573-585. https://doi.org/10.3390/applmicrobiol1030037
Chicago/Turabian StyleKomaki, Hisayuki, and Tomohiko Tamura. 2021. "Differences at Species Level and in Repertoires of Secondary Metabolite Biosynthetic Gene Clusters among Streptomyces coelicolor A3(2) and Type Strains of S. coelicolor and Its Taxonomic Neighbors" Applied Microbiology 1, no. 3: 573-585. https://doi.org/10.3390/applmicrobiol1030037
APA StyleKomaki, H., & Tamura, T. (2021). Differences at Species Level and in Repertoires of Secondary Metabolite Biosynthetic Gene Clusters among Streptomyces coelicolor A3(2) and Type Strains of S. coelicolor and Its Taxonomic Neighbors. Applied Microbiology, 1(3), 573-585. https://doi.org/10.3390/applmicrobiol1030037
