Review

Bibliometric Analysis of Bio- and Earth-Based Building Materials: Current and Future Trends

by
Séverine Rosa Latapie
*,
Ariane Abou-Chakra
and
Vincent Sabathier
INSA, UPS, LMDC (Laboratoire Matériaux et Durabilité des Constructions), Université de Toulouse, 135 Avenue de Rangueil, CEDEX 04, 31077 Toulouse, France
*
Author to whom correspondence should be addressed.
Constr. Mater. 2023, 3(4), 474-508; https://doi.org/10.3390/constrmater3040031
Submission received: 4 October 2023 / Revised: 10 November 2023 / Accepted: 21 November 2023 / Published: 30 November 2023
Browse Figures
Versions Notes

Abstract

:
The energy and environmental transition in the building sector requires the development and use of low-impact materials. Despite the growing interest in bio-based and earth-based building materials, their widespread adoption is still limited due to a lack of hindsight, as their study is relatively recent. This study aims to contribute to the development of these materials by providing an extensive overview of key contributors (authors, countries, journals) in these fields. Then, the keywords of the corresponding publications were analyzed to reveal the main topics covered to date. First, a broad scale is presented, followed by a focus on sub-categories, specifically raw materials for bio-based building materials and implementation techniques for earth-based ones. Finally, a comparative analysis, with the themes covered by composite construction materials as a whole, completes the study. Using statistical analysis coupled with bibliometric network visualization software, this study provides clear, quantifiable, and objective insights into current trends. Furthermore, it facilitates the identification of new, promising research perspectives and highlights the importance of interdisciplinary collaboration. Physics, modeling, durability and microstructure studies emerge as relevant levers for advancing the future development of these eco-friendly building materials.

1. Introduction

The 21st century is the one of global warming awareness. The risks for humanity are major: an increase in natural disasters and their consequences (high mortality, major destruction of buildings and historic sites, etc.), loss of biodiversity, food insecurity, societal conflicts or negative impacts on health (pollution-related pathologies, anxiety, access to drinking water, more pathogens, etc.) [1,2,3,4]. As the construction sector is one of the most environmentally impacting [5,6], research into low-impact building materials has been multiplying in recent years. This especially applies to bio-based and earth-based building materials.
Bio-based materials provide performances that contribute to both energy efficiency and building comfort by incorporating agricultural by-products (hemp shiv, sunflower pith or bark, flax shiv, etc.) or wild plants (reed, bamboo, etc.) [7,8,9]. In the literature, recent reviews of their thermo-hydric performances and applications [10], their fire behaviors [11], the alternative binders used [12], but also the economic and political obstacles to their development [13] are available. No overall analysis has been carried out on this emerging field of research in terms of bibliometric analysis.
Earth-based materials have been used in construction for thousands of years, but their study is relatively new [14]. Their potential is known: low gray energy, low carbon dioxide emissions and recyclability (if not stabilized) [15,16]. Moreover, the hygroscopic capacity of clay-based material ensures indoor hygrometric equilibrium [17]. However, while this eco-material is being used with innovative techniques such as 3D printing [18], it is still difficult to understand its behavior. This presents difficulties of characterization [19] and reproducibility [20]. Review articles examine the environmental benefits of earth construction [15], the effect of incorporating plant fibers or aggregates [14,21], or characterization and production techniques [22,23]. The social, political, and economic aspects of using raw earth in construction have also been studied [24,25]. However, there is neither a comprehensive study nor a bibliometric analysis of the research carried out to date on this ancestral material.
The choice of treating both bio- and geo-based building materials in the same bibliometric study is a conscious one. These materials share a common history. Although they have only recently been studied, ancestral construction techniques demonstrate the relevance of using plant fibers in earth-based matrices [26,27,28]. This is due to the complementary nature of the two materials. Earth is a structural material that passively regulates ambient humidity, thus contributing to the building’s interior comfort [22]. Plant-based aggregates also have the ability to moderate humidity variations in the indoor environment, and no deleterious effects are observed when plant aggregates are incorporated into a clay base, contrary to observations made for certain combinations of aggregates and cementitious matrices [9]. Consequently, the combined effects of the two materials offer great passive humidity regulation capacities [29]. In addition, incorporating plant aggregates can improve the thermal performance of an earth material [30,31,32] and limit its drying shrinkage [33]. A growing number of research projects are exploiting this potential by combining the use of plant-based aggregates and raw earth [34,35,36].
In this light, the purpose of this study is to present a bibliometric overview of the field concerning bio- and earth-based building materials in order to give an overall view of each one. Data concerning these two areas have been processed using two methods: a statistical analysis and the design of visualization maps. The idea is to map each discipline. The results are intended to be used by anyone starting research in one or both of these disciplines. The results are also intended to serve as a reference for experienced researchers in order to identify a new working focus. Several avenues are proposed in this study, but they cannot be exhaustive.
Based on 1778 publications concerning bio-based building materials and 1605 concerning earth-based building materials, this study provides, therefore, a general overview of these emerging research fields. The bibliographic data of these publications were collected from the Web of Science database. This database was chosen because its content is multi-disciplinary [37], enabling a wide range of publications to be taken into account. However, the choice of database may introduce biases [37,38]. However, the large number of publications considered may limit these biases. Again, this study simply sheds new light on general trends in the field of bio- and geo-based building materials and can not represent an exhaustive study.
A preliminary statistical analysis provides an overview of current research activities. A comparison with a field that emerged a few years earlier, composite materials, allowing a comparison of current dynamics and giving an indication of possible future prospects. Then, a more in-depth analysis of the research data was carried out using VOSviewer software. This recent visualization tool can relate and illustrate bibliometric networks [39,40,41,42]. Exploring the literature—particularly, the links between authors, themes, and most cited articles—has highlighted several significant points in the fields, as mentioned above. This bibliometric analysis thus underscores major research lines of the scientific community to date. It also identifies grey areas, i.e., topics that have not yet been addressed in order to propose new perspectives of work and help the development of bio- and geo-based materials. Likewise, a more targeted study is carried out on the raw materials for bio-based building materials and on implementation techniques for geo-based building materials.

2. Materials and Methods

2.1. Database: Web of Science

Particular attention has been paid to the selection of publications and corresponding data. The aim was to establish a sufficiently large dataset for conducting a relevant statistical study. Thus, all publication years from 1900 (database limit) to 2022 were systematically considered. It was also essential to base the study on relevant publications, so retractions were not taken into account. Table 1 summarizes the criteria used to select the publications considered in this review for the primary statistical analysis. They constitute the original database.
From this database, a systematic statistical analysis was carried out on bio- and geo-based building materials. This analysis highlights several aspects, including the number of publications per year, the typology of these publications, the countries/authors/journals with the highest publication rates, and the main topics studied. It is worth noting that a publication may at this stage be reported more than once, for example, if several authors have collaborated, or if it covers more than one topic. However, this gives an overview of each discipline considered in this study. The case of composite materials has been approached in a different way, as it provides a basis for comparison.

2.2. Bibliometrics Analysis Software: VOSviewer

VOSviewer [43] is a computer program created in 2010 with the aim of facilitating bibliometric studies and addressing the increasing volume of data [44]. Versions have evolved up to the 1.6.19 one used in this study. The program’s algorithm, developed in Java script, is configured to extract bibliometric data from the considered database, enabling the creation of bibliometric network visualization maps. The larger the map element, the more it is cited in the analyzed database. Elements can represent publications, researchers, or research topics, and they are connected pairwise. The strength of the connection is indicated by the width of the line. The links available from a considered database are the following:
-
Co-authorship: Refers to publications co-authored by two authors, organizations or countries.
-
Co-occurrence: Describes publications in which two keywords appear together.
-
Citation: Involves one element (document, source, author, organization, country) citing another one.
-
Bibliometric coupling: Measures the number of common references between two documents, sources, authors, organizations or countries.
-
Co-citation: Quantifies the number of times items (references, sources, authors) are cited together in the same document.
The database considered should not be too large to allow an effective visualization of the map. It is one of the software’s limitations. The analysis of the co-authorship link reveals the primary contributors in a field. The advantage of visualization maps is that they allow us to understand the collaborations between various authors, in addition to their individual contributions. To provide a temporal dimension to the visualization, a time scale can be added. Moreover, the choice of highlighted links is essential for a pertinent analysis. First, the main contributors and their cooperation concerning bio- and geo-based building materials is analyzed with co-authorship links study. Then, in order to bring out the founding works as well as the themes covered in each field, co-citation and co-occurrence links are considered. It enables us to identify themes still neglected or not covered at all and complements the simple comparison with composite materials.
In addition, the visualization maps highlight clusters of elements (depending on the chosen analysis). These clusters require subsequent analysis and interpretation. A wide range of map combinations can be generated from a given database. In this study, the results that seemed most relevant are presented, aiming to provide an overview of the current state in each discipline and suggest new research directions. Keyword analysis is carried out for each category, as well as for sub-categories.

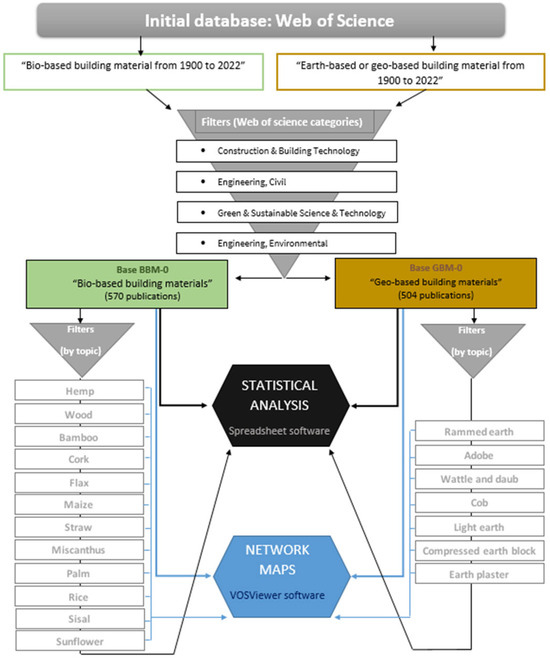

2.3. Work Methodology

To ensure representativeness, a sufficient amount of data is needed, necessitating careful selection in advance. It is also important to ensure that the major works in the green building sector are included. The Web of Science was chosen as the literature database for publication extraction due to its compatibility with VOSviewer software and its recognized relevance for the specific review conducted in this study [37,45]. Data selection played an essential role in this study. In order to retain only relevant publications related to the construction sector, filters within the Web of Science platform were applied. Two distinct working databases, respectively noted “Base BBM-0” and “Base GBM-0”, for bio- and geo-based materials were thus established. Subsequently, the extracted database underwent further processing using spreadsheet software to conduct the statistical study. To create visualization maps, the refined database was imported into the VOSviewer software. From the “Base BBM-0” and “Base GBM-0” databases, the Web of Science platform was used to select publications concerning “sub-categories”. These sub-categories specifically focused on raw materials for bio-based materials and processing techniques for geo-based materials. To summarize the adopted methodology, a visual representation is presented in the form of a flow chart (Figure 1).
To complete the analysis, the same filters (categories) as those described in Figure 1 were applied to the Web of Science publication data corresponding to “Composite building materials”. Only the year 2022 was retained, corresponding to 518 articles, a number compatible with the capabilities of the VOSviewer software.

3. Results

3.1. Preliminary Statistical Analysis

3.1.1. Bio-Based Building Materials

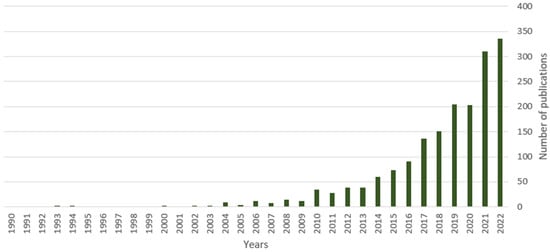

  • Increasing number of scientific publications
A small number of research projects were carried out in the late 1990s on bio-based building materials. The field really emerged in the late 2000s (Figure 2).
The environmental impact of the construction industry was raised in the literature as early as the 1990s [46,47,48,49]. Bio-based building materials, known for their low environmental impact, became the focus of an increasing number of research projects in the following years. The academic community has embraced environmental issues to propose alternative solutions to conventional building materials [50,51]. Reflecting this global awareness, eco-friendly materials have been the subject of a growing number of publications since the 2010s. In 2020, a temporary slowdown in research activity was observed, likely attributable to the global crisis caused by the Covid virus.
However, the last few years, 2021 and 2022, have shown a notable resurgence in research activity within the field of bio-based building materials.

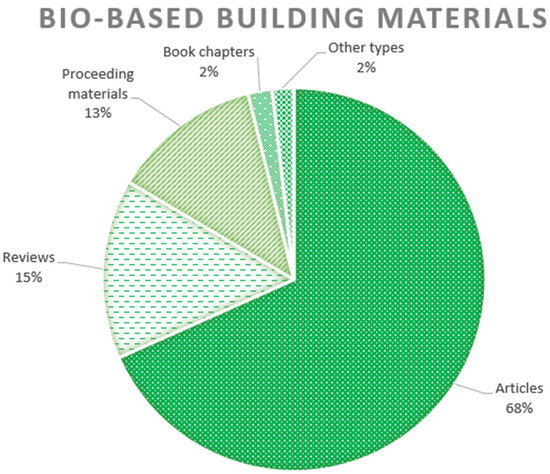

Furthermore, the publication typology reveals a strong tendency to write original articles (Figure 3). Although research activities in this field are relatively recent, review articles represent a relatively large proportion of the publications. In similar proportions, proceedings account for almost 15% of total publications, with a small percentage of book chapters and “other types” of publications including data papers, meeting abstracts and editorial material.
  • Geographic and editorial dynamics
Societal and political issues may have diverged, leading to significant disparities among countries [46,52,53]. Looking closely at the countries publishing the most papers on bio-based building materials, it is interesting to note that European countries are well represented, but they are not the only ones. China, France and the United States are the countries most involved in the academic dynamic in the bio-based building materials sector (Table 2). Regarding authors, a significant portion of publications on the subject of bio-based building materials have been contributed by authors in France and more broadly across Europe (Table 3).
Finally, Construction and Building Materials is the journal that publishes the most on bio-based building materials. The other leading journals in the discipline have very similar publication frequencies, between 20 and 40 publications per year (Table 4).
  • Main topics covered

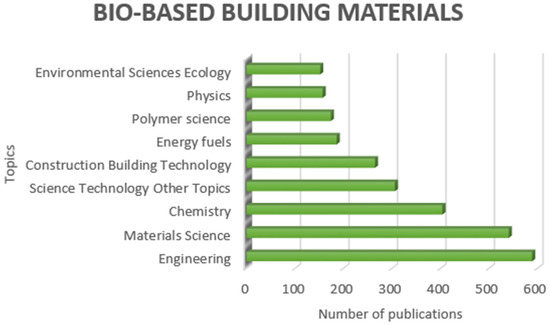

Another valuable aspect of this preliminary statistical study is the list and proportion of topics considered in bio-based building material publications (Figure 4). This demonstrates that fields such as engineering, materials science and chemistry seem to be widely explored, whereas areas like physics, polymer science or environmental sciences (ecology) receive comparatively less attention.
  • Focus on raw materials

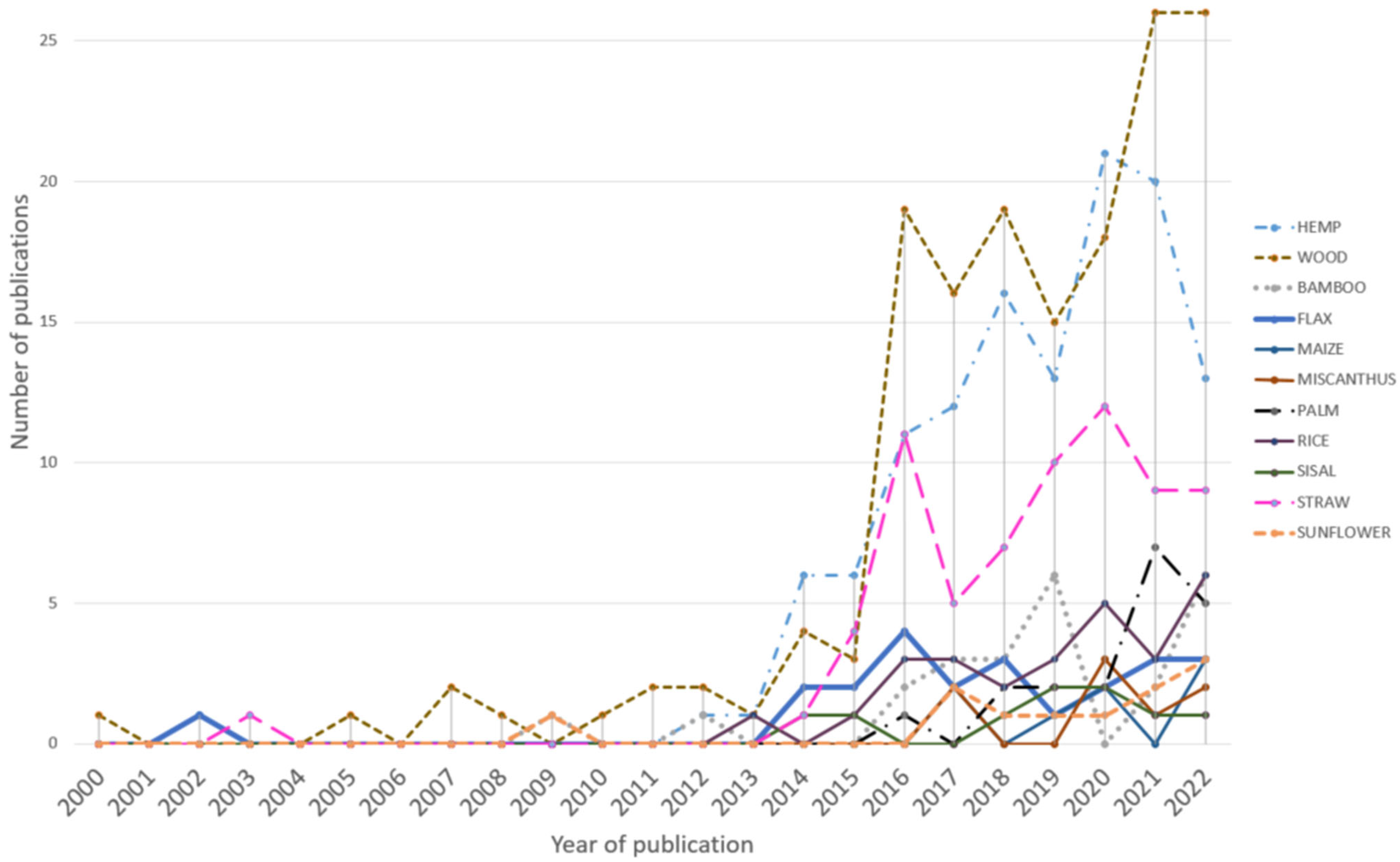

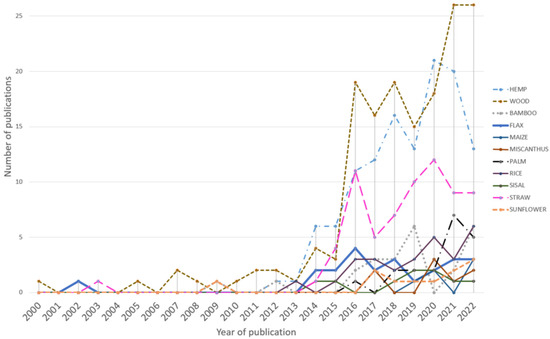

An additional analysis of the raw materials used as bio-based building materials was carried out (Figure 5).
Not surprisingly, wood has been the most widely published topic for almost 20 years. It is followed by hemp, which is also widely studied, well ahead of all other plant-based aggregates. The prevalence of hemp is attributed to its rapid growth in many climates [54]. Additionally, there is promising research on other raw materials from wild plants (such as bamboo) or agricultural by-products (like maize, sunflower, etc.) [55,56]. Since 2015, there has been a growing interest and diversification in the study of raw materials. Particularly, straw stands out with a relatively high number of publications. For other raw materials, it is difficult at this stage to differentiate them in terms of publication dynamics. It should be pointed out that, for the sake of clarity in the graphical representation, raw materials with fewer than five publications in the Web of Science database have been omitted. This group includes jute, reed, cork, mussel or oyster shell, barley, rapeseed and sheep wool. Nevertheless, the extensive range of resources studied is probably an opportunity to use local resources minimizing the environmental footprint of building materials [57]. However, a significant challenge arises in ensuring equivalent performance based on the local resource [58]. Overcoming this scientific bottleneck is crucial for advancing the development of bio-based building materials.

3.1.2. Earth-Based Building Materials

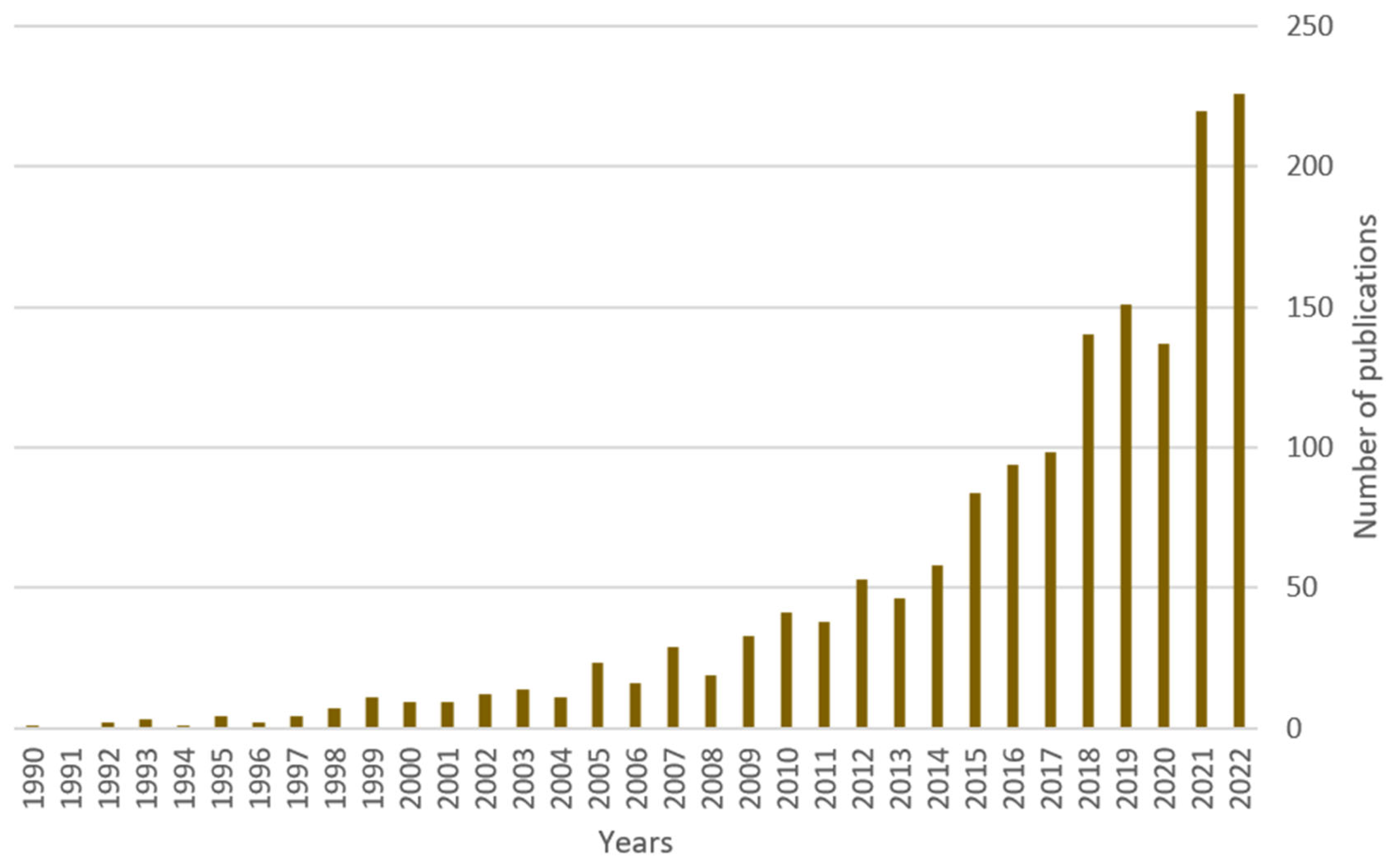

  • Increasing number of scientific publications
Research related to raw earth building materials emerged in the 1990s (Figure 6). The number of annual publications has significantly increased since 2005, with dynamics in the following years showing a relatively similar trend to that of bio-based building materials.
However, it can be observed that the field of materials using earth as a raw material faces challenges in terms of publication output. In recent years, approximatively 30% fewer publications have been published on geo-based building materials than on bio-based ones. It is certainly a multi-factorial phenomenon that combines a biased representation of the material, a lack of incentive policies and sustainability concerns [24,59,60].
The number of publications remained particularly limited in 2020. This was probably due to the slowdown in research activities during the Covid crisis [61]. However, in subsequent years, publications have been on the rise.

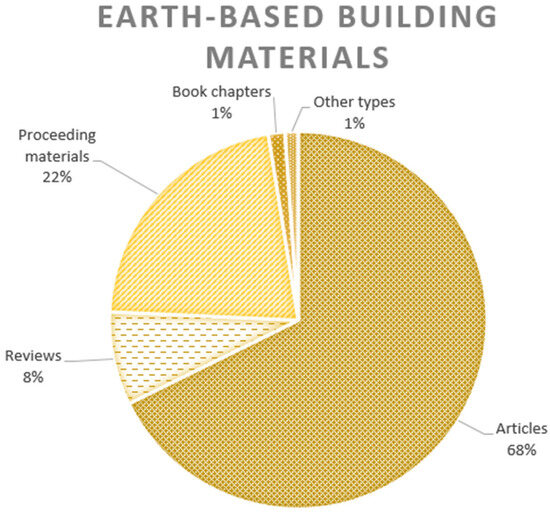

The types of publications also logically show a significant proportion of original articles, such as for bio-based building materials (Figure 7). Review articles represent a small proportion, approximately half of what was observed for bio-based materials. In contrast, the proportion of proceeding materials was much higher, roughly twice as high as that for bio-based materials.
  • Geographic and editorial dynamics
Despite a large proportion of the population living in earth-based dwellings [62] and the recognized advantages of this material in construction [25], research activities on this subject are concentrated in only a few countries (Table 5). Over 50% of publications come from the following countries: the United States of America, China, France and Italy.
The majority of authors in the field of raw earth building materials are Europeans. French authors are particularly active in this domain (Table 6).
Similarly to bio-based building materials, the leading journal for geo-based building materials is Construction and Building Materials. It contributes approximately three to four times more than most other journals in the field (Table 7).

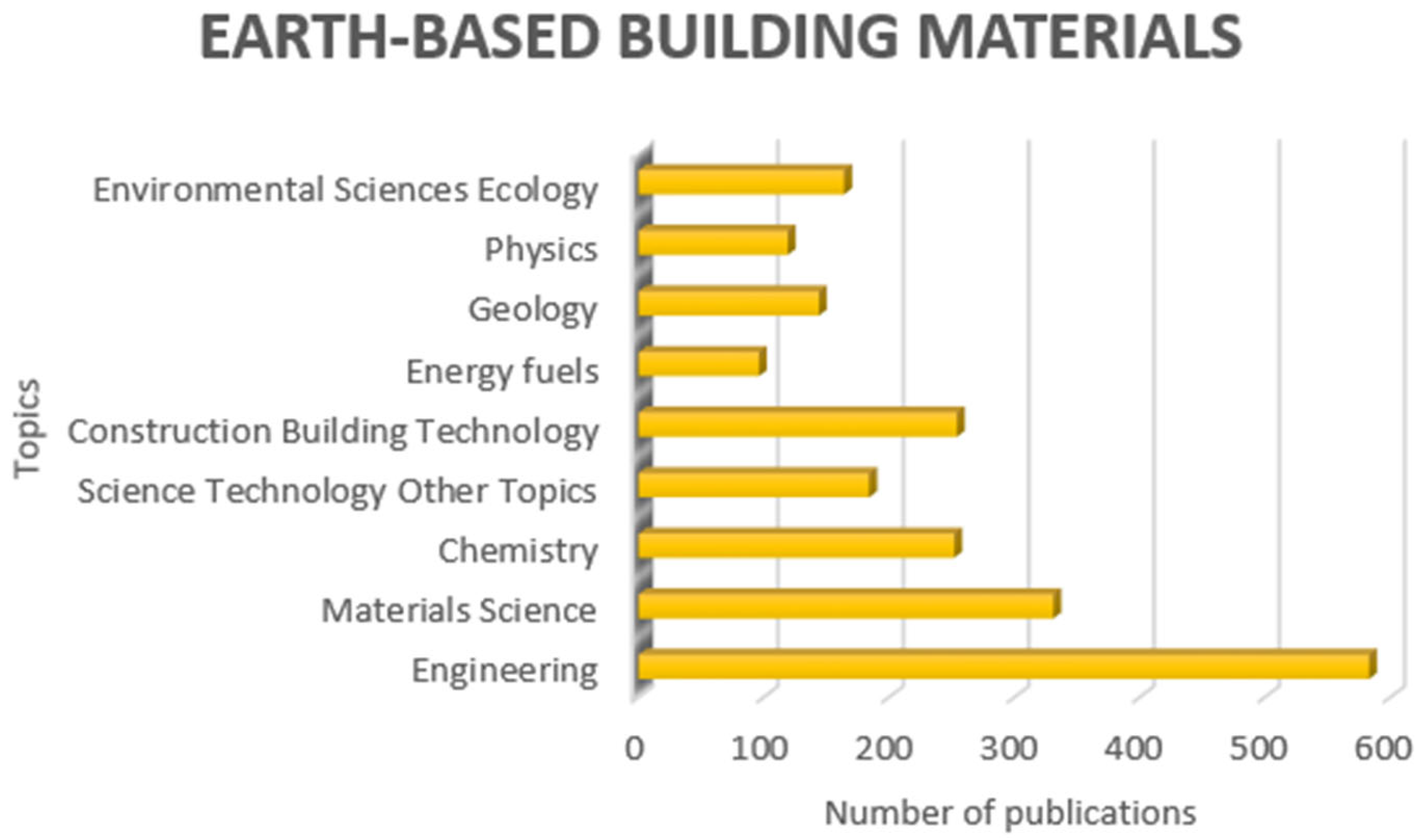

  • Main topics covered
Interestingly, the main themes covered by the publications closely align with those in bio-based materials. The most represented themes are engineering, materials science and chemistry, while physics and environmental sciences (ecology) remain under-treated (Figure 8).
This preliminary statistical analysis provides an overview of the research activities carried out on bio- and geo-based building materials since the emergence of these fields. In particular, it highlights the countries and authors driving this domain. Clearly, Europe emerges as a key driver of the ecological transition, supported by these eco-friendly materials. This leadership can be attributed to contemporary history and environmental concerns.
Concern about global warming, its origins and consequences dates back to the 1990s. In response, the United Nations Framework Convention on Climate Change (UNFCCC) was adopted during the 1992 Earth Summit in Rio de Janeiro [63,64]. Negotiations conducted within this context led in 1997 to the Kyoto Protocol [65,66]. The objective was a 5% reduction in greenhouse gas emissions compared to 1990 levels by 2005. The European Union undertook an 8% reduction in its first commitment period (2008–2012). On 31 May 2002, the Kyoto Protocol was ratified by both the EU and its member states. Europe’s commitment was reiterated in 2005 with new objectives, while the United States and China made no secret of their reluctance to ratify the protocol [67,68,69].
Europe’s strong political engagement in the 2000s is certainly at the origin of its leadership in researching environmentally friendly materials [70,71]. The early 2000s coincided with the very beginning of research activities in bio- and geo-based building materials. Since then, Europe has clearly supported innovation and research for a greener and more sustainable society. One example is the EU’s Horizon 2020 framework program, with an overall budget of approximatively EUR 70,000 million over seven years (2014–2020) [72]. Another example is the Interreg POCTEFA scheme [73,74] that financed the trans-Pyrenean SAVASCO project, which aims to establish a cross-border value-added chain for corn and sunflower stalks for the construction industry [75,76]. Another example is the CobBauge project funded under the INTERREG VA France (Channel)/England cross-border cooperation program [77,78], promoting raw earth construction.
Today, Europe is aiming for carbon neutrality by 2050 and making it a top priority through the Green Deal initiative [79]. To reach this objective, continued support for research, particularly in the field of eco-construction, will be crucial.
  • Focus on implementation techniques

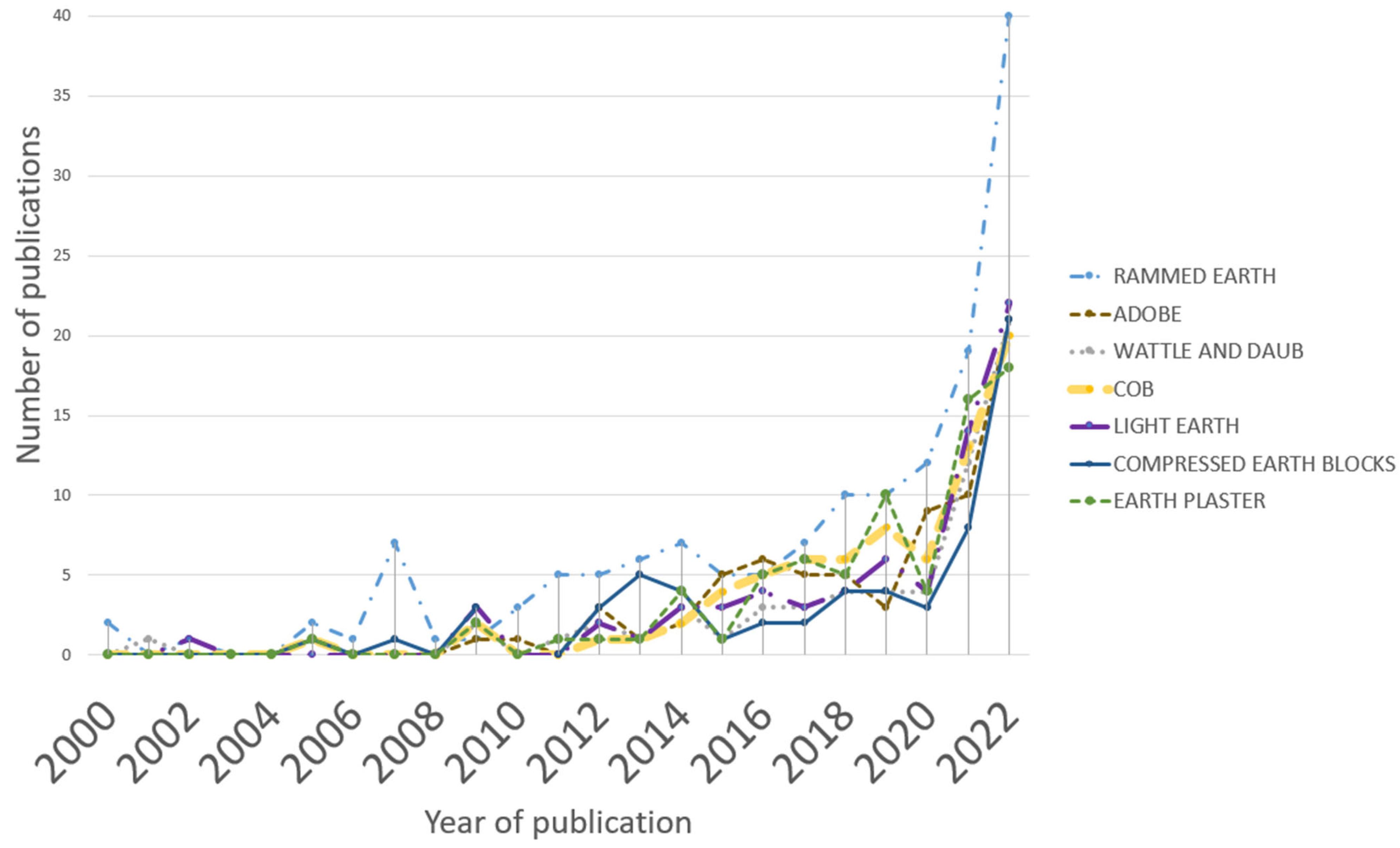

An additional analysis of the implementation techniques and associated studies was carried out concerning geo-based building materials (Figure 9).
While raw earth stands as an ancestral material, our study reveals its recent emergence as a subject of study. According to our study, research into various implementation techniques primarily commenced in the 2010s, with a notable surge in activity for rammed earth a few years earlier. It is worth noting that, since then, all techniques have followed a very similar trend, with the exception of rammed earth, which exhibited nearly double the scholarly attention in 2022. This growing interest can be attributed to architects valuing its aesthetic appeal or its potential for prefabrication, aligning with contemporary demands [80,81,82].

3.2. Comparative Study with Composite Building Materials

To further enhance the analysis, a comparison with activities carried out in the field of composite materials has been included. This section provides an overview of research areas in bio- and geo-based building materials that could contribute to their development by identifying those that have been promising for composite materials.

3.2.1. Evolution in the Number of Publications on Composite Materials

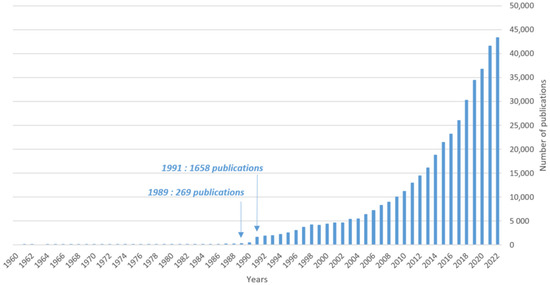

It seemed interesting to compare the evolutionary dynamics of bio- and geo-sourced materials with a research field that emerged a few decades earlier, in the 1960s—composite materials. To take a global view and appreciate the research dynamics in these materials, the statistical study was not limited to composite materials used in construction. All sectors have been considered here (Figure 10).
  • Obviously, the number of publications is extremely high, providing an overall perspective. What is striking is the number of publications, which increased more than six-fold between 1989 and 1991. It is legitimate to question the reasons for this major breakthrough in composite materials and related work in those years.
  • The 1990s marked the beginning of the computer age. Since then, computer networks have been driving progress in science and engineering [83]. One possible explanation for the inflection point in publication growth is the development of computer technology. Before the 2000s, numerous publications incorporating computerized tools were noticed [84,85,86,87].

3.2.2. Emerging Themes and Tools for New Developments

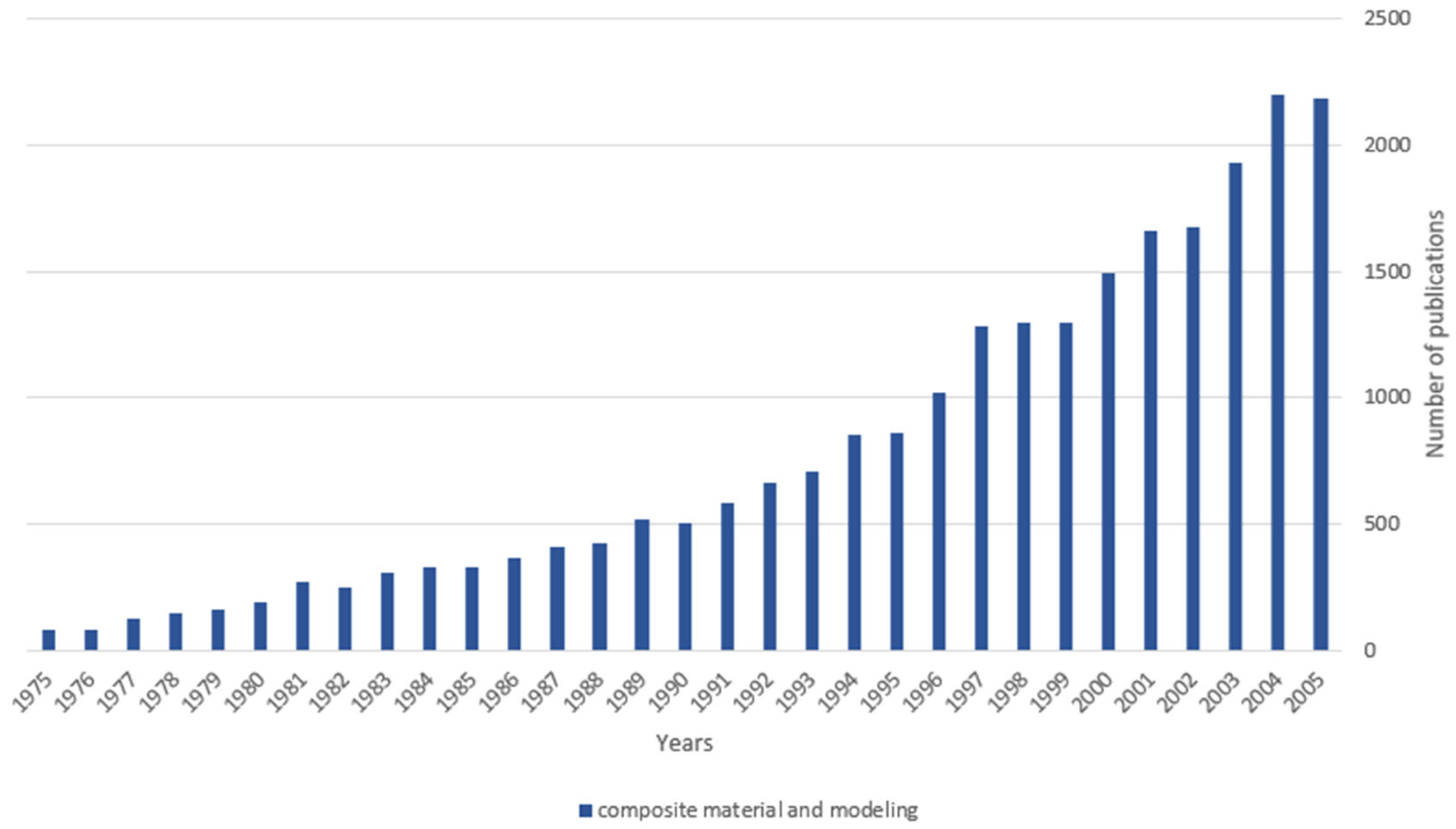

In order to assess the above hypothesis, the evolution of the number of publications related to composite materials dealing with modeling, which requires the use of computer tools, was observed around the year 2000 (Figure 11).
Between 1990 and 2000, the number of research projects focused on modeling composite materials tripled. The use of IT tools was undoubtedly a major lever in the development of these emerging materials.
The exploration of new and promising research themes could also explain the rapid growth in the number of publications. A comparative study of the themes studied before and after 1990 were carried out (Figure 12).
This comparison reveals that the fields emerging after the 90s were the hard sciences, particularly chemistry and physics. They have respectively risen from 8th and 7th place to 3rd and 4th place in the list of main themes covered. One of the mainsprings for the development of composite materials is probably a better understanding of their physico-chemical behavior.

3.2.3. Eco-Materials: What about Modeling and the Hard Sciences?

The subject of modeling in bio- and geo-based building materials seems to be in its infancy, as indicated by the number of publications over the years (Figure 13).

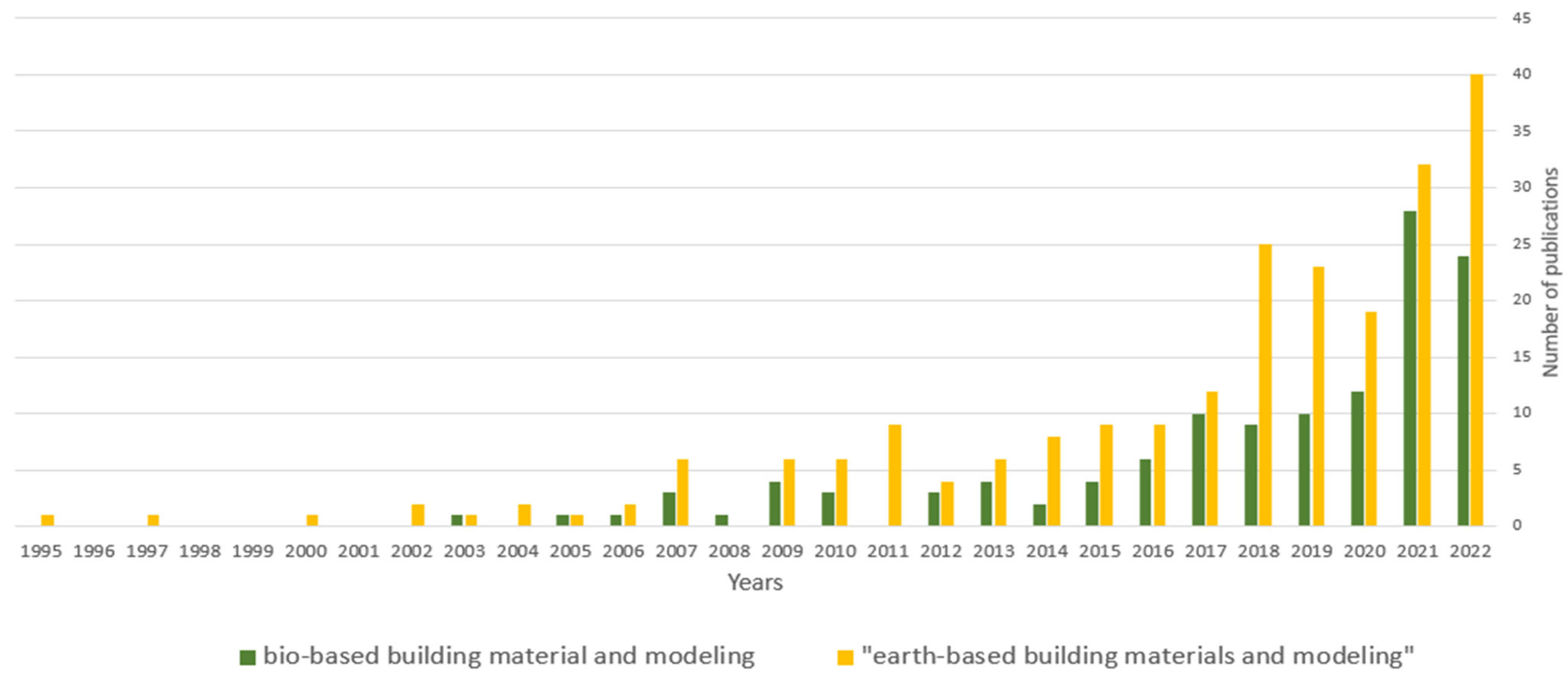

The number of publications related to modeling in the two research areas is increasing. Cumulatively, it represents 7% of the total number of publications for bio-based building materials and 15% for geo-based ones. By comparison, modeling is involved in 6% of publications on composite materials. However, if the focus is limited to construction-related composites: from the 19,459 publications reported by Web of Science, 5166 deal with modeling, accounting for over 26%. This suggests that modeling is still underexplored with regard to bio- and geo-based building materials.

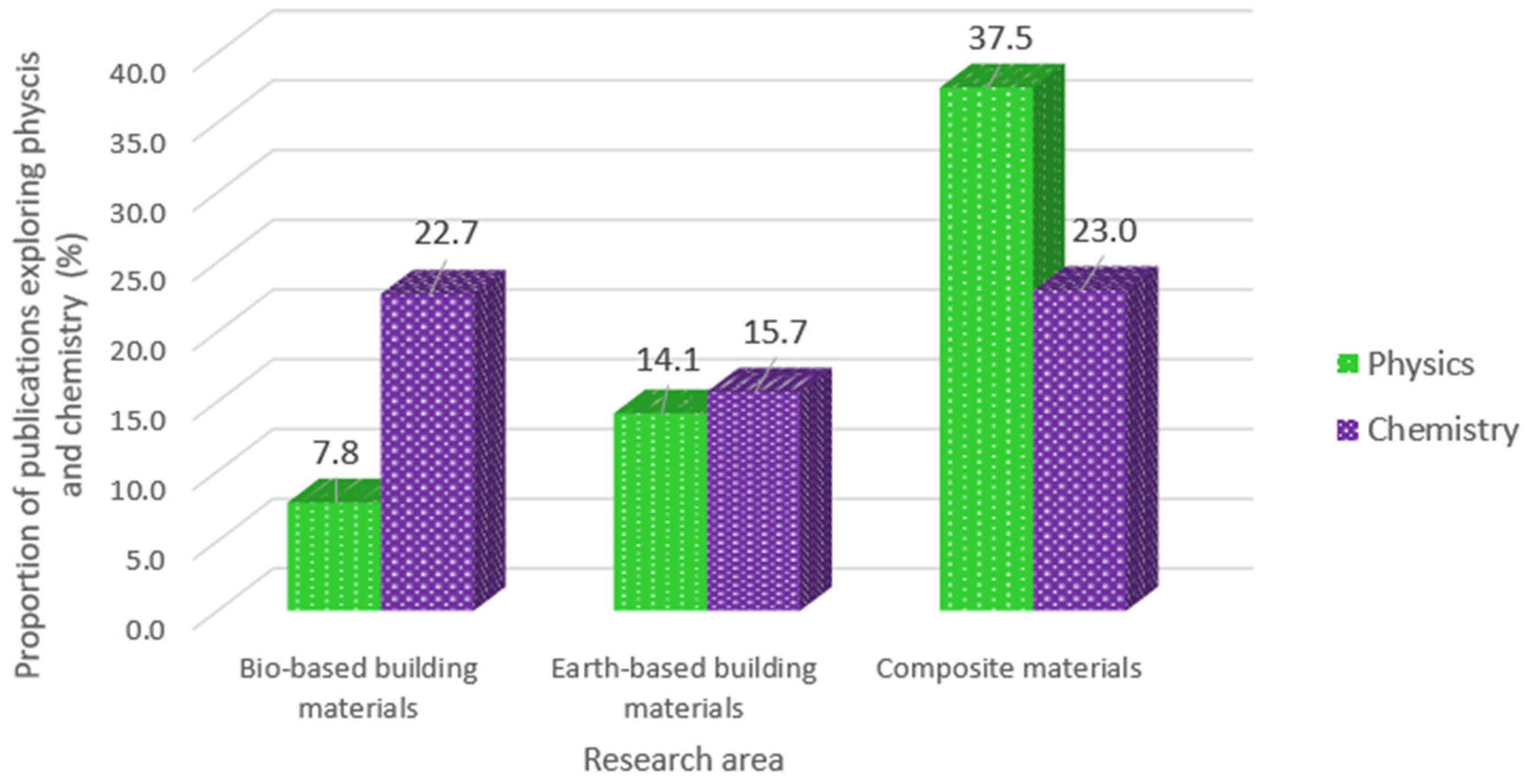

Secondly, the percentage of works exploring physics and chemistry has been determined as a proportion of the total number of publications for each research area (Figure 14).
Chemistry’s contribution to bio-based building materials and composites is very similar. It is slightly less represented for raw earth building materials However, the notable disparity lies in the field of physics. Physics appears to be relatively underexplored in the field of eco-materials, whereas it plays a significant role in more than a third of publications in the composite domain.
In conclusion, it appears that physics and modeling tools are probably the levers to be considered for improving knowledge of bio- and geo-sourced building materials and contributing to their development.

3.3. Bibliometric Networks

3.3.1. Bio-Based Building Materials

  • Main authors and their collaborations

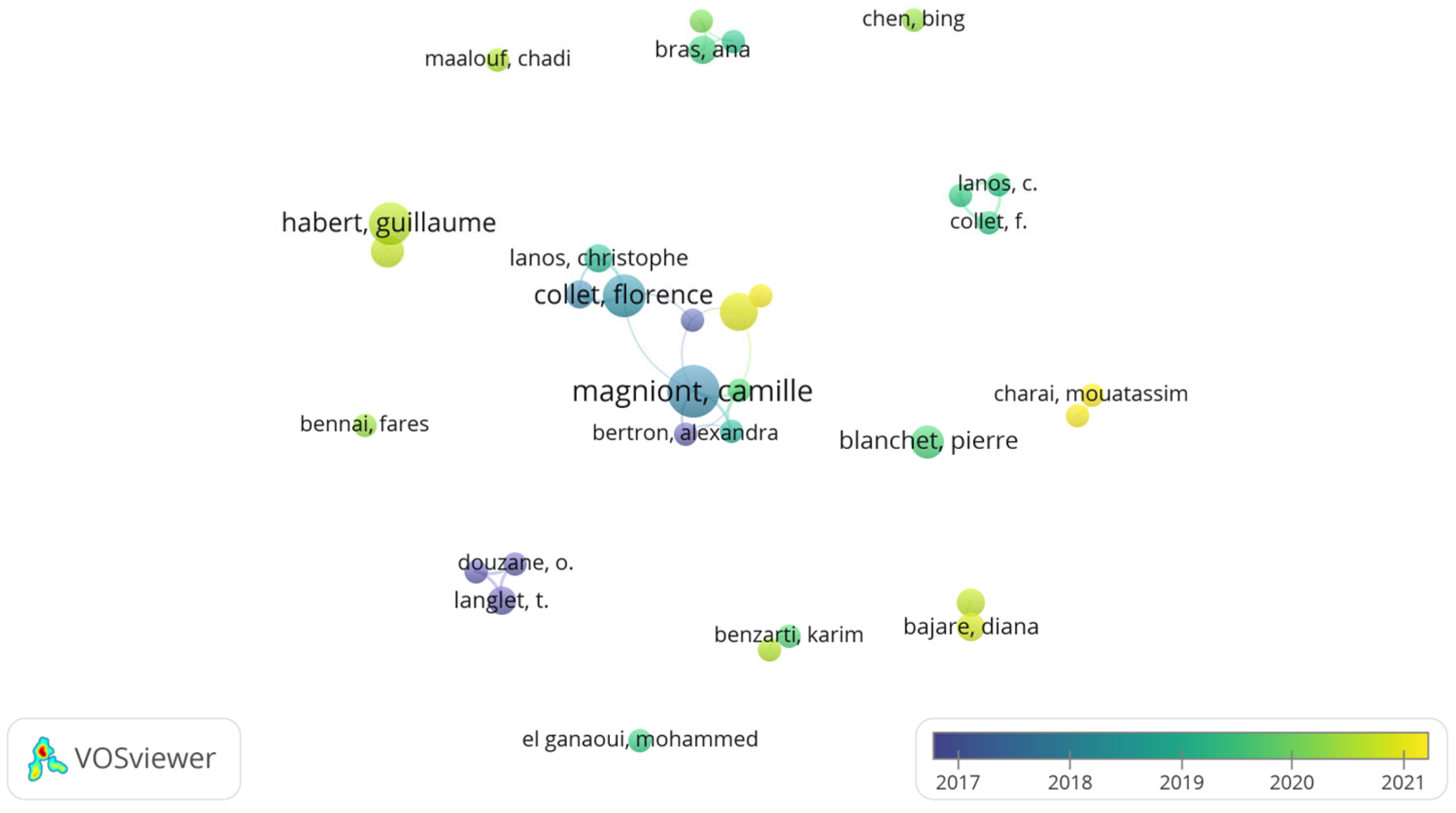

The analysis of the co-authorship link reveals the main contributors in the field of bio-based building materials (Figure 15). The advantage of visualization maps is to enable an appreciation of the collaborations between the different authors, in addition to their individual contribution. To provide a temporal dimension to the visualization, a time scale can be added.
This map highlights the main authors identified in the previous study. Collaboration between major authors appears to be generally low, especially if they have different affiliations. The only notable exception is the recent collaboration between colleagues from the University of Toulouse and Rennes. Moreover, according to these results, it appears that international cooperation is currently limited.

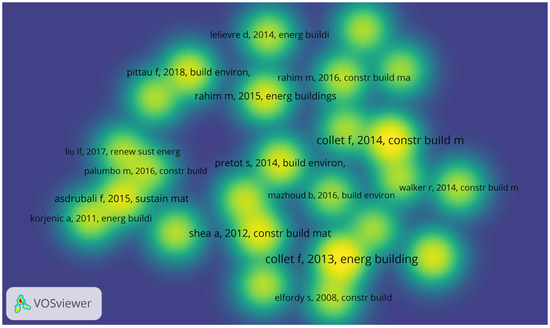

  • Founding works

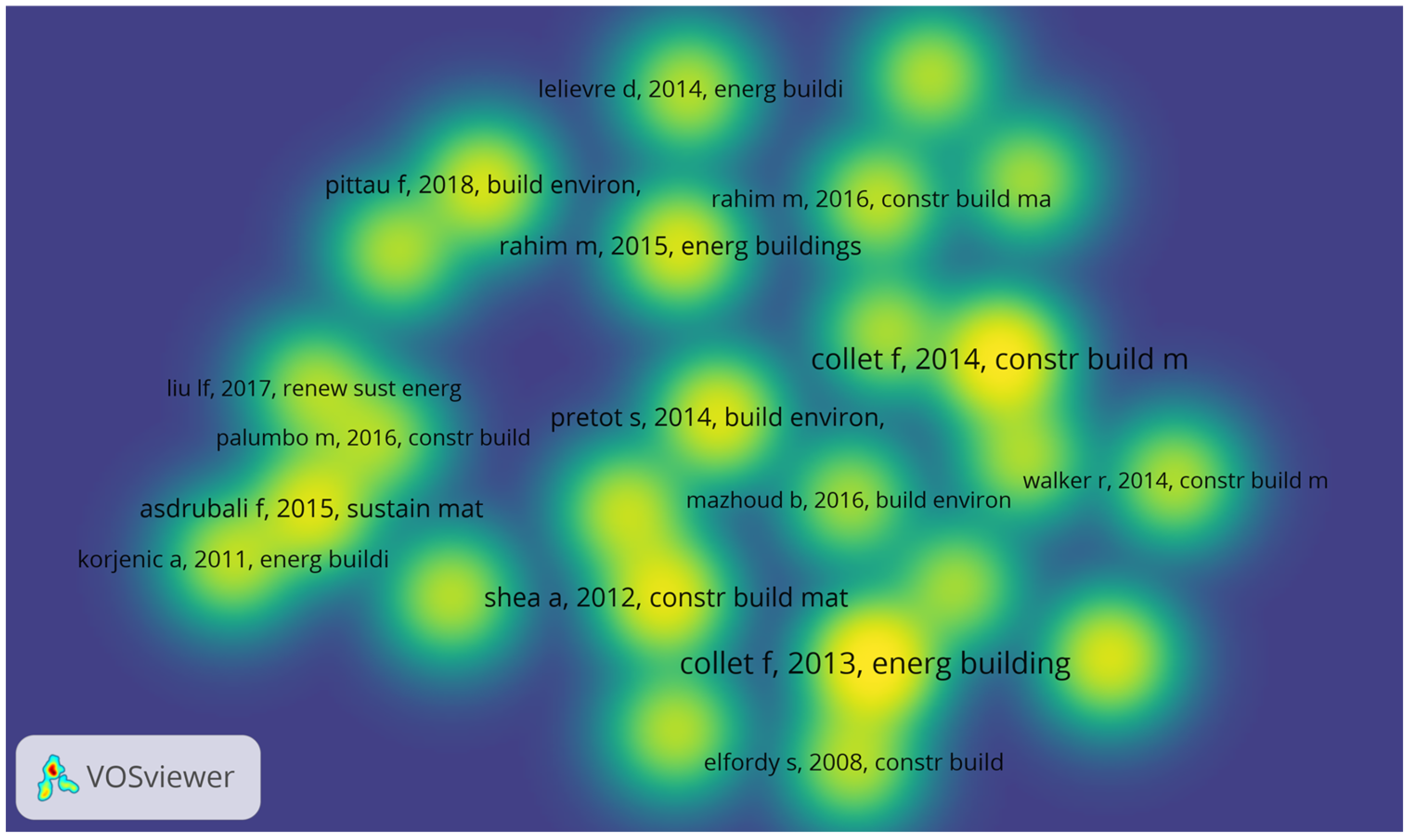

An interesting feature is the possibility of identifying the founding works of the discipline. The analysis of reference co-citation links reveals the most widely cited and associated works (Figure 16). For better readability of references and their importance, the visualization density map has been preferred to the visualization network map.
This approach can be very useful for targeting the main works to be consulted when beginning a research work on bio-based building materials. It can be pointed out that these publications are globally concentrated around the year 2015.
  • Key themes in the literature

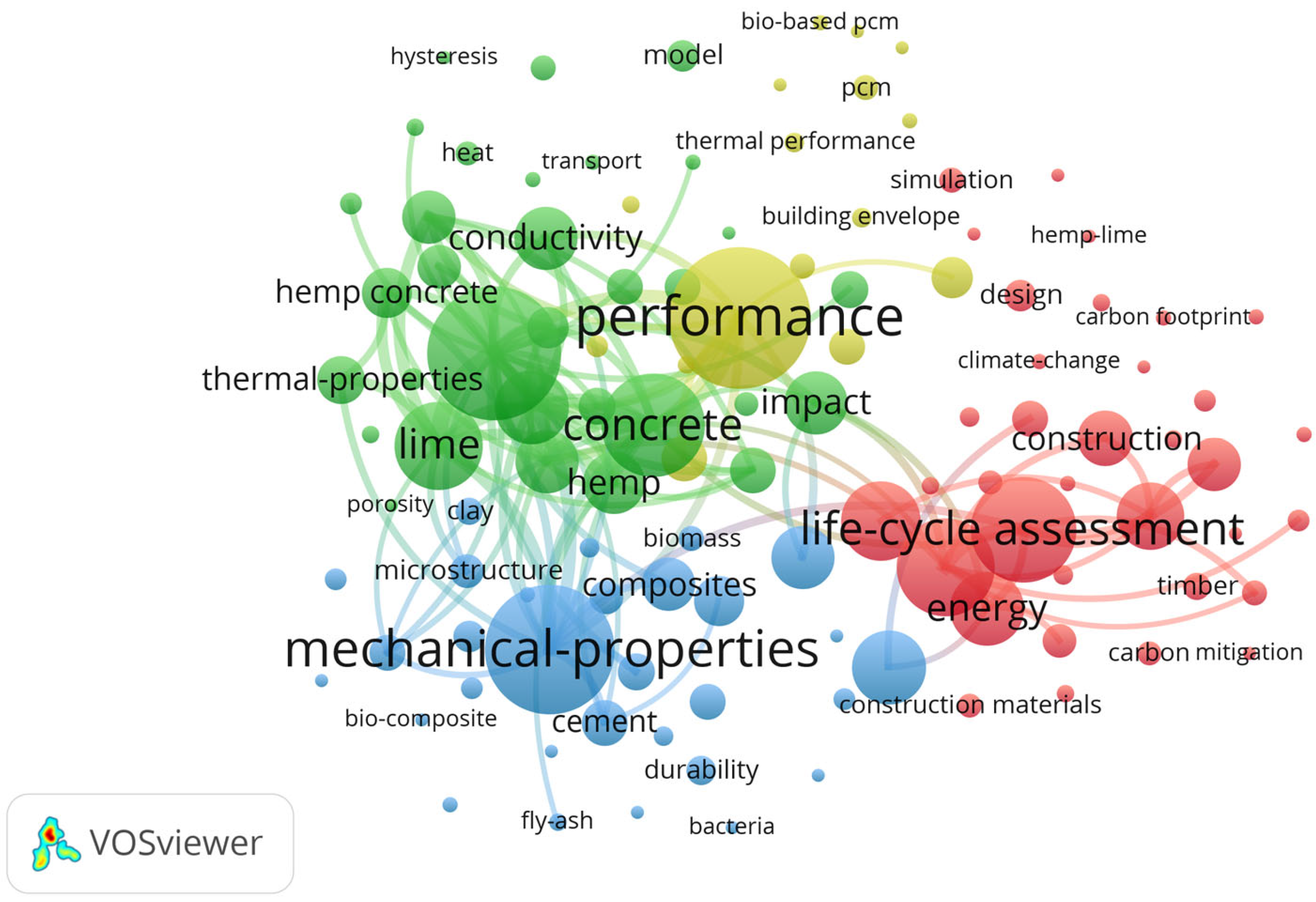

Analysis of the co-occurrence of keywords in the 570 selected publications (cf. Section 2.2) reveals four clusters, representing the four main themes explored in the literature (Figure 17).
The analysis of the clusters generated by the VOSviewer software allows their identification (Table 8). However, it is worth mentioning that this is not always easy, as some themes are shared by several clusters, such as mechanical properties. Therefore, the general theme assigned to each cluster is an interpretation based on the articles identified in each cluster.
The complexity of bio-sourced materials may explain the interweaving of the different themes. Nonetheless, these research topics enable one to identify the current areas of research. Interestingly, none of the clusters directly refers to the hard sciences like physics, and the concept of “model” appears only modestly in the cluster related to thermo-hydric behavior.
  • Focus on main raw materials

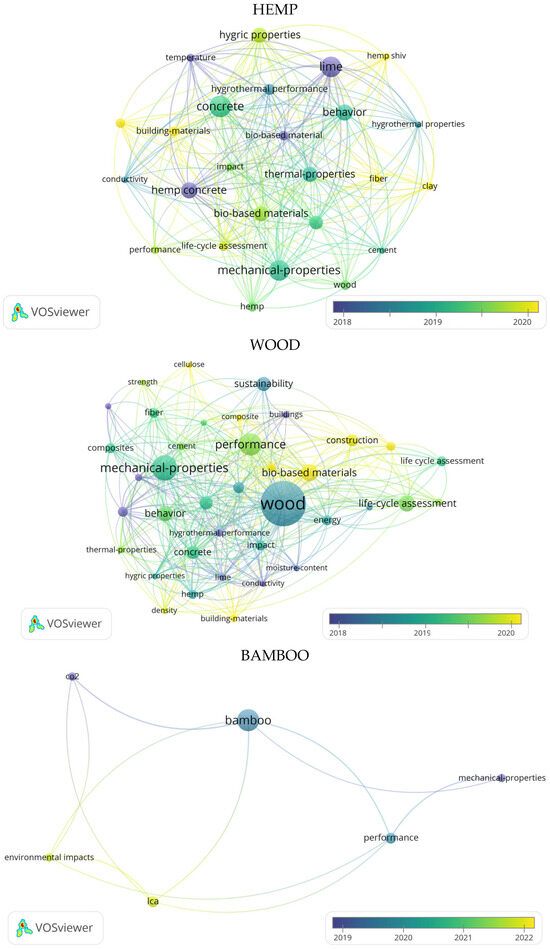

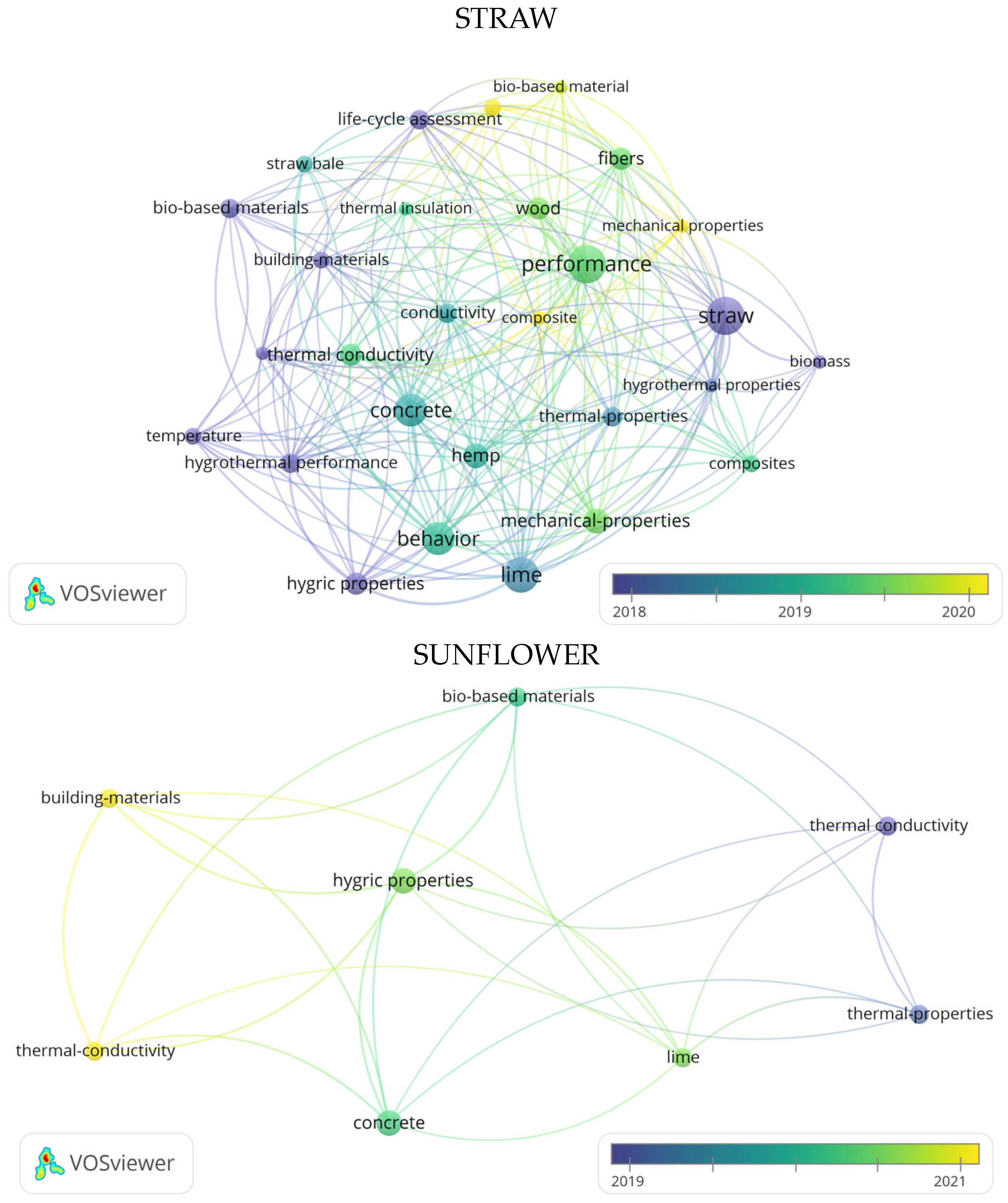

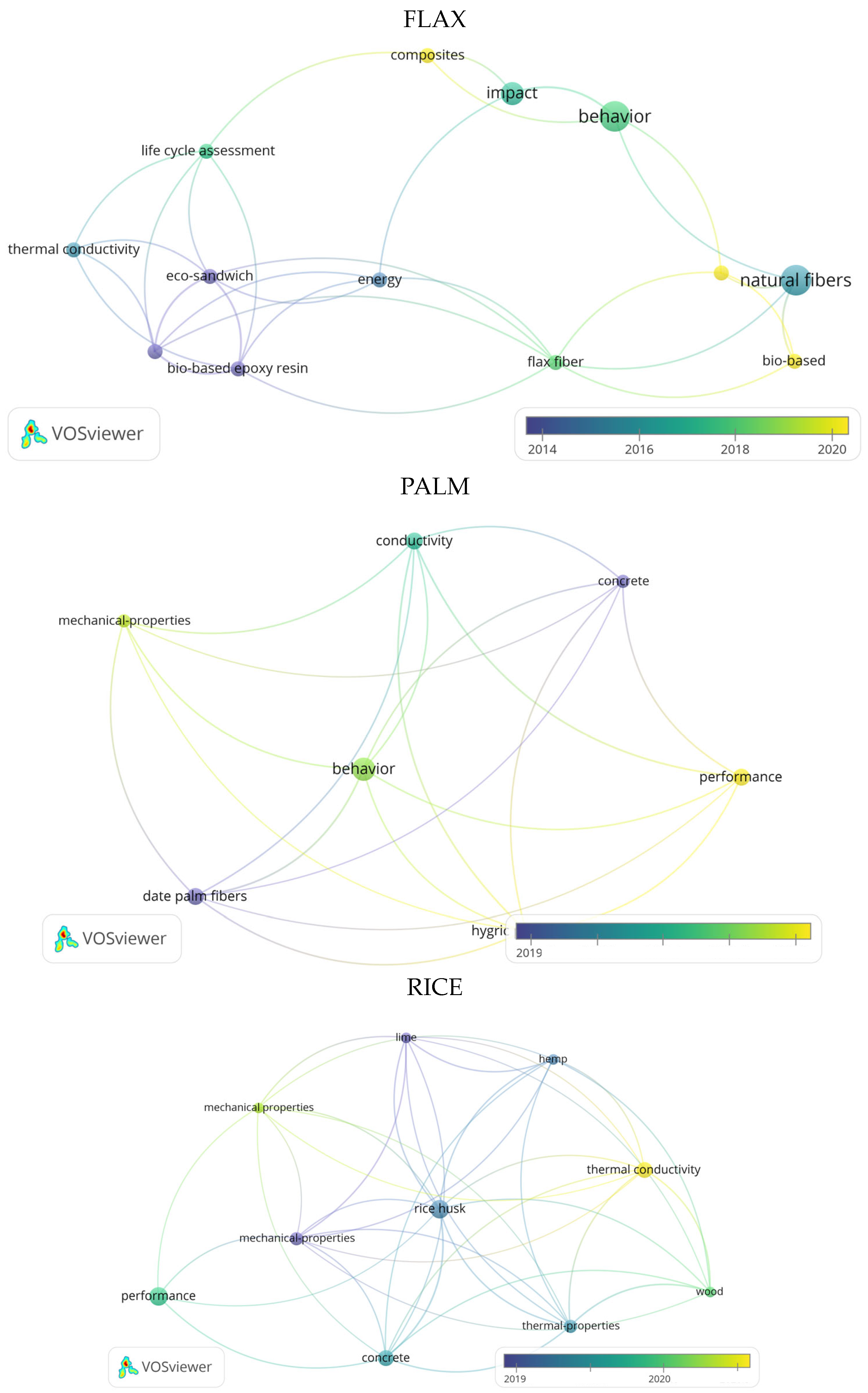

  • In order to provide a closer insight into the contributions made to date on the main raw materials identified in Section 3.1.1, an analysis of keyword co-occurrence was carried out within the relevant publications. The visualization includes a time scale to emphasize trends over recent years. For the sake of relevance, this section focuses exclusively on primary resources with more than 10 publications each: hemp, wood, bamboo, flax, palm, rice, straw, sunflower (Figure 18).
These maps highlight the keywords corresponding to the topics mainly studied for each raw material. The notion of life cycle assessment appears to be one of the most discussed subjects in the literature concerning the raw materials considered. However, this subject does not emerge for some of them, thereby highlighting new areas of work. This multi-criteria analysis enables us to objectively demonstrate the benefit of using bio-based materials compared to conventional ones [7]. Notably, the concepts of performance (thermal, hygrothermal, mechanical) are well represented, in line with their function in construction. Wood, hemp and straw naturally yield a richer array of keywords due to their extensive research focus. Wood, used as a structural element, is highlighted by the keywords “timber” and “mechanical properties”. Hemp shiv, often added to a binding matrix (lime, cement) for hemp concrete, is highlighted by the map. An earth-based binder matrix is also possible, which explains the keyword “clay”. Straw, used for insulating wood structures or as a substitute for hemp in plant-based concrete, offers properties very similar to those of hemp. This explains the great similarities between the maps for straw and hemp.
All of the topics covered in wood, hemp and straw are inspirational sources for continuing to develop our knowledge of other raw materials applicable to bio-based building materials. These include the following topics:
-
“Cellulose”: linked to the chemical composition of the resource, particularly relevant to wood as a primary chemical compound.
-
“Moisture content”: in relation to water adsorption by the material and potential pathologies arising under such conditions.
-
“Sustainability“: referring to the evolution of a material’s properties under various stresses, including temperature and relative humidity variations over its lifetime.
-
“Energy”: related to the overall energy efficiency of the building, i.e., covering a more global scale than that of the material or the wall.
It should not be overlooked that the development of bio-based building materials also requires taking into account the diversity of resources, which probably has an impact on their use properties [103,104]. Lastly, the use of local raw materials necessitates the establishment of effective harvesting and recovery procedures [76].

3.3.2. Geo-Based Building Materials

  • Main authors and their collaborations

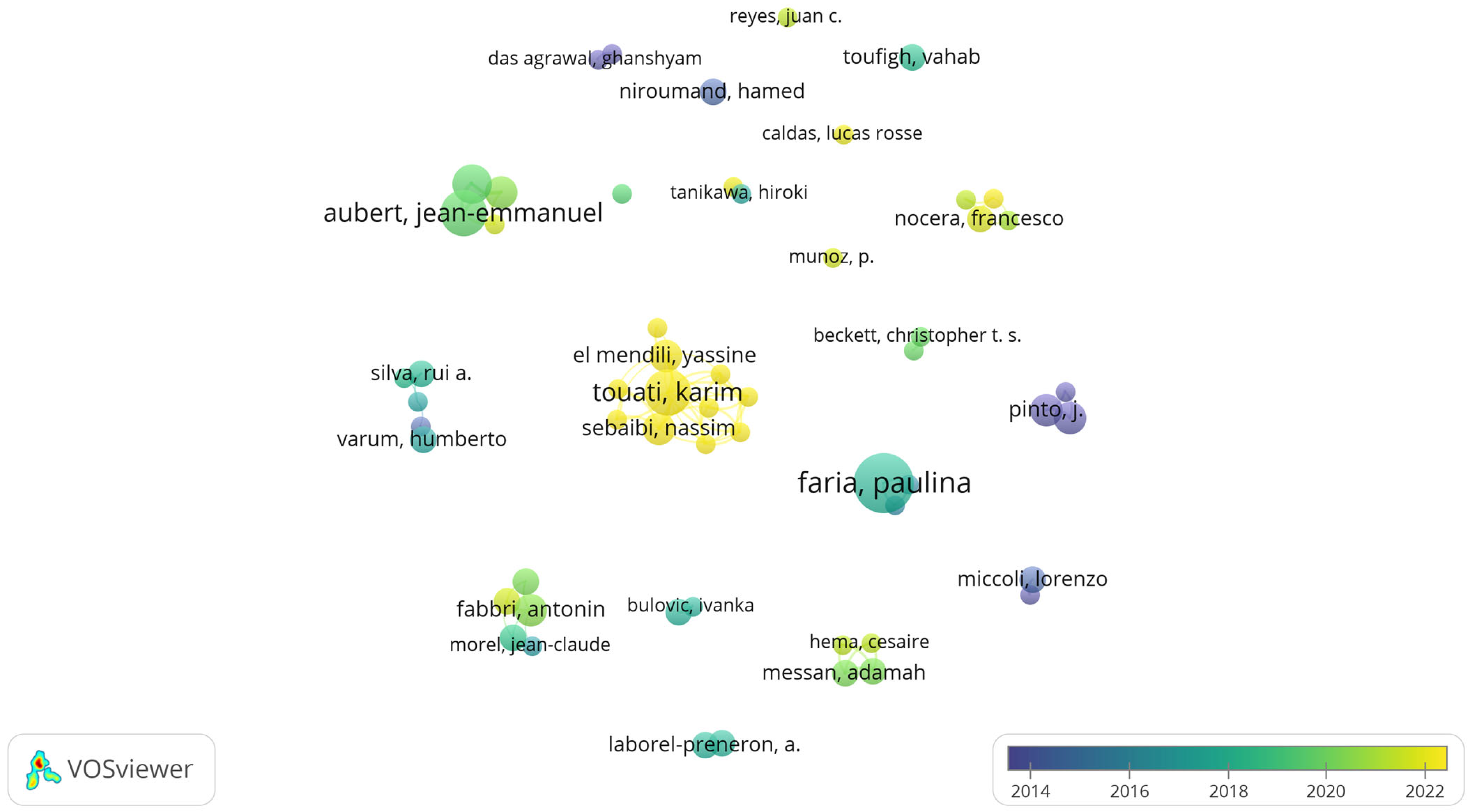

The main contributors in the geo-based building materials sector and their collaborations are presented (Figure 19).
According to this map, collaboration between authors appears even more limited than that for bio-based building materials. The few collaborations that are visualized mostly involve authors from the same affiliation. The time scale shows that the number of collaborations have been multiplying very recently. No significant European or international collaborations are to be reported, since they involve authors from the same country and often from the same affiliation.
  • Founding works
  • The most frequently cited research works date from the 1990s to 2000s (Figure 20). These works are considered foundational in the field.
Constrmater 03 00031 g020

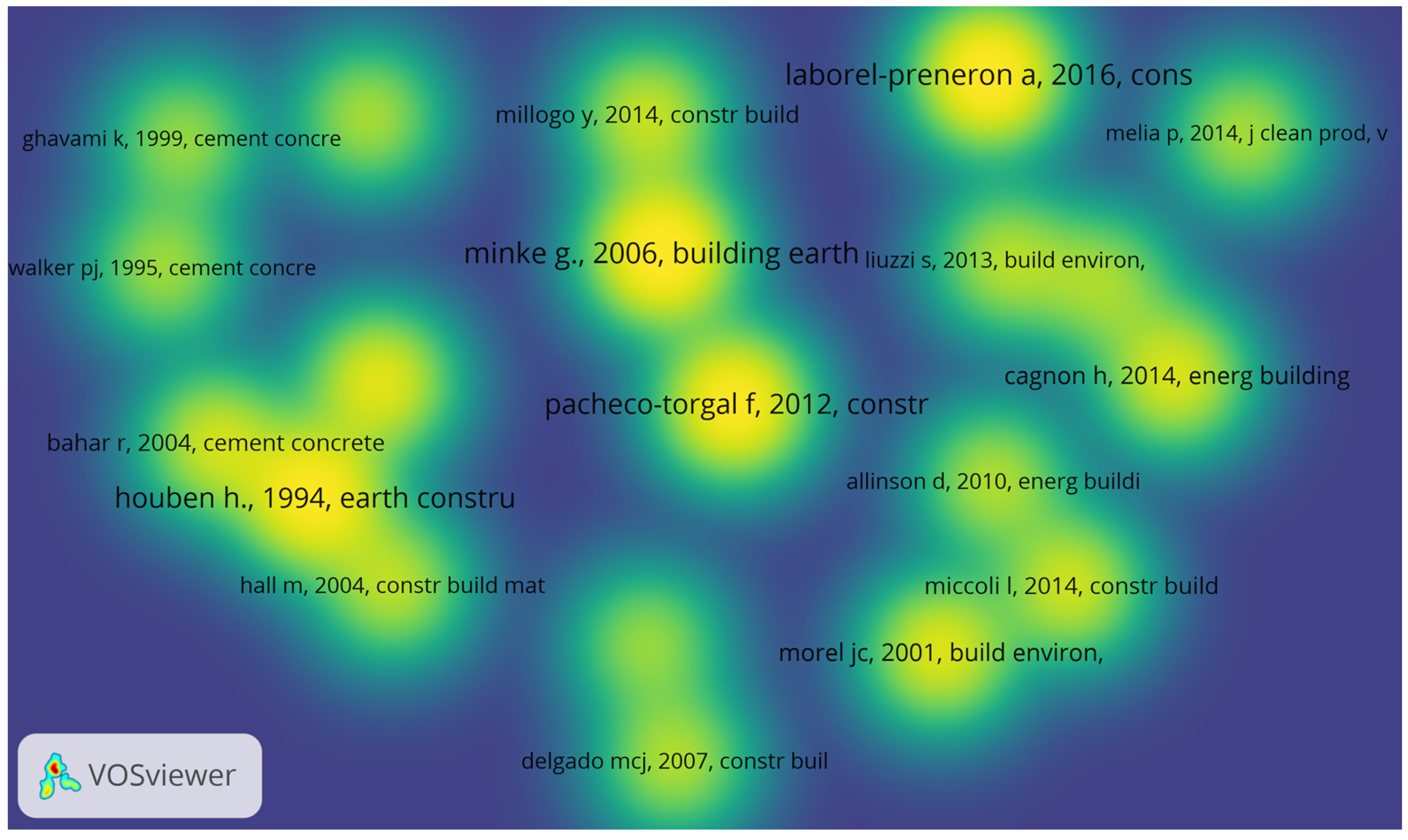

Figure 20. Founding works concerning geo-based building materials [14,15,51,105,106,107,108,109,110,111,112,113,114,115,116,117].
Figure 20. Founding works concerning geo-based building materials [14,15,51,105,106,107,108,109,110,111,112,113,114,115,116,117].
Constrmater 03 00031 g020
Similarly to bio-based materials, this list of works can help identify fundamental results in the field of raw earth building materials research.
  • Co-authorship links

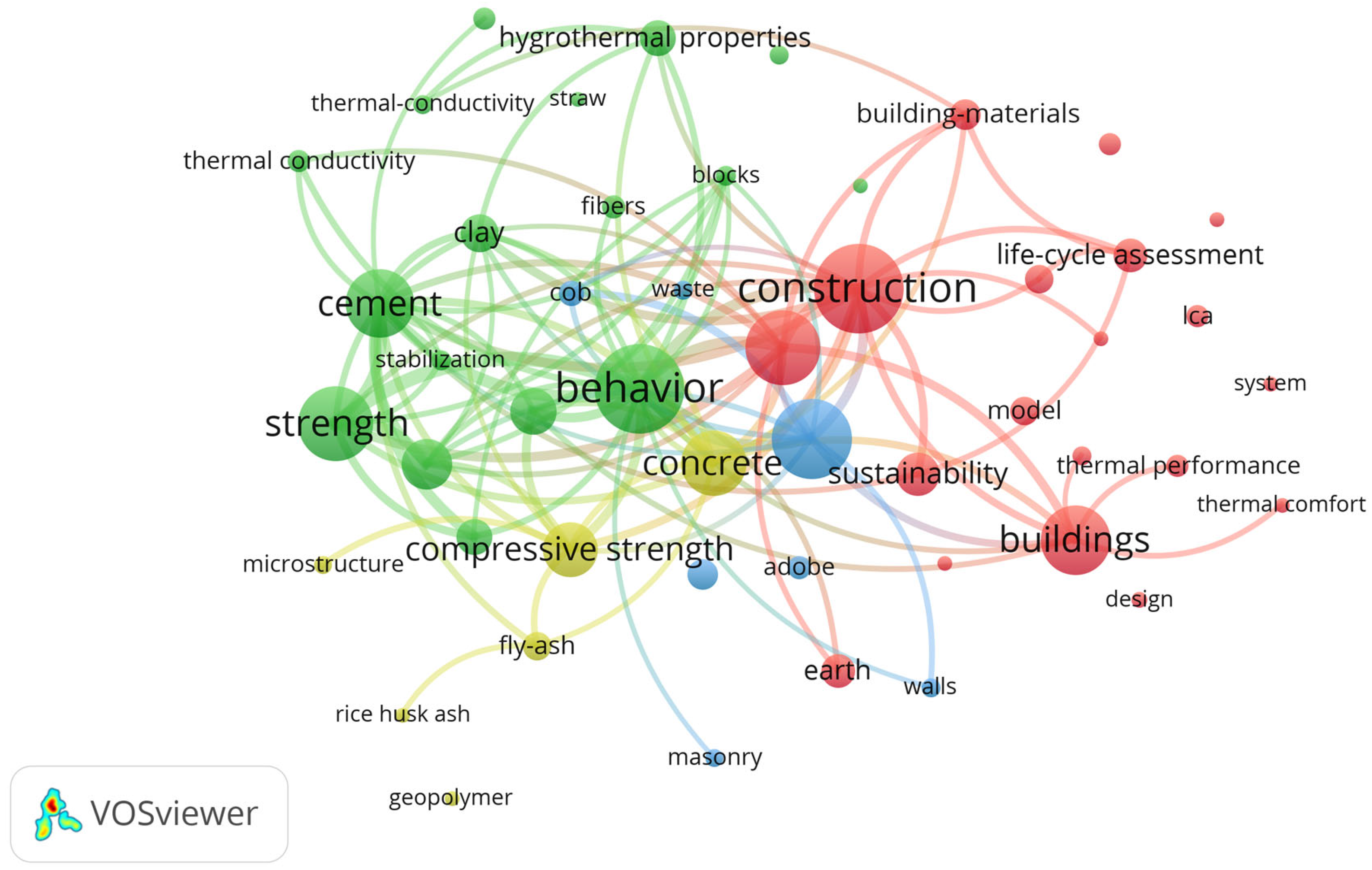

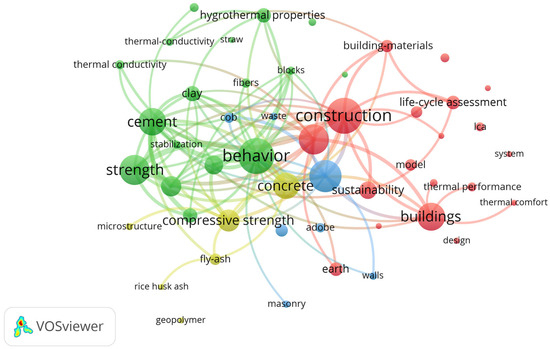

Analysis of the co-occurrence of keywords in the 504 selected publications (cf. Section 2.2) reveals four clusters, i.e., four main themes explored in the literature (Figure 21 and Table 9).
The keywords mainly associated with the research work do not highlight strong themes related to the hard sciences. It is reasonable to conclude that physics in particular is a little-explored field. Moreover, modeling, which is identified in the “environmental impact” cluster, is clearly very little covered.
  • Focus on implementation techniques

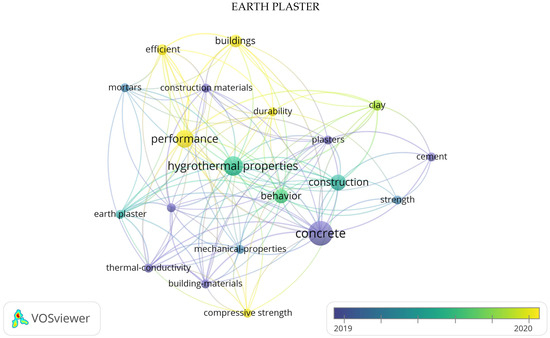

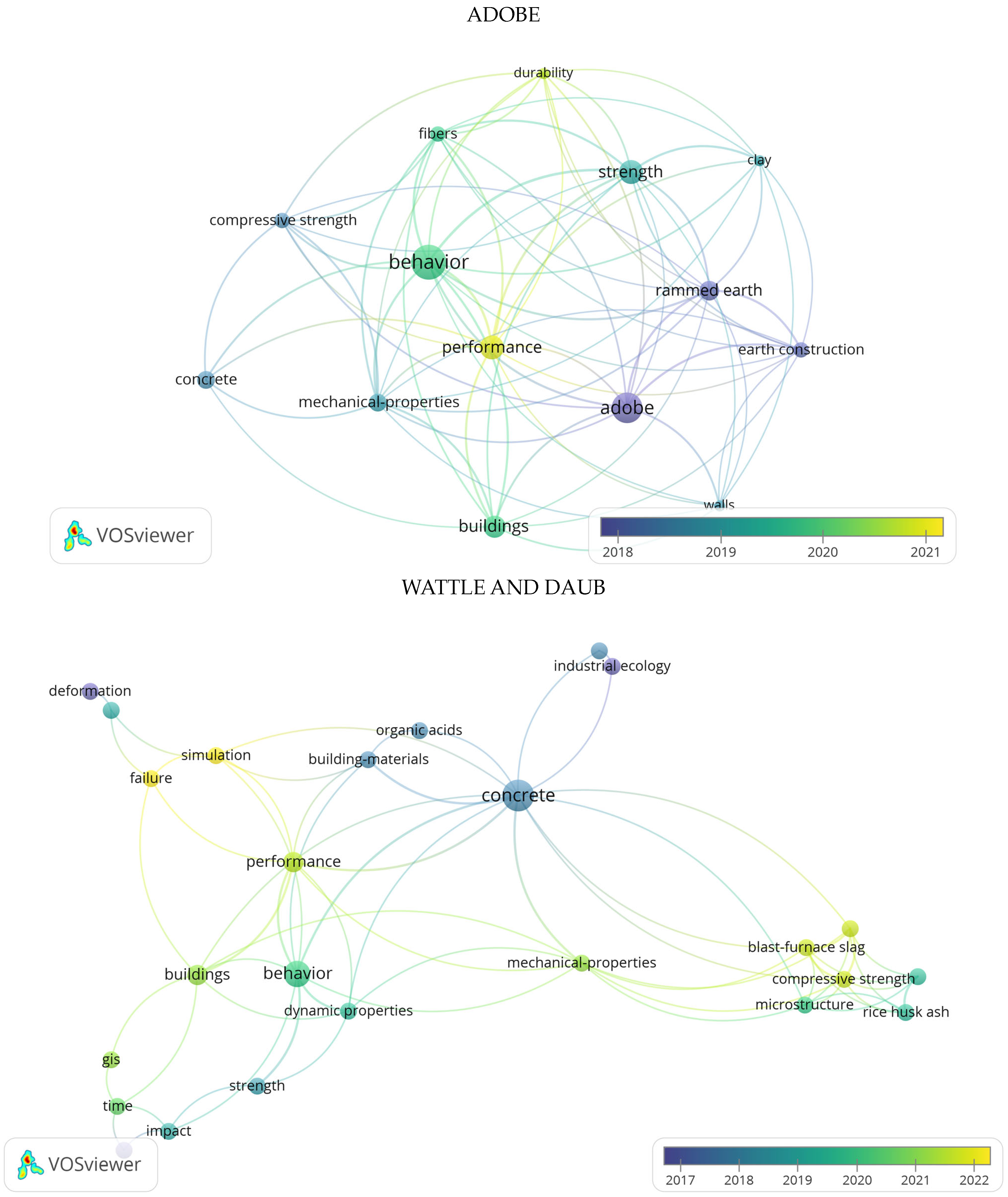

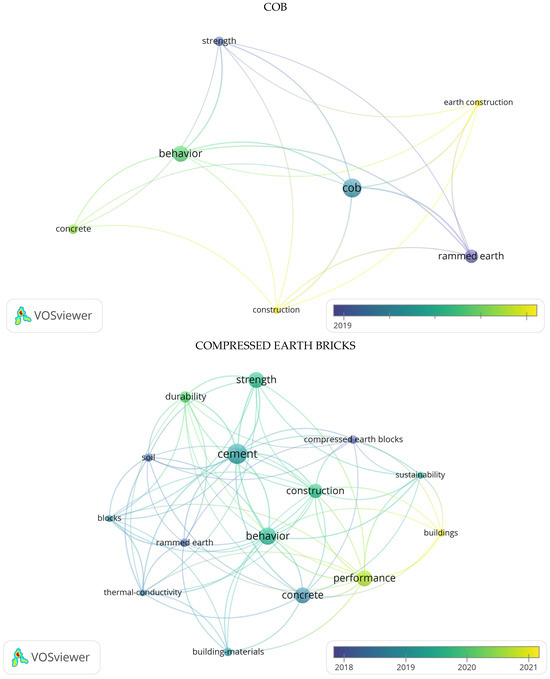

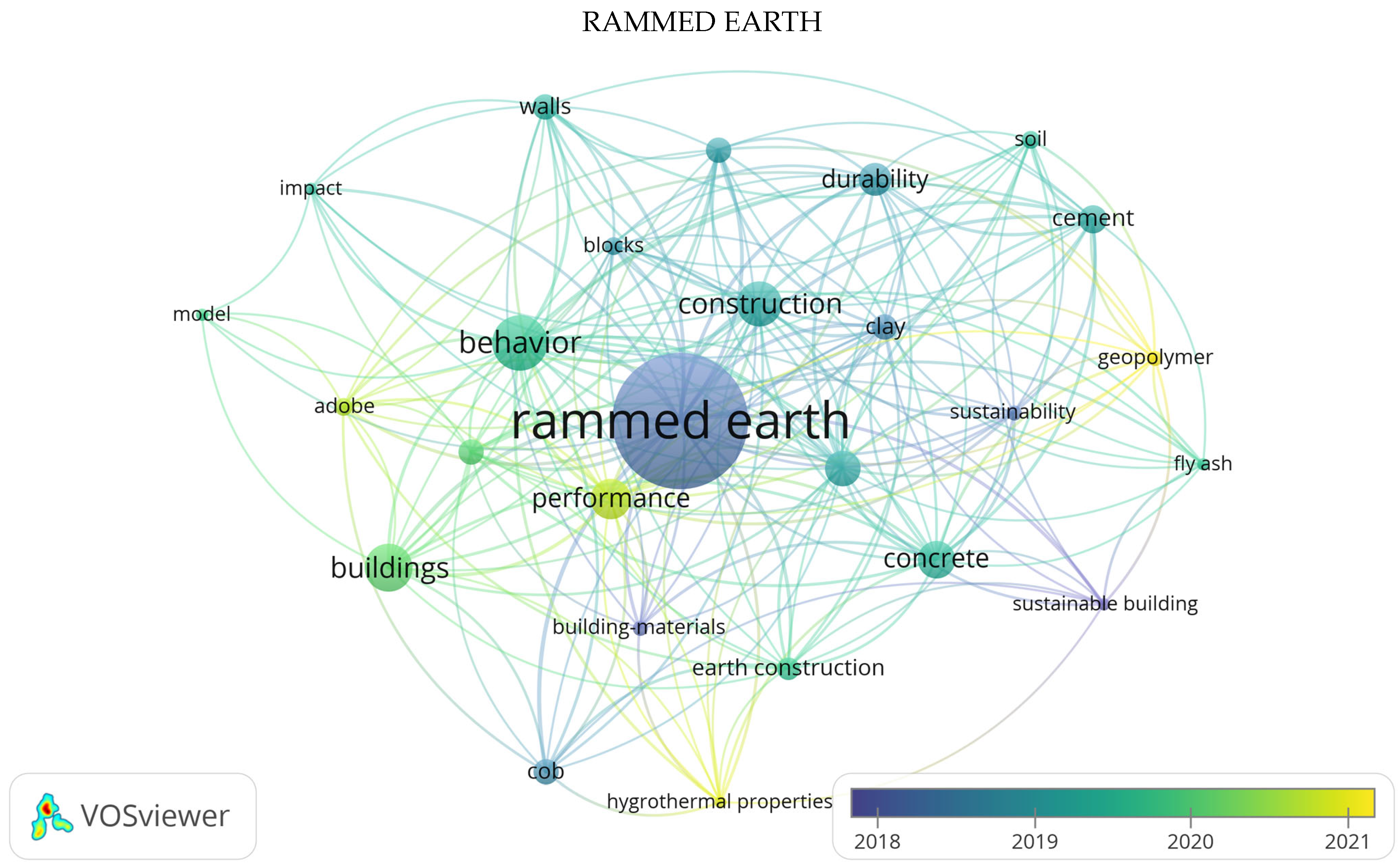

  • In order to provide a closer insight into the contributions concerning implementation in Section 3.1.2, an analysis of keyword co-occurrence was carried out on the publications relating to them. The time scale is added to the visualizations to underline the trend over the last few years. All techniques are included, as they have been studied in over 10 publications (Figure 22).
In load-bearing techniques such as rammed earth, adobe, cob and compressed earth blocks, terminology related to mechanical properties is logically prevalent. For wattle and daub, the subjects span a broader spectrum, ranging from microstructure to mechanical properties and organic acids. The hygrothermal properties of plasters are clearly targeted by the studies carried out to date. It is interesting to note that the term “cement” appears on many cards. This may appear surprising, but it certainly stems from the systematic comparison of earth materials with conventional ones. The emergence of the terms “fibers” and “rice husk” demonstrates the close link between bio- and geo-based building materials. Identified areas for further exploration to address certain limitations likely include:
-
Variability of the raw resource [118,119]: raw earth is a mixture of clay, silt, sand, gravel and pebbles of varying natures and proportions, depending on where it was extracted [120].
-
Pre-conceived ideas: earth can suffer from a bad image for economic, political and social reasons [24,60]
-
Traditional craftsmanship: as earth is a material used for millennia, the implementation techniques are often the result of real know-how sometimes difficult to reconcile with current techniques and constraints [60,121].
-
Life cycle assessment: as earth is a low-embodied carbon construction material [24], life cycle assessment methodology may adequately demonstrate its potential in place of conventional materials.

3.3.3. Potential Emerging Themes

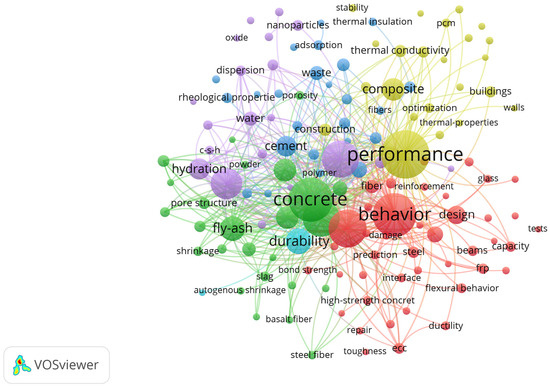

The visualization maps in the sections focusing on bio- and geo-based building materials enable one to appreciate the most frequently addressed themes and, consequently, those that are less explored. To further enhance the analysis, a co-occurrence map of key words corresponding to articles on composite building materials in 2022 has been generated (see Section 2.2). By comparison, this allows the detection of different themes that could potentially contribute to the development of eco-materials (Figure 23).
Logically, topics similar to eco-materials can be found, such as mechanical behavior and performance. Performance is linked in an interesting way to optimization, which was not identified in the case of bio- and geo-based building materials. This suggests it as a first avenue of study.

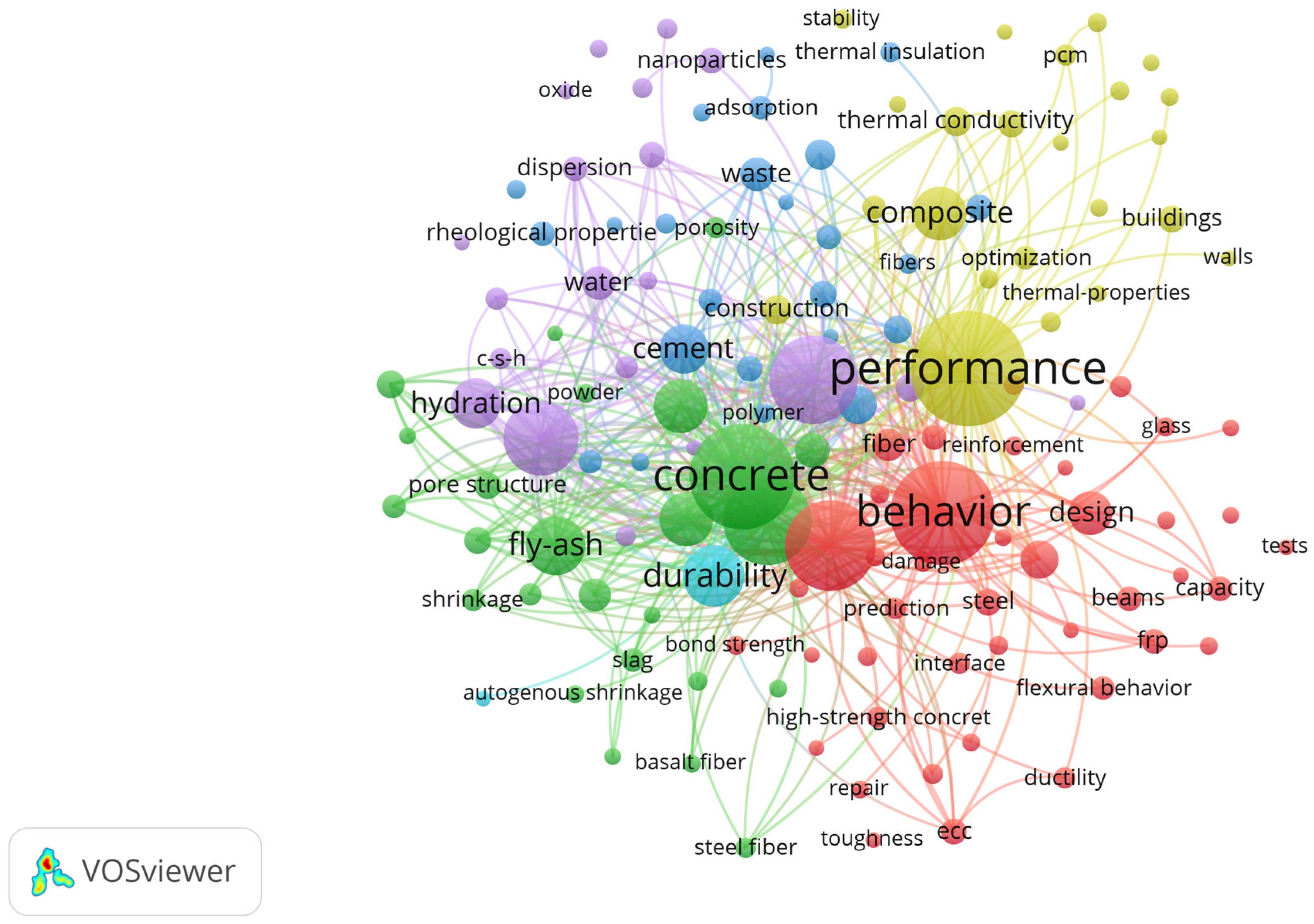

In the context of composite building materials, it is worth noting that the study of behavior is linked to modeling with the notion of machine learning. This link was not represented in previous maps, making it another avenue of exploration.
Additionally, emerging themes of interest include durability and microstructure. Sustainability is linked to all of the other clusters, demonstrating its importance in research themes, potentially serving as a third avenue of exploration. Microstructure is widely explored, even down to the nanometric scale according to the themes identified, such as nanoparticles, nanocomposites, nanosheets and graphene. Given its significance in composite materials, it would probably be wise to explore microstructure at a similar scale in bio- and geo-based building materials.

4. Conclusions

In conclusion, a statistical analysis using Web of Science data provided an overview of the disciplines considered: bio- and geo-based building materials. It highlights, in particular, the growing dynamism of research with the increasing number of publications in recent years. The main contributing authors, sources and countries are clearly identified. In terms of volume, the main contributing countries today are China, France and the United States. The authors who contribute the most tend to be European.
In addition, this study relied on a bibliometric network visualization software application. It confirmed the main contributors and also allowed us to appreciate their contribution. Overall, collaborations on a European and global scale remain very limited. A complementary analysis made it possible to identify the major works in each discipline, providing a significant asset for gaining a more academic perspective.
Finally, the combined use of visualization maps and statistical analysis confirmed areas to explore in order to gain visibility in the field of bio- and geo-based building materials. A table summarizes the elements that are particularly useful when starting research work in these areas. It also indicates the main work perspectives proposed following this in-depth analysis (Table 10).
Lastly, recent developments in the IT field offer an additional opportunity. Quantum computers, with increased computing capacities, may be able to address the current challenges of computing time in modeling [122]. Artificial intelligence, notably with digital twins or neural networks, also holds a promising future in advancing scientific knowledge, especially in civil engineering [123,124,125,126,127,128]. Seizing upon these new tools and the themes highlighted in this article can contribute even further to the development of bio- and geo-sourced materials.

Author Contributions

Conceptualization, S.R.L.; methodology, S.R.L.; software, A.A.-C. and S.R.L.; validation, S.R.L., V.S. and A.A.-C.; formal analysis, S.R.L.; investigation, S.R.L.; resources, S.R.L.; data curation, S.R.L.; writing—original draft preparation, S.R.L.; writing—review and editing, A.A.-C. and S.R.L.; visualization, S.R.L.; supervision, A.A.-C.; project administration, S.R.L.; funding acquisition, S.R.L. All authors have read and agreed to the published version of the manuscript.

Funding

The authors want to thank ADEME (Agence française pour le DEveloppement et la Maîtrise de l’Energie, the French Energy Agency) and LOCABATI project for financial support of this study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Richards, C.E.; Lupton, R.C.; Allwood, J.M. Re-framing the threat of global warming: An empirical causal loop diagram of climate change, food insecurity and societal collapse. Clim. Chang. 2021, 164, 49. [Google Scholar] [CrossRef]
  2. Higano, Y.; Otsuka, A. Special Feature on Regional Sustainability: Analysis in a spatial and regional context with broad perspectives on the risk of global warming, natural disasters, and emerging issues due to the globalized economy. Asia-Pacific J. Reg. Sci. 2022, 6, 239–245. [Google Scholar] [CrossRef]
  3. Rossati, A. Global Warming and Its Health Impact. Int. J. Occup. Environ. Med. 2017, 8, 7–20. [Google Scholar] [CrossRef] [PubMed]
  4. Khan, I.; Rehman, A.; Zia, K.; Naveed, U.; Bibi, S.; Sherazi, R.; Hussain, I.; Ur Rehman, M.; Massa, S. Microbes and Environment: Global Warming Reverting the Frozen Zombies. In Environment, Climate, Plant and Vegetation Growth; Fahad, S., Hasanuzzaman, M., Alam, M., Ullah, H., Saeed, M., Ali Khan, I., Adnan, M., Eds.; Springer International Publishing: Cham, Switzerland, 2020; pp. 607–633. [Google Scholar] [CrossRef]
  5. Ürge-Vorsatz, D.; Khosla, R.; Bernhardt, R.; Chan, Y.C.; Vérez, D.; Hu, S.; Cabeza, L.F. Advances Toward a Net-Zero Global Building Sector. Annu. Rev. Environ. Resour. 2020, 45, 227–269. [Google Scholar] [CrossRef]
  6. Ali, K.A.; Ahmad, M.I.; Yusup, Y. Issues, Impacts, and Mitigations of Carbon Dioxide Emissions in the Building Sector. Sustainability 2020, 12, 7427. [Google Scholar] [CrossRef]
  7. Mouton, L.; Allacker, K.; Röck, M. Bio-based building material solutions for environmental benefits over conventional construction products—Life cycle assessment of regenerative design strategies (1/2). Energy Build. 2023, 282, 112767. [Google Scholar] [CrossRef]
  8. Jones, D.; Brischke, C. Performance of Bio-Based Building Materials; Woodhead Publishing: Sawston, UK, 2017. [Google Scholar]
  9. Lagouin, M.; Magniont, C.; Sénéchal, P.; Moonen, P.; Aubert, J.-E.; Laborel-Préneron, A. Influence of types of binder and plant aggregates on hygrothermal and mechanical properties of vegetal concretes. Constr. Build. Mater. 2019, 222, 852–871. [Google Scholar] [CrossRef]
  10. Bourbia, S.; Kazeoui, H.; Belarbi, R. A review on recent research on bio-based building materials and their applications. Mater. Renew. Sustain. Energy 2023, 12, 117–139. [Google Scholar] [CrossRef]
  11. Yang, Y.; Haurie, L.; Wang, D.-Y. Bio-based materials for fire-retardant application in construction products: A review. J. Therm. Anal. Calorim. 2022, 147, 6563–6582. [Google Scholar] [CrossRef]
  12. Bumanis, G.; Vitola, L.; Pundiene, I.; Sinka, M.; Bajare, D. Gypsum, Geopolymers, and Starch—Alternative Binders for Bio-based Building Materials: A Review and Life-Cycle Assessment. Sustainability 2020, 12, 5666. [Google Scholar] [CrossRef]
  13. Dams, B.; Maskell, D.; Shea, A.; Allen, S.; Cascione, V.; Walker, P. Upscaling bio-based construction: Challenges and opportunities. Build. Res. Inf. 2023, 51, 764–782. [Google Scholar] [CrossRef]
  14. Laborel-Préneron, A.; Aubert, J.; Magniont, C.; Tribout, C.; Bertron, A. Plant aggregates and fibers in earth construction materials: A review. Constr. Build. Mater. 2016, 111, 719–734. [Google Scholar] [CrossRef]
  15. Pacheco-Torgal, F.; Jalali, S. Earth construction: Lessons from the past for future eco-efficient construction. Constr. Build. Mater. 2012, 29, 512–519. [Google Scholar] [CrossRef]
  16. Boussaa, N.; Kheloui, F.; Chelouah, N. Mechanical, thermal and durability investigation of compressed earth bricks stabilized with wood biomass ash. Constr. Build. Mater. 2023, 364, 129874. [Google Scholar] [CrossRef]
  17. Santos, T.; Gomes, M.I.; Silva, A.S.; Ferraz, E.; Faria, P. Comparison of mineralogical, mechanical and hygroscopic characteristic of earthen, gypsum and cement-based plasters. Constr. Build. Mater. 2020, 254, 119222. [Google Scholar] [CrossRef]
  18. Perrot, A.; Rangeard, D.; Courteille, E. 3D Printing of Earth-Based Materials: Processing Aspects. Constr. Build. Mater. 2018, 172, 670–676. [Google Scholar] [CrossRef]
  19. Fabbri, A.; Morel, J.C.; Aubert, J.-E.; Bui, Q.-B.; Gallipoli, D.; Ventura, A.; Reddy, V.B.V.; Hamard, E.; Pelé-Peltier, A.; Abhilash, H.N. An overview of the remaining challenges of the RILEM TC 274-TCE, testing and characterisation of earth-based building materials and elements. RILEM Tech. Lett. 2021, 6, 150–157. [Google Scholar] [CrossRef]
  20. Azil, A.; Le Guern, M.; Touati, K.; Sebaibi, N.; Boutouil, M.; Streiff, F.; Goodhew, S.; Gomina, M. Earth construction: Field variabilities and laboratory reproducibility. Constr. Build. Mater. 2022, 314, 125591. [Google Scholar] [CrossRef]
  21. Paul, S.; Islam, M.S.; Elahi, T.E. Comparative effectiveness of fibers in enhancing engineering properties of Earth as a building Material: A review. Constr. Build. Mater. 2022, 332, 127366. [Google Scholar] [CrossRef]
  22. Fabbri, A.; Morel, J.-C.; Gallipoli, D. Assessing the performance of earth building materials: A review of recent developments. RILEM Tech. Lett. 2018, 3, 46–58. [Google Scholar] [CrossRef]
  23. Shubbar, A.A.; Sadique, M.; Kot, P.; Atherton, W. Future of clay-based construction materials—A review. Constr. Build. Mater. 2019, 210, 172–187. [Google Scholar] [CrossRef]
  24. Pelé-Peltier, A.; Charef, R.; Morel, J.-C. Factors affecting the use of earth material in mainstream construction: A critical review. Build. Res. Inf. 2023, 51, 119–137. [Google Scholar] [CrossRef]
  25. Zami, M.S.; Lee, A. Economic benefits of contemporary earth construction in low-cost urban housing—State-of-the-art review. J. Build. Apprais. 2010, 5, 259–271. [Google Scholar] [CrossRef]
  26. Bamogo, H.; Ouedraogo, M.; Sanou, I.; Ouedraogo, K.A.J.; Dao, K.; Aubert, J.-E.; Millogo, Y. Improvement of water resistance and thermal comfort of earth renders by cow dung: An ancestral practice of Burkina Faso. J. Cult. Heritage 2020, 46, 42–51. [Google Scholar] [CrossRef]
  27. Khtou, O.; Aalil, I.; Aboussaleh, M.; EL Wardi, F.Z. Mechanical Analysis of Fiber Reinforced Adobe. Civ. Eng. Arch. 2021, 9, 2160–2168. [Google Scholar] [CrossRef]
  28. Guerrero Baca, L.F. The Use of Cob in the Intervention of Adobe Construction Components. Interv. México DF 2020, 11, 133–187. [Google Scholar] [CrossRef]
  29. Lima, J.; Faria, P. Eco-Efficient Earthen Plasters: The Influence of the Addition of Natural Fibers. In Natural Fibres: Advances in Science and Technology Towards Industrial Applications; Fangueiro, R., Rana, S., Eds.; RILEM Bookseries; Springer: Dordrecht, The Netherlands, 2016; pp. 315–327. [Google Scholar] [CrossRef]
  30. Laborel-Préneron, A.; Magniont, C.; Aubert, J.-E. Hygrothermal properties of unfired earth bricks: Effect of barley straw, hemp shiv and corn cob addition. Energy Build. 2018, 178, 265–278. [Google Scholar] [CrossRef]
  31. Giroudon, M.; Laborel-Préneron, A.; Aubert, J.-E.; Magniont, C. Comparison of barley and lavender straws as bioaggregates in earth bricks. Constr. Build. Mater. 2019, 202, 254–265. [Google Scholar] [CrossRef]
  32. Bouasria, M.; El Mendili, Y.; Benzaama, M.-H.; Pralong, V.; Bardeau, J.-F.; Hennequart, F. Valorisation of stranded Laminaria digitata seaweed as an insulating earth material. Constr. Build. Mater. 2021, 308, 125068. [Google Scholar] [CrossRef]
  33. Lagouin, M.; Laborel-Préneron, A.; Magniont, C.; Geoffroy, S.; Aubert, J.-E. Effects of organic admixtures on the fresh and mechanical properties of earth-based plasters. J. Build. Eng. 2021, 41, 102379. [Google Scholar] [CrossRef]
  34. Jonkers, H.M. Toward Bio-based geo- & Civil Engineering for a Sustainable Society. Procedia Eng. 2017, 171, 168–175. [Google Scholar] [CrossRef]
  35. Lagouin, M.; Laborel-Préneron, A.; Magniont, C.; Geoffroy, S.; Aubert, J.-E. Moisture buffer capacity of a bilayer bio- and geo-based wall. Constr. Build. Mater. 2022, 329, 127209. [Google Scholar] [CrossRef]
  36. Brümmer, M.; Sáez-Pérez, M.P.; Suárez, J.D. Hemp-Clay Concretes for Environmental Building—Features that Attribute to Drying, Stabilization with Lime, Water Uptake and Mechanical Strength. In Advances in Natural Fibre Composites; Fangueiro, R., Rana, S., Eds.; Springer International Publishing: Cham, Switzerland, 2018; pp. 249–265. [Google Scholar] [CrossRef]
  37. AlRyalat, S.A.S.; Malkawi, L.W.; Momani, S.M. Comparing Bibliometric Analysis Using PubMed, Scopus, and Web of Science Databases. JoVE J. Vis. Exp. 2019, 152, e58494. [Google Scholar] [CrossRef]
  38. Mongeon, P.; Paul-Hus, A. The journal coverage of Web of Science and Scopus: A comparative analysis. Scientometrics 2016, 106, 213–228. [Google Scholar] [CrossRef]
  39. Dharmani, P.; Das, S.; Prashar, S. A bibliometric analysis of creative industries: Current trends and future directions. J. Bus. Res. 2021, 135, 252–267. [Google Scholar] [CrossRef]
  40. Soosaraei, M.; Khasseh, A.A.; Fakhar, M.; Hezarjaribi, H.Z. A decade bibliometric analysis of global research on leishmaniasis in Web of Science database. Ann. Med. Surg. 2018, 26, 30–37. [Google Scholar] [CrossRef]
  41. Kirby, A. Exploratory Bibliometrics: Using VOSviewer as a Preliminary Research Tool. Publications 2023, 11, 10. [Google Scholar] [CrossRef]
  42. McAllister, J.T.; Lennertz, L.; Mojica, Z.A. Mapping A Discipline: A Guide to Using VOSviewer for Bibliometric and Visual Analysis. Sci. Technol. Libr. 2022, 41, 319–348. [Google Scholar] [CrossRef]
  43. CWTS—Centre for Science and Technology Studies—Leiden University. CWTS. Available online: https://www.cwts.nl// (accessed on 1 October 2023).
  44. Van Eck, N.J.; Waltman, L. Software survey: VOSviewer, a computer program for bibliometric mapping. Scientometrics 2010, 84, 523–538. [Google Scholar] [CrossRef]
  45. Alviz-Meza, A.; Orozco-Agamez, J.; Quinayá, D.C.P.; Alviz-Amador, A. Bibliometric Analysis of Fourth Industrial Revolution Applied to Material Sciences Based on Web of Science and Scopus Databases from 2017 to 2021. Chemengineering 2023, 7, 2. [Google Scholar] [CrossRef]
  46. Spence, R.; Mulligan, H. Sustainable development and the construction industry. Habitat Int. 1995, 19, 279–292. [Google Scholar] [CrossRef]
  47. Vanegas, J.; DuBose, J.; Pearce, A. Sustainable Technologies for the Building Construction Industry. Jan. 1995. Available online: https://www.researchgate.net/publication/228540323_Sustainable_technologies_for_the_building_construction_industry (accessed on 20 November 2023).
  48. Ofori, G.; Briffett, C.; Gang, G.; Ranasinghe, M. Impact of ISO 14000 on construction enterprises in Singapore. Constr. Manag. Econ. 2000, 18, 935–947. [Google Scholar] [CrossRef]
  49. Gavilan, R.M.; Bernold, L.E. Source Evaluation of Solid Waste in Building Construction. J. Constr. Eng. Manag. 1994, 120, 536–552. [Google Scholar] [CrossRef]
  50. Venkatarama Reddy, B.V.; Jagadish, K.S. Embodied energy of common and alternative building materials and technologies. Energy Build. 2003, 35, 129–137. [Google Scholar] [CrossRef]
  51. Melià, P.; Ruggieri, G.; Sabbadini, S.; Dotelli, G. Environmental impacts of natural and conventional building materials: A case study on earth plasters. J. Clean. Prod. 2014, 80, 179–186. [Google Scholar] [CrossRef]
  52. Khator, R. The new paradigm: From development administration to sustainable development administration. Int. J. Public Adm. 1998, 21, 1777–1801. [Google Scholar] [CrossRef]
  53. Delmas, M.A. The diffusion of environmental management standards in Europe and in the United States: An institutional perspective. Policy Sci. 2002, 35, 91–119. [Google Scholar] [CrossRef]
  54. Yadav, M.; Agarwal, M. Biobased building materials for sustainable future: An overview. Mater. Today Proc. 2021, 43, 2895–2902. [Google Scholar] [CrossRef]
  55. Arufe, S.; de Menibus, A.H.; Leblanc, N.; Lenormand, H. Physico-chemical characterisation of plant particles with potential to produce biobased building materials. Ind. Crop. Prod. 2021, 171, 113901. [Google Scholar] [CrossRef]
  56. Göswein, V.; Reichmann, J.; Habert, G.; Pittau, F. Land availability in Europe for a radical shift toward bio-based construction. Sustain. Cities Soc. 2021, 70, 102929. [Google Scholar] [CrossRef]
  57. Aghamohammadi, N.; Shahmohammadi, M. Chapter 8—Towards sustainable development goals and role of bio-based building materials. In Bio-Based Materials and Waste for Energy Generation and Resource Management; Hussain, C.M., Kushwaha, A., Bharagava, R.N., Goswami, L., Eds.; Advanced Zero Waste Tools; Elsevier: Amsterdam, The Netherlands, 2023; Volume 5, pp. 243–279. [Google Scholar] [CrossRef]
  58. Mazian, B.; Bergeret, A.; Benezet, J.-C.; Bayle, S.; Malhautier, L. Impact of Field Retting on the Hemp Fibres Structure. Rev. Compos. Matér. Avancés 2019, 29, 277–282. [Google Scholar] [CrossRef]
  59. Zoungrana, O.; Bologo/Traoré, M.; Messan, A.; Nshimiyimana, P.; Pirotte, G. The Paradox around the Social Representations of Compressed Earth Block Building Material in Burkina Faso: The Material for the Poor or the Luxury Material? Open J. Soc. Sci. 2021, 9, 50–65. [Google Scholar] [CrossRef]
  60. Morel, J.-C.; Charef, R.; Hamard, E.; Fabbri, A.; Beckett, C.; Bui, Q.-B. Earth as construction material in the circular economy context: Practitioner perspectives on barriers to overcome. Philos. Trans. R. Soc. B Biol. Sci. 2021, 376, 20200182. [Google Scholar] [CrossRef] [PubMed]
  61. Donthu, N.; Gustafsson, A. Effects of COVID-19 on business and research. J. Bus. Res. 2020, 117, 284–289. [Google Scholar] [CrossRef] [PubMed]
  62. Avrami, E.; Guillaud, H.; Hardy, M. (Eds.) Terra Literature Review: An Overview of Research in Earthen Architecture Conservation; Getty Conservation Institute: Los Angeles, CA, USA, 2008; Available online: http://hdl.handle.net/10020/gci_pubs/terra_literature_review (accessed on 20 November 2023).
  63. Andonova, L.B.; Hoffmann, M.J. From Rio to Rio and Beyond: Innovation in Global Environmental Governance. J. Environ. Dev. 2012, 21, 57–61. [Google Scholar] [CrossRef]
  64. Panjabi, R.K.L. The Earth Summit at Rio: Politics, Economics and the Environment. Chapter 4. 1997. Available online: https://www.cabdirect.org/cabdirect/abstract/19981806031 (accessed on 5 September 2023).
  65. Böhringer, C. The Kyoto Protocol: A Review and Perspectives. Oxf. Rev. Econ. Policy 2003, 19, 451–466. [Google Scholar] [CrossRef]
  66. Prins, G.; Rayner, S. The Kyoto Protocol. Bull. At. Sci. 2008, 64, 45–58. [Google Scholar] [CrossRef]
  67. Ghezloun, A.; Saidane, A.; Oucher, N.; Chergui, S. The Post-Kyoto. Energy Procedia 2013, 36, 1–8. [Google Scholar] [CrossRef]
  68. Gong, G.J. What China wants: China’s climate change priorities in a post-Copenhagen world. Glob. Chang. Peace Secur. 2011, 23, 159–175. [Google Scholar] [CrossRef]
  69. Depledge, J. Against the grain: The United States and the global climate change regime. Glob. Chang. Peace Secur. 2005, 17, 11–27. [Google Scholar] [CrossRef]
  70. Connelly, R.K.W.W.A.J. Introduction: European Union political leadership in international climate change politics. In The European Union as a Leader in International Climate Change Politics; Routledge: London, UK, 2010. [Google Scholar]
  71. Viguier, L.L.; Babiker, M.H.; Reilly, J.M. The costs of the Kyoto Protocol in the European Union. Energy Policy 2003, 31, 459–481. [Google Scholar] [CrossRef]
  72. Pacheco-Torgal, F. Eco-efficient construction and building materials research under the EU Framework Programme Horizon 2020. Constr. Build. Mater. 2014, 51, 151–162. [Google Scholar] [CrossRef]
  73. Martín-Uceda, J.; Rufí, J.V. Territorial Development and Cross-Border Cooperation: A Review of the Consequences of European INTERREG Policies on the Spanish–French Border (2007–2020). Sustainability 2021, 13, 12017. [Google Scholar] [CrossRef]
  74. Feliu, J.; Berzi, M.; Vicente, J.; Castañer, M.; Llussà, R. Analysis of cross-border projects between France and Spain 2007–2013. Eur. J. Geogr. 2013, 4, 33–46. [Google Scholar]
  75. Lagouin, M.; Bire, D.; Bory, J.-B.; Evon, P.; Labonne, L.; Laborel-Preneron, A.; Magniony, C. Structuration d’une filière de valorisation transfrontalière des tiges de maïs et de tournesol pour la construction. Acad. J. Civ. Eng. 2022, 40, 1. [Google Scholar]
  76. Avellaneda, A.; Evon, P.; Haurie, L.; Laborel-Préneron, A.; Lagouin, M.; Magniont, C.; Navarro, A.; Palumbo, M.; Torres, A. Evaluation of the Potential of Plant Aggregates from Corn and Sunflower Stalks for the Design of Building Materials. In Bio-Based Building Materials; Amziane, S., Merta, I., Page, J., Eds.; RILEM Bookseries; Springer Nature: Cham, Switzerland, 2023; pp. 70–86. [Google Scholar] [CrossRef]
  77. Azil, A.; Le Guern, M.; Rattier, R.; Touati, K.; Sebaibi, N.; El Mendili, Y.; Boutouil, M.; Streiff, F.; Goodhew, S.; Louahlia, H. Réalisation d’un bâtiment pilote en terre-fibres. Acad. J. Civ. Eng. 2020, 38, 1. Available online: https://hal.science/hal-03331999 (accessed on 14 September 2023).
  78. Fox, M.; Le Guern, M.; Carfrae, J.; Touati, K.; Strieff, F.; Boutouil, M.; Goodhew, S. An Investigation into the Potential Use of TDR Measurement Systems to Accurately Assess the Moisture Content at the Centre of Completed Earth Walls. 2022. Available online: https://pearl.plymouth.ac.uk/handle/10026.1/19510 (accessed on 14 September 2023).
  79. Maris, G.; Flouros, F. The Green Deal, National Energy and Climate Plans in Europe: Member States’ Compliance and Strategies. Adm. Sci. 2021, 11, 75. [Google Scholar] [CrossRef]
  80. Strazzeri, V.; Karrech, A. Qualitative and quantitative study to assess the use of rammed earth construction technology in Perth and the south-west of Western Australia. Clean. Mater. 2023, 7, 100169. [Google Scholar] [CrossRef]
  81. Gomaa, M.; Schade, S.; Bao, D.W.; Xie, Y.M. Automation in rammed earth construction for industry 4.0: Precedent work, current progress and future prospect. J. Clean. Prod. 2023, 398, 136569. [Google Scholar] [CrossRef]
  82. Abdelaal, A.; Gomaa, M.; Xie, Y.M. A novel modular technique for manufacturing free-form rammed earth walls. In Proceedings of the IASS Annual Symposium 2023, Melbourne, Australia, 10–14 July 2023; pp. 1–12. [Google Scholar]
  83. Foster, I. The Grid: A New Infrastructure for 21st Century Science. Phys. Today 2002, 55, 42–47. [Google Scholar] [CrossRef]
  84. Michel, J.; Moulinec, H.; Suquet, P. Effective properties of composite materials with periodic microstructure: A computational approach. Comput. Methods Appl. Mech. Eng. 1999, 172, 109–143. [Google Scholar] [CrossRef]
  85. Fish, J.; Yu, Q.; Shek, K. Computational damage mechanics for composite materials based on mathematical homogenization. Int. J. Numer. Methods Eng. 1999, 45, 1657–1679. [Google Scholar] [CrossRef]
  86. Ladevèze, P. A damage computational method for composite structures. Comput. Struct. 1992, 44, 79–87. [Google Scholar] [CrossRef]
  87. Hou, T.Y.; Wu, X.-H. A Multiscale Finite Element Method for Elliptic Problems in Composite Materials and Porous Media. J. Comput. Phys. 1997, 134, 169–189. [Google Scholar] [CrossRef]
  88. Asdrubali, F.; D’Alessandro, F.; Schiavoni, S. A review of unconventional sustainable building insulation materials. Sustain. Mater. Technol. 2015, 4, 1–17. [Google Scholar] [CrossRef]
  89. Collet, F.; Chamoin, J.; Pretot, S.; Lanos, C. Comparison of the hygric behaviour of three hemp concretes. Energy Build. 2013, 62, 294–303. [Google Scholar] [CrossRef]
  90. Collet, F.; Pretot, S. Thermal conductivity of hemp concretes: Variation with formulation, density and water content. Constr. Build. Mater. 2014, 65, 612–619. [Google Scholar] [CrossRef]
  91. Elfordy, S.; Lucas, F.; Tancret, F.; Scudeller, Y.; Goudet, L. Mechanical and thermal properties of lime and hemp concrete (“hempcrete”) manufactured by a projection process. Constr. Build. Mater. 2008, 22, 2116–2123. [Google Scholar] [CrossRef]
  92. Korjenic, A.; Petránek, V.; Zach, J.; Hroudová, J. Development and performance evaluation of natural thermal-insulation materials composed of renewable resources. Energy Build. 2011, 43, 2518–2523. [Google Scholar] [CrossRef]
  93. Lelievre, D.; Colinart, T.; Glouannec, P. Hygrothermal behavior of bio-based building materials including hysteresis effects: Experimental and numerical analyses. Energy Build. 2014, 84, 617–627. [Google Scholar] [CrossRef]
  94. Liu, X.; Zeng, M. Renewable energy investment risk evaluation model based on system dynamics. Renew. Sustain. Energy Rev. 2017, 73, 782–788. [Google Scholar] [CrossRef]
  95. Mazhoud, B.; Collet, F.; Pretot, S.; Chamoin, J. Hygric and thermal properties of hemp-lime plasters. Build. Environ. 2016, 96, 206–216. [Google Scholar] [CrossRef]
  96. Palumbo, M.; Lacasta, A.M.; Holcroft, N.; Shea, A.; Walker, P. Determination of hygrothermal parameters of experimental and commercial bio-based insulation materials. Constr. Build. Mater. 2016, 124, 269–275. [Google Scholar] [CrossRef]
  97. Pittau, F.; Krause, F.; Lumia, G.; Habert, G. Fast-growing bio-based materials as an opportunity for storing carbon in exterior walls. Build. Environ. 2018, 129, 117–129. [Google Scholar] [CrossRef]
  98. Pretot, S.; Collet, F.; Garnier, C. Life cycle assessment of a hemp concrete wall: Impact of thickness and coating. Build. Environ. 2014, 72, 223–231. [Google Scholar] [CrossRef]
  99. Rahim, M.; Douzane, O.; Tran Le, A.D.; Promis, G.; Laidoudi, B.; Crigny, A.; Dupre, B.; Langlet, T. Characterization of flax lime and hemp lime concretes: Hygric properties and moisture buffer capacity. Energy Build. 2015, 88, 91–99. [Google Scholar] [CrossRef]
  100. Rahim, M.; Douzane, O.; Tran Le, A.D.; Promis, G.; Langlet, T. Characterization and comparison of hygric properties of rape straw concrete and hemp concrete. Constr. Build. Mater. 2016, 102, 679–687. [Google Scholar] [CrossRef]
  101. Shea, A.; Lawrence, M.; Walker, P. Hygrothermal performance of an experimental hemp–lime building. Constr. Build. Mater. 2012, 36, 270–275. [Google Scholar] [CrossRef]
  102. Walker, R.; Pavia, S.; Mitchell, R. Mechanical properties and durability of hemp-lime concretes. Constr. Build. Mater. 2014, 61, 340–348. [Google Scholar] [CrossRef]
  103. Latapie, S.R.; Lagouin, M.; Sabathier, V.; Abou-Chakra, A. From aggregate to particleboard: A new multi-scale model approach to thermal conductivity in bio-based materials. J. Build. Eng. 2023, 78, 107664. [Google Scholar] [CrossRef]
  104. Barbieri, V.; Gualtieri, M.L.; Siligardi, C. Wheat husk: A renewable resource for bio-based building materials. Constr. Build. Mater. 2020, 251, 118909. [Google Scholar] [CrossRef]
  105. Allinson, D.; Hall, M. Hygrothermal analysis of a stabilised rammed earth test building in the UK. Energy Build. 2010, 42, 845–852. [Google Scholar] [CrossRef]
  106. Bahar, R.; Benazzoug, M.; Kenai, S. Performance of compacted cement-stabilised soil. Cem. Concr. Compos. 2004, 26, 811–820. [Google Scholar] [CrossRef]
  107. Cagnon, H.; Aubert, J.E.; Coutand, M.; Magniont, C. Hygrothermal properties of earth bricks. Energy Build. 2014, 80, 208–217. [Google Scholar] [CrossRef]
  108. Ghavami, K.; Toledo Filho, R.D.; Barbosa, N.P. Behaviour of composite soil reinforced with natural fibres. Cem. Concr. Compos. 1999, 21, 39–48. [Google Scholar] [CrossRef]
  109. Hall, M.; Djerbib, Y. Rammed earth sample production: Context, recommendations and consistency. Constr. Build. Mater. 2004, 18, 281–286. [Google Scholar] [CrossRef]
  110. Houben, H.; Guillard, H. Earth Construction: A Comprehensive Guide; Intermediate Technology Publications: Rugby, UK, 1994. [Google Scholar]
  111. Jiménez Delgado, M.C.; Guerrero, I.C. The selection of soils for unstabilised earth building: A normative review. Constr. Build. Mater. 2007, 21, 237–251. [Google Scholar] [CrossRef]
  112. Liuzzi, S.; Hall, M.R.; Stefanizzi, P.; Casey, S.P. Hygrothermal behaviour and relative humidity buffering of unfired and hydrated lime-stabilised clay composites in a Mediterranean climate. Build. Environ. 2013, 61, 82–92. [Google Scholar] [CrossRef]
  113. Miccoli, L.; Müller, U.; Fontana, P. Mechanical behaviour of earthen materials: A comparison between earth block masonry, rammed earth and cob. Constr. Build. Mater. 2014, 61, 327–339. [Google Scholar] [CrossRef]
  114. Millogo, Y.; Morel, J.-C.; Aubert, J.-E.; Ghavami, K. Experimental analysis of Pressed Adobe Blocks reinforced with Hibiscus cannabinus fibers. Constr. Build. Mater. 2014, 52, 71–78. [Google Scholar] [CrossRef]
  115. Morel, J.C.; Mesbah, A.; Oggero, M.; Walker, P. Building houses with local materials: Means to drastically reduce the environmental impact of construction. Build. Environ. 2001, 36, 1119–1126. [Google Scholar] [CrossRef]
  116. Pacheco-Torgal, F.; Abdollahnejad, Z.; Miraldo, S.; Baklouti, S.; Ding, Y. An overview on the potential of geopolymers for concrete infrastructure rehabilitation. Constr. Build. Mater. 2012, 36, 1053–1058. [Google Scholar] [CrossRef]
  117. Walker, P.J. Strength, durability and shrinkage characteristics of cement stabilised soil blocks. Cem. Concr. Compos. 1995, 17, 301–310. [Google Scholar] [CrossRef]
  118. Ardant, D.; Brumaud, C.; Habert, G. Tackling Variability of Clay to Provide a Robust Binder. Constr. Technol. Archit. 2022, 1, 382–387. [Google Scholar] [CrossRef]
  119. Barnaure, M.; Bonnet, S.; Poullain, P. Earth buildings with local materials: Assessing the variability of properties measured using non-destructive methods. Constr. Build. Mater. 2021, 281, 122613. [Google Scholar] [CrossRef]
  120. Nascimento, G.M.D. Clay and Clay Minerals; BoD–Books on Demand; IntechOpen: London, UK, 2021. [Google Scholar]
  121. Gomaa, M.; Jabi, W.; Soebarto, V.; Xie, Y.M. Digital manufacturing for earth construction: A critical review. J. Clean. Prod. 2022, 338, 130630. [Google Scholar] [CrossRef]
  122. Rawat, B.; Mehra, N.; Bist, A.S.; Yusup, M.; Sanjaya, Y.P.A. Quantum Computing and AI: Impacts & Possibilities. ADI J. Recent Innov. 2022, 3, 202–207. [Google Scholar] [CrossRef]
  123. Bado, M.F.; Tonelli, D.; Poli, F.; Zonta, D.; Casas, J.R. Digital Twin for Civil Engineering Systems: An Exploratory Review for Distributed Sensing Updating. Sensors 2022, 22, 3168. [Google Scholar] [CrossRef]
  124. Jiang, F.; Ma, L.; Broyd, T.; Chen, K. Digital twin and its implementations in the civil engineering sector. Autom. Constr. 2021, 130, 103838. [Google Scholar] [CrossRef]
  125. Pregnolato, M.; Gunner, S.; Voyagaki, E.; De Risi, R.; Carhart, N.; Gavriel, G.; Tully, P.; Tryfonas, T.; Macdonald, J.; Taylor, C. Towards Civil Engineering 4.0: Concept, workflow and application of Digital Twins for existing infrastructure. Autom. Constr. 2022, 141, 104421. [Google Scholar] [CrossRef]
  126. Nguyen, T.-D.; Cherif, R.; Mahieux, P.-Y.; Lux, J.; Aït-Mokhtar, A.; Bastidas-Arteaga, E. Artificial intelligence algorithms for prediction and sensitivity analysis of mechanical properties of recycled aggregate concrete: A review. J. Build. Eng. 2023, 66, 105929. [Google Scholar] [CrossRef]
  127. Vadyala, S.R.; Betgeri, S.N.; Matthews, J.C.; Matthews, E. A review of physics-based machine learning in civil engineering. Results Eng. 2022, 13, 100316. [Google Scholar] [CrossRef]
  128. Lux, J.; Hoong, J.D.L.H.; Mahieux, P.-Y.; Turcry, P. Classification and estimation of the mass composition of recycled aggregates by deep neural networks. Comput. Ind. 2023, 148, 103889. [Google Scholar] [CrossRef]
Constrmater 03 00031 g001
Figure 1. Flow chart of the methodology applied in the study.
Figure 1. Flow chart of the methodology applied in the study.
Constrmater 03 00031 g001
Constrmater 03 00031 g002
Figure 2. Number of publications concerning bio-based materials between 1990 and 2022 according to Web of Science.
Figure 2. Number of publications concerning bio-based materials between 1990 and 2022 according to Web of Science.
Constrmater 03 00031 g002
Constrmater 03 00031 g003
Figure 3. Typology of publications on bio-based building materials between 1990 and 2022 according to Web of Science data.
Figure 3. Typology of publications on bio-based building materials between 1990 and 2022 according to Web of Science data.
Constrmater 03 00031 g003
Constrmater 03 00031 g004
Figure 4. Main topics studied in publications concerning bio-based building materials between 1990 and 2022 according to Web of Science data.
Figure 4. Main topics studied in publications concerning bio-based building materials between 1990 and 2022 according to Web of Science data.
Constrmater 03 00031 g004
Constrmater 03 00031 g005
Figure 5. Number of publications for the main raw materials identified in bio-based building materials over the years.
Figure 5. Number of publications for the main raw materials identified in bio-based building materials over the years.
Constrmater 03 00031 g005
Constrmater 03 00031 g006
Figure 6. Number of publications concerning earth-based materials between 1990 and 2022, according to Web of Science data.
Figure 6. Number of publications concerning earth-based materials between 1990 and 2022, according to Web of Science data.
Constrmater 03 00031 g006
Constrmater 03 00031 g007
Figure 7. Typology of publications on geo-based building materials between 1990 and 2022 according to Web of Science data.
Figure 7. Typology of publications on geo-based building materials between 1990 and 2022 according to Web of Science data.
Constrmater 03 00031 g007
Constrmater 03 00031 g008
Figure 8. Main topics studied in publications concerning earth-based materials between 1990 and 2022 according to Web of Science data.
Figure 8. Main topics studied in publications concerning earth-based materials between 1990 and 2022 according to Web of Science data.
Constrmater 03 00031 g008
Constrmater 03 00031 g009
Figure 9. Number of publications for the main implementation techniques of geo-based building materials over the years.
Figure 9. Number of publications for the main implementation techniques of geo-based building materials over the years.
Constrmater 03 00031 g009
Constrmater 03 00031 g010
Figure 10. Number of publications concerning composite materials between 1960 and 2022 according to Web of Science data.
Figure 10. Number of publications concerning composite materials between 1960 and 2022 according to Web of Science data.
Constrmater 03 00031 g010
Constrmater 03 00031 g011
Figure 11. Number of publications concerning modeling and composite materials in the 2000s according to Web of Science data.
Figure 11. Number of publications concerning modeling and composite materials in the 2000s according to Web of Science data.
Constrmater 03 00031 g011
Constrmater 03 00031 g012aConstrmater 03 00031 g012b
Figure 12. Main research areas studied in the field of composite materials from 1960 to 1990 (a) and from 1990 to 2022 (b) according to Web of Science data.
Figure 12. Main research areas studied in the field of composite materials from 1960 to 1990 (a) and from 1990 to 2022 (b) according to Web of Science data.
Constrmater 03 00031 g012aConstrmater 03 00031 g012b
Constrmater 03 00031 g013
Figure 13. Number of publications concerning modeling and bio-based or geo-based building materials according to Web of Science data.
Figure 13. Number of publications concerning modeling and bio-based or geo-based building materials according to Web of Science data.
Constrmater 03 00031 g013
Constrmater 03 00031 g014
Figure 14. Proportion of publications, from 1900 to 2022, dealing with physics or chemistry in different types of materials according to Web of Science data.
Figure 14. Proportion of publications, from 1900 to 2022, dealing with physics or chemistry in different types of materials according to Web of Science data.
Constrmater 03 00031 g014
Constrmater 03 00031 g015
Figure 15. Co-authorship networks of authors (with minimum of five publications) concerning bio-based building materials, with time scale over the last few years.
Figure 15. Co-authorship networks of authors (with minimum of five publications) concerning bio-based building materials, with time scale over the last few years.
Constrmater 03 00031 g015
Constrmater 03 00031 g016
Figure 16. Founding works concerning bio-based building materials [88,89,90,91,92,93,94,95,96,97,98,99,100,101,102].
Figure 16. Founding works concerning bio-based building materials [88,89,90,91,92,93,94,95,96,97,98,99,100,101,102].
Constrmater 03 00031 g016
Constrmater 03 00031 g017
Figure 17. Co-occurrence networks of keywords concerning bio-based building materials.
Figure 17. Co-occurrence networks of keywords concerning bio-based building materials.
Constrmater 03 00031 g017
Constrmater 03 00031 g018aConstrmater 03 00031 g018bConstrmater 03 00031 g018c
Figure 18. Co-occurrence networks of keywords concerning publications about the most widely studied implementation techniques in the literature.
Figure 18. Co-occurrence networks of keywords concerning publications about the most widely studied implementation techniques in the literature.
Constrmater 03 00031 g018aConstrmater 03 00031 g018bConstrmater 03 00031 g018c
Constrmater 03 00031 g019
Figure 19. Co-authorship networks of authors (with minimum of three publications) concerning geo-based building materials, with time scale over the last few years.
Figure 19. Co-authorship networks of authors (with minimum of three publications) concerning geo-based building materials, with time scale over the last few years.
Constrmater 03 00031 g019
Constrmater 03 00031 g021
Figure 21. Co-occurrence networks of keywords concerning geo-based building materials.
Figure 21. Co-occurrence networks of keywords concerning geo-based building materials.
Constrmater 03 00031 g021
Constrmater 03 00031 g022aConstrmater 03 00031 g022bConstrmater 03 00031 g022cConstrmater 03 00031 g022d
Figure 22. Co-occurrence networks of keywords concerning publications about the most widely studied raw materials in the literature.
Figure 22. Co-occurrence networks of keywords concerning publications about the most widely studied raw materials in the literature.
Constrmater 03 00031 g022aConstrmater 03 00031 g022bConstrmater 03 00031 g022cConstrmater 03 00031 g022d
Constrmater 03 00031 g023
Figure 23. Co-occurrence networks of keywords concerning composite building materials (2022).
Figure 23. Co-occurrence networks of keywords concerning composite building materials (2022).
Constrmater 03 00031 g023
Table 1. Web of Science search criteria to extract the initial database.
Table 1. Web of Science search criteria to extract the initial database.
TopicYear PublishedNumber of Publications
“Bio-based building materials”1900–20221778
“Earth-based building materials” or “geo-based building materials”1900–20221605
“Composite materials”1900–2022416,745
Table 2. Top ten countries of publication concerning bio-based building materials to date.
Table 2. Top ten countries of publication concerning bio-based building materials to date.
CountriesArticles
China309
France241
USA225
Italy147
Germany139
England107
India100
Spain91
Canada77
Netherlands62
Table 3. Most contributive authors in the field of bio-based building materials to date.
Table 3. Most contributive authors in the field of bio-based building materials to date.
Author AffiliationArticles
Collet Florence Université de Rennes 1, Laboratoire de Génie Civil et Génie Mécanique18
Lanos Christophe Université de Rennes 1, Laboratoire de Génie Civil et Génie Mécanique15
Blanchet Pierre Department of Wood and Forest Sciences, Laval University, Québec, QC G1V0A6, Canada15
Magniont Camille Université de Toulouse, UPS, INSA, LMDC (Laboratoire Matériaux et Durabilité des Constructions), Toulouse Cedex 04, France14
Habert Guillaume Chair of Sustainable Construction, Eidgenössische Technische Hochschule (ETH) Zurich, Stefano Francini Platz 5, CH-8093 Zurich, Switzerland13
Pretot Sylvie Université de Rennes 1, Laboratoire de Génie Civil et Génie Mécanique12
Lawrence Mike BRE Centre for Innovative Construction Materials, Department of Architecture and Civil Engineering, University of Bath, BA2 7AY, United Kingdom11
Langlet Thierry Laboratoire des Technologies Innovantes (LTI), University of Picardie Jules Verne, Avenue des Facultés—Le Bailly, 80 025 Amiens Cedex 1, France10
Maalouf Chadi University of Reims Champagne-Ardennes, GRESPI Laboratory (EA 4694), Reims 51100, France9
Table 4. Top ten journals publishing articles about bio-based building materials.
Table 4. Top ten journals publishing articles about bio-based building materials.
JournalArticles
Construction and building materials79
Polymers38
Journal of cleaner production37
Materials34
Energy and buildings32
Journal of building engineering27
Sustainability26
Building and environment25
Industrial crops and products20
Material today proceedings20
Table 5. Top ten countries of publication concerning earth-based building materials to date.
Table 5. Top ten countries of publication concerning earth-based building materials to date.
CountriesArticles
USA309
China291
France145
Italy113
Germany89
England86
Spain82
India80
Portugal64
Australia55
Table 6. Most contributive authors in the field of earth-based building materials to date.
Table 6. Most contributive authors in the field of earth-based building materials to date.
Author AffiliationArticles
Aubert Jean-Emmanuel Université de Toulouse, UPS, INSA, LMDC (Laboratoire Matériaux et Durabilité des Constructions), Toulouse Cedex 04, France13
Faria PaulinaCERIS-ICIST and Civil Engineering Department, NOVA University of Lisbon (FCT NOVA), Campus da Caparica, 2829-516 Caparica, Portugal12
Laborel-Preneron AurélieUniversité de Toulouse, UPS, INSA, LMDC (Laboratoire Matériaux et Durabilité des Constructions), Toulouse Cedex 04, France11
Magniont Camille Université de Toulouse, UPS, INSA, LMDC (Laboratoire Matériaux et Durabilité des Constructions), Toulouse Cedex 04, France9
Humberto Varum CONSTRUCT-LESE, Department of Civil Engineering, Faculdade de Engenharia da Universidade do Porto, Portugal8
Niroumand Hamed Department of Civil Engineering, Faculty of Engineering, Buein Zahra Technical University (IKIU-BZ), Qazvin 34149, Iran8
Pinto Joao Fransisco Natural Works, Rua Ricardo Esp. Santo N5 CVD, 1200-790, Lisboa, Portugal8
Beckett Christopher Institute of Infrastructure and Environment, School of Engineering, The University of Edinburgh, Edinburgh, UK7
Zai, M.F.M University of Reims Champagne-Ardennes, GRESPI Laboratory (EA 4694), Reims 51100, France6
Hamard ErwanLUNAM University, IFSTTAR, MAST, GPEM, F-44344 Bouguenais, France6
Table 7. Top ten journals publishing in the field of earth-based building materials to date.
Table 7. Top ten journals publishing in the field of earth-based building materials to date.
JournalArticles
Construction and building materials63
Sustainability26
Proceeding of SPIE23
Journal of building engineering22
International journal of architectural heritage18
Journal of cleaner production18
Inorganic chemistry17
AIP Conference Proceedings15
Accounts of chemical research14
Materials today proceedings14
Table 8. Main areas of research according to cluster analysis.
Table 8. Main areas of research according to cluster analysis.
ClusterAssociated ColorGeneral Theme
1Constrmater 03 00031 i001Environmental impact
2Constrmater 03 00031 i002Thermo-hydric behavior
3Constrmater 03 00031 i003Mechanical properties
4Constrmater 03 00031 i004Building-scale performance
Table 9. Cluster analysis (in decreasing order: n°1 corresponds to the greatest number of publications).
Table 9. Cluster analysis (in decreasing order: n°1 corresponds to the greatest number of publications).
ClusterAssociated ColorGeneral Theme
1Constrmater 03 00031 i005Environmental impact
2Constrmater 03 00031 i006Thermo-hydric behavior
3Constrmater 03 00031 i007Construction techniques
4Constrmater 03 00031 i008Mechanical behavior
Table 10. Main conclusions of the study.
Table 10. Main conclusions of the study.
TopicMajor AuthorsMain Subcategories StudiedResearch Perspectives
Bio-based
building
materials		Collet F.
Lanos C.
Blanchet P.
Magniont C.
Habert G.
Pretot S.
Lawrence Mike
Langlet T.
Maalouf C.		Hemp
Wood
Straw		Modeling
Physics
Microstructure
Chemical composition
Sustainability
Energy
Resource diversity
Structuring the local sector
Earth-based
building
materials 		Aubert J.E.
Faria P.
Laborel-Préneron A.
Magniont C.
Humberto V.
Niroumand H.
Pinto J.F
Beckett C.
Zai M.F.M
Hamard E.
Zai		Rammed
earth		Modeling
Physics
Microstructure
Variability of the earth
Traditional craftsmanship to modern techniques
Pre-conceived ideas on earth
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Rosa Latapie, S.; Abou-Chakra, A.; Sabathier, V. Bibliometric Analysis of Bio- and Earth-Based Building Materials: Current and Future Trends. Constr. Mater. 2023, 3, 474-508. https://doi.org/10.3390/constrmater3040031

AMA Style

Rosa Latapie S, Abou-Chakra A, Sabathier V. Bibliometric Analysis of Bio- and Earth-Based Building Materials: Current and Future Trends. Construction Materials. 2023; 3(4):474-508. https://doi.org/10.3390/constrmater3040031

Chicago/Turabian Style

Rosa Latapie, Séverine, Ariane Abou-Chakra, and Vincent Sabathier. 2023. "Bibliometric Analysis of Bio- and Earth-Based Building Materials: Current and Future Trends" Construction Materials 3, no. 4: 474-508. https://doi.org/10.3390/constrmater3040031

APA Style

Rosa Latapie, S., Abou-Chakra, A., & Sabathier, V. (2023). Bibliometric Analysis of Bio- and Earth-Based Building Materials: Current and Future Trends. Construction Materials, 3(4), 474-508. https://doi.org/10.3390/constrmater3040031

Article Metrics

Back to TopTop
