The Presence of the Human Auditory Ossicles—Detected Postmortem by CT Scan—As a Taphonomic Indicator

Abstract

Introduction: Three tiny bones compose the human ossicular chain: malleus, incus and stapes. Also known as auditory ossicles, they are united by joints in the middle ear cavity of the petrous part of the temporal bone. Completely developed two years after birth, the ossicular chain is involved in the physiological process of hearing, by which sound waves from the environment are converted into electrochemical impulses. In the last 500 years, most studies have focused on the morphogenesis, morphological variability and clinical pathology of the ossicular chain, whilst only a few studies have added relevant knowledge to anthropology and forensic science. The auditory ossicles and the enclosing petrous bone are some of the hardest in the human skeleton. This is reflected in a relative resistance to fire and in the possibility of preservation and fossilization in millions of years. Materials and Methods: The literature and four present-day forensic cases were included in studying the postmortem loss of the auditory ossicles in skeletal or decomposing remains. Results indicate that it can be ascribed to their destruction or physical displacement, by either macro-micro-faunal action and/or any other natural or artificial disturbance. Discussion: Physical displacement is closely connected to the depositional environment of the skeletal remains, such as burial, entombment (sarcophagus, coffin, vault…), submersion or exposure to natural elements. Auditory ossicles can be recovered in situ, or very close to their anatomical location, when the skeletal material has been involved in an archaeological excavation. In the case of accessible or disturbed remains, scavengers may remove the tiny ossicles and/or they can slip out of the middle ear cavity following skull movements. Entombment offers effective protection against the displacement of the auditory ossicles, whereas aquatic submersion and aquatic movement almost invariably displace them. Conclusion: the preservation of the human auditory ossicles should be critically considered in the comprehensive context of any forensic investigation on human remains since it can assist the reconstruction of their taphonomic history. Taphonomic histories of remains can add crucial information to forensic investigations (e.g., the Post Mortem Interval, PMI). The aim of this study, limited by scarce relevant literature, is to discuss the potential role of the ossicular chain, detected by postmortem imaging techniques, as a taphonomical indicator in decomposing and/or skeletonized bodies.

1. Introduction

The human ossicular chain is an anatomical structure composed of three tiny bones, malleus, incus and stapes, which are completed at birth [1] with refined development by two years of life [2]. They are also collectively known as auditory ossicles and are united by joints in the middle ear cavity of the petrous bone, which is a part of the temporal bone. Other anatomical structures of the middle ear cavity are the tympanic membrane (eardrum), which seals the medial end of the external acoustic meatus (ear canal), two muscles (tensor tympani and stapedius), six ligaments which reinforce the ossicles joints, vascular vessels (branches of the external and internal carotid arteries) and nerves (branches of the trigeminal -V- and facial -VII- cranial nerves). The middle ear cavity is connected to the pharynx by the Eustachian tube canal. The anatomy of the human ear is displayed in Figure 1. The physiological function of the ossicular chain contributes to the process of hearing by transmitting sound vibrations from the environment to the oval window of the inner ear, where they are converted into electrochemical impulses [3].

The ossicular chain has been known for 500 years [4], during which most studies have focused on its morphogenesis, morphological variability and clinical pathology [4,5,6,7,8,9]. In paleontology and archaeology, the study of the auditory ossicles has been more rarely addressed, nevertheless it has added relevant knowledge to research in paleobiology [10,11,12], paleopathology [13,14], human evolution [9,15,16] and forensics, where it has been defined as a reliable source for DNA extraction [17,18].

Computerized Tomography (CT) Scan and related techniques, such as Micro CT [19], Cone Beam CT [20] and Multislice CT [21], are the principal tools for the imaging study of the human middle ear cavity. In both in vivo and postmortem contexts, it achieves excellent delineation of soft-tissue and bone alterations, associated with either pathology or trauma. In contrast, the detailed characterization of soft tissue and fluid attained by Magnetic Resonance (MR) limits its postmortem applications to non-skeletonized bodies [22, and references therein]. In the process of decomposition of the human body, the three auditory ossicles are separated from the ligaments and tendons which, in life, ensure their anatomical position in the middle ear cavity. Once they skeletonize and become dry isolated tiny bones, they lie inside the middle ear cavity which, following the decomposition of the tympanic membrane (eardrum), directly communicates with the external environment through the external acoustic meatus (ear canal). The skeletonized external acoustic meatus is much shorter than in vivo when soft tissues and the auricle are present; in an adult skeleton, the distance separating the auditory ossicles from the external environment is generally within 2 cm.

Such a short distance between the auditory ossicles and the external environment suggests that they can be easily lost. However, they have been found in their anatomical location, or very close, even after millions of years, as has been recorded in paleontological recoveries [11,15,23]. Contrastingly, one or all auditory ossicles can be missing in more recent skeletons from archaeological sites [24,25] or current forensic cases observed by the authors. Since the quality of the petrous bone and the auditory ossicles is one of the hardest and most dense in the human skeleton [11,17,26], they have been documented to be relatively resistant to fire [27,28,29,30,31] and, in favorable circumstances, can fossilize and survive for millions of years. The taphonomy of bone and the fossilization process are too varied and complex to be discussed in the present context, of which the focus is the relevance of the presence, or absence, of the auditory ossicles in decomposing and/or completely skeletonized human bodies.

This observational study aims to discuss the potential relevance of the presence, or absence, of the ossicular chain as a taphonomical indicator in decomposing and/or skeletonized bodies, based on the existing paleontological, archaeological and forensic reports. In the reviewed literature (1975–2022), the ossicular chain was detected either through direct visual observation, or by imaging, whilst only postmortem imaging was applied to present-day forensic casework.

2. Materials and Methods

Research in the PubMed library was performed by combining the term “ossicles” with “archaeology”, “auditory”, “chain”, “forensic”, “human remains”, “ossicular”, “palaeontology”, “postmortem” and “skeleton”; the search process was completed by hand searching and was not limited by type and year of publication, or by language or country of publication. In the selected studies, the presence/absence of the ossicular chain in decomposing/skeletonized human remains was assessed through direct visual observation or by imaging. In Table 1, the ossicular chain was listed as present and complete if all three auditory ossicles were detectable within either one or both left and right middle ear cavities, left and right temporal bones, left and right petrous bones or the immediate vicinity. If one or more ossicles were missing, the ossicular chain was listed as present and incomplete. If no auditory ossicles could be observed, the ossicular chain was listed as absent.

In four present-day forensic cases, the skulls and petrous bones of four individuals, the object of medico-legal investigations, were analyzed by imaging only. A completely skeletonized skull, colonized by barnacles and recovered on a seashore in the north of Italy (Scannone Sacca di Goro—Ferrara 44.785458 N, 12.352930 E) in 1999, was analyzed by orthopantomography and X-rays. A second skull, also completely skeletonized and recovered in a forest in the north of Italy (Solignano—Parma 44.613384 N, 9.978914 E) in 2014, was analyzed by Head and Face CT Scan with 2D and 3D image reconstructions. As well, two decomposing adult bodies were discovered in Switzerland (Lugano 46.009802 N, 8.960951 E) in the last decade and were analyzed by full-body Multislice CT Scan (MSCT). One body had been exposed outdoors for 15 days, and the other was left indoors for three weeks. The CT Scan of the skull, temporal and petrous bones of an adult patient, randomly selected in the hospital database and anonymized, was compared as an example of normal anatomy. The detailed labelling of the middle ear anatomy is presented in Figure 2.

3. Results

The scholarly disciplines to which most studies belonged to were anthropology/archaeology, medicine and paleontology. Three paleontological studies report the presence of an incomplete and/or fragmented ossicular chain in the samples, analyzed by direct visual observation. Nine archaeological studies show every combination of disturbed and apparently undisturbed remains, the ossicular chain was analyzed either by direct visual observation or by imaging, and was reported as absent or present, complete or incomplete, with single ossicles whole or damaged. In the present-day forensic cases, the ossicular chain has been investigated by imaging and has been detected as present and complete in the two decomposing bodies but absent in the two skeletonized skulls. The summary of results with notes [15,16,19,24,32,33,34,35,36,37] is displayed in Table 1.

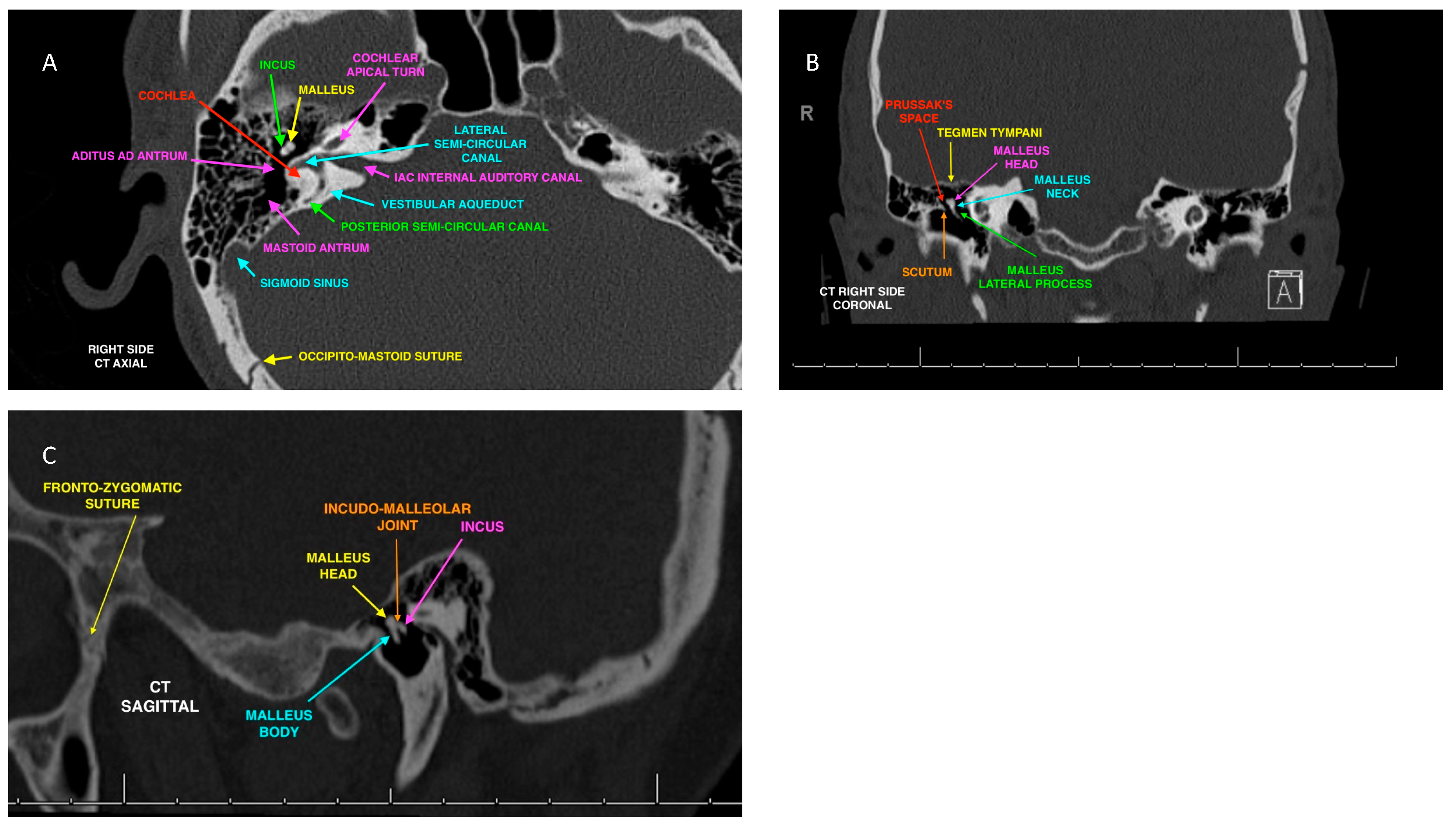

Table 1. Results of the literature search with records of the postmortem presence (complete or incomplete) or absence of the ossicular chain. The CT Scan of the skull, temporal and petrous bones of an adult anonymized patient was compared as an example of normal anatomy.

Sample	PMI and Body Preservation	Type of Analysis	Sample Size, Condition of the Ossicular Chain and Notes	References
Australopithecus africanus	2.1–3.3 million years ago (Mya) Fossilized skeletal remains	Direct visual observation	3 Present, incomplete. Moggi-Cecchi and colleagues describe a stapes located in the vestibule of the inner ear, “presumably having slipped through the oval window before fossilization”.	[16,37]
Australopithecus robustus	1.2–1.8 Mya Fossilized skeletal remains	Direct visual observation	4 Present, complete/incomplete Quam and colleagues describe the presence of a complete ossicular chain as “an exceptional case of preservation in the human fossil record”.	[15,37]
Homo neanderthalensis	28–300 kiloyears ago (Kya) Fossilized skeletal remains	Direct visual observation CT Scan MicroCT Scan	3 Present, incomplete	[19,32,33,34]
Archaeological excavations	3.3 Mya-Present Era Fossilized and non-fossilized skeletal remains	Direct visual observation X-rays CT Scan	>1000 Present/Absent/Complete/ Incomplete Incomplete or absent in most fragmented skulls, temporal and petrous bones.	[24,35,36]
Present-day forensic cases	1999–2019 Present Era 2 decomposing bodies, 2 skeletonized skulls	Ortho pantomography X-rays CT Scan MSCT Scan	Present/Absent Absent in the skeletonized skulls, present in the decomposing bodies
Hospital patient	Normal anatomy of the ossicular chain	CT Scan	Present, complete

Table 1. Results of the literature search with records of the postmortem presence (complete or incomplete) or absence of the ossicular chain. The CT Scan of the skull, temporal and petrous bones of an adult anonymized patient was compared as an example of normal anatomy.

Sample	PMI and Body Preservation	Type of Analysis	Sample Size, Condition of the Ossicular Chain and Notes	References
Australopithecus africanus	2.1–3.3 million years ago (Mya) Fossilized skeletal remains	Direct visual observation	3 Present, incomplete. Moggi-Cecchi and colleagues describe a stapes located in the vestibule of the inner ear, “presumably having slipped through the oval window before fossilization”.	[16,37]
Australopithecus robustus	1.2–1.8 Mya Fossilized skeletal remains	Direct visual observation	4 Present, complete/incomplete Quam and colleagues describe the presence of a complete ossicular chain as “an exceptional case of preservation in the human fossil record”.	[15,37]
Homo neanderthalensis	28–300 kiloyears ago (Kya) Fossilized skeletal remains	Direct visual observation CT Scan MicroCT Scan	3 Present, incomplete	[19,32,33,34]
Archaeological excavations	3.3 Mya-Present Era Fossilized and non-fossilized skeletal remains	Direct visual observation X-rays CT Scan	>1000 Present/Absent/Complete/ Incomplete Incomplete or absent in most fragmented skulls, temporal and petrous bones.	[24,35,36]
Present-day forensic cases	1999–2019 Present Era 2 decomposing bodies, 2 skeletonized skulls	Ortho pantomography X-rays CT Scan MSCT Scan	Present/Absent Absent in the skeletonized skulls, present in the decomposing bodies
Hospital patient	Normal anatomy of the ossicular chain	CT Scan	Present, complete

4. Discussion

The absence of one or more auditory ossicles from the middle ear cavity of a decomposing or skeletonized human skull can theoretically be connected to any taphonomical process, such as the action of macro-micro-faunal scavengers or degradation by natural elements (e.g., water movement). However, destruction (or dissolution) of the auditory ossicles in situ is unlikely in decomposing or skeletonized bodies because the auditory ossicles and the enclosing petrous bone are hard and prone to long postmortem preservation. Most traces of faunal intervention are likely to be detected on both the soft tissues and the skull bones surrounding the auditory ossicles. Human action can also disturb the remains through excavation, transportation and preparation of the remains, which need to be bagged and placed in conservation boxes to be available for investigation. As a consequence, the most likely cause of the absence of auditory ossicles in decomposing or skeletonized bodies is physical displacement.

In one historical study, an ossicle (right malleus from the external acoustic meatus) was extracted from the skull of the Nazlet Khater 2 (NK 2) skeleton (dated 35–40.000 years BPE) in 2005, following the skeleton’s exhumation from the Nile Valley in Upper Egypt in 1980 [38]. It was subsequently transported to a laboratory for analysis as part of the Belgian Middle Egypt Prehistoric Project [39]. Once extricated from a mixture of sand and glue, the ossicle showed only slight damage. The role of sand and soil occluding the external acoustic meatus (ear canal) and preventing the loss of the auditory ossicles is known in archaeology [25].

Hagedorn and colleagues [40] performed otoendoscopy on the heads of 250 ancient Egyptian mummies and found an intact ossicular chain in 15% of the cases and a postmortem luxation of one or more auditory ossicles in the remaining 85% of the cases. Hoffman and Hudgins [41] detected the bilateral preservation of the ossicular chain in three intact 3000 year-old Egyptian mummies and absence and alterations in the remaining six mummies of their study. Hence, it is not unreasonable to assume that the process of artificial mummification, practiced in ancient Egypt on fresh bodies, could result in the loss of the auditory ossicles. However, the process generally favors their persistence in situ [42]. Their study involved the autopsy of an Egyptian mummy wrapped in 12 layers of linen solidified with liquid resin. After removing the temporal bones with a Stryker saw, the bilateral exploration of the middle ear led to the recovery of a complete ossicular chain.

A study of 471 archaeological temporal bones recovered from a British leper cemetery, where the interments of 257 individuals were dated between the 12th and the 17th century Present Era (PE), showed the presence of 136 auditory ossicles in 97 temporal bones of 89 individuals. Most ossicles (78%) were complete, whereas the remaining (22%) displayed various stages of physical damage. Only four temporal bones retained a complete ossicular chain. Two interesting standpoints are outlined in the study; firstly, the statement “when necessary, soil, small stones and vegetable material were removed carefully from the external auditory canal with the use of fine dental instruments” highlights the condition of most buried bodies: that is with physiological bone cavities obstructed by foreign material [also see [25,43]; secondly, in examining previous research [44], it is apparent that the presence of the ossicular chain in buried bodies was defined as “not related to the type of burial, conditions surrounding it, or the soil”. Finally, the conclusion that the “precision in methods of recovering the skeletons is more likely to influence ossicle recovery” [35] appears to support the hypothesis that the presence of the auditory ossicles in the middle ear cavity of any skeletonized human skull relates to careful excavation and recovery, with the aim of avoiding displacement.

The paleopathological research conducted by Krenz-Niedbała and Łukasik [14] on 435 juvenile (<20 years old) archaeological (14th–17th Century PE) skeletons from two historical burial sites in Poland revealed only 168 auditory ossicles from 99 skeletons. One burial site had reportedly been “intensively used with deceased buried in multiple layers”. After the recovery, all skeletons were transferred to an institutional collection. At the time of the examination, the majority of the auditory ossicles were still in situ and “fine dental instruments” were used to “remove soil and vegetable material from the external auditory canal”. Only “in few cases” were the auditory ossicles “found as loose elements in the storage boxes”. Similar circumstances regarding the presence of auditory ossicles were described by the same authors in 2021.

In a study by Dedouit and colleagues [36], no ossicular chains were found intact in six dry skulls with a known PMI (>10 years). The skulls belonged to an anthropological collection. All skulls had been moved more than once, starting from the location of their original recovery (medieval and contemporary cemeteries, a private garden and forests) to a laboratory, then possibly to a storage facility and, eventually, to the shelves of a collection room. Furthermore, in the same study, a body exhumed from an intact metal coffin after 3 years revealed a complete ossicular chain with remnants of joint tissue in the right temporal bone, but no ossicle was present in the left temporal bone. Unfortunately, the authors did not describe the preservation of the exhumed body or how it was positioned inside the coffin. However, they admitted to producing some displacement of the body. In fact, the body appears to have been removed from the coffin, wrapped “in two artefact-free body bags” and placed within the Multislice Computed Tomography to undergo a full-body examination to exclude any traumatic lesions. Another recent research study suggests that the auditory ossicles are usually present in putrefied bodies as long as the tympanic membrane, which seals the middle ear and separates it from the external auditory canal, is preserved [18].

Finally, in the examination of the present-day forensic cases, two actively decaying bodies retained a bilaterally complete ossicular chain. This is not surprising since soft tissue can be present even in the advanced stage of putrefaction, and it is especially preserved in small and secluded anatomical locations with tortuous access, like the middle ear cavity. Soft tissue remnants encase the tiny ossicles and prevent their displacement. In contrast, no auditory ossicles were detected in any of the two dry skulls. The first dry skull, recovered on a seashore in 1999, was very well preserved. With the exception of the fracture of both styloid processes of the cranial base, most protruding structures, such as the nasal bones, the nasal sill and 15 teeth in the maxillary dental arch were intact. The macroscopical characterization included abundant sandy material within the cranial sutures, grey-brownish staining and widespread encrustation by barnacles. The investigation ruled out any forensic relevance, concluding that the skull was of archaeological interest and had been only recently displaced after a long burial period. The forensic investigation of the second dry skull, found in a forest in 2014, concluded that it had been transported from a distinct site and discarded. It was clearly exposed on the ground, very close (5 m) to a popular trekking trail, and a careful search of the surrounding environment failed to produce any other remains. The preservation was excellent, with no sediment embedded in the cranial sutures or within any other natural bone cavities. A comprehensive interpretation of the findings indicated that the skull had, most likely, never been buried or submerged, but rather it had been stored for a long time in a protected location, such as a crypt, a cemetery vault or a service room. Both skulls had been repeatedly moved before coming to rest in the place of recovery.

While alterations of the ossicular chain in living patients and bodies, fresh and initially decomposing, are usually linked to congenital or acquired pathology, or trauma to the petrous part of the temporal bone, it is becoming clear that the most frequent type of postmortem taphonomic alteration affecting the auditory ossicles of decomposing and skeletonized bodies is physical displacement, rather than destruction. Their hard bone quality, combined with the secluded anatomical location in the middle ear cavity [9] promotes their persistence over time. This only occurs as long as the skull, the temporal bone and its petrous part, where the middle ear cavity is deeply located, remain intact and/or not disturbed, either by faunal scavengers, human action/excavation or natural elements.

During postmortem investigations, direct examination of the ossicular chain is theoretically only feasible in skeletonized dry remains, although the accumulation and compacting of foreign material (e.g., soil) in the middle ear cavity can complicate the procedure. In any other stage of body decomposition, imaging becomes necessary. CT Scans and related techniques (Micro CT, Cone Beam CT and Multislice CT) constitute the benchmark imaging tools for the study of bone tissue. These techniques have become commonly available for postmortem examination in the last 20 years [22] and are defined by a non-destructive approach, which is a crucial advantage especially when dealing with tiny bone samples. Adverse factors of potential influence on the examination of the ossicular chain, such as burned bodies, off-centering of the head and image disturbances produced by close metal artefacts (e.g., dental implants), are linked to its anfractuous anatomical location, whereas its tiny dimension can require a related technique, like MSCT, and higher resolutions [21,45].

The physical displacement of the human auditory ossicles is linked to the depositional environment of the remains, which can be summarized as burial, entombment, submersion, or subaerial exposure. The analyzed literature confirms that at least some auditory ossicles are likely to be detected in situ, or very close to their anatomical location, in undisturbed burials and/or following the professional handling of excavated skeletal material (both on-field and in the laboratory). On the contrary, they are more easily lost if burials are disturbed by scavengers, natural elements and/or casual human intervention. In undisturbed bodies, which decompose until they reach the complete skeletonization, the accumulation of soil within the external acoustic meatus encases the ossicles, preventing their displacement. If a deposition is disturbed, scavengers may remove the tiny ossicles and/or the ossicles can just slip out of the middle ear cavity while the skull is moved around or carelessly excavated. Entombment in sarcophagi, coffins or vaults offers more effective protection against the displacement of the auditory ossicles during and after the skeletonization process, both against the natural elements and most scavengers. However, the protection disappears once the tomb is opened and the body exhumed. Mummification, either natural or artificial, can potentially ensure the integrity of the body and the preservation of the auditory ossicles, unless it is the primary cause of their loss, as reported in a few cases of artificial mummification of bodies in ancient Egypt [40,41,42]. Furthermore, while water and sediment movements, typical of aquatic submersion and transport, almost invariably displace the ossicular chain, exposure to the elements can, in extremely rare circumstances, favor their preservation, for example by fossilization in sheltering sediment, as reported by paleontological studies [15,16,37].

The reconstruction of the taphonomic history of recovered human remains has always played a crucial role in the explanation of many fundamentals of any forensic investigations, including, but not limited to, the generic or specific identification of the individual/s, the cause of death and the PMI [46,47,48]. For instance, any presumptive identification and any specific cause of death might be excluded if the reconstructed taphonomic history of the remains contradicts any witness testimony or contradicts any other evidence collected during the investigation. For instance, exposed remains might be scattered by scavengers [49,50,51], with loss of anatomical regions used to estimate sex and age, barnacles attached to bones indicate marine submersion [52,53] and postmortem taphonomic modifications may mimic, disguise or destroy perimortem trauma [54]. As well, the PMI might be questioned if the preservation and the characterization of the remains are not consistent with the recovery environment, for example burial within acidic soils is known to accelerate decomposition [55,56,57], whereas cold and humid environments promote the formation of adipocere [58] and sphagnan, which is a polysaccharide resulting from the chemical breakdown of sphagnum mosses in northwest European wetlands that preserves skin and hair but demineralizes bone [59,60]. With respect to this, and considering that the application of postmortem imaging alongside traditional autopsy has become routine [22, and references therein] an imaging study of the ossicular chain is recommended in forensic cases involving decomposing or skeletonized human remains with uncertain postmortem history because the presence, or the absence, of the ossicular chain could add a meaningful contribution.

5. Limitations and Future Research

Auditory ossicles have been rarely recorded and reported in archaeological and forensic studies and have only occasionally been included in paleontological studies. Hence, limited information on their presence and preservation is available in the related literature. This constitutes a systematic bias that, to date, prevents any reliable statistical calculation. Moreover, when the presence and preservation of auditory ossicles are reported, it is usually in the context of different research questions, e.g., paleopathology, with no focus on taphonomy. On this basis, this study presents the role of the detection of auditory ossicles in decomposing or skeletonized bodies, performed by routine postmortem imaging, as that of an ancillary investigation, which needs cautious interpretation in the broader context of any archaeological and forensic casework. Future research should focus on studying the presence, absence and degree of preservation of the auditory ossicles in decomposing or skeletonized bodies recovered in diverse depositional settings.

6. Conclusions

The human ossicular chain, located in the middle ear, is less likely displaced in remains lying undisturbed, hardly disturbed or professionally handled between death and recovery in their final depositional environment. The preservation of the recovered ossicular chain, complete, incomplete, whole or damaged, should be assessed by imaging, specifically by CT Scan and related techniques. Information about the preservation of the ossicular chain should be considered in the comprehensive context of any forensic investigation on decomposing or skeletonized remains, with the aim of assisting the reconstruction of their taphonomic history.
