Numerical Simulation of Nocturnal Ozone Increase in Metropolitan Area of São Paulo ^†

Abstract

In large cities, pollution can not only cause deaths and illness due to exposure of people to it, but it can also reduce visibility on days of high atmospheric stability and high emission of pollutants, which can even result in vehicular accidents. Ozone is an atmospheric oxidizing gas that forms in minimal amounts naturally. People’s health can be affected by the ozone present in the air they breathe, even in low concentrations, which can worsen preexisting diseases and increase hospital admissions for respiratory diseases, especially in babies, after episodes of high pollutant levels. An increase in secondary peaks during the night of this atmospheric pollutant occurs in several parts of the world, but its formation depends on the local condition. In this sense, this work aims to study the regional atmospheric characteristics for the nocturnal ozone formation in the Metropolitan Area of São Paulo (MASP). For this, the Simple Photochemical Module (SPM) coupled with the BRAMS (Brazilian Developments of Regional Atmospheric Modeling System) will be used to simulate this condition for the urban region. The results showed that the secondary nocturnal maximum of ozone concentrations in MASP is related to vertical transport of this pollutant from higher levels of the atmosphere to the surface.

1. Introduction

Pollutants are naturally present in the atmosphere due to fires, volcanic eruptions and biogenic emissions; however, the greatest contribution is currently associated with anthropic activities. In Latin America, urban centers are in constant development and growth, generating numerous problems associated with the effects of pollution [1]. In large cities, pollution can not only cause deaths and illness due to exposure of people to it, but it can also reduce visibility on days of high atmospheric stability and high emission of pollutants, and can even result in vehicular accidents [2,3,4]. Several studies have shown that the meteorological condition has a great influence on the concentrations of pollutants [5,6,7,8,9].

Ozone (O₃) is an atmospheric oxidizing gas that forms in very small amounts naturally. This secondary photochemical pollutant is formed in the atmosphere by photo dissociation of nitrogen dioxide (NO₂) by ultraviolet light. As it is an oxidant pollutant, ground-level ozone concentration can affect people’s health (especially children, the elderly and people in outdoor activities), worsen pre-existing diseases and increase the number of hospitalizations by respiratory diseases in risk groups [10]. Moreover, ozone exposure can be related to morbidity and mortality by cardiopulmonary diseases [11]. In the United States, ozone contributes to increasing the mortality rate associated with respiratory diseases, with an increment of 10 ppb in ground-level concentrations leading to a 3% increase in death risk associated with exposure [12]. Climatic change could be responsible for an increase in ozone concentrations and, consequently, for the number of hospital admissions and deaths associated with ozone exposure [4]. Since changes in ozone concentrations are, in part, a consequence of changes in the atmospheric system, it is important to know which synoptic patterns are associated with singular conditions of ground-level ozone concentrations.

During the night, at very stable conditions, especially under anticyclonic conditions, the increase of this contaminant has been observed with a well-defined behavior [13]. In cyclonic conditions, NOx can occur in small amounts due to increased ventilation, and affect O₃ concentration [14]. The magnitude and frequency of nocturnal ozone peaks are generally observed in summer time, and can be associated with horizontal transport processes [15]. Additionally, in China, the nocturnal O3 concentration is higher in suburban areas than in urban areas before it increases, reduced under the effect of vertical transport [16].

Given the importance and the elements that influence the magnitude and frequency of nocturnal ozone, this work aims to study the regional characteristics of the atmosphere of the Metropolitan Area of São Paulo in the formation of secondary ozone peaks during the night. For this, regional numerical modeling coupled with a chemical module will be used.

2. Methodology

2.1. Study Area

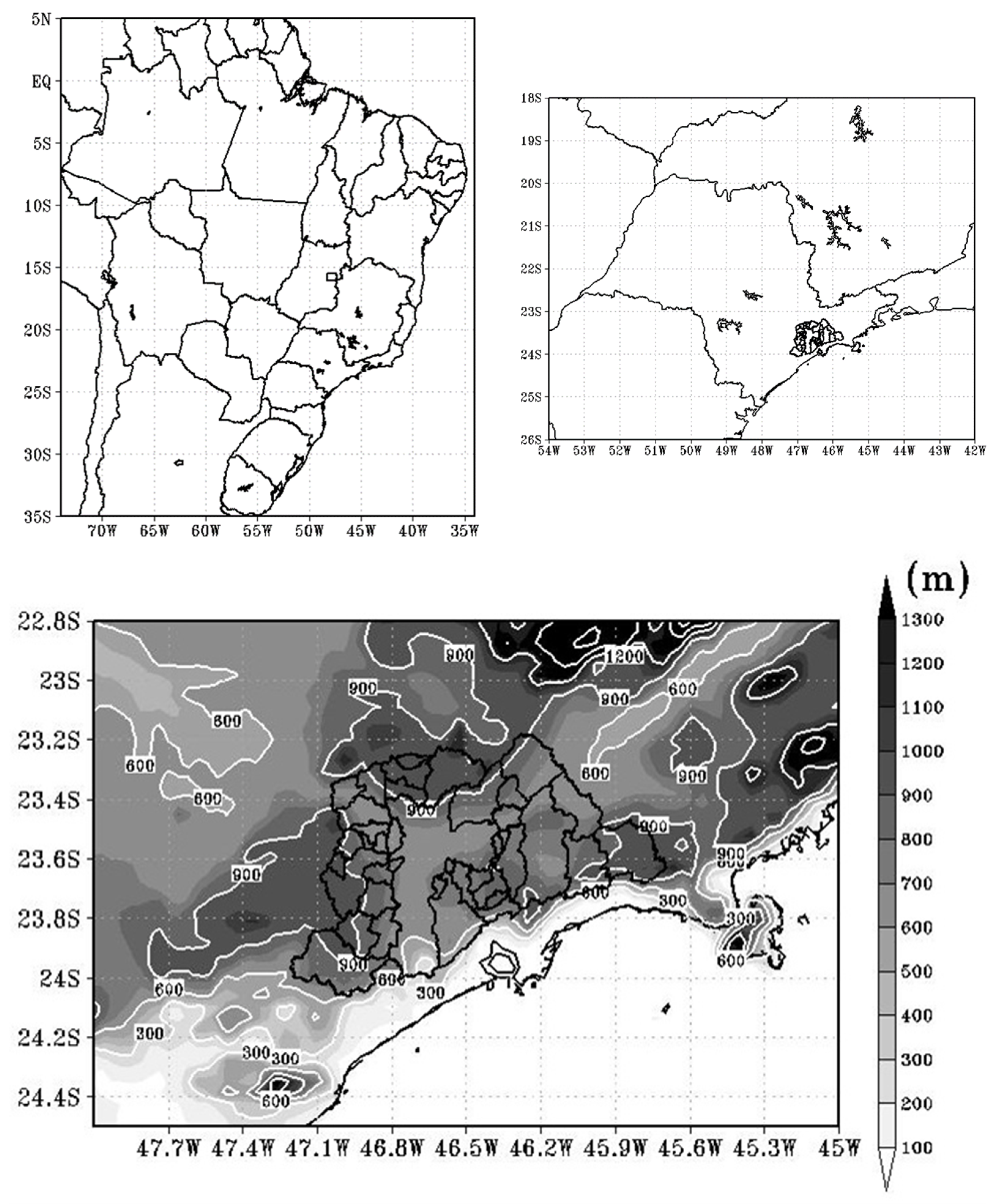

The Metropolitan Area of São Paulo (MASP) is located in southeastern Brazil, in a region of rugged topography (Figure 1), in which the city of São Paulo is located in the most central region coinciding with the valleys of the Tietê and Pinheiros rivers, between Serra do Mar and Serra da Cantareira, the latter with elevations above 1000 m. The MASP comprises 39 municipalities and almost half of the state’s total population (approximately 20 million inhabitants) is concentrated there, covering an area of 8051 km² [17].

Given the proximity of the MASP to the coast, the surface extension of the urban area and the heat island effect seen in it make this type of thermal origin generate a significant influence on the flow patterns [18] in the dispersion of pollutants. The passage of the sea breeze creates a favorable condition for the dispersion of pollutants in this urban region, while days with extreme heat island events generate a more stable condition on the RMSP, which may favor the accumulation of pollutants [9]. In winter and early spring, there is a greater frequency of days with the influence of high-pressure systems that hinder the passage of cold fronts, favoring the formation of a high-intensity heat island, which generates more appropriate conditions for the occurrence of high pollutant concentration events [19].

2.2. SPM-BRAMS

In this work, version 3.2 of the BRAMS model (Brazilian Development on Regional Atmospheric Modeling System, [20] was used, which is based on the Regional Atmospheric Modeling System (RAMS, [21]). The model allows to simulate several spatial scales, integrating the microscale with the larger scales. The system of equations that governs the atmospheric state is solved using second-order finite difference schemes, both in time and space. The conservation of mass, moment, and energy in the model is guaranteed since the advection terms of these equations are treated in flow. Numerical instability is minimized by using smaller time steps in solving equations in higher resolution grids. Atmospheric physical processes not explicitly resolved by the model are parameterized. The model has a multiple grid scheme that allows the simultaneous resolution of the equations. The interaction processes between the surface and atmosphere are carried out at BRAMS using the LEAF-3 model (Land Ecosystem–Atmosphere Feedback model version 3, [22]) for vegetated areas and with TEB (Town Energy Budget, [23]) for urban areas.

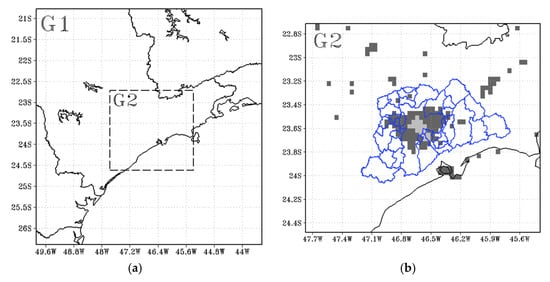

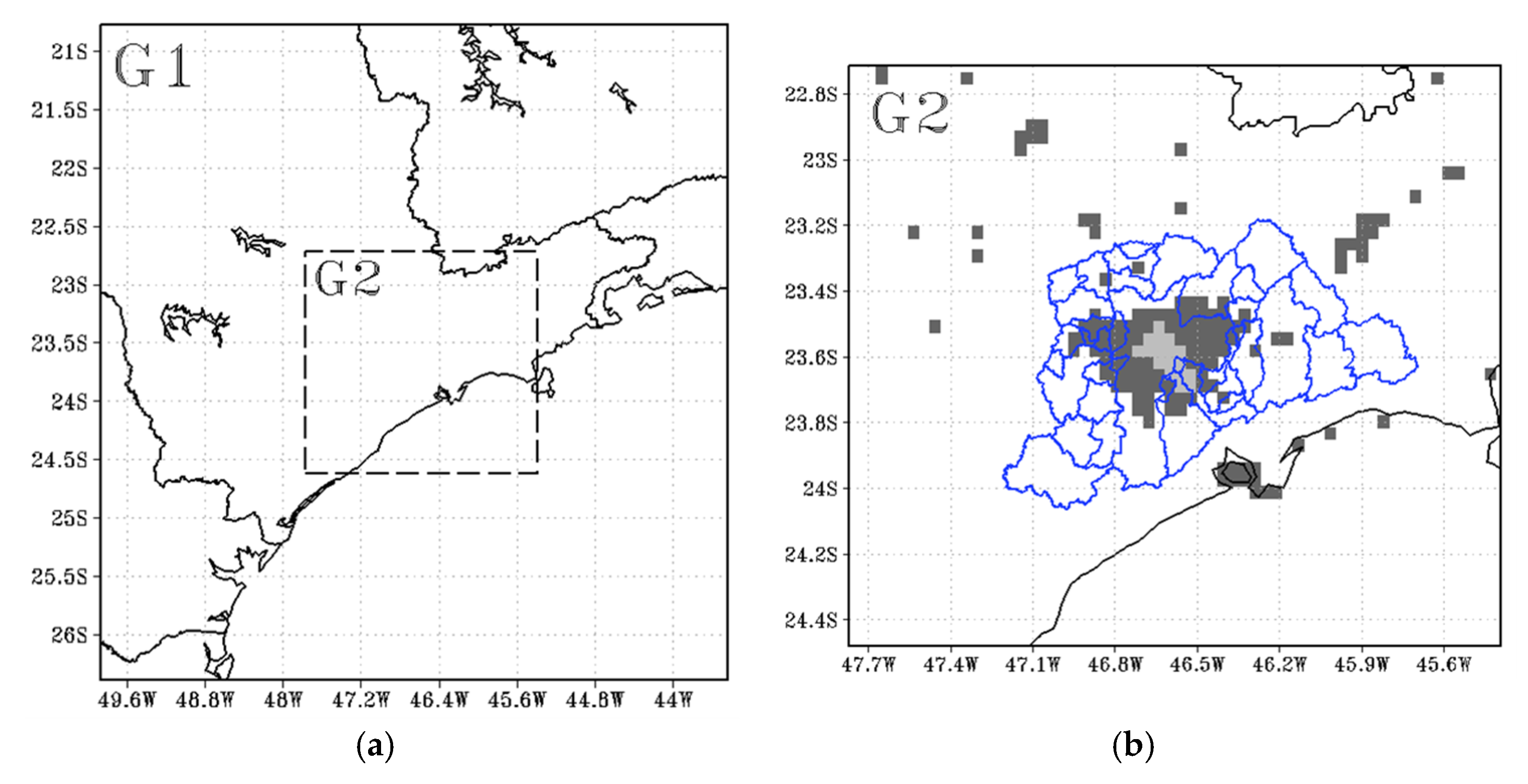

Figure 2 presents the nesting grids used in the simulations centered at MASP (−23.60°, −46.65°). The horizontal spacing grid of both domains is 16 and 4 km, from lower to the higher resolution. For the topography, files with spacing between 1 km grid points provided by the United States Geological Survey (USGS) were used. For the sea water surface temperature, weekly mean values corresponding to the simulated periods were used as input data, without considering the update of these files during the rounds. As input meteorological data, the Global Forecasting System (GFS) global model’s outputs with a horizontal spacing grid of 1° were used. For all analysis of the results, the simulations were run one day before the nocturnal event, and we reject the first 24 h to avoid the spin-up effect [24] of the meteorological part of the model and to allow the model to accumulate more realistic amounts of pollutants in the atmosphere. The first level of the model output considered is 33.4 m above the surface. The model physics and land use parameterization configuration are the same as in Morais et al. [25].

The Simple Photochemical Module (SPM, [26]) was inserted in the BRAMS model to generate operational forecasts of ozone concentrations and other constituents for the MASP with only 15 chemical reactions. Ozone formation was represented without considering hydrocarbon speciation. These equations were selected from the chemical mechanism SAPRC-99, which in turn is used in the CIT photochemical model (California Institute of Technology, [27]). Volatile organic compounds are considered in a single category to simplify the numerical scheme and reduce the calculation time. The emissions module consists of an Eulerian dispersion model integrating the mass conservation equation, which distributes the emission. For vehicular emission, the emission is still distributed in space and time within the grid following a daily cycle based on a Gaussian pair to represent the times with the highest flow vehicular. The module also makes an adjustment to consider variations in emissions during the week and on weekends. The same parameterization solves the terms of advection and turbulent transport of pollutants as the model.

2.3. Model Evaluation

In this work, two statistical indices were used to assess the proximity of the result generated by the model with the observed values of O₃ in the MASP. The bias (or mean error) measures the model’s tendency to underestimate or overestimate the value of a variable with its observed value and is defined by the expression

$$BIAS=\frac{1}{N}{\displaystyle \sum }_{i=1}^N\left(S_i-O_i\right),$$

(1)

where S_i corresponds to the ith value of the simulated variable, and O_i for the same observed variable. N is the number of data.

The Root Mean Square Error (RMSE) is used to express the accuracy of the numerical results and is given by the following equation:

$$RMSE=\frac{1}{N}{\displaystyle \sum }_{i=1}^N\sqrt{{\left(S_i-O_i\right)}^2},$$

(2)

where S_i corresponds to the ith value of the simulated variable, and O_i for the same observed variable. N is the number of data

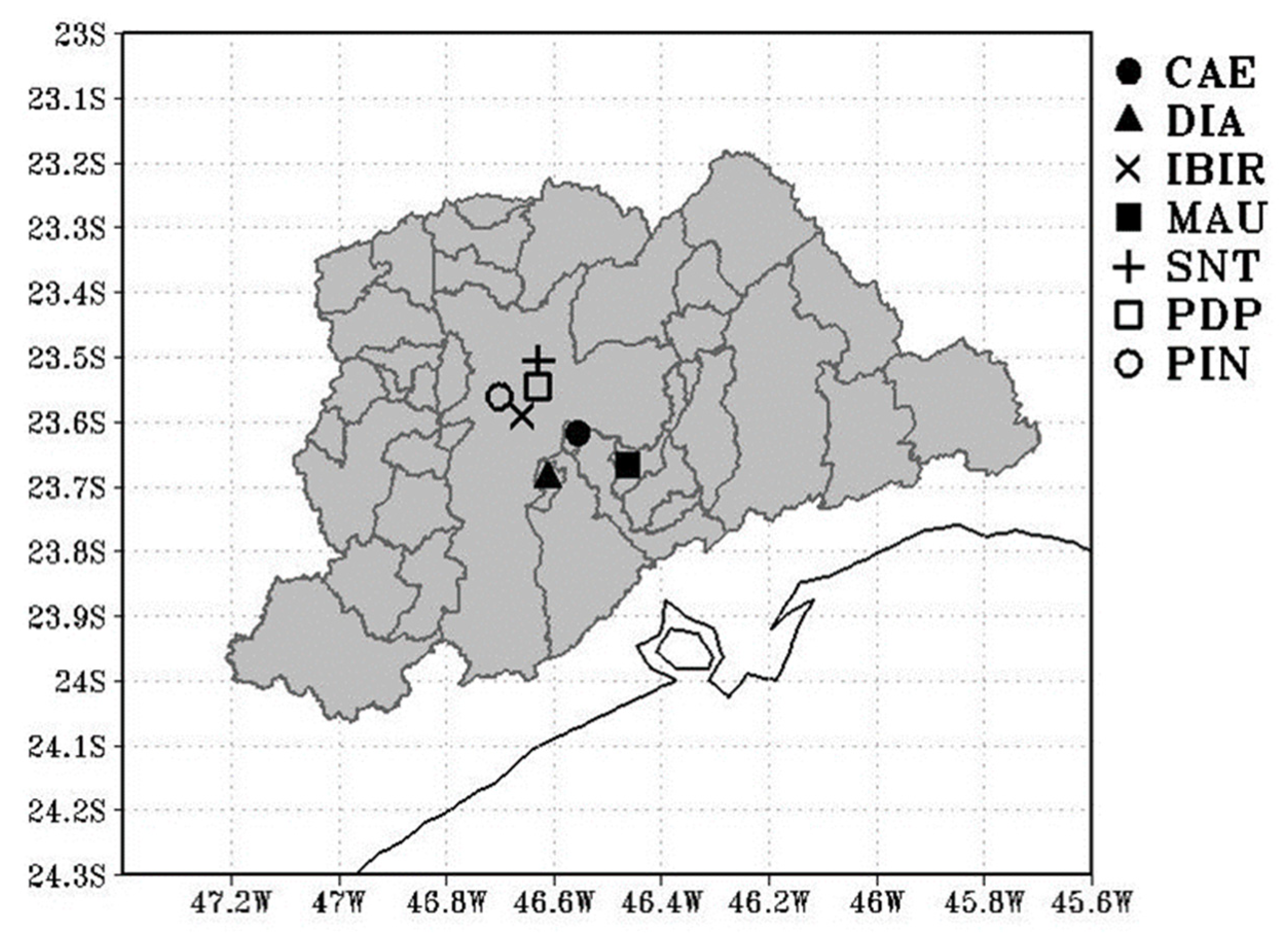

Some representative points of CETESB’s (Companhia Ambiental do Estado de São Paulo—São Paulo state environmental sanitation technology company) pollutant monitoring stations were chosen to assess the model’s performance in representing the concentration at levels close to the surface. The locations of these points are shown in Figure 3. For meteorological variables, the model was extensively validated by Morais et al. [25,28].

2.4. Experimental Design

Two different periods were considered to study the local meteorological factors that influence the increase in nocturnal ozone concentration. The first one corresponds to the condition where the nighttime ozone increase was recorded in all stations (case 7E), which occurred on 25 December 2010. The second was considered a period where nocturnal ozone was not recorded in any of the selected stations (case 0E). The last one was on 22 January 2005. The discussion was done by analyzing the O₃ evolution in each station and by an average nocturnal concentration map. Afterwards, a vertical profile of the ozone was created, considering the latitude of MASP.

3. Results and Discussions

3.1. Model Evaluation

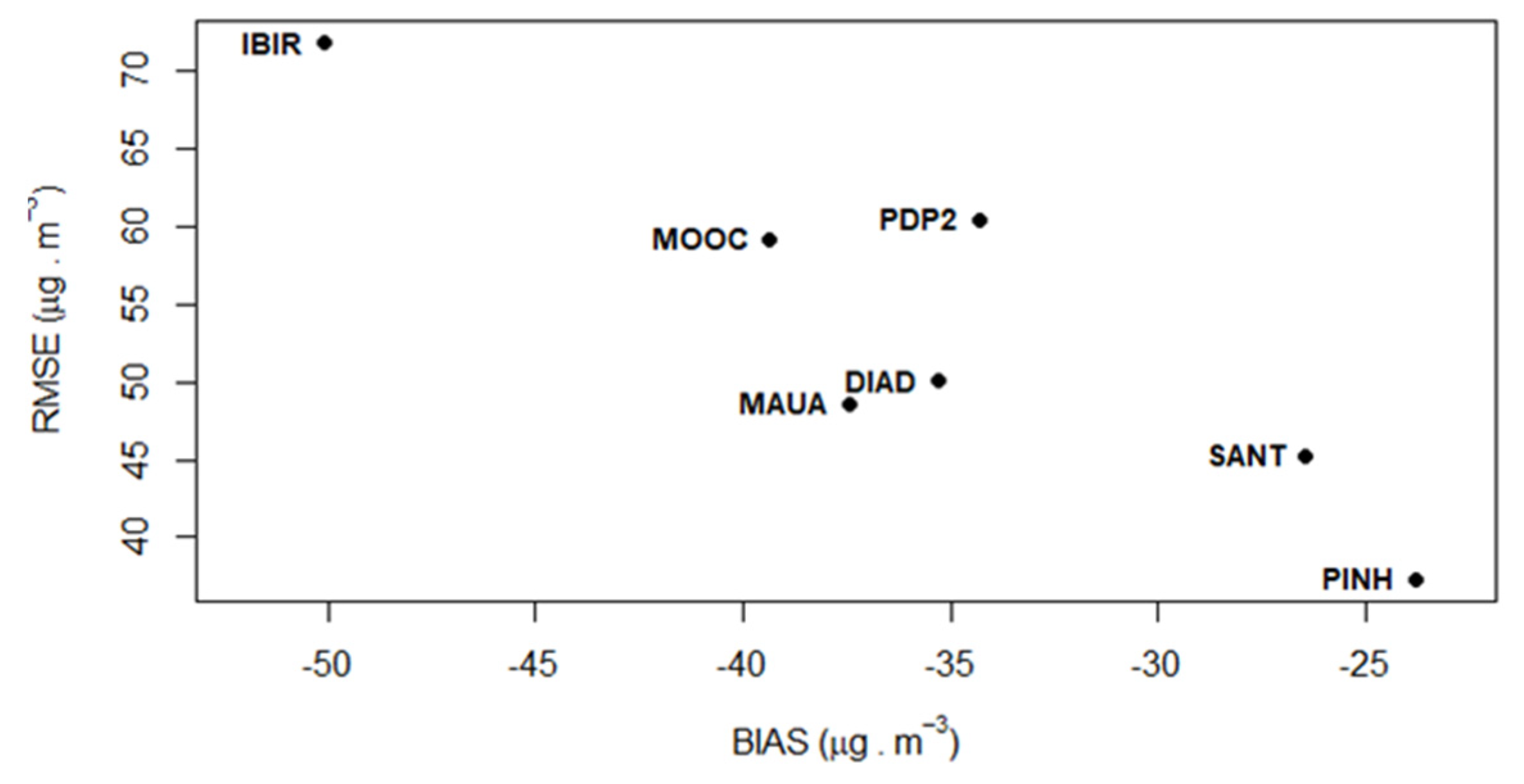

Figure 4 shows a scatter plot of the RMSE and BIAS of the ozone concentration for all air quality stations in MASP. From the BIAS results, it appears that the model tends to underestimate the values of O₃. The absolute value of these indices is related to the order of magnitude of the variable. However, it appears that the values are like those obtained by other authors [6,29]. Furthermore, it is noted that the Ibirapuera park station has the worst rates, which may be related to the intense presence of green areas in the place, indicating a need to improve this type of representation in the model [28].

3.2. Nocturnal Ozone Experiments

3.2.1. No Increase in Ozone Concentration (0E)

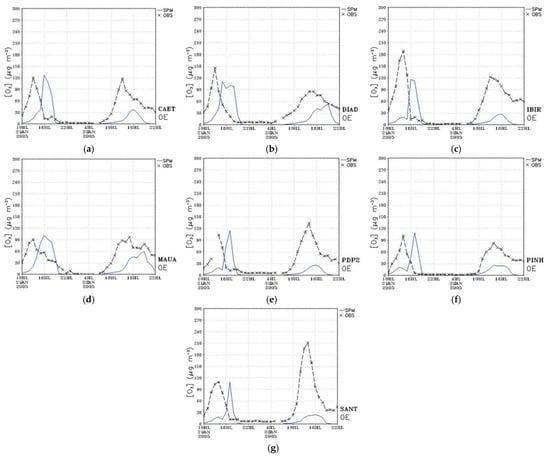

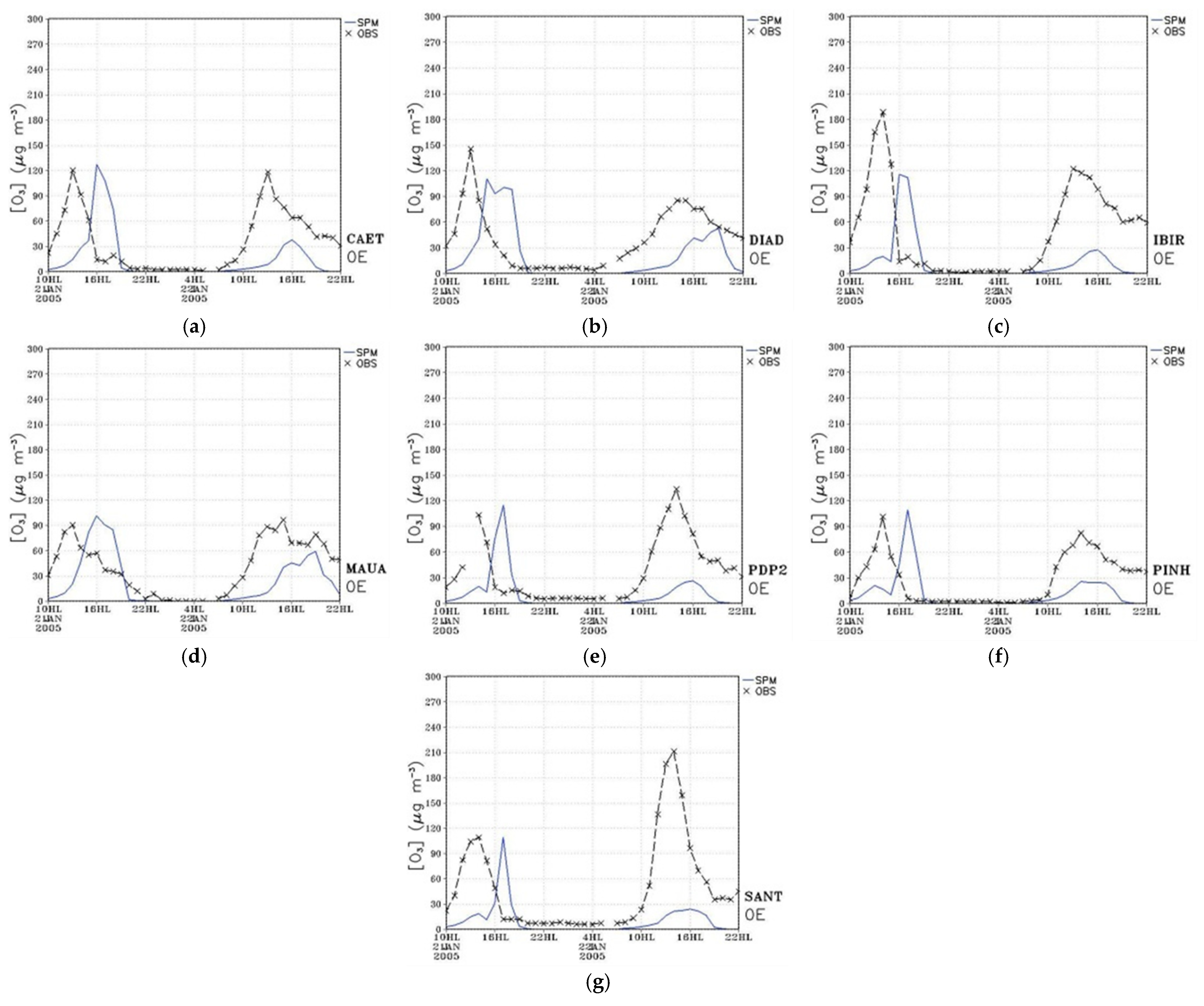

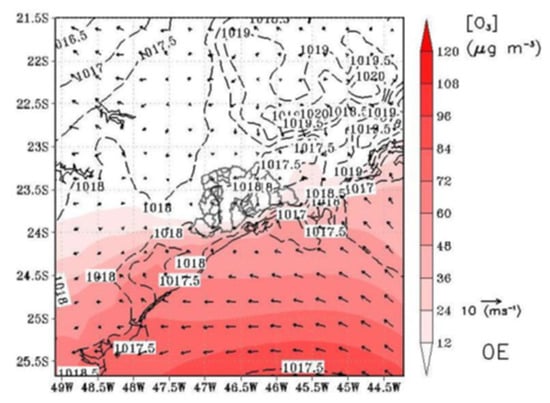

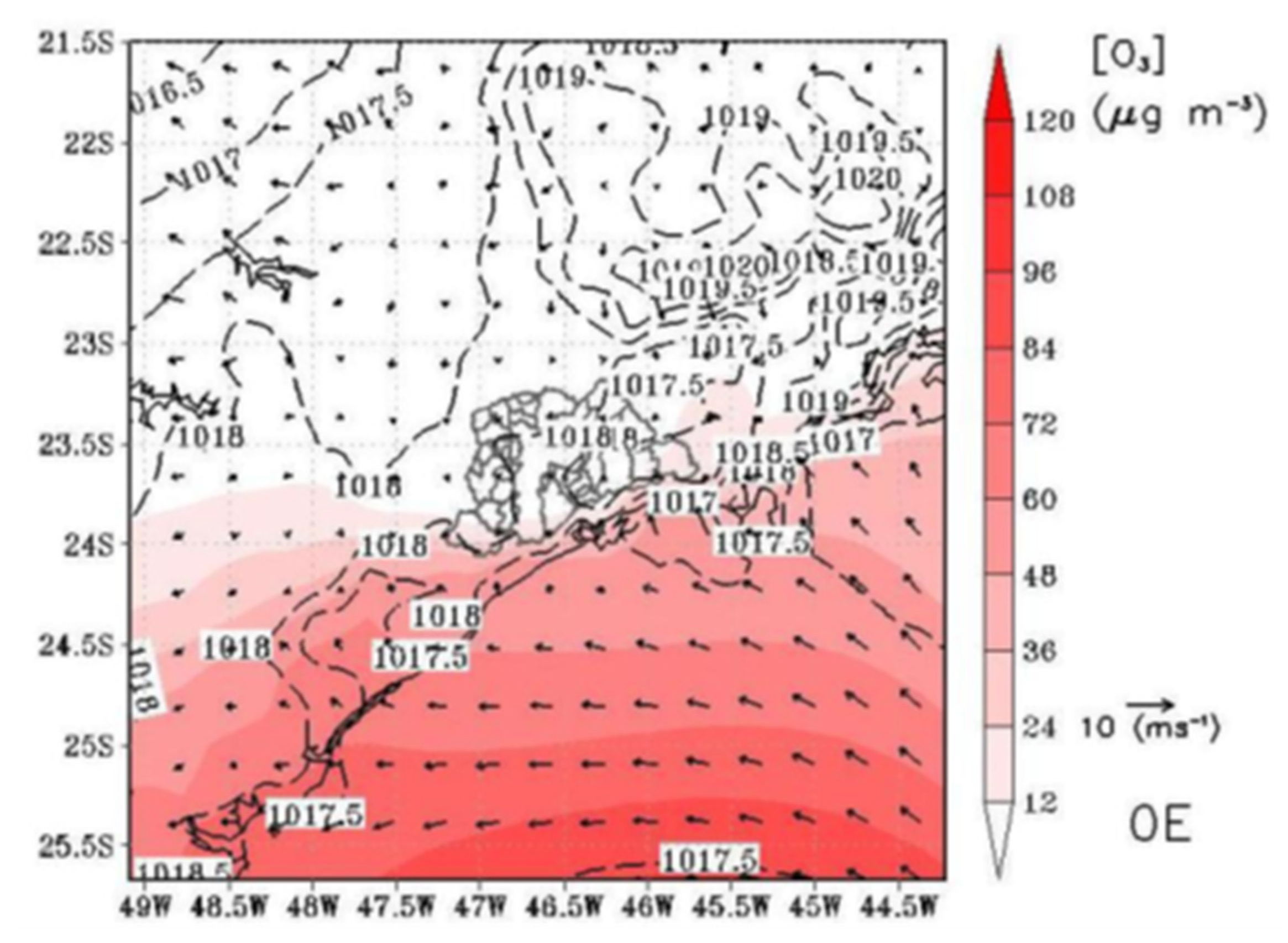

Figure 5 shows the concentrations simulated by the model for air quality stations in cases where no increase in ozone concentration was observed during the night (0E, left column). In the 0E case, the model represented the behavior of nocturnal concentrations relatively well, with the diurnal peak being underestimated, especially on the second day. The mean ozone field and reduced pressure at mean sea level (Figure 6) show an anticyclone located southeast of the simulation domain, which concentrates the core of maximum ozone concentration values. Values below 36 μg m⁻³ are observed in almost the entire continental part. The pressure field tends to be homogeneous over the RMSP and the average wind in this period is weak.

3.2.2. Increase in Ozone Concentration (7E)

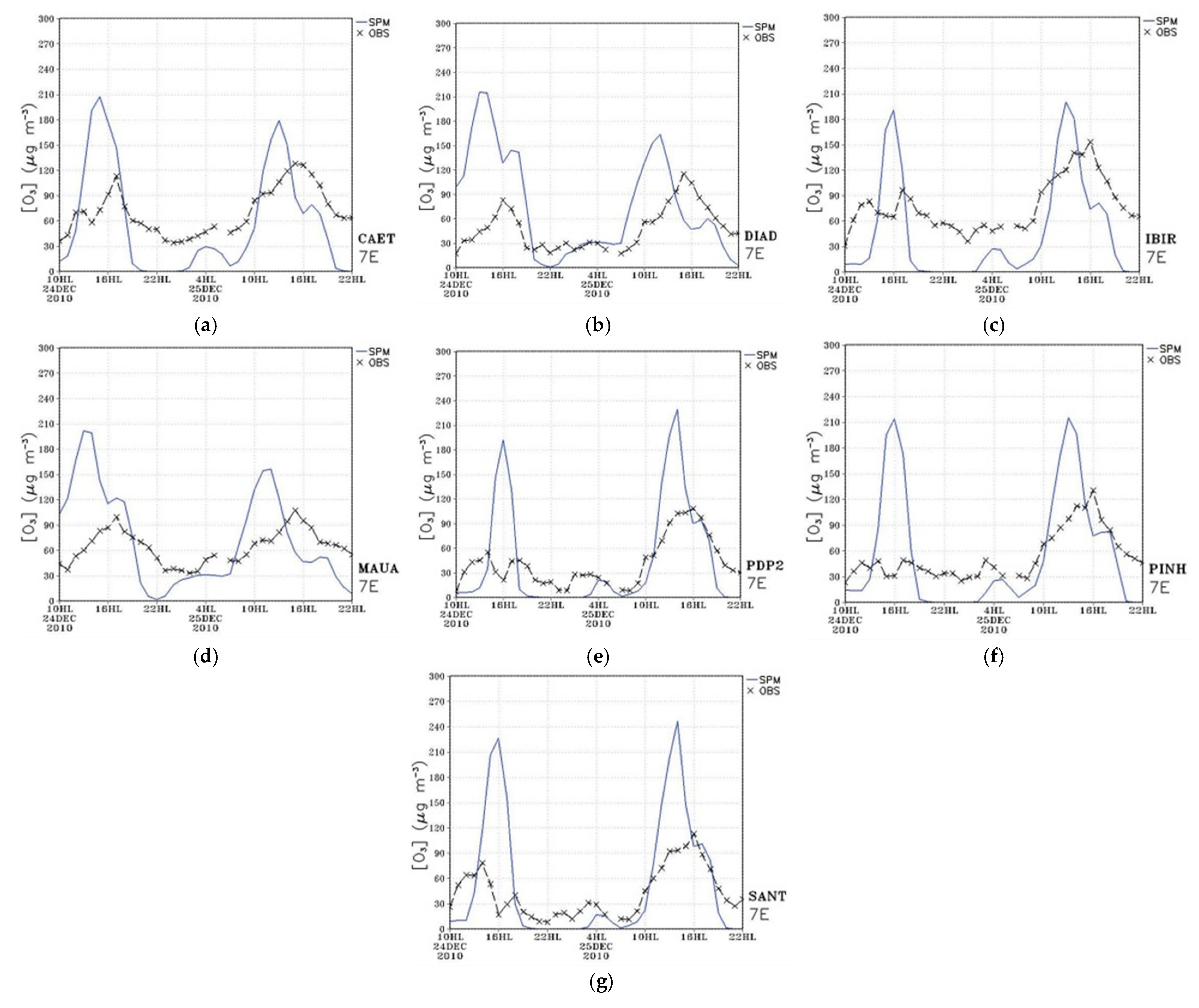

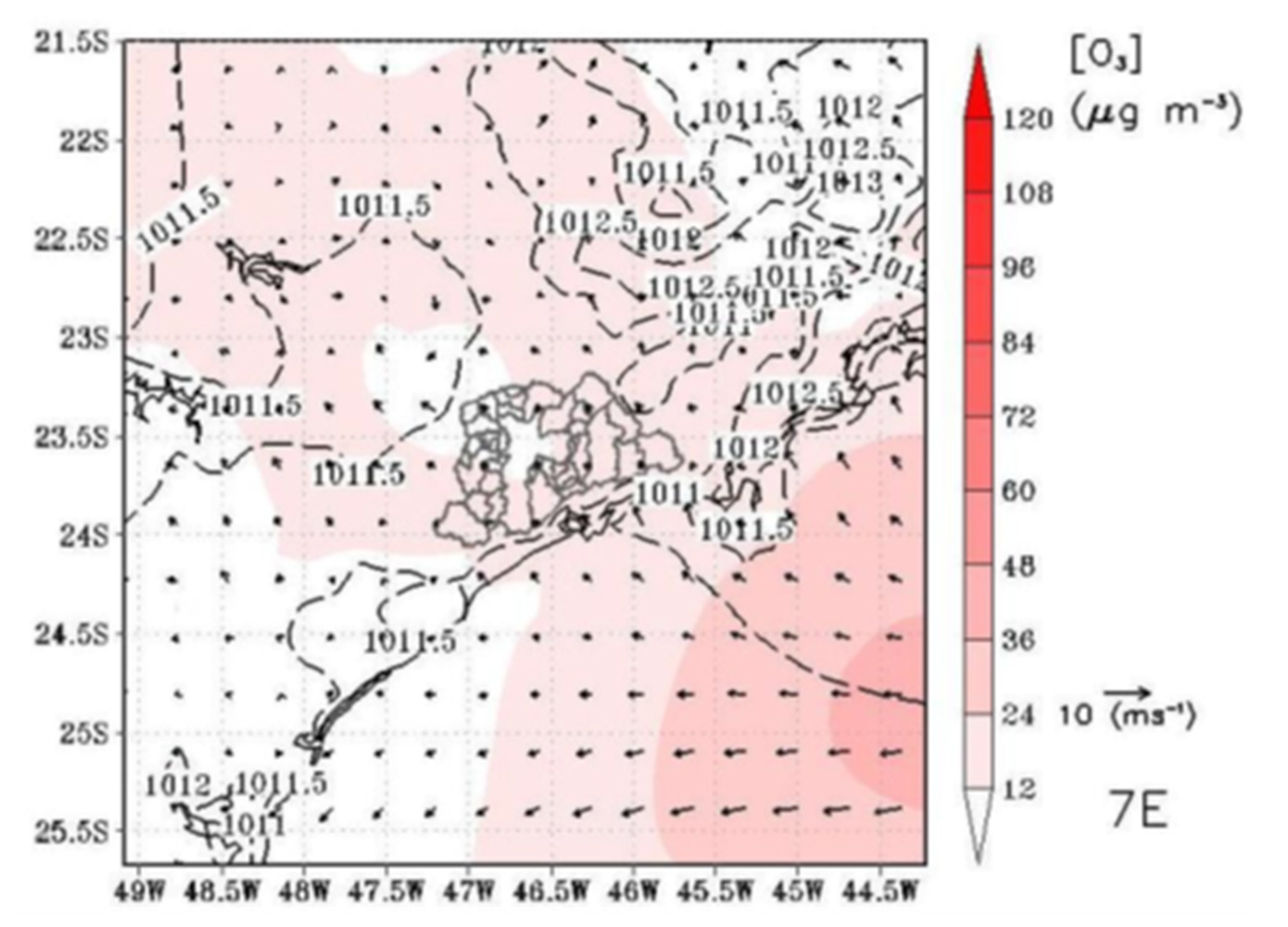

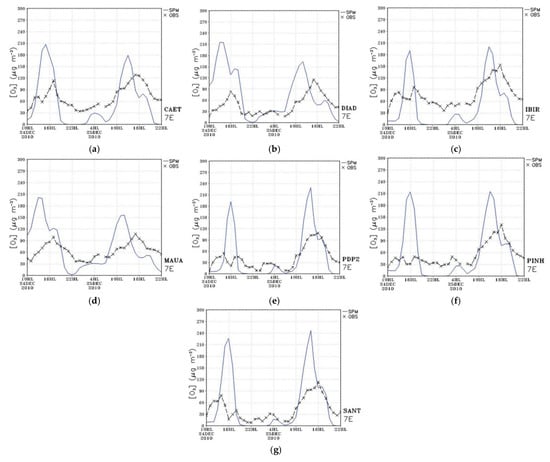

In the 7E case (Figure 7), the model represented the nocturnal increase in ozone, although, in most seasons, an underestimation occurred (difference of almost 30 μg m⁻³). At Diadema and Parque Dom Pedro II stations, although the nocturnal increase in ozone has been represented, there is a lag in the model’s concentration and that obtained in such stations. Regarding daytime maximums, there was an overestimation for both days at all points analyzed. The average ozone field for this simulation (Figure 8) showed values below 24 μg m⁻³ in the continental part and a core of maximum values southwest of the domain, where the wind tends to have a higher average intensity when compared to the rest of the study area.

3.2.3. Ozone Vertical Profile

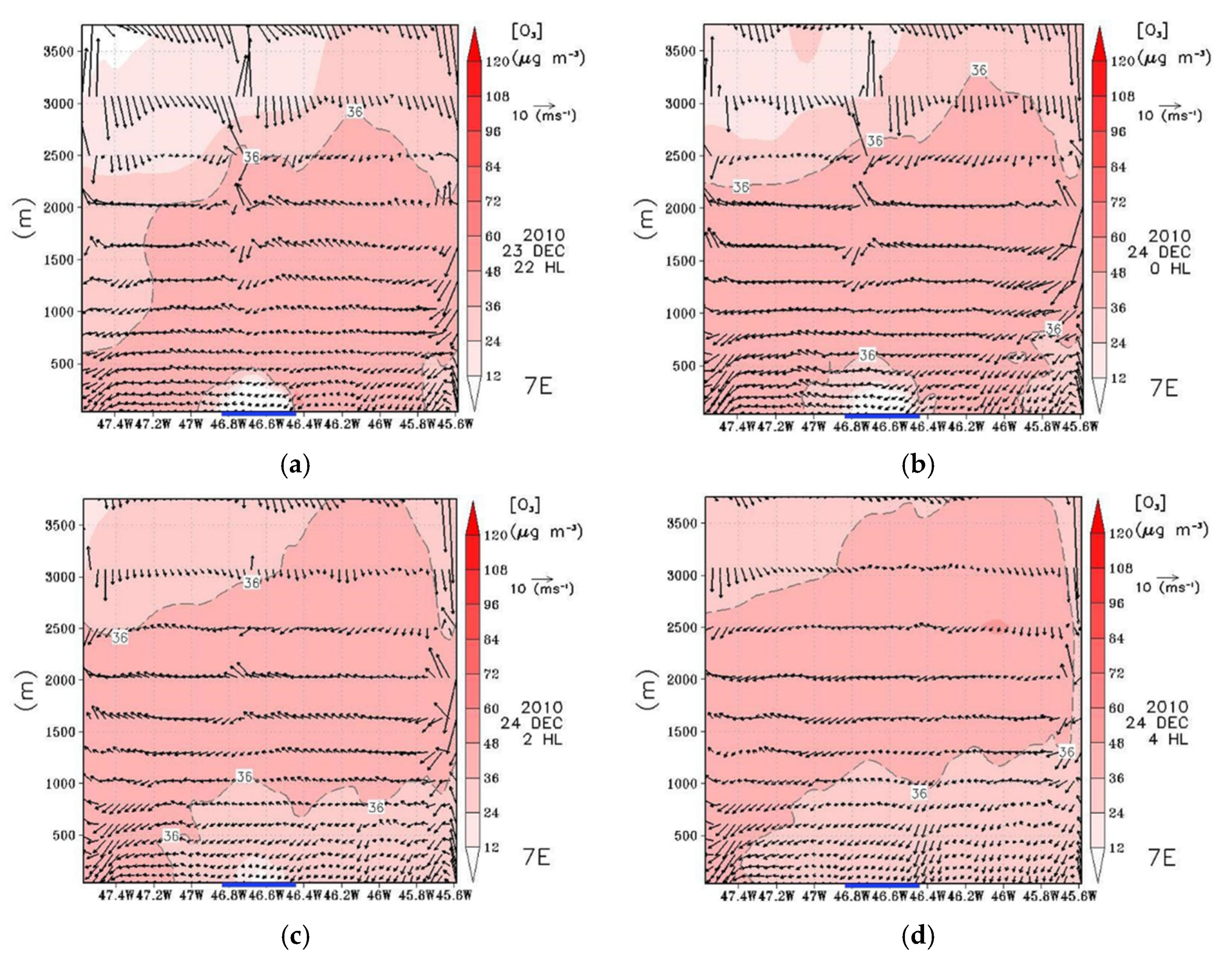

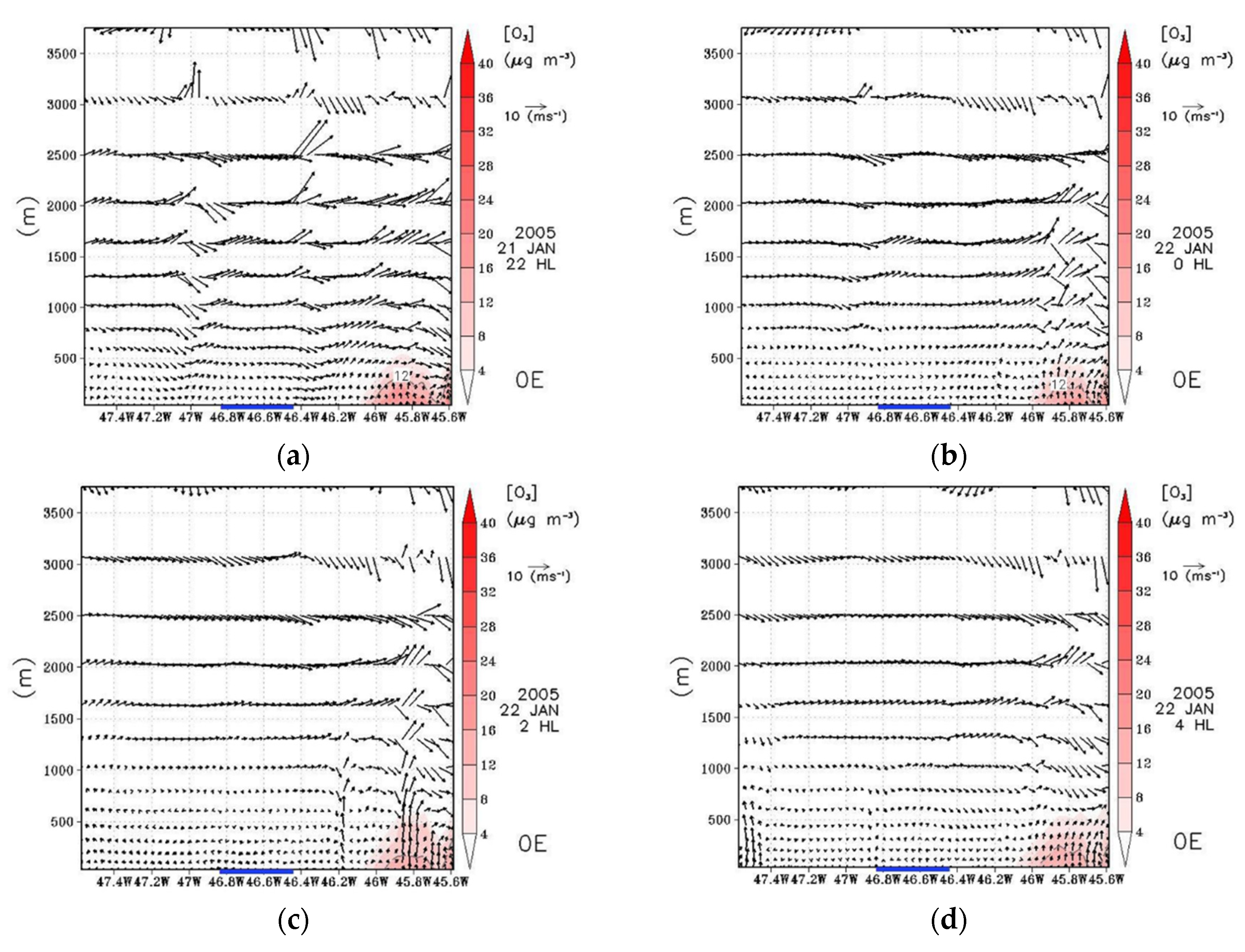

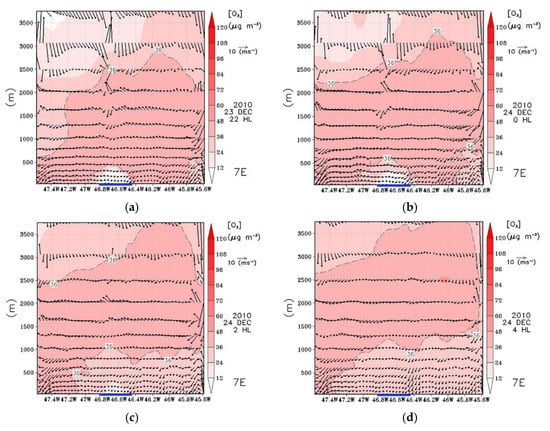

In case 0E (Figure 9), the wind remains weak throughout the period, with a minimal vertical component. The atmosphere under the MASP is clean for all hours of the night. When an increase in the concentration of ozone is observed in all stations in the MASP (case 7E, Figure 10), the sub-wind component is more intense than when this phenomenon is observed in only a few stations. This result shows that in the cases of the nocturnal peak, the vertical transport of ozone present in the residual layer has an essential contribution in the generation of increased concentration at levels close to the surface.

4. Conclusions and Remarks

To study at a local level the characteristics that contribute to an increase in nocturnal ozone concentrations in the MASP, two cases were simulated, when no increase is observed (0E) and when the secondary peak is observed in all air quality stations (7E). Overall, the model was able to better represent the nocturnal evolution of ozone concentrations close to the surface at stations located in the MASP. For daytime concentrations, the model simulated concentrations with the maximum values overestimated. The atmospheric condition resulting from the simulations for MASP was similar, confirming that the formation of nightly ozone peaks is not linked to the synoptic situation in this study region. In this case, the greatest influence resides in the amount of ozone that is trapped in the residual layer and the intensity of the subsiding currents over the urban area, as seen in the vertical sections for all cases.
