Heterogeneous Catalytic Ozonation of Micropollutants in a Pilot Scale Continuous Flow System ^†

Abstract

The present study evaluates micropollutant degradation from water by catalytic ozonation in a pilot scale unit comprising of a hydrophobic membrane for ozone dilution and a column filled with granules of the catalyst. The catalysts examined are alumina, calcite, dolomite, goethite, pearlite, polyethylene terephthalate (PET) and zeolite. Experimental results revealed zeolite as the most effective material achieving complete degradation of benzotriazole and carbamazepine, as well as 70% degradation of atrazine and about 50% of p-chlorobenzoic acid (p-CBA). The rest of the catalysts tested presented a moderate performance in micropollutant removal, reaching 30%–50% for atrazine, 25%–35% for p-CBA, more than 90% for benzotriazole and complete degradation of carbamazepine. Adsorption capacity of all materials examined did not exceed 5%.

1. Introduction

The increasing worldwide consumption of chemical products has led to increasing chemical pollution of aquatic environments including sewage, surface water, groundwater and drinking water [1,2]. These chemical products comprise pharmaceuticals, personal care products, steroid hormones and plasticizers that are usually termed as micropollutants, due to their low concentrations (pg/L to ng/L) in aquatic ecosystems [3]. A major pathway for the introduction of micropollutants to surface water is the discharge of treated effluent from wastewater treatment plants (WWTPs). Given their diverse properties (e.g., hydrophobicity and biodegradability) and low concentrations, micropollutant removal in conventional WWTPs is commonly incomplete and variable, ranging from 12.5% to 100% for some frequently reported compounds [1].

Micropollutants removal is dependent on compound—and process—specific factors. Biological treatment is commonly unable to remove polar persistent micropollutants [1]. Advanced treatment processes, such as activated carbon adsorption [4], advanced oxidation processes, nanofiltration (NF) [5], reverse osmosis (RO) [6] and membrane bioreactors (MBRs) [7] can achieve higher and more consistent micropollutant removal. However, activated carbon effectiveness is strongly affected by the presence of natural organic matter competing for adsorption sites, hence resulting in blocked pores [1]. NF and RO, although widely used in water reuse industry due to their high pollutant removal efficiency, are permeable to some degree to certain relatively small micropollutants [8]. On the other hand, MBRs can effectively remove a wide spectrum of micropollutants including compounds that are resistant to activate sludge processes [7]. Nevertheless, the removal of micropollutants in MBR can be affected by several factors, such as sludge age and concentration, existence of anoxic and anaerobic compartments, composition of the wastewater, operating temperatures, pH and conductivity [9].

Ozonation and advanced oxidation processes (AOPs) are effective redox technologies that prevail over conventional treatments, due to their high degradation rates and non-selectivity. However, high ozonation efficiency may also present undesirable side effects, such as specific by-product formation, which can be as harmful as the original pollutants that were treated [10]. In order to further reduce parent compounds and oxidation by-products, the ozonation process can be optimized through the presence of an appropriate catalyst (catalytic ozonation) [11]. Catalytic ozonation can be divided into homogeneous (transition metal ions) and heterogeneous catalytic ozonation (solid materials). Catalytic ozonation is based on the degradation of organic compounds via the decomposition of O₃ into hydroxyl radicals (⋅OH), that are a powerful and non-selective oxidant [11]. Micropollutants in the ozonation processes can be categorized based on the reaction rate constant with O₃ into three groups: O₃-resistant compounds, moderately O₃ reactive compounds and high/moderate O₃ reactive compounds [12].

The aim of this study is to examine the potential of several materials to act as catalysts to the ozonation of micropollutants by evaluating the removal of low concentration (2 μM) micropollutants that belong to these three categories. For that purpose, four different compounds were used: atrazine (ATZ) (O₃-resistant compound) [13], benzotriazole (BTA) (moderately O₃-reactive compound) [14], carbamazepine (CBZ) (easy-reactive compound) [15] and p-chlorobenzoic acid (p-CBA) (O₃-resistant compound) [16]. The materials examined as catalysts are alumina, calcite, dolomite, goethite, pearlite, PET and zeolite, while all experiments were performed in a pilot scale unit operating in continuous mode in order to simulate real process conditions.

2. Materials and Methods

2.1. Materials and Reagents

All chemicals were of analytical grade, except for HPLC-grade acetonitrile (Chem-lab, Zedelgem, Belgium) and phosphoric acid (Sigma-Aldrich, St. Louis, MO, USA). Atrazine, benzotriazole, carbamazepine and p-CBA (Sigma-Aldrich, St. Louis, MO, USA) were used as model organic compounds. The materials examined as catalysts were alumina, calcite, dolomite, goethite, pearlite, PET and zeolite. Experiments’ solutions were prepared in Thessaloniki’s tap water while target pH values were adjusted by the addition of either HNO₃ or NaOH 1 N.

2.2. Analytical Methods

The initial and residual concentration of the micropollutants was determined by using the High-Performance Liquid Chromatography system (HPLC Thermo Fisher Scientific Inc., model of UV Spectrum UV2000, Waltham, MA, USA) at 254 nm, equipped with a 4.6 mm 250 mm reversed phase column (AGILENT, model Eclipse Plus C18, Santa Clara, CA, USA). The mobile phase consisted of 10 mM phosphoric acid and acetonitrile in the percentages shown in

Table 1. Mobile phase proportion for micropollutants detection by HPLC.

Micropollutant (MP)	10 mM H3PO4, % v/v	ACN, % v/v
Atrazine	5	50
Benzotriazole	75	25
Carbamazepine	60	40
p-CBA	60	40

. The detection limit of the micropollutants was 0.025 μΜ. The O₃ concentrations in aqueous solutions were determined by using the indigo method [17]. The color change of the indigo solution was determined by a U-5100 Hitachi spectrophotometer.

Surface area and pore size distribution of materials tested as catalysts were estimated by nitrogen gas adsorption at liquid N₂ temperature (77 K) using a micropore surface area analyzer according to the Brunauer–Emmett–Teller (BET) model. The electric surface properties were examined through the measurement of the isoelectric point (IEP) which describes the effective charge at the surface double layer and the point of zero charge (PZC), which indicates the actual charge at the catalysts’ surface. Particularly, IEP was determined by the curve of zeta-potential at 20 ± 1 °C of materials’ dispersion in 0.01 M NaNO₃ versus pH solution, using a Rank Brothers Micro-electrophoresis Apparatus Mk II device, while PZC was defined by acid/base potentiometric mass titration in suspensions of the adsorbent at various ionic strengths [18].

2.3. Experimental Set-Up

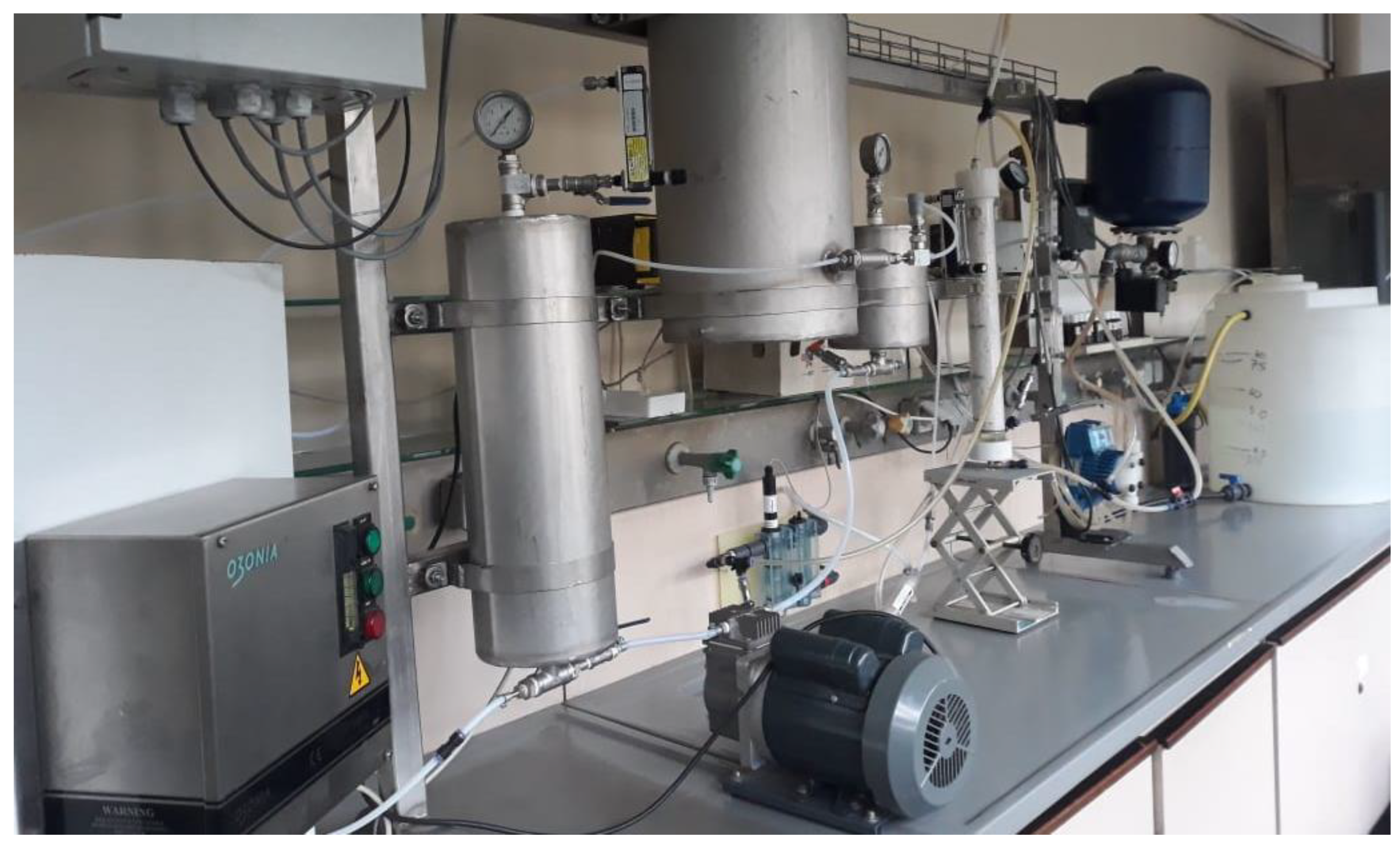

Experiments of catalytic ozonation were performed in a pilot scale unit comprising of a hydrophobic membrane and a column filled with granules of the catalyst (Figure 1). The membrane, PDMSXA–2500 (purchased from PermSelect) offered the adequate contact surface for ozone dilution to water. The initial concentration of micropollutants was set to 2 μM, the pH ranged from 6 to 8 and contact time from 2 to 15 min, while pilot unit provided an ozone concentration of 2 mg O₃/L. The affinity/adsorption of micropollutants against the applied catalysts was evaluated through their adsorption capacity.

3. Results

3.1. Physicochemical Properties of Materials Tested as Catalysts

Table 2. Main physicochemical characteristics of materials tested as catalysts

Catalyst	PZC	IEP	SBET, (m2/g)	Pore volume (mL/g)
Alumina	8.5	7.5	150	0.512
Calcite	9.7	8.2	6.3	0.038
Dolomite	10.1	9.3	5.1	0.030
Goethite	7.8	7.4	135	0.265
Pearlite	/	/	1.92	0.035
PET	6.2	/	/	/
Zeolite	6.8	2.2	21	0.164

summarizes the main physicochemical characteristics of materials tested as catalysts as determined by the methods described at Section 2.2. As shown, PZC values for all catalysts were close or higher than 7 which also stands for IEP with the exception of zeolite for which an IEP value of 2.2 was determined. The specific surface area of materials varied from 6.3 m²/g for calcite to 150 for alumina which also presented the highest pore volume followed by goethite and zeolite.

3.2. Continuous Flow Experiments

Catalytic ozonation experiments were performed in the continuous flow pilot unit described at Section 2.3. Samples for analysis were collected after the membrane and at the outflow of catalytic ozonation. Part of the sample collected after the membrane was placed in a sealed beaker where ozonation reaction continued for a period of time equal to the catalytic ozonation contact time. Residual concentrations of ozone and micropollutant were measured to all samples. The results of continuous flow experiments with regard to tested materials performance in catalytic ozonation are presented in

Table 3. Micropollutant removal and ozone decomposition in catalytic ozonation with alumina (C_{0, eozon}: 2 mg/L, C₀, _MP: 2 μΜ, pH: 7, contact time: 7 min).

ALUMINA
Micropollutant Removal, %
Micropollutant	Adsorption		Catalytic ozonation
p-CBA	<2%		29%
ATZ	5%		43%
BTA	5%		95%
CBZ	<2%		>99%
Ozone decomposition in catalytic ozonation, %.
p-CBA	ATZ	BTA	CBZ
>99%	>99%	>99%	>99%

,

Table 4. Micropollutant removal and ozone decomposition in catalytic ozonation with calcite (C_{0, ozone}: 2 mg/L, C₀, _MP: 2 μΜ, pH: 7, contact time: 7 min).

CALCITE
Micropollutant Removal, %
Micropollutant	Adsorption		Catalytic ozonation
p-CBA	5%		30%
ATZ	<2%		42%
BTA	5%		92%
CBZ	<2%		>99%
Ozone decomposition in catalytic ozonation, %
p-CBA	ATZ	BTA	CBZ
90%	79%	83%	>99%

,

Table 5. Micropollutant removal and ozone decomposition in catalytic ozonation with dolomite (C_{0, ozone}: 2 mg/L, C₀, _MP: 2 μΜ, pH: 7, contact time: 7 min).

DOLOMITE
Micropollutant Removal, %
Micropollutant	Adsorption		Catalytic ozonation
p-CBA	5%		31%
ATZ	<2%		43%
BTA	5%		90%
CBZ	<2%		>99%
Ozone decomposition in catalytic ozonation, %
p-CBA	ATZ	BTA	CBZ
89%	77%	85%	>99%

,

Table 6. Micropollutant removal and ozone decomposition in catalytic ozonation with goethite (C_{0, ozone}: 2 mg/L, C₀, _MP: 2 μΜ, pH: 7, contact time: 7 min).

GOETHITE
Micropollutant Removal, %
Micropollutant	Adsorption		Catalytic ozonation
p-CBA	<2%		25%
ATZ	<2%		31%
BTA	<2%		>99%
CBZ	<2%		>99%
Ozone decomposition in catalytic ozonation, %
p-CBA	ATZ	BTA	CBZ
>99%	>99%	>99%	>99%

,

Table 7. Micropollutant removal and ozone decomposition in catalytic ozonation with pearlite (C_{0, ozone}: 2 mg/L, C₀, _MP: 2 μΜ, pH: 7, contact time: 7 min).

PEARLITE
Micropollutant Removal, %
Micropollutant	Adsorption		Catalytic ozonation
p-CBA	3%		31%
ATZ	5%		28%
BTA	5%		98%
CBZ	<2%		>99%
Ozone decomposition in catalytic ozonation, %
p-CBA	ATZ	BTA	CBZ
70%		76%	>99%

,

Table 8. Micropollutant removal and ozone decomposition in catalytic ozonation with PET (C_{0, ozone}: 2 mg/L, C₀, _MP: 2 μΜ, pH: 7, contact time: 7 min).

PET
Micropollutant Removal, %
Micropollutant	Adsorption		Catalytic ozonation
p-CBA	5%		35%
ATZ	<2%		53%
BTA	<2%		>99%
CBZ	<2%		>99%
Ozone decomposition in catalytic ozonation, %
p-CBA	ATZ	BTA	CBZ
95%	95%	95%	>99%

and

Table 9. Micropollutant removal and ozone decomposition in catalytic ozonation with zeolite (C_{0, ozone}: 2 mg/L, C₀, _MP: 2 μΜ, pH: 7, contact time: 7 min).

ZEOLITE
Micropollutant Removal, %
Micropollutant	Adsorption		Catalytic ozonation
p-CBA	4%		47%
ATZ	4%		67%
BTA	5%		>99%
CBZ	<2%		>99%
Ozone decomposition in catalytic ozonation, %
p-CBA	ATZ	BTA	CBZ
92%	84%	>99%	92%

.

Micropollutant removal achieved inside the membrane was determined as 21%, 27%, 63% and more than 99% for p-CBA, atrazine, benzotriazole and carbamazepine, respectively. Micropollutant removal via ozonation for a period of time equal to the catalytic ozonation contact time (7 min) was calculated as 31% and 57% for p-CBA and atrazine, respectively, while for benzotriazole and carbamazepine this percentage exceeded 98%.

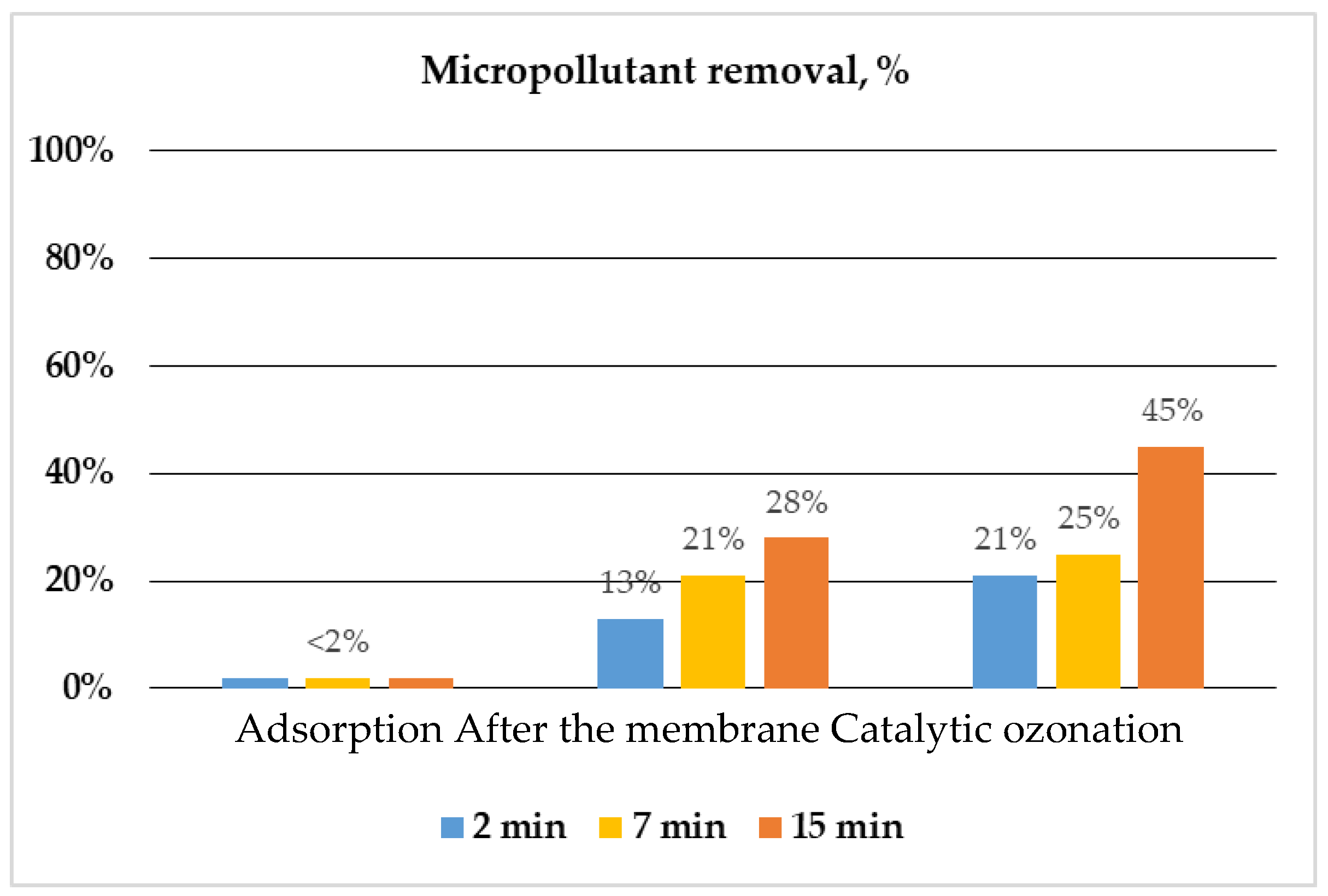

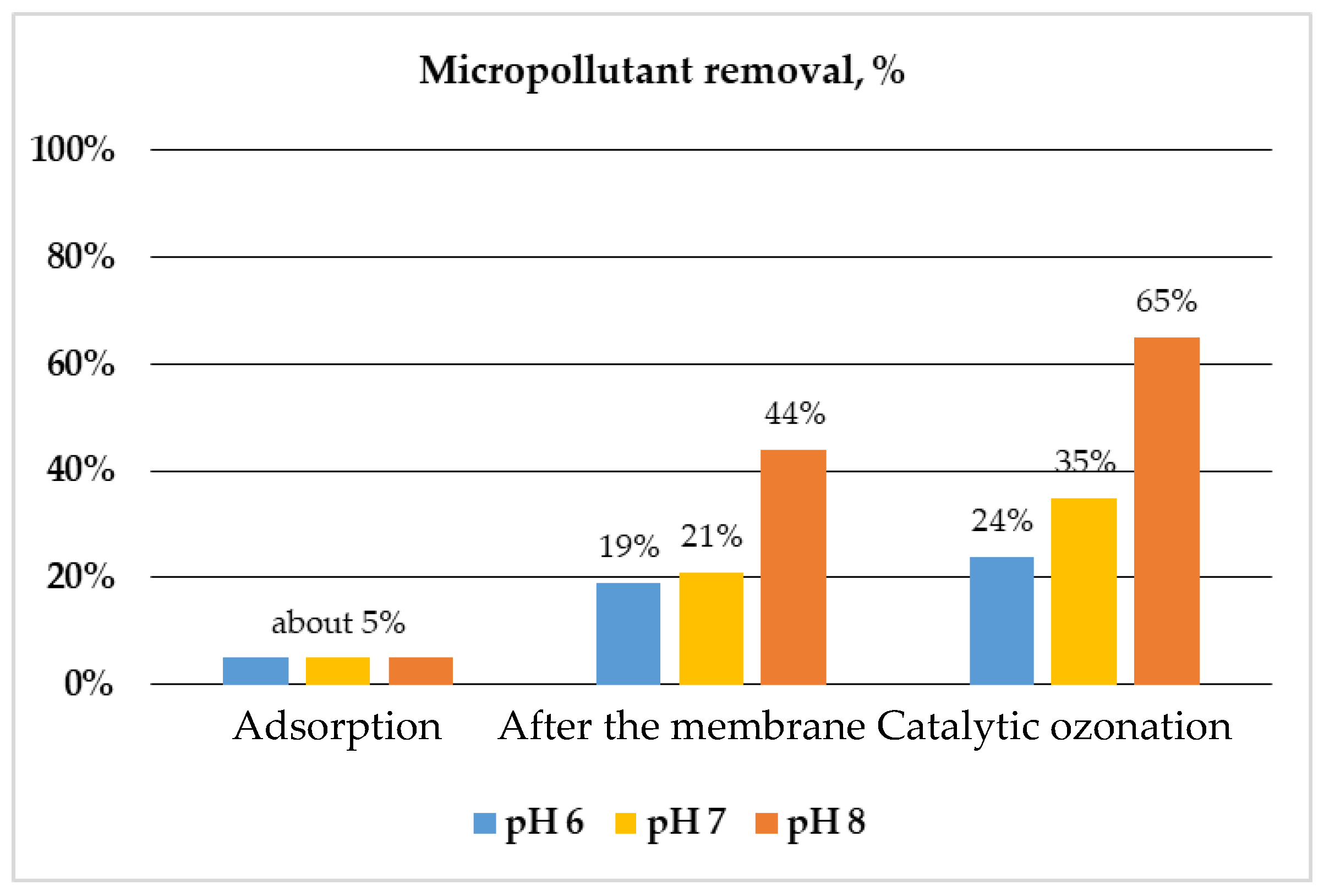

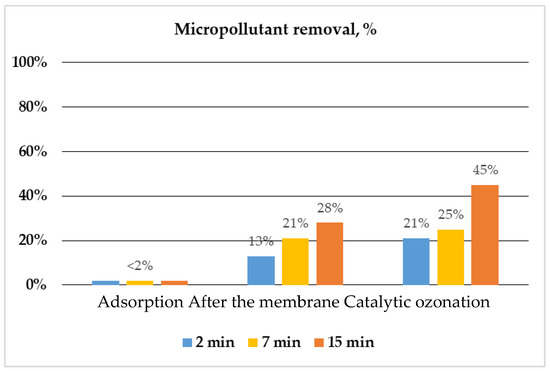

The influence of pH value and catalytic ozonation contact time was also examined and the results are shown in Figure 2 and Figure 3, respectively.

4. Conclusions

In the present research work a series of materials were tested as catalysts for the degradation of micropollutants from water in a continuous flow catalytic ozonation system comprising of a hydrophobic membrane and a column filled with granules of the catalyst. Experimental results revealed zeolite as the most effective material in catalytic ozonation achieving complete degradation of benzotriazole (moderately O₃-reactive compound) and carbamazepine (easy-reactive compound), 70% removal of atrazine and about 50% of p-CBA (O₃-resistant compound) at pH 7. PET also demonstrated a significant performance removing 35% of p-CBA, 53% of atrazine and more that 99% of benzotriazole and carbamazepine. The rest of catalysts tested presented a moderate performance in micropollutant removal with an average of 37% for atrazine, 29% for p-CBA, more than 90% for benzotriazole and complete degradation of carbamazepine. Adsorption capacity of all materials examined did not exceed 5% suggesting that adsorption had a trivial contribution in micropollutant removal. However, a significant part of the micropollutant degradation took place inside the membrane used for ozone dilution to the aquatic phase and particularly 21%, 27% and 63% for p-CBA, atrazine and benzotriazole, respectively, and total for carbamazepine. Comparison of catalytic with single ozonation demonstrated an increase in efficiency within a range of 10% to 15% for zeolite but similar performance, or in the case of atrazine lower, for the rest of materials tested. An increase in pH value significantly improved the performance of the process, multiplying it by more than 2.5 times by pH rising from 6 to 8. This can be attributed to the catalysis of ozone decomposition by hydroxyl ions OH⁻ in water over the pH range 1–8 [19]. Higher contact times also upgraded catalytic ozonation, at least up to the level of 15 min that was tested.
