Impact of Land Use and Land Cover Changes on the Stream Flow and Water Quality of Big Creek Lake Watershed South Alabama, USA ^†

Abstract

Land use is one of the key factors affecting the stream flow of a watershed. This research aimed to evaluate the impact of changing land use and land cover (LULC) on stream flow and water quality by applying the Soil and Water Assessment Tool (SWAT) to the Big Creek Lake watershed located in Mobile County, South Alabama. Digital elevation model (DEM), LULC data, weather data, soil data, observed streamflow, nitrogen, and phosphors data were used as input files to calibrate and validate the SWAT model. The SWAT model was calibrated and validated using the Sequential Uncertainty Fitting (SUFI-2) algorithm in the SWAT Calibration Uncertainties Program (SWAT-CUP) software. Agricultural land increased by about 11,045 acres and urban area increased by 3350 acres, and forest area decreased by 11,482 acres, between 1991 and 2020. This changing scenario of LULC not only increased the streamflow but also the total nitrogen and phosphorus. The total streamflow was higher, at about 38 m³/s in the LU_2020 scenario, than in the LU_1990 scenario. Increases of about 1,136,919 kg of nitrogen and 324,467 kg of phosphorus were found from 1990 to 2020, and these increases can be explained by an increase in agricultural land of about 11,045 acres. The results obtained in this study are able to provide guidance to water resource management and planning for policymakers and water managers in Mobile County.

1. Introduction

According to [1,2,3] in recent decades, hydrological responses to the changing environment have become a research interest area. Changing land use and land cover (LULC) influence runoff–rainfall processes by affecting the surface components such as evapotranspiration, infiltration, and percolation. Various types of land use have different reflectivity (albedo), roughness, leaf areas, and soil depth, which impacts the land–surface interactions by affecting temperature, humidity, wind speed, and precipitation [4,5,6]. Changes in LULC will have an impact on these interactions, resulting in differences in surface moisture, heat, and momentum fluxes [7,8]. According to [9], local, regional, and global climate and hydrological processes depend on the spatial distribution, size, extent, and location of land cover changes. Though many investigations have focused on the hydrological response due to changes in land use [10,11,12,13], the relationship between changing land use and the hydrological response deserves more investigation. The use of hydrological models is essential because of the effective planning of water resources and protection under changing environmental conditions, and models can simulate flow regimes under different scenarios. Many of these hydrological models are applied for runoff, sediment yield, and soil loss prediction. Among all these models, the SWAT model is the most widely used and has been applied in different areas to analyze numerous problems of hydrology and water quality, including the potential changes to the streamflow under different climate scenarios [14]. The SWAT model has achieved worldwide recognition because it is utilized to evaluate water and sediment yield and water quality parameters under present conditions, management practices, and future climate conditions with spatial and temporal resolutions that depend on the data availability [15].

2. Materials and Methods

2.1. Study Area

Big Creek Lake has an area of 3600 acres and is a tributary-storage reservoir in Mobile County, located in southwest Alabama. Although the area of the lake itself is only 3600 acres, the watershed draining into it covers approximately 65,920 acres or 103 square miles [16,17]. Although Big Creek Lake watershed encompasses large areas in Mobile County, no large municipalities exist within the watershed; however, there are several smaller towns, including Wilmer and Semmes, located within the watershed boundaries. Figure 1 shows the location of the watershed, and the weather and water quality data stations. Big Creek Lake watershed lies within the Southern Hills District of the East Gulf Coastal Plain section of the Coastal Plain Physiographic Province in close proximity to the Gulf Coast. The Gulf of Mexico influences the subtropical climate of the watershed.

2.2. Data Required

Some spatial inputs are required to run the Soil Water Assessment Tool (SWAT) model, such as a digital elevation model (DEM) and associated topography, LULC, and soils of the study area [18,19]. In addition to these inputs, long-term weather data, soil property data, and discharge data are also necessary. The USGS National Map was the provider of the DEM datasets, which were downloaded from https://viewer.nationalmap.gov/basic/ (accessed on 28 March 2020). The spatial resolution is 10 m, which is a 1 arc-second (10 m × 10 m) pixel resolution. For LULC data, Landsat images obtained from the USGS data hub (https://earthexplorer.usgs.gov/ (accessed on 4 April 2020)) and same-seasonal images were chosen from 1990 to 2020 with minimum cloud cover to have the lowest atmospheric effects. Each LULC product was primarily based upon the classification of Landsat data. Classification was performed using the unsupervised approach. The resulting classification was then reclassified into water, forest, urban, agriculture, and rangeland. The SSURGO (Soil Survey Geographic Database) soil data were used because, according to the Natural Resource Conservation Service (NRCS), the SSURGO is the county soil data having the most detailed level. The soil data and information on related soil properties were obtained from https://websoilsurvey.sc.egov.usda.gov/App/WebSoilSurvey.aspx (accessed on 11 May 2020). From the National Oceanic and Atmospheric Administrations (NOAA) website, the daily rainfall, maximum and minimum temperatures, and average wind speed at one weather station in the study were obtained between 1990 and 2020. The daily stream flow data were obtained from the USGS National Water Information System: Web Interface. Water quality data are not available in daily or monthly intervals; rather its reporting is random.

2.3. SWAT Model Description

The SWAT is a physically based hydrologic model and requires physically based data [20]. The SWAT is a continuous-time, spatially distributed model designed to simulate water, sediment, nutrient, and pesticide transport at a catchment scale on a daily time step under different management practices [21]. Arc-SWAT is an extension of ArcGIS, as the SWAT is embedded in a GIS interface. SWAT2012 is evolved from AVSWAT, which is an extension of ArcView developed for an earlier version of SWAT2012. Some major components are used to run the SWAT model including weather, hydrology, different types of soil, plant growth, nutrients, pesticides, bacteria and pathogens, land use, and management practices. When running the SWAT model, a watershed or basin is divided into multiple sub-basins or sub-watersheds, and then each sub-basin or sub-watershed is further subdivided into multiple HRUs based on the DEM properties. HRUs are located in the sub-basin and comprise unique land use, soil, and slope characteristics. The Soil Conservation Services (SCS) curve number procedure (SCS, 1972) and Green and Ampt infiltration method (1911) are the two methods used by the SWAT model to estimate the surface runoff. In this study, the SCS curve number method was used to estimate surface runoff. Water is routed through the channel network using a variable storage routing method or the Muskingum routing method. In this study, Muskingum routing methods were used for surface runoff. Briefly, the SWAT partitions soil nitrogen (N) into five different N pools. Two of the pools are inorganic (ammonium-N [NH4-N] and nitrate-N [NO3-N]) and three pools are organic (active, stable, and fresh). Unlike N, soil phosphorous (P) in SWAT is divided into six pools (three minerals and three organics). The fresh organic phosphorus pool, and active and stable organic pool, are contributed to by the crop residue, and biomass and humus substances, respectively. The soil inorganic pool includes active, solution, and stable pools [22].

2.4. Uncertainty and Sensitivity Analysis

Sensitivity analysis is the identification of the sensitive parameters that have an important influence on the performance of the model, to ensure that adjustments will be precise. This operation was carried out using SWAT-CUP. This program was developed by the Swiss Federal Institute of Water Science and Technology (EAWAG), which specializes in SWAT calibration, validation, and uncertainty analysis. SWAT-CUP is a standalone program that links to SWAT’s output text files, and integrates five different optimization algorithms: Sequential Uncertainty Fitting (SUFI-2) [23], Generalized Likelihood Uncertainty Estimation (GLUE) [24], Parameter Solution (ParaSol) [25], Markov chain Monte Carlo (MCMC) [26,27,28], and Particle Swarm Optimization (PSO) [9]. Among these algorithms, SUFI-2 has the capacity to account for all the sources of uncertainty in the parameter ranges, such as uncertainty in driving variables (e.g., rainfall), conceptual model, parameters, and measured data [23]. For this reason, SUFI-2 was used in this study to analyze the sensitivity of the model.

2.5. SWAT Model Calibration, Validation and Evaluation

The calibration of the hydrological model is undertaken to optimize its predictive capacity by comparing its simulated values with the observed or actual values of the study area. Validation is the process of demonstrating the capability of making a sufficiently accurate simulation, which may vary based on the aim of a project [29]. In this study, a five-year warm-up period, that is, from 1986 to 1990, was used. The calibration and validation periods were equal for stream flow, nitrogen, and phosphorus. Predicted and observed values of streamflow and nutrient loadings at the watershed outlet were compared to determine whether the objective function satisfactorily involves running a model using the parameters during the calibration. The results from the different periods of calibration were compared to determine whether the model meets confidence limits. The model validation was performed with the same SWAT parameter values calibrated without any further alterations. The performance of the model in the simulation was evaluated by Nash–Sutcliffe Efficiency (NSE), Percent of Bias (PBIAS), and the Coefficient of Correlation (R²), which are most commonly used and are proposed [30].

3. Results

3.1. Land Use and Land Cover (LULC) Change

Figure 2 shows the land use over the period. Forest was one of the main land uses of the watershed and achieved a large percentage. From 1990 to 2000, almost 60% of the watershed area was forest land. However, after one decade (2010), forest area was reduced by about 10%. A total of 11,482.80 acres of forest area were transformed into other LULC categories over a 30-year period. By comparison, urban areas increased (3350 acres) in the past three decades, showing an increment of 1293 acres from 1990 to 2000, 632 acres from 2000 to 2010, and 1423 acres from 2010 to 2020. Agricultural land increased (11,045 acres) and rangeland decreased (2542 acres) in the last three decades. From 1990 to 2000, agricultural land increased, but from 2000 to 2010 it decreased, and, in the last decade, it increased by about 10,510 acres. The LULC time series analysis between 1990 and 2020 indicates an expansion in the agricultural land and an increase in urban area, with a reduction in forest land and rangeland. Forest area changed to rangeland and urban areas, by approximately 8086 and 3905 acres, respectively, in the last three decades. Agricultural land transformed into rangeland (852 acres) and urban area (674 acres), mostly from 1990 to 2020. Meanwhile, during the same period, rangeland changed into the agricultural area (5380 acres) and urban area (2080 acres).

3.2. Sensitivity Analysis

Table 1. Model parameters and their descriptions in surface flow, total nitrogen, and phosphorus calculations.

Parameter	Parameter Description	Fitted Value	Minimum Value	Maximum Value
ADJ_PKR	Peak rate adjustment factor for sediment routing in sub watershed	2	0.5	2
ALPHA_BF	Baseflow alpha factor (days)	0.1	0	1
BIOMIX	Biological mixing efficiency	0.2	0	1
CN	Curve number	Decrease 20%	35	98
EPCO	Plant evaporation compensation factor	0.95	0	1
ESCO	Soil evaporation compensation factor	1	0	1
GW_DELAY	Groundwater delay time (days)	20	0	500
GW_REVAP	Groundwater “revap” coefficient	0.02	0.02	0.2
OV_N	Manning’s “n” value for overland flow “n” value for overland flow	1	0.01	30
PRF	Peak rate adjustment factor for sediment routing in the main channel	1	0	1
RCHRG_DP	Deep aquifer percolation factor	0.05	0	1
SOL_AWC	Available water capacity of soil layer	0.7	0	1
SOL_K	Saturated hydraulic conductivity	0.2	0	2000
SPEXP	Exponent parameter for calculating sediment retrained in channel sediment routing	1.5	1	1.5
USLE_P	USLE equation support practice factor	1	0	1
SOL_LABP	Initial soluble P concentration in sol layer	0.01	0	100
SOL_ORGP	Initial organic P concentration in sol layer	0.01	0	100
LAT_ORGN	Organic N in the baseflow	0.01	0	200
SOL_ORGN	Initial organic N concentration in the soil layer	0.01	0	10

represents the fifteen parameters used to calibrate and validate the stream flow. Based on sensitivity analysis, fifteen parameters were used, such as curve number (CN), biological mixing efficiency (BIOMIX), Manning’s “n” value for overland flow (OV_N), peak rate adjustment factor (PRF), exponent parameter for calculating sediment re-entrained in channel sediment routing (SPEXP), USPE equation (USLE_P), plant and soil evaporation factor (ESCO and EPCO), and groundwater (ALPHA_BF, GW_DELAY, GW_REVAP, and RCHRG_DP). SOL_LABP, SOL_ORGP, LAT_ORGN, and SOL_ORGN were used to calibrate the nitrogen and phosphorus flow in the watershed.

Table 2. Sensitive parameters ranking based on t-Stat and p-Value.

Parameter Name	t-Stat	p-Value	Parameter Name	t-Stat	p-Value
r__ESCO.bsn	−0.215278727	0.829640698	r__EPCO.bsn	1.115696614	0.265105646
r__USLE_P.mgt	−0.226950855	0.820557782	r__CN2.mgt	−1.333777787	0.18290399
r__BIOMIX.mgt	0.227096486	0.820444606	r__ADJ_PKR.bsn	−1.443612737	0.149494876
r__ALPHA_BF.gw	−0.278863619	0.780468599	r__PRF_BSN.bsn	−1.948062549	0.051985146
r__SOL_K().sol	0.671455455	0.502250766	r__RCHRG_DP.gw	−1.994993478	0.046603828
r__GW_REVAP.gw	−0.728852367	0.466444494	r__OV_N.hru	−2.862365089	0.004387183
r__GW_DELAY.gw	0.846668373	0.39759842	r__SOL_AWC().sol	−38.3178933	0
r__SPEXP.bsn	−0.969346487	0.332856487	-	-	-

ranks the parameters based on the t-stat and p-value, using the highest absolute value of the t-stat and the lowest value of the p-value, the highest influence of that parameter, and vice versa. Based on these values, SOL_AWC, OV_N, and RCHRG_DP are the most effective parameters, and ESCO, ULSE_P, and BIOMIX have less impact on the calibration and validation of the model.

3.3. SWAT Model Calibration and Validation

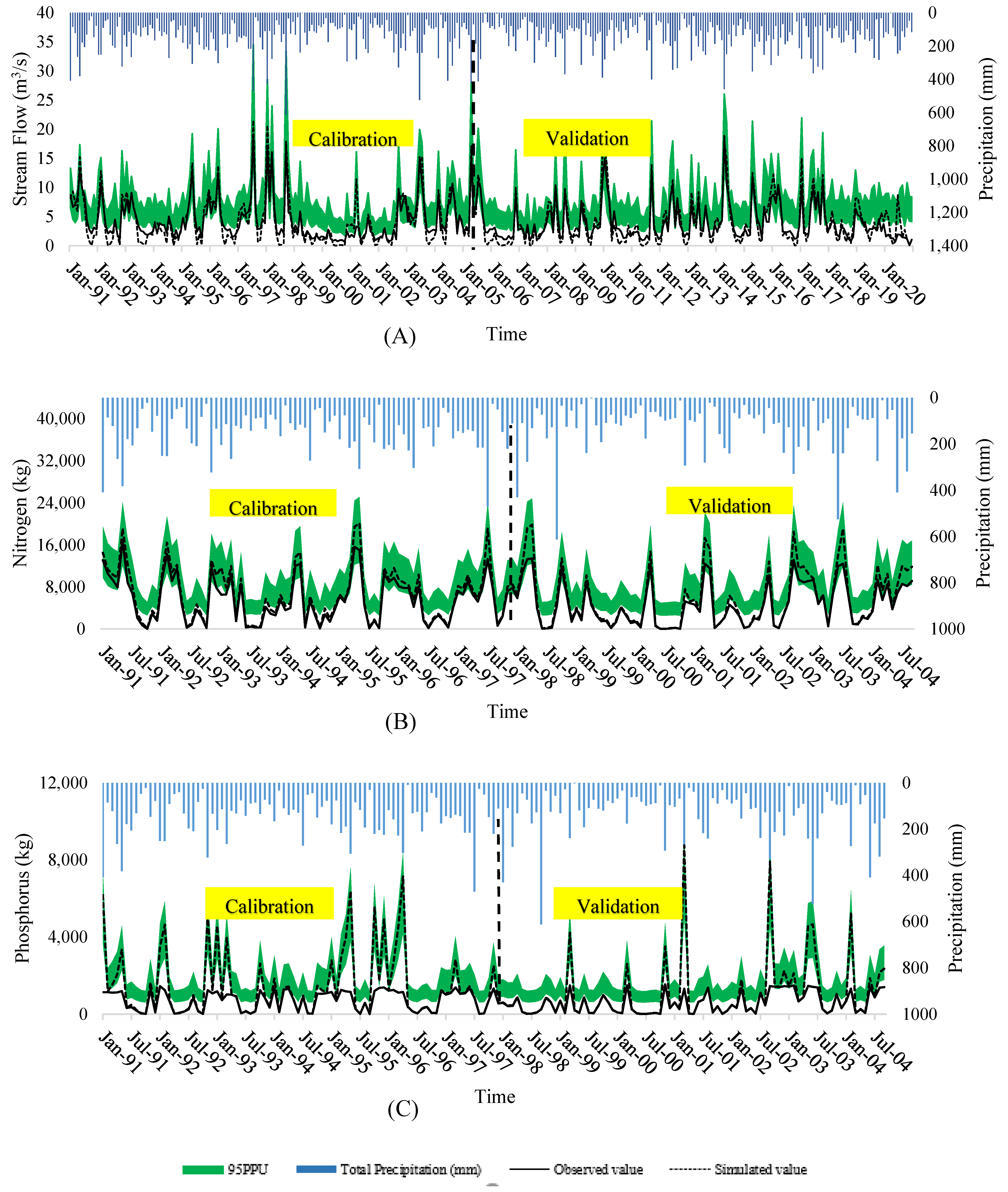

Figure 3A–C show the observed and simulated monthly stream flow, total nitrogen, and phosphorus, respectively. The differences in the average monthly observed and simulated values of stream flow were less than 1%. The R², NSE, and PBIAS values for streamflow for the calibration and validation periods are listed in

Table 3. Statistical evaluation of the model for calibration and validation time periods.

	R2		NSE		PBIAS
	Calibration	Validation	Calibration	Validation	Calibration	Validation
Stream Flow	0.81	0.81	0.77	0.73	−10.7	15.4
Nitrogen	0.75	0.77	0.62	0.65	9.34	−3.45
Phosphorus	0.5	0.54	0.34	0.24	−20.45	−21.76

. Based on the classified value stated by Moriasi et al. (2015), the SWAT model showed a very good level in the NSE for calibration (0.77) and validation (0.73). Adjustment between the observed, calibrated, and validated stream flow reached a good level, having an R² of 0.81 for both calibration and validation. A good classification was obtained for PBIAS, with values of 10.7% and 15.4% for calibration and validation, respectively. According to the classification by Moriasi et al. (2007), the SWAT model calibrated and validated the nitrogen and phosphorus satisfactorily in the determination coefficient (Table 3).

3.4. Stream Flow, Nitrogen, Phosphorus of Different LU Scenarios

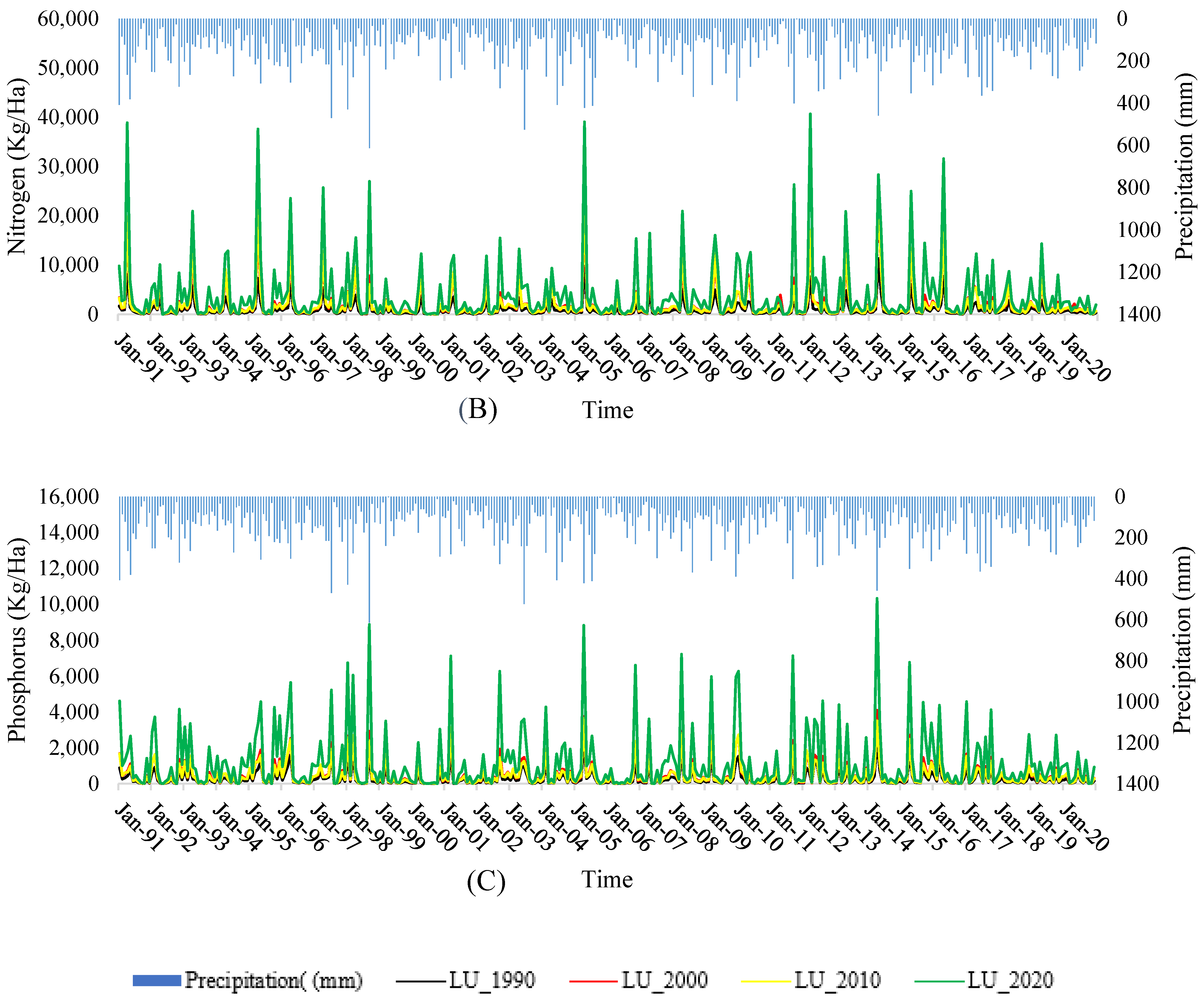

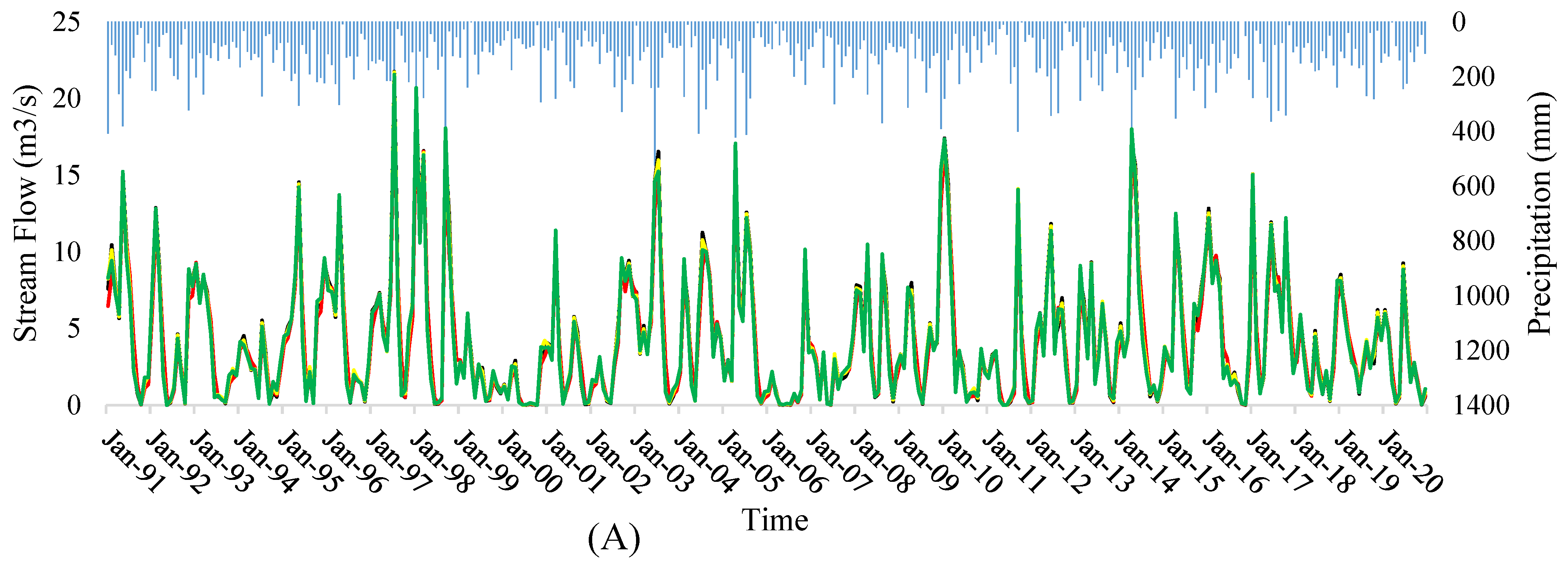

The relationship between stream flow and LULC, nitrogen and LULC, and phosphorus and LULC is shown by Figure 4A–C respectively. The effect of the stream flow, nitrogen, and phosphorus was estimated for the 30-year study period (1990–2020) by running the LU_1990, LU_2000, LU_2010, and LU_2020 scenarios. The greatest differences in the total stream flow between LU_1990 and LU_2000, and between LU_2010 and LU_2020, were decreases of around 12 and 21 m³/s, respectively. These differences from 1990 to 2000 were characterized by increasing urban area and agricultural land by 1293 and 894 acres, respectively, and increasing stream flows from 2010 to 2020 were influenced by increasing agricultural land and urban area, by 10,510 acres and 1423 acres, respectively. Moreover, comparing LU_1990 and LU_2020, total monthly stream flow increased about 38 m³/s, which can be explained by changes in LULC, namely, increasing agricultural land by 11,045 acres and urban area by 3350 acres. Moreover, the same behavior was noticed in the stream flow between LU_2000 and LU_2010, by increasing stream flow by about 5 m³/s. Both nitrogen and phosphorus had an increasing trend over the last three decades. From 1990 to 2020, nitrogen increased by 1,136,919 kg, and from 2010 to 2020, nitrogen increased by 768,893 kg; these increases can be explained by the increase in agricultural land, by about 11,045 and 10,510 acres. respectively. From 1990 to 2020, phosphorus increased by 324,467 kg, and most of the increase in phosphorus (around 253,975 kg) occurred in the past decade (2010–2020) (Figure 4B,C).

4. Discussion

This study shows that changes in LULC that occurred from 1990 to 2020 in the Big Creek Lake watershed were characterized by a substantial increase in agricultural land and expansion of the urban area. These results complement the study of the comparison of temporal images of LULC for the watershed conducted by [16]. This study found that an urban area expansion occurred, and the percentage increase in high and low residential areas was 2.3% and 10.1%, respectively. According to [17], the percentage of agricultural lands is highest in the Crooked Creek sub-basin, accounting for over 41% of the sub-basin. Much of the land in the sub-basin is designated as row crops. Hamilton Creek has also the highest percentage of agricultural land (36.1%). Potential sources of nutrients in the Big Creek Lake watershed are from nonpoint contributions associated with fertilizer applications on agricultural and residential land, livestock wastes, residential runoff, failing septic systems, and contaminated groundwater. No known point sources are located in the Big Creek Lake watershed. According to [17], the total annual nutrient loads at Big Creek Lake for the 1991 water year were 118,000 kg for total nitrogen and 5245 kg for total phosphorus. As population growth continues, and hence the conversion of forested areas to agriculture and urban areas, loadings of nutrients are expected to increase because most of the land is converted to urban areas. A study conducted by [15] and prepared in cooperation with MAWSS concluded that total nitrogen (except for Long Branch), total Kjeldahl nitrogen (except for Hamilton Creek), total organic nitrogen (except for Boggy Branch), ammonia (except for Long Branch), total inorganic nitrogen, and total phosphorus (except for Long and Boggy Branches) exhibited significant, positive relationships with streamflow, which indicate the dominant source of nutrient input to the watershed is from nonpoint sources. The more residential and agricultural sub-basins of Crooked Creek and Hamilton Creek, however, yielded over twice the total phosphorus per hectare of land use. Crooked and Hamilton Creek sub-basins also had higher total inorganic nitrogen yields. These results complement the present study, which found that, over time, the stream flow increases with the increase in total nitrogen and phosphorus. This increasing nature has a positive relationship with the increase in agricultural land and urban areas. A significant, positive relationship between streamflow and nutrient concentration indicates that nonpoint sources are the dominant source of the inputs. Different land-use practices contribute different levels of nutrients by nonpoint sources.

5. Conclusions

The SWAT model is highly significant and useful because it can be used to predict future hydrological responses. The total stream flow grew by 38 m³/s, and total nitrogen and phosphorus increased by about 113,619 and 324,467 kg, respectively, over the past three decades. This study quantified the impact of the changes in LULC on the water balance components and water quality. The results can be used by decision makers and public policy makers for future projections in terms of LULC changes.
