Effects of Co-Addition of CuBr₂ and NaCl to CH₃NH₃PbI₃(Cl) Perovskite Solar Cells ^†

Abstract

Effects of co-addition of CuBr₂ and NaCl to CH₃NH₃PbI₃(Cl) perovskite solar cells were investigated on the photovoltaic properties and microstructures. Short-circuit current densities and conversion efficiencies were improved by the simultaneous addition of CuBr₂ and NaCl. In addition, the efficiencies of the devices were maintained after 10 weeks. The perovskite structure changed from a tetragonal to a cubic system by the addition of Na, which resulted in the improvement of the perovskite crystal’s stabilization.

1. Introduction

Perovskite solar cells are widely studied, and the partial substitution method with different elements and molecules is often used to improve the properties of perovskite solar cells [1,2,3,4]. Organic−inorganic metal halide perovskites have a cubic structure with a general formula ABX₃, where A is an organic cation, B is a divalent metal ion, and X is a halide ion [5]. Doped perovskite structures have been obtained by adding various compounds to the perovskite precursor solutions, and the various dopants investigated are as follows: CH(NH₂)²⁺ [6,7,8,9], C(NH₂)₃⁺ [10,11], CH₃CH₂NH₃ [12], Cs⁺ [7,13], Rb+ [7,14], and K+ [15,16,17] at CH₃NH₃⁺ (MA+) sites, Sn²⁺ [18,19] or Sb³⁺ [20,21] at Pb²⁺ sites, and Br− and Cl− at I− sites [22,23,24].

In previous studies, perovskite crystals have been synthesized from MAPbI_3−xCl_x mixed precursor solutions with MAI and PbCl₂ in the ratio of 3:1 [25,26,27], and the highest conversion efficiency was obtained for the cells fabricated at 140 °C [26]. Although annealing at high temperatures above 200 °C was possible by using polysilanes in chlorobenzene [17,28], perovskite grains may decompose even at 150 °C, and MAPbI₃ changes into PbI₂ by MA desorption. Another approach to improve the MAPbI_3−xCl_x cells is by adding a small amount of excess PbI₂ to the MAPbI_3−xCl_x precursor solutions [29]. The recombination of electrons and holes was suppressed by the formation of a small amount of PbI₂, and the external quantum efficiencies increased. Stabilities of the PbI₂-added cells were also improved [30], and Cl was an important element to improve the stability, which was shown by the constant Cl content in the MAPbI_3−xCl cells after several weeks [29,30].

The short-circuit current density was also increased by the simultaneous addition of alkali metal iodides (NaI, KI, RbI, or CsI) and CuBr₂ to mixed perovskite precursor solutions with MAI, PbCl₂, and PbI₂ [31]. It was suggested that the lattice constant decreased by adding CuBr₂ because of the smaller ionic radius of Cu²⁺ compared with that of Pb²⁺. An increase of the density of states owing to the alkali metal elements was confirmed by first-principles calculations, which contributed to the increase of charge generation by light absorption in the shorter wavelength range as compared with the band gap energy of the perovskite. In the co-addition study, it was necessary to optimize adding an amount of CuBr₂ and alkali metal iodides to further improve the photovoltaic characteristics of the perovskite devices. However, increasing the amount of Cu leads to lattice defects that break the bond between Cu/Pb and halogen due to the smaller ionic radius of Cu²⁺ than that of Pb²⁺. The addition of alkali metal elements is effective in stabilizing the perovskite solar cells because of the more stable alkali metal elements compared with MA. Since the Cu−Cl bond is shorter than the Cu−Br bond for MA₂CuCl₂Br₂ with two-dimensionality [32], it is considered that the smaller ionic radii such as that of Na/Cl with excellent solubility is effective for the perovskite formation.

The purpose of the present study is to fabricate NaCl/CuBr₂ co-added MAPbI_3−xCl_x photovoltaic devices and to characterize the photovoltaic properties and crystal structures. The additive quantities of NaCl and CuBr₂ to the perovskite precursor solutions are optimized to improve the photovoltaic performance and stability of the perovskite solar cells [33]. Then, the effects of Na addition to Cu-modified perovskite are investigated by analyzing the changes in the conversion efficiencies and the microstructures. The tolerance factor approaches 1 by introducing Cu²⁺ at the position of Pb²+ because of the smaller ionic radius of Cu²⁺ (0.73 Å) compared with that of Pb²⁺ (1.19 Å). Thus, a more stable perovskite structure is expected to be formed by adding CuBr₂. Gibbs-free energies were also calculated and compared.

2. Materials and Methods

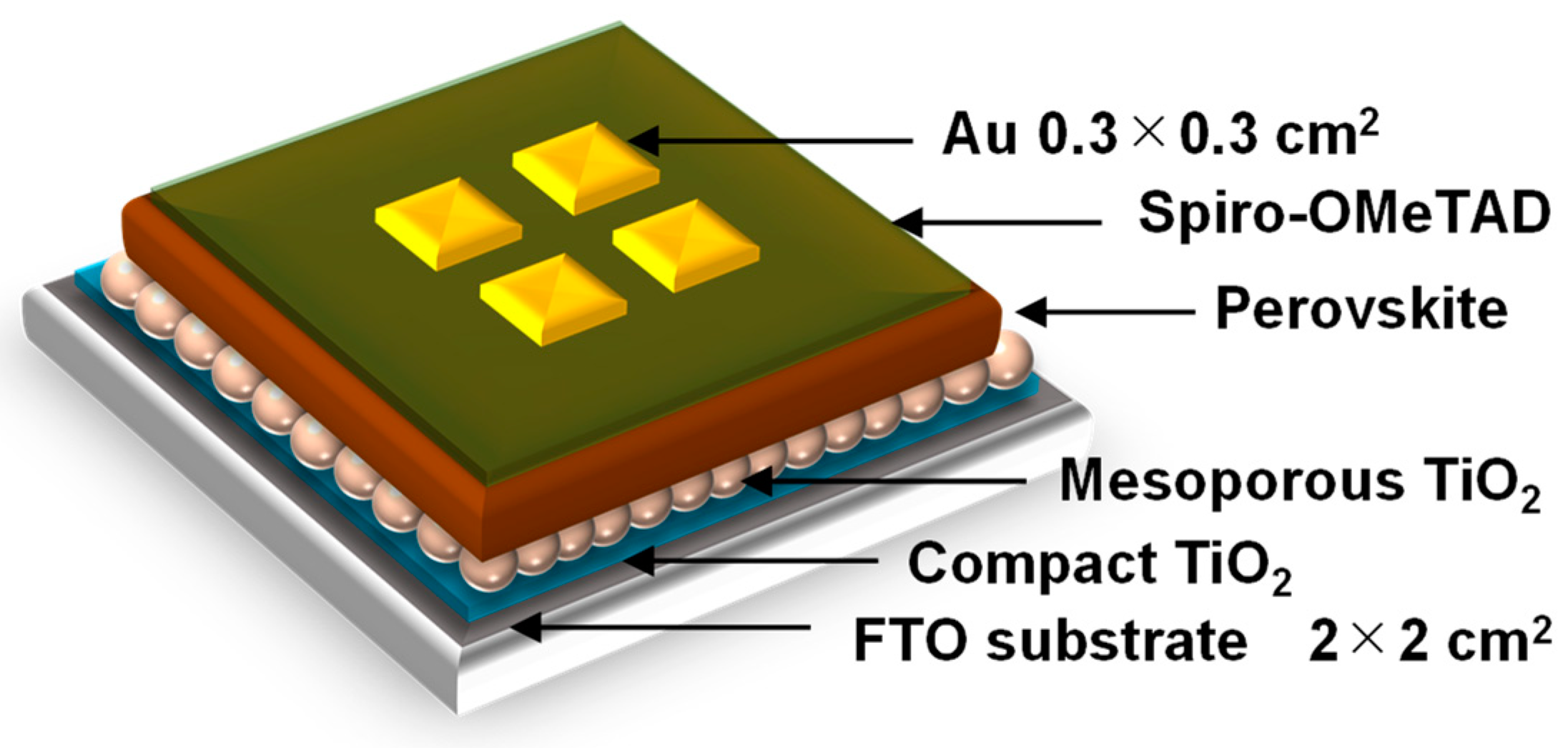

A schematic illustration of the present perovskite photovoltaic cells is shown in Figure 1. F-doped tin oxide (FTO) substrates were cleaned in an ultrasonic bath with acetone and methanol and dried under nitrogen gas. The TiO₂ (0.15 and 0.30 M) precursor solutions were prepared from titanium diisopropoxide bis(acetyl acetonate) (Sigma-Aldrich, Tokyo, Japan, 0.055 and 0.11 mL) with 1-butanol (1 mL). The 0.15 M TiO₂ precursor solution was spin-coated on the FTO substrate at 3000 rpm for 30 s, and the coated substrate was then annealed at 125 °C for 5 min. The 0.30 M TiO₂ precursor solution was spin-coated on the TiO₂ layer at 3000 rpm for 30 s, and the resulting substrate was annealed at 125 °C for 5 min. The process to form the 0.30 M precursor layer was performed twice. Then, the FTO substrate was sintered at 550 °C for 30 min to form a compact TiO₂ layer [33,34,35]. To form the mesoporous TiO₂ layer, a TiO₂ paste was prepared from the TiO₂ powder (Aerosil, Tokyo, Japan, P-25) with poly(ethylene glycol) (Nacalai Tesque, Kyoto, Japan, PEG #20000) in ultrapure water. The solution was mixed with acetylacetone (Wako Pure Chemical Industries, Osaka, Japan, 10 mL) and surfactant (Sigma-Aldrich, Triton X-100, 5 mL) for 30 min and then allowed to stand for 24 h to remove bubbles from the solution. Then, the TiO₂ paste was spin-coated on the compact TiO₂ layer at 5000 rpm for 30 s. The resulting cell was heated at 125 °C for 5 min and then annealed at 550 °C for 30 min to form the mesoporous TiO₂ layer.

To prepare the perovskite compounds, mixed solutions of CH₃NH₃I (2.4 M, Showa Chemical, Tokyo, Japan), PbCl₂ (0.8 M, Sigma-Aldrich, St. Louis, MO, USA), and PbI₂ (0.08 M, Sigma-Aldrich) in DMF (Sigma-Aldrich, 500 mL) were prepared for the standard cell [33]. Pb or MA in the perovskite structure was expected to be substituted by Cu or alkali metal elements, respectively. These perovskite solutions were then introduced into the TiO₂ mesopores by spin-coating at 2000 rpm for 60 s, which is followed by annealing at 140 °C for 10 min under 27 °C and 40% humidity in air.

A hole-transport layer was prepared by spin-coating. A solution of spiro-OMeTAD (Wako Pure Chemical Industries, Osaka, Japan, 50 mg) in chlorobenzene (Wako Pure Chemical Industries, 0.5 mL) was mixed with a solution of lithium bis(tri-fluoromethylsulfonyl)imide (Li-TFSI, Tokyo Chemical Industry, Tokyo, Japan, 260 mg) in acetonitrile (Nacalai Tesque, Kyoto, Japan, 0.5 mL) for 24 h. The former solution with 4-tertbutylpyridine (Sigma-Aldrich, 14.4 mL) was mixed with the Li-TFSI solution (8.8 mL) for 30 min at 70 °C. Then, the spiro-OMeTAD solution was spin-coated on the perovskite layer at 4000 rpm for 30 s. All procedures were performed in ambient air. Finally, gold (Au) electrodes were evaporated as top electrodes using a metal mask for the patterning. Layered structures of the prepared photovoltaic cells are denoted as FTO/TiO₂/perovskite/spiro-OMeTAD/Au. The prepared perovskite photovoltaic devices were stored at 22 °C and ~30% humidity.

The photovoltaic properties of the fabricated solar cells were investigated by current density−voltage (J−V) characteristics and external quantum efficiency (EQE). Microstructures of the thin films were investigated by X-ray diffraction (XRD), optical microscopy, and scanning electron microscopy (SEM)/energy dispersive spectroscopy (EDS).

3. Results and Discussion

Table 1. Measured photovoltaic parameters of the perovskite photovoltaic devices.

Devices	JSC (mA cm−2)	VOC (V)	FF	RS (Ω cm2)	RSh (Ω cm2)	η (%)	ηave (%)
Standard	20.6	0.888	0.628	5.02	2330	11.5	10.8
2% CuBr2	18.9	0.952	0.655	6.34	1815	11.8	11.3
2% NaCl	20.9	0.942	0.610	6.93	657	12.0	11.6
2% CuBr2 + 2% NaCl	22.7	0.944	0.676	5.93	2567	14.5	13.6

shows photovoltaic parameters of the present perovskite photovoltaic devices with added NaCl and CuBr₂ under air mass 1.5 sunlight illumination [33]. The device with only 2% CuBr₂ added without NaCl provided a short-circuit current density (J_SC) of 18.9 mA cm⁻², an open-circuit voltage (V_OC) of 0.952 V, a fill factor (FF) of 0.655, and a conversion efficiency (η) of 11.8%. The J_SC was increased from 18.9 to 22.7 mA cm⁻² by the simultaneous addition of 2% CuBr₂ and 2% NaCl, and the η increased to 14.5%. Hysteresis of the current density-voltage curves were decreased by the co-addition of 2% CuBr₂ and 2% NaCl, which contributed to suppressing the recombination between a hole and an electron. For the 5% CuBr₂-added device, the carrier transport property and the quality of the perovskite layer were improved by increasing the amount of NaCl added, which resulted in an improvement of η.

Stability measurements of the photovoltaic parameters up to 10 weeks were carried out. The η of the (2% NaCl + 2% CuBr₂)-added device remained almost constant for 10 weeks. Although most of Cl were evaporated during the annealing process, a small amount of Cl remained in the perovskite layers. The remaining Cl in the perovskite layer played a critical role in the perovskite grain growth, which resulted in a few defects in perovskite thin films, and also led to stability. The higher V_OC and FF of the (7% CuBr₂ + 5% NaCl)-added device were maintained for 10 weeks in comparison with those of the (5% CuBr₂ + 5% NaCl)-added device, which caused a structural transition from a tetragonal to a cubic system by adding excess CuBr₂, and suppressed recombination between a hole and an electron, owing to the pinhole decrease.

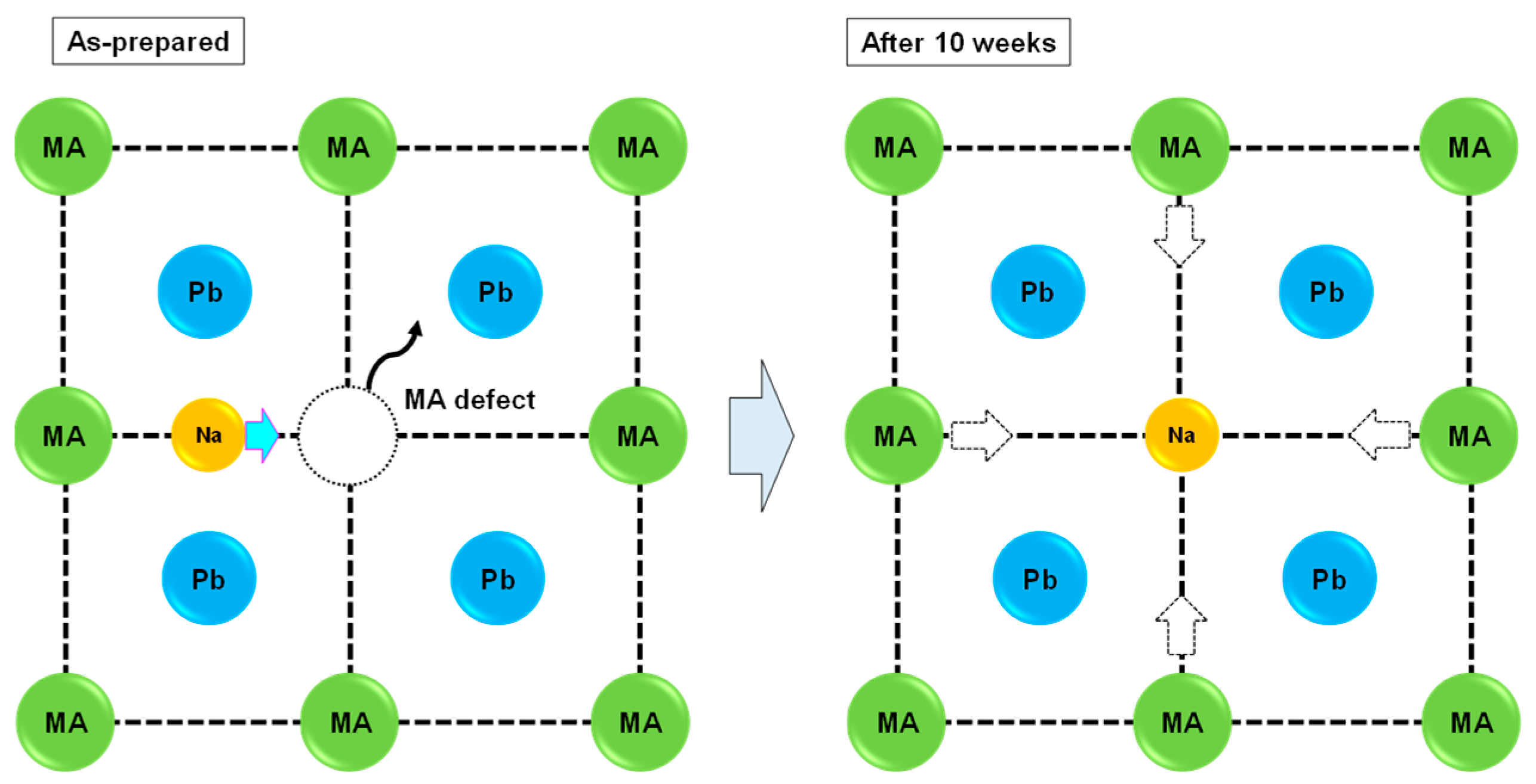

The partial Na would transfer into the MA vacancy site after 10 weeks, which caused the structural transformation from a pseudo-cubic system to a cubic system, as shown in Figure 2. This structural change indicated that a small amount of Na improved the stability of the photovoltaic properties. Although the present perovskite structures exhibited a nearly cubic structure from the lattice constant, weak diffraction peaks corresponding to tetragonal symmetry were observed at ~23°. This structure was classified as pseudo-cubic [5,36,37] of the a/c axis, which was 1 in the present work. This pseudo-cubic structure was transformed into perfect cubic symmetry by adding excess CuBr₂, which was confirmed by the disappearance of the diffraction peaks at ~23° for the 10% CuBr₂-added devices.

4. Conclusions

Effects of co-addition of NaCl and CuBr₂ to MAPbI₃ were investigated on the microstructures and photovoltaic properties. A smooth perovskite layer was obtained under the ambient air, and the J_SC was improved by the simultaneous addition of CuBr₂ and NaCl. The conversion efficiency of 14% was maintained for the (2% CuBr₂ + 2% NaCl)-added device even after 10 weeks. The perovskite structure changed from a pseudo-cubic (tetragonal) to a cubic system by adding Na. The Na atoms exist at the interstitial sites and are transferred to the MA vacancy sites after several weeks, which resulted in the improvement in the perovskite crystal’s stabilization. The photovoltaic performance of the device co-added with CuBr₂ and NaCl was superior to that of the device added with CuBr₂ and NaI.
