Molybdenum Disulfide Field Effect Transistors under Electron Beam Irradiation and External Electric Fields ^†

Abstract

In this work, monolayer molybdenum disulfide (MoS₂) nanosheets, obtained via chemical vapor deposition onto SiO₂/Si substrates, are exploited to fabricate field-effect transistors with n-type conduction, high on/off ratio, steep subthreshold slope and good mobility. We study their electric characteristics from 10⁻⁶ Torr to atmospheric air pressure. We show that the threshold voltage of the transistor increases with the growing pressure. Moreover, Schottky metal contacts in monolayer molybdenum disulfide (MoS₂) field-effect transistors (FETs) are investigated under electron beam irradiation conditions. It is shown that the exposure of Ti/Au source/drain electrodes to an electron beam reduces the contact resistance and improves the transistor performance. It is shown that e-beam irradiation lowers the Schottky barrier at the contacts due to thermally induced atom diffusion and interfacial reactions. The study demonstrates that electron beam irradiation can be effectively used for contact improvement though local annealing. It is also demonstrated that the application of an external field by a metallic nanotip induces a field emission current, which can be modulated by the voltage applied to the Si substrate back-gate. Such a finding, that we attribute to gate-bias lowering of the MoS₂ electron affinity, enables a new field-effect transistor based on field emission.

1. Introduction

Transition metal dichalcogenides (TMDs) have attracted a lot of attention in the past decades due to their several promising properties for electronic and optoelectronic applications. TMDs consist of a “sandwich” structure (layer) with a transition-metal sheet located in between two chalcogen sheets and possess unique properties such as energy bandgap tunable by the number of layers (from 0 to about 2.2 eV), good mobility up to few hundreds cm²V⁻¹s⁻¹, photoluminescence, broadband light adsorption, pristine interfaces without out-of-plane dangling bonds that allows the fabrication of hetero-structures, exceptional flexibility, thermal stability in air, and high scalability for device fabrication [1,2,3,4]. They can be produced by mechanical or liquid exfoliation, chemical vapor deposition (CVD), molecular beam epitaxy, pulsed laser deposition, etc. [5,6].

Molybdenum disulfide (MoS₂) is one of the most studied transition metal dichalcogenides, owing to its layered structure and useful mechanical, chemical, electronic and optoelectronic properties [7,8,9,10]. A molybdenum (Mo) atomic plane sandwiched between two sulphur (S) planes constitutes the monolayer that is bonded to other monolayers by weak van der Waals forces to form the bulk material. MoS₂ is a semiconductor suitable for several applications [11,12,13,14], having 1.2 eV indirect bandgap in the bulk form that becomes direct in the monolayer [9]. Even if it has a field-effect mobility from few tenths to hundreds [15,16,17,18] of cm²V⁻¹s⁻¹, lower than grapheme [19,20]. MoS₂ field effect transistors (FETs) have recently become very popular as alternatives to graphene FETs [15,16,17,18,20,21,22] for next generation electronics based on 2D-materials [23,24,25,26,27,28,29,30].

MoS₂ nanosheets have inspired applications in pressure sensors due to their very exceptional mechanical properties. Indeed, due to the atomic thickness, the electrical properties of two-dimensional materials are highly affected by ambient gases and their pressure variations [10].

It has been reported that the adsorbed gases on the MoS₂ channel of FETs result in degradation of device conductance, in enhanced hysteresis and in threshold voltage shifting [10,31,32]. Conversely, vacuum annealing can increase the MoS₂ device conductance by desorbing the gas molecules.

The fabrication and characterization of devices based on 2D materials often rely on irradiation by charged particles, as in the electron beam (e-beam) lithography (EBL) or focussed ion beam processing as well as on scanning (SEM) or transmission electron microscopy (TEM). The exposure to low-energy electrons and/or ions can modify the electronic properties of the 2D, as structural defects can locally modify the band structure and behave as charge traps, thereby changing the device characteristics [33,34].

TMDs possess atomically sharp edges and localized defects that can enhance the local electric field and enable the extraction of a field emission (FE) current with low turn-on voltage. FE is a quantum mechanical phenomenon in which electrons, extracted from a conductor or a semiconductor surface under application of an intense electric field, move in vacuum from a cathode to an anode. FE is used in a variety of applications, ranging from electrically-operated floating-gate memory cells [35,36], electron microscopy [37] and e-beam lithography [38] to display technology or vacuum electronics [39].

Fowler and Nordheim developed a field emission theory for planar electrodes that is commonly applied also to rough surfaces where tip-shaped protrusions enhance the local electric field and emit electrons at a reduced anode-to-cathode voltage [40].

In this paper, we use CVD to fabricate monolayer MoS₂ flakes on a SiO₂/Si substrate and characterize their transport properties. We studied their electric properties under electron beam irradiation and varying the pressure. Furthermore, using a tip anode that can be accurately positioned near the edge of the flake, we investigate the local field emission properties of MoS₂ nanosheets.

2. Materials and Methods

A three-zone split tube furnace, purged with 1000 Ncm³/min of Ar gas for 15 min to minimize the O₂ content, was used to grow MoS₂ flakes by CVD. The p-Si substrate capped by 285 nm thick SiO₂ was initially spin coated with 1% sodium cholate solution. The substrate and the MoO₃ precursor, obtained from a saturated ammonium heptamolybdate (AHM) solution annealed at 300 °C under ambient conditions, were placed in one of the three zones of the tube furnace, while 50 mg of S powder were positioned upstream in a separate heating zone. The zones containing the S and MoO₃ were heated to 150 °C and 750 °C, respectively. The growth process was stopped after 15 min and the sample was cooled down rapidly [41].

Larger MoS₂ flakes were selected to fabricate field-effect transistors (FET) through standard photolithography and lift-off processes. Figure 1a,b show the scanning electron microscope (SEM) top view of a typical device and its schematic layout and biasing circuit. The Si substrate is the back-gate while the evaporated Ti/Au (10/40 nm) electrodes are the source and the drain of the FET.

The electrical measurements were carried out inside an SEM chamber (LEO 1530, Zeiss, Oberkochen, Germany), endowed with two metallic probes (tungsten tips) connected to a Keithley 4200 Source Measurement Unit (SCS, Tektronix Inc., Beaverton, OR, USA). Piezoelectric motors control the motion of the tips that can be positioned with nanometer precision. The chamber was usually kept at room temperature and pressure below 10⁻⁶ Torr.

In the following, the electrical characterization refers to the transistor between the contacts labelled as 1 and 2 in Figure 1a. The contact 1 constitutes the drain and 2 the grounded source (Figure 1b).

3. Results and Discussion

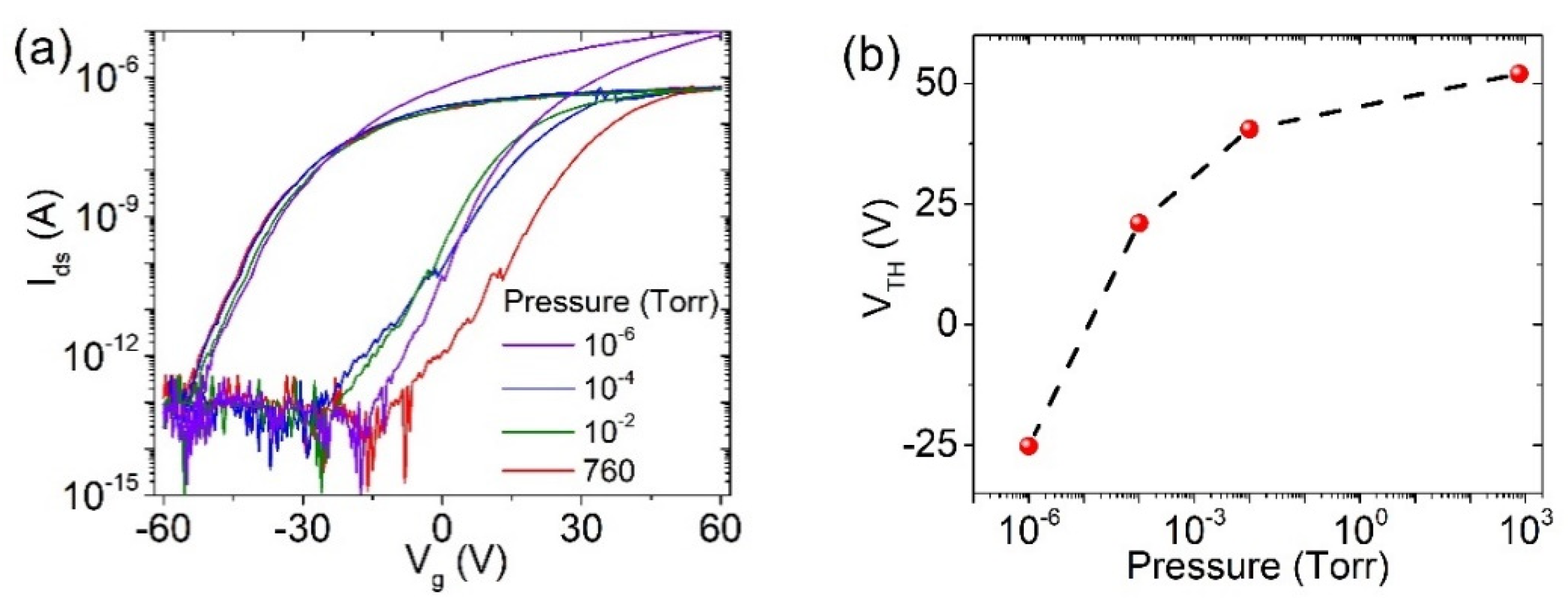

The result of transfer characteristic measurements at different pressures, $\mathrm{P}$, from high vacuum to atmospheric pressure is displayed in Figure 2a. The increasing air pressure causes a left-shift of the transfer curve and therefore an increase of transistor threshold voltage, ${\mathrm{V}}_{\mathrm{th}}$. The threshold voltage is here defined as the x-axis intercept of the straight lines fitting the ${\mathrm{I}}_{\mathrm{ds}}-{\mathrm{V}}_{\mathrm{gs}}$ curves in the current range 1–100 nA. We note that the effect of air pressure on the channel conductance, which could result in the dramatic transformation of n-type to p-type conduction when passing from high vacuum to atmospheric pressure, has been reported also for other 2D TMDs materials such as WSe₂ or PdSe₂ (REF). The effect is usually reversible although it has been found that an aging can occur in specific TMDs, such as PdSe₂, after a long (>20 days) air exposure at atmospheric pressure [32].

The monotonic $V_{th}-P$ behaviour, shown in Figure 3b, suggests that the transistor can be used as pressure sensor, with maximum sensitivity up to $\frac{\mathrm{dV}}{\mathrm{d}\left({\log }_{10}\mathrm{P}\right)}\approx 13\frac{\mathrm{V}}{\mathrm{decade}}$ at lower pressures, where the $V_{th}-P$ curve is steeper. Besides the higher sensitivity, the duty cycle of the device increases when operated in vacuum because of the suppressed air aging effect. Therefore, the sensor is best suited as a vacuum gauge. Moreover, the sensor can be operated in low power-consumption regime as is needed a current of $1 \mathrm{nA}$ or less to monitor the $V_{th}$ variation.

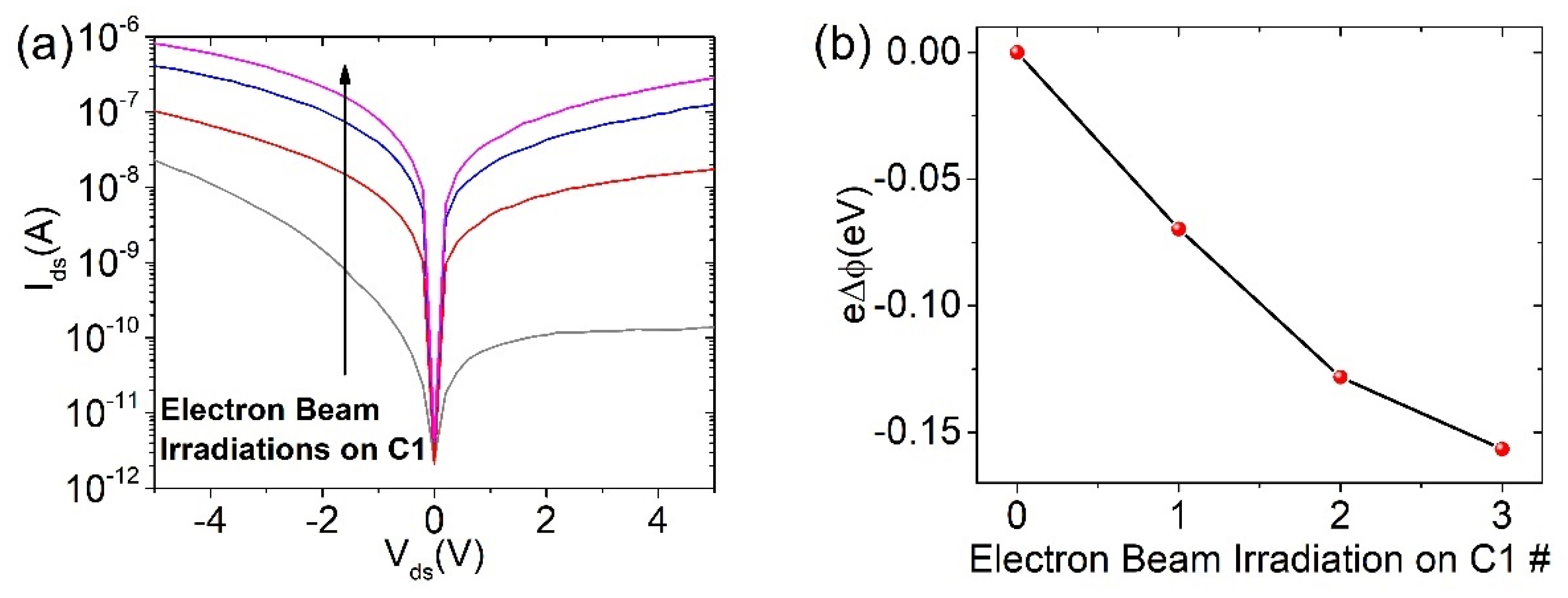

The device contact 1 has been exposed to the SEM electron beam. Each exposure lasted 300 s corresponding to a fluence of $~180 \frac{{\mathrm{e}}^{-}}{{\mathrm{nm}}^2}$, over a surface of $~100{ \mathsf{\mu }\mathrm{m}}^2$. As the shape and the current intensity of the output characteristics is related to the Schottky barrier heights at the contacts, the exponentially increasing current displayed in Figure 3a induced Schottky barrier lowering. The energy release in the metal contacts can modify the chemistry of the metal/MoS₂ interface or create stress and defects that can lead to a lowering of the barrier and a consequent contact resistance reduction. We note that the reduction of the contact resistance by chemical reactions between the metal contacts and MoS₂ channel has been reported for metal deposited under ultrahigh vacuum [42] and contact laser annealing [43]. A disordered, compositionally graded layer, composed of Mo and ${\mathrm{Ti}}_{\mathrm{x}}{\mathrm{S}}_{\mathrm{y}}$ species, forms at the surface of the MoS₂ crystal following the deposition of Ti, and thermal annealing in the 100–600 °C temperature range can cause Ti diffusion inducing further chemical and structural changes at the Ti/MoS₂ interface [44,45]. It is also possible that diffusion of Au atoms to the interface with MoS₂ occurs under the energetic electron beam irradiation. Au does not react with MoS₂ but reduces the contact resistance and therefore to the Schottky barrier height.

Figure 3b shows the Schottky barrier variation at the interface of the contact 1 and the flake, calculated as reported in reference [46].

The intrinsic and gate-controllable n-type doping, the low electron affinity (4.2 eV [47]), and the nanosheets’ sharp edges make 2D MoS₂ appealing for FE applications [8,11]. To perform field emission measurements, we used the configuration in the inset of Figure 4a.

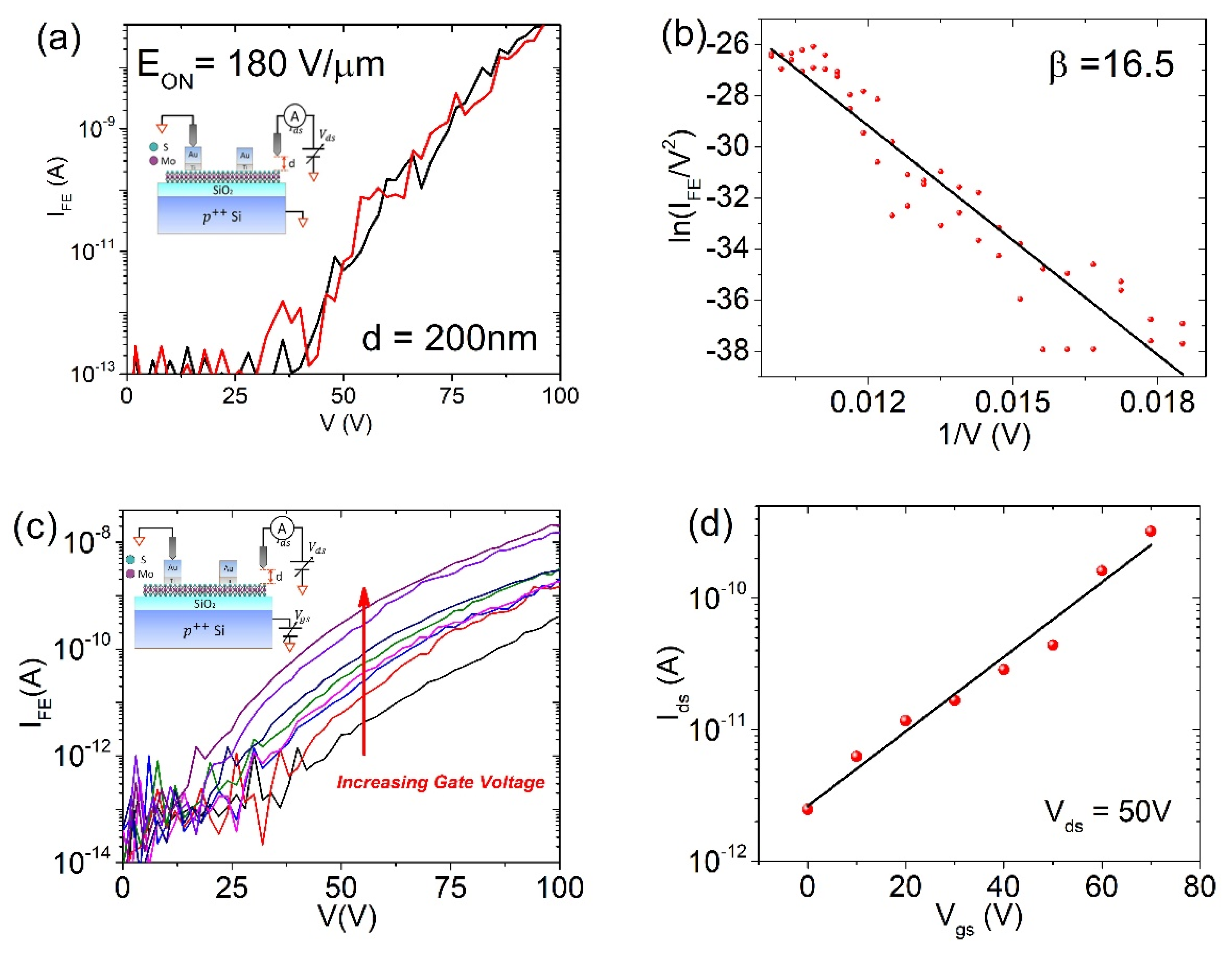

Figure 4a shows two curves of field emission current measurements performed at d = 200 nm anode-cathode distance. They show repeatable FE current occurring with about 180 V/μm turn-on field (defined as the field to which the current emerges from the noise floor).

According to the Fowler–Nordheim (FN) model, the FE current from a semiconductor can be described as [48]:

$$I_{FE}=Sa\frac{E_S^2}{\chi }{e}^{-b\frac{{\chi }^{3/2}}{E_s}}$$

(1)

where S is the emitting surface area, $a=1.54\times {10}^{-6}{\mathrm{A} \mathrm{V}}^{-2}\mathrm{eV}$ and $b=6.83\times {10}^{7}V {\mathrm{cm}}^{-1}{\mathrm{eV}}^{-\frac{3}{2}}$ are constants, $E_S \left(Vc{m}^{-1}\right)$ is the electric field at the emitting surface and χ is the electron affinity of the emitting material. The electric field $E_S=\beta V/\left(k·d\right)$, with β the so-called field enhancement factor, i.e., the ratio between the electric field at the sample surface and the applied field $V/\left(k·d\right)$, and $k~1.6$ a phenomenological factor accounting for the spherical shape of the tip [49,50]. The Fowler–Nordheim equation leads to the linear behaviour of the so-called FN plot of $ln\left(I_{FE}/V^2\right)vs.1/V$ of Figure 4b, which allows to estimate the β factor as 16.5.

The back gate can be used to electrically control the doping level of the MoS₂ channel. Greater availability of conduction electrons increases the tunneling probability. Therefore, a positive voltage on the gate is expected to enhance the field emission current.

Indeed, Figure 4c confirms an increasing field emission current for increasing gate voltages.

The data of Figure 4c provide the proof-of-concept of a new MoS₂ field-effect transistor based on field emission. The transfer characteristic of the device, at different anode voltages V, are shown in Figure 4d. The exponential growth of the field emission current for increasing V_gs is well explained in reference [51].

4. Conclusions

We have fabricated and electrically characterized monolayer MoS₂ field effect transistors. We have found that the threshold voltage of the transistor increases monotonously with the air pressure. We investigated the effects of 10 keV electron beam irradiation of the Schottky metal contacts in ${\mathrm{Mo}S}_2$ based FETs. The electrical measurements revealed that electron beam irradiation improves the device conductance, reduces the rectification of the output characteristic and causes a left-shift of the threshold voltage. A field emission current, following the FN model, has been measured from the edge of the MoS₂ nanosheets. More importantly, it has been shown that the gate voltage can modulate the FE current thus featuring a new transistor based on field emission. This finding constitutes a first step toward a device with great application potential, especially if implemented with the current flowing parallel to the substrate surface.
