Proceeding Paper

Electrodeless Studies of MXenes in Aqueous and Polar Non-Aqueous Aprotonic Solvent †

by
Oksana Gutsul
1,* and
Vsevolod Slobodyan
2
1
Medical and Biological Physics and Medical Informatics Department, Bukovinian State Medical University, 58000 Chernivtsi, Ukraine
2
Electronics and Energy Department, Applied-Physics and Computer Sciences Institute, Yuriy Fedkovych Chernivtsi National University, 58012 Chernivtsi, Ukraine
*
Author to whom correspondence should be addressed.
Presented at The 11th International Electronic Conference on Sensors and Applications (ECSA-11), 26–28 November 2024; Available online: https://sciforum.net/event/ecsa-11.
Eng. Proc. 2024, 82(1), 68; https://doi.org/10.3390/ecsa-11-20464
Published: 26 November 2024

Abstract

MXenes attract considerable attention due to their unique properties, in particular, their high electrical conductivity. The physical processes occurring during the electrodeless study of the specific electrical conductivity σ of MXenes in distillation water and in a polar non-aqueous solvent of N-Methyl-2Pyrrolidone (NMP) at fixed resonant frequencies for five solenoids (f1 = 160 kHz, f2 = 270 kHz, f3 = 1.6 MHz, f4 = 4.8 MHz, and f5 = 23 MHz) are considered. The oscillating circuit was tuned to resonance by changing the capacitance of the BM-560 Q-factor meter. The Q factor of the oscillating circuit was measured in the range of 100–300 with a maximum relative error of ±5% and in the range of 30–100 with a maximum relative error of ±3%. The cylinder with the liquid was placed in the middle of the measuring solenoid, in the area of a homogeneous magnetic field. The measurements were performed for four control volumes of the liquids under study (1 mL, 2 mL, 3 mL, and 4 mL). The best measurement sensitivity was observed for the maximum volume of the liquid (4 mL). A difference between the experimental dependences of the introduced attenuation d of the oscillating circuit with a cylinder with MXenes in aqueous and non-aqueous polar solvent NMP was observed. The nonlinear dependence of the attenuation of the oscillatory circuit d on the volume of the studied liquids was analyzed. The maximum value of the attenuation of the oscillating circuit for the solenoid at the resonant frequency of 160 kHz was observed for the NMP-MXenes measurement, in contrast to the study of MXenes in distillation water having the highest attenuation at a frequency of 1.6 MHz.

1. Introduction

MXenes attract considerable attention due to their unique properties, in particular, their high electrical conductivity [1,2,3,4,5].
Electrodeless studies of the specific conductivity of liquids are relevant for many fields of science and production, including technological processes using both chemically clean and chemically aggressive liquids. The study of the properties of aqueous solutions of electrolytes for a wide range of concentrations is of great interest both for practice and for the development of theoretical concepts [6]. The current state of research on the electrophysical parameters of liquids allows information about the behavior and structures of various liquids to be obtained [7,8]. Measurement of electrical conductivity in solids and liquids is usually carried out using the contact method using electrodes. Therefore, the corresponding measurement methods are often called contact or electrode.
Currently, electrodeless and electrodeless methods are used to study the specific electrical conductivity of a liquid. Most of these methods were developed on the basis of the analysis of transient and stationary processes involving the object under study. The occurrence of these processes is caused by eddy currents formed in the object under study, which depend on the object’s structure and electrical conductivity. Measurement of weak eddy currents using inductive sensors leads to a significant increase in measurement error. An alternative to reduce the number of measurement errors is the use of high-frequency resonance methods.

2. Materials and Methods

The solvent replacement method was used to prepare the solutions under study, as previously reported in [2]. Before the study, the prepared suspensions of Ti3C2-based MXenes in two solvents, in the polar aprotic solvent NMP and in distilled water, were sonicated at 37 kHz for 30 min to prevent particle aggregation.
In the device for the electrodeless measurement of the specific electrical conductivity of liquids, the eddy current in the cylinder with the liquid under study is inductively connected to the measuring oscillating circuit. Before examining the liquid in the cylinder, the Q-factor of the oscillating circuit is measured in the absence of liquid in the cylinder ( Q 0 ), as well as the wave resistance ρ0:
ρ 0 = ω L = 1 ω C 1 = L C 1 ,
At the same time, the VM-560 Q-factor meter is tuned to the resonant frequency (f1 = 160 kHz, f2 = 270 kHz, f3 = 1.6 MHz, f4 = 4.8 MHz, and f5 = 23 MHz). Tuning for voltage resonance is carried out by changing the capacitance C1 of the oscillating circuit.
When a cylinder with an inner radius r = 10 mm is filled with a liquid with a specific electrical conductivity σ, there is a decrease in the Q-factor of the equivalent oscillating circuit Q and a change in its wave resistance ρ, which can be measured experimentally.
The effect on the parameters of the oscillating circuit caused by the presence of liquid in the cylinder is described by the applied damping of the oscillating circuit d, which is calculated according to the formula [9]:
d = 1 Q 1 Q 0 = ( ω M ) 2 ω L r r 2 + x 2 ,
where Q is the Q-factor of the oscillating circuit with the tested liquid in the cylinder; Q0 is the Q-factor of the oscillating circuit in the absence of liquid in the cylinder; ω is the circular frequency of the oscillating circuit; M is the mutual induction coefficient; L is the inductance of the measuring solenoid; r is the active resistance to the eddy current in the liquid placed in the cylinder; and x is the reactive resistance to the eddy current.
If the cylinder is not filled with liquid, then 1 r = 0 ; hence, 1 Q = 1 Q 0 . The specific electrical conductivity of a liquid is inversely proportional to the resistance of the liquid r = A/σ. Therefore, the dependence of the introduced attenuation d on the specific electrical conductivity σ can be obtained according to the formula:
d = ( ω M ) 2 ω L A / σ A / σ 2 + x 2 ,
where x is the reactive resistance to the eddy current and A = l/S is a constant of the measuring complex, where l is the length of the eddy current in the cylinder and S is the cross-section through which the eddy current in the cylinder passes.
The dependences of the introduced attenuation d on the specific electrical conducti-vity σ were obtained, which were used as calibration dependencies for the electrodeless measurement of the specific electrical conductivity σ of a fixed volume V of liquid in a cylinder of radius r based on the experimental measurement of the introduced damping d of the oscillating circuit.
The physical processes occurring during the electrodeless studies of the specific electrical conductivity σ of MXenes in distillation water and in a polar non-aqueous solvent of NMP at fixed resonant frequencies for five solenoids (f1 = 160 kHz, f2 = 270 kHz, f3 = 1.6 MHz, f4 = 4.8 MHz, and f5 = 23 MHz) are considered. The oscillating circuit was tuned to resonance by changing the capacitance of the Q-meter. In Figure 1, one can observe the electrical scheme of the experimental setup for the electrodeless measurement of liquids.
The Q-factor of the oscillating circuit was measured in the range of 100–300 with a maximum relative error of ±5% and in the range of 30–100 with a maximum relative error of ±3%. The cylinder with the liquid was placed in the middle of the measuring solenoid, in the area of a homogeneous magnetic field. The measurements were performed for four control volumes of the liquids under study (1 mL, 2 mL, 3 mL, and 4 mL).

3. Results and Discussion

The best measurement sensitivity was observed for the maximum volume of the li-quid (4 mL). A difference between the experimental dependences of the introduced attenuation d of the oscillating circuit with a cylinder with MXenes in aqueous and non-aqueous polar solvent NMP was observed. The nonlinear dependence of the attenuation of the oscillatory circuit d on the volume of the studied liquids was analyzed. The maximum value of the attenuation of the oscillating circuit for the solenoid at the resonant frequency of 160 kHz was observed for the NMP-MXenes measurement (Figure 2a), in contrast to the study of MXenes in distillation water having the highest attenuation at a frequency of 1.6 MHz (Figure 3).
Figure 2b shows a comparison of the introduced attenuation at resonant frequencies for the same volume (4 mL) of the four different solutions studied: MXenes in NMP, NMP solution, MXenes in distilled water, and pure distillation water.
The experimental dependences of the introduced attenuation for aqueous suspensions of MXenes showed the greatest sensitivity at the resonant frequency of 1.6 kHz. With an increase in the volume of the suspension under study, an increase in the value of the introduced attenuation d was observed. For comparison, the frequency dependence of the introduced attenuation d for 4 mL of distilled water was also plotted. The graphical dependences of the introduced attenuation on the resonant frequency f on a semilogarithmic scale for distilled water (4 mL) and MXenes dissolved in distilled water for the different studied volumes (1–4 mL) are shown in Figure 3b.

4. Conclusions

Experimental electrodeless studies of eddy currents depend significantly on the choice of solenoid and its resonant frequency. The sensitivity of the electrodeless method increases with the volume of the liquid under study. It has been experimentally established that it is advisable to conduct electrodeless studies of eddy currents in MXenes dissolved in the organic solvent N-methyl-2pyrrolidone in solenoids with resonant frequencies of 160 kHz and 270 kHz and for MXenes dissolved in distilled water in a solenoid with a resonant frequency of 1.6 MHz. In general, this electrodeless method of investigation is appropriate for analyzing the stability of MXenes in various solvents.

Author Contributions

Conceptualization and methodology, O.G. and V.S.; software, V.S.; validation, V.S.; formal analysis, O.G. and V.S.; investigation, V.S. and O.G.; writing—original draft pre-paration, O.G.; writing—review and editing, V.S.; visualization, O.G. and V.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data is available upon request to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tang, H.; Wang, R.; Shi, L.; Sheremet, E.; Rodriguez, R.D.; Sun, J. Post-processing strategies for improving the electrical and mechanical properties of MXenes. Chem. Eng. J. 2021, 425, 131472. [Google Scholar] [CrossRef]
  2. Gutsul, O.; Szabo, O.; Kumar, N.; Pfeifer, R.; Dzurnak, B.; Sasitharan, K.; Slobodyan, V.; Kromka, A.; Rezek, B. Electrical properties of MXene thin films prepared from non-aqueous polar aprotic solvents. J. Mater. Res. 2023, 38, 3227–3237. [Google Scholar] [CrossRef]
  3. Zandi, Z.; Rastgar, M.; Mohseni, M.; Dadashi Firouzjaei, M.; Dilokekunakul, W.; Anasori, B.; Vecitis, C.D.; Keller, R.; Wessling, M.; Elliott, M.; et al. Electro-Conductive Ti3C2 MXene Multilayered Membranes: Dye Removal and Antifouling Performance. Adv. Funct. Mater. 2024, 34, 2401970. [Google Scholar] [CrossRef]
  4. Alhabeb, M.; Maleski, K.; Anasori, B.; Lelyukh, P.; Clark, L.; Sin, S.; Gogotsi, Y. Guidelines for Synthesis and Processing of Two-Dimensional Titanium Carbide (Ti3C2Tx MXene). Chem. Mater. 2017, 29, 7633–7644. [Google Scholar] [CrossRef]
  5. Zhang, J.; Li, Y.; Duan, S.; He, F. Highly electrically conductive two-dimensional Ti3C2 MXenes-based 16S rDNA electrochemical sensor for detecting Mycobacterium tuberculosis. Anal. Chim. Acta 2020, 1123, 9–17. [Google Scholar] [CrossRef]
  6. Jungwirth, P.; Tobias, D.J. Specific Ion Effects at the Air/Water Interface. Chem. Rev. 2006, 106, 1259–1281. [Google Scholar] [CrossRef]
  7. Golnabi, H.; Matloob, M.R.; Bahar, M.; Sharifian, M. Investigation of electrical conductivity of different water liquids and electrolyte solutions. J. Theor. Appl. Phys. (Iran. Phys. J.) 2009, 3, 24–28. [Google Scholar]
  8. Zhang, S. Positive Solutions for Boundary-Value Problems of Nonlinear Fractional Differential Equations. Electron. J. Differ. Equ. 2006, 1–12. [Google Scholar] [CrossRef]
  9. Gutsul, O.; Slobodyan, V. Electrodeless Investigation of Conductivity of Liquid in Capillaries with due Regard for Skin Effect. Radioelectron. Commun. Syst. 2019, 62, 173–180. [Google Scholar] [CrossRef]

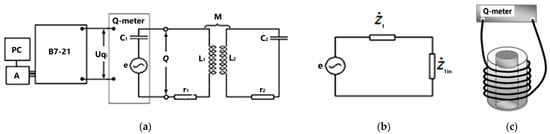

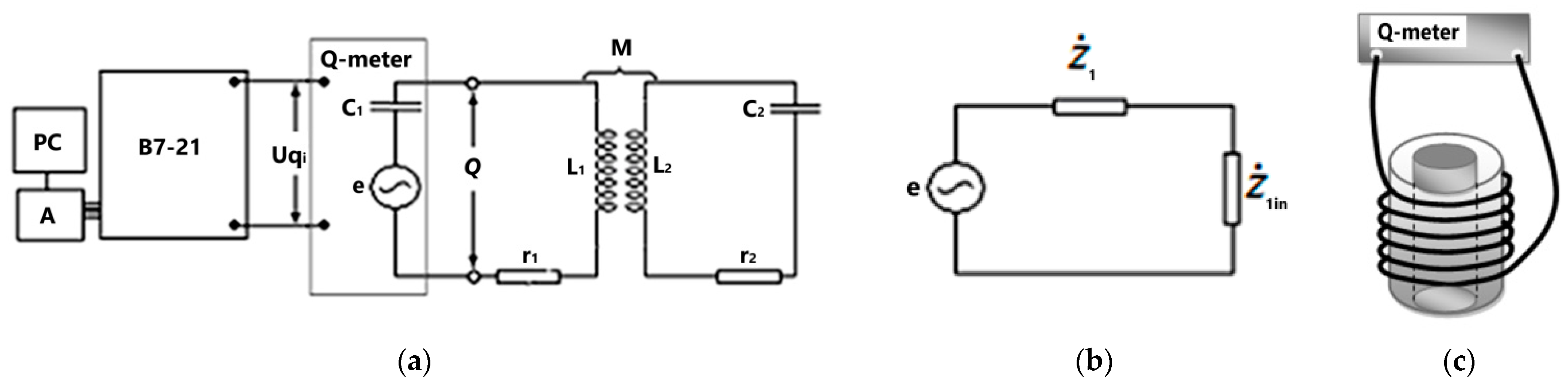

Figure 1. Schematic of the experimental setup for the electrodeless measurement of liquids: (a) electrical scheme of the measuring (1) and test (2) parts of the setup; (b) equivalent diagram of two connected circuits; (c) schematic representation of the connection of the measuring solenoid to the Q-factor meter.
Figure 1. Schematic of the experimental setup for the electrodeless measurement of liquids: (a) electrical scheme of the measuring (1) and test (2) parts of the setup; (b) equivalent diagram of two connected circuits; (c) schematic representation of the connection of the measuring solenoid to the Q-factor meter.
Engproc 82 00068 g001

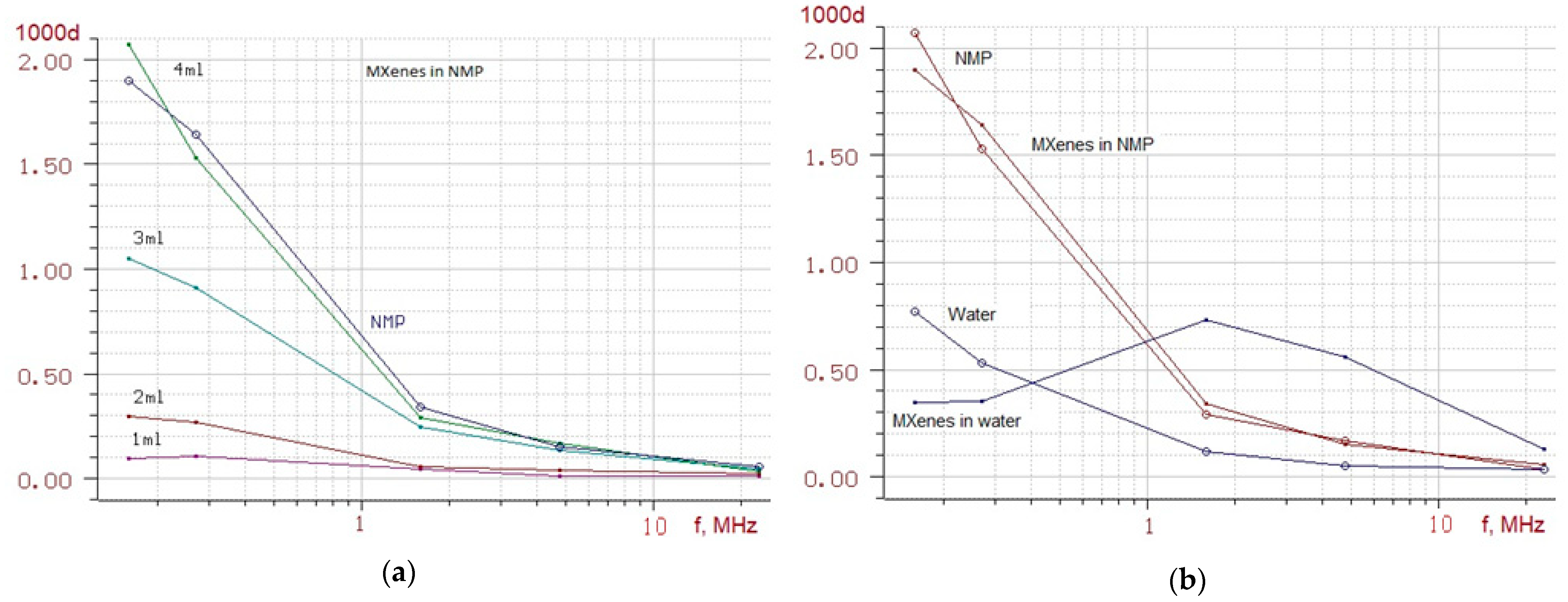

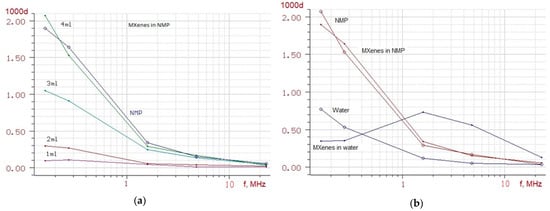

Figure 2. Dependences of the introduced attenuation 1000 d on the resonant frequency f on the semi-logarithmic scale: (a) five different solenoids for four different volumes (1–4 mL) of MXenes dissolved in NMP and NMP solution separately and (b) comparison of 4 mL of four different tested solutions.
Figure 2. Dependences of the introduced attenuation 1000 d on the resonant frequency f on the semi-logarithmic scale: (a) five different solenoids for four different volumes (1–4 mL) of MXenes dissolved in NMP and NMP solution separately and (b) comparison of 4 mL of four different tested solutions.
Engproc 82 00068 g002

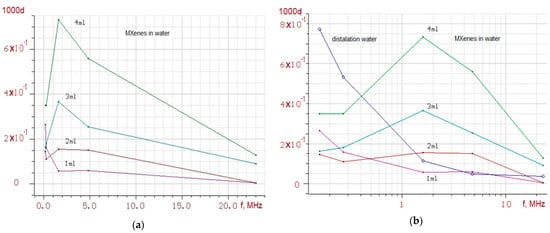

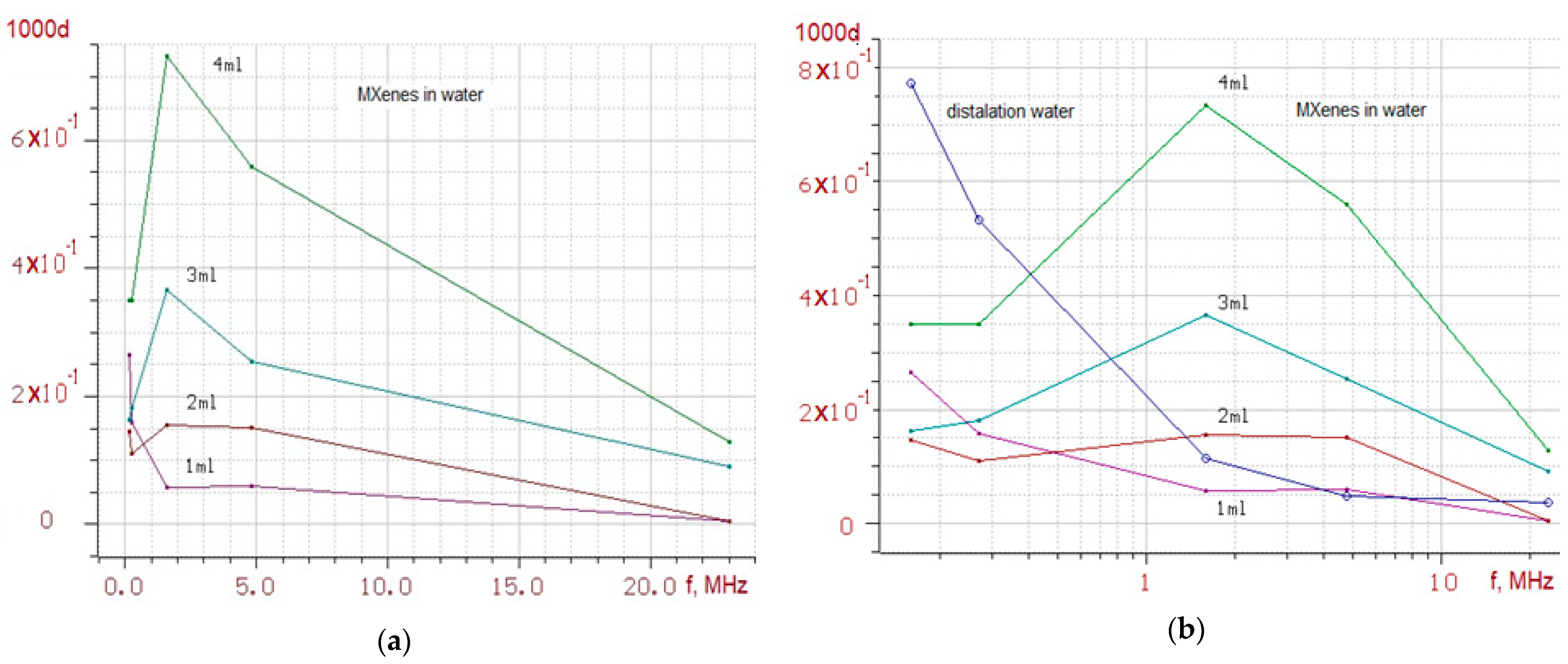

Figure 3. Dependences of the introduced attenuation 1000 d on the resonant frequency f of five different solenoids for four different volumes (1–4 mL) of MXenes dissolved in distilled water: (a) at a simple scale and (b) at a semi-logarithmic scale.
